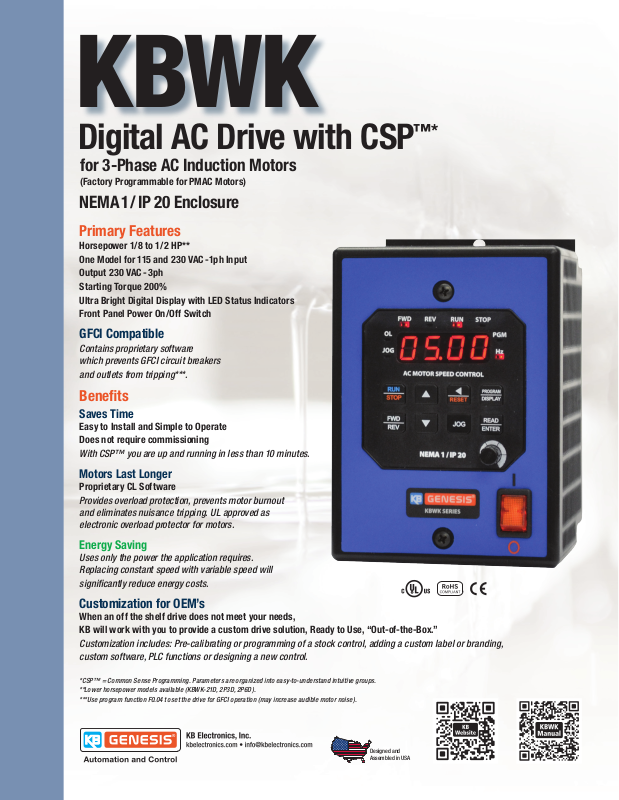

KB Electronics KBWK Product Flyer
KBWK
Digital AC Drive with CSP
for 3-Phase AC Induction Motors
(Factory Programmable for PMAC Motors)
NEMA 1/ IP 20 Enclosure
Primary Features
Horsepower 1/8 to 1/2 HP**
One Model for 115 and 230 VAC-1ph Input
Output 230 VAC- 3ph
Starting Torque 200%
Ultra Bright Digital Display with LED Status Indicators
Front Panel Power On/Off Switch
GFCI Compatible
Contains proprietary software
which prevents GFCI circuit breakers
and outlets from tripping***.
™*
Benefits
Saves Time
Easy to Install and Simple to Operate
Does not require commissioning
With CSP™ you are up and running in less than 10 minutes.
Motors Last Longer
Proprietary CL Software
Provides overload protection, prevents motor burnout
and eliminates nuisance tripping. UL approved as
electronic overload protector for motors.
Energy Saving
Uses only the power the application requires.
Replacing constant speed with variable speed will
significantly reduce energy costs.
Customization for OEM’s
When an off the shelf drive does not meet your needs,
KB will work with you to provide a custom drive solution, Ready to Use, “Out-of-the-Box.”
Customization includes: Pre-calibrating or programming of a stock control, adding a custom label or branding,
custom software, PLC functions or designing a new control.
*CSP™ = Common Sense Programming. Parameters are organized into easy-to-understand intuitive groups.
**Lower horsepower models available (KBWK-21D, 2P3D, 2P6D).
***Use program function F0.04 to set the drive for GFCI operation (may increase audible motor noise).
Designed and
Assembled in USA
2
Additional Features
Sensorless Flux Vector Control
Flux Vector Compensation with Static Auto-Tune provides excellent speed regulation
with high torque loads throughout the entire speed range. Auto energy saving at light
loads. Smooth motor torque.
Electronic Inrush Current Limit (EICL™) Protection
Eliminates harmful inrush AC line current during power up.
Jog
Provides a xed preset speed.
Built-in Potentiometer
Sets motor speed in lieu of keypad.
Ride-Through
Provides smooth recovery to the previous set speed during a momentary power loss.
Holding Torque at Zero Speed
Resists motor shaft rotation when the drive is in “Stop” mode.
Regeneration Protection
Eliminates tripping due to high bus voltage caused by rapid deceleration of high
inertial loads.
Undervoltage and Overvoltage Protection
Shuts down the drive if the AC line input voltage goes above or below
the operating range.
Short Circuit Protection
Shuts down the drive if a short circuit occurs at the motor (phase-to-phase).
Drive Input Voltage Settings
Drive Set for 208/230 Volt
AC Line Input
(J3 Not Installed) (Factory Setting)
J3
L2A
115V
L2B
Visit kbelectronics.com
to learn about Build-A-Drive™ , KB’s New AC Inverter Program and
to watch the new KBAC installation demo video.
Drive Set for 115 Volt
AC Line Input
(J3 Installed)
J3
L2A
115V
L2B
D-1045
Applications
• Actuators • Air Cleaners • Amusement Rides
• Ball Pitching Machines • Blowers • Boat Lifts
• Bowling Alley Lane Cleaners • CNC • Conveyors
• Door and Gate Openers • Drilling • Duct Cleaners
• Dumbwaiters • Elevators and Hoists
• Exercise Equipment • Fabric Processing • Fans
• Feeders • Film Processing • Floor Cleaning
• Food Processing • Garment Cutting
• Grinding and Polishing • Hoppers • Horse Walkers
• HVAC • Indexers • Irrigation • Laminating
• Lift Station Pumps • Machine Tools
• Medical • Milling • Mixers • Oven Conveyors
• Packaging • Paint Blenders, Shakers, and Sprayers
• Paper Handling • Portable Equipment Used with GFCIs
• Pottery Wheels • Printing
• Pumps • Range Hoods • Sandblasting • Saws
• Sewing • Stretch Wrap • Textile • Treadmills
• Therapeutic Vibrators • Washing Machines
• Wave Soldering • Web Processing • Wheelchair Lifts
• Whole House Vacuums and Attic Fans
• Wire Feeders • Wood and Metal Lathes and Cutters
• Winders and Unwinders
