QUICKSTART
BR/BD 55/40 RS
Warning
These are only brief instructions! Please read and comply with these instructions prior to using or servicing your appliance.
The non-compliance of the operating and safety instructions may lead to damages of the appliance and to dangers for the operator and other persons.
Start up
A B A Unplug the charger from the mains.
1
B Place the mains cable into the storage
compartment.
2
3
A
B
A B A Pour in detergent.
A Open the cover of the fresh water reservoir.
Fill in fresh water (maximum 60 °C). Leave sufficient space for the detergent.
Close the cover of the fresh water reservoir.
or
B Connect the hose to the automatic filling
system and open the water supply (max.
60°C).
Monitor the appliance - the automatic filling
system will interrupt the water supply when
the tank is full.
Shut off the water supply and disconnect the
hose from the appliance.
B Open fresh water valve.
5.964-039.0 02/11
QUICKSTART
Operation
1
2
A
C
A
B Starting the machine
A Step on the standing platform.
Do not press the accelerator pedal.
B Release emergency-stop button by turning.
C Set main switch to “1”.
B Drive forward
A Set the forward drive direction using the drive
direction button at the operator console.
B Set the speed range on the programme
selection switch.
C Press accelerator pedal down slowly.
Release the accelerator pedal, the machine
brakes automatically and stops.
3
C
A
C
B Reverse drive
A Set the drive direction to backwards using the
drive direction button at the operator console.
B Set the speed range on the programme
selection switch.
C Press accelerator pedal down slowly.
Release the accelerator pedal, the machine
brakes automatically and stops.
A
4
Scrubbing vacuum Eco mode
A Light cleaning intensity
Wet clean the floor and vacuum up dirt water.
5.964-039.0 02/11
QUICKSTART
Operation
5
6
7
A
A Vacuuming
A Apply detergent solution
Scrubbing suction
A High cleaning intensity
Wet clean the floor and vacuum up dirt water.
A Suck in the dirt fleet.
A Apply detergent solution to the severelyk
contaminated surface and let it soak in.
1
2
Finish operation
A B C Turn off the appliance
A Set programme switch to step 1 (driving).
B Turn key to "0" and remove it.
C Press emergency-stop button.
A
Turn off the water supply
A Close the fresh water valve.
A B Emptying the Dirt Water Reservoir
3
몇 Warning
Please observe the local provisions regarding the wastewater treatment.
A Take the water discharge hose from the
support and lower above a suited collection
device.
B Then rinse the dirt water tank with clear
water.
5.964-039.0 02/11
QUICKSTART

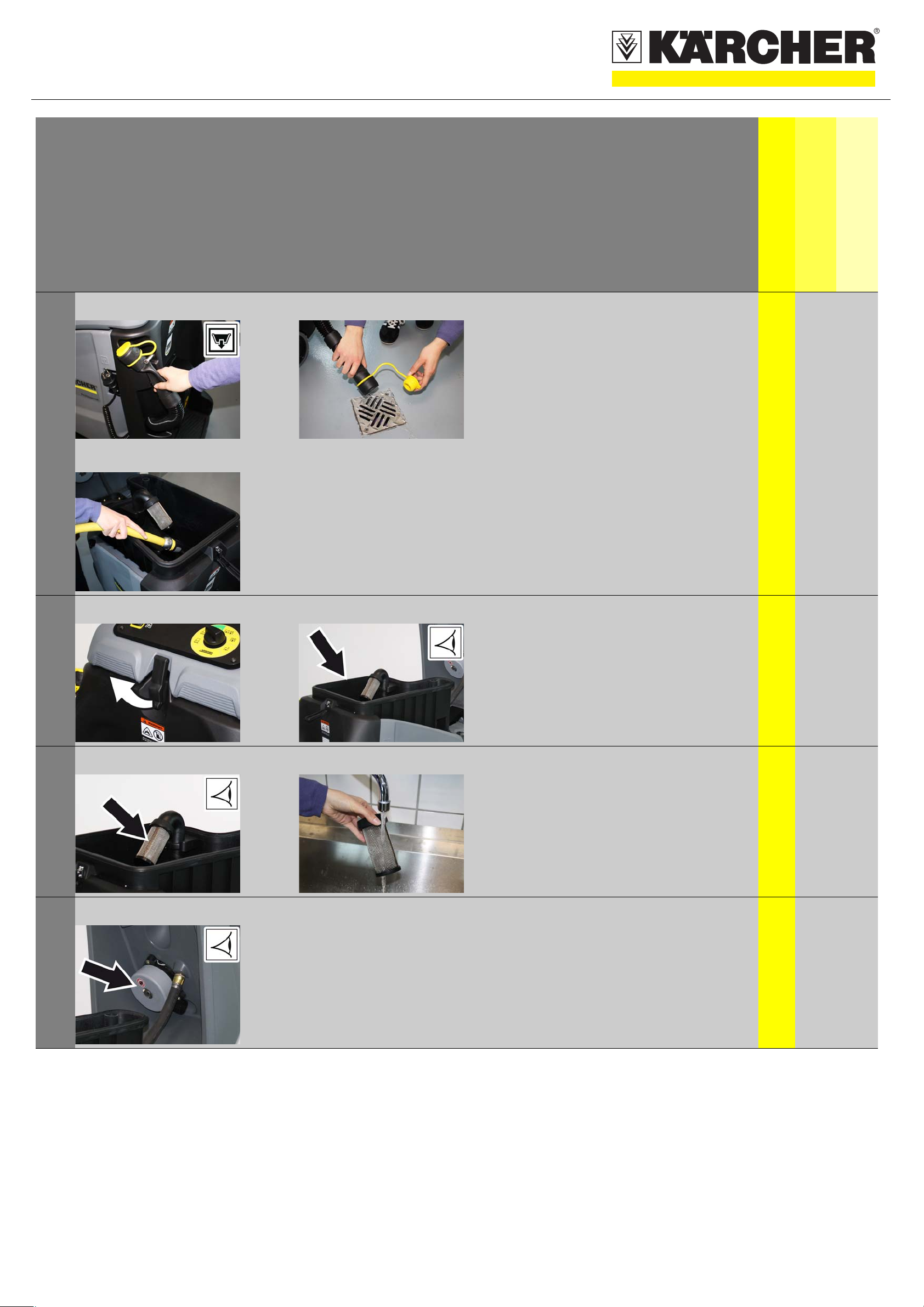

Maintenance and care
1
A
B
몇 Warning
Please observe the local provisions regarding the wastewater treatment.
A Take the water discharge hose
from the support and lower above a
suited collection device.
B Then rinse the dirt water tank with
clear water.
daily
weekly
Kärcher Customer Service
2
3
4
A A Open the lock.
Swivel the top of the appliance forward.
Check and ensure that the top of the appliance is seated properly on the wastewater reservoir.
A A Check and clean the waste water
reservoir sieve.
A A Explanin the swimmer in the dirt
water tank and its functioning.
5.964-039.0 02/11
QUICKSTART

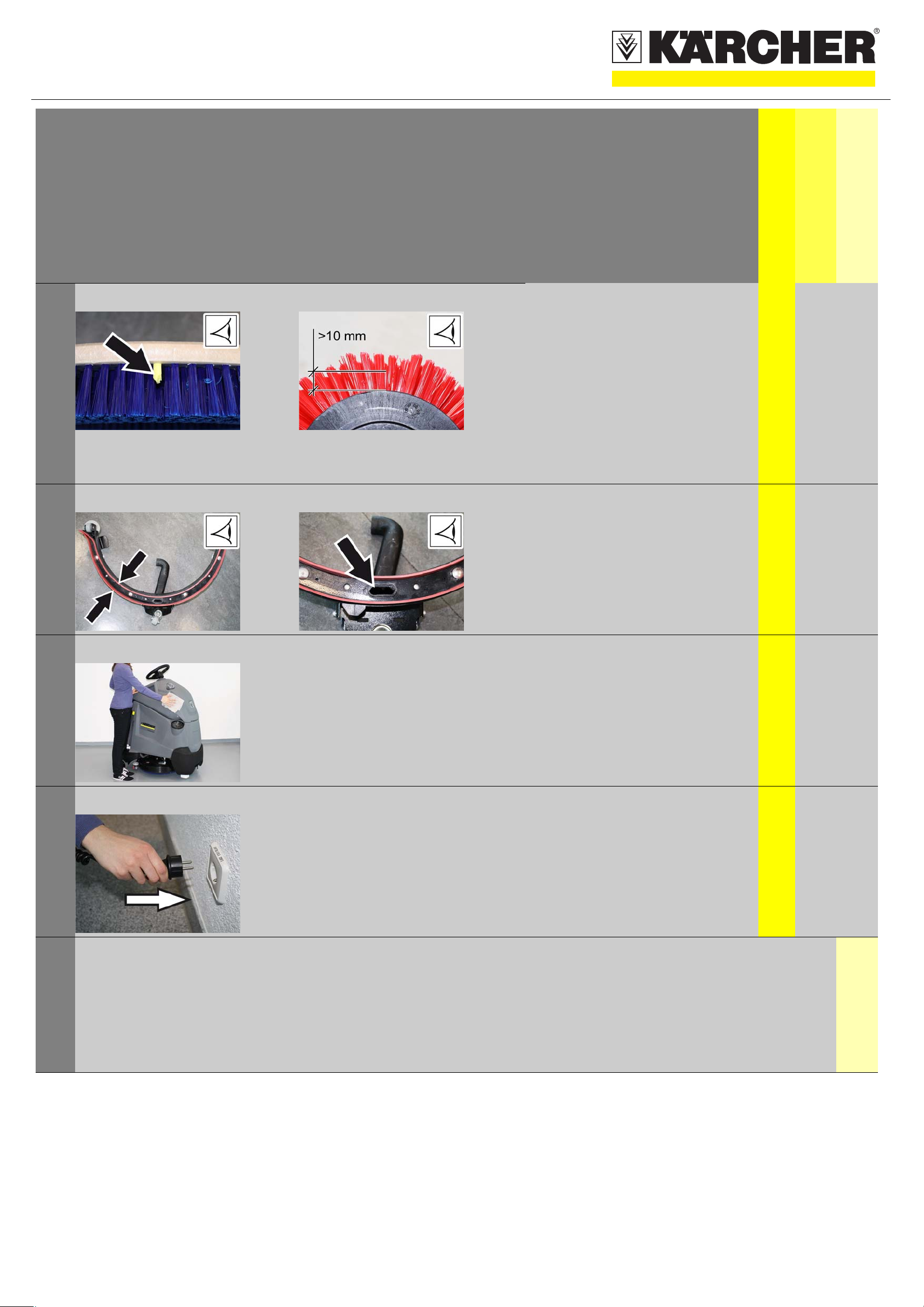

Maintenance and care
5
6
A A BD model
A Check brush for wear and tear and
clean it.
If the bristles are as long as the
indicator bristles, they must be
replaced.
BR model
A Check the brushes for wear (bristle
length at least 10 mm), replace if
required.
Check brushes for wear and tear, clean.
A B A Clean vacuum lips in the vacuum
bar and check for wear.
B Clean the suction channel.
daily
weekly
Kärcher Customer Service
7
8
9
A A Clean the outside of the appliance
with a damp cloth which has been
soaked in mild detergent.
A A Charge battery.
A A Maintenance to be carried out
every 200 operating hours
5.964-039.0 02/11
QUICKSTART

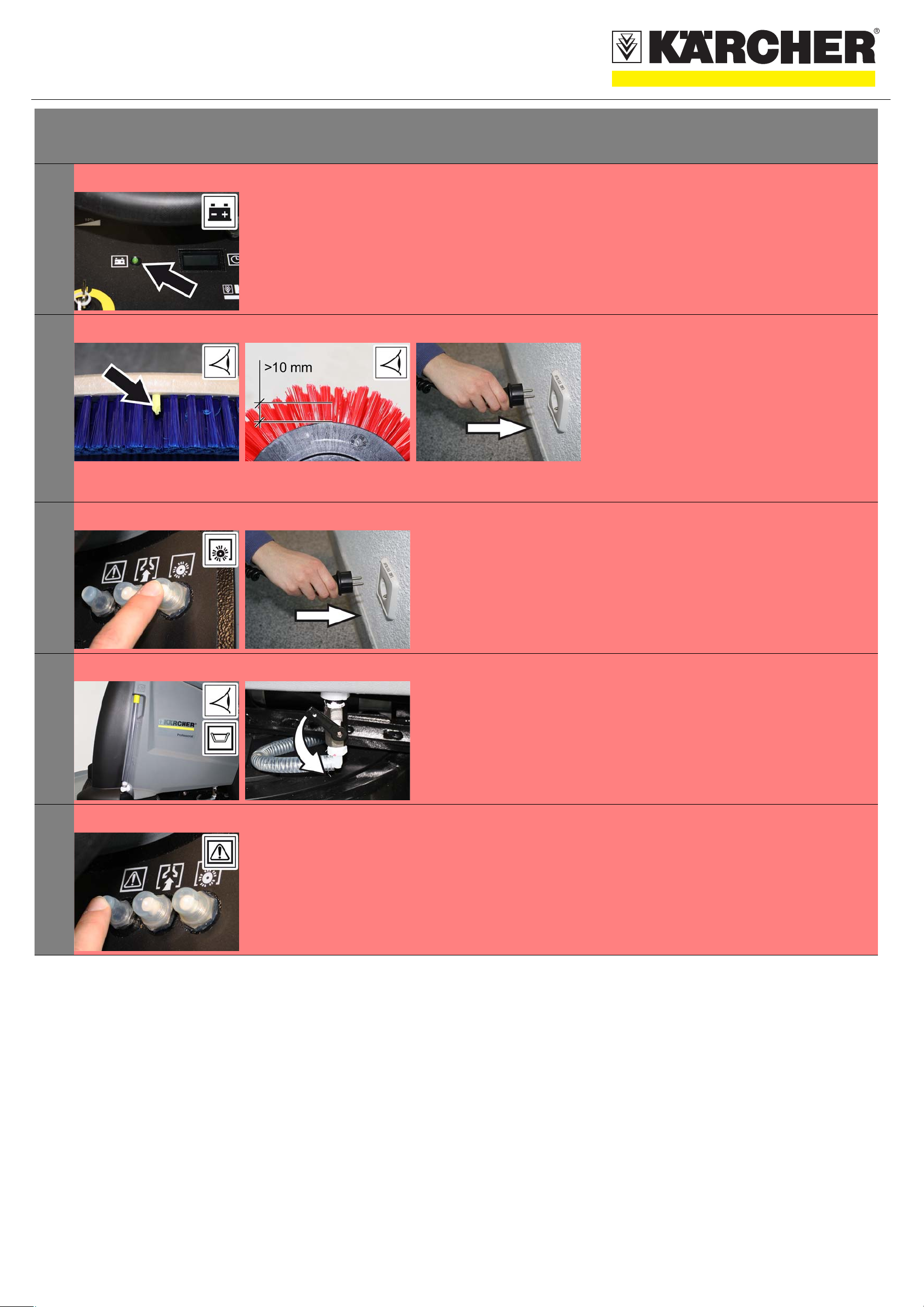

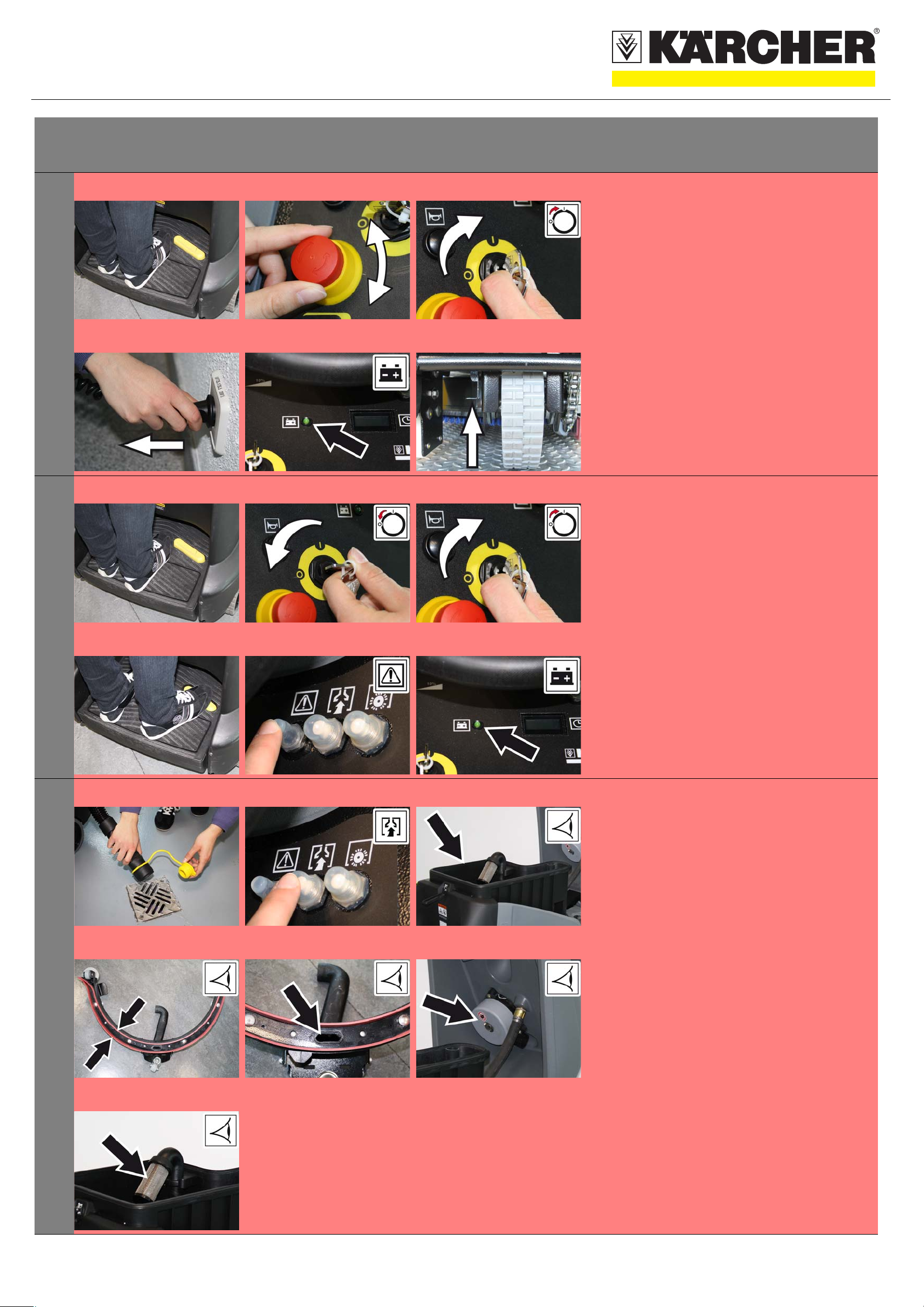

Troubleshooting
1
2
A
D
A
B
E
C
F
Appliance cannot be started
A Step on the standing platform.
Do not press the accelerator pedal.
B Release emergency-stop button by turning.
C Set main switch to “1”.
D Unplug the charger from the mains.
E Battery depleted.
Charge battery.
F Close the solenoid brake. To do this, press
the lever of the solenoid brake all the way up
to the stop.
Device does not drive or drives only slowly
A Release accelerator pedal, turn the key
switch to "0", turn the key switch to "1", press
the accelerator pedal.
B Reset fuse of control system.
C Battery depleted.
Charge battery.
3
A
D
B C
B
E
C
F
No or inadequate suction power
A Empty the dirt water reservoir.
B Reset fuse of suction turbine.
C Clean the seals between dirt water reservoir
and top of the appliance and check for leaks,
replace if required.
D Clean the vacuum lips on the vacuum bar,
turn or replace if required
E Check suction hose for blockages; clean if
required.
Check connection between suction hose and
suction bar and suction hose and wastewater
tank.
F Clean the floater in the dirt water tank.
G Check and clean the waste water reservoir
sieve.
G
5.964-039.0 02/11
QUICKSTART
4
5
Troubleshooting
A The battery indicator blinks
A Charge battery.
A A B Insufficient cleaning result
BD model
A Check brush for wear and tear and clean it.
If the bristles are as long as the indicator bris-
tles, they must be replaced.
BR model
A Check the brushes for wear (bristle length at
least 10 mm), replace if required.
Check brushes for wear and tear, clean.
6
7
B Charge battery.
A B Brushes do not turn
A Reset fuse of brush drive.
B Charge battery.
A B No or very little detergent solution gets added
A Check level of detergent solution in the fresh
water tank; refill, if required.
B Open fresh water valve.
8
A The cleaning head is not lowered.
A Reset fuse of control system.
5.964-039.0 02/11
