JVC RX-554RBK Instruction Manual

FM/MW/LW RECEIVER

UKW/MW/LW-RECEIVER
AMPLI/TUNER FM/PO/GO
FM/MG/LG TUNER/VERSTERKER
RECEPTOR FM/MW/LW
RICEVITORE MF/OM/OL

RX-554RBK

CD

TAPE

TUNER/

BAND

VCR

VIDEO

PHONO

TV CH

–+

TV VOL.

–+

TV/

VIDEO

TV VCR AUDIO

3D-PHONIC

SURROUND

DAP MODE

123

EFFECT DELAY

456

SEA MODE

REAR

–+

7/P 8 9

CENTER

–+

SEA

10

PRESET

SOUND

ONE TOUCH

CONTROL

OPERATION

CD-DISC

VCR CH

–+

PTY SEARCH DISPLAY

PTY SELECT

–+

VOLUME

–+

MUTING

RM-SR554RU REMOTE CONTROL

TEST

+10

MASTER VOLUME

–+

TUNER/BAND PRESET SEA SOURCE SURROUND ADJUST

MEMORY

ENHANCED COMPULINK CONTROL SYSTEM

SETTING

ONE TOUCH OPERATION

STANDBY

STANDBY/ON

RX-554R FM/MW/LW RECEIVER

TA/ NEWS /INFO EON PTY SEARCH

DISPLAY MODE

POWER

PHONES SPEAKERS

_ON —OFF

12

_ON —OFF

INSTRUCTIONS

BEDIENUNGSANLEITUNG

MANUEL D’INSTRUCTIONS

GEBRUIKSAANWIJZING

MANUAL DE INSTRUCCIONES

ISTRUZIONI

For Customer Use:

Enter below the Model No. and Serial
No. which are located either on the rear,
bottom or side of the cabinet. Retain this
information for future reference.

Model No.
Serial No.

LET0118-001A

[E, EE]

Warnings, Cautions and Others/Warnung, Achtung und sonstige Hinweise/
Mises en garde, précautions et indications diverses/Waarschuwingen,
voorzorgen en andere mededelingen/Avisos, precauciones y otras notas/
Avvertenze e precauzioni da osservare

IMPORTANT for the U.K.
DO NOT cut off the mains plug from this equipment. If the plug

fitted is not suitable for the power points in your home or the cable
is too short to reach a power point, then obtain an appropriate
safety approved extension lead or consult your dealer.

BE SURE to replace the fuse only with an identical approved type,
as originally fitted.

If nonetheless the mains plug is cut off ensure to remove the fuse
and dispose of the plug immediately, to avoid a possible shock
hazard by inadvertent connection to the mains supply.

If this product is not supplied fitted with a mains plug then follow
the instructions given below:

IMPORTANT.
DO NOT make any connection to the terminal which is marked with

the letter E or by the safety earth symbol or coloured green or
green-and-yellow.

The wires in the mains lead on this product are coloured in
accordance with the following code:

Blue : Neutral
Brown : Live

As these colours may not correspond with the coloured markings
identifying the terminals in your plug proceed as follows:

The wire which is coloured blue must be connected to the terminal
which is marked with the letter N or coloured black.

The wire which is coloured brown must be connected to the
terminal which is marked with the letter L or coloured red.

IF IN DOUBT - CONSULT A COMPETENT ELECTRICIAN.

Per I’ltalia:

“Si dichiara che il questo prodotto di marca JVC è conforme
alle prescrizioni del Decreto Ministeriale n.548 del 28/08/95
pubblicato sulla Gazzetta Ufficiale della Repubblica Italiana
n.301 del 28/12/95.”

G-1

English

CAUTION

To reduce the risk of electrical shocks, fire, etc.:

1. Do not remove screws, covers or cabinet.

2. Do not expose this appliance to rain or moisture.

ACHTUNG

Zur Verhinderung von elektrischen Schlägen, Brandgefahr, usw:

1. Keine Schrauben lösen oder Abdeckungen enternen und nicht
das Gehäuse öffnen.

2. Dieses Gerät weder Regen noch Feuchtigkeit aussetzen.

ATTENTION

Afin d’éviter tout risque d’électrocution, d’incendie, etc.:

1. Ne pas enlever les vis ni les panneaux et ne pas ouvrir le coffret
de l’appareil.

2. Ne pas exposer l’appareil à la pluie ni à l’humidité.

VOORZICHTIG

Ter vermindering van gevaar voor brand, elektrische schokken, enz.:

1. Verwijder geen schroeven, panelen of de behuizing.

2. Stel dit toestel niet bloot aan regen of vocht.

DeutschFrançais

PRECAUCIÓN

Para reducir riesgos de choques eléctricos, incendio, etc.:

1. No extraiga los tornillos, los cubiertas ni la caja.

2. No exponga este aparato a la lluvia o a la humedad.

ATTENZIONE

Per ridurre il rischio di scosse elettriche, incendi, ecc...

1. Non togliere viti, coperchi o la scatola.

2. Non esporre l’apparecchio alla piogggia e all’umidità.

NederlandsItaliano

Español

G-2

Caution –– POWER switch and STANDBY/ON button!

This apparatus is provided with a POWER switch to be able to
minimize power consumption for safe use. Therefore,

1. When doing initial setting, complete all the connections required,
connect the mains plug into the wall outlet, and set the POWER
switch to ON. After these, it will be available to operate STANDBY/
ON button and so on.

2. When not in use, set the POWER switch to OFF.

3. Disconnect the mains plug to shut the power off completely. The

POWER switch and STANDBY/ON button in any position

do not disconnect the mains line.

4. The power can be remote controlled.

Achtung –– POWER-Schalter und STANDBY/ON -Taste!

Dieses Gerät hat einen Netzschalter ( POWER), um den
Stromverbrauch für sichere Verwendung auf ein Minimum bringen zu
können. Verfahren Sie deshalb wie folgt:

1. Beim ursprünglichen Aufbau alle erforderlichen Anschlüsse
herstellen, den Netzstecker in eine Wandsteckdose stecken, und
den POWER-Schalter einschalten. Anschließend ist Betrieb
der STANDBY/ON -Taste usw. möglich.

2. Wenn das Gerät nicht verwendet wird, den POWER-Schalter
ausschalten.

3. Den Netzstecker aus der Steckdose ziehen, um die
Stromversorgung vollkommen zu unterbrechen. Der POWER­Schalter und die STANDBY/ON -Taste unterbrechen in keiner
Stellung die Stromversorgung vollkommen.

4. Die Stromversorgung kann mit der Fernbedienung ein- und
ausgeschaltet werden.

Attention — Commutateur POWER et d’une touche STANDBY/

ON !

Cet appareil est équipé d’un commutateur POWER qui lui permet de
réduire sa consommation d’électricité pour une utilisation plus sûre.
Par conséquent,

1. En procédant au réglage initial, compléter toutes les connexions
nécessaires, connecter la fiche secteur dans la prise murale et
mettre le commutateur POWER sur la position ON. Ensuite, il
sera possible de contrôler la touche STANDBY/ON , etc.

2. Mettre le commutateur POWER sur la position OFF lorsque
l’appareil n’est pas utilisé.

3. Déconnecter la fiche secteur pour couper complètement le courant.
Le commutateur POWER et la touche STANDBY/ON ne
coupent jamais complètement l’alimentation, quelle que soit leurs
positions.

4. L’alimentation peut être télécommandée.

Voorzichtig –– POWER en STANDBY/ON schakelaars!

Dit apparaat is voorzien van een POWER hoofdschakelaar om het
apparaat gebruiksklaar te zetten, maar te zorgen dat het stroomverbruik
minimaal blijft. Neem in verband hiermee het volgende in acht:

1. Bij de eerste ingebruikneming zorgt u eerst dat alle aansluitingen
in orde zijn, dan steekt u de stekker in het stopkontakt en dan zet
u de POWER schakelaar in de “ON” stand. Daarna kunt u het
apparaat aan- en uitschakelen met de STANDBY/ON
schakelaar.

2. Wanneer u het apparaat geruime tijd niet gebruikt, kunt u beter de

POWER schakelaar in de “OFF” stand zetten.

3. Om de stroomtoevoer geheel uit te schakelen, trekt u de stekker
uit het stopkontakt. Anders zal er altijd een geringe hoeveelheid
stroom naar het apparaat lopen, ongeacht de stand van de
STANDBY/ON en de POWER.

4. U kunt het apparaat ook met de afstandsbediening aan- en
uitschakelen.

Precaución –– Interruptor POWER y botón STANDBY/ON !

Esta unidad dispone de un interruptor POWER que sirve para
reducir al mínimo el consumo de alimentación para proporcionar
mayor seguridad operacional. Por lo tanto,

1. Al ejecutar el ajuste inicial, después de completar todas las
conexiones requeridas, conectar el cable de alimentación a una
toma de pared, y activar el interruptor POWER. Entonces, será
posible ejecutar operaciones tales como la conmutación del
estado de alimentación.

2. Desactivar el interruptor POWER al dejar la unidad fuera de
uso.

3. Desconectar el cable de alimentación para desactivar la
alimentación totalmente. Cualquier que sea la posición de ajustes
del interruptor POWER y el botón STANDBY/ON , la
alimentación no es cortada completamente.

4. La alimentación puede ser controlada remotamente.

Attenzione –– Interruttore POWER e tasto STANDBY/ON !

Per ridurre al minimo l’assorbimento di corrente ai fini della sicurezza,
questo apparecchio è stato dodato di un interruttore POWER. Di
conseguenza,

1. Al momento dell’impostazione iniziale, completare tutti i
collegamenti richiesti, inserire la spina del cavo di alimentazione
nella presa a muro della rete elettrica e impostare l’interruttore

POWER in posizione ON. Fatto ciò, sarà pronto all’uso

STANDBY/ON .

2. Quando non in uso, impostare l’interruttore POWER in posizione
OFF.

3. Disinserire la spina del cavo di alimentazione dalla presa della rete
elettrica per staccare completamente l’alimentazione. L’ interruttore

POWER e il tasto STANDBY/ON in nessuna posizione

staccano la linea di alimentazione elettrica principale.

4. È possibile il controllo remoto dell’alimentazione.

G-3

Caution: Proper Ventilation

To avoide risk of electric shock and fire and to protect from damage.
Locate the apparatus as follows:
Front: No obstructions open spacing.
Sides: No obstructions in 10 cm from the sides.
Top: No obstructions in 10 cm from the top.
Back: No obstructions in 15 cm from the back
Bottom: No obstructions, place on the level surface.
In addition, maintain the best possible air circulation as illustrated.

Achtung: Angemessene Ventilation

Stellen Sie das Gerät zur Verhütung von elektrischem Schlag und
Feuer und zum Schutz gegen Beschädigung wie folgt auf:
Vorderseite: Offener Platz ohne Hindernisse.
Seiten: Keine Hindernisse innerhalb 10 cm von den Seiten.
Oberseite: Keine Hindernisse innerhalb 10 cm von der Oberseite.
Rückseite: Keine Hindernisse innerhalb 15 cm von der Rückseite.
Unterseite: Keine Hindernisse. Auf eine ebene Oberfläche stellen.
Zusätzlich die bestmögliche Luftzirkulation wie gezeigt erhalten.

Attention: Ventilation Correcte

Pour éviter les chocs électriques, l’incendie et tout autre dégât.
Disposer l’appareil en tenant compte des impératifs suivants
Avant: Rien ne doit gêner le dégagement
Flancs: Laisser 10 cm de dégagement latéral
Dessus: Laisser 10 cm de dégagement supérieur
Arrière: Laisser 15 cm de dégagement arrière
Dessous: Rien ne doit obstruer par dessous; poser l’appareil sur

une surface plate.
Veiller également à ce que l’air circule le mieux possible comme
illustré.

Voorzichtig: Zorg Voor Goede Ventilatie

Om gevaar voor brand of een elektrische schok te voorkomen, dient u
bij opstelling van het apparaat op de volgende punten te letten:
Voorkant: Voldoende ruimte vrij houden.
Zijkanten: Minstens 10 cm aan weerszijden vrij houden.
Bovenkant: Niets bovenop plaatsen; 10 cm speling geven.
Achterkant: Minstens 15 cm ruimte achteraan vrij houden.
Onderkant: Opstellen op een egaal horizontaal oppervlak.
Bovendien moet er rondom voldoende luchtdoorstroming zijn, zoals in
de afbeelding aangegeven.

Precaución: Ventilación Adecuada

Para evitar el riesgo de choque eléctrico e incendio y para proteger el
aparato contra daños.
Ubique el aparato de la siguiente manera:
Frente: Espacio abierto sin obstrucciones
Lados: 10 cm sin obstrucciones a los lados
Parte superior: 10 cm sin obstrucciones en la parte superior
Parte trasera: 15 cm sin obstrucciones en la parte trasera
Fondo: Sin obstrucciones, colóquelo sobre una superficie

nivelada
Además, mantenga la mejor circulación de aire posible como se
ilustra.

Attenzione: Problemi di Ventilazione

Per evitare il rischio di folgorazioni ed incendi e proteggere l’unità da
danni, installarla nel modo seguente.
Davanti: Nessun ostacolo, spazio libero
Lati: Nessun ostacolo per almeno 10 cm
Sopra: Nessun ostacolo per almeno 10 cm
Retro: Nessun ostacolo per almeno 15 cm
Fondo: Libero ed in piano
Inoltre, mantenere il più possibile la circolazione dell’aria.

Wall or obstructions
Wand oder Hindernisse
Mur, ou obstruction
Wand of meubilair
Pared u obstrucciones
Parete o ostacol

Spacing 15 cm or more
Abstand von 15 cm oder mehr
Dégagement de 15 cm ou plus
Minstens 15 cm tussenruimte
Espacio de 15 cm o más
15 cm di distanza o più

RX-554RBK

Floor
Boden
Plancher
Vloer
Piso
Pavimento

Front
Vorderseite
Avant
Voorkant
Frente
Davanti

Stand height 15 cm or more
Standhöhe 15 cm oder mehr
Hauteur du socle: 15 cm ou plus
Standard op minstens 15 cm van de vloer
Allura del soporte 15 cm o más
Altezza del tavolino 15 cm p plù

G-4

Table of Contents

English

Parts Identification...................................................................................... 2

Getting Started........................................................................................... 3

Before Installation................................................................................................................................................................... 3

Checking the Supplied Accessories ........................................................................................................................................ 3

Connecting the FM and AM (MW/LW) Antennas ................................................................................................................. 4

Connecting the Speakers......................................................................................................................................................... 5

Connecting Other Components............................................................................................................................................... 7

Connecting the Power Cord .................................................................................................................................................... 8

Putting Batteries in the Remote Control ................................................................................................................................. 8

Basic Operations ......................................................................................... 9

Turning the Power On and Off (Standby)............................................................................................................................... 9

Selecting the Source to Play ................................................................................................................................................... 9

Adjusting the Volume ........................................................................................................................................................... 10

Selecting the Front Speakers................................................................................................................................................. 10

Muting the Sound.................................................................................................................................................................. 10

Recording a Source ............................................................................................................................................................... 11

Listening with Headphones .................................................................................................................................................. 11

Basic Settings........................................................................................... 12

Adjusting the Front Speaker Output Balance ....................................................................................................................... 12

Listening at Low Volume (Loudness) ................................................................................................................................... 12

Using the Sleep Timer........................................................................................................................................................... 12

Selecting the Center Speaker Size ........................................................................................................................................ 13

One Touch Operation.................................................................................. 14

About the One Touch Operation ........................................................................................................................................... 14

Using the One Touch Operation ........................................................................................................................................... 14

Receiving Radio Broadcasts ........................................................................ 15

Tuning in Stations Manually................................................................................................................................................. 15

Using Preset Tuning.............................................................................................................................................................. 15

Selecting the FM Reception Mode ....................................................................................................................................... 17

Using theRDS (Radio Data System) to Receive FM Stations .............................................................................................. 17

What Information Can RDS Signals Provide? ..................................................................................................................... 18

Searching for a Program by PTY Codes............................................................................................................................... 19

Switching to a Broadcast Program of Your Choice Temporarily.......................................................................................... 22

Using the Preset SEA Modes...................................................................... 24

Selecting Your Favorite SEA Mode...................................................................................................................................... 24

Activating the Surround Sounds ................................................................. 26

Using JVC 3D-PHONIC Modes........................................................................................................................................... 27

Using the DAP Modes ..........................................................................................................................................................29

Speaker Arrangements for Surround Modes ......................................................................................................................... 31

Preparing for Surround Modes ............................................................................................................................................. 32

Using Surround Modes ......................................................................................................................................................... 36

COMPU LINK Remote Control System......................................................... 37

Operating Other Components ..................................................................... 38

Troubleshooting......................................................................................... 40

Specifications............................................................................................ 41

1

Parts Identification

Become familiar with the buttons and controls on the receiver before use.

1

23

4

5

6

7

9

80

-=

~

English

!

*

(
)
_

+
¡

RX-554R FM/MW/LW RECEIVER

DISPLAY MODE

TA/ NEWS /INFO EON PTY SEARCH

STANDBY

STANDBY/ON

@$

CD

TAPE

TUNER/

BAND

VCR

VIDEO

PHONO

–+

TV VOL.

–+

TV/

VIDEO

POWER

_ON —OFF

#

TV VCR AUDIO

3D-PHONIC

DAP MODE

123

EFFECT DELAY

456

SEA MODE

REAR

–+

7/P 8 9

CENTER

–+

SEA

10 +10

PRESET

SOUND

CONTROL

CD-DISC

TV CH

VCR CH

–+

PTY SEARCH DISPLAY

PTY SELECT

–+

VOLUME

–+

RM-SR554RU REMOTE CONTROL

PHONES SPEAKERS

SURROUND

TEST

ONE TOUCH
OPERATION

MUTING

12

_ON —OFF

™

£

¢
∞

§
¶

•

ª

MASTER VOLUME

–+

TUNER/BAND PRESET SEA SOURCE SURROUND ADJUST

MEMORY

ENHANCED COMPULINK CONTROL SYSTEM

Refer to the pages in parentheses for details.

Front Panel

1

Remote sensor (8)

2

DISPLAY MODE button (18)

3

TA/NEWS/INFO button (22)

4

Display (9)

5

EON button (22)

6

PTY SEARCH button (19)

7

MASTER VOLUME control (10)

8

MEMORY button (15)

9

TUNER/BAND button and lamp (15)

0

PRESET SEA button and lamp (24)

-

SOURCE button and lamp (9)

=

SURROUND button and lamp (27, 29,
32, 36)

SETTING

ONE TOUCH OPERATION

&^%

~

ADJUST button and lamp (27, 29, 32)

!

SETTING button and lamp (12, 13)

@

STANDBY/ON button and
STANDBY lamp (9)

#

POWER switch (8)

$

PHONES jack (11)

%

SPEAKERS 1/2 buttons (10, 11)

^

Control % / fi / @ / # buttons

&

ONE TOUCH OPERATION button and
lamp (14)

Remote Control

*

Source buttons (CD, TAPE, TUNER/
BAND, VCR, VIDEO, PHONO)
(9, 38, 39)

(

SOUND CONTROL button (25, 28, 30,
34, 36)

To use JVC VCR, cassette deck and
CD player after adjusting preset SEA
or surround modes using SOUND
CONTROL, press the corresponding
source button (VCR, TAPE or CD)
prior to using JVC audio/video
operating buttons (•).

)

TV CH (Channel) buttons (+/–) (39)

_

TV VOL. (Volume) buttons (+/–) (39)

+

TV/VIDEO buttton (39)

¡

VOLUME buttons (+/–) (10)

™

(Standby/On) buttons (TV, VCR,

AUDIO) (9, 39)

£

10 keys/Audio control buttons
(16, 25, 28, 30, 34, 36)

¢

SEA PRESET button (25)

∞

ONE TOUCH OPERATION button (14)

§

CD-DISC button (38)

¶

VCR CH (Channel) buttons (+/–) (39)

•

Operating buttons for JVC audio/video
components and RDS operating buttons
(18, 20, 38, 39)

ª

MUTING button (10)

2

Getting Started

This section explains how to connect stereo components and speakers to the receiver, and how to connect
the power supply.

English

Before Installation

General

• Be sure your hands are dry.

• Turn the power off to all components.

• Read the manuals supplied with the components you are going to connect.

Locations

• Install the receiver in a location that is level and protected from moisture.

• The temperature around the receiver must be between –5˚ and 35˚ C
(23˚ and 95˚ F ).

• Make sure there is good ventilation around the receiver. Poor ventilation could cause
overheating and damage the receiver.

Handling the receiver

• Do not insert any metal object into the receiver.

• Do not disassemble the receiver or remove screws, covers, or cabinet.

• Do not expose the receiver to rain or moisture.

Checking the Supplied Accessories

Check to be sure you have all of the following items, which are supplied with the
receiver.
The number in the parentheses indicates quantity of the pieces supplied.

• Remote Control (1)

• Batteries (2)

• AM (MW/LW) Loop Antenna (1)

• FM Antenna (1)

If anything is missing, contact your dealer immediately.

3

Connecting the FM and AM (MW/LW) Antennas

FM Antenna Connections

English

A.

AM
LOOP

ANTENNA

FM 75

COAXIAL

GND

B.

AM

LOOP

ANTENNA

FM 75

COAXIAL

GND

FM Antenna

AM

LOOP

ANTENNA

Extend the FM antenna horizontally.

FM 75

COAXIAL

GND

AM

EXT

Outside FM Antenna wire

A. Using the Supplied FM Antenna

The FM antenna provided can be connected to the FM 75 Ω COAXIAL terminal as
temporary measure.

B. Using the Standard Type Connector (Not supplied)

A standard type connector (IEC or DIN45325) should be connected to the FM 75 Ω
COAXIAL terminal.

Note:

If reception is poor, connect the
outside antenna.
Before attaching a 75 Ω coaxial
cable (the kind with a round wire
going to an outside antenna),
disconnect the supplied FM wire
antenna.

AM (MW/LW) Antenna Connections

ANTENNA

FM 75

COAXIAL

AM (MW/LW) Loop Antenna

GND

AM

LOOP

AM

EXT

1

2

3

Turn the loop until you have
the best reception.

Snap the tabs on the loop into
the slots of the base to assemble
the AM (MW/LW) loop.

Outdoor Single Vinyl­covered Wire

Notes :

•

Make sure the antenna
conductors do not touch any
other terminals, connecting
cords and power cord. This
could cause poor reception.

•

If reception is poor, connect an
outdoor single vinyl-covered
wire to the AM EXT terminal.
(Keep the AM (MW/LW) loop
antenna connected.)

4

Getting Started

English

Connecting the Speakers

You can connect the following speakers:

• Two sets of front speakers to produce normal stereo sound

• One set of rear speakers to enjoy the surround effect

• One center speaker to produce more effective surround effect (to make human
voices outstanding)

For each speaker, connect one end of the speaker signal cable (not supplied) to the
speaker terminal on the rear panel and the other end to the speaker.

1. Open each terminal.

2. Insert the end of the speaker signal cable as shown (be
sure to remove the insulation at the end of each wire
first).

3. Close the terminals to clamp the speaker signal cables
firmly in place.

4. Connect the (–) and (+) terminals on the rear panel to
the (–) and (+) terminals marked on the speakers.

CAUTION:

When connecting speakers, use
speakers with the SAME
IMPEDANCE indicated by the
speaker terminals.

Connecting the front speakers

Connect the front speakers to the FRONT SPEAKERS terminals.

Left speaker

SPEAKERS 1

Right speaker

SPEAKERS 2

FRONT SPEAKERS

RIGHT LEFT

1

2

1

2

Connecting the rear and center speakers

Connect the rear speakers to the REAR SPEAKERS terminals and the center speaker to
the CENTER SPEAKER terminals.

Center

speaker

CENTER

SPEAKER

RIGHT LEFT

REAR

SPEAKERS

Left rear
speaker

Right rear

speaker

Notes:

•

When you connect rear
speakers, make sure that both
left and right speakers are
connected; otherwise, no
sound will come out of the
rear speakers.

•

You can register the center
speaker size after you finish
its connection. If you register
it, you do not have to set the
center speaker mode while
setting the surround mode. (If
you do not use a center
speaker, register that
information.) See page 13.

5

About the speaker impedance

The required speaker impedance of the front speakers differs depending on whether or
not a center and/or rear speakers are connected at the same time. Since there are four
possible speaker connections with the receiver, check which one fits your case and use
the speaker with the impedance described below.

CASE 1 When you connect only front speakers

English

CAUTION:

When connecting speakers, use
speakers with the SAME
IMPEDANCE indicated by the
speaker terminals.

Front

speaker

Receiver

speaker

Use front speakers with 4 — 16 ohm impedance.

CASE 2 When you connect front speakers and a center speaker

Front

speaker

Receiver

speaker

Center speaker

Use the following speakers;

• Front speakers: 8 — 16 ohm impedance

• Center speaker: 8 — 16 ohm impedance

CASE 3 When you connect front and rear speakers

Front

speaker

Rear

speaker

Receiver

speaker

Front

Front

Front

Rear

speaker

Use the following speakers;

• Front speakers: 8 — 16 ohm impedance

• Rear speakers: 8 — 16 ohm impedance

CASE 4 When you connect a center speaker as well as front and rear speakers

Front

speaker

Rear

speaker

Receiver

Center speaker

Front

speaker

Rear

speaker

Use the following speakers;

• Front speakers: 8 — 16 ohm impedance

• Rear speakers: 8 — 16 ohm impedance

• Center speaker: 8 — 16 ohm impedance

6

Getting Started

English

Connecting Other Components

You can connect the following components to the receiver using cables with RCA pin
plugs.

Audio Components Video Components*

• Turntable • VCR

• CD player • Video disc player

• Cassette deck

Audio component connections

If a ground cable is provided
for your turntable, connect the
cable to the GND terminal of
the AM LOOP terminals on the
rear panel.

ANTENNA

FM 75

COAXIAL

GND

PHONO

AM

EXT

L

R

Turntable

AM

LOOP

To audio output

CD

* You cannot connect the video

input/output from the video
components to this receiver.

To audio output

VCR

VIDEO

TAPE

OUT

(REC)IN(PLAY)

OUT

(REC)IN(PLAY)

LEFT

RIGHT

CD player

CAUTION:

If you connect a sound-enhancing
device such as a graphic equalizer
between the source components
and this receiver, the sound output
through this receiver may be
distorted.

Note:

Any turntables incorporating a
small-output cartridge such as an
MC (moving-coil type) must be
connected to the receiver through
a commercial head amplifier or
step-up transformer. Direct
connection may result in
unsufficient volume.

To audio output

To audio input

Cassette deck

If your audio components have a COMPU LINK-3 terminals

The COMPU LINK remote control system allows you to control other JVC audio
components from the receiver or vice versa.
For detailed information about the COMPU LINK-3 remote control system, see page

37.

Video component connections

From video
output

From video
output

To another video
components (such as
TV)

Video disc player

VHS

VCR

To audio output

To audio input

To audio output

From video input

PHONO

To another video components (such
as TV or VCR)

CD

TAPE

OUT

(REC)IN(PLAY)

VIDEO

VCR

OUT

(REC)IN(PLAY)

LEFT

RIGHT

7

English

Connecting the Power Cord

Before plugging the receiver into an AC outlet, make sure that all connections have
been made.

1. Plug the power cord into an AC outlet.

2. Press POWER to set it in the

__

_ON position.

__

The STANDBY lamp lights up. A small amount of power is always consumed.

To shut off the power completely:

Press POWER to set it in the —OFF position.

Keep the power cord away from the connecting cables for the TV, VCR, and antenna.
The power cord may cause noise or screen interference. We recommend that you use a
coaxial cable to connect the antenna, since it is well-shielded against interference.

The difference between the POWER switch and the STANDBY/ON

button

• The POWER switch is the mains supply switch, allowing the receiver to connect
to the mains supply.

To shut off the power completely, press the POWER switch to set it in the —
OFF position.

• The STANDBY/ON button is a functional on/off (standby) switch, and does
not disconnect the receiver from the mains supply. A small amount of power is
consumed even in standby mode for receiver to accept signals from the remote
control.

Notes:

The preset setting such as preset
channel and sound adjustment
may be erased in the following
cases:

• When you press POWER to
set it in the

• When you unplug the power
cord.

• When a power failure occurs.

CAUTIONS:

• Do not touch the power cord
with wet hands.

• Do not pull on the power cord
to unplug the receiver. When
unplugging the receiver, always
grasp the plug itself so as not
to damage the cord.

—

OFF position.

Putting Batteries in the Remote Control

Before using the remote control, put the two supplied batteries in first. When using the
remote control, aim the remote control directly at the remote sensor on the receiver.

1. On the back of the remote control, press down on the battery cover and slide
it out.

2. Insert batteries. Make sure to observe the proper polarity: (+) to (+) and (–)
to (–).

3. Slide the cover.

R6P (SUM-3)/AA (15F)

If the range or effectiveness of the remote control decreases, replace the batteries. Use
two R6P (SUM-3)/AA (15F) type dry-cell batteries.

CAUTIONS:

Follow these precautions to avoid
leaking or cracking cells:

• Place batteries in the remote
control so they match the
polarity indicated: (+) to (+) and
(–) to (–).

• Use the correct type of batteries.
Batteries that look similar may
differ in voltage.

• Always replace both batteries at
the same time.

• Do not expose batteries to heat
or flame.

8

Basic Operations

STANDBY/ON

STANDBY

The following operations are commonly used when you play any sound source.

English

Turning the Power On and Off (Standby)

On the front panel:

To turn on the power, press STANDBY/ON .
The STANDBY lamp goes off. The name of the current
source (or station frequency) appears on the display.

MUTE TUNED SLEEP SEA 3D-PHONIC
AUTO STEREO PRO LOGIC 3CH LOGIC HALL LOUDNESS

DAP

CH-

L

VOLUME

MHz

kHz

TA
NEWS
INFO

R

Current source name appears Current volume

level is shown here

To turn off the power (into standby mode), press STANDBY/ON again.
The STANDBY lamp lights up.

From the remote control:

To turn on the power, press AUDIO.
The STANDBY lamp goes off. The name of the current
source (or station frequency) appears on the display.

To turn off the power (into standby mode), press AUDIO again.
The STANDBY lamp lights up.

Selecting the Source to Play

AUDIO

On the front panel:

1. Press SOURCE so that the Control
work for selecting the source.

The lamp above the button lights up.

%%

2. Press Control

fifi

% /

fi until the source name you want

%%

fifi

appears on the display.

%%

fifi

% /

fi buttons

%%

fifi

SOURCE

Note:

A small amount of power is
consumed in standby mode. To
turn the power off completely,
press

—

POWER to set it in the

OFF position on the front panel.

From the remote control:

Press one of the source buttons directly.

CD* Listen to the CD player.
TAPE* Listen to the cassette deck.
TUNER/BAND* Listen to the radio. Each time you press the

button, the band alternates between FM and

AM (MW/LW).
VCR View the playback picture from the VCR.
VIDEO View the video component connected to the

VIDEO jacks.
PHONO* Listen to a record.

9

VOLUME

CD

TAPE

TUNER/

BAND

VCR

VIDEO

PHONO

Note:

When you press one of the
source buttons on the remote
control marked with an asterisk
(*), the receiver automatically
turns on.

Adjusting the Volume

–+

VOLUME

On the front panel:

To increase the volume, turn MASTER VOLUME
clockwise.

MASTER VOLUME

–+

To decrease the volume, turn it counterclockwise.

When you turn MASTER VOLUME rapidly, the volume
level also changes rapidly.
When you turn MASTER VOLUME slowly, the volume
level also changes slowly.

From the remote control:

To increase the volume, press VOLUME +.
To decrease the volume, press VOLUME –.

Selecting the Front Speakers

On the front panel

When you have connected two sets of front speakers, you
can select which to use. Pressing SPEAKERS 1 or
SPEAKERS 2 activiates the respective set of speakers.

To use the set of speakers connected to the FRONT SPEAKERS 1 terminals, press
SPEAKERS 1 to set it in the _ON position, and press SPEAKERS 2 to set it in the —
OFF position.
To use the set of speakers connected to the FRONT SPEAKERS 2 terminals, press
SPEAKERS 2 to set it in the _ON position, and press SPEAKERS 1 to set it in the —
OFF position.
To use both set of speakers, press both SPEAKERS 1 and 2 to set them in the _ON
position.
To use neither set of speakers, press both SPEAKERS 1 and 2 to set them in the —
OFF position.

only

:

SPEAKERS

12

_ON —OFF

CAUTION:

Always set the volume to the
minimum before starting any
source. If the volume is set at its
high level, the sudden blast of
sound energy can permanently
damage your hearing and/or ruin
your speakers.

Note:

The volume level can be adjusted
within the range of “0” (minimum)
to “62” (maximum).

Notes:

• When only one set of the front
speakers is connected to either
the FRONT SPEAKERS 1 or

2

terminals, do not press both

SPEAKERS 1 and 2 to set them

_

in the
no sound comes out of the front
speakers.

• The SPEAKERS 1 and 2 do not
affect the sound output of the
center and rear speakers.

ON position. If you do,

English

Muting the Sound

From the remote control

Press MUTING to turn off the sound through all
speakers and headphones connected.

“MUTE” appears on the display and the volume turns off.

To restore the sound, press MUTING again.
Turning MASTER VOLUME or pressing VOLUME +/– also restores the sound.

only

:

MUTING

10

Basic Operations

English

Recording a Source

You can record any source playing through the receiver to a cassette deck connected to
the TAPE jacks and the VCR connected to the VCR jacks at the same time.
While recording, you can listen to the selected sound source at whatever sound level
you like, without affecting the sound levels of the recording.

Listening with Headphones

A standard pair of headphones can be connected to the PHONES jack on the front
panel. Be sure to turn down the volume before connecting or putting on

headphones, as high volume can damage both the headphones and your hearing.

To listen with only headphones

Press both SPEAKERS 1 and 2 to set them in the —OFF position.

SPEAKERS

12

_ON —OFF

Note:

The output volume level, preset
SEA, DAP, 3D-PHONIC and
surround modes cannot affect the
recording.

Note:

The SPEAKERS 1 and 2 do not
affect the sound output of the
center and rear speakers.

11

Basic Settings

Some of the following settings are required after connecting and positioning your speakers in your listening
room, while others will make operations easier.

Adjusting the Front Speaker Output Balance

If the sounds you hear from the front right and left speakers are unequal, you can adjust
the speaker output balance.

English

On the front panel

1. Press SETTING so that the Control
buttons work for adjusting the balance.

The lamp above the button lights up.

2. Press Control
the display.

3. Press Control

• Pressing Control @ decreases the right channel

output.

• Pressing Control # decreases the left channel output.

Listening at Low Volume (Loudness)

Human ears are not sensitive to bass at low volume. To compensate for this, the
Loudness function automatically boosts the bass level as you lower the volume.

%%

% /

%%

@@

@ /

@@

On the front panel

1. Press SETTING so that the Control
Loudness function.

The lamp above the button lights up.

2. Press Control

3. Press Control

• Select “ON ” to activate the Loudness function.

The LOUDNESS indicator lights up on the display.

• Select “OFF” to cancel it.

The indicator goes off.

%%

% /

%%
@@

@ /

@@

only

:

%%

fifi

@@

% /

fi /

%%

fifi

fifi

fi until “BALANCE” appears on

fifi

##

# to adjust the balance.

##

only

:

%%

fifi

% /

fi /

%%

fifi

fifi

fi until “LOUDNESS” appears on the display.

fifi
##

# to set the Loudness function to “ON” or “OFF.”

##

##

@ /

#

@@

##

@@

##

@ /

# buttons work for setting the

@@

##

SETTING

Note:

If the balance is not set at the
center, “BALANCE@” or
“BALANCE #” will appear in
step 2.

Using the Sleep Timer

Using the Sleep Timer, you can fall asleep to music and know the receiver will turn off
by itself rather than play all night.

On the front panel

1. Press SETTING so that the Control
Sleep Timer.

The lamp above the button lights up.

2. Press Control

3. Press Control

The SLEEP indicator lights up on the display.
Each time you press the button, the shut-off time on the display changes as follows:

%%

% /

%%
@@

@ /

@@

2010 30 40 50 60 70 80

only

:

%%

fifi

@@

% /

fi /

%%

fifi

fifi

fi until “SLEEP” appears on the display.

fifi
##

# to set the shut-off time.

##

0

(Canceled)

##

@ /

# buttons work for setting the

@@

##

12

Basic Settings

English

When the shut-off time comes

The receiver turns off automatically.

To check or change the time remaining until the shut-off time

1. Press SETTING, if necessary, so that the Control % / fi / @ / # buttons work for
setting the Sleep Timer.

2. Press Control % / fi, if necessary, until “SLEEP” appears on the display.

3. Press Control @ / #.
The remaining time until the shut-off time appears in minutes.

• To change the shut-off time, press Control @ / # repeatedly.

To cancel the Sleep Timer

Press Control @ / # repeatedly in step 3 above until “0” appears on the display. (The
SLEEP indicator goes off.)
Turning off the power also cancels the Sleep Timer.

Selecting the Center Speaker Size

You can register the information about the center speaker after all connections are
completed.
If you do this registration first, you do not have to adjust the center speaker mode when
you want to activate the surround sound.

On the front panel

1. Press SETTING so that the Control
the center speaker size.

The lamp above the button lights up.

2. Press Control
display.

3. Press Control

Each time you press the button, the display changes to show the following:

SMALL LARGE NO

SMALL: Select this mode when the size of the center speaker is smaller than

LARGE: Select this mode when the size of the center speaker is the same as

NO: Select this mode when you do not use a center speaker.

%%

% /

%%

@@

@ /

@@

that of the front speakers.

that of the front speakers.

only

:

%%

fifi

@@

% /

fi /

%%

fifi

fifi

fi until “CNTR SPK” (Center Speaker) appears on the

fifi

##

# to select the appropriate item about your center speaker.

##

##

@ /

# buttons work for selecting

@@

##

Note:

This “center speaker size” setting
is so related to the center mode
setting for surround modes (page

36) that changing this setting
affects and changes the center
mode to a relevant mode, and
vice versa.
For example;

•

If you select “SMALL,” the
center mode is automatically
set to “NORMAL,” and vice
versa.

•

If you select “LARGE,” the
center mode is automatically
set to “WIDE,” and vice versa.

•

If you select “NO;”
– For PRO LOGIC and

THEATER , the center mode
is set to “PHANTOM.”

– For 3CH LOGIC, the center

mode is set to “NORMAL.”

13

One Touch Operation

This receiver can memorize the optimum sound settings for each playing source.

About the One Touch Operation

English

JVC’s One Touch Operation function is used to assign and store different sound settings
for each different playing source. By using this function, you do not have to change the
settings every time you change the source. The stored settings for the newly selected
source are automatically recalled.

The following can be stored for each source:

• Volume level (see page 10)

• Balance (see page 12)

• Loudness (see page 12)

• Preset SEA modes (see page 24)

• 3D-PHONIC mode settings (see page 27)

• DAP mode settings (see page 29)

• Surround mode settings (see page 36)

Using the One Touch Operation

To store the sound settings

1. Press ONE TOUCH OPERATION.

The ONE TOUCH OPERATION lamp lights up, then
the previously memorized settings are recalled and
appear on the display in turn.

2. Adjust the sound using the functions listed above.

The newly adjusted settings are memorized.

ONE TOUCH OPERATION

Note:

•

If the source is TUNER/BAND,
the One Touch Operation
function memorizes the settings
each for the FM and AM band.

•

The DAP mode, surround mode
and 3D-PHONIC mode cannot
be used at the same time.

To recall the sound settings

With the ONE TOUCH OPERATION lamp lit, the settings
for the currently selected source is recalled, and appears on
the display when the source is selected.

ONE TOUCH
OPERATION

To cancel the One Touch Operation function

Press ONE TOUCH OPERATION so that the lamp goes
off.
(Even though the One Touch Operation function is canceled, the recalled sound effects
remain active.)

14

Receiving Radio Broadcasts

You can browse through all the stations or use the preset function to go immediately to a particular
station.

English

Tuning in Stations Manually

On the front panel

only

:

TUNER/BAND

1. Press TUNER/BAND.

The indicator above the button lights up.
Each time you press the button, the band alternates
between FM and AM (MW/LW).

%%

2. Press Control

fifi

% /

fi until “–TUNING+” appears on

%%

fifi

the display.

@@

3. Press Control

##

@ /

# until you find the frequency you

@@

##

want.

• Pressing Control @ decreases the frequency.

• Pressing Control # increases the frequency.

Using Preset Tuning

Once a station is assigned to a channel number, the station can be quickly tuned. You
can preset up to 40 stations at random.

To store the preset stations

On the front panel

only

:

1. Tune in the station you want to preset (see above).

If you want to store the FM reception mode for this
station, select the FM reception mode you want. See
page 17 for details.

2. Press MEMORY.

MEMORY

The channel number starts flashing on the display for
about 5 seconds.

Notes:

•

When you hold down Control
/ # in step 3, the frequency
keeps changing until you press
Control @ / # again or a station
is tuned in.

•

When a station of sufficient
signal strength is tuned in, the
TUNED indicator lights up on
the display.
When an FM stereo program is
received, the STEREO indicator
also lights up.

CAUTION:

The preset channels may be
erased in the following cases:

• When you press POWER to
set it in the —OFF position.

• When you unplug the power
cord.

• When a power failure occurs.

@

@@

3. Press Control

##

@ /

# to select a channel number

@@

##

while the channel number position is flashing.

• Pressing Control @ decreases the number.

• Pressing Control # increases the number.

4. Press MEMORY again while the selected channel
number is flashing on the display.

The selected channel number stops flashing.
The station is assigned to the selected channel number.

15

MEMORY

Note:

You can press 10 keys on the
remote control to select a channel
number in step 3, if you have
pressed TUNER/BAND on the
remote control prior to starting this
preset procedures.

•

For channel number 5, press 5.

•

For channel number 15, press
+10 then 5.

•

For channel number 20, press
+10 then 10.

•

For channel number 30, press
+10, +10, then 10.

5. Repeat steps 1 to 4 until you store all the stations
you want.

To cancel a stored preset station

Storing a new station on a used number erases the previously stored one.

To tune in a preset station

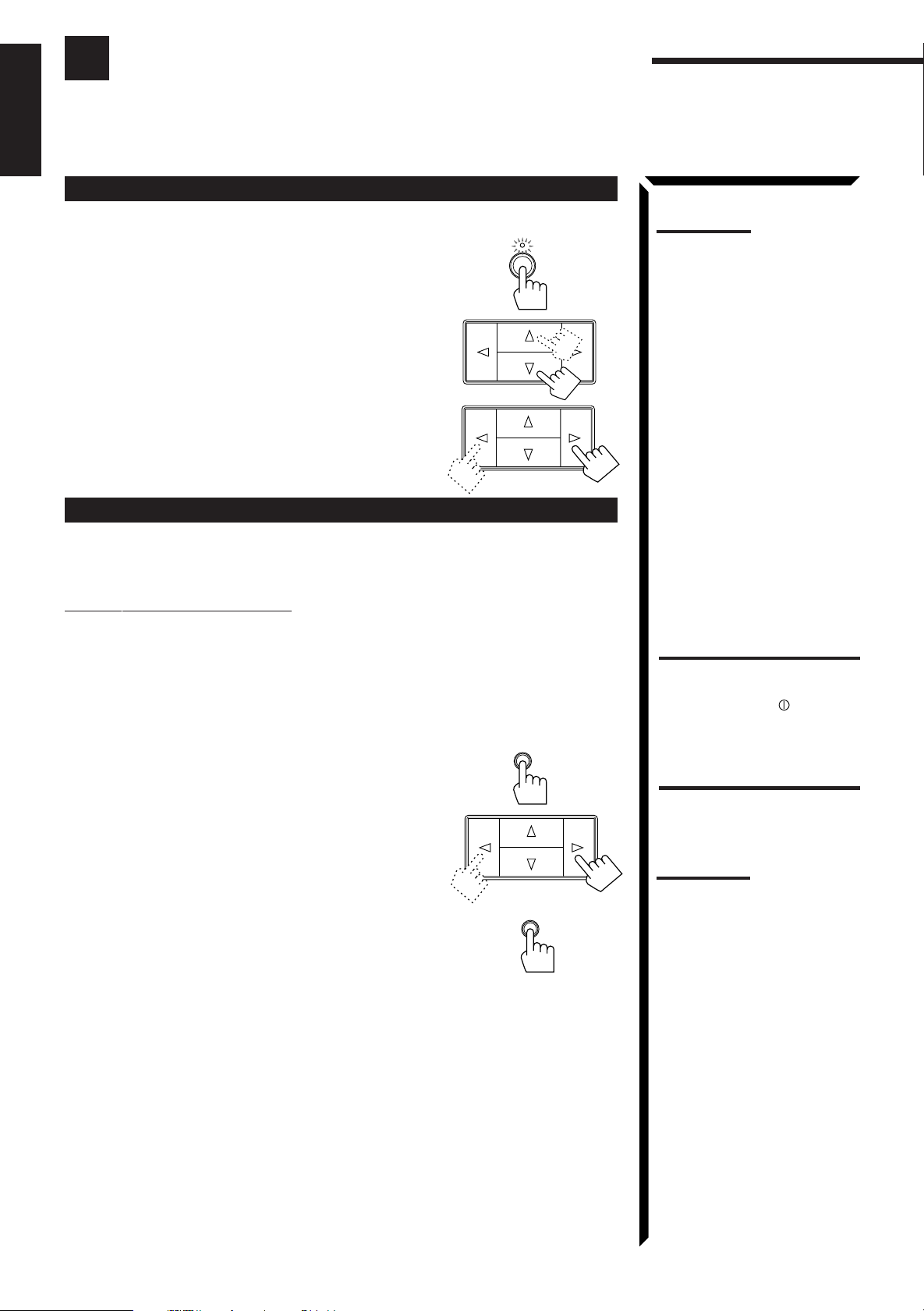

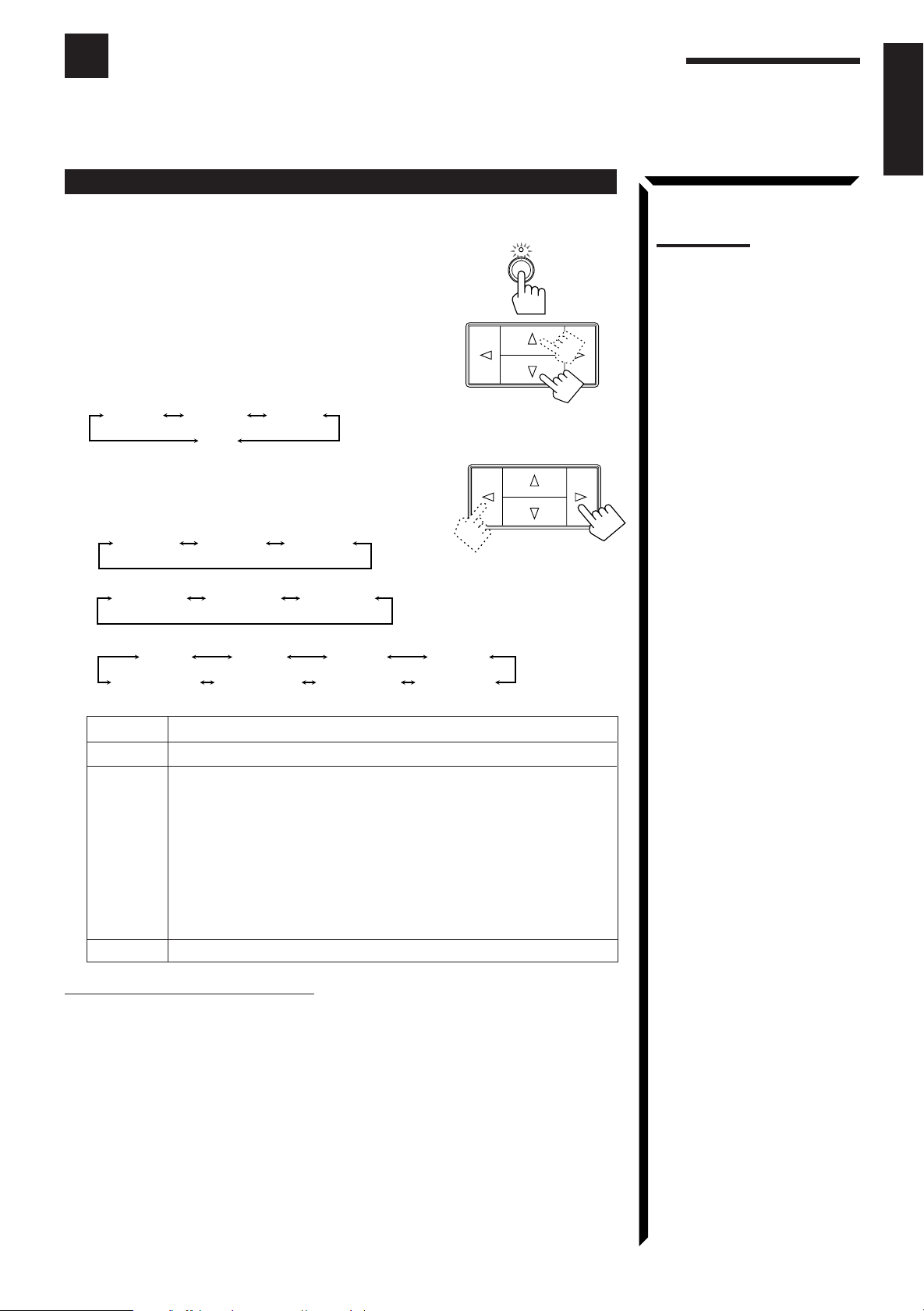

On the front panel:

%%

fifi

1. Press TUNER/BAND so that the Control

##

# buttons work for tuner settings.

##

% /

%%

The lamp above the button lights up.

%%

2. Press Control

fifi

% /

fi until “–PRESET+” appears on

%%

fifi

the display.

@@

3. Press Control

##

@ /

# to select a preset channel.

@@

##

Each time you press the button, the preset channels change.

• Pressing Control @ changes preset channels in

decreasing order.

• Pressing Control # changes preset channels in

increasing order.

fi /

fifi

@@

@ /

@@

English

TUNER/BAND

From the remote control:

1. Press TUNER/BAND.

Each time you press the button, the band alternates
between FM and AM (MW/LW).

2. Press 10 keys to select a preset channel number.

• For channel number 5, press 5.

• For channel number 15, press +10 then 5.

• For channel number 20, press +10 then 10.

• For channel number 30, press +10, +10, then 10.

TUNER/

BAND

DAP MODE

SEA MODE

3D-PHONIC

123

EFFECT DELAY

456

7/P 8 9

SURROUND

TEST

REAR

–+

CENTER

–+

10 +10

Note:

If you adjust the sound by using
SOUND CONTROL while
listening to a station, the 10 keys
will work for adjusting the sound.
T o select a preset channel number
after the sound adjustment, press
TUNER/BAND again, so the 10
keys will work for selecting the
preset channel numbers.

16

Receiving Radio Broadcasts

English

Selecting the FM Reception Mode

You can change the FM reception mode while receiving an FM broadcast.

On the front panel

1. Press TUNER/BAND so that the Control

##

# buttons work for tuner settings.

##

The lamp above the button lights up.

2. Press Control
the display.

3. Press Control
“FM MONO.”

• Normally select “FM AUTO.”

• When an FM stereo broadcast is hard to receive or

noisy, select “FM MONO.”

%%

% /

%%

@@

@ /

@@

only

:

%%

fifi

fi /

fifi

@@

@ /

@@

% /

%%

fifi

fi until “FM MODE” appears on

fifi

##

# to select either “FM AUTO” or

##

TUNER/BAND

Note:

You can store the FM reception
mode for each preset station.

FM AUT O: When a program is broadcast in stereo, you will hear stereo sound;

when in monaural, you will hear monaural sounds. This mode is
also useful to suppress static noise between stations.
The MUTE AUTO indicator lights up on the display.

FM MONO: Reception will be improved although you will lose the stereo effect.

In this mode, you will hear noise while tuning into the stations.
The MUTE AUTO indicator goes off on the display.

Using the RDS (Radio Data System) to Receive FM Stations

RDS allows FM stations to send an additional signal along with their regular program
signals. For example, the stations send their station names, as well as information about
what type of program they broadcast, such as sports or music, etc.

When tuned to an FM station which provides the RDS service, the RDS indicator lights
up on the display.

With the receiver, you can receive the following types of RDS signals.

PS (Program Service) : shows commonly known station names
PTY (Program Type) : shows types of broadcast programs
RT (Radio Text) : shows text messages the station sends
EON (Enhanced Other Network): see page 22.

Note:

RDS may not operate correctly if
the station tuned is not transmitting
RDS signal properly or if the signal
strength is weak.

17

About characters shown on the display

When the display shows PS, PTY, or RT signals, the following characters are
used.

• The display cannot differentiate upper case and lower case letters and always

uses upper case letters.

• The display cannot show accented letters, “A”, for instance, may stand for

accented “A’s” like “Å, Ä, Ã, Á, À, and Â.”

English

A, Å, Ä,
Ã, Á, À, Â

B

C, C, C

D, D

E, Ë, É,
È, Ê

F

G

H

I, Ï, Í, Ì, Î

J

K

L

M

N, Ñ

O, Ö, Õ, Ô,
Ò, Ó, Ø

P

Q

R, R, R

S, S, S

T

U, Ü, Ú,
Ù, Û

V

W

X

Y

Z, Z, Z

0

1

2

3

4

5

6

7

8

9

What Information Can RDS Signals Provide?

You can see the RDS signals the station sends on the display.

To show the RDS signals
Press DISPLAY MODE while listening to an FM
station.

Each time you press the button, the display changes to
show you the following information:

*

+

-

,

.
/

–
–

–

<

>

=

\

'

DISPLAY MODE

PS PTY RT Frequency

PS (Program Service):

While searching, “PS” appears and then the station names will be displayed.
“NO PS” appears if no signal is sent.

PTY (Program Type):

While searching, “PTY” appears and then the type of the broadcast program will
be displayed. “NO PTY” appears if no signal is sent.

RT (Radio Text):

While searching, “RT” appears and then text messages the station sends will be
displayed. “NO RT” appears if no signal is sent.

Station Frequency:

Station frequency (non-RDS service)

When pressing DISPLAY on the remote control:

Make sure that you have selected FM station using the
remote control.
If not, the DISPLAY button does not work for tuner
operation. (Pressing TUNER/BAND activates the
remote control for tuner operation.)

DISPLAY

Notes:

• If searching finishes at once,
“PS”, “PTY”, and “RT” will not
appear on the display.

• Even if you press DISPLAY
MODE (or DISPLAY) while
listening to an AM (MW/LW)
station, the display only shows
station frequency.

• RDS is not available for AM
(MW/LW) broadcasts.

18

PTY SEARCH

Receiving Radio Broadcasts

English

Searching for a Program by PTY Codes

One of the advantages of the RDS service is that you can locate a particular kind of
program from the preset channels by specifying the PTY codes.

To search for a program using the PTY codes

On the front panel:

1. Press PTY SEARCH while listening to an FM station

@@

so that Control
PTY code.

“PTY” and “SELECT” alternate on the display.

2. Press Control
appears on the display.

Each time you press the button, the display gives you
the PTY codes described on page 21.

##

@ /

# buttons work for selecting

@@

##

@@

##

@ /

# until the PTY code you want

@@

##

3. Press PTY SEARCH again.

While searching, “SEARCH” and the selected PTY
code alternate on the display.
The receiver searches 40 preset channels, stops when it
finds the one you have selected, and tunes in that
station.

To continue searching after the first stop:

Press PTY SEARCH again while the indications on the
display are flashing.
If no program is found, “NOTFOUND” appears on the
display.

To stop searching any time during the process:

Press PTY SEARCH while searching.

PTY SEARCH

PTY SEARCH

19

From the remote control:

Before starting the procedure below, make sure you have selected FM station only using
the remote control. If not, the following RDS operating buttons do not work for tuner
operation. (Pressing TUNER/BAND activates the remote control for tuner operation.)

English

1. Press PTY SEARCH while listening to an FM
station.

“PTY” and “SELECT” alternate on the display.

2. Press PTY SELECT +/– until the PTY code you
want appears on the display.

The display gives you the PTY codes described on page 21.

3. Press PTY SEARCH again.

While searching, “SEARCH” and the selected PTY
code alternate on the display.
The receiver searches 40 preset channels, stops when it
finds the one you have selected, and tunes in that
station.

To continue searching after the first stop:

Press PTY SEARCH again while the indications on the
display are flashing.
If no program is found, “NOTFOUND” appears on the
display.

PTY SEARCH

PTY SELECT

–+

PTY SEARCH

PTY SEARCH

To stop searching any time during the process:

Press PTY SEARCH while searching.

20

Receiving Radio Broadcasts

English

Descriptions of the PTY codes:

«

ALARM

J

TEST

J

DOCUMENT

J

FOLK M
OLDIES
NATIONAL
COUNTRY
JAZZ
LEISURE
TRAVEL
PHONE IN
RELIGION
SOCIAL A
CHILDREN
FINANCE

(FOLK MUSIC)

J

J

J

J

J

J

J

J

J

(SOCIAL AFFAIRS)

J

J

»

«

NEWS

(NATIONAL MUSIC)

«

«

AFFAIRS

J

INFO

J

SPORT

J

EDUCATE

J

DRAMA

J

CULTURE

J

SCIENCE

J

VARIED

J

POP M

J

ROCK M

J

M.O.R. M

J

LIGHT M

J

CLASSICS

J

OTHER M

J

WEATHER

»

Note:

When selecting the PTY codes,
NEWS always appears first.

(INFORMATION)

(EDUCATION)

(POP MUSIC)

(ROCK MUSIC)

(MIDDLE-OF-THE-ROAD MUSIC)

(LIGHT MUSIC)

(OTHER MUSIC)

21

When an emergency broadcast (ALARM signal) is sent from an FM station:

The receiver automatically tunes in the station except in the following cases:

• When you are listening to non-RDS stations (all AM — MW/LW and some FM
stations).

• When the receiver is in standby mode.

While receiving an emergency broadcast, “ALARM” appears on the display.

The TEST signal is used for equipment test — whether it can receive the ALARM
signal correctly.

The TEST signal makes the receiver work in the same way as the ALARM signal does.
If an TEST signal is received, the receiver automatically switches to the station
broadcasting the TEST signal.
While receiving an test signal, “TEST” appears on the display.

Switching to a Broadcast Program of Your Choice Temporarily

Another convenient RDS service is called “EON (Enhanced Other Network).”
The EON indicator lights up while receiving a station with the EON code.
This allows the receiver to switch temporarily to a broadcast program of your choice
(NEWS, TA, and/or INFO) from a different station except in the following cases:

• When you are listening to a non-RDS stations (all AM — MW/LW and some FM
stations).

• When the last received FM station is a non-RDS station.

• When the receiver is in standby mode.

English

On the front panel

only:

1. Press EON so that the last selected program type

appears on the display.

The receiver enters EON standby mode*.

2. Press TA/NEWS/INFO until the program type you

TA/ NEWS /INFO

want appears on the display.

Each time you press the button, the display changes to
show the following.

TA

TA/NEWS/INFO

NEWS

INFO

TA/INFO

TA/NEWS

NEWS/INFO

TA: Traffic Announcement in your area.
NEWS: News.
INFO: Program the purpose of which is to impart advice in the widest

sense.

Continued to the next page.

EON

Note:

* When the receiver is in EON

standby mode, the receiver is
ready to receive the EON data
(TA/NEWS/INFO) you select.

22

Receiving Radio Broadcasts

English

CASE 1 If there is no station broadcasting the program you have selected

The receiver continues playing the current source (all sources except AM).

‘

When a station starts broadcasting the program you have selected, the receiver automatically
switches to the station. The indicator of received PTY code starts flashing.

‘

When the program is over, the receiver goes back to the previously selected source, but still
remains in EON standby mode. The indicator of received PTY code stops flashing and
remains lit.

CASE 2 If there is a station broadcasting the program you have selected

The receiver changes the source (all sources except AM), and tunes in the station. The
indicator of received PTY code starts flashing.

‘

When the program is over, the receiver goes back to the previously selected source, but still
remains in EON standby mode. The indicator of received PTY code stops flashing and
remains lit.

CASE 3 If the FM station you are listening is broadcasting the program you have

selected

The receiver continues to receive the station but the indicator of received PTY code starts
flashing.

‘

When the program is over, the indicator of received PTY code stops flashing and remains
lit, but the receiver remains in EON standby mode.

To stop listening to the program selected by EON:

Press EON so that the program type (TA/NEWS/INFO) goes
off from the display. The receiver enters EON off mode and
goes back to the previously selected source.
Each time you press EON, the EON mode alternates between
standby mode and off mode.

EON

Notes:

• EON data sent from some
stations may not be compatible
with this receiver.

•

In EON standby mode, if you
change the source to AM (MW/
LW) or if you carry out
synchronized recording (see
page 37), EON standby mode
is canceled temporarily. The
receiver goes back to EON
standby mode again when you
have finished that operation.

•

While listening to a program
tuned in by the EON function,
you can only use STANDBY/ON

, EON, MASTER VOLUME
(on the front panel) and
AUDIO (on the remote
control).

•

When the receiver is turned off
(into standby mode), the EON
function is also turned off.

23

CAUTION:

When the source alternates
intermittently between the station
tuned in by the EON function and
the currently selected source,
press EON to cancel the EON
function. This is not a malfunction
of the receiver.

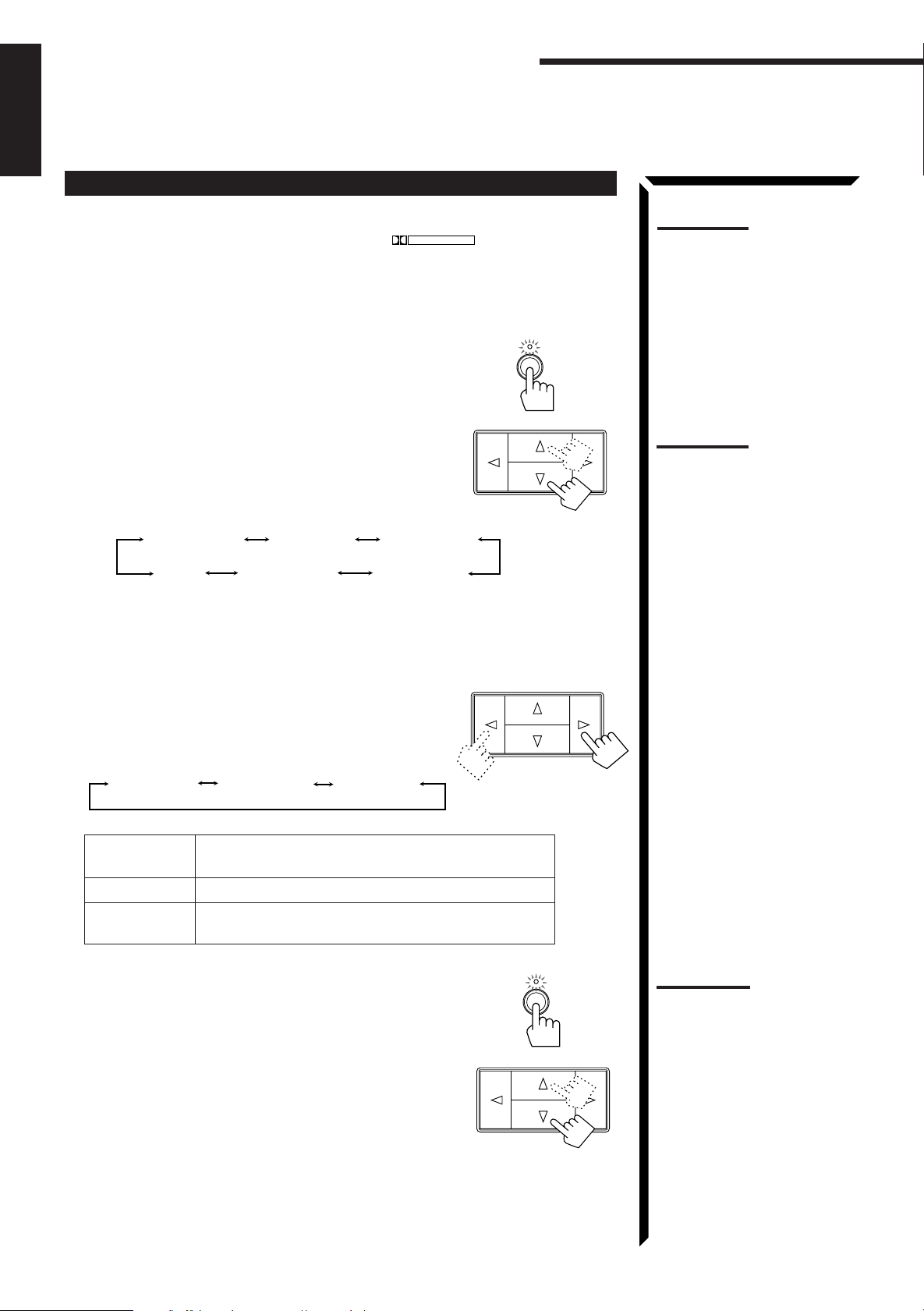

Using the Preset SEA Modes

The preset SEA (Sound Effect Amplifier) modes give you control of the way your music sounds.

Selecting Your Favorite SEA Mode

English

On the front panel:

1. Press PRESET SEA so that the Control

##

# buttons work for preset SEA setting.

##

The lamp above the button lights up.

%%

2. Press Control
want appears on the display.

The SEA indicator also lights up on the display.
Each time you press the button, the preset SEA modes
change as follows:

Movie Sports Music

3. Press Control

Each time you press the button, the effect level changes
as follows:

When “Movie” is selected:

MOVIE 1 MOVIE 2 MOVIE 3

When “Sports” is selected:

SPORTS1 SPORTS2 SPORTS3

When “Music” is selected:

JAZZ 1 JAZZ 2

COUNTRY2 COUNTRY1 MUSICAL2 MUSICAL1

fifi

% /

fi until the preset SEA mode you

%%

fifi

OFF

@@

##

@ /

# to select the effect level.

@@

##

%%

% /

%%

ROCK 1 ROCK 2

fifi

fi /

fifi

@@

@ /

@@

PRESET SEA

Notes:

• The preset SEA modes cannot
be used for recording.

• When you turn on the preset
SEA mode, the mode with its
effect level previously selected
is recalled at first.

Movie: Adds breadth to sounds so you feel like you are in a movie theater.
Sports: Makes sounds exciting.
Music: Select one of the modes below.

JAZZ: Gives a feeling of a live atmosphere. Good for

acoustic music.

ROCK: Gives a heavy sound. Both high and low frequencies

are boosted.

MUSICAL: Enhances the mid-frequency range, which the human

voice is mostly made up of.

COUNTRY: Enhances the high-frequency range so that

instruments such the violin and banjo are emphasized.

OFF: No preset SEA mode is applied (See below).

To cancel the preset SEA mode

Select “OFF” in step 2 above.
The SEA indicator goes off from the display.

24

Using the Preset SEA Modes

SEA

PRESET

SOUND

CONTROL

English

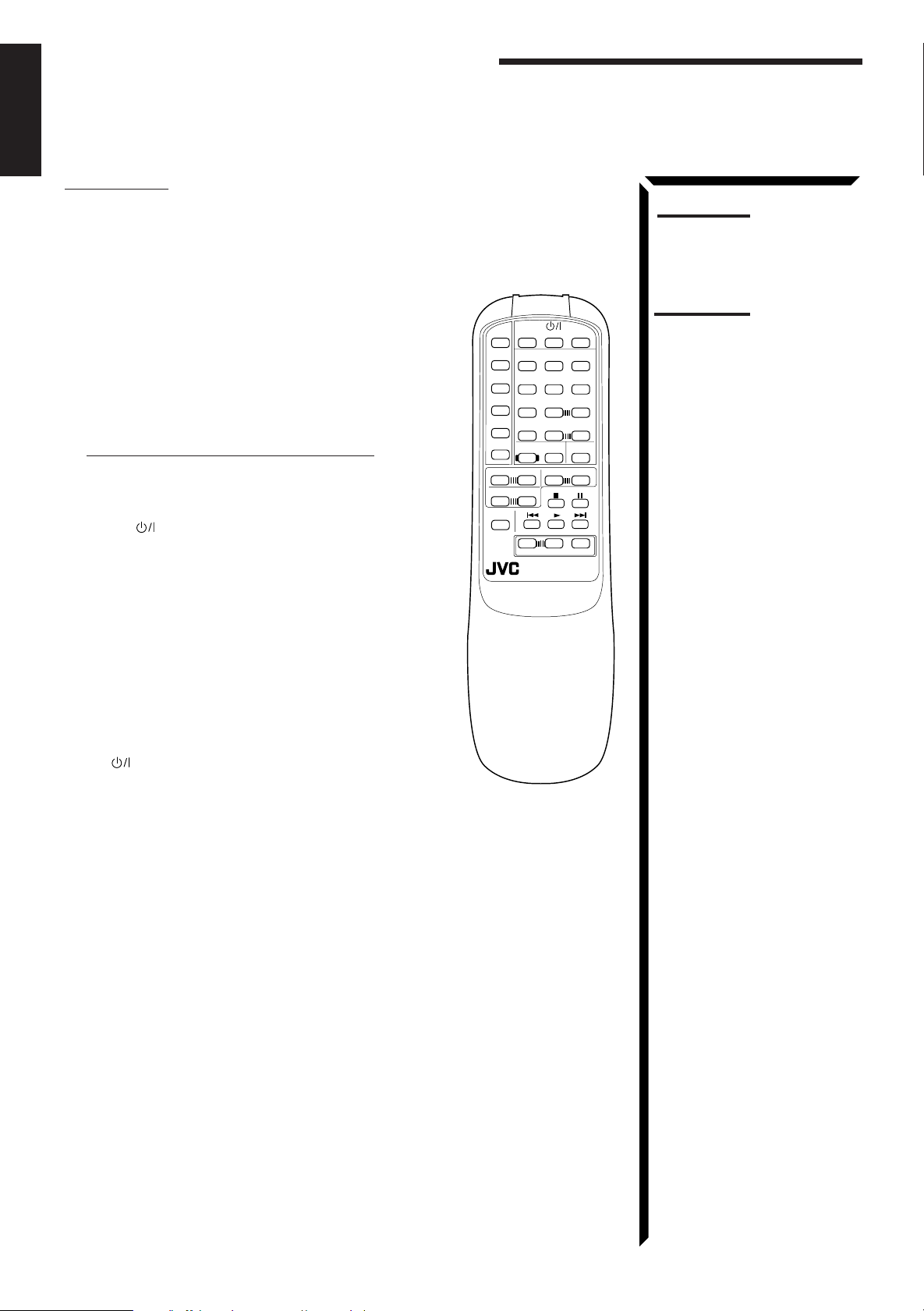

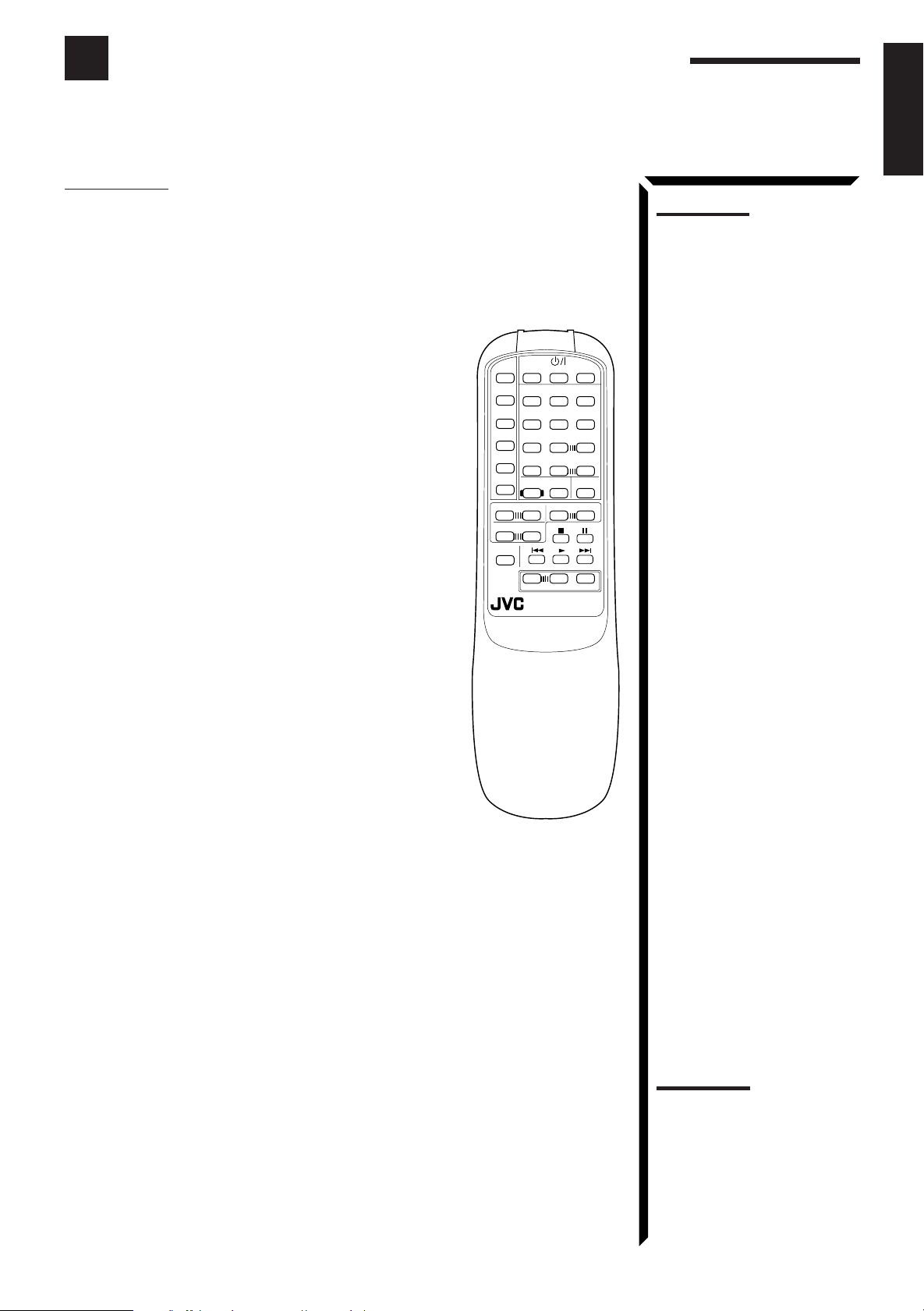

From the remote control:

1. Press SOUND CONTROL so that 10 keys work for
adjusting the sound.

2. Press SEA MODE until the preset SEA mode you
want appears on the display.

The previously selected mode is recalled (at its previous
effect level) and is shown on the display.
Each time you press the button, the preset SEA modes
change as follows:

Music

Sports

Movie

OFF

3. Press SEA PRESET to select the effect level.

Each time you press the button, the effect level changes
as follows:

When “Music” is selected:

JAZZ 1 JAZZ 2

ROCK 1 ROCK 2

COUNTRY2 COUNTRY1 MUSICAL2 MUSICAL1

When “Sports” is selected:

SPORTS1 SPORTS2 SPORTS3

When “Movie” is selected:

MOVIE 1 MOVIE 2 MOVIE 3

SEA MODE

7/P

To cancel the preset SEA mode

Selecting “OFF” in step 2 above.
The SEA indicator goes off from the display.

25

Activating the Surround Sounds

The built-in surround processor provides three groups of programs — JVC 3D-PHONIC mode, DAP (Digital
Acoustic Processor) mode, and surround modes (Dolby Surround and JVC Theater Surround).

You cannot use the DAP mode and surround mode at the same time. When you turn on the DAP mode, the surround mode is
turned off (if it has been on), and vice versa.

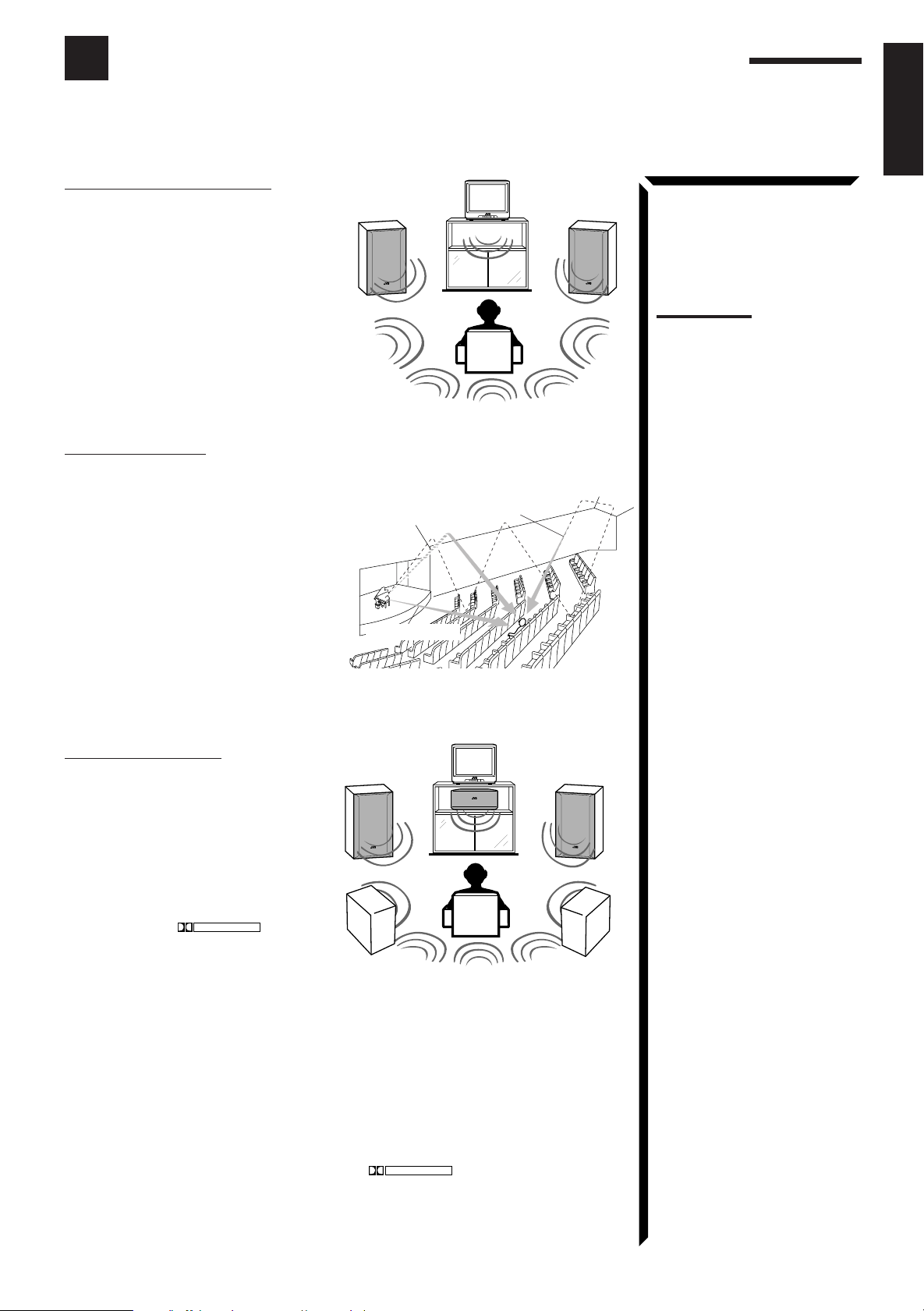

On JVC 3D PHONIC mode

JVC 3D-PHONIC mode gives you such a
nearly surround effect as it is reproduced
through the Dolby Surround decoder, which
is widely used to reproduce sounds with a
feeling of movement like those experienced
in movie theaters. JVC 3D-PHONIC mode is
the result of research on sound localization
technology carried out at JVC for many
years and makes it possible to reproduce the
surround sound with only two front
speakers.

On the DAP mode

The sound heard in a concert hall or club
consists of direct sound and indirect sound
— early reflections and reflections from
behind. Direct sounds reach the listener
directly without any reflection. On the other
hand, indirect sounds are delayed by the
distances of the ceiling and walls. These
direct sounds and indirect sounds are the
most important elements of the acoustic
surround effects. The DAP mode can create
these important elements, and gives you a
real “being there” feeling by using the front
speakers and rear speakers.

Early reflections

Direct sounds

Reflections from
behind

Notes:

• The surround processor has no
effect on monaural sources.

• The surround processor cannot
be used for recording.

English

On surround modes

With this receiver, you can use two types
of the surround mode.

Dolby Surround

Dolby Surround has been developed to
reproduce the important elements of the
acoustic surround at home.
To watch the soundtracks of video software
bearing the mark
includes the same encoded surround
information as found in Dolby Stereo films,
the receiver can provide you with 2 Dolby
Surround modes (Dolby Pro Logic and
Dolby 3ch Logic).

Dolby Pro Logic: Select this mode when optional center and rear speakers are

Dolby 3ch Logic: Select this mode when a center speaker is connected without rear

JVC Theater Surround

In order to reproduce a more realistic sound field in your listening room while playing
soundtracks of video software bearing the mark
has been designed to give you clear vocals and to create a real ”being there” feeling.
The sound is reproduced through the front speakers, rear speakers and center

speakers.

DOLBY SURROUND

connected.

speakers.

* which

DOLBY SURROUND

, JVC Theater Surround

* Manufactured under license

from Dolby Laboratories
Licensing Corporation.
“Dolby,” the double-D symbol
and “Pro Logic” are
trademarks of Dolby
Laboratories Licensing
Corporation.

26

Activating the Surround Sounds

SURROUND

English

Using JVC 3D-PHONIC Modes

When using JVC 3D-PHONIC modes, you need only two front speakers to reproduce
the soundtracks of video software bearing the mark

DOLBY SURROUND

.
The 3D-PHONIC modes give you very realistic surround effects as if the sound is
reproduced through the Dolby Surround decoder.

On the front panel:

%%

fifi

1. Press SURROUND so that the Control

##

# buttons work for selecting the surround/DAP/3D-

##

% /

%%

PHONIC modes.

The lamp above the button lights up.

%%

2. Press Control

fifi

% /

fi until one of the 3D-PHONIC

%%

fifi

mode (“3DACTION”, “3DTHEATR” or
“3DDRAMA”) appears on the display.

Each time you press the button, surround/DAP/3D­PHONIC modes change as follows:

Ex.

PROLOGIC THEATER

OFF

(One of the three modes appears)

3DACTION*

* As for the DAP modes (see page 29) and the 3D-

PHONIC modes, one of the previously selected mode
appears on the display.

@@

fi /

@ /

fifi

@@

3CHLOGIC

PAVILION*

Note:

The 3D-PHONIC mode is not
used with other surround modes
such as Dolby Surround, JVC
Theater Surround and the DAP
modes. When the 3D-PHONIC
mode is turned on, the other
surround mode, if used, will be
turned off.

Note:

When one of the 3D-PHONIC
modes is selected, the 3D­PHONIC indicator also lights up
on the display.

@@

3. Press Control

##

@ /

# until the 3D-PHONIC mode you

@@

##

want appears on the display.

Each time you press the button, the 3D-PHONIC modes
change as follows:

3DACTION

3DTHEATR

3DDRAMA

3DACTION Best for action and war movies — where the action is

fast and explosive.

3DTHEATR Reproduces the sound field of a large theater.
3DDRAMA Best for dramas and romantic movies — where the

action is slow and soft.

%%

4. Press ADJUST so that Control

fifi

% /

fi buttons work

%%

fifi

for adjusting the effect level.

The lamp above the button lights up.

%%

5. Press Control

fifi

% /

fi until “–EFFECT+” appears on

%%

fifi

the display.

ADJUST

Note:

Once you have adjusted the effect
level, it is memorized for each 3D­PHONIC mode.

27

@@

2

3D-PHONIC

SOUND

CONTROL

6. Press Control

##

@ /

# to adjust the effect level.

@@

##

Each time you press the button, the effect level changes
as follows:

English

EFFECT 1 EFFECT 2

EFFECT 5

EFFECT 3

EFFECT 4

As the number increases, the effect of the selected 3D­PHONIC mode becomes stronger.

7. Select and play a sound source which was processed with Dolby Surround and
is labeled with

DOLBY SURROUND

mark.

To cancel the 3D-PHONIC mode

Select “OFF” in step 2.
The 3D-PHONIC indicator goes off from the display.

From the remote control:

1. Press SOUND CONTROL so that 10 keys work for
adjusting the sound.

2. Press 3D-PHONIC to select the 3D-PHONIC mode
you want.

The previously selected mode is recalled at first (at its
previous effect level) and is shown on the display.
The 3D-PHONIC indicator also lights up on the display.
Each time you press the button, the 3D-PHONIC modes
change as follows:

3DTHEATR

3DDRAMA

3DACTION

OFF

3. Press EFFECT to select the effect level.

Each time you press the button, the level changes as

EFFECT

4

follows:

EFFECT 1 EFFECT 2

EFFECT 5

EFFECT 3

EFFECT 4

As the number increases, the effect of the selected 3D­PHONIC mode becomes stronger.

4. Select and play a sound source which was processed with Dolby Surround and
is labeled with

DOLBY SURROUND

mark.

To cancel the 3D-PHONIC mode

Select “OFF” in step 2 above.
The 3D-PHONIC indicator goes off from the display.

Note:

Once you have adjusted the effect
level, it is memorized for each 3D­PHONIC mode.

28

Activating the Surround Sounds

SURROUND

English

Using the DAP Modes

You can use five DAP modes — “Dance Club, Live Club, Hall, Pavilion, and
Headphones.” These modes (except “Headphones”) require the front speakers and the
rear speakers, but do not require a center speaker to enlarge the sound field.

Among the DAP modes, “Headphones” is very special. It can create the same stereo
sound as you listen through the speakers off air while listening to a source using
headphones. So, you can feel as if you were not using the headphones and listening to
music in a room.

On the front panel:

%%

fifi

@@

1. Press SURROUND so that the Control

% /

%%

fi /

fifi

buttons work for selecting the surround/DAP/3D­PHONIC modes.

The lamp above the button lights up.

%%

2. Press Control

fifi

% /

fi until one of the DAP mode

%%

fifi

(“HEAD P,” “PAVILION,” “HALL,” “LIVE C,” or
“DANCE C”) appears on the display.

Each time you press the button, the surround/DAP/3D­PHONIC modes change as follows:

@ /

@@

##

#

##

Note:

When one of the DAP modes is
selected, the DAP indicator also
lights up on the display.

Ex.

PROLOGIC THEATER

OFF

3DACTION*

3CHLOGIC

PAVILION*

(One of the five modes appears)

* As for the 3D-PHONIC modes (see page 27) and the

DAP modes, one of the previously selected mode
appears on the display.

@@

3. Press Control

##

@ /

# until the DAP mode you want

@@

##

appears on the display.

Each time you press the button, the DAP modes change
as follows:

HEAD P

DANCE C

HEAD Phones*

Gives a spacious stereo effect when listening with headphones.

PAVILION

LIVE C

HALL

PAVILION Gives the spacious feeling of a pavilion with a high ceiling.
HALL Gives clear vocal and the feeling of a concert hall.
LIVE Club Gives the feeling of a live music club with a low ceiling.
DANCE Club Gives a throbbing bass beat.

* When you select “HEAD P,” you cannot go to the following steps. No adjustments

can be made for “Headphones.”

ADJUST

%%

fifi

@@

4. Press ADJUST so that the Control

% /

%%

fi /

fifi

@ /

@@

#

##

##

buttons work for adjusting the selected mode.

The lamp above the button lights up.

Note:

When changing the DAP modes
to “PAVILION” or “HALL,” a
reverberation sound comes out.
This is because a long
reverberation is applied to these
two modes.

5. Press Control
the display.

29

%%

fifi

% /

fi until “– REAR +” appears on

%%

fifi

Note:

Once you have adjusted the DAP
modes, the adjustment is
memorized for each DAP mode.

@@

89

–+

REAR

SOUND

CONTROL

6. Press Control

##

@ /

# to adjust the rear speaker

@@

##

output level.

• Pressing Control @ decreases the output level up to

–10 dB.

• Pressing Control # increases the output level up to

+10 dB.

%%

7. Press Control

fifi

% /

fi until “–EFFECT+” appears on

%%

fifi

the display.

@@

8. Press Control

##

@ /

# to adjust the effect level.

@@

##

Each time you press the button, the effect level changes
as follows:

EFFECT 1 EFFECT 2

EFFECT 5

EFFECT 3

EFFECT 4

As the number increases, the effect of the selected DAP
mode becomes stronger.

To cancel the DAP mode

Select “OFF” in step 2.
The DAP indicator goes off from the display.

English

Note:

When adjusting the effect level for
“PAVILION” or “HALL,” a
reverberation sound comes out.
This is because a long
reverberation is applied to these
two modes.

From the remote control:

1. Press SOUND CONTROL so that 10 keys work for
adjusting the sound.

2. Press DAP MODE to select the DAP mode you want.

The previously selected mode is recalled at first (at its
previous effect level) and is shown on the display.
The DAP indicator also lights up on the display.
Each time you press the button, the DAP modes change
as follows:

HALLHEAD P

LIVE C

OFF

PAVILION

DANCE C

* When you select “HEAD P” (or “OFF”), you cannot go to the following steps. No

adjustments can be made for “Headphones.”

3. Press REAR +/– to adjust the rear speaker output
level.

• Pressing REAR – decreases the output level up to

–10 dB.

• Pressing REAR + increases the output level up to

+10 dB.

4. Press EFFECT to select the effect level.

Each time you press the button, the effect level changes
as follows:

EFFECT 1 EFFECT 2

EFFECT 3

DAP MODE

1

EFFECT

4

Note:

Once you have adjusted the DAP
modes, the adjustment is
memorized for each DAP mode.

To cancel the DAP mode

Select “OFF” in step 2 above.
The DAP indicator goes off from the display.

EFFECT 5

EFFECT 4

30

Activating the Surround Sounds

With this receiver, you can use two types of the surround modes — Dolby Surround and JVC Theater
Surround.

English

Speaker Arrangements for Surround Modes

The following illustrations show how to obtain the optimum sound environment for
various surround modes settings. Try to find the speaker direction and location to create
the optimum sound field.

CASE 1 When you have added a center speaker and rear speakers

Front

speaker

Rear

speaker

CASE 2 When you have added rear speakers (without a center speaker)

Front

speaker

Rear

speaker

TV

Center speaker

TV

Front

speaker

Rear

speaker

Front

speaker

Rear

speaker

In this case:

1.Select “PROLOGIC” or
“THEATER.”

2.Select “NORMAL” or
“WIDE” for center mode.

See pages 32 to 35 for more
details.

In this case:

1.Select “PROLOGIC” or
“THEATER.”

2.Select “PHANTOM” for
center mode.

CASE 3 When you have added a center speaker (without rear speakers)

Front

speaker

TV

Center speaker

Front

speaker

31

See pages 32 to 35 for more
details.

In this case:

1.Select “3CHLOGIC.”

2.Select “NORMAL” or
“WIDE” for center mode.

See pages 32 to 35 for more
details.

Preparing for Surround Modes

SURROUND

Once you have set the surround modes, you can use the same adjustment every time you
want to activate the surrround mode you want. The receiver memorizes surround
adjustments for each mode.

On the front panel:

%%

1. Press SURROUND so that the Control
work for selecting the surround modes.

The lamp above the button lights up.

%%

2. Press Control

fifi

% /

fi to select one of the surround

%%

fifi

mode (“PROLOGIC”, “3CHLOGIC” or
“THEATER”).

Each time you press the button, the surround modes
change as follows:

fifi

% /

fi buttons

%%

fifi

English

Note:

When one of the surround modes
is selected, the corresponding
indicator lights up on the display.

Ex.

PROLOGIC THEATER

OFF

3DACTION*

3CHLOGIC

PAVILION*

PROLOGIC Select this mode when you use a center speaker and rear

speakers.

THEATER Select this mode to watch a video source with Dolby Surround

when you have connected the rear speakers (and a center
speaker). This mode gives you the feeling of a movie theater.

3CHLOGIC Select this mode when you use a center speaker without rear

speakers.

OFF Select this to turn off the surround/DAP/3D-PHONIC modes.

* You cannot select the 3D-PHONIC modes or the DAP modes in this step.

For the 3D-PHONIC modes: see pages 27 and 28.
For the DAP modes: see pages 29 and 30.

3. Press ADJUST so that the Control

%%

% /

%%

fifi

fi /

fifi

@@

@ /

@@

##

#

##

ADJUST

buttons work for adjusting the selected surround
mode.

The lamp above the button lights up.

%%

4. Press Control

fifi

% /

fi until “CNT MODE” (Center

%%

fifi

Mode) appears on the display.

Note:

If you have already set the center
speaker size following the
procedure described on page 13,
you do not have to select the
center mode in this procedure.

Continued to the next page.

32

Activating the Surround Sounds

English

@@

5. Press Control

Each time you press the button, the center modes change
as follows:

WIDE

WIDE Select this mode when the center speaker can reproduce the bass

NORMAL Select this mode when the center speaker cannot reproduce the

PHANTOM Select this mode when you do not use a center speaker. The center

6. Press Control
the display.

7. Press Control
rear speaker output.

Each time you press the button, the delay time changes
as follows:

DELAY 1 DELAY 2 DELAY 3

##

@ /

# to select the center mode.

@@

##

NORMAL

better than the front speakers. All signals of the center channel are
output through the center speaker.

bass better than the front speakers. The bass portions of the center
channel signals are output through the front speakers.

speaker channel signals are output through the front speakers.

%%

fifi

% /

fi until “–DELAY +” appears on

%%

fifi

@@

##

@ /

# to adjust the delay time of the

@@

##

PHANTOM

Note:

When you have selected
“3CHLOGIC,” you cannot select
“PHANTOM.”

Note:

When you have selected
“3CHLOGIC” or “THEA TER,” you
cannot adjust the delay time.

DELAY 1 Select this when the distance from you to your rear speakers is

greater than that to the front speakers.

DELAY 2 Select this when the distance from you to your rear speakers is

almost equal to that to the front speakers.

DELAY 3 Select this when the distance from you to your rear speakers is less

than that to the front speakers.

%%

8. Press Control
display, then press Control
the speaker output balance.

“TEST” starts flashing on the display, and a test tone
comes out of the speakers in the following order:

Left front

speaker

fifi

% /

fi until “TEST” appears on the

%%

fifi

@@

##

@ /

# to start checking

@@

##

Center

speaker

Rear

speakers

Right front

speaker

Notes:

• No test tone comes out of the
rear speakers when you have
selected “3CHLOGIC.”

• No test tone comes out of the
center speaker when you select
“PHANTOM” for the center
mode.

33

9. If necessary, adjust the speaker output balance as

3

SURROUND

SOUND

CONTROL

follows:

• To adjust the rear speaker output level, press Control
% / fi until “– REAR +” appears on the display, then
press Control @ / #.

• To adjust the center speaker output level, press
Control % / fi until “–CENTER+” appears on the
display, then press Control @ / #.

%%

10.Press Control
display, then press Control

fifi

% /

fi until “TEST” appears on the

%%

fifi

@@

##

@ /

# twice to stop the

@@

##

test tone.

If you have selected JVC Theater Surround, go to the following steps.

%%

11.Press Control

fifi

% /

fi until “–EFFECT+” appears on

%%

fifi

the display.

@@

12.Press Control

##

@ /

# to adjust the effect level.

@@

##

Each time you press the button, the effect level changes
as follows:

EFFECT 1 EFFECT 2

EFFECT 3

English

Notes:

• The sound levels of the left and
right rear speakers will be the
same.

• You cannot set the sound level
of the rear speakers when you
have selected “3CHLOGIC.”

• You cannot set the sound level
of the center speaker when you
select “PHANTOM” for the
center mode.

Note:

When you have selected
“PROLOGIC” or “3CHLOGIC,”
you cannot select the effect level.

EFFECT 5

EFFECT 4

As the number increases, the effect of the Theater
Surround mode becomes stronger.

From the remote control:

If you have already set the center speaker size following the procedure described on
page 13, you can use the remote control for surround mode preparation.

1. Press SOUND CONTROL so that 10 keys work for
adjusting the sound.

2. Press SURROUND until the surround mode you
want appears on the display.

The previous mode is recalled (with its previous
settings) and is shown on the display.
The indicator for that mode also lights up on the display.
Each time you press the button, the surround modes
change as follows:

PROLOGICTHEATER 3CHLOGIC

OFF

3. Press DELAY to adjust the delay time of the rear
speaker output.

Each time you press the button, the delay time changes
as follows:

DELAY 1 DELAY 2 DELAY 3

DELAY

5

Continued to the next page.

Note:

When you have selected
“3CHLOGIC” or “THEA TER,” you
cannot adjust the delay time.

34

Activating the Surround Sounds

6

TEST

10 +10

–+

CENTER

6

TEST

4

EFFECT

English

4. Press TEST to start checking the speaker output
balance.

“TEST” starts flashing on the display, and a test tone
comes out of the speakers in the following order:

Left front

speaker

Center

speaker

Right front

speaker

Rear

speakers

5. If necessary, adjust the speaker output balance as
follows:

• To adjust the rear speaker output level, press REAR

+/–.

• To adjust the center speaker output level, press

CENTER +/–.

Pressing – decreases the output level up to –10 dB.
Pressing + increases the output level up to +10 dB.

6. Press TEST again to stop the test tone.

If you have selected JVC Theater Surround, go to the following steps.

REAR

–+

89

Notes:

• No test tone comes out of the
rear speakers when you have
selected “3CHLOGIC.”

• No test tone comes out of the
center speaker when you select
“PHANTOM” for the center
mode.

Notes:

• The sound levels of the left and
right rear speakers will be the
same.

• You cannot set the sound level
of the rear speakers when you
have selected “3CHLOGIC.”

• You cannot set the sound level
of the center speaker when you
select “PHANTOM” for the
center mode.

7. Press EFFECT to adjust the effect level.

Each time you press the button, the effect level changes
as follows:

EFFECT 1 EFFECT 2

EFFECT 5

EFFECT 3

EFFECT 4

As the number increases, the effect of the Theater
Surround mode becomes stronger.

Note:

When you have selected
“PROLOGIC” or “3CHLOGIC,”
you cannot select the effect level.

35

Using Surround Modes

SURROUND

SOUND

CONTROL

Once you have adjusted the surround mode, you can use the same adjustments every
time you want to enjoy Surround Modes.

From the front panel:

%%

1. Press SURROUND so that the Control
work for selecting the surround/DAP/3D-PHONIC
modes.

The lamp above the button lights up.

%%

2. Press Control

fifi

% /

fi to select one of the surround

%%

fifi

mode (“PROLOGIC,” “3CHLOGIC” or
“THEATER”).

Each time you press the button, the surround/DAP/3D­PHONIC modes change as follows:

fifi

% /

fi buttons

%%

fifi

English

Note:

When one of the surround mode
is selected, the corresponding
indicator lights up on the display.

Ex.

PROLOGIC THEATER

OFF

3DACTION*

3CHLOGIC

PAVILION*

* As for the 3D-PHONIC modes (see page 27) and the

DAP modes (see page 29), one of the previously
selected mode appears on the display.

3. Select and play a sound source which was processed with Dolby Surround and
is labeled with

DOLBY SURROUND

mark.

To cancel surround mode

Select “OFF” in step 2 above.

From the remote control:

1. Press SOUND CONTROL so that 10 keys work for
adjusting the sound.

2. Press SURROUND until the mode you want appears
on the display.

The previous mode is recalled at first (with its previous
settings) and is shown on the display.
The indicator for that mode also lights up on the display.
Each time you press the button, the surround modes
change as follows:

SURROUND

3

PROLOGICTHEATER 3CHLOGIC

OFF

3. Select and play a sound source which was processed with Dolby Surround and
is labeled with

DOLBY SURROUND

mark.

To cancel surround mode

Select “OFF” in step 2 above.

36

COMPU LINK Remote Control System

The COMPU LINK remote control system allows you to operate JVC audio components through the remote
sensor on the receiver.

English

To use this remote control system, you need to connect JVC audio components through
the COMPU LINK-3 (SYNCHRO) jacks with the cable (monaural mini-plug supplied
with those components):

COMPU LINK – 3

(SYNCHRO)

CD player

Cassette deck

Turntable

This remote control system allows you to use the four functions listed below.

Remote Control through the Remote Sensor on the Receiver

You can control JVC audio components through the remote sensor on the receiver using
this remote control. Aim the remote control directly at the remote sensor on the receiver.
For details, see page 38.

Notes:

•

Without connecting the audio
components with RCA pin plugs
as described on page 8, the
COMPU LINK remote control
system cannot operate the
components.

•

Refer also to the manuals
supplied with your audio
components.

Automatic Source Selection

When you press the play (

33

3) button on a connected component or on its own remote

33

control, the receiver automatically turns on and changes the source to the component.
On the other hand, if you select a new source on the receiver or the remote control, the
selected component begins playing immediately.
In both cases, the previously selected source continues playing without sound for a few
seconds.

Automatic Power On/Off (Standby) (only possible with the

COMPU LINK-3 connection)

Both the CD player and cassette deck turn on and off (into standby mode) with the
receiver.
When you turn on the receiver, the CD player or cassette deck will turn on
automatically, depending on which component has been previously selected.
When you turn off (into standby mode) the receiver, both the CD player and cassette
deck will turn off (into standby mode).

Synchronized Recording

Synchronized recording means the cassette deck starts recording as soon as a CD (or a
record) begins playing.

To use synchronized recording, follow these steps:

1 Put a tape in the cassette deck, and a disc in the CD player (or a record on the

turntable).

2 Press the record (¶) button and the pause (8) button on the cassette deck at the

same time.

This puts the cassette deck into recording pause.
If you do not press the record (¶) button and pause (8) button at the same time, the
synchronized recording will not start.

3 Press the play (3) button on the CD player (or on the turntable).

The source changes on the receiver, and as soon as play starts, the cassette deck
starts recording. When the play ends, the cassette deck enters recording pause, and
stops about 4 seconds later.

Notes:

•

During synchronized recording,
the selected source cannot be
changed.

•

If your CD player is playing in
program mode, a 4-second
blank is recorded between tracks
so that the music scan feature
of your cassette deck can be
used on the recorded tape.

•

If the power of any component
is shut off during synchronized
recording, the COMPU LINK
remote control system may not
operate properly. In this case,
you must start again from the
beginning.

37

Operating Other Components

You can operate JVC audio and video components with this receiver’s remote control.
To operate these components with the remote control, first select a source with the source buttons on the
remote control. Then, operate that source using the remote control.

IMPORTANT:

To operate JVC audio components using this remote control:

• You need to connect JVC audio components through the COMPU LINK-3
(SYNCHRO) jacks (see page 37) in addition to the connections using cables with
RCA pin plugs (see page 7).

• Aim the remote control directly at the remote sensor on the receiver.

77

7 After pressing TUNER/BAND, you can perform the

77

following operations:

TUNER/BAND

Alternates between FM and AM (MW/LW).

1 – 10, +10 Selects a preset channel number directly.

For channel number 5, press 5.
For channel numver 15, press +10, then 5.
For channel number 20, press +10, then 10.
For channel number 30, press +10, +10
then 10.

RDS operating buttons

PTY SEARCH Starts and ends searching a broadcast

using the RDS.

PTY SELECT +/–

Selects a program type.

DISPLAY Changes the RDS display mode.

77

7 After pressing CD, you can perform the following

77

TV VCR AUDIO

CD

DAP MODE

TAPE

123

EFFECT DELAY

TUNER/

BAND

456

SEA MODE

VCR

7/P 8 9

SEA

VIDEO

PRESET

SOUND

PHONO

CONTROL

TV CH

–+

TV VOL.

–+

TV/

VIDEO

–+

–+

RM-SR554RU REMOTE CONTROL

PTY SELECT

VOLUME

operations on the CD player:

3 Starts playing.
4 Returns to the beginning of the current (or

previous) track.

¢ Skips to the beginning of the next track.
7 Stops playing.
8 Pauses. To resume playing, press 3.

1 – 10, +10 Selects a track number directly.

For track number 5, press 5.
For track number 15, press +10, then 5.

For
track number 20, press +10, then 10.
For track number 30, press +10, +10, then 10.

3D-PHONIC

SURROUND

REAR

–+

CENTER

–+

10

ONE TOUCH
OPERATION

CD-DISC

VCR CH

–+

PTY SEARCH DISPLAY

MUTING

TEST

+10

Note:

If you choose a source on the front
panel, the remote control will not
operate that source.

English

77

7 After pressing CD-DISC, you can perform the following operations on the

77

CD changer:

1 – 6, 7/P Select the number of a disc installed in a CD changer.

Then continue to operate the CD player as described above.
For example: To find a track number 11 of disc 4

1. Press CD DISC.

2. Press 4.

3. Press CD.

4. Press +10, then 1.

77

7 After pressing TAPE, you can perform the following operations on the

77

cassette deck:

3 Starts playback.
4 Fast winds a tape from right to left.
¢ Fast winds a tape from left to right.
7 Stops operation.
8 Pauses. To resume playing, press 3.

Note:

If you press SOUND CONTROL,
you cannot operate the cassette
deck with this remote control. If
this happens, press TAPE again,
so operating buttons for audio
components will work for the
cassette deck.

38

Operating Other Components

English

IMPORTANT:

To operate JVC video components using this remote control:

• Aim the remote control directly at the remote sensor on the VCR or TV, not on
the receiver.

77

7 After pressing VCR, you can perform the

77

following operations on the VCR:

3 Starts playback.
4 Rewinds a video tape.
¢ Fast winds a video tape.
7 Stops operation.
8 Pauses. To resume playing, press 3.

You can always do the following on the VCR:

• Change the channels on the VCR using the VCR

CH +/– button.

• Turn on and off the VCR by pressing VCR in

the (Standby/On) section.

77

7 You can always perform the following operations

77

on the TV:

• Change the TV’s input mode to either “TV” or

“VIDEO” using the TV/VIDEO button.

• Change the TV volume using the TV VOL. +/–

button.

• Change the channels on the TV using the TV CH

+/– button.

• Turn on and off the TV by pressing TV in the

(Standby/On) section.

CD

TAPE

TUNER/

BAND

VCR

VIDEO

PHONO

–+

–+

TV/

VIDEO

TV VCR AUDIO

3D-PHONIC

DAP MODE

123

EFFECT DELAY

456

SEA MODE

–+

7/P 8 9

CENTER

–+

SEA

10

PRESET

SOUND

CONTROL

CD-DISC

TV CH

TV VOL.

VCR CH

–+

PTY SEARCH DISPLAY

PTY SELECT

–+

VOLUME

–+

RM-SR554RU REMOTE CONTROL

REAR

SURROUND

TEST

+10

ONE TOUCH
OPERATION

MUTING

Note:

If you choose a source on the front
panel, the remote control will not
operate that source.

Notes:

• If you press SOUND
CONTROL, you cannot operate
the VCR with this remote
control. If this happens, press
VCR again, so operating
buttons for video components
will work for the VCR.

• If you press the VCR (the one
for the source selection) on the
remote control aiming at a JVC
TV, the TV’s input mode will
change to the video input.

39

Troubleshooting

Use this chart to help you solve daily operational problems. If there is any problem you cannot solve,
contact your JVC service center.

English

PROBLEM

The display does not light up.

No sound from speakers.

“OVERLOAD” starts flashing on the
display.

POSSIBLE CAUSE

The power cord is not plugged in or the

POWER switch is press to set in the —

OFF position.

Speaker signal cables are not connected.

The SPEAKERS 1 and 2 buttons is not set
correctly.

An incorrect source is selected.

Speakers are over-loaded because of high
volume.

Speakers are over-loaded because of short
circuit of speaker terminals.

SOLUTION

Plug the power cord into an AC outlet and/
or press POWER to set it in the _ON
position.

Check speaker wiring and
reconnect if necessary.

Press SPEAKERS 1 and 2 to set it in the
_ ON position.

Select the correct source.

Rotate the MASTER VOLUME control
counterclockwise three or four times then

STANDBY/ON

press
panel.
If “OVERLOAD” does not disappear,
unplug the AC power cord, then plug it
back again.
Do not use the remote control when
“OVERLOAD” is shown on the display.

STANDBY/ON

Press
panel then check the speaker wiring.
If “OVERLOAD” does not disappear,
unplug the AC power cord, then plug it
back again.
Do not use the remote control when
“OVERLOAD” is shown on the display.
If speaker wiring is not short circuited,
contact your dealer.

on the front

on the front

Sound from one speaker only.

Continuous hiss or buzzing during FM
reception.

Occasional cracking noise during FM
reception.

Howling during record playing.

Remote control does not work.

Speaker signal cables are not connected
properly.

The balance is set to one extreme.

Incoming signal is too weak.

The station is too far away.

An incorrect antenna is used.

Antennas are not connected properly.

Ignition noise from automobiles.

Your turntable is too close to speakers.

There is an obstruction in front of the
remote sensor on the receiver.

Batteries are weak.

Check speaker wiring and reconnect if
necessary.

Adjust the balance properly (see page 12).

Connect an outside FM antenna or contact
your dealer.

Select a new station.

Check with your dealer to be sure you
have the correct antenna.

Check connections.

Move the antenna farther from automobile
traffic.

Move speakers away from the turntable.

Remove the obstruction.

Replace batteries.

40

Specifications

English

Amplifier

Output Power....................................................... At Stereo operation

Front channels .......................................................... 55 watts per channel, min. RMS,

At Surround operation

Front channels .......................................................... 50 watts per channel, min. RMS,

driven into 4 ohms at 1 kHz, with no
more than 0.9 % total harmonic
distortion. (IEC268-3/DIN)

30 watts per channel, min. RMS,
driven into 8 ohms at 1 kHz, with no
more than 0.9 % total harmonic
distortion. (IEC268-3/DIN)

30 watts per channel, min. RMS,
driven into 8 ohms, 40 Hz to 20 kHz,
with no more than 0.8 % total
harmonic distortion.

driven into 8 ohms at 1 kHz, with no
more than 0.8 % total harmonic
distortion.

Center channel .......................................................... 50 watts, min. RMS, driven into 8

ohms at 1 kHz, with no more than 0.8
% total harmonic distortion.

Rear channel ............................................................. 50 watts, min. RMS, driven into 8

ohms at 1kHz, with no more than 0.8
% total harmonic distortion.

Total Harmonic Distortion (8 ohms, 1 kHz) .............................................................................................. 0.8 %* at 30 watts output

(* Measured by JVC Audio Analysis
System)

Frequency Response (8 ohms)............................. PHONO (MM) ............................................................ 20 Hz to 20 kHz (±1 dB)

CD, TAPE, VIDEO, VCR .......................................... 20 Hz to 20 kHz (±1 dB)

Audio Input Sensitivity/Impedance (1 kHz)........ PHONO ....................................................................... 1.8 mV/47 k ohms

CD, TAPE, VIDEO, VCR .......................................... 160 mV/47 k ohms

Audio Output Level ............................................. TAPE, VCR ................................................................ 160 mV

Signal-to-Noise Ratio (’66 IHF/DIN) ................. PHONO ....................................................................... 70 dB/66 dB

CD, TAPE, VIDEO, VCR .......................................... 87 dB/67 dB

RIAA Phono Equalization .......................................................................................................................... ±0.5 dB (20 Hz to 20 kHz)

Loudness control (Volume Control at –40 dB) .......................................................................................... +5 ±2 dB at 100 Hz

41

FM tuner (IHF)

Tuning Range ............................................................................................................................................. 87.5 MHz to 108.0 MHz

Usable Sensitivity ....................................................................................................................................... 12.7 dBf (1.2 µV/75 ohms)

50 dB Quieting Sensitivity .................................. Monaural ..................................................................... 16.3 dBf (1.8 µV/75 ohms)

Stereo .......................................................................... 38.3 dBf (22.5 µV/75 ohms)

Signal-to-Noise Ratio (IHF-A weighted) ........... Monaural ..................................................................... 80 dB at 85 dBf

Stereo .......................................................................... 73 dB at 85 dBf

Total Harmonic Distortion ................................. Monaural ..................................................................... 0.15 % at 1 kHz

Stereo .......................................................................... 0.2 % at 1 kHz

Stereo Separation at REC OUT .................................................................................................................. 40 dB at 1 kHz

Capture Ratio.............................................................................................................................................. 1.5 dB (10 mV)

Alternate Channel Selectivity..................................................................................................................... 60 dB: (±400 kHz)

Frequency Response ................................................................................................................................... 30 Hz to 15 kHz: (+0.5 dB, –3 dB)

AM (MW/LW) tuner

Tuning Range ............................................................................................................................................. 522 kHz to 1,629 kHz (MW)

144 kHz to 288 kHz (LW)

English

Usable Sensitivity ................................................ Loop antenna ............................................................... 300 µV/m (MW)

600 µV/m (LW)

Signal-to-Noise Ratio ................................................................................................................................. 50 dB (100 mV/m)

General

Power Requirements................................................................................................................................... AC 230 V , 50 Hz

Power Consumption ................................................................................................................................... 240 watts

5 watts (in standby mode)

Dimensions (W x H x D)............................................................................................................................ 435 x 146 x 403 mm

Mass............................................................................................................................................................ 8.5 kg (18.8 lbs )

Design & specifications are subject to change without notice.

3

(17

/16 x 5 3/4 x 15 7/8 inches)

42

VICTOR COMPANY OF JAPAN, LIMITED

EN, GE, FR, NL, SP, IT

JVC

0298OFMMDWJEM
