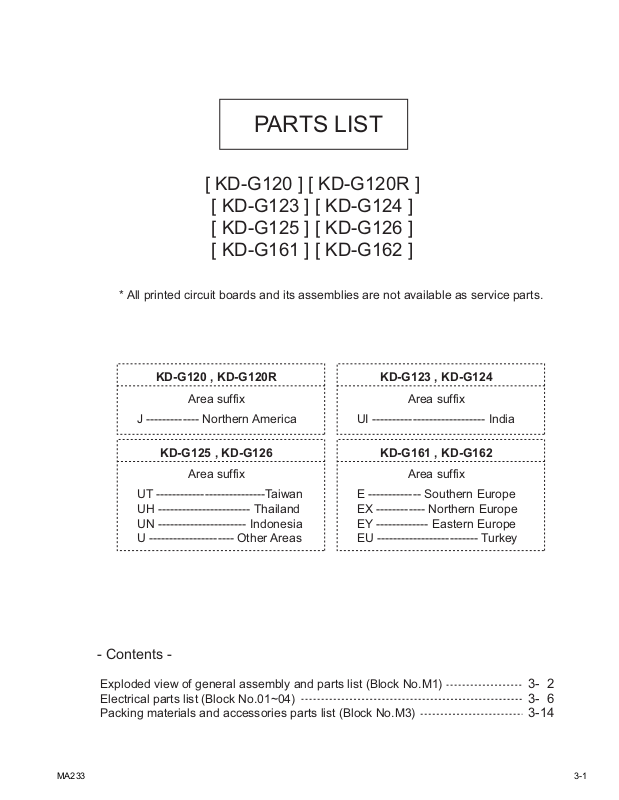

Page 1
PARTS LIST
[ KD-G120 ] [ KD-G120R ]
[ KD-G123 ] [ KD-G124 ]
[ KD-G125 ] [ KD-G126 ]
[ KD-G161 ] [ KD-G162 ]
* All printed circuit boards and its assemblies are not available as service parts.
KD-G120 , KD-G120R
Area suffix
J ------------- Northern America
KD-G125 , KD-G126
Area suffix
UT ---------------------------Taiwan
UH ----------------------- Thailand
UN ---------------------- Indonesia
U --------------------- Other Areas
KD-G123 , KD-G124
Area suffix
UI ---------------------------- India
KD-G161 , KD-G162
Area suffix
E ------------- Southern Europe
EX ------------ Northern Europe
EY ------------- Eastern Europe
EU ------------------------- Turkey
- Contents -
Exploded view of general assembly and parts list (Block No.M1)
Electrical parts list (Block No.01~04)
Packing materials and accessories parts list (Block No.M3)
3- 2
3- 6
3-14
MA233
3-1
Page 2
Exploded view of general assembly and parts list
Block No.
5
M
M
1
M
8
5
C
3
4
B
2
4
9
4
49
1
A
15
B
3-2
26
27
18
17
19
20
16
25
Switch
board
23
22
24
48
21
29
28
29
14
13
9
10
32
33
30
Page 3
M
46
41
45
42
44
6
C
40
1
14
A
15
47
A
B
Main board
43
47
50
7
KD-G161/KD-G162
12
13
33
10
9
32
30
38
11
39
35
31
34
37
36
3-3
Page 4
General Assembly
Symbol No. Part No. Part Name Description Local
1 GE10136-001A TOP CHASSIS
2 GE40135-001A EARTH PLATE
3 GE31894-001A HEAT SINK
4 QYSDST2604ZA TAP SCREW M2.6 x 4mm(x3)
5 GE40235-001A SCREW (x2)
6 QYSDST2604ZA TAP SCREW M2.6 x 4mm(x3)
7 GE40235-004A SCREW (x2)
8 QYSDST2610ZA TAP SCREW M2.6 x 10mm
9 QYSDST2004ZA TAP SCREW M2 x 4mm(x2)
10 GE10137-001A FRONT CHASSIS
11 GE31569-002A LOCK LEVER
12 GE40269-001A TORSION SPRING
13 GE31978-001A RLS KNOB
14 GE40202-011A COMP.SPRING
15 GE40294-002A BLIND
16 GE10139-006A FRONT PANEL
16 GE10139-007A FRONT PANEL
16 GE10139-027A FRONT PANEL
16 GE10139-028A FRONT PANEL
16 GE10139-026A FRONT PANEL
16 GE10139-011A FRONT PANEL
16 GE10139-012A FRONT PANEL
16 GE10139-013A FRONT PANEL
17 GE31967-014A FINDER ASSY
17 GE31967-021A FINDER ASSY
17 GE31967-015A FINDER ASSY
17 GE31967-016A FINDER ASSY
18 GE31968-002A POWER BUTTON
19 GE31969-001A SRC BUTTON
20 GE31970-001A SEL BUTTON
21 GE20188-001A PRESET BUTTON
22 GE31971-001A SEARCH BUTTON
23 GE31972-001A DETACH BUTTON
24 GE40202-013A COMP.SPRING
25 GE31973-001A EJECT BUTTON
26 GE40296-004A VOL KNOB ASSY
26 GE40296-001A VOL KNOB ASSY
26 GE40296-005A VOL KNOB ASSY
26 GE40296-006A VOL KNOB ASSY
27 GE40323-002A SHEET
28 GE10140-002A REAR COVER
29 VKZ4777-010 MINI SCREW (x4)
30 GE31975-001A LCD CASE
31 GE31977-001A LENS CASE
32 GE31976-001A LCD LENS
33 GE40297-001A LIGHTING SHEET
34 GE31895-001A BOTTOM COVER
35 GE31984-001A INSULATOR
36 GE31834-001A NAME PLATE
36 GE32113-001A NAME PLATE
36 GE32005-001A NAME PLATE
36 GE32008-001A NAME PLATE
36 GE31837-001A NAME PLATE
36 GE31840-001A NAME PLATE
36 GE31852-001A NAME PLATE
36 GE31855-001A NAME PLATE
37 LV41843-002A LASER CAUTION
38 QLD0392-001 LCD MODULE
38 QLD0390-001 LCD MODULE
39 QNZ0823-001 LCD CONNECTOR
40 QMFZ047-150-T FUSE 15A
41 GE31571-005A REAR BRACKET
42 QYSDST2606ZA TAP SCREW M2.6 x 6mm
43 QYSDST2606ZA TAP SCREW M2.6 x 6mm
44 QYSDSF2606ZA TAP SCREW M2.6 x 6mm
45 QYSDSF2606ZA TAP SCREW M2.6 x 6mm(x2)
46 GE40172-004A IC BRACKET
47 GE40124-002A REG BRACKET
47 GE40103-003A REG BRACKET
Block No. [M][1][M][M]
G120J
G120RJ
G123UI
G124UI
G125U,G125UH,G125UN,G125UT
G126U,G126UH,G126UN,G126UT
G161E,G161EU, G161EX,G161EY
G162E,G162EU, G162EX,G162EY
G120J
G120RJ
G123UI,G124UI,G125U,G125UH,G125UN,G125UT
G126U,G126UH,G126UN,G126UT
G161E,G161EU,G161EX,G161EY,G162E,G162EU
G162EX,G162EY
G120J,G120RJ,G124UI,G125U,G125UH,G125UN
G125UT
G123UI,G126U,G126UH,G126UN,G126UT
G161E,G161EU, G161EX,G161EY
G162E,G162EU, G162EX,G162EY
G120J
G120RJ
G123UI
G124UI
G125U,G125UH,G125UN,G125UT
G126U,G126UH,G126UN,G126UT
G161E,G161EU, G161EX,G161EY
G162E,G162EU, G162EX,G162EY
G123UI,G124UI,G125U,G125UH,G125UN,G125UT
G126U,G126UH,G126UN,G126UT,G161E,G161EU
G161EX,G161EY,G162E,G162EU,G162EX,G162EY
G120J,G120RJ,G123UI,G124UI,G125U,G125UH
G125UN,G125UT,G126U,G126UH,G126UN,G126UT
G161E,G161EU,G161EX,G161EY,G162E
G162EU,G162EX, G162EY
G120J,G120RJ,G123UI,G124UI,G125U,G125UH
G125UN,G125UT,G126U,G126UH,G126UN,G126UT
G161E,G161EU,G161EX,G161EY,G162E,G162EU
G162EX,G162EY
3-4
Page 5
Symbol No. Part No. Part Name Description Local
48 GE30854-001A LED HOLDER
49 GE31574-021A UT LABEL
49 GE31574-022A UT LABEL
50 GE40107-002A HEAT SINK
G125UT
G126UT
G161E,G161EU,G161EX,G161EY,G162E,G162EU
G162EX,G162EY
3-5
Page 6
Electrical parts list
Main board
Symbol No.
Part No. Part Name Description Local
(KD-G120,G120R,G123,G124,G125,G126)
Block No. [0][1]
Symbol No.
IC151 NJM4565E-X IC
IC301 BD3809FS-X IC
IC321 LA4743K POWER IC
IC321 LA47516 POWER IC
IC501 AN22002A-W IC
IC541 LA6242H-X IC
IC561 MN6627482WA IC
IC801 JES01-9D13 IC
IC901 R2S25400DS-E REGULATOR IC
Q321 RT1N441C-X TRANSISTOR
Q332 KTD1304-X TRANSISTOR
Q432 KTD1304-X TRANSISTOR
Q501 2SA2093/QR/-T TRANSISTOR
Q541 2SA2093/QR/-T TRANSISTOR
Q701 RT1N141C-X DIGI TRANSISTOR
Q731 2SC3928A/R/-X TRANSISTOR
Q732 2SC3928A/R/-X TRANSISTOR
Q791 2SA1365/F/-X TRANSISTOR
Q792 2SA1530A/R/-X TRANSISTOR
Q793 RT1N141C-X DIGI TRANSISTOR
Q861 RT1P141C-X DIGI TRANSISTOR
Q862 RT1P141C-X DIGI TRANSISTOR
Q902 2SC3928A/R/-X TRANSISTOR
Q903 2SA1530A/R/-X TRANSISTOR
D321 1SS133-T2 SI DIODE
D332 KDS4148U-X DIODE
D333 KDS4148U-X DIODE
D405 CRS03-W SB DIODE
D551 1A3G-T1 SI DIODE
D701 1SS355W-X DIODE C.M
D702 1SS355W-X DIODE C.M
D791 KDS4148U-X DIODE
D792 KDS4148U-X DIODE
D793 KDS4148U-X DIODE
D794 KDS4148U-X DIODE
D801 1SS355W-X DIODE C.M
D802 1SS133-T2 SI DIODE
D810 KDS4148U-X DIODE
D821 UDZW6.2B-X SI DIODE
D822 UDZW6.2B-X SI DIODE
D823 UDZW6.2B-X SI DIODE
D824 UDZW6.2B-X SI DIODE
D825 UDZW6.2B-X SI DIODE
D826 UDZW6.2B-X SI DIODE
D827 UDZW6.2B-X SI DIODE
Part No. Part Name Description Local
G120J
G120RJ
G123UI
G124UI
G125U
G125UH
G125UN
G125UT
G126U
G126UH
G126UN
G126UT
G123UI
G124UI
G125U
G125UH
G125UN
G125UT
G126U
G126UH
G126UN
G126UT
G123UI
G124UI
G125U
G125UH
G125UN
G125UT
G126U
G126UH
G126UN
G126UT
G120J
G120RJ
G123UI
G124UI
G125U
G125UH
G125UN
G125UT
G126U
G126UH
G126UN
G126UT
D828 UDZW6.2B-X SI DIODE
D851 CRS03-W SB DIODE
D852 CRS03-W SB DIODE
D861 MTZJ4.7B-T2 Z DIODE
D866 KDS4148U-X DIODE
D867 KDS4148U-X DIODE
D868 KDS4148U-X DIODE
D869 KDS4148U-X DIODE
D901 1N5401-F64 DIODE
D903 1SS133-T2 SI DIODE
D904 CRS03-W SB DIODE
D905 CRS03-W SB DIODE
C101 QTE1H57-105Z E CAPACITOR 1uF 50V
C102 NCB31HK-392X C CAPACITOR 3900pF 50V K
C102 NCB31HK-222X C CAPACITOR 2200pF 50V K
C151 NCB31HK-102X C CAPACITOR 1000pF 50V K
C152 QTE1H54-225Z E CAPACITOR 2.2uF 50V
C153 NDC31HJ-151X C CAPACITOR 150pF 50V J
C155 QTE0J57-476Z E CAPACITOR 47uF 6.3V
C201 QTE1H57-105Z E CAPACITOR 1uF 50V
C202 NCB31HK-392X C CAPACITOR 3900pF 50V K
C202 NCB31HK-222X C CAPACITOR 2200pF 50V K
C251 NCB31HK-102X C CAPACITOR 1000pF 50V K
C252 QTE1H54-225Z E CAPACITOR 2.2uF 50V
C253 NDC31HJ-151X C CAPACITOR 150pF 50V J
C255 QTE0J57-476Z E CAPACITOR 47uF 6.3V
C256 QTE1A57-107Z E CAPACITOR 100uF 10V
C302 NCB31CK-224X C CAPACITOR 0.22uF 16V K
C304 NCB21CK-224X C CAPACITOR 0.22uF 16V K
C308 QEKJ1EM-475Z E CAPACITOR 4.7uF 25V M
C312 QTE1C57-106Z E CAPACITOR 10uF 16V
C313 NCB31EK-104X C CAPACITOR 0.1uF 25V K
C314 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C317 QEKJ1HM-105Z E CAPACITOR 1uF 50V M
C318 QEKJ1HM-105Z E CAPACITOR 1uF 50V M
C319 NDC31HJ-101X C CAPACITOR 100pF 50V J
C320 NDC31HJ-101X C CAPACITOR 100pF 50V J
C327 QEKJ1HM-105Z E CAPACITOR 1uF 50V M
C328 QTE1C57-476Z E CAPACITOR 47uF 16V
C329 QEKJ1EM-475Z E CAPACITOR 4.7uF 25V M
C330 NCB31HK-223X C CAPACITOR 0.022uF 50V K
G123UI
G124UI
G125U
G125UH
G125UN
G125UT
G126U
G126UH
G126UN
G126UT
G123UI
G124UI
G125U
G125UH
G125UN
G125UT
G126U
G126UH
G126UN
G126UT
G120J
G120RJ
G123UI
G124UI
G125U
G125UH
G125UN
G125UT
G126U
G126UH
G126UN
G126UT
G120J
G120RJ
G123UI
G124UI
G125U
G125UH
G125UN
G125UT
G126U
G126UH
G126UN
G126UT
G123UI
G124UI
G125U
G125UH
G125UN
G125UT
G126U
G126UH
G126UN
G126UT
G123UI
G124UI
G125U
G125UH
G125UN
G125UT
G126U
G126UH
G126UN
G126UT
3-6
Page 7
Symbol No.
Part No. Part Name Description Local
Symbol No.
Part No. Part Name Description Local
C331 NCB31HK-223X C CAPACITOR 0.022uF 50V K
C332 NCB31EK-104X C CAPACITOR 0.1uF 25V K
C333 NCB31EK-104X C CAPACITOR 0.1uF 25V K
C334 QFV91HJ-474Z MF CAPACITOR 0.47uF 50V J
C335 QFV91HJ-474Z MF CAPACITOR 0.47uF 50V J
C341 NCB31HK-473X C CAPACITOR 0.047uF 50V K
C402 NCB31CK-224X C CAPACITOR 0.22uF 16V K
C403 QTE1A57-107Z E CAPACITOR 100uF 10V
C404 NCB21CK-224X C CAPACITOR 0.22uF 16V K
C408 QEKJ1EM-475Z E CAPACITOR 4.7uF 25V M
C419 NDC31HJ-101X C CAPACITOR 100pF 50V J
C420 NDC31HJ-101X C CAPACITOR 100pF 50V J
C427 QEKJ1CM-226Z E CAPACITOR 22uF 16V M
C432 NCB31EK-104X C CAPACITOR 0.1uF 25V K
C433 NCB31EK-104X C CAPACITOR 0.1uF 25V K
C434 QFV91HJ-474Z MF CAPACITOR 0.47uF 50V J
C435 QFV91HJ-474Z MF CAPACITOR 0.47uF 50V J
C501 NCB31EK-104X C CAPACITOR 0.1uF 25V K
C502 QEKJ1CM-106Z E CAPACITOR 10uF 16V M
C504 QEKJ1AM-107Z E CAPACITOR 100uF 10V M
C505 NCB31EK-104X C CAPACITOR 0.1uF 25V K
C506 NDC31HJ-680X C CAPACITOR 68pF 50V J
C507 NCB31AK-334X C CAPACITOR 0.33uF 10V K
C509 NCB31EK-393X C CAPACITOR 0.039uF 25V K
C510 NCB31HK-272X C CAPACITOR 2700pF 50V K
C511 NCB31HK-272X C CAPACITOR 2700pF 50V K
C513 NDC31HJ-151X C CAPACITOR 150pF 50V J
C514 NCB31EK-563X C CAPACITOR 0.056uF 25V K
C515 NCB31EK-104X C CAPACITOR 0.1uF 25V K
C516 QERF1AM-107Z E CAPACITOR 100uF 10V M
C518 NCB31EK-473X C CAPACITOR 0.047uF 25V K
C519 NCB31EK-473X C CAPACITOR 0.047uF 25V K
C520 NDC31HJ-390X C CAPACITOR 39pF 50V J
C521 NDC31HJ-271X C CAPACITOR 270pF 50V J
C522 NCB31HK-223X C CAPACITOR 0.022uF 50V K
C523 NCB31HK-223X C CAPACITOR 0.022uF 50V K
C524 NCB31EK-333X C CAPACITOR 0.033uF 25V K
C525 NCB31EK-333X C CAPACITOR 0.033uF 25V K
C528 NCB31EK-104X C CAPACITOR 0.1uF 25V K
C540 NDC31HJ-680X C CAPACITOR 68pF 50V J
C541 NBE20JM-476X TA E CAPACITOR 47uF 6.3V M
C542 NCB31HK-332X C CAPACITOR 3300pF 50V K
C543 NCB31EK-333X C CAPACITOR 0.033uF 25V K
C545 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C546 NBE41AM-476X TA E CAPACITOR 47uF 10V M
C547 NCB31EK-223X C CAPACITOR 0.022uF 25V K
C551 QEKJ1AM-227Z E CAPACITOR 220uF 10V M
C552 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C555 NCB31EK-473X C CAPACITOR 0.047uF 25V K
C556 NCB31EK-473X C CAPACITOR 0.047uF 25V K
C557 NCB31EK-473X C CAPACITOR 0.047uF 25V K
C558 NCB31EK-473X C CAPACITOR 0.047uF 25V K
C561 NCB31EK-104X C CAPACITOR 0.1uF 25V K
C562 NCB31AK-334X C CAPACITOR 0.33uF 10V K
C563 NCB31HK-471X C CAPACITOR 470pF 50V K
C564 NCB21EK-223X C CAPACITOR 0.022uF 25V K
C565 NCB31EK-104X C CAPACITOR 0.1uF 25V K
C566 NCB31EK-104X C CAPACITOR 0.1uF 25V K
C567 QEKJ1AM-107Z E CAPACITOR 100uF 10V M
C568 NCB31EK-104X C CAPACITOR 0.1uF 25V K
C571 NCB31EK-104X C CAPACITOR 0.1uF 25V K
C572 QEKJ1AM-107Z E CAPACITOR 100uF 10V M
C573 QEKJ1AM-227Z E CAPACITOR 220uF 10V M
C574 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C576 NDC31HJ-101X C CAPACITOR 100pF 50V J
C577 NCB31EK-104X C CAPACITOR 0.1uF 25V K
C579 NCB31HK-102X C CAPACITOR 1000pF 50V K
C700 NCB31HK-122X C CAPACITOR 1200pF 50V K
C701 QEKJ1CM-476Z E CAPACITOR 47uF 16V M
C702 QEKJ1HM-104Z E CAPACITOR 0.1uF 50V M
C703 QEKJ1HM-104Z E CAPACITOR 0.1uF 50V M
G123UI
G124UI
G125U
G125UH
G125UN
G125UT
G126U
G126UH
G126UN
G126UT
C704 NCB31HK-122X C CAPACITOR 1200pF 50V K
C709 NCB31EK-153X C CAPACITOR 0.015uF 25V K
C709 NCB31HK-123X C CAPACITOR 0.012uF 50V K
C710 NCB31EK-153X C CAPACITOR 0.015uF 25V K
C710 NCB31HK-123X C CAPACITOR 0.012uF 50V K
C711 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C711 NCB31HK-331X C CAPACITOR 330pF 50V K
C712 NCB31HK-104X C CAPACITOR 0.1uF 50V K
C713 NCB31EK-473X C CAPACITOR 0.047uF 25V K
C714 NDC31HJ-121X C CAPACITOR 120pF 50V J
C715 QEKJ1CM-226Z E CAPACITOR 22uF 16V M
C717 NDC31HJ-221X C CAPACITOR 220pF 50V J
C718 NCB31EK-223X C CAPACITOR 0.022uF 25V K
C720 QEKJ1AM-227Z E CAPACITOR 220uF 10V M
C725 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C731 QTE1H57-225Z E CAPACITOR 2.2uF 50V
C732 NCB31HK-102X C CAPACITOR 1000pF 50V K
C733 QEKJ1AM-227Z E CAPACITOR 220uF 10V M
C801 QEKJ0JM-227Z E CAPACITOR 220uF 6.3V M
C802 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C803 NDC31HJ-220X C CAPACITOR 22pF 50V J
C804 NDC31HJ-330X C CAPACITOR 33pF 50V J
C807 QEKJ1CM-106Z E CAPACITOR 10uF 16V M
C821 NCB31EK-104X C CAPACITOR 0.1uF 25V K
C822 NCB31EK-104X C CAPACITOR 0.1uF 25V K
C823 NCB31EK-104X C CAPACITOR 0.1uF 25V K
C851 QEKJ1CM-106Z E CAPACITOR 10uF 16V M
C852 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C861 QEKJ0JM-227Z E CAPACITOR 220uF 6.3V M
C862 NCB31EK-823X C CAPACITOR 0.082uF 25V K
C864 NCB31EK-823X C CAPACITOR 0.082uF 25V K
C901 QEZ0645-228 E CAPACITOR 2200uF
C901 QEZ0769-278 E CAPACITOR 2700uF
C902 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C903 QEKJ1CM-226Z E CAPACITOR 22uF 16V M
C904 QEKJ1CM-226Z E CAPACITOR 22uF 16V M
C905 QEKJ1CM-226Z E CAPACITOR 22uF 16V M
G123UI
G124UI
G125U
G125UH
G125UN
G125UT
G126U
G126UH
G126UN
G126UT
G120J
G120RJ
G123UI
G124UI
G125U
G125UH
G125UN
G125UT
G126U
G126UH
G126UN
G126UT
G120J
G120RJ
G123UI
G124UI
G125U
G125UH
G125UN
G125UT
G126U
G126UH
G126UN
G126UT
G120J
G120RJ
G123UI
G124UI
G125U
G125UH
G125UN
G125UT
G126U
G126UH
G126UN
G126UT
G123UI
G124UI
G125U
G125UH
G125UN
G125UT
G126U
G126UH
G126UN
G126UT
G123UI
G124UI
G125U
G125UH
G125UN
G125UT
G126U
G126UH
G126UN
G126UT
G120J
G120RJ
G123UI
G124UI
G125U
G125UH
G125UN
G125UT
G126U
G126UH
G126UN
G126UT
3-7
Page 8
Symbol No.
Part No. Part Name Description Local
Symbol No.
Part No. Part Name Description Local
C906 NCB31EK-104X C CAPACITOR 0.1uF 25V K
C907 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C908 QEKJ1AM-107Z E CAPACITOR 100uF 10V M
C909 QEKJ1AM-107Z E CAPACITOR 100uF 10V M
C910 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C911 QEKJ1AM-227Z E CAPACITOR 220uF 10V M
C914 NCB31EK-104X C CAPACITOR 0.1uF 25V K
C915 NCB11CK-225X C CAPACITOR 2.2uF 16V K
C916 QEKJ1HM-225Z E CAPACITOR 2.2uF 50V M
Ω
R101 NRSA63J-123X MG RESISTOR 12k
1/16W J
R101 NRSA63J-752X MG RESISTOR 7.5kΩ 1/16W J
R102 NRSA63J-822X MG RESISTOR 8.2kΩ 1/16W J
R102 NRSA63J-153X MG RESISTOR 15kΩ 1/16W J
R151 NRSA63J-153X MG RESISTOR 15kΩ 1/16W J
R152 NRSA63J-562X MG RESISTOR 5.6k
R153 NRSA63J-223X MG RESISTOR 22k
R154 NRSA63J-223X MG RESISTOR 22k
R156 NRS181J-223X MG RESISTOR 22k
R201 NRSA63J-123X MG RESISTOR 12k
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/8W J
Ω
1/16W J
R201 NRSA63J-752X MG RESISTOR 7.5kΩ 1/16W J
R202 NRSA63J-822X MG RESISTOR 8.2kΩ 1/16W J
R202 NRSA63J-153X MG RESISTOR 15kΩ 1/16W J
R251 NRSA63J-153X MG RESISTOR 15kΩ 1/16W J
Ω
R252 NRSA63J-562X MG RESISTOR 5.6k
R253 NRSA63J-223X MG RESISTOR 22k
R254 NRSA63J-223X MG RESISTOR 22k
R256 NRS181J-223X MG RESISTOR 22k
R301 NRSA63J-222X MG RESISTOR 2.2k
R302 NRSA63J-333X MG RESISTOR 33k
R304 NRSA63J-473X MG RESISTOR 47k
R307 NRS181J-273X MG RESISTOR 27k
R308 NRS181J-273X MG RESISTOR 27k
R320 NRSA63J-333X MG RESISTOR 33k
R321 NRSA63J-473X MG RESISTOR 47k
R322 NRSA63J-272X MG RESISTOR 2.7k
R323 NRSA63J-472X MG RESISTOR 4.7k
R333 NRSA63J-102X MG RESISTOR 1k
R334 NRSA63J-101X MG RESISTOR 100
R336 NRSA63J-222X MG RESISTOR 2.2k
R401 NRSA63J-222X MG RESISTOR 2.2k
R403 NRS181J-101X MG RESISTOR 100
R404 NRSA63J-473X MG RESISTOR 47k
R407 NRS181J-273X MG RESISTOR 27k
R408 NRS181J-273X MG RESISTOR 27k
R433 NRSA63J-102X MG RESISTOR 1k
R434 NRSA63J-101X MG RESISTOR 100
R436 NRSA63J-222X MG RESISTOR 2.2k
R501 NRSA02J-220X MG RESISTOR 22
R502 NRSA02J-220X MG RESISTOR 22
R503 NRS181J-393X MG RESISTOR 39k
R504 NRSA63J-392X MG RESISTOR 3.9k
R505 NRSA63J-224X MG RESISTOR 220k
R506 NRSA63J-563X MG RESISTOR 56k
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/8W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/8W J
Ω
1/8W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/8W J
Ω
1/16W J
Ω
1/8W J
Ω
1/8W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/10W J
Ω
1/10W J
Ω
1/8W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
G120J
G120RJ
G123UI
G124UI
G125U
G125UH
G125UN
G125UT
G126U
G126UH
G126UN
G126UT
G120J
G120RJ
G123UI
G124UI
G125U
G125UH
G125UN
G125UT
G126U
G126UH
G126UN
G126UT
G120J
G120RJ
G123UI
G124UI
G125U
G125UH
G125UN
G125UT
G126U
G126UH
G126UN
G126UT
G120J
G120RJ
G123UI
G124UI
G125U
G125UH
G125UN
G125UT
G126U
G126UH
G126UN
G126UT
R507 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J
Ω
R508 NRSA63J-274X MG RESISTOR 270k
R509 NRSA63J-363X MG RESISTOR 36k
R510 NRSA63J-823X MG RESISTOR 82k
R511 NRSA63J-224X MG RESISTOR 220k
R512 NRSA63J-473X MG RESISTOR 47k
R513 NRSA63J-473X MG RESISTOR 47k
R516 NRSA63J-623X MG RESISTOR 62k
R518 NRSA63J-105X MG RESISTOR 1M
R524 NRSA63J-332X MG RESISTOR 3.3k
R525 NRSA63J-152X MG RESISTOR 1.5k
R526 NRS181J-120X MG RESISTOR 12
R541 NRSA02J-682X MG RESISTOR 6.8k
R542 NRSA63J-561X MG RESISTOR 560
R543 NRSA63J-473X MG RESISTOR 47k
R544 NRSA63J-152X MG RESISTOR 1.5k
R545 NRSA63J-202X MG RESISTOR 2k
R546 NRSA63J-153X MG RESISTOR 15k
R547 NRSA63J-274X MG RESISTOR 270k
R548 NRSA63J-562X MG RESISTOR 5.6k
R550 NRSA63J-123X MG RESISTOR 12k
R551 NRSA63J-202X MG RESISTOR 2k
R552 NRSA63J-183X MG RESISTOR 18k
R553 NRS181J-0R0X MG RESISTOR 0
R554 NRS181J-513X MG RESISTOR 51k
R557 NRSA02J-151X MG RESISTOR 150
R558 NRSA02J-103X MG RESISTOR 10k
R559 NRS181J-332X MG RESISTOR 3.3k
R560 NRS181J-101X MG RESISTOR 100
R561 NRSA63J-102X MG RESISTOR 1k
R562 NRSA63J-102X MG RESISTOR 1k
R563 NRSA63J-102X MG RESISTOR 1k
R564 NRS181J-102X MG RESISTOR 1k
R567 QRE141J-102Y C RESISTOR 1k
R568 QRE141J-102Y C RESISTOR 1k
R569 NRSA63J-102X MG RESISTOR 1k
R570 NRS181J-102X MG RESISTOR 1k
R571 NRS181J-104X MG RESISTOR 100k
R573 NRSA63J-124X MG RESISTOR 120k
R574 NRSA63J-471X MG RESISTOR 470
R575 NRSA63J-221X MG RESISTOR 220
R576 NRSA63J-0R0X MG RESISTOR 0
R581 NRSA63J-0R0X MG RESISTOR 0
R596 NRSA02J-822X MG RESISTOR 8.2k
R701 NRSA63J-102X MG RESISTOR 1k
R703 NRSA63J-102X MG RESISTOR 1k
R705 NRSA63J-103X MG RESISTOR 10k
R708 NRSA63J-822X MG RESISTOR 8.2k
R725 NRSA63J-101X MG RESISTOR 100
R733 NRSA63J-103X MG RESISTOR 10k
R735 NRS181J-152X MG RESISTOR 1.5k
R736 NRSA63J-182X MG RESISTOR 1.8k
R737 NRSA63J-0R0X MG RESISTOR 0
Ω
1/16W J
Ω
1/16W J
Ω
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
Ω
Ω
1/8W J
Ω
Ω
1/16W J
Ω
1/16W J
Ω
Ω
1/16W J
Ω
1/16W J
Ω
Ω
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/8W J
Ω
1/8W J
Ω
1/10W J
Ω
1/10W J
Ω
Ω
1/8W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/8W J
Ω
1/4W J
Ω
1/4W J
Ω
1/16W J
Ω
1/8W J
Ω
Ω
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
Ω
1/16W J
Ω
1/16W J
Ω
Ω
Ω
1/16W J
1/16W J
1/16W J
1/16W J
1/16W J
1/10W J
1/16W J
1/16W J
1/16W J
1/8W J
1/8W J
1/16W J
1/10W J
1/16W J
1/8W J
1/16W J
R737 NRSA63J-104X MG RESISTOR 100kΩ 1/16W J
R791 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J
Ω
R792 NRSA63J-102X MG RESISTOR 1k
R793 NRSA63J-103X MG RESISTOR 10k
R794 NRSA63J-222X MG RESISTOR 2.2k
R795 NRS181J-120X MG RESISTOR 12
R797 NRS181J-100X MG RESISTOR 10
R798 NRSA63J-223X MG RESISTOR 22k
R801 NRS181J-103X MG RESISTOR 10k
R803 NRS181J-332X MG RESISTOR 3.3k
R804 NRS181J-332X MG RESISTOR 3.3k
R805 NRS181J-332X MG RESISTOR 3.3k
R807 NRS181J-473X MG RESISTOR 47k
R808 NRS181J-102X MG RESISTOR 1k
R809 NRS181J-103X MG RESISTOR 10k
R811 NRSA63J-332X MG RESISTOR 3.3k
R812 NRSA63J-332X MG RESISTOR 3.3k
R813 NRSA63J-473X MG RESISTOR 47k
R814 NRSA63J-473X MG RESISTOR 47k
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/8W J
Ω
1/8W J
Ω
1/16W J
Ω
1/8W J
Ω
1/8W J
Ω
1/8W J
Ω
1/8W J
Ω
1/8W J
Ω
1/8W J
Ω
1/8W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
G120J
G120RJ
G123UI
G124UI
G125U
G125UH
G125UN
G125UT
G126U
G126UH
G126UN
G126UT
3-8
Page 9
Symbol No.
Part No. Part Name Description Local
R815 NRSA63J-473X MG RESISTOR 47kΩ 1/16W J
R817 NRS181J-472X MG RESISTOR 4.7k
R818 NRS181J-473X MG RESISTOR 47k
Ω
Ω
1/8W J
R820 NRS181J-473X MG RESISTOR 47kΩ 1/8W J
R822 NRSA63J-222X MG RESISTOR 2.2k
R823 NRSA63J-473X MG RESISTOR 47k
R825 NRS181J-203X MG RESISTOR 20k
R826 NRSA63J-473X MG RESISTOR 47k
R827 NRSA63J-473X MG RESISTOR 47k
R828 NRSA63J-473X MG RESISTOR 47k
R829 NRS181J-473X MG RESISTOR 47k
R830 NRS181J-223X MG RESISTOR 22k
R831 NRSA63J-472X MG RESISTOR 4.7k
R832 NRS181J-223X MG RESISTOR 22k
R833 NRS181J-472X MG RESISTOR 4.7k
R834 NRS181J-223X MG RESISTOR 22k
R835 NRS181J-472X MG RESISTOR 4.7k
R836 NRSA63J-473X MG RESISTOR 47k
R837 NRSA63J-103X MG RESISTOR 10k
R838 NRSA63J-103X MG RESISTOR 10k
R840 NRSA63J-473X MG RESISTOR 47k
R841 NRSA63J-473X MG RESISTOR 47k
R843 NRSA63J-0R0X MG RESISTOR 0
R844 NRSA63J-0R0X MG RESISTOR 0
R850 NRS181J-473X MG RESISTOR 47k
R851 NRSA63J-103X MG RESISTOR 10k
Ω
Ω
1/16W J
Ω
1/8W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/8W J
Ω
1/8W J
Ω
Ω
1/8W J
Ω
Ω
1/8W J
Ω
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/8W J
Ω
1/16W J
R853 NRS181J-473X MG RESISTOR 47kΩ 1/8W J
Ω
R861 NRS181J-471X MG RESISTOR 470
R862 NRS181J-471X MG RESISTOR 470
R901 NRSA63J-912X MG RESISTOR 9.1k
R902 QRE141J-102Y C RESISTOR 1k
R903 NRSA63J-472X MG RESISTOR 4.7k
R904 NRSA63J-104X MG RESISTOR 100k
R905 NRSA63J-472X MG RESISTOR 4.7k
R906 NRSA63J-472X MG RESISTOR 4.7k
R907 NRSA63J-393X MG RESISTOR 39k
R908 NRSA63J-683X MG RESISTOR 68k
R909 NRSA63J-273X MG RESISTOR 27k
R910 NRSA63J-473X MG RESISTOR 47k
R911 NRS181J-473X MG RESISTOR 47k
1/8W J
Ω
1/8W J
Ω
Ω
1/4W J
Ω
Ω
Ω
Ω
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/8W J
L501 QQL231K-4R7Y INDUCTOR I/M 4.7uH K
L561 QQL231K-4R7Y INDUCTOR I/M 4.7uH K
L562 QQL231K-4R7Y INDUCTOR I/M 4.7uH K
L701 QQL231K-4R7Y INDUCTOR I/M 4.7uH K
L801 QQL231K-4R7Y INDUCTOR I/M 4.7uH K
L901 QQR1695-001 CHOKE COIL
CJ321 QNN0519-001 PIN JACK
CJ701 QNB0190-001 CAR ANT JACK
CN501 QGB2027M4-22S CONNECTOR B-B (1-22)
CN801 QGZ1601J1-15 CONNECTOR (1-15)
CN901 QNZ0611-001 16P CONNECTOR
TU701 QAU0312-002 TUNER PACK
X561 QAX0714-001Z C RESONATOR 16.000MHz
X801 QAX0406-001Z CRYSTAL 4.500MHz
1/8W J
1/16W J
1/16W J
1/8W J
1/8W J
1/16W J
1/16W J
1/16W J
1/16W J
1/16W J
G120J
G123UI
G124UI
G125U
G125UH
G125UN
G125UT
G126U
G126UH
G126UN
G126UT
G123UI
G124UI
G125U
G125UH
G125UN
G125UT
G126U
G126UH
G126UN
G126UT
Main board (KD-G161,G162)
Block No. [0][2]
Symbol No.
IC71 LC72725NM-X IC
IC171 NJW1192V-X IC
IC301 LA4743K POWER IC
IC501 LA6242H-X IC
IC521 MN6627551CB IC
IC581 NJM4565E-X IC
IC701 MN101C77FSA IC
IC702 PST9121N-X IC
IC703 BR24L16F-W-X IC
IC704 NJU7241F33-X IC
IC901 AN80T71 REGULATOR IC
Q71 RT1N141C-X DIGI TRANSISTOR
Q301 2SC3928A/QR/-X TRANSISTOR
Q341 KTD1304-X TRANSISTOR
Q351 KTD1304-X TRANSISTOR
Q501 2SB1322/RS/-T TRANSISTOR
Q521 2SA1530A/QR/-X TRANSISTOR
Q701 RT1N141C-X DIGI TRANSISTOR
Q702 RT1N141C-X DIGI TRANSISTOR
Q703 RT1N141C-X DIGI TRANSISTOR
Q781 RT1P141C-X DIGI TRANSISTOR
Q782 RT1P141C-X DIGI TRANSISTOR
Q891 RT1N141C-X DIGI TRANSISTOR
Q901 2SA1530A/QR/-X TRANSISTOR
Q902 RT1N141C-X DIGI TRANSISTOR
Q903 RT1N141C-X DIGI TRANSISTOR
Q904 2SA1530A/QR/-X TRANSISTOR
Q911 2SA1530A/QR/-X TRANSISTOR
Q912 RT1N441C-X TRANSISTOR
D1 1SS355W-X DIODE C.M
D2 1SS355W-X DIODE C.M
D301 UDZS3.3B-X Z DIODE
D341 1SS355W-X DIODE C.M
D351 1SS355W-X DIODE C.M
D501 1A3G-T1 SI DIODE
D701 UDZW6.2B-X SI DIODE
D702 UDZW6.2B-X SI DIODE
D703 UDZW6.2B-X SI DIODE
D704 UDZW6.2B-X SI DIODE
D705 UDZW6.2B-X SI DIODE
D706 UDZW6.2B-X SI DIODE
D707 UDZW6.2B-X SI DIODE
D708 UDZW6.2B-X SI DIODE
D709 UDZW6.2B-X SI DIODE
D710 1SS355W-X DIODE C.M
D712 UDZW6.2B-X SI DIODE
D713 1SS355W-X DIODE C.M
D781 CRS03-W SB DIODE
D782 UDZW11B-X Z DIODE
D891 MC2836-X DIODE
D901 1N5401-F64 DIODE
D903 1SS355W-X DIODE C.M
D904 CRS03-W SB DIODE
D906 1SS355W-X DIODE C.M
D971 CRS03-W SB DIODE
C1 NCB31EK-104X C CAPACITOR 0.1uF 25V K
C4 NCB31EK-104X C CAPACITOR 0.1uF 25V K
C5 QEKJ0JM-476Z E CAPACITOR 47uF 6.3V M
C6 NCB31EK-104X C CAPACITOR 0.1uF 25V K
C7 QEKJ1AM-227Z E CAPACITOR 220uF 10V M
C8 NCB31EK-104X C CAPACITOR 0.1uF 25V K
C71 QEKJ1CM-106Z E CAPACITOR 10uF 16V M
C72 NDC31HJ-331X C CAPACITOR 330pF 50V J
C73 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C74 NDC31HJ-561X C CAPACITOR 560pF 50V J
C75 QEKJ0JM-476Z E CAPACITOR 47uF 6.3V M
C76 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C77 NDC31HJ-330X C CAPACITOR 33pF 50V J
C78 NDC31HJ-330X C CAPACITOR 33pF 50V J
C82 QTE1E57-475Z E CAPACITOR 4.7uF 25V
C84 QTE1E57-475Z E CAPACITOR 4.7uF 25V
Part No. Part Name Description Local
3-9
Page 10
Symbol No.
Part No. Part Name Description Local
Symbol No.
Part No. Part Name Description Local
C85 NCB31AK-224X C CAPACITOR 0.22uF 10V K
C92 QTE1E57-475Z E CAPACITOR 4.7uF 25V
C94 QTE1E57-475Z E CAPACITOR 4.7uF 25V
C161 NCB31HK-471X C CAPACITOR 470pF 50V K
C162 NCB31AK-154X C CAPACITOR 0.15uF 10V K
C163 NCB31HK-472X C CAPACITOR 4700pF 50V K
C164 NCB31EK-104X C CAPACITOR 0.1uF 25V K
C165 QEKJ1EM-475Z E CAPACITOR 4.7uF 25V M
C167 QTE1E57-475Z E CAPACITOR 4.7uF 25V
C168 QEKJ1CM-226Z E CAPACITOR 22uF 16V M
C169 QEKJ1EM-475Z E CAPACITOR 4.7uF 25V M
C171 NCB31HK-471X C CAPACITOR 470pF 50V K
C172 NCB31AK-154X C CAPACITOR 0.15uF 10V K
C173 NCB31HK-472X C CAPACITOR 4700pF 50V K
C174 NCB31EK-104X C CAPACITOR 0.1uF 25V K
C175 QEKJ1EM-475Z E CAPACITOR 4.7uF 25V M
C177 QTE1E57-475Z E CAPACITOR 4.7uF 25V
C178 QEKJ1CM-226Z E CAPACITOR 22uF 16V M
C179 QEKJ1EM-475Z E CAPACITOR 4.7uF 25V M
C180 QFV91HJ-474Z MF CAPACITOR 0.47uF 50V J
C181 QFV91HJ-474Z MF CAPACITOR 0.47uF 50V J
C182 QFV91HJ-474Z MF CAPACITOR 0.47uF 50V J
C183 QFV91HJ-474Z MF CAPACITOR 0.47uF 50V J
C184 QTE1C57-106Z E CAPACITOR 10uF 16V
C185 QTE1A57-107Z E CAPACITOR 100uF 10V
C186 NCB31AK-154X C CAPACITOR 0.15uF 10V K
C187 NCB31AK-154X C CAPACITOR 0.15uF 10V K
C301 QEKJ1HM-335Z E CAPACITOR 3.3uF 50V M
C302 QEKJ1HM-335Z E CAPACITOR 3.3uF 50V M
C303 NCB31HK-223X C CAPACITOR 0.022uF 50V K
C304 NCB31HK-223X C CAPACITOR 0.022uF 50V K
C305 NCB31EK-104X C CAPACITOR 0.1uF 25V K
C306 NCB31EK-104X C CAPACITOR 0.1uF 25V K
C307 NCB31EK-104X C CAPACITOR 0.1uF 25V K
C308 NCB31EK-104X C CAPACITOR 0.1uF 25V K
C309 QEKJ1CM-107Z E CAPACITOR 100uF 16V M
C310 QTE1C57-476Z E CAPACITOR 47uF 16V
C311 QEKJ1CM-226Z E CAPACITOR 22uF 16V M
C312 NDC31HJ-101X C CAPACITOR 100pF 50V J
C313 NDC31HJ-101X C CAPACITOR 100pF 50V J
C314 NDC31HJ-101X C CAPACITOR 100pF 50V J
C315 NDC31HJ-101X C CAPACITOR 100pF 50V J
C316 NCB31HK-123X C CAPACITOR 0.012uF 50V K
C319 NCB31HK-223X C CAPACITOR 0.022uF 50V K
C341 NDC31HJ-101X C CAPACITOR 100pF 50V J
C351 NDC31HJ-101X C CAPACITOR 100pF 50V J
C501 QEKJ0JM-227Z E CAPACITOR 220uF 6.3V M
C503 QEKJ1AM-227Z E CAPACITOR 220uF 10V M
C504 NCB31EK-104X C CAPACITOR 0.1uF 25V K
C506 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C511 NCB31HK-222X C CAPACITOR 2200pF 50V K
C512 NDC31HJ-820X C CAPACITOR 82pF 50V J
C513 NCB31HK-682X C CAPACITOR 6800pF 50V K
C515 NCB31HK-122X C CAPACITOR 1200pF 50V K
C517 NCB31HK-182X C CAPACITOR 1800pF 50V K
C518 NDC31HJ-680X C CAPACITOR 68pF 50V J
C521 NCB31EK-104X C CAPACITOR 0.1uF 25V K
C522 NCB31AK-334X C CAPACITOR 0.33uF 10V K
C524 NDC31HJ-561X C CAPACITOR 560pF 50V J
C525 NCB31HK-223X C CAPACITOR 0.022uF 50V K
C526 NCB31HK-223X C CAPACITOR 0.022uF 50V K
C527 NCB31HK-332X C CAPACITOR 3300pF 50V K
C528 NDC31HJ-181X C CAPACITOR 180pF 50V J
C529 NCB31HK-822X C CAPACITOR 8200pF 50V K
C530 NCB31HK-822X C CAPACITOR 8200pF 50V K
C531 NCB31AK-334X C CAPACITOR 0.33uF 10V K
C532 NCB31AK-334X C CAPACITOR 0.33uF 10V K
C533 QEKJ0JM-107Z E CAPACITOR 100uF 6.3V M
C534 NCB31HK-332X C CAPACITOR 3300pF 50V K
C535 NCB31EK-104X C CAPACITOR 0.1uF 25V K
C536 QEKJ0JM-476Z E CAPACITOR 47uF 6.3V M
C537 QEKJ0JM-476Z E CAPACITOR 47uF 6.3V M
C538 QEKJ0JM-476Z E CAPACITOR 47uF 6.3V M
C539 NCB31EK-104X C CAPACITOR 0.1uF 25V K
C540 NCS31HJ-681X C CAPACITOR 680pF 50V J
C541 NCB31EK-153X C CAPACITOR 0.015uF 25V K
C542 NCB31EK-104X C CAPACITOR 0.1uF 25V K
C543 NCB31HK-102X C CAPACITOR 1000pF 50V K
C544 NCB31EK-823X C CAPACITOR 0.082uF 25V K
C545 NCB31EK-104X C CAPACITOR 0.1uF 25V K
C546 QEKJ0JM-227Z E CAPACITOR 220uF 6.3V M
C547 QTE0J57-476Z E CAPACITOR 47uF 6.3V
C548 QTE0J57-476Z E CAPACITOR 47uF 6.3V
C549 NDC31HJ-101X C CAPACITOR 100pF 50V J
C550 NCB31EK-104X C CAPACITOR 0.1uF 25V K
C551 NCB31EK-104X C CAPACITOR 0.1uF 25V K
C552 NCB31EK-104X C CAPACITOR 0.1uF 25V K
C553 QEKJ0JM-476Z E CAPACITOR 47uF 6.3V M
C583 NDC31HJ-821X C CAPACITOR 820pF 50V J
C584 NDC31HJ-821X C CAPACITOR 820pF 50V J
C585 QTE1H54-225Z E CAPACITOR 2.2uF 50V
C586 QTE1H54-225Z E CAPACITOR 2.2uF 50V
C587 NDC31HJ-101X C CAPACITOR 100pF 50V J
C588 NDC31HJ-101X C CAPACITOR 100pF 50V J
C589 QTE0J57-476Z E CAPACITOR 47uF 6.3V
C591 QTE1A57-107Z E CAPACITOR 100uF 10V
C592 NCB31EK-104X C CAPACITOR 0.1uF 25V K
C701 NCB31EK-104X C CAPACITOR 0.1uF 25V K
C702 NCB31EK-104X C CAPACITOR 0.1uF 25V K
C705 NDC31HJ-180X C CAPACITOR 18pF 50V J
C706 NDC31HJ-180X C CAPACITOR 18pF 50V J
C707 NCB31EK-473X C CAPACITOR 0.047uF 25V K
C708 NCB31EK-333X C CAPACITOR 0.033uF 25V K
C709 QERF0JM-337Z E CAPACITOR 330uF 6.3V M
C710 NCB31AK-154X C CAPACITOR 0.15uF 10V K
C711 NCB31EK-104X C CAPACITOR 0.1uF 25V K
C712 NCB31EK-104X C CAPACITOR 0.1uF 25V K
C713 NCB31EK-104X C CAPACITOR 0.1uF 25V K
C715 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C716 QEKJ0JM-476Z E CAPACITOR 47uF 6.3V M
C718 QEKJ1CM-106Z E CAPACITOR 10uF 16V M
C721 NCB31EK-104X C CAPACITOR 0.1uF 25V K
C722 QEKJ1CM-106Z E CAPACITOR 10uF 16V M
C781 QEKJ0JM-227Z E CAPACITOR 220uF 6.3V M
C782 QEKJ1CM-476Z E CAPACITOR 47uF 16V M
C783 NCB31CK-823X C CAPACITOR 0.082uF 16V K
C891 NCB31EK-104X C CAPACITOR 0.1uF 25V K
C901 QEZ0645-228 E CAPACITOR 2200uF
C902 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C903 QEKJ1CM-226Z E CAPACITOR 22uF 16V M
C904 QEKJ1CM-226Z E CAPACITOR 22uF 16V M
C905 QEKJ1AM-227Z E CAPACITOR 220uF 10V M
C906 NCB31EK-104X C CAPACITOR 0.1uF 25V K
C907 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C908 QEKJ1AM-107Z E CAPACITOR 100uF 10V M
C909 QEKJ1AM-107Z E CAPACITOR 100uF 10V M
C910 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C915 QEKJ1CM-106Z E CAPACITOR 10uF 16V M
C916 QEKJ1HM-225Z E CAPACITOR 2.2uF 50V M
C919 QERF0JM-337Z E CAPACITOR 330uF 6.3V M
C971 NCB31EK-104X C CAPACITOR 0.1uF 25V K
Ω
R1 NRSA63J-473X MG RESISTOR 47k
R2 NRS181J-120X MG RESISTOR 12
R3 NRS181J-120X MG RESISTOR 12
R4 NRSA63J-101X MG RESISTOR 100
R5 NRSA63J-101X MG RESISTOR 100
R6 NRSA63J-332X MG RESISTOR 3.3k
R7 NRSA63J-102X MG RESISTOR 1k
R8 NRSA63J-102X MG RESISTOR 1k
R9 NRSA63D-333X MG RESISTOR 33k
R10 NRSA63D-683X MG RESISTOR 68k
R75 NRSA63J-0R0X MG RESISTOR 0
R81 NRSA63J-153X MG RESISTOR 15k
R82 NRSA63J-682X MG RESISTOR 6.8k
R91 NRSA63J-153X MG RESISTOR 15k
R92 NRSA63J-682X MG RESISTOR 6.8k
R160 NRSA63J-150X MG RESISTOR 15
R162 NRSA63J-393X MG RESISTOR 39k
R163 NRSA63J-472X MG RESISTOR 4.7k
R164 NRSA63J-222X MG RESISTOR 2.2k
R168 NRSA63J-473X MG RESISTOR 47k
R172 NRSA63J-393X MG RESISTOR 39k
R173 NRSA63J-472X MG RESISTOR 4.7k
R174 NRSA63J-222X MG RESISTOR 2.2k
R178 NRSA63J-473X MG RESISTOR 47k
1/16W J
Ω
1/8W J
Ω
1/8W J
Ω
1/16W J
Ω
1/16W J
Ω
Ω
1/16W J
Ω
1/16W J
Ω
1/16W D
Ω
1/16W D
Ω
1/16W J
Ω
1/16W J
Ω
Ω
1/16W J
Ω
Ω
1/16W J
Ω
1/16W J
Ω
Ω
Ω
1/16W J
Ω
1/16W J
Ω
Ω
Ω
1/16W J
1/16W J
1/16W J
1/16W J
1/16W J
1/16W J
1/16W J
1/16W J
3-10
Page 11
Symbol No.
Part No. Part Name Description Local
Symbol No.
Part No. Part Name Description Local
R180 NRSA63J-273X MG RESISTOR 27kΩ 1/16W J
R181 NRSA63J-273X MG RESISTOR 27k
R182 NRSA63J-273X MG RESISTOR 27k
R183 NRSA63J-273X MG RESISTOR 27k
R190 NRSA63J-101X MG RESISTOR 100
R191 NRSA63J-101X MG RESISTOR 100
R301 NRSA63J-152X MG RESISTOR 1.5k
R302 NRSA63J-473X MG RESISTOR 47k
R303 NRSA63J-101X MG RESISTOR 100
R304 NRSA63J-472X MG RESISTOR 4.7k
R341 NRSA63J-821X MG RESISTOR 820
R342 NRSA63J-102X MG RESISTOR 1k
R343 NRSA63J-101X MG RESISTOR 100
R351 NRSA63J-821X MG RESISTOR 820
R352 NRSA63J-102X MG RESISTOR 1k
R353 NRSA63J-101X MG RESISTOR 100
R500 NRS181J-220X MG RESISTOR 22
R501 NRSA63J-822X MG RESISTOR 8.2k
R502 NRSA63J-822X MG RESISTOR 8.2k
R503 NRSA63J-512X MG RESISTOR 5.1k
R505 NRSA63J-113X MG RESISTOR 11k
R506 NRSA63J-103X MG RESISTOR 10k
R507 NRSA63J-153X MG RESISTOR 15k
R508 NRSA63J-332X MG RESISTOR 3.3k
R509 NRSA63J-104X MG RESISTOR 100k
R510 NRSA63J-273X MG RESISTOR 27k
R511 NRSA63J-153X MG RESISTOR 15k
R512 NRSA63J-562X MG RESISTOR 5.6k
R513 NRSA63J-103X MG RESISTOR 10k
R514 NRSA63J-562X MG RESISTOR 5.6k
R515 NRSA63J-153X MG RESISTOR 15k
R516 NRSA63J-102X MG RESISTOR 1k
R517 NRSA63J-153X MG RESISTOR 15k
R518 NRSA63J-562X MG RESISTOR 5.6k
R519 NRSA63J-203X MG RESISTOR 20k
R520 NRS181J-220X MG RESISTOR 22
R522 NRSA63J-0R0X MG RESISTOR 0
R524 NRS181J-102X MG RESISTOR 1k
R525 NRS181J-102X MG RESISTOR 1k
R526 NRS181J-102X MG RESISTOR 1k
R527 NRS181J-102X MG RESISTOR 1k
R528 NRS181J-102X MG RESISTOR 1k
R529 NRS181J-102X MG RESISTOR 1k
R535 NRSA63J-103X MG RESISTOR 10k
R538 NRSA63J-0R0X MG RESISTOR 0
R539 NRSA63J-0R0X MG RESISTOR 0
R540 NRSA63J-303X MG RESISTOR 30k
R541 NRSA63J-393X MG RESISTOR 39k
R542 NRSA63J-472X MG RESISTOR 4.7k
R543 NRS181J-102X MG RESISTOR 1k
R544 NRS181J-102X MG RESISTOR 1k
R545 NRSA63J-332X MG RESISTOR 3.3k
R548 NRSA63J-332X MG RESISTOR 3.3k
R552 NRSA63J-104X MG RESISTOR 100k
R553 NRS181J-0R0X MG RESISTOR 0
R554 NRSA63J-4R7X MG RESISTOR 4.7
R556 NRSA63J-473X MG RESISTOR 47k
R558 NRSA63J-823X MG RESISTOR 82k
R559 NRSA63J-821X MG RESISTOR 820
R565 NRSA63J-151X MG RESISTOR 150
R566 NRS181J-0R0X MG RESISTOR 0
R568 NRSA63J-0R0X MG RESISTOR 0
R583 NRSA63J-153X MG RESISTOR 15k
R584 NRSA63J-153X MG RESISTOR 15k
R585 NRSA63J-103X MG RESISTOR 10k
R586 NRSA63J-103X MG RESISTOR 10k
R587 NRSA63J-303X MG RESISTOR 30k
R588 NRSA63J-303X MG RESISTOR 30k
R589 NRSA63J-152X MG RESISTOR 1.5k
R590 NRSA63J-152X MG RESISTOR 1.5k
R591 NRSA63J-223X MG RESISTOR 22k
R592 NRSA63J-104X MG RESISTOR 100k
R593 NRSA63J-223X MG RESISTOR 22k
R594 NRS181J-104X MG RESISTOR 100k
R595 NRS181J-220X MG RESISTOR 22
R707 NRSA63J-682X MG RESISTOR 6.8k
R708 NRSA63J-332X MG RESISTOR 3.3k
R709 NRSA63J-473X MG RESISTOR 47k
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/8W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/8W J
Ω
1/16W J
Ω
1/8W J
Ω
1/8W J
Ω
1/8W J
Ω
1/8W J
Ω
1/8W J
Ω
1/8W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/8W J
Ω
1/8W J
Ω
1/16W J
Ω
1/16W J
Ω
Ω
1/8W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/8W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
Ω
1/16W J
Ω
Ω
1/8W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
1/16W J
1/16W J
1/16W J
1/8W J
R710 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J
R711 NRSA63J-0R0X MG RESISTOR 0
R713 NRSA63J-103X MG RESISTOR 10k
R714 NRSA63J-562X MG RESISTOR 5.6k
R715 NRSA63J-473X MG RESISTOR 47k
R716 NRSA63J-103X MG RESISTOR 10k
R717 NRSA63J-152X MG RESISTOR 1.5k
R718 NRSA63J-473X MG RESISTOR 47k
R719 NRSA63J-103X MG RESISTOR 10k
R720 NRSA63J-273X MG RESISTOR 27k
R721 NRSA63J-101X MG RESISTOR 100
R722 NRSA63J-473X MG RESISTOR 47k
R723 NRS181J-104X MG RESISTOR 100k
R724 NRS181J-104X MG RESISTOR 100k
R725 NRS181J-104X MG RESISTOR 100k
R726 NRSA63J-104X MG RESISTOR 100k
R727 NRSA63J-101X MG RESISTOR 100
R728 NRSA63J-101X MG RESISTOR 100
R729 NRSA63J-472X MG RESISTOR 4.7k
R730 NRSA63J-472X MG RESISTOR 4.7k
R731 NRSA63J-101X MG RESISTOR 100
R732 NRSA63J-101X MG RESISTOR 100
R735 NRS181J-102X MG RESISTOR 1k
R736 NRS181J-222X MG RESISTOR 2.2k
R737 NRS181J-104X MG RESISTOR 100k
R740 NRSA63J-332X MG RESISTOR 3.3k
R742 NRSA63J-101X MG RESISTOR 100
R745 NRSA63J-473X MG RESISTOR 47k
R748 NRSA63J-472X MG RESISTOR 4.7k
R749 NRSA63J-103X MG RESISTOR 10k
R750 NRSA63J-472X MG RESISTOR 4.7k
R751 NRSA63J-103X MG RESISTOR 10k
R752 NRSA63J-472X MG RESISTOR 4.7k
R753 NRSA63J-103X MG RESISTOR 10k
R754 NRSA63J-472X MG RESISTOR 4.7k
R755 NRSA63J-472X MG RESISTOR 4.7k
R756 NRSA63J-271X MG RESISTOR 270
R757 NRSA63J-271X MG RESISTOR 270
R758 NRSA63J-222X MG RESISTOR 2.2k
R759 NRSA63J-473X MG RESISTOR 47k
R760 NRSA63J-101X MG RESISTOR 100
R762 NRSA63J-471X MG RESISTOR 470
R763 NRSA63J-102X MG RESISTOR 1k
R766 NRS181J-682X MG RESISTOR 6.8k
R767 NRSA63J-0R0X MG RESISTOR 0
R768 NRSA63J-222X MG RESISTOR 2.2k
R769 NRSA63J-222X MG RESISTOR 2.2k
R770 NRSA63J-222X MG RESISTOR 2.2k
R891 NRSA63J-473X MG RESISTOR 47k
R892 NRSA63J-102X MG RESISTOR 1k
R901 NRSA63J-912X MG RESISTOR 9.1k
R902 QRE141J-102Y C RESISTOR 1k
R903 NRSA63J-472X MG RESISTOR 4.7k
R905 NRSA63J-472X MG RESISTOR 4.7k
R906 NRSA63J-473X MG RESISTOR 47k
R907 NRSA63J-681X MG RESISTOR 680
R908 NRSA63J-681X MG RESISTOR 680
R909 NRSA63J-473X MG RESISTOR 47k
R910 NRSA63J-272X MG RESISTOR 2.7k
R911 NRSA63J-243X MG RESISTOR 24k
R912 NRSA63J-393X MG RESISTOR 39k
R971 NRS181J-222X MG RESISTOR 2.2k
R972 NRS181J-222X MG RESISTOR 2.2k
L1 QQL801K-4R7Y COIL 4.7uH K
L701 QQL801K-4R7Y COIL 4.7uH K
L901 QQR0703-001 CHOKE COIL
CN501 QGB2027M4-22S CONNECTOR B-B (1-22)
CN701 QGZ1601J1-15 CONNECTOR (1-15)
CN901 QNZ0611-001 16P CONNECTOR
J1 QNB0190-001 CAR ANT JACK
J321 QNN0519-001 PIN JACK
S701 QSW1049-001Z TACT SW
TU1 QAU0443-001 TUNER
X71 QAX0263-001Z CRYSTAL 4.332MHz
X521 QAX0893-001Z CRYSTAL
X701 QAX0667-001Z C RESONATOR 8.000MHz
Ω
1/16W J
Ω
Ω
Ω
1/16W J
Ω
Ω
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/8W J
Ω
1/8W J
Ω
1/8W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
1/8W J
Ω
1/8W J
Ω
1/8W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
1/16W J
Ω
1/8W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
1/16W J
Ω
1/16W J
1/4W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/8W J
Ω
1/8W J
3-11
Page 12
Symbol No.
Part No. Part Name Description Local
Symbol No.
Part No. Part Name Description Local
X702 QAX0401-001 CRYSTAL 32.768KHz
Switch board
(KD-G120,G120R,G123,G124,G125,G126)
Block No. [0][3]
Symbol No.
IC661 PT6523LQ-L LCD DRIVER
IC681 RPM7338-V4 RM.RECEIVER
D630 SML-310LT/MN/-X LED
D631 SML-310VT/JK/-X LED
D633 SML-310VT/JK/-X LED
D635 SML-310VT/JK/-X LED
D636 SML-310VT/JK/-X LED
D637 SML-310VT/JK/-X LED
D638 SML-310VT/JK/-X LED
D639 SML-310VT/JK/-X LED
D640 SML-310VT/JK/-X LED
D641 SML-310VT/JK/-X LED
D642 SML-310VT/JK/-X LED
D643 SML-310VT/JK/-X LED
D644 SML-310VT/JK/-X LED
D645 SML-310VT/JK/-X LED
D646 SML-310VT/JK/-X LED
D647 SML-310VT/JK/-X LED
D648 SML-310VT/JK/-X LED
D649 SML-310VT/JK/-X LED
D652 NSPW310BS/BRST/ WHITE LED
D653 NSPW310BS/BRST/ WHITE LED
D661 1SS355W-X DIODE C.M
D662 UDZW5.1B-X SI DIODE
D681 MA8062/M/-X Z DIODE
C661 NBE20JM-106X TA E CAPACITOR 10uF 6.3V M
C662 NDC31HJ-681X C CAPACITOR 680pF 50V J
C663 NCB31HK-223X C CAPACITOR 0.022uF 50V K
C681 NBE20JM-475X TA E CAPACITOR 4.7uF 6.3V M
C682 NCB31HK-123X C CAPACITOR 0.012uF 50V K
C686 NCB31HK-223X C CAPACITOR 0.022uF 50V K
C687 NCB31HK-223X C CAPACITOR 0.022uF 50V K
R601 NRSA63J-681X MG RESISTOR 680
R602 NRSA63J-561X MG RESISTOR 560
R603 NRSA63J-681X MG RESISTOR 680
R604 NRSA63J-911X MG RESISTOR 910
R605 NRSA63J-122X MG RESISTOR 1.2k
R606 NRSA63J-681X MG RESISTOR 680
R607 NRSA63J-561X MG RESISTOR 560
R608 NRSA63J-681X MG RESISTOR 680
R609 NRSA63J-911X MG RESISTOR 910
R610 NRSA63J-122X MG RESISTOR 1.2k
R611 NRSA63J-681X MG RESISTOR 680
R612 NRSA63J-561X MG RESISTOR 560
R613 NRSA63J-681X MG RESISTOR 680
R630 NRSA63J-821X MG RESISTOR 820
R631 NRSA63J-471X MG RESISTOR 470
R633 NRSA63J-471X MG RESISTOR 470
R637 NRSA63J-331X MG RESISTOR 330
R639 NRSA63J-331X MG RESISTOR 330
R641 NRSA63J-331X MG RESISTOR 330
R643 NRSA63J-471X MG RESISTOR 470
R645 NRSA63J-471X MG RESISTOR 470
R649 NRS181J-361X MG RESISTOR 360
R650 NRS181J-361X MG RESISTOR 360
R661 NRSA63J-222X MG RESISTOR 2.2k
R662 NRSA63J-222X MG RESISTOR 2.2k
R663 NRSA63J-184X MG RESISTOR 180k
R664 NRSA63J-103X MG RESISTOR 10k
R665 NRSA63J-513X MG RESISTOR 51k
R666 NRSA63J-103X MG RESISTOR 10k
R667 NRSA63J-103X MG RESISTOR 10k
Part No. Part Name Description Local
G120RJ
G120RJ
G120RJ
G120RJ
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/8W J
Ω
1/8W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
R668 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J
Ω
R670 NRS181J-0R0X MG RESISTOR 0
R681 NRSA63J-471X MG RESISTOR 470
1/8W J
Ω
1/16W J
R682 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J
R686 NRSA63J-101X MG RESISTOR 100Ω 1/16W J
CJ601 QGZ1601K1-15S CONNECTOR (1-15)
JS686 QSW0976-001 ROTARY ENCODER
S601 NSW0124-001X TACT SW
S602 NSW0124-001X TACT SW
S603 NSW0124-001X TACT SW
S604 NSW0124-001X TACT SW
S605 NSW0124-001X TACT SW
S606 NSW0124-001X TACT SW
S607 NSW0124-001X TACT SW
S608 NSW0124-001X TACT SW
S609 NSW0124-001X TACT SW
S610 NSW0124-001X TACT SW
S611 NSW0124-001X TACT SW
S612 NSW0124-001X TACT SW
S613 NSW0124-001X TACT SW
S614 NSW0124-001X TACT SW
S615 NSW0124-001X TACT SW
S616 NSW0124-001X TACT SW
Switch board (KD-G161,G162)
Block No. [0][4]
Symbol No.
IC661 PT6523LQ-L LCD DRIVER
D630 SML-310LT/MN/-X LED
D631 LNJ308G81/1-3/X LED
D631 SML-310VT/JK/-X LED
D632 LNJ308G81/1-3/X LED
D633 SML-310VT/JK/-X LED
D634 LNJ308G81/1-3/X LED
D635 LNJ308G81/1-3/X LED
D635 SML-310VT/JK/-X LED
D636 LNJ308G81/1-3/X LED
D636 SML-310VT/JK/-X LED
D637 LNJ308G81/1-3/X LED
D637 SML-310VT/JK/-X LED
D638 LNJ308G81/1-3/X LED
D638 SML-310VT/JK/-X LED
D639 LNJ308G81/1-3/X LED
D639 SML-310VT/JK/-X LED
Part No. Part Name Description Local
G120RJ
G120RJ
G161E
G161EU
G161EX
G161EY
G162E
G162EU
G162EX
G162EY
G161E
G161EU
G161EX
G161EY
G162E
G162EU
G162EX
G162EY
G161E
G161EU
G161EX
G161EY
G161E
G161EU
G161EX
G161EY
G162E
G162EU
G162EX
G162EY
G161E
G161EU
G161EX
G161EY
G162E
G162EU
G162EX
G162EY
G161E
G161EU
G161EX
G161EY
G162E
G162EU
G162EX
G162EY
G161E
G161EU
G161EX
G161EY
G162E
G162EU
G162EX
G162EY
G161E
G161EU
G161EX
G161EY
G162E
G162EU
G162EX
G162EY
3-12
Page 13
Symbol No.
Part No. Part Name Description Local
Symbol No.
Part No. Part Name Description Local
D640 LNJ308G81/1-3/X LED
D640 SML-310VT/JK/-X LED
D641 LNJ308G81/1-3/X LED
D641 SML-310VT/JK/-X LED
D642 LNJ308G81/1-3/X LED
D642 SML-310VT/JK/-X LED
D643 LNJ308G81/1-3/X LED
D643 SML-310VT/JK/-X LED
D644 LNJ308G81/1-3/X LED
D644 SML-310VT/JK/-X LED
D645 LNJ308G81/1-3/X LED
D645 SML-310VT/JK/-X LED
D646 LNJ308G81/1-3/X LED
D646 SML-310VT/JK/-X LED
D647 LNJ308G81/1-3/X LED
D647 SML-310VT/JK/-X LED
D648 LNJ308G81/1-3/X LED
D648 SML-310VT/JK/-X LED
D649 LNJ308G81/1-3/X LED
D649 SML-310VT/JK/-X LED
D652 NSPW310BS/BRST/ WHITE LED
D653 NSPW310BS/BRST/ WHITE LED
D661 1SS355W-X DIODE C.M
D662 UDZW5.1B-X SI DIODE
C661 NBE20JM-106X TA E CAPACITOR 10uF 6.3V M
C662 NCS31HJ-681X C CAPACITOR 680pF 50V J
C663 NCB31HK-223X C CAPACITOR 0.022uF 50V K
C686 NCB31HK-223X C CAPACITOR 0.022uF 50V K
C687 NCB31HK-223X C CAPACITOR 0.022uF 50V K
G161E
G161EU
G161EX
G161EY
G162E
G162EU
G162EX
G162EY
G161E
G161EU
G161EX
G161EY
G162E
G162EU
G162EX
G162EY
G161E
G161EU
G161EX
G161EY
G162E
G162EU
G162EX
G162EY
G161E
G161EU
G161EX
G161EY
G162E
G162EU
G162EX
G162EY
G161E
G161EU
G161EX
G161EY
G162E
G162EU
G162EX
G162EY
G161E
G161EU
G161EX
G161EY
G162E
G162EU
G162EX
G162EY
G161E
G161EU
G161EX
G161EY
G162E
G162EU
G162EX
G162EY
G161E
G161EU
G161EX
G161EY
G162E
G162EU
G162EX
G162EY
G161E
G161EU
G161EX
G161EY
G162E
G162EU
G162EX
G162EY
G161E
G161EU
G161EX
G161EY
G162E
G162EU
G162EX
G162EY
R630 NRSA63J-821X MG RESISTOR 820Ω 1/16W J
Ω
R631 NRSA63J-471X MG RESISTOR 470
R633 NRSA63J-122X MG RESISTOR 1.2k
1/16W J
Ω
1/16W J
R633 NRSA63J-471X MG RESISTOR 470Ω 1/16W J
R634 NRSA63J-152X MG RESISTOR 1.5kΩ 1/16W J
R635 NRSA63J-561X MG RESISTOR 560Ω 1/16W J
R637 NRSA63J-331X MG RESISTOR 330Ω 1/16W J
Ω
R639 NRSA63J-331X MG RESISTOR 330
R641 NRSA63J-331X MG RESISTOR 330
R643 NRSA63J-471X MG RESISTOR 470
R645 NRSA63J-471X MG RESISTOR 470
R649 NRS181J-391X MG RESISTOR 390
R650 NRS181J-391X MG RESISTOR 390
R661 NRSA63J-222X MG RESISTOR 2.2k
R662 NRSA63J-222X MG RESISTOR 2.2k
R663 NRSA63J-184X MG RESISTOR 180k
R664 NRSA63J-103X MG RESISTOR 10k
R665 NRSA63J-513X MG RESISTOR 51k
R666 NRSA63J-103X MG RESISTOR 10k
R667 NRSA63J-103X MG RESISTOR 10k
R668 NRSA63J-103X MG RESISTOR 10k
R670 NRS181J-0R0X MG RESISTOR 0
R686 NRSA63J-101X MG RESISTOR 100
Ω
Ω
Ω
Ω
Ω
Ω
Ω
Ω
Ω
Ω
Ω
Ω
Ω
1/8W J
Ω
1/16W J
1/16W J
1/16W J
1/16W J
1/8W J
1/8W J
1/16W J
1/16W J
Ω
1/16W J
1/16W J
1/16W J
1/16W J
1/16W J
1/16W J
1/16W J
CJ601 QGZ1601K1-15S CONNECTOR (1-15)
JS686 QSW0976-001 ROTARY ENCODER
S601 NSW0283-001X TACT SW
S602 NSW0283-001X TACT SW
S603 NSW0283-001X TACT SW
S604 NSW0283-001X TACT SW
S605 NSW0283-001X TACT SW
S606 NSW0283-001X TACT SW
S607 NSW0283-001X TACT SW
S608 NSW0283-001X TACT SW
S609 NSW0283-001X TACT SW
S610 NSW0283-001X TACT SW
S611 NSW0283-001X TACT SW
S612 NSW0283-001X TACT SW
S613 NSW0283-001X TACT SW
S614 NSW0283-001X TACT SW
S615 NSW0283-001X TACT SW
S616 NSW0283-001X TACT SW
G161E
G161EU
G161EX
G161EY
G162E
G162EU
G162EX
G162EY
G161E
G161EU
G161EX
G161EY
G161E
G161EU
G161EX
G161EY
R601 NRSA63J-821X MG RESISTOR 820
R602 NRSA63J-821X MG RESISTOR 820
R603 NRSA63J-122X MG RESISTOR 1.2k
R604 NRSA63J-182X MG RESISTOR 1.8k
R605 NRSA63J-272X MG RESISTOR 2.7k
R606 NRSA63J-821X MG RESISTOR 820
R607 NRSA63J-821X MG RESISTOR 820
R608 NRSA63J-122X MG RESISTOR 1.2k
R609 NRSA63J-182X MG RESISTOR 1.8k
R610 NRSA63J-272X MG RESISTOR 2.7k
R611 NRSA63J-821X MG RESISTOR 820
R612 NRSA63J-821X MG RESISTOR 820
R613 NRSA63J-122X MG RESISTOR 1.2k
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
3-13
Page 14
Packing materials and accessories parts list
No additional / supplemental order of WARRANTY CARDs are available.
Block No.
3
M
M
M
P2
A3 A5 A6
A7 A8
KD-G125 , G126_U
P5
P2
A4
A2
P2
A4 A6 A7 A10
A13 A14 A22
KD-G161 , G162_E,EX,EY
P2
A4 A6
A7 A13
KD-G161 , G162_EU
A1
P2
P2
A3
A3
P2
A3 A6
A9 A10
A11 A12
KD-G120 , G120R_J
P2
A3 A6
KD-G125 , G126_UN,UH,UT
P4
P4
KIT :
A15 A16
A17 A18 A19
P1
A21
P3
P6
P7
A20
3-14
Page 15
Packing and Accessories
Symbol No. Part No. Part Name Description Local
Block No. [M][3][M][M]
A 1 GE20137-003A MOUNTING SLEEVE
A 2 GE20135-010A TRIM PLATE
A 2 GE20135-001A TRIM PLATE
A 3 GET0330-001A INST BOOK ENG SPA FRE
A 3 GET0332-001A INST BOOK ENG
A 3 GET0331-001A INST BOOK ENG THA
A 3 GET0331-004A INST BOOK ENG INA
A 3 GET0331-005A INST BOOK ENG CHI(TAIWAN)
A 3 GET0334-001A INST BOOK GER FRE ITA
A 3 GET0334-005A INST BOOK SPA TUR PER
A 3 GET0334-004A INST BOOK DUT SWE DAN FIN
A 3 GET0334-006A INST BOOK ENG GER RUS
A 4 GET0331-002A INST BOOK KOR CHI(TAIWAN) ARA PER
A 4 GET0334-002A INST BOOK SPA GER POR
A 4 GET0334-003A INST BOOK ENG FRE
A 4 GET0334-007A INST BOOK POL CZE HUN
A 5 GET0331-003A INST BOOK RUS
A 6 GET0330-002A INSTALL MANUAL
A 6 GET0332-002A INSTALL MANUAL
A 6 GET0331-006A INSTALL MANUAL
A 6 GET0331-009A INSTALL MANUAL
A 6 GET0331-010A INSTALL MANUAL
A 6 GET0334-008A INSTALL MANUAL
A 6 GET0334-010A INSTALL MANUAL
A 6 GET0334-013A INSTALL MANUAL
A 7 GET0331-007A INSTALL MANUAL
A 7 GET0334-009A INSTALL MANUAL
A 7 GET0334-012A INSTALL MANUAL
A 7 GET0334-011A INSTALL MANUAL
A 7 GET0334-014A INSTALL MANUAL
A 8 GET0331-008A INSTALL MANUAL
A 9 LVT0717-001B TROUBLE SHEET(C
A 10 ------------ WARRANTY CARD BT-52006-2
A 10 ------------ WARRANTY CARD BT-54027-1
A 11 ------------ WARRANTY CARD BT-51018-4
A 12 BT-51034-2 REGISTRATION CARD
A 13 LVT1435-001A WEEE SHEET
A 14 VND3046-001 SERIAL TICKET
A 15 VKZ4027-202 PLUG NUT
A 16 VKH4871-003 MOUNT BOLT
A 17 VKZ4328-003 LOCK NUT
A 18 QYWWS53A008ZA WASHER 0mm/5.3mm x
A 19 GE40130-002A HOOK (x2)
A 20 FSJB3002-30C HARD CASE
A 21 QAM0013-008 16P CORD ASSY
A 21 QAM0390-004 16P CORD ASSY
A 21 QAM0463-002 POWER CORD
A 22 VND3050-002 IDENTITY CARD
KIT SRW-385U SCREW PART KIT A15 A16 A17 A18 A19
P 1 QPC03004315P POLY BAG 30cm x 43cm
P 2 FSPG4002-001 POLY BAG
P 2 FSPG4002-001 POLY BAG (x2)
P 3 QPA00801205 POLY BAG 8cm x 12cm
P 4 GE10070-003A EPS CUSHION
P 5 GE31835-002A CARTON
P 5 GE32114-002A CARTON
P 5 GE32006-002A CARTON
P 5 GE32009-002A CARTON
P 5 GE31838-002A CARTON
P 5 GE31841-002A CARTON
P 5 GE31853-002A CARTON
P 5 GE31856-002A CARTON
P 6 QPA01003003 POLY BAG 10cm x 30cm
P 7 QPC01002515 POLY BAG 10cm x 25cm
G120J,G120RJ,G124UI,G125U,G125UH,G125UN
G125UT,G161E,G161EU,G161EX,G161EY
G123UI,G126U,G126UH,G126UN,G126UT,G162E
G162EU,G162EX,G162EY
G120J,G120RJ
G123UI, G124UI
G125U,G125UH,G126U,G126UH
G125UN,G126UN
G125UT,G126UT
G161E,G162E
G161EU,G162EU
G161EX,G162EX
G161EY,G162EY
G125U,G126U
G161E,G162E
G161EU,G161EX,G162EU,G162EX
G161EY,G162EY
G125U,G126U
G120J,G120RJ
G123UI, G124UI
G125U,G125UH,G126U,G126UH
G125UN,G126UN
G125UT,G126UT
G161E,G162E
G161EU,G161EX,G162EU,G162EX
G161EY,G162EY
G125U,G126U
G161E,G162E
G161EU,G162EU
G161EX,G162EX
G161EY,G162EY
G125U,G126U
G120J,G120RJ
G120J,G120RJ
G161E,G161EX,G161EY,G162E,G162EX,G162EY
G120J,G120RJ
G120J,G120RJ
G161E,G161EU,G161EX,G161EY,G162E,G162EU
G162EX,G162EY
G161E,G161EX,G161EY,G162E,G162EX,G162EY
G120J,G120RJ
G123UI,G124UI,G125U,G125UH,G125UN,G125UT
G126U,G126UH,G126UN,G126UT
G161E,G161EU,G161EX,G161EY,G162E,G162EU
G162EX,G162EY
G161E,G161EX,G161EY,G162E,G162EX,G162EY
G120J,G120RJ,G123UI,G124UI,G125UH,G125UN
G125UT,G126UH,G126UN,G126UT
G125U,G126U,G161E,G161EU,G161EX,G161EY
G162E,G162EU,G162EX,G162EY
G120J
G120RJ
G123UI
G124UI
G125U,G125UH,G125UN,G125UT
G126U,G126UH,G126UN,G126UT
G161E,G161EU,G161EX,G161EY
G162E,G162EU,G162EX,G162EY
3-15
Loading...
