JVC KD-G15 User Manual [fr]
CD RECEIVER
RECEPTEUR CD
KD-S1501/KD-G152/KD-G151
For canceling the display demonstration, see page 7.
Pour annuler la démonstration des affichages, référez-vous à la page 7.
ENGLISH
FRANÇAIS
For installation and connections, refer to the separate manual.
Pour l’installation et les raccordements, se référer au manuel séparé.
INSTRUCTIONS
MANUEL D’INSTRUCTIONS
GET0287-003A
[EX/EU]
Thank you for purchasing a JVC product.
Please read all instructions carefully before operation, to ensure your complete understanding and to
obtain the best possible performance from the unit.
ENGLISH

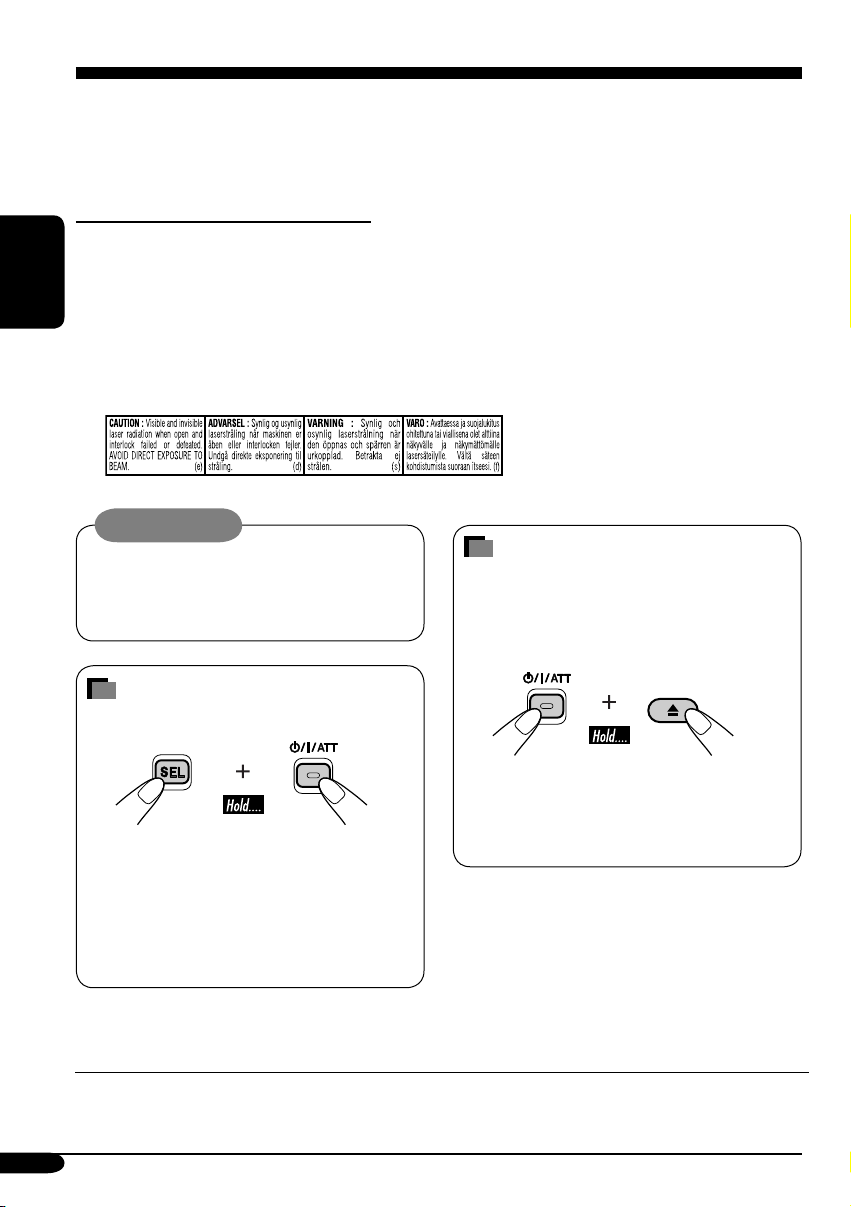

IMPORTANT FOR LASER PRODUCTS
1. CLASS 1 LASER PRODUCT
2. CAUTION : Do not open the top cover. There are no user serviceable parts inside the unit; leave
all servicing to qualified service personnel.
3. CAUTION: Visible and invisible laser radiation when open and interlock failed or defeated.
Avoid direct exposure to beam.
4. REPRODUCTION OF LABEL: CAUTION LABEL, PLACED OUTSIDE THE UNIT.
Warning:
If you need to operate the receiver while
driving, be sure to look ahead carefully or
you may be involved in a traffic accident.
How to forcibly eject a disc
If a disc cannot be recognized by the
receiver or cannot be ejected, ejects the disc
as follows.
How to reset your unit
• If this does not work, try to reset your
receiver.
• This will reset the microcomputer. Your
preset adjustments will also be erased.
• If a disc is loaded, it will eject. Be careful
not to drop the disc.
Note: Only for [EX] model users in UK and European countries
For security reasons, a numbered ID card is provided with this receiver, and the same ID number is
imprinted on the receiver’s chassis. Keep the card in a safe place, as it will help the authorities to
identify your receiver if stolen.
2
• Be careful not to drop the disc when it
ejects.
Contents
How to reset your unit ........................... 2
How to forcibly eject a disc ................... 2
How to read this manual ........................ 4
How to use the MODE button ............... 4
Control panel — KD-S1501/
KD-G152/KD-G151 ................... 5
Parts identification ................................. 5
Getting started ....................... 6
Basic operations .................................. 6
Canceling the display demonstrations ... 7
Setting the clock .................................... 7
Radio operations ................... 8
Listening to the radio ........................... 8
Storing stations in memory .................... 9
Listening to a preset station ................... 9
FM RDS operations ................. 10
Searching for your favorite FM RDS
programme
Storing your favorite programmes ......... 11
Using the standby receptions ................. 11
Tracking the same programme
—Network-Tracking Reception ........ 12
....................................... 10
Disc operations ...................... 13
Playing a disc ..................................... 13
Selecting the playback modes ................ 14
Sound adjustments ................ 15
Selecting preset sound modes
(C-EQ: custom equalizer) .................. 15
Adjusting the sound ............................... 16
General settings — PSM ......... 17
Basic procedure ..................................... 17
Detaching the control
panel .................................. 19
Maintenance .......................... 20
More about this receiver ........ 21
Troubleshooting ..................... 22
Specifications ......................... 23
ENGLISH
*For safety....
• Do not raise the volume level too much, as
this will block outside sounds, making driving
dangerous.
• Stop the car before performing any
complicated operations.
*Temperature inside the car....
If you have parked the car for a long time in
hot or cold weather, wait until the temperature
in the car becomes normal before operating the
unit.
3
How to read this manual
The following methods are used to made the
explanations simple and easy-to-understand:
• Some related tips and notes are explained in
ENGLISH
“More about this receiver” (see page 21).
• Button operations are mainly explained with
the illustrations as follows:
Press briefly.
Press repeatedly.
Press either one.
Press and hold until
your desired response
begins.
How to use the MODE button
If you press MODE, the receiver goes into
functions mode, then the number buttons work
as different function buttons.
Ex.: When number button 2 works as
MO (monaural) button.
Time countdown indicator
To use these buttons for original functions
again after pressing MODE, wait for
5 seconds without pressing any of these buttons
until the functions mode is cleared.
• Pressing MODE again also clears the
functions mode.
Press and hold both
buttons at the same
time.
4
Control panel — KD-S1501/KD-G152/KD-G151
Parts identification
Display window
1 +/– buttons
2 DISP (display) button
3 Loading slot
4 Display window
5 MODE button
6 0 (eject) button
7
¢/4 buttons
8
9 SEL (select) button
p EQ (equalizer) button
q MO (monaural) button
w SSM (Strong-station Sequential Memory)
e CD button
r FM/AM button
t RPT (repeat) button
y RND (random) button
u T/P (traffic programme/programme type)
i
o Number buttons
(standby/on/attenuator) button
button
button
(control panel release) button
Display window
; Tuner reception indicators
MO (monaural), ST (stereo)
a RDS indicators
TP, PTY, AF, REG
s CD indicator
d RND
f RPT (repeat) indicator
g LOUD (loudness) indicator
h EQ (equalizer) indicator
j Sound mode (C-EQ: custom equalizer)
indicators
ROCK, CLASSIC, POPS, HIP HOP, JAZZ,
USER
•
k Main display
l Source display
Volume level indicator
(disc random) indicator
also works as the time countdown
indicator.
ENGLISH
5
Getting started
ENGLISH
Basic operations
~
Ÿ
You cannot select “CD” as the playback
source if there is no disc in the loading
slot.
!
Volume level appears.
To drop the volume in a moment (ATT)
To restore the sound, press it
again.
To turn off the power
Caution on volume setting:
Discs produce very little noise compared
with other sources. Lower the volume
before playing a disc to avoid damaging
the speakers by the sudden increase of the
output level.
Volume level indicator
⁄ Adjust the sound as you want.
(See pages 15 and 16.)
6
Canceling the display
demonstrations
If no operations are done for about 20 seconds,
display demonstration starts.
[Initial: DEMO ON]—see page 17.
1
2
Setting the clock
1
2
Set the hour, minute, and clock
system.
1 Select “CLOCK H” (hour), then
adjust the hour.
2 Select “CLOCK M” (minute),
then adjust the minute.
3 Select “24H/12H,” then select
“24H” (hour) or “12H” (hour).
ENGLISH
3
Finish the procedure.
4
To activate the display demonstration
In step 3 above...
3 Finish the procedure.
To check the current clock time when the
power is turned off
7
Radio operations
Listening to the radio
ENGLISH
~
Lights up when receiving an FM stereo
broadcast with sufficient signal strength.
Selected band appears.
2 Select the desired station frequencies.
When an FM stereo broadcast is hard to
receive
1
Ÿ Start searching for a station.
When a station is received, searching
stops.
To stop searching, press the same
button again.
To tune in to a station manually
In step Ÿ above...
1
8
2
Lights up when monaural mode is activated.
Reception improves, but stereo effect will
be lost.
To restore the stereo effect, repeat the same
procedure. “MONO OFF” appears and the MO
indicator goes off.
Storing stations in memory
You can preset six stations for each band.
FM station automatic presetting —
SSM (Strong-station Sequential
Memory)
Select the FM band (FM1 – FM3)
1
you want to store into.
2
2
ENGLISH
3
Preset number flashes for a while.
3
“SSM” flashes, then disappears when
automatic presetting is over.
Local FM stations with the strongest signals are
searched and stored automatically in the FM
band.
Manual presetting
Ex.: Storing FM station of 92.5 MHz into the
preset number 4 of the FM1 band.
1
Listening to a preset station
1
Select the preset station (1 – 6) you
2
want.
To check the current clock time while
listening to an FM (non-RDS) or AM station
• For FM RDS stations, see page 12.
9
FM RDS operations
Searching for your favorite FM RDS programme
ENGLISH
You can tune in to a station broadcasting your
favorite programme by searching for a PTY code.
~
! Start searching for your favorite
programme.
The last selected PTY code appears.
Ÿ Select one of your favorite
programme type.
or
Select one of the twenty-nine PTY
codes.
Ex.: When “ROCK M” is selected
10
If there is a station broadcasting a
programme of the same PTY code as
you have selected, that station is tuned
in.
PTY codes
NEWS, AFFAIRS, INFO, SPORT,
EDUCATE, DRAMA, CULTURE,
SCIENCE, VARIED, POP M (music),
ROCK M (music), EASY M (music),
LIGHT M (music), CLASSICS, OTHER
M (music), WEATHER, FINANCE,
CHILDREN, SOCIAL, RELIGION,
PHONE IN, TRAVEL, LEISURE, JAZZ,
COUNTRY, NATION M (music), OLDIES,
FOLK M (music), DOCUMENT
What you can do with RDS
RDS (Radio Data System) allows FM
stations to send an additional signal along
with their regular programme signals.
By receiving the RDS data, this receiver can
do the following:
•
Programme Type (PTY) Search (see page 10)
• Standby Reception of Traffic
Announcement —TA (see the following) or
your favorite programme (PTY) (see pages
12 and 18)
•
Tracing the same programme automatically
—Network-Tracking Reception (see page 12)
• Programme Search (see page 18)
Storing your favorite programmes
You can store six favorite programme types.
3 Repeat steps 1 and 2 to store
other PTY codes into other preset
numbers.
ENGLISH
4 Finish the procedure.
Using the standby receptions
TA Standby Reception
TA Standby Reception allows the receiver to
switch temporarily to Traffic Announcement
(TA) from any source other than AM.
The volume changes to the preset TA volume
level (see page 18).
Preset programme types in the number buttons
(1 – 6):
1 Perform steps ~ and Ÿ on page 10 to
select a PTY code.
2 Select the preset number (1 – 6) you
want to store into.
Ex.: When “ROCK M” is selected
To activate TA Standby Reception
The TP indicator either
lights up or flashes.
• If the TP indicator lights up, TA Standby
Reception is activated.
• If the TP indicator flashes, TA Standby
Reception is not yet activated. (This occurs
when you are listening to an FM station
without the RDS signals required for TA
Standby Reception.)
To activate TA Standby Reception, tune in to
another station providing these signals. The
TP indicator will stop flashing and remain lit.
To deactivate the TA Standby Reception
The TP indicator goes off.
11
PTY Standby Reception
PTY Standby Reception allows the receiver
to switch temporarily to your favorite PTY
programme from any source other than AM.
ENGLISH
To activate and select your favorite PTY
code for PTY Standby Reception, see page
18.
The PTY indicator either lights up or flashes.
• If the PTY indicator lights up, PTY Standby
Reception is activated.
• If the PTY indicator flashes, PTY Standby
Reception is not yet activated.
To activate PTY Standby Reception, tune in
to another station providing these signals. The
PTY indicator will stop flashing and remain
lit.
To deactivate the PTY Standby Reception,
select “OFF” for the PTY code (see page 18).
The PTY indicator goes off.
Tracking the same programme—
Network-Tracking Reception
When driving in an area where FM reception
is not sufficient enough, this receiver
automatically tunes in to another FM RDS
station of the same network, possibly
broadcasting the same programme with stronger
signals (see the illustration below).
When shipped from the factory, NetworkTracking Reception is activated.
To change the Network-Tracking Reception
setting, see page 18.

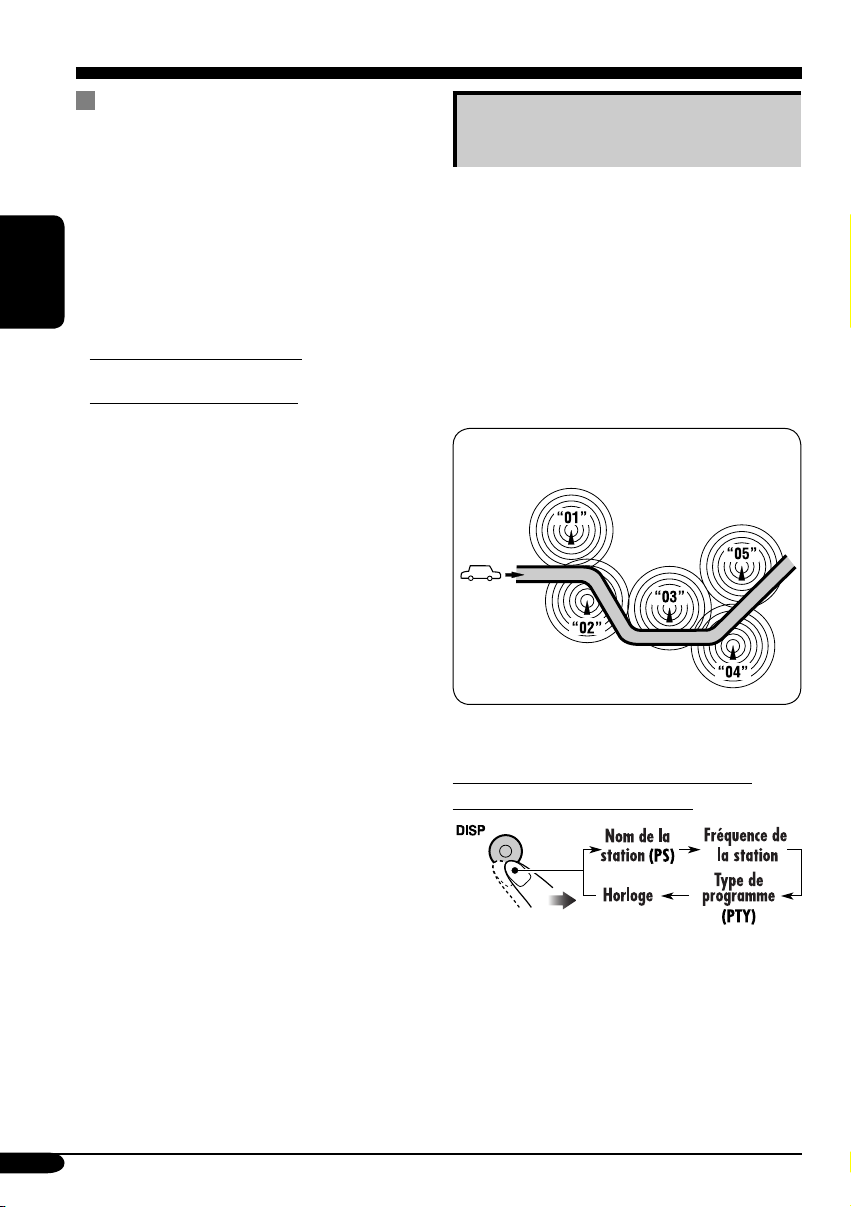

Programme A broadcasting on different
frequency areas (01 – 05)
12
To check the current clock time while
listening to an FM RDS station
Disc operations
Playing a disc
ENGLISH
All tracks will be played repeatedly until you
change the source or eject the disc.
Total playing time of
the inserted disc
Elapsed playing
time
Total track number
of the inserted disc
Current track
number
To stop play and eject the disc
To fast-forward or reverse the track
Fast-forwards.
Reverses.
To go to the next or previous tracks
To the following
tracks.
To the beginning of the current track, then
the previous tracks.
To go to a particular track directly
To select a number from 01 – 06:
To select a number from 07 – 12:
13
Prohibiting disc ejection
You can lock a disc in the loading slot.
To check the current clock time while
listening to a disc
ENGLISH
To cancel the prohibition, repeat the same
procedure.
Selecting the playback modes
You can use only one of the following playback modes at a time.
1
2 Select your desired playback mode.
14
Repeat play
Ex.: When “TRK RPT” is selected
Random play
Ex.: When “DISC RND” is selected
Mode Plays repeatedly
TRK RPT: The current track.
• RPT lights up.
RPT OFF: Cancels.
Mode Plays at random
DISC RND: All tracks of the current disc.
• RND
RND OFF: Cancels.
lights up.
Loading...
