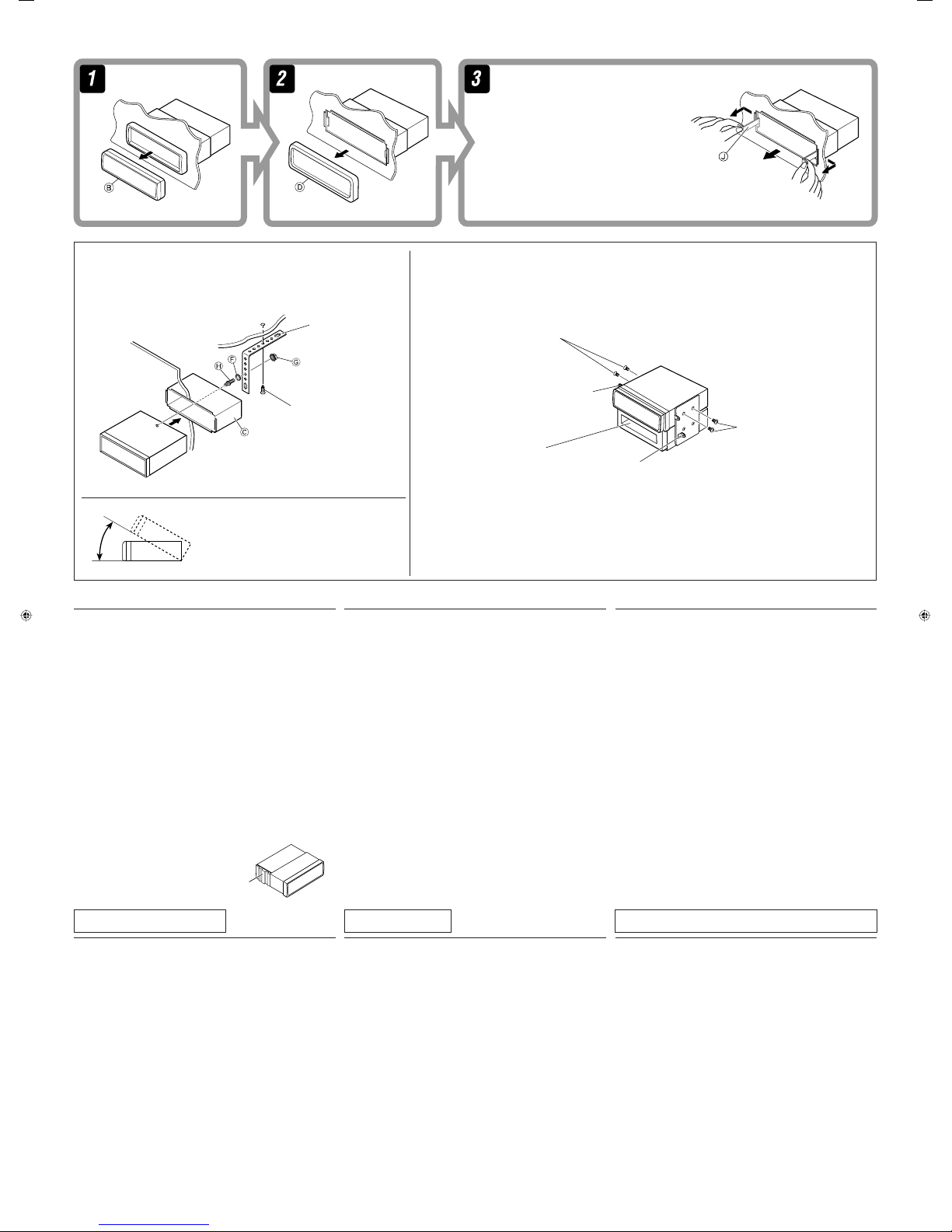

For installation and connections, refer to the separate manual.
Pour l’installation et les raccordements, se référer au manuel séparé.

INSTRUCTIONS

MANUEL D’INSTRUCTIONS

GET0253-003A

[EX/EU]

Thank you for purchasing a JVC product.

Please read all instructions carefully before operation, to ensure your complete understanding and

to obtain the best possible performance from the unit.

ENGLISH

IMPORTANT FOR LASER PRODUCTS

1. CLASS 1 LASER PRODUCT

2. CAUTION: Do not open the top cover. There are no user serviceable parts inside the unit; leave

all servicing to qualified service personnel.

3. CAUTION: Visible and invisible laser radiation when open and interlock failed or defeated.

Avoid direct exposure to beam.

4. REPRODUCTION OF LABEL: CAUTION LABEL, PLACED OUTSIDE THE UNIT.

Warning:

If you need to operate the receiver while
driving, be sure to look ahead carefully or
you may be involved in a traffic accident.

How to forcibly eject a disc

If a disc cannot be recognized by the
receiver or cannot be ejected, ejects the disc
as follows.

How to reset your unit

• If this does not work, try to reset your
receiver.

• This will reset the microcomputer. Your
preset adjustments will also be erased.

• If a disc is loaded, it will eject. Be careful
not to drop the disc.

Note: Only for [EX] model users in UK and European countries
For security reasons, a numbered ID card is provided with this receiver, and the same ID number is
imprinted on the receiver’s chassis. Keep the card in a safe place, as it will help the authorities to
identify your unit if stolen.

• Be careful not to drop the disc when it
ejects.

2

Contents

How to reset your unit ........................... 2

How to forcibly eject a disc................... 2

How to read this manual........................ 4

How to use the MODE button ............... 4

Control panel — KD-G111 ......... 5

Parts identification................................. 5

Getting started....................... 6

Basic operations ........................... 6

Canceling the display demonstrations ... 7

Setting the clock .................................... 7

Radio operations ................... 8

Listening to the radio........................... 8

Storing stations in memory.................... 9

Listening to a preset station ................... 9

Disc operations ...................... 10

Playing a disc ..................................... 10

Selecting the playback modes................ 11

Sound adjustments ................ 12

Selecting preset sound modes

(C-EQ: custom equalizer) .................. 12

Adjusting the sound ............................... 13

ENGLISH

General settings — PSM ......... 14

Basic procedure ..................................... 14

Detaching the control panel.... 15

Maintenance .......................... 16

More about this receiver ........ 17

Troubleshooting ..................... 18

Specifications ......................... 19

*For safety....

• Do not raise the volume level too much, as
this will block outside sounds, making driving
dangerous.

• Stop the car before performing any
complicated operations.

*Temperature inside the car....

If you have parked the car for a long time in
hot or cold weather, wait until the temperature
in the car becomes normal before operating the
unit.

3

How to read this manual

How to use the MODE button

The following methods are used to made the
explanations simple and easy-to-understand:

• Some related tips and notes are explained in

ENGLISH

“More about this receiver” (see page 17).

• Button operations are mainly explained with
the illustrations as follows:

Press briefly.

Press repeatedly.

If you press MODE, the receiver goes into
functions mode, then the number buttons work
as different function buttons.

Ex.: When number button 2 works as

MO (monaural) button.

Press either one.

Press and hold until
your desired response
begins.

Press and hold both
buttons at the same
time.

Time countdown indicator

To use these buttons for original functions
again after pressing MODE, wait for

5 seconds without pressing any of these buttons
until the functions mode is cleared.

• Pressing MODE again also clears the
functions mode.

4

Control panel — KD-G111

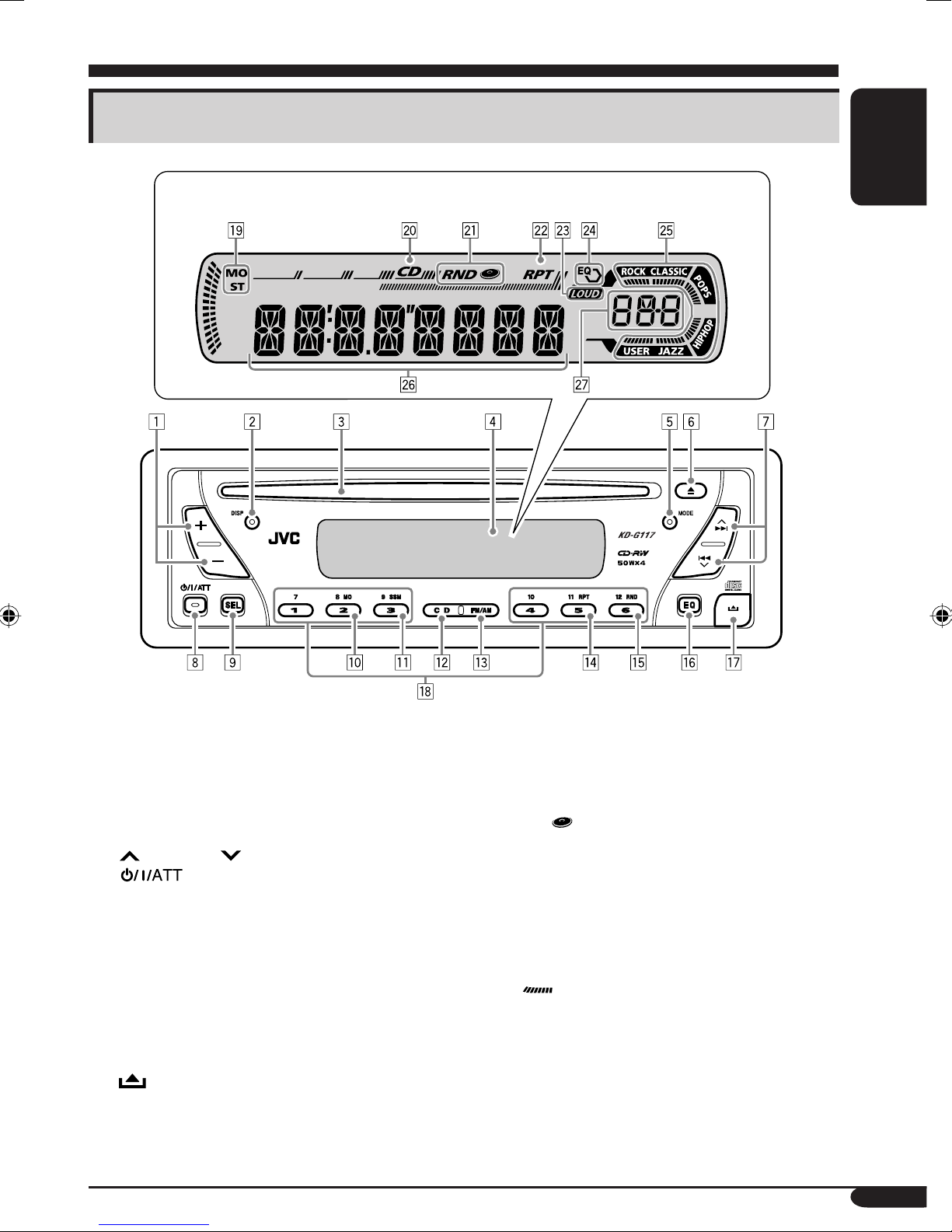

Parts identification

Display window

ENGLISH

1 +/– buttons
2 DISP (display) button
3 Loading slot
4 Display window
5 MODE button
6 0 (eject) button
7
8
9 SEL (select) button
p MO (monaural) button
q SSM (Strong-station Sequential Memory)

w CD button
e FM/AM button
r RPT (repeat) button
t RND (random) button
y EQ (equalizer) button
u
i Number buttons

¢/4 buttons

(standby/on/attenuator) button

button

(control panel release) button

Display window

o Tuner reception indicators

MO (monaural), ST (stereo)

; CD indicator
a RND
s RPT (repeat) indicator

d LOUD (loudness) indicator
f EQ (equalizer) indicator
g Sound mode (C-EQ: custom equalizer)

indicators
ROCK, CLASSIC, POPS, HIP HOP, JAZZ,
USER

•
indicator.

h Main display
j Source display

Volume level indicator

(disc random) indicator

also works as the time countdown

5

Getting started

ENGLISH

~

Basic operations

To drop the volume in a moment (ATT)

To restore the sound, press it

again.

Ÿ

You cannot select “CD” as the playback
source if there is no disc in the loading
slot.

!

Volume level appears.

Volume level indicator

To turn off the power

Caution on volume setting:

Discs produce very little noise compared
with other sources. Lower the volume
before playing a disc to avoid damaging
the speakers by the sudden increase of the
output level.

⁄ Adjust the sound as you want.

(See pages 12 and 13.)

6

Canceling the display

Setting the clock

demonstrations

If no operations are done for about 20 seconds,
display demonstration starts.

[Initial: DEMO ON]—see page 14.

1

2

3

1

2

Set the hour and minute.

1 Select “CLOCK H” (hour), then

adjust the hour.

2 Select “CLOCK M” (minute),

then adjust the minute.

3 Finish the procedure.

ENGLISH

Finish the procedure.

4

To activate the display demonstration

In step 3 above...

To check the current clock time when the
power is turned off

7

Radio operations

ENGLISH

~

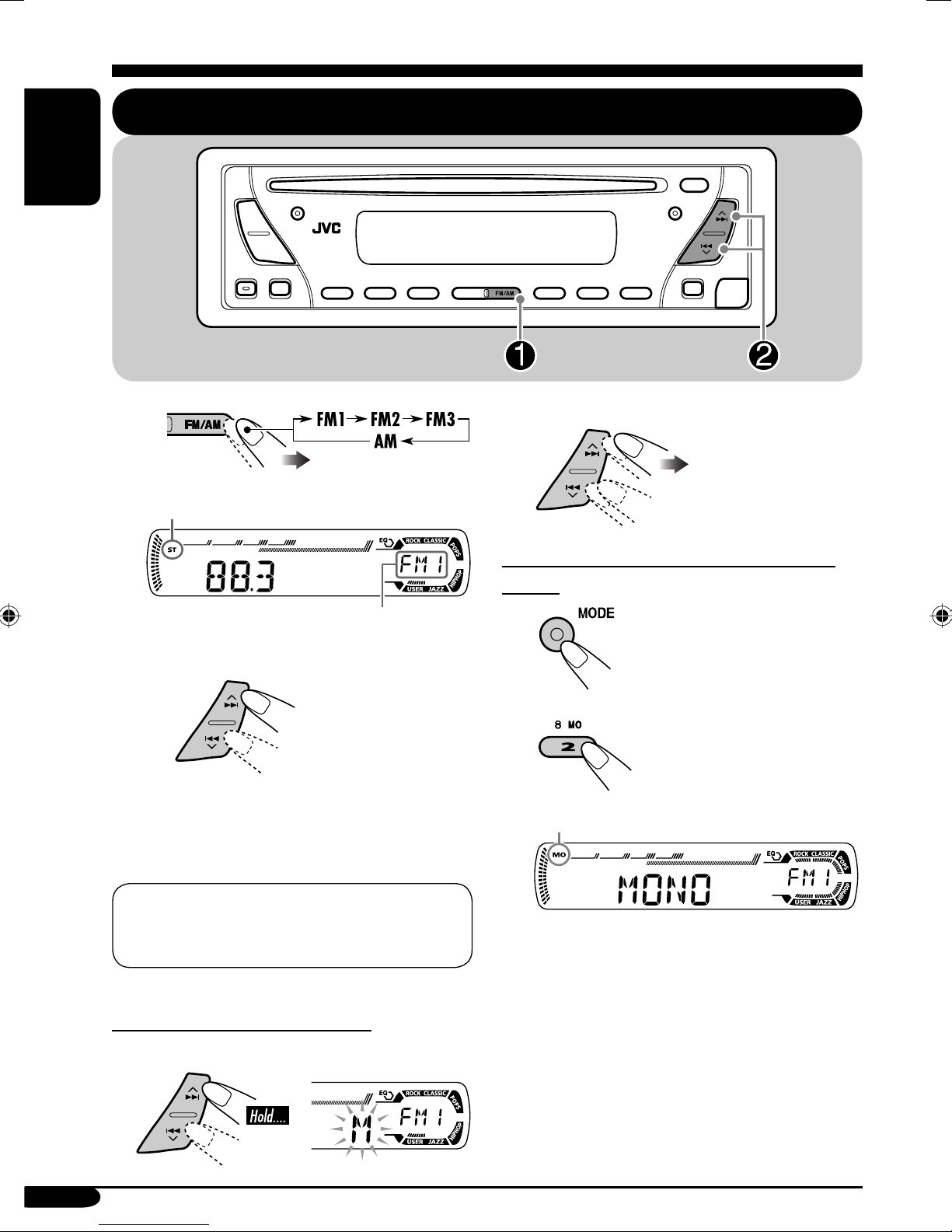

Listening to the radio

2 Select the desired station frequencies.

Lights up when receiving an FM stereo
broadcast with sufficient signal strength.

Selected band appears.

Ÿ Start searching for a station.

When a station is received, searching
stops.
To stop searching, press the same
button again.

To tune in to a station manually

When an FM stereo broadcast is hard to
receive

1

2

Lights up when monaural mode is activated.

In step Ÿ above...
1

8

Reception improves, but stereo effect will
be lost.

To restore the stereo effect, repeat the same
procedure so that the MO indicator goes off.

Storing stations in memory

You can preset six stations for each band.

FM station automatic presetting —

SSM (Strong-station Sequential
Memory)

Select the FM band (FM1 – FM3)

1

you want to store into.

2

2

ENGLISH

3

Preset number flashes for a while.

3

“SSM” flashes, then disappears when
automatic presetting is over.

Local FM stations with the strongest signals are
searched and stored automatically in the FM
band.

Manual presetting

Ex.: Storing FM station of 92.5 MHz into the

preset number 4 of the FM1 band.

Listening to a preset station

1

2 Select the preset station (1 – 6) you

want.

To check the current clock time while
listening to an FM or AM station

1

9

Disc operations

ENGLISH

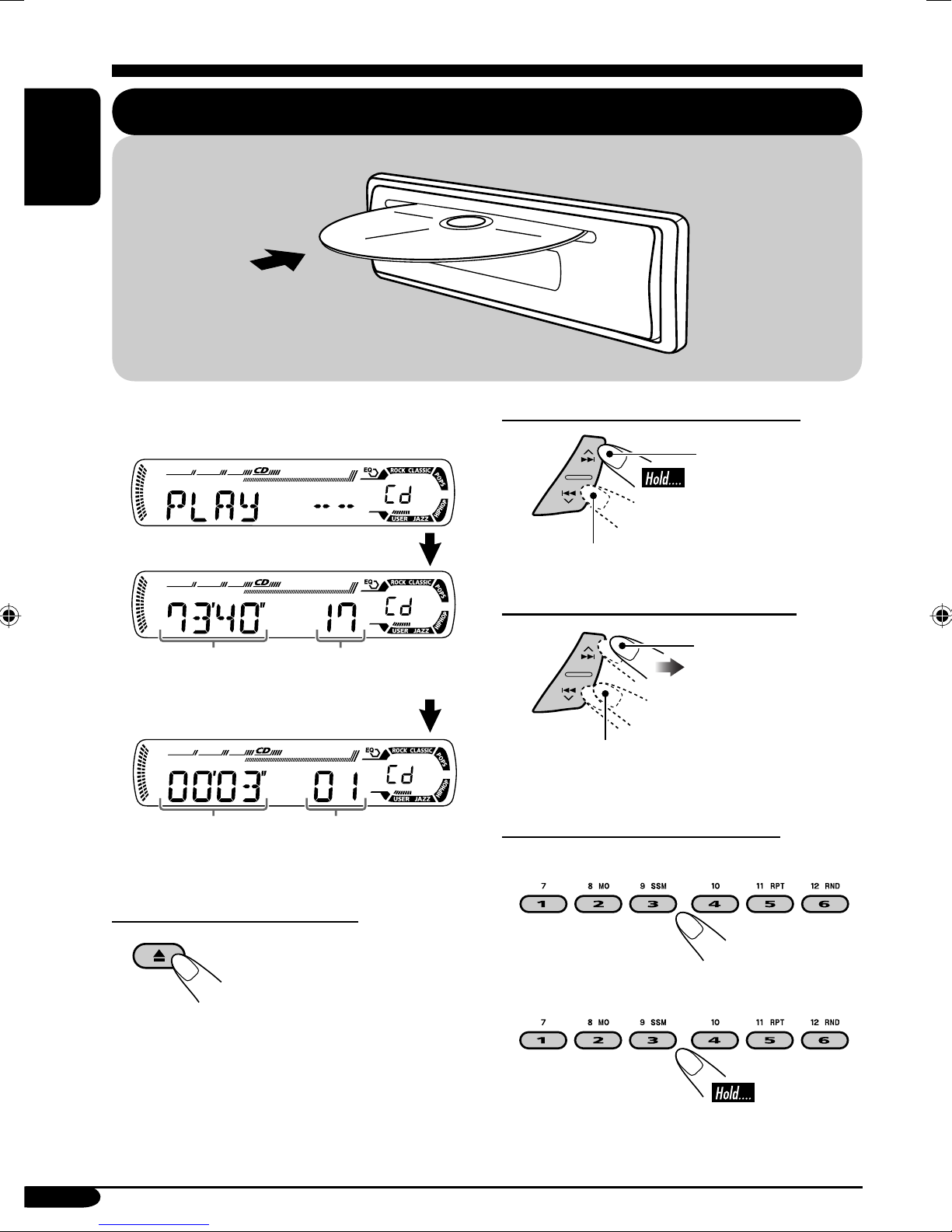

Playing a disc

All tracks will be played repeatedly until you
stop playback.

Total playing time of
the inserted disc

Elapsed playing
time

Total track number
of the inserted disc

Current track
number

To fast-forward or reverse the track

Fast-forwards.

Reverses.

To go to the next or previous tracks

To the following

tracks.

To the beginning of the current track, then

the previous tracks.

To go to a particular track directly

To select a number from 01 – 06:

To stop play and eject the disc

10

To select a number from 07 – 12:

Prohibiting disc ejection

You can lock a disc in the loading slot.

To cancel the prohibition, repeat the same
procedure.

To check the current clock time while
listening to a disc

Selecting the playback modes

You can use only one of the following playback modes at a time.

1

ENGLISH

2 Select your desired playback mode.

Repeat play

Ex.: When “TRK RPT” is selected

Random play

Ex.: When “DISC RND” is selected

Mode Plays repeatedly

TRK RPT: The current track.

• RPT lights up.

RPT OFF: Cancels repeat play.

Mode Plays at random

DISC RND: All tracks of the current disc.

• RND

RND OFF: Cancels random play.

lights up.

11

Sound adjustments

Selecting preset sound modes (C-EQ: custom equalizer)

ENGLISH

You can select a preset sound mode suitable to
the music genre.

~

Ex.: When “ROCK” is selected

Indication pattern for each sound mode:

Preset values

Indication For:

USER (Flat sound) 00 00 OFF

ROCK Rock or disco

music

CLASSIC Classical

music

POPS Light music +04 +01 OFF

HIP HOP Funk or rap

music

JAZZ Jazz music +02 +03 OFF

1

*

BAS: Bass

2

*

TRE: Treble

3

*

LOUD: Loudness

1

*

BAS

+03 +01 ON

+01 –02 OFF

+02 00 ON

TRE

*

2

LOUD

3

*

12

Adjusting the sound

You can adjust the sound characteristics to your
preference.

1

Indication To do: Range

BAS*1
(bass)

1

TRE*
(treble)

FAD*
(fader)

2

Adjust the bass. –06 (min.)

to
+06 (max.)

Adjust the treble. –06 (min.)

to
+06 (max.)

Adjust the front
and rear speaker
balance.

R06 (Rear
only)
to
F06 (Front
only)

ENGLISH

Ex.: When “TRE” is selected

2

Indication pattern changes as
you adjust the level.

BAL
(balance)

Adjust the left
and right speaker
balance.

L06 (Left
only)
to
R06 (Right
only)

LOUD*
(loudness)

1

Boost low and
high frequencies
to produce a well-

LOUD ON

LOUD OFF
balanced sound at
low volume level.

VOL*3
(volume)

Adjust the
volume.

00 (min.) to

30 or 50

(max.)*

*1 When you adjust the bass, treble, or

loudness, the adjustment you have made is
stored for the currently selected sound mode
(C-EQ) including “USER.”

2

*

If you are using a two-speaker system, set

the fader level to “00.”

3

*

Normally the +/– buttons work as the

volume control. So you do not have to select
“VOL” to adjust the volume level.

4

*

Depending on the amplifier gain control

setting. (See page 14 for details.)

J

4

13

General settings — PSM

Basic procedure

You can change PSM (Preferred Setting Mode)
items listed on the table that follows.

ENGLISH

1

Select a PSM item.

2

3 Adjust the PSM item selected.

4 Repeat steps 2 and 3 to adjust the

other PSM items if necessary.

5 Finish the procedure.

Ex.: When you select “AMP GAIN”

Indications Selectable settings, [reference page]

DEMO

Display demonstration

CLOCK H

Hour adjustment

CLOCK M

Minute adjustment

AMP GAIN

Amplifier gain control

DEMO ON: [Initial]; Display demonstration will be activated

automatically if no operation is done for about
20 seconds, [7].

DEMO OFF: Cancels.

0 – 23, [7]

[Initial: 0 (0:00)]

00 – 59, [7]

[Initial: 00 (0:00)]

You can change the maximum volume level of this receiver.
LOW PWR: VOL 00 – VOL 30 (Select this if the maximum power

of the speaker is less than 45 W to prevent them from
damaging the speaker.)

HIGH PWR: [Initial]; VOL 00 – VOL 50

14

Detaching the control panel

When detaching or attaching the control panel,
be careful not to damage the connectors on
the back of the control panel and on the panel
holder.

Detaching the control panel

Before detaching the control panel, be sure to
turn off the power.

Attaching the control panel

ENGLISH

15

Maintenance

How to clean the connectors

Frequent detachment will deteriorate the
connectors.
To minimize this possibility, periodically wipe

ENGLISH

the connectors with a cotton swab or cloth
moistened with alcohol, being careful not to
damage the connectors.

Connector

Moisture condensation

Moisture may condense on the lens inside the
CD player in the following cases:

• After starting the heater in the car.

• If it becomes very humid inside the car.
Should this occur, the CD player may
malfunction. In this case, eject the disc and
leave the receiver turned on for a few hours
until the moisture evaporates.

To keep discs clean

A dirty disc may not play correctly.
If a disc does become dirty, wipe
it with a soft cloth in a straight line
from center to edge.

• Do not use any solvent (for
example, conventional record cleaner, spray,
thinner, benzine, etc.) to clean discs.

To play new discs

New discs may have some rough
spots around the inner and outer
edges. If such a disc is used, this
receiver may reject the disc.
To remove these rough spots, rub the edges
with a pencil or ball-point pen, etc.

How to handle discs

When removing a disc from
its case, press down the center

holder of the case and lift the
disc out, holding it by the
edges.

• Always hold the disc by the edges. Do not
touch its recording surface.

When storing a disc into its case, gently insert
the disc around the center holder (with the
printed surface facing up).

• Make sure to store discs into the cases after
use.

Do not use the following discs:

Wrap disc

16

Center holder

Sticker

Sticker
residue

Disc

Stick-on
label

More about this receiver

Basic operations

Turning off the power

• If you turn off the power while listening to a
disc, disc play will start from where playback
has been stopped previously, next time you
turn on the power.

Tuner operations

Storing stations in memory

• During SSM search...

– All previously stored stations are erased and

stations are stored newly.

– Received stations are preset in No. 1 (lowest

frequency) to No. 6 (highest frequency).

– When SSM is over, the station stored in

No. 1 will be automatically tuned in.

• When storing a station manually, a previously
preset station is erased when a new station is
stored in the same preset number.

Disc operations

General

• Some CD-Rs or CD-RWs may not play
back on this receiver because of their disc
characteristics, and for the following causes:

– Discs are dirty or scratched.
– Moisture condensation occurs on the lens

inside the receiver.
– The pickup lens inside the receiver is dirty.
– CD-R or CD-RW on which the files are

written with “Packet Write” method.
– There are improper recording conditions

(missing data, etc.) or media conditions

(stain, scratch, warp, etc.).

• CD-RWs may require a longer readout time

since the reflectance of CD-RWs is lower
than that of regular CDs.

• Do not use the following CD-Rs or

CD-RWs:

– Discs with stickers, labels, or protective seal

stuck to the surface.
– Discs on which labels can be directly

printed by an ink jet printer.
Using these discs under high temperatures

or high humidity may cause malfunctions or
damage to discs.

ENGLISH

• This receiver has been designed to reproduce
CDs, and CD-Rs (Recordable)/CD-RWs
(Rewritable) in audio CD (CD-DA) format.

• When a disc has been loaded, selecting “CD”
for the playback source starts disc play.

Inserting a disc

• When a disc is inserted upside down, the disc
automatically ejects.

• Do not insert 8 cm discs (single CD) and
unusual shape discs (heart, flower, etc) into
the loading slot.

Playing a CD-R or CD-RW

• Use only “finalized” CD-Rs or CD-RWs.

• This receiver can play back multi-session
discs; however, unclosed sessions will be
skipped while playing.

Changing the source

• If you change the source, playback also stops
(without ejecting the disc).

Next time you select “CD” for the playback

source, disc play starts from where it has been
stopped previously.

Ejecting a disc

• If the ejected disc is not removed within
15 seconds, the disc is automatically inserted
again into the loading slot to prevent it from
dust. (Disc will not play this time.)

General settings—PSM

• If you change the “AMP GAIN” setting from
“HIGH PWR” to “LOW PWR” while the
volume level is set higher than “VOL 30,” the
receiver automatically changes the volume
level to “VOL 30.”

17

Troubleshooting

What appears to be trouble is not always serious. Check the following points before calling a service
center.

Symptoms Causes Remedies

ENGLISH

• Sound cannot be heard
from the speakers.

General

• The receiver does not
work at all.

The volume level is set to
the minimum level.

Connections are incorrect. Check the cords and

The built-in microcomputer
may have functioned
incorrectly due to noise, etc.

Adjust it to the optimum
level.

connections.

Reset the receiver (see page

2).

• SSM automatic presetting
does not work.

• Static noise while listening

FM/AM

to the radio.

• Disc automatically ejects. Disc is inserted upside

• CD-R/CD-RW cannot be
played back.

• Tracks on the CD-R/
CD-RW cannot be
skipped.

• Disc can be neither played
back nor ejected.

Disc playback

• Disc sound is sometimes
interrupted.

Signals are too weak. Store stations manually.

The aerial is not connected
firmly.

down.

CD-R/CD-RW is not
finalized.

Disc is locked. Unlock the disc (see page

The CD player may have
functioned incorrectly.

You are driving on rough
roads.

Connect the aerial firmly.

Insert the disc correctly.

• Insert a finalized CD-R/
CD-RW.

• Finalize the CD-R/
CD-RW with the
component which you
used for recording.

11).

Eject the disc forcibly (see
page 2).

Stop playback while driving
on rough roads.

• “NO DISC” appears on
the display.

18

Disc is scratched. Change the disc.

Connections are incorrect. Check the cords and

connections.

No disc in the loading slot. Insert a disc into the loading

slot.

Disc is inserted incorrectly. Insert the disc correctly.

Specifications

AUDIO AMPLIFIER SECTION

Maximum Power Output:
Front: 45 W per channel
Rear: 45 W per channel
Continuous Power Output (RMS):
Front: 17 W per channel into 4 Ω, 40 Hz

to 20 000 Hz at no more than 0.8%
total harmonic distortion.

Rear: 17 W per channel into 4 Ω, 40 Hz

to 20 000 Hz at no more than 0.8%

total harmonic distortion.
Load Impedance: 4 Ω (4 Ω to 8 Ω allowance)
Tone Control Range:
Bass: ±10 dB at 100 Hz
Treble: ±10 dB at 10 kHz
Frequency Response: 40 Hz to 20 000 Hz
Signal-to-Noise Ratio: 70 dB
Line-Out Level/Impedance:

2.0 V/20 kΩ load (full scale)
Output Impedance: 1 kΩ

TUNER SECTION

Frequency Range:
FM: 87.5 MHz to 108.0 MHz
AM: (MW) 522 kHz to 1 620 kHz
(LW) 144 kHz to 279 kHz

CD PLAYER SECTION

Type: Compact disc player
Signal Detection System: Non-contact optical

pickup (semiconductor laser)
Number of channels: 2 channels (stereo)
Frequency Response: 5 Hz to 20 000 Hz
Dynamic Range: 96 dB
Signal-to-Noise Ratio: 98 dB
Wow and Flutter: Less than measurable limit

GENERAL

Power Requirement:
Operating Voltage:
DC 14.4 V (11 V to 16 V allowance)
Grounding System: Negative ground
Allowable Operating Temperature:
0°C to +40°C
Dimensions (W × H × D):
Installation Size (approx.):
182 mm × 52 mm × 150 mm
Panel Size (approx.):
188 mm × 58 mm × 11 mm
Mass (approx.):

1.3 kg (excluding accessories)

ENGLISH

[FM Tuner]

Usable Sensitivity: 11.3 dBf (1.0 µV/75 Ω)
50 dB Quieting Sensitivity:

16.3 dBf (1.8 µV/75 Ω)
Alternate Channel Selectivity (400 kHz): 65 dB
Frequency Response: 40 Hz to 15 000 Hz
Stereo Separation: 30 dB
Capture Ratio: 1.5 dB

[MW Tuner]

Sensitivity: 20 µV
Selectivity: 35 dB

[LW Tuner]

Sensitivity: 50 µV

Design and specifications are subject to change
without notice.

19

Having TROUBLE with operation?

Please reset your unit

Refer to page of How to reset your unit

Vous avez des PROBLÈMES de fonctionnement?

Réinitialisez votre appareil

Référez-vous à la page intitulée Comment réinitialiser votre appareil

EN, FR

© 2004 Victor Company of Japan, Limited

1004DTSMDTJEIN

KD-G111

Installation/Connection Manual
Manuel d’installation/raccordement

GET0253-010A

[EX/EU]

1004DTSMDTJEIN
EN, FR

ENGLISH

This receiver is designed to operate on 12 V DC, NEGATIVE ground electric al systems. If
your vehicle does not have this system, a voltage inverter is required, which can be purchased
at JVC IN-CAR ENTERTAINMENT dealers.

FRANÇAIS

Cet appareil est conçu pour fonctionner sur des sources de courant continu de 12 V à masse
NEGATIVE. Si votre véhicule n’offre pas ce type d’alimentation, il vous faut un convertisseur de tension,

que vous pouvez acheter chez un revendeur d’autoradios JVC.

J

Handles

Poignées

F

Washer (ø5)

Rondelle (ø5)

G

Lock nut (M5)

Ecrou d’arrêt (M5)

H

Mounting bolt (M5 x 20 mm)

Boulon de montage (M5 x 20 mm)

I

Rubber cushion

Amortisseur en caoutchouc

A / B
Hard case/Control panel

Etui de transport/Panneau de
commande

C

Sleeve

Manchon

D

Trim plate

Plaque d’assemblage

E

Power cord

Cordon d’alimentation

Parts list for installation and connection

The following parts are provided for this receiver.
After checking them, please set them correctly.

Liste des pièces pour l’installation et raccordement

Les pièces suivantes sont fournies avec cet appareil.
Après vérification, veuillez les placer correctement.

1

INSTALLATION (IN-DASH MOUNTING)

The following illustration shows a typical installation. If you have any questions or require
information regarding installation kits, consult your JVC IN-CAR ENTERTAINMENT dealer or a
company supplying kits.

• If you are not sure how to install this receiver correctly, have it installed by a qualified
technician.

INSTALLATION (MONTAGE DANS LE TABLEAU DE BORD)

L’illustration suivante est un exemple d’installation typique. Si vous avez des questions ou avez besoin
d’information sur des kits d’installation, consulter votre revendeur d’autoradios JVC ou une compagnie
d’approvisionnement.

• Si l’on n’est pas sûr de pouvoir installer correctement cet appareil, le faire installer par un technicien

qualifié.

Do the required electrical connections.

Réalisez les connexions électriques.

*1 When you stand the receiver, be careful

not to damage the fuse on the rear.

*

1

Lorsque vous mettez l’appareil à la

verticale, faire attention de ne pas
endommager le fusible situé sur l’arrière.

Bend the appropriate tabs to hold the
sleeve firmly in place.

Tordez les languettes appropriées pour
maintenir le manchon en place.

Removing the receiver / Retrait de l’appareil

Before removing the receiver, release the rear section.

Avant de retirer l’appareil, libérer la section arrière.

Insert the two handles, then
pull them as illustrated so
that the receiver can be
removed.

Insérez les deux poignées, puis
tirez de la façon illustrée de
façon à retirer l’appareil.

When installing the receiver without using the sleeve / Lors de
l’installation de l’appareil scans utiliser de manchon

In a Toyota for example, first remove the car radio and install the receiver in its
place.

Par exemple dans une Toyota, retirer d’abord l’autoradio et installer l’appareil à la
place.

When using the optional stay / Lors
de l’utilisation du hauban en option

Note : When installing the receiver on the mounting bracket, make

sure to use the 8 mm-long screws. If longer screws are
used, they could damage the receiver.

Remarque : Lors de l’installation de l’appareil sur le support de montage,

s’assurer d’utiliser des vis d’une longueur de 8 mm. Si des vis plus
longues sont utilisées, elles peuvent endommager l’appareil.

Bracket*

Support*

Bracket*

Support*

*

Not included with this
receiver.

*

Non fourni avec cet appareil.

Flat type screws
(M5 x 8 mm)*

Vis à tête plate
(M5 x 8 mm)

*

Pocket

Poche

Flat type screws
(M5 x 8 mm)*

Vis à tête plate
(M5 x 8 mm)

*

Screw (option)

Vis (en option)

Stay (option)

Hauban (en option)

Fire wall

Cloison

Dashboard

Tableau de
bord

Install the receiver at an
angle of less than 30˚.

Installez l’appareil avec un
angle de moins de 30˚.

PRECAUTIONS on power supply and speaker
connections:

• DO NOT conne ct the speaker leads of th e power cord to
the car bat tery; otherwise, th e receiver will be serious ly
damaged.

• BEFORE connecting the speaker leads of the power cord to the
speakers, check the speaker wiring in your car.

PRECAUTIONS sur l’alimentation et la connexion
des enceintes:

• NE CONNECTEZ PAS les fils d’enceintes du cordon
d’alimentation à la batterie; sinon, l’appar eil serait
sérieusement endommagé.

• AVANT de connecter les fils d’enceintes du cordon d’alimentation aux
enceintes, vérifiez le câblage des enceintes de votre voiture.

TROUBLESHOOTING

• The fuse blows.
* Are the red and black leads connected correctly?

• Power cannot be turned on.
* Is the yellow lead connected?

• No sound from the speake rs.
* Is the speaker output lead short-circuited?

• Sound is distorted.
* Is the speaker output lead grounded?
* Are the “–” terminals of L and R speakers grounded in common?

• Noise interfere with sounds.
* Is the rear ground terminal connected to the car’s chassis using shorter and thicker cords?

• Receive r becomes hot.
* Is the speaker output lead grounded?
* Are the “–” terminals of L and R speakers grounded in common?

• This receiver does not work at all.
* Have you reset your receiver?

EN CAS DE DIFFICULTES

• Le fusible saute.
* Les fils rouge et noir sont-ils racordés correctement?

• L’appareil ne peut pas être mise sous tension.
* Le fil jaune est-elle raccordée?

• Pas de son des enceintes.
* Le fil de sortie d’enceinte est-il court-circuité?

• Le son est déformé.
* Le fil de sortie d’enceinte est-il à la masse?
* Les bornes “–” des enceintes gauche et droit sont-elles mises ensemble à la masse?

• Interférence avec les sons.
* La prise arrière de mise à la terre est-elle connectée au châssis de la voiture avec un cordon court et

épais?

• L’appareil devient chaud.
* Le fil de sortie d’enceinte est-il à la masse?
* Les bornes “–” des enceintes gauche et droit sont-elles mises ensemble à la masse?

• Cet appareil ne fonct ionne pas du tou t.
* Avez-vous réinitialisé votre appareil?

ELECTRICAL CONNECTIONS

To prevent short circuits, we recommend that you disconnect the battery’s negative terminal and
make all electrical connections before installing the receiver.

• Be sure to ground this rec eiver to the car’s chassis again after installation.

Notes:

• Replace the fuse with one of the specified rating. If the fuse blows frequently, consult your JVC
IN-CAR ENTERTAINMENT dealer.

• It is recommended to connect to the speakers with maximum power of more than 45 W (both
at the rear and at the front, with an impedance of 4 Ω to 8 Ω). If the maximum power is less
than 45 W, change “AMP GAIN” setting to prevent the speakers
from being damaged (see page 14 of the INSTRUCTIONS).

• To prevent short-circuit, cover the terminals of the UNUSED
leads with insulating tape.

• The heat sink becomes very hot after use. Be
careful not to touch it when removing this receiver.

RACCORDEMENTS ELECTRIQUES

Pour éviter tout court-circuit, nous vous recommandons de débrancher la borne négative de la batterie et
d’effectuer tous les raccordements électriques avant d’installer l’appareil.

• Assurez- vous de raccor der de nouveau la mise à la mas se de cet app areil au châssis
de la voiture ap rès l’installation.

Remarques:

• Remplacer le fusible par un de la valeur précisée. Si le fusible saute souvent, consulter votre revendeur
d’autoradios JVC.

• Il est recommandé de connecter des enceintes avec une puissance de plus de 45 W (les enceintes arrière
et les enceintes avant, avec une impédance comprise entre 4 Ω et 8 Ω). Si la puissance maximum est
inférieure à 45 W, changez “AMP GAIN” pour éviter d’endommager vos enceintes (voir page 14 du
MANUEL D’INSTRUCTIONS).

• Pour éviter les court-circuits, couvrir les bornes des fils qui ne sont PAS UTILISÉS avec de la bande
isolante.

• Le dissipateur de chaleur devient très chaud après usage. Faire attention de ne pas le toucher en retirant
cet appareil.

Heat sink

Dissipateur de chaleur

2

A

If your car is equipped with the ISO connector / Si
votre voiture est équippée d’un connecteur ISO

• Connect the ISO connectors as illustrated.

• Connectez les connecteurs ISO comme montré sur l’illustration.

From the car body

De la carrosserie de la
voiture

For some VW/Audi or Opel (Vauxhall) automobile / Pour certaine voiture VW/Audi ou Opel (Vauxhall)

You may need to modify the wiring of the supplied power cord as illustrated.

• Contact your authorized car dealer before installing this receiver.

Vous aurrez peut-être besoin de modifier le câblage du cordon d’alimentation fourni comme montré sur l’illustration.

• Contactez votre revendeur automobile autorisé avant d’installer l’appareil.

Original wiring / Câblage original

Modified wiring 1 / Câblage modifié 1

Use modified wiring 2 if the
receiver does not turn on.

Utilisez le câblage modifié 2 si l’appareil
ne se met pas sous tension.

Modified wiring 2 / Câblage modifié 2

ISO connector

Connecteur ISO

ISO connector of the supplied power cord

Connecteur ISO pour le cordon d’alimentation
fourni

Y: Yellow

Jaune

R: Red

Rouge

ENGLISH FRANÇAIS

B

Connections without using the ISO connectors / Connexions sans l’utilisation des connecteurs ISO

Before connecting: Check the wiring in the vehicle carefully. Incorrect connection may cause
serious damage to this receiver.
The leads of the power cord and those of the connector from the car body may be different in
color.

1 Cut the ISO connector.
2 Connect the colored leads of the power cord in the order specified in the illustration below.
3 Connect the aerial cord.
4 Finally connect the wiring harness to the receiver.

Avant de commencer la connexion: Vérifiez attentivement le câblage du véhicule. Une connexion
incorrecte peut endommager sérieusement l’appareil.
Le fil du cordon d’alimentation et ceux des connecteurs du châssis de la voiture peuvent être différents en
couleur.

1 Coupez le connecteur ISO.
2

Connectez les fils colorés du cordon d’alimentation dans l’ordre spécifié sur l’illustration ci-dessous.

3 Connectez le cordon d’antenne.
4 Finalement, connectez le faisceau de fils à l’appareil.

C

Connecting the external amplifier / Connexion d’un amplificateur extérieur

You can connect an amplifier to upgrade your car stereo system.

• Connect the remote lead (blue with white stripe) to the remote lead of the other equipment so
that it can be controlled through this receiver.

• Disconn ect the speakers from th is receiver, conn ect them to th e amplifier. Leave the

speaker le ads of this rec eiver unused.

Vous pouvez connecter un amplificateur pour améliorer votre système autoradio.

• Connectez le fil de commande à distance (bleu avec bande blanche) au fil de commande à distance de
l’autre appareil de façon qu’il puisse être commandé via cet appareil.

• Déconnectez le s enceintes de cet appar eil et connectez- les à l’amplificateur. Laissez
les fils d’enceintes de cet appareil inutilisés.

Signal cord (not supplied with this receiver)

Cordon de signal (non fourni avec cet appareil)

Front speakers (see diagram

)

Enceintes avant (voir le diagramme

)

Rear speakers

Enceintes arrière

JVC Amplifier

JVC

Amplificateur

KD - G111

Remote lead

Fil d’alimentation à distance

Y-connector (not supplied with this receiver)

Connecteur Y (non fourni avec cet appareil)

Remote lead (Blue with white stripe)

Fil d’alimentation à distance (Bleu avec bande blanche)

To the remote lead of other
equipment or power aerial if any

Au fil de télécommande de l’autre
appareil ou à l’antenne automatique
s’il y en a une

*3 Firmly attach the ground wire to

the metallic body or to the chassis
of the car—to the place not coated
with paint (if coated with paint,
remove the paint before attaching
the wire). Failure to do so may
cause damage to the receiver.

*

3

Attachez solidement le fil de mise

à la masse au châssis métallique de
la voiture—à un endroit qui n’est
pas recouvert de peinture (s’il est
recouvert de peinture, enlevez d’abord
la peinture avant d’attacher le fil).
L’appareil peut être endommagé si
cela n’est pas fait correctement.

View from the lead side

Vue à partir du côté des fils

*2 Before checking the operation of this receiver

prior to installation, this lead must be connected,
otherwise power cannot be turned on.

*2 Pour vérifier le fonctionnement de cet appareil avant

installation, ce fil doit être raccordé, sinon l’appareil
ne peut pas être mis sous tension.

Line out (see diagram )

Sortie de ligne
(voir le diagramme

)

Rear ground terminal

Borne arrière de masse

15 A fuse

Fusible 15 A

Aerial terminal

Borne de l’antenne

Black

Noir

Blue with white stripe

Bleu avec bande blanche

Red

Rouge

Yellow*

2

Jaune*

2

*1 Not included for this receiver
*

1

Non fourni avec cet appareil

To metallic body or chassis of the car

Vers corps métallique ou châssis de la voiture

To a live terminal in the fuse block connecting to the car battery
(bypassing the ignition switch) (constant 12 V)

À une borne sous tension du porte-fusible connectée à la batterie de la voiture (en
dérivant l’interrupteur d’allumage) (12 V constant)

Ignition switch

Interrupteur d’allumage

Fuse block

Porte-fusible

To an accessory terminal in the fuse block

Vers borne accessoire du porte-fusible

To the remote lead of other equipment or power aerial if any (200 mA max.)

Au fil de télécommande de l’autre appareil ou à l’antenne automatique s’il y en a une
(200 mA max.)

Left speaker (front)

Enceinte gauche (avant)

Right speaker (front)

Enceinte droit (avant)

Left speaker (rear)

Enceinte gauche (arrière)

Right speaker (rear)

Enceinte droit (arrière)

Purple

Violet

Purple with black stripe

Violet avec bande noire

Green

Vert

Green with black stripe

Vert avec bande noire

Gray

Gris

Gray with black stripe

Gris avec bande noire

White

Blanc

White with black
stripe

Blanc avec bande
noire

Rear speakers

Enceintes arrière

* Cut the rear speaker leads of the car’s ISO connector

and connect them to the amplifier.

* Coupez les fils des enceintes arrière du connecteur ISO de

la voiture et connectez-les à l’amplificateur.

CD RECEIVER

CD-RECEIVER

РЕСИВЕР С ПРОИГРЫВАТЕЛЕМ КОМПАКТ-ДИСКОВ

KD-G111

ENGLISHDEUTSCH

РУCCKИЙ

For canceling the display demonstration, see page 7.
Zum Abbrechen der Displaydemonstration siehe Seite 7.

Информацию об отмене демонстрации функций дисплея см. на стр. 7.

For installation and connections, refer to the separate manual.
Für den Einbau und die Anschlüsse siehe das eigenständige Handbuch.

Указания по установке и выполнению соединений приводятся в отдельной инструкции.

INSTRUCTIONS

BEDIENUNGSANLEITUNG

ИНСТРУКЦИИ ПО ЭКСПЛУАТАЦИИ

GET0253-006A

[EY]

Thank you for purchasing a JVC product.

Please read all instructions carefully before operation, to ensure your complete understanding and

to obtain the best possible performance from the unit.

ENGLISH

IMPORTANT FOR LASER PRODUCTS

1. CLASS 1 LASER PRODUCT

2. CAUTION: Do not open the top cover. There are no user serviceable parts inside the unit; leave

all servicing to qualified service personnel.

3. CAUTION: Visible and invisible laser radiation when open and interlock failed or defeated.

Avoid direct exposure to beam.

4. REPRODUCTION OF LABEL: CAUTION LABEL, PLACED OUTSIDE THE UNIT.

Warning:

If you need to operate the receiver while
driving, be sure to look ahead carefully or
you may be involved in a traffic accident.

How to forcibly eject a disc

If a disc cannot be recognized by the
receiver or cannot be ejected, ejects the disc
as follows.

How to reset your unit

• If this does not work, try to reset your
receiver.

• This will reset the microcomputer. Your
preset adjustments will also be erased.

• If a disc is loaded, it will eject. Be careful
not to drop the disc.

For security reasons, a numbered ID card is provided with this receiver, and the same ID number is
imprinted on the receiver’s chassis. Keep the card in a safe place, as it will help the authorities to
identify your unit if stolen.

• Be careful not to drop the disc when it
ejects.

2

Contents

How to reset your unit ........................... 2

How to forcibly eject a disc................... 2

How to read this manual........................ 4

How to use the MODE button ............... 4

Control panel — KD-G111 ......... 5

Parts identification................................. 5

Getting started....................... 6

Basic operations ........................... 6

Canceling the display demonstrations ... 7

Setting the clock .................................... 7

Radio operations ................... 8

Listening to the radio........................... 8

Storing stations in memory.................... 9

Listening to a preset station ................... 9

Disc operations ...................... 10

Playing a disc ..................................... 10

Selecting the playback modes................ 11

Sound adjustments ................ 12

Selecting preset sound modes

(C-EQ: custom equalizer) .................. 12

Adjusting the sound ............................... 13

ENGLISH

General settings — PSM ......... 14

Basic procedure ..................................... 14

Detaching the control panel.... 15

Maintenance .......................... 16

More about this receiver ........ 17

Troubleshooting ..................... 18

Specifications ......................... 19

*For safety....

• Do not raise the volume level too much, as
this will block outside sounds, making driving
dangerous.

• Stop the car before performing any
complicated operations.

*Temperature inside the car....

If you have parked the car for a long time in
hot or cold weather, wait until the temperature
in the car becomes normal before operating the
unit.

3

How to read this manual

How to use the MODE button

The following methods are used to made the
explanations simple and easy-to-understand:

• Some related tips and notes are explained in

ENGLISH

“More about this receiver” (see page 17).

• Button operations are mainly explained with
the illustrations as follows:

Press briefly.

Press repeatedly.

If you press MODE, the receiver goes into
functions mode, then the number buttons work
as different function buttons.

Ex.: When number button 2 works as

MO (monaural) button.

Press either one.

Press and hold until
your desired response
begins.

Press and hold both
buttons at the same
time.

Time countdown indicator

To use these buttons for original functions
again after pressing MODE, wait for

5 seconds without pressing any of these buttons
until the functions mode is cleared.

• Pressing MODE again also clears the
functions mode.

4

Control panel — KD-G111

Parts identification

Display window

ENGLISH

1 +/– buttons
2 DISP (display) button
3 Loading slot
4 Display window
5 MODE button
6 0 (eject) button
7
8
9 SEL (select) button
p MO (monaural) button
q SSM (Strong-station Sequential Memory)

w CD button
e FM/AM button
r RPT (repeat) button
t RND (random) button
y EQ (equalizer) button
u
i Number buttons

¢/4 buttons

(standby/on/attenuator) button

button

(control panel release) button

Display window

o Tuner reception indicators

MO (monaural), ST (stereo)

; CD indicator
a RND
s RPT (repeat) indicator

d LOUD (loudness) indicator
f EQ (equalizer) indicator
g Sound mode (C-EQ: custom equalizer)

indicators
ROCK, CLASSIC, POPS, HIP HOP, JAZZ,
USER

•
indicator.

h Main display
j Source display

Volume level indicator

(disc random) indicator

also works as the time countdown

5

Getting started

ENGLISH

~

Basic operations

To drop the volume in a moment (ATT)

To restore the sound, press it

again.

Ÿ

You cannot select “CD” as the playback
source if there is no disc in the loading
slot.

!

Volume level appears.

Volume level indicator

To turn off the power

Caution on volume setting:

Discs produce very little noise compared
with other sources. Lower the volume
before playing a disc to avoid damaging
the speakers by the sudden increase of the
output level.

⁄ Adjust the sound as you want.

(See pages 12 and 13.)

6

Canceling the display

Setting the clock

demonstrations

If no operations are done for about 20 seconds,
display demonstration starts.

[Initial: DEMO ON]—see page 14.

1

2

3

1

2

Set the hour and minute.

1 Select “CLOCK H” (hour), then

adjust the hour.

2 Select “CLOCK M” (minute),

then adjust the minute.

3 Finish the procedure.

ENGLISH

Finish the procedure.

4

To activate the display demonstration

In step 3 above...

To check the current clock time when the
power is turned off

7

Radio operations

ENGLISH

~

Listening to the radio

2 Select the desired station frequencies.

Lights up when receiving an FM stereo
broadcast with sufficient signal strength.

Selected band appears.

Ÿ Start searching for a station.

When a station is received, searching
stops.
To stop searching, press the same
button again.

To tune in to a station manually

When an FM stereo broadcast is hard to
receive

1

2

Lights up when monaural mode is activated.

In step Ÿ above...
1

8

Reception improves, but stereo effect will
be lost.

To restore the stereo effect, repeat the same
procedure so that the MO indicator goes off.

Storing stations in memory

You can preset six stations for each band.

FM station automatic presetting —

SSM (Strong-station Sequential
Memory)

Select the FM band (FM1 – FM3)

1

you want to store into.

2

2

ENGLISH

3

Preset number flashes for a while.

3

“SSM” flashes, then disappears when
automatic presetting is over.

Local FM stations with the strongest signals are
searched and stored automatically in the FM
band.

Manual presetting

Ex.: Storing FM station of 92.5 MHz into the

preset number 4 of the FM1 band.

Listening to a preset station

1

2 Select the preset station (1 – 6) you

want.

To check the current clock time while
listening to an FM or AM station

1

9

Disc operations

ENGLISH

Playing a disc

All tracks will be played repeatedly until you
stop playback.

Total playing time of
the inserted disc

Elapsed playing
time

Total track number
of the inserted disc

Current track
number

To fast-forward or reverse the track

Fast-forwards.

Reverses.

To go to the next or previous tracks

To the following

tracks.

To the beginning of the current track, then

the previous tracks.

To go to a particular track directly

To select a number from 01 – 06:

To stop play and eject the disc

10

To select a number from 07 – 12:

Prohibiting disc ejection

You can lock a disc in the loading slot.

To cancel the prohibition, repeat the same
procedure.

To check the current clock time while
listening to a disc

Selecting the playback modes

You can use only one of the following playback modes at a time.

1

ENGLISH

2 Select your desired playback mode.

Repeat play

Ex.: When “TRK RPT” is selected

Random play

Ex.: When “DISC RND” is selected

Mode Plays repeatedly

TRK RPT: The current track.

• RPT lights up.

RPT OFF: Cancels repeat play.

Mode Plays at random

DISC RND: All tracks of the current disc.

• RND

RND OFF: Cancels random play.

lights up.

11

Sound adjustments

Selecting preset sound modes (C-EQ: custom equalizer)

ENGLISH

You can select a preset sound mode suitable to
the music genre.

~

Ex.: When “ROCK” is selected

Indication pattern for each sound mode:

Preset values

Indication For:

USER (Flat sound) 00 00 OFF

ROCK Rock or disco

music

CLASSIC Classical

music

POPS Light music +04 +01 OFF

HIP HOP Funk or rap

music

JAZZ Jazz music +02 +03 OFF

1

*

BAS: Bass

2

*

TRE: Treble

3

*

LOUD: Loudness

1

*

BAS

+03 +01 ON

+01 –02 OFF

+02 00 ON

TRE

*

2

LOUD

3

*

12

Adjusting the sound

You can adjust the sound characteristics to your
preference.

1

Indication To do: Range

BAS*1
(bass)

1

TRE*
(treble)

FAD*
(fader)

2

Adjust the bass. –06 (min.)

to
+06 (max.)

Adjust the treble. –06 (min.)

to
+06 (max.)

Adjust the front
and rear speaker
balance.

R06 (Rear
only)
to
F06 (Front
only)

ENGLISH

Ex.: When “TRE” is selected

2

Indication pattern changes as
you adjust the level.

BAL
(balance)

Adjust the left
and right speaker
balance.

L06 (Left
only)
to
R06 (Right
only)

LOUD*
(loudness)

1

Boost low and
high frequencies
to produce a well-

LOUD ON

LOUD OFF
balanced sound at
low volume level.

VOL*3
(volume)

Adjust the
volume.

00 (min.) to

30 or 50

(max.)*

*1 When you adjust the bass, treble, or

loudness, the adjustment you have made is
stored for the currently selected sound mode
(C-EQ) including “USER.”

2

*

If you are using a two-speaker system, set

the fader level to “00.”

3

*

Normally the +/– buttons work as the

volume control. So you do not have to select
“VOL” to adjust the volume level.

4

*

Depending on the amplifier gain control

setting. (See page 14 for details.)

J

4

13

General settings — PSM

Basic procedure

You can change PSM (Preferred Setting Mode)
items listed on the table that follows.

ENGLISH

1

Select a PSM item.

2

3 Adjust the PSM item selected.

4 Repeat steps 2 and 3 to adjust the

other PSM items if necessary.

5 Finish the procedure.

Ex.: When you select “AMP GAIN”

Indications Selectable settings, [reference page]

DEMO

Display demonstration

CLOCK H

Hour adjustment

CLOCK M

Minute adjustment

AMP GAIN

Amplifier gain control

DEMO ON: [Initial]; Display demonstration will be activated

automatically if no operation is done for about
20 seconds, [7].

DEMO OFF: Cancels.

0 – 23, [7]

[Initial: 0 (0:00)]

00 – 59, [7]

[Initial: 00 (0:00)]

You can change the maximum volume level of this receiver.
LOW PWR: VOL 00 – VOL 30 (Select this if the maximum power

of the speaker is less than 45 W to prevent them from
damaging the speaker.)

HIGH PWR: [Initial]; VOL 00 – VOL 50

14

Detaching the control panel

When detaching or attaching the control panel,
be careful not to damage the connectors on
the back of the control panel and on the panel
holder.

Detaching the control panel

Before detaching the control panel, be sure to
turn off the power.

Attaching the control panel

ENGLISH

15

Maintenance

How to clean the connectors

Frequent detachment will deteriorate the
connectors.
To minimize this possibility, periodically wipe

ENGLISH

the connectors with a cotton swab or cloth
moistened with alcohol, being careful not to
damage the connectors.

Connector

Moisture condensation

Moisture may condense on the lens inside the
CD player in the following cases:

• After starting the heater in the car.

• If it becomes very humid inside the car.

Should this occur, the CD player may
malfunction. In this case, eject the disc and
leave the receiver turned on for a few hours
until the moisture evaporates.

To keep discs clean

A dirty disc may not play correctly.
If a disc does become dirty, wipe
it with a soft cloth in a straight line
from center to edge.

• Do not use any solvent (for
example, conventional record cleaner, spray,
thinner, benzine, etc.) to clean discs.

To play new discs

New discs may have some rough
spots around the inner and outer
edges. If such a disc is used, this
receiver may reject the disc.
To remove these rough spots, rub the edges
with a pencil or ball-point pen, etc.

How to handle discs

When removing a disc from
its case, press down the center

holder of the case and lift the
disc out, holding it by the
edges.

• Always hold the disc by the edges. Do not
touch its recording surface.

When storing a disc into its case, gently insert
the disc around the center holder (with the
printed surface facing up).

• Make sure to store discs into the cases after
use.

Do not use the following discs:

Wrap disc

16

Center holder

Sticker

Sticker
residue

Disc

Stick-on
label

More about this receiver

Basic operations

Turning off the power

• If you turn off the power while listening to a
disc, disc play will start from where playback
has been stopped previously, next time you
turn on the power.

Tuner operations

Storing stations in memory

• During SSM search...

– All previously stored stations are erased and

stations are stored newly.

– Received stations are preset in No. 1 (lowest

frequency) to No. 6 (highest frequency).

– When SSM is over, the station stored in

No. 1 will be automatically tuned in.

• When storing a station manually, a previously
preset station is erased when a new station is
stored in the same preset number.

Disc operations

General

• Some CD-Rs or CD-RWs may not play
back on this receiver because of their disc
characteristics, and for the following causes:

– Discs are dirty or scratched.
– Moisture condensation occurs on the lens

inside the receiver.
– The pickup lens inside the receiver is dirty.
– CD-R or CD-RW on which the files are

written with “Packet Write” method.
– There are improper recording conditions

(missing data, etc.) or media conditions

(stain, scratch, warp, etc.).

• CD-RWs may require a longer readout time

since the reflectance of CD-RWs is lower
than that of regular CDs.

• Do not use the following CD-Rs or

CD-RWs:

– Discs with stickers, labels, or protective seal

stuck to the surface.
– Discs on which labels can be directly

printed by an ink jet printer.
Using these discs under high temperatures

or high humidity may cause malfunctions or
damage to discs.

ENGLISH

• This receiver has been designed to reproduce
CDs, and CD-Rs (Recordable)/CD-RWs
(Rewritable) in audio CD (CD-DA) format.

• When a disc has been loaded, selecting “CD”
for the playback source starts disc play.

Inserting a disc

• When a disc is inserted upside down, the disc
automatically ejects.

• Do not insert 8 cm discs (single CD) and
unusual shape discs (heart, flower, etc) into
the loading slot.

Playing a CD-R or CD-RW

• Use only “finalized” CD-Rs or CD-RWs.

• This receiver can play back multi-session

discs; however, unclosed sessions will be
skipped while playing.

Changing the source

• If you change the source, playback also stops
(without ejecting the disc).

Next time you select “CD” for the playback

source, disc play starts from where it has been
stopped previously.

Ejecting a disc

• If the ejected disc is not removed within
15 seconds, the disc is automatically inserted
again into the loading slot to prevent it from
dust. (Disc will not play this time.)

General settings—PSM

• If you change the “AMP GAIN” setting from
“HIGH PWR” to “LOW PWR” while the

volume level is set higher than “VOL 30,” the
receiver automatically changes the volume
level to “VOL 30.”

17

Troubleshooting

What appears to be trouble is not always serious. Check the following points before calling a service
center.

Symptoms Causes Remedies

ENGLISH

• Sound cannot be heard
from the speakers.

General

• The receiver does not
work at all.

The volume level is set to
the minimum level.

Connections are incorrect. Check the cords and

The built-in microcomputer
may have functioned
incorrectly due to noise, etc.

Adjust it to the optimum
level.

connections.

Reset the receiver (see page

2).

• SSM automatic presetting
does not work.

• Static noise while listening

FM/AM

to the radio.

• Disc automatically ejects. Disc is inserted upside

• CD-R/CD-RW cannot be
played back.

• Tracks on the CD-R/
CD-RW cannot be
skipped.

• Disc can be neither played
back nor ejected.

Disc playback

• Disc sound is sometimes
interrupted.

Signals are too weak. Store stations manually.

The aerial is not connected
firmly.

down.

CD-R/CD-RW is not
finalized.

Disc is locked. Unlock the disc (see page

The CD player may have
functioned incorrectly.

You are driving on rough
roads.

Connect the aerial firmly.

Insert the disc correctly.

• Insert a finalized CD-R/
CD-RW.

• Finalize the CD-R/
CD-RW with the
component which you
used for recording.

11).

Eject the disc forcibly (see
page 2).

Stop playback while driving
on rough roads.

• “NO DISC” appears on
the display.

18

Disc is scratched. Change the disc.

Connections are incorrect. Check the cords and

connections.

No disc in the loading slot. Insert a disc into the loading

slot.

Disc is inserted incorrectly. Insert the disc correctly.

Specifications

AUDIO AMPLIFIER SECTION

Maximum Power Output:
Front: 45 W per channel
Rear: 45 W per channel
Continuous Power Output (RMS):
Front: 17 W per channel into 4 Ω, 40 Hz

to 20 000 Hz at no more than 0.8%
total harmonic distortion.

Rear: 17 W per channel into 4 Ω, 40 Hz

to 20 000 Hz at no more than 0.8%

total harmonic distortion.
Load Impedance: 4 Ω (4 Ω to 8 Ω allowance)
Tone Control Range:
Bass: ±10 dB at 100 Hz
Treble: ±10 dB at 10 kHz
Frequency Response: 40 Hz to 20 000 Hz
Signal-to-Noise Ratio: 70 dB
Line-Out Level/Impedance:

2.0 V/20 kΩ load (full scale)
Output Impedance: 1 kΩ

TUNER SECTION

Frequency Range:
FM: 87.5 MHz to 108.0 MHz
AM: (MW) 522 kHz to 1 620 kHz
(LW) 144 kHz to 279 kHz

CD PLAYER SECTION

Type: Compact disc player
Signal Detection System: Non-contact optical

pickup (semiconductor laser)
Number of channels: 2 channels (stereo)
Frequency Response: 5 Hz to 20 000 Hz
Dynamic Range: 96 dB
Signal-to-Noise Ratio: 98 dB
Wow and Flutter: Less than measurable limit

GENERAL

Power Requirement:
Operating Voltage:
DC 14.4 V (11 V to 16 V allowance)
Grounding System: Negative ground
Allowable Operating Temperature:
0°C to +40°C
Dimensions (W × H × D):
Installation Size (approx.):
182 mm × 52 mm × 150 mm
Panel Size (approx.):
188 mm × 58 mm × 11 mm
Mass (approx.):

1.3 kg (excluding accessories)

ENGLISH

[FM Tuner]

Usable Sensitivity: 11.3 dBf (1.0 µV/75 Ω)
50 dB Quieting Sensitivity:

16.3 dBf (1.8 µV/75 Ω)
Alternate Channel Selectivity (400 kHz): 65 dB
Frequency Response: 40 Hz to 15 000 Hz
Stereo Separation: 30 dB
Capture Ratio: 1.5 dB

[MW Tuner]

Sensitivity: 20 µV
Selectivity: 35 dB

[LW Tuner]

Sensitivity: 50 µV

Design and specifications are subject to change
without notice.

19

Having TROUBLE with operation?

Please reset your unit

Refer to page of How to reset your unit

Haben Sie PROBLEME mit dem Betrieb?

Bitte setzen Sie Ihr Gerät zurück

Siehe Seite Zurücksetzen des Geräts

Затруднения при эксплуатации?

Пожалуйста, перезагрузите Ваше устройство

Для получения информации о перезагрузке Вашего

устройства обратитесь на соответствующую страницу

EN, GE, RU

© 2004 Victor Company of Japan, Limited

1004DTSMDTJEIN

KD-G111

Installation/Connection Manual
Einbau/Anschlußanleitung

Руководство по установке/подключению

GET0253-013A

[EY]

1004DTSMDTJEIN
EN, GE, RU

ENGLISH

This receiver is designed to operate on 12 V DC, NEGATIVE
ground ele ctrical systems. If your vehicle does not have this

system, a voltage inverter is required, which can be purchased
at JVC IN-CAR ENTERTAINMENT dealers.

DEUTSCH

Dieses Gerät ist für einen Betrieb in elektrischen Anlagen
mit 12 V Gleichstr om und (– ) Erdung ausg elegt. Verfügt

Ihr Fahrzeug nicht über diese Anlage, ist ein Spannungsinverter
erforderlich, der bei JVC Autoradiohändler erworben werden kann.

J

Handles

Griffe

Рычаги

F

Washer (ø5)

Unterlegscheibe (ø5)

Шайба (њ5)

G

Lock nut (M5)

Sicherungsmutter (M5)

Фиксирующая гайка (M5)

H

Mounting bolt (M5 x 20 mm)

Befestigungsschraube (M5 x 20 mm)

Крепежный болт (M5 x 20 мм)

I

Rubber cushion

Gummipuffer

Резиновый чехол

A / B
Hard case/Control panel

Etui/Schalttafel

Жесткий футляр/панель управления

C

Sleeve

Halterung

Муфта

D

Trim plate

Frontrahmen

Декоративную панель

E

Power cord

Stromkable

Кабель питания

Parts list for installation and connection

The following parts are provided for this receiver.
After checking them, please set them correctly.

Teileliste für den Einbau und Anschluß

Die folgenden Teile werden zusammen mit diesem Gerät geliefert.
Nach ihrer Überprüfung, die Teile richtig einsetzen.

1

INSTALLATION
(IN-DASH MOUNTING)

The following illustration shows a typical installation. If you
have any questions or require information regarding installation
kits, consult your JVC IN-CAR ENTERTAINMENT dealer or a
company supplying kits.

• If you are not sure how to install this receiver correctly, have it
installed by a qualified technician.

EINBAU
(IM ARMATURENBRETT)

Die folgende Abbildung zeigt einen typischen Einbau. Bei
irgendwelchen Fragen oder wenn Sie Informationen hinsichtlich
des Einbausatzes brauchen, wenden Sie sich an ihren JVC
Autoradiohändler oder ein Unternehmen das diese Einbausätze
vertreibt.

• Sind Sie sich über den richtigen Einbau des Geräts nicht sicher,
lassen Sie es von einem qualifizierten Techniker einbauen.

Do the required electrical connections.

Nehmen Sie die erforderlichen elektrischen
Anschlüsse vor.

Выполните необходимые подключения
контактов, как показано на оборотной
стороне этой инструкции.

*

1

When you stand the receiver, be
careful not to damage the fuse
on the rear.

*

1

Beim Aufstellen des Geräts darauf

achten, daß die Sicherung auf der
Rückseite nicht beschädigt wird.

*

1

Устанавливайте устройство
таким образом, чтобы не
повредить предохранитель,
расположенный сзади.

Bend the appropriate tabs to hold
the sleeve firmly in place.

Die geeigneten Zapfen biegen, um die
Manschette sicher festzuhalten.

Отогните соответствующие
фиксаторы, предназначенные
для прочной установки корпуса.

РУССКИЙ

Это устройство разработано для эксплуатации на 12 В
постоянного напряжения с минусом на массе. Если
Ваш автомобиль не имеет этой системы, требуется
инвертор напряжения, который может быть приобретен у
дилера автомобилнего специалиста JVC.

Список деталей для установки и подключения

Следующие детали поставлены в комплекте с
устройством.
После проверки комплектации, пожалуйста, установите
их правильно.

УСТАНОВКА (УСТАНОВКА В
ПРИБОРНУЮ ПАНЕЛЬ)

На следующих иллюстрациях показана типовая установка.
Если у Вас есть какие-либо вопросы, касающиеся
установки, обратитесь к Вашему дилеру автомобилнего
специалиста JVC или в компанию, поставляющую
соответствующие принадлежности.

• Если Вы не знаете точно, как следует устанавливать
это устройство, обратитесь к квалифицированному
специалисту.

Removing the receiver

Before removing the receiver, release the rear section.

Ausbau des Geräts

Vor dem Ausbau des Geräts den hinteren Teil freigeben.

When installing the receiver without using the sleeve / Beim Einbau des Geräts
ohne Halterung / При установке устройства без использования муфты

In a Toyota for example, first remove the car radio and install the receiver in its place.

Zum Beispiel in einem Toyota zuerst das Autoradio ausbauen und dann das Gerät an seinem Platz einbauen.

В автомобилях “Toyota”, например, сначала удалите автомобильную магнитолу, затем установите на
ее место это устройство.

When using the optional stay / Beim Verwenden der
Anker-Option / При использовании дополнительной стойки

Note : When installing the receiver on the mounting bracket, make sure to use the 8 mm-long

screws. If longer screws are used, they could damage the receiver.

Hinweis : Beim Anbringen des Gerät an der Konsole sicherstellen, daß 8 mm lange Schrauben verwendet

werden. Werden längere Schrauben verwendet, können sie das Gerät beschädigen.

Примечание : При установке устройства на крепежный кронштейн, используйте только винты

длиной 8 мм. При использовании более длинных винтов можно повредить устройство.

Bracket*
Konsole*
Кронштейн*

* Not included with this receiver.
* Nicht Teil dieses Geräts.
* Не входят в комплект.

Pocket

Taschen

Карман

Flat type screws (M5 x 8 mm)*
Senkkopfschrauben (M5 x 8 mm)*
Крепежные винты (M5 x 8 мм)*

Screw (option)

Schraube (Option)

Винт (дополнительно)

Stay (option)

Anker (Option)

Стойка
(дополнительно)

Fire wall

Feuerwand

Стена

Dashboard

Armaturenbrett

Приборная панель

Install the receiver at an angle of less than 30˚.

Stellen Sie das Gerät mit einem Winkel von weniger
als 30˚ auf.

Установите устройство под углом менее
30°.

ELECTRICAL CONNECTIONS

To prevent short circuits, we recommend that you disconnect
the battery’s negative terminal and make all electrical
connections before installing the receiver.

• Be sure to ground this rec eiver to the car’s chassis

again after installation.

Notes:

• Replace the fuse with one of the specified rating. If
the fuse blows frequently, consult your JVC IN-CAR
ENTERTAINMENT dealer.

• It is recommended to connect to the speakers with maximum
power of more than 45 W (both at the rear and at the front,
with an impedance of 4 Ω to 8 Ω). If the maximum power
is less than 45 W, change “AMP GAIN” setting to prevent
the speakers from being damaged (see page 14 of the
INSTRUCTIONS).

• To prevent short-circuit, cover the terminals of the UNUSED
leads with insulating tape.

• The heat sink becomes very hot after use. Be careful not to
touch it when removing this receiver.

ELEKTRISCHE ANSCHLÜSSE

Zur Vermeidung von Kurzschlüssen empfehlen wir, daß Sie
den negativen Batterieanschluß abtrennen und alle elektrischen
Anschlüsse herstellen, bevor das Gerät eingebaut wird.

• Sicherstellen, daß das Ger ät nach dem Einbau a

Chassis des Fahrzeugs geerdet wird.

Hinweise:

• Die Sicherung mit einer der entsprechenden Nennleistung ersetzen.
Brennt die Sicherung häufig durch, wenden Sie sich an ihren JVC
Autoradiohändler.

• Es wird empfohlen, Lautsprecher mit einer Maximalleistung von
mehr als 45 W anzuschließen (sowohl hinten als auch vorne, mit
einer Impedanz von 4 Ω bis 8 Ω). Wenn die Maximalleistung
weniger als 45 W beträgt, stellen Sie „AMP GAIN“ anders ein, um
Schäden an den Lautsprechern zu vermeiden (siehe Seite 14 der
BEDIENUNGSANLEITUNG).

• Zur Vermeidung eines Kurzschlusses die Anschlußklemmen
der NICHT VERWENDETEN Leitungen mit Isolierklebeband
umwickeln.

• Das Abstrahlblech wird nach dem Gebrauch sehr heiß. Beim
Ausbau des Geräts darauf achten, das Abstrahlblech nicht zu
berühren.

Heat sink

Abstrahlblech

Радиатор

TROUBLESHOOTING

• The fuse blows.
* Are the red and black leads connected correctly?

• Power cannot be turned on.
* Is the yellow lead connected?

• No sound from the speake rs.
* Is the speaker output lead short-circuited?

• Sound is distorted.
* Is the speaker output lead grounded?
* Are the “–” terminals of L and R speakers grounded in

common?

• Noise interfere with sounds.
* Is the rear ground terminal connected to the car’s chassis

using shorter and thicker cords?

• Receive r becomes hot.
* Is the speaker output lead grounded?
* Are the “–” terminals of L and R speakers grounded in

common?

• This receiver does not work at all.
* Have you reset your receiver?

2

FEHLERSUCHE

• Die Sicherung bre nnt durch.

* Sind die roten und schwarzen Leitungen richtig angeschlossen?

• Stromversorgung kann nicht eing eschaltet werden.

* Ist die gelbe Leitung angeschlossen?

• Kein Ton aus den Lautsprech ern.

*

Ist die Lautsprecherausgangsleitung kurzgeschlossen?

• Ton verzerr t.

* Ist die Lautsprecherausgangsleitung geerdet?
* Sind die (–) Anschlußklemmen der linken und rechten Lautsprecher

zusammen geerdet?

• Störgeräusche im Klang.

* Ist die hintere Erdungsklemme mit kürzeren und dickeren Kabeln

an das Fahrzeugchassis angeschlossen?

• Gerät wird heiß.

* Ist die Lautsprecherausgangsleitung geerdet?
* Sind die (–) Anschlußklemmen der linken und rechten Lautsprecher

zusammen geerdet?

• Dieser Receiver funktioniert überhaupt nicht.

* Haben Sie einen Reset am Receiver vorgenommen?

Insert the two handles, then pull them as
illustrated so that the receiver can be removed.

Die beiden Handgriffe einsetzen und dann ziehen wie
in der Abbildung gezeigt, so daß das Gerät entfernt
werden kann.

Вставьте два рычажка, затем потяните
их, как показано на рисунке, чтобы вынуть
устройство.

Удаление устройства

Перед удалением устройства освободите заднюю часть.

BЫЯВЛЕНИЕ НЕИСПРАВНОСТЕЙ

• Сработал предохранитель.
* Правильно ли подключены черный и красный провода?

• Питание не включается.
* Подключен ли желтый провод?

• Звук не выводится через громкоговорители.
* Нет ли короткого замыкания на кабеле выхода

громкоговорителей?

• Звук искажен.
* Заземлен ли провод выхода громкоговорителей?
* Заземлены ли разъемы “–” правого (R) и левого (L)

громкоговорителей?

• Шум мешает звучанию.
* Соединен ли находящийся сзади зажим заземления с

шасси автомобиля с помощью более короткого и тонкого
шнуров?

• Устройство нагревается.
* Заземлен ли провод выхода громкоговорителей?
* Заземлены ли разъемы “–” правого (R) и левого (L)

громкоговорителей?

• Приемник не работает.
* Выполнена ли перенастройка приемника?

ЭЛЕКТРИЧЕСКИЕ ПОДКЛЮЧЕНИЯ

Для предотвращения коротких замыканий мы
рекомендуем Вам отсоединить отрицательный разъем
аккумулятора и осуществить все подключения перед
установкой устройства.

• После установки обязательно заземлите данное
устройство на шасси автомобиля.

Примечания:

• Заменяйте предохранитель другим предохранителем
указанного класса. Если предохранитель сгорает
слишком часто, обратитесь к дилеру автомобилнего
специалиста JVC.

• Рекомендуется подключать динамики с максимальной
мощностью более 45 Вт (к задней и передней панели
устройства, с полным сопротивлением от 4 Ω до 8 Ω).
Если максимальная мощность динамиков менее 45 Вт,
перейдите в режим “AMP GAIN”, чтобы предотвратить
их повреждение (см. ИНСТРУКЦИИ ПО ЭКСПЛУАТАЦИИ
на стр. 14).

• Для предотвращения короткого замыкания заклейте
НЕИСПОЛЬЗУЕМЫЕ концы изолирующей лентой.

• Радиатор во время использования сильно нагревается.
Старайтесь его не трогать во время удаления
устройства.

Bracket*
Konsole*
Кронштейн*

Flat type screws (M5 x 8 mm)*
Senkkopfschrauben (M5 x 8 mm)*
Крепежные винты (M5 x 8 мм)*

ENGLISH DEUTSCH

3

B

Connections without using the ISO connectors / Anschlüsse ohne ISO-Stecker / Подключение без использования

Before connecting: Check the wiring in the vehicle
carefully. Incorrect connection may cause serious damage to
this receiver.
The leads of the power cord and those of the connector from
the car body may be different in color.

1 Cut the ISO connector.
2 Connect the colored leads of the power cord in the order

specified in the illustration below.

3 Connect the aerial cord.
4 Finally connect the wiring harness to the receiver.

Перед н ачалом подключ ений : Тщательно проверьте
проводку в автомобиле. Неправильное подключение
может привести к серьезному повреждению устройства.
Жилы силового кабеля и жилы соединителя от кузова
автомобиля могут быть разного цвета.

1 Отрежьте разъем ISO.
2 Подсоедините цветные провода шнура питания в

указанном ниже порядке.

3 Подключите кабель антенны.
4 В последнюю очередь подключите электропроводку к

устройству.

*2 Before checking the operation of this receiver prior to

installation, this lead must be connected, otherwise
power cannot be turned on.

*

2

Vor der Überprüfung der Funktionsfähigkeit

des Geräts vor dem Einbau, muß diese Leitung
angeschlossen werden, da sonst die Stromversorgung
nicht eingeschaltet werden kann.

*2 Перед проверкой работы устройства подключите

этот провод, иначе питание не включится.

Line out (see diagram

)

Schutz kappen Signalausgang (siehe Schaltplan )

К выходу (см. схему )

Rear ground terminal

Hintere Erdungscan­schlußklemme

Задний разъем
заземления

15 A fuse

15 A Sicherung

Предохранитель 15 A

Aerial terminal

Antennenanschlu­ßklemme

Разъем антенны

Black

Schwarz

Черный

Blue with white stripe

Blau mit weißem Streifen

Синий с белой полосой

Red

Rot

Красный

Yellow*

2

Gelb*

2

Желтый*

2

*1 Not included for this receiver
*

1

Wird nicht mit Gerät mitgeliefert

*

1

Не входит в комплект

To metallic body or chassis of the car

Zur metallenen Karosserie oder zum Fahrwerk des Autos

К металлическому корпусу или шасси автомобиля

To a live terminal in the fuse block connecting to the car battery
(bypassing the ignition switch) (constant 12 V)

Zur einer stromführenden Anschlußklemme im Sicherungsblock zum
Anschließen an die Autobatterie (Umgehen des Zündschalters) (konstant
12 V)

К разъему фазы в блоке предохранителя (минуя блок
зажигания) (постоянный 12 В)

Ignition switch

Zündschalter

Переключатель зажигания

Fuse block

Sicherungsblock

Блок предохранителя

To an accessory terminal in the fuse block

Zur einer Zubehöranschlußklemme im Sicherungsblock

К вспомогательному разъему в блоке предохранителя

To the remote lead of other equipment or power aerial if any (200 mA max.)

Zum Zusatzkabel des anderen Geräts oder der Motorantenne, sofern vorhanden
(max. 200 mA)

К удаленному проводу другого оборудования или антенны (макс. 200 мА)

Left speaker (front)

Linker Lautsprecher (vorne)

Левый громкоговоритель (передний)

Right speaker (front)

Rechter Lautsprecher (vorne)

Правый громкоговоритель (передний)

Left speaker (rear)

Linker Lautsprecher (hinten)

Левый громкоговоритель (задний)

Right speaker (rear)

Rechter Lautsprecher
(hinten)

Правый
громкоговоритель
(задний)

Purple

Lila

Пурпурный

Purple with black stripe

Lila mit schwarzem
Streifen

Пурпурный с черной
полосой

Green

Grün

Зеленый

Green with black stripe

Grün mit schwarzem
Streifen

Зеленый с черной
полосой

Gray

Grau

Серый

Gray with black stripe

Grau mit schwarzem
Streifen

Серый с черной полосой

White

Weiß

Белый

White with black
stripe

Weiß mit schwarzem
Streifen

Белый с черной
полосой

Vor dem Anschließen: Die Verdrahtung im Fahrzeug sorgfältig
überprüfen. Falsche Anschlüsse können ernsthafte Schäden am Gerät
hervorrufen.
Die Leiter des Stromkabels und die Leiter des Anschlusses im
Fahrzeug können sich farblich unterscheiden.

1 Den ISO-Stecker abschneiden.
2 Die farbigen Adern des Stromkabels in der Reihenfolge

anschließen, wie in der Abbildung unten gezeigt.

3 Das Antennenkabel anschließen.
4 Die Kabelbäume am Gerät anschließen.

РУССКИЙ

A

If your car is equipped with the ISO
connector / Wenn Ihr Auto mit ISO­Steckern ausgestattet ist / Если Ваш

автомобиль оборудован разъемами ISO

For some VW/Audi or Opel (Vauxhall) automobile / F

ür manche VW/Audi oder Opel (Vauxhall)

Fahrzeuge / Для некоторых автомобилей VW/Audi или Opel (Vauxhall)

• Connect the ISO connectors as illustrated.

• Die ISO-Stecker wie abgebildet anschließen.

• Подключите разъемы ISO, как показано на

иллюстрации.

From the car body

Von der Karosserie

На корпусе автомобиля

ISO connector of the supplied power cord

ISO-Stecker am Stromkabel

Разъем ISO, полученный в комплекте
кабеля питания

View from the lead side

Ansicht von der Leitungsseite

Вид со стороны контактов

You may need to modify the wiring of the supplied power cord as illustrated.

• Contact your authorized car dealer before installing this receiver.

Sie müssen evtl. die Verdrahtung des mitgelieferten Stromkabels wie abgebildet ändern.

• Wenden Sie sich an Ihre Vertragswerkstatt, bevor Sie das Gerät einbauen.

Вам может потребоваться изменение соединений полученного в комплекте кабеля питания, как показано на иллюстрации.

• Перед установкой устройства обратитесь к Вашему официальному дилеру автомобиля.

Original wiring / Originalverdrahtung / Исходное

соединение

Modified wiring 1 / Geänderte Verdrahtung 1 / Модифицированное

соединение 1

Use modified wiring 2 if the receiver does not turn on.

Geänderte Verdrahtung 2 verwenden, wenn das Gerät so nicht an geht.

Если устройство не включается, модифи-цируйте кабель по схеме 2.

Modified wiring 2 / Geänderte Verdrahtung 2 / Модифицированное

соединение 2

Y: Yellow

Gelb

Желтый

R: Red

Rot

Красный

ISO connector

ISO-Stecker

Разъем ISO

4

C

Connecting the external amplifier / Anschließen des externen Verstärkers / Подключение внешнего усилителя

You can connect an amplifier to upgrade your car stereo
system.

• Connect the remote lead (blue with white stripe) to the
remote lead of the other equipment so that it can be
controlled through this receiver.

• Disconn ect the spe akers from this receiver, connect

them to the am plifier. Leave the s peaker lea ds of this
receiver unused.

Можно подключить усилитель для обновления
автомобильной стереосистемы.

• Подсоедините провод внешнего устройства (синий с

белой полосой) к проводу внешнего устройства другого
оборудования так, чтобы им можно было управлять с
этого устройства.

• Отсоедините громкоговорители о т данног о
устройс тва, подключите их к усилителю. О ставьте
провод а громкоговорителей данно го устройства
неиспользованными.

Signal cord (not supplied with this receiver)

Einzelleitung (nicht mit diesem Gerät mitgeliefert)

Кабель сигнала (не входит в комплект)

Front speakers (see diagram

)

Vordere Lautsprecher (siehe Schaltplan )

Передние громкоговорители (см. схему )

*3 Плотно прикрепите заземляющий провод к

металлическому кузову или шасси автомобиля—в
месте, не покрытом краской (если оно покрыто
краской, удалите краску перед тем, как прикреплять
провод). Невыполнение этого требования может
привести к повреждению данного устройства.

PRECAUTIONS on power supply and speaker
connections:

• DO NOT conne ct the spea ker leads of th e power cord

to the car bat tery; oth erwise, the receiver will be
seriously damaged.

• BEFORE connecting the speaker leads of the power cord to
the speakers, check the speaker wiring in your car.

ПРЕДОСТЕРЕЖЕНИЯ по питанию и
подключению громкоговорителей:

• НЕ подк лючайте провод а громкоговорителей к
аккумулятору автомобиля, иначе устройство будет
повреждено.

• ПЕРЕД подключением проводов громкоговорителей
к кабелю питания громкоговорителя проверьте схему
соединений громкоговорителей в Вашем автомобиле.

Rear speakers

Hintere Lautsprecher

Задние громкоговорители

JVC Amplifier

JVC Verstärker

JVC-усилитель

Remote lead

Fernbedienungsleitung

Провод внешнего устройства

Y-connector (not supplied with this receiver)

Y-Anschluß (nicht mit diesem Gerät mitgeliefert)

Разъем Y (не входит в комплект)

Remote lead (Blue with white stripe)

Fernbedienungsleitung (Blau mit weißem Streifen)

Провод внешнего устройства (Синий с белой полосой)

To the remote lead of other equipment or power aerial if any

Zum Zusatzkabel des anderen Geräts oder der Motorantenne, sofern vorhanden

К удаленному проводу другого оборудования или антенны

*3 Firmly attach the ground wire to the metallic body or to

the chassis of the car—to the place not coated with paint
(if coated with paint, remove the paint before attaching
the wire). Failure to do so may cause damage to the
receiver.

Sie können einen Verstärker anschließen, um Ihre Autostereoanlage
zu erweitern.

• Schließen Sie das Fernbedienungskabel (blau mit weißem Streifen)

an das Fernbedienungskabel des anderen Geräts an, so daß es über
dieses Gerät gesteuert werden kann.

• Die Lautsprech er von diesem G erä t abtrennen und am

Verstä rker ansch ließen. Di e Lautspre cherleitungen
dieses Ge rät s unbenutzt lassen.

*

3

Verbinden Sie den Erdungsleiter mit der Karosserie oder dem

Rahmen des Fahrzeugs. Die Kontaktstelle darf nicht lackiert sein
(sollte die Kontaktstelle lackiert sein, entfernen Sie den Lack
der Kontaktstelle, bevor Sie den Leiter befestigen). Wenn der
Erdungsleiter nicht ordnungsgemäß angeschlossen wird, kann
dieses Gerät beschädigt werden.

VORSICHTSMASSREGELN beim Anschließen der
Stromversorgung und Lautsprecher:

• Die Lautsprech erleitungen des Net zkabels N ICHT an der

Autobatterie anschlie ßen, da sons t das Gerät schwer
beschädigt wird.

• VOR dem Anschließen der Lautsprecherleitungen des

Spannunsgversorgungskabels an die Lautsprecher, die
Lautsprecherverdrahtung in Ihrem Auto überprüfen.

* Cut the rear speaker leads of the car’s ISO connector and connect

them to the amplifier.

* Die Leitungen des ISO-Steckers der hinteren Lautsprecher

durchtrennen und am Verstärker anschließen.

*

Отрежьте провода задних громкоговорителей разъема ISO и

подсоеди≠ните их к усилителю.

Rear speakers

Hintere Lautsprecher

Задние громкоговорители

CD RECEIVER

РЕСИВЕР С ПРОИГРЫВАТЕЛЕМ КОМПАКТ-ДИСКОВ

KD-G117

В соответствии с Законом Российской Федерации “О защите прав
потре бителей” срок службы (годности) данного товара “по истечении
которого он может представлять опасность для жизни, здоровья
потребителя, причинять вред его имуществу или окружающей среде”
составляет семь (7) лет со дня производства. Этот срок является
временем, в течение которого потребитель данного товара может
безопасно им пользоваться при условии соблюдения ин струк ции по
эксплуатации данного товара, проводя необходимое обслуживание,
включающее замену расходных материалов и/или соответствующее
ремонтное обеспечение в специализированном сервисном центре.

For installation and
connections, refer to the
separate manual.

Указания по установке и
выполнению соединений
приводятся в отдельной
инструкции.

Дополнительные косметические материалы к данному товару,
поставляе мые вместе с ним, могут храниться в течение двух (2) лет со
дня его производства.

Срок службы (годности), кроме срока хранения дополнительных
космети ческих материалов, упомянутых в предыдущих двух пунктах,
не затрагивает никаких других прав потребителя, в частности,
гарантийного свидетельства JVC, которое он может получить в
соответствии с законом о правах потребителя или других законов,
связанных с ним.

ENGLISH

РУCCKИЙ

For canceling the display demonstration, see page 7.

Информацию об отмене демонстрации функций дисплея см. на стр. 7.

INSTRUCTIONS

ИНСТРУКЦИИ ПО ЭКСПЛУАТАЦИИ

GET0254-001A

[EE]

Thank you for purchasing a JVC product.

Please read all instructions carefully before operation, to ensure your complete understanding and to

obtain the best possible performance from the unit.

ENGLISH

IMPORTANT FOR LASER PRODUCTS

1. CLASS 1 LASER PRODUCT

2. CAUTION: Do not open the top cover. There are no user serviceable parts inside the unit; leave

all servicing to qualified service personnel.

3. CAUTION: Visible and invisible laser radiation when open and interlock failed or defeated.

Avoid direct exposure to beam.

4. REPRODUCTION OF LABEL: CAUTION LABEL, PLACED OUTSIDE THE UNIT.

Warning:

If you need to operate the receiver while
driving, be sure to look ahead carefully or
you may be involved in a traffic accident.

How to forcibly eject a disc

If a disc cannot be recognized by the
receiver or cannot be ejected, ejects the disc
as follows.

How to reset your unit

• This will reset the microcomputer. Your
preset adjustments will also be erased.

• If a disc is loaded, it will eject. Be careful
not to drop the disc.

• If this does not work, try to reset your
receiver.

• Be careful not to drop the disc when it
ejects.

2

Contents

How to reset your unit ........................... 2

How to forcibly eject a disc................... 2

How to read this manual........................ 4

How to use the MODE button ............... 4

Control panel — KD-G117 ......... 5

Parts identification................................. 5

Getting started....................... 6

Basic operations ........................... 6

Canceling the display demonstrations ... 7

Setting the clock .................................... 7

Radio operations ................... 8

Listening to the radio........................... 8

Storing stations in memory.................... 9

Listening to a preset station ................... 9

Disc operations ...................... 10

Playing a disc ..................................... 10

Selecting the playback modes................ 11

Sound adjustments ................ 12

Selecting preset sound modes

(C-EQ: custom equalizer) .................. 12

Adjusting the sound ............................... 13

ENGLISH

General settings — PSM ......... 14

Basic procedure ..................................... 14

Detaching the control panel.... 15

Maintenance .......................... 16

More about this receiver ........ 17

Troubleshooting ..................... 18

Specifications ......................... 19

*For safety....

• Do not raise the volume level too much, as
this will block outside sounds, making driving
dangerous.

• Stop the car before performing any
complicated operations.

*Temperature inside the car....

If you have parked the car for a long time in
hot or cold weather, wait until the temperature
in the car becomes normal before operating the
unit.

3

How to read this manual

How to use the MODE button

The following methods are used to made the
explanations simple and easy-to-understand:

• Some related tips and notes are explained in

ENGLISH

“More about this receiver” (see page 17).

• Button operations are mainly explained with
the illustrations as follows:

Press briefly.

Press repeatedly.

Press either one.

If you press MODE, the receiver goes into
functions mode, then the number buttons work
as different function buttons.

Ex.: When number button 2 works as

MO (monaural) button.

Time countdown indicator

Press and hold until
your desired response
begins.

Press and hold both
buttons at the same
time.

To use these buttons for original functions
again after pressing MODE, wait for

5 seconds without pressing any of these buttons
until the functions mode is cleared.

• Pressing MODE again also clears the
functions mode.

4

Control panel — KD-G117

Parts identification

Display window

ENGLISH

1 +/– buttons
2 DISP (display) button
3 Loading slot
4 Display window
5 MODE button
6 0 (eject) button
7
8
9 SEL (select) button
p MO (monaural) button
q SSM (Strong-station Sequential Memory)

w CD button
e FM/AM button
r RPT (repeat) button
t RND (random) button
y EQ (equalizer) button
u
i Number buttons

¢/4 buttons

(standby/on/attenuator) button

button

(control panel release) button

Display window

o Tuner reception indicators

MO (monaural), ST (stereo)

; CD indicator
a RND
s RPT (repeat) indicator
d LOUD (loudness) indicator
f EQ (equalizer) indicator
g Sound mode (C-EQ: custom equalizer)

indicators
ROCK, CLASSIC, POPS, HIP HOP, JAZZ,
USER

•
indicator.

h Main display
j Source display

Volume level indicator

(disc random) indicator

also works as the time countdown

5

Getting started

ENGLISH

~

Basic operations

To drop the volume in a moment (ATT)

To restore the sound, press it

again.

Ÿ

You cannot select “CD” as the playback
source if there is no disc in the loading
slot.

!

Volume level appears.

To turn off the power

Caution on volume setting:

Discs produce very little noise compared
with other sources. Lower the volume
before playing a disc to avoid damaging
the speakers by the sudden increase of the
output level.

Volume level indicator

⁄ Adjust the sound as you want.

(See pages 12 and 13.)

6

Canceling the display

Setting the clock

demonstrations

If no operations are done for about 20 seconds,
display demonstration starts.

[Initial: DEMO ON]—see page 14.

1

2

3

1

2

Set the hour and minute.

1 Select “CLOCK H” (hour), then

adjust the hour.

2 Select “CLOCK M” (minute),

then adjust the minute.

3 Finish the procedure.

ENGLISH

Finish the procedure.

4

To activate the display demonstration

In step 3 above...

To check the current clock time when the
power is turned off

7

Radio operations

ENGLISH

~

Lights up when receiving an FM stereo
broadcast with sufficient signal strength.

Listening to the radio

2 Select the desired station frequencies.

Selected band appears.

Ÿ Start searching for a station.

When a station is received, searching
stops.
To stop searching, press the same
button again.

Note:

FM1 and FM2: 87.5 MHz – 108.0 MHz

FM3: 65.00 MHz – 74.00 MHz

To tune in to a station manually

In step Ÿ above...

1

When an FM stereo broadcast is hard to
receive

1

2

Lights up when monaural mode is activated.

Reception improves, but stereo effect will
be lost.

To restore the stereo effect, repeat the same
procedure. “MONO OFF” appears and the MO
indicator goes off.

8

Storing stations in memory

You can preset six stations for each band.

FM station automatic presetting —

SSM (Strong-station Sequential
Memory)

Select the FM band (FM1 – FM3)

1

you want to store into.

2

2

ENGLISH

3

Preset number flashes for a while.

3

“SSM” flashes, then disappears when

automatic presetting is over.

Local FM stations with the strongest signals are
searched and stored automatically in the FM
band.

Manual presetting

Ex.: Storing FM station of 92.5 MHz into the

preset number 4 of the FM1 band.

Listening to a preset station

1

Select the preset station (1 – 6) you

2

want.

To check the current clock time while
listening to an FM or AM station

1

9

Disc operations

ENGLISH

Playing a disc

All tracks will be played repeatedly until you
change the source or eject the disc.

Total playing time of
the inserted disc

Elapsed playing
time

Total track number
of the inserted disc

Current track
number

To fast-forward or reverse the track

Fast-forwards.

Reverses.

To go to the next or previous tracks

To the following
tracks.

To the beginning of the current track, then
the previous tracks.

To go to a particular track directly

To select a number from 01 – 06:

To stop play and eject the disc

10

To select a number from 07 – 12:

Prohibiting disc ejection

You can lock a disc in the loading slot.

To cancel the prohibition, repeat the same
procedure.

To check the current clock time while
listening to a disc

Selecting the playback modes

You can use only one of the following playback modes at a time.

1

ENGLISH

2 Select your desired playback mode.

Repeat play

Ex.: When “TRK RPT” is selected

Random play

Mode Plays repeatedly

TRK RPT: The current track.

• RPT lights up.

RPT OFF: Cancels.

Mode Plays at random

DISC RND: All tracks of the current disc.

• RND

RND OFF: Cancels.

lights up.

Ex.: When “DISC RND” is selected

11

Sound adjustments

Selecting preset sound modes (C-EQ: custom equalizer)

ENGLISH

You can select a preset sound mode suitable to
the music genre.

~

Ex.: When “ROCK” is selected

Indication pattern for each sound mode:

Preset values

Indication For:

USER (Flat sound) 00 00 OFF

ROCK Rock or

disco music

CLASSIC Classical

music

POPS Light music +04 +01 OFF

HIP HOP Funk or rap

music

JAZZ Jazz music +02 +03 OFF

1

*

BAS: Bass

2

*

TRE: Treble

3

*

LOUD: Loudness

1

*

BAS

+03 +01 ON

+01 –02 OFF

+02 00 ON

TRE

*

2

LOUD

3

*

12

Adjusting the sound

You can adjust the sound characteristics to your
preference.

1

Indication To do: Range

BAS*1
(bass)

TRE*
(treble)

1

Adjust the bass. –06 (min.)

Adjust the treble. –06 (min.)

to
+06 (max.)

to
+06 (max.)

ENGLISH

2

Ex.: When “TRE” is selected

Indication pattern changes as
you adjust the level.

FAD*

2

(fader)

BAL
(balance)

LOUD*

1

(loudness)

VOL*

3

(volume)

Adjust the front
and rear speaker
balance.

R06 (Rear
only)
to
F06 (Front
only)

Adjust the left
and right speaker
balance.

L06 (Left
only)
to
R06 (Right
only)

Boost low and
high frequencies
to produce a well-

LOUD ON

J

LOUD OFF
balanced sound at
low volume level.

Adjust the volume. 00 (min.) to

30 or 50

(max.)*

4

*1 When you adjust the bass, treble, or

loudness, the adjustment you have made is
stored for the currently selected sound mode
(C-EQ) including “USER.”

2

*

If you are using a two-speaker system, set

the fader level to “00.”

3

*

Normally the +/– buttons work as the volume

control. So you do not have to select “VOL”
to adjust the volume level.

4

*

Depending on the amplifier gain control

setting. (See page 14 for details.)

13

General settings — PSM

Basic procedure

You can change PSM (Preferred Setting Mode)
items listed on the table that follows.

ENGLISH

1

3 Adjust the PSM item selected.

4 Repeat steps 2 and 3 to adjust the

other PSM items if necessary.

2

5 Finish the procedure.

Select a PSM item.

Ex.: When you select “AMP GAIN”

Indications Selectable settings, [reference page]

DEMO

Display demonstration

DEMO ON: [Initial]; Display demonstration will be activated

automatically if no operation is done for about
20 seconds, [7].

DEMO OFF: Cancels.

CLOCK H

Hour adjustment

CLOCK M

Minute adjustment

AMP GAIN

Amplifier gain control

14

0 – 23, [7]

[Initial: 0 (0:00)]

00 – 59, [7]

[Initial: 00 (0:00)]

You can change the maximum volume level of this receiver.
LOW PWR: VOL 00 – VOL 30 (Select this if the maximum

power of the speaker is less than 50 W to prevent
them from damaging the speaker.)

HIGH PWR: [Initial]; VOL 00 – VOL 50

Detaching the control panel

When detaching or attaching the control panel,
be careful not to damage the connectors on
the back of the control panel and on the panel
holder.

Detaching the control panel

Before detaching the control panel, be sure to
turn off the power.

Attaching the control panel

ENGLISH

15

Maintenance

How to clean the connectors

Frequent detachment will deteriorate the
connectors.
To minimize this possibility, periodically wipe

ENGLISH

the connectors with a cotton swab or cloth
moistened with alcohol, being careful not to
damage the connectors.

Connector

Moisture condensation

Moisture may condense on the lens inside the
CD player in the following cases:

• After starting the heater in the car.

• If it becomes very humid inside the car.
Should this occur, the CD player may
malfunction. In this case, eject the disc and
leave the receiver turned on for a few hours
until the moisture evaporates.

To keep discs clean

A dirty disc may not play correctly.
If a disc does become dirty, wipe
it with a soft cloth in a straight line
from center to edge.

• Do not use any solvent (for
example, conventional record cleaner, spray,
thinner, benzine, etc.) to clean discs.

To play new discs

New discs may have some rough
spots around the inner and outer
edges. If such a disc is used, this
receiver may reject the disc.
To remove these rough spots, rub the edges
with a pencil or ball-point pen, etc.

How to handle discs

When removing a disc from
its case, press down the center

holder of the case and lift the
disc out, holding it by the
edges.

• Always hold the disc by the edges. Do not
touch its recording surface.

When storing a disc into its case, gently insert
the disc around the center holder (with the
printed surface facing up).

• Make sure to store discs into the cases after
use.

Do not use the following discs:

Warped

disc

Center holder

Sticker

Sticker
residue

Disc

Stick-on
label

16

More about this receiver

Basic operations

Turning off the power

• If you turn off the power while listening to a
disc, disc play will start from where playback
has been stopped previously, next time you
turn on the power.

Tuner operations

Storing stations in memory

• During SSM search...
– All previously stored stations are erased and

stations are stored newly.

– Received stations are preset in No. 1 (lowest

frequency) to No. 6 (highest frequency).

– When SSM is over, the station stored in

No. 1 will be automatically tuned in.

• When storing a station manually, a previously
preset station is erased when a new station is
stored in the same preset number.

Disc operations

• Some CD-Rs or CD-RWs may not play
back on this receiver because of their disc
characteristics, and for the following causes:
– Discs are dirty or scratched.
– Moisture condensation occurs on the lens

inside the receiver.
– The pickup lens inside the receiver is dirty.
– CD-R or CD-RW on which the files are

written with “Packet Write” method.
– There are improper recording conditions

(missing data, etc.) or media conditions

(stain, scratch, warp, etc.).

• CD-RWs may require a longer readout time
since the reflectance of CD-RWs is lower
than that of regular CDs.

• Do not use the following CD-Rs or CD-RWs:
– Discs with stickers, labels, or protective seal

stuck to the surface.

– Discs on which labels can be directly

printed by an ink jet printer.

Using these discs under high temperatures or

high humidities may cause malfunctions or
damages to discs.

ENGLISH

General

• This receiver has been designed to reproduce
CDs, and CD-Rs (Recordable)/ CD-RWs
(Rewritable) in audio CD (CD-DA) format.

• When a disc has been loaded, selecting “CD”
for the playback source starts disc play.

Inserting a disc

• When a disc is inserted upside down, the disc
automatically ejects.

• Do not insert 8 cm discs (single CD) and
unusual shape discs (heart, flower, etc.) into
the loading slot.

Playing a CD-R or CD-RW

• Use only “finalized” CD-Rs or CD-RWs.

• This receiver can play back multi-session
discs; however, unclosed sessions will be
skipped while playing.

Changing the source

• If you change the source, playback also stops
(without ejecting the disc).

Next time you select “CD” for the playback

source, disc play starts from where it has been
stopped previously.

Ejecting a disc

• If the ejected disc is not removed within
15 seconds, the disc is automatically inserted
again into the loading slot to prevent it from
dust. (Disc will not play this time.)

General settings—PSM

• If you change the “AMP GAIN” setting from
“HIGH PWR” to “LOW PWR” while the
volume level is set higher than “VOL 30,” the
receiver automatically changes the volume
level to “VOL 30.”

17

Troubleshooting

What appears to be trouble is not always serious. Check the following points before calling a service
center.

ENGLISH

• Sound cannot be heard

General

• This receiver does not

• SSM automatic presetting

• Static noise while listening

FM/AM

• Disc automatically ejects. Disc is inserted upside

• CD-R/CD-RW cannot be

• Tracks on the CD-R/

Symptoms Causes Remedies

from the speakers.

work at all.

does not work.

to the radio.

played back.

CD-RW cannot be
skipped.

The volume level is set to
the minimum level.

Connections are incorrect. Check the cords and

The built-in microcomputer
may have functioned
incorrectly due to noise, etc.

Signals are too weak. Store stations manually.

The aerial is not connected
firmly.

down.

CD-R/CD-RW is not
finalized.

Adjust it to the optimum
level.

connections.

Reset the receiver (see page

2).

Connect the aerial firmly.

Insert the disc correctly.

• Insert a finalized CD-R/
CD-RW.

• Finalize the CD-R/
CD-RW with the
component which you
used for recording.

• Disc can be neither played
back nor ejected.

Disc playback

• Disc sound is sometimes
interrupted.

• “NO DISC” appears on the
display.

18

Disc is locked. Unlock the disc (see page

11).

The CD player may have
functioned incorrectly.

You are driving on rough
roads.

Disc is scratched. Change the disc.

Connections are incorrect. Check the cords and

No disc is in the loading
slot.

Disc is inserted incorrectly. Insert the disc correctly.

Eject the disc forcibly (see
page 2).

Stop playback while driving
on rough roads.

connections.

Insert a disc into the loading
slot.

Specifications

AUDIO AMPLIFIER SECTION

Maximum Power Output:
Front: 50 W per channel
Rear: 50 W per channel
Continuous Power Output (RMS):
Front: 19 W per channel into 4 Ω, 40 Hz
to 20 000 Hz at no more than 0.8%
total harmonic distortion.
Rear: 19 W per channel into 4 Ω, 40 Hz
to 20 000 Hz at no more than 0.8%
total harmonic distortion.
Load Impedance: 4 Ω (4 Ω to 8 Ω allowance)
Tone Control Range:
Bass: ±10 dB at 100 Hz
Treble: ±10 dB at 10 kHz
Frequency Response: 40 Hz to 20 000 Hz
Signal-to-Noise Ratio: 70 dB
Line-Out Level/Impedance:

2.0 V/20 kΩ load (full scale)
Output Impedance: 1 kΩ

TUNER SECTION

Frequency Range:
FM1/FM2: 87.5 MHz to 108.0 MHz
FM3: 65.00 MHz to 74.00 MHz
AM: (MW) 522 kHz to 1 620 kHz
(LW) 144 kHz to 279 kHz

[FM Tuner]

Usable Sensitivity: 11.3 dBf (1.0 µV/75 Ω)
50 dB Quieting Sensitivity:

16.3 dBf (1.8 µV/75 Ω)
Alternate Channel Selectivity (400 kHz): 65 dB
Frequency Response: 40 Hz to 15 000 Hz
Stereo Separation: 30 dB
Capture Ratio: 1.5 dB

CD PLAYER SECTION

Type: Compact disc player
Signal Detection System: Non-contact optical

pickup (semiconductor laser)
Number of channels: 2 channels (stereo)
Frequency Response: 5 Hz to 20 000 Hz
Dynamic Range: 96 dB
Signal-to-Noise Ratio: 98 dB
Wow and Flutter: Less than measurable limit

GENERAL

Power Requirement:
Operating Voltage:
DC 14.4 V (11 V to 16 V allowance)
Grounding System: Negative ground
Allowable Operating Temperature:
0°C to +40°C
Dimensions (W × H × D):
Installation Size (approx.):
182 mm × 52 mm × 150 mm
Panel Size (approx.):
188 mm × 58 mm × 11 mm
Mass (approx.):

1.3 kg (excluding accessories)

Design and specifications are subject to change
without notice.

ENGLISH

[MW Tuner]

Sensitivity: 20 µV
Selectivity: 35 dB

[LW Tuner]

Sensitivity: 50 µV

19

Having TROUBLE with operation?

Please reset your unit

Refer to page of How to reset your unit

Затруднения при эксплуатации?

Пожалуйста, перезагрузите Ваше устройство

Для получения информации о перезагрузке Вашего

устройства обратитесь на соответствующую страницу

EN, RU

© 2004 Victor Company of Japan, Limited

1004DTSMDTJEIN

KD-G117

Installation/Connection Manual

Руководство по установке/подключению

GET0254-002A

[EE]

1004DTSMDTJEIN
EN, RU

ENGLISH

This receiver is designed to operate on 12 V DC, NEGATIVE ground electric al systems. If
your vehicle does not have this system, a voltage inverter is required, which can be purchased
at JVC IN-CAR ENTERTAINMENT dealers.

J

Handles

Рычаги

F

Washer (ø5)

Шайба (њ5)

G

Lock nut (M5)

Фиксирующая гайка (M5)

H

Mounting bolt (M5 x 20 mm)

Крепежный болт (M5 x 20 мм)

I

Rubber cushion

Резиновый чехол

A / B
Hard case/Control panel

Жесткий футляр/
панель управления

C

Sleeve

Муфта

D

Trim plate

Декоративную панель

E

Power cord

Кабель питания

Parts list for installation and connection

The following parts are provided for this receiver.
After checking them, please set them correctly.

1

INSTALLATION (IN-DASH MOUNTING)

The following illustration shows a typical installation. If you have any questions or require
information regarding installation kits, consult your JVC IN-CAR ENTERTAINMENT dealer or a
company supplying kits.

•

If you are not sure how to install this receiver correctly, have it installed by a qualified technician.

Removing the receiver / Удаление устройства

Before removing the receiver, release the rear section.

Перед удалением устройства освободите заднюю часть.

When installing the receiver without using the sleeve /

При установке устройства без использования муфты

In a Toyota for example, first remove the car radio and install the receiver in its place.

В автомобилях “Toyota”, например, сначала удалите автомобильную
магнитолу, затем установите на ее место это устройство.

When using the optional stay /

При
использовании дополнительной
стойки

Note : When installing the receiver on the mounting bracket,

make sure to use the 8 mm-long screws. If longer screws
are used, they could damage the receiver.

Примечание : При установке устройства на крепежный кронштейн,

используйте только винты длиной 8 мм. При
использовании более длинных винтов можно
повредить устройство.

Bracket*
Кронштейн*

Bracket*
Кронштейн*

* Not included for this receiver.
* Не входят в комплект.

Flat type screws
(M5 x 8 mm)*

Крепежные винты
(M5 x 8 мм)*

Pocket

Карман

Flat type screws
(M5 x 8 mm)*

Крепежные винты
(M5 x 8 мм)*

Screw (option)

Винт
(дополнительно)

Stay (option)

Стойка
(дополнительно)

Fire wall

Стена

Dashboard

Приборная
панель

Install the receiver at an
angle of less than 30˚.

Установите устройство
под углом менее 30°.

TROUBLESHOOTING

• The fuse blows.
* Are the red and black leads connected correctly?

• Power cannot be turned on.
* Is the yellow lead connected?

• No sound from the speakers.
* Is the speaker output lead short-circuited?

• Sound is distorted.
* Is the speaker output lead grounded?
* Are the “–” terminals of L and R speakers grounded in common?

• Noise interfere with sounds.
* Is the rear ground terminal connected to the car’s chassis using shorter and thicker cords?

• Receiver becomes hot.
* Is the speaker output lead grounded?
* Are the “–” terminals of L and R speakers grounded in common?

• This receiver does not work at all.
* Have you reset your receiver?

Do the required electrical connections.

Выполните необходимые
подключения контактов, как
показано на оборотной стороне
этой инструкции.

*

1

When you stand the receiver, be
careful not to damage the fuse on
the rear.

*

1

Устанавливайте устройство таким
образом, чтобы не повредить
предохранитель, расположенный
сзади.

Bend the appropriate tabs to hold
the sleeve firmly in place.

Отогните соответствующие
фиксаторы, предназначенные
для прочной установки корпуса.

Insert the two handles, then
pull them as illustrated so
that the receiver can be
removed.

Вставьте два рычажка,
затем потяните их, как
показано на рисунке,
чтобы вынуть устройство.

РУССКИЙ

Это устройство разработано для эксплуатации на 12 В постоянного напряжения с
минусом на массе. Если Ваш автомобиль не имеет этой системы, требуется инвертор
напряжения, который может быть приобретен у дилера автомобилнего специалиста JVC.

Список деталей для установки и подключения

Следующие детали поставлены в комплекте с устройством.
После проверки комплектации, пожалуйста, установите их правильно.

УСТАНОВКА (УСТАНОВКА В ПРИБОРНУЮ ПАНЕЛЬ)

На следующих иллюстрациях показана типовая установка. Если у Вас есть какие-либо
вопросы, касающиеся установки, обратитесь к Вашему дилеру автомобилнего
специалиста JVC или в компанию, поставляющую соответствующие принадлежности.

• Если Вы не знаете точно, как следует устанавливать это устройство, обратитесь к
квалифицированному специалисту.

BЫЯВЛЕНИЕ НЕИСПРАВНОСТЕЙ

• Сработал предохранитель.

* Правильно ли подключены черный и красный провода?

• Питание не включается.

* Подключен ли желтый провод?

• Звук не выводится через громкоговорители.

* Нет ли короткого замыкания на кабеле выхода громкоговорителей?

• Звук искажен.

* Заземлен ли провод выхода громкоговорителей?
* Заземлены ли разъемы “–” правого (R) и левого (L) громкоговорителей?

• Шум мешает звучанию.

* Соединен ли находящийся сзади зажим заземления с шасси автомобиля с помощью

более короткого и тонкого шнуров?

• Устройство нагревается.

* Заземлен ли провод выхода громкоговорителей?
* Заземлены ли разъемы “–” правого (R) и левого (L) громкоговорителей?

• Приемник не работает.

* Выполнена ли перенастройка приемника?

ELECTRICAL CONNECTIONS

To prevent short circuits, we recommend that you disconnect the battery’s negative terminal and
make all electrical connections before installing the receiver.

• Be sure to ground this receiver to the ca r’s chassis again after inst allation.

Notes:

• Replace the fuse with one of the specified rating. If the fuse blows frequently, consult your JVC
IN-CAR ENTERTAINMENT dealer.

• It is recommended to connect to the speakers with maximum power of more than 50 W (both
at the rear and at the front, with an impedance of 4 Ω to 8 Ω). If the maximum power is less
than 50 W, change “AMP GAIN” setting to prevent the speakers from being damaged (see
page 14 of the INSTRUCTIONS).

• To prevent short-circuit, cover the terminals of the UNUSED leads with insulating tape.

• The heat sink becomes very hot after use. Be careful not to touch it when removing this
receiver.

Heat sink

Радиатор

2

A

ENGLISH РУССКИЙ

B

Typical connections / Типичные подключения

Before connecting: Check the wiring in the vehicle carefully. Incorrect connection may cause
serious damage to this receiver.
The leads of the power cord and those of the connector from the car body may be different in
color.

1 Connect the colored leads of the power cord in the order specified in the illustration below.
2 Connect the aerial cord.
3 Finally connect the wiring harness to the receiver.

Note: If your vehicle does not have any accessory terminal, move the fuse from the fuse
position 1 (initial position) to fuse position 2, and connect the red lead (A7) to the positive (+)
battery terminal.

• The yellow lead (A4) is not used in this case.

Connecting the external amplifier / Подключение внешнего усилителя

You can connect an amplifier to upgrade your car stereo system.

• Connect the remote lead (blue with white stripe) to the remote lead of the other equipment so
that it can be controlled through this receiver.

• Disconnect the speakers from this receiver, connect them to the amplifier. Leave the

speaker leads of this receiver unused.

Signal cord (not supplied for this receiver)

Кабель сигнала (не входит в комплект)

Front speakers

Передние громкоговорители

Rear speakers

Задние громкоговорители

JVC Amplifier

JVC-усилитель

Remote lead

Провод внешнего устройства

Y-connector (not supplied for this receiver)

Разъем Y (не входит в комплект)

Remote lead (Blue with white stripe)

Провод внешнего устройства (Синий с белой полосой)

To the remote lead of other equipment or power
aerial if any

К удаленному проводу другого оборудования
или антенны

*3 Firmly attach the ground wire to the metallic

body or to the chassis of the car—to the place
not coated with paint (if coated with paint,
remove the paint before attaching the wire).
Failure to do so may cause damage to the
receiver.

*

3

Плотно прикрепите заземляющий провод

к металлическому кузову или шасси
автомобиля—в месте, не покрытом краской
(если оно покрыто краской, удалите
краску перед тем, как прикреплять
провод). Невыполнение этого требования
может привести к повреждению данного
устройства.

*2 Before checking the operation of this receiver

prior to installation, this lead must be connected,
otherwise power cannot be turned on.

*2 Перед проверкой работы устройства

подключите этот провод, иначе питание не
включится.

Line out (see diagram )

К выходу (см. схему )

Rear ground
terminal

Задний разъем
заземления

15 A fuse

Предохранитель 15 A

Aerial terminal

Разъем антенны

Black

Черный

Blue with white stripe

Синий с белой полосой

Red

Красный

Yellow

*

2

Желтый*

2

*1 Not included for this receiver
*

1

Не входит в комплект

To metallic body or chassis of the car

К металлическому корпусу или шасси автомобиля

To a live terminal in the fuse block connecting to the car battery
(bypassing the ignition switch) (constant 12 V)

К разъему фазы в блоке предохранителя (минуя блок зажигания)
(постоянный 12 В)

Ignition switch

Переключатель зажигания

Fuse block

Блок
предохранителя

To an accessory terminal in the fuse block

К вспомогательному разъему в блоке предохранителя

To the remote lead of other equipment or power aerial if any (200 mA max.)

К удаленному проводу другого оборудования или антенны (макс. 200 мА)

Left speaker (front)

Левый громкоговоритель
(передний)

Right speaker (front)

Правый громкоговоритель
(передний)

Left speaker (rear)

Левый громкоговоритель
(задний)

Right speaker (rear)

Правый
громкоговоритель
(задний)

Purple

Пурпурный

Purple with black stripe

Пурпурный с черной
полосой

Green

Зеленый

Green with black stripe

Зеленый с черной
полосо

Gray

Серый

Gray with black stripe

Серый с черной
полосой

White

Белый

White with black stripe

Белый с черной
полосой

Fuse position 2 / Положение 2 предохранителя

Fuse position 1 / Положение 1 предохранителя

PRECAUTIONS on power supply and speaker
connections:

• DO NOT connect the speaker leads of the power cord to

the car battery; otherwise, the receiver will be seriously
damaged.

• BEFORE connecting the speaker leads of the power cord to the
speakers, check the speaker wiring in your car.

ЭЛЕКТРИЧЕСКИЕ ПОДКЛЮЧЕНИЯ

Для предотвращения коротких замыканий мы рекомендуем Вам отсоединить
отрицательный разъем аккумулятора и осуществить все подключения перед установкой
устройства.

• После установки обязательно заземлите данное устройство на шасси
автомобиля.

Примечания:

• Заменяйте предохранитель другим предохранителем указанного класса. Если
предохранитель сгорает слишком часто, обратитесь к дилеру автомобилнего
специалиста JVC.

• Рекомендуется подключать динамики с максимальной мощностью более 50 Вт (к
задней и передней панели устройства, с полным сопротивлением от 4 Ω до 8 Ω). Если
максимальная мощность динамиков менее 50 Вт, перейдите в режим “AMP GAIN”,
чтобы предотвратить их повреждение (см. ИНСТРУКЦИИ ПО ЭКСПЛУАТАЦИИ на
стр. 14).

• Для предотвращения короткого замыкания заклейте НЕИСПОЛЬЗУЕМЫЕ концы
изолирующей лентой.

• Радиатор во время использования сильно нагревается. Старайтесь его не трогать во
время удаления устройства.

Перед началом подключений: Тщательно проверьте проводку в автомобиле.
Неправильное подключение может привести к серьезному повреждению устройства.
Жилы силового кабеля и жилы соединителя от кузова автомобиля могут быть разного
цвета.

1 Подсоедините цветные провода шнура питания в указанном ниже порядке.
2 Подключите кабель антенны.
3 В последнюю очередь подключите электропроводку к устройству.

Примечание: Если в Вашем автомобиле никакого вспомогательного разъема
не имеется, переставьте предохранитель из положения 1 предохранителя
(первоначальное положение) в положение 2 предохранителя и подключите красный
провод (А7) к положительному (+) полюсу аккумулятора.

• Желтый провод (А4) в этом случае не используется.

Можно подключить усилитель для обновления автомобильной стереосистемы.

• Подсоедините провод внешнего устройства (синий с белой полосой) к проводу
внешнего устройства другого оборудования так, чтобы им можно было управлять с
этого устройства.

• Отсоедините громкоговорители от данного устройства, подключите их
к усилителю. Оставьте провода громкоговорителей данного устройства
неиспользованными.

ПРЕДОСТЕРЕЖЕНИЯ по питанию и подключению
громкоговорителей:

• НЕ подключайте провода громкоговорителей к
аккумулятору автомобиля, иначе устройство будет
повреждено.

• ПЕРЕД подключением проводов громкоговорителей
к кабелю питания громкоговорителя проверьте схему
соединений громкоговорителей в Вашем автомобиле.
