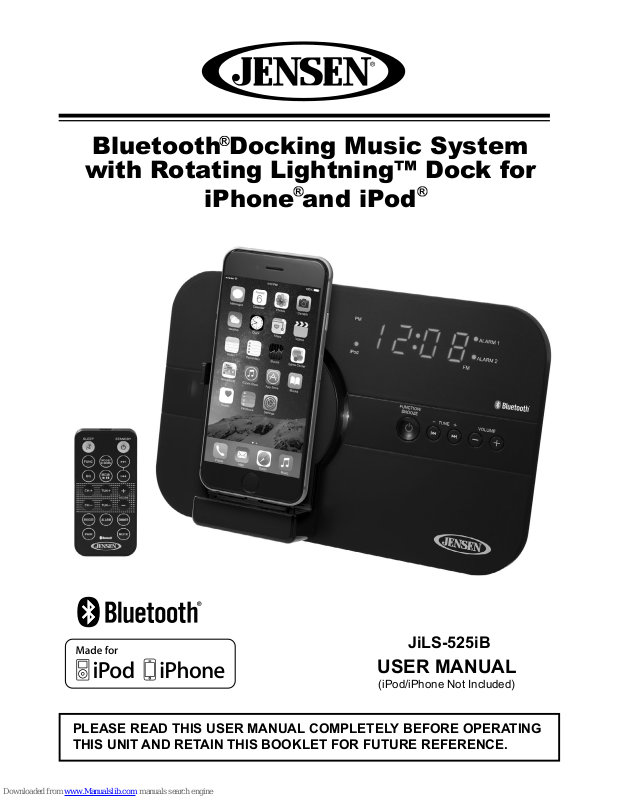

Jensen JiLS-525iB User Manual
Bluetooth Docking Music System
with Rotating Lightning™ Dock for
iPhone and iPod
USER MANUAL
JiLS-525iB
PLEASE READ THIS USER MANUAL COMPLETELY BEFORE OPERATING
THIS UNIT AND RETAIN THIS BOOKLET FOR FUTURE REFERENCE.
(iPod/iPhone Not Included)
Selecting ne audio equipment such as the unit you've just purchased is only the start of your
musical enjoyment. Now it's time to consider how you can maximize the fun and excitement
your equipment offers. This manufacturer and the Electronic Industries Association's
Consumer Electronics Group want you to get the most out of your equipment by playing it at
a safe level. One that lets the sound come through loud and clear without annoying blaring or
distortion and, most importantly, without affecting your sensitive hearing.
Sound can be deceiving. Over time your hearing "comfort level" adapts to higher volumes
of sound. So what sounds "normal" can actually be loud and harmful to your hearing. Guard
against this by setting your equipment at a safe level BEFORE your hearing adapts.
DEAR JENSEN® CUSTOMER
To establish a safe level:
Start your volume control at a low setting.
Slowly increase the sound until you can hear it comfortably and clearly, and without
distortion.
Customer's Record:
The serial number of this product is found on its bottom. You should note the serial number of
this unit in the space provided as a permanent record of your purchase to aid in identication
in the event of theft of loss.
Model Number: JiLS-525iB Serial Number: ____________________
We Want You Listening For a Lifetime
Used wisely, your new sound equipment will provide a
lifetime of fun and enjoyment. Since hearing damage from
loud noise is often undetectable until it is too late, this
manufacturer and the Electronic Industries Association's
Consumer Electronics Group recommend you avoid
prolonged exposure to excessive noise.
1
2
When used in the directed manner, this unit has been designed and manufactured to ensure
your personal safety. However, improper use can result in potential electrical shock or re
hazards. Please read all safety and operating instructions carefully before installation and
use, and keep these instructions handy for future reference. Take special note of all warnings
listed in these instructions and on the unit.
1. Read these instructions – All the safety and operating instructions should be read before
the appliance is operated.
2. Keep these instructions – The safety and operating instructions should be kept for future
reference.
3. Heed all warnings – All warnings on the appliance and in the operating instructions should
be adhered to.
4. Follow all instructions – All operation and use instructions should be followed.
5. Do not use this apparatus near water – The appliance should not be used near water; for
example, near a bath tub, washbowl, kitchen sink, laundry tub, in a wet basement, or near
a swimming pool.
6. Clean only with dry cloth – The appliance should be cleaned only as recommended by
the manufacturer.
7. Do not block any ventilation openings. Install in accordance with the manufacturer’s
instructions. The appliance should be situated so that its location or position does not
interfere with its proper ventilation. For example, the appliance should not be situated on
a bed, sofa, rug, or similar surface that may block the ventilation openings; or placed in a
built-in installation, such as a bookcase or cabinet that may impede the ow of air through
the ventilation openings.
8. Do not install near any heat sources such as radiators, heat registers, stoves, or other
apparatus (including ampliers) that produce heat.
9. Protect the power cord from being walked on or pinched particularly at plugs, convenience
receptacles, and the point where they exit from the apparatus.
10. Only use attachments / accessories specied by the manufacturer.
11. Unplug this apparatus during lightning storms or when unused for long periods of time.
12. Refer all servicing to qualied service personnel. Servicing is required when the
apparatus has been damaged in any way, such as power-supply cord or plug is damaged,
liquid has been spilled or objects have fallen into the apparatus, the apparatus has been
exposed to rain or moisture, does not operate normally, or has been dropped.
13. This appliance shall not be exposed to dripping or splashing water and that no object
lled with liquids such as vases shall be placed on the apparatus.
14. Power Sources – The appliance should be connected to a power supply only of the type
described in the operating instructions or as marked on the appliance. Do not overload
wall outlet.
15. Danger of explosion if battery is incorrectly replaced. Replace only with the same or
equivalent type.
16. Do not attempt to dismantle, open or repair this product yourself. If a fault occurs, seek
advice from your local qualied service technician or contact the distributor via the
telephone number at the back of this instruction manual.
17. Caution marking and nameplate are located at the rear of product.
IMPORTANT SAFETY INSTRUCTIONS
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause
undesired operation.
NOTE : This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
- Consult the dealer or an experienced radio/TV technician for help.
CAUTION:Changes or modications not expressly approved by the party responsible
for compliance could void the user’s authority to operate the equipment.
This model is equipped with non-skid rubber 'feet' to prevent the product from moving when
you operate the controls. These 'feet' are made from non-migrating rubber material specially
formulated to avoid leaving any marks or stains on your furniture. However certain types of
oil based furniture polishes, wood preservatives, or cleaning sprays may cause the rubber
'feet' to soften, and leave marks or a rubber residue on the furniture. To prevent any damage
to your furniture we strongly recommend that you purchase small self-adhesive felt pads,
available at hardware stores and home improvement centers everywhere, and apply these
pads to the bottom of the rubber 'feet' before you place the product on ne wooden furniture.
COMPLIANCE WITH FCC REGULATIONS
PROTECT YOUR FURNITURE
3
PRECAUTIONS
Do not connect the AC Adaptor to the unit and mains before checking the mains voltage.
Do not cover any vents and make sure that there is a space of several inches around the
unit for ventilation.
This unit is not magnetically shielded and may cause color distortion on the screen of
some TVs or video monitors. To avoid this, you may need to move the unit further away
from the TV or monitor if abnormal color shifts or image distortion occurs.
IMPORTANT NOTES
For best iPhone/iPod display clarity, avoid operating the unit in direct sunlight or under
bright lights.
Avoid installing the unit in locations described below:
Places exposed to direct sunlight or close to heat radiating appliances such as electric
heaters.
Places subject to constant vibration.
Dusty, humid or moist places.
Sources of electrical noise such as uorescent lamps or motors.
PRECAUTIONS AND IMPORTANT NOTES
4
5
Main Unit
LOCATION OF CONTROLS
Front View Back View
PM
iPod FM
ALARM 1
ALARM 2
FUNCTION/
SNOOZE
TUNE VOLUME
7
8
9 10 11
12
13
14
3 1 2 3 4 5 6
PAIR/
USB
CHARGING
ONLY
FM ANT.
DIMMER
SLEEP
ALARM OFF/
EQ
PRESET/
MEMORY
MODE/
ST.MONO
ALARM
SET
RESET
AUX-IN
1000mA5V3500mA
15 16 17
20
272625242322
18
19
20
21
CONTROL FUNCTION DESCRIPTION
1 Lightning Connector
2 Docking Platform
3 Power Indicator LED indicator lights when the power is ON.
4 / FUNCTION /
SNOOZE Button
- Tap to turn unit on.
- Press and hold to return unit to standby mode.
- While unit is on, tap to select Radio, iPod, Bluetooth
and AUX-IN mode.
- Activates the snooze function.
5 TUNE + / - /
button
- In radio mode: Tune the radio frequency up/down;
select preset station channel.
- In iPod/Bluetooth mode: Skip tracks Forward / Back-
ward; fast-forwarding / fast-rewinding during playback.
6 VOLUME + / - Button Adjust the speaker volume level.
7 Removable Support Tab Support for the iPod/iPhone when in landscape mode.
8 Support Assembly Allows the back of your Apple device to rest securely in
place.
9 iPod LED Indicator LED indicator lights when in iPod/iPhone mode.
10 PM LED Indicator 12 hour time format only: LED indicator is ON when time
shown is PM and is OFF when time is AM.
11 LED Display
6
LOCATION OF CONTROLS
12 ALARM 1 LED Indicator LED indicator lights when Alarm 1 is ON.
13 ALARM 2 LED Indicator LED indicator lights when Alarm 2 is ON.
14
FM Radio Mode LED
Indicator
LED indicator lights when in FM Radio mode.
15 MODE / FM ST/MO
Button
- Set clock and 12/24 hour format.
- Select between STEREO or MONO FM radio receiving
modes.
16 ALARM SET Button - Set alarm time and select alarm source.
17 ALARM OFF / SLEEP /
DIMMER Button
- Turn the alarm OFF.
- Select the time duration of the sleep timer.
- Adjust the LED display bright/dim.
18 PRESET/PLAY/PAUSE
/ PAIR/MEMORY
Button
- Enter Radio preset mode.
- iPhone/iPod/Bluetooth music Play/Pause function.-
- Bluetooth Pairing Function
- In Radio mode: Save preset radio station.
19 EQ Button - Tap to select a preset EQ setting.
- Press and hold to enter Treble / Bass setting mode.
20 Speakers
21 Clock / Memory backup
battery compartment
22 FM Antenna Wire
23 RESET Button Press this to return the unit to normal status in case it
exhibits abnormality during operation.
24 AUX-IN Jack Connect any compatible portable audio device to this jack
for amplied audio output.
25 DC Jack Only connect the supplied AC-DC Power Adaptor to this
jack to power the unit.
26 USB Charging Connector DC 5V (1000mA) power output source for charging a
separate smart phone.
27 Bass Reex Opening This opening should never be blocked otherwise the bass
effect will be reduced.
