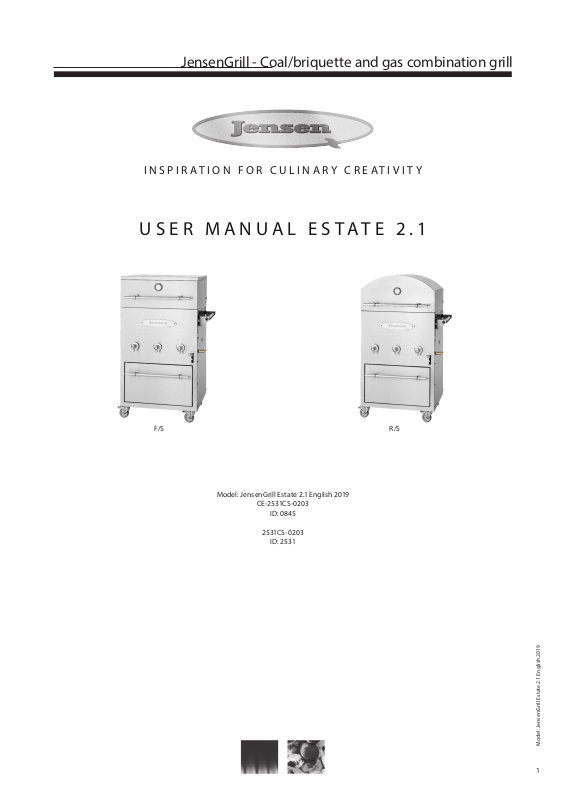

Jensen JensenGrill Estate 2.1 User Manual

JensenGrill - Coal/briquette and gas combination grill

INSPIRATION FOR CULINARY CREATIVITY

USER MANUAL ESTATE 2.1

F/S R/S

Model: JensenGrill Estate 2.1 English 2019

CE-2531CS -020 3

ID: 0845

2531C S-0203

ID: 2531

Model: J ensenGrill Es tate 2.1 English 2019

1

JensenGrill - Coal/briquette and gas combination grill

IMPORTANT! READ THIS MANUAL BEFORE USING THE GRILL

Warnings:

• Do not let children use the grill

• The grill and parts of it can be warm so keep children away.

• Grill modications can be riskfull.

• It is dangerous to alter the settings of the louvers on the burners

• Do not move the grill during use. Only use transport handle on the
right side of the grill when moving.

• Lock the wheels before using the grill.

• Read the manual before using the grill!

• Parts sealed by the manufacturer are not to be broken by the user.

• The grill may not be used indoor.

• The grill specications are to be found on the backside of the grill.

• Do not keep half full or empty gas cylinder by the grill.

• Keep the gas hose away from warm surfaces.

• Do not twist or bend the gas hose unnecessar y.

• Check the gas hose visually for leaks, wear or damage before use.

• Never make any modications to the connector or gas assemb­lings.

• Replace the gas hose, if it becomes damaged, and if national
circumstances require.

• Never turn on the grill when the lid is closed.

• Do not turn on the side burner when the lid is closed.

• Never lean over the grill while igniting.

• Always empty the catch pan before use to avoid catching re in old
grease.

• Remove the gas cylinder when stored indoors. The gas cylinder
must be stored in a well ventilated area outdoors.

• If the grill has not been in use for a long time, check for gas leaks
and clogging of the gas burners before use. See the sections ”
check for gas leaks” and ”rst-time use or use for longer storage”.

• Do not use an open ame to check for gas leaks.

• Flammable material must not come within 70 cm of the back or
sides of the grill.

• If the ame turnes o during lighting or grilling, turn o all gas
regulator knobs, open the lid and wait 5 minutes before the gas is
turned on again (refer to the instruction manual).

• If there is a are up, remove the food from the grill until the re has
died out.

• Occasionally clean the grill thoroughly.

• Never overload the coaltrays. The maximum total amount of coal /
briquettes is 0.8 kg. in each coaltray

• Use only coal briquettes, this ensures a controlled, slow burning
and prevents overheating.

Model: J ensenGrill Es tate 2.1 English 2019

2

JensenGrill - Coal/briquette and gas combination grill

TABLE OF CONTENTS

Exploded drawing 4

I. Part list 5

II. Screw overview 6

III. Before installation 7

IV. Installation instructions 7

A. Installing extra equipment 9

V. Instruction for use of gas 10

A. Check for gas leaks 10

B. Gas safety precautions 10

VI. Initiation or start-up after prolonged storage 10

VII. Cleaning 10

VIII. Storage 11

IX. Operating instructions 11

C. Igniting the grill with charcoal/briquettes and gas 12

D. Using the grill as a gas grill 13

E. Using the side burner 14

F. Using a Rotisserie 14

G. Heat shelf / Drawer 14

X. Grill instructions 14

A. Direct heat 14

B. Indirect heat 14

C. Using the grill as a smoker 14

D How to use the coal tray and grate cleaning tool 15

XI. Troubleshooting operating problems 15

XII. For further information contact: 16

We also refer to the individual instruction videos on the
website.
See more at http://www.jensengrill.com/guides_manuals/

Model: J ensenGrill Es tate 2.1 English 2019

3

JensenGrill - Coal/briquette and gas combination grill

EXPLODED DRAWING

53

6

9

4

4

10

53

3

15

8

15

7

38

16

30

17

19

18

28

19

11

28

5

21

24

33

5

5

5

4

3

2

51

3

32

1

52

48

5

47

36

37

4

37

34

35

3

49

4645

5

494644

5

5

45

20

23

50

2222

40

41

30

42

31

43

42

13 14

4

4

Model: J ensenGrill Es tate 2.1 English 2019

4

12

3

39

3

42

43 30 31

29

29

43

27

54

27

24

27

26

26

26

252525

JensenGrill - Coal/briquette and gas combination grill

I. PART LIST

Part Name Pcs.- Part Name Pcs.

1 Thermometer 1 29 Coaltray 2

2 Handle, lid 1 30 Gas tube bracket, front 2

3 Insolation ring, handle 6 31 Gas tube bracket front (2) 2

4 Bracket, handle 4 32 Stop for upper grate 1

5 Insolation disc 8 33 Logo plate 1

6 Rounded lid 1 34 Hinge lid, right 1

7 Flat lid 1 35 Hinge lid, left 1

8 Front panel 1 36 Rotisserie ap 1

9 Outer panel, sides 1 37 Heating clip, lid 2

10 Door 1 38 Heat shield, valves 1

11 Handle, door 1 39 Gas hose w. regulator 1

12 Handle, gas container

compartment

13 Gas cylinder compartment 1 41 European standard con-

14 Gas cylinder locking pin 1 42 Gas regulator knobs 3

15 U-proles 2 43 Valves 3

16 Core unit 1 44 Transport handle 1

17 Coaltray holder 1 45 Insolation disc, transport

18 Height adjustment u-bar

(long)

19 Height adjustment bar

(short)

20 Height adjustment bar,

(horizontal)

21 Lifting arm 1 49 Lock clip, transport handle 2

22 Perforated plates 2 50 Height adjustment handle 1

23 Catch pan 1 51 Compartment spacer 1

24 Smoking plates 2 52 Upper grate 1

25 Burners 3 53 Bushings, lid 2

26 Flame tamers 3 54 Coaltray and grate cleaning

27 Spacers 3

28 Cross igniters 2

1 40 Gas tube 1

nector

handle

1 46 Bracket, transport handle 2

1 47 Grate 1

1 48 Grate handle 1

tool

1

1

1
