Ironman Fitness ENVY Ironman User Manual
Owner’s Manual
CAUTION
Ironman ENVY
Customer Service
(800) 750-4766
Manufactured By:
Ironman Fitness
4009 Distribution Drive
Suite 250
Garland, TX 75041
Read all precautions and
instructions in this manual before
using this equipment.
Model Name : ENVY
Serial Number :__________
Serial Number can be found at
the above specified location.
100375
09/11 Rev 4.0
ww w.ironmanfitness.com
TABLE OF CONTENTS
Table of Contents
Assembly

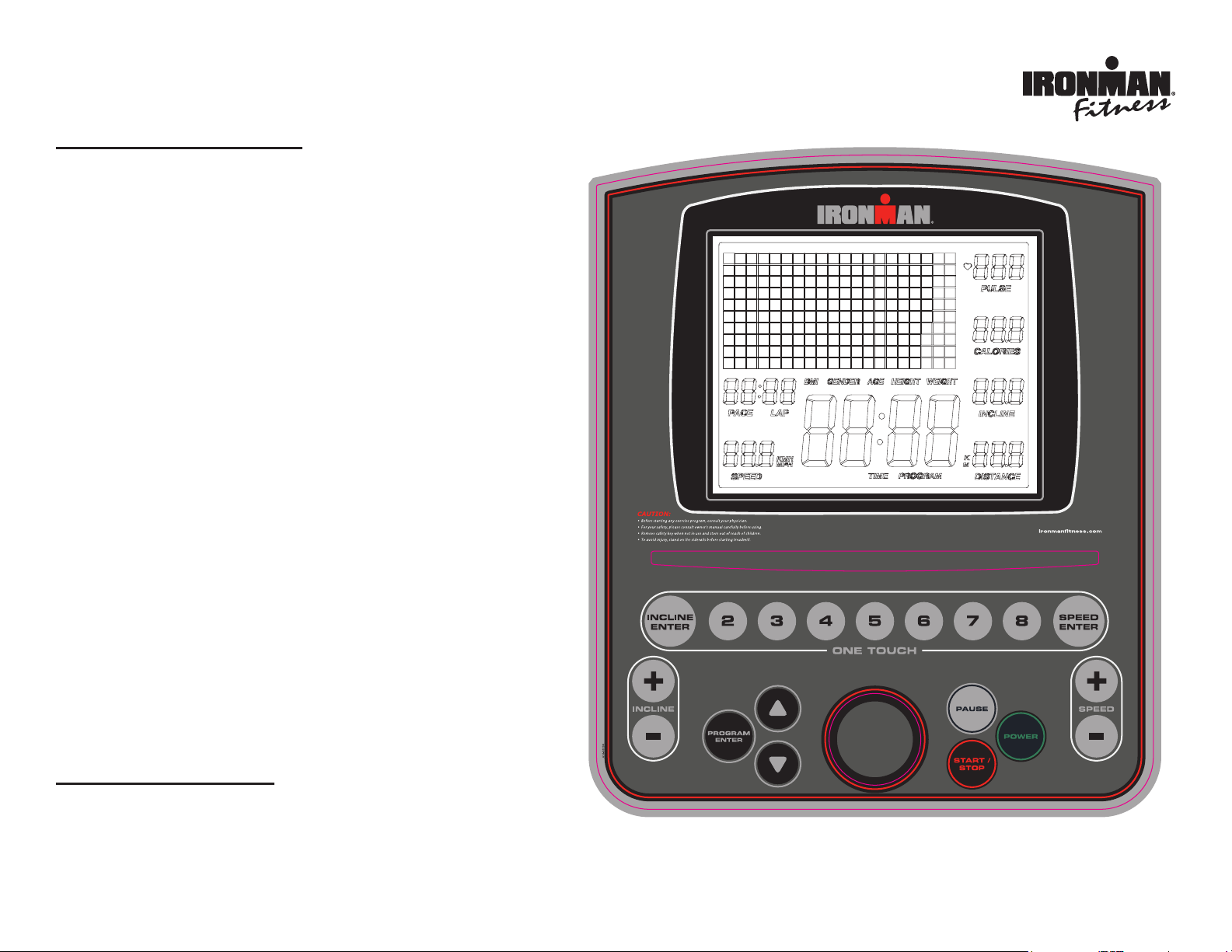

Console Information
Workout Information
Troubleshooting
Parts Information
Warranty
Ironman series
oDEl: ENVY
M
QUESTIoNS?
CAll
800-750-4766
Monday - Friday
8:30 am -5:30 pm Central Time
THANK YOU for making this unit a part of your exercise
program. Ironman Fitness assures the very best in value,
appearance, durability and biomechanics.
This manual will guide you through the assembly process. If at any time you are having trouble with the
assembly or use of this product, then please contact us
at our Ironman Fitness Help line. We have trained service technicians on site to take care of you, our valued
customer.
2
4
18
27
31
37
43
THANK YOU
Thank You for making this unit a part of your exercise program. Ironman Fitness
assures the very best in value, appearance, durability and biomechanics.
This manual will guide you through the assembly process. If at any time you are having trouble with the assembly or use of this product, then please contact us at our
Ironman Fitness Help line. We have trained service technicians on site to take care of
you, our valued customer.
REGISTRATION CARD
To avoid unnecessary delays in warranty parts and to insure that a permanent record
of your purchase is on file with our company, be sure to send in the warranty registration card or register on-line at www.ironmanfitness.com within 10 days of purchase.
Thank you for purchasing the Ironman Fitness ENV Y! The quality product you have
chosen was designed to meet your needs for cardiovascular exercise. Before you start,
please read the owner’s Manual and become familiar with the operation of your new
unit. Remember to take time to perform stretching exercises, provided in this manual,
to help avoid injury. If you are taking medication, consult your physician to see what
effect the medication will have on your exercise heart rate. If you have heart problems,
you are not active, and/or are over the age of 35 years, do not use the pre-set pro-
grams or start an exercise program without rst contacting and receiving approval from
your physician. To avoid the risk of electrical shock, always keep the console dry. Do
not spill liquids on the console.
DISCLAIMER:
Ironman Fitness is not responsible for the misuse of any
of its products or for any injury sustained while using any
Ironman Fitness product. The consumer uses any or all
of Ironman Fitness Products at their own risk.
2 Table of Contents
ww w.ironmanfitness.com
WARNING!
Before using this treadmill or starting any exercise program, consult your physician. This is especially important for persons
over the age of 35 and or persons with pre-existing health problems. The manufacturer or distributor assumes no responsibility
for personal injury or property damage sustained by or through the use of this product. To reduce the risk of electrical shock,
burns, fire, or other possible injuries to the user, it is important to review this manual and the following precautions before operation.
SAFETY PRECAUTIONS AND TIPS:
1. Always secure Safety Key firmly to waistband.
It is the owner’s responsibility to ensure that all users of this treadmill have read the owner’s Manual and are familiar with
2.
warnings and safety precautions.
3. This treadmill has a user maximum capacity of 350 pounds.
4. The treadmill should only be used on a level surface and is intended for indoor use only. The treadmill should not be placed in a
garage, patio, or near water and should never be used while you are wet. Keys recommends a treadmill mat be placed under the
treadmill to protect floor or carpet and for easier cleaning.
5. Follow safety information in regard to plugging in your treadmill. Keep the power cord away from the incline wheels and do not run
the power cord underneath your treadmill. Do not operate the treadmill with a damaged or frayed power cord.
6. Wear comfortable, good-quality walking or running shoes and appropriate clothing. Do not use the treadmill with bare feet, sandals,
socks or stockings.
7. Always straddle the belt and allow it to start moving before stepping onto the belt.
8. Hold on to handrail when adjusting speed or other controls.
9. Always examine your treadmill before using to ensure all parts are in working order.
10. Allow the belt to fully stop before dismounting.
11. Pets should never be allowed near or on the treadmill.
12. Close supervision is necessary when this appliance is used by or near children, invalids or disabled persons.
13. Never operate the treadmill where oxygen is being administered, or where aerosol products are being used.
14. Never insert any object or body parts into any opening.
15. For safety and to prevent damage to your treadmill, no more than one person should use the treadmill at a time.
16. Always unplug the treadmill before cleaning and/or servicing. Service to your treadmill should only be performed by an authorized
service representative, unless authorized and/or instructed by the manufacturer
17. Failure to follow these instructions will void the treadmill warranty.
18. Never leave the treadmill unattended when plugged in. Unplug from outlet when not in use and before service or maintenance.
19. Always unplug this appliance immediately after using and before cleaning. To disconnect, turn all controls to the off position, then
remove plug from outlet.
3Safety Information
Assembly
ww w.ironmanfitness.com
4
ww w.ironmanfitness.com
END CAP LEFT
END CAP RIGHT
RIGHT FENDER OUTSIDE
RIGHT FENDER INSIDE
LEFT FENDER OUTSIDE
LEFT FENDER INSIDE
BOTTLE HOLDER
SAFETY KEY
ALLEN BOLTS M8X50
ALLEN BOLTS M8X15
PHILLIPS SCREWS M6X15
WASHERS Ø6
ALLEN WRENCH
PHILLIPS SCREWS M4X12
PHILLIPS SCREWS ST4.2X13
WASHERS Ø8
END CAP LEFT
END CAP RIGHT
RIGHT FENDER OUTSIDE
RIGHT FENDER INSIDE
LEFT FENDER OUTSIDE
LEFT FENDER INSIDE
BOTTLE HOLDER
SAFETY KEY
FRONT WHEEL
END CAP
LEVELER
REAR WHEEL
CONSOLE
REED SWITCH / SAFETY KEY
HANDLE BAR
UPRIGHT
WALKING BELT
BOTTLE HOLDER
POWER CORD
LATCH SET
ALLEN BOLTS M8X50
ALLEN BOLTS M8X15
PHILLIPS SCREWS M6X15
WASHERS Ø6
ALLEN WRENCH
PHILLIPS SCREWS M4X12
PHILLIPS SCREWS ST4.2X13
WASHERS Ø8
Prior to assembly, remove components from the box and verify that all the listed parts
were supplied. Be sure to remove all packing material.
Parts Identifier
5
ww w.ironmanfitness.com
1
Assembly
Important Information
6
Remove top cover of box, and break the sides of the box to create a level assembly surface. After opening
the box, remove any packing material from the treadmill. Carefully cut the strap surrounding the treadmill,
only while the treadmill is laying flat.
NOTE: Do not remove unit from box until it has been fully assembled.
WASHERS Ø6
PHILLIPS SCREWS M6X15
ASSEMBLY FOR CONSOLE
Step 1:
lift the console up carefully in the direction
indicated by this image.
Step 2:
Secure console mounting bracket with 3
phillips screws M6x15 and 3 washers Ø6.
ww w.ironmanfitness.com
AllEN WRENCH
Important Information 7
Assembly
ww w.ironmanfitness.com
ALLEN BOLTS M8X50
ALLEN BOLTS
M8X15
WASHERS Ø8
CENTER
CROSSBAR
LEFT SIDE
RIGHT SIDE
3
ASSEMBLY FOR UPRIGHTS
Step 1:
While standing on the treadmill, hold onto
the center cross bar and lift it upwards in
the direction indicated by the image.
Step 2:
Align holes on the left upright and secure
the upright with 2 allen bolts M8x15, 2
allen bolts M8x50 and 4 washers Ø8.
Step 3:
Align holes on the right upright and secure
the upright with 2 allen bolts M8x15, 2 allen
bolts M8x50 and 4 washers Ø8.
Important Information
Assembly
8
NOTE: Hand-tighten all bolts until the
bolts on both sides are installed.
AllEN WRENCH
Please be careful
not to pinch the
wire harnesses
ALLEN BOLTS
M8X15
WASHERS Ø8
ww w.ironmanfitness.com
4
ASSEMBLY FOR HANDLEBARS
Step 1:
lift both handlebars up until they are parallel to the
ground and slide them forward onto the handlebar
bracket. Please be careful not to pinch any wire harnesses.
Step 2:
Align holes on the left handlebar and secure using 4
allen bolts M8x15 and 4 washers Ø8.
AllEN WRENCH
Step 3:
Align holes on the right handlebar and secure using
4 allen bolts M8x15 and 4 washers Ø8.
Important Information 9
Assembly
ww w.ironmanfitness.com
PHILLIPS SCREWS M4X12
5
Important Information
Assembly
10
ASSEMBLY FOR ACCESSORY TRAY
locate the accessory tray and secure to
the crossbar using 4 phillips screws M4x12.
AllEN WRENCH
ww w.ironmanfitness.com
WASHERS Ø6
PHILLIPS SCREWS M6X15
6
AllEN WRENCH
ASSEMBLY FOR ACCESSORY TRAY
Secure the accessory tray from the bottom using 2
phillips screws M6x15 and 2 washers Ø6
Important Information 11
Assembly
ww w.ironmanfitness.com
PHILLIPS SCREWS M4X12
LEFT INSIDE
FENDER
RIGHT OUTER
FENDER
RIGHT INSIDE
FENDER
LEFT OUTER
FENDER
7
ASSEMBLY FOR FENDERS
Step 1:
Slide left inside fender onto the unit.
Step 2:
Attach the left outside fender onto the left
inside fender, aligning them at the screw
holes.
Step 3:
Secure with 3 phillips screws M4x12.
Step 4:
Repeat steps 1-3 with right fender.
12
Assembly
AllEN WRENCH
ww w.ironmanfitness.com
PHILLIPS SCREWS M4X12
REAR VIEW
8
ASSEMBLY FOR FENDERS
Step 1:
locate right end cap and secure to the unit
using phillips screw M4x12.
AllEN WRENCH
Step 2:
Repeat step 1 with left end cap.
Important Information 13
Assembly
ww w.ironmanfitness.com
PHILLIPS SCREWS
ST4.2X13
9
ASSEMBLY FOR FENDERS
Step 1:
Fold the treadmill up.
Step 2:
Secure the bottom of the left end cap using
2 phillips screws ST4.2x13.
Step 3:
Repeat step 2 on the right side.
AllEN WRENCH
Assembly
Important Information
14
