iON Camera DashCam Wi-Fi Quick Start Guide

Quick Start Guide
DashCam
Wi-Fi
IN-CAR CAMERA
EN-1
DashCam
Wi-Fi
IN-CAR CAMERA
1. Key Features
y 125o Wide Angle Lens. y Automatic Event Video Recording for sudden external impact. y Continuous loop recording for unexpected incidents. y Geo-information capture in photo or video files with the built-in GPS sensor. y High quality video recording up to 1296p high quality videos. y Photo capture during recording. y Voice Prompt. y Wi-Fi Function.
EN-2
2. Package Contents

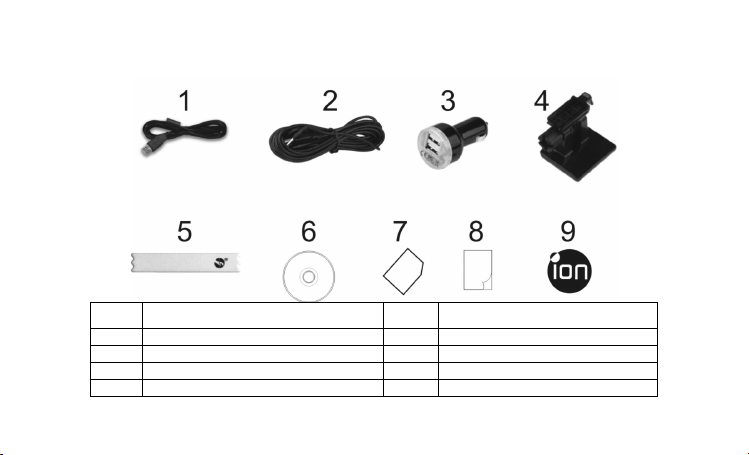

1 USB Cable 2 5M Power Cable 3 USB Car Adapter 4 Windshield Mount 5 Sensormatic Tag 6 DashCam Wi-Fi Software CD 7 Warranty Card 8 QSG 9 iON label
EN-3

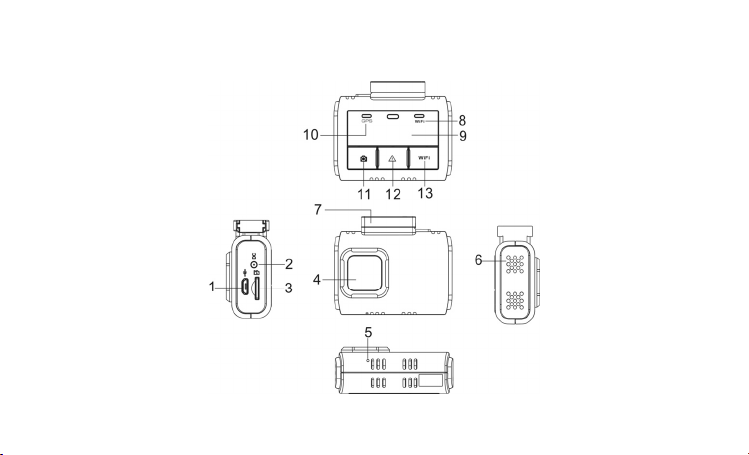

3. Functional Parts
EN-4
1 Micro USB Port Connect to PC for file browsing and file transfer 2 DC in Port Connect to the provided DC in to USB cable for charging 3 MicroSD Slot MicroSD card storage location 4 Wide Angle Lens Capture a wide angle view 5 Reset Button Reset DashCam Wi-Fi 6 Speaker Vent Output the sound
7 Mounting Socket
8 Wi-Fi LED Indicator Wi-Fi status indication 9 Status LED Indicator Operation status indication
10 GPS LED Indicator GPS status indication 11
12
13 Wi-Fi Button Turn on/off Wi-Fi function

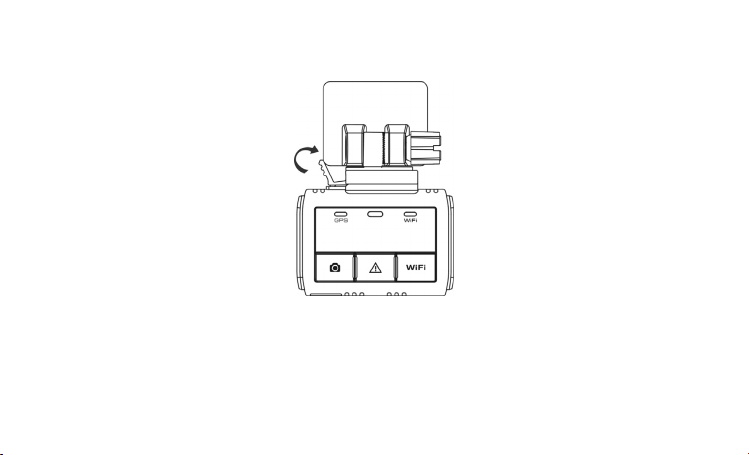

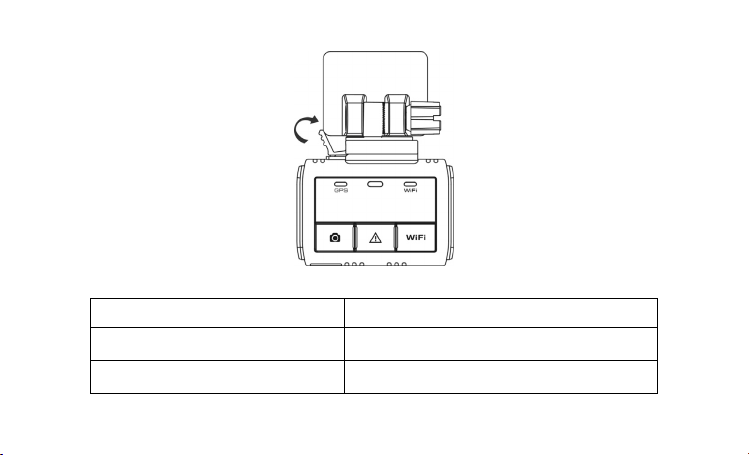

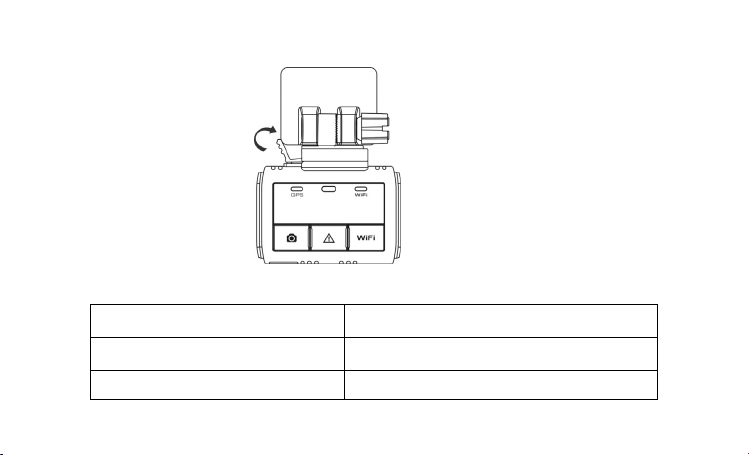

Install the windshield mount. You can detach the socket on the top of the DashCam Wi-Fi to mount the DashCam Wi-Fi on the other optional mounting accessories
Capture a photo during recording
Manually trigger an Event Protection Video Recording
EN-5
4. Installing the Windshield Mount & DashCam Wi-Fi in a Vehicle
1. Clean the area on the windshield.
2. Peel off the protective membrane of the 3M adhesive and stick the Windshield Mount to the front
windshield inside the car.

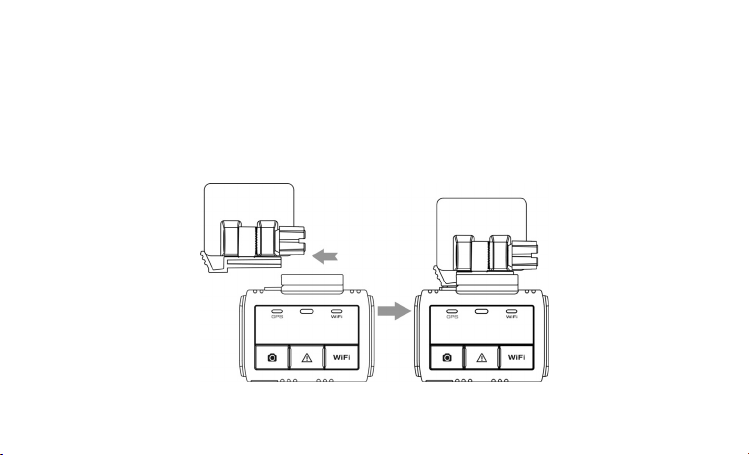

3. Slip the socket on the top of the DashCam Wi-Fi into Windshield Mount until it is latched.

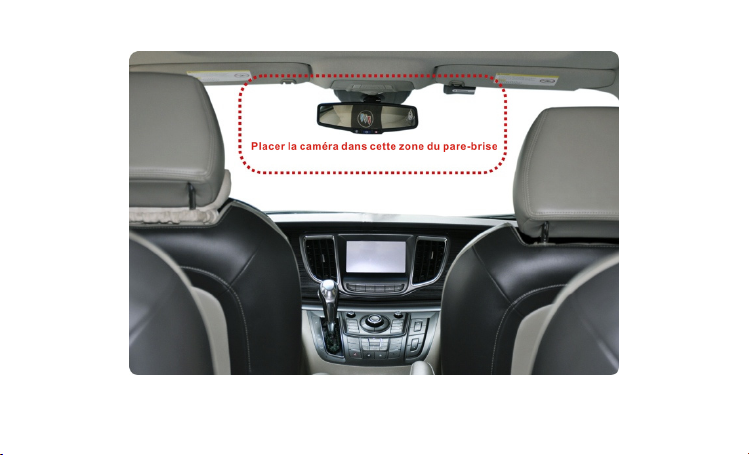

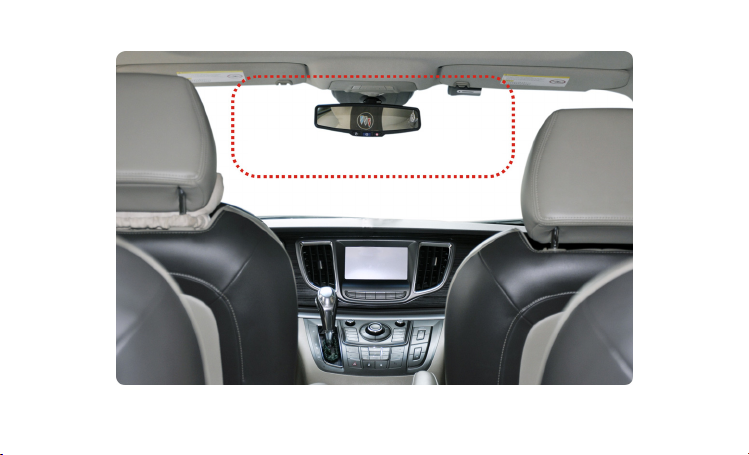

4. The lens of DashCam Wi-Fi should be at the center of the front windshield and be aware not to block the
driver’s visibility.
EN-6
5. Adjust the nut on the Windshield Mount for suitable direction and orientation.
EN-7

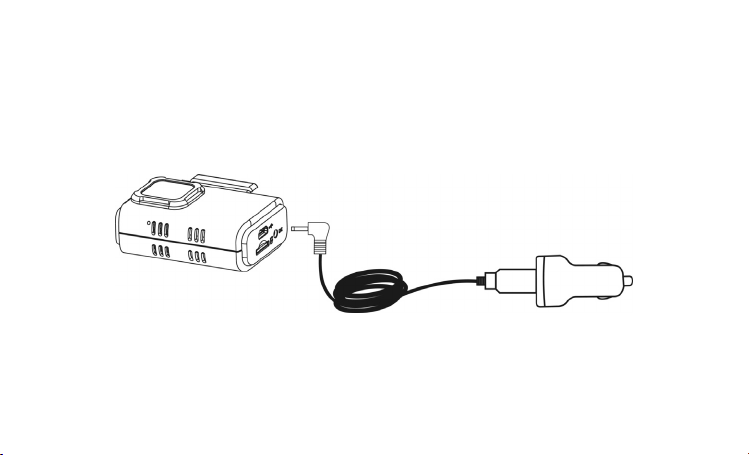

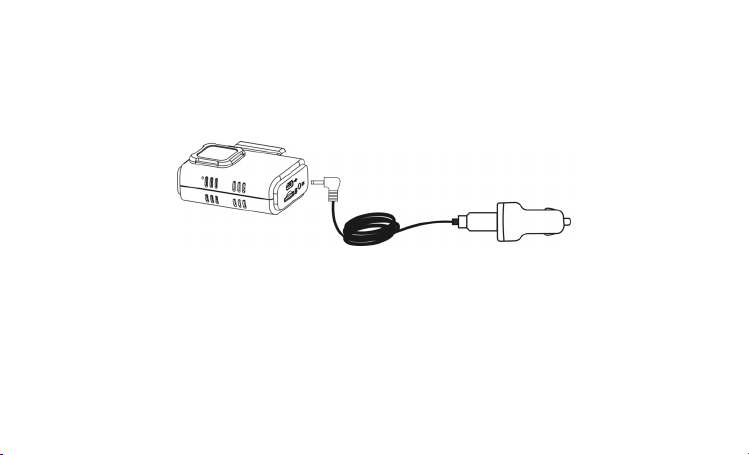

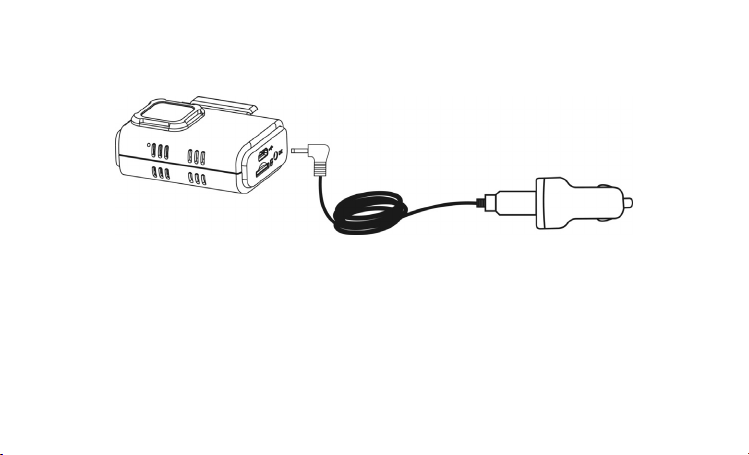

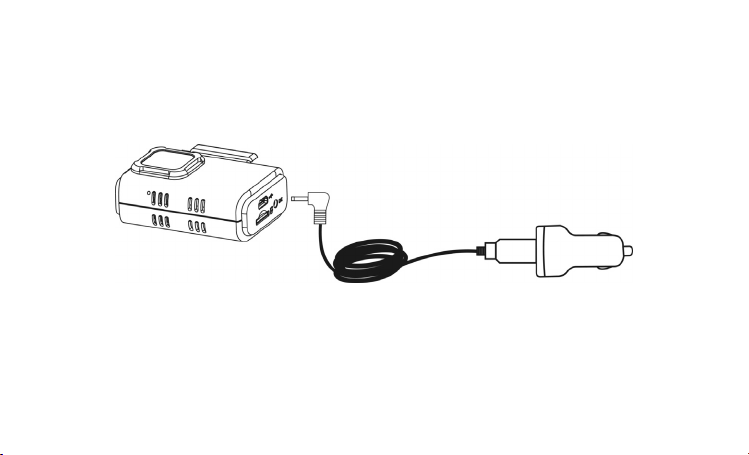

6. Connect the DashCam Wi-Fi to the DC Power jack with included DC in to USB cable and the Dual USB
CLA. Secure the cable with the cable holder to avoid interference of driver's motion.
EN-8
EN-9

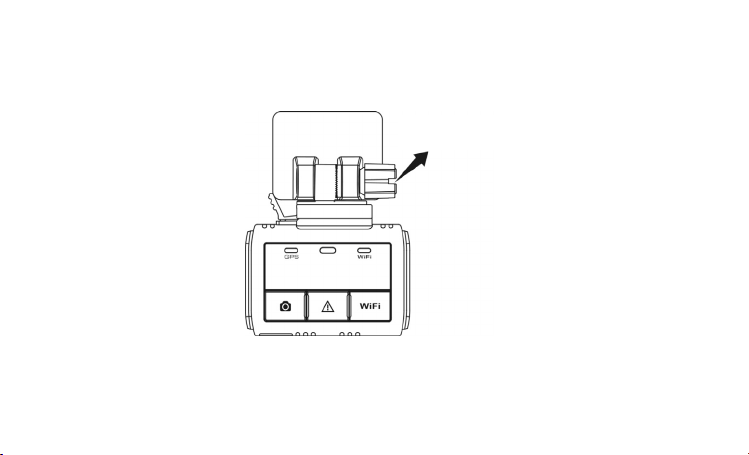

7. Press the Windshield Mount side to release and slide the DashCam Wi-Fi off the mount.
5. LED Indication
“RED” Status LED ON
“RED” Status LED Flashes continuously
DashCam Wi-Fi is under Normal Looping Recording. Counting down to shut down due to power source being removed.
EN-10
“PURPLE” Status LED ON
“BLUE“ Status LED ON
Blue & Red status LED alternating flash
“ORANGE” GPS LED ON GPS signal is received. “ORANGE” GPS LED Flashes No GPS signal or GPS signal is weak.
“GREEN” Wi-Fi LED ON Wi-Fi is initializing.
“GREEN” Wi-Fi LED Flashes slowly Wi-Fi is ready for connection or enabled.
“GREEN” Wi-Fi LED Flashes rapidly Data is transferring in Wi-Fi mode.
DashCam Wi-Fi is under Event Protection Recording. DashCam Wi-Fi is connecting to PC through USB cable.
1. No memory card is installed
2. Memory card is less than 8GB
3. Card error
6. Using Your DashCam Wi-Fi
6.1. Inserting a MicroSD Memory Card (required but not
included)

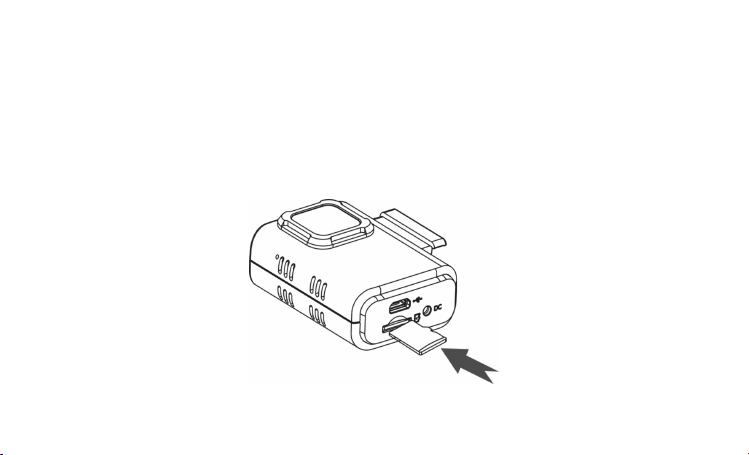

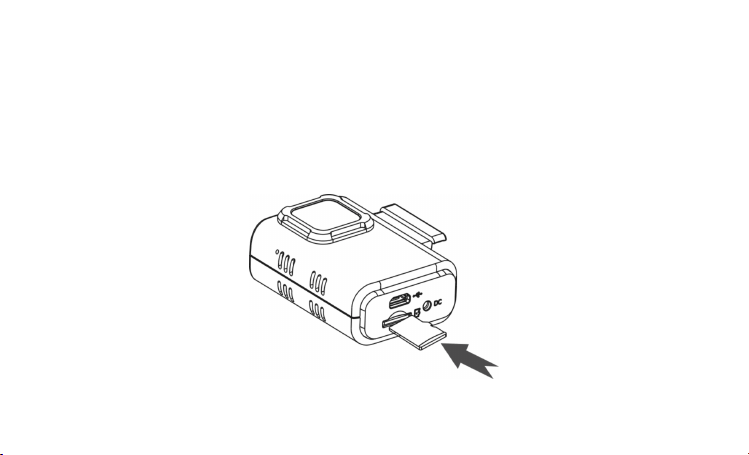

Insert a MicroSD card (not included) to the slot before using the DashCam Wi-Fi. Assure that the DashCam Wi-
EN-11
Fi power is turned OFF before inserting the card. A min 8GB, Class 6 or above card is recommended.
Notes:
1. The correct direction should be followed to insert the MicroSD card into the slot.
2. A new MicroSD card should be formatted before using. You can format the MicroSD card through the DashCam Wi-Fi software.
EN-12
6.2 Turning on/off DashCam Wi-Fi
The DashCam Wi-Fi will detect car ignition vibration and automatically turn on and start Normal Looping Recording. .
6.3 Video Recording and Photo Taking
Normal Looping Recording
The DashCam Wi-Fi will start Normal Looping Recording once turned on. The Red status LED lights up during Normal Looping recording. Video recording is repeatedly creating successive files of 3 min, 5 min or 10 min. The most outdated file will be replaced if the memory is full for continuous recording.
Event Protection Recording
Files will be protected from the auto deletion if an impact is detected. The sensitivity of impact detection can be adjusted through the DashCam Wi-Fi software.
By pressing video files. The Purple status LED lights up during Event Protection recording. You can store up to 30 Event protection videos to the DashCam Wi-Fi. Each Protected video file length will be 20 sec.
during normal recording can also enter the Event Protection Recording mode to protect your
EN-13
Photo Taking
Press once during recording to take a photo. The Status LED will flash each time a photo is taken. You can store up to 500 photos to the DashCam Wi-Fi.
Please note:
During recording, please do not release MicroSD card from the card slot as this may damage video or photo files.
7. Connecting the DashCam Wi-Fi via Wi-Fi
7.1 Enabling the Wi-Fi Function
1. Connect the DashCam Wi-Fi to an external power supply with the included DC in to USB cable. The Wi-
Fi mode will turn on automatically.
2. The Green Wi-Fi LED indicates the Wi-Fi is warming up.
3. Wait for Wi-Fi to initialize. The Wi-Fi LED will flash when the Wi-Fi is active or connected.
4. To turn off Wi-Fi, press and hold
or disconnect DashCam Wi-Fi from the external power supply.
EN-14
7.2 Connecting the DashCam Wi-Fi to your Computer or Smart Device using Wi-Fi
1. Turn on the Wi-Fi mode on DashCam Wi-Fi.
2. Go to network settings on your computer or Smart Device to enable the Wi-Fi setting. Search for the
“DashCam Wi-Fi” network.
3. Enter password “123456789” to connect to the DashCam Wi-Fi.
7.3 Using the Free App
1. Search for iON DashCam app via the Google Play Store or App Store.
2. Download and install the app to your smart device.
3. Connect the DashCam Wi-Fi to your Smart Device by following the steps in section 7.2.
4. Open your iON DashCam app. You may conduct relevant operations in accordance with specific
Application interface.
EN-15

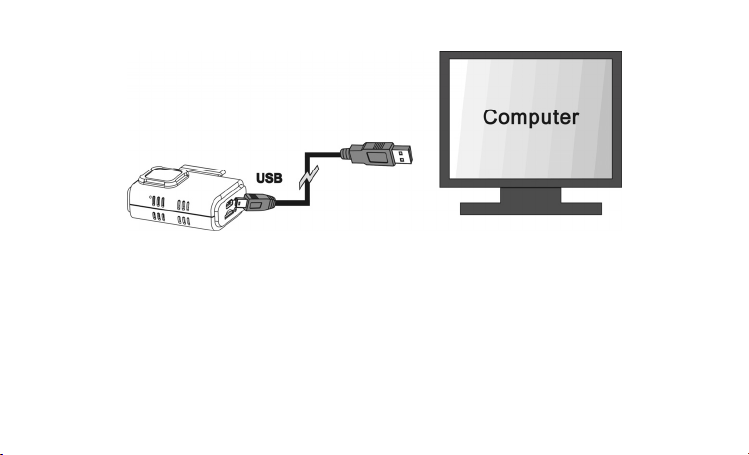

8. Connecting the DashCam Wi-Fi to a Computer
You may also connect the DashCam Wi-Fi to your computer and view videos and pictures on the computer monitor.

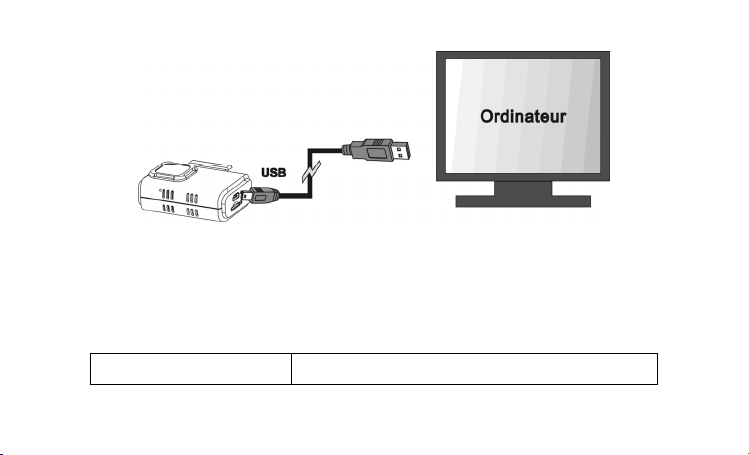

1. Connect the DashCam Wi-Fi to your computer with a USB cable to enter into USB mode.
2. Your computer will recognize the DashCam Wi-Fi as a “Removable Disk”. The Blue Status LED will light
up. Open the disk and go to relevant file folder to view, import, copy, transfer or delete the videos or photos.
EN-16
Note:
If the Removable Device Window did not launch automatically, go to your “My Computer” and find the device under Removable Disk.
9. Specifications
EN-17
Lens 125
Still Image Resolution
on Recording
Video Resolution
o
Wide Angle Lens
3MP on 1296p 2MP on 1080p 1MP on 720p
1296P: 2304x1296 P30 1080P: 1920x1080 P30 720P: 1280x720 P30
Video Format MPEG4 (H.264) .MOV File
Photo Format JPG
GPS Sensor Yes
G Sensor Yes
Wi-Fi Yes
USB Port Micro USB
Power DC in
Microphone Yes
Speaker Yes
EN-18
Language English
Voice Language English, Mandarin
Battery 185mAh
Operation Temperature -20 to 60 degree
Storage Temperature
Dimension (L x H x W) 63X51X25 mm
Weight 67g+/-2g
-40 to 80 degree
10. Computer System Minimum
Requirements
Operating System Windows 7&8 / Vista / XP and Mac OS 10.5 or above
CPU
RAM At least 256MB
Interface USB port
CD 4x speed CD ROM or above
Pentium or above4 / 3.0G or faster recommended
EN-19
11. Troubleshooting
Problem Cause Solution
Cannot turn on the DashCam Wi-Fi
Cannot find removable disk after connecting the DashCam Wi-Fi to the computer
Blurry images
Low battery power
Connection failure
1. The DashCam Wi-Fi has not been installed steadily
2. The lens of DashCam
Wi-Fi is dirty
EN-20
Connect the DashCam Wi-Fi to a power source by DC or USB cable
1. Make sure all cable connections are secured
2. Restart the computer if necessary
1. Reinstall the DashCam Wi-Fi
2. Clean the lens with soft and dry cloth
FCC Statement
Warning: Changes or modifications to this unit not expressly approved by the party
responsible for compliance could void the user’s authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is
EN-21
connected.
• Consult the dealer or an experienced radio/ TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may
cause undesired operation.
Shielded cables must be used with this unit to ensure compliance with the Class B FCC limits.
EN-22
TRADEMARK INFORMATION © 2015 World Wide Licenses Limited. ® The Cool iCam logo is a registered trademark of World Wide Licenses Limited.
Questions? Need Some Help? This manual should help you understand your new product.
If you still have questions, visit our website: www.ioncamera.com
EN-23
Like Us: www.facebook.com/ioncamera Tweet Us: www.twitter.com/ioncamera
FCC ID: NW71041

Kurzanleitung
DashCam
Wi-Fi
AUTO- KAMERA
DE-1

1. Hauptmerkmale
y 125o Weitwinkelobjektiv. y Ereignisschutz-Videoaufzeichnung, vor und nach der plötzlichen Außenwirkung. y Endlosschleife (Loop Funktion) für unvorhergesehene Ereignisse. y Geo-Informationserfassung im Foto oder Video-Dateien mit dem integrierten GPS-Sensor. y Hochwertige Video-Aufzeichnung bis zu qualitativ hochwertige Videos 1296p. y Fotoaufnahme während der Aufnahme. y Sprachaufforderung. y Wi-Fi Funktion.
2. Verpackungsinhalt
DE-2
1 USB Kabel 2 5m Stromkabel
3 USB Auto Adapter 4 Windschutzscheibenhalterung
5 Sensormatic-warensicherung 6 Dashcam Wi-Fi-Software-CD 7 Garantiekarte 8 Kurzanleitung 9 iON Aufkleber
DE-3
3. im Überblick
DE-4
1 Micro-USB-Anschluss
2 Strom Anschluss
3 MicroSD-Steckplatz Micro SD-Karten Speicherort 4 Weitwinkelobjektiv Fange eine Weitwinkelaufnahme ein 5 Reset-Taste Neu Start DashCam Wi-Fi
Lautsprecher Ventil
6
7 Befestigungssockel
8 Wi-Fi-LED-Anzeige Wi-Fi-Statusanzeige 9 Status LED-Anzeige Betriebszustandsanzeige
10 GPS LED-Anzeige GPS-Statusanzeige 11
12
13 Wi-Fi Taste Ein- / Ausschalten der Wi-Fi-Funktion
Anschluss für PC für die Datenverwaltung und Datenübertragung Anschluss an den vorgesehenen DC in den USB-Kabel zum Aufladen
Audio Ausgang
Installieren Sie die Windschutzscheibenhalterung. Sie können die Buchse auf der Oberseite des Dashcam Wifi lösen, um die Dashcam Wifi auf den anderen optionalen Montagezubehör montieren
einzelnes Foto während der Aufnahme
Manuell auslösen ein Ereignisschutz Video Recording
DE-5
4.Installation der Windschutzscheibenhalterung & Dashcam Wi-Fi in einem Fahrzeug
1. Reinigen Sie den Bereich auf der Windschutzscheibe.
2. Ziehen Sie die Schutzmembran von der 3M Klebstoff und kleben Sie die Windschutzscheibenhalterung an der Windschutzscheibe im Auto.
3. Schieben Sie die Buchse auf der Oberseite des Dashcam Wi-Fi in Windschutzscheibenhalterung, bis sie eingerastet ist.
DE-6
4. Die Linse Dashcam Wi-Fi sollte in der Mitte der Frontscheibe befestigt werden und beachten Sie die Sicht des Fahrers nicht zu versperren.
5. Stellen Sie die Mutter auf der Windschutzscheibenhalterung für geeignete Richtung und Orientierung ein.
Einstellen der Mutter
6. Schließen Sie das Dashcam Wi-Fi an die DC-Buchse mit einbezogen DC zum USB-Kabel, und der Dual USB Auto-Adapter. Sichern Sie das Kabel mit dem Kabelhalter, um Störungen an den Fahrer zu vermeiden.
DE-7
DE-8
Die beste Einbaulage
DE-9
7. Drücken Sie die Windschutzscheibenhalterung Seite zu entriegeln, und ziehen Dashcam Wi-Fi aus der Halterung.
DE-10
5.LED-Anzeige
"ROT" Status-LED An
"ROT" Status-LED blinkt kontinuierlich
"LILA" Status-LED An
"BLAU" Status-LED An
"BLAU" und "ROT" Status-LED abwechselnd blinken
“ORANGE” Status-LED An GPS-Signal empfangen
“ORANGE” GPS LED blinkt Kein GPS-Signal oder GPS-Signal schwach ist.
“GRUN” Wi-Fi LED An Wi-Fi wird initialisiert.
“GRUN” Wi-Fi LED blinkt langsam Wi-Fi ist anschlussfertig oder aktiviert werden.
“GRUN” Wi-Fi LED blinkt schnell Die Daten werden übertragen in Wi-Fi-Modus.
Dash Cam Wifi Aufnahme normale Loop­Aufnahme Countdown zum Herunterfahren aufgrund eines Stromquelle entfernt wird. Dashcam Wi-Fi ist im Veranstaltungsschutz Recording. Dashcam W-Fi an PC über USB-Kabel angeschlossen.
1. Keine Speicherkarte installiert
2. Speicherkarte weniger als 8GB
3. Kartenfehler
DE-11
6.Verwendung der DashCam Wifi
6.1. Einlegen einer microSD-Speicherkarte (nicht im Lieferumfang enthalten)
Legen Sie eine MicroSD-Karte (nicht im Lieferumfang enthalten), in den Steckplatz, bevor Sie das Dashcam Wi­Fi, stellen Sie sicher, dass die Dashcam Wi-Fi ausgeschaltet ist, bevor Sie die Karte einsteckten. Mindestens 8GB, Klasse 6 oder höher Karte wird empfohlen.
Hinweise:
1. Stellen Sie sicher, dass die MicroSD-Karte in den Steckplatz richtig eingesetzt wird.
DE-12
2. Eine neue MicroSD-Karte sollten vor der Verwendung formatiert werden. Sie können die MicroSD-Karte durch den DashCam Wifi-Software formatieren.
6.2 Ein- / Ausschalten DashCam Wi-Fi
Die Dashcam Wi-Fi wird bei derZündung die Vibration erkennen und automatisch einschalten und normale Looping aufnahme anfangen.
6.3 Videoaufzeichnung und Foto unter normalen Looping Recording
Die Dashcam Wi-Fi beginnt normalen Looping Recording, wenn eingeschaltet. Die rote Status-LED leuchtet während Normale Looping Aufnahme. Die Videoaufnahme wird immer wieder aufeinanderfolgende Dateien von 3 min, 5 min oder 10 min erzeugen. Die veraltete Datei wird ersetzt, wenn der Speicher voll ist für die kontinuierliche Aufzeichnung.
Ereignisschutz Aufnahme
Die Dateien werden von der automatischen Löschen geschützt, wenn ein Aufprall erkannt wird. Die Empfindlichkeit der Aufprallerkennung können über die Dashcam Wi-Fi-Software eingestellt werden.
DE-13
Durch Drücken von Symbol während der normalen Aufnahme können Sie auch den Ereignisschutz Aufnahmemodus, um eine Video-Aufnahme zu schützen. Die lila Status LED leuchtet während der Ereignisschutz Aufnahme. Sie können bis zu 30 Ereignisschutz Videos im Dashcam Wi-Fi speichern. Jede geschützte Video hat eine Länge von 20 Sekunden.
Aufnehmen eines Fotos
Drücken Sie auf das Symbol wenn während der Aufnahme, um ein einzelnes Foto aufzunehmen. Die Status-LED wird jedesmal, wenn ein Foto aufgenommen wird blinken. Sie können bis zu 500 Bilder auf die Dashcam Wi-Fi speichern.
Hinweis:
Während der Aufnahme darf die MicroSD-Karte aus dem Kartensteckplatz nicht ausgeworfen werden, da dies zu Beschädigungen von Video- oder Fotodateien folgen kann.
7.Anschließen des Dashcam Wi-Fi via Wi-Fi
7.1 Aktivieren der Wi-Fi-Funktion
1. Schließen Sie das Dashcam Wi-Fi an eine externe Stromversorgung mit dem mitgelieferten DC in den USB-Kabel. Die Wi-Fi-Modus schaltet sich automatisch ein..
2. The Green Wi-Fi-LED zeigt den Wi-Fi in der Aufwärmphase.
DE-14
3. Warten Sie auf die Wi-Fi Akivierung. Die Wi-Fi-LED blinkt, wenn das Wi-Fi aktiv ist oder verbunden ist.
4. So deaktivieren Sie Wi-Fi, halten Sie Wi-Fi-Taste oder trennen Dashcam Wi-Fi von der externen Stromversorgung.
7.2 Anschließen des Dashcam Wi-Fi an den Computer
oder Smart Device mit Wi-Fi
1. Schalten Sie den Wi-Fi-Modus auf Dashcam Wi-Fi.
2. Zum Netzwerkeinstellungen auf Ihrem Computer oder Smart Device, um die Wi-Fi-Einstellung zu aktivieren. Suchen Sie nach dem "Dashcam Wi-Fi" -Netzwerk.
3. Geben Sie das Kennwort "123456789", um zum Dashcam Wi-Fi verbinden..
7.3 Verwenden Sie die kostenlose App
1. Suche nach iON Dashcam App über den Google Play Store oder App Store.
2. Laden und installieren Sie die App auf Ihrem Smart Device.
3. Schließen Sie das Dashcam Wi-Fi, um Ihre Smart Device indem Sie die Schritte in Abschnitt 7.2..
4. Öffnen Sie Ihr iON Dashcam App. Sie können relevante Vorgänge in Übereinstimmung mit spezifischen Anwendungsschnittstelle durchführen.
DE-15
8. Anschließen des Dashcam Wi-Fi an einen
Computer
Sie können auch Ihren Dashcam Wi-Fi an den Computer anschließen, und schauen Sie sich die Videos und Bilder auf dem Computermonitor an.
1. Schließen Sie das Dashcam Wi-Fi an den Computer mit dem USB-Kabel, um den USB-Modus aufzurufen.
2. Ihr Computer kann das Dashcam Wi-Fi als "Wechseldatenträger" erkannen. Die blaue Status-LED leuchtet auf. Öffnen Sie die Festplatte und gehen Sie zum entsprechenden Dateiordner um Videos oder Fotos anzuzeigen, importieren, kopieren, übertragen oder zu löschen.
DE-16
Hinweis:
Wenn der Wechseldatenträger-Fenster nicht automatisch gestartet wird, gehen Sie zu Ihrem "Arbeitsplatz" und suchen Sie das Gerät unter Wechseldatenträger.
9. Technische Daten
DE-17
Objektiv 125
Auflösung bei Standbildern auf
Aufnahme
Video-Auflösung
o
Weitwinkel-Objektiv.
3MP bei 1296p 2MP bei 1080p 1MP bei 720p
1296P: 2304x1296 P30 1080P: 1920x1080 P30 720P: 1280x720 P30
Videoformat MPEG4 (H.264) .MOV File
Foto Format JPG
GPS-Senso Ja
G-Sensor Ja
Wi-Fi Ja
USB Anschluss Micro USB
Strom DC
DE-18
Microfon Ja
Lautsprecher Ja
Sprache Englisch
Ansagesprache Englisch, Mandarin
Batterie 185mAh
Betriebs-Temperatur -20 to 60 Grad
Lagertemperatur
DiAbmessungen (L x H x B) 63X51X25 mm
Gewicht 67g+/-2g
10. Computer Syste Mindestanforderungen
-40 to 80 Grad
DE-19
Betriebssystem Windows 7&8 / Vista / XP und Mac OS 10.5 oder höher
CPU
RAM Mindestens 256MB
Interface USB Anschluss
11.Fehlerbehebung
CD 4x speed CD ROM oder schneller
Problem Ursache Lösung
Pentium or above4 / 3.0G oder schneller empfohlen
Dashcam Wi-Fi lässt sich nicht einschalten
Nach dem Anschluss des Dashcam Wi-Fi an einen Computer kann die
Niedrige Batteriespannung
Verbindungsfehler
DE-20
Schließen Sie das Dashcam Wi-Fi an eine Stromquelle mit DC oder USB­Kabel
1. Stellen Sie sicher, dass alle Kabelverbindungen fest sind
2. Starten Sie den Computer
Festplatte nicht finden gegebenenfalls neu
Unscharfe Bilder
1. Die Dashcam Wi-Fi ist nicht in fester Position montiert
2. Die Linse Dashcam Wi­Fi ist verschmutzt
1. neuinstallieren oder neu montieren Sie die DashCam
2. Reinigen Sie das Objektiv mit einem weichen und trockenen Tuch
FCC Statement
Warning: Changes or modifications to this unit not expressly approved by the party
responsible for compliance could void the user’s authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in
DE-21
accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
• Consult the dealer or an experienced radio/ TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may
cause undesired operation.
Shielded cables must be used with this unit to ensure compliance with the Class B FCC limits.
DE-22
INFORMATIONEN ZU DEN WARENZEICHEN © 2015 World Wide Licenses Limited. ® Das Cool iCam logo ist ein eingetragenes Warenzeichen von World Wide Licenses Limited.
FCC ID: NW71041
Questions? Need Some Help? This manual should help you understand your new product.
If you still have questions, visit our website: www.ioncamera.com
DE-23
Like Us: www.facebook.com/ioncamera Tweet Us: www.twitter.com/ioncamera
Guide de démarrage rapide
FR-1

DashCam
Wi-Fi
Caméra pour voiture
1. Caractéristiques principales
y Lentille grand angle 125o. y Enregistrement automatique des évènements lors d'impacts externes soudains. y Enregistrement continu et en boucle en cas d’éventuels incidents. y Enregistrement des informations de géo-localisation à l’intérieur des fichiers photos et videos grâce au
capteur GPS integré.
y Enregistrement vidéo de haute qualité, jusqu'à 1296p. y Prise de photos lors de l'enregistrement vidéo. y Utilisation vocale. y Fonction Wi-Fi.
FR-2

2. Contenu de la boîte
1 Câble USB 2 Câble d'alimentation 5M 3 Adaptateur USB pour voiture 4 Fixation pour pare-brise 5 Étiquette Antivol 6 Logiciel CD pour DashCam Wi-Fi
Carte de garantie 8 Guide de démarrage rapide
7 9 Autocollant iON
FR-3
3. Composants fonctionnels
FR-4
1 2
3 4
5 6
7 Attache de fixation
8 Indicateur LED Wi-Fi Indique le statut de la connexion Wi-Fi 9 Indicateur statut LED Indique le statut des opérations
10 Indicateur LED GPS Indique le statut du GPS 11
12 13 Bouton Wi-Fi Allume/Éteins la fonction Wi-Fi
Port Micro USB Connectez à un ordinateur pour voir et transférer vos fichiers.
Port DC in Connectez le câble USB (fourni) au port DC pour charger la
Compartiment pour carte
MicroSD
Lentille à angle large Pour un grand angle de vue.
Bouton Reset
Haut parleur
caméra. Accueille une carte mémoire de stockage MicroSD.
Pour réinitialiser la caméra. Sortie sonore.
Installez la fixation pour pare-brise. Vous pouvez détacher l'attache située sur la partie supérieure de la caméra DashCam Wi-Fi pour la fixer sur d'autres accessoires optionels de fixation.
Prends une photo pendant l'enregistrement vidéo.
Prends manuellement une vidéo sécurisée.
FR-5
4. Installation de la fixation de pare-brise et de
la caméra DashCam Wi-Fi dans votre véhicule
1. Nettoyer la zone en question sur le pare-brise.
2. Ôtez la membrane de protection de l'autocollant 3M et collez la fixation pour pare-brise sur le pare-brise, à
l'intérieur du véhicule.
3. Insérez le clip en haut de la caméra DashCam dans la fixation pour pare-brise afin de la vérouiller.
FR-6
4. La lentille de la caméra DashCam Wi-Fi doit être au centre du pare-brise avant et ne doit pas gêner la visibilité du
Aj
conducteur.
5. Ajustez la molette sur la fixation pour pare-brise pour orientez la caméra dans la bonne direction et à l'angle souhaité.
uster la molette
FR-7
6. Connectez la caméra DashCam à l'allume cigare à l'aide du câble USB / DC in fourni et du double chargeur
USB. Sécurisez le câble à l'aide de l'attache pour empêcher toute interférence avec la visibilité du conducteur.
FR-8
FR-9
7. Déverouillez et retirez la caméra en pressant le bouton sur le côté de la fixation.
5. Indicateur LED
LED de statut "ROUGE" allumée
Flash LED de statut "ROUGE" en continu
La caméra DashCam W-Fi enregistre normalement en mode boucle. Compte à rebours jusqu'à l'arrêt de la caméra après l'avoir déconnectée de sa source d'alimentation.
FR-10
LED de statut "VIOLET" allumée
LED de statut "BLEUE" allumée
Flash alterné ROUGE et BLEU
La caméra DashCam Wi-Fi enregistre en mode sécurisé. La caméra DashCam Wi-Fi est connectée à un ordinateur à l'aide du câble USB.
1. Aucune carte mémoire
2. La capacité de la carte mémoire est inférieure à 8GB
3. Erreur carte
LED GPS "ORANGE" allumée Réception signal GPS.
Flash LED GPS "ORANGE" Signal GPS faible ou aucun signal GPS.
LED Wi-Fi "VERTE" allumée Wi-Fi en cours d'initialisation.
Flash lent LED Wi-Fi "VERTE" Wi-Fi prêt à se connecter ou activé.
Flash rapide LED Wi-Fi "VERTE" Transfert de données en cours, en mode Wi-Fi.
FR-11
6. Utiliser votre caméra pour voiture DashCam
Wi-Fi
6.1 Insérez une carte mémoire MicroSD (nécessaire mais
non fournie)
Insérez une carte MicroSD (non fournie) dans le compartiment prévu à cet effet avant d'utiliser la caméra. Assurez-vous que la caméra soit éteinte avant d'insérer la carte mémoire. Nous recommendons une carte mémoire MicroSD de Classe 6 ou supérieure et de capacité 8GB au minimum.
FR-12
Remarques:
1. Respectez le sens lorsque vous insérez la carte MicroSD dans le compartiment prévu à cet effet.
2. Une carte MicroSD neuve doit être formatée avant utilisation. Vous pouvez formater votre carte mémoire à l'aide du
logiciel DashCam Wi-Fi.
6.2 Allumer/Éteindre la caméra DashCam Wi-Fi
La caméra DashCam détecte le démarrage du véhicule et commence automatiquement à enregistrer en mode Boucle.
6.3 Enregistrement vidéo et prise de photos
Enregistrement normal en boucle
La caméra DashCam Wi-Fi commence à enregistrer en mode boucle normal lorsque vous l'allumez. La LED rouge de statut s'allume durant l'enregistrement en mode normal. L'enregistrement vidéo créé en continu des fichiers successifs de 3 / 5 / 10 min. Le fichier le plus ancien sera remplacé si la mémoire est pleine, lors de l'enregistrement en continu.
Enregistrement sécurisé
FR-13
Si un impact est détecté, les fichiers seront protégées de la suppresion automatique. La sensibilité de la détection d'impact peut être réglée à l'aide du logiciel DashCam Wi-Fi.
En pressant protéger vos fichiers vidéos. La LED violette de statut s'allume durant l'enregistrement en mode sécurisé. Vous pouvez stocker jusqu'à 30 vidéos sécurisées sur la caméra DashCam Wi-Fi. La durée de chaque vidéo sécurisée sera de 20 secondes.
lors de l'enregistrement normal, vous pouvez entrer en mode Enregistrement sécurisé pour
Prise de photos
Appuyez une fois sur durant l'enregistrement pour prendre une photo. La LED de statut va flasher à chaque fois qu'une photo est prise. Vous pouvez stocker jusqu'à 500 photos sur la caméra DashCam Wi-Fi.
Attention:
Pendant l'enregistrement, n'enlevez pas la carte MicroSD de son compartiment, cela pourrait endommager les fichiers photos ou vidéos.
FR-14
7. Connecter la caméra DashCam Wi-Fi via Wi-
Fi
7.1 Activer la fonction Wi-Fi
1. Connectez la caméra DashCam Wi-Fi à une source externe d'alimentation à l'aide du câble DC in / USB fourni. Le mode Wi-Fi s'allume automatiquement.
2. La LED verte Wi-Fi indique que le Wi-Fi est en cours de chargement.
3. Attendez que le Wi-Fi s'initialise. La LED Wi-Fi va flasher quand le Wi-Fi sera actif / connecté.
4. Pour éteindre le Wi-Fi, appuyez et maintenez source externe d'alimentation
7.2 Connecter votre caméra DashCam à un ordinateur
ou à un smartphone
1. Allumez le mode Wi-Fi sur la caméra DashCam Wi-Fi.
2. Allez dans les Réglages Réseaux de votre ordinateur ou smartphone et sélectionnez le réseau Wi-Fi “DashCam Wi-Fi".
3. Entrez le mot de passe “123456789” pour connecter votre caméra DashCam Wi-Fi.
7.3 Utiliser l'application gratuite
1. Cherchez l'application iON DashCam sur le Google Play Store ou l'App Store.
ou déconnectez la caméra DashCam Wi-Fi de sa
FR-15
2. Téléchargez et installez l'application sur votre smartphone.
3. Connectez la caméra DashCam Wi-Fi à votre smartphone en suivant les étapes détaillées dans la section 7.2.
4. Ouvrez l'application iON DashCam.
8. Connecter votre caméra DashCam Wi-Fi à un
ordinateur
Vous pouvez également connecter votre caméra DashCam Wi-Fi à votre ordinateur et ainsi visualiser vos photos et vidéos.
1. Connectez votre caméra DashCam Wi-Fi à votre ordinateur avec le câble USB fourni.
2. Votre ordinateur va reconnaître la caméra DashCam Wi-Fi en tant que "Disque Ejectable". La LED de statut bleue va
s'allumer. Ouvrez l'image disque sur votre ordinateur et accédez au dossier de fichiers pour voir, importer, copier, transférer et supprimer les photos et vidéos.
FR-16
Remarque:
Si la fenêtre de Disque Éjectable ne s'est pas lancée automatiquement, aller dans "Mon Ordinateur / Ordinateur" et trouver l'appareil "Disque Éjectable".
9. Spécifications
Lentille
Grand Angle Large 125
FR-17
o
Résolution des photos prises lors de l'enregistrement vidéo
Résolution vidéo
Format vidéo MPEG4 (H.264) Fichier .MOV Format photo Capteur GPS
Capteur G
3MP à 1296p 2MP à 1080p 1MP à 720p
1296P: 2304x1296 P30 1080P: 1920x1080 P30 720P: 1280x720 P30
JPG Oui Oui
Wi-Fi Oui
Port USB
Micro USB
Power DC in
Alimentation
Microphone
Haut-parleur
Oui Oui Anglais
Langue de la voix Anglais, Mandarin
Batterie 185mAh
Températures d'opération
-20 à 60 degrés
FR-18
Températures de stockage
Dimensions (L x l x H)
Poids 67g+/-2g
-40 à 80 degrés 63X51X25 mm
10. Conditions requises minimales du système
d'exploitation de votre ordinateur
Système d'exploitation Windows 7&8 / Vista / XP et Mac OS 10.5 ou supérieur
CPU
RAM Au minimum 256MB
Interface Port USB
11. Troubleshooting
Ne peut pas allumer la caméra DashCam Wi-Fi
CD CD ROM 4x vitesse ou supérieur
Problème Cause Solution
Pentium ou supérieur 4 / 3.0G ou plus rapide recommendé
Niveau de batterie faible
FR-19
Connectez la caméra DashCam Wi-Fi à une source d'alimentation avec le câble DC ou USB
Ne peut pas trouver le Disque Éjectable après avoir connecté la caméra DashCam Wi-Fi à l'ordinateur
Images floues
Erreur de connexion
1. La caméra DashCam Wi-Fi n'a pas été installée dans une position stable
2. La lentille de la caméra
DashCam Wi-Fi est sale
1. Assurez-vous que tous les câbles de connexion soient en état de fonctionnement
2. Redémarrez votre ordinateur si besoin
1. Réinstallez la caméra DashCam Wi-Fi
2. Nettoyez la lentille à l'aide d'un chiffon propre et sec
Déclaration de la FCC
Avertissement : Les changements ou modifications à cet appareil non expressément approuvés par la partie responsable de la conformité pourraient annuler l'autorité de l'utilisateur à utiliser cet appareil. Ce périphérique est conforme à l'article 15 des règles de la FCC. Son utilisation est sujette aux deux conditions suivantes :
(1) cet équipement ne doit pas créer d'interférences dangereuses. (2) Cet équipement doit accepter toute interférence reçue, incluant celles pouvant
entraîner un mauvais fonctionnement.Instruction Statement
FR-20
REMARQUE : Cet équipement à été testé et est conforme aux limites d'un appareil de Classe B, selon l'article 15 des Règles FCC. Ces limites ont étés mises en place pour offrir une protection raisonnable contre les interférences dans un complexe résidentiel. Cet équipement génère, utilise et contient de l'énergie de fréquence radio, si inutilisé incorrectement pourrait créer des interférences dangereuses pour les communications radio.
Mais il n'existe aucune garantie que des interférences ne seront pas produites dans une installation particulière. Si cet équipement crée des interférences pour la réception radio ou télévisuelle, ce qui peut être constaté en l'allumant et en l'éteignant, alors il vous est conseillé d'y remédier d'une des manières suivantes :
y Réorientez ou déplacez l'antenne réceptrice. y Augmentez la distance entre l'équipement et le récepteur. y Connectez l'équipement à une prise ou circuit différent de celui du récepteur.
Consultez le distributeur ou un technicien radio ou TV d'expérience pour de l'assistance.
ATTENTION: LE CONSTRUCTEUR N'EST PAS RESPONSABLE POUR QUELCONQUE INTERFERENCE RADIO OU TELEVISUELLE CAUSEES PAR DES MODIFICATIONS NON AUTORISEES SUR L'APPAREIL. TOUTE MODIFICATIONS DE CE TYPE PEUT ENTRAINER L'ANNULATION DE L'AUTORISATION D'UTILISATION DE L'EQUIPEMENT PAR L'UTILISATEUR.
FR-21
INFORMATIONS LÉGALES © 2015 World Wide Licenses Limited. ® Le logo Cool iCam est une marque déposée de World Wide Licenses Limited.
Des questions ? Besoin d'aide ? Ce manuel vous aidera à comprendre votre nouveau produit
Si vous avez des questions supplémentaires, visitez notre site web : www.ioncamera.com
Likez nous : www.facebook.com/ioncamera Suivez nous : www.twitter.com/ioncamera
FR-22
FCC ID: NW71041
Guida rapida
DashCam
Wi-Fi
VIDEOCAMERA PER AUTO
IT-1
1. Funzionalità principali
y Lente grandangolare 125°.
y Registrazione video eventi automatica per improvvisi impatti esterni. y Registrazione a ciclo continuo per incidenti improvvisi. y Registrazione di informazioni terrestri in file fotografici o video grazie al sensore GPS integrato. y Registrazione video di alta qualità fino a 1296p . y Possibilità di catturare immagini durante la registrazione. y Prompt vocale. y Funzione Wi-Fi
IT-2
2. Contenuto della confezione
1 Cavo USB 2 Cavo di alimentazione da 5 m
3 Adattatore USB per auto 4 Supporto per parabrezza 5 Etichetta Sensormatic 6 CD software per dash cam Wi-Fi 7 Scheda di garanzia 8 Guida rapida 9 Etichetta iON
IT-3
3. Parti funzionali
IT-4
1 Porta micro USB Per il collegamento al PC per visione e trasferimento di file
2 Porta ingresso CC
3
4 Lente grandangolare Per la cattura di un'immagine grandangolare 5 Tasto di ripristino Ripristina la dash cam Wi-Fi 6 Presa altoparlante Per l'uscita dell’audio
7 Presa supporto
8 Spia LED Wi-Fi Indicazione dello stato del Wi-Fi 9 Spia LED di stato Indicazione dello stato di funzionamento
10 Spia LED GPS Indicazione dello stato del GPS 11
12
13 Pulsante Wi-Fi Per attivare/disattivare la funzione Wi-Fi
Vano scheda
MicroSD
Per il collegamento della porta CC nel cavo USB per la ricarica
Alloggio per scheda MicroSD
Per installare il supporto per parabrezza. È possibile staccare la presa sulla parte superiore della dash cam Wi-Fi per montare la stessa su un altro accessorio di supporto opzionale
Per scattare una foto durante la registrazione Per avviare manualmente una registrazione video
protezione evento
IT-5
4. Installazione del supporto per parabrezza e della dash cam Wi-Fi nel veicolo
1. Pulire l'area sul parabrezza.
2. Rimuovere la pellicola protettiva dall'adesivo 3M e fissare il supporto per parabrezza sullo stesso all'interno dell'automobile.
3. Far scorrere la presa sulla parte superiore della dash cam Wi-Fi nel supporto per parabrezza fino al fissaggio.
4. La lente della dash cam Wi-Fi deve trovarsi al centro del parabrezza senza però ostruire la
IT-6
visuale del conducente.
5. Regolare il dado sul supporto per parabrezza per ottenere una direzione e un orientamento corretti.
Regolare il dado
IT-7
6. Collegare la dash cam Wi-Fi al jack di alimentazione CC nel cavo USB e nell'adattatore doppio USB. Fissare il cavo con l'apposito supporto per evitare interferenze a seguito dei movimenti del conducente.
IT-8
Posizione di installazion
e
o
ttimale
IT-9
7. Premere a lato del supporto per parabrezza per rilasciare ed estrarre la dash cam Wi-Fi dal supporto.
5. IndicazioniLED
Spia LED di stato "ROSSA" accesa
La spia LED di stato "ROSSA" lampeggia continuamente
Spia LED di stato "VIOLA" accesa La dash cam Wi-Fi si trova nello stato di
La dash cam Wi-Fi si trova nello stato di registrazione continua normale. Procedura di spegnimento in corso a causa della rimozione della fonte di alimentazione.
IT-10
registrazione protezione evento.
Spia LED di stato "BLU" accesa
Le spie LED di stato blu e rossa lampeggiano in modo alternato
La dash cam Wi-Fi è collegata al PC mediante cavo USB.
1. Non è inserita alcuna scheda di memoria
2. La scheda di memoria è inferiore a 8 GB
3. Errore scheda Spia LED GPS "ARANCIONE" accesa Ricezione segnale GPS. La spia LED GPS "ARANCIONE"
lampeggia
Nessun segnale GPS o segnale GPS debole.
Spia LED Wi-Fi "VERDE" accesa Inizializzazione Wi-Fi in corso. La spia LED Wi-Fi "VERDE" lampeggia
lentamente La spia LED Wi-Fi "VERDE" lampeggia rapidamente
Wi-Fi pronto per la connessione o abilitato.
Trasferimento dati in modalità Wi-Fi in corso.
IT-11
6. Utilizzo della dash cam Wi-Fi
6.1. Inserimento di una scheda di memoria MicroSD (necessaria ma non in dotazione)
Inserire una scheda MicroSD (non in dotazione) nell'apposito vano prima di utilizzare la dash cam Wi-Fi. Assicurarsi che la dash cam Wi-Fi sia spenta prima di inserire la scheda. Si consiglia una scheda di Classe 6 da min 8 GB o superiore .
Note:
IT-12
1. Seguire la direzione corretta per inserire la scheda MicroSD nel vano.
2. Una nuova scheda MicroSD deve essere formattata prima di essere utilizzata. È possibile formattare la
scheda MicroSD attraverso il software della dash cam Wi-Fi.
6.2 Accensione/spegnimento della dash cam Wi-Fi
La dash cam Wi-Fi rileva la vibrazione dovuta all'accensione dell'automobile e si accende automaticamente avviando la Registrazione continua normale.
6.3 Registrare video e catturare immagini
Registrazione continua normale
La dash cam Wi-Fi avvia la Registrazione continua normale una volta accesa. La spia LED di stato rossa si accende durante la Registrazione continua normale. La registrazione video è continua e crea file successivi da 3 min, 5 min o 10 min. Il file più vecchio viene sostituito se la memoria è piena per la registrazione continua.
Registrazione protezione evento
I file vengono protetti dall'eliminazione automatica se viene rilevato un impatto. La sensibilità della rilevazione dell'impatto può essere regolata mediante il software della dash cam Wi-Fi.
Premendo durante la normale registrazione, è inoltre possibile accedere alla modalità Registrazione protezione evento per proteggere i file video. La spia LED di stato viola si accende durante la Registrazione protezione evento.
IT-13
È possibile salvare fino a 30 video con protezione nella dash cam Wi-Fi. La lunghezza di ciascun video protetto sarà di 20 sec.
Catturare immagini
Premere una volta durante la registrazione per scattare una foto. La spia LED di stato lampeggia ogni volta che viene scattata una foto. È possibile salvare fino a 500 foto nella dash cam Wi-Fi.
N.B.:
Durante la registrazione non rimuovere la scheda MicroSD dall'apposito vano in quanto ciò potrebbe danneggiare i file video o fotografici.
7. Collegamento della dash cam Wi-Fi tramite
Wi-Fi
7.1 Abilitazione della funzione Wi-Fi
1. Collegare la dash cam Wi-Fi all'alimentazione esterna mediante l'ingresso CC nel cavo USB. La modalità Wi-Fi si attiva automaticamente.
2. La spia LED Wi-Fi verde indica l'avviamento del Wi-Fi.
3. Attendere l'inizializzazione del Wi-Fi. Il LED Wi-Fi lampeggerà quando la funzione Wi-Fi sarà attiva o connessa.
4. Per disattivare il Wi-Fi, tenere premuto
o scollegare la dash cam Wi-Fi dall'alimentazione esterna.
IT-14
7.2 Collegamento della dash cam Wi-Fi al computer o a
un dispositivo smart tramite Wi-Fi
1. Accendere la modalità Wi-Fi sulla dash cam Wi-Fi.
2. Andare alle impostazioni di rete del computer o del dispositivo smart per abilitare l'impostazione Wi-Fi. Cercare la rete "Dash cam Wi-Fi”.
3. Inserire la password "123456789" per connettersi alla dash cam Wi-Fi.
7.3 Utilizzo dell'App gratuita
1. Cercare l'App iON DashCam nel Play Store Google o nell'App Store.
2. Scaricare e installare l’App nel dispositivo smart.
3. Collegare la dash cam Wi-Fi al dispositivo smart seguendo le istruzioni riportate nella sezione 7.2.
4. Aprire l'App iON DashCam. È possibile effettuare operazioni in dell'applicazione.
base alla specifica interfaccia
8. Collegamento della dash cam Wi-Fi a un
computer
È anche possibile collegare la dash cam Wi-Fi al computer e visualizzare video e foto sul monitor del computer.
1. Collegare la dash cam Wi-Fi al computer mediante il cavo USB per accedere alla modalità USB.
IT-15
2. Il computer riconosce la dash cam Wi-Fi come “Disco Rimovibile”. La spia LED di stato blu si accende. Aprire il disco e andare all'apposita cartella per visualizzare, importare, copiare, trasferire o eliminare i video o le foto.
Nota:
Qualora la finestra del Disco Rimovibile non venisse avviata automaticamente, andare su "Risorse del Computer" e trovare il dispositivo sotto Disco Rimovibile.
9. Specifiche
IT-16
Lente Lente grandangolare 125 o
Risoluzione Fermo Immagine
durante la registrazione
Risoluzione video
3 megapixel a 1296p 2 megapixel a 1080p 1 megapixel a 720p
1296p: 2304x1296 P30 1080p: 1920x1080 P30 720p: 1280x720 P30
Formato video MPEG4 (H.264) File .MOV
Formato foto JPG
Sensore GPS
Sensore G
Wi-Fi Sì
Porta USB Micro USB
Alimentazione Ingresso CC
Microfono Sì
Altoparlanti Sì
Lingua Inglese
Lingua voce Inglese, mandarino
IT-17
Batteria 185 mAh
Temperatura di esercizio Da -20 gradi a 60 gradi
Temperatura di conservazione Da -40 gradi a 80 gradi
Dimensioni (L x P x A) 63X51X25 mm
Peso 67 g +/- 2 g
10.Requisiti minimi del sistema
Sistema operativo Windows 7 e 8 / Vista / XP e Mac OS 10.5 o superiori
CPU Si consiglia Pentium o superiore 4 / 3,0 G o più veloce RAM Almeno 256 MB
Interfaccia Porta USB
CD CD ROM velocità 4 x o superiore
11.Risoluzione dei problemi
Problema Causa Soluzione
IT-18
La dash cam Wi-Fi non si accende
Impossibile trovare il disco rimovibile dopo aver connesso la dash cam Wi­Fi al computer
Immagini sfocate
La batteria è scarica
Connessione non riuscita
1. La dash cam Wi-Fi non è stata installata in modo stabile
2. La lente della dash
cam Wi-Fi è sporca
Collegare la dash cam Wi-Fi all'alimentazione mediante ingresso CC o cavo USB
1. Assicurarsi che tutte le connessioni siano corrette
2. Avviare nuovamente il computer se necessario
1. Installare nuovamente la dash cam
Wi-Fi
2. Pulire la lente con un panno soffice e asciutto
Dichiarazione FCC
Avvertenza: cambi o modifiche all'unità non approvati espressamente dall'ente responsabile della conformità possono annullare l'autorità dell'utente a mettere in funzione il dispositivo. NOTA: Il presente dispositivo è stato testato ed è risultato conforme ai limiti per un dispositivo digitale di Classe B, ai sensi della Parte 15 delle norme FCC. Tali limiti sono stati ideati per
IT-19
fornire un'adeguata protezione nei confronti di interferenze dannose in installazioni residenziali. Il presente dispositivo genera, utilizza e può irradiare energia a radio frequenza e, se non installato e utilizzato conformemente alle istruzioni, può causare interferenze dannose alle radiocomunicazioni.
Tuttavia, non vi è alcuna garanzia che l’interferenza non si verifichi in una particolare installazione. Nel caso in cui il presente dispositivo causi interferenze dannose alla ricezione radio o televisiva, il che potrebbe essere determinato dall'accensione e spegnimento del dispositivo, l'utente è incoraggiato a tentare di correggere l'interferenza mediante una o più delle misure seguenti:
• Riorientare o riposizionare l’antenna di ricezione.
• Aumentare la distanza tra il dispositivo e il ricevitore.
• Collegare il dispositivo a una presa su un circuito diverso da quello a cui è collegato il ricevitore.
• Consultare il rivenditore o un tecnico radio/TV esperto per l’assistenza.
Il presente dispositivo è conforme alla Parte 15 delle Norme FCC. L'utilizzo è soggetto alle seguenti due condizioni:
(1) Il presente dispositivo non deve causare interferenze dannose (2) Il presente dispositivo deve accettare qualsiasi interferenza ricevuta, comprese le interferenze che potrebbero causare un funzionamento non desiderato
Utilizzare cavi schermati con l'unità per garantire la conformità ai limiti FCC di Classe B.
IT-20
INFORMAZIONI SUL MARCHIO © 2015 World Wide Licenses Limited. ® Il logo Cool iCam è un marchio registrato di World Wide Licenses Limited.
Domande? Bisogno d’aiuto? Il presente manuale aiuterà nella comprensione del nuovo prodotto.
In caso di domande, visita il nostro sito web: www.ioncamera.com
IT-21
FCC ID: 2ABT4MPC03G
Seguici su Facebook: www.facebook.com/ioncamera Seguici su Twitter: www.twitter.com/ioncamera
Guía de inicio rápido
ES-1
DashCam
Wi-Fi
CAMERA PARA COCHE
1. Características principales
y Lente gran angular de 125º y Grabación video de sucesos automática para impactos externos súbitos. y Grabación en bucle continua para incidentes inesperados. y Captura de geolocalización en archivos de foto o video con el sensor GPS integrado. y Grabación video de alta calidad hasta 1296p. y Captura de fotos durante la grabación. y Indicación por voz. y Función Wi-Fi.
ES-2
2. Contenido del embalaje
1 Cable USB 2 Cable de alimentación de 5M 3 Adaptador USB para coche 4 Soporte para parabrisas 5 Etiqueta Sensormatic 6 CD de software DashCam Wi-Fi 7 Tarjeta de garantía 8 QSG 9 Etiqueta iON
ES-3
3. Piezas funcionales
ES-4
1
Puerto Micro USB
2
Puerto de entrada CC Conecte la entrada CC incluida al cable USB para cargar.
3
Ranura MicroSD
4
Lente gran angular
5
Botón de reinicio Reiniciar la DashCam Wi-Fi
6
Rejilla de altavoz
7
Toma de montaje
Indicador LED Wi-
8
Indicador LED de
9
10 11
12 13 Botón Wi-Fi Activar/desactivar función Wi-Fi
estado
Indicador LED GPS Indicador de estado GPS
Conecte al PC para explorar y transferir archivos.
Ubicación de la tarjeta Micro SD.  Capture una vista en gran angular.
Salida del sonido.
Instale el soporte de parabrisas. Puede soltar la toma de la parte superior de la DashCam Wi-Fi para montar la
DashCam Wi-Fi en los otros accesorios de montaje opcionales.
Fi
Indicación de estado Wi-Fi
Indicador de estado operativo.
Capturar una foto durante la grabación Activar manualmente una grabación video de protección de
sucesos.
ES-5
4. Instalación del soporte para parabrisas y la DashCam Wi-Fi en un vehículo
1. Limpie la zona del parabrisas.
2. Retire la película protectora del adhesivo 3M y pegue el soporte para parabrisas al parabrisas anterior
en el interior del coche.
3. Deslice la toma de la parte superior de la DashCam Wi-Fi en el soporte para parabrisas hasta que
encaje.
ES-6
4. La lente de la DashCam Wi-Fi debe estar en el centro del parabrisas anterior, sin obstruir la visibilidad
del conductor.
5. Ajuste la rosca del soporte para parabrisas para obtener una dirección y orientación adecuadas.
ES-7
6. Conecte la DashCam Wi-Fi a la toma de alimentación CC con el cable de entrada CC a USB incluido y
el Dual USB CLA. Asegure el cable con la fijación para cable para evitar interferir en los movimientos del conductor.
ES-8
7. Presione el lateral del soporte para parabrisas para liberar y deslizar la DashCam Wi-Fi para sacarla del
soporte.
ES-9
5. Indicación LED
LED de estado “ROJO” encendido DashCam Wi-Fi en grabación en bucle normal.
LED de estado “ROJO” parpadeando continuamente
LED de estado “PÚRPURA” encendido
Cuenta atrás para apagado por extracción de la alimentación. DashCam Wi-Fi en grabación de protección de sucesos.
ES-10
Loading...
