International Cadet 80 Operating instruction

Owner
Your new I nternational@ Cade~ 80 Lawn Tractor is designed to meet today's exacting operating requirements. It is built for efficient, economical performance,
ease of operation, and with the ability to adjust to various conditions. These features lighten your work and shorten your hours on the job.
You are urged to consult your I nternational Harvester dealer concerning unusual conditions or special applications. Let the experience of your dealer and the organization associated with him serve you.
Be sure to read the instructions for Adjusting and Operating in this manual. Check each item referred to and acquaint yourself with the adjustments required to obtain efficient operation and maximum trouble-free service. Remember, a lawn tractor
which is properly lubricated and adjusted saves time and labor.
After the cutting season, thoroughly clean your lawn tractor and inspect it. Preventative maintenance pays dividends. Your dealer has original-equipment parts which assure proper fit and best performance. He is able to recondition your
equipment to a like new condition.
When in need of parts, always specify the chassis and engine serial numbers,
including any prefix or suffix letters. Write these serial numbers in the spaces
provided. See page 2.
Additional copies of this manual may be ordered from your I nternational Harvester
dealer at a nominal price.
DELIVERY DATE:
efficient operation of the tractor.
Assembled in this manual are operating, main­tenance and lubrication instructions for the Inter-
national@ Cade~ 80 Lawn Tractor. This material has been prepared in detail in the hope that it will help you to better understand the correct care and
LEFT and RIGHT indicate the left and right sides
of the lawn tractor when facing forward in the driver's seat.
2
This
symbol is used to call your attention to
instructions concerning your personal safety. Besure
to observe and follow these instructions.
Know the controls and how to stop quickly.
READ THE OPERATOR'S MANUAL.
No one should operate this machine while under the influence of intoxicants or drugs that impair the senses or reactions.
To avoid injury or a possible accident, whenever the operator dismounts from lawn tractor or leaves the machine unattended, disengage the mower,
shut off the engine, and remove the ignition key.
Do not allow anyone in the area parellel to the discharge opening while moving. Although the area has been supposedly cleared of foreign objects, small objects may have been overlooked and may be discharged by the mower causing serious injury.
Handle gasoline with care, as it is highly flam­mable, A. Use approved gasoline container. B. Never remove the fuel tank cap or fill tank when
the engine is running, is hot, or indoors. Also, do
not smoke when working around flammable fuel.
Wipe up spilled gasoline. C. Replace fuel tank cap
securely.
Watch out for traffic when crossing or near roadways.
When making any adjustments to your lawn tractor, always disconnect the high tension wire to the spark plug, otherwise the engine may start causing serious injury.Never place hands or feet under the mower, in the
discharge chute, or near any moving parts while the
mower is running. Do not work on the mower with
the engine running, as mower could accidentally be
engaged and cause injury.
Be sure the mower clutch control is "DIS-
ENGAGED" and the transmission is in neutral
before starting the engine.
Never leave the engine running unattended or
perm it the lawn tractor to be operated by persons not acquainted with its use and the rules for safeoperation.
It is recommended that the machine be stopped
and inspected for damage after striking a foreign
object and that any damage be repaired before
restarting and operating the machine, as broken
pieces could be thrown causing injury.
Be sure all stones, branches, or other objects that
might be picked up and thrown by the mower
blades are removed before starting to mow.
Until you become familiar with the lawn tractor
it is recommended that qu ick starts, stops, and
rapid engagement of the mower be avoided.
Never look into the discharge opening while the
blades are in motion as a serious accident and/or
injury could result.
Keep the machine in good operating conditon and keep safety devices in place. Use guards or shields
as instructed to avoid injury.
Stay alert for holes in terrain and other hidden
hazards which could cause loss of control or upset.
The
discharge shield on the mower must beattached
at all times while operating the mower.
Children should not be allowed to operate the lawn
tractor unless properly supervised, and are physi­cally and mentally capable of safe operation or
injury may occur.
Avoid sudden stops or starts, especially on steep
slopes to avoid injury.
Do not carry passengers or give rides as serious
injury may result.
Disengage
power to the mower when transportingor
not in use.
Before backing the lawn tractor always look forobstacles
or bystanders in the area where the lawntractor
will move.
3
6 -Ignition switch 7 -Speed control lever 8 -Speed control stop 9 -Lift handle release button
1 -Steering wheel 2 -Mower clutch lever 3 -Clutch brake pedal
4 -Clutch brake pedal lock
5 -Choke and throttle control
4
1-Fuel tank filler cap 2-Fuelline shut-off
3-Air cleaner
4-0il gauge and filler tube
5-Alternator
6-0il drain plug
NOTE: The tractor hood is arranged to swing up and forward in order to make the engine, fuel tank, air cleaner, etc. readily accessible.
5
INSTRUMENTS AND CDNTRDLS
1-High tension wire
2-Spark plug 3-Muffler
4-Carburetor
5-Fuel line 6-Air cleaner
BEFORE OPERATING THE ENGINE
Lubrication
See Lubrication I nstructions, Pages 18 to 22.
Fuel System
This engine is designed to operate on leaded gasoline with a 93 minimum octane rating or on unleaded gasoline with a 91 minimum octane
rating (Research Method).
Crankcase
Check oil level. See page 5.
6
STARTING THE ENGINE
turn the key off and wait a few minutes, then tryagain.
NOTE: The lawn tractor is equipped with a safety
starting system that requires the mower clutch
control lever to be in the disengaged position and the clutch-brake pedal depressed all the way before the starter will turn the engine.
After the engine starts, slowly move the choke and
throttle control lever to the "F AST" position. Clutch-Brake Pedal
The following steps should be taken to start the engine.
The combination clutch-brake pedal is used to disengage the engine from the hydrostatic drive
and to actuate the brake to stop the tractor.
1. Be sure the speed control lever is in NEUTRAL.
Speed control lever will not return to neutral when the clutch-brake pedal is depressed.
To disengage the clutch, and apply the brake, press the pedal all the way down.
2. The clutch-brake pedal must be depressed all the way down and the mower clutch lever must be in
the disengaged position to actuate the safety starting switch.
STOPPING THE ENGINE Set the speed control lever in "NEUTRAL" and set
the mower clutch lever in the "OFF" positon to disengage the mower. Allow the engine to idle a few minutes before turning the ignition key to the
'OFF" position.
3.
Move the choke and throttle control lever to the "Choke" position when the engine is cold. Little or no choking is required when the engine is warm.
CAUTION! Remember -A careful
operator is the best insurance against an
accident. Know the controls and how to
stop quickly. READ THE OPERATOR'SMANUAL.
4. Turn ignition key clockwise to the start position and release it as soon as the engine starts. Do not operate the starter more than 30 seconds at any one time. If engine does not start within this time,
NOTE: To obtain the best service from the lawn
tractor, for the first few hours of operation avoid
rapid engagement of the mower clutch and main
drive clutch.
4.
Set the lift handle at the desired cutting height.
5. To start the lawn tractor in motion, move the speed control lever forward to obtain the proper speed to control the machine, and to obtain an even cut. As conditions vary, this can best be determined after you become familiar with the
tractor, type of grass, condition of the lawn,
climate, and individual preference, etc.
After starting the engine:
1. Depress the clutch-brake pedal and release the brake lock, then release the clutch.
NOTE: It is recommended that to start the tractor in motion and to change speed and direction, use ON L Y the speed control handle. The clutch brake
pedal can be used to stop the machine, but
machine operates more effectively by engaging the clutch with the speed control in neutral and then move the speed control handle to put the machine in motion.
2.
Set the throttle control on "FAST".
3. Engage the mower blades by moving the power take-off control lever SLOWLY forward to the "ON" position. To stop the mower pull the lever
back to the "a F F" position.
7
DRIVING THE LAWN TRACTOR
A CAUTION! To prevent an accident,
always disengage the mower, set the speed control lever in neutral position,
set the parking brake, stop the engine, and remove
the ignition key when leaving the machine un-
attended.
A CAUTION! Until you have the feel of
your lawn tractor, go slowly at first, avoid sharp turns at high speed, and on
steep slopes to avoid an upset or loss of control.
An adjustable speed control stop is provided to allow the operator to return to a predetermined
speed. The speed control lever can bypass the speed control stop by pushing the lever outward
and sliding it past the stop.
Always lock the parking brake when the tractor is parked on a grade. To lock the brake, press down
on the clutch-brake pedal and place the clutch­brake pedal in engaged position, as shown. To disengage the lock press down on the pedal, lift the
lock up and place it in the disengaged position.
The blade spindle bearings can be relubricated and are carefully enclosed and protected by seals.
LUBRICATION
After every 10 hours of operation lubricate the two spindles (one fitting in each spindle), using
chassis lubricant (pressure gun grease). Only one or two strokes of the applicator are required.
ADJUSTING THE SEAT
Before starting the tractor, adjust the seat to the
most comfortable driving position. To adjust the seat loosen the four bolts holding the seat on the springs and slide the seat forward or back to the
desired position.
If further forward adjustment is desired, remove the four bolts holding the springs to the tractor frame and reset the springs in the four additional
forward holes provided.
8
ADJUSTING AND OPERATING

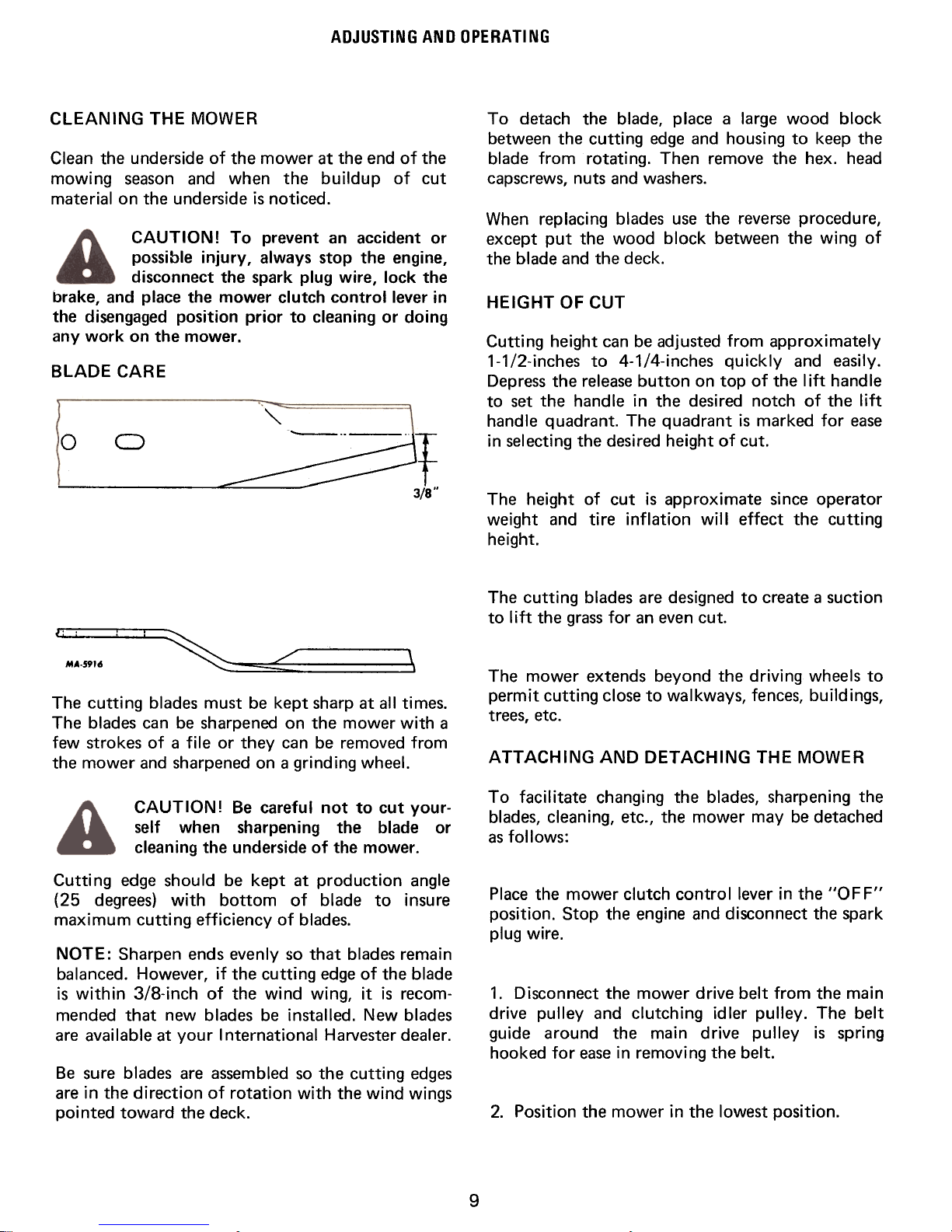

CLEANING THE MOWER To detach the blade, place a large wood block
between the cutting edge and housing to keep the
blade from rotating. Then remove the hex. head
capscrews, nuts and washers.
Clean the underside of the mower at the end of the mowing season and when the buildup of cut material on the underside is noticed.
When replacing blades use the reverse procedure, except put the wood block between the wing of the blade and the deck.
CAUTION! To prevent an accident or
possible injury, always stop the engine,
disconnect the spark plug wire, lock the brake, and place the mower clutch control lever in the disengaged position prior to cleaning or doing
any work on the mower.
HEIGHT OF CUT
Cutting height can be adjusted from approximately
1-1/2-inches to 4-1/4-inches quickly and easily. Depress the release button on top of the lift handle to set the handle in the desired notch of the lift handle quadrant. The quadrant is marked for ease in selecting the desired height of cut.
BLADE CARE
'"
~ (:::) ~
C)~--~? j 3/8 .
a
The height of cut is approximate since operator
weight and tire inflation will effect the cutting height.
The cutting blades are designed to create a suction
to lift the grass for an even cut.
l~::~]==r=::::~~~~:-=~========= ::\,
The mower extends beyond the driving wheels to
permit cutting close to walkways, fences, buildings,
trees, etc.
The cutting blades must be kept sharp at all times. The blades can be sharpened on the mower with a
few strokes of a file or they can be removed from
the mower and sharpened on a grinding wheel.
ATTACHING AND DETACHING THE MOWER
To facilitate changing the blades, sharpening the
blades, cleaning, etc-, the mower may be detached
as follows:
CAUTION! Be careful not to cut your-
self when sharpening the blade or cleaning the underside of the mower.
Cutting edge should be kept at production angle
(25 degrees) with bottom of blade to insure
maximum cutting efficiency of blades.
Place the mower clutch control lever in the "OF F" position. Stop the engine and disconnect the spark plug wire.
NOTE: Sharpen ends evenly so that blades remain balanced. However, if the cutting edge of the blade
is within 3/8-inch of the wind wing, it is recom-
mended that new blades be installed. New blades
are available at your International Harvester dealer.
1. Disconnect the mower drive belt from the main drive pulley and clutching idler pulley. The belt guide around the main drive pulley is spring
hooked for ease in removing the belt.
Be sure blades are assembled so the cutting edges
are in the direction of rotation with the wind wings
poi nted toward the deck.
2. Position the mower in the lowest position.
9
ADJUSTING AND OPERATING
ATTACHING AND DETACHING THE MOWER
-Continued
5. Raise the mower by hand, first on one side and then the other, to disconnect the mower lift links from the lift arms.
~A'$;~..f.1.
1-Front mower hanger bracket
2-Front mower leveling link
3-Klik pin
1-Front foot rest support bracket
2-Main drive pulley and belt guide
3-Mower drive belt idler
1-Mower linkage rod and clevis 2-Lift links
3-Lubrication fittings 4-Belt guides
1-Lift handle 2-Lift arm 3-Lift link (one on each side)
3. Disconnect the mower linkage rod from the front foot rest support bracket by removing the
quick attachable pin and rod pin through theclevis.
To
attach the mower to the lawn tractor, reverse
the above procedure.
4.
Detach the front mower leveling link from the front hanger bracket and the front of the mower by removing the pins which are held by klik pins.
10
ADJUSTING AND OPERATING
LEVELING THE MOWER
NOTE: Substitute belts may not be satisfactory. Use only specified replacements. See your Interna­tional Harvester dealer.
A properly leveled mower is one where the blades
are cutting parallel to the ground. Should level
adjustment be necessary due to tire variation orwear,
proceed as follows:
Refer to the instructions for attaching and detach-
ing the mower.
CAUTION! To avoid possible injury,
stop the engine, disconnect the high tension wire to the spark plug, and lock
the brake prior to leveling the mower.
Both belt guides must be removed from the mowerhousing
in order to replace the belt.
Leveling the Mower From Front to Rear
After replacing the belt and two belt guides, check and make sure the belt guides do not rub against the mower pulleys.
Drive the lawn tractor onto a hard flat surface.
the ignition off and disconnect the high
tension wire to the spark plug. Lock the tractorbrake.
NOTE: When installing a new belt, make certain
that the belt runs correctly between the pulleysand
the belt guides.
Measure the distance from the ground to the blades
(blades parallel to centerline of tractor) front and rear in typical cutting height. Adjust the clevis onthe
end of the mower linkage rod either up ordown,
depending on which measures high.
CRANKSHAFT MAIN DRIVE AND HYDRO-
STATIC FINAL DRIVE BELTS The drive belts are set at the factory and require no
adjustment. When the belts have worn or stretched to a point where slippage occurs in forward or reverse, new belts should be installed.
Leveling the Mower From Side to Side
left lift link is adjustable should the mower
require side to side adjustment. Turn the adjusting
bolt up or down depending on which side measures
too high.
Set the mower clutch lever in the "OFF" position,
set the speed control lever in "NEUTRAL", and
lock the parking brake.
MOWER DRIVE V-BELT
Disconnect high tension wire to the spark plug.
A CAUTION! To avoid an accident or
possible injury, always stop the engine,
disconnect the high tension wire to the spark plug, and lock the brake before doing any work on the machine.
Detach the mower. Refer to Attaching and De-
taching instructions.
Disconnect the spring loaded mower drive belt idler from the mower clutch arm in order to reach the crankshaft drive belt idler and also in order to remove the hydrostatic final drive belt.
The mower drive belt requires no adjusting, as proper belt tension is maintained by the spring
loaded mower drive belt idler.
To disconnect the spring, pull the mower drive idler to the right of the tractor and insert a coin (a Quarter is recommended) between two coils of the
spring. See page 13.
When the belt has worn or stretched to a point where slippage occurs, a new belt should be installed.
ADJUSTING AND OPERATING
After removing the hydrostatic belt, remove the crankshaft main drive belt.
CRANKSHAFT IVIAIN DRIVE AND HYDRO-
STATIC FINAL DRIVE BELTS -Continued
Push up on the hydrostatic final drive belt idler pulley in order to remove the hydrostatic belt. Belt must be removed from the intermediate pulley
first. It may also be necessary to turn the engine
crankshaft by hand in order to slip the belt over
the intermediate pulley.
When installing new belts reverse the above pro-
cedure.
4
Front
'O
F ' ','
/
i i
I I
I !
1
(9)
i i
I I
II I 'I
I I,
I
I I
(9'
,~
DLjp
1
~'.
@
-~~
--
\
\
Rear
MA.5921 B
4-Mover drive belt pulley idler
5-Belt guides
6-Belt guide
l-Mower blade spindles 2-Mower drive belt 3-Mower drive pulley
12

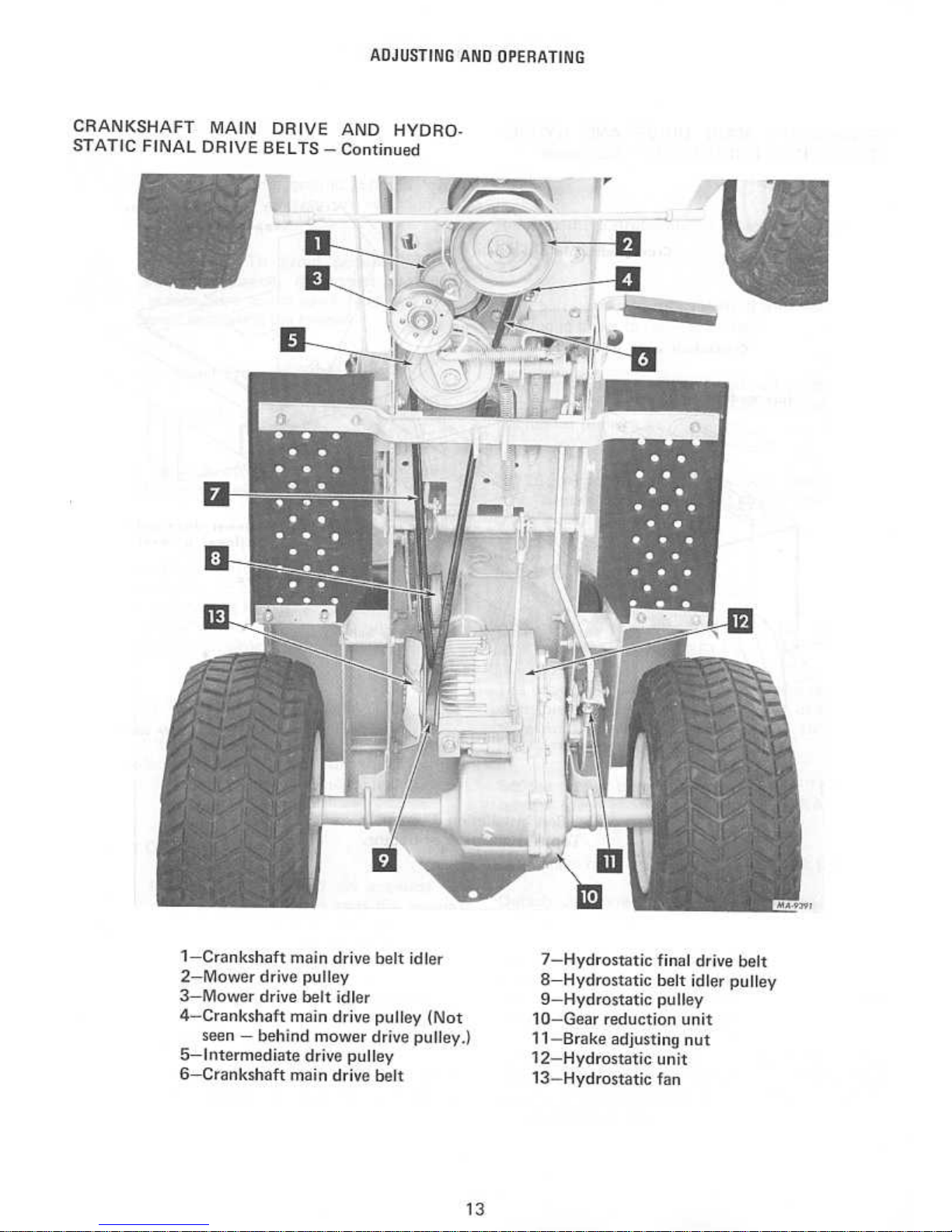

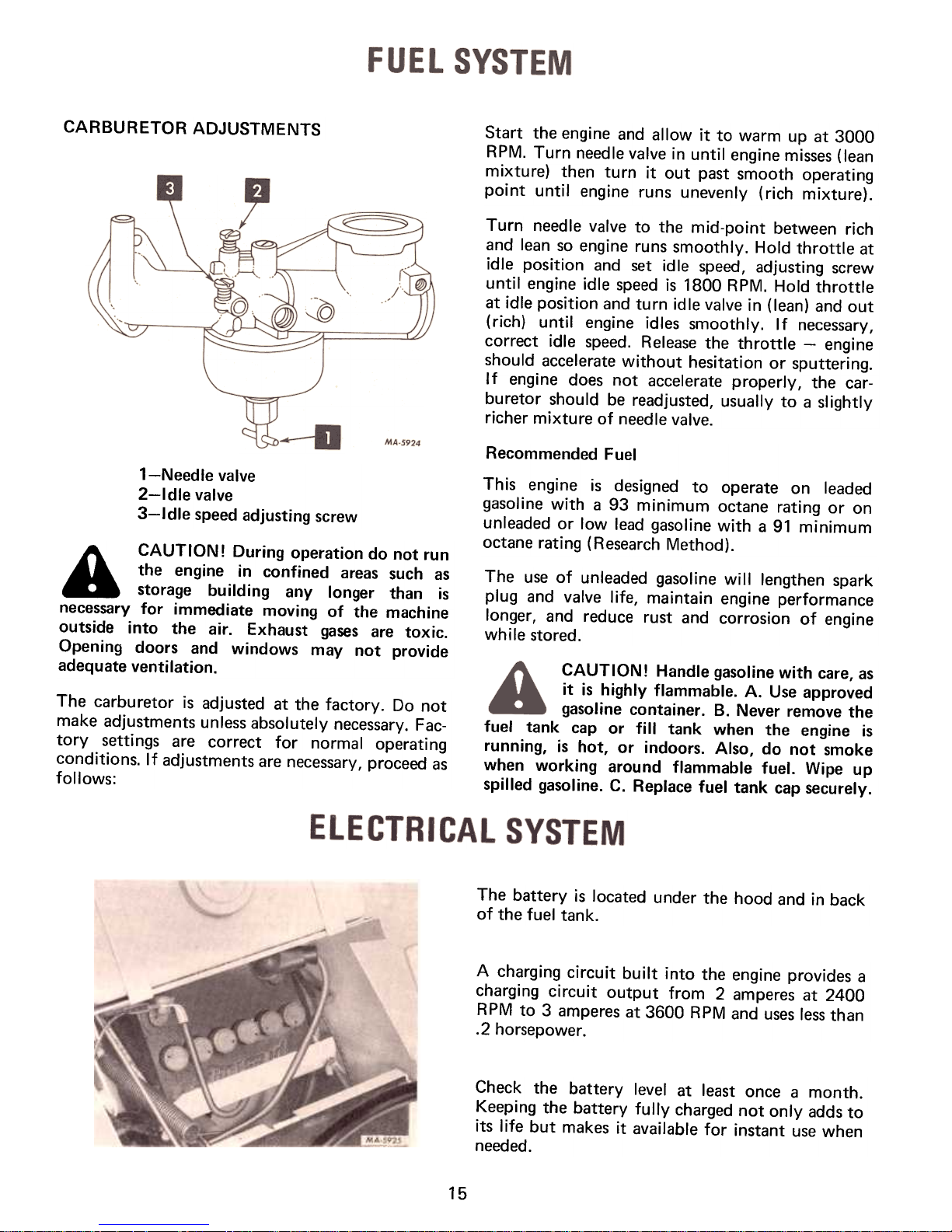

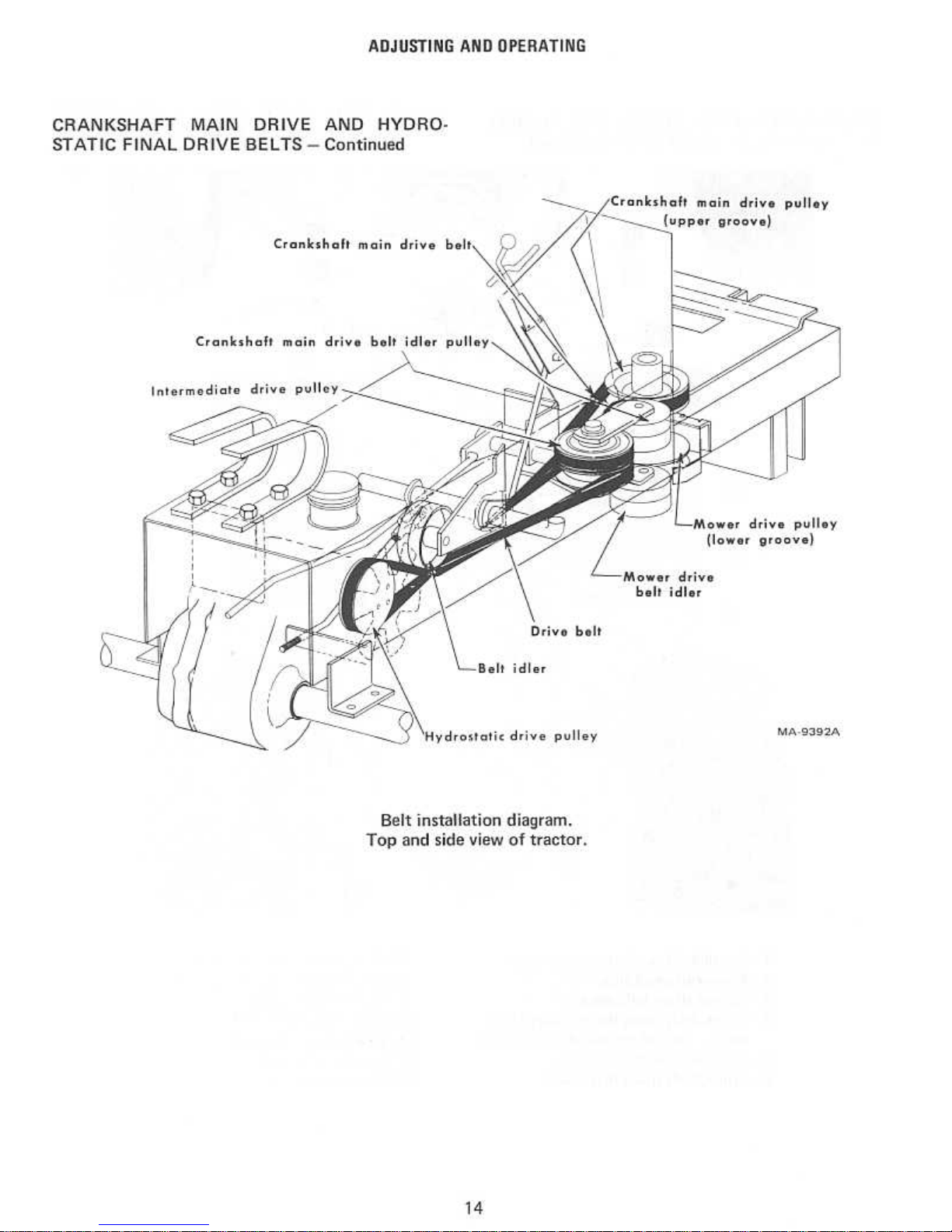

CARBURETOR ADJUSTMENTS
Start the engine and allow it to warm up at 3000 RPM. Turn needle valve in until engine misses (lean mixture) then turn it out past smooth operating point until engine runs unevenly (rich mixture).
Turn needle valve to the mid-point between rich and lean so engine runs smoothly. Hold throttle at idle position and set idle speed, adjusting screw until engine idle speed is 1800 RPM. Hold throttle at idle position and turn idle valve in (lean) and out (rich) until engine idles smoothly. If necessary, correct idle speed. Release the throttle -engine
should accelerate without hesitation or sputtering.
If engine does not accelerate properly, the car­buretor should be readjusted, usually to a slightly
richer mixture of needle valve. Recommended Fuel
This engine is designed to operate on leaded gasoline with a 93 minimum octane rating or on unleaded or low lead gasoline with a 91 minimum octane rating (Research Method).
1-Needle valve
2-ldle valve
3-ldle speed adjusting screw
A CAUTION! During operation do not run
the engine in confined areas such as
storage building any longer than is
necessary for immediate moving of the machine
outside into the air. Exhaust gases are toxic. Opening doors and windows may not provide
adequate ventilation.
The
use of unleaded gasoline will lengthen spark
plug and valve life, maintain engine performance
longer, and reduce rust and corrosion of enginewhile
stored.
CAUTION! Handle gasoline with care, as
it is highly flammable. A. Use approved
gasoline container. B. Never remove the
fuel tank cap or fill tank when the engine is running, is hot, or indoors. Also, do not smoke
when working around flammable fuel. Wipe up spilled gasoline. C. Replace fuel tank cap securely.
The carburetor is adjusted at the factory. Do not
make adjustments unless absolutely necessary. Fac-
tory settings are correct for normal operating conditions. I f adjustments are necessary, proceed as follows:
The
battery is located under the hood and in back
of the fuel tank.
A charging circuit built into the engine provides a
charging circuit output from 2 amperes at 2400
APM to 3 amperes at 3600 APM and uses less than .2 horsepower.
Check the battery level at least once a month. Keeping the battery fully charged not only adds to
its life but makes it available for instant use whenneeded.
15

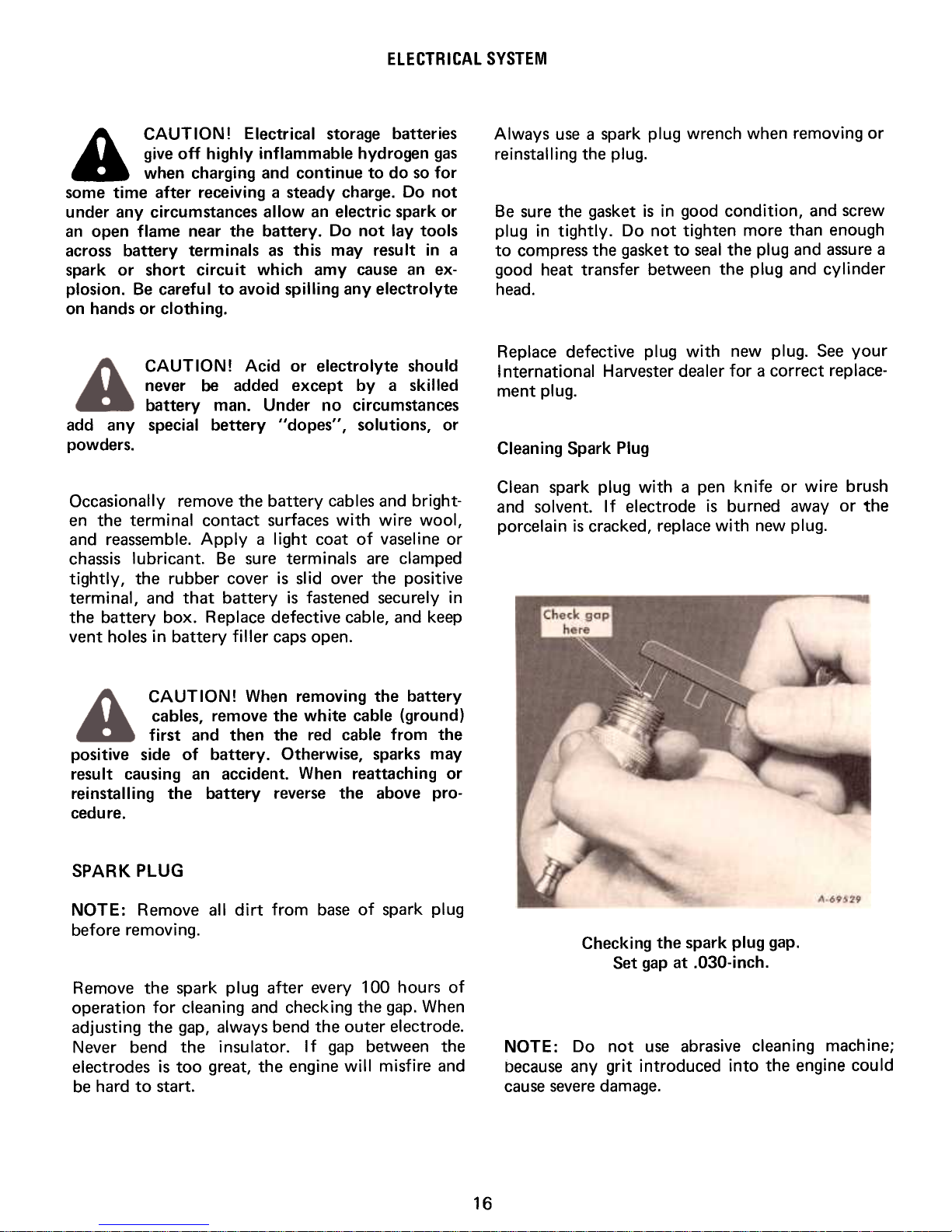

ELECTRICAL SYSTEM
A CAUTION! Electrical storage batteries
give off highly inflammable hydrogen gas
when charging and continue to do so for
some time after receiving a steady charge. Do not
under any circumstances allow an electric spark or an open flame near the battery. Do not lay tools
across battery terminals as this may result in a
spark or short circuit which amy cause an ex-
plosion. Be careful to avoid spilling any electrolyte
on hands or clothing.
Always
use a spark plug wrench when removing or
reinstalling the plug.
Be sure the gasket is in good condition, and screw plug in tightly. Do not tighten more than enough to compress the gasket to seal the plug and assure a good heat transfer between the plug and cylinder
head.
Replace defective plug with new plug. See your I nternational Harvester dealer for a correct replace­ment plug.
CAUTION! Acid or electrolyte should
never be added except by a skilled
battery man. Under no circumstances
add any special bettery "dopes", solutions, or
powders.
Cleaning
Spark Plug
Clean spark plug with a pen knife or wire brushand
solvent. If electrode is burned away or the
porcelain is cracked, replace with new plug.
Occasionally remove the battery cables and bright­en the terminal contact surfaces with wire wool, and reassemble. Apply a light coat of vaseline or chassis lubricant. Be sure terminals are clamped tightly, the rubber cover is sl id over the positive terminal, and that battery is fastened securely in
the battery box. Replace defective cable, and keep
vent holes in battery filler caps open.
CAUTION! Wh.
cables, remove
first and then
positive side of battery.
result causing an accidel reinstalling the battery cedure.
SPARK
PLUG
NOTE: Remove all dirt from base of spark plug
before removing.
Checking the spark plug gap.
Set gap at .O30-inch.
Remove the spark plug after every 100 hours of operation for cleaning and checking the gap. Whenadjusting
the gap, always bend the outer electrode.
Never bend the insulator. If gap between the
electrodes is too great, the engine will misfire and
be hard to start.
NOTE: Do not use abrasive cleaning machine; because any grit introduced into the engine could
cause severe damage.
16
~n removing the battery the white cable (ground) the red cable from the
Otherwise, sparks mayIt.
When reattaching or
reverse the above pro-
ENGINE COOLING
Wash the foam element in kerosene or liquid detergent and water to remove all dirt. Also clean the air cleaner body and cover.
This is an air cooled engine. Air must circulate
freely around the engine. Keep the cooling fins and housing area free of accumulated dirt and trash or
engine will overheat and result in damage to
moving parts.
Wrap the foam element in a cloth and squeeze dry. Then, saturate the element in engine oil (SAE-30). Squeeze the element to remove excess oil and reassemble and fasten to carburetor with screw.
OIL FOAM AIR CLEANER
NOTE: Replace air cleaner gaskets and mounting gaskets that are worn or damaged, to prevent dirt or dust entering engine through improper sealing.
Clean and re-oil the air cleaner element every 25 hours under normal operating conditions. Under extremely dusty conditions, clean the element every few hours.
ADJUSTING THE BRAKES
When the brakes require adjustment, proceed as follows:
To clean the element, proceed as follows:
Remove the cover screws, lift the air cleaner cover and carefully remove the element to prevent dirt from entering the carburetor.
Turn the brake adjusting nut one to two turnsclockwise.
Start the tractor and check the brake
engagement. Adjust further if necessary.
At the end of the mowing season or in the event the lawn tractor is to be stored for any length of time (30 days or more) proceed as follows:
A CAUTION! During operation do not run
the engine in confined areas such as
storage building any longer than is
necessary for immediate moving of the machine outside into the air. Exhuast gases are toxic. Opening doors and windows may not provide adequate ventilation.
Drain the fuel tank and run the engine until the
fuel is exhausted from the fuel system.
CAUTION!
Drain the fuel tank outside and
into a clean container.
CAUTION! Handle gasoline with care, it
is highly flammable. A. Use approved
gasoline container. B. Never remove the fuel tank cap or fill tank when engine is running, is hot, or indoors. Also, do not smoke when working
around flammable fuel. Wipe up spilled gasoline. C.
Replace fuel tank cap securely.
Remove spark plug and pour one ounce of I.H. No. 1@ Engine Oil through spark plug hole into thecylinder.
Crank engine several times to distribute
oil over cylinder walls. Replace the spark plug.

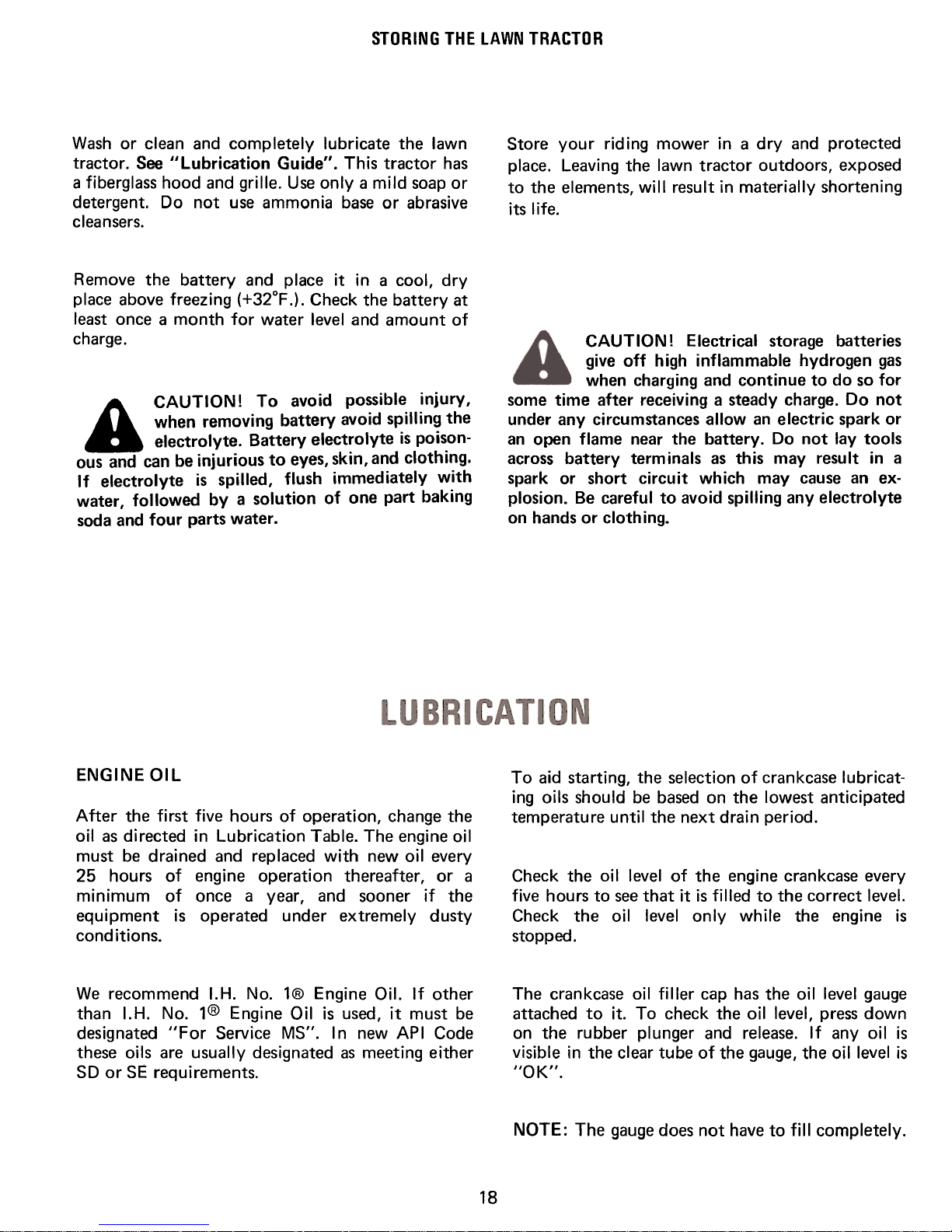

STORING THE LAWN TRACTOR
Wash or clean and completely lubricate the lawn tractor. See "lubrication Guide". This tractor has a fiberglass hood and grille. Use only a mild soap or detergent. Do not use ammonia base or abrasive cleansers.
Store
your riding mower in a dry and protected place. Leaving the lawn tractor outdoors, exposed to the elements, will result in materially shortening
its life.
Remove the battery and place it in a cool, dry place above freezing (+32°F.). Check the battery at
least once a month for water level and amount ofcharge.
CAUTION! Electrical storage batteries
give off high inflammable hydrogen gas when charging and continue to do so forsome
time after receiving a steady charge. Do not
under any circumstances allow an electric spark or
an open flame near the battery. Do not lay toolsacross
battery terminals as this may result in a
spark or short circuit which may cause an ex-
plosion. Be careful to avoid spilling any electrolyte
on hands or clothing.
A CAUTION! To avoid possible injury,
when removing battery avoid spilling the
electrolyte. Battery electrolyte is poison-
ous and can be injurious to eyes, skin, and clothing.
If electrolyte is spilled, flush immediately with
water, followed by a solution of one part baking
soda and four parts water.
ENGINEOIL
To aid starting, the selection of crankcase lubricat-
ing oils should be based on the lowest anticipated temperature until the next drain period.
After the first five hours of operation, change the oil as directed in Lubrication Table. The engine oil
must be drained and replaced with new oil every 25 hours of engine operation thereafter, or a minimum of once a year, and sooner if the
equipment is operated under extremely dusty conditions.
Check
the oil level of the engine crankcase everyfive
hours to see that it is filled to the correct level.
Check the oil level only while the engine isstopped.
We recommend I.H. No. 1@ Engine Oil. If other than I.H. No. 1@ Engine Oil is used, it must be designated "For Service MS", In new API Code these oils are usually designated as meeting either SO or SE requirements.
The
crankcase oil filler cap has the oil level gauge
attached to it. To check the oil level, press down
on the rubber plunger and release. If any oil is
visible in the clear tube of the gauge, the oil level is
"OK".
NOTE: The gauge does not have to fill completely.
18

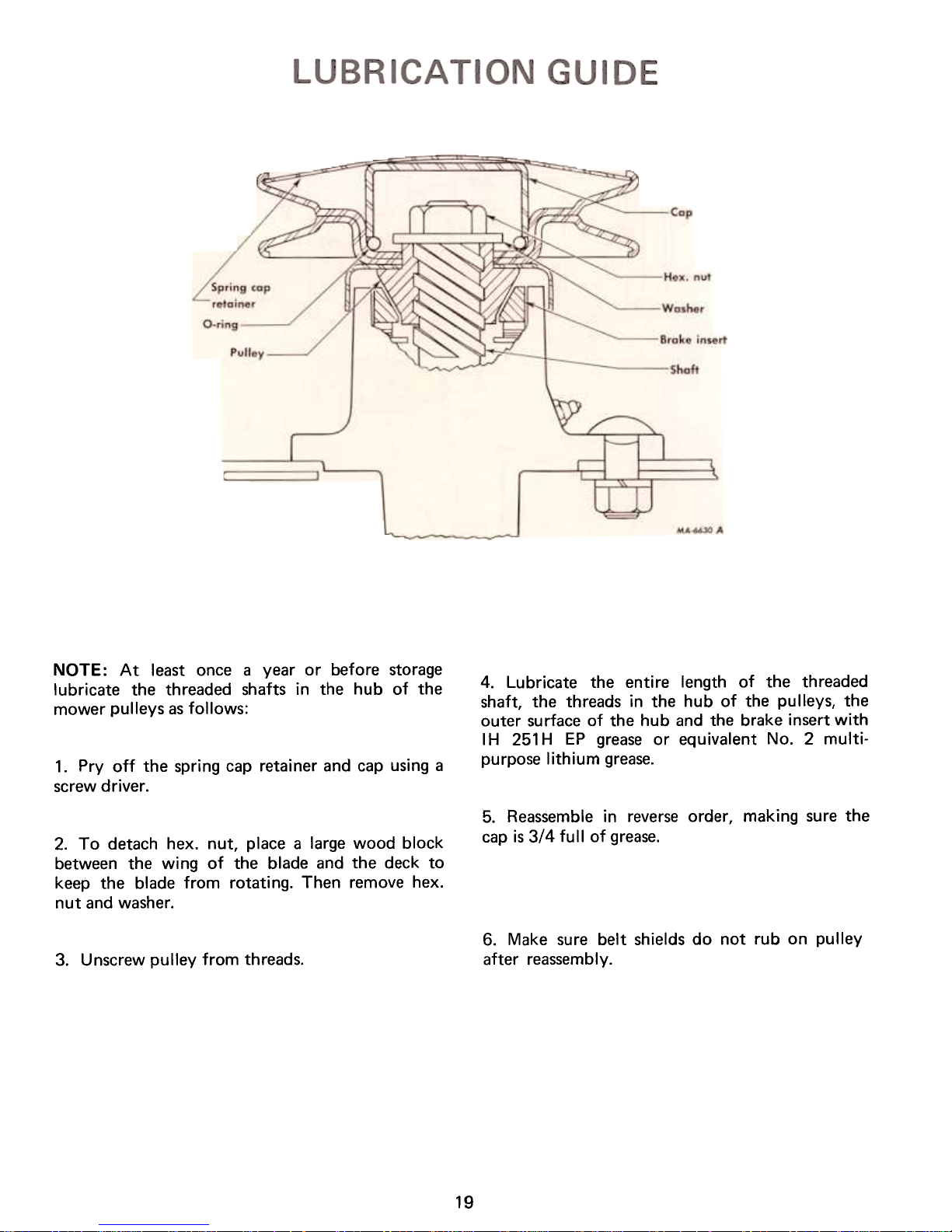

NOTE: At least once a year or before storage
lubricate the threaded shafts in the hub of the mower pulleys as follows:
4. Lubricate the entire length of the threaded shaft, the threads in the hub of the pulleys, the
outer surface of the hub and the brake insert with I H 251 H EP grease or equivalent No.2 multi-
purpose lithium grease.
1. Pry off the spring cap retainer and cap using a screw driver.
5. Reassemble in reverse order, making sure the cap is 3/4 full of grease.
2. To detach hex. nut, place a large wood block between the wing of the blade and the deck to keep the blade from rotating. Then remove hex. nut and washer.
6. Make sure belt shields do not rub on pulley after reassembly.
3. Unscrew pulley from threads.
19
Before Each Use and Every 5 Hours Thereafter
1. Oil filler cap and oil minder Check the oil (with the engine stopped) and add sufficient new oil
to bring the oil level up to where it is visible in the clear tube of the gauge. Note: As long as oil is visible in the clear tube of the
gauge, the level is "OK",
After Every 10 Hours of Operation
Lubricate with IH 251H EP grease or equivalent No.2 multi­purpose lithium grease and apply three strokes of the lubricator or
sufficient grease to flush out old grease and dirt.
2.
Steering knuckles (2)3.
Front axle pivot pin4. Front wheels
5. Mower spindle bearings (2)
After Every 25 Hours or Twice a Season Whichever Comes First
6.
Air cleaner
When operating under extremely dusty conditions, check and
service the element if necessary. Otherwise, after every 25 hours or twice a season wash the element in soap and water. Then, wrap the foam element in a cloth and squeeze dry. Saturate the element in engine oil (SAE-30). Squeeze the element to remove the excess oil and reassemble and fasten to the carburetor. Note: Replace air cleaner gaskets and mounting gaskets that are worn or damaged, to prevent dirt or dust entering engine through improper sealing.
7.
Engine crankcase drain plug
While
the engine is warm remove the drain plug and drain all the
oil from the crankcase. After draining, replace the drain plug.
Remove the oil filler cap and refill the crankcase. Refer to the "lubrication Table".
21
LUBRICATION GUIDE
Once a Year or After Every 100 Hours of Operation
8. Gear reduction drive
Check the oil level and add I H Hy- Tran@ Fluid if necessary.
Oil level should be no more than 5-inches from the bottom of theplug.
9. Hydrostatic drive
Check the oil level and add I H Hy- Tran Flu id if necessary. NOTE: When cold 2-inches from top, when hot 3/4-inches from
top.
NOTE: If fluid is used which does not meet requirements of I H
8-6 Specification, International Harvester Company will not be
responsible for substandard performance of the transaxle. Failures
due to use of improper fluid are not covered by warranty. FOR
MAXIMUM PROTECTION USE IH HY-TRAN@ FLUID'
10. Steering wheel bushings (2)
Apply two or three drops of light oil and rotate the steering wheel to distribute the oil.
Mower pulleys (2)
(threaded shafts)
(See page 19)
Lubricate the entire length of the threaded shafts in the hub of the pulleys, the outer surface of the hub and the brake insert with I H
251 H EP grease or equivalent No.2 multi-purpose lithium grease.
22
Before each
use.
10 hours or
once a month
25 hours or
twice a season
Before
Storage
Operation to be performed.
Check engine oil, pages 6 and 18.
x x
x
Grease mower spindle bearings,
page 8.
x
Service air cleaner,
pages 16 and 17.
x
Check belt guides and belt
tension, pages 11 and 12.
x
Check spark plug, page 16.
x
x
Service battery,
pages 15 and 16.
After fi rst
5 hours
Change oil, page 18.
x
Clean mower, page 9.
x
x
Sharpen mower blades, page 9.
x
Drain fuel tank, page 17.
x
Hydrostatic fan, page 25.
x
23

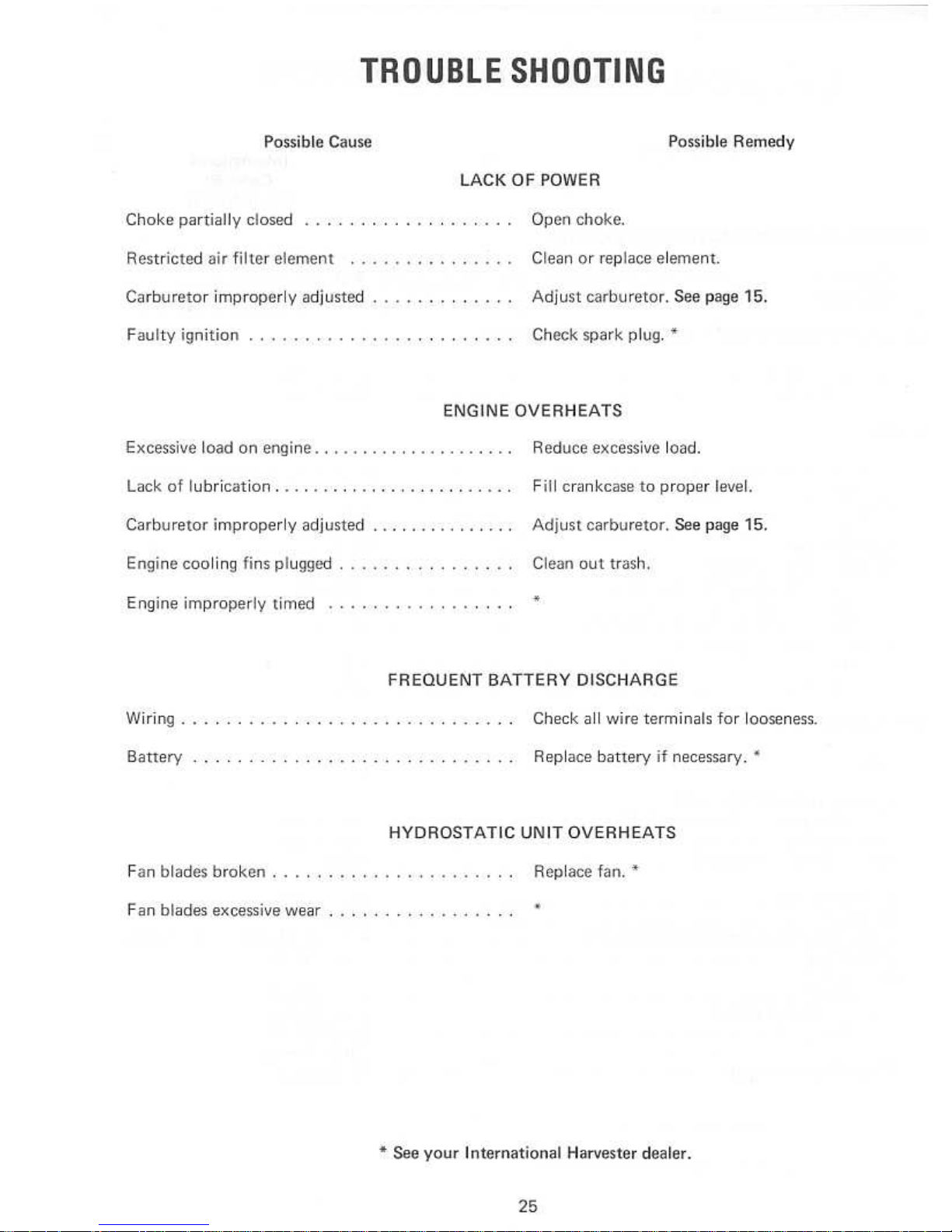

Loading...
