Intel MFS2600KI User Manual

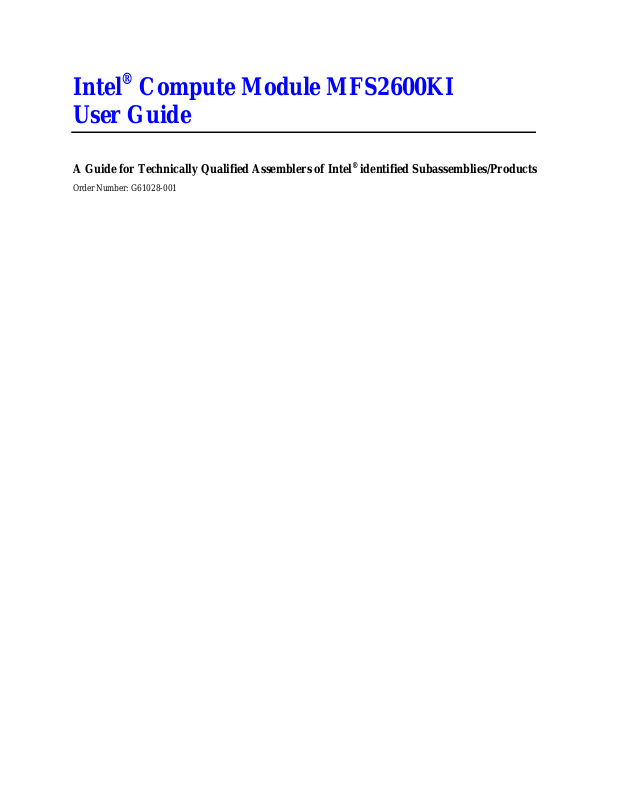

Intel® Compute Module MFS2600KI
User Guide
A Guide for Technically Qualified Assemblers of Intel® identified Subassemblies/Products
Order Number: G61028-001
Disclaimer
Disclaimer
Information in this document is provided in connection with Intel® products. No license, express or implied, by estoppel
or otherwise, to any intellectual property rights is granted by this document. Except as provided in Intel’s Terms and
Conditions of Sale for such products, Intel® assumes no liability whatsoever, and Intel® disclaims any express or implied
warranty, relating to sale and/or use of Intel® products including liability or warranties relating to fitness for a particular
purpose, merchantability, or infringement of any patent, copyright or other intellectual property right. Intel® products are
not designed, intended or authorized for use in any medical, life saving, or life sustaining applications or for any other
application in which the failure of the Intel® product could create a situation where personal injury or death may occur.
Intel® may make changes to specifications and product descriptions at any time, without notice.
Intel® server boards contain a number of high-density VLSI and power delivery components that need adequate airflow
for cooling. Intel’s own chassis are designed and tested to meet the intended thermal requirements of these components
when the fully integrated system is used together. It is the responsibility of the system integrator that chooses not to use
Intel® developed server building blocks to consult vendor datasheets and operating parameters to determine the amount of
airflow required for their specific application and environmental conditions. Intel Corporation cannot be held responsible
if components fail or the server board does not operate correctly when used outside any of their published operating or
non-operating limits.
Intel, Intel Pentium, and Intel Xeon are trademarks or registered trademarks of Intel Corporation or its subsidiaries in the
United States and other countries.
* Other names and brands may be claimed as the property of others.
Copyright © 2012 Intel Corporation. All Rights Reserved.
ii Intel® Compute Module MFS2600KI User Guide
Safety Information
Safety Information
Important Safety Instructions
Read all caution and safety statements in this document before performing any of the instructions.
See also Intel® Server Boards and Server Chassis Safety Information on the Intel® Server
Deployment Toolkit 3.0 CD and/or at
http://www.intel.com/support/motherboards/server/sb/cs-010770.htm.
Wichtige Sicherheitshinweise
Lesen Sie zunächst sämtliche Warnund Sicherheitshinweise in diesem Dokument, bevor Sie eine
der Anweisungen ausführen. Beachten Sie hierzu auch die Sicherheitshinweise zu Intel®Serverplatinen und Servergehäusen auf der Intel® Server Deployment Toolkit 3.0 CD oder unter
http://www.intel.com/support/motherboards/server/sb/cs-010770.htm.
Consignes de sécurité
Lisez attention toutes les consignes de sécurité et les mises en garde indiquées dans ce document
avant de suivre toute instruction. Consultez Intel® Server Boards and Server Chassis Safety
Information sur le Intel® Server Deployment Toolkit 3.0 CD ou bien rendez-vous sur le site
http://www.intel.com/support/motherboards/server/sb/cs-010770.htm.
Instrucciones de seguridad importantes
Lea todas las declaraciones de seguridad y precaución de este documento antes de realizar
cualquiera de las instrucciones. Vea Intel® Server Boards and Server Chassis Safety Information en
el Intel® Server Deployment Toolkit 3.0 CD y/o en
http://www.intel.com/support/motherboards/server/sb/cs-010770.htm.
重要安全指导
在执行任何指令之前，请阅读本文档中的所有注意事项及安全声明。和/或
http://www.intel.com/support/motherboards/server/sb/cs-010770.htm 上的 Intel® Server Boards
and Server Chassis Safety Information（《Intel® 服务器主板与服务器机箱安全信息》）。
Intel® Compute Module MFS2600KI User Guide iii
Warnings
Warnings
Heed safety instructions: Before working with your server product, whether
you are using this guide or any other resource as a reference, pay close
attention to the safety instructions. You must adhere to the assembly
instructions in this guide to ensure and maintain compliance with existing
product certifications and approvals. Use only the described, regulated
components specified in this guide. Use of other products/components will
void the UL listing and other regulatory approvals of the product and will
most likely result in noncompliance with product regulations in the region(s)
in which the product is sold.
System power on/off: The power button DOES NOT turn off the system AC
power. To remove power from the system, you must unplug the AC power
cord from the wall outlet. Make sure the AC power cord is unplugged before
you open the chassis, add, or remove any components.
Hazardous conditions, devices and cables: Hazardous electrical conditions
may be present on power, telephone, and communication cables. Turn off the
server and disconnect the power cord, telecommunications systems, networks,
and modems attached to the server before opening it. Otherwise, personal
injury or equipment damage can result.
Electrostatic discharge (ESD) and ESD protection: ESD can damage disk
drives, boards, and other parts. We recommend that you perform all
procedures in this chapter only at an ESD workstation. If one is not available,
provide some ESD protection by wearing an antistatic wrist strap attached to
chassis groundany unpainted metal surfaceon your server when
handling parts.
ESD and handling boards: Always handle boards carefully. They can be
extremely sensitive to ESD. Hold boards only by their edges. After removing
a board from its protective wrapper or from the server, place the board
component side up on a grounded, static free surface. Use a conductive foam
pad if available but not the board wrapper. Do not slide board over any
surface.
Installing or removing jumpers: A jumper is a small plastic encased
conductor that slips over two jumper pins. Some jumpers have a small tab on
top that you can grip with your fingertips or with a pair of fine needle nosed
pliers. If your jumpers do not have such a tab, take care when using needle
nosed pliers to remove or install a jumper; grip the narrow sides of the
jumper with the pliers, never the wide sides. Gripping the wide sides can
damage the contacts inside the jumper, causing intermittent problems with
the function controlled by that jumper. Take care to grip with, but not
squeeze, the pliers or other tool you use to remove a jumper, or you may
bend or break the pins on the board.
iv Intel® Compute Module MFS2600KI User Guide
Preface
Preface
About this Manual
Thank you for purchasing and using the Intel® Compute Module MFS2600KI.
This manual is written for system technicians who are responsible for troubleshooting, upgrading,
and repairing this compute module. This document provides a brief overview of the features of the
compute module, a list of accessories or other components you may need, troubleshooting
information, and instructions on how to add and replace components on the Intel® Compute Module
MFS2600KI. For the latest revision of this manual, go to http://www.intel.com/support.
Manual Organization
Chapter 1 provides a brief overview of the Intel® Compute Module MFS2600KI. In this chapter,
you will find a list of the server system features, and figures of the system and components to help
you identify your system components and their locations.
Chapter 2 provides instructions on adding and replacing components. Use this chapter for step-bystep instructions and diagrams for installing or replacing components such as the processors,
memory DIMMs, and other components.
Chapter 3 provides information regarding the BIOS Setup Utility and how to update the compute
module BIOS. This section includes information on how to access and use the BIOS Setup Utility
as well as update the compute module firmware using the Intel® Modular Server Control UI and the
latest Intel® Modular Server System MFSYS25V2 Unified Firmware Update (UFU).
Chapter 4 provides information to assist you in troubleshooting the Intel® Compute Module
MFS2600KI. This section also includes information on hardware diagnostics.
The back of this manual provides technical specifications, regulatory information, LED Decoder,
“Getting Help” information, and Intel® Server Issue Report Form.
Additional Information and Software
For additional information about this family of products or any of their supported accessories, refer
to the resource available at http://www.intel.com/support.
Intel® Compute Module MFS2600KI User Guide v
Table of Contents
Table of Contents
Safety Information ............................................................................................................ iii
Preface ................................................................................................................................ v
1 Compute Module Features .......................................................................................... 1
Server System Feature Overview ................................................................................... 1
Connector and Component Locations ............................................................................ 2
Configuration Jumpers ................................................................................................... 3
Front Panel Connectors and Indicators .......................................................................... 4
Hardware Requirements ................................................................................................. 6
Processor ................................................................................................................ 6
Memory 6
Additional Information and Software ............................................................................ 6
2 Hardware Installations and Upgrades ....................................................................... 7
Before You Begin .......................................................................................................... 7
Tools and Supplies Needed ................................................................................... 7
Installation Guidelines ........................................................................................... 7
Removing and Installing an Intel® Compute Module MFS2600KI .............................. 7
Removing a Compute Module from the Chassis ................................................... 7
Installing a Compute Module into the Chassis ...................................................... 8
Removing or Installing the Top Cover .......................................................................... 8
Removing the Top Cover....................................................................................... 8
Installing the Top Cover ........................................................................................ 9
Removing and Installing Processor ............................................................................. 10
Removing Processor Air Duct ............................................................................. 10
Removing Processor Heatsink(s) ......................................................................... 11
Installing the Processor ........................................................................................ 11
Installing Processor Heatsink(s) .......................................................................... 13
Removing the Processor ...................................................................................... 14
Installing and Removing Memory ............................................................................... 14
Removing DIMM Blank ...................................................................................... 14
Installing Memory ............................................................................................... 15
Removing Memory .............................................................................................. 15
Installing and Removing Mezzanine Card ................................................................... 16
Installing the Mezzanine Card ............................................................................. 16
Removing a Mezzanine Card .............................................................................. 19

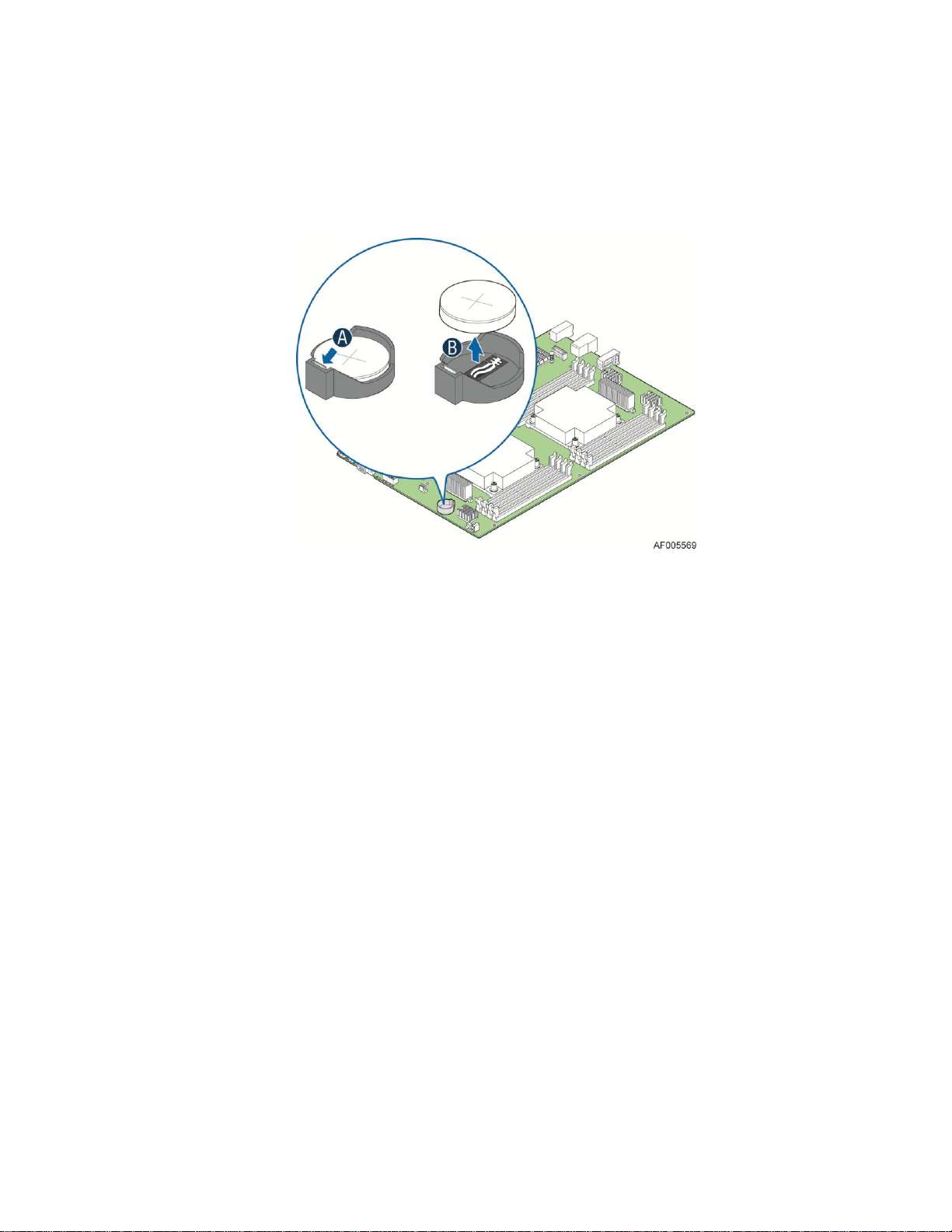

Replacing the CMOS Battery ...................................................................................... 20
3 BIOS Setup Utilities ................................................................................................... 22
Using the BIOS Setup Utility ...................................................................................... 22
Starting Setup ....................................................................................................... 22
vi Intel® Compute Module MFS2600KI User Guide
Table of Contents
If You Cannot Access Setup ................................................................................ 22
Setup Navigation Keyboard Commands ...................................................................... 22
Setup Screen Menu Selection Bar ................................................................................ 24
BIOS Setup Utility Screens ......................................................................................... 24
Map of Screens and Functionality ............................................................................... 24
Main Screen (Tab) ....................................................................................................... 27

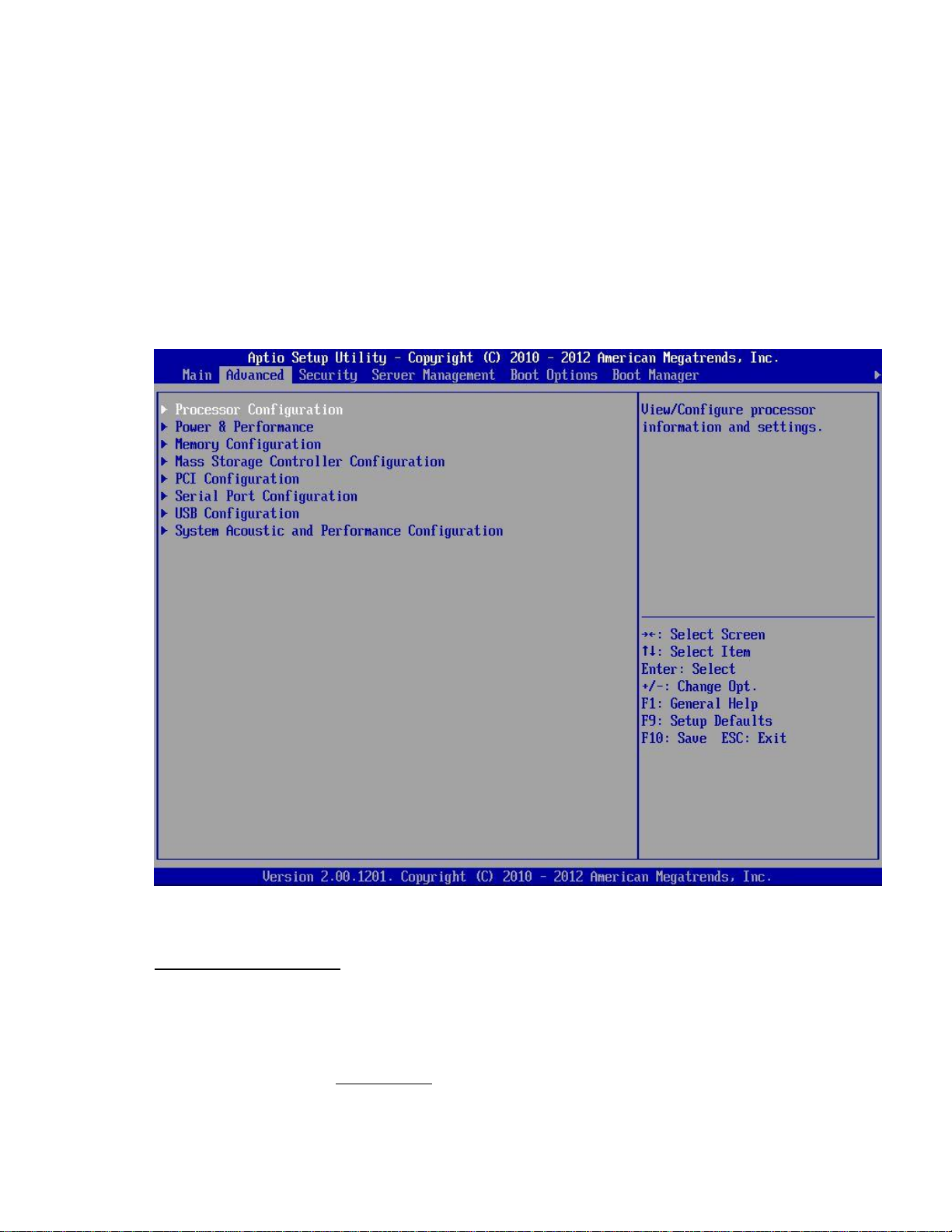

Advanced Screen (Tab) ................................................................................................ 30
Processor Configuration ............................................................................................... 33
Memory Configuration ................................................................................................ 41
Memory RAS and Performance Configuration ........................................................... 47
Mass Storage Controller Configuration ....................................................................... 50
PCI Configuration ........................................................................................................ 52
NIC Configuration ....................................................................................................... 53

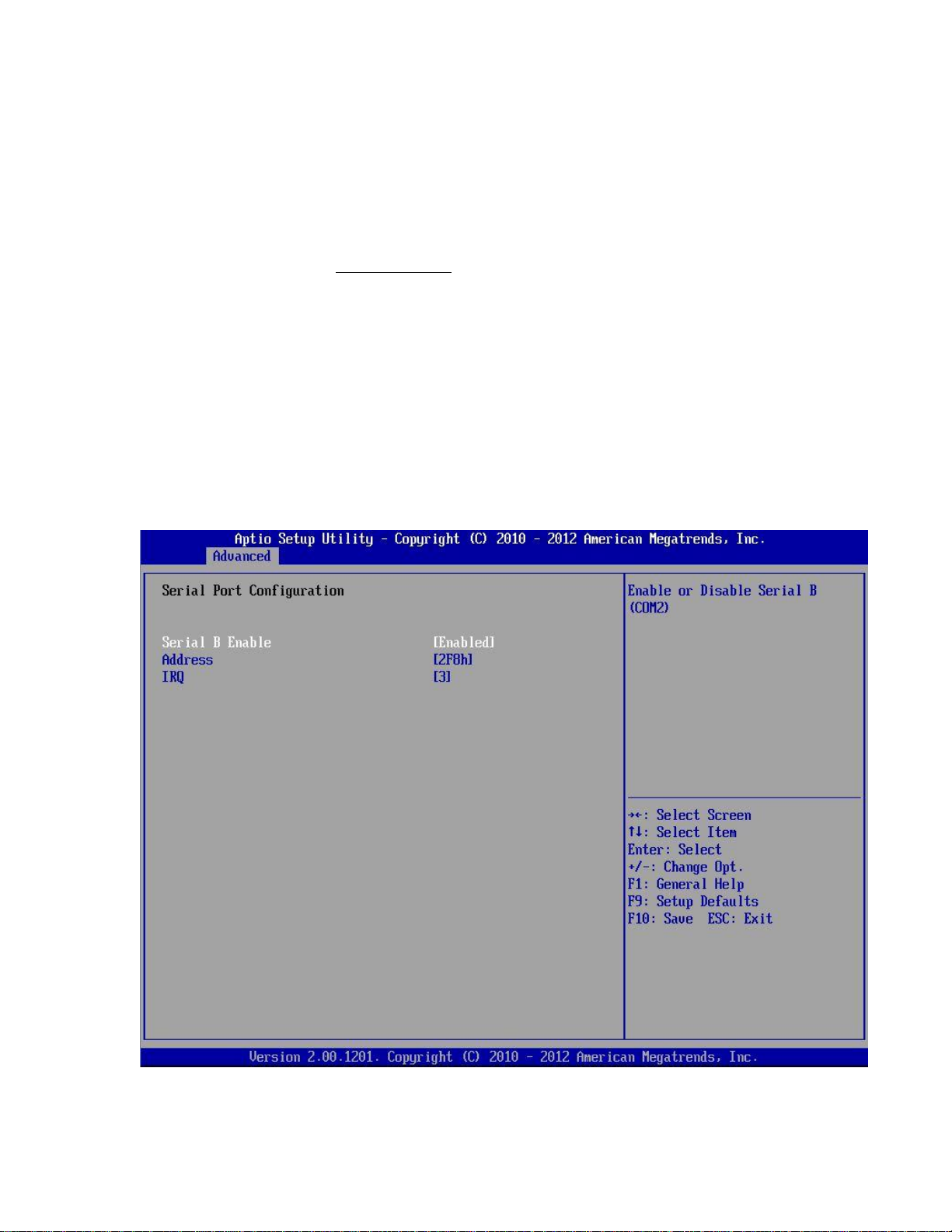

Serial Port Configuration ............................................................................................. 56

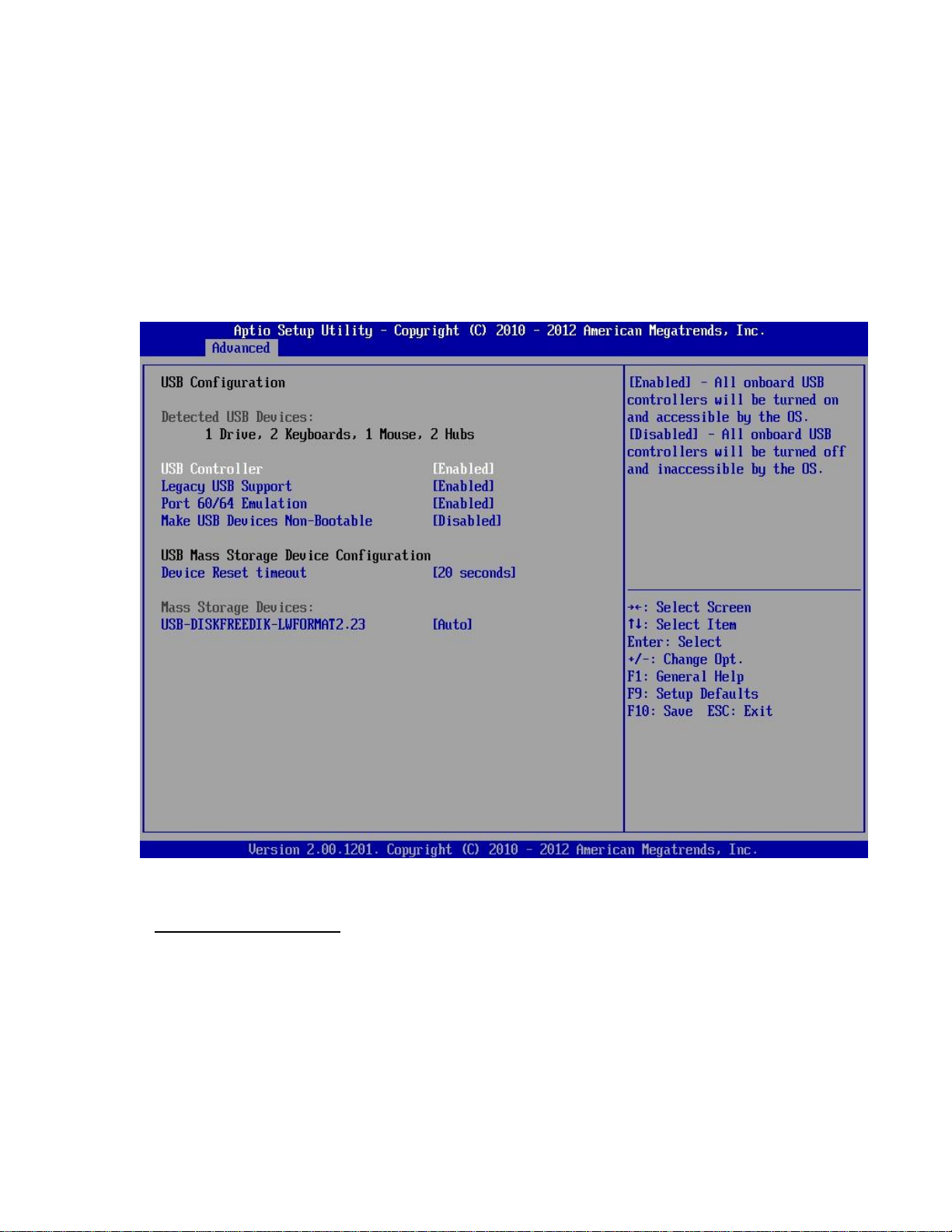

USB Configuration ...................................................................................................... 57

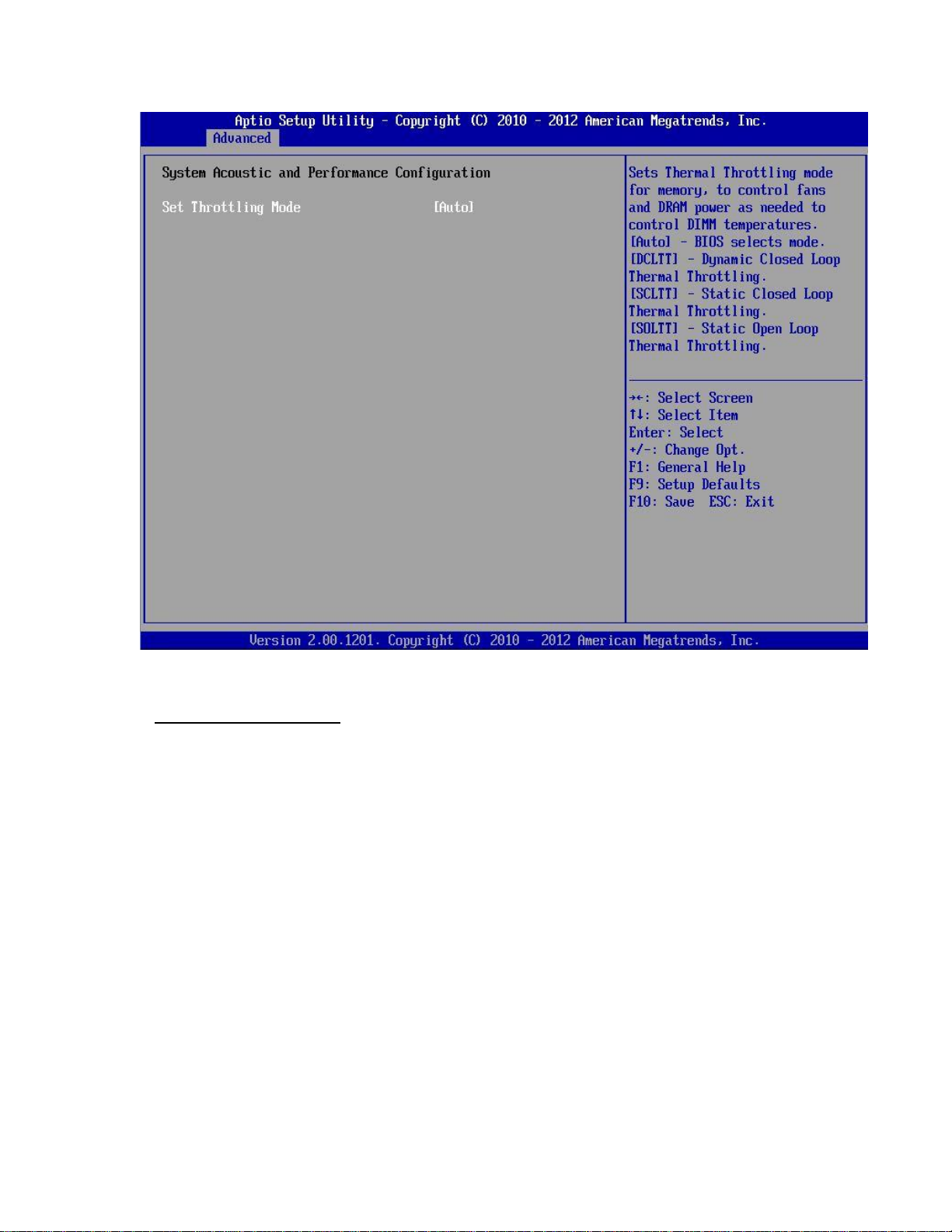

System Acoustic and Performance Configuration ....................................................... 60
Security Screen (Tab)................................................................................................... 62
Server Management Screen (Tab) ............................................................................... 66
Console Redirection ..................................................................................................... 70
System Information ...................................................................................................... 72
Boot Options Screen (Tab) .......................................................................................... 73
CDROM Order ............................................................................................................. 78
Hard Disk Order ........................................................................................................... 79
Floppy Order ................................................................................................................ 80
Network Device Order ................................................................................................. 82
Add EFI Boot Option ................................................................................................... 83
Delete EFI Boot Option ............................................................................................... 85
Boot Manager Screen (Tab) ......................................................................................... 86
Error Manager Screen (Tab) ........................................................................................ 87
Exit Screen (Tab) ......................................................................................................... 89
4 Troubleshooting ......................................................................................................... 90
First Steps Checklist..................................................................................................... 90
Hardware Diagnostic Testing ...................................................................................... 90
Specific Problems and Corrective Actions .................................................................. 91
Power LED Does Not Light ................................................................................ 91
No Video Display ................................................................................................ 91
Characters are Distorted or Incorrect ................................................................... 91
No Available Storage ........................................................................................... 91
Cannot Connect to a Compute Module ............................................................... 92
Diagnostics Pass but Connection Fails ................................................................ 92
Controller Stops Working when a Mezzanine Card is Installed ......................... 92
Mezzanine Card Stops Working Without Apparent Cause ................................. 92
Intel® Compute Module MFS2600KI User Guide vii
Table of Contents
Problems with Newly Installed Application Software ........................................ 92
Problems with Application Software that Previously Functioned Properly ........ 93
Devices are Not Recognized within the Operating System ................................. 93
Appendix A: Regulatory and Compliance Information .............................................. 94
Appendix B: LED Decoder ............................................................................................. 95
Appendix C: Getting Help ............................................................................................ 100
Warranty Information ........................................................................................ 100
viii Intel® Compute Module MFS2600KI User Guide
List of Figures
List of Figures
Figure 1. Intel® Compute Module MFS2600KI .................................................................. 1
Figure 2. Component and Connector Locations .................................................................. 2
Figure 3. Configuration Jumper Locations .......................................................................... 3
Figure 4. Front Panel Connectors and Indicators ................................................................ 4
Figure 5. Installing the Top Cover .................................................................................... 10
Figure 6. Removing Processor Heatsink ........................................................................... 11
Figure 7. Installing Processor – Open the Socket Lever ................................................... 12
Figure 8. Installing Processor – Open the Load Plate ....................................................... 12
Figure 9. Installing Processor – Install the Processor ....................................................... 12
Figure 10. Installing Processor – Remove the Cover ........................................................ 13
Figure 11. Installing Processor – Close the Load Plate ..................................................... 13
Figure 12. Installing Processor – Latch the Locking Lever .............................................. 13
Figure 13. Installing Processor Heatsink ........................................................................... 14
Figure 14 Removing DIMM Blank ................................................................................... 15
Figure 15. Installing Memory ............................................................................................ 15
Figure 16. Removing Memory .......................................................................................... 16
Figure 17. Removing Screws from the Server Board ....................................................... 17
Figure 18. Installing the Standoffs for Mezzanine Card ................................................... 17
Figure 19. Installing the Air Duct ...................................................................................... 18
Figure 20. Installing the Mezzanine Card ......................................................................... 18
Figure 21. Securing the Mezzanine Card .......................................................................... 19
Figure 22. Removing a Mezzanine Card ........................................................................... 19
Figure 23. Replacing the CMOS Battery .......................................................................... 21
Figure 24. Main Screen ..................................................................................................... 27
Figure 25. Advanced Screen .............................................................................................. 30
Figure 26. Processor Configuration Screen ....................................................................... 33
Figure 27. Figure and Performance Screen ....................................................................... 42
Figure 28. Memory Configuration Screen ......................................................................... 43
Figure 29. Memory RAS and Performance Configuration Screen ................................... 47
Figure 30. Mass Storage Controller Configuration Screen ............................................... 50
Figure 31. PCI Configuration Screen ................................................................................ 52
Figure 32. NIC Configuration Screen ............................................................................... 54
Figure 33. Serial Port Configuration Screen ..................................................................... 56
Figure 34. USB Configuration Screen ............................................................................... 58
Figure 35. System Acoustic and Performance Configuration ........................................... 61
Figure 36. Security Screen................................................................................................. 63
Figure 37. Server Management Screen ............................................................................. 67
Figure 38. Console Redirection Screen ............................................................................. 71
Figure 39. System Information Screen .............................................................................. 72
Figure 40. Boot Options Screen ........................................................................................ 74
Intel® Compute Module MFS2600KI User Guide ix
List of Figures
Figure 41. CDROM Order Screen ..................................................................................... 79
Figure 42. Hard Disk Order Screen ................................................................................... 80
Figure 43. Floppy Order Screen ........................................................................................ 81
Figure 44. Network Device Order Screen ......................................................................... 82
Figure 45. Add EFI Boot Option Screen ........................................................................... 83
Figure 46. Delete EFI Boot Option Screen ....................................................................... 85
Figure 47. Boot Manager Screen ....................................................................................... 86
Figure 48. Error Manager Screen ...................................................................................... 87

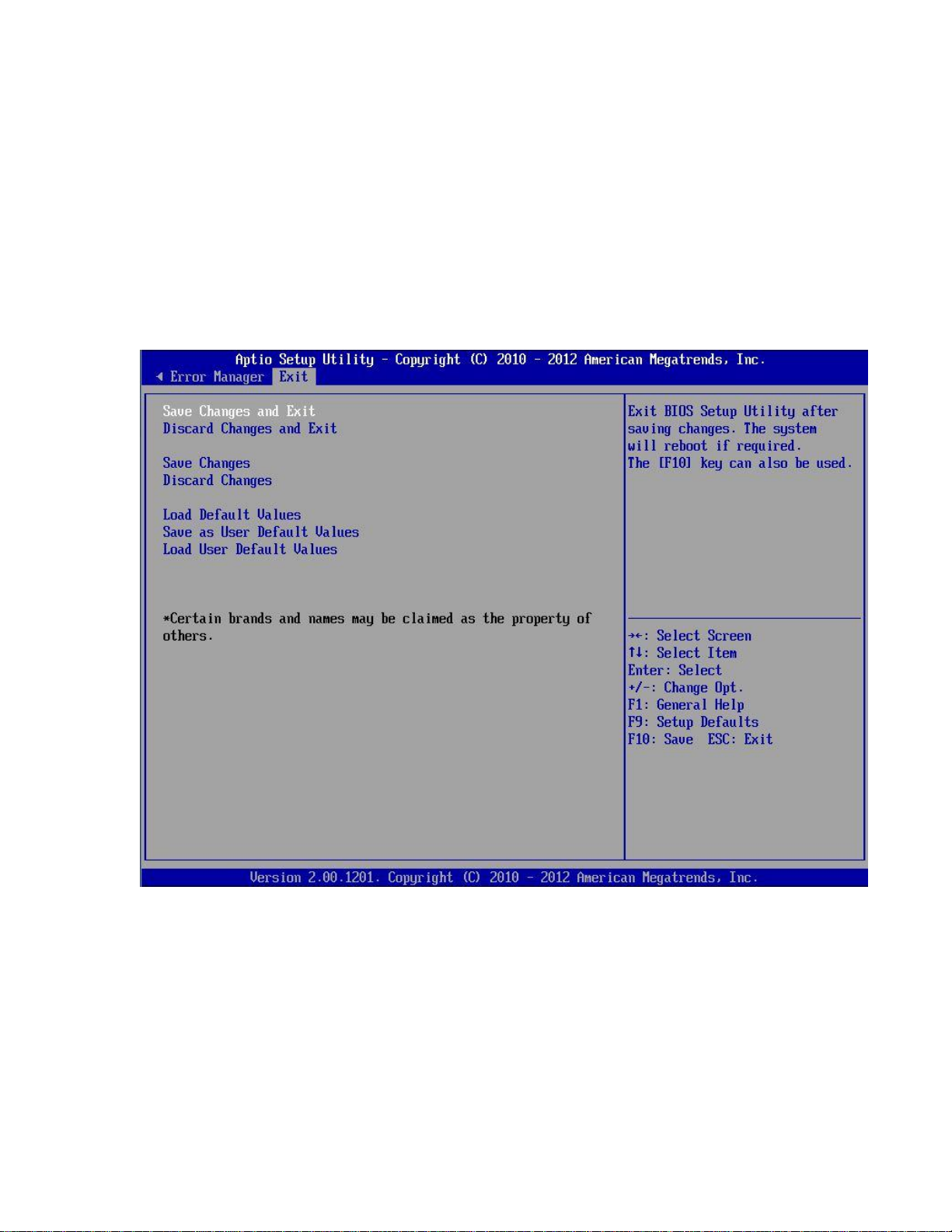

Figure 49. Exit Screen ....................................................................................................... 89
Figure 50. POST Code Diagnostic LED Decoder ............................................................. 95
x Intel® Compute Module MFS2600KI User Guide
List of Tables
List of Tables
Table 1. Compute Module Feature Summary ..................................................................... 1
Table 2. Configuration Jumper Description ........................................................................ 3
Table 3. Diagnostic LED Information ................................................................................. 5
Table 4. Additional Information and Software.................................................................... 6
Table 5. BIOS Setup: Keyboard Command Bar ............................................................... 23
Table 6. Screen Map .......................................................................................................... 25
Table 7. POST Progress Code LED Example ................................................................... 95
Table 8. POST Progress Codes ......................................................................................... 96
Table 9. MRC Progress Codes .......................................................................................... 98
Table 10. MRC Fatal Error Codes ..................................................................................... 98
Intel® Compute Module MFS2600KI User Guide xi
Compute Module Features
Feature
Description
Processor Support
Support for one or two Intel® Xeon® processors E5-2600 product family with a Thermal Design Power
(TDP) of up to 95 W.
Memory
16 DIMM slots – two DIMMs/Channel – 4 memory channels per processor
Unbuffered DDR3 and registered DDR3 DIMMs
Memory DDR3 data transfer rates of 800, 1066, 1333 MT/s and 1600 MT/s.
DDR3 standard I/O voltage of 1.5V and DDR3 Low Voltage of 1.35V
in a server environment.
Chipset
Intel® C602-J chipset
Connectors/Headers
Four USB 2.0 ports
1 Compute Module Features
This chapter briefly describes the main features of the Intel® Compute Module MFS2600KI, as
well as provides illustrations showing the location of important components and connections on
the compute module.
The Intel® Compute Module MFS2600KI is shown in the following pictures:
Figure 1. Intel® Compute Module MFS2600KI
Server System Feature Overview
The following table summarizes the major features of the compute module:
Table 1. Compute Module Feature Summary
Intel® Compute Module MFS2600KI User Guide 1
Compute Module Features
Feature
Description
DB-15 Video connector
Internal connectors/headers:
One low-profile USB Type-A connector to support low-profile USB solid state drives
One internal 7-pin SATA connector for embedded SATA Flash Drive
One eUSB for embedded USB device
Intel® I/O Mezzanine connectors supporting dual port Ethernet Mezzanine Card
On-board Video
Integrated Matrox G200 Core, one DB15 Video port (Front)
Controller
LSI* 1064e SAS controller
LAN
®
I350 Dual 1GbE fully integrated GbE MAC and PHY Network Controller
Label
Description
Label
Description
A
CPU 1 DIMM Slots
I
CPU 1 Socket
B
CPU 2 DIMM Slots
J
Power/Fault LEDs
C
Mezzanine Card Connector 1
K
Power Button
D
Mezzanine Card Connector 2
L
Battery
E
Midplane Power Connector
M
Activity and ID LEDs
F
Midplane Signal Connector
N
Video Connector
G
Midplane Guide Pin Receptacle
O
USB Ports 2 and 3
H
CPU 2 Socket
P
USB1 Ports 0 and 1
Connector and Component Locations
This section helps you identify the components of your compute module. If you are near the system, you
can also use the Quick Reference Label provided on the inside of the enclosure cover to assist in
identifying components.
Figure 2. Component and Connector Locations
2 Intel® Compute Module MFS2600KI User Guide
Configuration Jumpers
Jumper Name
Pins
What happens at system reset…
J1F3: BMC Force Update
1-2
2-3
Compute Module Features
Intel® Compute Module MFS2600KI User Guide 3
Figure 3. Configuration Jumper Locations
Table 2. Configuration Jumper Description
Compute Module Features
Jumper Name
Pins
What happens at system reset…
J1F4: BIOS Recover
1-2
2-3
BIOS image. These pins should not be jumpered for normal operation.
J1F5: ME Force Update
1-2
2-3
J1F8: CMOS Clear
1-2
2-3
boot. These pins should not be jumpered for normal operation
J1F9: Password Clear
1-2
2-3
2-3 connected. The administrator and user passwords clear in 5-10
seconds after power on. Pins 2-3 should not be connected for normal
system operation.
A
USB ports 0 and 1
G
NIC 1 LED
B
USB ports 2 and 3
H
Hard Drive Activity LED
C
Video
I
ID LED
D
I/O Mezzanine NIC 4 LED
J
Power button
E
I/O Mezzanine NIC 3 LED
K
Power and Fault LEDs
F
NIC 2 LED
Front Panel Connectors and Indicators
Figure 4. Front Panel Connectors and Indicators
4 Intel® Compute Module MFS2600KI User Guide
Compute Module Features
LED Name
Function
Color
Indicator
Power LED
module
On = Power on
Slow Blink = Power is in standby
or sleeping mode
Solid On = Critical or nonrecoverable error
1 Hz blink = Non-critical or
recoverable error
compute module from the front
panel
®
Modular Server
Control software to activate or
inactivate the LED.
Indicates drive activity
Blink = Drive activity
of NICs on I/O mezzanine card
On = Link established
Blink = Activity
The Intel® Compute Module MFS2600KI includes a number of diagnostic LEDs on the front of
the compute module to aid in troubleshooting. The following table lists these LEDs along with
a usage description of each LED.
Table 3. Diagnostic LED Information
Intel® Compute Module MFS2600KI User Guide 5
Compute Module Features
For this information or software
Use this Document or Software
If you just received this product and
you need to install components in your
compute module
®
Compute Module MFS2600KI Quick Start User’s Guide
http://www.intel.com/support/motherboards/server/MFS2600KI/
For in-depth technical information
about the compute module, including
chipset information and mechanical
drawings
®
Compute Module MFS2600KI Technical Product Specification
available at:
http://www.intel.com/support/motherboards/server/MFS2600KI/
If you just received this product and
you need to assemble your modular
server system MFSYS25V2 and install
components
®
Modular Server System MFSYS25V2 Quick Start
User's Guide available in the product box or for download at:
http://www.intel.com/support/highlights/server/mss-mfsys25v2 Intel
®
Modular Server System MFSYS25V2 User's Guide
available at:
http://www.intel.com/support/highlights/server/mss-mfsys25v2
For in-depth technical information
about the modular server system
MFSYS25V2, including subsystem
overviews and mechanical drawings
®
Modular Server System MFSYS25V2 Technical
Product Specification available at:
http://www.intel.com/support/highlights/server/mss-mfsys25v2
Accessories or other Intel® server
products
http://www.intel.com/support/motherboards/server/MFS2600KI/ or by
using the Server Configurator Tool available at:
http://serverconfigurator.intel.com/default.aspx
Hardware Requirements
To avoid integration difficulties and possible board damage, your server compute module must
meet the requirements outlined below.
Processor
The Intel® Compute Module MFS2600KI supports up to two Intel® Xeon® Processors E5- 2600
series in LGA 2011 Socket R package with up to 95-W Thermal Design Power (TDP):
8.0 GT/s and 6.4 GT/s Intel® QuickPath Interconnect (Intel® QPI)
Enterprise Voltage Regulator-Down (EVRD) 12.0
Memory
The Intel® Compute Module MFS2600KI supports eight DDR3 memory channels (four per
processor socket) with two DIMMs per channel, thereby supporting up to 16 DIMMs with
dual-processor sockets.
The compute module supports DDR3 1066 DDR3 1333 and DDR3 1600 memory technologies
and supports both registered DIMMs (RDIMMs) and unbuffered DIMMs (UDIMMs). Both
RDIMMs and UDIMMs must be ECC only.
Additional Information and Software
If you need more information about this product or information about the modular server
systems that can be used with the compute module, use the following resources:
Table 4. Additional Information and Software
6 Intel® Compute Module MFS2600KI User Guide
Hardware Installations and Upgrades
2 Hardware Installations and Upgrades
Before You Begin
Before working with your server product, pay close attention to the “Safety Information” on page
v at the beginning of this manual.
NOTE
Whenever you service the system, you must first power down the server and unplug all peripheral
devices and the power cord.
Tools and Supplies Needed
Phillips* (cross head) screwdriver (#1 bit and #2 bit)
1/4-inch nut driver
Anti-static wrist strap and conductive foam pad (recommended)
Installation Guidelines
Before installing options:
1. Observe the safety and ESD information at the beginning of this manual and in the
appendices.
2. Remove the compute module from the chassis. Before doing so, you must first shut down
the operating system and turn off the compute module.
3. Take note of the following color coding on components:
- Blue on a component indicates a touch point, where you can grip the component to
install or remove it from the server.
- Green on a component indicates that the component may be hot-swapped. For a
complete list of installation or removal steps, see the instructions included with the hotswap component.
Removing and Installing an Intel® Compute Module
MFS2600KI
Removing a Compute Module from the Chassis
To remove a compute module from the chassis, follow these steps:
1. Observe the safety and ESD information at the beginning of this manual and in the
appendices.
2. If the compute module is operating, shut down the operating system and power it down.
3. Release the two retention levers by pressing on the release button located between the two
lever handles.
4. Rotate the two lever handles outward and pull the compute module from the chassis slot.
5. Place either a filler or another compute module into the bay within one minute. This step is
required to maintain proper airflow patterns throughout the chassis and to ensure proper
chassis cooling.
Intel® Compute Module MFS2600KI User Guide 7
Hardware Installations and Upgrades
Installing a Compute Module into the Chassis
To install a compute module into the chassis, follow these steps:
1. Observe the safety and ESD information at the beginning of this manual and in the
appendices.
2. If you have not done so already, install any necessary options, such as processors, memory,
hard drives and expansion cards in the compute module.
NOTE
The top cover is a required component of the compute module; do not attempt to insert a compute
module into a chassis without a top cover installed.
3. Make sure the retention levers on the compute module are in the open position.
4. Insert the compute module into an open slot in the chassis and slide it in until it stops.
5. Close the retention lever handles on the front of the compute module.
Removing or Installing the Top Cover
Removing the Top Cover
To remove the top cover, follow these steps:
1. Observe the safety and ESD information at the beginning of this manual and in the
appendices.
2. If the compute module is installed in a chassis, remove it. For instructions, see “Removing
a Compute Module from the Chassis” on page 20.
3. Carefully lay the compute module down on a flat, non-conductive surface, with the cover
side up.
4. Press the top cover release button (see letter A in Figure 6) and slide the top cover back,
away from the compute module bezel (see letter B in Figure 6).
5. Lift the top cover up and off the compute module (see letter B in Figure 6).
Caution: Always install the top cover before installing the compute module into a chassis.
8 Intel® Compute Module MFS2600KI User Guide
Figure 6. Removing Top Cover
Hardware Installations and Upgrades
Installing the Top Cover
To install the top cover, follow these steps:
1. Observe the safety and ESD information at the beginning of this manual and in the
appendices.
2. Place the top cover on the compute module so that it engages the cover guide notches (see
letter A in Figure 7).
NOTE
Before closing the top cover, check that all components are installed and seated correctly and that
no loose tools or parts are inside the compute module.
3. Slide the top cover forward to the closed position until the retention latch fully engages (see
letter B in Figure 7).
Intel® Compute Module MFS2600KI User Guide 9
Hardware Installations and Upgrades
Figure 5. Installing the Top Cover
Removing and Installing Processor
The heatsink has thermal interface material (TIM) on the underside of it. Use caution so that you do
not damage the thermal interface material. Use gloves to avoid sharp edges.
Removing Processor Air Duct
1. Observe the safety and ESD information at the beginning of this manual and in the
appendices.
2. If the compute module is installed in a chassis, remove it. For instructions, see Removing a
Compute Module from the Chassis on Page 7.
3. Remove the top cover. For instructions, see Removing the Top Cover on Page 8.
4. Remove the processor air duct (see Figure 8).
Figure 8. Removing Processor Air Duct
10 Intel® Compute Module MFS2600KI User Guide
Hardware Installations and Upgrades
Removing Processor Heatsink(s)
The heatsink is attached to the server board/processor socket with captive fasteners. Using a #2
Phillips* screwdriver, loosen the four screws located on the heatsink corners in a diagonal manner
using the following procedure:
1. Using a #2 Phillips* screwdriver, start with screw 1 and loosen it by giving it two rotations
and stop (see letter A). (IMPORTANT: Do not fully loosen.)
2. Proceed to screw 2 and loosen it by giving it two rotations and stop (see letter B). Similarly,
loosen screws 3 and 4. Repeat steps A and B by giving each screw two rotations each time
until all screws are loosened.
3. Lift the heatsink straight up (see letter C).
Figure 6. Removing Processor Heatsink
Installing the Processor
Caution:
Processor must be appropriate: You may damage the server board if you install a
processor that is inappropriate for your server. For a web link to the list of compatible
processor(s), see “Additional Information and Software” on page 4.
ESD and handling processors: Reduce the risk of electrostatic discharge (ESD) damage to
the processor by doing the following:
- Touch the metal chassis before touching the processor or server board. Keep part of
your body in contact with the metal chassis to dissipate the static charge while
handling the processor.
- Avoid moving around unnecessarily.
Protective socket cover needs to be removed for proper cooling of the processor; failure to
remove the cover could result in damage to the system.
1. Open the Socket Lever. Push down the lever handle on the OPEN 1st side and away from the
socket to release it. (see letter A). Repeat the steps to release the lever on the other side (see
letter B).
Intel® Compute Module MFS2600KI User Guide 11
Hardware Installations and Upgrades
Figure 7. Installing Processor – Open the Socket Lever
2. Open the Load Plate. Press the locking lever slightly to raise the load plate (see letter A). Open
the load plate all the way (see letter B).
Figure 8. Installing Processor – Open the Load Plate
3. Install the Processor. Take the processor out of the box and remove the protective shipping
cover (see letter A). Orient the processor with the socket so that the processor cutouts match the
four orientation posts on the socket (see letter B). Note location of gold key at corner of
processor (see letter C).
Figure 9. Installing Processor – Install the Processor
NOTE
The underside of the processor has components that may damage the socket pins if installed
improperly. Processor must align correctly with the socket opening before installation. DO
NOT DROP processor into socket!
4. Remove the Cover. Press the cover to remove it. Save the protective cover.
12 Intel® Compute Module MFS2600KI User Guide
Hardware Installations and Upgrades
Figure 10. Installing Processor – Remove the Cover
5. Close the Load Plate. Carefully lower the load plate over the processor.
Figure 11. Installing Processor – Close the Load Plate
6. Latch the Locking Lever. Push down on the locking lever on the CLOSE 1st side (see letter A).
Slide the tip of the lever under the notch in the load plate (see letter B). Make sure the load
plate tab engages under the socket lever when fully closed. Repeat the steps to latch the locking
lever on the other side (see letter C). Latch the levers in the order as shown.
Figure 12. Installing Processor – Latch the Locking Lever
Installing Processor Heatsink(s)
1. Remove the protective film on the TIM if present (see letter A).
2. Align heatsink fins to the front and back of the chassis for correct airflow. Airflow goes from
front-to-back of chassis (see letter B).
Each heatsink has four captive fasteners and should be tightened in a diagonal manner using the
following procedure:
3. Using a #2 Phillips* screwdriver, start with screw 1 and engage screw threads by giving it two
rotations and stop (see letter C). (Do not fully tighten.)
4. Proceed to screw 2 and engage screw threads by giving it two rotations and stop (see letter D).
Similarly, engage screws 3 and 4.
Intel® Compute Module MFS2600KI User Guide 13
Hardware Installations and Upgrades
5. Repeat steps C and D by giving each screw two rotations each time until each screw is lightly
tightened up to a maximum of 8 inch-lbs torque (see letter E).
Figure 13. Installing Processor Heatsink
Removing the Processor
1. Remove the processor heatsink, see Figure 6.
2. Open the socket lever, see Figure 12.
3. Open the load plate, see Figure 8.
4. Remove the processor.
Installing and Removing Memory
The MFS2600KI compute module has 14 DIMM blanks installed and only DIMM slots A1 and E1
are empty. Take out the DIMM blanks only when real DIMM will be installed into that DIMM slot.
The memory slots of each DDR3 channel from the Intel® Xeon® Processor E5-2600 Series are
populated in a farthest-first fashion. Memory sizing and configuration is supported only for
qualified DIMMs approved by Intel®. For a list of supported memory, see the Tested Memory List
at: http://www.intel.com/support/category/server/mfs2600ki/cmptbl.
The minimum memory population possible is one DIMM in slot A1. If both processor sockets are
populated, the next upgrade from the Single Channel mode is installing DIMM E1. If only one
processor socket is populated, the next upgrade from the Single Channel mode is installing DIMM
B1 to allow channel interleaving.
Removing DIMM Blank
1. Locate the DIMM sockets. Gently spread the retaining clips at each end of the socket. The
DIMM blank lifts from the socket.
14 Intel® Compute Module MFS2600KI User Guide
Hardware Installations and Upgrades
2. Holding the DIMM blank, lift it from the socket
Figure 14 Removing DIMM Blank
Installing Memory
1. Locate the DIMM sockets. Make sure the clips at either end of the DIMM socket(s) are pushed
outward to the open position (see letter A).
2. Holding the DIMM by the edges, remove it from its anti-static package. Position the DIMM
above the socket. Align the notch on the bottom edge of the DIMM with the key in the DIMM
socket (see letter B).
3. Insert the bottom edge of the DIMM into the socket (see letter C). When the DIMM is inserted,
push down on the top edge of the DIMM until the retaining clips snap into place (see letter D).
Make sure the clips are firmly in place (see letter E).
Figure 15. Installing Memory
Removing Memory
1. Locate the DIMM sockets. Gently spread the retaining clips at each end of the socket. The
DIMM lifts from the socket.
2. Holding the DIMM by the edges, lift it from the socket, and store it in an anti-static package.
Intel® Compute Module MFS2600KI User Guide 15
Hardware Installations and Upgrades
Figure 16. Removing Memory
Installing and Removing Mezzanine Card
Installing the Mezzanine Card
To install the mezzanine card, follow these steps:
1. Observe the safety and ESD information at the beginning of this manual and in the appendices.
2. If the compute module is installed in a chassis, remove it. For instructions, see Removing a
Compute Module from the Chassis on Page 7.
3. Remove the top cover. For instructions, see Removing the Top Cover on Page 8.
4. Holding the mezzanine card by its edges, remove it from the packaging.
5. Remove the protective connector cover from the mezzanine card.
6. Locate the mezzanine card connectors on the server board.
7. Using a Phillips* screwdriver, remove four screws from the server board (see Figure 17).
16 Intel® Compute Module MFS2600KI User Guide
Hardware Installations and Upgrades
Figure 17. Removing Screws from the Server Board
8. Using a 1/4-inch nut driver, install the four standoffs that shipped with the mezzanine.
Figure 18. Installing the Standoffs for Mezzanine Card
9. Install the processors air duct (see Figure 19)
Intel® Compute Module MFS2600KI User Guide 17
Hardware Installations and Upgrades
Figure 19. Installing the Air Duct
10. Position the mezzanine card above the mezzanine card connectors on the server board and align
the four screw holes with the standoffs taking care to position each connector housing on the
mezzanine card with the connectors on the server board (see letter D in Figure 20).
Figure 20. Installing the Mezzanine Card
11. Carefully press the mezzanine card into place until it is fully seated in the connectors and
resting on the standoff supports.
18 Intel® Compute Module MFS2600KI User Guide
Hardware Installations and Upgrades
12. Secure the mezzanine card to the standoffs with the four screws previously removed (see letter
E in Figure 21).
Figure 21. Securing the Mezzanine Card
13. Reinstall the top cover. For instructions, see Installing the Top Cover on Page 9.
14. Reinstall the server compute module in the chassis. For instructions, see Installing a Compute
Module into the Chassis on Page 8.
Removing a Mezzanine Card
To remove a mezzanine card, follow these steps:
1. Observe the safety and ESD information at the beginning of this manual and in the appendices.
2. If the compute module is installed in a chassis, remove it. For instructions, see Removing a
Compute Module from the Chassis on page 20.
3. Remove the top cover. For instructions, see Removing the Top Cover on Page 8.
4. Locate the mezzanine card.
5. Using a Phillips* screwdriver, remove the four screws securing the mezzanine card to the
standoffs.
Figure 22. Removing a Mezzanine Card
Intel® Compute Module MFS2600KI User Guide 19
