MI920

Intel® Celeron® M 910GML

Intel® Pentium® M/915GM

Mini-ITX Motherboard

USER’S MANUAL

Version 1.0A

Acknowledgments

Award is a registered trademark of Award Software International, Inc.

PS/2 is a trademark of International Business Machines Corporation.

Intel and Pentium M are registered trademarks of Intel Corporation.

Microsoft Windows is a registered trademark of Microsoft Corporation.

Winbond is a registered trademark of Winbond Electronics Corporation.

All other product names or trademarks are properties of their respective owners.

ii

MI920 User’s Manual

Table of Contents



Introduction .......................................................

1

Product Description.............................................................

1

Checklist..............................................................................

2

MI920 Specifications ..........................................................

3

Board Dimensions ...............................................................

4

Installations .......................................................

5

Installing the CPU ...............................................................

6

Installing the Memory .........................................................

7

Setting the Jumpers .............................................................

8

Connectors on MI920........................................................

12

BIOS Setup.......................................................

21

Drivers Installation ......................................

45

Intel Chipset Software Installation Utility.........................

46

VGA Drivers Installation ..................................................

49

AC97 Codec Audio Driver Installation.............................

52

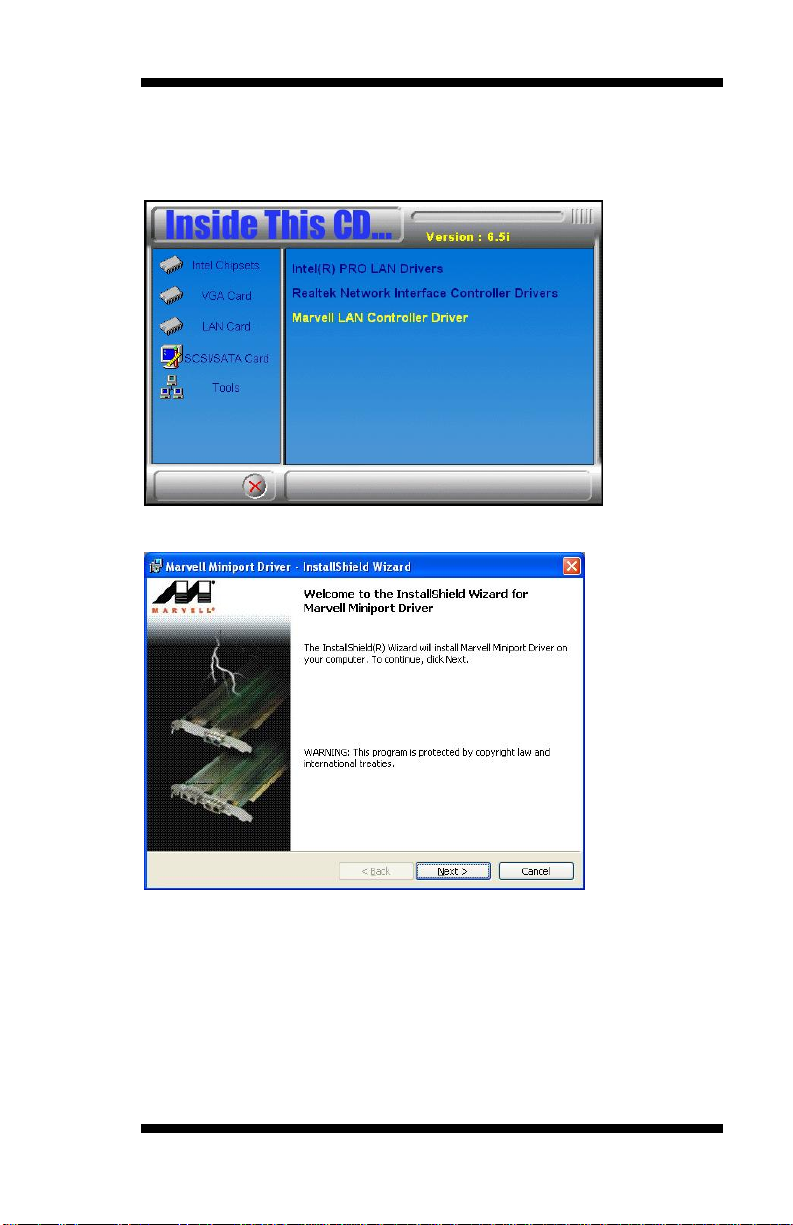

LAN Drivers Installation...................................................

54

Appendix ...........................................................

56

A. I/O Port Address Map...................................................

56

B. Interrupt Request Lines (IRQ)......................................

57

C. Watchdog Timer Configuration....................................

58

MI920 User’s Manual

iii

This page is intentionally left blank.

iv

MI920 User’s Manual

INTRODUCTION

Introduction

Product Description

The MI920 Mini ITX board incorporates the Mobile Intel® 910GML/915GM Express Chipset for Embedded Computing, consisting of the Intel® 910GML/ 915GM Graphic Memory Controller Hub (GMCH) and Intel® I/O Controller Hub 6-M (ICH6-M), is an optimized integrated graphics solution with a 400/533MHz front-side bus.

The integrated 32-bit 3D graphics engine, based on Intel® Graphics Media Accelerator 900 (Intel® GMA 900) architecture, operates at core speeds of up to 320 MHz. It features a low-power design, is validated with Intel® Pentium M/ Celeron® M processors on 130nm or 90nm process. With one DIMM socket on board, the board supports up to 1GB of DDR2 system memory (400MHz for 910GML, 400/533MHz for 915GM chipset).

Intel® Graphics supports a unique intelligent memory management scheme called Dynamic Video Memory Technology (DVMT). DVMT handles diverse applications by providing the maximum availability of system memory for general computer usage, while supplying additional graphics memory when a 3D-intensive application requests it. The Intel GMA 900 graphics architecture also takes advantage of the high-performance Intel processor. Intel GMA 900 graphics supports Dual Independent Display technology.

The main features of the board are:

Supports Celeron® M processors, 400MHz FSB (910GML chipset)

Supports Socket 479, 533/400MHz FSB (915GM chipset)

One DDRII SDRAM DIMM supports up to 1GB of DDR2 400MHz (910GML chipset), DDR2 400/533MHz (915GM chipset)

Onboard 10/100 BaseT and Marvell PCI-Express Gigabit LAN

Intel® 915 Express VGA for CRT, SDVO port supports LVDS and DVI / LVDS

2x SATA, 6x USB 2.0, 4x COM, Watchdog timer

1x PCI, 1x MiniPCIe, CF socket, DC-in for +12V input

Dimensions of the board are 170mm x 170mm.

Ordering Information:

MI920F: Socket 479, 915GM, ICH6M, supports DVI, LVDS, 1x 10/100 LAN, 1x Gigabit LAN, Mini PCI-E

MI920L-C6K: Celeron M 600M/512K , 910GML, ICH6M, supports DVI, LVDS, 1x 10/100 LAN

MI920 User’s Manual

1

INTRODUCTION

Checklist

Your MI920 package should include the items listed below.

The MI920 Celeron® M Mini-ITX motherboard

This User’s Manual

1 CD containing chipset drivers and flash memory utility

Cable kit (IDE, Serial port, Serial ATA, VGA)

2

MI920 User’s Manual





INTRODUCTION





















MI920 Specifications











[









Form Factor

Mini ITX





CPU Type

Intel Celeron M / Pentium M (on Socket 479) processor (Banias or







Dothan core):







- Banias: ULV Celeron M 600MHz (512KB L2 Cache),







- Dothan: Zero L2 cache Celeron M 1GHz or Celeron M 373





CPU Voltage

0.700V ~ 1.708V





CPU FSB

400MHz (910GML); 400/533MHz (915GM)





CPU Socket

Socket 479 co-layout with micro-FCBGA





Chipset

Intel 910GML/915GM chipset







ICH6M: 82801FBM





BIOS /APM

Award BIOS, support ACPI Function & APM1.2





Memory

DDRII 400/533 SDRAM DIMM socket x1 (w/o ECC function), Max.







1GB





VGA

910GML built-in, supports dual display with CRT, LVDS & TV-Out





DVI

Chrontel CH7307 x1 for DVI





LVDS

Chrontel CH7308 x1 for 18 or 24-bit single/dual channel LVDS





LAN

LAN1: ICH6M built-in 10/100BT MAC + Intel 82562ET PHY







Optional LAN2: Marvell 88E8053 PCI Express Gigabit LAN controller





USB

ICH6M built-in USB 2.0 host controller, support 6 ports





Serial ATA

ICH6M built-in SATA controller, supports 2 ports





Parallel IDE

ICH6M built-in one channel Ultra DMA 33/66/100 for IDE & CF





Audio

ICH6M built-in Audio controller + AC97 Codec ALC655 w/ 6 channels







(Line-out, Line-in & Mic.) + ADI SSM2304 4ohm 2W, class D, stereo







audio power amplifier (note: 1.4W for 8 ohm)





LPC I/O

Winbond W83627EHG: PS/2 Keyboard/Mouse, 2x serial (RS232) &







Hardware monitor (3 thermal inputs, 4 voltage monitor inputs,







VID0-4 & 2 fan headers)





2nd I/O

Fintek F81216DG x1 for COM3, 4 (RS-232)





Expansion Slots

PCI (33MHz/32-bit) slot x1







Optional Mini PCI-express (1 lane) socket x1 (for wireless module)





Edge

DC-in power connector (Jack type) x1





Connectors

PS/2 stack connector x1 for keyboard/mouse







DVI + DB9 stack connector x1 for DVI & COM 1







RJ45 (10/100) + dual USB stack connector x1 for LAN1 & USB1, 2







S-Video connector x1 for S-Video







RJ45 (GbE) + dual USB stack connector x1 for LAN2 & USB3, 4







*** Option with dual USB stack connector (LAN2 option)







3x1 phone jack stack connector x1 for Audio (Line-Out, Line-In & Mic)





Onboard

Compact flash socket (vertical type) x1 @component side





Headers /

SATA connector x2 for 2 SATA ports





Connectors

DF13-20 (20-pin) header x2 for LVDS







15 pins pin-header x1 for VGA







40 pins box-header x1 for IDE







30 pins pin-header x1 for COM2~4







8 pins pin-header x1 for USB 5~6







3 pins pin-header x1 for power LED







6 pins pin-header x1 for Reset, HDD LED & power button





Watchdog Timer

Yes (256 segments, 0, 1, 2…255 sec/min)





System Voltage

+5V, +3.3V, +12V, -12V, 5VSB





Other

LAN Wakeup





Digital I/O

4 in + 4 out (TTL level)





Power In / Out

Power Input: +12V DC power input







Power Output: 4-pin power connector x1 for HDD/CD-ROM/DVD





Board Size

170mm x 170mm



MI920 User’s Manual

3

INTRODUCTION

Board Dimensions

4

MI920 User’s Manual

INSTALLATIONS

Installations

This section provides information on how to use the jumpers and connectors on the MI920 in order to set up a workable system. The topics covered are:

Installing the CPU........................................................................

6

Installing the Memory..................................................................

7

Setting the Jumpers ......................................................................

8

Connectors on MI920 ................................................................

12

MI920 User’s Manual

5

INSTALLATIONS

Installing the CPU

The MI920 board supports a Socket 479 processor socket for Intel® Pentium® M or Celeron® M processors.

The processor socket comes with a screw to secure the processor. As shown in the left picture below, loosen the screw first before inserting the processor. Place the processor into the socket by making sure the notch on the corner of the CPU corresponds with the notch on the inside of the socket. Once the processor has slide into the socket, fasten the screw. Refer to the figures below.

NOTE: Ensure that the CPU heat sink and the CPU top surface are in total contact to avoid CPU overheating problem that would cause your system to hang or be unstable.

6

MI920 User’s Manual

INSTALLATIONS

Installing the Memory

The MI920 board supports one DDR2 memory socket for a maximum total memory of 1GB in DDR2 memory type.

Installing and Removing Memory Modules

To install the DDR2 modules, locate the memory slot on the board and perform the following steps:

1.Hold the DDR2 module so that the key of the DDR2 module align with those on the memory slot.

2.Gently push the DDR2 module in an upright position until the clips of the slot close to hold the DDR2 module in place when the DDR2 module touches the bottom of the slot.

3.To remove the DDR2 module, press the clips with both hands.

Lock

DDR2 Module

Lock





















Lock













Lock











MI920 User’s Manual

7

INSTALLATIONS

Setting the Jumpers

Jumpers are used on MI920 to select various settings and features according to your needs and applications. Contact your supplier if you have doubts about the best configuration for your needs. The following lists the connectors on MI920 and their respective functions.

Jumper Locations on MI920...........................................................

9

JP1: LCD Panel Power Selection..................................................

10

JP8: Clear CMOS Setting .............................................................

10

JP7: CompactFlash Slave/Master Selection..................................

10

JP2: ATX/AT Mode Select...........................................................

10

JP3: COM3 RS232 +5V / +12V Power Setting............................

10

JP4: COM4 RS232 +5V / +12V Power Setting............................

11

[JP5: VGA/DVI DDCDATA and DDCCLK Signal Select...........

11

JP6: CPU FSB Selection (915GM only).......................................

11

8

MI920 User’s Manual

INSTALLATIONS

Jumper Locations on MI920

Jumpers on MI920............................................................................

Page

JP1: LCD Panel Power Selection .................................................

10

JP8: Clear CMOS Setting.............................................................

10

JP7: CompactFlash Slave/Master Selection .................................

10

JP2: ATX/AT Mode Select ..........................................................

10

JP3: COM3 RS232 +5V / +12V Power Setting ...........................

10

JP4: COM4 RS232 +5V / +12V Power Setting ...........................

11

[JP5: VGA/DVI DDCDATA and DDCCLK Signal Select...........

11

JP6: CPU FSB Selection (915GM only) ......................................

11

MI920 User’s Manual

9

INSTALLATIONS

JP1: LCD Panel Power Selection





JP1

LCD Panel Power







3.3V







5V



JP8: Clear CMOS Setting







JP8

Setting







Normal







Clear CMOS



JP7: CompactFlash Slave/Master Selection





JP7

CF Setting







Master







Slave



JP2: ATX/AT Mode Select







JP2

ATX / AT







ATX mode







AT mode



JP3: COM3 RS232 +5V / +12V Power Setting



Pin #

Signal Name

JP3 Signal Name

Pin #

1

RI

+12V

2

3

RI (Default)

RI (Default)

4

5

RI

+5V

6

COM3 Settings: Pin 1-2 short = +12V, Pin 5-6 short = +5V, Pin 3-4 Standard COM Port

10

MI920 User’s Manual

INSTALLATIONS

JP4: COM4 RS232 +5V / +12V Power Setting





















Pin #

Signal Name

JP4

Signal Name

Pin #





1













RI



+12V

2





3













RI (Default)



RI (Default)

4





5













RI



+5V

6

















COM4 Settings: Pin 1-2 short = +12V, Pin 5-6 short = +5V, Pin 3-4 Standard COM Port

JP5: VGA/DVI DDCDATA and DDCCLK Signal Select

JP5

VGA/DVI Select

VGA

DVI

JP6: CPU FSB Selection (915GM only)

JP6

FSB

400MHz

533MHz

MI920 User’s Manual

11

INSTALLATIONS

Connectors on MI920

The connectors on MI920 allows you to connect external devices such as keyboard, floppy disk drives, hard disk drives, printers, etc. The following table lists the connectors on MI920 and their respective functions.

Connector Locations on MI920 ....................................................

13

FAN1: CPU Fan Power Connector...............................................

14

FAN2: System Fan Power Connector...........................................

14

CN1: DC Jack (DC in, 12V only).................................................

14

CN2: PS/2 Keyboard and PS/2 Mouse Connectors ......................

14

CN3: COM1 and DVI-I Connector .............................................

15

CN4: S-Video and RCA Connector for TV out............................

15

CN5: 10/100 RJ-45 and USB1/2 Ports .........................................

15

CN6: GbE RJ-45 and USB3/4 Ports.............................................

15

CN7: Audio Connector.................................................................

15

J1: HDD Power Connector ...........................................................

16

J2: ATX_12V Connector..............................................................

16

IDE1: IDE Connector ...................................................................

16

J3, J5: LVDS Connectors (1st channel, 2nd channel) ..................

17

J6: LCD Backlight Connector ......................................................

17

J7: Digital I/O ...............................................................................

17

J8: COM2, COM3, COM4 Serial Ports........................................

18

J9: VGA Connector ......................................................................

18

J10: Wake On LAN Connector.....................................................

18

J11: Power LED Connector ..........................................................

19

J12: System Function Connector ..................................................

19

J13: USB5/6 Port Pin Header .......................................................

19

J14: Speaker Connector ................................................................

19

J15: Compact Flash Connector .....................................................

19

J16, J17: Serial ATA Connectors .................................................

19

J18: Front Audio Connector .........................................................

20

J19: CD-In Pin Header .................................................................

20

PCI1: PCI Slot (supports 2 Master) ..............................................

20

U38: Mini PCI- E(x1) Connector (bottom side)...........................

20

12

MI920 User’s Manual

INSTALLATIONS

Connector Locations on MI920

Connector Locations on MI920 ...........................................................

Page

FAN1: CPU Fan Power Connector..........................................................

14

FAN2: System Fan Power Connector......................................................

14

CN1: DC Jack (DC in, 12V only)............................................................

14

CN2: PS/2 Keyboard and PS/2 Mouse Connectors .................................

14

CN3: COM1 and DVI-I Connector.........................................................

15

CN4: S-Video and RCA Connector for TV out.......................................

15

CN5: 10/100 RJ-45 and USB1/2 Ports ....................................................

15

CN6: GbE RJ-45 and USB3/4 Ports........................................................

15

CN7: Audio Connector ............................................................................

15

J1: HDD Power Connector ......................................................................

16

J2: ATX_12V Connector.........................................................................

16

IDE1: IDE Connector...............................................................................

16

J3, J5: LVDS Connectors (1st channel, 2nd channel) .............................

17

J6: LCD Backlight Connector..................................................................

17

J7: Digital I/O ..........................................................................................

17

J8: COM2, COM3, COM4 Serial Ports...................................................

18

J9: VGA Connector .................................................................................

18

J10: Wake On LAN Connector................................................................

18

J11: Power LED Connector .....................................................................

19

J12: System Function Connector .............................................................

19

J13: USB5/6 Port Pin Header ..................................................................

19

J14: Speaker Connector ...........................................................................

19

J15: Compact Flash Connector................................................................

19

J16, J17: Serial ATA Connectors ............................................................

19

J18: Front Audio Connector ....................................................................

20

J19: CD-In Pin Header.............................................................................

20

PCI1: PCI Slot (supports 2 Master) .........................................................

20

U38: Mini PCI- E(x1) Connector (bottom side)......................................

20

MI920 User’s Manual

13

INSTALLATIONS

FAN1: CPU Fan Power Connector

FAN1 is a 3-pin header for the CPU fan. The fan must be a 12V fan.

Pin #

Signal Name

1

Ground

2

+12V

3

Rotation detection

FAN2: System Fan Power Connector

FAN2 is a 3-pin header for system fans. The fan must be 12V (500mA).































































Pin #

















Signal Name

























































































1



























Ground











































































































































































































2































+12V















































































































































































































3











Rotation detection







































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































CN1: DC Jack (DC in, 12V only)

CN2: PS/2 Keyboard and PS/2 Mouse Connectors

PS/2 Mouse

PS/2 Keyboard

Signal Name

Keyboard

Mouse

Signal Name

Keyboard data

1

1

Mouse data

N.C.

2

2

N.C.

GND

3

3

GND

5V

4

4

5V

Keyboard clock

5

5

Mouse clock

N.C.

6

6

N.C.

14

MI920 User’s Manual

INSTALLATIONS

CN3: COM1 and DVI-I Connector

[

Signal Name

Pin #

Pin #

Signal Name

DCD

1

6

DSR

RXD

2

7

RTS

TXD

3

8

CTS

DTR

4

9

RI

GND

5

10

Not Used



Signal Name

Pin #





Pin #



Signal Name



DATA 2-

1



16



HOT POWER



DATA 2+

2



17



DATA 0-



Shield 2/4

3



18



DATA 0+



DATA 4-

4



19



SHIELD 0/5



DATA 4+

5



20



DATA 5-



DDC CLOCK

6



21



DATA 5+



DDC DATA

7



22



SHIELD CLK



VSYNC

8



23



CLOCK -



DATA 1-

9



24



CLOCK +



DATA 1+

10





C1

A RED



SHIELD 1/3

11





C2

A GREEN



DATA 3-

12





C3

A BLUE



DATA 3+

13





C4

HYNC



DDC POWER

14





C5

A GROUND2



A GROUND 1

15





C6

A GROUND3

CN4: S-Video and RCA Connector for TV out

CN5: 10/100 RJ-45 and USB1/2 Ports

CN6: GbE RJ-45 and USB3/4 Ports

CN7: Audio Connector

MI920 User’s Manual

15

INSTALLATIONS

J1: HDD Power Connector

Pin # Signal Name

1 +12V

2 Ground

3 Ground

4 5V

Note: +12V power is provided with 2A maximum load.

J2: ATX_12V Connector

J2 can be used in situations where the 12V current from the ATX power is insufficient to supply needed current.

Pin #

Signal Name

1

Ground

2

Ground

3

+12V

4

+12V

IDE1: IDE Connector

Signal Name

Pin #

Pin #

Signal Name

Reset IDE

1

2

Ground

Host data 7

3

4

Host data 8

Host data 6

5

6

Host data 9

Host data 5

7

8

Host data 10

Host data 4

9

10

Host data 11

Host data 3

11

12

Host data 12

Host data 2

13

14

Host data 13

Host data 1

15

16

Host data 14

Host data 0

17

18

Host data 15

Ground

19

20

Protect pin

DRQ0

21

22

Ground

Host IOW

23

24

Ground

Host IOR

25

26

Ground

IOCHRDY

27

28

Host ALE

DACK0

29

30

Ground

IRQ14

31

32

No connect

Address 1

33

34

No connect

Address 0

35

36

Address 2

Chip select 0

37

38

Chip select 1

Activity

39

40

Ground

16

MI920 User’s Manual

INSTALLATIONS

J3, J5: LVDS Connectors (1st channel, 2nd channel)

The LVDS connectors on board consist of the first channel (J3) and second channel (J5) and supports 18-bit or 24-bit.

Signal Name

Pin #

Pin #

Signal Name

TX0-



2

1

TX0+

Ground

4

3

Ground

TX1-



6

5

TX1+

5V/3.3V

8

7

Ground

TX3-



10

9

TX3+

TX2-



12

11

TX2+

Ground

14

13

Ground

TXC-



16

15

TXC+

5V/3.3V

18

17

ENABKL

+12V



20

19

+12V

J6: LCD Backlight Connector





Pin #

Signal Name



1



+12V





2

Backlight Enable



3



Ground





J7: Digital I/O









Signal Name

Pin

Pin Signal Name

GND



1

2

VCC

OUT3

3

4

OUT1

OUT2

5

6

OUT0

IN3



7

8

IN1

IN2



9

10

IN0

MI920 User’s Manual

17

INSTALLATIONS

J8: COM2, COM3, COM4 Serial Ports

Pin # Signal Name (RS-232)

1DCD, Data carrier detect

2RXD, Receive data

3TXD, Transmit data

4DTR, Data terminal ready

5Ground

6DSR, Data set ready

7RTS, Request to send

8CTS, Clear to send

9RI, Ring indicator

10

No Connect.







J9:[[[[ VGA Connector















Signal Name

Pin #

Pin #

Signal Name







+5V

2

1

RED













Ground

4

3

GREEN







N.C.

6

5

BLUE







SDA

8

7

N.C.







HSYNC

10

9

Ground







VSYNC

12

11

Ground







SCL

14

13

Ground













N.C.

16

15

Ground

J10: Wake On LAN Connector

J10 is a 3-pin header for the Wake On LAN function. Wake On LAN will function properly only with an ATX power supply with 5VSB that has 200mA.

Pin #

Signal Name

1

+5VSB

2

Ground

3

-PME

18

MI920 User’s Manual

INSTALLATIONS

J11: Power LED Connector

Pin #

Signal Name

1

Vcc

2

NC

3

PLED

J12: System Function Connector

Signal Name

Pin

Pin

Signal Name

Ground

1

2

PS_ON



5V

3

4

HDD Active

Ground

5

7

Reset

ATX power on switch: Pins 1-2





HDD LED: Pins 3-4







Reset switch: Pins 5-6







J13: USB5/6 Port Pin Header







Signal Name

Pin

Pin

Signal Name

Vcc

1

5

Ground

D-

2

6

D+

D+

3

7



D-

Ground

4

8

Vcc

J14: Speaker Connector

The J14 connector supports 2W/8ohm stereo audio power amplifier.

Pin #

Signal Name

1

Audio L

2

Ground

3

Ground

4

Audio R

J15: Compact Flash Connector

J16, J17: Serial ATA Connectors

MI920 User’s Manual

19

INSTALLATIONS

J18: Front Audio Connector

Signal Name

Pin

Pin

Signal Name

Rear Audio R

1

5

Rear Audio L

Front Audio R

2

6

Front Audio L

Mic In

3

7

VREF Out

Ground

4

8



REMARKS: To use the front audio connector, the jumpers on pin 1-3 and pin 2-4 must be removed.

J19: CD-In Pin Header

Pin # Signal Name

1CD Audio R

2Ground

3

Ground

4

CD Audio L

PCI1: PCI Slot (supports 2 Master)

U38: Mini PCI- E(x1) Connector (bottom side)

20

MI920 User’s Manual

BIOS SETUP

BIOS Setup

This chapter describes the different settings available in the Award BIOS that comes with the board. The topics covered in this chapter are as follows:

BIOS Introduction ........................................................................

22

BIOS Setup...................................................................................

22

Standard CMOS Setup .................................................................

24

Advanced BIOS Features .............................................................

27

Advanced Chipset Features ..........................................................

30

Integrated Peripherals...................................................................

33

Power Management Setup............................................................

37

PNP/PCI Configurations ..............................................................

40

PC Health Status...........................................................................

41

Frequency/Voltage Control ..........................................................

42

Load Fail-Safe Defaults................................................................

43

Load Optimized Defaults .............................................................

43

Set Supervisor/User Password......................................................

43

Save & Exit Setup ........................................................................

43

Exit Without Saving .....................................................................

43

MI920 User’s Manual

21

BIOS SETUP

BIOS Introduction

The Award BIOS (Basic Input/Output System) installed in your computer system’s ROM supports Intel processors. The BIOS provides critical low-level support for a standard device such as disk drives, serial ports and parallel ports. It also adds virus and password protection as well as special support for detailed fine-tuning of the chipset controlling the entire system.

BIOS Setup

The Award BIOS provides a Setup utility program for specifying the system configurations and settings. The BIOS ROM of the system stores the Setup utility. When you turn on the computer, the Award BIOS is immediately activated. Pressing the <Del> key immediately allows you to enter the Setup utility. If you are a little bit late pressing the <Del> key, POST (Power On Self Test) will continue with its test routines, thus preventing you from invoking the Setup. If you still wish to enter Setup, restart the system by pressing the ”Reset” button or simultaneously pressing the <Ctrl>, <Alt> and <Delete> keys. You can also restart by turning the system Off and back On again. The following message will appear on the screen:

Press <DEL> to Enter Setup

In general, you press the arrow keys to highlight items, <Enter> to select, the <PgUp> and <PgDn> keys to change entries, <F1> for help and <Esc> to quit.

When you enter the Setup utility, the Main Menu screen will appear on the screen. The Main Menu allows you to select from various setup functions and exit choices.

22

MI920 User’s Manual







BIOS SETUP





























Phoenix - AwardBIOS CMOS Setup Utility

















Standard CMOS Features

Frequency/Voltage Control









Advanced BIOS Features

Load Fail-Safe Defaults









Advanced Chipset Features

Load Optimized Defaults









Integrated Peripherals

Set Supervisor Password









Power Management Setup

Set User Password









PnP/PCI Configurations

Save & Exit Setup









PC Health Status

Exit Without Saving









ESC : Quit

Ç È Æ Å : Select Item









F10 : Save & Exit Setup











Time, Date, Hard Disk Type…

















The section below the setup items of the Main Menu displays the control keys for this menu. At the bottom of the Main Menu just below the control keys section, there is another section, which displays information on the currently highlighted item in the list.

Note: If the system cannot boot after making and saving system changes with Setup, the Award BIOS supports an override to the CMOS settings that resets your system to its default.

Warning: It is strongly recommended that you avoid making any changes to the chipset defaults. These defaults have been carefully chosen by both Award and your system manufacturer to provide the absolute maximum performance and reliability. Changing the defaults could cause the system to become unstable and crash in some cases.

MI920 User’s Manual

23

BIOS SETUP

Standard CMOS Setup

“Standard CMOS Setup” choice allows you to record some basic hardware configurations in your computer system and set the system clock and error handling. If the motherboard is already installed in a working system, you will not need to select this option. You will need to run the Standard CMOS option, however, if you change your system hardware configurations, the onboard battery fails, or the configuration stored in the CMOS memory was lost or damaged.

Phoenix - AwardBIOS CMOS Setup Utility

Standard CMOS Features















Date (mm:dd:yy)

Fri, Mar 23, 2007



Item Help





Time (hh:mm:ss)

00 : 00 : 00



Menu Level >





IDE Channel 0 Master

None



Change the day, month,





IDE Channel 0 Slave

None



Year and century





IDE Channel 1 Master

None









IDE Channel 1 Slave

None









Video

EGA/VGA









Halt On

All , But Keyboard









Base Memory

640K









Extended Memory

514048K









Total Memory

515072K



















At the bottom of the menu are the control keys for use on this menu. If you need any help in each item field, you can press the <F1> key. It will display the relevant information to help you. The memory display at the lower right-hand side of the menu is read-only. It will adjust automatically according to the memory changed. The following describes each item of this menu.

Date

The date format is:

Day :

Sun to Sat

Month :

1 to 12

Date :

1 to 31

Year :

1999 to 2099

To set the date, highlight the “Date” field and use the PageUp/ PageDown or +/- keys to set the current time.

24

MI920 User’s Manual

BIOS SETUP

Time

The time format is: Hour : 00 to 23

Minute : 00 to 59 Second : 00 to 59

To set the time, highlight the “Time” field and use the <PgUp>/ <PgDn> or +/- keys to set the current time.

IDE Channel Master/Slave

The onboard PCI IDE connector provides Primary and Secondary channels for connecting up to two IDE hard disks or other IDE devices.

Press <Enter> to configure the hard disk. The selections include Auto, Manual, and None. Select ‘Manual’ to define the drive information manually. You will be asked to enter the following items.

Capacity :

Capacity/size of the hard disk drive

CYLS :

Number of cylinders

HEAD :

Number of read/write heads

PRECOMP :

Write precompensation

LANDING ZONE :

Landing zone



SECTOR :

Number of sectors

The Access Mode selections are as follows:



CHS

(HD < 528MB)



LBA

(HD > 528MB and supports





Logical Block Addressing)



Large

(for MS-DOS only)



Auto



Remarks: The main board supports two serial ATA ports and are represented in this setting as IDE Channel 0.

Video

This field selects the type of video display card installed in your system. You can choose the following video display cards:

EGA/VGA

For EGA, VGA, SEGA, SVGA



or PGA monitor adapters. (default)

CGA 40

Power up in 40 column mode.

CGA 80

Power up in 80 column mode.

MONO

For Hercules or MDA adapters.

MI920 User’s Manual

25

BIOS SETUP

Halt On

This field determines whether or not the system will halt if an error is detected during power up.

No errors

The system boot will not be halted for any error



that may be detected.

All errors

Whenever the BIOS detects a non-fatal error,



the system will stop and you will be prompted.

All, But Keyboard

The system boot will not be halted for a



keyboard error; it will stop for all other errors

All, But Diskette

The system boot will not be halted for a disk



error; it will stop for all other errors.

All, But Disk/Key

The system boot will not be halted for a key-



board or disk error; it will stop for all others.

26

MI920 User’s Manual

BIOS SETUP

Advanced BIOS Features

This section allows you to configure and improve your system and allows you to set up some system features according to your preference.

Phoenix - AwardBIOS CMOS Setup Utility

Advanced BIOS Features















CPU Feature

Press Enter



ITEM HELP





Hard Disk Boot Priority

Press Enter









Virus Warning

Disabled



Menu Level >





CPU L1 and L2 Cache

Enabled









Quick Power On Self Test

Enabled









First Boot Device

Hard Disk









Second Boot Device

CDROM









Third Boot Device

USB-FDD









Boot Other Device

Enabled









Boot Up NumLock Status

On









Gate A20 Option

Fast









Typematic Rate Setting

Disabled









Typematic Rate (Chars/Sec)

6









Typematic Delay (Msec)

250









Security Option

Setup









APIC Mode

Enabled









MPS Version Control for OS

1.4









OS Select For DRAM>64MB

Non-OS2









Small Logo (EPA) Show

Disabled































CPU Feature

Press Enter to configure the settings relevant to CPU Feature.

Hard Disk Boot Priority

With the field, there is the option to choose, aside from the hard disks connected, “Bootable add-in Cards” which refers to other external devices.

Virus Warning

If this option is enabled, an alarm message will be displayed when trying to write on the boot sector or on the partition table on the disk, which is typical of the virus.

CPU L1 and L2 Cache

Cache memory is additional memory that is much faster than conventional DRAM (system memory). CPUs from 486-type on up contain internal cache memory, and most, but not all, modern PCs have additional (external) cache memory. When the CPU requests data, the system transfers the requested data from the main DRAM into cache memory, for even faster access by the CPU. These items allow you to enable (speed up memory access) or disable the cache function. By default, these items are Enabled.

MI920 User’s Manual

27

BIOS SETUP

Quick Power On Self Test

When enabled, this field speeds up the Power On Self Test (POST) after the system is turned on. If it is set to Enabled, BIOS will skip some items.

First/Second/Third Boot Device

These fields determine the drive that the system searches first for an operating system. The options available include LS120, Hard Disk,

CDROM, ZIP100, USB-FDD, USB-ZIP, USB-CDROM, LAN and Disable.

Boot Other Device

These fields allow the system to search for an OS from other devices other than the ones selected in the First/Second/Third Boot Device.

Boot Up NumLock Status

This allows you to activate the NumLock function after you power up the system.

Gate A20 Option

This field allows you to select how Gate A20 is worked. Gate A20 is a device used to address memory above 1 MB.

Typematic Rate Setting

When disabled, continually holding down a key on your keyboard will generate only one instance. When enabled, you can set the two typematic controls listed next. By default, this field is set to Disabled.

Typematic Rate (Chars/Sec)

When the typematic rate is enabled, the system registers repeated keystrokes speeds. Settings are from 6 to 30 characters per second.

Typematic Delay (Msec)

When the typematic rate is enabled, this item allows you to set the time interval for displaying the first and second characters. By default, this item is set to 250msec.

Security Option

This field allows you to limit access to the System and Setup. The default value is Setup. When you select System, the system prompts for the User Password every time you boot up. When you select Setup, the system always boots up and prompts for the Supervisor Password only when the Setup utility is called up.

28

MI920 User’s Manual

BIOS SETUP

APIC Mode

APIC stands for Advanced Programmable Interrupt Controller. The default setting is Enabled.

MPS Version Control for OS

This option is specifies the MPS (Multiprocessor Specification) version for your operating system. MPS version 1.4 added extended configuration tables to improve support for multiple PCI bus configurations and improve future expandability. The default setting is

1.4.

OS Select for DRAM > 64MB

This option allows the system to access greater than 64MB of DRAM memory when used with OS/2 that depends on certain BIOS calls to access memory. The default setting is Non-OS/2.

Small Logo (EPA) Show

The EPA logo appears at the right side of the monitor screen when the system is boot up. The default setting is Disabled.

MI920 User’s Manual

29

BIOS SETUP

Advanced Chipset Features

This Setup menu controls the configuration of the chipset.

Phoenix - AwardBIOS CMOS Setup Utility

Advanced Chipset Features













DRAM Timing Selectable

By SPD

ITEM HELP





CAS Latency Time

3

Menu Level >





DRAM RAS# to CAS# Delay

3







DRAM RAS# Precharge

3







Precharge delay (tRAS)

9







System Memory Frequency

400MHZ







SLP_S4# Assertion Width

1 to 2 Sec







System BIOS Cacheable

Enabled







Video BIOS Cacheable

Ensabled







Memory Hole at 15M-16M

Disabled







PCI Express Root Port Func

Press Enter







** VGA Setting **









PEG/On Chip VGA Control

Auto







On-Chip Frame Buffer Size

8MB







DVMT Mode

DVMT







DVMT/FIXED memory Size

128MB







SDVO Device Setting

LVDS + DVI







SDVO LVDS Protocol

1CH SPGW, 24bit







SDVO Panel Number

1024x768







Boot Display

CRT+DVI







Panel Scaling

Auto







TV Standard

Off







Video Connector

Automatic







TV Format

Auto







Onboard PCI-E LAN

Enable







LAN PXE Option ROM

All Disable

























DRAM Timing Selectable

This option refers to the method by which the DRAM timing is selected. The default is By SPD.

CAS Latency Time

You can configure CAS latency time in HCLKs as 3 or 4 or 5. The system board designer should set the values in this field, depending on the DRAM installed. Do not change the values in this field unless you change specifications of the installed DRAM or the installed CPU.

DRAM RAS# to CAS# Delay

This option allows you to insert a delay between the RAS (Row Address Strobe) and CAS (Column Address Strobe) signals. This delay occurs when the SDRAM is written to, read from or refreshed. Reducing the delay improves the performance of the SDRAM.

30

MI920 User’s Manual

BIOS SETUP

DRAM RAS# Precharge

This option sets the number of cycles required for the RAS to accumulate its charge before the SDRAM refreshes. The default setting for the Active to Precharge Delay is 3.

Precharge Delay (tRAS)

The default setting for the Precharge Delay is 9.

System Memory Frequency

The default setting is 400MHz.

SLP_S4# Assertion Width

The default setting is 1 to 2 Sec.

System BIOS Cacheable

The setting of Enabled allows caching of the system BIOS ROM at F000h-FFFFFh, resulting in better system performance. However, if any program writes to this memory area, a system error may result.

Video BIOS Cacheable

The Setting Enabled allows caching of the video BIOS ROM at C0000h-F7FFFh, resulting in better video performance. However, if any program writes to this memory area, a system error may result.

Memory Hole At 15M-16M

In order to improve performance, certain space in memory can be reserved for ISA cards. This memory must be mapped into the memory space below 16 MB. The choices are Enabled and Disabled.

On-Chip VGA Setting

The fields under the On-Chip VGA Setting and their default settings are: PEG/On Chip VGA Control: Auto

On-Chip Frame Buffer Size: 8MB DVMT Mode: DVTM DVMT/Fixed Memory Size: 128MB SDVO Device Setting: LVDS+DVI

SDVO LVDS Protocol: 1Ch SPGW, 24bit SDVO Panel Number: 1024x768

Boot Display: CRT+DVI Panel Scaling: Auto

TV Standard: Off

Video Connector: Automatic TV Format: Auto

MI920 User’s Manual

31

BIOS SETUP

Panel Scaling

The default setting is Auto. The options available include On and Off.

Onboard PCI-E LAN

By default, this setting is enabled.

LAN PXE Option ROM

By default, this setting is All Disabled. The options available include All Disabled and ICH6 integrated Lan.

32

MI920 User’s Manual

BIOS SETUP

Integrated Peripherals

This section sets configurations for your hard disk and other integrated peripherals. The first screen shows three main items for user to select. Once an item selected, a submenu appears. Details follow.

Phoenix - AwardBIOS CMOS Setup Utility

Integrated Peripherals















OnChip IDE Device

Press Enter



ITEM HELP





Onboard Device

Press Enter



Menu Level >





SuperIO Device

Press Enter









2nd SuperIO Device

Press Enter





















Phoenix - AwardBIOS CMOS Setup Utility







OnChip IDE Device







IDE HDD Block Mode

Enabled



ITEM HELP





On-chip Primary PCI IDE

Enabled









IDE Primary Master PIO

Auto



Menu Level >





IDE Primary Slave PIO

Auto









IDE Primary Master UDMA

Auto









IDE Primary Slave UDMA

Auto









On-Chip Secondary PCI IDE

Enabled









IDE Secondary Master PIO

Auto









IDE Secondary Slave PIO

Auto









IDE Secondary Master UDMA

Auto









IDE Secondary Slave UDMA

Auto









*** On-Chip Serial ATA Setting ***









SATA Mode

IDE









On-Chip Serial ATA

Auto









PATA IDE Mode

Secondary









SATA port

P0, P2 is Primary

































Phoenix - AwardBIOS CMOS Setup Utility







Onboard Device







USB Controller

Enabled



ITEM HELP





USB 2.0 Controller

Enabled



Menu Level >





USB Keyboard Support

Ensabled









Azalia/AC97 Audio Select

Auto

































Phoenix - AwardBIOS CMOS Setup Utility







SuperIO Device







POWER ON Function

BUTTON ONLY



ITEM HELP





KB Power ON Password

Enter



Menu Level >





Hot Key power ON

Ctrl-F1









Onboard Serial Port 1

3F8/IRQ4









Onboard Serial Port 2

2F8/IRQ3









PWRON After PWR-Fail

Off































MI920 User’s Manual

33

BIOS SETUP

Phoenix - AwardBIOS CMOS Setup Utility

2nd SuperIO Device













Onboard Serial Port 3

2B0H

ITEM HELP





Serial Port 3 Use IRQ

IRQ11

Menu Level >





Onboard Serial Port 4

2B8H







Serial Port 4 Use IRQ

IRQ10

























IDE HDD Block Mode

This field allows your hard disk controller to use the fast block mode to transfer data to and from your hard disk drive.

On-chip Primary PCI IDE Enabled

This field, by default, is enabled

OnChip Primary/Secondary PCI IDE

The integrated peripheral controller contains an IDE interface with support for two IDE channels. Select Enabled to activate each channel separately.

IDE Primary/Secondary Master/Slave PIO

These fields allow your system hard disk controller to work faster. Rather than have the BIOS issue a series of commands that transfer to or from the disk drive, PIO (Programmed Input/Output) allows the BIOS to communicate with the controller and CPU directly.

The system supports five modes, numbered from 0 (default) to 4, which primarily differ in timing. When Auto is selected, the BIOS will select the best available mode.

IDE Primary/Secondary Master/Slave UDMA

These fields allow your system to improve disk I/O throughput to 33Mb/sec with the Ultra DMA/33 feature. The options are Auto and

Disabled.

34

MI920 User’s Manual

BIOS SETUP

On-Chip Serial ATA Setting

The fields under the SATA setting includes On-Chip Serial ATA (Auto), PATA IDE Mode (Secondary) and SATA Port (PO, P2 is Primary).

USB Controller

The options for this field are Enabled and Disabled. By default, this field is set to Enabled.

USB 2.0 Controller

The options for this field are Enabled and Disabled. By default, this field is set to Enabled. In order to use USB 2.0, necessary OS drivers must be installed first. Please update your system to Windows 2000 SP4 or

Windows XP SP2.

USB Keyboard Support

The options for this field are Enabled and Disabled. By default, this field is set to Enabled.

Azalia/AC97 Audio Select

This field, by default, is set to Auto.

Power ON Function

This field is related to how the system is powered on – such as with the use of conventional power button, keyboard or hot keys. The default is

BUTTON ONLY.

KB Power ON Password

This field allows users to set the password when keyboard power on is the mode of the Power ON function.

Hot Key Power ON

This field sets certain keys, also known as hot keys, on the keyboard that can be used as a ‘switch’ to power on the system.

MI920 User’s Manual

35

BIOS SETUP

Onboard Serial Port

These fields allow you to select the onboard serial ports and their addresses. The default values for these ports are:

Serial Port 1

3F8/IRQ4

Serial Port 2

2F8/IRQ3

Serial Port 3

2B0/IRQ11

Serial Port 4

2B8/IRQ10

PWRON After PWR-Fail

This field sets the system power status whether on or off when power returns to the system from a power failure situation.

36

MI920 User’s Manual

BIOS SETUP

Power Management Setup

Phoenix - AwardBIOS CMOS Setup Utility

Power Management Setup

ACPI Function

ACPI Suspend

RUN VGABIOS if S3 Resume Power Management

Video Off Method Video Off In Suspend Suspend Type Modem Use IRQ Suspend Mode

HDD Power Down Soft-Off by PWR-BTTN Wake-Up by PCI Card Power On by Ring

Resume by Alarm Date (of Month) Alarm

Time (hh:mm:ss) Alarm

** Reload Global Timer Events ** Primary IDE 0

Primary IDE 1 Secondary IDE 0 Secondary IDE 1 FDD, COM, LPT Port PCI PIRQ[A-D] #

Enabled

ITEM HELP



S1(POS)





Menu Level >



Auto





User Define





V/H SYNC+Blank





Yes





Stop Grant





3





Disabled





Disabled





Instant-Off





Disabled





Disabled





Disabled





0





0 : 0 : 0





Enabled





Enabled





Enabled





Enabled





Enabled





Enabled











ACPI Function

Enable this function to support ACPI (Advance Configuration and Power Interface).

ACPI Suspend

The default setting of the ACPI Suspend mode is S1(POS).

RUN VGABIOS if S3 Resume

The default setting of this field is Auto.

Power Management

This field allows you to select the type of power saving management modes. There are four selections for Power Management.

Min. Power Saving

Minimum power management

Max. Power Saving

Maximum power management.

User Define

Each of the ranges is from 1 min. to



1hr. Except for HDD Power Down



which ranges from 1 min. to 15 min.

MI920 User’s Manual

37

BIOS SETUP

Video Off Method

This field defines the Video Off features. There are three options.

V/H SYNC + Blank

Default setting, blank the screen and turn



off vertical and horizontal scanning.

DPMS

Allows BIOS to control the video display.

Blank Screen

Writes blanks to the video buffer.

Video Off In Suspend

When enabled, the video is off in suspend mode. The default setting is

Yes.

Suspend Type

The default setting for the Suspend Type field is Stop Grant.

Modem Use IRQ

This field sets the IRQ used by the Modem. By default, the setting is 3.

Suspend Mode

When enabled, and after the set time of system inactivity, all devices except the CPU will be shut off.

HDD Power Down

When enabled, and after the set time of system inactivity, the hard disk drive will be powered down while all other devices remain active.

Soft-Off by PWRBTN

This field defines the power-off mode when using an ATX power supply. The Instant Off mode allows powering off immediately upon pressing the power button. In the Delay 4 Sec mode, the system powers off when the power button is pressed for more than four seconds or enters the suspend mode when pressed for less than 4 seconds.

Wake up by PCI Card

By default, this field is Disabled.

Power On by Ring

This field enables or disables the power on of the system through the modem connected to the serial port or LAN.

38

MI920 User’s Manual

BIOS SETUP

Resume by Alarm

This field enables or disables the resumption of the system operation. When enabled, the user is allowed to set the Date and Time.

Reload Global Timer Events

The HDD, FDD, COM, LPT Ports, and PCI PIRQ are I/O events that can prevent the system from entering a power saving mode or can awaken the system from such a mode. When an I/O device wants to gain the attention of the operating system, it signals this by causing an IRQ to occur. When the operating system is ready to respond to the request, it interrupts itself and performs the service.

MI920 User’s Manual

39

BIOS SETUP

PNP/PCI Configurations

This option configures the PCI bus system. All PCI bus systems on the system use INT#, thus all installed PCI cards must be set to this value.

Phoenix - AwardBIOS CMOS Setup Utility

PnP/PCI Configurations













Init Display First

PCI Slot

ITEM HELP





Reset Configuration Data

Disabled

Menu Level













Resources Controlled By

Auto (ESCD)

Select Yes if you are





IRQ Resources

Press Enter





using a Plug and Play













PCI/VGA Palette Snoop

Disabled

capable operating





system Select No if





INT Pin 1 Assignment

Auto





you need the BIOS to





INT Pin 2 Assignment

Auto

configure non-boot





INT Pin 3 Assignment

Auto

devices





INT Pin 4 Assignment

Auto







INT Pin 5 Assignment

Auto







INT Pin 6 Assignment

Auto







INT Pin 7 Assignment

Auto







INT Pin 8 Assignment

Auto







**PCI Express relative items**

4096







Maximum Payload Size

























Init Display First

The default setting is PCI Card.

Reset Configuration Data

This field allows you to determine whether to reset the configuration data or not. The default value is Disabled.

Resources Controlled by

This PnP BIOS can configure all of the boot and compatible devices with the use of a PnP operating system such as Windows 95.

PCI/VGA Palette Snoop

Some non-standard VGA display cards may not show colors properly. This field allows you to set whether or not MPEG ISA/VESA VGA cards can work with PCI/VGA. When this field is enabled, a PCI/VGA can work with an MPEG ISA/VESA VGA card. When this field is disabled, a PCI/VGA cannot work with an MPEG ISA/VESA card.

Maximum Payload Size

The default setting of the PCI Express Maximum Payload Size is 4096.

40

MI920 User’s Manual

BIOS SETUP

PC Health Status

This section shows the parameters in determining the PC Health Status. These parameters include temperatures, fan speeds and voltages.

Phoenix - AwardBIOS CMOS Setup Utility

PC Health Status









ITEM HELP





Shutdown Temperature

Disabled







CPU Warning Temperature

Disabled



Menu Level >





Current System Temp

45°C/113°F







Current CPU Temp

45°C/113°F









FAN2 Speed

5400 RPM









FAN1 Speed

5400 RPM









Vcore

0.94 V









+12 V

11.92 V









+1.8V

1.83V









+5 V

5.25 V









+3.3V

3.37V









VBAT (V)

3.21 V









5VSB(V)

5.50 V









Smart FAN1 Temperature

Disabled









FAN1 Tolerance Value

1



















Shutdown Temperature

This field allows the user to set the temperature by which the system automatically shuts down once the threshold temperature is reached. This function can help prevent damage to the system that is caused by overheating.

CPU Warning Temperature

This field allows the user to set the temperature so that when the temperature is reached, the system sounds a warning. This function can help prevent damage to the system that is caused by overheating.

Temperatures/Voltages

These fields are the parameters of the hardware monitoring function feature of the motherboard. The values are read-only values as monitored by the system and show the PC health status.

Smart FAN1 Temperature

This field enables or disables the smart fan feature. At a certain temperature, the fan starts turning. Once the temperature drops to a certain level, it stops turning again.

FAN1 Tolerance Value

The default value is 1.

MI920 User’s Manual

41

BIOS SETUP

Frequency/Voltage Control

This section shows the user how to configure the processor frequency.

Phoenix - AwardBIOS CMOS Setup Utility

Frequency/Voltage Control













Auto Detect PCI Clk

Disabled

ITEM HELP





Spread Spectrum Modulated

Disabled

Menu Level >























Auto Detect PCI Clk

This field enables or disables the auto detection of the PCI clock.

Spread Spectrum Modulated

This field sets the value of the spread spectrum. The default setting is Disabled. This field is for CE testing use only.

42

MI920 User’s Manual

BIOS SETUP

Load Fail-Safe Defaults

This option allows you to load the troubleshooting default values permanently stored in the BIOS ROM. These default settings are non-optimal and disable all high-performance features.

Load Optimized Defaults

This option allows you to load the default values to your system configuration. These default settings are optimal and enable all high performance features.

Set Supervisor Password

These two options set the system password. Supervisor Password sets a password that will be used to protect the system and Setup utility. User Password sets a password that will be used exclusively on the system. To specify a password, highlight the type you want and press <Enter>. The Enter Password: message prompts on the screen. Type the password, up to eight characters in length, and press <Enter>. The system confirms your password by asking you to type it again. After setting a password, the screen automatically returns to the main screen.

To disable a password, just press the <Enter> key when you are prompted to enter the password. A message will confirm the password to be disabled. Once the password is disabled, the system will boot and you can enter Setup freely.

Save & Exit Setup

This option allows you to determine whether or not to accept the modifications. If you type “Y”, you will quit the setup utility and save all changes into the CMOS memory. If you type “N”, you will return to Setup utility.

Exit Without Saving

Select this option to exit the Setup utility without saving the changes you have made in this session. Typing “Y” will quit the Setup utility without saving the modifications. Typing “N” will return you to Setup utility.

MI920 User’s Manual

43

BIOS SETUP

This page is intentionally left blank.

44

MI920 User’s Manual

DRIVERS INSTALLATION

Drivers Installation

This section describes the installation procedures for software and drivers under the Windows 2000 and Windows XP. The software and drivers are included with the motherboard. If you find the items missing, please contact the vendor where you made the purchase. The contents of this section include the following:

Intel Chipset Software Intallation Utility...................................

46

VGA Drivers Installation...........................................................

49

AC97 Codec Audio Driver Installation .....................................

52

LAN Drivers Installation ...........................................................

54

IMPORTANT NOTE:

After installing your Windows operating system (Windows 2000/ XP), you must install first the Intel Chipset Software Installation Utility before proceeding with the drivers installation.

MI920 User’s Manual

45

DRIVER INSTALLATION

Intel Chipset Software Installation Utility

The Intel Chipset Drivers should be installed first before the software drivers to enable Plug & Play INF support for Intel chipset components. Follow the instructions below to complete the installation under Windows 2000/XP.

1.Insert the CD that comes with the board. Click Intel Chipsets and then

Intel(R) 915GM Chipset Drivers.

2.Click Intel(R) Chipset Software Installation Utility.

46

MI920 User’s Manual

DRIVERS INSTALLATION

3. When the Welcome screen appears, click Next to continue.

4. Click Yes to accept the software license agreement and proceed with the installation process.

MI920 User’s Manual

47

DRIVER INSTALLATION

5. On Readme Information screen, click Next to continue the installation.

6. The Setup process is now complete. Click Finish then restart the computer and for changes to take effect. When the computer has restarted, the system will be able to find some devices. Restart your computer when prompted.

48

MI920 User’s Manual

DRIVERS INSTALLATION

VGA Drivers Installation

To install the VGA drivers, follow the steps below to proceed with the installation.

1.Insert the CD that comes with the motherboard. Click Intel Chipsets and then Intel(R) 915GM Chipset Drivers.

2.Click Intel(R) 915GM Chipset Family Graphics Driver.

MI920 User’s Manual

49

DRIVER INSTALLATION

3. When the Welcome screen appears, click Next to continue.

4.Click Yes to to agree with the license agreement and continue the installation.

5.On Readme File Information screen, click Next to continue.

6.On Setup Progress screen, click Next to continue the installation.

50

MI920 User’s Manual

DRIVERS INSTALLATION

7. The Setup process is now complete. Click Finish to restart the computer and for changes to take effect.

MI920 User’s Manual

51

DRIVER INSTALLATION

AC97 Codec Audio Driver Installation

Follow the steps below to install the Realtek AC97 Codec Audio Drivers.

1.Insert the CD that comes with the motherboard. Click Intel Chipsets and then Intel Chipsets and then Intel(R) 915GM Chipset Drivers.

2.Click Realtek AC'97 Codec Audio Driver.

52

MI920 User’s Manual

DRIVERS INSTALLATION

3. Click Finish to restart the computer and for changes to take effect. .

MI920 User’s Manual

53

DRIVER INSTALLATION

LAN Drivers Installation

Follow the steps below to complete the installation of the Intel PRO LAN drivers.

1. Insert the CD that comes with the motherboard. Click LAN Card and then Intel(R) PRO LAN Drivers.

2. Click Install Base Software to continue.

3. When prompted, please to restart the computer for new settings to take effect.

54

MI920 User’s Manual

DRIVERS INSTALLATION

Follow the steps below to install the Marvell Gigabit LAN drivers.

1. Insert the CD that comes with the motherboard. Click LAN Card and then Marvell LAN Controller Driver.

2. Click Next when the InstallShield Wizard welcome screen appears.

3.Click Next to agree with the license agreement.

4.Click Next when the Readme Information screen appears to proceed with the drives installation process.

5.When the Installation is complete, click Finish for the changes to take effect.

MI920 User’s Manual

55

APPENDIX

Appendix

A. I/O Port Address Map

Each peripheral device in the system is assigned a set of I/O port addresses which also becomes the identity of the device. The following table lists the I/O port addresses used.

Address

Device Description

000h - 01Fh

DMA Controller #1

020h - 03Fh

Interrupt Controller #1

040h - 05Fh

Timer

060h - 06Fh

Keyboard Controller

070h - 07Fh

Real Time Clock, NMI

080h - 09Fh

DMA Page Register

0A0h - 0BFh

Interrupt Controller #2

0C0h - 0DFh

DMA Controller #2

0F0h

Clear Math Coprocessor Busy Signal

0F1h

Reset Math Coprocessor

1F0h - 1F7h

IDE Interface

278 - 27F

Parallel Port #2(LPT2)

2F8h - 2FFh

Serial Port #2(COM2)

2B0 - 2DF

Graphics adapter Controller

378h - 3FFh

Parallel Port #1(LPT1)

360 - 36F

Network Ports

3B0 - 3BF

Monochrome & Printer adapter

3C0 - 3CF

EGA adapter

3D0 - 3DF

CGA adapter

3F0h - 3F7h

Floppy Disk Controller

3F8h - 3FFh

Serial Port #1(COM1)

56

MI920 User’s Manual

APPENDIX

B. Interrupt Request Lines (IRQ)

Peripheral devices use interrupt request lines to notify CPU for the service required. The following table shows the IRQ used by the devices on board.

Level

Function

IRQ0

System Timer Output

IRQ1

Keyboard

IRQ2

Interrupt Cascade

IRQ3

Serial Port #2

IRQ4

Serial Port #1

IRQ5

Reserved

IRQ6

Floppy Disk Controller

IRQ7

Parallel Port #1

IRQ8

Real Time Clock

IRQ9

Reserved

IRQ10

Reserved

IRQ11

Reserved

IRQ12

PS/2 Mouse

IRQ13

80287

IRQ14

Primary IDE

IRQ15

Secondary IDE

MI920 User’s Manual

57

APPENDIX

C. Watchdog Timer Configuration

The WDT is used to generate a variety of output signals after a user programmable count. The WDT is suitable for use in the prevention of system lock-up, such as when software becomes trapped in a deadlock. Under these sorts of circumstances, the timer will count to zero and the selected outputs will be driven. Under normal circumstance, the user will restart the WDT at regular intervals before the timer counts to zero.

SAMPLE CODE:

//===========================================================================

//

//THIS CODE AND INFORMATION IS PROVIDED "AS IS" WITHOUT WARRANTY OF ANY

//KIND, EITHER EXPRESSED OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE

//IMPLIED WARRANTIES OF MERCHANTABILITY AND/OR FITNESS FOR A PARTICULAR

//PURPOSE.

//

//=========================================================================== #include <stdio.h>

#include <stdlib.h> #include "W627EHF.H"

//=========================================================================== int main (int argc, char *argv[]);

void copyright(void); void EnableWDT(int); void DisableWDT(void);

//=========================================================================== int main (int argc, char *argv[])

{

unsigned char bBuf; unsigned char bTime; char **endptr;

copyright();

if (argc != 2)

{

printf(" Parameter incorrect!!\n"); return 1;

}

if (Init_W627EHF() == 0)

{

printf(" Winbond 83627HF is not detected, program abort.\n"); return 1;

}

bTime = strtol (argv[1], endptr, 10);

printf("System will reset after %d seconds\n", bTime);

EnableWDT(bTime);

return 0;

}

//===========================================================================

58

MI920 User’s Manual

APPENDIX

void copyright(void)

{

printf("\n======== Winbond 83627EHF Watch Timer Tester (AUTO DETECT) ========\n"\

"Usage : W627E_WD reset_time\n"\

"Ex : W627E_WD 3 => reset system after 3 second\n"\

"W627E_WD 0 => disable watch dog timer\n");

}

//=========================================================================== void EnableWDT(int interval)

{

unsigned char bBuf;

bBuf = Get_W627EHF_Reg( 0x2D); bBuf &= (!0x01); Set_W627EHF_Reg( 0x2D, bBuf);

Set_W627EHF_LD( 0x08);

Set_W627EHF_Reg( 0x30, 0x01);

bBuf = Get_W627EHF_Reg( 0xF5); bBuf &= (!0x08); Set_W627EHF_Reg( 0xF5, bBuf);

Set_W627EHF_Reg( 0xF6, interval);

//Enable WDTO

//switch to logic device 8 //enable timer

//count mode is second

//set timer

}

//=========================================================================== void DisableWDT(void)

{

Set_W627EHF_LD(0x08);

//switch to logic device 8

Set_W627EHF_Reg(0xF6, 0x00);

//clear watchdog timer

Set_W627EHF_Reg(0x30, 0x00);

//watchdog disabled

}

//===========================================================================

MI920 User’s Manual

59

APPENDIX

//===========================================================================

//

//THIS CODE AND INFORMATION IS PROVIDED "AS IS" WITHOUT WARRANTY OF ANY

//KIND, EITHER EXPRESSED OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE

//IMPLIED WARRANTIES OF MERCHANTABILITY AND/OR FITNESS FOR A PARTICULAR

//PURPOSE.

//

//=========================================================================== #include "W627EHF.H"

#include <dos.h> //=========================================================================== unsigned int W627EHF_BASE;

void Unlock_W627EHF (void); void Lock_W627EHF (void);

//=========================================================================== unsigned int Init_W627EHF(void)

{

unsigned int result; unsigned char ucDid;

W627EHF_BASE = 0x2E; result = W627EHF_BASE;

ucDid = Get_W627EHF_Reg(0x20);

if (ucDid == 0x88)



{

goto Init_Finish;

}

W627EHF_BASE = 0x4E; result = W627EHF_BASE;

ucDid = Get_W627EHF_Reg(0x20); if (ucDid == 0x88)

{ goto Init_Finish; }

W627EHF_BASE = 0x00; result = W627EHF_BASE;

Init_Finish:

return (result);

}

//=========================================================================== void Unlock_W627EHF (void)

{

outportb(W627EHF_INDEX_PORT, W627EHF_UNLOCK); outportb(W627EHF_INDEX_PORT, W627EHF_UNLOCK);

}

//=========================================================================== void Lock_W627EHF (void)

{

outportb(W627EHF_INDEX_PORT, W627EHF_LOCK);

}

//=========================================================================== void Set_W627EHF_LD( unsigned char LD)

{

Unlock_W627EHF();

outportb(W627EHF_INDEX_PORT, W627EHF_REG_LD); outportb(W627EHF_DATA_PORT, LD); Lock_W627EHF();

}

60

MI920 User’s Manual

APPENDIX

//=========================================================================== void Set_W627EHF_Reg( unsigned char REG, unsigned char DATA)

{

Unlock_W627EHF(); outportb(W627EHF_INDEX_PORT, REG); outportb(W627EHF_DATA_PORT, DATA); Lock_W627EHF();

}

//=========================================================================== unsigned char Get_W627EHF_Reg(unsigned char REG)

{

unsigned char Result; Unlock_W627EHF(); outportb(W627EHF_INDEX_PORT, REG);

Result = inportb(W627EHF_DATA_PORT); Lock_W627EHF();

return Result;

}

//===========================================================================

//===========================================================================

//

//THIS CODE AND INFORMATION IS PROVIDED "AS IS" WITHOUT WARRANTY OF ANY

//KIND, EITHER EXPRESSED OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE

//IMPLIED WARRANTIES OF MERCHANTABILITY AND/OR FITNESS FOR A PARTICULAR

//PURPOSE.

//

//=========================================================================== #ifndef __W627EHF_H

#define __W627EHF_H

1

//===========================================================================

#define

W627EHF_INDEX_PORT

(W627EHF_BASE)

#define

W627EHF_DATA_PORT

(W627EHF_BASE+1)

//=========================================================================== #define W627EHF_REG_LD 0x07 //===========================================================================

#define W627EHF_UNLOCK

0x87

#define

W627EHF_LOCK

0xAA

//=========================================================================== unsigned int Init_W627EHF(void);

void Set_W627EHF_LD( unsigned char);

void Set_W627EHF_Reg( unsigned char, unsigned char); unsigned char Get_W627EHF_Reg( unsigned char);

//=========================================================================== #endif //__W627EHF_H

MI920 User’s Manual

61
