Intel® Desktop Boards D850EMD2 and D850EMV2 Product Guide
Order Number: A85186-003
Revision History
Revision Revision History Date
-001 First release of the Intel® Desktop Boards D850EMD2 and D850EMV2 Product Guide. February 2002
-002 Second release of the Intel Desktop Boards D850EMD2 and D850EMV2 Product Guide. February 2002
-003 Third release of the Intel Desktop Boards D850EMD2 and D850EMV2 Product Guide May 2002
If an FCC declaration of conformity marking is present on the board, the following statement applies:
FCC Declaration of Conformity
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device
may not cause harmful interference, and (2) this device must accept any interference received, including interference that
may cause undesired operation.
For questions related to the EMC performance of this product, contact:
Intel Corporation
5200 N.E. Elam Young Parkway
Hillsboro, OR 97124
1-800-628-8686
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the
FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee
that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and the receiver.
• Connect the equipment to an outlet on a circuit other than the one to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Canadian Department of Communications Compliance Statement
This digital apparatus does not exceed the Class B limits for radio noise emissions from digital apparatus set out in the
Radio Interference Regulations of the Canadian Department of Communications.
Le présent appareil numerique német pas de bruits radioélectriques dépassant les limites applicables aux appareils
numériques de la classe B prescrites dans le Réglement sur le broullage radioélectrique édicté par le ministére des
Communications du Canada.
Disclaimer
INFORMATION IN THIS DOCUMENT IS PROVIDED IN CONNECTION WITH INTEL
PROVIDED IN INTEL'S TERMS AND CONDITIONS OF SALE FOR SUCH PRODUCTS, INTEL ASSUMES NO LIABILITY
WHATSOEVER, AND INTEL DISCLAIMS ANY EXPRESS OR IMPLIED WARRANTY, RELATING TO SALE AND/OR USE
OF INTEL PRODUCTS INCLUDING LIABILITY OR WARRANTIES RELATING TO FITNESS FOR A PARTICULAR
PURPOSE, MERCHANTABILITY, OR INFRINGEMENT OF ANY PATENT, COPYRIGHT, OR OTHER INTELLECTUAL
PROPERTY RIGHT.
Intel Corporation may have patents or pending patent applications, trademarks, copyrights, or other intellectual property
rights that relate to the presented subject matter. The furnishing of documents and other materials and information does
not provide any license, express or implied, by estoppel or otherwise, to any such patents, trademarks, copyrights, or other
intellectual property rights.
Intel products are not designed, intended or authorized for use in any medical, life saving, or life sustaining applications or
for any other application in which the failure of the Intel product could create a situation where personal injury or death may
occur.
Intel may make changes to specifications, product descriptions, and plans at any time, without notice.
The D850EMD2 and D850EMV2 desktop boards may contain design defects or errors known as errata which may cause the
product to deviate from published specifications. Current characterized errata are available on request.
Contact your local Intel sales office or your distributor to obtain the latest specifications and before placing your product order.
Copies of documents which have an ordering number and are referenced in this document, or other Intel literature, may be
obtained from Intel Corporation by going to the World Wide Web site at:
Intel and Pentium are registered trademarks of Intel Corporation or it subsidiaries in the United States and other countries.
†
Other names and brands may be claimed as the property of others.
http://www.intel.com or by calling: 1-800-548-4725.
PRODUCTS. EXCEPT AS
Contents
1 Desktop Board Features
Desktop Board Components ................................................................................................ 9
Processor............................................................................................................................11
Main Memory ......................................................................................................................12
Intel® 850E Chipset .............................................................................................................12
Intel® 82850E Memory Controller Hub (MCH) ............................................................12
Intel® 82801BA I/O Controller Hub (ICH2) ..................................................................13
Firmware Hub (FWH) .................................................................................................13
Input/Output (I/O) Controller................................................................................................13
Real-Time Clock..................................................................................................................13
USB Support .......................................................................................................................14
PCI Enhanced IDE Interface ...............................................................................................14
Expansion Slots...................................................................................................................14
AGP Connector ..........................................................................................................15
Communication and Networking Riser (CNR) (Optional) ............................................15
Audio Subsystem ................................................................................................................15
BIOS ...................................................................................................................................15
PCI Auto Configuration...............................................................................................15
IDE Auto Configuration...............................................................................................16
Security Passwords....................................................................................................16
LAN Subsystem (Optional)..................................................................................................16
LAN Subsystem Software...........................................................................................16
RJ-45 LAN Connector LEDs.......................................................................................17
Speaker...............................................................................................................................17
Battery.................................................................................................................................17
Power Management Features .............................................................................................17
Instantly Available Technology ...................................................................................18
Resume on Ring.........................................................................................................20
2 Installing and Replacing Desktop Board Components
Before You Begin ................................................................................................................21
Installing the I/O Shield .......................................................................................................22
Installing and Removing the Desktop Board........................................................................22
Installing a Processor ..........................................................................................................24
Removing the Processor .....................................................................................................25
Installing Memory ................................................................................................................25
Removing Memory..............................................................................................................27
Installing an AGP Card........................................................................................................28
Removing the AGP Card.....................................................................................................28
Connecting the IDE Cable...................................................................................................29
Setting the BIOS Configuration Jumper...............................................................................30
Clearing Passwords ............................................................................................................31
Replacing the Battery..........................................................................................................32
iii
Intel Desktop Boards D850EMD2 and D850EMV2 Product Guide
3 Updating the BIOS
Updating the BIOS with the Intel® Express BIOS Update Utility ..........................................35
Updating the BIOS with the Intel® Flash Memory Update Utility ..........................................35
Obtaining the BIOS Update File..................................................................................35
Updating the BIOS......................................................................................................36
Recovering the BIOS..................................................................................................36
4 Using the Setup Program
Maintenance Menu..............................................................................................................40
Extended Configuration Submenu ..............................................................................41
Main Menu ..........................................................................................................................42
Advanced Menu ..................................................................................................................43
PCI Configuration Submenu.......................................................................................44
Boot Configuration Submenu......................................................................................45
Peripheral Configuration Submenu.............................................................................46
IDE Configuration Submenu.......................................................................................48
Primary/Secondary IDE Master/Slave Submenus.......................................................49
Diskette Configuration Submenu ................................................................................50
Event Log Configuration Submenu .............................................................................51
Video Configuration Submenu....................................................................................51
Security Menu .....................................................................................................................52
Power Menu........................................................................................................................53
APM Submenu ...........................................................................................................54
ACPI Submenu...........................................................................................................54
Boot Menu...........................................................................................................................55
Boot Device Priority ....................................................................................................55
Exit Menu ............................................................................................................................56
5 Technical Reference
Board Connectors ...............................................................................................................57
Back Panel Connectors ..............................................................................................58
Midboard Connectors .................................................................................................59
Audio Connectors ..............................................................................................59
Power and Hardware Connectors ......................................................................60
Add-In Card and Peripheral Interface Connectors..............................................62
Front Panel Connectors..............................................................................................64
Desktop Board Resources...................................................................................................65
Memory Map ..............................................................................................................65
DMA Channels ...........................................................................................................65
I/O Map ......................................................................................................................66
Interrupts ....................................................................................................................68
A Error Messages and Indicators
BIOS Beep Codes...............................................................................................................69
BIOS Error Messages .........................................................................................................70
B Regulatory Compliance
Safety Regulations ..............................................................................................................73
iv
Contents
EMC Regulations ................................................................................................................73

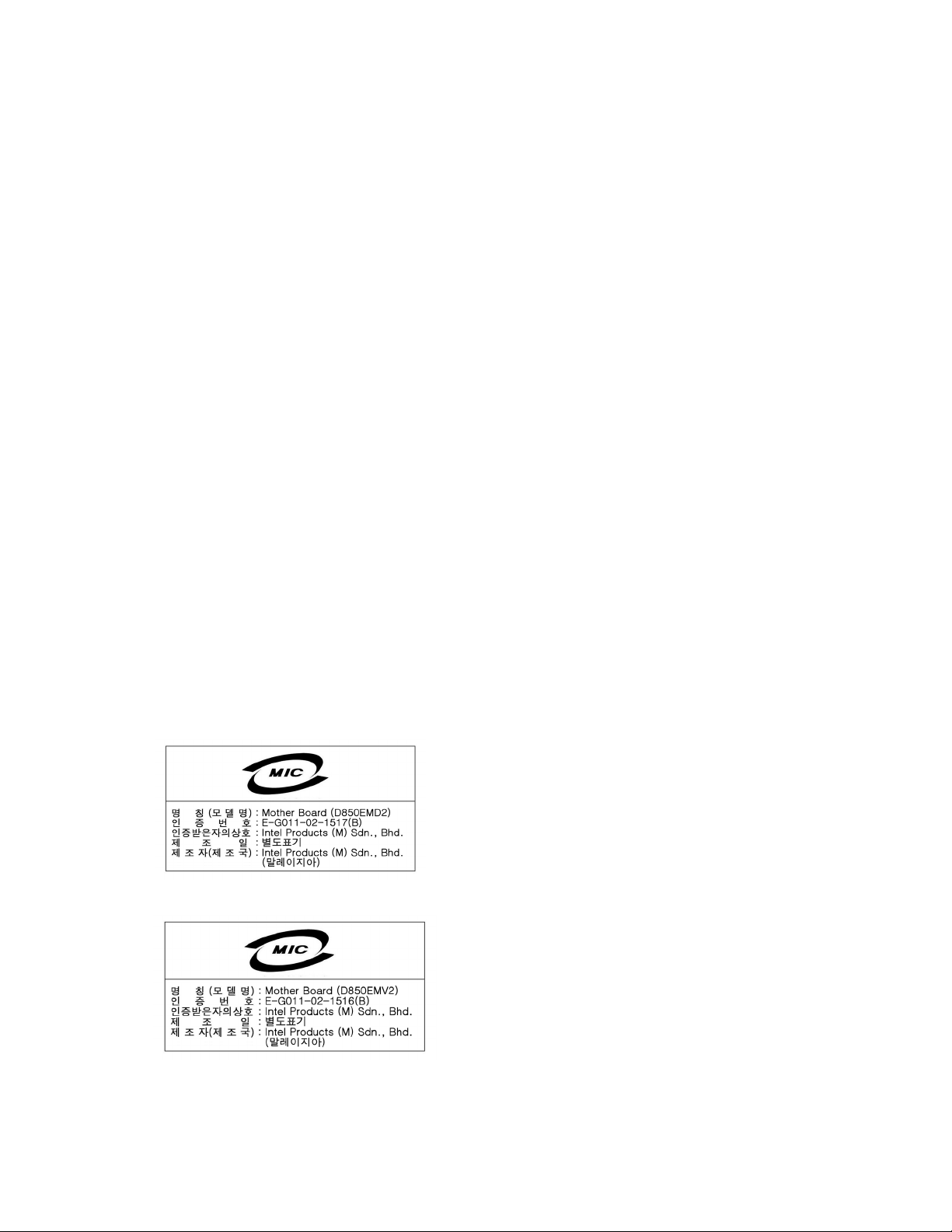

Product Certification Markings.............................................................................................74
Installation Precautions .......................................................................................................75
Installation Instructions........................................................................................................75
Ensure Electromagnetic Compatibility (EMC) Compliance .........................................75
Chassis and Component Certifications.......................................................................76
Prevent Power Supply Overload.................................................................................76
Place Battery Marking ................................................................................................76
Use Only for Intended Applications.............................................................................77
Figures
1. Desktop Board D850EMD2 Components............................................................................ 9
2. Desktop Board D850EMV2 Components...........................................................................10
3. Location of the Standby Power Indicator............................................................................18
4. Installing the I/O Shield ......................................................................................................22
5. Desktop Board D850EMD2 Mounting Screw Holes............................................................23
6. Desktop Board D850EMV2 Mounting Screw Holes............................................................23
7. Installing a Processor.........................................................................................................24
8. Connecting the Processor Fan Cable to the Processor Fan Connector .............................24
9. RDRAM and CRIMM Installation........................................................................................25
10. RIMM Installation ...............................................................................................................26
11. Installing a Memory Module ...............................................................................................27
12. Removing the AGP Card....................................................................................................28

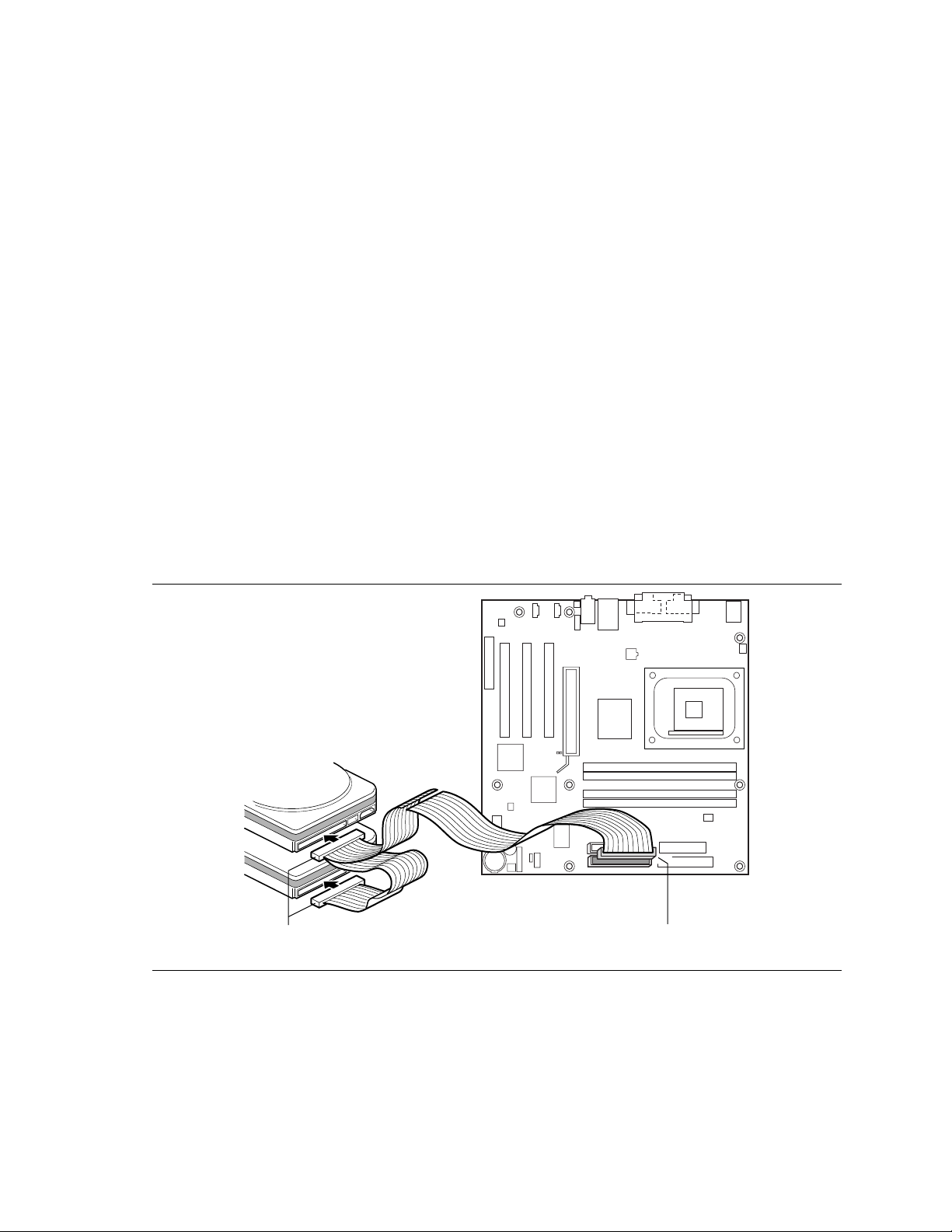

13. Connecting the IDE Cable..................................................................................................29
14. Location of the BIOS Configuration Jumper .......................................................................30
15. Removing the Battery.........................................................................................................34
16. Back Panel Connectors......................................................................................................58
17. Audio Connectors ..............................................................................................................59
18. Desktop Board D850EMD2 Power and Hardware Control Connectors ..............................60
19. Desktop Board D850EMV2 Power and Hardware Control Connectors ..............................61

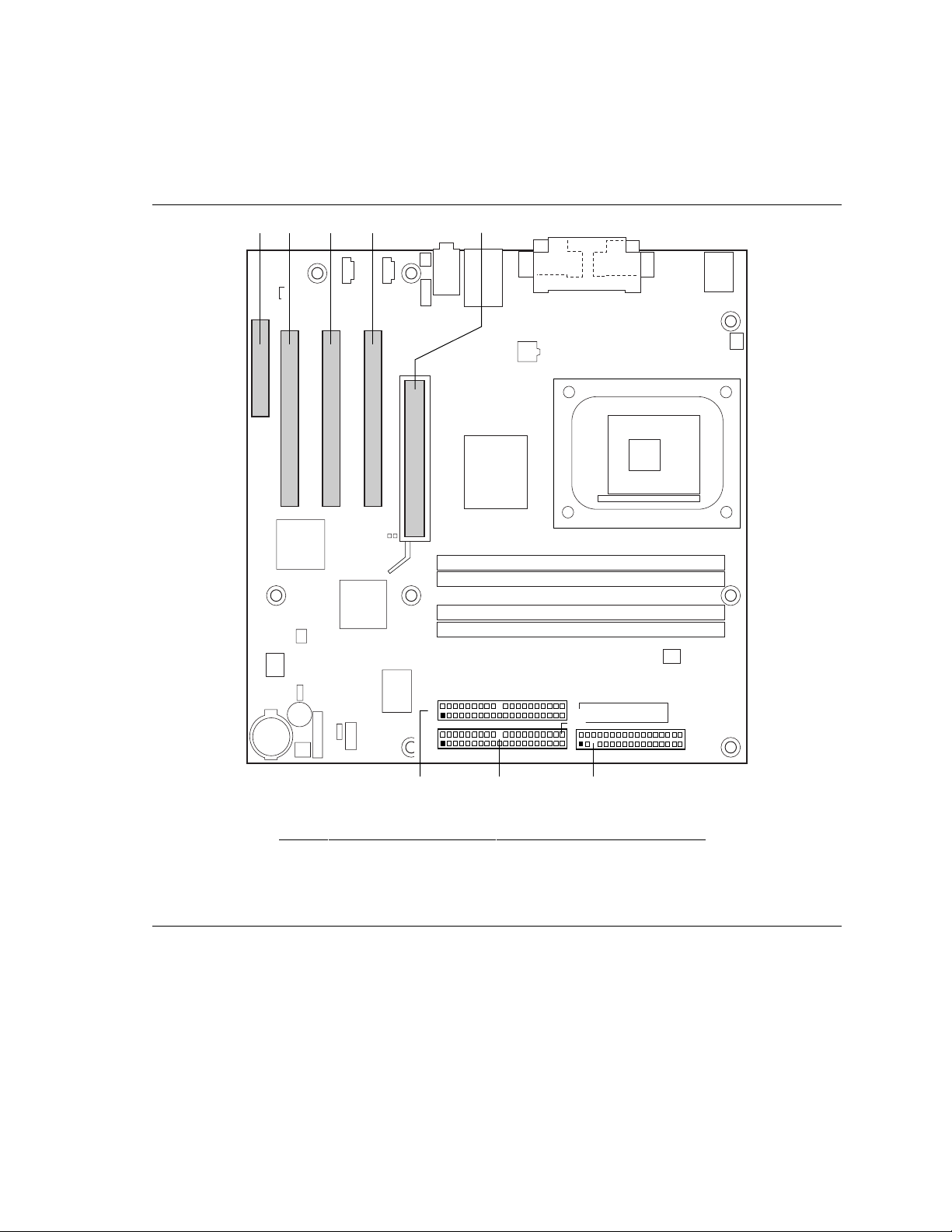

20. Desktop Board D850EMD2 Add-in Card and Peripheral Interface Connectors ..................62
21. Desktop Board D850EMV2 Add-in Card and Peripheral Interface Connectors ..................63
22. Front Panel Connectors .....................................................................................................64
Tables
1. Feature Summary ............................................................................................................... 7
2. Processors Supported by the Desktop Boards...................................................................11
3. RJ-45 LAN Connector LEDs ..............................................................................................17
4. Standby Current Requirements..........................................................................................19
5. Jumper Settings for the BIOS Setup Program Modes (J9H2) ............................................30
6. BIOS Setup Program Menu Bar.........................................................................................39
7. BIOS Setup Program Function Keys..................................................................................40
8. Maintenance Menu ............................................................................................................40
9. Extended Configuration Submenu......................................................................................41
10. Main Menu .........................................................................................................................42
11. Advanced Menu.................................................................................................................43
12. PCI Configuration Submenu...............................................................................................44
13. Boot Configuration Submenu .............................................................................................45
14. Peripheral Configuration Submenu ....................................................................................46
v
Intel Desktop Boards D850EMD2 and D850EMV2 Product Guide
15. IDE Configuration Submenu...............................................................................................48
16. Primary/Secondary IDE Master/Slave Submenus..............................................................49
17. Diskette Configuration Submenu........................................................................................50
18. Event Log Configuration Submenu.....................................................................................51
19. Video Configuration Submenu ...........................................................................................51
20. Security Menu....................................................................................................................52
21. Power Menu.......................................................................................................................53
22. APM Submenu...................................................................................................................54
23. ACPI Submenu ..................................................................................................................54
24. Boot Menu .........................................................................................................................55
25. Boot Device Priority............................................................................................................55
26. Exit Menu...........................................................................................................................56
27. System Memory Map .........................................................................................................65
28. DMA Channels...................................................................................................................65
29. I/O Map .............................................................................................................................66
30. Interrupts............................................................................................................................68
31. Beep Codes .......................................................................................................................69
32. BIOS Error Messages ........................................................................................................70
33. Safety Regulations.............................................................................................................73
34. EMC Regulations...............................................................................................................73
vi
1 Desktop Board Features
✏
NOTE
The Desktop Board D850EMD2 layout was used for illustrations unless otherwise noted.
Table 1 describes the major features of the Desktop Boards D850EMD2 and D850EMV2.
Table 1. Feature Summary
Form Factors
Processor
Memory
Chipset
I/O Control
LAN
Graphics
Audio
Peripheral
Interfaces
Expansion
Capabilities
• microATX at 9.6 inches by 9.6 inches (D850EMD2 board)
• ATX at 9.6 inches by 12 inches (D850EMV2 board)
• Support for an Intel® Pentium® 4 processor in an mPGA478 socket
• 533 MHz and 400 MHz front side bus (FSB) frequency
• Four 168-pin Direct Rambus
• Support for PC800-40 compliant RDRAM with 533 MHz FSB operation
• Support for PC800-40 and PC800-45 compliant RDRAM with 400 MHz FSB operation
• Support for up to 2 GB of system memory
®
Intel
850E chipset, consisting of:
• Intel
• Intel
• 4 Mbit Firmware Hub (FWH)
SMSC LPC47M142-NC I/O controller
Optional Intel
RJ-45 connector
AGP connector supporting 1.5 V 4X or 2X AGP cards
Analog Devices Inc. AD1885 analog codec (AC ’97) featuring SoundMAX
software support
• Up to five Universal Serial Bus (USB) 2.0 ports
• Two IDE interfaces with Ultra DMA-33 and ATA-66/100 support
• One floppy drive interface
• One parallel port
• Two serial ports
• PS/2
D850EMD2 board:
• Three PCI bus add-in card connectors
• One AGP connector
• One optional CNR connector (slot shared with PCI bus connector 3)
D850EMV2 board:
• Five PCI bus add-in card connectors
• One AGP connector
• One optional CNR connector
®
82850E Memory Controller Hub (MCH) with Accelerated Hub Architecture
(AHA) bus
®
82801BA I/O Controller Hub (ICH2) with AHA bus
®
82562ET 10/100 Mbit/sec Platform LAN Connect (PLC) device and
Two ports routed to the back panel
Two ports routed to the front panel USB connector
One port routed to the optional CNR
†
keyboard and mouse ports
†
RIMM† sockets
†
with SPX†
continued
7
Intel Desktop Boards D850EMD2 and D850EMV2 Product Guide
Table 1. Feature Summary (continued)
BIOS
Power
Management
Management
Features
Instantly
Available PC
Other
Features
• Intel/AMI BIOS
• 4 Mbit symmetrical flash memory
• Support for SMBIOS
• Support for Advanced Configuration and Power Interface (ACPI 1.0)
• Support for Advanced Power Management (APM 1.2)
• Support for Plug and Play (PnP)
Hardware monitor with:
• Two fan sensing inputs used to monitor fan activity
• Remote diode temperature sensing
• Voltage sensing to detect out of range values
• Support for PCI Local Bus Specification Revision 2.2
• Suspend to RAM (STR) support
• Wake on USB, PCI, CNR, RS-232, PS/2, LAN, and front panel
• SCSI hard drive activity LED connector for the front panel
• Speaker
NOTE
✏
For information about Intel® desktop boards, including technical product specifications, BIOS
updates, and device drivers, go to the Intel World Wide Web site at:
http://support.intel.com/support/motherboards/desktop
8
Desktop Board Features
Desktop Board Components
Figure 1 shows the location of the major components on the Desktop Board D850EMD2.
E
F
CC
C
B DA
G
H
I
J
OM13618
K
L
M
BB
AA
Z
Y
X
W
R
U S
A ADI AD1885 audio codec P Primary IDE connector
B Auxiliary line-in connector (ATAPI) Q Secondary IDE connector
C AGP connector R Front panel USB 2.0 connector
D CD-ROM connector (ATAPI) S Alternate power/sleep LED connector
E Front panel audio connector T Front panel connector
F Chassis intrusion connector U Chassis fan connector (fan 2)
G Back panel connectors V Battery
H ATX12V processor core voltage connector W Speaker
I Processor fan connector (CPU fan)
(tachometer input)
J Intel 82850E Memory Controller Hub (MCH) Y SCSI hard drive activity LED connector
K Processor socket Z Intel 82801BA I/O Controller Hub (ICH2)
L RIMM sockets AA NEC
M RIMM fan connector (fan 1) BB PCI bus add-in card connectors
N Power connector
O Floppy drive connector CC Communication and Networking Riser (CNR)
(optional)
Q
X BIOS configuration jumper
OP
(tachometer input)
†
D720100AGM USB 2.0 controller
NV T
Figure 1. Desktop Board D850EMD2 Components
9
Intel Desktop Boards D850EMD2 and D850EMV2 Product Guide
Figure 2 shows the location of the major components on the Desktop Board D850EMV2.
E
F
C
B DA
G
OM13619
H
I
J
K
L
M
DD
CC
BB
AA
Z
Y
X
W
R
U S
A ADI AD1885 audio codec Q Secondary IDE connector
B Auxiliary line-in connector (ATAPI) R Front panel USB 2.0 connector
C AGP connector S Alternate power/sleep LED connector
D CD-ROM connector (ATAPI) T Front panel connector
E Front panel audio connector U Chassis fan connector (fan 2)
F Chassis intrusion connector V Battery
G Back panel connectors W Speaker
H ATX12V processor core voltage connector X BIOS configuration jumper
I Processor fan connector (CPU fan)
(tachometer input)
J Intel 82850E Memory Controller Hub
(MCH)
K Processor socket AA NEC D720100AGM USB 2.0 controller
L RIMM sockets BB PCI bus add-in card connectors
M RIMM fan connector (fan 1) CC Communication and Networking Riser
N Power connector DD Chassis fan connector (fan 3)
O Floppy drive connector
P Primary IDE connector
Q
(tachometer input)
Y SCSI hard drive activity LED connector
Z Intel 82801BA I/O Controller Hub (ICH2)
(CNR) (optional)
OP
NV T
Figure 2. Desktop Board D850EMV2 Components
10
Desktop Board Features
Processor
CAUTION
Failure to use an ATX12V power supply, or not connecting the additional power supply lead to the
Desktop Board D850EMD2 or D850EMV2 may result in damage to the desktop board and/or
power supply.
The desktop boards support a single Intel Pentium 4 processor. Processors are not included with
the desktop board and must be purchased separately.
The processor connects to the desktop board through the mPGA 478-pin socket. The Pentium 4
processor may be removed and replaced to accommodate supported higher speed processors.
For instructions on how to install a processor, see Chapter 2 on page 21.
The desktop boards support the processors listed in Table 2.
Table 2. Processors Supported by the Desktop Boards
Type
Intel® Pentium 4 processor on .13 micron
process in an mPGA478 package
Intel Pentium 4 processor on .13 micron
process in an mPGA478 package
Intel Pentium 4 processor on .18 micron
process in an mPGA478 package
Designation
2.53, 2.40 and 2.26 GHz 533 MHz 512 KB
2.20, 2A, 1.80A, 1.70A,
and 1.60A GHz
2, 1.90, 1.80, 1.70, 1.60,
and 1.50 GHz
Front Side Bus
Frequency
400 MHz 512 KB
400 MHz 256 KB
L2 Cache
For the latest information on processor support for the Desktop Boards D850EMD2 and
D850EMV2, refer to the Intel desktop board World Wide Web site at:
http://support.intel.com/support/motherboards/desktop
For instructions on installing or upgrading the processor, see Chapter 2 on page 21.
The Desktop Boards D850EMD2 and D850EMV2 require an ATX12V compliant power supply to
function according to desktop board specifications. Both desktop boards have two ATX12V
compliant power supply connectors that are needed to provide extra power to the Intel 850E
chipset and Pentium 4 processor.
Items B and E in Figure 18 on page 60 and items C and F in Figure 19 on page 61 show the two
power connector locations.
11
Intel Desktop Boards D850EMD2 and D850EMV2 Product Guide
Main Memory
The desktop boards have four 2.5 V memory module sockets that support RIMMs containing
Direct Rambus DRAM (RDRAM) devices.
The desktop boards support the following memory features:
• Maximum of 32 RDRAM devices per channel
• 128 MB (minimum) to 2 GB (maximum) onboard capacity utilizing 128/144 Mbit or
256/288 Mbit technology
• Single- or double-sided RIMM modules
• Support for PC800-40 compliant RDRAM with 533 MHz front side but (FSB) operation
• Support for PC800-40 and PC800-45 compliant RDRAM with 400 MHz FSB operation
• Serial Presence Detect (SPD) memory only
• ECC and non-ECC support
NOTE
✏
For information about vendors that support these memory requirements, refer to the Desktop
Board D850EMD2 or D850EMV2 link on this Intel World Wide Web site:
http://support.intel.com/support/motherboards/desktop
For information about installing memory, see Chapter 2 on page 21.
Intel® 850E Chipset
The Intel 850E chipset consists of the following devices:
• Intel 82850E Memory Controller Hub (MCH) with AHA bus
• Intel 82801BA I/O Controller Hub (ICH2) with AHA bus
• Firmware Hub (FWH)
Intel® 82850E Memory Controller Hub (MCH)
The MCH has these features:
• Integrated dual Direct Rambus technology memory channel
• Support for 128 MB to 2 GB main system memory
• Auto-detection of RDRAM memory
• Support for a single AGP device
12
Desktop Board Features
Intel® 82801BA I/O Controller Hub (ICH2)
The ICH2 has these features:
®
• Integrated Intel
• Support for the PCI interface
• Support for the Low Pin Count (LPC) interface
• Integrated IDE controller
• Support for CNR
• General purpose I/O
• Power management logic
• Support for the System Management Bus
• Real-Time Clock
• Support for AC ’97 audio devices and modems
Ethernet LAN MAC (external PLC required)
Firmware Hub (FWH)
The FWH has these features:
• System BIOS
• System security and manageability logic that enables protection for storing and updating of
platform information
Input/Output (I/O) Controller
The SMSC LPC47M142-NC LPC bus I/O controller features the following:
• Low pin count (LPC) interface
• 3.3 V operation
• Two serial ports
• One parallel port with Extended Capabilities Port (ECP) and Enhanced Parallel Port
(EPP) support
• Serial IRQ interface compatible with serialized IRQ support for PCI systems
• PS/2 mouse and keyboard interfaces
• Interface for one 1.2 MB, 1.44 MB, or 2.88 MB diskette drive
• Intelligent power management, including a programmable wake up event interface
• PCI power management support
• Two fan tachometer inputs
Real-Time Clock
The desktop boards have a time-of-day clock and 100-year calendar. A battery on the desktop
board keeps the clock current when the computer is turned off.
13
Intel Desktop Boards D850EMD2 and D850EMV2 Product Guide
USB Support
The desktop boards support up to five USB 2.0 ports; two ports routed to the back panel, two to the
front panel connector, and one to the optional CNR. You can connect five USB peripheral devices
directly to the computer without an external hub. To attach additional devices, connect an external
hub to either of the built-in ports. The desktop boards support the standard universal host
controller interface (UHCI) and takes advantage of standard software drivers written to be
compatible with UHCI.
NOTE
✏
Computer systems that have an unshielded cable attached to a USB port might not meet FCC
Class B requirements, even if no device or a low-speed USB device is attached to the cable. Use a
shielded cable that meets the requirements for a full-speed USB device.
PCI Enhanced IDE Interface
The ICH2’s IDE interface handles the exchange of information between the processor and
†
peripheral devices like hard disks, CD-ROM drives, and Iomega Zip
The interface supports:
• Up to four IDE devices (such as hard drives)
• ATAPI devices (such as CD-ROM drives)
• PIO Mode 3 and PIO Mode 4 devices
• Ultra DMA-33 and ATA-66/100 protocol
• Laser servo (LS-120) drives
drives inside the computer.
Expansion Slots
The D850EMD2 board has:
• Three PCI bus add-in card connectors (PCI bus connector 3 slot shared with CNR)
• One AGP connector
• One optional CNR connector (slot shared with PCI bus connector 3)
The D850EMV2 board has:
• Five PCI bus add-in card connectors
• One AGP connector
• One optional CNR connector
14
Desktop Board Features
AGP Connector
NOTE
✏
The desktop boards are compatible with 1.5 V AGP cards only.
AGP is a high-performance interface for graphics-intensive applications such as 3D graphics.
AGP is independent of the PCI bus and is intended for use with graphical display devices. The
AGP connector supports 1.5 V AGP 4X and 2X add-in cards.
For information about installing an AGP card, see Chapter 2 on page 21.
Communication and Networking Riser (CNR) (Optional)
The CNR provides an interface that supports various features such as audio, modem, USB, and
LAN interfaces of the Intel 850E chipset.
Audio Subsystem
The AC ’97 compliant audio subsystem consists of the following:
• Intel 82801BA I/O Controller Hub (ICH2)
• Analog Devices Inc. AD1885 analog codec
NOTE
✏
The audio line out connector, located on the back panel, is designed to power either headphones
or amplified speakers only. Poor audio quality may occur if passive (non-amplified) speakers are
connected to this output.
Audio drivers and utilities are available from Intel’s World Wide Web site:
http://support.intel.com/support/motherboards/desktop
BIOS
The BIOS provides the Power-On Self-Test (POST), the BIOS Setup program, the PCI and IDE
auto-configuration utilities, and the video BIOS. The BIOS is stored in the Firmware Hub. The
BIOS can be updated by following the instructions in Chapter 3 on page 35.
PCI Auto Configuration
If you install a PCI add-in card in your computer, the PCI auto-configuration utility in the BIOS
automatically detects and configures the resources (IRQs, DMA channels, and I/O space) for that
add-in card. You do not need to run the BIOS Setup program after you install a PCI add-in card.
15
Intel Desktop Boards D850EMD2 and D850EMV2 Product Guide
IDE Auto Configuration
If you install an IDE device (such as a hard drive) in your computer, the IDE auto-configuration
utility in the BIOS automatically detects and configures the device for your computer. You do not
need to run the BIOS Setup program after installing an IDE device. You can override the
auto-configuration options by specifying manual configuration in the BIOS Setup program.
To use ATA-66/100 features, the following items are required:
• An ATA-66/100 peripheral device
• An ATA-66/100 compatible cable
• ATA-66/100 operating system device drivers
Security Passwords
The BIOS includes security features that restrict whether the BIOS Setup program can be accessed
and who can boot the computer. A supervisor password and a user password can be set for the
Setup and for booting the computer, with the following restrictions:
• The supervisor password gives unrestricted access to view and change all Setup options. If
only the supervisor password is set, pressing <Enter> at the password prompt of Setup gives
the user restricted access to Setup.
• If both the supervisor and user passwords are set, you must enter either the supervisor
password or the user password to access Setup. Setup options are then available for viewing
and changing depending on whether the supervisor or user password was entered.
• Setting a user password restricts who can boot the computer. The password prompt is
displayed before the computer is booted. If only the supervisor password is set, the computer
boots without asking for a password. If both passwords are set, you can enter either password
to boot the computer.
LAN Subsystem (Optional)
The optional Intel 82562ET (in conjunction with the Intel 82801BA ICH2) provides a Fast
Ethernet PCI LAN subsystem providing both 10Base-T and 100Base-TX connectivity.
Features include:
• 32-bit, 33-MHz direct bus mastering on the PCI bus
• Shared memory structure in the host memory that copies data directly to/from host memory
• A single RJ-45 connector with connection and activity status LEDs
• Jumperless configuration; the LAN subsystem is completely software configurable
LAN Subsystem Software
For Intel 82562ET Fast Ethernet PCI LAN software and drivers, refer to the D850EMD2 and
D850EMV2 link on Intel’s World Wide Web site at:
http://support.intel.com/support/motherboards/desktop
16
Desktop Board Features
RJ-45 LAN Connector LEDs
Two LEDs are built into the RJ-45 LAN connector. Table 3 describes the LED states when the
board is powered up and the LAN subsystem is operating.
Table 3. RJ-45 LAN Connector LEDs
LED Color LED State Indicates
Off 10 Mbit/sec data rate is selected. Green
On 100 Mbit/sec data rate is selected.
Yellow
Off LAN link is not established.
On (steady state) LAN link is established.
On (brighter and pulsing) The computer is communicating with another computer on
the LAN.
Speaker
A 47 Ω inductive speaker is mounted on the desktop board. The speaker provides audible error
code (beep code) information during the Power-On Self-Test (POST).
Battery
A battery on the desktop board keeps the values in CMOS RAM and the clock current when the
computer is turned off.
See Chapter 2 on page 21 for instructions on how to replace the battery.
Power Management Features
Power management is implemented at several levels, including:
• Software support:
Advanced Configuration and Power Interface (ACPI)
Advanced Power Management (APM)
• Hardware support:
Instantly Available technology
Resume on Ring
Wake from USB
Wake from PS/2 keyboard
PCI card wakeup support
If the desktop board is used with an ACPI-aware operating system, the BIOS can provide ACPI
support. Otherwise, it defaults to APM support.
17
Intel Desktop Boards D850EMD2 and D850EMV2 Product Guide
Instantly Available Technology
CAUTION
For Instantly Available technology, the 5 V standby line for the power supply must be capable of
providing adequate +5 V standby current. Failure to provide adequate standby current when
using this feature can damage the power supply and/or affect ACPI S3 sleep state functionality.
CAUTION
If the standby current necessary to support multiple wake events from the PCI and/or USB buses
exceeds power supply capacity, the desktop board may lose register settings stored in memory.
Instantly Available technology enables the desktop board to enter the ACPI S3 (Suspend-to-RAM)
sleep state. While in the S3 sleep state, the computer will appear to be off. When signaled by a
wake-up device or event, the system quickly returns to its last known awake state.
The desktop board’s standby power indicator, shown in Figure 3 on page 18, is lit when there is
standby power to the system. This includes the memory modules and PCI bus connectors even
when the computer appears to be off.
If the system has a dual-colored power LED on the front panel, the sleep state is indicated by the
LED turning amber.
CR7F1
OM13620
Figure 3. Location of the Standby Power Indicator
Power supplies used with these desktop boards must be able to provide enough standby current to
support the standard Instantly Available (ACPI S3 sleep state) configuration as outlined in Table 4.
Values are determined by specifications such as PCI 2.2. Actual measurements may vary.
18
Desktop Board Features
To estimate the total amount of standby current required for a particular system configuration,
standby current requirements of all installed components must be added. Refer to the descriptions
in Table 4 and follow the steps outlined below:
1. Note the total Desktop Board D850EMD2 or D850EMV2 standby current requirement.
2. Add to that the total PS/2 port standby current requirement if a wake-enabled device is
connected.
3. Add, from the PCI 2.2 slots (wake-enabled) row, the total of the number of wake-enabled
devices installed (PCI and AGP) multiplied by the standby current requirement.
4. Add, from the PCI 2.2 slots (non-wake-enabled) row, the total of the number of
non-wake-enabled devices installed (PCI and AGP) multiplied by the standby current
requirement.
5. Add all additional wake-enabled devices’ and non-wake-enabled devices’ standby current
requirements as applicable.
6. Add all the required current totals from steps 1 through 5 to determine the total estimated
standby current power supply requirement.
Table 4. Standby Current Requirements
Instantly Available Current
Support
Estimate for integrated board
components
Estimate for add-on components
(Add to integrated board components
shown above)
Description
Total for the Desktop Board D850EMD2 or
D850EMV2
PS/2 ports** 345
PCI 2.2 slots (wake-enabled) 375
PCI 2.2 slots (non-wake-enabled) 100
CNR** (wake enabled) 875
CNR** (non-wake enabled) 40
USB ports
**
700
Standby Current
Requirements (mA)
770*
* Refer to the Intel® Desktop Board D850EMV2/D850EMD2 Technical Product Specification for the exact standby current
requirements
** Dependent upon system configuration
NOTE
✏
PCI requirements are calculated by totaling the following:
• One wake-enabled device @ 375 mA
• Five non-wake-enabled devices @ 20 mA each
PS/2 Ports requirements per the IBM PS/2 Port Specification (Sept 1991):
• Keyboard @ 275 mA
• Mouse @ 70 mA
USB requirements are calculated by totaling the following:
• One wake-enabled device @ 500 mA
• USB hub @ 100 mA
• Three USB non-wake-enabled devices @ 2.5 mA each
• The USB ports are limited to a combined total of 700 mA
19
Intel Desktop Boards D850EMD2 and D850EMV2 Product Guide
Resume on Ring
The operation of Resume on Ring can be summarized as follows:
• Resumes operation from the ACPI S1 state
• Requires only one call to access the computer
• Detects incoming calls similarly for external and internal modems
• Requires modem interrupt be unmasked for correct operation
20
2 Installing and Replacing Desktop Board
Components
This chapter tells you how to:
• Install the I/O shield
• Install and remove the desktop board
• Install and remove a processor
• Install and remove memory
• Install and remove an AGP card
• Connect the IDE cable
• Set the BIOS jumper
• Clear passwords
• Replace the battery
Before You Begin
CAUTION
Before you install the desktop board in a chassis, see Appendix B on page 73 for regulatory
requirements and precautions.
• Always follow the steps in each procedure in the correct order.
• Set up a log to record information about your computer, such as model, serial number,
installed options, and configuration information.
• Electrostatic discharge (ESD) can damage components. Perform the procedures described in
this chapter only at an ESD workstation using an antistatic wrist strap and a conductive foam
pad. If such a station is not available, you can provide some ESD protection by wearing an
antistatic wrist strap and attaching it to a metal part of the computer chassis.
WARNINGS
The procedures in this chapter assume familiarity with the general terminology associated with
personal computers and with the safety practices and regulatory compliance required for using
and modifying electronic equipment.
Disconnect the computer from its power source and from any telecommunications links,
networks, or modems before performing any of the procedures described in this chapter.
Failure to disconnect power, telecommunications links, networks, or modems before you open
the computer or perform any procedures can result in personal injury or equipment damage.
Some circuitry on the board can continue to operate even though the front panel power
button is off.
21
Intel Desktop Boards D850EMD2 and D850EMV2 Product Guide
Installing the I/O Shield
NOTE
✏
Systems based on this desktop board require that the I/O shield be properly installed to comply
with Class B emissions requirements.
The desktop board comes with an I/O shield. When installed in the chassis, the shield blocks radio
frequency transmissions, protects internal components from dust and foreign objects, and promotes
correct airflow within the chassis.
Install the I/O shield before installing the desktop board in the chassis. Place the shield inside the
chassis as shown in the following figure. Press the shield into place so that it fits tightly and
securely. If the shield doesn’t fit, obtain a properly sized shield from the chassis supplier.
Figure 4 shows how the I/O shield is installed inside the chassis.
OM13621
Figure 4. Installing the I/O Shield
Installing and Removing the Desktop Board
Refer to your chassis manual for instructions on installing and removing the board. The Desktop
Board D850EMD2 is secured to the chassis by eight screws and the D850EMV2 board by 11
screws. See Figure 5 and Figure 6 for the locations of the mounting screw holes of each desktop
board.
WARNING
This procedure should be done only by qualified technical personnel. Disconnect the computer
from its power source before performing the procedures described here. Failure to disconnect
the power before you open the computer can result in personal injury or equipment damage.
22
Installing and Replacing Desktop Board Components
NOTES
✏
You will need a Phillips† (#2 bit) screwdriver.
Refer to Appendix B on page 73 for regulatory requirements and installation instructions and
precautions.
Figure 5 shows the location of the mounting holes for the Desktop Board D850EMD2.
OM13623
Figure 5. Desktop Board D850EMD2 Mounting Screw Holes
Figure 6 shows the location of the mounting holes for the Desktop Board D850EMV2.
OM13622
Figure 6. Desktop Board D850EMV2 Mounting Screw Holes
23
Intel Desktop Boards D850EMD2 and D850EMV2 Product Guide
Installing a Processor
CAUTION
Before installing or removing the processor, make sure that AC power has been removed by
unplugging the power cord from the computer; the standby power LED should not be lit (see
Figure 3 on page 18). Failure to do so could damage the processor and the desktop board.
To install a processor, follow these instructions:
1. Observe the precautions in “Before You Begin” on page 21.
2. Locate the processor socket and raise the socket lever completely.
3. Install the processor so that the corner with the triangle marking (A) is aligned with the corner
of the socket where the lever connects to the socket (see Figure 7).
4. Lower the lever to its original position.
mPGA478B
mPGA478B
A
mPGA478B
OM12078
Figure 7. Installing a Processor
5. For instructions on how to install the processor fan heatsink, refer to the boxed processor manual
or the Intel World Wide Web site at:
http://support.intel.com/support/processors/pentium4/intnotes478.htm
6. Connect the processor fan cable to the processor fan connector (see Figure 8).
OM13637
Figure 8. Connecting the Processor Fan Cable to the Processor Fan Connector
24
Installing and Replacing Desktop Board Components
Removing the Processor
For instruction on how to remove the processor fan heatsink and the processor, refer to the
processor installation manual or the Intel World Wide Web site at:
http://support.intel.com/support/motherboards/desktop
Installing Memory
CAUTIONS
Before installing or removing RIMM modules, make sure that AC power has been removed by
unplugging the power cord from the computer. The standby power indicator LED should not be lit
(see Figure 3 on page 18 for the location of the standby power indicator LED location). Failure to
do so could damage the memory and the desktop board.
The desktop board supports combinations of no more than 32 RDRAM components per RDRAM
channel. If the total number of RDRAM components installed in all RIMM sockets exceeds 64, the
computer will not boot.
A Continuity RIMM (CRIMM) module must be installed in any unused memory connector or the
desktop board will not boot.
Incorrect insertion of a RIMM module or a CRIMM module in a RIMM connector can damage the
Desktop Boards D850EMD2 and D850EMV2.
The desktop board has four memory module sockets arranged as bank 0 and bank 1. The pair of
sockets closest to the processor is for bank 0, as shown in Figure 11. The memory module
requirements are listed in the Main Memory section on page 12.
When adding memory:
• Install a pair of RIMMs in the sockets in bank 0 first. The RIMMs must be the same speed
(PC800), size (64 MB, 128 MB, 256 MB, or 512 MB), and density (single- or
double-sided).
• If the desired memory configuration has been achieved in bank 0, install CRIMMs in the
sockets in bank 1 (see Figure 9).
128 MB RDRAM Bank 0
128 MB RDRAM
CRIMM Bank 1
CRIMM
Figure 9. RDRAM and CRIMM Installation
25
Intel Desktop Boards D850EMD2 and D850EMV2 Product Guide
• If memory is to be installed in bank 1, the RIMM modules to be installed must be the same
size and density to each other and match the speed of the RIMM modules in bank 0. For
example, if bank 0 has two 128 MB RIMMs of PC800 RDRAM, bank 1 would require
PC800 RDRAM also, however, any other supported RIMM modules such as 64 MB, 128 MB,
256 MB, or 512 MB could be used (see Figure 10).
128 MB RDRAM Bank 0
128 MB RDRAM
64 MB RDRAM Bank 1
64 MB RDRAM
or
128 MB RDRAM
Bank 0
128 MB RDRAM
128 MB RDRAM Bank 1
128 MB RDRAM
or
128 MB RDRAM
Bank 0
128 MB RDRAM
256 MB RDRAM Bank 1
256 MB RDRAM
or
128 MB RDRAM
Bank 0
128 MB RDRAM
512 MB RDRAM Bank 1
512 MB RDRAM
Figure 10. RIMM Installation
• The BIOS detects the size and type of installed memory.
26
Installing and Replacing Desktop Board Components
To install the memory modules, follow these steps (see Figure 11):
1. Observe the precautions in “Before You Begin” on page 21.
2. Holding the memory module by the edges, remove it from its antistatic package.
3. Make sure the clips at either end of the socket are pushed away from the socket.
4. Position the module above the socket. Align the two small notches in the bottom edge of the
module with the keys in the socket.
5. Insert the bottom edge of the module into the socket.
6. When the module is seated, push down on the top edge of the module until the retaining clips
snap into place. Make sure the clips are firmly in place.
OM13624
Figure 11. Installing a Memory Module
Removing Memory
To remove a memory module, follow these steps:
1. Observe the precautions in "Before You Begin" on page 21.
2. Turn off all peripheral devices connected to the computer. Turn off the computer. Disconnect
the computer’s power cord from the AC power source (wall outlet or power adapter).
3. Remove the computer cover.
4. Gently spread the retaining clips at each end of the socket. The memory pops out of the
socket.
5. Hold the memory module by the edges, lift it away from the socket, and store it in an antistatic
package.
6. Reinstall and reconnect any parts you removed or disconnected to reach the memory module
sockets.
0
1
27
Intel Desktop Boards D850EMD2 and D850EMV2 Product Guide
Installing an AGP Card
The AGP connector supports 1.5 V 4X and 2X AGP cards.
The desktop board has an integrated AGP retention mechanism (RM). Follow these instructions to
install an AGP card:
1. Place the AGP card in the AGP connector.
2. Press down on the card until it is completely seated in the AGP connector and the card
retention notch snaps into place around the AGP card RM pin.
3. Secure the card’s metal bracket to the chassis back panel with a screw.
Removing the AGP Card
Follow these instructions to remove the AGP card:
1. Remove the screw (B) that secures the card’s metal bracket (A) to the chassis back panel.
2. Push back on the RM lever (D), as shown in Figure 12, until the retention pin (C) completely
clears the notch in the card.
3. Pull the card straight up (E).
B
A
E
C
D
OM13625
Figure 12. Removing the AGP Card
28
Installing and Replacing Desktop Board Components
Connecting the IDE Cable
The Intel® boxed desktop board package includes two IDE cables. Both are capable of connecting
two drives to the desktop board. The 40-contact, 40-conductor cable supports the Ultra DMA-33
transfer protocol. The 40-contact, 80-conductor cable supports ATA-66 and ATA-100 transfer
protocols and is backward compatible with drives using slower IDE transfer protocols.
NOTE
✏
ATA-66/100 compatible cables are backward compatible with drives using slower IDE transfer
protocols. If an ATA-66/100 disk drive and a disk drive using any other IDE transfer protocol are
attached to the same cable, the maximum transfer rate between the drives may be reduced to that
of the slowest drive.
NOTE
✏
Do not connect an ATA device as a slave on the same IDE cable as an ATAPI master device. For
example, do not connect an ATA hard drive as a slave to an ATAPI CD-ROM drive.
For correct function of the cable:
• Attach the cable end with the single connector to the desktop board (see Figure 13, A).
• Attach the cable end with the two closely spaced connectors to the drives (see Figure 13, B).
B
A
OM13626
Figure 13. Connecting the IDE Cable
29
Intel Desktop Boards D850EMD2 and D850EMV2 Product Guide
Setting the BIOS Configuration Jumper
CAUTION
Always turn off the power and unplug the power cord from the computer before changing the
jumper. Moving the jumper with the power on may result in unreliable computer operation.
The location of the board’s BIOS configuration jumper (J9H2) is shown in Figure 14.
1
3
J9H2
OM13627
Figure 14. Location of the BIOS Configuration Jumper
The three-pin BIOS jumper enables the board configuration to be done in BIOS Setup. Table 5
shows the jumper settings for the Setup program modes.
Table 5. Jumper Settings for the BIOS Setup Program Modes (J9H2)
Function / Mode Jumper Setting Configuration
Normal 1-2
Configure 2-3
Recovery None
1
3
1
3
1
3
The BIOS uses current configuration information and passwords
for booting.
After the POST runs, the BIOS displays the maintenance menu.
Use this menu to clear passwords.
The BIOS attempts to recover the BIOS configuration. A
recovery diskette is required.
30
Installing and Replacing Desktop Board Components
Clearing Passwords
This procedure assumes that the board is installed in the computer and the configuration jumper is
set to normal mode.
1. Observe the precautions in “Before You Begin” on page 21.
2. Turn off all peripheral devices connected to the computer. Turn off the computer. Disconnect
the computer’s power cord from the AC power source (wall outlet or power adapter).
3. Remove the computer cover.
4. Find the configuration jumper (see Figure 14).
5. Place the jumper on pins 2-3 as shown below.
1
3
6. Replace the cover, plug in the computer, turn on the computer, and allow it to boot.
7. The computer starts the Setup program. Setup displays the maintenance menu.
8. Use the arrow keys to select Clear Passwords. Press <Enter> and Setup displays a pop-up
screen requesting that you confirm clearing the password. Select Yes and press <Enter>.
Setup displays the maintenance menu again.
9. Press <F10> to save the current values and exit Setup.
10. Turn off the computer. Disconnect the computer’s power cord from the AC power source.
11. Remove the computer cover.
12. To restore normal operation, place the jumper on pins 1-2 as shown below.
1
3
13. Replace the cover, plug in the computer, and turn on the computer.
31
Intel Desktop Boards D850EMD2 and D850EMV2 Product Guide
Replacing the Battery
A coin-cell battery (CR2032) powers the real-time clock and CMOS memory. When the computer
is not plugged into a wall socket, the battery has an estimated life of three years. When the
computer is plugged in, the standby current from the power supply extends the life of the battery.
The clock is accurate to ± 13 minutes/year at 25 ºC with 3.3 VSB applied.
Figure 15 on page 34 shows the location of the battery.
When the voltage drops below a certain level, the BIOS Setup program settings stored in CMOS
RAM (for example, the date and time) might not be accurate. Replace the battery with an
equivalent one.
CAUTION
Risk of explosion if the battery is replaced with an incorrect type. Batteries should be recycled
where possible. Disposal of used batteries must be in accordance with local environmental
regulations.
PRECAUTION
Risque d'explosion si la pile usagée est remplacée par une pile de type incorrect. Les piles
usagées doivent être recyclées dans la mesure du possible. La mise au rebut des piles usagées doit
respecter les réglementations locales en vigueur en matière de protection de l'environnement.
(French)
FORHOLDSREGEL
Eksplosionsfare, hvis batteriet erstattes med et batteri af en forkert type. Batterier bør om muligt
genbruges. Bortskaffelse af brugte batterier bør foregå i overensstemmelse med gældende
miljølovgivning.
(Danish)
OBS!
Det kan oppstå eksplosjonsfare hvis batteriet skiftes ut med feil type. Brukte batterier bør kastes i
henhold til gjeldende miljølovgivning.
(Norwegian)
VIKTIGT!
Risk för explosion om batteriet ersätts med felaktig batterityp. Batterier ska kasseras enligt de
lokala miljövårdsbestämmelserna.
(Swedish)
VARO
Räjähdysvaara, jos pariston tyyppi on väärä. Paristot on kierrätettävä, jos se on mahdollista.
Käytetyt paristot on hävitettävä paikallisten ympäristömääräysten mukaisesti.
(Finnish)
32
Installing and Replacing Desktop Board Components
VORSICHT
Bei falschem Einsetzen einer neuen Batterie besteht Explosionsgefahr. Die Batterie darf nur durch
denselben oder einen entsprechenden, vom Hersteller empfohlenen Batterietyp ersetzt werden.
Entsorgen Sie verbrauchte Batterien den Anweisungen des Herstellers entsprechend.
(German)
AVVERTIMENTO
Esiste il pericolo di un esplosione se la pila non viene sostituita in modo corretto. Utilizzare solo
pile uguali o di tipo equivalente a quelle consigliate dal produttore. Per disfarsi delle pile usate,
seguire le istruzioni del produttore.
(Italian)
PRECAUCIÓN
Existe peligro de explosión si la pila no se cambia de forma adecuada. Utilice solamente pilas
iguales o del mismo tipo que las recomendadas por el fabricante del equipo. Para deshacerse de
las pilas usadas, siga igualmente las instrucciones del fabricante.
(Spanish)
WAARSCHUWING
Er bestaat ontploffingsgevaar als de batterij wordt vervangen door een onjuist type batterij.
Batterijen moeten zoveel mogelijk worden gerecycled. Houd u bij het weggooien van gebruikte
batterijen aan de plaatselijke milieuwetgeving.
(Dutch)
ATENÇÃO
Haverá risco de explosão se a bateria for substituída por um tipo de bateria incorreto. As baterias
devem ser recicladas nos locais apropriados. A eliminação de baterias usadas deve ser feita de
acordo com as regulamentações ambientais da região.
(Brazilian Portuguese)
33
Intel Desktop Boards D850EMD2 and D850EMV2 Product Guide
To replace the battery, follow these steps:
1. Observe the precautions in “Before You Begin” on page 21.
2. Turn off all peripheral devices connected to the computer. Disconnect the computer’s power
cord from the AC power source (wall outlet or power adapter).
3. Remove the computer cover.
4. Locate the battery on the desktop board (see Figure 15).
5. With a medium flat-bladed screwdriver, gently pry the battery free from its connector. Note
the orientation of the “+” and “-” on the battery.
6. Install the new battery in the connector, orienting the “+” and “-” correctly.
7. Replace the computer cover.
OM13628
Figure 15. Removing the Battery
34
3 Updating the BIOS
This chapter tells you how to update the BIOS by either using the Intel® Express BIOS Update
®
utility or the Intel
Updating the BIOS with the Intel® Express BIOS Update Utility
With the Intel Express BIOS Update utility you can update the system BIOS while in the
†
Windows
the functionality of the Intel Flash Memory Update Utility and the ease-of use of Windows-based
installation wizards.
To update the BIOS with the Intel Express BIOS Update utility:
1. Go to the Intel World Wide Web site:
2. Navigate to the D850EMV2 or D850EMD2 page and click the Express BIOS Update utility
3. Download the file to your hard drive. (You can also save this file to a diskette. This is useful
4. Close all other applications. This step is required. Your system will be rebooted at the last
5. Double-click the executable file from the location on your hard drive where it was saved. This
6. Follow the instructions provided in the dialog boxes to complete the BIOS update.
environment. The BIOS file is included in an automated update utility that combines
http://support.intel.com/support/motherboards/desktop
file for the Desktop Boards D850EMV2 or D850EMD2 BIOS.
if you are updating the BIOS for multiple identical systems.)
Express BIOS Update window.
runs the update program.
Flash Memory Update Utility, and how to recover the BIOS if an update fails.
Updating the BIOS with the Intel® Flash Memory Update Utility
With the Intel Flash Memory Update Utility you can update the system BIOS from a floppy disk or
other bootable media. The utility available from the Web provides a simple method for creating a
bootable flash memory update floppy that will automatically update your BIOS.
Obtaining the BIOS Update File
You can update to a new version of the BIOS by using the BIOS update file. The BIOS update file
is a compressed self-extracting archive that contains all the files you need to update the BIOS. The
BIOS update file contains:
• New BIOS files
• BIOS recovery files
• Intel Flash Memory Update Utility
35
Intel Desktop Boards D850EMD2 and D850EMV2 Product Guide
You can obtain the BIOS update file through your computer supplier or by navigating to the
D850EMD2 or D850EMV2 page on the Intel World Wide Web site:
http://support.intel.com/support/motherboards/desktop
NOTE
✏
Please review the instructions distributed with the update utility before attempting a BIOS update.
The Intel Flash Memory Update Utility allows you to:
• Update the BIOS in flash memory
• Update the language section of the BIOS
Updating the BIOS
CAUTION
The AUTOEXEC.BAT file provided with the update files updates the BIOS. Do not interrupt the
process or the system may not function.
1. Boot the computer with the BIOS update diskette in drive A. During system boot, the
AUTOEXEC.BAT file provided with the update files will automatically run the BIOS update
process.
2. When the update process is complete, the monitor will display a message telling you to remove
the diskette and to reboot the system.
3. As the computer boots, check the BIOS identifier (version number) to make sure the update
was successful. If a logo appears, press
<Esc> to view the POST messages.
Recovering the BIOS
It is unlikely that anything will interrupt the BIOS update; however, if an interruption occurs, the
BIOS could be damaged. The following steps explain how to recover the BIOS if an update fails.
The following procedure uses recovery mode for the Setup program. See page 30 for more
information on Setup modes.
NOTE
✏
Because of the small amount of code available in the boot block area, there is no video support.
You will not see anything on the screen during this procedure. Monitor the procedure by listening
to the speaker and looking at the diskette drive LED.
1. Turn off the computer, disconnect the computer’s power cord, and disconnect all external
peripherals.
2. Remove the computer cover and locate the configuration jumper labeled J9H2 (see Figure 14).
3. Remove the jumper from all pins as shown below to set recovery mode for Setup.
1
3
4. Insert the bootable BIOS update diskette into diskette drive A.
36
Updating the BIOS
5. Replace the computer cover, connect the power cord, turn on the computer, and allow it to
boot. The recovery process will take a few minutes.
6. Listen to the speaker:
• Upon applying power, drive A will begin to show activity. In about a minute, two beeps
are heard and drive A activity ceases (temporarily) indicating the successful recovery of
the BIOS core. Drive A activity will begin again followed by two more beeps indicating
the successful recovery of the boot block. This sequence of events indicates a successful
BIOS recovery.
• A series of continuous beeps indicates a failed BIOS recovery.
7. If recovery fails, return to step 1 and repeat the recovery process.
8. If recovery is successful, turn off the computer, and disconnect its power cord.
9. Remove the computer cover and continue with the following steps.
10. Reinstall the jumper back on pins 1-2 as shown below to set normal mode for Setup.
1
3
11. Leave the update diskette in drive A, replace the computer cover, and connect the computer’s
power cord.
12. Turn on the computer and continue with the BIOS update (see page 36).
37
Intel Desktop Boards D850EMD2 and D850EMV2 Product Guide
38
4 Using the Setup Program
The BIOS Setup program can be used to view and change the BIOS settings for the computer. The
BIOS Setup program is accessed by pressing the <F2> key after the Power-On Self-Test (POST)
memory test begins and before the operating system boot begins.
NOTE
✏
The BIOS Setup menus described in this section may not show the latest settings. For the latest
BIOS settings, refer to the Intel Desktop Board D850EMD2/D850EMV2 Technical Product
Specification or the Intel World Wide Web site:
http://support.intel.com/support/motherboards/desktop
NOTE
✏
For reference purposes, you should write down the current Setup settings. When you make
changes to the settings, update this record.
NOTE
✏
The Setup menus described in this section apply to the desktop boards with BIOS identifier
MV85010A.86A. Boards with other BIOS identifiers might have differences in some of the Setup
menu screens.
The Setup screen menu bar is shown below.
Maintenance Main Advanced Security Power Boot Exit
Table 6 shows the BIOS Setup program menu bar.
Table 6. BIOS Setup Program Menu Bar
Maintenance Main Advanced Security Power Boot Exit
Clears passwords
and Boot Integrity
Service (BIS)*
credentials, and
configures
extended
configuration
memory settings
* For information about the BIS, refer to the Intel World Wide Web site at:
http://developer.intel.com/design/security/index1.htm
Allocates
resources for
hardware
components
Configures
advanced
features
available
through the
chipset
Sets
passwords
and security
features
Configures
power
management
features
Selects boot
options and
power
supply
controls
Saves or
discards
changes to
set program
options
39
Intel Desktop Boards D850EMD2 and D850EMV2 Product Guide
Table 7 shows the function keys available for menu screens.
Table 7. BIOS Setup Program Function Keys
BIOS Setup Program Function Key Description
<←> or <→> Selects a different menu screen
<↑> or <↓> Moves cursor up or down
<Tab> Moves cursor to the next field
<Enter> Executes command or selects the submenu
<F9> Load the default configuration values for the current menu
<F10> Save the current values and exits the BIOS Setup program
<Esc> Exits the menu
Maintenance Menu
Maintenance
Main Advanced Security Power Boot Exit
The menu shown in Table 8 is used to clear the Setup passwords and enable extended
configuration mode. Setup only displays this menu in configure mode. See page 30 for
information about setting configure mode.
Table 8. Maintenance Menu
Feature Options Description
Processor Speed Processor
dependent
Clear All Passwords • Yes (default)
• No
Clear BIS* Credentials • Yes (default)
• No
Extended Configuration • Default (default)
• User-Defined
CPU Information No options Displays processor information.
CPU Stepping
Signature
CPU Microcode Update
Revision
* For information about the BIS, refer to the Intel World Wide Web site at:
http://developer.intel.com/design/security/index1.htm
No options Displays the processor’s stepping signature.
No options Displays the processor’s microcode update revision.
Displays the processor speed.
Clears the user and administrative passwords.
Clears the Wired for Management Boot Integrity Service
(BIS) credentials.
Invokes the Extended Configuration submenu.
40
Extended Configuration Submenu
Using the Setup Program
Maintenance
Main Advanced Security Power Boot Exit
Extended Configuration
The submenu shown in Table 9 is used to set system control and video memory cache mode. This
submenu becomes available when User Defined is selected under Extended Configuration.
Table 9. Extended Configuration Submenu
Feature Options Description
Extended Configuration • Default
(default)
• User-Defined
Video Memory Cache Mode • USWC
• UC (default)
User-Defined allows setting memory control and video
memory cache mode. If selected here, will also display in
the Advanced Menu as “Extended Menu: Used.”
Selects Uncacheable Speculative Write-Combining
(USWC) video memory cache mode. Full 32 byte contents
of the Write Combining buffer are written to memory as
required. Cache lookups are not performed. Both the
video driver and the application must support Write
Combining.
Selects Uncacheable (UC) video memory cache mode.
This setting identifies the video memory range as
uncacheable by the processor. Memory writes are
performed in program order. Cache lookups are not
performed. Well suited for applications not supporting
Write Combining.
41
Intel Desktop Boards D850EMD2 and D850EMV2 Product Guide
Main Menu
Maintenance
Main
Advanced Security Power Boot Exit
Table 10 describes the Main Menu. This menu reports processor and memory information and is
used to configure the system date and system time.
Table 10. Main Menu
Feature Options Description
BIOS Version No options Displays the version of the BIOS.
Processor Type No options Displays processor type.
Processor Speed No options Displays processor operating frequency.
System Bus Speed No options Displays the system bus frequency.
Cache RAM No options Displays the size of second-level cache and whether it is
ECC-capable.
Total Memory No options Displays the total amount of RAM.
RIMM 1
RIMM 2
RIMM 3
RIMM 4
Language • English (default)
Memory
Configuration
System Time Hour, minute, and
System Date Day of the week,
No options Displays the amount and type of RAM installed in the
memory banks.
Selects the default language used by the BIOS.
• Espanol
• Deutsche
• Italiano
• Français
• Non-ECC
• ECC (default)
second
month, day, and year
Allows the user to enable error reporting if the system and
all installed memory supports ECC. If non-ECC memory is
installed, BIOS will detect and change setting to non-ECC.
Specifies the current time.
Specifies the current date.
42
Advanced Menu
Using the Setup Program
Maintenance Main
Advanced
Security Power Boot Exit
Table 11 describes the Advanced Menu. This menu is used to set advanced features that are
available through the chipset.
Table 11. Advanced Menu
Feature Options Description
Extended Configuration No options If Used is highlighted, User-Defined has been selected in
Extended Configuration under the Maintenance Menu.
PCI Configuration No options Configures individual PCI slot’s IRQ priority. When
selected, displays the PCI Configuration submenu.
Boot Configuration No options Configures Plug & Play and the Numlock key, and resets
configuration data. When selected, displays the Boot
Configuration submenu.
Peripheral Configuration No options Configures peripheral ports and devices. When selected,
displays the Peripheral Configuration submenu.
IDE Configuration No options Specifies type of connected IDE device.
Diskette Configuration No options When selected, displays the Diskette Configuration
submenu.
Event Log Configuration No options Configures Event Logging. When selected, displays the
Event Log Configuration submenu.
Video Configuration No options Configures video features. When selected, displays the
Video Configuration submenu.
43
Intel Desktop Boards D850EMD2 and D850EMV2 Product Guide
PCI Configuration Submenu
Maintenance Main
Advanced
PCI Configuration
Boot Configuration
Peripheral Configuration
IDE Configuration
Diskette Configuration
Event Log Configuration
Video Configuration
The submenu shown in Table 12 is used to configure the IRQ priority of PCI slots individually.
Table 12. PCI Configuration Submenu
Feature Options Description
PCI Slot 1 IRQ Priority • Auto (default)
• 3
• 5
• 9
• 10
• 11
PCI Slot 2 IRQ Priority • Auto (default)
• 3
• 5
• 9
• 10
• 11
PCI Slot 3 IRQ Priority • Auto (default)
• 3
• 5
• 9
• 10
• 11
PCI Slot 4 IRQ Priority • Auto (default)
• 3
• 5
• 9
• 10
• 11
PCI Slot 5 IRQ Priority No options Always set to Auto (D850EMV2 only).
Security Power Boot Exit
Allows selection of IRQ priority.
Allows selection of IRQ priority.
Allows selection of IRQ priority. IRQ Priority selections
for PCI slots 3 and 5 are linked. Selections made to PCI
Slot 3 IRQ Priority are repeated in PCI Slot 5 IRQ Priority.
Allows selection of IRQ priority (D850EMV2 only).
44
Boot Configuration Submenu
Using the Setup Program
Maintenance Main
Advanced
Security Power Boot Exit
PCI Configuration
Boot Configuration
Peripheral Configuration
IDE Configuration
Diskette Configuration
Event Log Configuration
Video Configuration
The submenu shown in Table 13 is used to set the Plug & Play options, reset configuration data,
and the power-on state of the Numlock key.
Table 13. Boot Configuration Submenu
Feature Options Description
Plug & Play O/S • No (default)
• Yes
Reset Config Data • No (default)
• Yes
Numlock • Off
• On (default)
Specifies if manual configuration is desired.
No lets the BIOS configure all devices. This setting is
appropriate when using a Plug & Play operating system.
Yes lets the operating system configure Plug & Play devices
not required to boot the system. This option is available for
use during lab testing.
No does not clear the PCI/PnP configuration data stored in
flash memory on the next boot.
Yes clears the PCI/PnP configuration data stored in flash
memory on the next boot.
Specifies the power-on state of the Numlock feature on the
numeric keypad of the keyboard.
45
Intel Desktop Boards D850EMD2 and D850EMV2 Product Guide
Peripheral Configuration Submenu
Maintenance Main
Advanced
Security Power Boot Exit
PCI Configuration
Boot Configuration
Peripheral Configuration
IDE Configuration
Diskette Configuration
Event Log Configuration
Video Configuration
This submenu shown in Table 14 is used to enable onboard devices and USB legacy support.
Table 14. Peripheral Configuration Submenu
Feature Options Description
Serial Port A • Disabled
• Enabled
• Auto (default)
Base I/O address
(This feature is displayed
only if Serial Port A is set
to Enabled.)
Interrupt
(This feature is displayed
only if Serial Port A is set
to Enabled.)
Serial Port B • Disabled
Base I/O address
(This feature is displayed
only if Serial Port B is set
to Enabled.)
Interrupt
(This feature is displayed
only if Serial Port A is set
to Enabled.)
• 3F8 (default)
• 2F8
• 3E8
• 2E8
• IRQ 3
• IRQ 4 (default)
• Enabled
• Auto (default)
• 3F8
• 2F8 (default)
• 3E8
• 2E8
• IRQ 3 (default)
• IRQ 4
Configures serial port A.
Auto assigns the first free COM port, normally COM 1, the
address 3F8h, and the interrupt IRQ4.
An * (asterisk) displayed next to an address indicates a
conflict with another device.
Specifies the base I/O address for serial port A, if serial
port A is set to Enabled.
Specifies the interrupt for serial port A, if serial port A is
set to Enabled.
Configures serial port B.
Auto assigns the first free COM port, normally COM 2, the
address 3F8h, and the interrupt IRQ4.
An * (asterisk) displayed next to an address indicates a
conflict with another device.
Specifies the base I/O address for serial port B, if serial
port B is set to Enabled.
Specifies the interrupt for serial port B, if serial port B is
set to Enabled.
continued
46
Table 14. Peripheral Configuration Submenu (continued)
Feature Options Description
Parallel port • Disabled
• Enabled
• Auto (default)
Mode • Output Only
• Bi-directional
(default)
• EPP
• ECP
Base I/O address
(This feature is displayed
• 378 (default)
• 278
only if Parallel Port is set
to Enabled.)
Interrupt
(This feature is displayed
• IRQ 5
• IRQ 7 (default)
only if Parallel Port is set
to Enabled.)
Audio Device • Disabled
• Enabled (default)
High Speed USB • Disabled
• Enabled (default)
LAN Device • Disabled
• Enabled (default)
Legacy USB Support • Disabled
• Enabled (default)
Configures the parallel port.
Auto assigns LPT1 the address 378h and the
interrupt IRQ7.
An * (asterisk) displayed next to an address indicates a
conflict with another device.
Selects the mode for the parallel port. Not available if the
parallel port is disabled.
Output Only operates in AT
†
Bi-directional operates in PS/2-compatible mode.
EPP is Extended Parallel Port mode, a high-speed
bi-directional mode.
ECP is Enhanced Capabilities Port mode, a high-speed
bi-directional mode.
Specifies the base I/O address for the parallel port.
Specifies the interrupt for the parallel port.
Enables or disables the onboard audio subsystem.
Enables or disables USB 2.0 support.
Enables or disables the LAN device.
Enables or disables USB legacy support.
Using the Setup Program
-compatible mode.
47
Intel Desktop Boards D850EMD2 and D850EMV2 Product Guide
IDE Configuration Submenu
Maintenance Main
Advanced
Security Power Boot Exit
PCI Configuration
Boot Configuration
Peripheral Configuration
IDE Configuration
Diskette Configuration
Event Log Configuration
Video Configuration
This submenu shown in Table 15 is used to configure IDE device options.
Table 15. IDE Configuration Submenu
Feature Options Description
IDE Controller • Disabled
• Primary
• Secondary
• Both (default)
PCI IDE Bus Master • Disabled
• Enabled (default)
Hard Disk Pre-Delay • Disabled (default)
• 3 Seconds
• 6 Seconds
• 9 Seconds
• 12 Seconds
• 15 Seconds
• 21 Seconds
• 30 Seconds
Primary IDE Master No options Reports type of connected IDE device. When selected,
Primary IDE Slave No options Reports type of connected IDE device. When selected,
Secondary IDE Master No options Reports type of connected IDE device. When selected,
Secondary IDE Slave No options Reports type of connected IDE device. When selected,
Specifies the integrated IDE controller.
Primary enables only the primary IDE controller.
Secondary enables only the secondary IDE controller.
Both enables both IDE controllers.
Enables or disables bus mastering capability for IDE
hard disk I/O functions.
Specifies the hard disk drive pre-delay.
displays the Primary IDE Master submenu.
displays the Primary IDE Slave submenu.
displays the Secondary IDE Master submenu.
displays the Secondary IDE Slave submenu.
48
Primary/Secondary IDE Master/Slave Submenus
Using the Setup Program
Maintenance Main
Advanced
Boot Configuration
Peripheral Configuration
IDE Configuration
Diskette Configuration
Event Log Configuration
Video Configuration
Security Power Boot Exit
Primary IDE Master
➜
Primary IDE Slave
Secondary IDE Master
Secondary IDE Slave
There are four IDE submenus: Primary master, primary slave, secondary master, and secondary
slave. Table 16 shows the format of these IDE submenus. For brevity, only one example is
shown.
Table 16. Primary/Secondary IDE Master/Slave Submenus
Feature Options Description
Drive Installed None Displays the type of drive installed.
Type • None
• User
• Auto (default)
• CD-ROM
• ATAPI Removable
• Other ATAPI
• IDE Removable
Maximum Capacity None Displays the capacity of the drive.
LBA Mode Control • Disabled
• Enabled (default)
Multi-sector Transfers • Disabled
• 2 Sectors
• 4 Sectors
• 8 Sectors
• 16 Sectors (default)
PIO Mode None
Specifies the IDE configuration mode for IDE devices.
User allows capabilities to be changed.
Auto fills-in capabilities from ATA/ATAPI device.
Enables or disables LBA mode control.
Specifies the number of sectors per block for transfers
from the hard disk drive to memory.
Check the hard disk drive’s specifications for optimum
setting.
Specifies the PIO mode (these configuration options
appear only if an IDE device is installed).
• 0
• 1
• 2
• 3
• 4
continued
49
Intel Desktop Boards D850EMD2 and D850EMV2 Product Guide
Table 16. Primary/Secondary IDE Master/Slave Submenus (continued)
Feature Options Description
Ultra DMA None
Cable Detected None Displays the type of cable connected to the IDE interface:
Specifies the Ultra DMA mode for the drive.
• Mode 0
• Mode 1
• Mode 2
• Mode 3
• Mode 4
• Mode 5
40-conductor or 80-conductor (for Ultra ATA-100 devices).
Diskette Configuration Submenu
Maintenance Main
Advanced
Security Power Boot Exit
PCI Configuration
Boot Configuration
Peripheral Configuration
IDE Configuration
Diskette Configuration
Event Log Configuration
Video Configuration
This submenu shown in Table 17 is used to configure the diskette drive.
Table 17. Diskette Configuration Submenu
Feature Options Description
Diskette Controller • Disabled
• Enabled (default)
Floppy A • Not Installed
• 360 KB 5¼ inches
• 1.2 MB 5¼ inches
• 720 KB 3½ inches
• 1.44/1.25 MB 3½ inches
(default)
• 2.88 MB 3½ inches
Diskette Write-Protect • Disabled (default)
• Enabled
Disables or enables the integrated diskette
controller.
Specifies the capacity and physical size of
diskette drive A.
Disables or enables write-protect for the
diskette drive.
50
Event Log Configuration Submenu
Using the Setup Program
Maintenance Main
Advanced
Security Power Boot Exit
PCI Configuration
Boot Configuration
Peripheral Configuration
IDE Configuration
Diskette Configuration
Event Log Configuration
Video Configuration
The submenu shown in Table 18 is used to configure the event logging features.
Table 18. Event Log Configuration Submenu
Feature Options Description
Event Log No options Indicates if there is space available in the event log.
Event Log Validity No options Indicates if the contents of the event log are valid.
View Event Log [Enter] Displays the event log.
Clear All Event Logs • No (default)
• Yes
Event Logging • Disabled
• Enabled (default)
ECC Event Logging • Disabled
• Enabled (default)
Mark Events as Read [Enter] Marks all events as read.
Clears the event log after rebooting.
Enables logging of events.
Enables logging of ECC events.
Video Configuration Submenu
Maintenance Main
Advanced
PCI Configuration
Boot Configuration
Peripheral Configuration
IDE Configuration
Diskette Configuration
Event Log Configuration
Video Configuration
The submenu shown in Table 19 is used to configure video features.
Table 19. Video Configuration Submenu
Feature Options Description
AGP Aperture Size • 64 MB (default)
• 128 MB
• 256 MB
Primary Video Adapter • AGP (default)
• PCI
Security Power Boot Exit
Specifies the aperture size for the AGP video controller.
Selects primary video adapter to be used during boot.
51
Intel Desktop Boards D850EMD2 and D850EMV2 Product Guide
Security Menu
Maintenance Main Advanced
Security
Power Boot Exit
The menu shown in Table 20 is used to set passwords and security features.
Table 20. Security Menu
If no password was entered previously:
Feature Options Description
Supervisor Password Is No options Reports if there is a supervisor password set.
User Password Is No options Reports if there is a user password set.
Set Supervisor
Password
Set User Password Password can be up to seven
Clear User Password
(Note 1)
User Access Level
(Note 2)
Unattended Start
(Note 1)
Notes:
1. This feature appears only if a user password has been set.
2. This feature appears only if a supervisor password has been set.
Password can be up to seven
alphanumeric characters.
alphanumeric characters.
• Yes (default)
• No
• Limited
• No access
• View Only
• Full (default)
• Enabled
• Disabled (default)
Specifies the supervisor password.
Specifies the user password.
Clears the user password.
Sets BIOS Setup Utility access rights for user
level.
Enabled allows system to complete the boot
process without a password. The keyboard
remains locked until a password is entered. A
password is required to boot from a diskette.
52
Power Menu
Using the Setup Program
Maintenance Main Advanced Security
APM
ACPI
Power
Boot Exit
The menu shown in Table 21 is used to set power management features.
Table 21. Power Menu
Feature Options Description
APM No Options When selected, displays the APM submenu.
ACPI No Options When selected, displays the ACPI submenu.
After Power Failure
Wake on LAN† • Stay Off (default)
Wake on PME • Stay Off (default)
Wake on Modem Ring • Stay Off (default)
• Stay Off
• Last State (default)
• Power On
• Power On
• Power On
• Power On
Determines the mode of operation if a power loss
occurs.
Stays Off keeps the power off until the power button is
pressed.
Last State restores the previous power state before
power loss occurred.
Power On restores power to the computer.
Determines how the system responds to a LAN wake
up event.
Determines how the system responds to a PCI-PME
wake up event.
Specifies how the computer responds to a Modem Ring
wake up event on an installed modem.
NOTE
✏
When an ACPI-capable operating system is configured for ACPI, only the ACPI Suspend State
option affects power management. The ACPI Suspend State is not supported if the system is
configured for APM.
53
Intel Desktop Boards D850EMD2 and D850EMV2 Product Guide
APM Submenu
To access this menu, select Power on the menu bar, then APM.
Maintenance Main Advanced Security
ACPI
The menu shown in Table 22 shows the setting options for the APM features.
Table 22. APM Submenu
Feature Options Description
Power Management • Disabled
• Enabled (default)
Inactivity Timer • Off
• 1 Minute
• 5 Minutes
• 10 Minutes
• 20 Minutes (default)
• 30 Minutes
• 60 Minutes
• 120 Minutes
Hard Drive • Disabled
• Enabled (default)
Enables or disables the APM feature.
Specifies the amount of time before the computer enters
APM standby mode.
Enables power management for hard disks during APM
standby mode.
Power
APM
Boot Exit
ACPI Submenu
Maintenance Main Advanced Security
APM
The submenu represented in Table 23 shows the setting options for ACPI.
Table 23. ACPI Submenu
Feature Options Description
ACPI Suspend State • S1 State (default)
• S3 State
Wake on LAN from S5 • Stay Off (default)
• Power On
Specifies the ACPI sleep state.
In ACPI soft-off mode only, determines how the system
responds to a LAN wake up event when the system is in
the ACPI soft-off mode.
Power
ACPI
Boot Exit
54
Boot Menu
Using the Setup Program
Maintenance Main Advanced Security Power
Boot
Exit
The menu shown in Table 24 is used to set the boot features and the boot sequence.
Table 24. Boot Menu
Feature Options Description
Quiet Boot • Disabled
• Enabled (default)
Intel® Rapid BIOS
Boot
Scan User Flash
Area
USB Boot • Disabled
PXE Remote Boot • Disabled (default)
Boot Device Priority No options Specifies the boot sequence from the available types of
Hard Disk Drives No options Specifies the boot sequence from the available hard disk
Removable Devices No options Specifies the boot sequence from the available removable
• Disabled
• Enabled (default)
• Disabled (default)
• Enabled
• Enabled (default)
• Enabled
Disabled displays normal POST messages.
Enabled displays OEM graphic instead of POST messages.
Enables the computer to boot without running certain
POST tests.
Enables the BIOS to scan the flash memory for user binary
files that are executed at boot time.
Disables or enables booting to USB boot devices.
Disables or enables PXE remote boot.
boot devices.
drives.
devices.
Boot Device Priority
Maintenance Main Advanced Security Power
The menu shown in Table 25 shows the setting options for Boot Device Priority.
Table 25. Boot Device Priority
Feature Options Description
1st Boot Device
nd
2
Boot Device
rd
3
Boot Device
th
4
Boot Device
• Removable Device
• Hard Drive
• ATAPI CD-ROM
• Intel Boot A
• Disabled
Specifies the boot sequence from the available devices. Select
the boot device with the Up-Arrow or Down-Arrow key. Press the
Enter key to set the selection as the intended boot device.
Boot
Exit
Boot Device Priority
55
Intel Desktop Boards D850EMD2 and D850EMV2 Product Guide
Exit Menu
Maintenance Main Advanced Security Power Boot
Exit
The menu shown in Table 26 is used to exit the BIOS Setup program, saving changes, and loading
and saving defaults.
Table 26. Exit Menu
Feature Description
Exit Saving Changes Exits and saves the changes made in the BIOS Setup program.
Exit Discarding Changes Exits without saving any changes made in the BIOS Setup program.
Load Setup Defaults Loads the factory default values for all the Setup options.
Load Custom Defaults Loads the custom defaults for Setup options.
Save Custom Defaults Saves the current values as custom defaults. Normally, the BIOS reads the
Setup values from flash memory. If this memory is corrupted, the BIOS reads the
custom defaults. If no custom defaults are set, the BIOS reads the factory
defaults.
Discard Changes Discards changes without exiting Setup. The option values present when the
computer was turned on are used.
56
5 Technical Reference
Board Connectors
The board connectors can be divided into three groups:
• Back panel connectors
• Midboard connectors
— Audio connectors
— Power and hardware connectors
— Add-in board and peripheral interface connectors
• Front panel connectors
CAUTION
Many of the midboard and front panel connectors provide operating voltage (+5 V DC and
+12 V DC, for example) to devices inside the computer chassis, such as fans and internal
peripherals. These connectors are not overcurrent protected. Do not use these connectors for
powering devices external to the computer chassis. A fault in the load presented by the external
devices could cause damage to the computer, the interconnecting cable, and the external devices
themselves.
57
Intel Desktop Boards D850EMD2 and D850EMV2 Product Guide
Back Panel Connectors
Figure 16 shows the back panel connectors on the desktop boards.
A
BD IHEG
Item Description Color
A PS/2 mouse port Green
B PS/2 keyboard port Purple
C Parallel port Burgundy
D Serial port Teal
E Serial port Teal
F RJ-45 (optional) Black
G USB 2.0 port Black
H USB 2.0 port Black
I Mic in Pink
J Audio line out Lime green
K Audio line in Light blue
Figure 16. Back Panel Connectors
C
F
J K
OM13629
NOTE
✏
The audio line out connector, located on the back panel, is designed to power either headphones
or amplified speakers only. Poor audio quality may occur if passive (non-amplified) speakers are
connected to this output.
58
Midboard Connectors
The midboard connectors are grouped as follows:
• Audio connectors
• Power and hardware connectors
• Add-in card and peripheral interface connectors
Audio Connectors
Figure 17 shows the location of the audio connectors on the desktop boards.
B
A
4
4
1
C
1
Technical Reference
OM13630
Item Description Color
A Auxiliary line in (ATAPI) White
B CD-ROM (ATAPI) Black
C Front panel audio Black
Figure 17. Audio Connectors
59
Intel Desktop Boards D850EMD2 and D850EMV2 Product Guide
Power and Hardware Connectors
CAUTION
Failure to use an ATX12V power supply, or not connecting the additional power supply lead to the
Desktop Board D850EMD2 or D850EMV2 may result in damage to the desktop board.
The Desktop Boards D850EMD2 and D850EMV2 require an ATX12V compliant power supply to
function according to desktop board specifications. Both boards have two ATX12V compliant
power supply connectors that are needed to provide extra power to the Intel 850E chipset and
Pentium 4 processor.
Figure 18 shows the power and hardware connectors for the Desktop Board D850EMD2.
A
1
G
1
1
B
4
2
1
3
1
20
10
11
1
C
1
D
E
F
OM13631
Item Description Item Description
A Chassis intrusion E Main power
B ATX12V power connector F Chassis fan (fan 2) (tach input)
C Processor fan (CPU fan) (tach input) G SCSI hard drive activity LED
D RIMM fan (fan 1)
Figure 18. Desktop Board D850EMD2 Power and Hardware Control Connectors
60
Technical Reference
Figure 19 shows the power and hardware connectors for the Desktop Board D850EMV2.
A
1
1
1
B
1
C
4
2
1
3
1
20
10
11
1
D
1
E
F
H
G
OM13632
Item Description Item Description
A Chassis fan (fan 3) E RIMM fan (fan 1) (tach input)
B Chassis intrusion F Main power
C ATX12V power G Chassis fan (fan 2)
D Processor fan (CPU fan) (tach input) H SCSI hard drive activity LED
Figure 19. Desktop Board D850EMV2 Power and Hardware Control Connectors
61
Intel Desktop Boards D850EMD2 and D850EMV2 Product Guide
Add-In Card and Peripheral Interface Connectors
Figure 20 shows the add-in card and peripheral interface connectors for Desktop Board
D850EMD2.
A
DCB
E
2
1
2
1
G
40
39
40
2
1
39
34
33
FH
OM13633
Item Description Item Description
A CNR (optional) E AGP
B PCI bus connector 3 F Diskette drive
C PCI bus connector 2 G Primary IDE
D PCI bus connector 1 H Secondary IDE
Figure 20. Desktop Board D850EMD2 Add-in Card and Peripheral Interface Connectors
62
Figure 21 shows the add-in card and peripheral interface connectors for Desktop Board
D850EMV2.
A
CB
D
FE
G
Technical Reference
2
1
2
1
I
40
39
40
2
1
39
34
33
HJ
OM13634
Item Description Item Description
A CNR (optional) F PCI bus connector 1
B PCI bus connector 5 G AGP
C PCI bus connector 4 H Diskette drive
D PCI bus connector 3 I Primary IDE
E PCI bus connector 2 J Secondary IDE
Figure 21. Desktop Board D850EMV2 Add-in Card and Peripheral Interface Connectors
63
Intel Desktop Boards D850EMD2 and D850EMV2 Product Guide
Front Panel Connectors
Figure 22 shows the location of the front panel connectors on the desktop boards.
1
A
B
C
Reset
HD LED
No Connection
1
2
1
10
7
2
1
Power LED
On
Ground
+5V
15
16
Item Description
A Front panel audio
B Front panel USB 2.0
C Alternate power/sleep LED
Figure 22. Front Panel Connectors
OM14564
64
Desktop Board Resources
Memory Map
Table 27. System Memory Map
Address Range (decimal) Address Range (hex) Size Description
1024 K - 2097152 K 100000 - 7FFFFFFF 2047 MB Extended Memory
960 K - 1024 K F0000 - FFFFF 64 KB Runtime BIOS
896 K - 960 K E0000 - EFFFF 64 KB Reserved
800 K - 896 K C8000 - DFFFF 96 KB Available high DOS memory (open
640 K - 800 K A0000 - C7FFF 160 KB Video memory and BIOS
639 K - 640 K 9FC00 - 9FFFF 1 KB Extended BIOS data (movable by
512 K - 639 K 80000 - 9FBFF 127 KB Extended conventional memory
0 K - 512 K 00000 - 7FFFF 512 KB Conventional memory
Technical Reference
to the PCI bus)
memory manager software)
DMA Channels
Table 28. DMA Channels
DMA Channel Number Data Width System Resource
0 8 or 16 bits Memory refresh
1 8 or 16 bits Parallel port
2 8 or 16 bits Diskette drive
3 8 or 16 bits Parallel port (for ECP or EPP)
4 8 or 16 bits DMA controller
5 16 bits Open
6 16 bits Open
7 16 bits Open
65
Intel Desktop Boards D850EMD2 and D850EMV2 Product Guide
I/O Map
Table 29. I/O Map
Address (hex) Size Description
0000 - 000F 16 bytes DMA controller
0020 - 0021 2 bytes Programmable Interrupt Control (PIC)
0040 - 0043 4 bytes System timer
0060 1 byte Keyboard controller byte—reset IRQ
0061 1 byte System speaker
0064 1 byte Keyboard controller, CMD / STAT byte
0070 - 0071 2 bytes System CMOS / Real Time Clock
0072 - 0073 2 bytes System CMOS
0080 - 008F 16 bytes DMA controller
0092 1 byte Fast A20 and PIC
00A0 - 00A1 2 bytes PIC
00B2 - 00B3 2 bytes APM control
00C0 - 00DF 32 bytes DMA
00F0 1 byte Numeric data processor
0170 - 0177 8 bytes Secondary IDE channel
01F0 - 01F7 8 bytes Primary IDE channel
0228 - 022F* 8 bytes LPT3
0278 - 027F* 8 bytes LPT2
02E8 - 02EF* 8 bytes COM4 / video (8514A)
02F8 - 02FF* 8 bytes COM2
0376 1 byte Secondary IDE channel command port
0377, bits 6:0 7 bits Secondary IDE channel status port
0378 - 037F 8 bytes LPT1
03B0 - 03BB 12 bytes Video (VGA)
03C0 - 03DF 32 bytes Video (VGA)
03E8 - 03EF 8 bytes COM3
03F0 - 03F5 6 bytes Diskette channel 1
03F6 1 byte Primary IDE channel command port
03F8 - 03FF 8 bytes COM1
04D0 - 04D1 2 bytes Edge / level triggered PIC
LPTn + 400 8 bytes ECP port, LPTn base address + 400h
0CF8 - 0CFB** 4 bytes PCI configuration address register
0CF9*** 1 byte Turbo and reset control register
0CFC - 0CFF 4 bytes PCI configuration data register
FFA0 - FFA7 8 bytes Primary bus master IDE registers
FFA8 - FFAF 8 bytes Secondary bus master IDE registers
continued
66
Table 29. I/O Map (continued)
Address (hex) Description
96 contiguous bytes starting on a 128-byte
divisible boundary
64 contiguous bytes starting on a 64-byte
divisible boundary
32 contiguous bytes starting on a 32-byte
divisible boundary
16 contiguous bytes starting on a 16-byte
divisible boundary
4096 contiguous bytes starting on a 4096-byte
divisible boundary
256 contiguous bytes starting on a 256-byte
divisible boundary
64 contiguous bytes starting on a 64-byte
divisible boundary
32 contiguous bytes starting on a 32-byte
divisible boundary
64 contiguous bytes starting on a 64-byte
divisible boundary
96 contiguous bytes starting on a 128-byte
divisible boundary
* Default, but can be changed to another address range.
** Dword access only.
*** Byte access only.
ICH2 (ACPI + TCO)
D850EMD2 and D850EMV2 board resource
ICH2 (USB controller #1)
ICH2 (SMBus)
Intel 82801BA PCI bridge
ICH2 audio mixer
ICH2 audio bus mixer
ICH2 (USB controller #2)
ICH2/Intel 82562ET (optional)
LPC47M142
Technical Reference
67
Intel Desktop Boards D850EMD2 and D850EMV2 Product Guide
Interrupts
Table 30. Interrupts
IRQ System Resource
NMI I/O channel check
0 Reserved, interval timer
1 Reserved, keyboard buffer full
2 Reserved, cascade interrupt from slave PIC
3 COM2*
4 COM1*
5 LPT2 (Plug and Play option) / **
6 Diskette drive controller
7 LPT1*
8 Real time clock
9 **
10 **
11 **
12 Onboard mouse port (if present, else user available)
13 Reserved, math coprocessor
14 Primary IDE (if present, else user available)
15 Secondary IDE (if present, else user available)
* Default, but can be changed to another IRQ.
** Dynamically allocated for all PCI/AGP devices and slots.
68
A Error Messages and Indicators
The Desktop Boards D850EMD2 and D850EMV2 report POST errors in two ways:
• By sounding a beep code
• By displaying an error message on the monitor
BIOS Beep Codes
The BIOS beep codes are listed in Table 31. The BIOS also issues a beep code (one long tone
followed by two short tones) during POST if the video configuration fails (a faulty video card or
no card installed) or if an external ROM module does not properly checksum to zero.
Table 31. Beep Codes
Number of Beeps Description
1 Refresh failure
2 Parity cannot be reset
3 First 64 K memory failure
4 Timer not operational
5 Processor failure (Reserved; not used)
6 8042 GateA20 cannot be toggled (memory failure or not present)
7 Exception interrupt error
8 Display memory R/W error
9 (Reserved; not used)
10 CMOS Shutdown register test error
11 Invalid BIOS (such as, POST module not found)
69
Intel Desktop Boards D850EMD2 and D850EMV2 Product Guide
BIOS Error Messages
When a recoverable error occurs during the POST, the BIOS displays an error message describing
the problem.
Table 32. BIOS Error Messages
Error Message Explanation
GA20 Error An error occurred with GateA20 when switching to protected mode
during the memory test.
Pri Master HDD Error
Pri Slave HDD Error
Sec Master HDD Error
Sec Slave HDD Error
Pri Master Drive - ATAPI Incompatible
Pri Slave Drive - ATAPI Incompatible
Sec Master Drive - ATAPI Incompatible
Sec Slave Drive - ATAPI Incompatible
A: Drive Error
B: Drive Error
CMOS Battery Low The battery may be losing power. Replace the battery soon.
CMOS Display Type Wrong The display type is different than what has been stored in CMOS.
CMOS Checksum Bad The CMOS checksum is incorrect. CMOS memory may have been
CMOS Settings Wrong CMOS values are not the same as the last boot. These values
CMOS Date/Time Not Set The time and/or date values stored in CMOS are invalid. Run
DMA Error Error during read/write test of DMA controller.
FDC Failure Error occurred trying to access diskette drive controller.
HDC Failure Error occurred trying to access hard disk controller.
Checking NVRAM..... NVRAM is being checked to see if it is valid.
Update OK! NVRAM was invalid and has been updated.
Updated Failed NVRAM was invalid but was unable to be updated.
Keyboard Is Locked The system keyboard lock is engaged. The system must be
Keyboard Error Error in the keyboard connection. Make sure keyboard is
KB/Interface Error Keyboard interface test failed.
Memory Size Decreased Memory size has decreased since the last boot. If no memory was
Could not read sector from corresponding drive.
Corresponding drive is not an ATAPI device. Run Setup to make
sure device is selected correctly.
No response from diskette drive.
Check Setup to make sure type is correct.
corrupted. Run Setup to reset values.
have either been corrupted or the battery has failed.
Setup to set correct values.
unlocked to continue to boot.
connected properly.
removed, then memory may be bad.
continued
70
Error Messages and Indicators
Table 32. BIOS Error Messages (continued)
Error Message Explanation
Memory Size Increased Memory size has increased since the last boot. If no memory was
added, there may be a problem with the system.
Memory Size Changed Memory size has changed since the last boot. If no memory was
added or removed, then memory may be bad.
No Boot Device Available System did not find a device to boot.
Off Board Parity Error A parity error occurred on an offboard card. This error is followed
by an address.
On Board Parity Error A parity error occurred in onboard memory. This error is followed
by an address.
Parity Error A parity error occurred in onboard memory at an unknown
address.
NVRAM / CMOS / PASSWORD
cleared by Jumper
<CTRL_N> Pressed CMOS is ignored and NVRAM is cleared. User must enter Setup.
NVRAM, CMOS, and passwords have been cleared. The system
should be powered down and the jumper removed.
71
Intel Desktop Boards D850EMD2 and D850EMV2 Product Guide
72
B Regulatory Compliance
This appendix contains:
• Safety standards, electromagnetic compatibility (EMC) regulations, and product certification
markings for Desktop Boards D850EMD2 and D850EMV2
• Instructions and precautions for integrators who are installing this desktop board in a chassis
Safety Regulations
These desktop boards comply with the safety regulations stated in Table 33 when correctly
installed in a compatible host system.
Table 33. Safety Regulations
Regulation Title
CSA C22.2 No. 60950/
UL 60950, 3
EN 60950, 2nd Edition, 1992
(with Amendments 1, 2, 3, and 4)
IEC 60950, 2nd Edition, 1991 (with
Amendments 1, 2, 3, and 4)
EMKO-TSE (74-SEC) 207/94 Summary of Nordic deviations to EN 60950. (Norway, Sweden,
rd
Edition, 2000
Bi-National Standard for Safety of Information Technology Equipment
including Electrical Business Equipment. (USA and Canada)
The Standard for Safety of Information Technology Equipment
including Electrical Business Equipment. (European Union)
The Standard for Safety of Information Technology Equipment
including Electrical Business Equipment. (International)
Denmark, and Finland)
EMC Regulations
The desktop boards comply with the EMC regulations stated in Table 34 when correctly installed
in a compatible host system.
Table 34. EMC Regulations
Regulation Title
FCC Class B Title 47 of the Code of Federal Regulations, Parts 2 and 15, Subpart B,
Radio Frequency Devices. (USA)
ICES-003 (Class B) Interference-Causing Equipment Standard, Digital Apparatus. (Canada)
EN55022: 1998 (Class B) Limits and methods of measurement of Radio Interference Characteristics of
Information Technology Equipment. (European Union)
EN55024: 1998 Information Technology Equipment – Immunity Characteristics Limits and
methods of measurement. (European Union)
AS/NZS 3548 (Class B) Australian Communications Authority, Standard for Electromagnetic
Compatibility. (Australia and New Zealand)
CISPR 22, 3rd Edition,
(Class B)
CISPR 24: 1997 Information Technology Equipment – Immunity Characteristics – Limits and
Limits and methods of measurement of Radio Disturbance Characteristics of
Information Technology Equipment. (International)
Methods of Measurement. (International)
73
Intel Desktop Boards D850EMD2 and D850EMV2 Product Guide
Product Certification Markings
The desktop boards have the following product certification markings:
• UL joint US/Canada Recognized Component mark: consists of small c followed by a stylized
backward UR and followed by a small US. Includes adjacent UL file number for Intel desktop
boards: E210882 (component side).
• FCC Declaration of Conformity logo mark for Class B equipment; includes Intel name and
model designation (solder side).
• CE mark: declaring compliance to European Union (EU) EMC directive (89/336/EEC) and
Low Voltage directive (73/23/EEC) (component side).
• Australian Communications Authority (ACA) C-Tick mark: consists of a stylized C overlaid
with a check (tick) mark (component side), followed by Intel supplier code number, N-232.
• Printed wiring board manufacturer’s recognition mark: consists of a unique UL recognized
manufacturer’s logo, along with a flammability rating (94V-0) (solder side).
• PB part number: Intel bare circuit board part number (solder side):
1. A49682-005 (Desktop Board D850EMD2)
2. A56437-004 (Desktop Board D850EMV2)
Also includes SKU number starting with AA followed by additional alphanumeric characters.
• Battery “+ Side Up” marking: located on the component side of the board in close proximity
to the battery holder.
• Korean MIC logo mark: denotes Korean EMC certification (component side). Additional
certification information is provided below:
1. Product Name (model)
2. Certificate ID
3. Applicant: Intel Korea Ltd.
4. Date of manufacture as separate marking on product
5. Manufacturer (country of origin)
Korean MIC logo mark for Desktop Board D850EMD2
Korean MIC logo mark for Desktop Board D850EMV2
74
Regulatory Compliance
Installation Precautions
When you install and test the desktop board, observe all warnings and cautions in the installation
instructions.
To avoid injury, be careful of:
• Sharp pins on connectors
• Sharp pins on printed circuit assemblies
• Rough edges and sharp corners on the chassis
• Hot components (like processors, voltage regulators, and heat sinks)
• Damage to wires that could cause a short circuit
Observe all warnings and cautions that instruct you to refer computer servicing to qualified
technical personnel.
Installation Instructions
CAUTION
Follow these guidelines to meet safety and regulatory requirements when installing this board
assembly.
Read and adhere to all of these instructions and the instructions supplied with the chassis and
associated modules. If the instructions for the chassis are inconsistent with these instructions or
the instructions for associated modules, contact the supplier’s technical support to find out how
you can ensure that your computer meets safety and regulatory requirements. If you do not follow
these instructions and the instructions provided by chassis and module suppliers, you increase
safety risk and the possibility of noncompliance with regional laws and regulations.
Ensure Electromagnetic Compatibility (EMC) Compliance
Before computer integration, make sure that the power supply and other modules or peripherals, as
applicable, have passed Class B EMC testing and are marked accordingly.
In the installation instructions for the host chassis, power supply, and other modules pay close
attention to the following:
• Product certifications or lack of certifications
• External I/O cable shielding and filtering
• Mounting, grounding, and bonding requirements
• Keying connectors when mating the wrong connectors could be hazardous
If the power supply and other modules or peripherals, as applicable, are not Class B EMC
compliant before integration, then EMC testing is required on a representative sample of the newly
completed computer.
75
Intel Desktop Boards D850EMD2 and D850EMV2 Product Guide
Chassis and Component Certifications
Ensure that the chassis and certain components; such as the power supply, peripheral drives,
wiring, and cables; are components certified for the country or market where used. Agency
certification marks on the product are proof of certification. Typical product certifications include:
In Europe
The CE marking signifies compliance with all applicable European requirements. If the chassis
and other components are not properly CE marked, a supplier’s Declaration of Conformity
statement to the European EMC directive and Low Voltage directive (as applicable), should be
obtained. Additionally, other directives, such as the Radio and Telecommunications Terminal
Equipment (R&TTE) directive may also apply depending on product features.
In the United States
A certification mark by a Nationally Recognized Testing Laboratory (NRTL) such as UL, CSA, or
ETL signifies compliance with safety requirements. Wiring and cables must also be UL listed or
recognized and suitable for the intended use. The FCC Class B logo for home or office use
signifies compliance with electromagnetic interference (EMI) requirements.
In Canada
A nationally recognized certification mark such as CSA or cUL signifies compliance with safety
requirements. The Industry Canada statement at the front of this product guide demonstrates
compliance with Canadian EMC regulations. Industry Canada recognizes and accepts FCC
certification as denoting compliance with national electromagnetic interference (emissions)
requirements.
Prevent Power Supply Overload
Do not overload the power supply output. To avoid overloading the power supply, make sure that
the calculated total current loads of all the modules within the computer is less than the output
current rating of each of the power supplies output circuits.
Place Battery Marking
There is insufficient space on this desktop board to provide instructions for replacing and
disposing of the Lithium ion coin cell battery. For system safety certification, the following
statement or equivalent statement is required to be permanently and legibly marked on the chassis
near the battery.
CAUTION
Risk of explosion if battery is incorrectly replaced.
Replace with only the same or equivalent type recommended by the manufacturer. Dispose of used
batteries according to the manufacturer’s instructions.
76
Regulatory Compliance
Use Only for Intended Applications
All Intel desktop processor boards are evaluated as Information Technology Equipment (I.T.E.) for
use in personal computers for installation in homes, offices, schools, computer rooms, and similar
locations. The suitability of this product for other applications or environments, such as medical,
industrial, alarm systems, test equipment, etc. may require further evaluation.
77
