Intel® Desktop Boards D845GLLY and D845GLAD Product Guide

Order Number: A84618-001

Revision History

Revision Revision History Date

-001 First release of the Intel® Desktop Boards D845GLLY and D845GLAD

If an FCC declaration of conformity marking is present on the board, the following statement applies:

Product Guide.

FCC Declaration of Conformity

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

For questions related to the EMC performance of this product, contact:

Intel Corporation 5200 N.E. Elam Young Parkway Hillsboro, OR 97124 1-800-628-8686

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and the receiver.

• Connect the equipment to an outlet on a circuit other than the one to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

Canadian Department of Communications Compliance Statement

This digital apparatus does not exceed the Class B limits for radio noise emissions from digital apparatus set out in the Radio Interference Regulations of the Canadian Department of Communications.

Le présent appareil numerique német pas de bruits radioélectriques dépassant les limites applicables aux appareils numériques de la classe B prescrites dans le Réglement sur le broullage radioélectrique édicté par le ministére des Communications du Canada.

Disclaimer

Information in this document is provided in connection with Intel® products. No license, express or implied, by estoppel or otherwise, to any intellectual property rights is granted by this document. Except as provided in Intel’s Terms and Conditions of Sale for such products, Intel assumes no liability whatsoever, and Intel disclaims any express or implied warranty, relating to sale and/or use of Intel products including liability or warranties relating to fitness for a particular purpose, merchantability, or infringement of any patent, copyright or other intellectual property right. Intel products are not intended for use in medical, life saving, or life sustaining applications. Intel may make changes to specifications and product descriptions at any time, without notice.

The Desktop Boards D845GLLY and D845GLAD may contain design defects or errors known as errata which may cause the product to deviate from published specifications. Current characterized errata are available on request.

Contact your local Intel sales office or your distributor to obtain the latest specifications and before placing your product order.

Copies of documents which have an ordering number and are referenced in this document, or other Intel literature, may be obtained from Intel Corporation by going to the World Wide Web site at: http://www.intel.com/ or by calling 1-800-548-4725.

Intel, Celeron and Pentium are trademarks or registered trademarks of Intel Corporation or its subsidiaries in the United States and other countries.

†

Other names and brands may be claimed as the property of others.

April 2002

1 Desktop Board Features

Desktop Board Components ................................................................................................ 9

Processor........................................................................................................................... 10

Main Memory .....................................................................................................................11

Intel® 845GL Chipset.......................................................................................................... 11

Intel® 82845GL Graphics and Memory Controller Hub (GMCH) ................................ 12

Intel® 82801DB I/O Controller Hub (ICH4)................................................................. 12

Firmware Hub (FWH)................................................................................................. 12

Input/Output (I/O) Controller............................................................................................... 12

Integrated Graphics............................................................................................................ 13

LAN Subsystem (Optional)................................................................................................. 13

LAN Subsystem Software.......................................................................................... 13

RJ-45 LAN Connector LEDs...................................................................................... 14

Hi-Speed USB 2.0 Support................................................................................................. 14

Enhanced IDE Interface ..................................................................................................... 14

Expansion Slots.................................................................................................................. 15

BIOS .................................................................................................................................. 15

PCI Auto Configuration.............................................................................................. 15

IDE Auto Configuration.............................................................................................. 15

Security Passwords ................................................................................................... 15

Power Management Features ............................................................................................ 16

ACPI.......................................................................................................................... 16

Suspend to RAM (Instantly Available PC Technology) .............................................. 16

Hardware Management...................................................................................................... 17

Power Connectors..................................................................................................... 17

Fan Connectors......................................................................................................... 17

Resume on Ring........................................................................................................ 17

Wake from USB......................................................................................................... 17

Wake from PS/2 Keyboard/Mouse............................................................................. 18

PME# Wakeup Support ............................................................................................. 18

Speaker.............................................................................................................................. 18

Battery................................................................................................................................ 18

Real-Time Clock.................................................................................................................18

2 Installing and Replacing Desktop Board Components

Before You Begin ............................................................................................................... 19

Installing the I/O Shield.......................................................................................................20

Installing and Removing the Desktop Board....................................................................... 21

Installing and Removing a Processor ................................................................................. 22

Installing a Processor ................................................................................................ 22

Installing the Processor Fan Heat Sink...................................................................... 22

Connecting the Processor Fan Heat Sink Cable........................................................ 23

Removing a Processor .............................................................................................. 23

iii

Intel Desktop Boards D845GLLY and D845GLAD Product Guide

Installing and Removing Memory ....................................................................................... 23

Installing DIMMs ........................................................................................................ 24

Removing DIMMs...................................................................................................... 24

Connecting the IDE Cable.................................................................................................. 25

Connecting the Front Panel Header ................................................................................... 26

Setting the Jumper Blocks.................................................................................................. 26

Setting the BIOS Configuration Jumper Block ........................................................... 26

Setting the Front Panel USB Wake Configuration Jumper Block ............................... 27

Installing the Front Panel Audio Solution (Optional)............................................................ 27

Installing a Front Panel USB Solution................................................................................. 27

Clearing Passwords............................................................................................................ 28

Replacing the Battery ......................................................................................................... 29

3 Updating the BIOS

Updating the BIOS with the Intel® Express BIOS Update Utility ......................................... 33

Updating the BIOS with the Intel® Flash Memory Update Utility ......................................... 33

Obtaining the BIOS Update File................................................................................. 33

Updating the BIOS..................................................................................................... 34

Recovering the BIOS................................................................................................. 34

4 Using the BIOS Setup Program

Maintenance Menu............................................................................................................. 38

Main Menu ......................................................................................................................... 39

Advanced Menu ................................................................................................................. 40

PCI Configuration Submenu ...................................................................................... 41

Boot Configuration Submenu..................................................................................... 42

Peripheral Configuration Submenu............................................................................ 43

IDE Configuration Submenu ...................................................................................... 45

Primary/Secondary IDE Master/Slave Submenus...................................................... 46

Diskette Configuration Submenu ............................................................................... 47

Event Log Configuration Submenu............................................................................ 48

Video Configuration Submenu................................................................................... 49

USB Configuration Submenu..................................................................................... 50

Chipset Configuration Submenu ................................................................................ 51

Security Menu .................................................................................................................... 52

Power Menu....................................................................................................................... 53

ACPI Submenu.......................................................................................................... 53

Boot Menu.......................................................................................................................... 54

Boot Device Priority Submenu................................................................................... 55

Hard Disk Drives Submenu........................................................................................ 55

Removable Devices Submenu................................................................................... 56

ATAPI CD-ROM Drives ............................................................................................. 56

Exit Menu ........................................................................................................................... 57

5 Technical Reference

Board Connectors .............................................................................................................. 59

Back Panel Connectors ............................................................................................. 60

Midboard Connectors ................................................................................................ 61

Audio Connectors.............................................................................................. 61

Power and Hardware Connectors ..................................................................... 62

Add-In Card and Peripheral Interface Connectors............................................. 63

Front Panel Headers.................................................................................................. 64

Desktop Board Resources.................................................................................................. 66

Memory Map ............................................................................................................. 66

DMA Channels .......................................................................................................... 66

Interrupts ................................................................................................................... 67

A Error Messages and Indicators

BIOS Beep Codes.............................................................................................................. 69

BIOS Error Messages ........................................................................................................ 70

B Regulatory Compliance

Safety Regulations ............................................................................................................. 73

EMC Regulations ............................................................................................................... 73

Product Certification Markings............................................................................................ 74

Installation Precautions ...................................................................................................... 75

Installation Instructions.......................................................................................................75

Ensure Electromagnetic Compatibility (EMC) Compliance......................................... 75

Chassis and Component Certifications ...................................................................... 76

Prevent Power Supply Overload................................................................................ 76

Place Battery Marking................................................................................................ 76

Use Only for Intended Applications............................................................................ 76

Contents

Figures

1. Desktop Board Components.......................................................................................... 9

2. Location of the Standby Power Indicator...................................................................... 16

3. Installing the I/O Shield................................................................................................ 20

4. Desktop Board Mounting Holes.................................................................................... 21

5. Installing a Processor................................................................................................... 22

6. Connecting the Processor Fan Heat Sink Cable to the Processor Fan Connector....... 23

7. Installing a DDR SDRAM DIMM................................................................................... 24

8. Connecting the IDE Cable............................................................................................ 25

9. Location of the BIOS (J9H2) and Front Panel USB Wake Configuration (J9F1)

Jumper Blocks ............................................................................................................. 26

10. Removing the Battery from Desktop Board D845GLAD............................................... 31

11. Removing the Battery from Desktop Board D845GLLY ............................................... 31

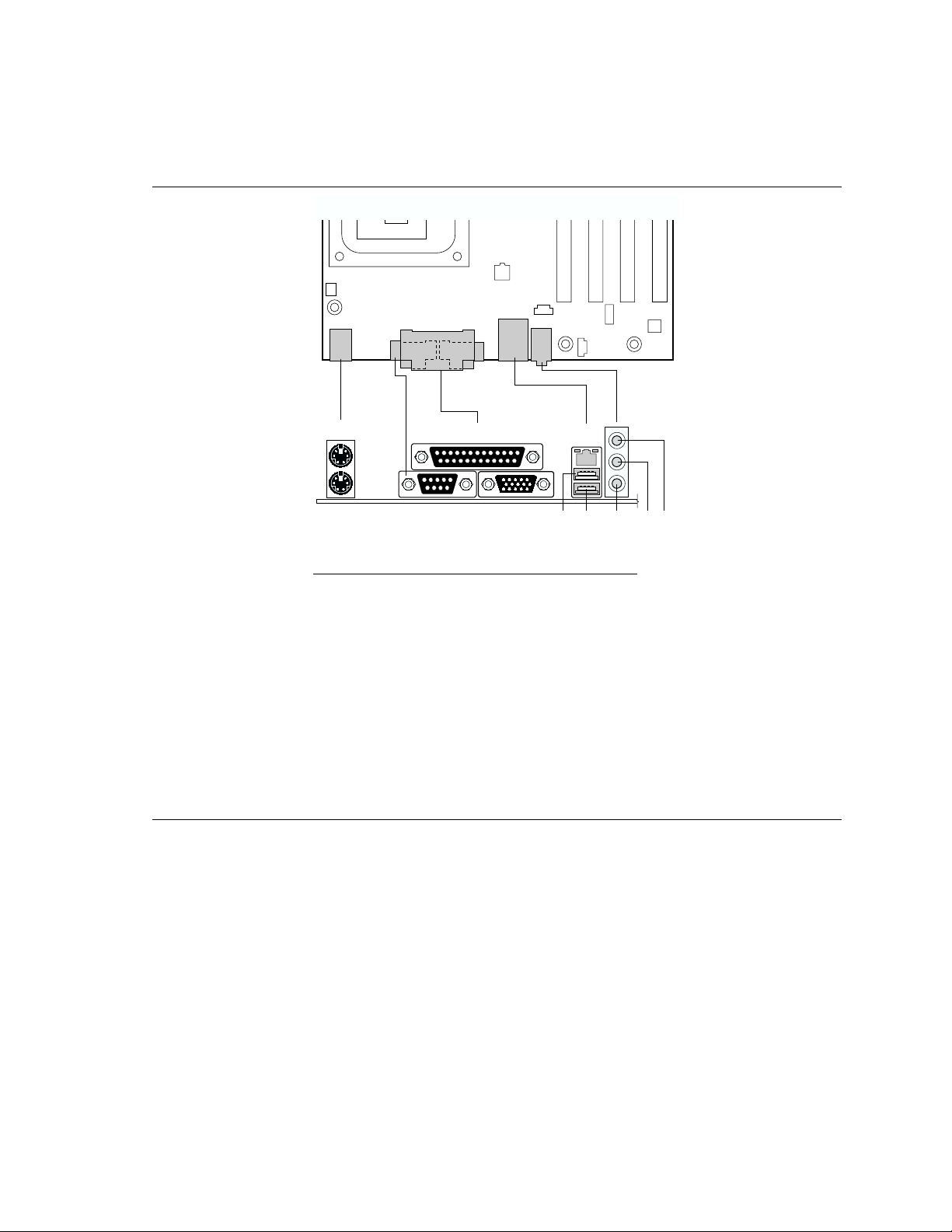

12. Back Panel Connectors................................................................................................ 60

13. Audio Connectors ........................................................................................................ 61

14. Power and Hardware Control Connectors.................................................................... 62

15. Add-in Card and Peripheral Interface Connectors........................................................ 63

16. Front Panel Headers.................................................................................................... 64

Intel Desktop Boards D845GLLY and D845GLAD Product Guide

Tables

1. Feature Summary .......................................................................................................... 7

2. Processors Supported by the Desktop Board .............................................................. 10

3. RJ-45 LAN Connector LEDs ........................................................................................ 14

4. Jumper Settings for the BIOS Setup Program Modes (J9H2) ...................................... 26

5. Jumper Settings for the Front Panel USB Wake Configuration Jumper Block (J9F1)... 27

6. BIOS Setup Program Menu Bar................................................................................... 37

7. BIOS Setup Program Function Keys............................................................................ 38

8. Maintenance Menu ...................................................................................................... 38

9. Main Menu................................................................................................................... 39

10. Advanced Menu........................................................................................................... 40

11. PCI Configuration Submenu ........................................................................................ 41

12. Boot Configuration Submenu ....................................................................................... 42

13. Peripheral Configuration Submenu .............................................................................. 43

14. IDE Configuration Submenu ........................................................................................ 45

15. Primary/Secondary IDE Master/Slave Submenus........................................................ 46

16. Diskette Configuration Submenu.................................................................................. 47

17. Event Log Configuration Submenu .............................................................................. 48

18. Video Configuration Submenu ..................................................................................... 49

19. USB Configuration Submenu ....................................................................................... 50

20. Chipset Configuration Submenu .................................................................................. 51

21. Security Menu.............................................................................................................. 52

22. Power Menu................................................................................................................. 53

23. ACPI Submenu ............................................................................................................ 53

24. Boot Menu ................................................................................................................... 54

25. Boot Device Priority Submenu ..................................................................................... 55

26. Hard Disk Drives Submenu.......................................................................................... 55

27. Removable Devices Submenu..................................................................................... 56

28. ATAPI CD-ROM Drives Submenu................................................................................ 56

29. Exit Menu..................................................................................................................... 57

30. Front Panel Audio Header Signal Names (J8A1) ......................................................... 61

31. Front Panel USB 2.0 Header (J9F2) ............................................................................ 65

32. Front Panel Header (J9G1).......................................................................................... 65

33. System Memory Map ................................................................................................... 66

34. DMA Channels............................................................................................................. 66

35. Interrupts ..................................................................................................................... 67

36. Beep Codes ................................................................................................................. 69

37. BIOS Error Messages .................................................................................................. 70

38. Safety Regulations....................................................................................................... 73

39. EMC Regulations ......................................................................................................... 73

1 Desktop Board Features

NOTE

✏

Intel®Desktop Board D845GLAD layout was used for illustrations unless otherwise noted.

Table 1 describes the major features of Intel®Desktop Boards D845GLLY and D845GLAD.

Table 1. Feature Summary

Form Factors

Processor

Memory

Chipset

I/O Control

LAN (optional)

Graphics

Audio

• microATX at 9.2 inches by 8.2 inches

Support for:

• 400 MHz front side bus (FSB) Intel

mPGA-478 socket

• 400 MHz FSB Intel

• Two DIMM sockets defined as:

— 168-pin, 3.3 V, PC133 SDRAM interface (Desktop Board D845GLLY)

— 184-pin, 2.5 V, DDR266/200 MHz SDRAM interface (Desktop Board

D845GLAD)

• Designed to support up to 2 GB of system memory

NOTE: Desktop Boards D845GLLY and D845GLAD have been designed to support

DIMMs based on 512 Mbit technology up to 2 GB, but this technology has not been validated on these Intel tested memory, refer to the Intel World Wide Web site at:

http://support.intel.com/support/motherboards/desktop/

Intel

845GL chipset, consisting of:

• Intel

• 4 Mbit Firmware Hub (FWH)

• SMSC LPC47M102S-MC low pin count (LPC) interface I/O controller

• Intel

• Intel 845GL chipset

• Integrated Intel

• Intel 845GL chipset (AC ’97)

• Sigmatel audio codec

82845 Graphics and Memory Controller Hub (GMCH) with Accelerated

Hub Architecture (AHA) bus

82801DB I/O Controller Hub (ICH4) with AHA bus with support up to

four Hi-Speed Universal Serial Bus 2.0 (USB 2.0) ports

82562ET 10/100 Mbit/sec Platform LAN Connect (PLC) device and

RJ-45 connector

Celeron® processor in an mPGA-478 socket

desktop boards. For more information about the latest list of

Extreme Graphics

Pentium® 4 processor in an

continued

Intel Desktop Boards D845GLLY and D845GLAD Product Guide

Table 1. Feature Summary (continued)

Expansion Capabilities Peripheral Interfaces

BIOS

Power Management

Four PCI slots

• Up to four USB 2.0 ports

— Two ports routed to the back panel

— Two ports routed to the USB front panel header

• Two IDE interfaces with Ultra DMA-33 and ATA-66/100 support

• One diskette drive interface

• One parallel port

• Two serial ports (one via a board header)

• PS/2

• Intel/AMI BIOS

• Intel

• SMBIOS support

• Support for Advanced Configuration and Power Interface (ACPI)

• Support for Suspend to RAM (Instantly Available PC)

†

keyboard and mouse ports

Rapid BIOS Boot

Express BIOS Update

NOTE

✏

For information about Intel desktop boards, including the Technical Product Specification (TPS), BIOS updates, and device drivers, go to the Intel World Wide Web site at:

http://support.intel.com/support/motherboards/desktop/

Desktop Board Components

Figure 1 shows the location of the major components on Desktop Board D845GLAD.

Desktop Board Features

G H

Z Y

A Audio codec O Secondary IDE connector

B Front panel audio header (optional) P Primary IDE connector

C Auxiliary line-in connector (ATAPI) Q Speaker

D CD-ROM connector (ATAPI) R Battery

E Back panel connectors S Alternate power/sleep LED connector

F 12 V processor core voltage connector T Front chassis fan connector

G Rear chassis fan connector U Chassis intrusion connector

H Intel 82845 (GMCH) V BIOS configuration jumper

I Processor socket W Front panel header

J Processor fan connector X Intel 82801DB (ICH4)

K DIMM sockets Y Front panel USB 2.0 header

L Serial port B connector (optional) Z Front panel USB 2.0 wake confriguration jumper

M Main power connector AA PCI bus add-in card connectors

N Diskette drive connector

NOP

OM13677

Figure 1. Desktop Board Components

Intel Desktop Boards D845GLLY and D845GLAD Product Guide

Processor

CAUTION

Failure to use an ATX12V or SFX-12V power supply, or not connecting the additional power supply lead to Desktop Board D845GLLY or D845GLAD may result in damage to the Intel board and/or power supply.

Desktop Boards D845GLLY and D845GLAD support a single Intel Pentium 4 processor or Intel Celeron processor. Processors are not included with the Intel desktop board and must be purchased separately.

The processor connects to the Intel desktop board through the mPGA-478-pin socket. The Intel Pentium 4 processor or Intel Celeron processor may be removed and replaced to accommodate supported higher speed processors.

Desktop Boards D845GLLY and D845GLAD support the processors listed in Table 2.

Table 2. Processors Supported by the Desktop Board

Type Designation FSB Frequency L2 Cache

Intel Pentium 4 processor on .13 micron process in an mPGA-478 package

Intel Pentium 4 processor on .18 micron process in an mPGA-478 package

2.40, 2.20, 2A, 1.80A, and

1.60A GHz

2, 1.90, 1.80, 1.70, 1.60, and 1.50 GHz

400 MHz 512 KB

400 MHz 256 KB

desktop

Intel Celeron processor in an mPGA-478 package

1.8 and 1.7 GHz 400 MHz 128 KB

For the latest information on processor support for Desktop Boards D845GLLY and D845GLAD, refer to the Intel World Wide Web site at:

http://support.intel.com/support/motherboards/desktop/

For instructions on installing or upgrading the processor, see Chapter 2 on page 19.

Desktop Boards D845GLLY and D845GLAD require an ATX12V or SFX-12V compliant power supply to function according to Intel desktop board specifications. Both desktop boards have two 12 V compliant power supply connectors that are needed to provide extra power to the Intel 845GL chipset and Intel Pentium 4 processor.

Items A and E in Figure 14 on page 62 show the two power connector locations.

Desktop Board Features

Main Memory

NOTE

✏

To be fully compliant with all applicable Intel® SDRAM memory specifications, the Intel desktop board should be populated with DIMMs that support the Serial Presence Detect (SPD) data structure. If your memory modules do not support SPD, you will see a notification to this effect on the screen at power up. The BIOS will attempt to configure the memory controller for normal operation

NOTE

✏

All memory components and DIMMs used with the desktop boards must comply with the PC SDRAM specifications. These include the PC SDRAM Specification (memory component specific), the PC Unbuffered DIMM Specification. To view or download these specifications, refer to this Intel World Wide Web site:

http://www.intel.com/technology/memory/pcsdram/spec/

Desktop Board D845GLLY supports system memory as defined below:

• Two 168-pin Dual Inline Memory Modules (DIMMs)

• 3.3 V, 133 MHz SDRAM interface

• Memory configurations up to 2 GB using 512 Mbit technology

Desktop Board D845GLAD supports system memory as defined below:

• Two 184-pin DIMMs

• 2.5 V, 266 MHz or 200 MHz DDR DRAM interface

• Memory configurations up to 2 GB using 512 Mbit technology

Both desktop boards support Serial Presence Detect (SPD), suspend to RAM (STR), and unbuffered, non-ECC RAM (registered memory is not supported).

NOTE

✏

Desktop Boards D845GLLY and D845GLAD have been designed to support DIMMs based on 512 Mbit technology up to 2 GB, but this technology has not been validated on these boards. For more information about the latest list of tested memory, refer to the Intel World Wide Web site at:

http://support.intel.com/support/motherboards/desktop/

Intel® 845GL Chipset

The Intel 845GL chipset consists of the following:

• Intel 82845 Graphics and Memory Controller Hub (GMCH) with AHA bus

• Intel 82801DB I/O Controller Hub (ICH4) with AHA bus

• Firmware Hub (FWH)

Intel Desktop Boards D845GLLY and D845GLAD Product Guide

Intel® 82845GL Graphics and Memory Controller Hub (GMCH)

The GMCH provides the processor, system memory, and hub interfaces in the Intel 845GL chipset platform. Features on Desktop Boards D845GLLY and D845GLAD include:

• Single processor support with 400 MHz data transfer rate

• Support for up to 2 GB SDR-SDRAM at 133 MHz operation (Desktop Board D845GLLY)

• Support for up to 2 GB DDR SDRAM at 266/200 MHz operation (Desktop Board

D845GLAD)

NOTE

✏

512 Mbit technology has not been validated on these Intel desktop boards.

Intel® 82801DB I/O Controller Hub (ICH4)

The ICH4 integrates many I/O functions and provides the I/O subsystem with access to the rest of the platform. ICH4 features on Desktop Boards D845GLLY and D845GLAD include:

• Integrated IDE controller supports two Ultra DMA-33 and ATA-66/100 channels and

PIO modes

• SMBus interface

• FWH interface

• Low pin count (LPC) interface

• AC ’97 2.1 compliant link for audio and telephony codecs

• Integrated Intel 82562ET 10/100 Mbit/sec Platform LAN Connect (PLC) device for interfacing

the ICH4 LAN connect interface to LAN connect component

• Three UHCI and one ECHI compliant host controllers supporting up to four USB ports

Firmware Hub (FWH)

The 4 Mbit Firmware Hub has these features:

• System BIOS

• System security and management logic

Input/Output (I/O) Controller

The SMSC LPC47M102S-MC ultra I/O controller features the following:

• Low pin count (LPC) interface

• 3.3 V operation

• Two serial ports (one via a board header)

• One parallel port with Extended Capabilities Port (ECP) and Enhanced Parallel Port

(EPP) support

• Serial IRQ interface compatible with serialized IRQ support for PCI systems

• PS/2-style mouse and keyboard interfaces

• Interface for one 1.2 MB, 1.44 MB, or 2.88 MB diskette drive

• Intelligent power management, including a programmable wake up event interface

• PCI power management support

Desktop Board Features

Integrated Graphics

The integrated graphics on Desktop Boards D845GLLY and D845GLAD feature:

• Intel 845GL chipset

• Intel Extreme Graphics

Audio Subsystem

The audio subsystem features the following:

• Intel 845GL chipset (AC ’97)

• Sigmatel

NOTE

✏

The line out connector, located on the back panel, is designed to power either headphones or amplified speakers only. Poor audio quality may occur if passive (non-amplified) speakers are connected to this output.

Audio drivers and utilities are available from Intel’s World Wide Web site:

†

STAC9750 audio codec

http://support.intel.com/support/motherboards/desktop/

LAN Subsystem (Optional)

The optional Intel 82562ET (with the Intel 82801DB ICH4) provides a Fast PCI LAN subsystem providing both 10Base-T and 100Base-TX connectivity. The Intel 82562ET provides the following functions:

• Basic 10/100 Ethernet LAN connectivity

• Supports RJ-45 connector with status indicator LEDs

• Programmable transit threshold

• Configurable EEPROM that contains the MAC address

LAN Subsystem Software

For LAN software and drivers, refer to the D845GLLY or D845GLAD link on Intel’s World Wide Web site at:

http://support.intel.com/support/motherboards/desktop

Intel Desktop Boards D845GLLY and D845GLAD Product Guide

RJ-45 LAN Connector LEDs

Two LEDs are built into the RJ-45 LAN connector. Table 3 describes the LED states when the Intel desktop board is powered up and the LAN subsystem is operating.

Table 3. RJ-45 LAN Connector LEDs

LED Color LED State Indicates

Off 10 Mbit/sec data rate is selected. Green

On 100 Mbit/sec data rate is selected.

Yellow

Off LAN link is not established.

On (steady state) LAN link is established.

On (brighter and pulsing) The computer is communicating with another computer on

the LAN.

Hi-Speed USB 2.0 Support

NOTE

✏

Computer systems that have an unshielded cable attached to a USB port might not meet FCC Class B requirements, even if no device or a low-speed USB device is attached to the cable. Use a shielded cable that meets the requirements for a full-speed USB device.

These Intel desktop boards support up to four USB 2.0 ports via ICH4; two ports routed to the back panel and two routed to a USB front panel header. USB 2.0 ports are backward compatible with USB 1.1 devices. USB 1.1 devices will function normally at USB 1.1 speeds.

USB 2.0 support requires both an operating system and drivers that fully support USB 2.0 transfer rates. Disabling Hi-Speed USB in BIOS reverts all USB 2.0 ports to USB 1.1 operation. This may be required to accommodate operating systems that do not support USB 2.0.

NOTE

✏

USB devices are limited to USB 1.1 transfer rates prior to operating system and driver initialization.

Enhanced IDE Interface

The ICH4’s IDE interface handles the exchange of information between the processor and

†

peripheral devices like hard disks, CD-ROM drives, and Iomega Zip The interface supports:

• Up to four IDE devices (such as hard drives)

• ATAPI devices (such as CD-ROM drives)

• Older PIO Mode devices

• Ultra DMA-33 and ATA-66/100 protocols

• Laser servo (LS-120) drives

drives inside the computer.

Desktop Board Features

Expansion Slots

Desktop Boards D845GLLY and D845GLAD have four PCI bus add-in card connectors.

BIOS

The BIOS provides the Power-On Self-Test (POST), the BIOS Setup program, the PCI and IDE auto-configuration utilities, and the video BIOS. The BIOS is stored in the Firmware Hub.

The BIOS can be updated by following the instructions in Chapter 3 on page 33.

PCI Auto Configuration

If you install a PCI add-in card in your computer, the PCI auto-configuration utility in the BIOS automatically detects and configures the resources (IRQs, DMA channels, and I/O space) for that add-in card. You do not need to run the BIOS Setup program after you install a PCI add-in card.

IDE Auto Configuration

If you install an IDE device (such as a hard drive) in your computer, the IDE auto-configuration utility in the BIOS automatically detects and configures the device for your computer. You do not need to run the BIOS Setup program after installing an IDE device. You can override the auto-configuration options by specifying manual configuration in the BIOS Setup program.

To use ATA-66/100 features, the following items are required:

• An ATA-66/100 peripheral device

• An ATA-66/100 compatible cable

• ATA-66/100 operating system device drivers

Security Passwords

The BIOS includes security features that restrict whether the BIOS Setup program can be accessed and who can boot the computer. A supervisor password and a user password can be set for the Setup and for booting the computer, with the following restrictions:

• The supervisor password gives unrestricted access to view and change all Setup options. If

only the supervisor password is set, pressing <Enter> at the password prompt of Setup gives

the user restricted access to Setup.

• If both the supervisor and user passwords are set, you must enter either the supervisor

password or the user password to access Setup. Setup options are then available for viewing

and changing depending on whether the supervisor or user password was entered.

• Setting a user password restricts who can boot the computer. The password prompt is

displayed before the computer is booted. If only the supervisor password is set, the computer

boots without asking for a password. If both passwords are set, you can enter either password

to boot the computer.

Intel Desktop Boards D845GLLY and D845GLAD Product Guide

Power Management Features

• Advanced Configuration and Power Interface (ACPI)

• Suspend to RAM (Instantly Available PC technology)

ACPI

ACPI gives the operating system direct control over the power management and Plug & Play functions of a computer. The use of ACPI with Desktop Board D845GLLY or D845GLAD requires an operating system that provides full ACPI support.

Suspend to RAM (Instantly Available PC Technology)

CAUTION

For Instantly Available PC technology, the 5 V standby line for the power supply must be capable of delivering adequate +5 V standby current. Failure to provide adequate standby current when using this feature can damage the power supply and/or effect ACPI S3 sleep state functionality.

Instantly Available PC technology enables the board to enter the ACPI S3 (Suspend-to-RAM) sleep state. While in the S3 sleep state, the computer will appear to be off. When signaled by a wake-up device or event, the system quickly returns to its last known awake state.

The Intel desktop board’s standby power indicator, shown in Figure 2, is lit when there is standby power to the system. This includes the memory modules and PCI bus connectors, even when the computer appears to be off.

If the system has a dual-colored power LED on the front panel, the sleep state is indicated by the LED turning amber.

OM13679

Figure 2. Location of the Standby Power Indicator

Desktop Board Features

CAUTION

Power supplies used with this board must be able to provide enough standby current to support the standard Instantly Available (ACPI S3 sleep state) configuration. If the standby current necessary to support multiple wake events from the PCI and/or USB buses exceeds power supply capacity, the Intel desktop board may lose register settings stored in memory.

For more information on standby current requirements for these desktop boards, refer to the TPS by selecting the Technical Documentation link at:

http://developer.intel.com/design/motherbd/

Hardware Management

• Power connectors

• Fan connectors

• Resume on Ring

• Wake from USB

• Wake from PS/2 keyboard/mouse

• PME# wake up support

Power Connectors

Desktop Boards D845GLLY and D845GLAD have two power connectors. See Figure 14 on page 62 for the location of the power connectors.

Fan Connectors

Desktop Boards D845GLLY and D845GLAD have two chassis fan connectors and one processor fan connector. See Figure 14 on page 62 for the location of the fan connectors.

Resume on Ring

The operation of Resume on Ring can be summarized as follows:

• Resumes operation from either ACPI S1 or ACPI S3 state

• Requires only one call to access the computer

• Detects incoming call similarly for external and internal modems

• Requires modem interrupt be unmasked for correct operation

Wake from USB

USB bus activity wakes the computer from an ACPI S1 or S3 state.

NOTE

✏

Wake from USB requires the use of a USB peripheral that supports Wake from USB.

The front panel USB wake configuration jumper must be set for front panel USB operation. See page 27 for jumper settings.

Intel Desktop Boards D845GLLY and D845GLAD Product Guide

Wake from PS/2 Keyboard/Mouse

PS/2 keyboard/mouse activity wakes the computer from an ACPI S1 or S3 state.

PME# Wakeup Support

When the PME# signal on the PCI bus is asserted, the computer wakes from an ACPI S1, S3, or S5 state.

Speaker

A speaker is mounted on the desktop board. The speaker provides audible error code (beep code) information during the Power-On Self-Test (POST).

Battery

A battery on the board keeps the values in CMOS RAM and the clock current when the computer is turned off. See Chapter 2 starting on page 19 for instructions on how to replace the battery.

Real-Time Clock

Desktop Boards D845GLLY and D845GLAD have a time-of-day clock and 100-year calendar. A battery on the Intel desktop board keeps the clock current when the computer is turned off.

2 Installing and Replacing Desktop Board

Components

This chapter tells you how to:

• Install the I/O shield

• Install and remove the desktop board

• Install and remove a processor

• Install and remove memory

• Connect the IDE cable

• Connect the front panel header (not included)

• Set the BIOS jumper

• Install the front panel audio solution (not included)

• Install the front panel USB solution (not included)

• Clear passwords

• Replace the battery

Before You Begin

CAUTION

Before you install this board in a chassis, see Appendix B for regulatory requirements and precautions.

• Always follow the steps in each procedure in the correct order.

• Set up a log to record information about your computer, such as model, serial numbers,

installed options, and configuration information.

• Electrostatic discharge (ESD) can damage components. Perform the procedures described in

this chapter only at an ESD workstation using an antistatic wrist strap and a conductive foam

pad. If such a station is not available, you can provide some ESD protection by wearing an

antistatic wrist strap and attaching it to a metal part of the computer chassis.

WARNINGS

The procedures in this chapter assume familiarity with the general terminology associated with personal computers and with the safety practices and regulatory compliance required for using and modifying electronic equipment.

Disconnect the computer from its power source and from any telecommunications links, networks, or modems before performing any of the procedures described in this chapter. Failure to disconnect power, telecommunications links, networks, or modems before you open the computer or perform any procedures can result in personal injury or equipment damage. Some circuitry on the board can continue to operate even though the front panel power button is off.

Intel Desktop Boards D845GLLY and D845GLAD Product Guide

Installing the I/O Shield

The Intel desktop board comes with an I/O shield. When installed in the chassis, the shield blocks radio frequency transmissions, protects internal components from dust and foreign objects, and promotes correct airflow within the chassis.

Install the I/O shield before installing the desktop board in the chassis. Place the shield inside the chassis as shown in Figure 3. Press the shield into place so that it fits tightly and securely. If the shield doesn’t fit, obtain a properly-sized shield from the chassis supplier.

Figure 3. Installing the I/O Shield

OM13621

Installing and Replacing Desktop Board Components

Installing and Removing the Desktop Board

Refer to your chassis manual for instructions on installing and removing the Intel desktop board.

WARNING

This procedure should be done only by qualified technical personnel. Disconnect the computer from its power source before performing the procedures described here. Failure to disconnect the power before you open the computer can result in personal injury or equipment damage.

NOTES

✏

You will need a Phillips† (#2 bit) screwdriver.

Refer to Appendix B for regulatory requirements and installation instructions and precautions.

Figure 4 shows the location of the six mounting holes for Desktop Boards D845GLLY and D845GLAD.

OM13680

Figure 4. Desktop Board Mounting Holes

Intel Desktop Boards D845GLLY and D845GLAD Product Guide

Installing and Removing a Processor

Instructions on how to install the processor to the Intel desktop board are given below.

Installing a Processor

CAUTION

Before installing or removing the processor, make sure that AC power has been removed by unplugging the power cord from the computer; the standby power LED should not be lit (see Figure 2 on page 16). Failure to do so could damage the processor and the Intel desktop board.

To install a processor, follow these instructions:

1. Observe the precautions in “Before You Begin” on page 19.

2. Locate the processor socket and raise the socket lever completely.

3. Install the processor so that the corner with the triangle marking (A) is aligned with the corner where the lever is attached to the socket (see Figure 5).

4. Lower the lever to its original position.

mPGA478B

Figure 5. Installing a Processor

Installing the Processor Fan Heat Sink

Desktop Boards D845GLLY and D845GLAD have an integrated processor fan heat sink retention mechanism (RM). For instructions on how to install the processor fan heat sink to the integrated processor fan heat sink RM, refer to the boxed processor manual or the Intel World Wide Web site at:

http://support.intel.com/support/processors/pentium4/intnotes478.htm

OM12078

Installing and Replacing Desktop Board Components

Connecting the Processor Fan Heat Sink Cable

Connect the processor fan heat sink cable to the processor fan connector (see Figure 6).

OM13684

Figure 6. Connecting the Processor Fan Heat Sink Cable to the Processor Fan Connector

Removing a Processor

For instruction on how to remove the processor fan heat sink, refer to the processor installation manual or the Intel World Wide Web site at:

http://support.intel.com/support/processors/pentium4/intnotes478.htm

Installing and Removing Memory

CAUTION

To be fully compliant with all applicable Intel SDRAM memory specifications, the boards require DIMMs that support the Serial Presence Detect (SPD) data structure.

You can access the PC Serial Presence Detect Specification at:

http://www.intel.com/technology/memory/pcsdram/spec/

NOTE

✏

Remove the PCI bus connector 1 card before installing or upgrading memory to avoid interference with the memory retention mechanism.

Desktop Boards D845GLLY and D845GLAD have two DIMM sockets arranged as banks 0 and 1, as shown in Figure 7. If installing a single DIMM, install it in bank 0.

Refer to the Main Memory heading on page 11 for memory requirements.
