Intel 537EX User Manual
537EX Chipset
Developer’s Manual
January 2002
Order Number: 273584-002
Information in this document is provided in connection with Intel® products. No license, express or implied, by estoppel or otherwise, to any intellectual
property rights is granted by this document. Except as provided in Intel’s Terms and Conditions of Sale for such products, Intel assumes no liability
whatsoever, and Intel disclaims any express or implied warranty, relating to sale and/or use of Intel products including liability or warranties relating to
fitness for a particular purpose, merchantability, or infringement of any patent, copyright or other intellectual property right. Intel products are not
intended for use in medical, life saving, or life sustaining applications.
Intel may make changes to specifications and product descriptions at any time, without notice.
Designers must not rely on the absence or characteristics of any features or instructions marked “reserved” or “undefined.” Intel reserves these for
future definition and shall have no responsibilit y wha tsoeve r for conflicts or incompat ibilities arisi ng from futu re changes to them.
The 536EX may contain design defects or errors known as errata which may cause the produc t to deviate from publishe d specificat ions. Current
characterized errata are available on request.
Contact your local Intel sales office or your distributor to obtain the latest specifications and befo re placi ng your product order.
Copies of documents which have an ordering number and are referenc ed in this docume nt, or other In tel literature may be obtained by callin g
1-800-548-4725 or by visiting Intel's website at http://ww w.intel.com.
Copyright © Intel Corporation, 2002
*Third-party brands and names are the property of their respective owne rs.
2 536EX Chipset Developer’s Manual
Intel Confidential
Contents
Contents
1 Introduction...................................................................................................................................... 7
1.1 Controllerless Modem Driver Overview................................................................................7
1.1.1 Windows* M ill ennium Edition (Windows Me), Windows 2000, Windows XP, and
Windows NT* 47
1.1.2 Windows 95 and Windows 98..................................................................................8
1.2 V.90/V.92 and V.34 Data Modes...... ........................... .......................... .... ............. ..............9
1.3 Modem Connection Overvie w.................. ... ............. .... ............. ........................... ...............10
1.4 AT Commands Overview....................................................................................................11
1.4.1 Se n din g Co mmands..... .... ............. ... .............. .......................... .... ............. ............12
1.4.2 AT Esca p e Sequen ce s........ ............. .... ............. ... .............. ... ............. ...................13
1.4.3 D i al Modifi e r.................. .... ............. ... .............. ... ............. .... ............. ... .............. ... ..13
2 AT Command Summary Tables....................................................................................................14
3 Data Mode AT COMMANDS.........................................................................................................26
3.1 Using AT Commands to Access the S-Registers [Sn?, Sn=x, ?]........................................26
3.2 Modem Responses and Comman d Echo [En , Vn, Xn, Wn, Qn]......... ... .............. ............. ..26
3.3 Modem Reset and NVRAM Commands [DS=m, Zn, &F, &Vn, &Yn, &Wn, &Zn=x]........... 28
3.4 Modem Identificatio n Commands [In, +F MI, +FMR, +F MM, +GMI, +GMM, +GMR, +GSN,
+FMFR?, +FMDL?, +FREV?].............................................................................................29
3.5 Establishing a Modem Connection [A, D, DS = n, S0]........................................................29
3.6 Online Command Mode [Escape Codes , On].................................. ... ............. .... ............. ..30
3.7 Hanging Up [Hn, S10, Zn, &D2]..........................................................................................30
3.8 Modem-to-Modem Connec ti o n Data Rates................. ... ............. ........................... ............30
3.9 Diagnostic Testing [S18, &Tn]............................................................................................36
3.9.1 L oc al An alo g Loopb ac k [AT&T 1]...... .... ............. ... .............. ... ............. .... ............. ..36
3.9.2 Local Analog Loopback With Self-Test [AT&T8]....................................................37
3.10 AT Escape Sequences.......................................................................................................38
3.10.1 Time-Independen t Esc ape Sequ en ce ............................ .... ............. ... .............. ... ..38
3.10.2 Hayes* Escape Sequence.......................... .... ............. ... .............. ... ............. .... .....40
4 Error Correctio n and Data Compre ssio n..... ............. .............. ... ............. .... ............. ......................56
5 Fax Class 1 AT Commands...........................................................................................................64
5.1 Fax Identity Commands......................................................................................................64
5.2 Fax Class 1 Commands .....................................................................................................64
6 IS-101 Voice Mode AT Commands...............................................................................................70
6.1 DTMF Detection Reporting.................................................................................................71
6.2 Relay Control......................................................................................................................71
7 S-Registers....................................................................................................................................85
8 Caller ID.........................................................................................................................................90
9 Parallel Host Interfa ce 16C45 0 /1 6C55 0A UART................ .... ............. ............. .... ............. ... .........92
9.1 UART Emulation in the Controllerless Modem...................................................................92
9.2 UART Register Definitions..................................................................................................95
536EX Chipset Developer’s Manual 3
Intel Confidential
Contents
9.2.1 Scratch Register (SCR).........................................................................................95
9.2.2 Modem Status Register (MSR)..............................................................................95
9.2.3 Line Status Register (LSR)....................................................................................96
9.2.4 Modem Control Register (MCR)............................................................................97
9.2.5 Line Control Register (LCR)..................................................................................97
9.2.6 FIFO Control Register (FCR).................................................................................98
9.2.7 Interrupt Identity Register (IIR)............ .............. ... ............. .... ............. ... .............. ..99
9.2.8 Interrupt Enable Register (IER) ...........................................................................100
9.2.9 Transmitter Holding Register (THR)....................................................................100
9.2.10 Receiver Buffer Register (RBR)...........................................................................101
9.2.11 Divisor Latch Registers (DLM and DLL)..............................................................101
9.3 16C550A UART FIFO Operation......................................................................................102
9.3.1 FIFO Interrupt Mode Operati o n........... .... ............. ... .............. ... ............. .... ..........102
9.3.2 FIFO Polled Mode Operation............................................................................... 102
Figures
1 WDM Driver Block Diagram........ .............. .......................... ........................... ............. .... ..............8
2 VxD Mini Port Driver Block Diagram.............................................................................................9
3 Example of a Remote Connection..............................................................................................27
4 Modem-on-Hold: Incoming Voice Call in Data Mode..................................................................3 2
5 Modem-on-Hold: Initiating a Voice Call in Data Mode................................................................33
6 Local Analog Loopback Test......................................................................................................37
7 Local Analog Loopback with Self-Test .......................................................................................37
8 T.30 HDLC Frame Format .......................................................................................................... 6 6
9 CLASS 1 DTE-Generated HDLC Frame Information (AT+FTH=<mod>)...................................66
10 CLASS 1 DTE Reception of HDLC Frame Information (AT+FRH=<mod>) ...............................66
11 UART Emulation in Intelsdb.VxD................................................................................................92
12 FIFO Buffers for Transmitter and Receiver ................................................................................93
13 Parallel Host Interface UART Register Bit Assignments............................................................94
14 Scratch Register (SCR)..............................................................................................................95
15 Modem Status Register (MSR)...................................................................................................95
16 Line Status Register (LSR).........................................................................................................9 6
17 Modem Control Register (MCR).................................................................................................97
18 Line Control Register (LCR).......................................................................................................97
19 FIFO Control Register (FCR)......................................................................................................9 8
20 Interrupt Identity Register (IIR)...................................................................................................9 9
21 Interrupt Enable Register (IER)................................................................................................100
22 Transmitter Holding Register (THR).........................................................................................100
23 Receiver Buffer Register (RBR) ...............................................................................................101
24 Divisor Latch Registers (DLM and DLL)...................................................................................101
4 536EX Chipset Developer’s Manual
Intel Confidential
Contents
Tables
1 DTE-to-DCE Data Rates for Each Mode....................................................................................11
2 DCE-to-DCE Data Rates for Each Mode....................................................................................11
3 DCE-to-ISP Data Rates for V.90 Mode ......................................................................................11
4 DTE-Modem Data Rate Response Codes... .............. .......................... .............. ... ............. .... .....12
5 Data Mode Command Summary................. .... ............. ... .............. ... ............. .... ............. ... .........14
6 V.44/V.42/V.42 bis MNP Command Summary...........................................................................19
7 Fax Identity Command Summary...............................................................................................21
8 Fax Class 1 Command Summary...............................................................................................21
9 IS-101 Voice Command Summary.............................................................................................22
10 Voice DTEÆDCE Characte r Pairs........... ............. .... ............. ........................... .........................22
11 Voice DTE¨DCE Characte r Pairs..................... ... ............. ........................... ........................... .....23
12 Dial Modifiers........................ ... .............. .......................... .... ............. ... .............. ... ......................24
13 S-Register Summary ..................................................................................................................24
14 Data Reporting Wn Mapping......................................................................................................27
15 Product Identifica tion Inf ormat i on.................... .......................... .... ............. ........................... .....29
16 Supported Modulation Types......................................................................................................35
17 Resulting Modem-to-Modem Connection Rates with Non-Default Values.................................36
18 Data Mode Command Description s............. .............. ... ............. .... ............. ........................... .....40
19 Operating Modes........................................................................................................................56
20 Resulting +ES Connection Types...............................................................................................57
21 V.44/V.42/V.42 bis and MNP Data Modem Command Descriptions.......................................... 57
22 Fax Identity Command Descriptions...........................................................................................64
23 <mod> Selection Table...............................................................................................................65
24 Fax Mode Command Descriptions .............................................................................................67
25 Voice Mode Command Descriptions..........................................................................................71
26 S-Register Command Descriptions ............................................................................................85
27 Caller ID Tags for Formatted Reporting......................................................................................90
28 Interrupt Control Functions.........................................................................................................99
29 Programmable Data Rates.......................................................................................................101
536EX Chipset Developer’s Manual 5
Intel Confidential
Contents
Revision History
Date Revision Description
January 2002 002
August 2001 001 Initial release
Changed references to “HaM Data Fax Voice” to “Intel 536EP
V.92 Modem.”
6 536EX Chipset Developer’s Manual
Intel Confidential
Introduction 1
This developer’s manual describes the software interface fo r Intel® 536EX (controllerless and
controll e r) chipset solutions. The c ontrollerless-based solutions include the 536EP for PCI and
Mini-PCI. Re fer to the chipset datasheets for the detai le d chipset des c riptions (public order
numbers 273503-001, 273xxx-001, 273xxx-001, 273xxx-001 , and 273xxx-001).
The controllerless-bas ed chi ps et, as the name implies, does not have a dedicated hard war e
controller . The control ler functi ons are execu ted by th e CPU. This deve loper’ s man ual inclu des the
AT command sets for data, fax, and voice and the UAR T interface and emulation. Like the earl ier
solutions from Intel, th e 536E X chipsets support a variety of applications without the need of
additional firmwa re de velopment. Note, the supported AT commands are firmware or driver
version dependent.
1.1 Controllerless Modem Driver Overview
1.1.1 Windows* Millennium Edition (Windows Me), Windows 2000, Windows XP, and Windows NT* 4
The controllerless modem chipsets are integrated into the Microsoft* Windows* Me, Windows
2000, Windows XP, and W i ndows NT* 4 operating system s via proprie t a ry Intel® Windows
Driver Model (WDM) modem drivers. These driver s are fully plug and play capable and conform
to all Microsoft WHQL certification requirement s.
The funct i on a l blo c k di a g ra m in Figure 1 shows the common WDM architecture for the
Microsof t’s operating systems supporting common WDM drivers model.
User-mode applic ation, via special W indows API (FILE, T API, UNIMODEM), can access a virtual
COM port prov ided by the Intel WD M driver. The data flow is converted inside the driver in
accordance with some compressio n and a channel level protocol and passed to the DSP. The
control flow fo llows the common Micro soft WDM driver model. Th e Intel WDM driver is
installed as a stack of filter dri ver s be low the system modem.sys driver.
536EX Chipset Developer’s Manual 7
Intel Confidential
Introduction
Figure 1. W DM Driver Block Diagram
applications
User applications
virtual COM
protocols
User
Kernel - ring0
Modem drivers stack
port,
channel
layer
WDM driver
Intels51.sys
PCI bus
Hardware
1.1.2 Windows 95 and Windows 98
When the controllerless modem chipsets are used with Microsoft Windows 95 a nd Windo ws 98
applications, the traditional UART and serial port emulations are replaced by the proprietary HaM
Mini Port driver (see Figure 2). Instead of transferring commands to UART virtual registers, then
to a serial port, the HaM Port Driver sends commands directly to the Windows virtual machine
driver VCOMM. VxD. This low-level communic a t ion driver supports the Win16 and Win32
Communication APIs. Like the WDM drivers, the Mini Port VxD drivers are fully plug and play
and conform to Microsoft WHQL certification requirements.
8 536EX Chipset Developer’s Manual
Intel Confidential
When the controllerle ss chipsets are used with MS-DOS* applications, however, a UART
emulation is required. Intel provides an additional dr iver called Intelsd b.VxD, which includes a
UAR T em ulation. Please refer t o Section 9.1, “UART Em ulation in the Cont rollerless Modem ” on
page 92 for an explanation of the 536EX UART emulation. The Intelsdb.VxD driver interacts
directly with the VCOMM.VxD driver using the Win16 and Win32 Commu nication APIs.
Figure 2. VxD Mini Port Driver Block Diagram
NON-SYSTEM
VIRTUAL MACHINE
MS-DOS SHELL APPLICATION
OR DRIVER
Introduction
SYSTEM VIRTUAL MACHINE
MS-DOS
APPLICATION
Intelsdb.VXD
WINDOWS
APPLICATION
TAPI
Unimodem COMM.DRV
VCOMM.VXD
HaM Port Driver
Interrupt Services
Chipset Hardware
Win 16
1.2 V.90/V.92 and V.34 Dat a Modes
The 536EX chipset defaults to the V.90 or V.92 mode depending on the driver version. The V.90/
V.92 mode allows receive data rates of up to 56,000 kbps over the PSTN (public switched
telephon e network) only in connections wit h e quipment-compatible ISPs (Internet Service
Providers); howev e r, FCC regulati ons lim it receive speeds to 53,333 kbps due to excessive power
demands at higher speeds. In modem-to-modem connections, V.90/V.92 mode falls back to V.34
mode in both the transmit and receive directions. The chipsets implement all data rates and
modulation schemes for ITU-T (International Telecommunications Union-Telecommunications)
standards V.34, V.32 bis, V.32, V.22 bis, V.22, V.21, Bell 212A, and Bell 103.
536EX Chipse t D eveloper’s Manual 9
Intel Confidential
Introduction
1.3 Modem Connection Overview
The DCE (modem) operates in one of two states: command or online. In each state, both data and
commands (i nc luding DCE re sponses) are t ransferred t hrough the UART THR (Transmit Ho lding
register) and the RBR (Receiver Buffer register).
The modem defaults to the command state. I n the command stat e, the DTE (host) communica tes to
the modem through AT commands and S-registers. AT commands are character strings that help
guide modem operation. S -registers are internal mode m registers that the DTE can acc e ss. The Sregisters contain modem status and configuration information. Many of th e AT commands
indirectly affect the contents of the S-registers. The AT command set and S-registers are divided
into the following modes: Group 3 fax, data, V.44/V.42 bis/V.42/MNP, and voice. Note that
supported AT commands ar e fi rm ware re visio n- dep ende nt ( that is, n ot all com mands ar e suppo rt ed
by all modem models or all fi rmware revis i ons).
All command lines sent to the modem , except for A/, must be preceded by an ‘AT’ (which stands
for ‘attention’) and terminated by the contents of S-register S3 (typically a carriage return <CR>).
The ‘AT’ prompts the modem to receive a com man d line from the DTE. A <CR> informs the
modem that the entire command string has been transmitted and that the modem should start
processing all the commands wit hin the command line.
A command line may include one or more AT commands that may or may not be separated by a
space. AT commands may be either upper- or lower-case characters, but all characters for a given
command must use the same cas e. If t here ar e mult iple co mmands in a li ne, a sem icolo n (;) must b e
placed after each fax or voice command. The modem can be configured to send back (echo) to the
DTE any data that the DTE sends to the modem (while in command state only). The last command
may be repeated by typing A/ wi thout using a carriage return. Each command line may include up
to 80 characters and spaces.
Examples of AT command strings:
ATS1?<CR>
A/
AT &C1 &D2 +FCLASS=? <CR>
AT &C1 &D2 +FCLASS=?; S0=1 <CR>
The modem provides status infor mat ion to the DTE in the form of response codes. These response
codes can be expressed in te xt or numeric fo rm. The supported respons e c odes are prov ide d in
T a ble 4 on page 12.
Examples of mo de m responses:
+MCR: V90
+MRR: 28800
CONNECT 50666
In the online state, the DCE is off-hook and communicating with a remote modem. Any data sent
from the DTE to the DCE is transmitted to the remote modem. Similarly, any data that the DCE
receives from the remote modem is transm itted to the DTE.
Note: In the online state, the DCE does not ‘echo-back’ any of the data that the DTE sent to the DCE.
10 536EX Chipset Developer’s Manual
Intel Confidential
The mode m rec ogn ize s AT commands fr om the DTE at any val id data ra te f r om 30 0 bps t o 1 15, 20 0
bps (that is, the modem autobauds up to 11 5,200 bps); how e ver, the DTE should use the data rate
specified for each mode according to the transmitting direction—DTE-to-modem (Table 1) or
modem-to-modem (Table 2). The V.90 and V.92 data rates are effective only in DCE-to-ISP
connections.
T able 1. DTE-to-DCE Data Rates for Each Mode
Mode Data Rate (bps) Affected Data
Data (V.34) 2400–115,200
Data (V.92) 28,800–115,200
Fax 19,200
Voice 19,200–115,200
Table 2. DCE-to-DCE Da ta Rates for Each M o d e
Mode Data Rate (bps) Affected Data
Introduction
DTE-to-modem data rate Data (V.90) 28,800–115,200
AT commands, playback and record modes
(varies according to compression type)
Data (V.34)
(transmit and receive)
Fax 300–14,400
Voice 19,200–115,200
2400–33,600
T able 3. DCE-to-ISP Data Rates for V.90 Mode
Mode Data Rate (bps) Affected Data
Data (V.90) transmit 4800–33,600
Data (V.90) receive 28,000–56,000
Data (V.92) transmit 24,000–48,000
Data (V.92) receive 28,000–56,000
Each comma nd ma y ha ve on e or mo re p aram et ers ass oci ated w ith it. If a pa ram eter is not se nt f or a
command requiring a numeric parameter, th en the modem assumes a zero (‘0’) parameter (only if
zero is a valid parameter for the command ). Fo r example, ATZ and ATZ0 commands perform
identical functi ons (that is, the modem sees ‘ATZ’ and automatically uses the ‘0’ parameter during
processi ng the command). Other commands do not use parameters.
1.4 AT Commands Overview
DTE-to-modem data rate
AT commands, playback and record modes
(varies according to compression type)
ISP-to-modem data rate
The AT command set and S-registers are divided into four catego ries: dat a, Group 3 fax, voice, and
V.42/MNP. Summaries of all comm ands are provided later on in this chapte r.
536EX Chipset Developer’s Manual 11
Intel Confidential
Introduction
1.4.1 Sending Commands
All command lines sent to the modem, except for A/, must be preceded by an ‘AT’ and terminated
by the contents of S-register S3 (typically a carriage return <CR>). AT stands for ‘attention’ and
prompts the modem to receive a command line from the DTE. A <CR> informs the modem that the
entire command string has been transmitted and to begin processing all the commands in the
command line. A command line can include one or more AT commands. The commands can be
separated by a space, if desired, but no punctuation is needed except for extended command s .
Extended commands begin with a ‘+’, such a s f a x, voice, and V.250 comm a nds. In a multiplecommand line, extended AT commands must be separated from following commands by a
semicolon(;).
Examples:
ATS1?<CR>
A/
AT &F &D2 +FCLASS=?<CR>
AT +FCLASS=0; S0=1<CR>
The modem provides status information to the DTE in the for m of response co de s, as listed in
Table 4. Response codes take two (2) forms, text (ATV1) or numeric (ATV0), depending on how
the modem is confi gured.
Table 4 lists basic forma t re sponse codes. These response codes have numeric equivalents that are
displayed depending on the value of ATV. In addition to the ba sic format r e sponse codes, there are
extended syntax result codes that in dicate connection status of the DCE-DCE connection that are
not effected by numeric response reporting. These result codes have n o numeric equivalent and are
always issued in text form. The re sult codes dis play modem mode, transmit connection rate, e rror
correction, compression, DTE rate, and receive rate. Note that the final connection message only
indicates receive ra te i f ATXn is greater than 0. The f ormat fo r the result cod es code de pends on th e
Wn command. The setting of the Wn command will determine which of the following connect
results codes are disp layed ( +MCR, + MRR, +E R, + DR, +I LRR). Refe r to the Wn comm and for the
detailed description of the command. Note that the supported carr ier modes for +MCR can be
found in p arameter 1 of +MS. The last result cod e is the CONN ECT <text>, where text is the DCE
receive rate. Note, the CONNECT <text> is not displayed when ATX0 is indicated, just
CONNECT is displayed and is rep orted by the rules in Table 4.
Table 4. DTE-Mode m Da ta Rate Response Cod e s
Numeric Text Numeric Text
0 OK 9 DELAYED CALL
1 CONNECT 10 BLACKLISTED
2RING11+FCERROR
3 NO CARRIER 12 RINGBACK
4ERROR13CPON=
6 NO DIALTONE 14 CPOF=
7 BUSY 15 DRON=
8 NO ANSWE R 16 DROF=
After sending an AT command string to the modem, the DTE must wait for a response code from
the modem befor e sending a new AT command string to the modem.
12 536EX Chipset Developer’s Manual
Intel Confidential
1.4.2 AT Escape Sequences
The 536EX provides the industry-standard escape sequence, TIES (Time Independent Escape
Sequence). TIE S is designed to work with existing communication software written for the Hayes
Escape Sequence.
Upon special request, Ambient provides the Hayes* Escape Sequence; howev er, please note that
licensing can be required.
TIES/Hayes * Escape Sequences
The 536EX modem c hipset is manufactured with TIES (Time Independent Escape Seque nc e ) as
the default setti ng. It is Hayes’ positi on that you must have a va lid license from Hayes Micro
Computer of Norcross, Georgia, bef ore producing modem systems that use the Haye s Escape
Sequence.
Intel accepts no responsibility and does not indemnify no r in any way pro vide protection for
patent or possible patent violations to its customers or users of it products.
1.4.3 Dial Modifier
Introduction
Command Function
0 to 9 Dialing digits
A, B, C, D, *, # Tone dial characters
P Pulse dial
R Reverse Originate mode
S=n Dial NVRAM telephone number
T Tone dial
W Wait for dial tone
, Pause
! Flash hook
@ Wait for quiet answer
; Return to command state
- ( ) Ignored by modem
536EX Chipset Developer’s Manual 13
Intel Confidential
AT Command Summary Tables
AT Command Summary Tables 2
This section contains summary tables of all AT commands, S-registers , and bet ween AT commands
and S-regis t e rs. These comm a nds are fully described in the re levant sections of the 536EX
Developer’s Manual.
Table 5. Data Mode Command Summary
Note Command Function Default Range
** A/ Repeat last command none – no
A Answer none – no
Cn Carrier control option 1 0, 1 no
C0 Transmit carrier always off
C1 Normal transmit carrier
D Dial command none – no
* En Command mode echo 1 0, 1 yes
E0 Disables echo
E1 Enables echo
Hn Switch hook control 0 0, 1 no
H0 Hangs up the telephone line
H1 Picks up the telephone line
In Identification/checksum option 0
I0 ROM Checksum
I1 Modem Name
I2 Manufacturer
I3 Chipset
I4 Firmware Version
I5 Modem Chip Hardware Configuration
I6 DSP Patch Level
I12 Country Code
I7–I11, I13,
I14, I20–
I25
* Ln Speaker volume control 2 0–3yes
L0 Low speaker volume
L1 Low speaker volume
L2 Medium speaker volume
* Value saved in NVRAM.
** Command not preceded by an ‘AT.’
Reserved
0–7, 10–11,
14, 20–23
Reported
by &Vn
no
14 536EX Chipset Developer’s Manual
Intel Confidential
Table 5. Data Mode Command Summary (Continued)
AT Command Summary Tables
Note Command Function Default Range
L3 High speaker volume
* Mn Speaker control 1 0–3yes
M0 Speaker always off
M1 Speaker on until carrier present
M2 Speaker always on
M3
On Go online 0 0, 1, 3 no
O0 Returns modem to Data mode
O1
O3
* P Select pulse dialing none – yes
* Qn Result code display control 0 0, 1 yes
Q0 Enables result codes
Q1 Disables result codes
Sn Select an S-register none 0–33 no
Sn=x Write to an S-register none
Sn? Read from an S-register none 0–33 no
* T Select tone dialing none – no
* Vn Result code form 1 0, 1 yes
V0 Choose numeric form
V1 Choose verbose (text) form
* Wn Response code data rate 0 0–4yes
W0, W1 DTE data rate
W2 Modulation, DCE TX rate
W3
W4
* Value saved in NVRAM.
** Command not preceded by an ‘AT.’
Speaker off during dialing; speaker on until
carrier present
Retrains equalizer and then returns to Data
mode
Renegotiates rate and then returns to Data
mode
n = 0–33
x = 0–255
Modulation, DCE TX rate, Error Correction,
Compression and DTE data rate
Modulation, DCE TX rate, Error Correction,
Compression
Reported
by &Vn
no
536EX Chipset Developer’s Manual 15
Intel Confidential
AT Command Summary Tables
Table 5. Data Mode Command Summary (Continued)
Note Command Function Default Range
* Xn Result code type 4 0–4yes
X0
X1
X2
X3
X4
* Yn Long space disconnect 0 0, 1 yes
Y0 Disables long space disconnect
Y1 Enables long space disconnect
Zn Recall stored profile 0 0, 1 no
Z0 Resets modem and recalls user profile 0
Z1 Resets modem and recalls user profile 1
* &Cn DCD (data carrier detect) option 1 0, 1 yes
&C0
&C1 DCD set according to remote modem status
&Dn DTR (data terminal ready) option 2 0–3yes
&D0 In Async mode, modem ignores DTR
&D1
&D2
&D3
&F Load factory defaults none – no
*&Gn
&G0 Disables guard tone
&G1 Enables 550 Hz guard tone
&G2 Enables 1800 Hz guard tone
&Kn Select serial flow control 3 0, 3, 4 yes
* Value saved in NVRAM.
** Command not preceded by an ‘AT.’
Enables result c odes 0–4; disables detection
of busy and dial tone
Enables result codes 0–5, 10, and above;
disables busy and dial tone detection
Enables result codes 0–6 and 10 and above;
disables busy detection and enables dial
tone detection
Enables result codes 0–5, 7, and 10 and
above; enables busy detection and disables
dial tone detection
Enables result codes 0–7 and 10 and above;
enables busy and dial tone detection
Ignores remote modem status; DCD always
on
Modem switches from data mode to
command mode when an on-to-off transiti on
of DTR occurs
When DTR switches off, the modem goes
on-hook and disables Auto-answer mode;
when DTR switches on, auto-answer is
enabled
Turning off DTR re- initializ es the modem and
resets values except UART registers
Guard tone option (1200 bps and 2400 bps
only)
00–2yes
Reported
by &Vn
16 536EX Chipset Developer’s Manual
Intel Confidential
Table 5. Data Mode Command Summary (Continued)
AT Command Summary Tables
Note Command Function Default Range
&K0 Disables flow control
&K3 Bidirectional hardware flow control
&K4 XON/XOFF software flow control
* &Pn Dial pulse ratio 0 0, 1 yes
&P0
&P1
* &Sn DSR (data set ready) option 0 0, 1 yes
&S0 DSR is always active
&S1
&Tn Self test commands 0 0–1, 8 no
&T0 Terminates test in progress

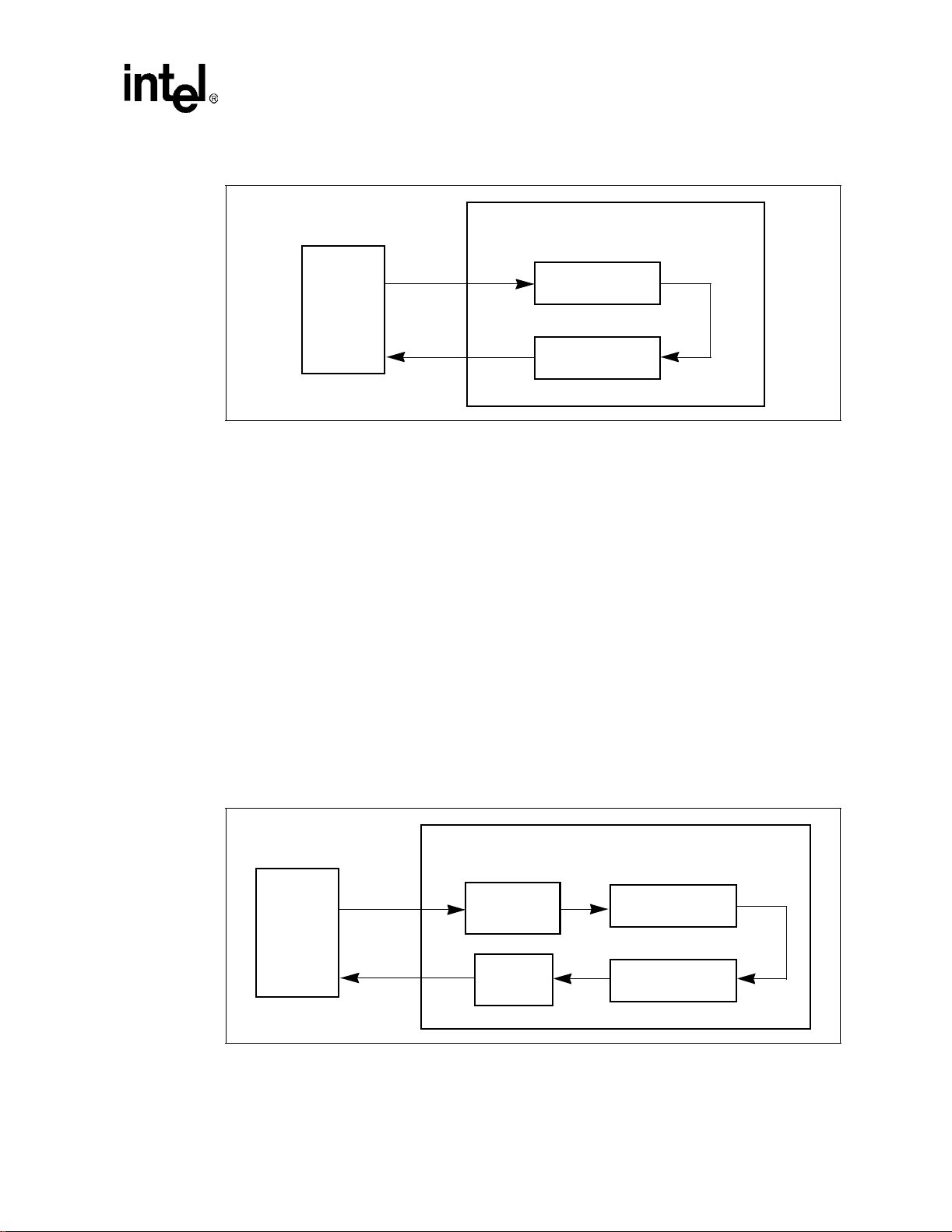

&T1 Initiates local analog loopback
* &Un Disable Trellis coding 0 0, 1 no
&U0 Enables Trellis coding with QAM as fallback
&U1 QAM modulation only
&Vn View active and stored profiles 0 0, 1, 3 no
&V0 View active profile and stored profile 0
&V1 View active profile and stored profile 1
&Wn Stored active profile 0 0, 1 no
&W0 Store in us er profile 0
&W1 Store in us er profile 1
* &Yn Select stored profile on power up 0 0, 1 yes
&Y0 Recall stored profile 0 on power-up
&Y1 Recall stored profile 1 on power-up
&Zn=x
* %En Auto-retrain control 1 0, 1 yes
%E0 Disables auto-retrain
%E1 Enables auto-retrain
* %Gn Rate renegotiation 1 0, 1 yes
%G0 Disabled
%G1 Enabled
* Value saved in NVRAM.
** Command not preceded by an ‘AT.’
Sets 10 pps pulse dial with 39%/61% makebreak
Sets 10 pps pulse dial with 33%/67% makebreak
DSR active only during handshaking and
when carrier is lost
Store telephone number (up to 30 digits) to
location ‘n’ (0–3)
none
n = 0–3
x = 0–9 A B
C D # * T P
R W @ , ! ;
Reported
by &Vn
no
536EX Chipset Developer’s Manual 17
Intel Confidential
AT Command Summary Tables
Table 5. Data Mode Command Summary (Continued)
a
Reported
by &Vn
no
no
Note Command Function Default Range
* -Cn Generate data mode calling tone 0 0–2no
-C0 Calling tone disabled
-C1 1300 Hz calling tone enabled
-C2 V.8 calling tone and 1300 Hz calling tone
+A8E=m V.8 and V.8 bis operation controls
+EB Controls break handling 1, 0, 30 See note no
+ESA Synchronous access mode configuration
+ESR Controls selective repeat option in V.42 1 0–2no
+ETBM Controls call termination buffer management 1, 1, 20 See note no
+GCAP Request complete capabilities list none no
+GCI Country of installation none no
+GMI Identify modem manufacturer none – no
+GMM Identify product model none – no
+GMR Identify firmware version none – no
+GSN Identify product serial number ID none – no
+IFC Controls DTE-DCE flow control 2, 2 See note no
+ILRR=m Controls local rate reporting 0 0, 1 no
m=0 Disabled
m=1 Enabled
+MA Controls modulation automode – See note no
+MR=m Selects modulation 0 See note no
m=0 Disabled
m=1 Enabled
+MS=m Modulation selections
+PCW=m Call waiting enable 0 no
+PHSW=m Controls 2C relay none 0, 1 no
+PIG=m PCM upstream ignore 1 no
+PMH=m Modem on hold enable 0 no
+PMHF V.92 modem on hold hook flash none no
+PMHR Initiate modem on hold none no
+PMHT=m Modem on hold timer 0 no
+PQC=m V.92 phase 1 and phase 2 control 0 no
+PSS=m Use short sequence 2 no
* Value saved in NVRAM.
** Command not preceded by an ‘AT.’
1, 1, C1,
0, 0
0, 0, 1, ,
0, 0, 0,
V92, 1,
0, 0, 0, 0
See note no
See note
18 536EX Chipset Developer’s Manual
Intel Confidential
AT Command Summary Tables
a. For Data mode, the factory default setting is AT+MS=V92, 1, 0, 0, 0, 0 to send at speeds of 33,600 bps or
below and receive at speeds of 53,333 bps and below.
Note: See the relevant sections in the 536EX Developer’s Manual for full command description and
parameter ranges.
T able 6. V.44/V. 42/V.42 bis MNP Command Summary
Note Command Function Default Range
* %An Set auto-reliable fallback character 13 0–127 yes
* %Cn MNP 5 data compression control 1 0, 1 yes
%C0 No compression
%C1 Enables MNP5 data compression
* \An MNP block size 3 0–3yes
\A0 Maximum 64 characters
\A1 Maximum 128 characters
\A2 Maximum 192 characters
\A3 Maximum 256 characters
\Bn Set transmit break 3 0–9
* \Cn Set auto-reliable buffer 0 0–2yes
\C0 No data buffering
Four-second buffer until 200 charact ers in the buffer or
\C1
detection of a SYN character
No buffering. Connects non-V.42 modems to V.42
\C2
modem
* \Gn Set modem port flow control 0 0, 1 yes
\G0 Disables port flow control
\G1 Sets port flow control to XON/XOFF
* \Jn bps rate adjust control 0 0, 1 yes
\J0 Disables rate adjust
\J1 Enables rate adjust
\Kn Set break control 5 0–5no
connect state, transmits
\K0
command state, transmits
connect state, receives
connect state, transmits
\K1
connect state, receives
* Value saved in NVRAM.
Enters command mode,
no break sent
Destructive/expedited
Destructive/expeditedcommand state, transmits
Reported
by &Vn
536EX Chipset Developer’s Manual 19
Intel Confidential
AT Command Summary Tables
Table 6. V.44/V.42/V.42 bis MNP Command Summary (Continued)
Note Command Function Default Range
connect state, transmits
\K2
command state, transmits
connect state, receives
connect state, transmits
\K3
connect state, receives
connect state, transmits
\K4
command state, transmits
connect state, receives
connect state, transmits
\K5
command state, transmits
connect state, receives
* \T0 Disables inactivity timer 0 0–90 yes
* \Xn Set XON/XOFF pass-through 0 0, 1 yes
\X0 Processes flow control characters
\X1
* -Jn Set V.42 detect phase 1 0, 1 yes
-J0 Disables the V.42 detect phase
-J1 Enables the V.42 detect phase
* “Hn V.42 bis compression control 3 0–3yes
“H0 Disables V.42 bis
“H1 Enables V.42 bis only when transmitting data
“H2 Enables V.42 bis only when receiving data
“H3
“On V.42 bis string length 32 6–250 no
+DR=m Controls data compression reporting 0 0, 1 no
* +DS=m Controls V.42 bis data compression
* Value saved in NVRAM.
Processes flow control characters and passes to local
or remote
Enables V.42 bis for both transmitting and receiving
data
m=0 Disabled
m=1 Enabled
Enters command mode,
no break sent
Nondestructive/expedited
Nondestructive/expeditedcommand state, transmits
Enters command mode,
no break sent
Nondestructive/
nonexpedited
Nondestructive/
nonexpedited
3, 0,
2048, 6
See note yes
Reported
by &Vn
20 536EX Chipset Developer’s Manual
Intel Confidential
AT Command Summary Tables
Table 6. V .44/V.42/V.42 bis MNP Command Summary (Continued)
Note Command Function Default Range
+DS44=m V.44 Data Compression
+EFCS
+ER=m Controls error control reporting 0 0, 1 no
* +ES=m Error control selection 3, 0, 2 See note yes
* Value saved in NVRAM.
Controls the 32-bit frame check sequence option in
V.42
m=0 Disabled
m=1 Enabled
Table 7. Fax Identity Command Summary
Command Function Default Range Reported by &Vn
+FMDL? Identifies product model none – no
+FMFR? Identifies modem manufacturer none – no
+FMI Identifies modem manufacturer none – no
+FMM Identifies product model none – no
+FMR Identifies product version number none – no
+FREV? Identifies product version number none – no
Reported
by &Vn
3, 0, 0,
471,
942,
140,
140,
1884,
3768
00–2no
no
Table 8. Fax Class 1 Command Sum mary
Command Function Default Range
+FCLASS=1 Mode selection 0 0, 1, 8 no
+FRH=m Receive HDLC data none 3 no
+FRM=m Receive data none
+FRS=m Wait for silence none 1–255 no
+FTH=m Transmit HDLC data none 3 no
+FTM=m Transmit data none
+FTS=m Stop transmission and pause none 0–255 no
24, 48, 72, 73, 74, 96, 97, 98, 121, 122,
145, 146
24, 48, 72, 73, 74, 96, 97, 98, 121, 122,
145, 146
536EX Chipset Developer’s Manual 21
Reported
by &Vn
no
no
Intel Confidential
AT Command Summary Tables
Table 9. IS-101 Voice Command Summary
Command Function Default Range Reported by &Vn
+FCLASS=8 Voice mode selection 0 0, 1, 8 no
+FLO=m Flow Control Select 1 0–2 no
+VBT=m Buffer threshold setting 192, 320 192, 320 no
+VCID=m Caller ID selection 0* 0–2no
+VDR=m Distinctive Ring selection 0,0
+VEM=m Event reporting and masking
+VGM=m Speakerphone microphone gain 128 121–131 no
+VGR=m Receive gain selection 128 121–131 no
+VGS=m Speakerphone speaker gain 128 121–131 no
+VGT=m Volume selection 128 121–131 no
+VIP Initialize parameter ––no
+VIT=m DTE/DCE inactivity timer 0 0–255 no
+VLS=m Hardware type control 0 0–15 no
+VNH=m Automatic hang-up control 0 0–2no
+VRA=m Ringback-goes-away timer 50 0–50 no
+VRN=m Ringback-never-appeared timer 10 0–255 no
+VRX Record mode none – no
+VSD=m Silence detection (quiet and silence) 128, 50 See note no
+VSM=m Compression method selection 140, 8000, 0, 0 See note no
+VSP=m Speakerphone on/off control 0 0, 1 no
#VSPS=m Speakerphone type selection 1 0, 1 no
+VTD=m Beep tone duration timer 100 5–255 no
+VTS=m DTMF and tone generation none See note no
+VTX Play mode none – no
* The noted parameters, commands, and responses depend on the capability to receive.
‘C’
BB860980
BFE63883
BB863EE0
0–255,
0–255
– no
no
Note: See the complete command descr iption in the 536EX Developer’s Manual for range inf o rma t i on .
Table 10. Voice DTE→DCE Character Pairs
Response Hex Code Function
<NUL> 00 Do nothing
<DLE> 10 Two contiguous <DLE><DLE> codes indicate a single <DLE> in the data stream
<SUB> 1A <DLE><DLE> in data stream
<ETX> 03 End transmit data state
/ 2F Start of DTMF tone shielding
22 536EX Chipset Developer’s Manual
Intel Confidential
Table 10. Voice DTE→DCE Character Pairs (Continued)
Response Hex Code Function
<DEL> 7F DTMF transition to off
u 75 Bump up the volume
d 64 Bump down the volume
<ESC> 1B End receive data state
! 21 Receive data abort
<CAN> 18 Clear transmit buffer of voice data
? 3F Transmit buffer space available query
Table 11. Voice DTE←DCE Character Pairs
Response Hex Code Function
<DLE> 10 Single <DLE> character in the data stream
<SUB> 1A <DLE><DLE> in data stream
<ETX> 3 End of Record mode data
X 58 Packet header for ‘Complex Event Detection Report’
. 2E Packet terminator for the ‘Complex Event Detection Report’
/ 2F Start of DTMF tone shielding
<DEL> 7F DTMF transition to off
0–930–39 DTMF tones 0–9
A–D41–44 DTMF tones A–D
* 2A DTMF tone *
# 23 DTMF tone #
o 6F Receive buffer overrun
c 63 1100 Hz fax calling tone
e 65 1300 Hz data calling tone
h 68 Local phone goes on hook
H 48 Local phone goes off hook
s 73 Presumed hang-up silence time-out
q 71 Presumed end-of-message quiet time-out
I 6C Loop current interruption
L 4C Loop current polarity reversal
r 72 Ringback
b 62 Busy/reorder/fast busy
d 64 Dial tone detected
u 75 Transmit buffer under-run
p 70 Line voltage increase (extension phone goes on-hook)
P 50 Line voltage decrease (extension phone goes off-hook)
a 61 Fax or data answer tone (2100 Hz)
AT Command Summary Tables
536EX Chipset Developer’s Manual 23
Intel Confidential
AT Command Summary Tables
Table 11. Voice DTE←DCE Characte r Pair s (Continue d)
Response Hex Code Function
f 66 Data answer detected (2225 Hz)
R 52 Incoming ring
% ‘ (,) 25, 26, 27, 28, 29 Manufacturer-specified
Table 12 . Dial Modi fiers
Command Function
0 to 9 Dialing digits
A, B, C, D, *, # Tone dial characters
P Pulse dial
R Reverse Originate mode
S=n Dial NVRAM telephone number
T Tone dial
W Wait for dial tone
, Pause
! Flash hook
@ Wait for quiet answer
; Return to command state
- ( ) Ignored by modem
Table 13. S-Register S u m mary
Note Register Functio n Default Range Units Reported by &Vn
* S0 No. of rings to auto-answer on 0 0–255 ring yes
S1 Ring count 0 0–255 ring yes
* S2 Escape character 43 0–127 ASCII yes
S3 Carriage return character 13 0–127 ASCII yes
S4 Line feed character 10 0–127 ASCII yes
S5 Backspace character 8 0–32, 127 ASCII yes
* S6 Wait before dialing 2 2–255 second yes
* S7 Wait for carrier 60 1–255 second yes
* S8 Pause time for dial modifier 2 0–255 second yes
* S9 Carrier recovery time 6 1–255 0.1 second yes
* S10 Lost carrier hang up delay 14 1–255 0.1 second yes
* S11 DTMF dialing speed 70 50–255 ms yes
* S12 Guard Time 50 0–255 (0.02 second) yes
* S14 Bit-mapped options 138 –– no
* Value saved in NVRAM.
24 536EX Chipset Developer’s Manual
Intel Confidential
Table 13. S-Register Summary ( Contin ued)
Note Register Function Default Range Units Reported by &Vn
S16 Modem test options 0 –– no
* S18 Modem test timer 0 0–255 second yes
* S21 Bit-mapped options 48 –– no
* S22 Bit-mapped options 118 –– no
* S25 Detect DTR change 5 0–255 0.01 second yes
* S30 Disconnect inactivity timer 0 0–255 minute yes
* S33 Sleep mode timer 10 0–90 second yes
* Value saved in NVRAM.
AT Command Summary Tables
536EX Chipset Developer’s Manual 25
Intel Confidential
Data Mode AT COMMANDS
Data Mode AT COMMANDS 3
The 536EX chipsets implement:
• Standard Hayes*-compatib le AT commands a nd S-registers in data mode
• Standard EIA/TIA-578 AT commands in Class 1 fax mode
• Additional AT command sets for error correction , da ta com pr e s s ion and voice mode
In data mode, the AT commands configure the DCE (modem) to establish a connection with a
remote data modem. In data mode, the 536EX chipsets execute the AT commands for error
correctio n (MNP 2-4, V.42) and data co mpression (M NP 5, V.42 bis) described in Table 21 on
page 57, as well as the fax and voice m ode commands AT+FCLASS=1 (fax) and AT+FCLASS=8
(voice).
3.1 Using AT Commands to Access the S-Registers [Sn?, Sn=x, ?]
The DTE can access the S-registers through the ATSn?, ATSn=x, and ? commands. For example,
to configure the modem to automatically answer a data modem call after two rings, type ATS0=2.
Examples:
ATS0=2 Configures S-register S0 to ‘2’
ATS0? Reads the contents of S-register S0
ATS0= Configures S-register S0 to ‘0’
AT? Reads the contents of the last accessed (read or write) S-register
3.2 Modem Responses and Command Echo [En, Vn, Xn, Wn, Qn]
The ATEn command configures the DCE to send back to the DTE any data that the DTE sent to
the DCE while in comm and mode. The ATVn command sets the DCE respons e codes to eit her tex t
or numeric form. For example, upon successfull y processing an AT command string, the DCE
sends an ‘OK’ (text) or a ‘0’ (numeric) to the DTE.
Examples:
Modem Setup
Echo, Numeric (E1, V0) AT<CR> AT<CR>0<CR>
Echo, Text (E1, V1) AT<CR> AT<CR><CR><LF> OK<CR><LF>
Host
Command
ATS0?<CR> ATS0?<CR>000<CR><LF>0<CR>
ATS0?<CR> ATS0?<CR><CR><LF>000<CR><LF><CR>
<LF>OK<CR><LF>
Modem Response
26 536EX Chipset Developer’s Manual
Intel Confidential
Data Mode AT COMMANDS
Modem Setup
No Echo, Numeric (E0, V0) AT<CR> 0<CR>
No Echo, Text (E0, V1) AT<CR> <CR><LF>OK<CR><LF>
The DCE can be configures to use different response codes depending o n the V.250 command that
is enabled (AT+MR, AT+ER, AT+DR, and AT+ILRR). Alternatively, the ATWn command can
be used to set these V.250 commands. The mapping for the ATWn command to V.250 commands
is shown in Table 14. The setting for the ATXn command (page 43) can affect which ATWn
response codes are reported to the DCE. The ATXn command configures the modem call progress
detection and reportin g requirements during dia ling (for example, dial tone a nd busy tone
detection). The ATQn command selects whether the modem sends result codes to the DTE.
Table 14. Data Reporting Wn Mapping
Wn +ER +DR +MR +ILRR
W0 Disable D isable Disable Disable
W2 Disable D isable Enable Enable
W3 Enable Enable Enable Enable
W4 Enable Enable Enable Disable
Host
Command
ATS0?<CR> 000<CR><LF>0<CR>
ATS0?<CR> <CR><LF>000<CR><LF><CR><LF>OK
<CR><LF>
Modem Response
For example, a connection is established with the remote modem as shown below (with LAPM
error correction and V.42 bis data compression). The telephone line (or modem-to-modem
connection) data rate is 33,600 bps and the local UART (DTE-to-modem) connection rate is
115,200 bps.
Figure 3. Example of a Remote Connection
UART
DTE
Interfac e
(115,200 bps)
LOCAL MODEM
The modem then sends the ‘CONNECT’ messages for the following four Wn commands:
• ATW0
ILRR: 115200
CONNECT 50666
• ATW2
+MCR: V90
+MRR: 28800
CONNECT 50666
Telephone
Line
(33,600 bps)
REMOTE MOD EM
536EX Chipset Developer’s Manual 27
Intel Confidential
Data Mode AT COMMANDS
• ATW3
+MCR: V90
+MRR: 28800
+ER: LAPM
+DR: V42B
+ILRR: 115200
CONNECT 50666
• ATW4
+MCR: V90
+MRR: 28800
+ER: LAPM
+DR: V42B
CONNECT 50666
3.3 Modem Reset and NVRAM Commands [DS=m, Zn, &F, &Vn, &Yn, &Wn, &Zn=x]
On powering-up, the DCE defaults to t he configuration specified in NVRAM. The DCE may then
be configured as needed. The DTE stores the DCE configurat ion in the NVRAM by f irst settin g up
the current configuration and then sending an AT&Wn command. The DCE configuration stored
in the NVRAM is called a user profile. T wo independent user profile c onfigurations and four
telephone numbers can be sto red. Either use r profile configuration can be used for the power-up
defaults (AT&Yn). While in command mode, the DCE can be re-initi alized at any time and the
user profile c hanged using th e ATZn command . To configure the modem to factory def a ults, the
AT&F command is used. A summary of the active user profile, two NVRAM user profiles, and
previously-saved tele phone numbers can be read from the modem using the view comman d,
AT&Vn. The AT&Zn=x command stor e s one of four telephone numbers in the NVRAM. To dial
these telephone numbers, use the ATDS=m command.
If the active profile is not stored in one of the two user pr ofiles af ter set ting up the modem, then the
current settings are lost when the commands ATZ or AT&F are issued or when the modem is
powered down.
Examples:
ATZ Resets and then configures the modem to NV RAM user profile 0.
AT&F S0=1 &W1 &F configures the modem for factory defaults.
&Y1
S0=1 configures the modem to answer after one ring.
&W1 saves the active configuration to user profi le 1.
&Y1 configures the modem to use NV RAM user profile 1 as the
power-up defaults.
AT&Z2 = 9, Stores a telephone number into the NVRAM as phone number 2, which
(408)444-5555 can be re-dialed later using ATDS=2.
28 536EX Chipset Developer’s Manual
Intel Confidential
Data Mode AT COMMANDS
3.4 Modem Identification Commands [In, +FMI, +FMR,
+FMM, +GMI, +GMM, +GMR, +GSN,
+FMFR?, +FMDL?, +FREV?]
The modem provides product identification AT commands that help determine the modem’s
manufac t urer , model number, and pr oduct revision. To provide flexibility with older so ftware
application programs, the modem supports severa l commands tha t c a n be used to request a single
item of identification (such as a modem model number). Table 15 lists the commands used to
obtain product information (all identification commands are usable in data, fax, or voice mode).
Table 15. Product Identific ation In formation
AT Commands
Product Information ATIn Command Data Mode Class 1 Fax Mode Legacy Modems
Modem Manufacturer ATI2 AT+GMI AT+FMI AT+FMFR?
Model ID ATI1 AT+GMM AT+FMM AT+FMDL?
Revision Number ATI4 AT+GMR AT+FMR AT+FREV?
Example:
ATI1 Causes the modem to send the modem’s name to the DTE.
Intel 536EP Respons e to the mo de m na m e re q ue s t .
V.92 Modem
3.5 Establishing a Modem Connection [A, D, DS = n, S0]
Data mode provi des seve ral met hod s for es tab lishi ng a conn ec ti on with a remote m odem. For ea ch
modem, a connection can be init iated manually or automatical ly in both answer and originate
modes. A manual-to-manua l connection is useful when both modems (that a re on-hook) are
connected to an off-hook telephone line. For example, if two people are talking on the telephone,
they can man ua l ly establish a modem connectio n without first hanging up. When establishing a
manual connection, one mo dem must b e des ignated as the originating modem and th e other as the
answering modem. Manual originate mode is initiated by sending an ATD to the DCE. Manual
answer mode is accomplished by sending an AT A to the DCE.
Automatic originate mode is initiated by sending an ATD <telephone number & dial modifiers>
or ATDS=m to the DCE. Automatic-answer mode is accomplished by setting S-register S0 to a
non-zero va lue. S1 keeps track of how many ring signals are det e c te d. If the conte nt of S0 is nonzero and the num ber of r ing signa l s (as define d by S0) ar e detected (th at is, S1 = S0), then the DCE
goes off- hook and attempts to connect to the remote modem (with the following exceptions):
• The time period between the ring signals is great er than 8 seconds, which causes the S1
counter to rese t and thus never reach the value for S0.
• Caller ID is enabled and S0=1, the modem answers on the second ri ng sign al instead of the
first ring signal. This hap pe ns because Caller ID puts a signa l on the telephone line between
the first and second ring signal.
Example:
536EX Chipset Developer’s Manual 29
Intel Confidential
Data Mode AT COMMANDS
ATDT 9,444-5555 Automatically dials the telephone number with DTMF tones. After
dialing a ‘9’, the comma (,) causes the modem to pa use two seconds
before d i a l ing the rest of the te lephone number.
modem 1: ATD; When establishing a manual-to- manual connection, the designated
modem 2: ATA originating modem shoul d receive the ATD command from its DTE
just before the designa ted answering modem receives the ATA
command from its DTE. It is important that the time between the ATD
and ATA commands is less than 2 seconds.
AT-C1DT 123 Causes the modem to dial the telephone number 123 and immediately
start sending a data calling t one. Calling tone can then be detec te d by
the remote voice mail system. After detecting the calling tone , the
remote system can change to data mode and start the data modem
connection handshake.
3.6 Online Command Mode [Escape Codes, On]
After establishing a connection with a remote modem, the DTE sends the appropriate escape
sequence to the DCE, which causes the DCE to enter the online command mode. The online
command mode is used to send AT commands to the DCE while the DCE is still connected to the
remote modem. The supported escape sequences are described in Section 3.10, “AT Escape
Sequences” on page 38. To r e-enter the online data mode, use the ATOn command .
Example:
1 second +++ Hayes Escape Sequence. Guard times (in which the DTE does not send
1 second data to the DCE) of 1 second are needed befor e and after the three
escape characters ‘+’.
+++AT<CR> TIES (Time Independent Escape Sequence).
ATO Causes the modem to re-e nter online da ta mode.
3.7 H anging Up [Hn, S10, Zn, &D2]
A modem connec tion terminates when the m ode m hangs up or when the remote modem transmi t
carrier is off longer than the duration specified in S-register S10. To hang up, th e DT E ty pi c a ll y
sends an escape code sequence that causes the DCE to enter online command mode. Upon
receiving a n ‘OK’ message, the DTE sends either ATH or ATZn to the DCE. When the AT&D2
command is used, the modem goes on-hook (hangs up) after an on-to-off transition of the DTR
occurs.
Note: The ATZn command causes the DCE to hang up and re-in itia lize it self to the user prof il e specified
by ‘n’.
3.8 Modem-to-Modem Connection Data Rates
The data rates differ for each data mode selected. The 536EX chipsets either default to V.90 or V.92
mode depending on the driver version. For non-ISP connections, the chipsets fall bac k to V.34
mode. The modem defaults to whatever mode is is su ed by the +MS=m command (see the
supported modulation types on Table 16 on page 35).
30 536EX Chipset Developer’s Manual
Intel Confidential
Loading...
