Infinity CASCADE MODELE TWELVE User Manual

Compact Powered Subwoofer

MODEL TWELVE

Owner’s Guide

(120V)

he exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and

maintenance (servicing) instructions in the

literature accompanying the appliance.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION: To reduce the risk of electric shock, 

do not remove cover (or back). 

o user-serviceable parts inside. 

Refer servicing to qualified service personnel.



CAUTION: To prevent electric shock,

do not use this (polarized) plug with 

an extension cord, receptacle or other outlet 

unless the blades can be fully inserted to 

prevent blade exposure.



he lightning flash with arrowhead symbol,

ithin an equilateral triangle, is intended to

alert the user to the presence of uninsulated

“dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute  a risk of electric shock to persons.

IMPORTANT SAFETY PRECAUTIONS

Read First!

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this apparatus near water.

6. Clean only with a dry cloth.

7. Do not block any ventilation openings. Install in

accordance with the manufacturer’s instructions.

8. Do not install near any heat sources such as radiators,heat registers,stoves or other apparatus

luding amplifiers) that produce heat.

(inc

9. Do not defeat the saf

ety purpose of the polarized or grounding-type plug.A polarized plug has two blades with one wider than the other

ounding-type plug has two blades and a third

he wide blade or the third

ounding pr

gr prong ar plug does not f electr

10. Protect the power cord from being walked on or pinched, particularly at plugs,convenience

eceptac

r apparatus.

11. Only use attachments/accessories specified by the manufacturer.

12. Use only with the car tripod, bracket or table specified by the manuf the apparatus.When a cart is

ong.T

ided for your safety. If the provided

e pro

it into your outlet, consult an

or replacement of the obsolete outlet.

ician f

les and the point where they exit from the

t, stand,

er or sold with

actur

Cascade Model Twelve

used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

nplug this apparatus during lightning storms

13.U

or when unused for long periods of time.

14. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus,the apparatus has been exposed to rain or moisture,does not operate normally, or has been dropped.

15. Do not use attachments not recommended by the product manufacturer, as they may cause hazards.

16. This product should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supply to your home, consult your product dealer or local power company.For products intended to operate from battery power, or other sources, refer to the operating instructions.

17. If an outside antenna or cable system is connected to the product, be sure the antenna or cable system is grounded so as to provide some protection against voltage surges and built-up static charges.Article 810 of the National Electrical Code,ANSI/NFPA 70,provides information with regard to proper grounding of the mast and supporting structure,grounding of the lead-in wire to an antenna discharge unit,size of grounding conductors,location of antenna discharge unit,connection to grounding

18. An outside antenna system should not be located in the vicinity of overhead power lines

r other electric light or power circuits,or where

o it can fall into such power lines or circuits.When installing an outside antenna system, extreme care should be taken to keep from touching such power lines or circuits,as contact with them

ight be fatal.

o not overload wall outlets,extension cords,

19.D

or integral convenience receptacles, as this can result in a risk of fire or electric shock.

20. Never push objects of any kind into this product through openings,as they may touch dangerous voltage points or short-out parts that could result in a fire or electric shock.Never spill liquid of any kind on the product.

21. Do not attempt to service this product yourself,as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.

22. When replacement parts are required, be sure the service technician has used replacement parts specified by the manufacturer or that have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock or other hazards.

23. Upon completion of any service or repairs to this product,ask the service technician to perform safety checks to determine that the product is in proper operating condition.

24. The product should be mounted to a wall or ceiling only as recommended by the manufacturer.

electrodes,and requirements for the grounding

. See Figure A.

ode

electr

e A.

igur

F Example of National Electr

Antenna Gr

Code ANSI/NFPA 70

ical

ounding as per

CASCADE MODEL TWELVE OWNER

S GUIDE

’

Table of Contents

ii Important Safety Precautions 1 U 1 Placement 2 Controls and Connections 3 Connections 4 Operation 5 Room Adaptive Bass Optimization System™(R.A.B.O.S.™) 6 Contents of the R.A.B.O.S.Test CD 6 The R.A.B.O.S. Sound-Level Meter (RSLM) 7 Initial System-Level Setting 7 Setting the Subwoofer Test Level 7 Performing Low-Frequency Measurements 9 What Does a Parametric Equalizer Do? 9 Completing the Measurement Template 10 Using the Width Selector 11 Level 11 What You Measure,What to Do 14 Adjusting the R.A.B.O.S.Equalizer 15 Final System Balance 16 Maintenance and Service 17 R.A.B.O.S. Measurement Templates 19 Specifications

npacking the Subwoofer

Cascade Model Twelve

iii

Infinity Cascade™Model Twelve

SUB

RIGHTCHANNEL

SPEAKER

PRIMARY LISTENING AREA

The Infinity Cascade Model Twelve continues Infinity’s longstanding commitment to accurate sound reproduction.Our proprietary Metal Matrix Diaphragm powered amplifier and proprietary Room Adaptive Bass Optimization System enclosure,combine to deliver uncompromised bass performance in any stereo or multichannel home theater.

In addition, the Cascade Model Twelve’s compact enclosure allows for easy integration into any residential environment.

™

(R.A.B.O.S.™), along with a rigid, well-braced

™

(MMD®) drivers,high-

Unpacking the Subwoofer

If you suspect damage from transit,report it immediately to your dealer. Keep the shipping carton and packing materials for future use.

PLACEMENT

Since the installation of a subwoofer can be somewhat more complicated than installing full-range speakers,it is essential that you read this section very carefully prior to connecting the subwoofer to your system. Should you have questions relating to your installation, it is advisable to call either your dealer or Infinity’s Customer Service Department for advice.

The performance of the subwoofer is directly related to its placement in the listening room and how you align the subwoofer with its satellite speakers.Setting the volume of the subwoofer in relationship to the left and right speakers is also of critical importance because it is essential that the subwoofer integrate smoothly with the entire system. Setting the subwoofer’s volume level too high will result in an overpowering,boomy bass. Setting the volume level too low will negate the benefits of the subwoofer.

al additional f

e are se

Her

It is generally belie

useful. frequencies (below 125Hz) are nondirectional and,therefore, placement of a subwoofer within any listening room is not

hile in theor

itical.W

emely low frequencies are basically nondirectional, the fact

xtr

e is that, when installing a subwoofer within the limited confines of a room, reflections, standing waves and absorptions generated within the room will str

er system.As a r

subwoof subwoofer becomes important, and we strongly recommend that you experiment with placement before choosing a final location.

Placement will depend upon your room and the amount and quality of bass required (for example, whether or not your room permits placement of the subwoofer near either satellite).

acts on installation that may prove

ved by most audio authorities that low

y it is true that the lar

luence the perfor

ongly inf

esult, the specific location of the

ger wavelengths of

mance of any

Figure 1.This example shows the subwoofer positioned behind the right-channel satellite speaker to re-create the actual location of bass instruments in an orchestra and/or add impact to movie soundtracks.

Cascade Model Twelve

Line In

Line Out

150

Max

Level

Crossover

[Hz]

Min

LFE

nput

Phase

ormal

Off

LFE

reen: On

Red: Standby

Model Twelve

Power

CONTROLS AND CONNECTIONS

Rear Panel

Power Switch

™

Line-Level Outputs

Line-Level Inputs

Power Indicator

∞

Crossover Adjustment

Subwoofer Level (Volume) Control

Normal/LFE Selector

•

Phase Switch

imization Controls

Bass Opt

Bass Optimization System Selector

‚

Center-Frequency Adjustment

⁄

Bass Optimization System Level Adjustment

Bass Optimization System Bandwidth Adjustment

(see pa

ge 5)

Cascade Model Twelve

CONNECTIONS

SUBWOOFER OR L

FE OUTPUT

Line In

Line Out

150

Max

Level

rossover

[Hz]

Min

LFE Input

hase

ormal

LFE

reen:On

Red:Standby

Model Twelve

ine In

ine Out

150

Max

Level

rossover

[

Hz]

Min

Input

hase

Normal

LFE

Green:On Red:Standby

odel Twelve

SUBWOOFER OR LFE OUTPUT

ine In

Line Out

LFE Input

reen:On

ed: Standby

Model Twelve

ine In

Line Out

LFE

Input

reen:On

ed: Standby

Model Twelve

Line In

Line Out

Input

Green:On Red: Standby

Model Twelve

Line In

Line Out

Input

Green:On Red: Standby

Model Twelve

If you have a Dolby* Digital or DTS®receiver/processor w

ith a low-frequency-effects (LFE) output:

• Set Normal/LFE Switch to LFE.

NOTE: In this case,you do not need to use a Y connector. Simply connect the LFE output on your receiver/processor to either the left or right input on the subwoofer.

f your receiver/processor has subwoofer

outputs for the left and right channels:

• Set Normal/LFE Switch to Normal.

NOTE: Some receivers have a single subwoofer output (do not confuse this with a single LFE output as described to the left). In that case, it is recommended that you use a Y connector (not included) to maximize performance.

The Cascade Model Twelve also includes a set of line outputs.These outputs allow you to “daisy-chain” one Model Twelve to multiple Model Twelve subwoofers.Simply connect the first subwoofer as described above and then run a subwoofer cable from the line output(s) to the line input(s) on the next sub.

NOTE:This line output is before the R.A.B.O.S.circuit. Each subwoofer’s R.A.B.O.S.controls must be individually adjusted during the R.A.B.O.S.setup.

Cascade Model Twelve

OPERATION

Power On

lug your subwoofer’s AC cord into a wall outlet.Do not use the

P outlets on the back of the receiver.

n the

to the

Initially set the Subwoofer Level (Volume) Control “min”position.

urn on your sub by pressing the Power Switch

T rear panel.

Auto On/Standby

With the Power Switch ¡in the ON position, the Power Indicator LED ¢will remain backlit in red or green to indicate the On/Standby mode of the subwoofer.

RED = STANDBY (No signal detected,Amp Off) GREEN = ON (Signal detected,Amp On)

The subwoofer will automatically enter the Standby mode after approximately 10 minutes when no signal is detected from your system.The subwoofer will then power ON instantly when a signal is detected. During periods of normal use,the Power

Switch

or extended periods of nonoperation, e.g., when you are away

f on vacation.

can be left on.You may turn off the Power Switch

Adjust Gain

Turn on your entire audio system and start a CD or movie soundtrack at a moderate level.Turn up the Subwoofer Level

(Volume) Control the subwoofer, check the AC-line cord and input cables. Are the connectors on the cables making proper contact? Is the AC

plug connected to a “live”receptacle? Has the Power Switch been pressed to the “On”position? Once you have confirmed that the subwoofer is active,proceed by playing a CD,record or cassette. Use a selection that has ample bass information.

about half way.If no sound emanates from

rossover Adjustments

NOTE: This control will have no effect if the Normal/LFE Selector Switch

¶ is set to “LFE.”If you have a Dolby Digital or DTS processor/receiver, the Crossover Frequency is set by the processor/receiver. Consult your owner’s manual to learn how to view or change this setting.

∞

The Crossover Adjustment Control frequency at which the subwoofer reproduces sounds.If your main

peakers can comfortably reproduce some low-frequency sounds,

s set this control to a lower frequency setting,between 50Hz

nd 100Hz.This will concentrate the subwoofer’s efforts on the

a ultradeep bass sounds required by today’s films and music.If you

re using smaller bookshelf speakers that do not extend to the

a lower bass frequencies,set the Crossover Adjustment Control to a higher setting, between 120Hz and 150Hz.

determines the highest

Phase Control

The Phase Switch • determines whether the subwoofer speaker’s piston-like action moves in and out with the main speakers,0,˚ or opposite the main speakers,180˚. Proper phase adjustment depends on several variables such as room size, subwoofer placement and listener position.Adjust the phase switch to maximize bass output at the listening position.

Set the overall volume control of the preamplifier or stereo to a

vel. Adjust the Subwoofer Level (Volume) Control

table le

comf until you obtain a pleasing blend of bass. Bass response should not overpower the room but rather be adjusted so there is a harmonious blend across the entire musical range. Many users

tendency to set the subwoofer volume too loud,

e a

ha adhering to the belief that a subwoofer is there to produce lots of bass.This is not entirely true.A subwoofer is there to enhance bass, extending the response of the entire system so the bass

elt as well as hear

can be f be maintained or the music will not sound natural. An experienced listener will set the volume of the subwoofer so its impact on bass response is always there but never obtrusive.

d. However, overall balance must

Cascade Model Twelve

ROOM ADAPTIVE BASS OPTIMIZATION SYSTEM

nfinity’s R.A.B.O.S. is a simple-to-use, yet sophisticated,

I low-frequency calibration system.It is designed to work in

onjunction with the Cascade Model Twelve self-amplified

c subwoofer.The subwoofer contains a parametric equalizer that you will adjust as indicated by the R.A.B.O.S.test results. Following these instructions,you will optimize the subwoofer’s response characteristics to complement the sub’s environment. This will dramatically improve the sound of your system.The

ptimization process takes less than 30 minutes.

The R.A.B.O.S.Kit Includes the Following Components:

• Specialized Sound-Level Meter

• Test CD

• Instructions

• Measurement Templates

• Width Selector

• Adjustment “Key”

What R.A.B.O.S.Does

The Test CD provides specially designed signals you will use while performing measurements.The sound-level meter provided is used to “acquire”the information needed for adjustments.You will create a response plot on the Measurement Template. Using the Width Selector, you will then determine the appropriate equalizer settings.The “Key”is used to adjust the parametric equalizer built into the Cascade Model Twelve.After adjustment, the test sequence is repeated to confirm your settings.

The R.A.B.O.S.Goal

It is a fact of audio that what we hear at low frequencies is determined as much or more by the listening room than by the loudspeaker itself.Placement of the loudspeakers and listeners and the acoustical characteristics of the room surfaces are all important determinants of bass quantity and quality.In most practical situations,there is little that can be done about this,

xcept for patient trial-and-error repositioning of the

e loudspeakers and listeners.Usually, the practical constraints of a living space and the impracticality of massive acoustical treatment mean that equalization is the only practical solution.

Professional sound engineers routinely employ sophisticated measurement systems and equalizers to optimize speakers to the installation.This has never been practical for the home audiophile.This is why R.A.B.O.S. was created. R.A.B.O.S. enables you to identify the dominant low-frequency response characteristic of your room.Once you know the problem, R.A.B.O.S.provides the tools needed to optimize the low-frequency characteristics of the speakers to the room they are in, exactly as the professional sound engineers do it.

Performing R.A.B.O.S.Tests

These instructions assume you have already installed your subwoofer according to the information provided in the Owner’s Guide. It is also assumed that all equipment in your entertainment system is interconnected properly and is in good operating condition.

Preparations

Before beginning R.A.B.O.S. tests,please check the following:

• Set R.A.B.O.S.switch

• Make sure all three R.A.B.O.S. controls,‚,⁄and ¤, on the subwoofer are turned fully clockwise.

• Make sure the loudness contour (if any) on your receiver/ processor/preamp is turned off.

• Set the tone controls (Bass and Treble) to their center or flat positions.

• Bypass all surround and effects features of your receiver/ processor/preamp or set to Stereo Bypass.

• If you are using a multichannel surround processor or receiver, make sure all bass-management features are properly set.The Audio channels should all be set to “Small”or “High-Pass” and the subwoofer set to “On.”

You must have a CD player in the system. A CD player remote control is quite convenient but not essential.

For best results,it is recommended that all major furnishings are in place and that all doors and windows in the listening area are in their normal positions.That is, if you normally listen to music with all doors closed,then this is how they should be during this procedure.

Try to minimize ambient noise while running tests.Turn off all major appliances and any air conditioning or furnace fans. These can create significant subsonic noise that may be barely perceptible but which can wreak havoc on low-frequency measurements.

Critical information is highlighted with this mark:

Helpful hints are mar

to On position.

ked with this symbol:

Cascade Model Twelve

Power

-1

-2

-3

-5

-9

-10

-11

-13

-15

-18

U-R Batt

Contents of the R.A.B.O.S. Test CD

Track Title

Welcome

1 2 Set System Test Level

Set Subwoofer Test Level

3 4 100Hz Test

95Hz Test

5 6 90Hz Test

85Hz Test

7 8 80Hz Test

77Hz Test

9 10 72Hz Test 11 66Hz Test 12 63Hz Test 13 56Hz Test

4 52Hz Test

1 15 49Hz Test

6 46Hz Test

1 17 43Hz Test

8 40Hz Test

1 19 38Hz Test

0 35Hz Test

2 21 30Hz Test 22 26Hz Test 23 24Hz Test 24 22Hz Test 25 21Hz Test 26 2

7 Intro to Quick Retest

2 28 Quick Retest 100Hz

9 Quick Retest 95Hz

2 30 Quick Retest 90Hz 31 Quick Retest 85Hz

0Hz Te

Tracks 53–62 of the R.A.B.O.S.Test CD are test tones that can be used for general diagnostics of your system.They are not used for R.A.B.O.S.settings.

Track Title

2 Quick Retest 80Hz

3 33 Quick Retest 77Hz

4 Quick Retest 72Hz

3 35 Quick Retest 66Hz

6 Quick Retest 63Hz

3 37 Quick Retest 56Hz

8 Quick Retest 52Hz

3 39 Quick Retest 49Hz

0 Quick Retest 46Hz

4 41 Quick Retest 43Hz 42 Quick Retest 40Hz 43 Quick Retest 38Hz 44 Quick Retest 35Hz

5 Quick Retest 30Hz

4 46 Quick Retest 26Hz

7 Quick Retest 24Hz

4 48 Quick Retest 22Hz

9 Quick Retest 21Hz

4 50 Quick Retest 20Hz

1 Final System Level Adjustment

5 52 Final Subwoofer Level Adjustment 53 Wide Band Pink Noise,Left 54 Wide Band Pink Noise,L+R 55 Wide Band Pink Noise,Right 56 Wide Band Pink Noise,L-R 57 Wide Band Pink Noise,Uncorrelated

8 1 to 4kHz Pink Noise,Left

5 59 1 to 4kHz Pink Noise,

0 1 to 4kHz Pink Noise, Right

6 61 1 to 4kHz Pink Noise,Left-R 62 1 to 4kHz Pink Noise,Uncorrelated

L+R

THE R.A.B.O.S.SOUND-LEVEL METER (RSLM)

The RSLM is a battery-operated, handheld, acoustic measurement device specifically designed for Infinity R.A.B.O.S. On the face of

ument is a light-emitting diode (LED) bar gr

the instr indicates relative sound level.There are also indicators for power-on,out-of-range signals and a low battery.

aph that

ower is switched on or off by pressing the button directly below

P the bar-graph window.When the unit is on, one or more LEDs will always be illuminated.The function of the LEDs is described in the following section.

Under-range

Measurement

In-range

Over-range

Low

Battery

Figure 3.RSLM bar-graph indications

• Power-On/Low Signal: This is indicated by the illumination of any LED on the bar graph. If the sound level in the room is below the measurement range of the instrument,a green LED near the bottom of the bar graph will be illuminated.

• Normal Measurements:When the sound level is within the range of the RSLM, the green LED will be off and one of the red LEDs in the bar graph will be illuminated, indicating the relative sound level,in decibels (dB).

• Over-Range: If the sound level exceeds the range of the meter, 0dB through –5 will all light simultaneously.

• Low Battery:When the battery voltage is too low for accurate measurements,an LED at the bottom of the bar graph will be illuminated. Replace the battery.

Do not attempt measurements when this light is on.

RSLM Placement

Determine where in the room you are most likely to sit when listening to music or watching a movie.This is where you will want to hold the RSLM during measurements.The RSLM should be oriented so it can be easily read and held at your seated ear level during tests.

ou must use this same position for all tests.

The RSLM can be mounted on a standard camera tripod.

This will ensure the best results.

R.A.B.O.S.Sound-Level Meter

e 2.

igur

Cascade Model Twelve

Initial System-Level Setting

The following steps will set the playback level of the system to the correct level for all tests that follow.

Turn the system volume to minimum.

Cue the R.A.B.O.S.Test CD to Track 2 and press track will produce band-limited pink noise in both the left and right channels.

Play ›. With the RSLM positioned as described above,

Press increase the system volume until the RSLM display indicates –10dB. See Figure 4.

Pause II.This

r rattle during this test,it is highly recommended that you

o locate the source and eliminate its effects.This is actually a valuable room-diagnostic tool.

ress

lay

As Track 3 plays, watch the RSLM carefully.Watch

›

or peak readings.The peak reading may be no more than a brief

f flash. Readjust the subwoofer’s level observed is 0dB without triggering the over-range indication. See Figure 5.

Level control §until the peak

Figure 4.RSLM indicating the correct system level to begin tests (–10dB)

When you have completed this adjustment,press

Pause II.

Setting the Subwoofer Test Level

Each of the following test tracks is about one minute long.This is normally much longer than required.Press Pause II or advance to the next test as soon as you are ready.

This step will set the subwoofer levels for measurement purposes.The objective is to scale the subwoofer’s output to make full use of the RSLM indicator range.Scaling is optimum when a 0dB reading is observed on the highest peak without

ing the over-range indication. Later, you will rebalance

igger

tr the subwoofer to the main speakers.

he three R.A.B.O.S. controls,

T to fully clockwise positions,and all measurements should be conducted with their level controls in this position.Confirm this

setting before you begin this test.The set to the mid position.

ack 3 and

Cue subwoofer test tones for approximately 1 minute. Each tone will play just long enough for the RSLM to give a stable reading.

ause

‚,⁄

Level control §should be

ack 3 continuously steps thr

and ¤,

should be set

ough all

Figure 5. Adjusting the subwoofer levels for a 0dB peak

When finished, press Pause II.

Performing Low-Frequency Measurements

Read the following instructions fully before beginning tests.

For the following steps,you will need a Measurement Template and a pencil.

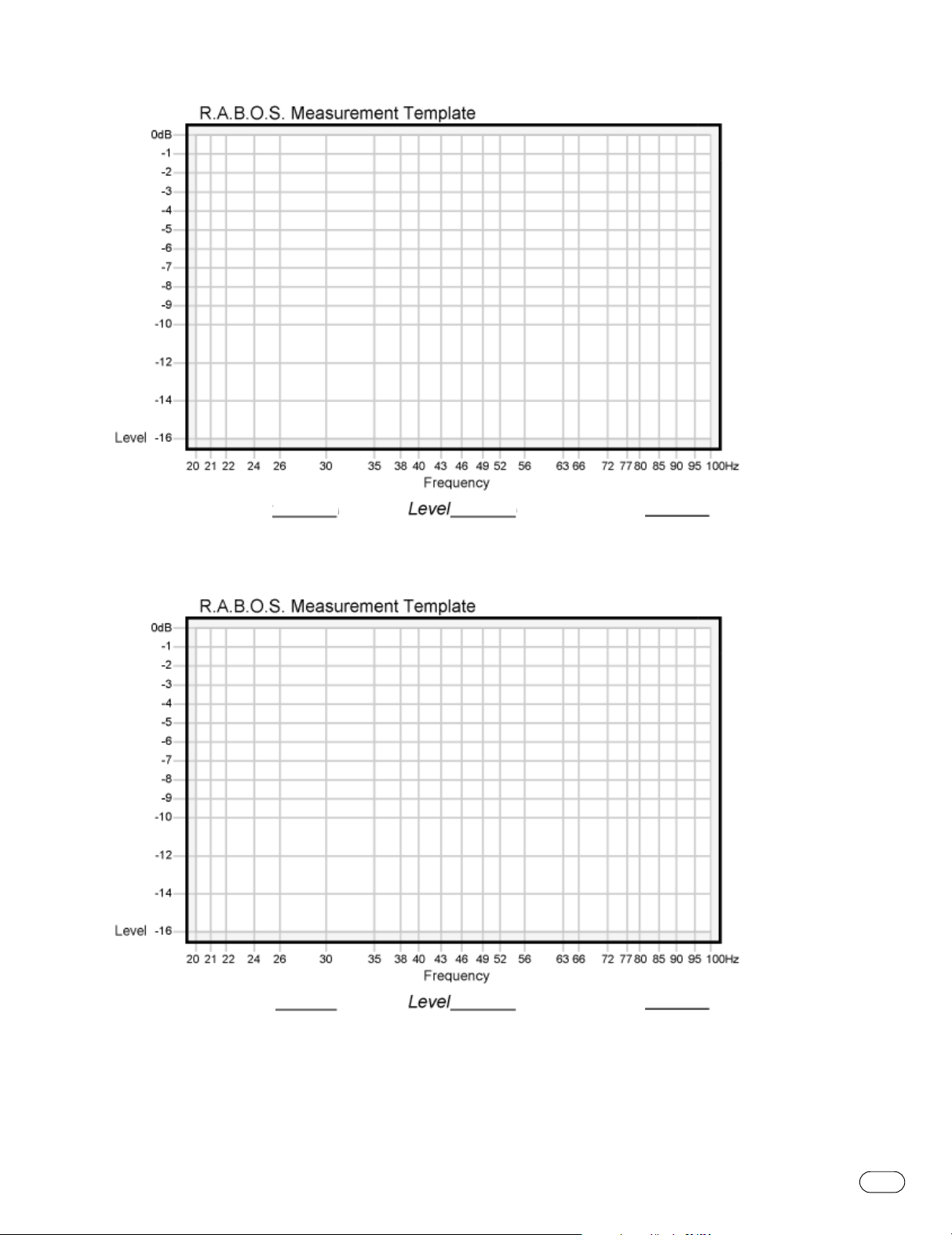

Figure 6. R.A.B.O.S. Measurement Template

it is necessary to pla

o get accur

T the subwoofer quite loud.The 0dB indication is about 94dB. At this level,frequencies below 100Hz can cause doors, windows,

nishings and other objects in the r

fur frequently results in clearly audible buzzes and/or rattles that come and go as each test tone pla sound bad; they can cause measurement errors. If you hear a buzz

Cascade Model Twelve

ate measur

ements,

oom to vibrate.This

ong buzzes not only

Str

Each of the following tracks produces a low-frequency test tone.

The range of these tests is from 100Hz down to 20Hz.The frequency of each test is announced before it begins.The first test is the highest frequency (100Hz); therefore, you will be marking the template from right to left.Each frequency point is listed across the bottom of the Measurement Template (this is called the X-axis). See Figure 6 on the previous page.The vertical scale on the left side of the template indicates relative level, in dBs (the Y-axis).The template’s vertical scale matches that of the RSLM bar graph.

›

When finished, press Skip

I to advance to the next test. Repeat

the process described above for Tracks 5 through 26.

When you have completed the 23 measurements, you are ready to analyze the data and make corrective adjustments.The completed Measurement template will look something like the example in Figure 9.

ue Track 4 and

ause I I

rom now on, you will want to keep your CD player’s

remote control handy.

Press

Play›. As Track 4 plays,observe the level indicated on

the RSLM.

EXAMPLE:The test frequency is 100Hz and the level indicated is –2dB. Find the intersection of 100Hz (X-axis) and –2dB (Y-axis). Place a dot at that point. See Figure 7.

Figure 7.Locating a test point

It takes a fe especially at v adequate time f

w seconds for the RSLM reading to stabilize,

y low frequencies. Don’t rush. Give each test

or the meter to stabiliz

Figure 9. Completed R.A.B.O.S. template

Now connect the dots as shown in Figure 10. This will make interpretation of the data much easier.

At the bottom of the bar graph is a green “ON”LED.This LED is illuminated whene

er the sound le

vel is below the measuring range of the RSLM. If this occurs during a test,place a dot at the intersection of the test fr

equency and the bottom frame of the

template. See Figure 8.

Figure 8.Indicating an under-range test

Figure 10.Test example with dots connected

Cascade Model Twelve

t this point, you may simply enter the data you just

STOP

A measured into the R.A.B.O.S. calculator, found on the

nfinity Web site at www.infinitysystems.com.After

I entering the data, this R.A.B.O.S.wizard will return the correct settings for all three R.A.B.O.S. controls: to page 14 and adjust these controls as described,and finish

he R.A.B.O.S.setup. If you would like to manually calculate the

t R.A.B.O.S.settings, simply continue following the instructions from this point.

‚,⁄

and¤. Skip

What Does a Parametric Equalizer Do?

he R.A.B.O.S.system uses one band of parametric equalization

T for response correction. Parametric equalizers are the most versatile class of filters.The effect an equalizer will have on the signal is dependent on three parameters.

Frequency:The equalizer will have maximum effect at one frequency,usually described as the center frequency.

Level: This refers to the amount of cut (in dBs) the equalizer is set for.

idth

The frequency range of the R.A.B.O.S. equalizer may be set from

% to 50% of an octave in 21 steps.This setting defines how

5 much of the Cascade Model Twelve’s output will be equalized.

Figure 11.Effect of adjustable width

Bandwidth: Defines the range of frequencies over which the

equalizer will have an effect.On the Cascade Model Twelve, this adjustment is abbreviated as “Width.”

Only parametric equalizers allow independent adjustment of all three parameters.

These will be explained more fully in the sections that follow.

Completing the Measurement Template

Along the bottom of the Measurement Template are three fields where you will enter the equalizer settings needed to complete system optimization.

These instructions are based on the example in Figure 11. Use this tutorial to become familiar with the process.Strategies for several other test results will be presented later. After you have completed these three entry fields,you will be ready to perform the adjustments, completing R.A.B.O.S. optimization.

Frequency

The frequency of the R.A.B.O.S. equalizer may be adjusted to any one of nineteen frequencies from 20Hz to 80Hz.This defines where you are going to apply equalization.

Width is expressed as a percentage of an octave.For example, a width setting of 25% means the equalizer will affect a frequency band of 1/4 of an octave;1/8 of an octave above and 1/8 of an octave below the center frequency.

The octave is a logarithmic expression. From any point in the spectrum, one octave above or below that point is always double or half the frequency.Therefore, one octave above 100Hz would be 200Hz. One octave below 100Hz is 50Hz.

In the section that follows,we will discuss the use of the Width Selector.

Cascade Model Twelve

Using the Width Selector

Read the following instructions carefully.The example presented may not look like the graph you just created. Focus on the concepts and techniques presented.Specific cases will be discussed later.

Figure 13. Placement of the Bandwidth Selector

Figure 12.Width Selector

You will use the Measurement Template just completed and the Width Selector to determine the correct width setting.The Width Selector graphically depicts a single resonant peak.The peak looks similar to a slice of a pie. See Figure 12.At the top of the Selector is a pull tab.When you slide the tab up and down, the width of the pie slice becomes nar The pointers on the sides of the button point to the bandwidth that corresponds to the width of the slice.

Place the Width Selector over the Measurement Template, positioning the center rivet of the Selector over the response

as shown in Figure 13.Be sure to align the horizontal lines

peak, of the Width Selector with those of the Measurement Template.

rower and wider, respectively.

Apply pressure to the upper and lower left corners of the Selector using the thumb and forefinger of your left hand.Now gently slide the tab up or down until the adjustable slice most closely fits the response data.See Figure 14.

Figure 14.Selector adjusted for the “best fit”

Cascade Model Twelve

he pointer on the slider will indicate the correct width setting.

T Enter this number in the Width field of the Measurement

emplate. In our example,the width is 12.5%.

It is not realistic to expect a perfect fit.Acoustic measurements encompass the behavior of not only the speakers but of the room and its contents as well. Reflected energy, standing waves and ambient noise all add their part.Determining

he best width setting nearly always requires compromise.

Level

This setting will define the amount (level) you want to reduce the

eak, in decibels.

The R.A.B.O.S.level adjustment is limited to attenuation only,and is adjustable from 0dB to –14dB.After optimization, the R.A.B.O.S.equalizer will eliminate the largest low-frequency peak; therefore, the broadband bass level can be increased without overpowering the midrange frequencies. R.A.B.O.S. applies this compensation automatically.

xample 1.Single Dominant Peak:

Figure 15.Single dominant peak

This is the most common result of speaker/room interaction.

You will use the Width Selector as an aid in determining the correct level setting. Place the Width Selector as described above and adjust it to the correct width.Observe the first frequency point on the high-frequency side of the peak that no longer follows the slope of the Width Selector. In this example this is 56Hz. Calculate the average level of the readings from 56Hz up to 100Hz; that is, 10 data points in this example.

56Hz 63Hz 6

6Hz 72Hz 77Hz 8

–9 –10 –8 –9 –10 –9 –8 –10 –10 –9 –

0Hz 85Hz 90Hz 9

5Hz 100Hz

92 ÷ 10 = –9.2

Whenever your answer has a remainder, always round down (disregarding the negati

ve [–]) to the next whole number.

In our example, you would enter 9 in the attenuation field.

This may not be the best method in all cases.The next section contains several other examples.

What You Measure,What to Do

As stated earlier, it is not possible to anticipate the effect of every possible listening environment. However, most residential sound rooms share many characteristics, and their dimensions fall into a range that make some response irregularities far more likely than others.On the following pages are examples of what you may encounter. Following each example is a strategy for correction.Compare your measurement results with the following

xamples

ind the one that best f

its your graph and f

instructions presented for that scenario.

ollow the

Apply the Width Selector as described in Figure 13.Align the center-line of the Selector over the center of the peak, as shown in Figure 14.Now adjust the Selector until you have achieved the “best fit.”The slider now points to the correct bandwidth setting. In this example, the frequency is 43Hz and the best-fit width is

12.5%. Fill in the Width and Frequency fields provided on the template.

Determine the appropriate level using the technique described earlier. In this example,–9dB would be best. Enter the level in the field provided.

Skip to the “Adjusting the R.A.B.O.S. Equalizer”section on page 14.

Remember, when looking for a match, look at the descriptive characteristics, not any specific frequency or level. Each of these examples can occur at any frequency,bandwidth and level.It is unlikely that your test results will be exactly as

depicted in these e

Cascade Model Twelve

xamples

Example 2. Two Response Peaks:

Figure 16.Two response peaks

Characterized by two response peaks, approximately equal in amplitude and width.This requires that you make a choice between the two peaks. In situations like this, the higher frequency peak will always be more audible and objectionable. Response peaks below 45Hz, unless extreme,can actually be beneficial toward achieving visceral impact. Perform corrections on the upper frequency peak.

Example 3. Peak Adjacent to a Dip:

Apply the Width Selector as described above.Align the center-line of the Selector over the center of the higher frequency peak.Now adjust the Selector until you have achieved the “best fit.”The slider now points to the correct width setting.In this example, this is at 52Hz.The best-fit width is 28%. Fill in the Width and Frequency fields provided on the template.

Determine the appropriate level using the technique described earlier.This calculation will indicate a –8dB setting. However, this peak does not reach the 0dB level as the lower peak does. Therefore, a –8dB setting would be excessive.The 52Hz peak stops at –2dB. Subtracting 2 from 8 yields the correct setting, –6dB. Enter –6 in the Level field.

Skip to the “Adjusting the R.A.B.O.S. Equalizer”section on page 14.

Figure 17. Dip above or below peak

Response dips can occur at any frequency, sometimes

ect.Two

immediately adjacent to the peak you want to cor

xamples are shown, one immediately above and one immediately

e below the peak. Deep response dips such as these are caused by destructive wave interference. Destructive interference dips occur only in one spot within the r completely eliminate the effect by moving the RSLM to a different location. Note that this does not eliminate the dips.We have simply moved away from them. Sometimes only a few inches are required. Do not attempt to correct this condition with equalization.If you encounter dips like this, take the following steps:

oom. It is not uncommon to

Cascade Model Twelve

. Select a new test position: Cue the test track corresponding to

1 the center frequency of the dip.In the first example in Figure 18,

ou would play Track 13 (56Hz). Press

y reading very close to what you had before. Now, slowly move the

SLM around the area,if possible remaining within about a foot

R of the original test point.As you move the RSLM, watch the bar graph.You will observe large level fluctuations. Find a position that restores the level to approximately that of the adjacent test points.You may find it helpful to move the RSLM vertically. Dips can be oriented in any axis.The position that restores the level to about that of the adjacent test points is your new test position.

2. Reset the test level:Return to the section “Setting the

ubwoofer Test Level”on page 7. Perform the procedure

S as described.

3. Repeat the measurements: Now that you are familiar with the measurement process,you can go much faster by using Tracks 27–50.These tracks contain all the test tones necessary for measurement. However, each test is only about three seconds, and there is no frequency announcement.The first test is 100Hz. Just place each test mark in order until finished.Connect the dots.

Your second measurement will no longer exhibit the deep response dip.However, the peak will still be evident.Without the influence of the response dip,the amplitude and center of the peak may have changed.Compare your new data to the examples given in this section of the manual.Follow the instructions for the example that most closely matches your new measurement.

lay

›

You will see a

lthough it looks as though this system is quite bass-deficient,

A this is actually indicative of a single,very narrow peak in excess

f 10dB high.

Apply the Width Selector as described above.Align the center-line of the Selector over the center of the peak,as shown in Figure

3. Now adjust the Selector until you have achieved the “best fit.”

1 The slider now points to the correct width setting.In this example, the frequency is 40Hz and the best-fit width is 10%.Fill in the Width and Frequency fields provided on the template.

Determine the appropriate level using the technique described earlier. In this example,–13dB is indicated. Enter 13 in the field provided.

Skip to the “Adjusting the R.A.B.O.S. Equalizer”section on page 14.

Example 5. One or More Narrow Dips:

Example 4. Narrow Response:

igure 18. Narrow Response

Figure 19.Example of two narrow dips

Response dips can occur at any frequency, sometimes immediately adjacent to the peak you want to correct.In this example, there are two such dips on either side of the peak.Deep response dips such as these are caused by destructive wave interference.Destructive interference dips occur only in one spot within the room. It is not uncommon to completely eliminate their effect by moving the RSLM to a different location. Note that this does not eliminate the dips.We have simply moved away from them. Sometimes only a few inches are required. Do not attempt to correct this condition with equalization.If you encounter dips like this, take the following steps:

Cascade Model Twelve

1. Select a new test position: Cue the test track corresponding to the center frequency of the dip.In the example in Figure 19 you

ould play Tracks 14 (52Hz) and 18 (40Hz). Press

lay›.You

will see a reading very close to what you had before. Now, slowly move the RSLM around the area, if possible remaining within about a foot of the original test point.As you move the RSLM,

atch the bar graph.You will observe large level fluctuations.

ind a location for the subwoofer or a test location that raises

F the response at these frequencies.You may find it helpful to move the RSLM vertically.Dips can be oriented in any axis.The position that restores the level to about that of the adjacent test points is

our new test position.

2. Reset the test level:Return to the section “Setting the Subwoofer Test Level”on page 7. Perform the procedure as described.

Your second measurement will no longer exhibit the deep response dips.However, the peak will still be evident.Without the influence of the response dips,the amplitude and center of the peak may have changed.

4. Interpret the new data: Compare your new data to the examples given in this section of the manual.Follow the instructions for the example that most closely matches your new measurement.

Example 6. Ideal Response:

If your test data looks similar to the example in Figure 21,you have a very favorable setup. Skip to the “Final System Balance” section, page 15.

Adjusting the R.A.B.O.S.Equalizer

Now that you have performed the measurements and interpreted

he data, you have the information needed to adjust the

t subwoofer’s equalizer.

There are three equalizer adjustments on the subwoofer. Left to right, they are marked Frequency,Level and Width. Each control has 21 positions.These are numbered from left to right. Therefore, Position 1 is the full counterclockwise position.The following table illustrates all switch positions.

Position F (Hz) L (dB) W

1 CCW 20 –14.1 4.5% 220 320 421 522 6 24 726 830

935 10 38 11 40 12 43 13 46 14 49 15 52 16 56 17 63 18 66 19 72 0.0 48% 20 77 0.0 49%

21 CW 80 0.0 49.5%

–13.9 5% –13.5 7.5% –13.1 10% –12.7 12.5% –11.7 16.5% –11.0 20.5% –10.2 23%

–9.5 26% –8.9 28% –8.3 29.5% –7.9 31% –6.4 34% –4.4 39% –2.9 41.5% –1.9 43.5% –1.1 45% –0.5 46.5%

Figure 20.Ideal response, no EQ needed

Cascade Model Twelve

f using more than one subwoofer, always adjust both subwoofers

Off

I together.Adjust the controls as indicated by the Measurement

emplate. Each value shown in the table is represented by detents

T in the R.A.B.O.S.controls. Simply count the number of detents necessary,indicated by the results of your R.A.B.O.S.Test.

Cascade Model Twelve R.A.B.O.S. Controls

Final System Balance

Cue Track 51 of the R.A.B.O.S.Test CD.Press Play›. Increase

he system volume until the RSLM indicates –10dB.Now play

t Track 52.Adjust the subwoofer gain control until –10dB

s indicated on the RSLM. Of course,you may fine-tune the

i subwoofer gain control to your listening preference.

This concludes the R.A.B.O.S. process. It is recommended that you remove the battery from the RSLM. Store the Test CD,Width Selector,Adjustment Key and the RSLM together.

After performing these adjustments,you may skip forward to the “Final System Balance”section. It is recommended that you perform a second measurement to confirm that the settings are correct.

If you are going to retest the system after EQ adjustments,

repeat the “Setting the Subwoofer Test Level”section on p. 7.

Retesting the system will go much faster if you use

Tracks 27–50.These tracks contain all the same test tones you

er, each tone plays for only a few seconds and

just used. Howe there is no frequency announcement.If you are uncomfortable operating at this pace,you may, of course,perform measurements with the original test tracks.

Your first interpretation of the data and choice of settings may not be optimum.You can repeat the test-adjust-test cycle as often as needed to get the desired results.To do this, return to page 7, “Setting the Subwoof using the same template. Doing so makes it easy to evaluate the improvement.

When you are satisfied with the results, go to “Final System Balance.”

est Level.” You may prefer to retest

Cascade Model Twelve

MAINTENANCE AND SERVICE

The enclosure and grille may be cleaned using a soft cloth to remove fingerprints or to wipe off dust.

ll wiring connections should be inspected and cleaned or

A remade periodically.The frequency of maintenance depends on the metals involved in the connections, atmospheric conditions,

nd other factors,but once per year is the minimum.

If a problem occurs,make sure that all connections are properly made and clean. If a problem exists in one loudspeaker, reverse the connection wires to the left and right system.If the problem

emains in the same speaker, then the fault is with the

r loudspeaker. If the problem appears in the opposite speaker, the cause is in another component or cable. In the event that your subwoofer ever needs service, contact your local Infinity dealer or distributor or www.infinitysystems.com for a service center near you.

IMPORTANT: Please attach your sales receipt to this manual and store in a safe place.In the event that your Infinity speaker requires warranty service,you’ll need to provide your sales receipt.

Cascade Model Twelve

Frequency

Width

Frequency

Width

Hz dB

Cascade Model Twelve

Frequency

Width

Frequency

Width

Hz dB

Cascade Model Twelve

SPECIFICATIONS

Cascade Model Twelve

Frequency Response 3

2Hz – 150Hz (–3dB)

28Hz – 150Hz (–6dB)

Maximum Amplifier Output 300 watts RMS

(20Hz – 150Hz, with no more than 0.1% THD)

Crossover Frequencies 50Hz – 150Hz,

continuously variable or LFE

Driver 10" (250mm) MMD

Dual 10" (250mm) MMD

passive radiators

Dimensions (H x W x D) 20" x 15" x 13-7/8"

(508mm x 381mm x 352mm)

Weight 42 lb (19kg)

Infinity continually strives to update and improve existing products,as well as create new ones.The specifications and construction details in this and related Infinity publications are therefore subject to change without notice.

Cascade Model Twelve

NOTES

Infinity Systems,250 Crossways Park Drive,Woodbury,NY 11797 USA 516.674.4INF (4463)

.inf

www

ademar

Infinity,Harman International and MMD are registered trademarks, and Metal Matrix Diaphragm, Room Adaptive Bass Optimization System (R.A.B.O.S.) and Cascade are trademarks, of Harman International Industries, Incorporated. Part No. 406-000-05338-E

initysystems

k of Dolby Labor

man Inter

.com

ies. DTS is a registered trademark of DTS,Inc.

ator

Infinity CASCADE MODELE TWELVE User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
