The Infinity Beta™Series of loudspeakers continues Infinity’s longstanding
commitment to accurate sound reproduction.Our patented Ceramic
Metal Matrix Diaphragm (CMMD
™
) drivers, precision dividing networks,
and rigid, well-braced enclosures, along with our newly developed, patentpending Constant Acoustical Impedance
™
(CAI™) waveguide,combine to
deliver uncompromised performance in any stereo or multichannel home
theater system. In addition, Beta Series speakers are magnetically shielded
for safe placement adjacent to a television.
UNPACKING THE SPEAKERS
If you suspect damage from transit, report it immediately to your dealer.
Keep the shipping carton and packing materials for future use.
PLACEMENT
Stereo
Before deciding where to place your Beta speakers, survey your room
and think about placement, keeping the following points in mind, using
Figure 1 as a guide:
• For best results, place the speakers 6'– 8' (1.5m–2.5m) apart.
• Position each speaker so that the tweeter is approximately at ear level.
• Generally, bass output will increase as the speaker is moved closer to a
wall or corner.
• Refer to “Home Theater” below if you also plan to use the speakers for
home theater reproduction.
Home Theater
For front-channel use, place one speaker on the left and another on the
right, along either side of the television monitor.Since the speakers are
magnetically shielded, you can place them near the TV without worrying
about the field distorting the TV picture.
For surround-channel use, place speakers on bookshelves or stands
alongside the listening position. Final placement depends on room
acoustics, availability of space and your listening preference
(Figures 2 and 3).
In 6- or 7-channel configurations, place the rear channel(s) behind the
listening position, as shown in Figures 2 and 3.
NOTE: An Infinity powered subwoofer will add impact and realism to both
music and film soundtracks. Contact your Infinity dealer for recommendations on subwoofer models for your application.
Figure 1. Experiment with speaker placement to obtain the best
bass level and stereo imaging in your room.
Figure 2.This overhead view shows a typical home theater plan.
Left/right rear channels are for a 7-channel system. Center
rear channel is for a 6-channel system.
Figure 3.This figure shows an alternate layout, which may be
more suitable for some rooms. Left/right rear channels are for a
7-channel system. Center rear channel is for a 6-channel system.
2
BETA SPEAKER SYSTEMS
INSTALLING FEET
Beta 40 and Beta 50
These models feature four rubber feet, which enables them to be placed
on a smooth-surfaced floor, such as tile or hardwood. Four metal spikes
are supplied for use when the speaker is to be placed on a carpeted surface, to decouple the speaker from the floor and prevent unwanted damping.To insert the spikes, gently lay the speaker on its side (not its front or
back) on a soft, nonabrasive surface. Each spike screws into the threaded
insert in the center of each rubber foot. Make sure all four spikes are
screwed in completely for stability.
NEVER
drag the speaker to move it,as this will damage the spikes, the
feet and/or the wood cabinet itself.Always lift the speaker and carry it to
its new location.
CAUTION: Floorstanding (tower) loudspeakers have a high center of
gravity and may become unstable and tip over during earthquakes, or
if rocked, tipped or improperly positioned. If this is a concern, these
speakers should be anchored to the wall behind them, using the same
procedures and hardware customary for anchoring bookcases and wall
units.The customer is responsible for proper installation and proper
selection of hardware.
BETA SPEAKER SYSTEMS
3
WIRING THE SYSTEM
IMPORTANT: Make sure all equipment is turned off before making any
connections.
For speaker connections, use a high-quality speaker wire with polarity
coding.The side of the wire with a ridge or other coding is usually
considered positive polarity (i.e., +).
NOTE: If desired, consult your local Infinity dealer about speaker wire and
connection options.

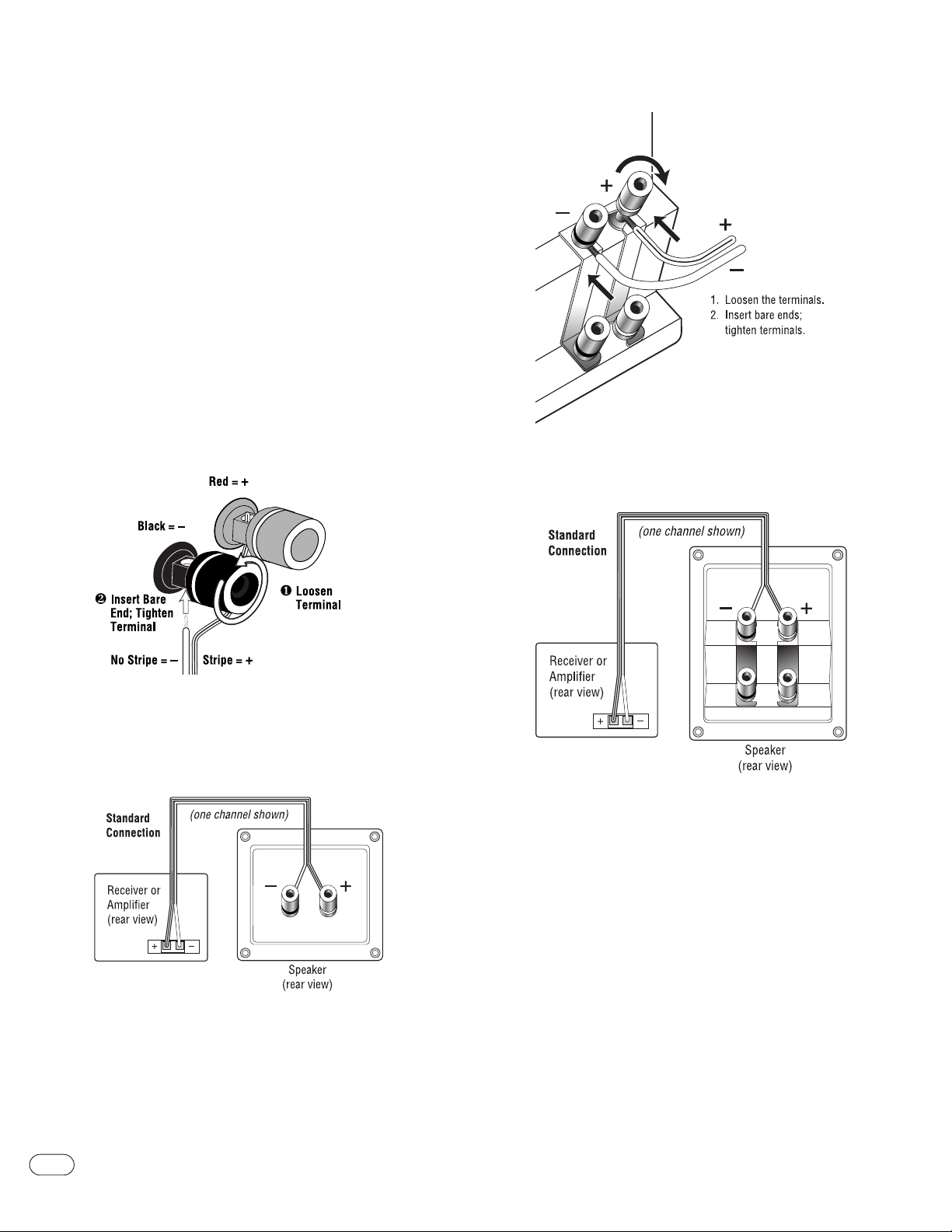

The speakers have coded terminals that accept a variety of wire connectors.The most common connection is shown in Figure 4.
To ensure proper polarity,connect each + terminal on the back of the
amplifier or receiver to the respective + (red) terminal on each speaker,
as shown in Figure 5. Connect the –(black) terminals in a similar way.
See the owner’s guides that were included with your amplifier,receiver
and television to confirm connection procedures.
IMPORTANT: Do not reverse polarities (i.e., + to –or –to +) when
making connections.Doing so will cause poor imaging and diminished
bass response.
Beta 40 and Beta 50
Figure 6.This example shows how to connect bare wires to the
terminals. Banana plugs may also be inserted directly into the rear
of the connector.
Figure 4.This figure shows how to connect bare wires to the terminals.
Beta 10,Beta 20, Beta C250 and Beta C360
Figure 5.Wiring diagram shows polarity connections for one
channel of a stereo or home theater system.
Figure 7.Wiring diagram shows polarity connections for one channel
of a stereo or home theater system.
4
BETA SPEAKER SYSTEMS

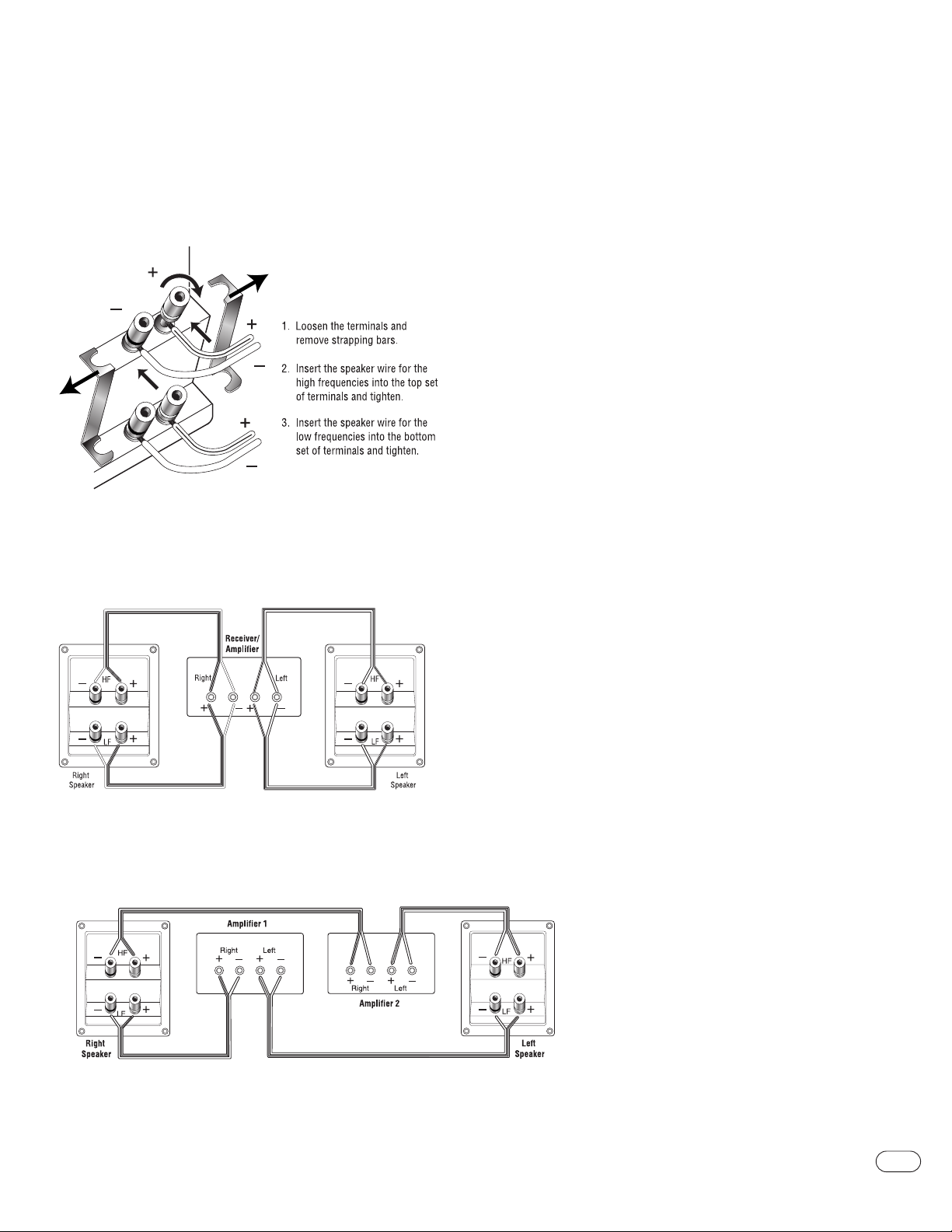

BI-WIRING
The outer connection panel and internal dividing network of the Beta 40
and Beta 50 are designed so that separate sets of speaker cables can
be attached to the low-frequency transducer and midrange/highfrequency transducer portions of this dividing network.This is called
bi-wiring. Bi-wiring can provide several sonic advantages and
considerably more flexibility in power amplifier selection.
IGURE 8.
F
Single-Stereo Amplifier
FINAL ADJUSTMENTS
Check the speakers for playback, first by setting the system volume control
to a minimum level, and then by applying power to your audio system. Play
a favorite music or video segment and increase the system volume control
to a comfortable level.
NOTE: You should hear balanced audio reproduction across the entire
frequency spectrum. If not, check all wiring connections or consult
the authorized Infinity dealer from whom you purchased the system
for more help.
The amount of bass you hear and the stereo-image quality will be affected
by a number of different factors, including the room’s size and shape,
the construction materials used to build the room, the listener’s position
relative to the speakers, and the position of the speakers in the room.
Listen to a variety of music selections and note the bass level. If there is
too much bass, move the speakers away from nearby walls.Conversely, if
you place the speakers closer to the walls, there will be more bass output.
Nearby reflecting surfaces can adversely affect stereo-imaging quality. If
this happens, try angling the speakers slightly inward toward the listening
position until the optimum effect is achieved.
CARE OF YOUR SPEAKER SYSTEM
Each Beta Series enclosure has a wood-grain-vinyl finish that does not
require any routine maintenance. When needed, use a soft cloth to remove
any fingerprints or dust from the enclosure or grille.
NOTE: Do not use any cleaning products or polishes on the cabinet
or grille.
F
IGURE 9.
Dual-Stereo Amplifier
IGURE 10.
F
BETA SPEAKER SYSTEMS
5
SPECIFICATIONS
Beta 10 Beta 20 Beta 40
Frequency Ranges: 60Hz – 20kHz (±3dB) 58Hz – 20kHz (±3dB) 45Hz – 20kHz (±3dB)
55Hz – 40kHz (–6dB) 52Hz – 40kHz (–6dB) 40Hz – 40kHz (–6dB)
Recommended
Amplifier Power Range:
Sensitivity: 88dB 90dB 91dB
(2.83V @ 1 meter)
Nominal Impedance: 8Ω 8Ω 8Ω
Crossover Frequency: 3.4kHz; 12dB/octave 2.4kHz; 12dB/octave 600Hz, 18dB/octave; 3.2kHz, 12dB/octave
Low-Frequency Driver(s): 5" (130mm) CMMD, 6-1/2" (165mm) CMMD, Dual 6-1/2" (165mm) CMMD,
Mid-Frequency Driver: NA NA 5" (130mm) CMMD,
High-Frequency Driver: 1" (25mm) CMMD, 1" (25mm) CMMD, 1" (25mm) CMMD,
Dimensions (H x W x D): 11-13/16" x 7-1/2" x 11-7/16" 13-3/4" x 8-7/8" x 13" 37" x 9-13/16" x 13-1/8"
(with grille) (300mm x 190mm x 290mm) (350mm x 225mm x 330mm) (950mm x 250mm x 333mm)
Weight: 14 lb (6.4kg) 20.7 lb (9.4kg) 50.2 lb (22.8kg)
10 – 125 Watts 10 – 150 Watts 10 – 200 Watts
magnetically shielded magnetically shielded magnetically shielded
magnetically shielded
magnetically shielded magnetically shielded magnetically shielded
Beta 50 Beta C250 Beta C360
Frequency Ranges: 35Hz – 20kHz (±3dB) 55Hz – 20kHz (±3dB) 45Hz – 20kHz (±3dB)
30Hz – 40kHz (–6dB) 50Hz – 40kHz (–6dB) 40Hz – 40kHz (–6dB)
Recommended
Amplifier Power Range: 10 – 250 Watts 10 – 150 Watts 10 – 200 Watts
Sensitivity: 91dB 90dB 91dB
(2.83V @ 1 meter)
Nominal Impedance: 8Ω 8Ω 8Ω
Crossover Frequency: 600Hz, 18dB/octave; 3.3kHz, 12dB/octave 2.4kHz; 12dB/octave 500Hz, 3.2kHz; 12dB/octave
Low-Frequency Driver(s): Dual 8" (200mm) CMMD, Dual 5" (130mm) CMMD, Dual 6-1/2" (165mm) CMMD,
magnetically shielded magnetically shielded magnetically shielded
Mid-Frequency Driver: 5" (130mm) CMMD, NA 4" (100mm) CMMD,
magnetically shielded magnetically shielded
High-Frequency Driver: 1" (25mm) CMMD, 1" (25mm) CMMD, 1" (25mm) CMMD,
magnetically shielded magnetically shielded magnetically shielded
Dimensions (H x W x D): 41-5/16" x 10-7/16" x 14-11/16" 6-11/16" x 17" x 8-3/8" 8-1/2" x 25-5/8" x 11-3/4"
(with grille) (1050mm x 265mm x 372mm) (170mm x 430mm x 212mm) (215mm x 650mm x 298mm)
Weight: 62.5 lb (28.4kg) 16 lb (7.3kg) 34.5 lb (15.7kg)
Infinity continually strives to update and improve existing products, as well as create new ones.The specifications and construction details in this and related Infinity
publications are therefore subject to change without notice.
6
BETA SPEAKER SYSTEMS
