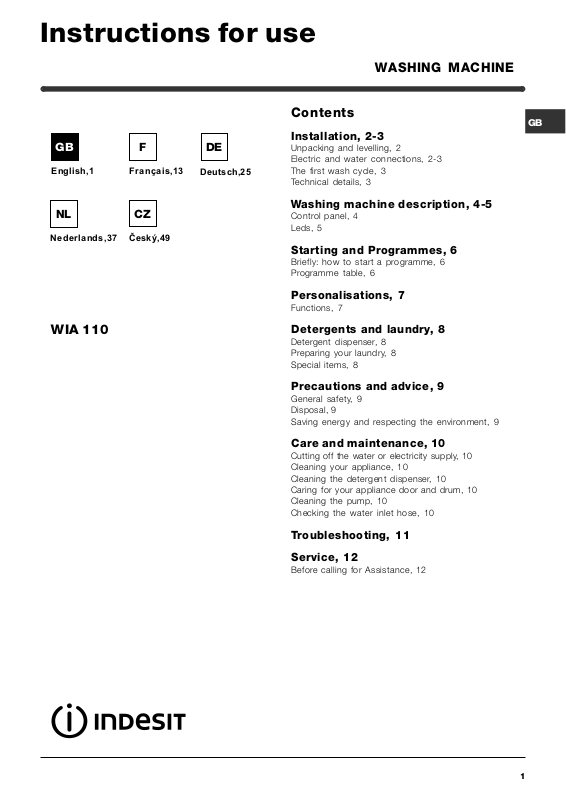

Instructions for use

WASHING MACHINE

English,1

Français,13

Nederlands,37NLÈeský,49

WIA 110

Deutsch,25

Contents

Installation, 2-3

Unpacking and levelling, 2 Electric and water connections, 2-3 The first wash cycle, 3 Technical details, 3

Washing machine description, 4-5

Control panel, 4 Leds, 5

Starting and Programmes, 6

Briefly: how to start a programme, 6 Programme table, 6

Personalisations, 7

Functions, 7

Detergents and laundry, 8

Detergent dispenser, 8 Preparing your laundry, 8 Special items, 8

Precautions and advice, 9

General safety, 9 Disposal, 9 Saving energy and respecting the environment, 9

Care and maintenance, 10

Cutting off the water or electricity supply, 10 Cleaning your appliance, 10 Cleaning the detergent dispenser, 10 Caring for your appliance door and drum, 10 Cleaning the pump, 10 Checking the water inlet hose, 10

Troubleshooting, 11

Service, 12

Before calling for Assistance, 12

Installation

 Keep this instruction manual in a safe place for

future reference. Should the appliance be sold, transferred or moved, make sure the instruction manual accompanies the washing machine to inform the new owner as to its operation and features.

 Read these instructions carefully: they contain vital

information on installation, use and safety.

Unpacking and levelling

Unpacking

1. Unpack the washing machine.

2. Check whether the washing machine has been damaged during transport. If this is the case, do not install it and contact your retailer.

3. Remove the 3 protective screws and the rubber washer with the respective spacer, situated on the rear of the appliance (see figure).

4. Seal the gaps using the plastic plugs provided.

5. Keep all the parts: you will need them again if the washing machine needs to be moved to another location.

Levelling your appliance correctly will provide it with stability and avoid any vibrations, noise and shifting during operation. If it is placed on a fitted or loose carpet, adjust the feet in such a way as to allow enough room for ventilation beneath the washing machine.

Electric and water connections

Connecting the water inlet hose

1. Insert seal A into the end of the inlet hose and screw the latter onto a cold water tap

with a 3/4 gas threaded mouth (see figure). Before making the connection, allow the water to run freely until it is perfectly clear.

2. Connect the other end of the water inlet hose to the washing machine, screwing it onto the appliance's cold water inlet, situated on the top right-hand side on the rear of the appliance (see figure).

 Packaging materials are not children's toys.

Levelling

1. Install the washing machine on a flat sturdy floor, without resting it up against walls, furniture cabinets or other.

2. If the floor is not perfectly level, compensate for any unevenness by tightening or loosening the adjustable front feet (see figure); the angle of inclination, measured according to the worktop, must not exceed 2°.

3. Make sure there are no kinks or bends in the hose.

 The water pressure at the tap must be within the

values indicated in the Technical details table (on the next page).

 If the water inlet hose is not long enough, contact

a specialist store or an authorised serviceman.

Connecting the drain hose

65 - 100 cm

Connect the drain hose, without bending it, to a draining duct or a wall drain situated between 65 and 100 cm from the floor;

 Do not use extensions or multiple sockets.

 The power supply cable must never be bent or

dangerously compressed.

 The power supply cable must only be replaced by

an authorised serviceman.

Warning! The company denies all liability if and when these norms are not respected.

The first wash cycle

alternatively, place it over the edge of a basin, sink or tub, fastening the duct supplied to the tap (see figure). The free end of the hose should not be underwater.

 We advise against the use of hose extensions; in

case of absolute need, the extension must have the same diameter as the original hose and must not exceed 150 cm in length.

Electric connection

Before plugging the appliance into the mains socket, make sure that:  the socket is earthed and in compliance with the

applicable law;

 the socket is able to sustain the appliance's

maximum power load indicated in the Technical details table (on the right);

 the supply voltage is included within the values i

ndicated on the Technical details table (on the right);

 the socket is compatible with the washing

machine's plug. If this is not the case, replace the socket or the plug.

 The washing machine should not be installed in an

outdoor environment, not even when the area is sheltered, because it may be very dangerous to leave it exposed to rain and thunderstorms.

 When the washing machine is installed, the mains

socket must be within easy reach.

Once the appliance has been installed, and before you use it for the first time, run a wash cycle with detergent and no laundry, setting the 90°C programme without a pre-wash cycle.

Technical details

Model

Dimensions

Capacity

Electric

connections

Wat er connections

Spin speed

Control programmes

according to

IEC456 directive

WIA 110

59.5 cm wide 85 cm high 52,5 cm deep

from 1 to 5 kg

voltage 220/230 Volts 50 Hz maximum absorbed power 1850 W

maximum pressure 1 MPa (10 bar) minimum pressure 0.05 MPa (0.5 bar) drum capacity 46 litres

up to 1100 rpm

programme 3; temperature 60°C; run with a load of 5 kg.

This appliance is compliant with the following European Community Directives:

- 73/23/CEE of 19/02/73 (Low Voltage) and subsequent amendments

- 89/336/CEE of 03/05/89 (Electromagnetic Compatibility) and subsequent amendments

- 2002/96/CE

ServiceTroubleshootingPrecautions CareProgrammes DetergentsInstallation Description

Washing machine description

Control panel

Detergent dispenser

Detergent dispenser: to add detergent and fabric

softener (see page 8).

LEDS: to find out which wash cycle phase is under way.

FUNCTION buttons: to select the functions available. The button corresponding to the function selected will remain on.

DOOR LOCK Led: to find out whether the washing machine is on and if the appliance door can be opened (see page 5).

FUNCTION

Buttons

START/ DOOR LOCK

Led

Leds

START/PAUSE button: starts or temporarily interrupts programmes.

N.B.: once the programme has started, pressing this button will stop the cycle and only the LED for the cycle phase in progress will light up. After about 1 minute you will be able to open the door (when the DOOR LOCK led switches off). If the DOOR LOCK led stays lit, it means that there is something that needs to be checked before the door is opened (e.g.: there is water in the tub or the temperature of the water is too high). Pressing the button again restarts the programme from the point at which it was interrupted.

PAUSE

Button

PROGRAMME/ ON-OFF

Knob

PROGRAMME/ON-OFF knob: sets the desired programme (see page 6) and switches the machine on or off. The knob stays still during the cycle.

Leds

The LEDS provide important information. This is what they can tell you:

Cycle phase under way:

During the wash cycle, the LEDs gradually illuminate on to indicate the cycle phase under way:

Prewash/Wash

Rinse

Spin cycle

Note: during draining, the LED corresponding to the Spin cycle phase will be turned on.

Function buttons

The FUNCTION BUTTONS also act like LEDS. When a function is selected, the corresponding button is illuminated. If the function selected is incompatible with the programme set, the button will flash and the function will not be enabled. If you set a function that is incompatible with another function you selected previously, only the last one selected will be enabled.

DOOR LOCK led:

If this LED is on, the appliance door is locked to prevent it from being opened accidentally; to avoid any damages, wait for the LED to flash before you open the appliance door.

 The rapid flashing of the DOOR LOCK Led together with the flashing of at least one other LED indicates there is

an abnormality. Call for Technical Assistance.

ServiceTroubleshootingPrecautions CareProgrammes DetergentsInstallation Description

Starting and Programmes

Briefly: starting a programme

1. Switch on the washing machine by turning the PROGRAMME/ON-OFF knob to the desired programme. All the LEDS will light up for a few seconds and the DOOR LOCK Led will begin to flash.

2. Load your laundry into the washing machine and shut the appliance door.

3. Add the detergent and any fabric softener (see page 8).

4. Start he programme by pressing the START/PAUSE button.

If you want to cancel the cycle set, turn the PROGRAMME/ON-OFF knob to the

position and wait for all the LEDs to illuminate and then turn off again. If another programme is not selected, the DOOR LOCK led will remain lit for about 1 minute.

5. When the programme is finished, the DOOR LOCK Led will flash to indicate that the appliance door can be opened. Take out your laundry and leave the appliance door ajar to allow the drum to dry thoroughly. Switch the washing machine off by turning the PROGRAMME/ON-OFF knob to the

position.

Programme table

Type of fabric and degree of soil Programmes

Detergent

Pre-

wash

Wash

Fabric

softener

Cotton

Extremely soiled whites (sheets, tablecloths, etc.)

Heavily soiled whites and fast colours

Slightly soiled whites and delicate colours (shirts, jumpers, etc.)

 



Synthetics

Heavily soiled fast colours (baby linen, etc.)

Delicate colours (all types of slightly soiled garments)



Delicates



Wool

Very delicate fabrics (curtains, silk, viscose, etc.)

PARTIAL PROGRAMMES

Rinse  Rinse cycles and spin cycle

rinse

Light

Spin Draining and heavy duty spin cycle

spin

Light

Drain Draining

Cycle length (minutes)

160

143

127

 Rinse cycles, anti-crease or draining

Description of wash cycle

Pre-wash, wash cycle, rinse cycles, intermediate and final spin cycles

Wash cycle, rinse cycles, intermediate and final spin cycles

Wash cycle, rinse cycles, intermediate and

final spin cycles

Wash cycle, rinse cycles, anti-crease or

delicate spin cycle Wash cycle, rinse cycles, anti-crease or

delicate spin cycle Wash cycle, rinse cycles and delicate spin

cycl

Wash cycle, rinse cycles, anti-crease and

delicate spin cycle Wash cycle, rinse cycles, anti-crease or

draining cycle

Draining and delicate spin cycle

Notes

For the anti-crease function, please see page 7. The information contained in the table is purely indicative.

Special programme

Daily (programme 8 for Synthetics) is designed to wash lightly soiled garments in a short amount of time: it only lasts 30 minutes and allows you to save on both time and energy. By setting this programme (8 at 30°C), you can wash different fabrics together (except for woollen and silk items), with a maximum load of 3 kg.

We recommend the use of liquid detergent.

Personalisations

Functions

To enable a function:

1. press the button corresponding to the desired function, according to the table below;

2. the function is enabled when the corresponding button is illuminated.

Note: The rapid flashing of the button indicates that the corresponding function cannot be selected for the programme set.

Function Effect Comments

Increases the

Extra Rinse

1100 500

Anti-crease

This function interrupts the wash programme, and the washing is left to soak in water before the appliance is drained. It is enabled in programmes 5 - 6 - 7 - 9- 10 and Delicate rinse cycle. To conclude the cycle, press the START/PAUSE button. To run the draining cycle alone, set the knob to the relative symbol and press the START/PAUSE button.

efficiency of the rinse.

Reduces the spin speed.

Recommended when the appliance has a full load or with large quantities of detergent.

Enabled with programmes:

1, 2, 3, 4, 5, 6, 7 and Rinse cycles.

All programmes except for 10 and draining.

ServiceTroubleshootingPrecautions CareProgrammes DetergentsInstallation Description

Detergents and laundry

Detergent dispenser

Good washing results also depend on the correct dose of detergent: adding too much detergent won't necessarily make for a more efficient wash, and may in fact cause build up on the interior of your appliance and even pollute the environment.

Open up the detergent dispenser and pour in the detergent and fabric softener, as follows.

compartment 1: Detergent for pre-wash (powder) compartment 2: Detergent for the wash cycle (powder or liquid)

Liquid detergent should only be poured in immediately prior to the wash cycle start.

compartment 3: Additives (fabric softeners, etc.)

The fabric softener should not overflow from the grid.

Special items

Curtains: fold curtains and place them in a pillow

case or mesh bag. Wash them separately without exceeding half the appliance load. Use programme 10 which excludes the spin cycle automatically. Quilted coats and windbreakers: if they are padded with goose or duck down, they can be machine-washed. Turn the garments inside out and load a maximum of 2-3 kg, repeating the rinse cycle once or twice and using the delicate spin cycle. Trainers: remove any mud. They can be washed together with jeans and other tough garments, but not with whites. Wool: for best results, use a specific detergent, taking care not to exceed a load of 1 kg.

 Do not use hand wash detergent because it may

form too much foam.

Preparing your laundry

 Divide your laundry according to:

- the type of fabric/the symbol on the label.

- the colours: separate coloured garments from

whites.  Empty all pockets and check for loose buttons.  Do not exceed the weight limits stated below,

which refer to the weight when dry:

Sturdy fabrics: max 5 kg

Synthetic fabrics: max 2.5 kg

Delicate fabrics: max 2 kg

Wool: max 1 kg

How much does your laundry weigh?

1 sheet 400-500 g

1 pillow case 150-200 g

1 tablecloth 400-500 g

1 bathrobe 900-1200 g

1 towel 150-250 g

Precautions and advice

 The washing machine was designed and built in

compliance with the applicable international safety regulations. The following information is provided for your safety and should consequently be read carefully.

General safety

 This appliance has been designed for non-

professional, household use and its functions must not be changed.

 This washing machine should only be used by

adults and in accordance with the instructions provided in this manual.

 Never touch the washing machine when barefoot

or with wet or damp hands or feet.

 Do not pull on the power supply cable to unplug

the appliance from the electricity socket. Pull the plug out yourself.

 Do not open the detergent dispenser while the

appliance is in operation.

 Do not touch the drain water as it could reach

very high temperatures.

 Never force the washing machine door: this could

damage the safety lock mechanism designed to prevent any accidental openings.

 In the event of a malfunction, do not under any

circumstances touch internal parts in order to attempt repairs.

 Always keep children well away from the

appliance while in operation.

 The appliance door tends to get quite hot during

the wash cycle.

 Should it have to be moved, proceed with the

help of two or three people and handle it with the utmost care. Never try to do this alone, because the appliance is very heavy.

 Before loading your laundry into the washing

machine, make sure the drum is empty.

Disposal

 Disposing of the packaging material:

observe local regulations, so the packaging can be re-used.

 The European Directive 2002/96/EC on Waste

Electrical and Electronic Equipment, requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimise the recovery and

recycling of the materials they contain and reduce the impact on human health and the environment. The crossed out "wheeled bin" symbol on the product reminds you of your obligation, that when you dispose of the appliance it must be separately collected.

Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance.

Saving energy and respecting the environment

Environmentally-friendly technology

If you only see a little water through your appliance door, this is because thanks to the latest Indesit technology, your washing machine only needs less than half the amount of water to get the best results: an objective reached to respect the environment.

Saving on detergent, water, energy and time

 To avoid wasting resources, the washing machine

should be used with a full load. A full load instead of two half loads allows you to save up to 50% on energy.

 The pre-wash cycle is only necessary on

extremely soiled garments. Avoiding it will save on detergent, time, water and between 5 and 15% energy.

 Treating stains with a stain remover or leaving

them to soak before washing will cut down the need to wash them at high temperatures. A programme at 60°C instead of 90°C or one at 40°C instead of 60°C will save up to 50% on energy.

 Use the correct quantity of detergent depending

on the water hardness, how soiled the garments are and the amount of laundry you have, to avoid wastage and to protect the environment: despite being biodegradable, detergents do contain ingredients that alter the natural balance of the environment. In addition, avoid using fabric softener as much as possible.

 If you use your washing machine from late in the

afternoon until the early hours of the morning, you will help reduce the electricity board's peak load.

 If your laundry has to be dried in a tumble dryer,

select a high spin speed. Having the least water possible in your laundry will save you time and energy in the drying process.

ServiceTroubleshootingPrecautions CareProgrammes DetergentsInstallation Description

Care and maintenance

Cutting off the water or electricity supply

 Turn off the water tap after every wash. This will

limit the wear of your appliance's water system and also prevent leaks.

 Unplug your appliance when cleaning it and

during all maintenance operations.

Cleaning your appliance

The exterior and rubber parts of your appliance can be cleaned with a soft cloth soaked in lukewarm soapy water. Do not use solvents or abrasives.

Cleaning the detergent dispenser

Remove the dispenser by pulling it out (see figure). Wash it under running water; this operation should be repeated frequently.

Cleaning the pump

The washing machine is fitted with a self-cleaning pump that does not require any maintenance. Sometimes, small items (such as coins or buttons) may fall into the pre-chamber that protects the pump, situated in the lower part of the same.

 Make sure the wash cycle has ended and unplug

the appliance.

To access the pre-chamber:

1. using a screwdriver, remove the cover panel on the lower front of the washing machine (see figure);

2. unscrew the lid rotating it anticlockwise (see figure): a little water may trickle out. This is perfectly normal;

Caring for your appliance door and drum

 Always leave the appliance door ajar to prevent

unpleasant odours from forming.

3. clean the interior thoroughly;

4. screw the lid back on;

5. reposition the panel, making sure the hooks are securely in place before you push it onto the appliance.

Checking the water inlet hose

Check the water inlet hose at least once a year. If you see any cracks, replace it immediately: during the wash cycles, water pressure is very strong and a cracked hose could easily split open.

 Never use hoses that have already been used.

Troubleshooting

Your washing machine could fail to work. Before calling for Assistance (see page 12), make sure the problem can't easily be solved by consulting the following list.

Problem

The washing machine won't start.

The wash cycle won't start.

The washing machine fails to load water.

The washing machine continuously loads and unloads water.

Possible causes/Solution:

 The appliance is not plugged into the socket, or not enough to

make contact.

 There has been a power failure.

 The appliance door is not shut properly.  The START/PAUSE button has not been pressed.  The water tap is not turned on.

 The water inlet hose is not connected to the tap.  The hose is bent.  The water tap is not turned on.  There is a water shortage.  The water pressure is insufficient.  The START/PAUSE button has not been pressed.

 The drain hose is not fitted between 65 and 100 cm from the floor

(see page 3).  The free end of the hose is underwater (see page 3).  The wall drainage system doesn't have a breather pipe. If the problem persists even after these checks, turn off the water tap, switch the appliance off and call for Assistance. If the dwelling is on one of the upper floors of a building, there may be drain trap problems causing the washing machine to load and unload water continuously. In order to avoid such an inconvenience, special anti-drain trap valves are available in shops.

The washing machine does not drain or spin.

The washing machine vibrates too much during the spin cycle.

The washing machine leaks.

The DOOR LOCK Led flashes rapidly at the same time as at least one other LED.

There is too much foam.

 The programme does not foresee the draining: some programmes

require enabling the draining manually (see page 6).  The Anti-crease function is enabled: to complete the programme,

press the START/PAUSE button (see page 7).  The drain hose is bent (see page 3).  The drain duct is clogged.

 The drum was not unblocked correctly during installation (see page 2).  The washing machine is not level (see page 2).  The washing machine is closed in between furniture cabinets and

the wall (see page 2).

 The water inlet hose is not screwed on correctly (see page 2).  The detergent dispenser is obstructed (to clean it, see page 10).  The drain hose is not secured properly (see page 3).

 Call for Assistance because this means there is an abnormality.

 The detergent is not suitable for machine washing (it should bear

the definition "for washing machines" or "hand and machine wash",

or the like).  You used too much detergent.

ServiceTroubleshootingPrecautions CareProgrammes DetergentsInstallation Description

Service

Before calling for Assistance:

 Check whether you can solve the problem on your own (see page 11);  Restart the programme to check whether the problem has been solved;  If this is not the case, contact an authorised Technical Service Centre on the telephone number

provided on the guarantee certificate.

 Always request the assistance of authorised servicemen.

Notify the operator of:

 the type of problem;  the appliance model (Mod.);  the serial number (S/N). This information can be found on the data plate situated on the rear of the washing machine.

Service

Mode d'emploi

LAVE-LINGE

Français

WIA 110

Sommaire

Installation, 14-15

Déballage et mise à niveau, 14 Raccordements hydrauliques et électriques, 14-15 Premier cycle de lavage, 15 Caractéristiques techniques, 15

Description du lave-linge, 16-17

Bandeau de commandes, 16 Voyants, 17

Mise en marche et Programmes, 18

En bref: démarrage d'un programme, 18 Tableau des programmes, 18

Personnalisations, 19

Fonctions, 19

Produits lessiviels et linge, 20

Tiroir à produits lessiviels, 20 Triage du linge, 20 Pièces de linge particulières, 20

Précautions et conseils, 21

Sécurité générale, 21 Mise au rebut, 21 Economies et respect de l'environnement, 21

Entretien et soin, 22

Coupure de l'arrivée d'eau et de courant, 22 Nettoyage du lave-linge, 22 Nettoyage du tiroir à produits lessiviels, 22 Entretien du hublot et du tambour, 22 Nettoyage de la pompe, 22 Contrôle du tuyau d'arrivée de l'eau, 22

Anomalies et remèdes, 23

Assistance, 24

Installation

 Conservez ce mode d'emploi pour pouvoir le

consulter à tout moment. En cas de vente, de cession ou de déménagement, veillez à ce qu'il suive toujours le lave-linge pour que son nouveau propriétaire soit informé sur son mode de fonctionnement et puisse profiter des conseils correspondants.

 Lisez attentivement les instructions: elles fournissent

d'importantes informations sur l'installation, l'utilisation et la sécurité.

Déballage et mise à niveau

Déballage

1. Déballez le lave-linge.

2. Contrôlez que le lave-linge n'a pas été endommagé pendant le transport. S'il est abîmé, ne le raccordez pas et contactez votre revendeur.

3. Enlevez les 3 vis de protection pour le transport, le caoutchouc et la cale, placés dans la partie arrière (voir figure).

4. Bouchez les trous à l'aide des bouchons plastique fournis.

5. Conservez bien toutes ces pièces: il faudra les remonter en cas de transport du lave-linge.

Une bonne mise à niveau garantit la stabilité de la machine et évite qu'il y ait des vibrations, du bruit et des déplacements en cours de fonctionnement. Si la machine est posée sur de la moquette ou un tapis, réglez les petits pieds de manière à ce qu'il y ait suffisamment d'espace pour assurer une bonne ventilation.

Raccordements hydrauliques et électriques

Raccordement du tuyau d'arrivée de l'eau

1. Montez le joint A sur l'extrémité du tuyau d'alimentation et vissezle à un robinet d'eau

froide à embout fileté 3/4 gaz (voir figure). Faites couler l'eau jusqu'à ce qu'elle soit limpide et sans impuretés avant de raccorder.

2. Raccordez le tuyau d'alimentation au lavelinge en le vissant à la prise d'eau prévue, dans la partie arrière en haut à droite (voir figure).

 Les emballages ne sont pas des jouets pour enfants.

Mise à niveau

1. Installez le lave-linge sur un sol plat et rigide, sans l'appuyer contre des murs, des meubles ou autre.

2. Si le sol n'est pas parfaitement horizontal, vissez ou dévissez les petits pieds avant (voir figure) pour niveler l'appareil; son angle d'inclinaison, mesuré sur le plan de travail, ne doit pas dépasser 2°.

3. Faites attention à ce que le tuyau ne soit ni plié ni écrasé.

 La pression de l'eau doit être comprise entre les

valeurs indiquées dans le tableau des Caractéristiques techniques (voir page ci-contre).

 Si la longueur du tuyau d'alimentation ne suffit pas,

adressez-vous à un magasin spécialisé ou à un technicien agréé.

Raccordement du tuyau de vidange

Raccordez le tuyau d'évacuation, sans le plier, à un conduit d'évacuation ou à une évacuation murale

65 - 100 cm

placés à une distance du sol comprise entre 65 et 100 cm (voir figure);

 N'utilisez ni rallonges ni prises multiples.

 Le câble ne doit être ni plié ni écrasé.

 Le câble d'alimentation ne doit être remplacé que

par des techniciens agréés.

Attention! Nous déclinons toute responsabilité en cas de non respect des normes énumérées ci-dessus.

Premier cycle de lavage

ou bien accrochez-le à un évier ou à une baignoire, dans ce cas, fixez le support en plastique fourni avec l'appareil au robinet (voir figure). L'extrémité libre du tuyau d'évacuation ne doit pas être plongée dans l'eau.

 L'utilisation de tuyaux de rallonge est absolument

déconseillée, si vous ne pouvez vraiment pas faire autrement vous devrez utiliser un tuyau de même diamètre et de longueur maximum de 150 cm.

Branchement électrique

Avant de brancher la fiche dans la prise de courant, contrôlez que:  la prise dispose de mise à la terre et est conforme

aux normes;

 la prise est bien apte à supporter la puissance

maximale de la machine indiquée dans le tableau des Carcatéristiques techniques (voir ci-contre);

 la tension d'alimentation est bien comprise entre les

valeurs figurant dans le tableau des Caractéristiques techniques (voir ci-contre);

 la prise est bien compatible avec la fiche du lave-

linge. Autrement, remplacez la prise ou la fiche.

 Votre lave-linge ne doit pas être installé dehors,

même à l'abri, car il est très dangereux de le laisser exposé à la pluie et aux orages.

 Après installation du lave-linge, la prise de courant

doit être facilement accessible.

Avant la première utilisation de la machine, effectuez un cycle de lavage avec un produit lessiviel mais sans linge et sélectionnez le programme à 90°C sans prélavage.

Caractéristiques techniques

Modèle

Dimensions

Capacité

Raccordements

électriques

Raccordements hydrauliques

Vitesse d'essorage

Programmes de

contrôle selon la

norme IEC456

WIA 110

largeur 59,5 cm hauteur 85 cm profondeur 52,5 cm

de 1 à 5 kg

tension 220/230 Volt 50 Hz puissance maximale absorbée 1850 W

pression maximale 1 MPa (10 bar) pression minimale 0,05 MPa (0,5 bar) capacité du tambour 46 litres

jusqu'à 1100 tours minute

programme 3; température 60°C; effectué avec une charge de 5 kg.

Cet appareil est conforme aux Directives Communautaires suivantes:

- 73/23/CEE du 19/02/73 (Basse Tension) et modifications suivantes

- 89/336/CEE du 03/05/89 (Compatibilité électromagnétique) et modifications suivantes

- 2002/96/CE

Bac produits

AssistanceAnomaliesPrécautions EntretienProgrammesInstallation Description

Description du lave-linge

Bandeau de commandes

Tiroir à produits lessiviels

Tiroir à produits lessiviels: chargement des

produits lessiviels et additifs (voir page 20).

Voyants: suivi du stade d'avancement du programme de lavage.

Touches FONCTION: sélection des fonctions disponibles. La touche correspondant à la fonction sélectionnée restera allumée.

Voyant HUBLOT VERROUILLE: pour comprendre si le lave-linge est branché et si le hublot peut être ouvert (voir page 17).

Touches

FONCTION

Voyant

HUBLOT VERROUILLE

Voyants

Touche START/PAUSE: pour démarrer les programmes ou les interrompre momentanément.

N.B.: une fois que le programme a démarré, si vous appuyez sur cette touche, le lave-linge s'arrêtera et seul le voyant correspondant à la phase en cours clignotera; vous pourrez ouvrir le hublot au bout d'une minute environ (voyant HUBLOT VERROUILLE éteint). Si le voyant HUBLOT VERROUILLE reste allumé c'est que les conditions de déverrouillage du hublot ne sont pas remplies (ex.: cuve pleine ou température de l'eau trop élevée). Appuyez une nouvelle fois sur la touche, le programme redémarrera du point où il a été interrompu.

Touche

START/PAUSE

Bouton

PROGRAMMES/ ALLUME-ETEINT

Bouton PROGRAMMES/ALLUME-ETEINT: pour sélectionner les programmes (voir page 18) et pour allumer ou éteindre votre machine. En cours de lavage, le bouton ne bouge pas.

Voyants

Les voyants fournissent des informations importantes. Voilà ce qu'ils signalent:

Phases en cours:

Pendant le cycle de lavage, les voyants s'allument progressivement pour indiquer son stade d'avancement:

Prélavage/Lavage

Rinçage

Essorage

Remarque: pendant la phase de vidange, le voyant correspondant à la phase Essorage s'allume.

Touches fonction

Les TOUCHES FONCTION servent aussi de voyants. La sélection d'une fonction entraîne l'allumage du voyant correspondant. Si la fonction sélectionnée est incompatible avec le programme sélectionné, la touche clignote et la fonction n'est pas activée. En cas de sélection d'une fonction incompatible avec une autre précédemment sélectionnée, la seule à être activée sera la dernière validée.

Bac produits

Voyant HUBLOT VERROUILLE:

Le voyant allumé indique que le hublot est verrouillé pour empêcher toute ouverture accidentelle; attendez que le voyant cesse de clignoter avant d'ouvrir le hublot, vous risqueriez d'endommager l'appareil.

 Le clignotement rapide du voyant HUBLOT VERROUILLE en même temps qu'un autre signale une anomalie.

Appelez Service-après-vente.

AssistanceAnomaliesPrécautions EntretienProgrammesInstallation Description

Mise en marche et Programmes

En bref: démarrage d'un programme

1. Pour mettre le lave-linge en marche, tournez le bouton PROGRAMMES/ALLUME-ETEINT jusqu'au programme choisi. Tous les voyants s'allument pendant quelques secondes puis s'éteignent et le voyant HUBLOT VERROUILLE commence à clignoter.

2. Chargez le lave-linge et fermez le hublot.

3. Versez le produit lessiviel et les additifs (voir page 20).

4. Appuyez sur la touche START/PAUSE pour lancer le programme. Si vous voulez annuler le cycle sélectionné,

Tableau des programmes

Nature des tissus et degré de salissure

Coton

Blancs extrêmement sales (draps, nappes, etc.)

Blancs et couleurs résistantes très

sales

Blancs peu sales et couleurs délicates (chemises, pulls, etc.)

Synthétiques

Couleurs résistantes très sales (linge de bébé, etc.)

Couleurs délicates (linge en tout genre légèrement sale)

Délicats

Laine

Tissus particulièrement délicats

(rideaux, soie, viscose, etc.)

PROGRAMMES PARTIAUX

Rinçage  Rinçages et essorage Rinçage délicat  Rinçages, anti-froissement ou vidange Essorage Vidange et essorage énergique Essorage délicat Vidange et essorage délicat

Vidange Vidange

Programmes

tournez le bouton PROGRAMMES/ALLUMEETEINT jusqu'à la position

et attendez que tous les voyants s'allument puis s'éteignent. Si vous ne sélectionnez aucun autre programme, le voyant HUBLOT VERROUILLE restera allumé pendant 1 minute environ.

5. A la fin du programme de lavage, le voyant HUBLOT VERROUILLE clignote pour indiquer que le hublot peut être ouvert. Sortez le linge et laissez le hublot entrouvert pour faire sécher le tambour. Pour éteindre le lave-linge, tournez le bouton PROGRAMMES/ALLUME-ETEINT jusqu'à la position

Lessive

prélav. lavage.

 

Assouplis-

sant



  30 Lavage, rinçages et essorage délicat



Durée du cycle (minutes)

160

143

127

Description du cycle de lavage

Prélavage, lavage, rinçages, essorages intermédiaires et finaux

Lavage, rinçages, essorages intermédiaires et finaux

Lavage, rinçages, anti-froissement ou essorage délicat

Lavage, rinçages, anti-froissement et essorage délicat

Lavage, rinçages, anti-froissement ou vidange

Remarque

Pour la description de la fonction Anti-froissement voir page 19. Les données reportées dans le tableau sont à titre indicatif.

Programme spécial

Express 30' (programme 8 pour Synthétiques) spécialement conçu pour laver du linge peu sale en un rien de temps: il ne dure que 30 minutes et permet ainsi de faire des économies d'énergie et de temps. Choisissez le programme (8 à 30°C), vous pourrez laver ensemble des textiles différents (sauf laine et soie) en ne dépassant pas 3 kg de charge.

Nous vous conseillons d'utiliser des lessives liquides.

+ 42 hidden pages
