QuickSpecs
HP Z8 G4 Workstation
Overview
c05527763 — DA – 15956 — Worldwide — Version 34 — March 1, 2021
Page 1
HP Z8 G4 Workstation
Front view
1.
Integrated Front Handle
5.
Front I/O Entry: 4 USB 3.1 Gen1 (Left-most Port has
Charging Capability)
Front I/O Premium: 2x USB 3.1 Gen1, 2x USB 3.1 Gen2 TypeC™ (Left-most Type-A Port has Charging Capability)
Note: Premium Front IO is shown on Photography
2.
Dedicated 9.5mm Optical Drive Bay
3.
Power Button
4.
HDD Activity LED
6.
Media Card Reader
7.
1 Headset
QuickSpecs
HP Z8 G4 Workstation
Overview
c05527763 — DA – 15956 — Worldwide — Version 34 — March 1, 2021
Page 2
Internal view
8.
24 DIMM Slots for DDR4 ECC Memory
12.
• Slot 1: PCIe Gen3 x4 – Transforms to PCIe Gen3 x8
when 2nd CPU is installed
• Slot 2: PCIe Gen3 x16
• Slot 3: PCIe Gen3 x16 – Available ONLY when 2
nd
processor is installed
• Slot 4: PCIe Gen3 x16
• Slot 5: PCIe Gen3 x4
• Slot 6: PCIe Gen3 x16 - Available ONLY when 2
nd
processor is installed
• Slot 7: PCIe Gen3 x4
9.
2 External 5.25” Bays and Slimline Optical
10.
4 Internal 3.5” Bays
11.
2 Intel® Xeon® Processors (Skylake SP) family
13.
2 sSATA, 8 SATA (AHCI) Ports
14.
3 USB 2.0 Internal Ports, 1 USB 3.0 Gen1 Internal Port
QuickSpecs
HP Z8 G4 Workstation
Overview
c05527763 — DA – 15956 — Worldwide — Version 34 — March 1, 2021
Page 3
Rear view
15.
Choice of 1125W or 1450W, 90% Efficient Power Supplies
16.
Rear I/O:
Rear Power Button
6 USB 3.1 Gen1
1 Serial
PS/2 keyboard and mouse
2 RJ-45 to integrated Gigabit LAN
1 Audio Line-In (can be retasked as microphone)
1 Audio Line-Out
17.
Optional: 2 10GbE LAN ports
QuickSpecs
HP Z8 G4 Workstation
Overview
c05527763 — DA – 15956 — Worldwide — Version 34 — March 1, 2021
Page 4
Overview
Form Factor
Tower
Operating Systems
Preinstalled:
• Windows 10 Pro for Workstations
1
• Ubuntu 20.04 LTS
2
• HP Linux-ready (minimal OS ready for customer OS installation)
• Red Hat® Enterprise Linux® Desktop Workstation (Paper license with 1-year support; no
preinstalled OS)
Supported:
• Red Hat® Enterprise Linux® Workstation 6, 7, 8
3
• SUSE Linux® Enterprise Desktop 12, 15
3
• Ubuntu 16.04, 18.04, 20.04 LTS
3
1
Not all features are available in all editions or versions of Windows. Systems may require upgraded
and/or separately purchased hardware, drivers, software or BIOS update to take full advantage of
Windows functionality. Windows 10 is automatically updated, which is always enabled. ISP fees may
apply and additional requirements may apply over time for updates. See http://www.windows.com.
2
Not all features are available in all editions or versions of Ubuntu. Systems may require upgraded
and/or separately purchased hardware, drivers, software or BIOS to take full advantage of Ubuntu
functionality. Ubuntu may be automatically updated. ISP fees may apply, and additional requirements
may apply over time for updates.
3
Notes: For detailed Linux® OS/hardware support information, see:
http://www.hp.com/support/linux_hardware_matrix
Note: In accordance with Microsoft’s support policy, HP does not support the Windows® 7 operating
system on products configured with Intel® 7th Generation and forward processors.
Available Processors
Name
Cores
Clock
Speed
(GHz)
Cache
(MB)
Memory
Speed
(MT/s)
Hyper-
Threading
Intel® Turbo
Boost
Technology1
Supports
Intel®
DCPMM®
Technology2
TDP
(W)
Intel® Xeon® Platinum 8280
processor
28
2.7 GHz
38.5
2933
YES
3.3, 4.0
YES
205
Intel® Xeon® Platinum 8260L
processor
24
2.4 GHz
35.75
2933
YES
3.1, 3.9
YES
165
Intel® Xeon® Platinum 8260
processor
24
2.4 GHz
35.75
2933
YES
3.1, 3.9
YES
165
Intel® Xeon® Gold 6258R
processor
28
2.7 GHz
38.50
2933
YES
4.0, 3.4
YES
205
Intel® Xeon® Gold 6254
processor
18
3.1 GHz
24.75
2933
YES
3.9, 4.0
YES
200
Intel® Xeon® Gold 6252
processor
24
2.1 GHz
35.75
2933
YES
2.8, 3.7
YES
150
Intel® Xeon® Gold 6248R
processor
24
3.0 GHz
35.75
2933
YES
4.0, 3.6
YES
205
Intel® Xeon® Gold 6248
processor
20
2.5 GHz
27.5
2933
YES
3.2, 3.9
YES
150
Intel® Xeon® Gold 6246R
processor
16
3.4 GHz
35.75
2933
YES
4.1, 4.0
YES
205
QuickSpecs
HP Z8 G4 Workstation
Overview
c05527763 — DA – 15956 — Worldwide — Version 34 — March 1, 2021
Page 5
Intel® Xeon® Gold 6246
processor
12
3.3 GHz
24.75
2933
YES
3.7, 4.2
YES
165
Intel® Xeon® Gold 6244
processor
8
3.6 GHz
24.75
2933
YES
4.3, 4.4
YES
150
Intel® Xeon® Gold 6242R
processor
20
3.1 GHz
35.75
2933
YES
4.1, 3.8
YES
205
Intel® Xeon® Gold 6242
processor
16
2.8 GHz
22
2933
YES
3.5, 3.9
YES
150
Intel® Xeon® Gold 6240R
processor
24
2.4 GHz
35.75
2933
YES
4.0, 3.2
YES
165
Intel® Xeon® Gold 6240Y
processor
18
2.6 GHz
24.75
2933
YES
3.3, 3.9
YES
150
Intel® Xeon® Gold 6240
processor
18
2.6 GHz
24.75
2933
YES
3.3, 3.9
YES
150
Intel® Xeon® Gold 6238R
processor
28
2.2 GHz
38.5
2933
YES
4.0, 3.0
YES
165
Intel® Xeon® Gold 6238L
processor
22
2.1 GHz
30.25
2933
YES
3.7, 3.7
YES
150
Intel® Xeon® Gold 6238
processor
22
2.1 GHz
30.25
2933
YES
3.7, 2.8
YES
140
Intel® Xeon® Gold 6234
processor
8
3.3 GHz
24.75
2933
YES
4.0, 4.0
YES
130
Intel® Xeon® Gold 6230R
processor
26
2.1 GHz
35.75
2933
YES
4.0, 3.0
YES
150
Intel® Xeon® Gold 6230
processor
20
2.1 GHz
27.5
2933
YES
2.8, 3.9
YES
125
Intel® Xeon® Gold 6226R
processor
16
2.9 GHz
22
2933
YES
3.9, 3.6
YES
150
Intel® Xeon® Gold 6226
processor
12
2.7 GHz
19.25
2933
YES
3.5, 3.7
YES
125
Intel® Xeon® Gold 6154
processor
18
3.0 GHz
24.75
2666
YES
3.7, 3.7
NO
200
Intel® Xeon® Gold 6136
processor
12
3.0 GHz
24.75
2666
YES
3.6, 3.7
NO
150
Intel® Xeon® Gold 6132
processor
14
2.6 GHz
19.25
2666
YES
3.3, 3.7
NO
140
Intel® Xeon® Gold 6128
processor
6
3.4GHz
19.25
2666
YES
3.7, 3.7
NO
115
Intel® Xeon® Gold 5222
processor
4
3.8 GHz
16.5
2666
YES
3.9, 3.9
YES
105
Intel® Xeon® Gold 5220R
processor
24
2.2 GHz
35.75
2666
YES
4.0, 2.9
YES
150
Intel® Xeon® Gold 5220
processor
18
2.2 GHz
24.75
2666
YES
2.7, 3.9
YES
105
Intel® Xeon® Gold 5218R
processor
20
2.1 GHz
27.5
2666
YES
4.0, 2.9
YES
125
Intel® Xeon® Gold 5218
processor
16
2.3 GHz
22
2666
YES
2.8, 3.9
YES
125
Intel® Xeon® Gold 5215L
processor
10
2.5 GHz
13.75
2666
YES
3.0, 3.4
YES
85
Intel® Xeon® Gold 5215
processor
10
2.5 GHz
13.75
2666
YES
3.0, 3.4
YES
85
Intel® Xeon® Gold 5118
processor
12
2.3 GHz
16.50
2400
YES
2.7, 3.2
NO
105
Intel® Xeon® Gold 5115
processor
10
2.4 GHz
13.75
2400
YES
2.8, 3.2
NO
85
QuickSpecs
HP Z8 G4 Workstation
Overview
c05527763 — DA – 15956 — Worldwide — Version 34 — March 1, 2021
Page 6
Intel® Xeon® Silver 4216
processor
16
2.1 GHz
22
2400
YES
2.7, 3.2
NO
100
Intel® Xeon® Silver 4215R
processor
8
3.2 GHz
11
2400
YES
4.0, 3.6
YES
130
Intel® Xeon® Silver 4215
processor
8
2.5 GHz
11
2400
YES
3.0, 3.5
YES
85
Intel® Xeon® Silver 4214R
processor
12
2.4 GHz
16.5
2400
YES
3.0, 3.5
NO
100
Intel® Xeon® Silver 4214Y
processor
12
2.2 GHz
16.5
2400
YES
2.7, 3.2
NO
105
Intel® Xeon® Silver 4214
processor
12
2.2 GHz
16.5
2400
YES
2.7, 3.2
NO
85
Intel® Xeon® Silver 4210R
processor
10
2.4 GHz
13.75
2400
YES
2.9, 3.2
NO
100
Intel® Xeon® Silver 4210
processor
10
2.2 GHz
13.75
2400
YES
2.7, 3.2
NO
85
Intel® Xeon® Silver 4208
processor
8
2.1 GHz
11
2400
YES
2.5, 3.2
NO
85
Intel® Xeon® Silver 4114
processor
10
2.2 GHz
13.75
2400
YES
2.5, 3.0
NO
85
Intel® Xeon® Silver 4112
processor
4
2.6 GHz
8.25
2400
YES
2.9, 3.0
NO
85
Intel® Xeon® Silver 4108
processor
8
1.8 GHz
11.00
2400
YES
2.1, 3.0
NO
85
Intel® Xeon® Bronze 3206R
processor
8
1.9 GHz
11.00
2133
YES
N/A
NO
85
Intel® Xeon® Bronze 3204
processor
6
1.9 GHz
8.25
2133
YES
N/A
NO
85
Intel® Xeon® Bronze 3106
processor
8
1.7 GHz
11.00
2133
NO
N/A
NO
85
All Z8G4 Intel® Xeon® CPUs Feature Intel® vPro™ Technology.
1
The specifications shown in this column represent the following: (all core maximum turbo steps, one
core maximum turbo steps). Turbo boost stepping occurs in 100MHz increments. Processors that do
not have turbo functionality are denoted as N/A.
Available Processors
Disclaimers
When ordering two processors, the second processor must be the same as the first. Intel processor
numbers are not a measurement of higher performance. Processor numbers differentiate features
within each processor family, not across different processor families.
Multicore is designed to improve performance of certain software products. Not all customers or
software applications will necessarily benefit from use of this technology. Performance and clock
frequency will vary depending on application workload and your hardware and software
configurations. Intel’s numbering, branding and/or naming is not a measurement of higher
performance.
Color
Black
Convertibility
No
Expansion Slots (see
system board section for
more details)
Slot 1:
PCIe Gen3 x4 - Transforms to PCIe Gen3 x8 when 2nd CPU is installed
QuickSpecs
HP Z8 G4 Workstation
Overview
c05527763 — DA – 15956 — Worldwide — Version 34 — March 1, 2021
Page 7
Slot 2:
PCIe Gen3 x16
Slot 3:
PCIe Gen3 x16 - Available ONLY when 2nd processor is installed
Slot 4:
PCIe Gen3 x16
Slot 5:
PCIe Gen3 x4
Slot 6:
PCIe Gen3 x16 - Available ONLY when 2nd processor is installed
Slot 7:
PCIe Gen3 x4
Note: The PCIe x4 and PCIe x8 connectors above are open ended, allowing a PCIe x16 card to be seated
in the slot.
Expansion Bays (see
storage section for more
details)
4 internal 3.5" bays (All 4 include acoustic dampening rail assemblies)
2 external 5.25" bays (175mm depth limit)
1 dedicated 9.5mm slim optical disk drive bay
Front I/O
• Base: 4 USB 3.1 Gen1 Type-A connector. Left most connector has charging capability, 1
Combo Headset, 1 Optional Media Card Reader
• Premium: 2 USB 3.1 Gen1 Type-A connector. Left most connector has charging capability, 2
USB 3.1 Gen2 Type-C™ connector, 1 Combo Headset, 1 Optional Media Card Reader
Internal I/O
Internal Slot 1 CPU1: PCIe Gen3 x8 - always available
Internal Slot 2 CPU2: PCIe Gen3 x8 - available when 2nd CPU is installed
2 USB 2.0 ports available with a single 2x5 header
1 USB 2.0 port available with a 1x6 header
1 USB 3.1 Gen1 and 1 USB 2.0 port available with a 2x6 header
Notes: The 2x5 header can be converted to a standard (Type-A) USB 2.0 connector through the use of
one HP Internal USB Port Kit (EM165AA). This port kit uses one half of the 2x5 header.
The 1x6 header can be converted to a standard (Type-A) USB 2.0 connector through the use of one HP
Internal USB Port Kit (EM165AA). This port kit uses 5 pin positions on the header.
The 2x6 header can be converted to a standard (Type-A) USB 2.0 connector
through the use of one HP Internal USB Port Kit (EM165AA). This port kit
uses one half of the 2x6 header.
Rear I/O
6 USB 3.1 Gen1 (aka USB 3.0), 1 Serial, PS/2 keyboard and mouse, 2 RJ-45 to integrated Gigabit LAN, 1
Audio Line-In (can be retasked as microphone), 1 Audio Line-Out

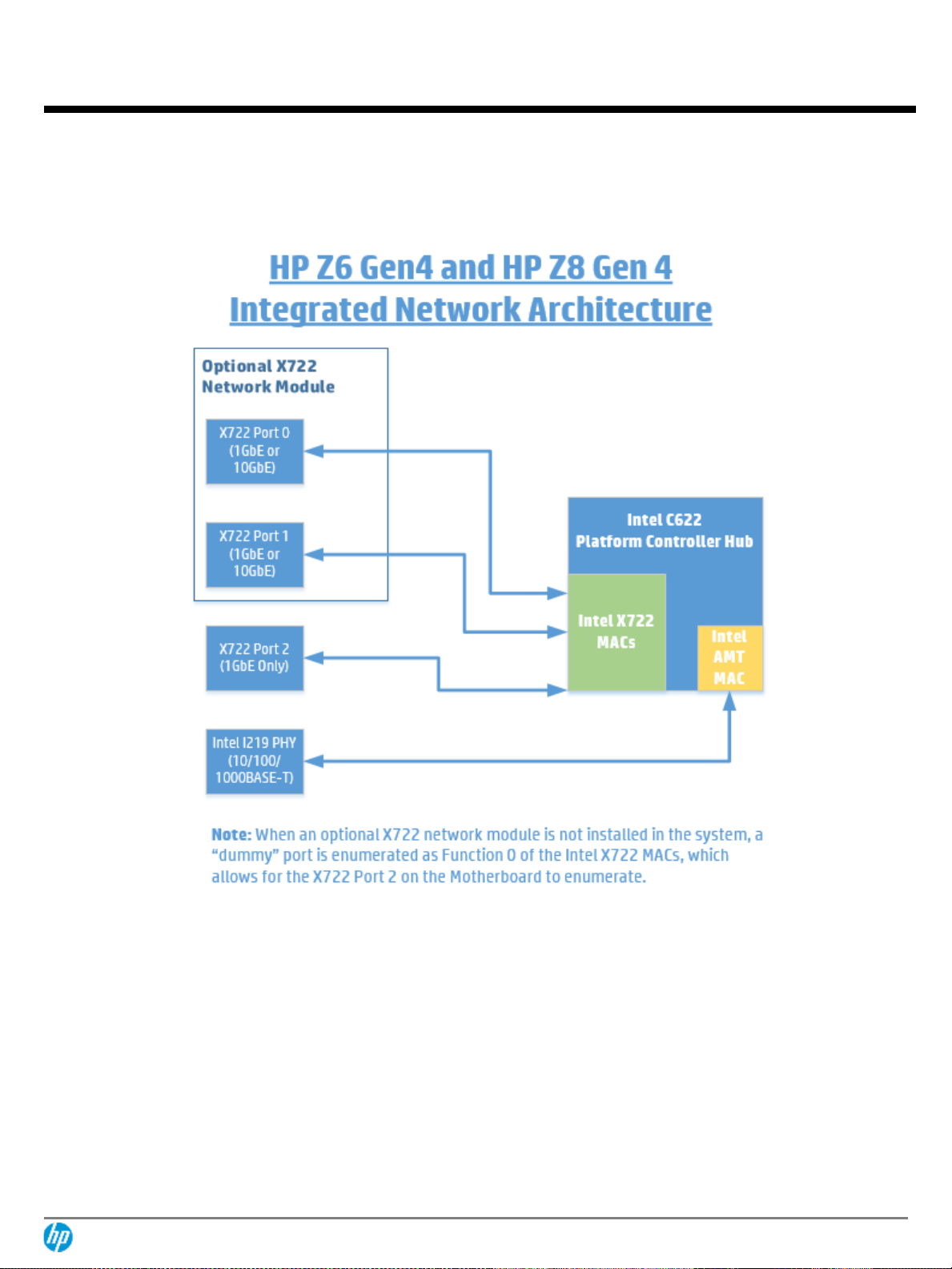

Optional: 2 RJ-45 to 10GbE LAN ports
Interfaces Supported
10 channel SATA 6.0 Gb/s interface
Factory integrated RAID available for SATA drives (RAID 0, 1 and 10)
Internal USB 3.1 Gen1, USB 3.1 Gen2, USB 2.0
On-board RAID Support
SATA RAID 0 Striped Array
QuickSpecs
HP Z8 G4 Workstation
Overview
c05527763 — DA – 15956 — Worldwide — Version 34 — March 1, 2021
Page 8
SATA RAID 1 Mirrored Array
SATA RAID 10 Striped/Mirrored
SATA RAID 5 Parity Array
Chassis Dimensions (H x
W x D)
Footprint:
H: 17.5" [444.5mm]
W: 8.5" [215.9mm]
D: 21.7" [551.2mm] (measured to the rear of service panel)
Maximum:
H: 17.5" [444.5mm]
W: 8.5" [215.9mm]
D: 21.85" [555.2mm] (measured to the embossment for the rear chassis fans)
Packaged Dimensions
H: 25" (636mm)
W: 13.1" (332mm)
D: 28.9" (734mm)
Palletization Profile
4 units x 3 layers = 12 units per pallet
1200x1000x2034mm (pallet included)
Rack Dimensions
5U
Weight
Exact weights depend upon configuration (System weight only).
Minimum: 22.4kg (49.4lbs.)
Typical: 23.7kg (52.2lbs.)
Maximum: 31.7kg (70lbs.)
Temperature
Operating: 5° to 35°C (40° to 95°F)
Non-operating: -40° to 60°C (-40° to 140°F)
Humidity
Operating: Operating: 10% to 85% RH, non-condensing, 35° C maximum wet bulb
Non-operating: 10% to 90%, non-condensing, 35° C maximum wet bulb
Maximum Altitude (nonpressurized)
Operating: 3,048m (10,000ft)
Non-operating: 9,144m (30,000ft)
Note: Above 1524 m (5,000 feet) altitude, maximum operating temperature is reduced by 1° C (1.8° F)
per 305 m (1,000 feet) elevation increase
Power Supply
Choice of:
1125W/100V/15A 90% Efficient wide-ranging, active Power Factor Correction
The power delivery system includes four 6+2-pin graphics power cables.
1450W/200V/10A 90% Efficient wide-ranging, active Power Factor Correction The power delivery
system includes four 6+2-pin graphics power cables.
- Available in limited regions
1450W/100V/20A 90% Efficient wide-ranging, active Power Factor Correction
The power delivery system includes four 6+2-pin graphics power cables.
1700W/200V/10A 90% Efficient wide-ranging, active Power Factor Correction
The power delivery system includes four 6+2-pin graphics power cables.
Notes: The 1125W/100V/15A (1450W at 200V Input Voltage) power supply can also supply 1275W of
output power when the input voltage is greater than 105V. If the input voltage is less than 105V, but
greater than 90V for any reason, the maximum power that can be drawn is 1125W. An uninterruptible
power supply (UPS) is highly recommended if 1275W output power is desired.
The 1125W Power Supply can also supply 1450W of output power when the input voltage is greater
than 200V under all conditions.
QuickSpecs
HP Z8 G4 Workstation
Overview
c05527763 — DA – 15956 — Worldwide — Version 34 — March 1, 2021
Page 9
The 1450W/100V/20A (1700W at 200V Input Voltage) power supply can also supply 1550W of output
power when the input voltage is greater than 105V. If the input voltage is less than 105V, but greater
than 90V for any reason, the maximum power that can be drawn is 1450W. An uninterruptible power
supply (UPS) is highly recommended if 1550W output power is desired.
The 1450W Power Supply can also supply 1700W of output power when the input voltage is greater
than 200V under all conditions.
The 1450W/100V/20A chassis is shipped with a 20A power cord and requires a 20A outlet in an
environment with 100V/110V. Site modification may be required. Check with your sales lead and click
here for the Site Prep Guide.
The Z8 G4 power supply efficiency reports can be found at these links:
1125W – Link:
https://plugloadsolutions.com/psu_reports/HP%20Inc_DPS1125BB%20A_1125W_ECOS%204825_Report.pdf
1450W – Link:
https://plugloadsolutions.com/psu_reports/HP%20Inc_DPS1450AB%20A_1450W_ECOS%204826_Report.pdf
Workstation ISV
Certifications
See the latest list of certifications at
http://www.hp.com/united-states/campaigns/workstations/partnerships.html
QuickSpecs
HP Z8 G4 Workstation
Supported Components
c05527763 — DA – 15956 — Worldwide — Version 34 — March 1, 2021
Page 10
Processors
Intel® Xeon® processor Scalable family
Factory
Configured
Option
Kit
Option Kit
Part
Number
Support
Notes
Intel® Xeon® Platinum 8280 processor
Y
Y
5YZ53AA
1
Intel® Xeon® Platinum 8260L processor
Y
Y
170R9AA
1
Intel® Xeon® Platinum 8260 processor
Y
Y
5YZ51AA
1
Intel® Xeon® Gold 6258R processor
Y
Y
9VA96AA
1
Intel® Xeon® Gold 6254 processor
Y
Y
5YZ50AA
1
Intel® Xeon® Gold 6252 processor
Y
Y
5YZ49AA
1
Intel® Xeon® Gold 6248R processor
Y
Y
9VA93AA
1
Intel® Xeon® Gold 6248 processor
Y
Y
5YZ48AA
1
Intel® Xeon® Gold 6246R processor
Y
Y
9VA92AA
1
Intel® Xeon® Gold 6246 processor
Y
Y
7UD05AA
1
Intel® Xeon® Gold 6244 processor
Y
Y
5YZ47AA
1
Intel® Xeon® Gold 6242R processor
Y
Y
9VA91AA
1
Intel® Xeon® Gold 6242 processor
Y
Y
5YZ46AA
1
Intel® Xeon® Gold 6240R processor
Y
Y
9VA90AA
1
Intel® Xeon® Gold 6240Y processor
Y
Y
5YZ45AA
1
Intel® Xeon® Gold 6240 processor
Y
Y
5YZ44AA
1
Intel® Xeon® Gold 6238L processor
Y
Y
170R8AA
1
Intel® Xeon® Gold 6238R processor
Y
Y
9VA89AA
1
Intel® Xeon® Gold 6238 processor
Y
Y
5YT01AA
1
Intel® Xeon® Gold 6234 processor
Y
Y
5YZ42AA
1
Intel® Xeon® Gold 6230R processor
Y
Y
9VA88AA
1
Intel® Xeon® Gold 6230 processor
Y
Y
5YZ41AA
1
Intel® Xeon® Gold 6226R processor
Y
Y
9VA86AA
1
Intel® Xeon® Gold 6226 processor
Y
Y
5YZ40AA
1
Intel® Xeon® Gold 6154 processor
Y
Y
1XM58AA
Intel® Xeon® Gold 6136 processor
Y
Y
1XM62AA
Intel® Xeon® Gold 6132 processor
Y
Y
1XM67AA
Intel® Xeon® Gold 6128 processor
Y
Y
1XM69AA
Intel® Xeon® Gold 5222 processor
Y
Y
5YZ39AA
1
Intel® Xeon® Gold 5220R processor
Y
Y
8BD06AA/AT
1
Intel® Xeon® Gold 5220 processor
Y
Y
5YZ38AA
1
Intel® Xeon® Gold 5218R processor
Y
Y
9VA84AA
1
Intel® Xeon® Gold 5218 processor
Y
Y
5YZ37AA
1
Intel® Xeon® Gold 5215L processor
Y
Y
170R7AA
1
Intel® Xeon® Gold 5215 processor
Y
Y
5YZ35AA
1
Intel® Xeon® Gold 5118 processor
Y
Y
1XM71AA
Intel® Xeon® Gold 5115 processor
Y
Y
Intel® Xeon® Gold 4216 processor
Y
Y
5YZ34AA
Intel® Xeon® Gold 4215R processor
Y
Y
9VA82AA
1
Intel® Xeon® Gold 4215 processor
Y
Y
5YZ33AA
1
QuickSpecs
HP Z8 G4 Workstation
Supported Components
c05527763 — DA – 15956 — Worldwide — Version 34 — March 1, 2021
Page 11
Intel® Xeon® Gold 4214R processor
Y
Y
8BD03AA/AT
1
Intel® Xeon® Gold 4214Y processor
Y
Y
5ZB34AA
Intel® Xeon® Gold 4214 processor
Y
Y
5YZ32AA
Intel® Xeon® Gold 4210R processor
Y
Y
8BD02AA
Intel® Xeon® Gold 4210 processor
Y
Y
5YZ31AA
Intel® Xeon® Gold 4208 processor
Y
Y
5YZ30AA
Intel® Xeon® Silver 4114 processor
Y
Y
1XM74AA
Intel® Xeon® Silver 4112 processor
Y
Y
1XM75AA
Intel® Xeon® Silver 4108 processor
Y
Y
1XM76AA
Intel® Xeon® Bronze 3206R processor
Y
Y
8BD00AA
Intel® Xeon® Bronze 3204 processor
Y
Y
5YZ29AA
Intel® Xeon® Bronze 3106 processor
Y
Y
1XM77AA
1
Options kits available for second processor upgrade.
Disclaimers: When ordering two processors, the second processor must be the same as the first. Intel
processor numbers are not a measurement of higher performance. Processor numbers differentiate
features within each processor family, not across different processor families.
Note 1: Intel® DCPMM® (Data Center Persistent Memory) Supported.
Monitors /
Displays
Factory
Configured
Option
Kit
Option
Kit Part
Number
Support
Notes
HP Z Display Z22n G2
Y
1JS05AA
HP Z Display Z23n G2
Y
1JS06AA
HP Z Display Z24i G2
Y
1JS08AA
HP Z Display Z24n G2
Y
1JS09AA
HP Z Display Z24nf G2
Y
1JS07AA
HP Z Display Z27n G2
Y
1JS10AA
HP Z Display Z27s (4K display)
Y
J3G07AA
Supported by all operating systems available from HP
Screen size measured diagonally
Storage / Hard Drives
SAS Hard Drives
SAS Hard Drives for HP Workstations
Factory
Configured
Option
Kit
Option
Kit Part
Number
Support
Notes
HP 300GB 15k SAS SFF
Y
Y
L5B74AA
NOTE: SAS controller add-in card required
QuickSpecs
HP Z8 G4 Workstation
Supported Components
c05527763 — DA – 15956 — Worldwide — Version 34 — March 1, 2021
Page 12
SATA Hard Drives
Factory
Configured
Option Kit
Option
Kit Part
Number
Support
Notes
SATA (Serial ATA) Hard Drives for HP Workstations
500GB SATA 7200RPM 6Gb/s 3.5” HDD
Y
Y
LQ036AA
500GB SATA 7200RPM 6Gb/s OPAL2 SFF 3.5” HDD
Y
Y
D8N29AA
1TB SATA 7200RPM 3.5” HDD
Y
Y
LQ037AA
1TB SATA 7200RPM Ent 3.5” HDD
Y
Y
W0R10AA
2TB SATA 7200RPM HDD CMR
Y
Y
QB576AA
2TB SATA 7200RPM HDD SMR
2TB 7200RPM SATA 3.5in Enterprise
Y
Y
2Z274AA
4TB SATA 7200RPM Ent 3.5” HDD
Y
Y
K4T76AA
6TB SATA 7200RPM Ent 3.5” HDD
Y
Y
3DH90AA
8TB 7200RPM SATA 3.5in Enterprise
Y
Y
2Z273AA
NOTES:
Up to (5) 3.5-inch 7200 rpm SATA drives: 500 GB, 1.0, 2.0, 4.0 TB; 20TB max total
QuickSpecs
HP Z8 G4 Workstation
Supported Components
c05527763 — DA – 15956 — Worldwide — Version 34 — March 1, 2021
Page 13
SATA Solid State Drives
Factory
Configured
Option Kit
Option
Kit Part
Number
Support
Notes
HP Solid State Drives (SSDs) for Workstations
HP 256GB SATA SSD
Y
Y
A3D26AA
HP 512GB SATA SSD
Y
Y
D8F30AA
HP 1TB SATA SSD
Y
Y
F3C96AA
HP 2TB SATA SSD
Y
Y
Y6P08AA
HP 256GB SATA SED OPAL2 SSD
Y
Y
G7U67AA
HP 512GB SATA SED OPAL2 SSD
Y
Y
N8T26AA
HP 240GB SATA Enterprise SSD
Y
Y
T3U07AA
HP 480GB SATA Enterprise SSD
Y
Y
T3U08AA
960GB 2.5in Enterprise SATA-3 SSD
Y
Y
1W6P8AA
1920GB 2.5in Enterprise SATA-3 SSD Y Y 1W6P9AA
PCIe Solid State Drives
Factory
Configured
Option
Kit
Option
Kit Part
Number
Support
Notes
PCIe SSDs for HP Workstations
HP Z Turbo Drive 256GB MLC Z8G4 SSD Module
N N EOL
5
HP Z Turbo Drive 512GB MLC Z8G4 SSD Module
N N EOL
5
HP Z Turbo Drive 1TB MLC Z8G4 SSD Module
N N EOL
5
HP Z Turbo Drive 256GB TLC Z8G4 SSD Module
Y
Y
1PD53AA
2
HP Z Turbo Drive 512GB TLC Z8G4 SSD Module
Y
Y
1PD54AA
2
HP Z Turbo Drive 1TB TLC Z8G4 SSD Module
Y
Y
1PD55AA
2
HP Z Turbo Drive 2TB TLC Z8G4 SSD Module
Y
Y
3KP41AA
2
HP Z Turbo Drive 256GB SED Z8G4 SSD Module
N N EOL
5
HP Z Turbo Drive 512GB SED Z8G4 SSD Module
N N EOL
5
HP Z Turbo Drive 256GB MLC Z8 G4 SSD Kit
N N EOL
5
HP Z Turbo Drive 512GB MLC Z8 G4 SSD Kit
N N EOL
5
HP Z Turbo Drive 1TB MLC Z8 G4 SSD Kit
N N EOL
5
HP Z Turbo Drive 256GB TLC Z8 G4 SSD Kit
Y
Y
1PD47AA
4
HP Z Turbo Drive 512GB TLC Z8 G4 SSD Kit
Y
Y
1PD48AA
4
HP Z Turbo Drive 1TB TLC Z8 G4 SSD Kit
Y
Y
1PD49AA
4
HP Z Turbo Drive 2TB TLC Z8 G4 SSD Kit
Y
Y
3KP40AA
4
HP Z Turbo Drive 256GB SED Z8 G4 SSD Kit
Y
Y
2SA33AA
4
HP Z Turbo Drive 512GB SED Z8 G4 SSD Kit
Y
Y
2SA35AA
4
HP Z Turbo Drive 1TB SED Z8 G4 SSD Kit
Y
Y
6YT75AA
4
HP Z Turbo Drive 1TB SED Z8 G4 SSD Module
Y
Y
6YT79AA
2
HP Z Turbo 2TB SED OPAL2 TLC M.2 Z8 SSD
Y
Y
2Y7W7AA
HP 1x256GB M.2 2280 PCIe NVMe TLC SSD Z8 G4 Kit
Y
Y
8PE71AA
3
HP 1x512GB M.2 2280 PCIe NVMe TLC SSD Z8 G4 Kit
Y
Y
8PE72AA
3
QuickSpecs
HP Z8 G4 Workstation
Supported Components
c05527763 — DA – 15956 — Worldwide — Version 34 — March 1, 2021
Page 14
HP 1x1TB M.2 2280 PCIe NVMe TLC SSD Z8 G4 Kit
Y
Y
8PE73AA
3
HP 256GB M.2 2280 PCIe NVMe TLC SSD Module
N
Y
8PE62AA
2
HP 512GB M.2 2280 PCIe NVMe TLC SSD Module
N
Y
8PE63AA
2
HP 1TB M.2 2280 PCIe NVMe TLC SSD Module
N
N
8PE64AA
2
HP 2TB PCIe NVME TLC M.2 Z8 G4 SSD
Y
Y
307N2AA
HP Z Turbo Drive Quad Pro
HP Z Turbo Drive Quad Pro 2x256GB PCIe TLC SSD
Y
Y
4YZ38AA
1
HP Z Turbo Drive Quad Pro 2x512GB PCIe TLC SSD
Y
Y
4YZ39AA
1
HP Z Turbo Drive Quad Pro 2x1TB PCIe TLC SSD
Y
Y
4YZ40AA
1
HP Z Turbo Drive Quad Pro 2x2TB PCIe TLC PCIe SSD
Y
Y
3KP42AA
HP Z Turbo Drive Quad Pro 256GB TLC SSD module
N
Y
4YZ35AA
2
HP Z Turbo Drive Quad Pro 512GB TLC SSD module
N
Y
4YZ36AA
2
HP Z Turbo Drive Quad Pro 1TB TLC SSD module
N
Y
4YZ37AA
2
HP Z Turbo Drive Dual Pro
HP Z Turbo Drive Dual Pro 256GB TLC SSD
Y
Y
4YF60AA
3
HP Z Turbo Drive Dual Pro 512GB TLC SSD
Y
Y
4YF61AA
3
HP Z Turbo Drive Dual Pro 1TB TLC SSD
Y
Y
4YF62AA
3
HP Z Turbo Drive Dual Pro 2TB TLC SSD
Y
Y
4YF63AA
3
HP 256GB M.2 2280 PCIe NVMe TLC SSD Dual Pro Kit
Y
Y
8PE74AA
3
HP 512GB M.2 2280 PCIe NVMe TLC SSD Dual Pro Kit
Y
Y
8PE75AA
3
HP 1TB M.2 2280 PCIe NVMe TLC SSD Dual Pro Kit
Y
Y
8PE76AA
3
Intel® 905p Series SSD (Opatane SSD)
Intel® Optane SSD 905p 280GB AiC**
Y
Y
2SC47AA
Intel® Optane SSD 905p 480GB AiC**
Y
Y
2SC48AA
Intel® Optane SSD 905p 380GB M.2 SSD Module
Y
Y
6LA66AA
NOTE 1: Dual M.2 SSD drive plus Quad Pro carrier
NOTE 2: M.2 SSD drive only designed to be installed in Quad Pro, Dual Pro or personality module
NOTE 3: Kit includes single M.2 SSD, dual pro carrier and heat sink
NOTE 4: Kit includes single M.2 SSD, dual personality module carrier and heat sink
NOTE 5: These M.2 SSD Kits and modules are End of Life and no longer available.
*For storage drives, GB = 1 billion bytes. TB = 1 trillion bytes. Actual formatted capacity is less. Up to
30GB of system disk is reserved for system recovery software
** PCIe card installed in standard PCIe x4 slot
Hard Drive Controllers
Factory
Configured
Option
Kit
Option
Kit Part
Number
Support
Notes
SAS Controller
MicroSemi SmartHBA2100-4i4e SAS Controller
Y
Y
1FV90AA
Graphics
Factory
Configured
Option
Kit
Option Kit
Part Number
Support
Notes
Supported
# of cards
QuickSpecs
HP Z8 G4 Workstation
Supported Components
c05527763 — DA – 15956 — Worldwide — Version 34 — March 1, 2021
Page 15
Graphics Cable Adapters
HP miniDP-to-DP Adapter
Y Y
HP miniDP-to-DP Adapter (2-pack)
Y N
HP miniDP-to-DP Adapter (4-pack)
Y N
HP miniDP-to-DP Adapter (8-pack)
Y N
HP DisplayPort to Dual Link DVI Adapter
Y
Y
NR078AA
HP DisplayPort to DVI-D Adapter
Y
Y
FH973AA
HP DisplayPort to DVI-D Adapter (2-pack)
Y N
HP DisplayPort to DVI-D Adapter (4-pack)
Y N
HP DisplayPort to DVI-D Adapter (6-pack)
Y N
HP DisplayPort to VGA Adapter
Y
Y
AS615AA
HP DisplayPort to HDMI Adapter
Y
Y
K2K92AA
NVIDIA SLI 2-slot Graphics Connector
Y
Y
2YY84AA
Entry 3D
NVIDIA® Quadro® P400 2GB Graphics
Y
Y
1ME43AA
2
NVIDIA® Quadro® P600 2GB Graphics
Y
Y
1ME42AA
2
NVIDIA® Quadro® P620 2GB Graphics
Y
Y
3ME25AA
2
AMD FirePro™ W2100 2GB Graphics
Y Y J3G91AA
2
Mid-range 3D
NVIDIA® Quadro® P1000 4GB Graphics
Y Y 1ME01AA
4
NVIDIA® Quadro® P2000 5GB Graphics
Y
Y
1ME41AA
4
NVIDIA® Quadro® P2200 5GB Graphics
Y
Y
6YT67AA
4
AMD Radeon™ Pro WX 3100 4GB Graphics
Y Y 2TF08AA
4
AMD Radeon™ Pro WX 3200 4GB Graphics
Y
Y
6YT68AA
4
AMD Radeon™ Pro WX 4100 4GB Graphics
Y Y Z0B15AA
4
High End 3D
NVIDIA® Quadro® P4000 8GB Graphics
Y Y 1ME40AA
3
NVIDIA® Quadro RTX 4000 8GB Graphics
Y Y 5JV89AA
3
AMD Radeon™ Pro W5500 8GB 4DP GFX
Y Y 9GC16AA/AT
3
AMD Radeon™ Pro W5700 8GB 5mDP+USBc GFX
Y
Y
9GC15AA/AT
2
AMD Radeon™ Pro WX 7100 8GB Graphics
Y
Y
Z0B14AA
3
Ultra High-End 3D
NVIDIA® Quadro® GP100 16GB Graphics
Y
Y
1ZE81AA
3
NVIDIA® Quadro® GV100 32GB Graphics
Y
Y
3ME26AA
3
NVIDIA® Quadro® P5000 16GB Graphics
Y
Y
Z0B13AA
3
NVIDIA® Quadro® P6000 24GB Graphics
Y
Y
Z0B12AA
3
NVIDIA® Quadro RTX 5000 16GB Graphics
Y Y 5JH81AA
2
NVIDIA® Quadro RTX 6000 24GB Graphics
Y Y 5JH80AA
2
NVIDIA® RTX A6000 48GB Graphics
Y N 1
NVIDIA® Quadro RTX 8000 48GB Graphics
Y Y 6NB51AA
2
AMD Radeon™ Pro WX 9100 16GB Graphics
Y Y 2TF01AA
1
NVIDIA® Quadro® Sync II
Y
Y
1WT20AA
QuickSpecs
HP Z8 G4 Workstation
Supported Components
c05527763 — DA – 15956 — Worldwide — Version 34 — March 1, 2021
Page 16
Memory
Factory
Configured
Option Kit
Option Kit
Part
Number
Support
Notes
DDR4-2666 ECC Registered DIMMs
8GB (1x8GB) DDR4-2666 ECC Reg Memory
Y
Y
1XD84AA
1, 3
16GB (1x16GB) DDR4-2666 ECC Reg Memory
N
Y
1XD85AA
1,3
32GB (1x32GB) DDR4-2666 ECC Reg Memory
N
Y
1XD86AA
1,3
64GB (1x64GB) DDR4-2666 ECC LR Memory
N
Y
1XD87AA
1,2,3
128GB (1x128GB) DDR4-2666 ECC 3DS LR Memory
N
Y
3GE82AA
1,2,3
8GB (1x8GB) DDR4-2933 ECC Reg Memory
Y
Y
5YZ56AA
1,3
16GB (1x16GB) DDR4-2933 ECC Reg Memory
N
Y
5YZ54AA
1,3
32GB (1x32GB) DDR4-2933 ECC Reg Memory
N
Y
5YZ55AA
1,3
64GB (1x64GB) DDR4-2399 ECC Reg Memory
N
Y
5YZ57AA
1,3
NOTES:
1. For details on the supported memory configurations on the HP Z8 G4 Workstation, please refer to the
System Technical Specifications - System Board section of this document.
2. Sleep (S3 state) support:
- Sleep (S3 state) may not be supported with non-HP validated and qualified 64 GB LR DIMMs.
- Sleep (S3 state) is not supported with 128 GB 3DS LR DIMMs
3. You cannot intermix different types of memory. The system will not work if LR DIMMs, RDIMMs or 3DS LR
DIMMs are intermixed.
DIMMs should be equally distributed across all six memory channels for optimal performance.
Each processor supports up to 6 channels of DDR4 memory. To realize full performance at least 1 DIMM must
be inserted into each channel.
The CPUs determine the speed at which the memory is clocked. If a 2400MT/s capable CPU is used in the
system, the maximum speed the memory will run at is 2400MT/s, regardless of the specified speed of the
memory.
MT/s = Million Transfers per second
The Z8 G4 is designed to work ONLY with DDR4 memory. The system will not work with DDR3 memory.
NOTE: Factory-configured CTO (xxxxxAV) and aftermarket AMO (xxxxxAA, xxxxxAT) HP memory part numbers
designated as “2666” may ship with "2933" or "3200" speed memory components. Similarly, HP Memory part
numbers designated as "2933" may ship with "3200" speed memory. This does not affect HP part number
availability, nor does it affect system performance or operation. All hardware configurations currently
supporting HP memory part numbers designated as “2666” or 2933 have been fully qualified to work with
fast speed memory and are fully supported by HP under standard support terms.
NVDIMM Memory
Factory
Configured
Option
Kit
Option Kit
Part Number
Support
Notes
Intel® Optane™ DC Persistent Memory (DCPMM)
128GB (1x128GB) DC Persistent Memory Module
Y
Y
9NH78AA
1
256GB (2x128GB) DC Persistent Memory Configuration
Y N
1
512GB (4x128GB) DC Persistent Memory Configuration
Y N
1,2
QuickSpecs
HP Z8 G4 Workstation
Supported Components
c05527763 — DA – 15956 — Worldwide — Version 34 — March 1, 2021
Page 17
NOTE 1: Supported only with Xeon 82xx, 62xx, 52xx and 4215/4215R processors.
a. Available as factory configured in Memory Mode or Storage Mode.
b. Systems configured with DCPMM memory will operate the memory subsystem at 2666 MT/s.
c. Operating System Support:
i. Windows 10 Pro for Workstations v1903 or later with all updates applied.
ii. Linux OS support may be found in the Linux Hardware Support Matrix.
d. Detailed setup, security and support information may be found in the Intel® Optane™ DC Persistent
Memory: Configuration and Setup on HP Z6 G4 and Z8 G4 Workstation white paper.
e. DCPMM solutions require additional DRAM memory to be included in the solution:
i. Systems configured with DCPMM in Memory Mode will include DRAM memory to be used as cache.
The amount of included DRAM memory is based on an 8:1 DCPMM to DRAM capacity ratio.
ii. Systems configured with DCPMM in Storage Mode will require DRAM System Memory to be
ordered separately.
iii. DCPMM Memory will report approximately 2% less than advertised capacity .
f. Total Memory (DCPMM + DRAM) per processor must be <= 1TB or 2TB per dual processor system.
i. Z8 G4 Note: “M” processors support a total memory limit < =2TB per processors or 4TB per dual
processor system
ii. When Configured in Memory Mode, additional DRAM does not count against maximum processor
memory.
g. Maximum number of DCPMM modules in a Z8G4 is 6 per processor.
h. Customer is responsible for additional required DRAM when adding DCPMM modules in Memory
Mode.
i. HP Z8G4 configured with some AMD Graphics are limited to 1TB of total DCPMM and DRAM memory.
See AMD Graphics specifications for details.
NOTE 2: Requires 2nd processor option.
Multimedia and Audio Devices
QuickSpecs
HP Z8 G4 Workstation
Supported Components
c05527763 — DA – 15956 — Worldwide — Version 34 — March 1, 2021
Page 18
Multimedia and Audio Devices
Factory
Configured
Option
Kit
Option
Kit Part
Number
Support
Notes
Integrated Realtek HD ALC221 Audio
Y N
Optical and Removable Storage
Factory
Configured
Option Kit
Option Kit Part
Number
Support
Notes
HP SlimTray Optical Drives
HP 9.5mm Slim Blu Ray Disc Writer
Y Y K3R65AA
1
HP 9.5mm Slim DVD ROM
Y Y K3R63AA
1
HP Half Height Optical Drives
HP HH DVD Writer (16X RW DVD-R)
N Y 4AR67AA
HP 9.5mm Slim DVD Writer*
Y Y K3R64AA
1
HP SD Card Reader
HP SD 4 Card Reader
Y Y Y0L99AA
HDD Frame/Carriers
HP DX175 Removable HDD Carrier
N Y 1ZX72AA
HP DX175 Removable HDD Frame/Carrier
N Y 1ZX71AA
NVMe Frame/Carrier
HP QX310 Removable NVMe Frame/Carrier
w/PCIe card
Y N
HP QX310 Removable Carrier only
N Y 8GQ91AA/AT
NOTE 1: Installing an optical drive into Z8 G4 requires a 5.25” external bay adapter.
*Actual speeds may vary. No support for DVD-RAM (DVD Writer). Does not permit copying of
commercially available DVD movies or other copyright protected materials. Intended for creation and
storage of your original material and other lawful uses. Double Layer discs can store more data than
single layer discs. However, double-layer discs burned with this drive may not be compatible with
many existing single-layer DVD drives and players.
With Blu-ray, certain disc, digital connection, compatibility and/or performance issues may arise, and
do not constitute defects in the product. Flawless playback on all systems is not guaranteed. In order
for some Blu-ray titles to play, they may require a DVI or HDMI digital connection and your display may
require HDCP support. HD-DVD movies cannot be played on this workstation.
Networking and Communications
Factory
Configured
Option
Kit
Option
Kit Part
Number
Support Notes
Intel® I350-T2 PCIe Dual Port Gigabit NIC
Y
Y
V4A91AA
Intel® I350-T4 PCIe 4-Port Gigabit NIC
N
Y
W8X25AA
Intel® Ethernet I210-T1 PCIe x1 Gb NIC
Y
Y
E0X95AA
Aquantia® NBASE-T 5GbE PCIe NIC
N
Y
1PM63AA
QuickSpecs
HP Z8 G4 Workstation
Supported Components
c05527763 — DA – 15956 — Worldwide — Version 34 — March 1, 2021
Page 19
Intel® X550-T2 10GbE Dual Port NIC
Y
Y
1QL46AA
Intel® X710-DA2 10GbE SFP+ Dual Port NIC
Y
Y
1QL47AA
1
HP 10GBASE-T Dual NIC Module Z6/8 G4
Y
Y
1QL49AA
Intel® 8265 802.11 a/b/g/n/ac&BT PCIe
N
Y
1QL48AA
Intel® 9260 802.11 a/b/g/n/ac&BT PCIe
N
Y
6SL33AA
US/CAN only
HP 10GbE SFP+ SR 1st Transceiver
Y
Y
C3N53AA
Intel® Wi-Fi 6 AX200 & BT PCIe
N
Y
7CE01AA
Allied Telesis AT-2914SX/LC-901 1GB LC Fiber NIC Y Y 1C7Q2AA
Note 1: Windows 7 is NOT supported
Racking and Physical Security
QuickSpecs
HP Z8 G4 Workstation
Supported Components
c05527763 — DA – 15956 — Worldwide — Version 34 — March 1, 2021
Page 20
Racking and Physical Security
Factory
Configured
Option
Kit
Option
Kit Part
Number
Support
Notes
Security Cable with Kensington Lock
N
Y
PC766A
HP Chassis Intrusion Sensor
Y N
1
HP Z640/Z840/Z8G4 Rail Rack Kit
N
Y
2FZ77AA
HP Z8 Rack Rail Upgrade Kit
N
Y
2FZ76AA
HP Keyed Cable Lock 10mm
N
Y
T1A62AA
NOTE 1: Standard on all systems
Input Devices
Factory
Configured
Option
Kit
Option Kit
Part
Number
Support
Notes
HP Wireless Business Slim Keyboard and Mouse
Y
Y
N3R88AA
Business Slim PS/2 Wired Keyboard
Y
Y
N3R86AA
USB Business Slim Wired Keyboard
Y
Y
N3R87AA
USB Premium Wired Keyboard
Y
Y
Z9N40AA
USB Wired SmartCard CCID Keyboard
Y
Y
E6D77AA
3Dconnexion CADMouse
N
Y
M5C35AA
3DConnexion 3 Button Wired CAD Mouse Pro
N
Y
2H5H5AA
HP Optical USB Mouse
Y
Y
QY777AA
HP PS/2 Mouse
Y
Y
QY775AA
USB 1000dpi Laser Mouse
Y
Y
QY778AA
HP USB Hardened Mouse
Y
Y
P1N77AA
Other Hardware
Factory
Configured
Option Kit
Option Kit
Part
Number
Support Notes
HP Internal USB Port Kit
N
Y
EM165AA
Note 1
HP eSATA PCI Cable Kit
Y
Y
GM110AA
Note 2
HP Optical Bay HDD Mounting Bracket
N
Y
NQ099AA
Note 3
HP 2.5in HDD/SSD 2-in-1 ODD Bay Bracket
N
Y
K4T74AA
Note 4
HP Z Premium Front I/O 2xUSB-A 2xUSB-C
N
Y
1XM32AA
HP Power Cord Kit
Y N
HP Workstation Mouse Pad
Y N
Japan Only
HP ENERGY STAR® Certified Configuration
Y N
NOTE 1: The HP Internal USB Port kit has a single USB 2.0 type A connector.
NOTE 2: No hot plug / hot swap supported with eSATA
NOTE 3: NQ099AA used to install greater than four 3.5" HDDs in the factory or when purchasing
Aftermarket Option (AMO) drives
QuickSpecs
HP Z8 G4 Workstation
Supported Components
c05527763 — DA – 15956 — Worldwide — Version 34 — March 1, 2021
Page 21
NOTE 4: K4T74AA used to install greater than four 2.5" HDD/SSDs in the factory or when purchasing
Aftermarket Option (AMO) drives
Software
Factory
Configured
Option Kit
Option Kit
Part
Number
Support Notes
Sobey Video Editing SW
Y
N China Only
SW HP RGS for Z
Y
N
HP Sure Start Gen3
Y
N
HP Performance Advisor
Y
N
QuickSpecs
HP Z8 G4 Workstation
Supported Components
c05527763 — DA – 15956 — Worldwide — Version 34 — March 1, 2021
Page 22
Operating Systems
Support Notes
Windows 10 Pro
Windows 7 Professional 64-bit
Ubuntu 20.04 LTS
HP Linux® Installer Kit
Note 2
Red Hat ® Enterprise Linux® (RHEL) Workstation - Paper License (1yr)
Note 1
NOTE 1: This second OS must be ordered with the HP Linux® Installer Kit as the first OS.
NOTE 2: For detailed Linux® OS/hardware support information, see:
http://www.hp.com/support/linux_hardware_matrix
For detailed Windows 7 OS hardware support information see
http://h10032.www1.hp.com/ctg/Manual/c05857891.pdf.
Intel Xeon® SP Processors: Platinum 8100, Gold 6100, Gold 5100, Silver 4100, & Bronze 3100 Family
support Microsoft Windows 7 Professional 64-bit.
QuickSpecs
HP Z8 G4 Workstation
System Technical Specifications
c05527763 — DA – 15956 — Worldwide — Version 34 — March 1, 2021
Page 23
System Board
System Board Form
Factor
Custom Form Factor, 16.34”x15.25” (415mm x 387.2mm)
Processor Socket
Dual FCLGA3647 (Socket P)
CPU Bus Speed
UPI: Up to 10.4GT/second, depending on processor
Chipset
Intel® C622 Chipset
Super I/O Controller
Nuvoton SIO15
Memory Expansion
Slots
24 slots (12 slots per CPU)
Memory Type
Supported
DDR4 R-DIMM (Registered), ECC: 8GB, 16GB, 32GB, and 64GB
DDR4 LR-DIMM (Load Reduced), ECC: 64GB
DDR4 3DS LR DIMM (3D Stacked, Load Reduced), ECC: 128GB*
*128GB DIMMs are supported but no longer supplied by HP
Memory Modes
NUMA (Non-Uniform Memory Architecture), Memory Node Interleave
Memory Speed
Supported
2133MT/s, 2400MT/s, and 2666MT/s, and 2933MT/s
Available Memory Configurations:
Single Processor
CPU 0
System
Top Slots
Bottom Slots
Perf
Memory
DIMM 1
DIMM 2
DIMM 3
DIMM 4
DIMM 5
DIMM 6
DIMM 7
DIMM 8
DIMM 9
DIMM
10
DIMM
11
DIMM
12
Rating
8GB
8GB
Fair
16GB
8GB
8GB
Good
24GB
8GB 8GB 8GB
Better
32GB
8GB 8GB
8GB 8GB
Better
16GB
16GB
Good
48GB
8GB 8GB 8GB
8GB 8GB 8GB
Best
16GB
16GB
16GB
Better
64GB
16GB
16GB
16GB
16GB
Better
32GB
32GB
Good
96GB
8GB
8GB
8GB
8GB
8GB
8GB
8GB
8GB
8GB
8GB
8GB
8GB
Best
16GB
16GB
16GB
16GB
16GB
16GB
Best
32GB
32GB
32GB
Better
128GB
32GB
32GB
32GB
32GB
Better
192GB
16GB
16GB
16GB
16GB
16GB
16GB
16GB
16GB
16GB
16GB
16GB
16GB
Best
32GB
32GB
32GB
32GB
32GB
32GB
Best
256GB
32GB
32GB
32GB
32GB
32GB
32GB
32GB
32GB
Better
64GB
64GB
64GB
64GB
Better
384GB
32GB
32GB
32GB
32GB
32GB
32GB
32GB
32GB
32GB
32GB
32GB
32GB
Best
64GB
64GB
64GB
64GB
64GB
64GB
Best
512GB
64GB
64GB
64GB
64GB
64GB
64GB
64GB
64GB
Better
768 GB
64GB
64GB
64GB
64GB
64GB
64GB
64GB
64GB
64GB
64GB
64GB
64GB
Best
128GB
128GB
128GB
128GB
128GB
128GB
Best
1.5 TB
128GB
128GB
128GB
128GB
128GB
128GB
128GB
128GB
128GB
128GB
128GB
128GB
Best
QuickSpecs
HP Z8 G4 Workstation
System Technical Specifications
c05527763 — DA – 15956 — Worldwide — Version 34 — March 1, 2021
Page 24
Dual Processor Configuration
CPU 0
CPU 1
Syste
m
Top Slots
Bottom Slots
Top Slots
Bottom Slots
Perf
Memor
y
DIMM 1 DIMM 2 DIMM 3 DIMM 4 DIMM 5 DIMM 6 DIMM 7 DIMM 8 DIMM 9 DIMM
10
DIMM
11
DIMM
12
DIMM 1 DIMM 2 DIMM 3 DIMM 4 DIMM 5 DIMM 6 DIMM 7 DIMM 8 DIMM 9 DIMM
10
DIMM
11
DIMM
12
Ratin
g
16GB
8GB 8GB
Fair
32GB
8GB
8GB
8GB
8GB
Good
48GB
8GB 8GB 8GB 8GB 8GB 8GB
Bette
r
64GB
8GB 8GB
8GB 8GB
8GB 8GB
8GB 8GB
Bette
r
16GB
16GB
16GB
16GB
Good
96GB
8GB 8GB 8GB
8GB 8GB 8GB
8GB 8GB 8GB
8GB 8GB 8GB
Best
16GB 16GB 16GB 16GB 16GB 16GB
Bette
r
128GB
16GB 16GB
16GB 16GB
16GB 16GB
16GB 16GB
Bette
r
32GB
32GB
32GB
32GB
Good
192GB
8GB
8GB
8GB
8GB
8GB
8GB
8GB
8GB
8GB
8GB
8GB
8GB
8GB
8GB
8GB
8GB
8GB
8GB
8GB
8GB
8GB
8GB
8GB
8GB
Best
16GB 16GB 16GB
16GB 16GB 16GB
16GB 16GB 16GB
16GB 16GB 16GB
Best
32GB 32GB 32GB 32GB 32GB 32GB
Bette
r
256GB
32GB 32GB
32GB 32GB
32GB 32GB
32GB 32GB
Bette
r
64GB
64GB
64GB
64GB
Good
384GB
16GB
16GB
16GB
16GB
16GB
16GB
16GB
16GB
16GB
16GB
16GB
16GB
16GB
16GB
16GB
16GB
16GB
16GB
16GB
16GB
16GB
16GB
16GB
16GB
Best
32GB 32GB 32GB
32GB 32GB 32GB
32GB 32GB 32GB
32GB 32GB 32GB
Best
64GB 64GB 64GB 64GB 64GB 64GB
Bette
r
512GB
64GB 64GB
64GB 64GB
64GB 64GB
64GB 64GB
Bette
r
768GB
32GB
32GB
32GB
32GB
32GB
32GB
32GB
32GB
32GB
32GB
32GB
32GB
32GB
32GB
32GB
32GB
32GB
32GB
32GB
32GB
32GB
32GB
32GB
32GB
Best
64GB 64GB 64GB
64GB 64GB 64GB
64GB 64GB 64GB
64GB 64GB 64GB
Best
128GB
128GB
128GB
128GB
128GB
128GB
Bette
r
1TB
64GB
64GB
64GB 64GB
64GB 64GB
64GB
64GB
64GB
64GB
64GB 64GB
64GB 64GB
64GB
64GB
Bette
r
1.5TB
64GB
64GB
64GB
64GB
64GB
64GB
64GB
64GB
64GB
64GB
64GB
64GB
64GB
64GB
64GB
64GB
64GB
64GB
64GB
64GB
64GB
64GB
64GB
64GB
Best
128GB
128GB
128GB
128GB
128GB
128GB
128GB
128GB
128GB
128GB
128GB
128GB
Best
QuickSpecs
HP Z8 G4 Workstation
System Technical Specifications
c05527763 — DA – 15956 — Worldwide — Version 34 — March 1, 2021
Page 25
3TB
128GB
128GB
128GB
128GB
128GB
128GB
128GB
128GB
128GB
128GB
128GB
128GB
128GB
128GB
128GB
128GB
128GB
128GB
128GB
128GB
128GB
128GB
128GB
128GB
Best
QuickSpecs
HP Z8 G4 Workstation
System Technical Specifications
c05527763 — DA – 15956 — Worldwide — Version 34 — March 1, 2021
Page 26
Memory Loading Order:
Load Order for Single and Dual Processor Configuration
Maximum Memory
Supports up to 1.5TB with two processors, using RDIMMs
Supports up to 3TB with two processors, using 3DS LR DIMMs*
*The 3TB configuration requires 128GB DIMMs which are no longer sold by HP
Memory Configuration
(Supported)
Only ECC Registered DIMMs are supported.
• RDIMM (Registered) ,LR DIMM (Load Reduction) and 3DS LR DIMM (3D Stacked Load
Reduced) memory cannot be mixed. All memory installed in the system must be either
RDIMM , LR DIMM or 3DS LR DIMM.
• Do not install memory modules into memory slots if corresponding processor is not installed.
• Dual processor configurations with memory modules installed for only one processor is not
supported.
Notes
For systems installed with Microsoft Windows 7 (Ultimate, Enterprise or Pro), the maximum accessible
system memory is 192GB
- Sleep (S3 state) support:
- Sleep (S3 state) may not be supported with non-HP validated and qualified 64 GB LR DIMMs.
- Sleep (S3 state) not supported with 128 GB LR DIMMs
QuickSpecs
HP Z8 G4 Workstation
System Technical Specifications
c05527763 — DA – 15956 — Worldwide — Version 34 — March 1, 2021
Page 27
NVDIMM Memory
Intel® Optane™ DC Persistent Memory is available factory configured in the following capacities:
• 128GB (1x128GB) Single Processor Configuration
• 256GB (2x128GB) Single Processor Configuration
• 512GB (4x128GB) Dual Processor Configuration
NOTES:
1. Supported only with Xeon 82xx, 62xx, 52xx and 4215 processors.
a. Available as factory configured in Memory Mode or Storage Mode.
i. Microsoft Configured Memory Mode will be available in CQ1 2020
b. Systems configured with DCPMM memory will operate the memory subsystem at 2666 MT/s.
c. Operating System Support:
i. Windows 10 Pro for Workstations v1903 or later with all updates applied.
ii. Linux OS support may be found in the Linux Hardware Support Matrix.
d. Detailed setup, security and support information may be found in the Intel® Optane™ DC
Persistent Memory: Configuration and Setup on HP Z6 G4 and Z8 G4 Workstation white paper.
e. DCPMM solutions require additional DRAM memory to be included in the solution:
i. Systems configured with DCPMM in Memory Mode will include DRAM memory to be used as
cache. The amount of included DRAM memory is based on an 8:1 DCPMM to DRAM capacity
ratio.
ii. Systems configured with DCPMM in Storage Mode will require DRAM System Memory to be
ordered separately.
iii. DCPMM Memory will report approximately 2% less than advertised capacity .
f. Total Memory (DCPMM + DRAM) per processor must be <= 1TB or 2TB per dual processor system.
i. Z8 G4 Note: “M” processors support a total memory limit < =2TB per processors or 4TB per
dual processor system
2. Option Kit available in CQ1-2020.
3. Requires 2
nd
processor option.
PCI Express Connectors
Two PCIe Gen3 x16 with latch
Two PCIe Gen3 x16 with latch.
• Enabled only with optional 2nd CPU is installed.
One PCIe Gen3 x8 open-ended connector.
• Enabled for One PCIe Gen2 x4 slot with 1 CPU
• Enabled for One PCIe Gen3 x8 with optional 2nd CPU installed
Two PCIe Gen3 x4 open-ended connectors
Supported Drive
Interfaces
SATA
2 sSATA @6Gb/s, supports RAID 0, 1.
8 SATA @6Gb/s, supports RAID 0, 1, 5, 10.
Factory integrated Intel® SATA RAID is Microsoft Windows only.
External SATA
(eSATA)*
Supported on all SATA and sSATA ports configurable with optional eSATA* AfterMarket Option cable kit)
* hot plug / hot swap not supported with eSATA
Factory Configured
RAID
SATA: RAID 0, 1, 10
Network Controller
Integrated Intel
I219LM
Memory Integrated 3KB receive buffer and 3KB transmit buffer
Data rates supported: 10/100/1000 Mb/s
Compliance IEEE 802.1as/1588, 802.1p, 802.1Q, 802.3, 802.3ab, 802.3az, 802.3i
802.3u, 802.3x, 802.3z
Up to 32 programmable filters
Bus architecture PCIe 1.0 x1 and SMBus
UEFI and PXE Boot ROM support
Network transfer rates:
10BASE-T (half-duplex) 10 Mb/s
10BASE-T (full-duplex) 20 Mb/s
100BASE-TX (half-duplex) 100 Mb/s
QuickSpecs
HP Z8 G4 Workstation
System Technical Specifications
c05527763 — DA – 15956 — Worldwide — Version 34 — March 1, 2021
Page 28
100BASE-TX (full-duplex) 200 Mb/s
1000BASE-T (full-duplex) 2000 Mb/s
Management capabilities: WOL (All Power States, including Max Power Savings),
auto MDI crossover, PXE, RSS, Advanced cable diagnostics, AMT 11.2x support,
vPro compliant
Integrated Intel X722
for 1GbE
Data rates supported: 1000 Mb/s
Compliance IEEE 802.1as/1588v2, 802.1p, 802.1Q, 802.3, 802.3ab, 802.3az,
802.3x
Up to 16 UDP/TCP programmable filters
Bus architecture: PCIe 3.0
UEFI and PXE Boot ROM support
Intel iWARP Support (RDMA)
Network transfer rates:
1000BASE-T (full-duplex) 2000 Mb/s
Management capabilities: WOL (Excluding Max Power Savings), auto MDI
crossover, PXE, Quad Hash filtering, RSS, Advanced cable diagnostics
Integrated Graphics
None
PCI-X Connectors
None
PCI Card Guide
Yes
Wake on LAN
Yes, both ports
Integrated Trusted
Platform Module
Trusted Platform Module (TPM) 2.0 (Infineon SLB 9670)
Common Criteria EAL4+ Certified
FIPS 140-2 Certified
TPM Certified products list:
https://trustedcomputinggroup.org/membership/certification/tpm-certified-products/
CG TPM Certified products list:
http://www.trustedcomputinggroup.org/certification/tpm-certified-products/
IEEE 1394 Connector(s)
Front
None
Rear
None
Internal
None
USB Connector(s)
Front
Front I/O Entry: 4 USB 3.1 Gen1 (Left-most Port has Charging Capability)
Front I/O Premium: 2x USB 3.1 Gen1, 2x USB 3.1 Gen2 Type-C™ (Left-most Port
has Charging Capability)
• Charging Ports provide 1.5 Amps @ 5 Volts
• Standard USB Type A Ports provide 900mA @ 5 Volts
• USB Type C Ports provide 3 Amps @ 5 Volts
Rear
6 USB 3.1 Gen1, Type A
Internal
1 USB 3.1 Gen1 available with a single 12-pin shrouded connector.This header
supports a USB Media Card reader.
1 USB 2.0 single-port header
1x USB 2.0 dual-port header
HD Integrated Audio
Realtek ALC221
Flash ROM
Yes
CPU Fan Header
Two headers for CPU fans
Memory Fan Header
Two headers
Chassis Fan Header
One Rear Chassis Fan Header
Front PCI Fan Header
One Front and one Aux Fan Header
QuickSpecs
HP Z8 G4 Workstation
System Technical Specifications
c05527763 — DA – 15956 — Worldwide — Version 34 — March 1, 2021
Page 29
Front User Interface
Header
Power Button; Power and HDD Activity LEDs; Power for USB Ports
Front Audio Header
FIO Headset/Mic and Speaker
CMOS Battery Holder Lithium
Yes
Power Supply Headers
Yes
Clear Password Jumper
Yes
Serial Port
Yes, on rear panel
Parallel Port
No
Keyboard/Mouse
Yes
Power Supply
1125W/1275W*/1450W*
90% Efficient, Custom PSU
(Wide-Ranging, Active PFC)
1450W/1550W*/1700W*
90% Efficient, Custom PSU
(Wide-Ranging, Active PFC)
Operating Voltage
Range
90-269 VAC
90-269 VAC
Rated Voltage Range
100-127 VAC
200-240 VAC
118 VAC
100-127VAC
200-240VAC
118 VAC
Rated Line
Frequency
50-60 Hz
400 Hz
50-60Hz
400 Hz
Operating Line
Frequency Range
47-66 Hz
393-407 Hz
47-66Hz
393-407 Hz
Rated Input Current
12A @ 100-127 VAC
10A @ 200-240 VAC
12A @ 118 VAC
16A @ 100-127 VAC
10A @ 200-240 VAC
16A@ 118VAC
Heat Dissipation
(Configuration and
software dependent)
Typical = 2419 btu/hr
Max 1 = 4626 btu/hr
Max 2 = 5001 btu/hr
Max 3 = 5560 btu/hr
Typical = 2970 btu/hr
Max 1 = 5962 btu/hr
Max 2 = 6080 btu/hr
Max 3 = 6519 btu/hr
Power Supply Fan
(2) Blowers variable speed
(2) Blowers variable speed
ENERGY STAR
Qualified
(Configuration
dependent)
Yes
Yes
Power Supply
Efficiency
90% Efficient
The Z8 G4 1125W (1450W at 200V Input Voltage)
power supply efficiency report can be found at this
link:
https://plugloadsolutions.com/psu_reports/HP%20I
nc_DPS-
1125BB%20A_1125W_ECOS%204825_Report.pdf
90% Efficient
The Z8 G4 1450W (1700W at 200V Input Voltage
)
power supply efficiency report can be found at
this link:
https://plugloadsolutions.com/psu_reports/HP%20Inc
_DPS-
1450AB%20A_1450W_ECOS%204826_Report.pdf
FEMP Standby Power
Compliant @115V
(<2W in S5 - Power
Off)
Yes
Yes
EuP Compliant @
230V
(<0.5 W in S5 - Power
Off)
Yes
Yes
CECP Compliant @
220V
Yes; Configuration dependent
Yes; Configuration dependent
QuickSpecs
HP Z8 G4 Workstation
System Technical Specifications
c05527763 — DA – 15956 — Worldwide — Version 34 — March 1, 2021
Page 30
(<4W in S3 - Suspend
to RAM)
Power Consumption
in sleep mode
(as defined by
ENERGY STAR) Suspend to RAM (S3)
(Instantly Available
PC)
TBD
TBD
Built-in Self-Test
LED
Yes
Yes
Surge Tolerant Full
Ranging Power
Supply
(withstands power
surges up to 2000V)
Yes
Yes
*Input voltage restriction
NOTE: The 1125W (1450W at 200V Input Voltage) power supply can also supply 1275W of output power
when the input voltage is greater than 105V. If the input voltage is less than 105V, but greater than 90V for
any reason, the maximum power that can be drawn is 1125W. An uninterruptible power supply (UPS) is
highly recommended if 1275W output power is desired.
The 1125W Power Supply can also supply 1450W of output power when the input voltage is greater than
180V under all conditions.
NOTE: The 1450W (1700W at 200V Input Voltage) power supply can also supply 1550W of output power
when the input voltage is greater than 105V. If the input voltage is less than 105V, but greater than 90V for
any reason, the maximum power that can be drawn is 1450W. An uninterruptible power supply (UPS) is
highly recommended if 1550W output power is desired.
The 1450W Power Supply can also supply 1700W of output power when the input voltage is greater than
180V under all conditions.
AUX IN (audio)
No
Clear CMOS Button
Yes
Multibay Header
No
Integrated Gigabit
Ethernet
Yes, dual port.
Access Panel
Solenoid Lock
Header
No
Access Panel
Intrusion Sensor
Header
Yes, as part of Front UI (Control Panel) cable header
Memory Fan
Connector
Yes, blind-mate
QuickSpecs
HP Z8 G4 Workstation
System Technical Specifications
c05527763 — DA – 15956 — Worldwide — Version 34 — March 1, 2021
Page 31
System Configurations
Example Z8 G4
Configuration #1
Processor Info
1x Intel Xeon 3106 1.7 2133 8C 85 1stCPU
Memory Info
16GB DDR4-2666 (2x8GB) RegRAM CPU1
Graphics Info
1x NVIDIA Quadro P600
Disks/Optical/Floppy
1x 256GB SATA 1st SSD /1x DVD-ROM SATA
Power Supply
1125W 90% Custom PSU
Other
-
Energy Consumption
115 VAC
230 VAC
100 VAC
LAN Enabled
LAN Disabled
LAN Enabled
LAN Disabled
LAN Enabled
LAN Enabled
Windows Idle (S0)
75.4
74.8
75.7
Windows Busy Typ(S0)
122.04
111.9
113.6
Windows Busy Max (S0)
125.4
124.6
126.6
Sleep (S3)
6.22
6.26
6.26
6.26
6.33
6.25
Off (S5)
4.23
4.19
4.19
4.16
4.13
4.12
Zero Power Mode (ErP)
0.31
0.40
0.29
Heat Dissipation
(Btu/hr)
115 VAC
230 VAC
100 VAC
LAN Enabled
LAN Disabled
LAN Enabled
LAN Enabled
LAN Disabled
LAN Enabled
Windows Idle (S0)
257.5
255.3
258.5
Windows Busy Typ(S0)
416.4
382.0
387.6
Windows Busy Max (S0)
427.9
425.1
432.0
Sleep (S3)
21.2
21.1
21.3
21.2
21.6
21.3
Off (S5)
14.4
14.0
14.3
14.2
14.1
14.1
Zero Power Mode (ErP)
1.04
1.38
0.99
Example Z8 G4
Configuration #2
Processor Info
2x Intel Xeon 4114 2.2 2400 10C 85 1stCPU
Memory Info
48GB DDR4-2666 (6x8GB) RegRAM CPU2
Graphics Info
1x NVIDIA Quadro P2000
Disks/Optical/Floppy
4x 512GB SATA 1st SSD /1x DVD-ROM SATA
Power Supply
1125W 90% Custom PSU
Other
-
Energy Consumption
115 VAC
230 VAC
100 VAC
LAN Enabled
LAN Disabled
LAN Enabled
LAN Disabled
LAN Enabled
LAN Enabled
Windows Idle (S0)
105.2
103.3
102.5
Windows Busy Typ(S0)
257.4
246.3
260.9
Windows Busy Max (S0)
296.2
289.9
297.6
Sleep (S3)
8.46
8.35
8.57
8.45
8.58
8.57
Off (S5)
4.15
4.14
4.31
4.19
4.21
4.15
Zero Power Mode (ErP)
0.31
0.40
0.29
Heat Dissipation
(Btu/hr)
115 VAC
230 VAC
100 VAC
LAN Enabled
LAN Disabled
LAN Enabled
LAN Enabled
LAN Disabled
LAN Enabled
Windows Idle (S0)
359.0
352.5
349.8
Windows Busy Typ(S0)
878.3
840.5
890.2
QuickSpecs
HP Z8 G4 Workstation
System Technical Specifications
c05527763 — DA – 15956 — Worldwide — Version 34 — March 1, 2021
Page 32
Windows Busy Max (S0)
1010.7
989.1
1015.6
Sleep (S3)
28.8
28.5
29.2
28.8
29.2
29.2
Off (S5)
14.1
14.1
14.6
14.2
14.3
14.1
Zero Power Mode (ErP)
1.04
1.36
0.99
Example Z8 G4
Configuration #3
Processor Info
2x Intel Xeon 5120 2.2 2400 14C 105 1stCPU
Memory Info
96GB DDR4-2666 (12x8GB) RegRAM CPU2
Graphics Info
1x NVIDIA Quadro P4000
Disks/Optical/Floppy
4x 2TB 7200 RPM SATA 1st HDD /1x DVDRW SATA
Power Supply
1125W 90% Custom PSU
Other
-
Energy Consumption
115 VAC
230 VAC
100 VAC
LAN Enabled
LAN Disabled
LAN Enabled
LAN Disabled
LAN Enabled
LAN Enabled
Windows Idle (S0)
125.7
123.6
125.8
Windows Busy Typ(S0)
340.7
332.9
343.7
Windows Busy Max (S0)
417.1
411.8
426.1
Sleep (S3)
9.28
9.10
9.24
9.15
9.49
9.26
Off (S5)
4.15
4.14
4.32
4.10
4.21
4.16
Zero Power Mode (ErP)
0.31
0.41
0.30
Heat Dissipation
(Btu/hr)
115 VAC
230 VAC
100 VAC
LAN Enabled
LAN Disabled
LAN Enabled
LAN Enabled
LAN Disabled
LAN Enabled
Windows Idle (S0)
429.3
422.0
429.5
Windows Busy Typ(S0)
1162.7
1136.0
1172.9
Windows Busy Max (S0)
1423.4
1405.3
1453.9
Sleep (S3)
31.6
31.0
31.5
31.2
32.4
31.5
Off (S5)
14.1
14.1
14.7
13.9
14.3
14.2
Zero Power Mode (ErP)
1.05
1.38
1.03
Example Z8 G4
Configuration #4
Processor Info
2x Intel Xeon 6152 2.1 2666 22C 140 CPU
Memory Info
192GB DDR4-2666 (24x8GB) RegRAM CPU
Graphics Info
2x NVIDIA Quadro P5000
Disks/Optical/Floppy
6x 1 TB SATA SSD /1x DVDRW SATA
Power Supply
1125W 90% Custom PSU
Other
-
Energy Consumption
115 VAC
230 VAC
100 VAC
LAN Enabled
LAN Disabled
LAN Enabled
LAN Disabled
LAN Enabled
LAN Enabled
Windows Idle (S0)
161.1
157.8
160.4
Windows Busy Typ(S0)
524.7
500.7
496.1
Windows Busy Max (S0)
644.2
624.2
652.7
Sleep (S3)
10.3
10.2
10.2
10.1
10.1
10.1
Off (S5)
4.14
4.01
4.19
4.19
4.16
4.15
Zero Power Mode (ErP)
0.31
0.41
0.31
QuickSpecs
HP Z8 G4 Workstation
System Technical Specifications
c05527763 — DA – 15956 — Worldwide — Version 34 — March 1, 2021
Page 33
Heat Dissipation
(Btu/hr)
115 VAC
230 VAC
100 VAC
LAN Enabled
LAN Disabled
LAN Enabled
LAN Enabled
LAN Disabled
LAN Enabled
Windows Idle (S0)
549.6
538.4
547.5
Windows Busy Typ(S0)
1790.4
1708.6
1692.6
Windows Busy Max (S0)
2198.1
2129.8
2227.0
Sleep (S3)
35.3
34.9
35.0
34.7
34.5
134.3
Off (S5)
14.1
13.6
14.3
14.3
14.2
14.1
Zero Power Mode (ErP)
1.06
1.39
1.04
Example Z8 G4
Configuration #5
Processor Info
2x Intel Xeon 6136 3.0 2666 12C 150 CPU
Memory Info
768GB DDR4-2666 (24x32GB) RegRAM CPU2
Graphics Info
2x NVIDIA Quadro P6000
Disks/Optical/Floppy
HP Z Turbo Quad Pro 4x1TB + 4x 1 TB SATA SSD /1x DVDRW SATA
Power Supply
1450W 90% Custom PSU
Other
-
Energy Consumption
115 VAC
230 VAC
100 VAC
LAN Enabled
LAN Disabled
LAN Enabled
LAN Disabled
LAN Enabled
LAN Enabled
Windows Idle (S0)
194.0
192.6
197.0
Windows Busy Typ(S0)
640.2
622.0
647.0
Windows Busy Max (S0)
788.0
761.3
800.6
Sleep (S3)
21.1
19.7
19.7
18.8
21.3
19.8
Off (S5)
4.24
4.22
4.53
4.51
4.24
4.21
Heat Dissipation
(Btu/hr)
115 VAC
230 VAC
100 VAC
LAN Enabled
LAN Disabled
LAN Enabled
LAN Enabled
LAN Disabled
LAN Enabled
Windows Idle (S0)
662.1
657.2
672.3
Windows Busy Typ(S0)
2184.3
2122.3
2207.7
Windows Busy Max (S0)
2688.8
2597.8
2731.7
Sleep (S3)
72.3
67.5
67.5
64.1
72.6
67.7
Off (S5)
14.4
14.4
15.4
15.4
14.4
14.3
NOTE: Power consumption measurements do not take advantage of the Intel Turbo Boost Technology. As a result, power consumption
measurements may be higher.
DECLARED NOISE EMISSIONS
System Configuration
(Entry level)
Processor Info
2-Intel® Xeon® Gold 6134 processor 3.2GHz 8C CPU
Memory Info
96GB (12x8GB) DDR4-2666 ECC Memory RDIMMs
Graphics Info
1-NVIDIA® Quadro® P400 2GB
Disks/Optical
1-500GB SATA 7200RPM 3.5” HDD / 1-HP 9.5mm Slim Blu Ray Disc Writer
Power Supply
1125 W
Declared Noise Emissions
(in accordance with ISO
7779 and ISO 9296)
Sound Power
(LWAd, bels)
Deskside Sound Pressure
(LpAm, decibels)
Idle
3.6 19
QuickSpecs
HP Z8 G4 Workstation
System Technical Specifications
c05527763 — DA – 15956 — Worldwide — Version 34 — March 1, 2021
Page 34
Hard drive Operating
(random reads)
3.7 19
System Configuration
(Mid-range)
Processor Info
2-Intel® Xeon® Gold 6146 processor 3.2GHz 12C CPU
Memory Info
384GB (24x16GB) DDR4-2666 ECC Memory RDIMMs
Graphics Info
1-NVIDIA® Quadro® P6000 24GB
Disks/Optical
2-300GB 12Gb/s 15KRPM SAS HDD / 1-HP 9.5mm Slim Blu Ray Disc Writer
Power Supply
1450 W
Declared Noise Emissions
(in accordance with ISO
7779 and ISO 9296)
Sound Power
(LWAd, bels)
Deskside Sound Pressure
(LpAm, decibels)
Idle
3.6 20
Hard drive Operating
(random reads)
3.8 23
ENVIRONMENTAL DATA
Environmental
Requirements
Temperature
Operating: 5° to 35° C (40° to 95° F)
Non-operating: -40° to 60° C (-40° to 140° F)
Humidity
Operating: 8% to 85% RH, non-condensing
Non-operating: 8% to 90% RH, non-condensing
Maximum Altitude
Operating: 3,048 m (10,000 feet)
Non-operating: 9,144 m (30,000 feet)
Dynamic (new)
Shock
Operating: ½-sine: 40g, 2-3ms (~62 cm/sec)
Non-operating: ½-sine: 160 cm/s, 2-3ms (~105g)
square: 422 cm/s, 20g
NOTE: Values represent individual shock events and do not indicate
repetitive shock
events.
Vibration
Operating random: 0.5g (rms), 5-300 Hz, up to 0.0025g²/Hz
Non-operating random: 2.0g (rms), 5-500 Hz, up to 0.0150 g²/Hz
NOTE: Values do not indicate continuous vibration.
Cooling
Above 1524 m (5,000 feet) altitude, the maximum operating temperature is
reduced by 1° C (1.8° F) for every 305 m (1,000 feet) increase in elevation, up
to 3048 m (10,000 feet)
Physical Security and Serviceability
Access Panel
Tool-less
Includes system board and memory information.
Optical Drive
Tool-less, 2nd Optical Drive requires a 5.25” bay carrier
Hard Drives
Tool-less
Expansion Cards
Tool-less
Processor Socket
Tool-less
QuickSpecs
HP Z8 G4 Workstation
System Technical Specifications
c05527763 — DA – 15956 — Worldwide — Version 34 — March 1, 2021
Page 35
Blue User Touch Points
Yes, on tool-free internal chassis components.
Color-coordinated Cables
and Connectors
Yes
Memory
Tool-less
System Board
Tool-less, retained by Front Card Guide and Top Memory Fan Holder
Dual Color Power and HD
LED on Front of Computer
No
Configuration Record SW
Yes
Over-Temp Warning on
Screen
Yes. Temp-Caution and Temp Critical are provide via the WMI interface. Tools like the HPPA can display
the Critical and Caution state.
Restore CD/DVD Set
Restores the computer to its original factory shipping image; can be obtained via HP Support.
Dual Function Front
Power Switch
Yes, causes a fail-safe power off when held for 4 seconds
Padlock Support
No
Cable Lock Support
Yes, Kensington Cable Lock (optional): Prevents entire system theft only. 3mm x 7mm slot at rear of
system
Universal Chassis Clamp
Lock Support
No
Solenoid Lock and Hood
Sensor
No
Rear Port Control Cover
No
Serial, USB,
Audio, Network,
Enable/Disable Port
Control
Yes. USB disablement zones are Front, Rear and Internal
Removable Media
Write/Boot Control
No
Power-On Password
Yes, prevents an unauthorized person from booting up the workstation
Setup Password
Yes, prevents an unauthorized person from changing the workstation configuration
3.3V Aux Power LED on
System PCA
No
NIC LEDs (integrated)
(Green & Amber)
Yes
CPUs and Heatsinks
A torx driver (T30) is needed to remove the heatsink(s). CPU attached to heatsink via tool-less clip
Power Supply Diagnostic
LED
Yes
Front Power Button
Yes
Front Power LED
Yes, white (normal), red (fault)
Front Hard Drive Activity
LED
Yes, white
Front ODD Activity LED
Yes
Internal Speaker
Yes
System/Emergency ROM
Flash Recovery
Recovers corrupted system BIOS
Cooling Solutions
Air cooled forced convection
Power Supply Fans
2x – Dual Side Inlet Blowers
CPU Heatsink Fan
80mm x 25mm 5-wire PWM for each CPU
Chassis Fan
Rear: 120mm x 38mm
Front: 120mm x 25mm (PCIe zone)
QuickSpecs
HP Z8 G4 Workstation
System Technical Specifications
c05527763 — DA – 15956 — Worldwide — Version 34 — March 1, 2021
Page 36
Memory Heatsink Fan
Front 92mm x 25mm (upper memory bank); Front 80mm x 25mm (lower memory bank)
HP PC Hardware
Diagnostics UEFI
HP PC Hardware Diagnostics (UEFI) enables hardware level testing outside the operating system on
many components. The diagnostics can be invoked by pressing ESC then F2 upon the PC reboot, and is
available as a download from HP Support.
Access Panel Key Lock
Yes, prevents removal of the access panel and all internal components including optical and storage
devices
ACPI-Ready Hardware
Advanced Configuration and Power Management Interface (ACPI).
• Allows the system to wake from a low-power mode.
• Controls system power consumption, making it possible to place individual cards and
peripherals in a low-power or powered-off state without affecting other elements of the
system
Trusted Platform Module
Chip
Yes
Integrated Chassis
Handles
Yes, front and rear
Power Supply
Tool-less, rear access direct-connect (blind-mate)
PCIe Card Retention
Yes, tool-less
Rear (all)
Middle (full-height cards)
Front (full-length cards with extenders)
Flash ROM
Yes.SPI ROM
Diagnostic Power Switch
LED on board
Yes
Clear Password Jumper
Yes
Clear CMOS Button
Yes
CMOS Battery Holder
Yes
DIMM Connectors
Yes
BIOS
BIOS 32-bit Services
Standard BIOS 32-bit Service Directory Proposal v0.4
BIOS supports 32 and 64-bit Operating systems.
PCI 3.0 Support
Full BIOS support for PCI Express through industry standard interfaces.
ATAPI
ATAPI Removable Media Device BIOS Specification Version 1.0.
BBS
BIOS Boot Specification v1.01.
WMI Support
WMI is Microsoft's implementation of Web-Based Enterprise Management (WBEM) for Windows. WMI is
fully compliant with the Distributed Management Task Force (DMTF) Common Information Model (CIM)
and WBEM specifications.
BIOS Boot Spec 1.01+
Provides more control over how and from what devices the workstation will boot.
BIOS Power On
Users can define a specific date and time for the system to power on.
ROM Based Computer
Setup Utility (F10)
Review and customize system configuration settings controlled by the BIOS.
System/Emergency ROM
Flash Recovery with
Video
Recovers system BIOS in corrupted Flash ROM.
Replicated Setup
Saves BIOS settings to USB flash device in human readable file (HpSetup.txt).
BiosConfigurationUtility.exe utility can then replicate these settings on machines being deployed
without entering Computer Configuration Utility (F10 Setup).
SMBIOS
System Management BIOS 2.8, for system management information.
QuickSpecs
HP Z8 G4 Workstation
System Technical Specifications
c05527763 — DA – 15956 — Worldwide — Version 34 — March 1, 2021
Page 37
Boot Control
Disables the ability to boot from removable media on supported devices.
Memory Change Alert
Alerts management console if memory is removed or changed.
Thermal Alert
Monitors the temperature state within the chassis. Three modes:
• NORMAL - normal temperature ranges.
• ALERTED - excessive temperatures are detected. Raises a flag so action can be taken to avoid
shutdown or provide for a smoother system shutdown.
• SHUTDOWN - excessive temperatures are encountered. Automatically shuts down the computer
without warning before hardware component damage occurs.
Remote ROM Flash
Provides secure, fail-safe ROM image management from a central network console.
ACPI (Advanced
Configuration and Power
Management Interface)
Allows the system to enter and resume from low power modes (sleep states).
Enables an operating system to control system power consumption based on the dynamic workload.
Makes it possible to place individual cards and peripherals in a low-power or powered-off state without
affecting other elements of the system.
Supports ACPI 5.0 for full compatibility with 64-bit operating systems.
Ownership Tag
A user-defined string stored in non-volatile memory that is displayed in the BIOS splash screen.
Remote Wakeup/Remote
Shutdown
System administrators can power on, restart, and power off a client computer from a remote location.
Instantly Available PC
(Suspend to RAM - ACPI
sleep state S3)
Allows for very low power consumption with quick resume time.
Remote System
Installation via F12 (PXE
2.1) (Remote Boot from
Server)
Allows a new or existing system to boot over the network and download software, including the
operating system.
ROM revision levels
Reports the system BIOS revision level in Computer Configuration Utility (F10 Setup). Version is
available through an industry standard interface (SMBIOS and WMI) so that management SW
applications can use and report this information.
System board revision
level
Allows management SW to read revision level of the system board.
Revision level is digitally encoded into the HW and cannot be modified.
Start-up Diagnostics
(Power-on Self-Test)
Assesses system health at boot time with selectable levels of testing.
Auto Setup when new
hardware installed
System automatically detects addition of new hardware.
Keyboard-less Operation
The system can be booted without a keyboard.
Localized ROM Setup
Common BIOS image supports System Configuration Utility (F10 Setup) menus in 14 languages with
local keyboard mappings.
Asset Tag
The user or MIS to set a unique tag string in non-volatile memory.
Per-slot Control
Allows I/O slot parameters (option ROM enable/disable, bus latency) to be configured individually.
Adaptive Cooling
Control parameters are set according to detected hardware configuration for optimal acoustics.
Pre-boot Diagnostics
(Pre-video) critical errors are reported via beeps and blinks on the power LED.
Industry Standard
Specification Support
Industry Standard
Revision Supported by the BIOS
UEFI Specification
Revision
2.6
ACPI
Advanced Configuration and Power Management Interface, Version 5.0
ATA (IDE)
AT Attachment 6 with Packet Interface (ATA/ATAPI-6), Revision 3b
CD Boot
"El Torito" Bootable CD-ROM Format Specification Version 1.0
EDD
- Enhanced Disk Drive Specification Version 1.1
- BIOS Enhanced Disk Drive Specification Version 3.0
EHCI
Enhanced Host Controller Interface for Universal Serial Bus, Revision 1.0
PCI
PCI Local Bus Specification, Revision 2.3
QuickSpecs
HP Z8 G4 Workstation
System Technical Specifications
c05527763 — DA – 15956 — Worldwide — Version 34 — March 1, 2021
Page 38
PCI Power Management Specification, Revision 1.1
PCI Firmware Specification, Revision 3.0, Draft .7
PCI Express
PCI Express Base Specification, Revision 2.0
PCI Express Base Specification, Revision 3.0
PMM
POST Memory Manager Specification, Version 1.01
SATA
Serial ATA Specification, Revision 1.0a
Serial ATA 3 Gb/s: Serial ATA Specification, Revision 2.5
Serial ATA 6 Gb/s: Serial ATA Specification, Revision 3.0
SPD
PC SDRAM Serial Presence Detect (SPD) Specification, Revision 1.2B
TPM
Trusted Computing Group TPM Specification Version 2.0 (Infineon SLB 9670).
Common Criteria EAL4+ certified.
FIPS 140-2 Certification
TCG TPM Certified products list:
http://www.trustedcomputinggroup.org/certification/tpm-certified-products/
UHCI
Universal Host Controller Interface Design Guide, Revision 1.1
USB
Universal Serial Bus Revision 1.1 Specification
Universal Serial Bus Revision 2.0 Specification
Universal Serial Bus Revision 3.1 Specification
SMBIOS
System Management BIOS Reference Specification, Version 2.8
External BIOS simulator found at: http://csrsml.itcs.hp.com/
Social and Environmental Responsibility
Eco-Label Certifications &
Declarations
This product has received or is in the process of being certified to the following approvals and may be
labeled with one or more of these marks:
• ENERGY STAR® (energy-saving features available on selected configurations-Windows only)
• US Federal Energy Management Program (FEMP)
• China Energy Conservation Program
• The ECO declaration (TED)
The Z8 G4 is registered EPEAT® Gold in the US and Canada. EPEAT® registration varies by country. See
http://www.epeat.net for registration status by country. Search keyword generator on HP’s 3rd party
option store for solar generator accessories at http://www.hp.com/go/options
Batteries
The battery in this product complies with EU Directive 2006/66/EC
Battery size: CR2032 (coin cell)
Battery mass: 3g
Battery type: Lithium Metal
The battery in this product does not contain:
• Mercury greater than 5ppm by weight
• Cadmium greater than 10ppm by weight
• Lead greater than 40ppm by weight
Restricted Material Usage
This product meets the material restrictions specified in HP's General Specification for the Environment.
HP Inc. is committed to compliance with all applicable environmental laws and regulations, including
the European Union Restriction of Hazardous Substances (RoHS) Directive. HP's goal is to exceed
compliance obligations by meeting the requirements of the RoHS Directive on a worldwide basis
.
QuickSpecs
HP Z8 G4 Workstation
System Technical Specifications
c05527763 — DA – 15956 — Worldwide — Version 34 — March 1, 2021
Page 39
Low Halogen Statement
This product is low-halogen except for power cords, external cables and peripherals. The following
customer-configurable internal components may not be low-halogen: 3 ½" SAS HDDs. Service parts
obtained after purchase may not be low-halogen.
End-of-Life Management
and Recycling
HP Inc. offers end-of-life HP product return and recycling programs in many geographic areas. To
recycle your product, please go to: http://www.hp.com/recycle or contact your nearest HP sales office.
Products returned to HP will be recycled, recovered or disposed of in a responsible manner. This
product is greater than 90% recyclable by weight when properly disposed of at end of life.
HP Inc. Corporate
Environmental
Information
For more information about HP's commitment to the environment:
Sustainability Report
Eco-label certifications:
http://www.hp.com/hpinfo/globalcitizenship/environment/productdesign/ecolabels.html
ISO 14001 certificate:
http://www.hp.com/hpinfo/globalcitizenship/environment/operations/envmanagement.html
Additional Information
• This HP product is designed to comply with the Waste Electrical and Electronic Equipment
(WEEE) Directive – 2002/96/EC. Product Disassembly Instructions
• Plastic parts weighing over 25 grams used in the product are marked per ISO 11469 and
ISO1043.
• This product is >90% recycle-able when properly disposed of at end of life.
Packaging
HP Workstation product packaging meets the HP's General Specification for the Environment
• Does not contain restricted substances listed in HP Standard 011-1 General Specification for
the Environment
• Does not contain ozone-depleting substances (ODS)
• Does not contain heavy metals (lead, mercury, cadmium or hexavalent chromium) in excess of
100 ppm sum total for all heavy metals listed
• Maximizes the use of post-consumer recycled content materials in packaging materials
• All packaging material is recyclable
• All packaging material is designed for ease of disassembly
• Reduced size and weight of packages to improve transportation fuel efficiency
• Plastic packaging materials are marked according to ISO 11469 and DIN 6120 standards
formatting
• A multi-unit eco packaging option is available to institutional customers that uses less
packaging material or has a lower volume footprint than conventional single-unit packaging.
Please contact your sales representative for additional details.
Packaging Materials
Internal
Cushions and plastic bags made of low density polyethylene (LDPE).
External
Outer carton, accessories carton, and insert made of corrugated paper board.
Manageability
Industry Standard
Specifications
This product meets the following industry standard specifications for manageability functionality:
• DASH 1.1 (via Intel® LAN on motherboard)
Intel® Active Management
Technology (AMT)
Intel® Active Management Technology (AMT) 11.2x
An advanced set of remote management features and functionality providing IT administrators the
latest and most effective tools to remotely discover, heal, and protect networked client systems
regardless of the system's health or power state. AMT 11.2x includes the following advanced
management functions:
• Power Management (on, off, reset, graceful shutdown, sleep and hibernate)
o Support in Max Power Savings (Shutdown and Hibernate Modes)
QuickSpecs
HP Z8 G4 Workstation
System Technical Specifications
c05527763 — DA – 15956 — Worldwide — Version 34 — March 1, 2021
Page 40
• Hardware Inventory (includes BIOS and firmware revisions)
• Hardware Alerting
• Agent Presence
• System Defense Filters
• Serial Over LAN (SOL)
•
USB Redirect (Media Redirection)
• ME Wake-on-LAN (WOL)
, even with Maximum Power Savings Enabled
• DASH 1.1 compliance
• IPv6 Support
• Fast Call for Help - a client inside or outside the firewall may initiate a call for help via BIOS
screen, periodic connections, or alert triggered connection
• Remote Scheduled Maintenance - pre-schedule when the system connects to the IT or service
provider console for maintenance.
• Remote Alerts - automatically alert IT or service provider if issues arise
• Access Monitor - Provides oversight into Intel® AMT actions to support security requirements
• PC Alarm Clock
• Microsoft NAP Support
• Host Base set-up and configuration
• Management Engine (ME) firmware roll back
• Local Time Sync to UTC
• Remote Memory Dump Command – Creates memory dump for debug
Intel® vPro™ Technology
The HP Z8 G4 Workstation supports Intel® vPro™ technology when configured as outlined below:
• Intel® Xeon® processor E5-1600 v5 or E5-2600 v5 product family featuring Intel® vPro™
Technology
• Intel® C622 chipset
•
Intel® I219LM GbE LAN
Remote Manageability
Software Solutions
The HP Z8 G4 Workstation is supported on the following remote manageability software consoles:
• LANDesk Management Suite (HP recommended solution)
• Microsoft System Center Configuration Manager
• HP Client Automation Enterprise
For questions or support for manageability needs, please visit
http://www.hp.com/go/clientmanagement
System Software
Manager
For questions or support for SSM, please visit: http://www.hp.com/go/ssm
Service, Support, and
Warranty
On-site Warranty and Service (Note 1): Three-years, limited warranty and service offering delivers onsite, next business-day (Note 2) service for parts and labor and includes free telephone support (Note 3)
8am - 5pm. Global coverage (Note 2) ensures that any product purchased in one country and
transferred to another, non-restricted country will remain fully covered under the original warranty and
service offering. 24/7 operation will not void the HP warranty.
NOTE 1: Terms and conditions may vary by country. Certain restrictions and exclusions apply.
NOTE 2: On-site service may be provided pursuant to a service contract between HP and an authorized
HP third-party provider, and is not available in certain countries. Global service response times are
based on commercially reasonable best effort and may vary by country.
NOTE 3: Technical telephone support applies only to HP-configured, HP and HP-qualified, third-party
hardware and software. Toll-free calling and 24x7 support service may not be available in some
countries.
HP Care Pack Services are extended service contracts that go beyond the standard limited warranties.
Service starts from date of hardware purchase. To choose the right level of service for your HP product,
QuickSpecs
HP Z8 G4 Workstation
System Technical Specifications
c05527763 — DA – 15956 — Worldwide — Version 34 — March 1, 2021
Page 41
use the HP Care Pack Services Lookup Tool at:
http://www.hp.com/go/lookuptool.
Additional HP Care
Pack Services information by product is available at:
http://www.hp.com/hps/carepack.
Service levels
and response times for HP Care Packs may vary depending on your geographic location. HP services are
governed by the applicable HP terms and conditions of service provided or indicated to Customer at the
time of purchase. Customer may have additional statutory rights according to applicable local laws, and
such rights are not in any way affected by the HP terms and conditions of service or the HP Limited
Warranty provided with your HP Product.
Product Change
Notification
• Program to proactively communicate Product Change Notifications (PCNs) and Customer
Advisories by email to customers, based on a user-defined profile.
• PCNs provide advance notification of hardware and software changes to be implemented in the
factory providing time to plan for transition.
• Customer Advisories provide concise, effective problem resolution, greatly reducing the need
to call technical support.
QuickSpecs
HP Z8 G4 Workstation
Stable & Consistent Offerings
c05527763 — DA – 15956 — Worldwide — Version 34 — March 1, 2021
Page 42
Global Series SKUs
As part of its commitment to hardware, software, and solution innovation, HP is proud to introduce
this breakthrough platform configuration stability to HP Workstation customers. HP Stable &
Consistent Offerings are built on the foundation of a carefully chosen set of hardware and software
designed and tested to work with all HP Z Workstation platforms through their end of life. These
components and their corresponding HP Workstation platform compatibility are outlined in this
section.
Stable & Consistent
Offerings
HP Stable & Consistent Offerings are available worldwide to all HP Workstation customers-no
special programs, no additional cost-no kidding. Simply select your hardware and software
components when you customize your HP Workstation and be assured that you'll be able to buy that
same configuration throughout the lifecycle of the product.
Processors
Product #
Offering
2DL76AV
Intel® Xeon® Gold 6128 processor
2DL77AV / 1XM69AA
Intel® Xeon® Gold 6128 2nd processor
2DL66AV
Intel® Xeon® Silver 4114 processor
2DL67AV / 1XM74AA
Intel® Xeon® Silver 4114 2nd processor
2DL62AV
Intel® Xeon® Silver 4108 processor
2DL63AV / 1XM76AA
Intel® Xeon® Silver 4108 2nd processor
Hard Drives
Product #
Offering
Z5J60AV / LQ037AA
1TB SATA 7200 RPM 3.5” HDD
Graphics
Product #
Offering
2TF08AA
AMD Radeon™ Pro WX 3100 4GB Graphics
Memory
Product #
Offering
TBD
TBD
Optical and Removable
Storage
Product #
Offering
TBD
TBD
QuickSpecs
HP Z8 G4 Workstation
Technical Specifications - Processors
c05527763 — DA – 15956 — Worldwide — Version 34 — March 1, 2021
Page 43
Intel® Xeon® Platinum 8280 processor
Intel® Xeon® Platinum 8260L processor
Intel® Xeon® Platinum 8260 processor
Intel® Xeon® Gold 6258R processor
Intel® Xeon® Gold 6254 processor
Intel® Xeon® Gold 6252 processor
Intel® Xeon® Gold 6248R processor
Intel® Xeon® Gold 6248 processor
Intel® Xeon® Gold 6246R processor
Intel® Xeon® Gold 6246 processor
Intel® Xeon® Gold 6244 processor
Intel® Xeon® Gold 6242R processor
Intel® Xeon® Gold 6242 processor
Intel® Xeon® Gold 6240R processor
Intel® Xeon® Gold 6240Y processor
Intel® Xeon® Gold 6240 processor
Intel® Xeon® Gold 6238L processor
Intel® Xeon® Gold 6238R processor
Intel® Xeon® Gold 6238 processor
Intel® Xeon® Gold 6234 processor
Intel® Xeon® Gold 6230R processor
Intel® Xeon® Gold 6230 processor
Intel® Xeon® Gold 6226R processor
Intel® Xeon® Gold 6226 processor
Intel® Xeon® Gold 6154 processor
Intel® Xeon® Gold 6136 processor
Intel® Xeon® Gold 6132 processor
Intel® Xeon® Gold 6128 processor
Intel® Xeon® Gold 5222 processor
Intel® Xeon® Gold 5220R processor
Intel® Xeon® Gold 5220 processor
Intel® Xeon® Gold 5218R processor
Intel® Xeon® Gold 5218 processor
Intel® Xeon® Gold 5215L processor
Intel® Xeon® Gold 5215 processor
Intel® Xeon® Gold 5118 processor
Intel® Xeon® Gold 5115 processor
Intel® Xeon® Gold 4216 processor
Intel® Xeon® Gold 4215R processor
Intel® Xeon® Gold 4215 processor
Intel® Xeon® Gold 4214R processor
Intel® Xeon® Gold 4214Y processor
Intel® Xeon® Gold 4214 processor
Intel® Xeon® Gold 4210R processor
QuickSpecs
HP Z8 G4 Workstation
Technical Specifications - Processors
c05527763 — DA – 15956 — Worldwide — Version 34 — March 1, 2021
Page 44
Intel® Xeon® Gold 4210 processor
Intel® Xeon® Gold 4208 processor
Intel® Xeon® Silver 4114 processor
Intel® Xeon® Silver 4112 processor
Intel® Xeon® Silver 4108 processor
Intel® Xeon® Bronze 3206R processor
Intel® Xeon® Bronze 3204 processor
Intel® Xeon® Bronze 3106 processor
QuickSpecs
HP Z8 G4 Workstation
Technical Specifications - Hard Drives
c05527763 — DA – 15956 — Worldwide — Version 34 — March 1, 2021
Page 45
STORAGE/HARD DRIVES
HP SAS (Serial Attached
SCSI) Hard Drives for HP
Workstations
HP 300GB SAS 15K SFF
HDD
Capacity
300GB
Height
5.9 in; 15 cm
Width
Media Diameter
3.5 in; 8.9 cm
Interface
12Gb/s SAS
Synchronous Transfer
Rate (Maximum)
Up to 1200 MB/s (SAS single port)*
Buffer
128MB
Seek Time (typical reads,
includes controller
overhead, including
settling)
Average
2.0ms *
Rotational Speed
15K rpm
Operating Temperature
41° to 131° F (5° to 55° C)
*Actual performance may vary.
QuickSpecs
HP Z8 G4 Workstation
Technical Specifications - Hard Drives
c05527763 — DA – 15956 — Worldwide — Version 34 — March 1, 2021
Page 46
SATA (Serial ATA) Hard
Drives for HP
Workstations
500GB SATA 7200 rpm
6Gb/s 3.5" HDD
Capacity
500GB
Height
1 in; 2.54 cm
Width
Media Diameter
3.5 in; 8.9 cm
Physical Size
4 in; 10.17 cm
Interface
Serial ATA (6.0Gb/s), NCQ enabled
Synchronous Transfer
Rate (Maximum)
Up to 600MB/s*
Buffer
16MB
Seek Time (typical reads,
includes controller
overhead, including
settling)
Single Track
2 ms*
Average
11 ms*
Full Stroke
21 ms*
Rotational Speed
7,200 rpm
Logical Blocks
976,773,168
Operating Temperature
41° to 131° F (5° to 55° C)
*Actual performance may vary.
1TB SATA 7200 rpm
6Gb/s 3.5" HDD
Capacity
1TB
Height
1 in; 2.54 cm
Width
Media Diameter
3.5 in; 8.9 cm
Physical Size
4 in; 10.17 cm
Interface
Serial ATA (6.0Gb/s), NCQ enabled
Synchronous Transfer
Rate (Maximum)
Up to 600 MB/s*
Buffer
64MB
Cache
Adaptive
Seek Time (typical reads,
includes controller
overhead, including
settling)
Single Track
2 ms*
Average
11 ms*
Full Stroke
21 ms*
Rotational Speed
7,200 rpm
Operating Temperature
41° to 131° F (5° to 55° C)
*Actual performance may vary.
2.0TB SATA 7200 rpm
6Gb/s 3.5" HDD CMR
Capacity
2.0TB
Height
1 in; 2.54 cm
Width
Media Diameter
3.5 in; 8.9 cm
Physical Size
4 in; 10.17 cm
Interface
Serial ATA (6.0 Gb/s), NCQ Enabled
Synchronous Transfer
Rate (Maximum)
Up to 600 MB/s*
Buffer
64MB
Seek Time (typical reads,
includes controller
overhead, including
settling)
Single Track
1.0 ms*
Average
11 ms*
Full Stroke
18 ms*
Rotational Speed
7,200 rpm
QuickSpecs
HP Z8 G4 Workstation
Technical Specifications - Hard Drives
c05527763 — DA – 15956 — Worldwide — Version 34 — March 1, 2021
Page 47
Logical Blocks
3,907,029,168
Operating Temperature
41° to 131° F (5° to 55° C)
*Actual performance may vary.
2.0TB SATA 7200 rpm
6Gb/s 3.5" HDD SMR
Capacity
2.0TB
Height
1 in; 2.02 cm
Width
Media Diameter
3.5 in; 8.9 cm
Physical Size
4 in; 10.16 cm
Interface
Serial ATA (6.0 Gb/s), NCQ Enabled
Synchronous Transfer
Rate (Maximum)
Up to 600 MB/s*
Buffer
256MB
Seek Time (typical reads,
includes controller
overhead, including
settling)
Single Track
1.2 ms*
Average
12 ms*
Full Stroke
21 ms*
Rotational Speed
7,200 rpm
Logical Blocks
3,907,029,168
Operating Temperature
41° to 140° F (5° to 60° C)
*Actual performance may vary.
1TB SATA 7200 rpm
6Gb/s 3.5" HDD
(Enterprise Class)
Capacity
1TB
Protocol
SATA
Form Factor
3.5"
Controller
AHCI
Reliability (MTBF)
2.0M hours
Rated Power On Hours
8760/yr
Annualized Failure Rate
(based on Rated POH)
<0.62%
Rated for 24/7/365
operation
YES
Physical Size (Height)
1 in; 2.54 cm
Physical Size (Width)
4 in; 10.17 cm
Media Diameter
3.5 in; 8.9 cm
Interface
Serial ATA (6Gb/s), NCQ enabled
Synchronous Transfer
Rate (Maximum)
Up to 600MB/s*
Buffer
128MB
Seek Time (typical reads,
includes controller
overhead, including
settling)
Single Track
0.32ms*
Average
7.45ms*
Full Stroke
14.2ms*
Operating Temperature
41° to 140° F (5° to 60° C)
Performance
Sequential Read
up to 226MB/s*
Sequential Write
up to 226MB/s*
Enterprise Class Features
High Reliability
*Actual performance may vary.
QuickSpecs
HP Z8 G4 Workstation
Technical Specifications - Hard Drives
c05527763 — DA – 15956 — Worldwide — Version 34 — March 1, 2021
Page 48
4TB SATA 7200 rpm
6Gb/s 3.5" HDD
(Enterprise Class)
Capacity
4TB
Height
0.275 in; 0.7 cm
Width
Media Diameter
2.5 in; 6.36 cm
Physical Size
2.75 in; 6.99 cm
Interface
Serial ATA (6Gb/s), NCQ enabled
Synchronous Transfer
Rate (Maximum)
Up to 600MB/s*
Buffer
128MB
Seek Time (typical reads,
includes controller
overhead, including
settling)
Single Track
0.7ms*
Average
8.5ms*
Full Stroke
15.7ms*
Rotational Speed
7,200 rpm
Operating Temperature
32° to 140° F (0° to 60° C)
*Actual performance may vary.
500GB SATA 7.2K SED
SFF HDD
Capacity
500GB
Height
0.275 in; 0.7 cm
Width
Media Diameter
2.5 in; 6.36 cm
Physical Size
2.75 in; 6.99 cm
Interface
Serial ATA (6Gb/s)
Synchronous Transfer
Rate (Maximum)
Up to 600MB/s*
Buffer
32MB
Seek Time (typical reads,
includes controller
overhead, including
settling)
Single Track
1ms*
Average
4.2ms*
Full Stroke
25ms (typical)*
Rotational Speed
7,200 rpm
Operating Temperature
32° to 140° F (0° to 60° C)
*Actual performance may vary.
QuickSpecs
HP Z8 G4 Workstation
Technical Specifications - Hard Drives
c05527763 — DA – 15956 — Worldwide — Version 34 — March 1, 2021
Page 49
SATA SSDs for HP
Workstations
HP 256GB SATA 6Gb/s
SSD
Capacity
256GB
Protocol
SATA
Form Factor
2.5"
Controller
AHCI
NAND Type
3D TLC
Endurance
192TBW (TB Written)
Reliability (MTTF)
1.5M hours
Physical Size (Height)
0.28 in; 0.7 cm
Physical Size (Width)
2.5 in; 6.36 cm
Interface
SATA 6Gb/s
Synchronous Transfer
Rate (Maximum)
Up to 600MB/s*
Operating Temperature
32° to 158° F (0° to 70° C)
Performance
Sequential Read
530MB/s (max)*
Sequential Write
500MB/s (max)*
Random Read
55K IOPS (max)*
Random Write
83K IOPS (max)*
*Actual performance may vary.
HP 256GB SATA 6Gb/s
SED Opal 2 SSD
Capacity
256GB
Protocol
SATA
Form Factor
2.5"
Controller
AHCI
NAND Type
3D TLC
Endurance
192TBW (TB Written)
Reliability (MTTF)
1.5M hours
Physical Size (Height)
0.28 in; 0.7 cm
Physical Size (Width)
2.5 in; 6.36 cm
Interface
6Gb/s SATA
Synchronous Transfer
Rate (Maximum)
Up to 550MB/s (Sequential Read)*
Operating Temperature
32° to 158° F (0° to 70° C)
Performance
Sequential Read
530MB/s*
Sequential Write
500 MB/s*
Random Read
55K IOPS*
Random Write
83K IOPS*
Self-Encrypting Drive
Support
OPAL 2
*Actual performance may vary.
HP 512GB SATA 6Gb/s
SSD
Capacity
512GB
Protocol
SATA
Form Factor
2.5"
Controller
AHCI
NAND Type
3D TLC
Endurance
388TBW (TB Written)
QuickSpecs
HP Z8 G4 Workstation
Technical Specifications - Hard Drives
c05527763 — DA – 15956 — Worldwide — Version 34 — March 1, 2021
Page 50
Reliability (MTTF)
1.5M hours
Physical Size (Height)
0.28 in; 0.7 cm
Physical Size (Width)
2.5 in; 6.36 cm
Interface
SATA 6Gb/s
Synchronous Transfer
Rate (Maximum)
Up to 550MB/s (Sequential Read)*
Operating Temperature
32° to 158° F (0° to 70° C)
Performance
Sequential Read
530 MB/s*
Sequential Write
500 MB/s*
Random Read
95K IOPS*
Random Write
83K IOPS*
*Actual performance may vary.
HP 512GB SATA SED SSD
Capacity
512GB
Protocol
SATA
Form Factor
2.5"
Controller
AHCI
NAND Type
3D TLC
Endurance
388TBW (TB Written)
Reliability (MTTF)
1.5M hours
Physical Size (Height)
0.28 in; 0.7 cm
Physical Size (Width)
2.5 in; 6.36 cm
Interface
SATA 6Gb/s
Synchronous Transfer
Rate (Maximum)
Up to 600MB/s*
Operating Temperature
32° to 158° F (0° to 70° C)
Performance
Sequential Read
530 MB/s*
Sequential Write
500 MB/s*
Random Read
95K IOPS*
Random Write
83K IOPS*
Self-Encrypting Drive
Support
OPAL 1 and 2
*Actual performance may vary.
HP 1TB SATA 6Gb/s SSD
Capacity
1TB
Protocol
SATA
Form Factor
2.5"
Controller
AHCI
NAND Type
3D TLC
Endurance
400TBW (TB Written)
Reliability (MTTF)
1.5M hours
Physical Size (Height)
0.28 in; 0.7 cm
Physical Size (Width)
2.5 in; 6.36 cm
Interface
SATA 6Gb/s
Synchronous Transfer
Rate (Maximum)
Up to 550MB/s (Sequential Read)*
Operating Temperature
32° to 158° F (0° to 70° C)
QuickSpecs
HP Z8 G4 Workstation
Technical Specifications - Hard Drives
c05527763 — DA – 15956 — Worldwide — Version 34 — March 1, 2021
Page 51
Performance
Sequential Read
530 MB/s*
Sequential Write
500 MB/s*
Random Read
95K IOPS*
Random Write
83K IOPS*
*Actual performance may vary.
HP 2TB SATA 6Gb/s SSD
Capacity
2TB
Protocol
SATA
Form Factor
2.5"
Controller
AHCI
NAND Type
3D TLC
Endurance
400TBW (TB Written)
Reliability (MTTF)
1.5M hours
Physical Size (Height)
0.28 in; 0.7 cm
Physical Size (Width)
2.5 in; 6.36 cm
Interface
SATA 6Gb/s
Synchronous Transfer
Rate (Maximum)
Up to 550MB/s (Sequential Read)*
Operating Temperature
32° to 158° F (0° to 70° C)
Performance
Sequential Read
530 MB/s*
Sequential Write
500 MB/s *
Random Read
95K IOPS*
Random Write
83K IOPS*
*Actual performance may vary.
HP Enterprise Class
240GB SATA SSD
Capacity
240GB
Protocol
SATA
Form Factor
2.5"
Controller
AHCI
NAND Type
3D TLC
Endurance
2,200TBW (TB Written)
Reliability (MTTF)
2.0M hours
Physical Size (Height)
0.28 in; 0.7 cm
Physical Size (Width)
2.5 in; 6.36 cm
Interface
6Gb/s SATA
Synchronous Transfer
Rate (Maximum)
Up to 600MB/s*
Operating Temperature
32° to 158° F (0° to 70° C)
Performance
Sequential Read
540 MB/s*
Sequential Write
310 MB/s*
Random Read
93K IOPS*
Random Write
48K IOPS*
Enterprise Class Features
High Endurance NAND
Power Loss Protection
End-to-End Data Protection
*Actual performance may vary.
QuickSpecs
HP Z8 G4 Workstation
Technical Specifications - Hard Drives
c05527763 — DA – 15956 — Worldwide — Version 34 — March 1, 2021
Page 52
HP Enterprise Class
480GB SATA SSD
Capacity
480GB
Protocol
SATA
Form Factor
2.5"
Controller
AHCI
NAND Type
3D TLC
Endurance
4,400TBW (TB Written)
Reliability (MTTF)
2.0M hours
Physical Size (Height)
0.28 in; 0.7 cm
Physical Size (Width)
2.5 in; 6.36 cm
Interface
6Gb/s SATA
Synchronous Transfer
Rate (Maximum)
Up to 600MB/s*
Operating Temperature
32° to 158° F (0° to 70° C)
Performance
Sequential Read
540 MB/s*
Sequential Write
460 MB/s*
Random Read
93K IOPS*
Random Write
74K IOPS*
Enterprise Class Features
High Endurance NAND
Power Loss Protection
End-to-End Data Protection
*Actual performance may vary.
Performance PCIe SSDs
for HP Workstations
HP Z Turbo Drive 256GB
M.2 2280 TLC SSD
Capacity
256GB
Protocol
PCIe
Form Factor
M.2
Controller
NVMe
NAND Type
3D TLC
SED Support
Opal 2
Endurance
200TB
Reliability (MTBF)
1.5M hours
Interface
PCI Express 3.0 x4 electrical x4 physical
Operating Temperature
32° to 158° F (0° to 70° C)
Performance
Sequential Read
3500 MB/s *
Sequential Write
2200 MB/s *
Random Read
240K IOPS *
Random Write
480K IOPS *
*Actual performance may vary.
HP ZTurbo Drive 512GB
M.2 2280 TLC SSD
Capacity
512GB
Protocol
PCIe
Form Factor
M.2
Controller
NVMe
NAND Type
3D TLC
SED Support
Opal 2
Endurance
300TB
Reliability (MTBF)
1.5M hours
QuickSpecs
HP Z8 G4 Workstation
Technical Specifications - Hard Drives
c05527763 — DA – 15956 — Worldwide — Version 34 — March 1, 2021
Page 53
Interface
PCI Express 3.0 x4 electrical x4 physical
Operating Temperature
32° to 158° F (0° to 70° C)
Performance
Sequential Read
3500 MB/s*
Sequential Write
2900 MB/s*
Random Read
460 K IOPS*
Random Write
500K IOPS*
*Actual performance may vary.
HP ZTurbo Drive 1TB M.2
2280 TLC SSD
Capacity
1TB
Protocol
PCIe
Form Factor
M.2
Controller
NVMe
NAND Type
3D TLC
SED Support
Opal 2
Endurance
400TB
Reliability (MTBF)
1.5M hours
Interface
PCI Express 3.0 x4 electrical x4 physical
Operating Temperature
32° to 158° F (0° to 70° C)
Performance
Sequential Read
3500 MB/s*
Sequential Write
3000 MB/s*
Random Read
580K IOPS*
Random Write
500K IOPS*
*Actual performance may vary.
HP ZTurbo Drive 2TB M.2
2280 TLC SSD
Capacity
2TB
Protocol
PCIe
Form Factor
M.2
Controller
NVMe
NAND Type
3D TLC
SED Support
Opal 2
Endurance
500TB
Reliability (MTTF)
1.5M hours
Interface
PCI Express 3.0 x4 electrical x4 physical
Operating Temperature
32° to 158° F (0° to 70° C)
Performance
Sequential Read
3300 MB/s*
Sequential Write
2400 MB/s*
Random Read
500K IOPS*
Random Write
440K IOPS*
*Actual performance may vary.
Performance PCIe SSDs
for HP Workstations
HP Z Turbo Drive Quad
Pro 2x256GB PCIe TLC
SSD
Capacity
512GB
Protocol
PCIe
Form Factor
PCIe Card, Full Height PCIe Slot
Controller
NVMe
QuickSpecs
HP Z8 G4 Workstation
Technical Specifications - Hard Drives
c05527763 — DA – 15956 — Worldwide — Version 34 — March 1, 2021
Page 54
NAND Type
3D TLC
SED Support
Opal 2
Endurance
200TB
Reliability (MTBF)
1.5M hours
Interface
PCIe Gen3 x4 architecture
Operating Temperature
32° to 158° F (0° to 70° C)
Performance
Sequential Read
3500 MB/s*
Sequential Write
2200 MB/s*
Random Read
240K IOPS*
Random Write
480K IOPS*
*Actual performance may vary.
HP Z Turbo Drive Quad
Pro 2x512GB PCIe TLC
SSD
Capacity
1TB
Protocol
PCIe
Form Factor
PCIe Card, Full Height PCIe Slot
Controller
NVMe
NAND Type
3D TLC
SED Support
Opal 2
Endurance
300TB
Reliability (MTBF)
1.5M hours
Interface
PCIe Gen3 x4 architecture
Operating Temperature
32° to 158° F (0° to 70° C)
Performance
Sequential Read
3500 MB/s*
Sequential Write
2900 MB/s*
Random Read
460 K IOPS*
Random Write
500K IOPS*
*Actual performance may vary.
HP Z Turbo Drive Quad Pro
2x1TB PCIe TLC SSD
Capacity
2TB
Protocol
PCIe
Form Factor
PCIe Card, Full Height PCIe Slot
Controller
NVMe
NAND Type
3D TLC
SED Support
Opal 2
Endurance
400TB
Interface
PCI Express 3.0 x4 electrical x4 physical
Operating Temperature
32° to 158° F (0° to 70° C)
Performance
Sequential Read
3500 MB/s*
Sequential Write
3000 MB/s*
Random Read
580K IOPS*
Random Write
500K IOPS*
*Actual performance may vary.
Capacity
256GB
QuickSpecs
HP Z8 G4 Workstation
Technical Specifications - Hard Drives
c05527763 — DA – 15956 — Worldwide — Version 34 — March 1, 2021
Page 55
HP Z Turbo Drive Dual
Pro 256GB SSD
Protocol
PCIe
Form Factor
M.2 in Half-height, half-length card
Controller
NVMe
NAND Type
3D TLC
Endurance
200TBW (TB Written)
Reliability (MTBF)
1.5M hours
Interface
PCI Express 3.0 x4 electrical x4 physical
Operating Temperature
32° to 158° F (0° to 70° C)
Performance
Sequential Read
3500 MB/s*
Sequential Write
2200 MB/s*
Random Read
240K IOPS*
Random Write
480K IOPS*
*Actual performance may vary.
HP Z Turbo Drive Dual
Pro 512GB SSD
Capacity
512GB
Protocol
PCIe
Form Factor
M.2 in Half-height, half-length card
Controller
NVMe
NAND Type
3D TLC
Endurance
300TBW (TB Written)
Reliability (MTBF)
1.5M hours
Interface
PCI Express 3.0 x4 electrical x4 physical
Operating Temperature
32° to 158° F (0° to 70° C)
Performance
Sequential Read
3500 MB/s*
Sequential Write
2900 MB/s*
Random Read
460 K IOPS*
Random Write
500K IOPS*
*Actual performance may vary.
HP Z Turbo Drive Dual
Pro 1TB SSD
Capacity
1TB
Protocol
PCIe
Form Factor
M.2 in Half-height, half-length card
Controller
NVMe
NAND Type
3D TLC
Endurance
400TBW (TB Written)
Reliability (MTBF)
1.5M hours
Interface
PCI Express 3.0 x4 electrical x4 physical
Operating Temperature
32° to 158° F (0° to 70° C)
Performance
Sequential Read
3500 MB/s*
Sequential Write
3000 MB/s*
Random Read
580K IOPS*
Random Write
500K IOPS*
*Actual performance may vary.
QuickSpecs
HP Z8 G4 Workstation
Technical Specifications - Hard Drives
c05527763 — DA – 15956 — Worldwide — Version 34 — March 1, 2021
Page 56
HP Z Turbo Drive Dual
Pro 2TB SSD
Capacity
2TB
Protocol
PCIe
Form Factor
M.2 in Half-height, half-length card
Controller
NVMe
NAND Type
3D TLC
Endurance
500TBW (TB Written)
Reliability (MTBF)
1.5M hours
Interface
PCI Express 3.0 x4 electrical x4 physical
Operating Temperature
32° to 158° F (0° to 70° C)
Performance
Sequential Read
3500 MB/s*
Sequential Write
3000 MB/s *
Random Read
600K IOPS*
Random Write
500K IOPS*
*Actual performance may vary.
Mainstream PCIe SSDs
for HP Workstations
HP 256GB M.2 2280 TLC
SSD
Capacity
256GB
Protocol
PCIe
Form Factor
M.2
Controller
NVMe
NAND Type
3D TLC
Endurance
200TB
Reliability (MTBF)
1.5M hours
Interface
PCI Express 3.0 x4 electrical x4 physical
Operating Temperature
32° to 158° F (0° to 70° C)
Performance
Sequential Read
3100 MB/s *
Sequential Write
1400 MB/s *
Random Read
200 K IOPS *
Random Write
320 K IOPS *
*Actual performance may vary.
HP 512GB M.2 2280 TLC
SSD
Capacity
512GB
Protocol
PCIe
Form Factor
M.2
Controller
NVMe
NAND Type
3D TLC
Endurance
300TB
Reliability (MTBF)
1.5M hours
Interface
PCI Express 3.0 x4 electrical x4 physical
Operating Temperature
32° to 158° F (0° to 70° C)
Performance
Sequential Read
3300 MB/s*
Sequential Write
2500 MB/s*
Random Read
225 K IOPS*
Random Write
430 K IOPS*
*Actual performance may vary.
QuickSpecs
HP Z8 G4 Workstation
Technical Specifications - Hard Drives
c05527763 — DA – 15956 — Worldwide — Version 34 — March 1, 2021
Page 57
HP 1TB M.2 2280 TLC SSD
Capacity
1TB
Protocol
PCIe
Form Factor
M.2
Controller
NVMe
NAND Type
3D TLC
Endurance
400TB
Reliability (MTBF)
1.5M hours
Interface
PCI Express 3.0 x4 electrical x4 physical
Operating Temperature
32° to 158° F (0° to 70° C)
Performance
Sequential Read
3300 MB/s*
Sequential Write
2500 MB/s*
Random Read
400 K IOPS*
Random Write
440 K IOPS*
*Actual performance may vary.
HP 2TB M.2 2280 TLC SSD
Capacity
2TB
Protocol
PCIe
Form Factor
M.2
Controller
NVMe
NAND Type
3D TLC
Endurance
500TB
Reliability (MTBF)
1.5M hours
Interface
PCI Express 3.0 x4 electrical x4 physical
Operating Temperature
32° to 158° F (0° to 70° C)
Performance
Sequential Read
3300 MB/s*
Sequential Write
2700 MB/s*
Random Read
430 K IOPS*
Random Write
500 K IOPS*
*Actual performance may vary.
Intel® 905p Series AIC
PCIe SSD
Intel® 905p Series AIC
280GB PCIe SSD
Capacity
280GB
Protocol
PCIe
Form Factor
PCIe Card, Half Height
Controller
NVMe
NVM Type
3DXPoint
Endurance
5.11 PBW (PB Written)
Reliability (MTBF)
1.6M hours
Operating Temperature
32° to 185° F (0° to 85° C)
Performance
Sequential Read
2730 MB/s*
Sequential Write
2280 MB/s*
Random Read
587K IOPS*
Random Write
559K IOPS*
*Actual performance may vary.
Capacity
480GB
QuickSpecs
HP Z8 G4 Workstation
Technical Specifications - Hard Drives
c05527763 — DA – 15956 — Worldwide — Version 34 — March 1, 2021
Page 58
Intel® 905p Series AIC
480GB PCIe SSD
Protocol
PCIe
Form Factor
PCIe Card, Half Height
Controller
NVMe
NVM Type
3DXPoint
Endurance
8.76 PBW (PB Written)
Reliability (MTBF)
1.6M hours
Operating Temperature
32° to 185° F (0° to 85° C)
Performance
Sequential Read
2710 MB/s*
Sequential Write
2280 MB/s*
Random Read
582K IOPS*
Random Write
561K IOPS*
*Actual performance may vary.
Intel® Optane™ DC
Persistent Memory
Intel® Optane™ DC
Persistent Memory
128GB Module
Capacity
128GB
Protocol
DDR-T
Form Factor
DDR4
Controller
NVMe
NVM Type
3DXPoint
Endurance
292 PBW (256B Sequential Write)
91 PBW (64B Sequential Write)
Reliability (MTBF)
2M hours
Operating Temperature
32° to 185° F (0° to 85° C)
Performance
Sequential Read
6800 MB/s*
Sequential Write
1850 MB/s*
*Actual performance may vary.
QuickSpecs
HP Z8 G4 Workstation
Technical Specifications - Hard Drive Controllers
c05527763 — DA – 15956 — Worldwide — Version 34 — March 1, 2021
Page 59
HARD DRIVE CONTROLLERS
MicroSemi 2100-4i4e 8port SAS 12Gb/s RAID
Card
PCI Bus
8 lanes, PCI Express 3.0
RAID Levels
Offers Integrated RAID (0, 1, and 10)
PCI Data Burst Transfer
Rate
Half Duplex x8, PCIe, 8000 MB/s
SAS Bandwidth
Half Duplex
1200 MB/s per lane
PCI Card Type
3.3V Add-in Card
PCI Voltage
12 V ± 10%
PCI Power
9.8W typical, Airflow min 200 LFM
Bracket
Full height and low profile
Certification Level
PCI Express 3.0 compliant
SAS Processor
MicroSemi Series 8 SAS Controller
Internal Connectors
One x4 internal mini-SASHD (SFF-8643)
External Connectors
One x4 external mini-SASHD (SFF-8644)
Maximum Number of SCSI
Devices
256 Non-RAID SAS/SATA devices
LED Indicators
Connector for Drive Activity Light
NOTE: RAID 5 is not supported on MicroSemi 2100-4i4e 8-port SAS 12Gb/s
RAID Card
QuickSpecs
HP Z8 G4 Workstation
Technical Specifications - Graphics
c05527763 — DA – 15956 — Worldwide — Version 34 — March 1, 2021
Page 60
GRAPHICS
NVIDIA® Quadro® P400
2GB Graphics
Form Factor
Dimensions: 2.713” H x 5.7” L
Single Slot, Low Profile
Cooling: Active
Weight: 129 grams
Graphics Controller
NVIDIA® Quadro® P400 Graphics Card
GP107 GPU
256 NVIDIA® CUDA® cores
Max Power: 30 Watts
Bus Type
PCI Express 3.0 x16
Memory
Size: 2 GB GDDR5, 2000 MHz
Memory Interface: 64-bit
Memory Bandwidth: 32 GB/s
Connectors
3mDP Outputs
Maximum Resolution
DisplayPort™ 1.4:
- up to 3x 5120 x 2880 x 24 bpp @ 60Hz
- supports Multi-Stream Transport (MST)
Image Quality Features
10-bit internal display processing pipeline
10-bit scan-out support
Display Output
3 mDP Connectors
Shading Architecture
Full Microsoft DirectX® 12 Shader Model 5.1
Supported Graphics APIs
OpenGL® 4.5
DirectX® 12
Vulkan™ 1.0
API support includes:
CUDA C, CUDA C++, DirectCompute , OpenCL™
Available Graphics
Drivers
Microsoft Windows 10
Microsoft Windows 8.1 (via nvidia.com unless deprecated
Microsoft Windows 7 (via nvidia.com)
Linux®
HP qualified drivers may be preloaded or available from the HP support
Web site:
http://welcome.hp.com/country/us/en/support.html
Notes
NVIDIA® Quadro® P600
2GB Graphics
Form Factor
Dimensions: 2.713” H x 5.7” L
Single Slot, Low Profile
Cooling: Active
Weight: 129 grams
Graphics Controller
NVIDIA® Quadro® P600 Graphics Card
GP107 GPU
384 NVIDIA® CUDA® cores
Max Power: 40 Watts
Bus Type
PCI Express 3.0 x16
QuickSpecs
HP Z8 G4 Workstation
Technical Specifications - Graphics
c05527763 — DA – 15956 — Worldwide — Version 34 — March 1, 2021
Page 61
Memory
Size: 2 GB GDDR5, 2000 MHz
Memory Interface: 128-bit
Memory Bandwidth: 64 GB/s
Connectors
4mDP Outputs
Maximum Resolution
DisplayPort™ 1.4:
- up to 4x 5120 x 2880 x 24 bpp @ 60Hz
- supports Multi-Stream Transport (MST)
Image Quality Features
10-bit internal display processing pipeline
10-bit scan-out support
Display Output
4 mDP Connectors
Shading Architecture
Full Microsoft DirectX® 12 Shader Model 5.1
Supported Graphics APIs
OpenGL® 4.5
DirectX® 12
Vulkan™ 1.0
API support includes:
CUDA C, CUDA C++, DirectCompute , OpenCL™
Available Graphics
Drivers
Microsoft Windows 10
Microsoft Windows 8.1 (via nvidia.com unless deprecated
Microsoft Windows 7 (via nvidia.com)
Linux®
HP qualified drivers may be preloaded or available from the HP support
Web site:
http://welcome.hp.com/country/us/en/support.html
Notes
NVIDIA® Quadro® P620
2GB Graphics
Form Factor
Dimensions: 2.713” H x 5.7” L
Single Slot, Low Profile
Cooling: Active
Weight: 129 grams
Graphics Controller
NVIDIA® Quadro® P620 Graphics Card
GP107 GPU
512 CUDA cores
Max Power: 40 Watts
Bus Type
PCI Express 3.0 x16
Memory
Size: 2 GB GDDR5, 2000 MHz
Memory Interface: 128-bit
Memory Bandwidth: 64 GB/s
Connectors
4mDP Outputs *
Maximum Resolution
DisplayPort™ 1.4:
- up to 4x 5120 x 2880 x 24 bpp @ 60Hz
- supports Multi-Stream Transport (MST)
Image Quality Features
10-bit internal display processing pipeline
10-bit scan-out support
Display Output
4 mDP Connectors
Shading Architecture
Full Microsoft DirectX 12 Shader Model 5.1
QuickSpecs
HP Z8 G4 Workstation
Technical Specifications - Graphics
c05527763 — DA – 15956 — Worldwide — Version 34 — March 1, 2021
Page 62
Supported Graphics APIs
OpenGL 4.5
DirectX 12
Vulkan 1.0
API support includes:
CUDA C, CUDA C++, DirectCompute , OpenCL
Available Graphics
Drivers
Microsoft Windows 10
Microsoft Windows 7 (via nvidia.com)
Linux®
HP qualified drivers may be preloaded or available from the HP support
Web site:
http://welcome.hp.com/country/us/en/support.html
Notes
*P620 only have mini-DisplayPort™ (mDP) video ports.
Factory Configured (Z4 G4/ Z6 G4/ Z8 G4 Workstations): No adapters
included
After market option kit:Two mDP-to-DP Adapters included
Additional mDP-to-DP Adapters are available as Factory Configuration or
Option Kit accessories:
- 2MY05AA - HP miniDP-to-DP Adapter Cables
- 2KW87A6 - HP (Bulk 12) miniDP-to-DP Adapter Cables
AMD FirePro™ W2100
2GB Graphics
Form Factor
Low Profile, half length (full-height bracket included)
Graphics Controller
AMD FirePro ™ W2100 professional graphics based on Oland GPU.
GPU: 320 Stream Processors organized into 5 Compute Units
GPU Frequency: 630Mhz
Power: 26W
Cooling: Active
Bus Type
PCI Express® x8, Generation 3.0
Memory
2GB DDR3 memory
Memory Bandwidth: up to 28.8 GB/s
Memory Width: 128 bit
Connectors
2x DisplayPort™ 1.2 connectors
Factory Configured: No video cable adapter included
After market option kit: No video cable adapter included
Additional DisplayPort™-to-VGA or DisplayPort™-to-DVI adapters are
available as Factory Configuration or Option Kit accessories.
Maximum Resolution
DisplayPort™ 1.2:
- up to 4096x2160 x 24 bpp @ 60Hz
Dual Link DVI(I) (requires adapter cable):
- up to 2560 x 1600 x 32 bpp @ 60Hz
Single Link-DVI(I)(requires adapter cable):
- up to 1920 x 1200 x 32 bpp @ 60Hz
QuickSpecs
HP Z8 G4 Workstation
Technical Specifications - Graphics
c05527763 — DA – 15956 — Worldwide — Version 34 — March 1, 2021
Page 63
VGA (requires adapter cable):
- up to 1920 x 1200 x 32 bpp @ 60Hz
Image Quality Features
Advanced support for 8-bit, 10-bit, and 16-bit per RGB color component.
High bandwidth scaler for high quality up and downscaling.
Display Output
2 x DisplayPort™ 1.2a
Maximum number of displays: 2
Shading Architecture
Shader Model 5.0
Supported Graphics APIs
OpenCL™ 1.2, DirectX® 11.2/12, OpenGL® 4.4
OpenGL® 4.4 support with driver release 14.301.xxx
OpenCL™ 1.2 conformance expected with drive release 14.301.xxx
Available Graphics
Drivers
Windows10 (64-bit)
Windows 7 (64-bit) (via amd.com)
Linux®
HP qualified drivers may be preloaded or available from the HP support
Web site:
http://welcome.hp.com/country/us/en/support.html
Notes
Depending on the card model, native DisplayPort™ connectors and/or
certified DisplayPort™ active or passive adapters to convert your monitor’s
native input to your card’s DisplayPort™ or Mini-DisplayPort™ connector(s)
may be required. See www.amd.com/FirePro™ for details.
NVIDIA® Quadro® P1000
4GB Graphics
Form Factor
Dimensions:2.713” H x 5.7” L
Single Slot, Low Profile
Cooling: Active
Weight: 129 grams
Graphics Controller
NVIDIA® Quadro® P1000 Graphics Card
GP107-860 GPU
640 NVIDIA® CUDA® cores
Max Power: 47 Watts
Bus Type
PCI Express 3.0 x16
Memory
Size: 4 GB GDDR5, 2500 MHz
Memory Interface: 128-bit memory interface
Memory Bandwidth: 80 GB/s memory bandwidth
Connectors
4mDP Outputs
Maximum Resolution
DisplayPort™ 1.4:
- up to 4x 5120 x 2880 x 24 bpp @ 60Hz
- supports Multi-Stream Transport (MST)
Image Quality Features
10-bit internal display processing pipeline
10-bit scan-out support
Display Output
4 mDP Connectors
Shading Architecture
Full Microsoft DirectX® 12 Shader Model 5.1
QuickSpecs
HP Z8 G4 Workstation
Technical Specifications - Graphics
c05527763 — DA – 15956 — Worldwide — Version 34 — March 1, 2021
Page 64
Supported Graphics APIs
OpenGL® 4.5
DirectX® 12
Vulkan™ 1.0
API support includes:
CUDA C, CUDA C++, DirectCompute , OpenCL™
Available Graphics
Drivers
Microsoft Windows 10
Microsoft Windows 7 (via nvidia.com)
Linux®
HP qualified drivers may be preloaded or available from the HP support
Web site:
http://welcome.hp.com/country/us/en/support.html
Notes
NVIDIA® Quadro® P2000
5GB Graphics
Form Factor
Dimensions: 4.4”Hx7.9”L
Single Slot
Cooling: Active
Weight: 260 grams
Graphics Controller
NVIDIA® Quadro® P2000 Graphics Card
Power: 75 Watts
Bus Type
PCI Express 3.0 x16
Memory
Size: 5GB GDDR5
Memory Bandwidth: 140 GB/s
Memory Width: 160-bit
Connectors
4x DisplayPort™ 1.4
Factory Configured Option: No adapter included with card
After Market Option: No video cable adapter included
Additional DVI to VGA, DisplayPort™ to VGA, DisplayPort™ to DVI, and
DisplayPort™ to Dual-Link DVI adapters available as accessories.
Maximum Resolution
DisplayPort™:
- up to 5120 x 2880 x 24 bpp @ 60Hz
- supports High Bit Rate 2 (HBR2) and Multi-Stream Transport (MST) DP 1.3
& 1.4 ready.
DL-DVI(I) output:
- up to 2560 x 1600 x 32 bpp @ 60 Hz
Single Link-DVI(I) output:
- up to 1920 x 1200 x 32 bpp @ 60Hz
HDMI 2.0 (requires DP to HDMI adapter):
5120 x 2880 x 24 bpp @ 60Hz
Image Quality Features
12-bit internal display pipeline (hardware support for 12-bit scanout on
supported panels, applications and connection)
Stereoscopic 3D display support including NVIDIA® 3D Vision™ technology,
NVIDIA® Mosaic and nView.
Display Output
Maximum number of displays
- 4 direct attached monitors
QuickSpecs
HP Z8 G4 Workstation
Technical Specifications - Graphics
c05527763 — DA – 15956 — Worldwide — Version 34 — March 1, 2021
Page 65
Maximum number of monitors across all available NVIDIA® Quadro® P2000
outputs is 4.
Shading Architecture
Shader Model 5.1
Supported Graphics APIs
OpenGL® 4.5
DirectX® 12
API support includes:
CUDA C, CUDA C++, DirectCompute 5.0, OpenCL™, Java, Python, and Fortran
software
Available Graphics
Drivers
Microsoft Windows 10
Microsoft Windows 7 Professional 64bit (via nvidia.com)
Linux® - Full OpenGL® implementation, complete with NVIDIA® Quadro®
and ARB extensions
HP qualified drivers may be preloaded or available from the HP support
Web site:
http://welcome.hp.com/country/us/en/support.html
Notes
NVIDIA® Quadro® P2200
5GB Graphics
Form Factor
Dimensions: 4.4”H x 7.9”L
Single Slot, Full Height
Weight: 260 grams
Graphics Controller
NVIDIA® Quadro® P2200 Graphics Card
GPU: 1280 CUDA cores
Power: 75 Watts
Cooling: Active
Bus Type
PCI Express 3.0 x16
Memory
Size: 5GB GDDR5X
Memory Bandwidth: 200 GB/s
Memory Width: 160-bit
Connectors
4x DisplayPort™ 1.4
Factory Configured Option: No adapter included with card
After Market Option: No video cable adapter included
Additional DVI to VGA, DisplayPort™ to VGA, DisplayPort™ to DVI, and
DisplayPort™ to Dual-Link DVI adapters available as accessories.
Maximum Resolution
DisplayPort™:
- up to 5120 x 2880 x 24 bpp @ 60Hz
- supports High Bit Rate 2 (HBR2) and Multi-Stream Transport (MST) DP 1.3
& 1.4 ready.
DL-DVI(I) output:
- up to 2560 x 1600 x 32 bpp @ 60 Hz
Single Link-DVI(I) output:
- up to 1920 x 1200 x 32 bpp @ 60Hz
HDMI 2.0 (requires DP to HDMI adapter):
5120 x 2880 x 24 bpp @ 60Hz
QuickSpecs
HP Z8 G4 Workstation
Technical Specifications - Graphics
c05527763 — DA – 15956 — Worldwide — Version 34 — March 1, 2021
Page 66
Image Quality Features
12-bit internal display pipeline (hardware support for 12-bit scanout on
supported panels, applications and connection)
Stereoscopic 3D display support including NVIDIA® 3D Vision™ technology,
NVIDIA® Mosaic and nView.
Display Output
Maximum number of displays
- 4 direct attached monitors
Maximum number of monitors across all available NVIDIA® Quadro® P2200
outputs is 4.
Shading Architecture
Shader Model 5.1
Supported Graphics APIs
OpenGL® 4.5
DirectX® 12
API support includes:
CUDA C, CUDA C++, DirectCompute 5.0, OpenCL™, Java, Python, and Fortran
software
Available Graphics
Drivers
Microsoft Windows 10
Microsoft Windows 7 Professional 64bit (via nvidia.com)
Linux® - Full OpenGL® implementation, complete with NVIDIA® Quadro® and
ARB extensions
HP qualified drivers may be preloaded or available from the HP support
Web site:
http://welcome.hp.com/country/us/en/support.html
Notes
1. Quadro P2200 offered as Factory Configured Option does not
include a video cable adapter. Video cable adapters must be
ordered separately.
2. Quadro P2200 offered as an After Market Option does not include
video cables. Video cable adapters must be ordered separately.
AMD Radeon™ Pro WX
3100 4GB Graphics
Form Factor
Low-Profile Single Slot (6.6” Length )
Graphics Controller
Polaris12 GL
GPU: 512 Stream Processors organized into 8 Compute Units
Power: 50 Watts
Cooling: Active
Memory
4GB GDDR5 memory
Memory Bandwidth: 6 Gbps / 96 GB/s
Memory Width: 128 bit
Connectors
2x Mini DisplayPort™ 1.4 plus 1x DisplayPort™ 1.4 – HDR ready connectors
with HBR3 and MST support.
Factory Configured: No adapters included
After market option kit: One mDP-to-DP cable adapters included
Additional Mini DisplayPort™-to-DisplayPort™, DisplayPort™-to-VGA or
DisplayPort™-to-DVI adapters are available as Factory Configuration or
Option Kit accessories.
Maximum Resolution
5K support @ 60Hz
QuickSpecs
HP Z8 G4 Workstation
Technical Specifications - Graphics
c05527763 — DA – 15956 — Worldwide — Version 34 — March 1, 2021
Page 67
• 1x single-cable 5K monitor, or 2x dual-cable 5K monitors
3x 4K support @ 60Hz
Image Quality Features
Advanced support for 8-bit and 10-bit per RGB color component. High
bandwidth scaler for high quality up and downscaling
Display Output
3 full physical DP1.3 HBR3 / DP1.4 HDR outputs
FreeSync support
GPU Architecture
Polaris
Supported Graphics APIs
DirectX®12
OpenGL® 4.5
OpenCL™ 2.0
Vulkan™ 1.0
Available Graphics
Drivers
Windows 10
(Windows® 7 64-bit available from AMD)
Linux® 64-bit (selected Enterprise distributions)
HP qualified drivers may be preloaded or available from the HP support
Web site:
http://welcome.hp.com/country/us/en/support.html
Notes
1. HDR content requires that the system be configured with a
fully HDR-ready content chain, including: graphics card,
monitor/TV, graphics driver and application. Video content
must be graded in HDR and viewed with an HDR-ready player.
Windowed mode content requires operating system support.
2. AMD PowerTune and AMD ZeroCore Power are technologies
offered by certain FirePro™ and Radeon™ Pro products, which
are designed to intelligently manage GPU power consumption
in response to certain GPU load conditions.
3. As of September 2016, certified for DisplayPort™ 1.4 HBR3
and ready for DisplayPort™ 1.4 HDR based on independent
verification by DisplayPort™ testing authority. HDR content
requires that the system be configured with a fully HDRready content chain, including: graphics card, monitor/TV,
graphics driver and application. Video content must be graded
in HDR and viewed with an HDR-ready player. Windowed
mode content requires operating system support.
AMD Radeon™ Pro WX
3200 4GB Graphics
Form Factor
Low-Profile Single Slot (2.75 "H x 6.6” L)
Graphics Controller
Radeon™ Pro WX 3200 Graphics Card
GPU: 640 Stream Processors organized into 8 Compute Units
Power: 56 Watts
Cooling: Active
Memory
4GB GDDR5 memory
Memory Bandwidth: 6 Gbps / 96 GB/s
Memory Width: 128 bit
Connectors
2x Mini DisplayPort™ 1.4 plus 1x DisplayPort™ 1.4 – HDR ready connectors
with HBR3 and MST support.
Factory Configured: No adapters included
QuickSpecs
HP Z8 G4 Workstation
Technical Specifications - Graphics
c05527763 — DA – 15956 — Worldwide — Version 34 — March 1, 2021
Page 68
After market option kit: One mDP-to-DP cable adapters included
Additional Mini DisplayPort™-to-DisplayPort™, DisplayPort™-to-VGA or
DisplayPort™-to-DVI adapters are available as Factory Configuration or
Option Kit accessories.
Maximum Resolution
5K support @ 60Hz
• 1x single-cable 5K monitor, or 2x dual-cable 5K monitors
3x 4K support @ 60Hz
Image Quality Features
Advanced support for 8-bit and 10-bit per RGB color component. High
bandwidth scaler for high quality up and downscaling
Display Output
3 full physical DP1.3 HBR3 / DP1.4 HDR outputs
FreeSync support
GPU Architecture
Polaris
Supported Graphics APIs
DirectX®12
OpenGL® 4.5
OpenCL™ 2.0
Vulkan™ 1.0
Available Graphics
Drivers
Windows 10
(Windows® 7 64-bit available from AMD)
Linux® 64-bit (selected Enterprise distributions)
HP qualified drivers may be preloaded or available from the HP support
Web site:
http://welcome.hp.com/country/us/en/support.html
Notes
4. HDR content requires that the system be configured with a
fully HDR-ready content chain, including: graphics card,
monitor/TV, graphics driver and application. Video content
must be graded in HDR and viewed with an HDR-ready player.
Windowed mode content requires operating system support.
5. AMD PowerTune and AMD ZeroCore Power are technologies
offered by certain FirePro™ and Radeon™ Pro products, which
are designed to intelligently manage GPU power consumption
in response to certain GPU load conditions.
6. As of September 2016, certified for DisplayPort™ 1.4 HBR3
and ready for DisplayPort™ 1.4 HDR based on independent
verification by DisplayPort™ testing authority. HDR content
requires that the system be configured with a fully HDRready content chain, including: graphics card, monitor/TV,
graphics driver and application. Video content must be graded
in HDR and viewed with an HDR-ready player. Windowed
mode content requires operating system support.
AMD Radeon™ Pro WX
4100 4GB Graphics
Form Factor
Low-Profile Single Slot (6.6” Length )
Graphics Controller
Polaris 11 Baffin GL XT
GPU: 1024 Stream Processors organized into 16 Compute Units
Power: 50 Watts
Cooling: Active
Memory
4GB GDDR5 memory
Memory Bandwidth: 6 Gbps / 96 GB/s
QuickSpecs
HP Z8 G4 Workstation
Technical Specifications - Graphics
c05527763 — DA – 15956 — Worldwide — Version 34 — March 1, 2021
Page 69
Memory Width: 128 bit
Connectors
4x Mini DisplayPort™ 1.4 – HDR ready connectors with HBR3 and MST
support.
Factory Configured: Four mDP-to-DP cable adapters included
After market option kit: Four mDP-to-DP cable adapters included
Additional DisplayPort™-to-VGA or DisplayPort™-to-DVI adapters are
available as Factory Configuration or Option Kit accessories.
Maximum Resolution
5K support @ 60Hz
• 1x single-cable 5K monitor, or 2x dual-cable 5K monitors
4x 4K support @ 60Hz
Image Quality Features
Advanced support for 8-bit and 10-bit per RGB color component. High
bandwidth scaler for high quality up and downscaling
Display Output
4 full physical DP1.3 HBR3 / DP1.4 HDR outputs
FreeSync support
GPU Architecture
GCN 4th Generation
Supported Graphics APIs
DirectX®12
OpenGL® 4.5
OpenCL™ 2.0
Vulkan™ 1.0
Available Graphics
Drivers
Windows 10
Windows® 7 64-bit (via amd.com)
Linux® 64-bit (selected Enterprise distributions)
HP qualified drivers may be preloaded or available from the HP support
Web site:
http://welcome.hp.com/country/us/en/support.html
Notes
7. HDR content requires that the system be configured with a
fully HDR-ready content chain, including: graphics card,
monitor/TV, graphics driver and application. Video content
must be graded in HDR and viewed with an HDR-ready player.
Windowed mode content requires operating system support.
8. AMD PowerTune and AMD ZeroCore Power are technologies
offered by certain FirePro™ and Radeon™ Pro products, which
are designed to intelligently manage GPU power consumption
in response to certain GPU load conditions.
9. As of September 2016, certified for DisplayPort™ 1.4 HBR3
and ready for DisplayPort™ 1.4 HDR based on independent
verification by DisplayPort™ testing authority. HDR content
requires that the system be configured with a fully HDRready content chain, including: graphics card, monitor/TV,
graphics driver and application. Video content must be graded
in HDR and viewed with an HDR-ready player. Windowed
mode content requires operating system support.
NVIDIA® Quadro® P4000
8GB Graphics
Form Factor
Dimensions: 4.4”H x 9.5”L
Single-slot, full-height
QuickSpecs
HP Z8 G4 Workstation
Technical Specifications - Graphics
c05527763 — DA – 15956 — Worldwide — Version 34 — March 1, 2021
Page 70
Weight: 475 grams (without extender)
Graphics Controller
NVIDIA® Quadro® P4000 Graphics Card
GPU: GP104 with 1792 CUDA cores
Power: 120 Watts
Bus Type
PCI Express 3.0 x16
Memory
Size: 8GB GDDR5
Memory Bandwidth: 243 GB/s
Memory Width: 256-bit
Connectors
4 x DisplayPort 1.4
3-pin mini-DIN connector via optional bracket
1 x 6-pin auxiliary power connector
4-pin header for stereo signal
SYNC connector for Quadro® Sync II
2 x SLI connectors
Factory Configured Option: No video cable adapter included
After Market Option: No video cable adapter included
Additional DisplayPort-to-VGA, DisplayPort-to-HDMI, or DisplayPort-toDVI adapters are available as accessories
Maximum Resolution
Dual-link internal TMDS (DVI 1.0):
- up to 2560 x 1600 x 32 bpp @ 60 Hz
Single-link internal TMDS (DVI 1.0):
- up to 1920 x 1200 x 32 bpp @ 60 Hz
HDMI™ 2.0b (requires DP to HDMI adapter):
- up to 5120 x 2880 x 24 bpp @ 60Hz
DisplayPort:
- up to 4096 x 2160 x 30 bpp @ 60Hz
- up to 2560 x 1600 x 30 bpp @ 120 Hz
- supports High Bit Rate 2 (HBR2) and Multi-Stream Transport (MST)
Using two DP outputs, the P4000 can drive one dual DP input display with
5120 x 2880 x 30 bpp @ 60Hz resolution.
Image Quality Features
Advanced support for 8-bit, 10-bit, and 12-bit per RGB color
component.
HDCP 2.2 support over DisplayPort, DVI, and HDMI connectors
NVIDIA 3D Vision™ and other 3D stereo technologies
NVIDIA Mosaic and nView
Display Output
Maximum number of displays
- 4 direct attached monitors
Maximum number of monitors across all available Quadro P4000 outputs
is 4.
Shading Architecture
Shader Model 5.1
Supported Graphics APIs
OpenGL 4.5
DirectX 12
QuickSpecs
HP Z8 G4 Workstation
Technical Specifications - Graphics
c05527763 — DA – 15956 — Worldwide — Version 34 — March 1, 2021
Page 71
Vulcan 1.0
API support includes:
CUDA C, CUDA C++, DirectCompute 5.0, OpenCL, Java, Python, and Fortran
Available Graphics
Drivers
Microsoft Windows 10
Microsoft Windows 7 (via nvidia.com)
Linux® - Full OpenGL implementation, complete with NVIDIA and ARB
extensions
HP qualified drivers may be preloaded or available from the HP support
Web site:
http://welcome.hp.com/country/us/en/support.html
Notes
1. Quadro P4000 offered as Factory Configured Option does not
include a video cable adapter. Video cable adapters must be
ordered separately.
2. Quadro P4000 offered as an After Market Option does not include
video cables. Video cable adapters must be ordered separately.
NVIDIA® Quadro®
P5000 16GB Graphics
Form Factor
Full-Height Dual Slot (4.4” Height x 10.5” Length)
Weight: 815 grams / 1.80 lbs
Graphics Controller
NVIDIA® Quadro® P5000 graphics
GPU: 2560 NVIDIA® CUDA® Parallel Processing Cores
Power: 180 Watts
Cooling: Active
Memory
16GB GDDR5X memory
Memory Bandwidth: Up to 288 GB/s
Memory Width: 256 bit
ECC Memory (disabled by default)
Connectors
DP (x4) with HDR support
DL-DVI(D)
3-pin mini-DIN connector
SLI connector
NVIDIA® Quadro® Sync connector (compatible with NVIDIA® Quadro® II
Sync)
One 8-pin auxiliary power connector
Factory configured option: No video cable adapter included with card.
After market option Kit: No video cable adaptor included with card.
DVI to VGA, DisplayPort™ to VGA, DisplayPort™ to DVI, and
DisplayPort™ to Dual-Link DVI adapters available as accessories.
QuickSpecs
HP Z8 G4 Workstation
Technical Specifications - Graphics
c05527763 — DA – 15956 — Worldwide — Version 34 — March 1, 2021
Page 72
Maximum Resolution
5K support @ 60Hz
1x single-cable 5K monitor, or 2x dual-cable 5K monitors
Image Quality
Features
Advanced support for 8-bit, 10-bit, and 12-bit per RGB
color component.
HDCP 2.2 support over DisplayPort™, DVI, and HDMI
connectors
NVIDIA 3D Vision™ and other 3D stereo technologies
NVIDIA® Mosaic and nView Desktop Management
Display Outputs
1
4x DP1.4 HDR outputs (up to 3840x2160 UHD @ 120Hz refresh, or up
to 8K at 30Hz)
1x Dual-link DVI-D output (up to 2560 x 1600 @ 60 Hz and
1920x1200 @ 120 Hz)
GPU Architecture
NVIDIA Pascal™
Supported Graphics
APIs
DirectX®12 , OpenGL® 4.5, OpenCL™ 1.0, Vulkan™ 1.0
Developer API support includes: CUDA C, CUDA C++, DirectCompute
5.0, OpenCL™, Java, Python, and Fortran
Available Graphics
Drivers
Windows® 10 64-bit
Windows® 7 64-bit (via nvidia.com)
Linux® 64-bit
HP qualified drivers may be preloaded or available from the HP
support Web site:
http://welcome.hp.com/country/us/en/support.html
Notes
1- Supports up to a total of 4 displays
NVIDIA® Quadro®
P6000 24GB Graphics
Form Factor
Full-Height Dual Slot (4.4” Height x 10.5” Length)
Weight: 967 grams / 2.14 lbs
Graphics Controller
NVIDIA® Quadro® P6000 graphics
GPU: 3840 NVIDIA® CUDA® Parallel Processing Cores
Power: 250 Watts
Cooling: Active
Memory
24GB GDDR5X memory
Memory Bandwidth: Up to 432 GB/s
Memory Width: 384 bit
ECC Memory (disabled by default)
QuickSpecs
HP Z8 G4 Workstation
Technical Specifications - Graphics
c05527763 — DA – 15956 — Worldwide — Version 34 — March 1, 2021
Page 73
Connectors
DP (x4) with HDR support
DL-DVI(D)
3-pin mini-DIN connector
SLI connector
NVIDIA® Quadro® Sync connector (compatible with NVIDIA® Quadro®
II Sync)
One 8-pin auxiliary power connector
Factory configured option: No video cable adapter included with
card.
After market option Kit: No video cable adaptor included with card.
DVI to VGA, DisplayPort™ to VGA, DisplayPort™ to DVI, and
DisplayPort™ to Dual-Link DVI adapters available as accessories.
Maximum Resolution
5K support @ 60Hz
1x single-cable 5K monitor, or 2x dual-cable 5K monitors
Image Quality Features
Advanced support for 8-bit, 10-bit, and 12-bit per RGB
color component.
HDCP 2.2 support over DisplayPort™, DVI, and HDMI
connectors
NVIDIA 3D Vision™ and other 3D stereo technologies
NVIDIA® Mosaic and nView
Display Outputs1
4x DP1.4 HDR outputs (up to 3840x2160 UHD @ 120Hz refresh, or
up to 8K at 30Hz)
1x Dual-link DVI-D output (up to 2560 x 1600 @ 60 Hz and
1920x1200 @ 120 Hz)
GPU Architecture
NVIDIA Pascal™
Supported Graphics
APIs
DirectX®12 , OpenGL® 4.5, OpenCL™ 1.0, Vulkan™ 1.0
Developer API support includes: CUDA C, CUDA C++, DirectCompute
5.0, OpenCL™, Java, Python, and Fortran
Available Graphics
Drivers
Windows® 10 64-bit
Windows® 7 64-bit (via nvidia.com)
Linux® 64-bit
HP qualified drivers may be preloaded or available from the HP
support Web site:
http://welcome.hp.com/country/us/en/support.html
Notes
1- Supports up to a total of 4 displays
Form Factor
Full-Height Single Slot (4.4” Height x 9.5” Length)
QuickSpecs
HP Z8 G4 Workstation
Technical Specifications - Graphics
c05527763 — DA – 15956 — Worldwide — Version 34 — March 1, 2021
Page 74
NVIDIA® Quadro® RTX™
4000 8GB Graphics
Weight: 550 grams / 1.21 lbs
Graphics Controller
NVIDIA® Quadro® RTX™ 4000 Graphics
TU104 GPU
GPU: 2304 NVIDIA® CUDA® Parallel Processing Cores
Power: 160 Watts
Cooling: Active
Memory
8GB GDDR6 memory
Memory Bandwidth: Up to 416 GB/s
Memory Width: 384 bit
Connectors
3x DP 1.4a and VirtualLink
Quadro Sync connector (compatible with Quadro II Sync)
One 8-pin auxiliary power connector
Factory configured option: No video cable adapter included with
card.
After market option Kit: No video cable adaptor included with card.
DVI to VGA, DisplayPort™ to VGA, DisplayPort™ to DVI, and
DisplayPort™ to Dual-Link DVI adapters available as accessories.
Maximum Resolution
7680x4320 @ 60Hz
Image Quality Features
Advanced support for 8-bit, 10-bit, and 12-bit per RGB
color component.
HDCP 2.2 support over DisplayPort™, DVI, and HDMI
connectors
NVIDIA® 3D Vision™ and other 3D stereo technologies
NVIDIA® Mosaic and nView
Display Outputs1
3x DP 1.4a and VirtualLink (7680x4320 @ 60Hz)
Supported Graphics
APIs
DirectX®12, OpenGL® 4.5, OpenCL™ 1.0, Vulkan™ 1.0
Developer API support includes: CUDA C, CUDA C++, DirectCompute
5.0, OpenCL™, Java, Python, and Fortran
Available Graphics
Drivers
Windows® 10 64-bit
Windows® 7 64-bit (via nvidia.com)
Linux® 64-bit
HP qualified drivers may be preloaded or available from the HP
support Web site:
http://welcome.hp.com/country/us/en/support.html
Notes
1- Supports up to a total of 4 displays
QuickSpecs
HP Z8 G4 Workstation
Technical Specifications - Graphics
c05527763 — DA – 15956 — Worldwide — Version 34 — March 1, 2021
Page 75
NVIDIA® Quadro® RTX™
5000 16GB Graphics
Form Factor
Full-Height Dual Slot (4.4” Height x 10.5” Length)
Weight: 1050 grams / 2.31 lbs
Graphics Controller
NVIDIA® Quadro® RTX™ 5000 Graphics
TU104 GPU
GPU: 3072 NVIDIA® CUDA® Parallel Processing Cores
Power: 265 Watts
Cooling: Active
Memory
16GB GDDR6 memory
Memory Bandwidth: Up to 448 GB/s
Memory Width: 384 bit
Connectors
4x DP 1.4a and VirtualLink
Quadro Sync connector (compatible with Quadro II Sync)
One 8-pin + 6-pin auxiliary power connector
Factory configured option: No video cable adapter included with
card.
After market option Kit: No video cable adaptor included with card.
DVI to VGA, DisplayPort™ to VGA, DisplayPort™ to DVI, and
DisplayPort™ to Dual-Link DVI adapters available as accessories.
Maximum Resolution
7680x4320 @ 60Hz
Image Quality Features
Advanced support for 8-bit, 10-bit, and 12-bit per RGB
color component.
HDCP 2.2 support over DisplayPort™, DVI, and HDMI
connectors
NVIDIA® 3D Vision™ and other 3D stereo technologies
NVIDIA® Mosaic and nView
Display Outputs1
4x DP 1.4a and VirtualLink (7680x4320 @ 60Hz)
Supported Graphics
APIs
DirectX®12, OpenGL® 4.5, OpenCL™ 1.0, Vulkan™ 1.0
Developer API support includes: CUDA C, CUDA C++, DirectCompute
5.0, OpenCL™, Java, Python, and Fortran
Available Graphics
Drivers
Windows® 10 64-bit
Windows® 7 64-bit (via nvidia.com)
Linux® 64-bit
HP qualified drivers may be preloaded or available from the HP
support Web site:
http://welcome.hp.com/country/us/en/support.html
QuickSpecs
HP Z8 G4 Workstation
Technical Specifications - Graphics
c05527763 — DA – 15956 — Worldwide — Version 34 — March 1, 2021
Page 76
Notes
1- Supports up to a total of 4 displays
NVIDIA® Quadro® RTX™
6000 24GB Graphics
Form Factor
Full-Height Dual Slot (4.4” Height x 10.5” Length)
Weight: 1070 grams / 2.35 lbs
Graphics Controller
NVIDIA® Quadro® RTX™ 6000 Graphics
TU102 GPU
GPU: 4608 NVIDIA® CUDA® Parallel Processing Cores
Power: 295 Watts
Cooling: Active
Memory
24GB GDDR6 memory
Memory Bandwidth: Up to 672 GB/s
Memory Width: 384 bit
Connectors
4x DP 1.4a and VirtualLink
Quadro Sync connector (compatible with Quadro II Sync)
One 8-pin + 6-pin auxiliary power connector
Factory configured option: No video cable adapter included with
card.
After market option Kit: No video cable adaptor included with card.
DVI to VGA, DisplayPort™ to VGA, DisplayPort™ to DVI, and
DisplayPort™ to Dual-Link DVI adapters available as accessories.
Maximum Resolution
7680x4320 @ 60Hz
Image Quality Features
Advanced support for 8-bit, 10-bit, and 12-bit per RGB
color component.
HDCP 2.2 support over DisplayPort™, DVI, and HDMI
connectors
NVIDIA® 3D Vision™ and other 3D stereo technologies
NVIDIA® Mosaic and nView
Display Outputs1
4x DP 1.4a and VirtualLink (7680x4320 @ 60Hz)
Supported Graphics
APIs
DirectX®12, OpenGL® 4.5, OpenCL™ 1.0, Vulkan™ 1.0
Developer API support includes: CUDA C, CUDA C++, DirectCompute
5.0, OpenCL™, Java, Python, and Fortran
Available Graphics
Drivers
Windows® 10 64-bit
Windows® 7 64-bit (via nvidia.com)
Linux® 64-bit
QuickSpecs
HP Z8 G4 Workstation
Technical Specifications - Graphics
c05527763 — DA – 15956 — Worldwide — Version 34 — March 1, 2021
Page 77
HP qualified drivers may be preloaded or available from the HP
support Web site:
http://welcome.hp.com/country/us/en/support.html
Notes
1- Supports up to a total of 4 displays
NVIDIA® RTX™ A6000
48GB Graphics
Form Factor
Full-Height Dual Slot (4.4” Height x 10.5” Length)
Weight: 1230 grams / 2.71 lbs (with extender)
Graphics Controller
NVIDIA® RTX™ A6000 Graphics
GPU: 10752 NVIDIA® CUDA® Parallel Processing Cores
Power: 300 Watts
Cooling: Active
Memory
48GB GDDR6 memory
ECC optional
Memory Bandwidth: Up to 768 GB/s
Memory Width: 384 bit
Connectors
4x DP 1.4a
Quadro Sync II connector
Ampere NVLink®
Stereo Sync
Requires 8-pin CPU auxiliary power
Maximum Resolution
5120x2880 @ 60Hz (up to 4 displays)
Display Outputs
4x DP 1.4 (7680x4320 @ 60Hz)
Supported Graphics APIs
DirectX®12, OpenGL® 4.6, OpenCL™ 1.0, Vulkan™ 1.0
Developer API support includes: CUDA C, CUDA C++, DirectCompute 5.0,
OpenCL™, Java, Python, and Fortran™
Available Graphics
Drivers
Windows® 10 64-bit
Linux® 64-bit
HP qualified drivers may be preloaded or available from the HP support
Web site:
http://welcome.hp.com/country/us/en/support.html
NVIDIA® Quadro® RTX™
8000 48GB Graphics
Form Factor
Full-Height Dual Slot (4.4” Height x 10.5” Length)
Weight: 1070 grams / 2.35 lbs
Graphics Controller
NVIDIA® Quadro® RTX™ 8000 Graphics
GPU: 4608 NVIDIA® CUDA® Parallel Processing Cores
Power: 295 Watts
Cooling: Active
QuickSpecs
HP Z8 G4 Workstation
Technical Specifications - Graphics
c05527763 — DA – 15956 — Worldwide — Version 34 — March 1, 2021
Page 78
Memory
48GB GDDR6 memory
Memory Bandwidth: Up to 672 GB/s
Memory Width: 384 bit
Connectors
4x DP 1.4a and VirtualLink
Quadro Sync connector (compatible with Quadro II Sync)
One 8-pin + 6-pin auxiliary power connector
Factory configured option: No video cable adapter included with card.
After market option Kit: No video cable adaptor included with card.
DVI to VGA, DisplayPort™ to VGA, DisplayPort™ to DVI, and DisplayPort™ to
Dual-Link DVI adapters available as accessories.
Maximum Resolution
7680x4320 @ 60Hz
Image Quality Features
Advanced support for 8-bit, 10-bit, and 12-bit per RGB color
component.
HDCP 2.2 support over DisplayPort™, DVI, and HDMI
connectors
NVIDIA® 3D Vision™ and other 3D stereo technologies
NVIDIA® Mosaic and nView
Display Outputs1
4x DP 1.4a and VirtualLink (7680x4320 @ 60Hz)
Supported Graphics APIs
DirectX®12, OpenGL® 4.5, OpenCL™ 1.0, Vulkan™ 1.0
Developer API support includes: CUDA C, CUDA C++, DirectCompute 5.0,
OpenCL™, Java, Python, and Fortran
Available Graphics
Drivers
Windows® 10 64-bit
Linux® 64-bit
HP qualified drivers may be preloaded or available from the HP support
Web site:
http://welcome.hp.com/country/us/en/support.html
Notes
1- Supports up to a total of 4 displays
2- VirtualLink's USB-C™ (data) cannot be disabled at a hardware
level
NVIDIA® Quadro®
GP100 16GB Graphics
Form Factor
Dual Slot (4.4” Height x 10.5” Length)
Weight: 989 grams +72 grams extender
Graphics Controller
NVIDIA® QUADRO® GP100
GPU: 3584 NVIDIA CUDA® Parallel Processing Cores
Power: 235 Watts
Cooling: Active
Memory
16GB HBM2
Memory Bandwidth: Up to 717 GB/s
Memory Width: 4096-bit
ECC Memory (disabled by default)
QuickSpecs
HP Z8 G4 Workstation
Technical Specifications - Graphics
c05527763 — DA – 15956 — Worldwide — Version 34 — March 1, 2021
Page 79
Connectors
DP (x4) with HDR support
DL-DVI(D)
3-pin mini-DIN connector via optional bracket
4-pin header for stereo signal
Quadro Sync connector (compatible with Quadro II Sync)
One 8-pin auxiliary power connector
(2x) NVLink connectors
Factory configured option: 8-pin power adapter included with card.
After market option Kit: 8-pin power adapter included with card.
DVI to VGA, DisplayPort™ to VGA, DisplayPort™ to DVI, and
DisplayPort™ to Dual-Link DVI adapters available as accessories.
Maximum Resolution
5K support @ 60Hz
1x single-cable 5K monitor, or 2x dual-cable 5K monitors
Image Quality Features
HDR support over DisplayPort™ 1.4 (SMPTE 2084/2086,
BT. 2020) (4K @ 60 Hz 10b/12b HEVC Decode, 4K @ 60
Hz 10b HEVC Encode)
HDCP 2.2 support over DisplayPort™, DVI, and HDMI
connectors
NVIDIA 3D Vision™ technology
NVIDIA Mosaic and nView Desktop Management
Display Outputs
4x DP1.4 MST & HDR2 outputs (up to 5120 x 2880 @ 60Hz)
1x Dual-link DVI-D output (up to 2560 x 1600 @ 60 Hz)
1x Single-link DVI-D output (up to 1920 x 1200 @ 60 Hz)
HDMI™ 2.0b (up to 5120 x 2880 @ 60Hz)*
*requires DP to HDMI adapter
GPU Architecture
NVIDIA Pascal™
Supported Graphics
APIs
DirectX®12 , OpenGL® 4.5, Vulkan™ 1.0
Developer API support includes: CUDA C, CUDA C++, DirectCompute
5.0, OpenCL, Java, Python, and Fortran
Available Graphics
Drivers
Windows® 10
Windows® 7 Professional 64-bit (via nvidia.com)
Linux®
HP qualified drivers may be preloaded or available from the HP
support Web site:
QuickSpecs
HP Z8 G4 Workstation
Technical Specifications - Graphics
c05527763 — DA – 15956 — Worldwide — Version 34 — March 1, 2021
Page 80
http://welcome.hp.com/country/us/en/support.html
Factory Configured (Z840 Workstations): No adapters included
Factory Configured (Z4 G4/ Z6 G4/ Z8 G4 Workstations): No adapters
included
After market option kit: No adapters included
NVIDIA® Quadro®
GV100 32GB Graphics
Form Factor
Dual Slot (4.4” Height x 10.5” Length)
Weight: 980 grams + 72 gram extender
Graphics Controller
NVIDIA® QUADRO® GV100
GPU: 5120 NVIDIA® CUDA® Parallel Processing Cores
Power: 250 Watts
Cooling: Active
Memory
32GB HBM2 memory
Memory Bandwidth: Up to 870 GB/s
Memory Width: 5120-bit
ECC Memory (disabled by default)
Connectors
DP (x4) with HDR support
3-pin mini-DIN connector via optional bracket
4-pin header for stereo signal
Quadro Sync connector (compatible with Quadro II Sync)
One 8-pin auxiliary power connector
(2x) NVLink for GV100 connectors (via optional kit)
After market option Kit: no power adapter included with card.
DisplayPort™ to VGA, DisplayPort™ to DVI (single-link and dual-
link), and DisplayPort™ to HDMI adapters available as accessories.
Maximum Resolution
5K support @ 60Hz
1x single-cable 5K monitor, or 2x dual-cable 5K monitors
Image Quality Features
HDR support over DisplayPort™ 1.4 (SMPTE 2084/2086,
BT. 2020) (4K @ 60 Hz 10b/12b HEVC Decode, 4K @ 60
Hz 10b HEVC Encode)
HDCP 2.2 support over DisplayPort™ and HDMI
connectors
NVIDIA 3D Vision™ technology
NVIDIA Mosaic and nView Desktop Management
QuickSpecs
HP Z8 G4 Workstation
Technical Specifications - Graphics
c05527763 — DA – 15956 — Worldwide — Version 34 — March 1, 2021
Page 81
Display Outputs
4x DP1.4 HDR2 outputs (up to 5120 x 2880 @ 60Hz)
GPU Architecture
NVIDIA® Volta™
Supported Graphics
APIs
DirectX®12, OpenGL® 4.5
Developer API support includes: CUDA C, CUDA C++, DirectCompute
5.0, OpenCL™, Java, Python, and Fortran
Available Graphics
Drivers
Windows® 10 64-bit
Windows® 7 64-bit (via nvidia.com)
Linux® 64-bit
HP qualified drivers may be preloaded or available from the HP
support Web site:
http://welcome.hp.com/country/us/en/support.html
Factory Configured (Z4/Z8 G4 Workstation): No adapters included
After market option kit: No adapters included
AMD Radeon™ Pro WX
7100 8GB Graphics
Form Factor
Full-Height Single Slot (9.5” Length )
Graphics Controller
Radeon™ Pro WX 7100 graphics
GPU: 2304 Stream Processors organized into 36 Compute Units
Power: 130 Watts
Cooling: Active
Memory
8GB GDDR5 memory
Memory Bandwidth: 7 Gbps / 224 GB/s
Memory Width: 256 bit
Connectors
4x Display Port 1.4 – HDR ready connectors with HBR3 and MST support.
Factory Configured: No video cable adapter included
After market option kit: No video cable adapter included
Additional DisplayPort™-to-VGA or DisplayPort™-to-DVI adapters are
available as Factory Configuration or Option Kit accessories.
Maximum Resolution
5K support @ 60Hz
• 1x single-cable 5K monitor, or 2x dual-cable 5K monitors
Image Quality Features
Advanced support for 8-bit, 10-bit, and 16-bit per RGB color
component. High bandwidth scaler for high quality up and
downscaling
Display Output
4 full physical DP1.3 HBR3 / DP1.4 HDR outputs
FreeSync support
QuickSpecs
HP Z8 G4 Workstation
Technical Specifications - Graphics
c05527763 — DA – 15956 — Worldwide — Version 34 — March 1, 2021
Page 82
GPU Architecture
GCN 4th Generation
Supported Graphics APIs
DirectX®12
OpenGL® 4.5
OpenCL™ 2.0
Vulkan™ 1.0
Available Graphics
Drivers
Windows 10
Windows® 7 64-bit
Linux® 64-bit
HP qualified drivers may be preloaded or available from the HP support
Web site:
http://welcome.hp.com/country/us/en/support.html
Notes
10. HDR content requires that the system be configured with a
fully HDR-ready content chain, including: graphics card,
monitor/TV, graphics driver and application. Video content
must be graded in HDR and viewed with an HDR-ready
player. Windowed mode content requires operating system
support.
11. Radeon VR Ready Creator Products are select Radeon Pro and
AMD FirePro™ GPUs that meet or exceed the Oculus Rift or
HTC Vive recommended specifications for video cards/GPUs.
Other hardware (including CPU) and system requirements
recommended by Oculus Rift or HTC Vive should also be met
in order to operate the applicable HMDs as intended. As VR
technology, HMDs and other VR hardware and software
evolve and/or become available, these criteria may change
without notice.
12. AMD PowerTune and AMD ZeroCore Power are technologies
offered by certain FirePro™ and Radeon™ Pro products, which
are designed to intelligently manage GPU power consumption
in response to certain GPU load conditions.
13. As of September 2016, certified for DisplayPort™ 1.4 HBR3
and ready for DisplayPort™ 1.4 HDR based on independent
verification by DisplayPort™ testing authority. HDR content
requires that the system be configured with a fully HDR-ready
content chain, including: graphics card, monitor/TV, graphics
driver and application. Video content must be graded in HDR
and viewed with an HDR-ready player. Windowed mode
content requires operating system support.
AMD Radeon™ Pro WX
9100 16GB Graphics
Form Factor
Dual Slot (4.4” Height x 10.5” Length)
Graphics Controller
Radeon™ Pro WX 9100 graphics
GPU: 4096 Stream Processors
Power: 250 Watts
Cooling: Active
Memory
16GB HBM2 memory
Memory Bandwidth: Up to 483 GB/s
QuickSpecs
HP Z8 G4 Workstation
Technical Specifications - Graphics
c05527763 — DA – 15956 — Worldwide — Version 34 — March 1, 2021
Page 83
Memory Width: 2048 bit
Connectors
6x Mini DisplayPort 1.4 – HDR ready connectors with HBR3 and MST
support.
Factory Configured: No video cable adapter included
After market option kit: No video cable adapter included
Additional DisplayPort-to-VGA or DisplayPort-to-DVI adapters are
available as Factory Configuration or Option Kit accessories.
Maximum Resolution
8K support @ 60Hz
Single monitor, single or dual-cable
Image Quality Features
Advanced support for 8-bit, 10-bit, and 16-bit per RGB color component.
High bandwidth scaler for high quality up and downscaling
Display Output
6 full physical mDP 1.4 HDR Ready outputs
FreeSync support
GPU Architecture
Vega™
Supported Graphics APIs
DirectX® 12.1
OpenGL® 4.5
OpenCL™ 2.0
Vulkan™ 1.0
Available Graphics
Drivers
Windows 10
Windows 7 available from AMD
Linux® 64-bit
HP qualified drivers may be preloaded or available from the HP support
Web site:
http://welcome.hp.com/country/us/en/support.html
Notes
1. HDR content requires that the system be configured with a
fully HDR-ready content chain, including: graphics card,
monitor/TV, graphics driver and application. Video content
must be graded in HDR and viewed with an HDR-ready
player. Windowed mode content requires operating system
support.
2. Radeon VR Ready Creator Products are select Radeon Pro and
AMD FirePro™ GPUs that meet or exceed the Oculus Rift or
HTC Vive recommended specifications for video cards/GPUs.
Other hardware (including CPU) and system requirements
recommended by Oculus Rift or HTC Vive should also be met
in order to operate the applicable HMDs as intended. As VR
technology, HMDs and other VR hardware and software
evolve and/or become available, these criteria may change
without notice.
QuickSpecs
HP Z8 G4 Workstation
Technical Specifications - Graphics
c05527763 — DA – 15956 — Worldwide — Version 34 — March 1, 2021
Page 84
3. AMD PowerTune and AMD ZeroCore Power are technologies
offered by certain FirePro™ and Radeon™ Pro products, which
are designed to intelligently manage GPU power consumption
in response to certain GPU load conditions.
4. As of September 2016, certified for DisplayPort™ 1.4 HBR3
and ready for DisplayPort™ 1.4 HDR based on independent
verification by DisplayPort™ testing authority. HDR content
requires that the system be configured with a fully HDR-ready
content chain, including: graphics card, monitor/TV, graphics
driver and application. Video content must be graded in HDR
and viewed with an HDR-ready player. Windowed mode
content requires operating system support.
AMD Radeon™ Pro W5700
8GB Graphics
Form Factor
Dual Slot (4.4” Height x 10.5” Length)
Graphics Controller
Radeon™ Pro W5700 graphics
GPU: 2304 Stream Processors
Power: 205 Watts
Cooling: Active
Memory
8GB GDDR6 memory
Memory Bandwidth: Up to 448 GB/s
Memory Width: 256 bit
Connectors
5x MiniDisplayPort 1.4 + USB-C – HDR ready and MST support
Factory Configured: No video cable adapter included
After market option kit: 2x mDP-to-DP adapters included
Additional DisplayPort-to-VGA or DisplayPort-to-DVI adapters are
available as Factory Configuration or Option Kit accessories.
Maximum Resolution
8K support @ 60Hz
Single monitor, single or dual-cable
Image Quality Features
Advanced support for 8-bit, 10-bit, and 16-bit per RGB color component.
High bandwidth scaler for high quality up and downscaling
Display Output
5 full physical mDP 1.4 + USB-c with DP signaling
FreeSync support
GPU Architecture
RDNA™
Supported Graphics APIs
DirectX® 12.1
OpenGL® 4.6
OpenCL™ 2.0
Vulkan™ 1.1
QuickSpecs
HP Z8 G4 Workstation
Technical Specifications - Graphics
c05527763 — DA – 15956 — Worldwide — Version 34 — March 1, 2021
Page 85
Available Graphics
Drivers
Windows 10
Linux® 64-bit
HP qualified drivers may be preloaded or available from the HP support
Web site:
http://welcome.hp.com/country/us/en/support.html
Notes
AMD Radeon™ Pro W5500
8GB Graphics
Form Factor
Single Slot (4.4” Height x 9.5” Length)
Graphics Controller
Radeon™ Pro W5500 graphics
GPU: 1408 Stream Processors
Power: 125 Watts
Cooling: Active
Memory
8GB GDDR6 memory
Memory Bandwidth: Up to 224 GB/s
Memory Width: 128 bit
Connectors
4x DisplayPort 1.4 – HDR ready and MST support
Factory Configured: No video cable adapter included
After market option kit: No video cable adapter included
Additional DisplayPort-to-VGA or DisplayPort-to-DVI adapters are
available as Factory Configuration or Option Kit accessories.
Maximum Resolution
8K support @ 60Hz
Single monitor, single or dual-cable
Image Quality Features
Advanced support for 8-bit, 10-bit, and 16-bit per RGB color component.
High bandwidth scaler for high quality up and downscaling
Display Output
4 full physical DP 1.4
FreeSync support
GPU Architecture
RDNA™
Supported Graphics APIs
DirectX® 12.1
OpenGL® 4.6
OpenCL™ 2.0
Vulkan™ 1.1
Available Graphics
Drivers
Windows 10
Linux® 64-bit
QuickSpecs
HP Z8 G4 Workstation
Technical Specifications - Graphics
c05527763 — DA – 15956 — Worldwide — Version 34 — March 1, 2021
Page 86
HP qualified drivers may be preloaded or available from the HP support
Web site:
http://welcome.hp.com/country/us/en/support.html
Notes
NVIDIA® Quadro® Sync II
Part number
1WT20AA
Dimensions (HxD)
6.0 inches × 4.2 inches
Devices Supported
NVIDIA® Quadro® P4000
NVIDIA® Quadro® P5000
NVIDIA® Quadro® P6000
Bus Type
Requires one free mechanical PCIe bus slot. 6-pin PCI or SATA power
connector
PCI Form Factor
Full Height, half length, single slot
Ports
2 RJ45 connectors for carrying frame lock signals over CAT5 cables.
BNC Connector for external house synchronization.
Internal Connectors
6 NVIDIA SLI® style edge fingers for connection to compatible GPUs
• Included with the board are 4 12-Inch Short Sync Cables to connect
to GPU's
• Included with the board are 2 24-Inch Long Sync Cables to connect
to GPU's
System Requirements
Requires one free mechanical PCIe bus slot. 6-pin PCI or SATA power
connector
Must be used with NVIDIA Quadro P4000, P5000 or P6000 graphics cards.
Requires Quadro driver version R375 or later.
Temperature Operating
0° to 55° C
Temperature - Storage
-40° to 60° C
Relative Humidity Operating
10% to 80%
Power Requirements
Board power dissipation: <15W
Operating Systems
Supported
Windows 10
Windows 7 64-bit
Linux® 64-bit
Kit Contents
Contains:
• Quadro Sync II Card
• 4 x 12-Inch Short Sync Cables
• 2 x 24-Inch Long Sync Cables (Two)
• Quick Start Guide
QuickSpecs
HP Z8 G4 Workstation
Technical Specifications – Optical and Removable Storage
c05527763 — DA – 15956 — Worldwide — Version 34 — March 1, 2021
Page 87
OPTICAL AND REMOVABLE STORAGE
HP 9.5mm Slim DVD
Writer
Description
9.5mm height, tray-load
Mounting Orientation
Either horizontal or vertical
Interface Type
SATA/ATAPI
Dimensions (WxHxD)
128 x 9.5 x 127mm
Supported Media Types
DVD+R
DVD+RW
DVD+R DL
DVD-R DL
DVD-R
DVD-RW
CD-R
CD-RW
Disc Capacity
DVD-ROM
8.5 GB DL or 4.7 GB standard
Full Stroke DVD
< 200 ms (seek)
Full Stroke CD
< 200 ms (seek)
Maximum Data Transfer
Rates
CD ROM Read
CD-ROM, CD-R Up to 24X
CD-RW Up to 24X
DVD ROM Read
DVD+RW Up to 8X
DVD-RW Up to 8X
DVD+R DL Up to 8X
DVD-R DL Up to 8X
DVD-ROM Up to 8X
DVD-ROM DL Up to 8X
DVD+R Up to 8X
DVD-R Up to 8X
Power
Source
SATA DC power receptacle
DC Power Requirements
5 VDC ± 5%-100 mV ripple p-p
DC Current
5 VDC -< 800 mA typical, <1600 mA
maximum
Operating Environmental
(all conditions noncondensing)
Temperature
41° to 122° F (5° to 50° C)
Relative Humidity
10% to 80%
Maximum Wet Bulb Temperature
84° F (29° C)
Operating Systems
Supported
Windows 10, Windows 7 Professional 64-bit,
Windows Vista Business 64*, Windows 2000.
Red Hat® Enterprise Linux® (RHEL) 6, 7 Desktop/Workstation
SUSE Linux® Enterprise Desktop 12
* No driver is required for this device. Native support is provided by the
operating system.
Kit Contents
HP SATA DVD Writer drive, installation guide.
HP 9.5mm Slim DVD-ROM
Drive
Description
9.5mm height, tray-load
Mounting Orientation
Either horizontal or vertical
QuickSpecs
HP Z8 G4 Workstation
Technical Specifications – Optical and Removable Storage
c05527763 — DA – 15956 — Worldwide — Version 34 — March 1, 2021
Page 88
Interface Type
SATA / ATAPI
Dimensions (WxHxD)
128 x 9.5 x 127mm
Disc Capacity
DVD-ROM
Single layer: Up to 4.7 GB
Double layer: Up to 8.5 GB
Access Times
DVD-ROM Single Layer
< 110 ms (typical)
CD-ROM Mode 1
< 110 ms (typical)
Full Stroke DVD
< 230 ms (typical)
Full Stroke CD
< 220 ms (typical)
Power
Source
SATA DC power receptacle
DC Power Requirements
5 VDC ± 5%-100 mV ripple p-p
DC Current
5 VDC – <800mA typical, < 1600 mA
maximum
Operating Environmental
(all conditions noncondensing)
Temperature
41° to 122° F (5° to 50° C)
Relative Humidity
10% to 80%
Maximum Wet Bulb Temperature
84° F (29° C)
Operating Systems
Supported
Windows 10, Windows 8.1, Windows 7 Professional 64-bit
Red Hat® Enterprise Linux® (RHEL) 6, 7 Desktop/Workstation
SUSE Linux® Enterprise Desktop 12
No driver is required for this device. Native support is provided by the
operating system.
Kit Contents
9.5mm Slim DVD-ROM Drive, 5.25" ODD Bay adapter/carrier, slim SATA
data/power cable, installation guide
HP HH DVD Writer (16X
RW DVD-R)
Description
HP Half Height DVD Writer
Mounting Orientation
Either Horizontal or vertical
Interface Type
SATA
Dimensions (WxHxD)
146x42x165mm
Supported Media Types
DVD+R
DVD+RW
DVD+R DL
DVD-R DL
DVD-R
DVD-RW
CD-R
CD-RW
Disc Capacity
DVD-ROM
8.5 GB DL or 4.7 GB standard
Full Stroke DVD
145ms (seek)
Full Stroke CD
120ms (seek)
Maximum Data Transfer
Rates
CD ROM Read
CD-ROM, CD-R Up to 24X
CD-RW Up to 24X
DVD ROM Read
DVD+RW Up to 13X
DVD-RW Up to 13X
DVD+R DL Up to 12X
DVD-R DL Up to 12X
DVD-ROM Up to 12X
QuickSpecs
HP Z8 G4 Workstation
Technical Specifications – Optical and Removable Storage
c05527763 — DA – 15956 — Worldwide — Version 34 — March 1, 2021
Page 89
DVD-ROM DL Up to 12X
DVD+R Up to 16X
DVD-R Up to 16X
Power
Source
SATA DC power receptacle
DC Power Requirements
5 VDC ± 5% -100 mV ripple p-p
12 VDC ± 10% -200 mV ripple p-p
DC Current
5 VDC -<1500mA typical, <2000 mA
maximum.
Operating Environmental
(all conditions noncondensing)
Temperature
41° to 122° F (5° to 50° C)
Relative Humidity
10% to 90% (Non-Condensing)
Operating Systems
Supported
Windows 10, Windows 7 Professional 64-bit. Red Hat Enterprise Linux
WS4**,5,6 Desktop/Workstation.
No driver is required for this device, Native support is provided by
operating system.
Kit Contents
HP SATA DVD Writer drive, Installation guide.
HP 9.5mm Slim BDXL BluRay Writer
Description
9.5mm height, tray-load
Mounting Orientation
Either horizontal or vertical
Interface Type
SATA/ATAPI
Dimensions (WxHxD)
128 x 9.5 x 127mm
Supported Media Types
BD-ROM
BD-R
BD-RE
DVD+R
DVD+RW
DVD+R DL
DVD-R DL
DVD-R
DVD-RW
CD-R
CD-RW
Disc Capacity
DVD-ROM
8.5 GB DL or 4.7 GB standard
Blu-ray
25 GB (single-layer)
50 GB (dual-layer)
100/128 GB (BDXL)
Full Stroke DVD
< 230 ms (seek)
Full Stroke CD
< 220 ms (seek)
Blu-ray
< 230 ms (seek) (Full Stroke Blu-ray)
Startup Time
(Time to drive ready from tray
loading)
BD-ROM (SL/DL) 25S / 28S
BD-R (SL/DL) 25S / 28S
BD-RE (SL/DL) 25S / 28S
DVD-ROM (SL/DL) 18S / 18S
DVD-R (SL/DL) 25S / 25S
DVD-RW 25S
DVD+R (SL/DL) 25S / 25S
QuickSpecs
HP Z8 G4 Workstation
Technical Specifications – Optical and Removable Storage
c05527763 — DA – 15956 — Worldwide — Version 34 — March 1, 2021
Page 90
DVD+RW 25S
CD-ROM 15S
Maximum Data Transfer
Rates
CD ROM Read
CD-ROM, CD-R Up to 24X
CD-RW Up to 24X
DVD ROM Read
DVD+RW Up to 8X
DVD-RW Up to 8X
DVD+R DL Up to 8X
DVD-R DL Up to 8X
DVD-ROM Up to 8X
DVD-ROM DL Up to 8X
DVD+R Up to 8X
DVD-R Up to 8X
Blu-ray
BD-ROM Up to 6X
BD-ROM DL Up to 6X
BD-R Up to 6X
BD-R DL Up to 6X
BD-R Up to 6X
BD-RE SL/DL Up to 6X
Power
Source
SATA DC power receptacle
DC Power Requirements
5 VDC ± 5%-100 mV ripple p-p
DC Current
5 VDC -900 mA typical, 2000mA
maximum
Operating Environmental
(all conditions noncondensing)
Temperature
41° to 122° F (5° to 50° C)
Relative Humidity
10% to 80%
Maximum Wet Bulb Temperature
84° F (29° C)
Operating Systems
Supported
Windows 10, Windows 7 Professional 64-bit,
Red Hat® Enterprise Linux® (RHEL) 6, 7 Desktop/Workstation
SUSE Linux® Enterprise Desktop 12
No driver is required for this device. Native support is provided by the
operating system.
Kit Contents
9.5mm Slim BDXL Blu-Ray Writer, 5.25" ODD Bay adapter/carrier, slim
SATA data/power cable, installation guide
As Blu-ray is a new format containing new technologies, certain disc,
digital connection, compatibility and/or performance issues may arise, and
do not constitute defects in the product. Flawless playback on all systems
is not guaranteed. In order for some Blu-ray titles to play, they may
require a DVI or HDMI digital connection and your display may require
HDCP support. HD-DVD movies cannot be played on this workstation.
HP SD Card Reader
Description
Supports hardware ECC (Error Correction Code) function
Supports hardware CRC (Cyclic Redundancy Check) function
Supports SD 4-bit parallel transfer mode
Interface Type
USB 3.1 Gen 1 High-speed interface
Dimensions (WxHxD)
1.15 x .9 x .15 in (29.00 x 23.6 x 3.15 mm) Fits conveniently in the Front IO
Bay
Supported Media Types
Secure Digital Card (SD)
Secure Digital High Capacity (SDHC)
QuickSpecs
HP Z8 G4 Workstation
Technical Specifications – Optical and Removable Storage
c05527763 — DA – 15956 — Worldwide — Version 34 — March 1, 2021
Page 91
SD Extended Capacity Memory Card (SDXC)
SD Ultra High Speed II(SD UHSII)
These additional media types are supported with a card adapter.
Memory Stick Micro (M2)
miniSD
miniSD High Capacity
Micro SD Memory Card (MicroSD)
Micro SD High Capacity Memory Card (MicroSDHC)
Test Parameters/Conditions - Power applied, unit operating on system
±5%
Operating Systems
Supported
Windows 10
No driver is required for this device. Native support is provided by the
operating system.
Kit Contents
Media card reader
Approvals
USB-IF, WHQL, Compliant with USB Mass Storage Class Bulk only Transport
Specification Rev. 1.0,
Compliant Intel Front Panel I/O Connectivity Design Guide V. 1.3, FCC, CE,
BSMI, C-Tick, VCCI, MIC, cUL, TUVT
Weight
0.35 lbs. (0.16 kg)
QuickSpecs
HP Z8 G4 Workstation
Technical Specifications - Controller Cards
c05527763 — DA – 15956 — Worldwide — Version 34 — March 1, 2021
Page 92
CONTROLLER CARDS
HP Thunderbolt-3 Dual
Port2 PCIe 1-port I/O
Card
Data Transfer Rate
Supports up to 40 Gb/s (40,000 Mb/s)
Devices Supported
Thunderbolt™, Thunderbolt™ 2 and Thunderbolt™ 3 certified for Windows
devices
Bus Type
PCIe card, full height PCIe slots
Ports
Two Thunderbolt™ 3 external USB type-C output connectors (Rear)
Two full size DisplayPort input connectors (Rear)
Internal Connectors
One 2x5-Pin header connector
System Requirements
Windows 10 Professional, available dedicated PCH PCIe slot.
Temperature - Operating
50° to 131° F (10° to 55° C)
Temperature - Storage
-22° to 140° F (-30° to 60° C)
Relative Humidity Operating
20% to 80%
Compliances
FCC Part 15B, cULus 60950, CE Mark EN55022B(1995)/EN55024-1998 STD,
Taiwan BSMI CNS13438, Korea MIC
Operating Systems
Supported
Genuine Windows 10 Professional.
Kit Contents
HP Thunderbolt™ 3 Dual Port PCIe I/O Card, 2- DisplayPort cables, GPIO
(General-Purpose Input/Output) cables, Installation documentation and
warranty card.
*Maximum speed requires DisplayPort™ and PCIe aggregation.
QuickSpecs
HP Z8 G4 Workstation
Technical Specifications - Networking and Communications
c05527763 — DA – 15956 — Worldwide — Version 34 — March 1, 2021
Page 93
NETWORKING AND COMMUNICATIONS
Integrated Intel I219LM
Connector
RJ-45
Controller
Intel I219LM
Data Rates Supported
10/100/1000 Mbps
Boot ROM Support
PXE, UEFI
Connect Speed LED
Indicators
Link/Activity LED
• Off = No link
• Blinking = Activity
Speed LED
• Off = 10Mbps
• Amber = 100Mbps
• Green = 1000Mbps
Management Capabilities
Intel ® Active Management Technology™ 11
QuickSpecs
HP Z8 G4 Workstation
Technical Specifications - Networking and Communications
c05527763 — DA – 15956 — Worldwide — Version 34 — March 1, 2021
Page 94
Integrated Intel X722 for
1GbE
Connector
1 RJ-45
Controller
Intel X722 for 1GbE
Data Rates Supported
1000 Mbps
Boot ROM Support
PXE, UEFI
Connect Speed LED
Indicators
Link/Activity LED
• Off = No link
• Blinking = Activity
Speed LED
• Off = No Link
• Green = 1000Mbps
Management Capabilities
Wake-On-LAN
HP Z Dual 10GbE Network
Module
Networking Interface
2 RJ-45
System Interface
Cabled from Dedicated Rear I/O Slot
Networking Speeds
Supported
1Gbps, 10Gbps
Cabling (up to 100m)
Cat5e (or higher) for 1Gbps
Cat6a (or higher) for 10Gbps
Power Consumption
(active-typical)
5.5W at 1Gbps
11.2W at 10Gbps
Physical Dimensions
0.875 in x 3 in x 2.75 in
Connect Speed LED
Indicators
Link/Activity LED
• Off = No link
• Blinking = Activity
Speed LED
• Amber = 1Gbps
• Green = 10Gbps
Operating Temperature
0 °C to 55 °C (32 °F to 131 °F)
Intel® I210-T1
Networking Interface
1 RJ-45
System Interface
PCI Express 2.1 x1
Networking Speeds
Supported
10Mbps, 100Mbps, 1Gbps
Cabling (up to 100m)
Cat3 (or higher) for 10Mbps
Cat5 (or higher) for 100Mbps
Cat5e (or higher) for 1Gbps
Power Consumption
(active-typical)
0.81W
Physical Dimensions
Length: 6.7cm (2.64 inches)
(Bracket) Width: 1.8cm (0.709 inches)
Full-height end bracket: 12.07cm (4.755 inches)
Low-profile end bracket: 8cm (3.15 inches)
QuickSpecs
HP Z8 G4 Workstation
Technical Specifications - Networking and Communications
c05527763 — DA – 15956 — Worldwide — Version 34 — March 1, 2021
Page 95
Connect Speed LED
Indicators
Link/Activity LED
• Off = No link
• Blinking = Activity
Speed LED
• Off = 10Mbps
• Green = 100Mbps
• Amber = 1Gbps
Operating Temperature
0 °C to 55 °C (32 °F to 131 °F)
Hardware Certifications
USA: FCC B,
EU: UL CE,
Japan: VCCI,
Taiwan: BSMI,
Australia/New Zealand: CTICK,
Korea: KCC,
Canada: ICES-003/NMB-003
Intel® I350-T2
Networking Interface
2 RJ-45
System Interface
PCI Express 2.1 x4
Networking Speeds
Supported
10Mbps, 100Mbps, 1Gbps
Cabling (up to 100m)
Cat3 (or higher) for 10Mbps
Cat5 (or higher) for 100Mbps
Cat5e (or higher) for 1Gbps
Power Consumption
(active-typical)
4.4W
Physical Dimensions
Length: 13.54cm (5.33 inches)
Width: 6.89 (2.71 inches)
Full-height end bracket: 12.0cm (4.725 inches)
Low-profile end bracket: 7.92cm (3.117 inches)
Connect Speed LED
Indicators
Link/Activity LED
• Off = No link
• Blinking = Activity
Speed LED
• Off = 10Mbps
• Green = 100Mbps
• Amber = 1Gbps
Operating Temperature
0 °C to 55 °C (32 °F to 131 °F)
Hardware Certifications
USA: FCC B,
EU: UL CE,
Japan: VCCI,
Taiwan: BSMI,
Australia/New Zealand: CTICK,
Korea: KCC,
Canada: ICES-003/NMB-003
Intel® I350-T4
Networking Interface
4 RJ-45
System Interface
PCI Express 2.1 x4
Networking Speeds
Supported
10Mbps, 100Mbps, 1Gbps
QuickSpecs
HP Z8 G4 Workstation
Technical Specifications - Networking and Communications
c05527763 — DA – 15956 — Worldwide — Version 34 — March 1, 2021
Page 96
Cabling (up to 100m)
Cat3 (or higher) for 10Mbps
Cat5 (or higher) for 100Mbps
Cat5e (or higher) for 1Gbps
Power Consumption
(active-typical)
5W
Physical Dimensions
Length: 13.54cm (5.33 inches)
Width: 6.89 (2.71 inches)
Full-height end bracket: 12.0cm (4.725 inches)
Low-profile end bracket: 7.92cm (3.117 inches)
Connect Speed LED
Indicators
Link/Activity LED
• Off = No link
• Blinking = Activity
Speed LED
• Off = 10Mbps
• Green = 100Mbps
• Amber = 1Gbps
Operating Temperature
0 °C to 55 °C (32 °F to 131 °F)
Hardware Certifications
USA: FCC B,
EU: UL CE,
Japan: VCCI,
Taiwan: BSMI,
Australia/New Zealand: CTICK,
Korea: KCC,
Canada: ICES-003/NMB-003
Aquantia® AQN-108
Networking Interface
RJ-45
System Interface
PCI Express 3 x1
Networking Speeds
Supported
100Mbps, 1Gbps, 2.5Gbps, 5Gbps
Cabling (up to 100m)
Cat5e (or higher) for all speeds
Power Consumption
(active-typical)
3.5W at 5Gbps, 3.0W at 2.5Gbps
Physical Dimensions
3.72 in x 3.18 in (without bracket)
Connect Speed LED
Indicators
Link/Activity LED
• Off = No link
• Blinking = Activity
Speed LED
• Off = No link
• Amber = <5Gbps
• Green = 5Gbps
Operating Temperature
0 °C to 55 °C (32 °F to 131 °F)
Hardware Certifications
USA: FCC B,
EU: UL CE,
Japan: VCCI,
Taiwan: BSMI,
Australia/New Zealand: CTICK,
Korea: KCC,
Canada: ICES-003/NMB-003
QuickSpecs
HP Z8 G4 Workstation
Technical Specifications - Networking and Communications
c05527763 — DA – 15956 — Worldwide — Version 34 — March 1, 2021
Page 97
Intel® X550-T2
Networking Interface
2 x RJ-45
System Interface
PCI Express 3 x4
Networking Speeds
Supported
100Mbps, 1Gbps, 2.5Gbps, 5Gbps, 10Gbps
Cabling (up to 100m)
Cat5 (or higher) for 100Mbps
Cat5e (or higher) for 1Gbps, 2.5Gbps, or 5Gbps
Cat6a (or higher) for 10Gbps
Power Consumption
(active-typical)
3.9W at 100Mbps
5.5W at 1Gbps
11.2W at 10Gbps
Physical Dimensions
5.2 in x 2.7 in (without bracket)
Connect Speed LED
Indicators
Link/Activity LED
• Off = No link
• Blinking = Activity
Speed LED
• Off = No link
• Amber = <10Gbps
• Green = 10Gbps
Operating Temperature
0 °C to 55 °C (32 °F to 131 °F)
Hardware Certifications
USA: FCC B,
EU: UL CE,
Japan: VCCI,
Taiwan: BSMI,
Australia/New Zealand: CTICK,
Korea: KCC,
Canada: ICES-003/NMB-003
Allied Telesis
AT-2914SX/LC-901 1GB
LC Fiber NIC
Network Interface
System Interface
Networking Speeds
Supported
Cabling
Power Consumption
(active- typical)
Physical Dimensions
Connect Speed LED
Indicators
Operating Temperature
Hardware Certifications
1Gb LC Fiber 850 nm
PCIeG2 x1, Half Height, Half Length
1000Base-X (1Gbps)
50/125 µm (core/cladding) multimode fiber optic cable up to 500m
62.5/125 µm (core/cladding) multimode fiber optic cable up to 220m
1.5 Watts
8.8 cm x 6.9 cm (3.5 in x 2.7 in)
ON: 1Gbps Link OFF: Link down
-25°C to 70°C (-13°F to 158°F)
IEEE 802.1p (Quality of Service), IEEE 802.1Q (VLANs), IEEE 802.2 (LLC),
IEEE 802.3ac (MAC), IEEE 802.3x (Flow control auto-negotiation), IEEE
802.3z (1000 Base-X), IEEE 802.3ad (Link aggregation)
RoHS, UL, FCC/EN55022 Class A, TUV, EN55024, CE, C-TICK, VCCI
Intel® X710-DA2
Networking Interface
2 SFP+ Ports for LC SFP+ Transceivers
10GBASE-SR Converged
Network Adapter
System Interface
PCI Express 3.0 x8
QuickSpecs
HP Z8 G4 Workstation
Technical Specifications - Networking and Communications
c05527763 — DA – 15956 — Worldwide — Version 34 — March 1, 2021
Page 98
Networking Speeds
Supported
1Gbps, 10Gbps
Cabling
LC fiber optic cabling with LC SFP+ Transceivers
Power Consumption
(active-typical)
4.3W
Physical Dimensions
6.578 in x 2.703 in
Connect Speed LED
Indicators
Link/Activity LED
• Off = No link
• Blinking = Activity
Speed LED
• Off = 10Mbps
• Green = 100Mbps
• Amber = 1Gbps
Operating Temperature
0 °C to 55 °C (32 °F to 131 °F)
Hardware Certifications
USA: FCC B,
EU: UL CE,
Japan: VCCI,
Taiwan: BSMI,
Australia/New Zealand: CTICK,
Korea: KCC,
Canada: ICES-003/NMB-003
Note: Windows 7 is NOT supported
10GbE SFP+ SR
Transceiver
Connector Type
LC
Cable Type
62.5/125um or 50/125um (core/cladding), graded-index, low metal
content, multimode fiber optic, complying with ITU-T G.651 and ISO/IEC
793-2 Type A1b or A1a, respectively.
Cable Length
2-300m
Wavelength
850nm
Form Factor
SFP+
Physical Dimensions
0.47(h) x 0.54(w) x 2.19(d) inches
(1.19 x 1.38 x 5.57 cm)
Operating Temperature
0C to 45C (32F to 113F)
Operating Humidity
0% to 85%, noncondensing
Intel® 8265 WLAN
Networking Speeds
802.11ac MU-MIMO (up to 867 Mbps)
Bluetooth 4.2
IEEE WLAN Standard
IEEE 802.11a/b/g/n/ac, 802.11d, 802.11e, 802.11h, 802.11i, 802.11w;
802.11r, 802.11k, 802.11v pending
Bluetooth
4.2
System Interface
PCI Express 2.1 x1
Antenna
2x2
Intel® 9260 WLAN
Networking Speeds
802.11ac MU-MIMO (up to 1.73Gbps using 160MHz channels)
QuickSpecs
HP Z8 G4 Workstation
Technical Specifications - Networking and Communications
c05527763 — DA – 15956 — Worldwide — Version 34 — March 1, 2021
Page 99
IEEE WLAN Standards
IEEE 802.11a/b/g/n/ac
Bluetooth
5.0
System Interface
PCI Express 2.1 x1
Antenna
2x2
QuickSpecs
HP Z8 G4 Workstation
Summary of Changes
c05527763 — DA – 15956 — Worldwide — Version 34 — March 1, 2021
Page 100
SUMMARY OF CHANGES
Date of change:
Version History:
Description of change:
September 20, 2017
From v1 to v2
Added
Specs for the Power Supply section
Changed
The System Configurations section and changed notes for the NVIDIA
Quadro P4000, P5000 & P6000 Graphics
November 1, 2017
From v2 to v3
Added
HP DisplayPort to HDMI Adapter, NVIDIA SLI 2-slot Graphics Connector and
NVIDIA Quadro Sync II to Graphics section
Changed
Graphics, Storage / Hard Drives, Networking and Communications, Other
Hardware and Memory sections, changed Front view info on the Overview
section, changed Operating Systems section, changed Processors section,
changed System Board section, Physical Security and Serviceability section
November 10, 2017
From v3 to v4
Added
Windows 10 to the supporting systems by the 9.5mm Slim DVD-ROM drive
Removed
Microsemi 3152-8i SAS ROC RAID Controller from SAS controller on the
Hard Drive Controllers section.
November 29, 2017
From v4 to v5
Added
Processors, hard drives and graphics to offerings, added Declared Noise
Emissions information
Changed
Wattage links on power supply section updated and Voltage links on
efficientcy section updated
January 30, 2018
From v5 to v6
Changed
Factory configured option to yes on Networking and communications for :
Intel® 8265 802.11 a/b/g/n/ac&BT PCIe
Removed
NVIDIA SLI Graphics Connector from Graphics Cable Adapters section
February 14, 2018
From v6 to v7
Removed
RAID 5 and 10 references from “Factory integrated” in interfaces supported
section
March 27, 2018
From v7 to v8
Added
NVIDIA Quadro GP100 16GB Graphics, NVIDIA Quadro GV100 32GB Graphics
and AMD Radeon Pro WX 9100 16GB Graphics as High End 3D in Graphics
section
Added
Intel Xeon processors added
August 13, 2018
From v8 to v9
Added
Footnote to Networking and Communications section
Changed
Operating Systems section
September 6, 2018
From v9 to v10
Added
Integrated Network Architecture Diagram on The Networking and
Communications section
September 6, 2018
From v10 to v11
Changed
Power Supply section
September 21, 2018
From v11 to v12
Added
Intel Optane SSD 905p AiC 280GB & 480GB
November 19, 2018
From v12 to v13
Added
Intel Xeon Gold 6128 processor
Changed
NVIDIA Quadro P6000 Graphics specs
January 2, 2019
From v13 to v14
Added
NVIDIA Quadro P620 2GB Graphics
January 8, 2019
From v14 to v15
Added
HP DX175 Removable HDD Carrier into the HDD Frame/Carriers section
Changed
Intel Xeon Gold 6126 processor specs
January 9, 2019
From v15 to v16
Added
Intel Xeon Gold 6126 processor footnote
January 23, 2019
From v16 to v17
Added
Intel 9260 802.11 a/b/g/n/ac&BT PCIe to Networking section and added HP
Z Turbo Drive Dual Pro series to Storage section
April 8, 2019
From v17 to v18
Added
New Intel Xeon Processors and graphics
Changed
Storage / Hard Drives, Memory sections and format changes
May 15, 2019
From v18 to v19
Added
NVIDIA Quadro RTX 8000 48GB Graphics
Changed
Networking and Communications section and changed External BIOS
simulator link on Physical Security and Serviceability section
June 12, 2019
From v19 to v20
Changed
Storage section
July 15, 2019
From v20 to v21
Changed
Corrected Intel 905p Series AIC 480GB PCIe SSD
August 1, 2019
From v21 to v22
Changed
Processors Matrix
August 6, 2019
From v22 to v23
Changed
Graphics section
September 1, 2019
From v23 to v24
Added
Footnote to Memory section, Added Optane 905P 380GB M.2 SSD Module,
HP Z Turbo Drive 1TB SED TLC Z8 G4 SSD Kit & module to Storage section,
Added Intel® Wi-Fi 6 AX200 & BT PCIe to Networking section
Loading...
