HP SN6000 User Manual

HP StorageWorks SN6000 Fibre Channel Switch QuickTools Switch Management User Guide

Part Number: 5697-0261 Published February 2010 Edition: 1

Legal and notice information

Confidential computer software. Valid license from HP required for possession, use or copying. Consistent with FAR 12.211 and 12.212, Commercial Computer Software, Computer Software Documentation, and Technical Data for Commercial Items are licensed to the U.S. Government under vendor's standard commercial license.

The information contained herein is subject to change without notice. The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.

QuickTools™ is a trademark of QLogic Corporation.

Java® and Solaris® are registered trademarks of Sun Microsystems, Inc.

Gnome™ is a trademark of the GNOME Foundation Corporation.

Linux® is a registered trademark of Linus Torvalds.

Mac OS® and Safari® are registered trademarks of Apple Computer, Inc.

Microsoft®, Windows®, and Internet Explorer® are trademarks of Microsoft Corporation.

Netscape Navigator® and Mozilla® are registered trademarks of Netscape Communications Corporation.

Red Hat® is a registered trademark of Red Hat Software Inc.

SUSE™ is a trademark of Novell, Inc.

HP StorageWorks SN6000 Fibre Channel Switch QuickTools Switch Management User Guide

About this guide. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Intended audience . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Prerequisites. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Related documentation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Document conventions and symbols . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

JDOM license. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

HP technical support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Subscription service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

HP-authorized reseller. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Helpful websites . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

1 Using QuickTools . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Workstation requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Opening QuickTools . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

QuickTools user interface. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Fabric tree . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Graphic window . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Data windows and tabs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Alerts panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Menu bar . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Popup menus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Shortcut keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Selecting switches . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Selecting ports. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Setting QuickTools preferences. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Using online Help . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Viewing the software version . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Exiting QuickTools . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

2 Managing fabrics. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Fabric services . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Enabling SNMP configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Enabling in-band management . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Rediscovering a fabric. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Adding a new switch to a fabric. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Replacing a failed switch. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Transparent Router . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

TR Mapping Manager dialog . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Removing an inter-fabric route . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Add TR Mapping dialog. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Mapping a new inter-fabric zone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Remote Fabric Zoning dialog . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Transparent Routes data window . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

Event Browser . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Filtering the Event Browser . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

Sorting the Event Browser . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

Saving the Event Browser to a file . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

Device information and nicknames . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

Devices data window . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

Displaying detailed device information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

Managing device port nicknames . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

Creating a nickname . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

Editing a nickname . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

Deleting a nickname . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

HP StorageWorks SN6000 Fibre Channel Switch QuickTools Switch Management User Guide 3

Exporting nicknames to a file . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

Importing a nicknames file . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

Zoning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

Active Zoneset data window . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

Configured Zonesets data window . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

Zoning concepts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

Zones . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

Aliases . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

Zonesets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

Zoning database . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

Viewing zoning limits and properties . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

Managing the zoning database. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

Editing the zoning database. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

Options for resolving zoning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

Configuring the zoning database . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

Merge Auto Save. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

Default Zone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

Discard Inactive. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

Saving and restoring the zoning database to a file . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

Saving the zoning database to a file . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

Restoring the zoning database from a file . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

Restoring the default zoning database . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

Removing all zone and zoneset definitions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

Managing zonesets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

Creating a zoneset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

Activating and deactivating a zoneset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

Renaming a zoneset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46

Removing a zoneset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46

Managing zones . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46

Creating a zone in a zoneset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46

Copying a zone to a zoneset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47

Adding zone members . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47

Renaming a zone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47

Removing a zone member . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48

Removing a zone from a zoneset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48

Removing a zone from all zonesets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48

Managing aliases . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48

Creating an alias . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48

Adding a member to an alias. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49

Removing an alias from all zones . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49

Merging fabrics and zoning. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49

Zone merge failure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49

Zone merge failure recovery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50

3 Managing switches . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51

Switch data window . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51

Switch data window buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52

Stack Links data window . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56

Managing Switch Stacks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56

Security Consistency Checklist . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57

Managing user accounts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58

Creating user accounts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59

Removing a user account . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59

Changing a user account password . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60

Modifying a user account . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61

Paging a switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61

Setting the date/time and enabling NTP client . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61

Resetting a switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62

Configuring a switch. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63

Using the configuration wizard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63

Switch properties . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64

Domain ID and Domain ID Lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64

Syslog . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64

Symbolic name. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65

Switch administrative states . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65

Broadcast support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65

In-band management. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65

Fabric device management interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65

Advanced switch properties . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66

Timeout values . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66

Managing system services . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66

Network properties . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68

Network IP configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69

IPv4 and IPv6 addressing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69

Network DNS configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71

SNMP configuration. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72

SNMP properties and trap configuration parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72

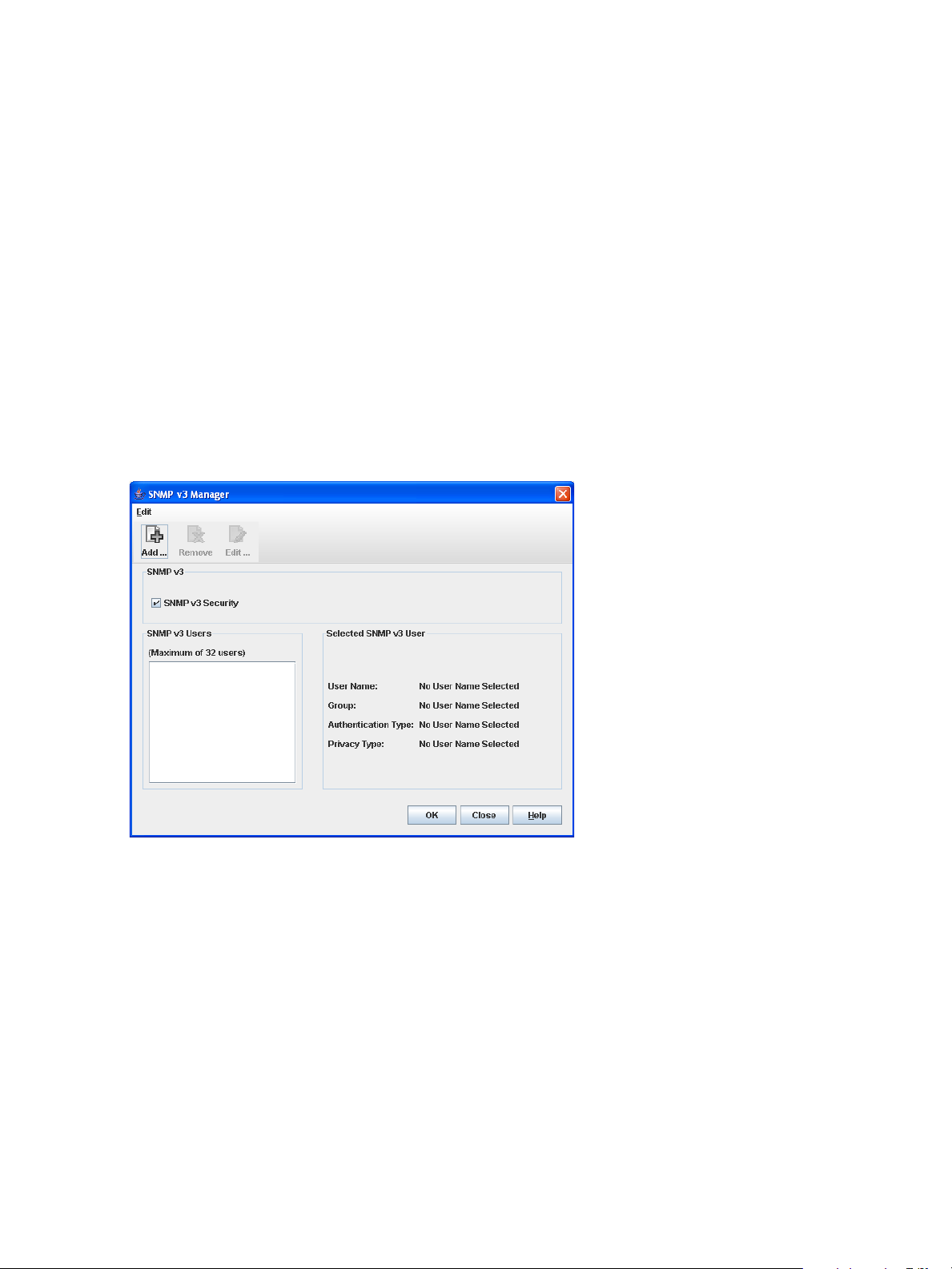

SNMP v3 Security . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73

Testing a switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75

Archiving a switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77

Restoring a switch. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77

Restoring the factory default configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79

Installing feature license keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80

Downloading a support file . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81

Installing firmware . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81

Using Call Home . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82

Using the Call Home Profile Manager . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86

Using the Call Home Profile Editor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86

Using the Call Home Profile Editor—Tech Support Center Profile dialog box . . . . . . . . . . . . . . . 88

Applying all profiles on a switch to other switches. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 90

Using the Call Home Message Queue . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 91

Testing Call Home Profiles . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 91

Change Over . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 92

4 Managing ports . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 93

Port Information data window . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 93

Port Statistics data window . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 96

Viewing and configuring ports . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 99

Port symbolic name . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100

Port states . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100

Port operational states . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 101

Port administrative states . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 101

Port types. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 102

Port speeds . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 102

Port transceiver media status . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 104

I/O Stream Guard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 104

Device Scan . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 104

Auto Performance Tuning and AL Fairness . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 105

Resetting a port . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 105

Testing ports . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 105

Glossary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 107

Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 111

Figures

1 Add a New Fabric dialog box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

2 Password Change Required dialog box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

3 QuickTools interface. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

HP StorageWorks SN6000 Fibre Channel Switch QuickTools Switch Management User Guide 5

4 Alerts panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

5 Preferences dialog box–QuickTools . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

6 TR Mapping Manager dialog . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

7 Add TR Mapping dialog. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

8 Remote Fabric Zoning dialog . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

9 Transparent Routes data window . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

10 Transparent Route dialog . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

11 Event Browser dialog box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

12 Filter Events dialog box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

13 Devices data window. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

14 Detailed Devices Display dialog box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

15 Active Zoneset data window . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

16 Configured Zoneset data window . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

17 Edit Zoning dialog box. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

18 Zoning Config dialog box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

19 Switch data window . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51

20 Switch data window buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52

21 Stack Links data window . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56

22 Security Consistency Checklist dialog box. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58

23 User Account Administration–Add Account dialog box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59

24 User Account Administration–Remove Account dialog box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60

25 User Account Administration–Change Password dialog box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60

26 User Account Administration–Modify Account dialog box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61

27 Date/Time dialog box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62

28 Switch Properties dialog box. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64

29 Advanced Switch Properties dialog box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66

30 System Services dialog box. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67

31 Network Properties dialog boxes. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68

32 SNMP Properties dialog box. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72

33 SNMP v3 Manager dialog box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74

34 SNMP v3 User Editor dialog box. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75

35 Switch Diagnostics dialog box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76

36 Restore dialog boxes—full and selective . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78

37 Feature Licenses dialog box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80

38 Add License Key dialog box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81

39 Load Firmware dialog box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82

40 Call Home Setup dialog box. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83

41 Call Home Profile Manager dialog box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86

42 Call Home Profile Editor dialog box. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 87

43 Call Home Profile Editor—Tech Support Center Profile dialog box . . . . . . . . . . . . . . . . . . . . . . . . . . 88

44 Call Home Profile Multiple Switch Apply dialog box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 90

45 Call Home Message Queue dialog box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 91

46 Call Home Test Profile dialog box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 91

47 Call Home Change Over dialog box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 92

48 Port Information data window . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 93

49 Port Information data window buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 93

50 Port Statistics data window . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 96

51 Port Properties dialog box. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 99

52 Advanced Port Properties dialog box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 105

53 Port Diagnostics dialog box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 106

Tables

1 Document conventions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

2 Workstation requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

3 Menu bar options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

4 Transparent Routes data window fields. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

5 Port operational states . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

6 Devices data window fields . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

7 Edit Zoning dialog box tool bar. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

8 Port/Device icons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

9 Switch data window fields . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52

10 Stack Links data window . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56

11 Switch resets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63

12 Network Properties dialog box—IP fields . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69

13 Network Properties dialog box—DNS fields . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71

14 SNMP Properties dialog box fields. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72

15 SNMP v3 User Editor dialog box fields . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75

16 Factory default configuration settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79

17 Call Home Setup fields . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 84

18 Call Home Editor—Tech Support Center Profile dialog box fields. . . . . . . . . . . . . . . . . . . . . . . . . . . . 89

19 Port Information data window fields . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 94

20 Port Statistics data window fields . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 96

21 Port Properties dialog box fields . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 99

22 Port operational states . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 101

23 Port administrative states. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 101

24 Port types . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 102

25 Port speeds . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 103

26 Port transceiver media view . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 104

HP StorageWorks SN6000 Fibre Channel Switch QuickTools Switch Management User Guide 7

About this guide

This manual describes the QuickTools web applet (version 8.00.4) for the HP SN6000 Fibre Channel Switch (firmware version 8.0). The manual also defines the features, components, and performance characteristics of the HP SN6000 Fibre Channel Switch. The QuickTools web applet is the primary focus of this manual, which is organized as follows:

• ”Using QuickTools” on page 13 describes how to use QuickTools, its menus, and its displays.

• ”Managing fabrics” on page 23 describes fabric management tasks.

• ”Managing switches” on page 51 describes switch management tasks.

• ”Managing ports” on page 93 describes port and device management tasks.

A glossary of terms and an index are also provided.

Intended audience

This manual introduces the switch management products and explains their installation and use. It is intended for users responsible for installing and using switch management tools.

Prerequisites

Prerequisites for using this product include:

• Knowledge of operation systems

• Knowledge of related hardware/software

Document conventions and symbols

Table 1 Document conventions

Convention Element

Medium blue text: Figure 1 Cross-reference links and email addresses

Medium blue, underlined text (http://www.hp.com)

Bold font • Keys that are pressed

Italics font Text emphasis

Monospace font • File and directory names

Monospace, italic font • Code variables

Monospace, bold font Emphasis of monospace text, including file and directory names, system

Website addresses

• Text typed into a GUI element, such as into a box

• GUI elements that are clicked or selected, such as menu and list

items, buttons, and check boxes

• System output

• Code

• Commands, their arguments, and argument values

• Command-line variables

output, code, and text typed at the command line

WARNING! Indicates that failure to follow directions could result in bodily harm or death.

CAUTION: Indicates that failure to follow directions could result in damage to equipment or data.

IMPORTANT: Provides clarifying information or specific instructions.

NOTE: Provides additional information.

TIP: Provides helpful hints and shortcuts.

JDOM license

Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met:

1. Redistributions of source code must retain the above copyright notice, this list of conditions, and the

following disclaimer:

2. Redistributions in binary form must reproduce the above copyright notice, this list of conditions, and the

disclaimer that follows these conditions in the documentation and/or other materials provided with the distribution.

3. The name "JDOM" must not be used to endorse or promote products derived from this software without

prior written permission. For written permission, please contact license@jdom.org.

4. Products derived from this software may not be called "JDOM", nor may "JDOM" appear in their

name, without prior written permission from the JDOM Project Management (pm@jdom.org).

In addition, we request (but do not require) that you include in the end-user documentation provided with the redistribution and/or in the software itself an acknowledgement equivalent to the following: "This product includes software developed by the JDOM Project (http://www.jdom.org/

Alternatively, the acknowledgment may be graphical using the logos available at

http://www.jdom.org/images/logos

THIS SOFTWARE IS PROVIDED ``AS IS'' AND ANY EXPRESSED OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE JDOM AUTHORS OR THE PROJECT CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.

This software consists of voluntary contributions made by many individuals on behalf of the JDOM Project and was originally created by Brett McLaughlin <brett@jdom.org> and Jason Hunter <jhunter@jdom.org>. For more information on the JDOM Project, please see <http://www.jdom.org/

)."

HP technical support

Telephone numbers for worldwide technical support are listed on the HP support website:

http://www.hp.com/support/

Collect the following information before calling:

• Technical support registration number (if applicable)

• Product serial numbers

• Product model names and numbers

• Applicable error messages

• Operating system type and revision level

• Detailed, specific questions

For continuous quality improvement, calls may be recorded or monitored.

Subscription service

HP strongly recommends that customers sign up online using the Subscriber's choice website:

http://www.hp.com/go/e-updates

• Subscribing to this service provides you with email updates on the latest product enhancements, newest

versions of drivers, and firmware documentation updates as well as instant access to numerous other product resources.

• After signing up, you can quickly locate your products by selecting Business support and then Storage

under Product Category.

HP-authorized reseller

For the name of your nearest HP-authorized reseller:

• In the United States, call 1-800-282-6672.

• Elsewhere, visit the HP website: http://www.hp.com

telephone numbers.

HP StorageWorks SN6000 Fibre Channel Switch QuickTools Switch Management User Guide 11

. Then click Contact HP to find locations and

Helpful websites

For other product information, see the following HP websites:

• http://www.hp.com

• http://www.hp.com/go/storage

• http://www.hp.com/support/

• http://www.docs.hp.com

1 Using QuickTools

This section describes how to use the QuickTools web applet and its menus. The following topics are covered:

• ”Workstation requirements” on page 13

• ”Opening QuickTools” on page 13

• ”QuickTools interface” on page 15

• ”Setting QuickTools preferences” on page 19

• ”Using online Help” on page 20

• ”Viewing the software version” on page 20

• ”Exiting QuickTools” on page 21

Workstation requirements

The requirements for fabric management workstations running the QuickTools web applet are described in

Table 2.

Table 2 Workstation requirements

Component Options/Requirements

Operating System Windows 2003, 2008, and XP SP1/SP2

SUSE Linux Enterprise Server 9, 10

Memory 512 MB or more (1GB recommended)

Processor 1 GHz or faster

Hardware CD-ROM drive and RJ-45 Ethernet port; RS-232 serial port (optional)

Internet Browser Microsoft Internet Explorer 6.0 and later

IMPORTANT: Java must be configured to disable caching of temporary files and applets to prevent

conflicts with past or future versions of QuickTools. Also, caching may become enabled if the Java version is upgraded, so you may need to disable caching again after a Java upgrade.

Opening QuickTools

Once the switch is operational, open the QuickTools web applet.

Red Hat Enterprise Linux 4, 5

Netscape Navigator 6.0 and later

Firefox 1.5 and later

Safari 1.0 running on Windows OS

Java 2 Standard Edition Runtime Environment 1.4.2 to support the web applet

To open the QuickTools web applet:

1. In an Internet browser, enter the switch IP address (the default switch IP address is 10.0.0.1). (If your

workstation does not have the Java 2 Run Time Environment program, you will be prompted to download it.)

HP StorageWorks SN6000 Fibre Channel Switch QuickTools Switch Management User Guide 13

2. The Add a New Fabric dialog box (Figure 1) prompts you for your username (the default is admin)

and password (the default is password).

Figure 1 Add a New Fabric dialog box

3. Click Add Fabric to open the fabric. (If you do not have a secure Ethernet connection, the Non Secure

Connection Check dialog box will prompt you to establish a non-secure connection.)

4. The opening window is displayed (Figure 3). For security reasons, you will be prompted to change your

user account password that was initially set up by the administrator (Figure 2).

Figure 2 Password Change Required dialog box

NOTE: Until you change the default password, you will be prompted to change the password each time

you attempt to open the fabric.

5. Click OK, and change the user account password. See ”Managing user accounts” on page 58 for

more information.

QuickTools user interface

The QuickTools web applet uses faceplate and backplate displays to manage the switches in a fabric. The interface (Figure 3) consists of a menu bar, fabric tree, graphic window, data windows (some with buttons), and data window tabs. The switch faceplate is displayed in the graphic window and shows the front of a single switch and its ports. While there is no topology display, the fabric name is displayed for reference in the fabric tree above the switch names. Click a switch name or icon to display a different switch faceplate in the graphic window. Information displayed in the data windows corresponds to the data window tab selected.

14 Using QuickTools

Data window tabs

Graphic window

Fabric

tree

bar

Data window

Fabric/Switch name

and status

Figure 3 QuickTools interface

Fabric tree

The QuickTools web applet enables you to manage the switches in one fabric. The fabric tree (Figure 3) provides access to each switch faceplate display in the fabric. Click a switch name or icon to display that switch faceplate in the graphic window. The width of the fabric tree window can be adjusted by clicking and dragging the moveable window border.

Next to each fabric tree entry is a small icon that uses color to indicate operational status:

• A green icon indicates normal operation.

• A yellow icon indicates that a switch is operational, but may require attention to maintain maximum

performance.

• A red icon indicates a potential failure or non-operational state, as when the switch is offline.

• A blue icon indicates that a switch is unknown, unreachable, or unmanageable.

If the status of the fabric is not normal, the fabric icon in the fabric tree indicates the reason for the abnormal status. The same message is provided when you rest the mouse on the fabric icon in the fabric tree.

Graphic window

The graphic window shows either the front of a switch (the faceplate, as shown in Figure 3) or the back of the switch (the backplate). The height of the window can be adjusted by clicking and dragging the border that it shares with the data window. To view the faceplate display, select View > View Faceplate. To view the backplate display, select View > View Backplate.

Data windows and tabs

The data window (Figure 3) displays a table of data and statistics associated with the selected tab for the switch displayed in the graphic window. Use the scroll bar to browse through the data. To adjust the length of the window, click and drag the border that it shares with the graphic window.To adjust the column width, move the pointer over the column heading border shared by two columns until a right/left arrow graphic is displayed. Click and drag the arrow to the desired width.

The data windows and tabs are described below:

HP StorageWorks SN6000 Fibre Channel Switch QuickTools Switch Management User Guide 15

• Devices—Displays information about devices (hosts and storage targets) connected to the switch. See

Status section

”Devices data window” on page 34 for more information.

• Switch—Displays current network and switch configuration data for the selected switch. See ”Switch

data window” on page 51 for more information.

• Port Statistics—Displays performance data for the selected ports. See ”Port Statistics data window” on

page 96 for more information.

• Port Information—Displays information for the selected ports. See ”Port Information data window” on

page 93 for more information.

• Configured Zonesets—Displays all zonesets, zones, and zone membership in the zoning database. A

zone is a named group of ports or devices. See ”Configured Zonesets data window” on page 38 for more information.

• Active Zoneset—Displays the active zoneset for the fabric including zones and their member ports. See

”Active Zoneset data window” on page 37 for more information about this data window. See ”Zoning” on page 37 for information about zonesets and zones.

Alerts panel

The Alerts panel shows all reasons for status, including faults. The Alerts panel entries are the highlighted rows between the faceplate image and the data window entries.

NOTE: The up/down arrows on the divider bar between the Alerts panel entries and data windows

enable you to move the divider bar up or down incrementally. With the faceplate image in the graphic window and the data window displayed, click the up arrow (on left) to move the divider up to the top of the window, completely hiding the faceplate image. Click the down arrow (on right) to move the divider back to the middle; click the down arrow again to completely hide the data window. You can also click-and-drag the divider bar to manually move it up or down.

Figure 4 Alerts panel

16 Using QuickTools

Menu bar

The QuickTools web applet menu bar options are described in Table 3.

Table 3 Menu bar options

Option Sub-options

File Preferences

Fabric Nicknames

Switch Archive

Rediscover Fabric

TR Mapping Manager

Show Event Browser

Restore (available on entry switch only)

User Accounts

Set Date/Time

Switch Properties

Advanced Switch Properties (available on entry switch only)

Services

Call Home (Setup, Profile Manager, Message Queue, Test Profile, Change Over)

Network Properties (IP, DNS)

SNMP (SNMP Properties, SNMP v3 Manager (SSL is required and only enabled on entry switch))

Switch Diagnostics (Online Switch Diagnostics, Offline Switch Diagnostics (available on entry switch only))

Toggle Beacons

Load Firmware

Reset Switch (Hot Reset, Reset, Hard Reset)

Restore Factory Defaults

Features

Download Support File

HP StorageWorks SN6000 Fibre Channel Switch QuickTools Switch Management User Guide 17

Table 3 Menu bar options (continued)

Option Sub-options

Stack

These options are available only if the stack icon or name is selected in the fabric tree.

Refresh Stack

Select All Ports

Syslog

SNMP Properties

Set Date/Time

User Accounts

Security Consistency Checklist

Reset ((Hot Reset, Reset, Hard Reset)

Load Firmware

Move Switch Up (available when a switch (except top switch) in stack is selected)

Move Switch Down (available when a switch (except bottom switch) in stack is selected)

Remove Switch (available when a switch in stack is selected)

Remove Links (available when an active port with ISL connected is selected)

Port Port Properties

Advanced Port Properties

Reset Port

Port Diagnostics (Online Port Diagnostics, Offline Port Diagnostics)

Zoning Edit Zoning

Resolve Zoning (Capture Active Zoning, Restore Configured Zoning, Capture Merged Zoning, View Merged/Configured Differences)

Edit Zoning Config

Activate Zoneset

Deactivate Zoneset

Restore Default Zoning

View Refresh

View Port Types

View Port States

View Port Speeds

View Port Media

View Faceplate

Wizards Configuration Wizard

Help Help Topics

18 Using QuickTools

View Backplate

About

Popup menus

Popup menus appear when you right-click the switch faceplate or backplate images in the graphic window. Popup menu options give you quick access to the common tasks and dialog boxes, such as:

• Refreshing a switch

• Selecting all ports

• Properties dialog boxes (Port, Switch, Network, and SNMP)

• Services dialog box

• Port diagnostics dialog boxes

Shortcut keys

Shortcut key combinations provide an alternative method of accessing menu options in the web applet. For example, to open the Preferences dialog box, press Alt+F, and then press R.

NOTE: The shortcut key combinations are not case-sensitive. Shortcut keys are not supported on the Mac

platform.

Selecting switches

To select a switch, you can either select the switch name or switch icon from the fabric tree to display its faceplate display in the graphic window. See ”Managing switches” on page 51 for detailed switch information.

Selecting ports

Ports are selectable and serve as access points for other displays and menus. You select ports to display information about them in the data window or to modify them. Context-sensitive popup menus appear when you right-click the faceplate image or on a port icon. See ”Managing ports” on page 93 for detailed port information.

Selected ports in the faceplate display are outlined in white. You can select ports in the following ways:

• To select a port, click the port.

• To select all ports, right-click on the faceplate image, and select Select All Ports from the popup menu.

• To select a range of consecutive ports, click a port, press and hold down the Shift key, and then click

the last port in the desired range. The web applet selects both end ports and all ports in between the end ports.

NOTE: When using the Shift key to select a range of ports, the first port you click in the range is the

anchor selection. Subsequent ranges are based on this anchor selection. For example, when you click port 4 and port 9 respectively, port 4 becomes the anchor selection. The next range will include all ports between port 4 and the next port you select.

• To select several non-consecutive ports, press and hold down the Control key while clicking each port.

• To deselect ports in a group of selected ports, press and hold down the Control key while clicking each

port.

• To cancel a selection, press and hold down the Control key and select it again.

Setting QuickTools preferences

Using the preferences settings, you can:

• Change the location of the working directory in which to save files.

• Change the location of the browser used to view the online Help.

• Select the Display Dialog When Making Non-secure Connections option. If this option is enabled, the

Non-secure Connections Check dialog box appears when you attempt to open a non-secure fabric and

HP StorageWorks SN6000 Fibre Channel Switch QuickTools Switch Management User Guide 19

you have the option of opening the non-secure fabric. If this option is disabled, you cannot open a fabric that has a non-secure connection.

• Enable (default) or disable the Event Browser. See ”Event Browser” on page 31 for more information. If

the Event Browser is enabled using the Preferences dialog box (Figure 5), the next time QuickTools is started all events appear. If the Event Browser is disabled when QuickTools is started and enabled later, only those events from the time the Event Browser was enabled and forward appear.

• Choose the default port view when opening the faceplate display. You can set the faceplate to reflect

the current port type (default), speed, port operational state, or port transceiver media. Regardless of the default port view you choose, you can change the port view in the faceplate display by opening the View menu and selecting a different port view option. See the corresponding subsection for more information:

•”Port types” on page 102

•”Port operational states” on page 101

•”Port speeds” on page 102

•”Port transceiver media status” on page 104

Figure 5 Preferences dialog box–QuickTools

To set preferences for your QuickTools sessions:

1. Select File > Preferences to open the Preferences dialog box.

2. Enter or browse for paths to the working directory and browser.

3. Choose the preferences you want in the Application-wide Options area.

4. Click OK to save the changes.

Using online Help

The browser-based online Help system can be accessed from the QuickTools web applet several ways. Online Help is also context-sensitive; that is, the online Help opens to the topic that describes the dialog box you have opened.

To open the first topic in the Help system, choose one of the following options:

• Select Help > Help Topics from the Menu bar.

• Click Help on the tool bar.

• If no dialog box appears, press the F1 function key.

To open the Help system to the topic that describes the dialog box you have open, choose one of the following options:

• Click Help in dialog box.

• Press the F1 function key.

Viewing the software version

Select Help > About to view the version of the software.

20 Using QuickTools

Exiting QuickTools

To exit a QuickTools web applet session, close the browser.

HP StorageWorks SN6000 Fibre Channel Switch QuickTools Switch Management User Guide 21

22 Using QuickTools

2 Managing fabrics

This section describes the following options for managing fabrics:

• ”Fabric services” on page 23

• ”Rediscovering a fabric” on page 23

• ”Adding a new switch to a fabric” on page 23

• ”Replacing a failed switch” on page 24

• ”Transparent Router” on page 24

• ”Event Browser” on page 31

• ”Device information and nicknames” on page 34

• ”Zoning” on page 37

Fabric services

Fabric services security includes SNMP and In-band management. SNMP is the protocol governing network management and monitoring of network devices. SNMP security consists of a read community string and a write community string, that are basically the passwords that control read and write access to the switch. The read community string (public) and write community string (private) are set at the factory to these well-known defaults and should be changed when SNMP is enabled using the System Services or SNMP Properties dialog boxes. If SNMP is enabled (default) and the read and write community strings have not been changed from their defaults, you risk unwanted access to the switch. See ”Enabling SNMP configuration” on page 23 for more information. SNMP is enabled by default.

In-band management is the ability to manage switches across inter-switch links using QuickTools, SNMP, management server, or the application programming interface. The switch comes from the factory with in-band management enabled. If you disable in-band management on a particular switch, you can no longer communicate with that switch by means other than a direct Ethernet or serial connection. See ”Enabling in-band management” on page 23 for more information.

Enabling SNMP configuration

To enable the SNMP configuration:

1. Select Switch > SNMP > SNMP Properties to open the SNMP Properties dialog box.

2. Select the SNMP Enabled option in the SNMP Configuration area.

3. Click OK to save the change to the database.

Enabling in-band management

To enable in-band management:

1. Select Switch > Switch Properties to open the Switch Properties dialog box.

2. Select the In-band Management Enable option.

3. Click OK to save the change to the database.

Rediscovering a fabric

After making changes to or deleting switches from a fabric view, it may be helpful to again view the actual fabric configuration. The Rediscover Fabric option clears out the current fabric information being displayed, and rediscovers all switch information.

To rediscover a fabric, select Fabric > Rediscover Fabric. The Rediscover function is more comprehensive than the Refresh function.

Adding a new switch to a fabric

If there are no special conditions to be configured for a new switch, plug in the switch; the switch becomes functional with the default fabric configuration. The default fabric configuration settings are:

HP StorageWorks SN6000 Fibre Channel Switch QuickTools Switch Management User Guide 23

• Fabric zoning is sent to the switch from the fabric.

• All 8 Gb/s ports will be GL_Ports.

• The default IP address 10.0.0.1 is assigned to the switch without configuring a gateway or boot

protocol (RARP, BOOTP, and DHCP).

If you are adding a new switch to a fabric and do not want to accept the default fabric configuration:

1. If the switch is not new from the factory, reset the switch to the factory configuration before adding the

switch to the fabric by selecting Restore Factory Defaults from the Switch menu.

2. If you want to manage the switch through the Ethernet port, configure the IP address using the Network

Properties dialog box or the Configuration Wizard.

3. Configure any special switch settings. To open the Zoning Config dialog box, select Zoning > Edit

Zoning Config.

4. Plug in the ISLs, but do not connect the devices.

5. Configure the port types for the new switch using the Port Properties dialog box.

6. Connect the devices to the switch.

7. To make any necessary zoning changes, select Zoning > Edit Zoning to open the Edit Zoning dialog

box.

Replacing a failed switch

The Restore menu option is not available for the switches being managed in-band through the fabric management switch. You can only restore a switch out-of-band via Ethernet connection to the fabric management switch. Certain parameters are not archived, and these are not restored by QuickTools. For more information, see ”Archiving a switch” on page 77 and ”Restoring a switch” on page 77.

Use the following procedure to replace a failed switch for which an archive is available.

1. Turn off the power to the failed switch and disconnect the AC cords. Note port locations and remove

the interconnection cables and small form-factor pluggable (SFPs).

2. Remove the failed switch.

3. Mount the replacement switch in the location where the failed switch was removed.

4. Install the SFPs using the same ports as were used on the failed switch. Do not reconnect inter-switch

links, target devices, and initiator devices at this time. Doing so could invalidate the fabric zoning configuration.

5. Attach the AC cords and power up the switch.

6. Restore the configuration from the failed switch to the replacement switch:

a. Open a new fabric through the replacement switch. b. Open the faceplate display for the replacement switch. Select Switch > Restore. c. In the Restore dialog box, enter the archive file from the failed switch or browse for the file. d. Click Restore.

7. Select Switch > Reset Switch to reset the replacement switch to activate the configuration formerly

possessed by the failed switch including the domain ID and the zoning database.

8. Reconnect the inter-switch links, target devices, and initiator devices to the replacement switch using the

same ports as were used on the failed switch.

Transparent Router

IMPORTANT: The SSCM application can manage HP SN6000 Fibre Channel Switches with active

TR_Ports; however, SSCM cannot manage or discover remote switches or devices in the remote fabric. Use QuickTools and the storage management interface to present LUNs to remote devices. SSCM displays the remote fabric as a grayed-out switch, and no management can be performed. SSCM version 3.0 or later is required for the HP SN6000 Fibre Channel Switch. SSCM version 2.0 and earlier versions do not support the management of fabrics that include switches with active TR_Ports and may disrupt communication between an HP SN6000 or 8/20q Fibre Channel Switch and the remote fabric.

24 Managing fabrics

The Transparent Router feature on the HP SN6000 Fibre Channel Switch provides inter-fabric routing to enable controlled and limited access between devices on an HP SN6000 Fibre Channel Switch (local) fabric and devices on a remote fabric of B-series or C-series switches.

The local fabric may consist of one or multiple HP SN6000 Fibre Channel Switches connected by their ISLs. A specific device attached to an HP SN6000 Fibre Channel Switch can be mapped with one or more devices in one remote fabric over only one TR_Port on that HP SN6000 Fibre Channel Switch. If a device attached to an HP SN6000 Fibre Channel Switch is mapped with multiple devices in the same remote fabric, the same TR_Port must be used.

A device attached to a remote fabric can be mapped with multiple devices in multiple local fabrics. If a device in a remote fabric is mapped with multiple devices in the local fabric attached to a given HP SN6000 Fibre Channel Switch, the same TR_Port on the HP SN6000 Fibre Channel Switch must be used for all mappings involving that remote device. However, the same remote device can be mapped with other local devices attached to a different HP SN6000 Fibre Channel Switch in the same local fabric over a TR port from that switch. A remote device can be mapped through more than one TR port, as long as each of those TR ports is on a different HP SN6000 Fibre Channel Switch.

Furthermore, you cannot map a local device to a remote device over an E_Port to another local switch and then over a TR_Port to the remote switch. The transparent route cannot include an E_Port on the local fabric.

Local devices will not discover remote devices until the corresponding inter-fabric zones are activated on both the local and remote fabrics. To remove a mapping, in addition to removing the local inter-fabric zone, you must also remove the corresponding remote inter-fabric zone.

NOTE: When a local device is mapped over a TR_Port to a remote device, the local device and its

TR_Port appear as an NPIV connected device in the remote fabric. It is possible, though not recommended, to map such a local device over a second TR_Port to a local device in a second local fabric. In this case, if you merge the two local fabrics, the transparent route becomes inactive for the devices that now have a path over an ISL, and an alarm is generated.

For details of switches supported in a remote fabric, see release notes for the HP SN6000 Fibre Channel Switch, and the HP StorageWorks SAN Design Reference Guide on the HP website

http://www.hp.com/go/sandesignguide. A user (admin rights required) can configure TR mappings to

connect devices on the local HP SN6000 Fibre Channel Switch fabric with devices on remote fabrics.

The transparent route between these devices is accomplished by connecting a remote switch to a TR_port on the HP SN6000 Fibre Channel Switch, mapping the devices together, and then creating and activating the IFZ (inter-fabric zones) in both fabrics. Each fabric will contain a matching IFZ. Each IFZ must contain exactly three WWN members: the local device, the remote device, and the TR_Port attached to the remote fabric.

NOTE: Be sure to configure the TR_Port before connecting the remote fabric to the HP SN6000 Fibre

Channel Switch. If the remote fabric is connected to a port on the HP SN6000 Fibre Channel Switch that is not a TR_Port, the two fabrics may establish an E_Port connection and the local and remote fabrics may merge. This mixed fabric is not a supported configuration. If the port type is changed to TR_Port after connecting the remote fabric, a port reset may be required to completely establish the TR connection.

A TR_Port is used as a bridge between the transparent router’s local fabric and a remote fabric. A TR_Port uses standard NPIV login methods to attach to the remote fabric. For remote B-series or C-series fabrics, the switch to which the TR_Port connects must support N-Port ID Virtualization (NPIV) and for B-series fabrics the interoperability mode must be configured to InteropMode=0. The TR_Port logs into the remote fabric using the WWN of the TR_Port. The TR_Port accesses fabric services of the remote fabric, such as Name Server and Management Server, and may receive registered state change notifications (RSCNs). The TR_Port uses FDISCs to login proxies for devices attached to an N_Port on the HP SN6000 Fibre Channel Switch. Any of the HP SN6000 Fibre Channel Switch 8Gb ports may be configured as a TR_Port.

HP StorageWorks SN6000 Fibre Channel Switch QuickTools Switch Management User Guide 25

IMPORTANT: Since C-series switches do not support the Unzoned Name Server, C-series fabrics

must be “pre-zoned” before you can set up TR mappings to a remote C-series fabric using the TR Mapping Manager dialog box. The C-series fabric zoneset must be changed to add zones so that the WWNs of the remote devices to be mapped and the WWNs of the HP SN6000 Fibre Channel Switch TR ports are zoned together. For more information, see the C-series documentation for specific information to configure zoning. Retain these zones in the zoneset after completion of the TR mapping as a best practice, until you no longer need to map the device to the local fabric.

TR Mapping Manager dialog

The TR Mapping Manager dialog (Figure 6) displays the currently mapped inter-fabric routes. You can create new inter-fabric routes, view detail information on existing inter-fabric routes, and remove existing inter-fabric routes. To open the TR Mapping Manager dialog, select Fabric > TR Mapping Manager.

NOTE: The Merge Auto Save option in the Config Zoning dialog must be selected before you can open

the TR Mapping Manager dialog. See ”Merge Auto Save” on page 43 for more information.

To create a new TR mapping, click Add or select Edit > Add to open the Add TR Mapping dialog. See ”Add TR Mapping dialog” on page 27 for more information.

Select a TR mapping member in the TR Mapping List window to:

• Delete that TR mapping member

• View detailed information for that TR mapping member in the Selected TR Mapping area

Figure 6 TR Mapping Manager dialog

After you click OK in the TR Mapping Manager dialog, the IFZs are created and saved to the switch. If there is an active zone set with TR mappings, the old IFZs are deleted and replaced with the new IFZs, and then the active zone set is re-activated. If there is no active zone set, a zone set named TR_MAPPING_SET” (default name) is created, the new IFZs are added to the zone set, and then the zone set is activated. If there are no TR mappings, the old IFZs are deleted from the active zone set, and then the active zone set is re-activated. If there are no zones and no IFZs in the active set, the active zone set is deactivated.

Removing an inter-fabric route

To remove an inter-fabric route:

1. Open the faceplate display, and select Fabric > TR Mapping Manager.

26 Managing fabrics

2. In the TR Mapping Manager dialog (Figure 6), select a TR mapping member from the TR Mapping list,

and then click Remove or select Edit > Remove. A warning dialog prompts you to confirm the removal of the selected mapping members.

3. Click OK to confirm the removal of the selected TR mapping member.

Add TR Mapping dialog

The Add TR Mapping dialog (Figure 7) enables you to map a new inter-fabric zone. The Add TR Mapping dialog displays the selectable local devices, remote devices, and TR-configured ports that can be mapped to the inter-fabric zone. The Add TR Mapping dialog appears after you click Add or select Edit > Add in the TR Mapping Manager dialog.

NOTE: You can map a remote device through multiple TR ports, as long as each of those TR ports are on

different HP SN6000 Fibre Channel Switches.

Select a local device from the 1 Select a Local Device column to display the selectable remote devices in the

2 Select a Remote Device column. After selecting a remote device, the selectable TR ports appear in the 3 Select a TR Port column.

Figure 7 Add TR Mapping dialog

Mapping a new inter-fabric zone

NOTE: The local fabric port to be used in the inter-fabric zone must be configured as a TR_Port before the

devices are mapped. See ”Port types” on page 102 for information on changing port types.

To map a new inter-fabric zone:

1. Open the faceplate display, and select Fabric > TR Mapping Manager.

2. In the TR Mapping Manager dialog (Figure 6), click Add or select Edit > Add.

3. In the Add TR Mapping dialog (Figure 7), select a local device from the 1 Select a Local Device column.

4. Select a remote device from the 2 Select a Remote Device column.

5. Select a TR port from the 3 Select a TR Port column.

After selecting an option from the 3 Select a TR Port column, the OK button becomes active.

6. Click OK to save the changes and close the Add TR Mapping dialog.

HP StorageWorks SN6000 Fibre Channel Switch QuickTools Switch Management User Guide 27

7. Verify that the new TR mapping members appear in the TR Mapping list of the TR Mapping Manager

dialog, and click OK.

NOTE: After you click OK in the TR Mapping Manager dialog, the IFZs are created and saved to the

switch. If there is an active zone set with TR mappings, the old IFZs are deleted and replaced with the new IFZs, and then the active zone set is re-activated. If there is no active zone set, a zone set named TR_MAPPING_SET” (default name) is created, the new IFZs are added to the zone set, and then the zone set is activated. If there are no TR mappings, the old IFZs are deleted from the active zone set, and then the active zone set is re-activated. If there are no zones and no IFZs in the active set, the active zone set is deactivated.

Remote Fabric Zoning dialog

The Remote Fabric Zoning dialog (Figure 8) enables you to generate and save a text file containing the zoning commands required to be executed on the remote fabric so that the inter-fabric connection using a TR port is established. The user can choose the kind of remote fabric/switches to connect with the TR port so that QuickTools knows which zoning commands to generate for the user. Fabrics with B-series and C-series switches are supported.

NOTE: Before modifying zoning, HP recommends that you back up the configuration.

Figure 8 Remote Fabric Zoning dialog

To create a zoning commands text file for the remote fabric:

1. Open the faceplate display, and select Fabric > TR Mapping Manager.

2. Create a new TR mapping for a inter-fabric zone, if one does not exist. See ”Mapping a new

inter-fabric zone” on page 27 for more information.

3. In the TR Mapping Manager dialog (Figure 7), select an entry from the TR Mapping List window.

4. Select File > Generate Remote Zoning.

5. In the Remote Fabric Zoning dialog (Figure 8), if you made and saved changes in the TR Mapping

Manager dialog, you can choose the type of zoning commands to view in the Suggested Remote Fabric Zoning Commands window of the Remote Fabric Zoning dialog.

Choose one of the following options from Select Set of Zoning Commands to View:

• The Comprehensive Zoning Commands for Initial TR Setup option to show the list of zoning

commands to set up all the IFZs.

28 Managing fabrics

• The Zoning Commands Only for Changes to TR Mappings option to show the list of zoning commands only for changes you just made during this session (after opening the TR Mapping Manager dialog).

NOTE: The Remote Fabric Zoning dialog displays the Select Set of Zoning Commands to View option

only if you made and saved changes in the TR Mapping Manager dialog. If you opened the Remote

Fabric Zoning dialog after selecting File > Generate Remote Zoning, the Select Set of Zoning Commands to View option is not displayed, and the Suggested Remote Fabric Zoning Commands window displays the list of zoning commands to set up all the IFZs.

6. Choose one of the following options from the Remote Switch Type drop-down list to generate the

corresponding zoning commands:

• B-series—to connect remotely with B-series switches

• C-series—to connect remotely with C-series switches

7. Enter the Configuration Name, which is used as the zoneset name in the commands. This must be the

same zoneset name as the zoneset on the remote fabric to which this zoning will be applied, or else the commands generated can be saved and edited to change the zoneset name as needed. The default Configuration Name displayed is TRoutesCfg.

8. Select one of the following:

•Clear the New Configuration option if the remote fabric has an active zone set. Executing the updated zoning commands on the remote fabric automatically adds the changes to the already active zone set, provided that the Configuration Name entered is the same as the name of that active zoneset.

NOTE: If the commands are run and the Configuration Name is not the name of the active zoneset

in the remote fabric, the commands attempt to replace the active zoneset with a new zoneset with the new name, containing only the Inter Fabric Zones. This will not succeed unless you respond to CLI queries to accept activation of this new zoneset.

• Select the New Configuration option if the remote fabric does not have an active zone set. Executing the commands on the remote fabric automatically adds the commands (inter-fabric zones) to create and activate the zone set. The Configuration Name entered is the name of the active zoneset that is created.

9. Click Export and select a path name (TXT file extension only) in the Save dialog.

Selecting the same path name will overwrite the first path name.

10. Click Save to save the zoning commands text file on your workstation.

NOTE: The commands generated for C-series switches assume that zoning will be applied to

VSAN 1. If this is not the correct VSAN, you must edit the commands accordingly before executing the commands.

HP StorageWorks SN6000 Fibre Channel Switch QuickTools Switch Management User Guide 29

Transparent Routes data window

The Transparent Routes data window displays the currently configured inter-fabric zones/routes using a TR_Port.

Figure 9 Transparent Routes data window

The Transparent Routes data window fields are described in Table 4.

Table 4 Transparent Routes data window fields

Field Description

Route Route number reference for each listing in the Transparent

Routes data window table

State The current TR mapping state (Active or Inactive)

• Active—Indicates that the mapping's TR port is on this switch, and both devices have logged in.

• Inactive—Indicates that the mapping's TR port is on this switch, and the mapping is not active. The reasons are shown in the details display as the three Status column entries (one for the overall mapping and one for each device in the mapping).

Device A The WWN of one of the two devices linked by the TR

mapping. Assigned nicknames are also displayed.

Device B The WWN of the other device linked by the TR mapping.

Assigned nicknames are also displayed.

Details Click (i) in the Details column to open the Transparent Route

dialog, which displays detailed information on the transparent route.

The Transparent Route dialog (Figure 10) displays detailed information about the transparent route you selected from the Transparent Routes data window. The state of the route (Active or Inactive) is shown, and Port WWN, TR Port WWN, and Status fields are displayed for both sides of the route. Device A will not

30 Managing fabrics

necessarily correspond to the HP SN6000 Fibre Channel Switch side of the route, as the end points of the route could be in any order.

Figure 10 Transparent Route dialog

Event Browser

The Event Browser displays a list of events generated by the switches in the fabric and the QuickTools web applet. Events that are generated by the QuickTools web applet are not saved on the switch, but can be saved to a file during a QuickTools session.

The Event Browser (Figure 11) lists events that have occurred, displaying the severity, time, source, type, and description of the events. The maximum number of entries allowed in the Event Browser is 10,000. The maximum number of entries allowed on a switch is 1,200. Once the maximum is reached, the oldest events in the event list are deleted when new events occur. Event entries from the switch, use the switch time stamp, while event entries generated by the web applet have a workstation time stamp. You can filter, sort, and export the contents of the Event Browser to a file. The Event Browser begins recording when it is enabled and QuickTools is running.

If the Event Browser is enabled using the Preferences dialog box, the next time QuickTools is started all events from the switch log appear. If the Event Browser is disabled when QuickTools is started and later enabled, only those events that occur after the time the Event Browser was enabled will appear.

HP StorageWorks SN6000 Fibre Channel Switch QuickTools Switch Management User Guide 31

To display the Event Browser, open the Fabric menu and select Show Event Browser. If the Show Event

Column sorting

buttons

Severity

column

Browser selection is grayed-out, you must first enable the Events Browser preference. See ”Setting

QuickTools preferences” on page 19.

Figure 11 Event Browser dialog box

The icons in the Severity column identify the operational state of the port, as described in Table 5.

Table 5 Por t operational states

State Description

No icon Informative—An unclassified event that provides only

Alarm—An alarm is a "serviceable event." This means that attention by the user or field service is required. Alarms are posted asynchronously to the screen and cannot be turned off. If the alarm denotes that a system error has occurred, the customer and/or field representative will generally be directed to provide the support file from the switch.

Critical event—An event that indicates a potential failure. Critical log messages are events that warrant notice by the user. By default, these log messages will be posted to the screen. Critical log messages do not have alarm status as they require no immediate attention from a user or service representative.

Warning event—An event that indicates errors or other conditions that may require attention in order to maintain maximum performance. Warning messages will not be posted to the screen unless the log is configured to do so. Warning messages are not disruptive and therefore, do not meet the criteria of Critical. The user need not be informed asynchronously

supporting information.

32 Managing fabrics

NOTE: Events (Alarms, Critical, Warning, and Informative) generated by the web applet are not saved on

the switch. They are permanently discarded when you close a QuickTools session; however, you can save these events to a file on the workstation before you close QuickTools and read it later with a text editor or browser.

Events generated by the switch are stored on the switch, and will be retrieved when the web applet is restarted. Some alarms are configurable.

Filtering the Event Browser

Filtering the Event Browser enables you to display only those events that are of interest based on the event severity, timestamp, source, type, and description. To filter the Event Browser, open the Filter menu and select Filter Entries. This opens the Filter Events dialog box (Figure 12). The Event Browser displays those events that meet all of the criteria in the Filter Events dialog box. If the filtering criteria are cleared or changed, then all the events that were previously hidden that satisfy the new criteria will be shown.

You can filter the Event Browser in the following ways:

• Severity—Select one or more of the corresponding options to display alarm events, critical events,

warning events, or informative events.

• Date/Time—Select one or both of the From: and To: options, and enter the bounding timestamps

(MM/DD/YY HH:MM:SS AA, where "AA" indicates AM or PM) to display only those events that fall within the selected times. The current year (YY) can be entered as either 2 or 4 digits.

• Text—Select one or more of the corresponding options and enter a text string (case sensitive)

identifying the source, type, and/or description of the events to be monitored. The Event Browser displays only those events that satisfy all of the search specifications for the criteria defined.

Figure 12 Filter Events dialog box

Sorting the Event Browser

Sorting the Event Browser enables you to display the events in alphanumeric order based on the event severity, timestamp, source, type, or description. By default, the Event Browser is sorted in ascending order by timestamp. To sort on another column of the Event Browser, click the Severity, Timestamp, Source, Type, or Description column button. Alternatively, select Sort > By Severity, By Timestamp, By Source, By Type, or By Description. Successive sort operations of the same type alternate between ascending and descending order.

HP StorageWorks SN6000 Fibre Channel Switch QuickTools Switch Management User Guide 33

Saving the Event Browser to a file

You can save the displayed Event Browser entries to a file. Filtering affects the save operation, because only displayed events are saved. To save the Event Browser to a file:

1. Filter and sort the Event Browser to obtain the desired display.

2. Select File > Save As.

3. Select a folder and enter a file name in which to save the event log, and then click Save. The file can be

saved in XML, CSV, or text format. XML files can be opened with an internet browser or text editor. CSV files can be opened with most spreadsheet applications.

Device information and nicknames

Devices are hosts and storage targets connected to the switch. A nickname is a user-definable, meaningful name that can be used in place of the World Wide Name (WWN). This sub-section describes how to view and manage device information and nicknames.

• Devices data window, page 34

• Displaying detailed device information, page 35

• Managing device port nicknames, page 35

Devices data window

The Devices data window (Figure 13) displays information about name server devices and proxied devices (from configuration of TR ports) connected to the switch. To display the Devices data window, click the

Devices tab below the data window.

Figure 13 Devices data window

Remote devices are proxied, so there are limitations in available information:

• The Details button is disabled.

• The Target/Initiator field will always read "Unknown".

• The Vendor field text will be decoded from the OUI in the Port WWN, rather than potentially being

read from the FC4Descriptors, as is the case with local devices.

• The proxied devices are indicated in the Device data window by italic text and the notation "(TR)" after

the port number.

• Proxied devices are also grayed-out in the Active Zoneset data window. See Active Zoneset data

window, page 37 for more information.

34 Managing fabrics

The Devices data window fields are described in Table 6.

Table 6 Devices data window fields

Field Description

Port WWN Port World Wide Name

Nickname Device port nickname. To create a new nickname or edit an

existing nickname, double-click the cell and enter a nickname in the Edit Nickname dialog box. See ”Managing

device port nicknames” on page 35 for more information.

Details Click (i) to display additional information about the device.

See ”Displaying detailed device information” on page 35.

FC Address Fibre Channel address

Switch Switch name

Port Switch port number

Target/Initiator Device type: Target, Initiator, or Both

Vendor Host Bus Adapter/Device Vendor

Active Zones The active zone to which the device belongs

Row # Row number reference for each listing in the Devices data

window table

Displaying detailed device information

To display detailed information for a device listed in the Devices data window, click (i) in the Details column for that device to open the Detailed Devices Display window (Figure 14).

Figure 14 Detailed Devices Display dialog box

Managing device port nicknames

You can assign a nickname to a device port World Wide Name. A nickname is a user-definable, meaningful name that can be used in place of the World Wide Name. Assigning a nickname makes it easier to recognize device ports when zoning your fabric or when viewing the Devices data window.

HP StorageWorks SN6000 Fibre Channel Switch QuickTools Switch Management User Guide 35

In addition to creating, editing, and deleting nicknames, you can also export the nicknames to a file, which can be imported into the Nicknames.xml file on other workstations. The maximum number of nicknames allowed is 5,000.

Nicknames are saved to an XML file stored on the switch. If different nickname files exist on other switches in the fabric, you are prompted to resolve differences before the Nicknames dialog box is displayed. When a conflict exists, a series of dialog boxes is presented to resolve differences between the nicknames stored on that switch with nicknames stored on other switches. The most recent nickname takes precedence during nickname resolution. Changes made in the Nickname dialog box are propagated to all switches in the fabric only after you click Apply.

Creating a nickname

To create a device port nickname:

1. Select Fabric > Nicknames to open the Nicknames dialog box. The device entries are listed in table

format.

2. Choose one of the following options to enter a nickname. A nickname must start with a letter and can

have up to 64 characters. Valid characters include alphanumeric characters [aA–zZ][0–9] and special symbols [$ _ - ^ ].

• Double-click a cell in the Nicknames column, and enter a new nickname in the text field. Click Save

to save the changes and exit the Nicknames dialog box.

• Click on a device in the table. Select Edit > Create Nickname to open the Add Nickname dialog box. In the Add Nickname dialog box, enter a nickname and WWN, and then click OK.

Editing a nickname

To edit a nickname:

1. Select Fabric > Nicknames to open the Nicknames dialog box. The device entries are listed in table

format.

2. Choose one of the following options to edit a nickname:

• Double-click a cell in the Nicknames column and edit the nickname in the text field. In the Nicknames dialog box, click Apply to save the changes.

• Click on a device entry in the table and then select Edit > Edit Nickname to open the Edit Nicknames dialog box. Edit the nickname in the text field, and then click OK. In the Nicknames dialog box, click Apply to save the changes.

Deleting a nickname

To delete a device port nickname:

1. Select Fabric > Nicknames to open the Nicknames dialog box.

2. Choose one of the following options to delete a nickname:

• Click a device in the table and then select Edit > Delete Nickname.

• Double-click a cell in the Nicknames column, and then delete the nickname text.

3. Click Apply to save the changes.

Exporting nicknames to a file

You can save nicknames to a file. This is useful for distributing nicknames to other management workstations.

To save nicknames to an XML file:

1. Select Fabric > Nicknames to open the Nicknames dialog box.

2. Select File > Export.

3. Enter a name for the XML nickname file in the Save dialog box.

4. Click Save.

36 Managing fabrics

Importing a nicknames file

Importing a nicknames file copies its contents into and replaces the contents of the Nicknames.xml file which is used by QuickTools. To import a nickname file:

1. Select Fabric > Nicknames to open the Nicknames dialog box.

2. Select File > Import.

3. Click an XML nickname file in the Open dialog box.

4. Click Open.

5. When prompted to overwrite existing nicknames, click Yes.

Zoning

Zoning a fabric enables you to divide the ports and devices of the fabric into zones for more efficient and secure communication among functionally grouped nodes. This section addresses the following topics:

• Active Zoneset data window, page 37

• Configured Zonesets data window, page 38

• Zoning concepts, page 38

• Managing the zoning database, page 40

• Managing zonesets, page 45

• Managing zones, page 46

• Managing aliases, page 48

• Merging fabrics and zoning, page 49

Active Zoneset data window

The Active Zoneset data window (Figure 15) displays the zone membership for the active zoneset that resides on the fabric management switch. The active zoneset is the same on all switches in the fabric. To open the Active Zoneset data window, click the Active Zoneset tab below the data window. The Active Zoneset data window uses display conventions for expanding and contracting entries that are similar to the fabric tree. An entry handle located to the left of an entry in the tree indicates that the entry can be expanded. Click this handle or double-click the following entries:

• A zoneset expands to show its member zones.

• A zone expands to show its member ports/devices.

• Ports/devices that are zoned by WWN or FC address, but no longer part of the fabric, are grayed-out.

Proxied devices are also grayed-out.

Figure 15 Active Zoneset data window

HP StorageWorks SN6000 Fibre Channel Switch QuickTools Switch Management User Guide 37

Configured Zonesets data window

The Configured Zonesets data window (Figure 16) displays all zonesets, zones, aliases, and zone membership in the zoning database. To open the Configured Zonesets data window, click the Configured Zonesets tab below the data window.

The Configured Zonesets data window uses display conventions for expanding and contracting entries that are similar to those used by the fabric tree. An entry handle located to the left of an entry in the tree indicates that the entry can be expanded. Click this handle or double-click the following entries to expand or collapse them:

• A zoneset expands to show its member zones.

• A zone expands to show its members by device port World Wide Name or device port Fibre Channel

address.

• The alias expands to show its entries.

Figure 16 Configured Zoneset data window

Zoning concepts

The following zoning concepts provide some context for the zoning tasks described in this section:

• Zones, page 38

• Aliases, page 39

• Zonesets, page 39

• Zoning database, page 39

• Configuring the zoning database, page 43

Zones

Zoning divides the fabric for the purpose of controlling discovery and inbound traffic. A zone is a named group of ports or devices. Members of the same zone can communicate with each other and transmit outside the zone, but cannot receive inbound traffic from outside the zone. Zoning is hardware-enforced only when a port/device is a member of no more than eight zones whose combined membership does not exceed 64. If this condition is not satisfied, that port behaves as a soft zone member.

Zoning is hardware enforced on a switch port if the sum of the logged-in devices plus the devices zoned with devices on that port is 64 or less. If a port exceeds this sum, that port behaves as a soft zone member, which means the zone can automatically discover and communicate freely with all other member of the same zone. The port continues to behave as a soft zone member until the sum of logged-in and zoned devices falls back to 64, and the port is reset.

38 Managing fabrics

Aliases

A zone can be a component of more than one zoneset. Several zonesets can be defined for a fabric, but only one zoneset can be active at one time. The active zoneset determines the zoning of the fabric.

Membership in a zone can be defined by switch domain ID and port number, device FCID, or device WWN.

• WWN entries define zone membership by the World Wide Name of the attached device. With this

membership method, you can move WWN member devices to different switch ports in different zones without having to edit the member entry as you would with a domain ID/port number member. Furthermore, unlike FCID members, WWN zone members are not affected by changes in the fabric that could change the Fibre Channel address of an attached device.

• FCID entries define zone membership by the Fibre Channel address of the attached device. With this

membership method you can replace a device on the same port without having to edit the member entry as you would with a WWN member.

• Domain ID/Port number entries define zone membership by switch domain ID and port number. All

devices attached to the specified port become members of the zone. The specified port must be an F_Port or an FL_Port.

To make it easier to add a group of ports or devices to one or more zones, you can create an alias. An alias is a named set of ports or devices that are grouped together for convenience. Unlike a zone, an alias imposes no communication restrictions between its members. You can add an alias to one or more zones. However, you cannot add a zone to an alias, nor can an alias be a member of another alias.

Zonesets

A zoneset is a named group of zones. A zone can be a member of more than one zoneset. Each switch in the fabric maintains its own zoning database containing one or more zonesets. This zoning database resides in non-volatile or permanent memory and is therefore retained after a reset. See ”Configured

Zonesets data window” on page 38 for information about displaying the zoning database.

Zones that are currently not in a zoneset are considered to be part of the orphan zoneset. The orphan zoneset is not an actual zoneset, but rather a way of displaying the zones that are not currently in a zoneset.

To apply zoning to a fabric, choose a zoneset and activate it. When you activate a zoneset, the switch distributes that zoneset and its zones, excluding aliases, to every switch in the fabric. This zoneset is known as the active zoneset. See ”Active Zoneset data window” on page 37 for information about displaying the active zoneset.

Zoning database

Each switch has its own zoning database. The zoning database is made up of all aliases, zones, and zonesets that have been created on the switch or received from other switches. The switch maintains two copies of the inactive zoning database: one copy is maintained in temporary memory for editing purposes; the second copy is maintained in permanent memory. Zoning database edits are made on an individual switch basis and are not propagated to other switches in the fabric when saved.

The Merge Auto Save parameter determines whether changes to the active zoneset that a switch receives from another switch in the fabric will be saved to permanent memory on that switch. See ”Configuring the

zoning database” on page 43 for information about zoning configuration.

Viewing zoning limits and properties

Zoning limits vary depending on the firmware installed on the switch:

• MaxZoneSets—The maximum number of zonesets that can be configured on the switch.

• MaxZones—The maximum number of zones that can be configured on the switch, including orphan

zones.

• MaxAliases—The maximum number of aliases that can be configured on the switch.

HP StorageWorks SN6000 Fibre Channel Switch QuickTools Switch Management User Guide 39

• MaxTotalMembers—The maximum number of zone and alias members that can be stored in the

switch’s zoning database. Each instance of a zone member or alias member counts toward this maximum.

• MaxZonesInZoneSets—The maximum number of zone linkages to zonesets that can be configured on

the switch. A linkage is configured every time a zone is added to a zoneset.

• MaxMembersPerZone—The maximum number of zone members that can be added to any zone on the

switch. When added to a zone, an alias is considered to be a zone member.

• MaxMembersPerAlias—The maximum number of zone members that can be added to any alias on the

switch.

To view zoning properties and limits on a switch:

1. On the faceplate display, select Zoning > Edit Zoning to open the Edit Zoning dialog box.

2. Choose one of the following options:

• View the zoning properties/limits located directly below the zoning tool bar (Figure 17).

• In the zonesets tree (left pane), right-click the Zonesets entry at the top of the tree, and then select Properties.

• In the zonesets tree (left windowpane), select the zonesets entry at the top of the tree, and then select Edit > Properties from the menu bar.

3. When you have finished viewing the zoning properties information, click OK to close the Properties

dialog box.

Managing the zoning database

The zoning database is managed using the following options:

• Editing the zoning database, page 40

• Options for resolving zoning, page 43

• Configuring the zoning database, page 43

• Saving and restoring the zoning database to a file, page 44

• Restoring the zoning database from a file, page 44

• Restoring the default zoning database, page 44

• Removing all zone and zoneset definitions, page 45

Editing the zoning database

Use the Edit Zoning dialog box (Figure 17) to edit the zoning database of a particular switch. To open the Edit Zoning dialog box, open the Zoning menu and select Edit Zoning. Changes can only be made to inactive zonesets that are stored in flash (non-volatile) memory and retained after resetting the switch.

Figure 17 Edit Zoning dialog box

40 Managing fabrics

You cannot edit an active zoneset on a switch. You must configure an inactive zoneset to your needs and then activate that updated zoneset to apply the changes to the fabric. When you activate a zoneset, the switch distributes that zoneset to the temporary zoning database on every switch in the fabric. However, in addition to the merged active zoneset, each switch maintains its own original zoneset in its zoning database. However, only one zoneset can be active at one time.

NOTE: If the Merge Auto Save parameter is enabled on the Zoning Configuration dialog box, then every

time the active zoneset changes, the switch will copy it into an inactive zoneset stored on the switch. To conveniently apply the changes to the active zoneset, you can edit the copy of the active zoneset, and then activate the updated copy. The edited copy then becomes the active zoneset.

The Edit Zoning dialog box has a Zonesets tree on the left and a Port/Device (or members) tree on the right. Both trees use display conventions similar to those used by the fabric tree for expanding and contracting zonesets, zones, and ports. An expanded port shows the port Fibre Channel address; an expanded address shows the port World Wide Name. You can select zonesets, zones, and ports in any one of the following ways:

• Click a zone, zoneset, or port icon.

• Right-click to select a zoneset or zone, and then open the corresponding popup menu.

• Press and hold down the Shift key while clicking several consecutive icons.

• Press and hold down the Control key while clicking several non-consecutive icons.

Using tool bar buttons, popup menus, or the drag-and-drop method, you can create and manage zonesets and zones in the zoning database. Table 7 describes the zoning tool bar operations.

To create and manage zonesets:

1. Use the Edit Zoning dialog box to define zoning changes, and then click Apply to open the Error Check

dialog box.

2. Click Error Check to have QuickTools check for zoning conflicts, such as empty zones, aliases, or

zonesets, and zones with non-domain ID/port number membership.

3. Click Save Zoning to implement the changes.

4. Click Close to close the Error Check dialog box.

HP StorageWorks SN6000 Fibre Channel Switch QuickTools Switch Management User Guide 41

5. On the Edit Zoning dialog box, click Close to close the Edit Zoning dialog box.

Table 7 Edit Zoning dialog box tool bar

Button Description

Create Zoneset button—Creates a new zoneset

Create Zone button—Creates a new zone

Create Alias button—Creates another name for a set of objects

Add Member button—Adds selected port/device to a zone

Remove Member button—Deletes the selected zone from a zoneset, or deletes the selected port/device from a zone

Copy button—Copies selected zoning items to the clipboard

Paste button—Pastes clipboard items in selected zoning item, where applicable

Table 8 Port/Device icons

Icon Description

Switch port icon—When not logged in

Switch port icon—When logged in

NL_Port (loop) device icon—When logged in to fabric

NL_Port (loop) device icon—When not logged in to fabric

42 Managing fabrics

Table 8 Port/Device icons

Icon Description

Options for resolving zoning

The Resolving Zoning options enable you to manage the active, configured, and merged zonesets in the zoning database. To access the Resolving Zoning dialog box options, open the faceplate display, and then select Zoning > Resolve Zoning.

• Capture Active Zoning—The Capture Active Zoning option copies the active zoneset to the configured

zoneset.

• Restore Configured Zoning—The Restore Configured Zoning option reverts back to the previously saved

configured zoneset.

• Capture Merged Zoning—The Capture Merged Zoning option saves the merged zoneset into the

configured zoneset.

• View Merged/Configured Differences—The View Merged/Configured Differences option opens a

dialog box to display the Merged and Configured zonesets in split panes. The items in the Merged pane but not in the Configured pane are shown in red and are not persistent after a switch reset. The items in the Configured pane but not in the Merged pane are shown in green and are persistent after a switch reset. The bottom pane shows a summary description of the differences between the Merged and Configured zonesets.

N_Port device icon—When logged in to fabric

N_Port device icon—When not logged in to fabric

Configuring the zoning database

Use the Zoning Config dialog box (Figure 18) to change the Merge Auto Save, Default Zone, and Discard Inactive configuration parameters. To open the Zoning Config dialog box, open the Zoning menu and select Edit Zoning Config. After making the changes, click OK to put the new values into effect.

Figure 18 Zoning Config dialog box

Merge Auto Save

The Merge Auto Save parameter determines whether changes to the active zoneset that a switch receives from other switches in the fabric will be saved to the zoning database on that switch. Changes are saved when an updated zoneset is activated. Zoning changes are always saved to temporary memory.

• If Merge Auto Save is enabled, the switch firmware saves changes to the active zoneset in temporary

memory and to the zoning database.

HP StorageWorks SN6000 Fibre Channel Switch QuickTools Switch Management User Guide 43

• If Merge Auto Save is disabled, changes to the active zoneset are stored only in temporary memory,

which is cleared when the switch is reset.

NOTE: Disabling the Merge Auto Save parameter can be useful to prevent the propagation of zoning

information when experimenting with different zoning schemes. However, leaving the Merge Auto Save parameter disabled can disrupt device configurations should a switch have to be reset. For this reason, the Merge Auto Save parameter should be enabled in a production environment.

Default Zone

The Default Zone parameter enables (Allow) or disables (Deny) communication among ports/devices that are not defined in the active zoneset or when there is no active zoneset. This parameter must have the same value throughout the fabric. However, the Default Zone parameter is not automatically distributed throughout the fabric and must be configured to the same state in every switch in the fabric.

Discard Inactive

The Discard Inactive parameter automatically removes inactive zones and zonesets when a zoneset is activated or deactivated from a remote switch.

Saving and restoring the zoning database to a file

You can save the zoning database to an XML file, restore the saved database or the default zoning (which clears the switch of all definitions). You can also remove all zones and zoneset definitions.

• Saving the zoning database to a file, page 44

• Restoring the zoning database from a file, page 44

• Restoring the default zoning database, page 44

• Removing all zone and zoneset definitions, page 45

Saving the zoning database to a file

To save a zoning database to a file:

1. Select Zoning > Edit Zoning.

2. In the Edit Zoning dialog box, select File > Save As.

3. In the Save dialog box, enter a file name for the database file.

4. Click Save to save the zoning file.

Restoring the zoning database from a file

To restore the zoning database from a file:

CAUTION: Restoring the zoning database from a file will replace the current zoning database on the

switch.

1. Select Zoning > Edit Zoning to open the Edit Zoning window.

2. Select File > Open File.

A popup window prompts you to select an XML zoning database file.

3. Select a file and then click Open.

Restoring the default zoning database

Restoring the default zoning clears the switch of all zoning definitions.

NOTE: This command will deactivate the active zoneset.

To restore the default zoning database:

1. Select Zoning > Restore Default Zoning.

44 Managing fabrics

2. Click OK to confirm that you want to restore default zoning and save changes to the zoning database.

Removing all zone and zoneset definitions

To remove all zone and zoneset definitions, choose one of the following options:

• Select Edit > Clear Zoning. In the Removes All dialog box, and then click Yes to confirm that you want

to delete all zones and zonesets.

• Right-click the Zonesets heading at the top of the Zonesets tree, and then select Clear Zoning from the

popup menu. Click Yes to confirm that you want to delete all zonesets and zones.

Managing zonesets

Zoning a fabric involves creating a zoneset, creating zones as zoneset members, then adding devices as zone members. The zoning database supports multiple zonesets to serve the different security and access needs of your storage area network, but only one zoneset can be active at one time. Managing zonesets consists of the following tasks:

• Creating a zoneset, page 45

• Activating and deactivating a zoneset, page 45

• Removing a zoneset, page 46

• Copying a zone to a zoneset, page 47

NOTE: Changes that you make to the zoning database are limited to the managed switch and do not

propagate to the rest of the fabric. To distribute changes to configured zonesets fabric wide, you must edit the zoning databases on the individual switches.

Creating a zoneset

To create a zoneset:

1. Open the Zoning menu and select Edit Zoning to open the Edit Zoning dialog box.

2. Open the Edit menu and select Create Zoneset to open the Create Zoneset dialog box.

3. Enter a name for the zoneset, and then click OK. The new zoneset name is displayed in the Zonesets

dialog box. A zoneset name must begin with a letter and be no longer than 64 characters. Valid characters are 0–9, A–Z, a–z, _, -, ^, and $.

4. Choose one of the following options to create new zones in a zoneset:

• Right-click a zoneset and select Create A Zone from the popup menu. In the Create a Zone dialog

box, enter a name for the new zone, and then click OK. The new zone name is displayed in the Zonesets dialog box.

• Copy an existing zone by dragging a zone into the new zoneset. See ”Copying a zone to a

zoneset” on page 47.

5. Click Apply to save changes to the zoning database.

Activating and deactivating a zoneset

You must activate a zoneset to apply its zoning definitions to the fabric. When you activate a zoneset, the switch distributes that zoneset to the temporary zoning database on every switch in the fabric. Only one zoneset can be active at one time.

The purpose of the deactivate function is to suspend all fabric zoning which results in free communication fabric-wide (when Default Zone is set to Allow) or no communication (when Default Zone is set to Deny). It is not necessary to deactivate the active zoneset before activating a new one.

To activate a zoneset, open the Zoning menu and select Activate Zoneset to open the Activate Zoneset dialog box. Select a zoneset from the Select Zoneset drop-down list, and click Activate.

To deactivate the active zoneset, open the Zoning menu, select Deactivate Zoneset. Acknowledge the warning about traffic disruption, and click Yes to confirm that you want to deactivate the active zoneset.

HP StorageWorks SN6000 Fibre Channel Switch QuickTools Switch Management User Guide 45

Renaming a zoneset

To rename a zoneset:

1. In the Zonesets tree of the Edit Zoning dialog box, click the zoneset to be renamed.

2. Open the Edit menu and select Rename.

3. In the Rename Zoneset dialog box, enter a new name for the zoneset.

4. Click OK.

Removing a zoneset

Removing a zoneset from the database affects the member zones in the following ways.

• Member zones that are members of other zonesets are not affected.

• Zones that are currently not in a zoneset are considered to be part of the orphan zoneset. The orphan

zoneset is not an actual zoneset, but rather a way of displaying the zones that are not currently in a zoneset.

To remove a zoneset:

1. Select Zoning > Edit Zoning to open the Edit Zoning dialog box.

2. In the Zonesets tree, select the zoneset to be removed.

3. Select Edit > Remove to remove the zoneset.

4. Click Apply to save changes to the zoning database.

Alternatively, you may right-click and use shortcut menus to remove a zoneset from the database.

Managing zones

Managing zones involves the following:

• Creating a zone in a zoneset, page 46

• Adding zone members, page 47

• Renaming a zone, page 47

• Removing a zone member, page 48

• Removing a zone from a zoneset, page 48

• Removing a zone from all zonesets, page 48

Changes that you make to the zoning database are limited to the managed switch and do not propagate to the rest of the fabric. To distribute changes to configured zonesets fabric wide, you must edit the zoning databases on the individual switches.

Creating a zone in a zoneset

To create a zone in a zoneset:

1. Select Zoning > Edit Zoning to open the Edit Zoning dialog box.

2. Select a zoneset.

3. Select Edit > Create a Zone.

4. In the Create a Zone dialog box, enter a name for the new zone, and then click OK. A zone name must

begin with a letter and be no longer than 64 characters. Valid characters are 0–9, A–Z, a–z, _, ^, $, and -. The new zone name is displayed in the Zonesets dialog box.

5. Click OK.

NOTE: If you enter the name of a zone that already exists in the database, the QuickTools web applet

asks if you would like to add that zone and its membership to the zoneset.

6. To add switch ports or attached devices to the zone, choose one of the following options:

• In the zoneset tree, select the zoneset. In the graphic window, select the port to add to the zone.

Select Edit > Add Members.

46 Managing fabrics

• Select a port by switch port number, Fibre Channel address, or WWN in the Port/Device tree, and

drag it into the zone.

• Select a port by switch port number, Fibre Channel address, or WWN in the Port/Device tree.

Right-click the zone and select Add Zone Members from the popup menu.

7. Click Apply to save the changes to the zoning database.

Copying a zone to a zoneset

To copy an existing zone and its membership from one zoneset to another:

1. In the faceplate display, select Zoning > Edit Zoning to open the Edit Zoning dialog box.

2. In the zoneset tree, select the zone to copy, and drag it to the chosen zoneset.

3. Click OK to display the Error Check dialog box.

4. Click Error Check to have the application check for zoning conflicts, such as empty zones, aliases, or

zonesets.

5. Click Save Zoning to implement the changes.

6. Click Close to close the Error Check dialog box.

Adding zone members

You can zone a port/device by switch domain ID and port number, device port Fibre Channel address, or the device port WWN. Adding a port/device to a zone affects every zoneset in which that zone is a member. To add ports/devices to a zone:

1. Select Zoning > Edit Zoning to open the Edit Zoning dialog box.

2. Choose one of the following options to add the port/device:

• Select a port/device in the Port/Device tree, and drag it into the zone. To select multiple

ports/devices, press and hold down the Control key while selecting and dragging.

• Select a port/device in the Port/Device tree. To select multiple ports/devices, press and hold down

the Control key while selecting. Select a zoneset in the left pane. Select Edit > Add Members.

• Select a port/device in the Port/Device tree. To select multiple ports/devices, press and hold down

the Control key while selecting. Select a zoneset in the left pane, and then click Insert.

If the port/device you want to add is not in the Port/Device tree, you can add it by doing the following:

a. Right-click the selected zone. b. Select Edit > Create Members. c. Select the WWN, Domain/Port, or First Port Address option. d. Enter the hexadecimal value for the port/device according to the option selected: 16 digits for a

WWN member, 4 digits for a Domain/ Port member (in format: DDPP), or a 6-digit Fibre Channel Address for a First Port Address member (in format: DDPPAA), where DD=domain ID, PP=port number, and AA=AL_PA.

3. Click OK to display the Error Check dialog box.

4. Click Error Check to have the application check for zoning conflicts, such as empty zones, aliases, or

zonesets.

5. Click Save Zoning to implement the changes.

6. Click Close to close the Error Check dialog box.

7. Click Close to close the Edit Zoning dialog box.

NOTE: Domain ID conflicts can result in automatic reassignment of switch domain IDs. These

reassignments are not reflected in zones that use a domain ID/port number pair to define their membership. Be sure to reconfigure zones that are affected by a domain ID change.

Renaming a zone

To rename a zone:

1. In the Zonesets tree of the Edit Zoning dialog box, click the zone to be renamed.

HP StorageWorks SN6000 Fibre Channel Switch QuickTools Switch Management User Guide 47

2. Select Edit > Rename.

3. In the Rename Zone dialog box, enter a new name for the zone.

4. Click OK.

5. Click Apply in the Edit Zoning dialog box to save the change.

6. Click Close to close the Edit Zoning dialog box.

Removing a zone member

Removing a zone member will affect every zone and zoneset in which that zone is a member. To remove a member from a zone:

1. In the Edit Zoning dialog box, select the zone member to be removed.

2. Select Edit > Remove.

3. Click Yes in the Remove dialog box to save the change.

4. Click Apply in the Edit Zoning dialog box to save the change.

5. Click Close to close the Edit Zoning dialog box.

Removing a zone from a zoneset

To remove a zone from a zoneset:

1. In the Edit Zoning dialog box, select the zone to be removed.

The selected zone will be removed from that zoneset only.

2. Select Edit > Remove.

3. Click Yes in the Remove dialog box to save the change.

4. Click Apply in the Edit Zoning dialog box to save the change.

5. Click Close to close the Edit Zoning dialog box.

Removing a zone from all zonesets

To remove a zone from all zonesets:

1. In the Edit Zoning dialog box, select the zone to be removed.

2. Select Edit > Delete Zone.

3. Click Yes in the Remove dialog box to save the change.

4. Click Apply in the Edit Zoning dialog box to save the change.

5. Click Close to close the Edit Zoning dialog box.

Managing aliases

An alias is a collection of objects that can be zoned together. An alias is not a zone, and cannot have a zone or another alias as a member.

NOTE: Changes that you make to the zoning database are limited to the managed switch and do not

propagate to the rest of the fabric. To distribute changes to configured zonesets fabric wide, you must edit the zoning databases on the individual switches. You will not see aliases in the active zoneset.

Creating an alias

To create an alias:

1. Open the Zoning menu, and select Edit Zoning to open the Edit Zoning dialog box.

2. Select Edit > Create Alias to open the Create Alias dialog box.

3. Enter a name for the alias, and click OK. The alias name is displayed in the Zonesets dialog box. An

alias name must begin with a letter and be no longer than 64 characters. Valid characters are 0–9, A–Z, a–z, _, $, ^, and -.

4. Click Apply to save the alias name to the zoning database.

48 Managing fabrics

Adding a member to an alias

You can add a port/device to an alias by domain ID and port number, device port Fibre Channel address, or the device port WWN. To add ports/devices to an alias:

1. Select Zoning > Edit Zoning to open the Edit Zoning dialog box.

2. Choose one of the following options to add the port/device:

• Select a port/device in the Port/Device tree, and drag it into the alias. To select multiple

ports/devices, press and hold the Control key while selecting.

• Select a port/device in the Port/Device tree. Click an alias to select multiple ports/devices, press

and hold the Control key while selecting. Select an alias. Open the Edit menu and then select Add Members.

• Select a port/device in the Port/Device tree. To select multiple ports/devices, press and hold the

Control key while selecting. Select an alias, and then click Insert.

3. If the port/device you want to add is not in the Port/Device tree, you can add it by doing the following:

• Right-click the selected alias.

•Select Edit > Create Members.

• Select the WWN, Domain/Port, or First Port Address option.

• Enter the hexadecimal value for the port/device according to the option selected: 16 digits for a

WWN member, 4 digits for a Domain/ Port member (DDPP), or a 6-digit Fibre Channel Address for a First Port Address member (DDPPAA), where DD=domain ID, PP=port number, and AA=AL_PA.

4. Click OK to add the member and save the change.

Removing an alias from all zones

To remove an alias from all zones:

1. In the Zonesets tree in the Edit Zoning dialog box, select the alias to be removed.

2. Select Edit >Delete Alias.

3. Click Yes in the Remove dialog box.

4. Click Apply in the Edit Zoning dialog box to save the change.

5. Click Close to close the Edit Zoning dialog box.

Merging fabrics and zoning

If you join two fabrics with an inter-switch link, the active zonesets from the two fabrics attempt to merge automatically. The fabrics may consist of a single switch or many switches already connected together. The switches in the two fabrics attempt to create a new active zoneset containing the union of each fabric's active zoneset. The propagation of zoning information affects only the active zoneset, not the configured zonesets, unless Merge Auto Save is turned on.

Zone merge failure

If a zone merge is unsuccessful, the inter-switch links between the fabrics will be isolated due to the zone merge failure, which will generate an alarm. The reason for the E_Port isolation can also be determined by viewing the port information. See Table 19 for more information.

A zone merge will fail if the two active zonesets have member zones with identical names but differ in membership or type. For example, consider Fabric A and Fabric B each with a zone named ZN1 in its active zoneset. Fabric A ZN1 contains a member specified by Domain ID 1 and Port 1; Fabric B ZN1 contains a member specified by Domain ID 1 and Port 2. In this case, the merge will fail because the two zones have the same name, but different membership.

A zone merge may also fail if the merged zones/members exceed the maximum zoning limits. See ”Viewing zoning limits and properties” on page 39 for more information on zoning limits.

HP StorageWorks SN6000 Fibre Channel Switch QuickTools Switch Management User Guide 49

Zone merge failure recovery

When a zone merge failure occurs, the conflict that caused the failure must be resolved. You can correct a failure due to a zone conflict by deactivating one of the active zonesets or by editing the conflicting zones so that their membership is the same. You can deactivate the active zoneset on one fabric if the active zoneset on the other fabric accurately defines your zoning needs. If not, you must edit the zone memberships, and reactivate the zonesets. After correcting the zone membership, reset the isolated ports to allow the fabrics to join.

NOTE: If you deactivate the active zoneset in one fabric and the Merge Auto Save parameter is enabled,

the active zoneset from the second fabric will propagate to the first fabric and replace all zones with matching names in the configured zonesets.

For more information about adding and removing zone members, see ”Managing zones” on page 46. For more information about resetting a port, see ”Resetting a port” on page 105.

50 Managing fabrics

3 Managing switches

This section describes the following tasks that manage switches in the fabric.

• ”Switch data window” on page 51

• ”Stack Links data window” on page 56

• ”Managing user accounts” on page 58

• ”Paging a switch” on page 61

• ”Setting the date/time and enabling NTP client” on page 61

• ”Resetting a switch” on page 62

• ”Configuring a switch” on page 63

• ”Testing a switch” on page 75

• ”Archiving a switch” on page 77

• ”Restoring a switch” on page 77

• ”Restoring the factory default configuration” on page 79

• ”Installing feature license keys” on page 80

• ”Downloading a support file” on page 81

• ”Installing firmware” on page 81

• ”Using Call Home” on page 82

Switch data window

The Switch data window (Figure 19) displays the current network and switch information for the selected switch. To open the Switch data window, click the Switch tab below the data window.

Figure 19 Switch data window

HP StorageWorks SN6000 Fibre Channel Switch QuickTools Switch Management User Guide 51

Switch data window buttons

Information in the Switch data window is grouped and accessed by the Summary, Status, Network, User Login, Firmware, Services, Zones/Security, and Advanced buttons. Click a button to display the switch information for the selected data category (Figure 19). The Switch data window buttons are identified in

Figure 20.

Figure 20 Switch data window buttons

The Switch data window fields are described in Table 9.

Table 9 Switch data window fields

Field Description

Summary Group

Switch Type Switch model

First Port Address Switch Fibre Channel address

World Wide Name Switch world wide name

Serial Number Number assigned to each chassis.

Reason for Status The reason for the operational state.

Vendor Switch manufacturer

MAC Address Media Access Control address

Negotiated Domain ID The domain ID currently being used by the fabric

Configured Domain ID The domain ID, defined by network administrator

Domain ID Lock Domain ID lock status. Prevents (True) or permits (False)

dynamic domain ID reassignment.

Number of Ports Number of physical ports on the switch

Operational State Switch operational state: Online, Offline, Diagnostic, Down

Administrative State Current switch administrative state

Configured Admin State Administrative state that is stored in the switch configuration

Beacon Status Beacon status. Switch LEDs are blinking (On) or not blinking

Status Group

52 Managing switches

(Off).

Table 9 Switch data window fields

Field Description

Operational State Switch operational state: Online, Offline, Diagnostic, Down

Administrative State Current switch administrative state

Configured Admin State Administrative state that is stored in the switch configuration

Beacon Status Beacon status. Switch LEDs are blinking (On) or not blinking

(Off).

Reason for Status The reason for the operational state.

Temperature Internal switch temperature °C

Power Supply 1 Status Whether the switch is On or Off

Temperature Failure Port Shutdown

Non-configurable (always enabled for this switch). All ports are shut down when the switch temperature exceeds the Failure Temperature.

Warning Temperature Non-configurable temperature threshold (65° C), above

which a warning condition alarm is generated.

Failure Temperature Non-configurable temperature threshold (70° C), above

which a failure condition alarm is generated.

POST Status The current diagnostic state of the switch.

POST Fault Code The code value for the last recorded diagnostic test result

recorded on the switch.

Test Status The current diagnostic test status of switch.

Test Fault Code The code value for the last recorded diagnostic test status

recorded on the switch.

Network Group

IPv4 Enabled Internet Protocol version 4 Enabled or Disabled

IPv4 Address Internet Protocol version 4 address

IPv4 Subnet Mask Mask that determines the IP address subnet

IPv4 Gateway Gateway address

IPv6 Enabled Internet Protocol version 6 Enabled or Disabled

IPv6 Address Mask that determines the IP address subnet

IPv6 Gateway Gateway address

SNMP Enabled SNMP Enabled or Disabled

SNMP v3 Security Enabled SNMP v3 Security Enabled or Disabled

Broadcast Support Broadcast support status. Broadcast support is enabled

(default) or disabled.

NTP Client Enabled NTP Client Enabled or Disabled. If Enabled, this parameter

enables switches to synchronize their time to a centralized server.

NTP Server Address The IP address of the centralized NTP server. Ethernet

connection to NTP server is required.

DNS Enabled Domain Name Service Enabled or Disabled

HP StorageWorks SN6000 Fibre Channel Switch QuickTools Switch Management User Guide 53

Table 9 Switch data window fields

Field Description

Configured Local Hostname The requested hostname for the switch. If a fully qualified

domain name is given, the domain suffix is used as the first suffix in the DNS search list for DNS lookups performed by the switch.

Assigned Hostname The actual hostname for the switch. If a fully qualified

domain name is given, the domain suffix is used as the first suffix in the DNS search list for DNS lookups performed by the switch.

IPv6 Assigned Address (1– 20)

The set of IPv6 addresses assigned by DHCP v6, NDP, or the switch administrator.

User Login Group

User Name Account name

Super User Super user privileges Enabled or Disabled.

UserAuthentication Enabled Enforcement of account names and authority (always True)

Firmware Group

Firmware Version Active firmware version

Inactive Firmware Version This field does not apply to this switch

Pending Firmware Version Firmware version that will be activated at the next reset

PROM/Flasher Version Installed version of PROM firmware

Services Group

NTP Client Enabled Enables switches to synchronize their time to a centralized

server. Enabled or Disabled.

NTP Server Address The IP address of the centralized NTP server. Ethernet

connection to NTP server is required.

FDMI Enable Fabric Device Management Interface status. If enabled,

FDMI HBA Entry Limit Maximum number of HBAs that can be registered with a

Embedded GUI Enabled QuickTools web applet status. Indicates whether the web

Inactivity Timeout Number of minutes the switch waits before terminating an

GUI Mgmt Enabled Web applet status. If Disabled, the switch cannot be

Telnet Enabled Telnet client status Enabled or Disabled.

SSH Enabled Secure Shell status. If Enabled, an encrypted data path is

54 Managing switches

device information can be obtained, managed, and saved through the fabric using Name Service Management Server functions. If FDMI is Enabled on the entry switch, QuickTools reports all FDMI information reported by the entry switch.

switch.

applet on the switch is Enabled or Disabled.

idle command line interface (CLI) session. Zero (0) disables the timeout threshold.

managed using the web applet.

provided for command line interface sessions.

Table 9 Switch data window fields

Field Description

SSL Enabled Secure Sockets Layer status. If enabled, encryption for switch

management web applet and CIM sessions is provided.

CIM Enabled Common Interface Model status. The CIM agent is based on

the Storage Networking Industry Association (SNIA) Storage Management Initiative Specification (SMI-S), which is the standard for SAN management in a heterogeneous environment.

FTP Enabled FTP status Enabled or Disabled.

Management Server

Management server status Enabled or Disabled.

Enabled

SNMP Enabled SNMP status, Enabled or Disabled.

Call Home Enabled Call Home status. If enabled and configured, switches can

send alerts to pagers and email. Users can configure the type of events and where the alerts are sent.

Zones/Security Group

Interop Mode Standard

Legacy Address Format None

Merge Auto Save If Enabled, any zoning updates from the fabric will be saved

in permanent (non-volatile) memory as well as temporary memory. If Disabled, any zoning updates from the fabric will be saved only in temporary memory and will be lost after a switch reset.

Default Zone Enables or disables communication between ports and

devices not defined in the active zoneset, or when there is no active zoneset.

Discard Inactive Automatically removes the previously active zoneset when a

zoneset is activated on a switch.

Implicit Hard Zoning Introduces hardware enforcement of zoning regardless of

type. All zones and all supported zone member types will have hardware enforcement.

Security Auto Save Enable to automatically save security settings to permanent

memory on the switch.

Security Fabric Binding Enabled

If Enabled, the expected domain ID of a switch is required before the switch can be attached to the fabric.

Advanced Group

R_A_TOV Resource allocation timeout value (in milliseconds)

E_D_TOV Error detect timeout value (in milliseconds)

Number of Donor Groups Total number of donor port groups. A donor group is a set

of ports on a switch that can donate buffer credits to one another.

Inactivity Timeout Number of minutes the switch waits before terminating an

idle command line interface session. Zero (0) disables the time out threshold.

Interop Mode Standard

HP StorageWorks SN6000 Fibre Channel Switch QuickTools Switch Management User Guide 55

Table 9 Switch data window fields

Field Description

Legacy Address Format None

In-band Enabled In-band management status. Permits (True) or prevents

Principal Switch If there is a domain ID conflict in the fabric, the switch with

Stack Links data window

The Stack Links data window displays information about all switch links for a stack of switches in the faceplate display. This information includes the switch names, the port number at the end of each link, and the link status icon. To open the Stack Links data window, click a stack icon in the fabric tree, and click the Stack Links tab below the data window in the stack faceplate display.

(False) a switch from being managed over an ISL.

the highest principal priority, or the principal switch, will reassign any domain ID conflicts and establish the fabric.

Figure 21 Stack Links data window

The Stack Links data window fields are described in Table 10.

Table 10 Stack Links data window

Field Description

Status Icon depicting current link status

Switch 1 The first switch discovered in the fabric. Displays the port

Switch 2 The second switch discovered in the fabric. Displays the port

Managing Switch Stacks

The QuickTools web applet recognizes switches as a stack if they are connected by their high speed stacking ports. QuickTools will auto-detect switches connected by their 10 Gb/s or 20 Gb/s ports and display these stacked switches as a single stack entity in the faceplate display (Figure 21).

56 Managing switches

number that the ISL is currently connected to on the switch.

The graphic window (upper right pane of the faceplate display) displays one faceplate image for each switch in the stack.

In the fabric tree (left window pane), the switches in each stack are nested under the stack icon, which is nested under the fabric icon. Expanding the fabric and stack icons in the fabric tree displays all switches in a stack. The lock image on the fabric icon indicates that the application is communicating with the fabric through a secure (Secure Sockets Layer) connection.

The stack dialogs are essentially the same as their corresponding switch dialogs, except that the Select Switch for Initial Configuration pull-down menu is added to each dialog. The stack dialogs display the information for the switch selected in the Select Switch for Initial Configuration pull-down menu. Choose another switch in the pull-down menu to display information for that switch. After you click OK, the switch configuration that was displayed is the configuration that is applied to all other switches in the stack. The following operations are available to configure the stack as a single entity:

• Date/time and NTP settings. For more information, see ”Setting the date/time and enabling NTP

client” on page 61.

• Firmware load and activation. For more information, see ”Installing firmware” on page 81.

• Switch reset. For more information, see ”Resetting a switch” on page 62.

• Editing user accounts. For more information, see “”Managing user accounts” on page 58.

• SNMP configuration. For more information, see ”SNMP configuration” on page 72.

• Security Consistency Checklist. For more information, see ”Security Consistency Checklist” on page 57.

• Syslog configuration. For more information, see ”Syslog” on page 64.

Additional stack operations include the following:

• Move the selected switch up or down one position in the stack within the graphic window. To move a

switch image up, select a switch, open the Stack menu, and select Move Switch Up. To move a switch image down, select a switch, open the Stack menu, and select Move Switch Down.

• Remove a switch from being associated with the stack if the switch is not connected to any other switch

in the fabric with an ISL connection. To remove a switch from a stack, select a switch, open the Stack menu, and select Remove Switch.

• Remove a dead ISL connection in the stack display between two switches that is either offline or has

been physically disconnected. To remove a dead link (red), select one of the linked XPAK ports, open the Stack menu, and select Remove Links.

• Refresh the stack to update the faceplate display with current information for all switches in the stack

• Select all ports on all switches in the stack.

Security Consistency Checklist

The Security Consistency Checklist dialog box (Figure 22) enables you to view current security-related settings, such as, firmware versions, embedded GUI, in-band management, date/time on switches. Any changes must be made through the appropriate dialog, such as Network Properties dialog, Switch

HP StorageWorks SN6000 Fibre Channel Switch QuickTools Switch Management User Guide 57

Properties dialog, or SNMP Properties dialog. To open the Security Consistency Checklist dialog, open the Stack menu and select Security Consistency Checklist.

Figure 22 Security Consistency Checklist dialog box

Managing user accounts

Only the Admin account can manage user accounts with the User Account Administration dialog boxes. However, any user can modify their own password. To open a User Account Administration dialog box, open the Switch menu and select User Accounts.

A user account consists of the following data:

• Account name or login

• Password

• Authority level

• Expiration date

Switches come from the factory with the following user accounts:

• admin—Admin authority, never expires, password is password

• images—No Admin authority, never expires, password is images,

The Admin account is the only user that can manage all user accounts with the User Account Administration dialog boxes. The Admin account can create, remove, or modify user accounts, and change account passwords. The Admin account can also view and modify the switch and its configuration with QuickTools. The Admin account can not be removed.

Users with Admin authority can use QuickTools to view and modify the switch and its configuration. Users without Admin authority are limited to viewing only the switch status and configuration.

The Images account is used to exchange files with the switch using FTP. The Images account can not be removed.

NOTE: If the same user account exists on a switch and its RADIUS server, that user can log in with either

password, but the authority and account expiration will always come from the switch database.

58 Managing switches

Creating user accounts

A switch can have a maximum of 15 user accounts.

Figure 23 User Account Administration–Add Account dialog box

To create a user account on a switch:

1. Select Switch > User Accounts.

2. Click the Add Account tab to open the Add Account tab page (Figure 23).

3. Enter an account name in the New Account Login field. Account names are limited to 15 characters.

The first character must be alphanumeric.

4. If the account is to have the ability to modify switch configurations, select the Admin Authority Enabled

option.

5. Enter a password in the New Password field and enter it again in the Verify Password field. A password

must have a minimum of 8 characters and no more than 20.

6. If this account is to be permanent with no expiration date, select the Permanent Account option.

Otherwise, click Account Will Expire and enter the number days in which the account will expire.

7. Click Add Account to add the newly defined account.

8. Click Close to close the User Account Administration dialog box.

Removing a user account

To remove a user account on a switch:

1. Select Switch > User Accounts.

2. Click the Remove Account tab to open the Remove Account tab page (Figure 24).

3. Select the account (Login) name from the list of accounts at the top of the dialog box.

4. Click Remove Account.

HP StorageWorks SN6000 Fibre Channel Switch QuickTools Switch Management User Guide 59

5. Click Close to close the User Account Administration dialog box.

Figure 24 User Account Administration–Remove Account dialog box

Changing a user account password

A user can change the password for their account, but only the Admin account user can change the password for another user’s account. If the user’s original password is not known, the Admin account user must remove the account and then add the account with the new password.

To change the password for an account on a switch:

1. Select Switch > User Accounts.

2. Click the Change Password tab to open the Change Password tab page (Figure 25).

3. Select the account (Login) name from the list of accounts at the top of the dialog box.

4. Enter the old password and the new password, and then verify the new password in the corresponding

fields.

5. Click Change Password.

6. Click Close to close the User Account Administration dialog box

Figure 25 User Account Administration–Change Password dialog box

60 Managing switches

Modifying a user account

To modify a user account on a switch:

1. Select Switch > User Accounts.

2. Click the Modify Account tab in the User Account Administration dialog box to display the Modify

Account dialog box (Figure 26).

3. Select the account (login) name from the list of accounts at the top of the dialog box.

4. Select the Admin Authority Enabled option to grant admin authority to the account name.

5. Select an Account Expiration Date option (Permanent account or Account will expire in). If the account

is not to be permanent, enter the number of days until the account expires.

6. Click Modify Account to save the changes.

7. Click Close to close the User Account Administration dialog box.

Figure 26 User Account Administration–Modify Account dialog box

Paging a switch

You can use the Beacon feature to page a switch. The Beacon feature causes all Logged-In LEDs to flash, making them easier to recognize. To page a switch, open the faceplate display and select Switch > Toggle Beacon. To cancel the beacon, reselect Toggle Beacon.

Setting the date/time and enabling NTP client

The Date/Time dialog box enables you to manually set the date, time, and time zone on a switch, or to enable NTP (Network Time Protocol) Client to synchronize the date and time on the switch with an NTP server. Enabling the NTP Client, which requires an Ethernet connection to an NTP server, ensures the consistency of date and time stamps in alarms and log entries. Although the date/time is set or displayed in the firmware in Universal Time, when displayed in the Date/Time dialog box, the value is always in local time.

If you select the NTP Client Enabled option (the default is deselected):

• The Date and Time areas become active and you are prevented from manually setting the date and

time on the switch

• The NTP Server Discovery and NTP Server IP Address fields become active and allow you to select a

discovery method

HP StorageWorks SN6000 Fibre Channel Switch QuickTools Switch Management User Guide 61

The NTP Server Discovery and NTP Server IP Address fields become active, and allow you to select a discovery method (Static, DHCP, DHCPv6) and to specify an IP address (IPv4 or IPv6).

Figure 27 Date/Time dialog box

To manually set the date and time on a switch:

1. Select Switch > Set Date/Time to open the Date/Time dialog box.

2. In the NTP area of the Date/Time dialog box, clear (deselect) the NTP Client Enabled option.

The fields in the Date and Time areas become active.

3. Select the month, day, year, hour, minutes, and time zone from the drop-down lists.

4. Click OK.

The new date and time take effect immediately.

To synchronize the date and time on the switch with an NTP server:

1. Select Switch > Set Date/Time.

2. In the NTP area of the Date/Time dialog box, select the NTP Client Enabled option.

The fields in the Date and Time areas become inactive.

3. Select a time zone from the Select Time Zone drop-down list.

4. Select an NTP Server Discovery option from the drop-down list.

5. Enter an NTP Server IP Address (IPv4 or IPv6).

6. Click OK.

Resetting a switch

Resetting a switch reboots the switch using the configuration parameters in memory. Depending on the reset type, a switch reset may or may not include a Power On Self Test (POST) and/or may or may not disrupt traffic. Table 11 describes the types of switch resets.

During a Hot Reset operation, fabric services will be unavailable for a short period (30—75 seconds, depending on switch model). Verify that all administrative changes to the fabric (if any) are complete before performing a Nondisruptive Code Load and Activation (NDCLA). When upgrading firmware across a fabric using non-disruptive activation, upgrade one switch at a time and allow 75 seconds between switches.

Common administrative operations that change the fabric include:

• Zoning modifications

62 Managing switches

• Adding, moving or removing devices attached to the switch fabric. This includes powering up or

powering down attached devices.

• Adding, moving or removing ISLs or other connections.

CAUTION: Changes to the fabric may disrupt the NDCLA process.

After an NDCLA operation is complete, the following management connections must be re-initiated:

• QuickTools sessions, which re-connects automatically

• Telnet sessions, which must be restarted manually.

Applicable Code Versions:

• Future switch code releases will be upgraded non-disruptively unless specifically indicated in the

associated release notes

• An NDCLA operation to previous switch code releases is not supported.

Table 11 Switch resets

Reset Type Description

Hot Reset Resets a switch without a Power On Self Test. This reset

activates the pending firmware, but does not disrupt switch traffic. If errors are detected on a port during a hot reset, the port is reset automatically.

Reset Resets a switch without a Power On Self Test. This reset

Hard Reset Resets a switch with a Power On Self Test. This reset

IMPORTANT: If performing a Reset or a Hard Reset, the support files, the firmware image files that have

not been unpacked, and the configuration backup files that were created on the switch will be deleted.

To reset a switch using QuickTools:

1. Select the switch to be reset from the fabric tree.

2. Select Switch > Reset Switch, and then choose one of the following options:

•Select Hot Reset to perform a hot reset.

•Select Reset to perform a standard reset.

•Select Hard Reset to perform a hard reset.

Configuring a switch

Switch configuration is divided into three areas: chassis configuration, network configuration, and SNMP configuration.

activates the pending firmware and it is disruptive to switch traffic.

• Chassis configuration specifies switch-wide Fibre Channel settings.

• Network configuration specifies IP and DNS settings.

• SNMP configuration specifies SNMP settings, SNMP traps, and SNMP security.

Using the configuration wizard

Use the configuration wizard to configure the IP address and password for new or replacement switches. To start the configuration wizard, select Wizards > Configuration Wizard.

HP StorageWorks SN6000 Fibre Channel Switch QuickTools Switch Management User Guide 63

Switch properties

Use the Switch Properties dialog box to change the following switch configuration parameters:

• Domain ID and Domain ID Lock

• Syslog

• Symbolic name

• Switch administrative state

• Broadcast support

• In-band management

• Fabric Device Management Interface (FDMI)

To open the Switch Properties dialog box, choose one of the following options:

• Open the faceplate display for the switch you are configuring, and then select Switch > Switch

Properties.

• Right-click a switch graphic in the faceplate display, and then select Switch Properties from the popup

menu.

Figure 28 Switch Properties dialog box

Domain ID and Domain ID Lock

The domain ID is a unique Fibre Channel identifier for the switch. The Fibre Channel address consists of the domain ID, port ID, and the Arbitrated Loop Physical Address (AL_PA).

Switches come from the factory with the domain IDs unlocked. This means that if there is a domain ID conflict in the fabric, the switch with the highest principal priority, or the principal switch, reassigns any domain ID conflicts and establishes the fabric. If you lock the domain ID on a switch and a domain ID conflict occurs, one of the switches is isolated as a separate fabric and the Logged-In LEDs on both switches will flash to show the affected ports. See the HP StorageWorks SN6000 Fibre Channel Switch Command Line Interface Guide for information about the Domain ID Lock and Principal Priority parameters.

If you connect a new switch to an existing fabric with its domain ID unlocked, and a domain conflict occurs, the new switch is isolated as a separate fabric. However, you can remedy this by resetting the new switch or taking it offline then back online. The principal switch reassigns the domain ID and the switch joins the fabric.

NOTE: Domain ID reassignment is not reflected in zoning that is defined by domain ID and port number

pair. You must reconfigure zones that are affected by domain ID reassignment.

Syslog

The Syslog (Remote Logging) feature enables saving the log information to a remote host that supports the syslog protocol. When enabled, the log entries are sent to the syslog host at the IP address that you specify

64 Managing switches

in the Logging Host IP Address field. Log entries are saved in the internal switch log, whether this feature is enabled or not.

To save log information to a remote host, you must edit the syslog.conf file (located on the remote host) and then restart the syslog daemon. Consult your operating system documentation for information on how to configure Remote Logging. The syslog.conf file on the remote host must contain an entry that specifies the name of the log file in which to save error messages. Add the following line to the syslog.conf file. A <tab> separates the selector field (local0.info) and action field which contains the log file path name in the format /var/adm/messages/messages.name:

local0.info <tab> /var/adm/messages.name

Symbolic name

The symbolic name is a user-defined name of up to 32 characters that identifies the switch. The symbolic name is used in the displays and data windows to help identify switches. The following characters may not be used in the symbolic name: pound sign (#), semi-colon (;), and comma (,).

Switch administrative states

The switch administrative state determines the operational state of the switch. The switch administrative state exists in two forms: the configured administrative state and the current administrative state.

The configured administrative state is the state that is saved in the switch configuration and is preserved across switch resets. QuickTools always makes changes to the configured administrative state. The configured administrative state is displayed in the Switch Properties dialog box.

The current administrative state is the state that is applied to the switch for temporary purposes and is not retained across switch resets. The current administrative state is set using the Set Switch command. See the HP StorageWorks SN6000 Fibre Channel Switch Command Line Interface Guide for information about the command line interface.

The switch administrative state values are:

• Online—The switch is available.

• Offline—The switch is unavailable.

• Diagnostics—The switch is in diagnostics mode, is unavailable, and tests can be run on all ports of the

switch.

Broadcast support

Broadcast is supported on the switch and enables TCP/IP support. Broadcast is implemented using the proposed standard specified in Multi-Switch Broadcast for FC-SW-3, T11 Presentation Number T11/02-031v0. Fabric Shortest Path First (FSPF) is used to set up a fabric spanning tree used in transmission of broadcast frames. Broadcast frames are retransmitted on all ISLs indicated in the spanning tree and all online N_Ports and NL_Ports. Broadcast zoning is supported with zones. The default setting is Enabled.

In-band management

In-band management is the ability to manage switches across inter-switch links. QuickTools, SNMP, management server, and the application programming interface use the in-band management capability. The switch comes from the factory with in-band management enabled. If you disable in-band management on a particular switch, you can no longer communicate with that switch by means other than a direct Ethernet or serial connection.

Fabric device management interface

Fabric Device Management Interface (FDMI) provides a means to gather and display device information from the fabric and enables FDMI-capable devices to register certain information with the fabric, when FDMI is Enabled. QuickTools will report any and all FDMI information reported by the entry switch, if FDMI is enabled on the entry switch. To view FDMI data, FDMI must be enabled on the entry switch and on all other switches in the fabric which are to report FDMI data.

FDMI is comprised of the fabric-to-device interface and the application-to-fabric interface. The fabric-to-device interface enables a device’s management information to be registered. The

HP StorageWorks SN6000 Fibre Channel Switch QuickTools Switch Management User Guide 65

application-to-fabric interface provides the framework by which an application obtains device information from the fabric. Use the FDMI HBA Entry Limit field on the Switch Properties dialog box to configure the maximum number of HBAs that can be registered with a switch. If the number of HBAs exceeds the maximum number, the FDMI information for those HBAs can not be registered.

Select the FDMI Enabled option on the Switch Properties dialog box to Enable or Disable FDMI. If FDMI is Enabled on an HBA, the HBA forwards information about itself to the switch when the HBA logs into the switch. If FDMI is Enabled on a switch, the switch stores the HBA information in its FDMI database. Disabling FDMI on a switch clears the FDMI database. If you Disable FDMI on a switch and then re-enable it, you must reset the ports to cause the HBAs to log in again, and thus forward HBA information to the switch.

To view detailed FDMI information for a device, click the Devices tab, and click (i) in the Details column of the Devices data window. The Detailed Devices Display dialog box displays the specific information for that device. See ”Devices data window” on page 34 for more information.

Advanced switch properties

The Advanced Switch Properties dialog box (Figure 29) enables you to set the timeout values. The dialog box is available for only the entry switch. The switch is automatically taken offline temporarily while the timeout values are set and the switch is restored to its original state after the changes are completed. To open the Advanced Switch Properties dialog box, open the Switch menu and select Advanced Switch

Properties. After making changes, click OK to put the new values into effect.

Figure 29 Advanced Switch Properties dialog box

Timeout values

The switch timeout values determine the timeout values for all ports on the switch. The timeout values must be the same for all switches in the fabric.

• R_A_TOV (Resource Allocation Timeout)—The maximum time a frame could be delayed and still be

delivered. The default is 10000 milliseconds.

• E_D_TOV (Error Detect Timeout)—The maximum round trip time that an operation between two N_Ports

could require. The default is 2000 milliseconds.

IMPORTANT: Mismatched timeout values will disrupt the fabric. These should not be changed unless

absolutely necessary. The switch is temporarily placed offline to change these values.

Managing system services

The System Services dialog box (Figure 30) provides a central location for you to enable or disable any of the external user services such as Simple Network Management Protocol (SNMP), embedded web applet,

66 Managing switches

command line interface, Network Time Protocol (NTP), Common Information Model (CIM), and Call Home. To display the System Services dialog box, select Switch > Services.

Figure 30 System Services dialog box

IMPORTANT: Use caution when disabling the Embedded GUI, GUI Mgmt, and Telnet, as it is possible to

disable all access to the switch except through a serial connection.

The following system services are available:

• Embedded GUI (Graphical User Interface)—Enables users to point a browser at the switch and use the

QuickTools web applet.

• GUI Mgmt—Enables out-of-band management of the switch from the switch management application

(GUI). If disabled, the switch can not be specified as the entry switch for a fabric in the GUI, but can still be managed through an in-band connection.

• Telnet (Command line interface)—Enables users to manage the switch through a Telnet command line

interface session. Disabling Telnet access to the switch is not recommended.

• SNMP (Simple Network Management Protocol)—Enables management of the switch through

third-party applications that use SNMP.

• NTP (Network Time Protocol)—Enables the switch to obtain its time and date settings from an NTP

server. Configuring all of your switches and your workstations to utilize NTP will keep the date/time settings in sync and will prevent difficulties with SSL certificates and event logs.

• CIM (Common Information Model)—Enables management of the switch through third-party

applications that use CIM.

• FTP (File Transfer Protocol)—Enables file transfers to the switch using FTP. FTP is required for out-of-band

firmware uploads which will complete faster than in-band Firmware uploads.

• Management Server—Enables management of the switch through third-party applications that use the

GS-3 Management Server.

• Call Home—Enables you to configure switches and send alerts and events to email addresses or

pagers. This email-based Call Home cannot be used to contact HP Services. Call Home to HP Services can be accomplished using HP Service Essentials Remote Support Pack as described in the HP StorageWorks SN6000 Fibre Channel Switch Installation and Reference Guide.

HP StorageWorks SN6000 Fibre Channel Switch QuickTools Switch Management User Guide 67

Network properties

Use the Network Properties dialog boxes (Figure 31) to configure IP and DNS parameters.

1. Open the Network Properties dialog box, using one of the following methods:

• Open the faceplate display for the switch you are configuring, and then select Switch > Network

Properties, or

• Right-click a switch graphic in the faceplate display, and then select Network Properties from the

popup menu.

2. Click the IP tab to open the Network Properties IP dialog box or the DNS tab to open the Network

Properties DNS dialog box, as appropriate for your network setup.

3. Make the desired changes to the network properties.

4. After making changes, click OK to put the new values into effect.

Figure 31 Network Properties dialog boxes

68 Managing switches

Network IP configuration

The IP configuration identifies the switch on the Ethernet network, determines which network discovery method to use, and enables/disables the IPv4 and IPv6 network addressing.

IPv4 and IPv6 addressing

An IPv4 address is 32 bits and consists of four blocks of decimal numbers, with each block separated by a period. Each block can have up to three numbers. A single zero character displayed in a block indicates that the block consists of all zeroes. An example of an IPv4 address is 255.255.255.0. All four blocks contain numbers. Table 12 describes the IPv4 and IPv6 configuration parameters.

An IPv6 address provides a much wider range of IP addresses than an IPv4 address. An IPv6 address is 128 bits, and consists of eight blocks of hexadecimal numbers, with each block separated by a colon. The maximum number of numerals in each block is four. One or more blocks with all zeroes are represented by two colon characters. The total number of blocks always adds up to eight. To determine how many contiguous blocks contain only zeroes, subtract the number of populated blocks from eight. For example, the IPv6 address 2eee::49:24:7a:54:3434 is equivalent to 2eee:0000:0000:49:24:7a:54:3434. The number of blocks containing zeroes in this example is two (8-6=2).

NOTE: Switches without IPv6 addressing enabled can not communicate over Ethernet with hosts or

switches using the IPv6 addressing.

Table 12 describes the network IP configuration parameters.

Table 12 Network Properties dialog box—IP fields

Field Description

IPv4 Network Enable this option to permit the IPv4 addressing format to

be used anytime you are required to enter an IP address.

CAUTION: Disabling this option will prevent you from

using an IPv4 IP address for system services.

IPv6 Network Enable this option to permit the IPv6 addressing format to

be used anytime you are required to enter an IP address.

CAUTION: Disabling this option will prevent you from

using an IPv6 IP address for system services.

HP StorageWorks SN6000 Fibre Channel Switch QuickTools Switch Management User Guide 69

Table 12 Network Properties dialog box—IP fields

Field Description

Network Discovery Choose one of the following methods for assigning the IP

address:

• Static—Uses the IP configuration parameters entered in

the Network Properties dialog box.

• BootP—Acquires the IP configuration from a BootP

server. If no IP address is obtained, the switch reverts to the previously configured IP address.

• RARP (Reverse Address Resolution Protocol)—Acquires

the IP address from a RARP server. A RARP request is broadcast with up to three retries, each at 5 second intervals. If no IP address is obtained, the switch reverts to the previously configured IP address.

• DHCP (Dynamic Host Configuration Protocol)—Acquires

the IP configuration from a DHCP server. If no satisfactory lease is obtained, the DHCP client attempts to use the previously configured lease. If the previous lease cannot be used, no IP address will be assigned to this switch in order to avoid an IP address conflict.

IP Address Enter the Internet Protocol address for the Ethernet port. The

default value is 10.0.0.1.

Subnet Mask Enter the subnet mask address for the Ethernet port. The

default value is 255.0.0.0.

Gateway Enter the IPv4 gateway address

Discovery Choose one of the following methods for assigning the IP

address:

• Static—Uses the IP configuration parameters entered in

the Network Properties dialog box

• DHCPv6 (Dynamic Host Configuration Protocol version

6)—Acquires the IP configuration from a DHCP server. If no satisfactory lease is obtained, the DHCP client attempts to use the previously configured lease. If the previous lease cannot be used, no IP address will be assigned to this switch in order to avoid an IP address conflict.

• NDP (Neighbor Discovery Protocol)—Part of the

Stateless Address Auto configuration protocol. It replaces the Address Resolution Protocol used with IPv4.

Config IPv6 Address Enter the IPv6 address for the Ethernet port

Gateway Enter the IPv6 gateway address

70 Managing switches

Network DNS configuration

The Network Properties dialog box has two tabs: IP and DNS. Click the DNS tab to open the Network Properties DNS dialog box (Figure 31). Use the Network Properties DNS dialog box to enable the DNS Client on the switch and the DNS server to map domain names to IP addresses. Table 13 describes the network DNS configuration parameters.

Table 13 Network Properties dialog box—DNS fields

Field Description

DNS Client Select this option to enable the Domain Name Service

Local Hostname Enter the name of the local host

Server Discovery Choose one of the following methods by which to assign the

client.

IP address:

• Static—Uses the IP configuration parameters entered in

the Network Properties dialog box.

• DHCP (Dynamic Host Configuration Protocol)—Acquires

• DHCPv6 (Dynamic Host Configuration Protocol version

DNS Server Addresses Enter the IP address of the DNS server.

Search List Discovery Choose one of the following methods by which to assign the

IP address:

• Static—Uses the IP configuration parameters entered in

the Network Properties dialog box.

• DHCP (Dynamic Host Configuration Protocol)—Acquires

• DHCPv6 (Dynamic Host Configuration Protocol version

Search List Domain Names The suffix that is appended to the user-specified hostname

for the search.

HP StorageWorks SN6000 Fibre Channel Switch QuickTools Switch Management User Guide 71

SNMP configuration

The Simple Network Management Protocol configuration includes properties and trap parameters plus SNMP v3 manager and user parameters.

SNMP properties and trap configuration parameters

Use the SNMP Properties dialog box (Figure 32) to change the SNMP properties and trap configuration parameters.

• The SNMP configuration defines how authentication traps are managed. The following characters may

not be used in the user-defined fields: pound sign (#), semi-colon (;), and comma (,).

• The SNMP trap configuration defines how traps are set. Choose from the tabs Trap1–Trap 5 to

configure each trap.

To set the SNMP properties:

1. Select a switch in the topology display to open the faceplate/backplate display.

2. Open the Switch menu, select SNMP, and then select SNMP Properties.

3. Select the desired SNMP parameters, referring to the descriptions of the SNMP parameters in

Table 14.

4. When you have finished setting the parameters, click OK to put the new values into effect.

Figure 32 SNMP Properties dialog box

NOTE: Since Read Community, Trap Community, and Write Community settings are like passwords and

are write-only fields, the current settings are displayed as asterisks.

Table 14 describes the SNMP Properties dialog box fields.

Table 14 SNMP Properties dialog box fields

Field Description

SNMP Enabled Enables or disables SNMP communication with other

Contact Specifies the name (up to 64 characters) of the person who

72 Managing switches

switches in the fabric. The user cannot use an SNMP application at a workstation to talk to a switch that has this setting disabled.

is to be contacted to respond to trap events. The default is <sysContact undefined>.

Table 14 SNMP Properties dialog box fields

Field Description

Read Community Read community password (up to 32 characters) that

authorizes an SNMP agent to read information from the switch. This is a write-only field. The Read Community value on the switch and the SNMP management server must be the same. The default is public.

SNMP Proxy Enables or disables the use of SNMP to monitor and

configure switches in the fabric.

Location Specifies the name (up to 64 characters) for the switch

location. The default is <sysLocation undefined>.

Authentication Trap Enables or disables the reporting of SNMP authentication

failures. If enabled, a notification trap is sent when incorrect community string values are used. The default value is False.

Write Community Write community password (up to 32 characters) that

authorizes an SNMP client to write information to the switch. This is a write-only field. The value on the switch and the SNMP management server must be the same. The default value is private.

Trap Version Specifies the SNMP version (1 or 2) with which to format

traps.

Trap 1 Enabled Enables or disables the trap. If disabled, traps are not sent

to trap monitoring stations and the trap settings are not configurable.

Trap Address Specifies the IP address to which SNMP traps are sent. A

maximum of 5 trap addresses are supported. The default address for trap 1 is 10.0.0.254. The default address for traps 2–5 is 0.0.0.0.

Trap Community Trap community password (up to 32 characters) that

authorizes an SNMP agent to receive traps. This is a write-only field. The value on the switch and the SNMP management server must be the same. The default is public.

Trap Severity Specifies a severity level to assign to the trap. Open the

drop-down list and choose a level. The Trap 1 Enabled option on the SNMP Properties dialog box must be enabled to access this drop-down list. Trap severity levels include Unknown, Emergency, Alert, Critical, Error, Warning, Notify, Info, Debug, and Mark

Trap Port Specifies the port number (between 1—65535) on which a

trap is set. The default is 162.

SNMP v3 Security

Simple Network Management Protocol Version 3 (SNMPv3) is an interoperable standards-based protocol for network management. SNMPv3 provides secure access to devices using a combination of authenticating and encrypting packets over the network. SNMP v3 security is an additional layer of security offered with the 7.6 and newer firmware. The SNMP v3 security is available to a switch that has a secure connection (SSL must be enabled), and can only be configured on the entry switch. The security features provided in SNMPv3 are:

HP StorageWorks SN6000 Fibre Channel Switch QuickTools Switch Management User Guide 73

• Message integrity—Ensuring that a packet has not been tampered with during transit.

• Authentication—Determining that the message is from a valid source.

• Encryption—Scrambling the contents of a packet to prevent it from being seen by an unauthorized

source.

The SNMP v3 Manager dialog enables you to turn SNMP v3 security on and off, and to add, display, remove, and edit an SNMP v3 user:

• To display the SNMP v3 Manager dialog box (Figure 33), open the Switch menu, select SNMP >

SNMP v3 Manager.

• To turn SNMP v3 security on or off, use the SNMP v3 Security option.

• To add SNMP users, click Add to open the SNMP v3 User Editor dialog box (Figure 34), and add an

SNMP v3 user. After configuring the user, click OK to save the settings and close the dialog box.

After SNMP v3 users are configured and saved, they are displayed in the SNMPv3 Users list window in the SNMP v3 Manager dialog box.

• To display a user's settings, select a user from the list. The selected user's settings are displayed on the

right in the Selected SNMPv3 User area.

• To remove a user from the SNMP v3 Users list, select the user name, and then click Remove.

• To edit a user's configuration, click Edit to open the SNMP v3 User Editor Edit User dialog box and

make your changes.

Figure 33 SNMP v3 Manager dialog box

74 Managing switches

Figure 34 SNMP v3 User Editor dialog box

Table 15 describes the SNMP v3 User Editor dialog box parameters. After configuring the user, click OK to

save the settings and close the dialog box.

Table 15 SNMP v3 User Editor dialog box fields

Field Description

User Name Name assigned to this SNMP v3 user.

Group Sets user's Read privileges: Read Only permits user to view

only SNMP v3 user settings, Read Write permits user to view and change SNMP v3 user settings.

Authentication Type None, MD5, SHA. If None, no authentication phrase is

required. MD5 and SHA require an authentication phrase.

Authentication Phrase A unique string or phrase that functions as a password that

verifies the authenticity of the user.

Confirm Authentication Phrase

Privacy Type DES or None. If None, no privacy phrase is required.

Privacy Phrase A unique string or phrase that functions as a password that

Confirm Privacy Phrase Re-enter the Privacy Phrase to confirm it.

Testing a switch

The Switch Diagnostics dialog box (Figure 35) enables you to test and verify the operational status of switches (online and offline). To open the Switch Diagnostic dialog box, open the Switch menu, select Switch Diagnostics, and then select Online Switch Diagnostics or Offline Switch Diagnostics. For each type of test, only one switch at a time can be tested. Offline Diagnostics can only be selected for the entry switch.

The diagnostic tests are:

• Online—A non-disruptive test that exercises port-to-device connections for all ports on a switch that are

currently online except for TR ports, which are not included in Online Switch Diagnostics.

Re-enter the Authentication Phrase to confirm it.

verifies the privacy of the user.

HP StorageWorks SN6000 Fibre Channel Switch QuickTools Switch Management User Guide 75

• Offline—A disruptive test that exercises all port connections for a switch in the diagnostics state. When

you run an offline test, the switch will automatically be put into diagnostics state, and the switch will not be returned to its original state until the Switch Diagnostics dialog box is closed. A disruptive switch reset must be done at that time to return the switch to its original state.

• Connectivity—A disruptive test that exercises all port and inter-port connections for a switch in the

diagnostics state. When you run a connectivity test, the switch will automatically be put into diagnostics state, and the switch will not be returned to its original state until the Switch Diagnostics dialog box is closed. A disruptive switch reset must be done at that time to return the switch to its original state. The two types of connectivity tests are internal loopback and external loopback.

Figure 35 Switch Diagnostics dialog box

To test a switch:

1. Open the faceplate display of the switch to be tested.

2. Open the Switch menu and select Switch Diagnostics, and then select Online Switch Diagnostics or

Offline Switch Diagnostics to open the Switch Diagnostics dialog box.

3. Select the test type from the drop-down list.

CAUTION: If you selected the Offline Switch Diagnostics option, your test type options, Offline and

Connectivity, will disrupt traffic. When you run an Offline or Connectivity test, the switch will be put into diagnostics state for you, and the switch will not be returned to its original state until you close the Switch Diagnostics dialog box. A disruptive switch reset must be done at that time to return the switch to its original state. If you selected the Online Switch Diagnostics option to run the online switch test and there are no ports with an active login at that time, the test will return immediately with a Passed status.

4. Enter a frame size in the Frame Size field.

5. Enable or disable the Terminate Test Upon Error option.

6. Select a Loop Count option. The Loop Forever option runs the test until you click Stop Test. The Loop

Count option runs the test the number of times you entered in the Loop Count field.

7. Select the default test pattern or enter a user-defined (hexadecimal) test pattern.

8. Click Start Test to begin the next test, or click Close to close the Switch Diagnostics dialog box.

Observe the results in the Test Results area. If the Test Status field in the Test Results area indicates

76 Managing switches

Failed, note the Test Fault Code displayed in the Switch Information data window and contact Tech Support.

Archiving a switch

You can create an .XML archive file containing the configuration parameters. This archive file can be used to restore the configuration on the same switch or on a replacement switch. You can also use the archive file as a template for configuring new switches to add to a fabric.

Basically any data received by QuickTools is archived. Passwords are not archived. Security Group secrets are not included in the archive and must be re-configured using the CLI after a restore.

Archived parameters include:

• Switch properties and statistics

• IP configuration

• SNMP configuration

• Port properties and statistics

• Name server

• Date/Time and NTP settings

• Alarm configuration

• Zoning configuration

• Nicknames configuration

• Call Home parameters

• User account information (but not restored)

• Configured security (available only with SSL connection to the switch).

• RADIUS Server information (available only with SSL connection to the switch)

NOTE: Security features must be configured using the CLI. See the HP StorageWorks SN6000 Fibre

Channel Switch Command Line Interface Guide for information about the command line interface.

To archive a switch:

1. Select Switch > Archive.

2. In the Save dialog box, enter a file name.

3. Click Save.

Restoring a switch

Restoring a switch loads the archived switch configuration parameters to the switch. The administrative state of the switch must be set to Offline using the Switch Properties dialog box before an archive can be used in the restore process. The switch type archive must be compatible with the switch to be restored. See ”Archiving a switch” on page 77 for more information.

HP StorageWorks SN6000 Fibre Channel Switch QuickTools Switch Management User Guide 77

Figure 36 Restore dialog boxes—full and selective

CAUTION: The switch being restored should be physically disconnected from the fabric. Restoring a

switch in a fabric can severely disrupt the fabric. After the restore process is complete, the switch can be reconnected to the fabric.

To restore a switch:

1. Log in to the fabric through the switch you want to restore. You cannot restore a switch over an ISL.

2. Open the Switch menu and select Restore to display the Restore dialog box (Figure 36). The Restore

dialog box offers a Full Restore tab and a Selective Restore tab.

3. Enter a name for the file to be archived or click Browse and search for a file name.

This archive file must be one that was produced by the QuickTools Archive function. Configuration backup files created with the Config Backup command are not compatible with the QuickTools Restore function. The Config Backup command does not archive the primary or secondary secrets for any security groups.

4. To restore all configuration settings, click the Full Restore tab, then click Restore. To restore selected

configuration settings, click the Selective Restore tab, select one or more of the following options, and then click Restore.

• Network Properties—Restores all settings presented in the Network properties dialog box except the

IP address. See ”Network properties” on page 68.

• IP Address—Restores switch IP address in addition to the other network properties.

• Port Properties—Restores all settings presented in the Port Properties dialog box. See ”Por t symbolic

name” on page 100.

• Switch Properties—Restores all settings presented in the Switch properties dialog box except the

domain ID. See ”Switch properties” on page 64.

• Domain ID—Restores switch domain ID in addition to the other switch properties.

• Configured Zoning—Restores all configured zonesets, zones, and aliases in the switch’s zoning

database, excluding the active zoneset.

• Nicknames—Restores the last saved nickname configuration.

• Call Home—Restores all Call Home configuration and profile settings.

78 Managing switches

5. If you select the Configured Zoning or Full Restore option and the file contains zonesets, a dialog box

prompts you to activate one of those zonesets. Click Yes, and then select a zoneset from the drop-down list in the Select Zoneset to be Activated dialog box.

6. Click OK and view the results in the top pane of the Restore dialog box.

Restoring the factory default configuration

You can restore the switch and port configuration settings to the factory default values. To restore the factory configuration on a switch, select Switch > Restore Factory Defaults. The factory default switch configuration settings are listed in Table 16.

Restoring the switch to the factory default configuration does not restore the account name and password settings. The most current port license will remain in effect. To restore user accounts, you must select the Reset User Accounts to Default option in the maintenance menu. See “Recovering a Switch” in the HP StorageWorks SN6000 Fibre Channel Switch Installation and Reference Guide for your switch for information about maintenance mode and the maintenance menu.

Table 16 Factory default configuration settings

Setting Value

Symbolic Name SN6000 FC Switch

Administrative State Online

Domain ID 1

Domain ID Lock False

In-band Management True

Broadcast Support Enable

Resource Allocation Timeout (R_A_TOV)

I/O Stream Guard Auto

Device Scan Enabled True

Error Detect Timeout (E_D_TOV)

SNMP Enabled True

SNMP Proxy True

IP Address 10.0.0.1

FDMI Enabled True

FDMI HBA Entry Level 1000

Subnet Mask Address 255.0.0.0

Gateway Address 10.0.0.254

10000 milliseconds

2000 milliseconds

Network Discovery Static

Remote Logging False

Remote Logging Host IP Address

NTP Client Enabled False

NTP Server IP Address 10.0.0.254

Contact Undefined

HP StorageWorks SN6000 Fibre Channel Switch QuickTools Switch Management User Guide 79

10.0.0.254

Table 16 Factory default configuration settings

Setting Value

Location Undefined

Trap Enabled False

Trap Port 162

Trap Address Trap 1: 10.0.0.254; Traps 2–5: 0.0.0.0

Trap Community Public

Read Community Public

Write Community Private

Port State Online

Port Speed Auto-detect

Port Type G L

Call Home Setup <undefined>

Call Home Profile <undefined>

Default Zone Allow

Merge Auto Save True

Discard Inactive False

Installing feature license keys

A feature license key is a password that you can purchase from your switch distributor or authorized reseller to upgrade your switch. License keys vary according to the features you purchase. The feature license key available for purchase is the HP StorageWorks SN6000 Stackable 20Gb ISL Upgrade LTU.

To install a license key and upgrade the switch:

1. Open the faceplate display for the switch you want to upgrade.

2. Select Switch > Features.

3. In the Feature Licenses dialog box (Figure 37), click Add.

The Add License Key dialog box is displayed.

Figure 37 Feature Licenses dialog box

80 Managing switches

4. In the Add License Key dialog box (Figure 38), enter the license key in the Key box.

Figure 38 Add License Key dialog box

5. Click Get Description. The license key description is retrieved and displayed in the Description area for

you to verify that this is the license key you ordered. If it is not the correct key, repeat steps 4 and 5.

6. Click Add Key to upgrade the switch. Allow a minute or two for the upgrade to complete.

Downloading a support file

The Download Support File menu option assembles all log files and switch memory data into a core dump file (the default file name is dump_support.tgz). This file can be sent to technical support personnel for troubleshooting switch problems.

To create a support file:

1. Select Switch > Download Support File.

2. In the Download Support File dialog box, click Browse to define a location for the support file, or type

the path in the text field. You can rename the support file at this time if desired.

3. Click Start to begin the process of creating and downloading the support file to your workstation.

Observe the status in the Status area.

4. After the support file is saved to your workstation, click Close to close the Download Support File dialog

box.

Installing firmware

Installing firmware involves loading, unpacking, and activating the firmware image on the switch. QuickTools does this in one operation. To provide consistent performance throughout the fabric, ensure that all switches are running the same version firmware.

An NDCLA of firmware can be achieved on an operating switch without disrupting data traffic or having to re-initialize attached devices. As part of an NDCLA operation, a switch Hot Reset is executed. During a Hot Reset operation, fabric services will be unavailable for a short period (30—75 seconds depending on switch model). To ensure that an NDCLA operation is successful, verify that all administrative changes to the fabric (if any) are complete. If you are installing firmware on more than one switch in the fabric, wait until the activation is complete on the first switch before installing firmware on a second switch. If you attempt to activate firmware on a second switch before activation is complete on the first, you will receive a message advising you to wait and perform a hot reset later on the second switch to complete the installation.

CAUTION: Changes to the fabric may disrupt the NDCLA process.

Common administrative operations that change the fabric include:

• Zoning modifications

• Adding, moving or removing devices attached to the switch fabric. This includes powering up or

powering down attached devices.

• Adding, moving or removing ISLs or other connections.

HP StorageWorks SN6000 Fibre Channel Switch QuickTools Switch Management User Guide 81

After an NDCLA operation is complete, management connections must be re-initiated:

• QuickTools sessions will re-connect automatically

• Telnet sessions must be restarted manually.

Future switch firmware releases will support non-disruptive upgrades unless specifically indicated in its associated release notes.

An NDCLA operation to earlier switch firmware releases is not supported.

The Load Firmware dialog box (Figure 39) enables you to select and install a firmware image file. To open the Load Firmware dialog box for an individual switch, select Switch > Load Firmware. When the Load Firmware dialog box is opened, the path displayed in the Firmware Image Folder field is automatically searched for firmware image files that can be installed. The default path to search for firmware image files is the user's working directory.

To change the search path:

1. Click Browse and select a new path.

2. Click Rescan to search the folder displayed in the Firmware Image Folder field. The firmware image files

found are listed in and can be selected from the Version drop-down list.

Figure 39 Load Firmware dialog box

To install firmware:

1. Select Switch > Load Firmware.

2. In the Load Firmware dialog box, choose one of the following:

• Select a firmware image file from the Version drop-down list.

• To change the folder (path), click Browse to search for a different firmware image file, select the

desired folder, and then click Rescan to search the selected folder.

3. Click Start to begin the firmware load process.

You will be shown a message indicating the type of reset required in order to activate the firmware.

4. Click OK to continue the firmware installation.

5. Click Close to close the Load Firmware dialog box.

Using Call Home

The Call Home feature enables you to configure switches to send alerts and events to pagers and email. You can configure the types of events to cover and where to send the alerts. Use the Call Home Setup dialog box (Figure 40) to configure call home parameters. To display the Call Home Setup dialog box, open the Switch menu, select Call Home > Setup.

82 Managing switches

IMPORTANT: The Call Home feature provides an email notification capability for the switch. This service

has no relationship with the HP Call Home feature, which notifies HP services.

Figure 40 Call Home Setup dialog box

HP StorageWorks SN6000 Fibre Channel Switch QuickTools Switch Management User Guide 83

Table 17 describes the fields of the Call Home Setup dialog box.

Table 17 Call Home Setup fields

Field Description

Primary SMTP: (active) (active) indicates that the Primary SMTP (Simple Mail

Transfer Protocol) is the SMTP server that Call Home will try to use when transmitting email messages. Call Home operates as an SMTP sending agent.

After any system configuration, the Primary SMTP server will always becomes the active SMTP, provided it is enabled and has a non-default address defined (0.0.0.0 is the default).

Primary SMTP Server

The IP address of the primary (first) SMTP server.

Address:

Primary SMTP Server Port: The service port number that the primary SMTP server is

listening on to accept connections from SMTP sending agents.

Secondary SMTP: The second SMTP server. If the primary SMTP is not

enabled/defined, or if there is a failure in communicating with the primary SMTP server, the Secondary SMTP server will become the (active) SMTP server—the one used by Call Home for the next attempt to transmit email.

Secondary SMTP Server

The IP address of the secondary SMTP server.

Address:

Secondary SMTP Server Port:

The service port number that the secondary SMTP server is listening on to accept connection from SMTP sending agents.

Contact Email Address: The email address of the point-of-contact for the switch. This

email address is included in the text of email messages using the FullText format under the section for Contact Information.

Phone Number: The phone number of the point-of-contact for the switch. This

value is included in the text of email messages using the FullText format under the section for Contact Information.

Street Address: The address of the point-of-contact for the switch. This value

84 Managing switches

is included in the text of email messages using the FullText format under the section for Contact Information.

Table 17 Call Home Setup fields

Field Description

From Email Address: The email address that is provided to the SMTP server

indicating the sender of the email being transmitted. In emails sent by Call Home, this address appears in the message heading as the From: address. This value is required to send emails. If there are any problems encountered in routing the email to any of the intended recipients, the notice of the problem is sent to this address. It is an important address for receiving email notices concerning problems.

This address is also the default address used when replies are sent to an email by a recipient. If the Reply-To: Email address is supplied it overrides the sending of replies to the From: Email address by recipients. However, any notifications of email problems sent by any SMTP server used to route the message to the final recipient always sends those notifications to the From: address.

ReplyTo Email Address: The email address used by mail reading programs to

determine the address to send the reply to the message received. This value will override the use of the From: address as the recipient for a reply message.

Throttle Duplicates: This Boolean setting indicates if duplicate messages should

be suppressed and accumulated. If True, after an email has been transmitted, Call Home will not transmit email for switch events that would result in duplicate emails during a specified time window (default is 15 seconds). The time window can only be configured using the CLI. During this time window, these duplicate switch events are accumulated to keep track of how many duplicate switch events have occurred. After the time window has expired, an email message for the event is transmitted reporting the number of duplicate events accumulated and the time of the last received event. Receiving additional switch events results in duplicate email messages being sent.

HP StorageWorks SN6000 Fibre Channel Switch QuickTools Switch Management User Guide 85

Using the Call Home Profile Manager

The Call Home Profile Manager is used to configure the type of events for which an email alert is sent, and where the alerts are sent. Use the Call Home Profile Manager dialog box (Figure 41) to manage all profiles on a switch. You can add new profiles, remove profiles, edit profiles, and make copies of existing profiles.

To display the Call Home Profile Manager dialog box, select Switch > Call Home > Profile Manager. The Profiles list shows all profiles on the switch. The Email List shows all email addresses associated with the selected profile in the Profiles list. The Apply Changes to Multiple Switches in Fabric option enables you to propagate all profiles on the switch to one or more switches in the fabric. See ”Applying all profiles on a

switch to other switches” on page 90 for more information.

Figure 41 Call Home Profile Manager dialog box

Using the Call Home Profile Editor

Use the Call Home Profile Editor dialog box (Figure 42) when creating a new profile, or when editing or copying an existing profile. The Call Home Profile Editor dialog box is displayed by clicking Add, Edit, or

Copy on the Call Home Profile Manager dialog box. Alternatively, you can open the Edit menu, and select Add New Profile, Edit Profile, or Copy Profile. The name in the title bar changes to reflect the option

selected—adding a new profile, adding a new profile, making a copy of an existing profile, or editing an existing profile.

To create a profile:

1. Click Add (Figure 41) in the Call Home Profile Manager dialog box.

The Call Home Profile Editor dialog box appears (Figure 42).

2. Enter a name for the profile.

3. Select an event level threshold.

4. Select a format type for the message text being sent (FullText or ShortText).

5. Enter the maximum size of the message being sent.

6. Enter the subject of the email.

7. Enter the email address(es) of the recipients.

8. Click Add to add the email address(es) to the list.

9. Click OK to save the changes.

86 Managing switches

To edit a profile:

1. Select a profile from the list of profiles (Figure 41) in the Call Home Profile Manager dialog box.

The Call Home Profile Editor dialog box is displayed (Figure 42) pre-populated with all of the information for the selected profile.

2. Enter any changes to the name for the profile.

3. Select any changes to the event level threshold.

4. Select any change to the format type for the message text being sent (FullText or ShortText).

5. Enter any changes to the maximum size of the message being sent.

6. Enter any changes to the subject of the email.

7. Add any new email address(es) of the recipients.

8. Click Add to add the email address(es) to the list.

9. Select any email address(es) of the recipients to be removed.

10. Click Remove to remove the selected email address(es) from the list. 11 . Click OK to save the changes.

You can use the Call Home Profile Editor dialog box to make a copy of and rename an existing profile.

To copy a profile:

1. Select a profile from the list of profiles (Figure 41) in the Call Home Profile Manager dialog box.

2. To open the Call Home Profile Editor dialog box, click Copy or open the Edit menu and then select

Copy Profile.

The dialog box is pre-populated with all of the information from the selected profile, except the name.

3. Enter a unique name for the profile copy.

4. Click OK to save the new profile.

Figure 42 Call Home Profile Editor dialog box

HP StorageWorks SN6000 Fibre Channel Switch QuickTools Switch Management User Guide 87

Using the Call Home Profile Editor—Tech Support Center Profile dialog box

You can use the Call Home Profile Editor—Tech Support Center Profile dialog box (Figure 43) to create, edit, or remove a Tech Support Center profile.

Figure 43 Call Home Profile Editor—Tech Support Center Profile dialog box

88 Managing switches

Table 18 describes the fields in the Call Home Editor—Tech Support Center Profile dialog box.

Table 18 Call Home Editor—Tech Support Center Profile dialog box fields

Field Description

Name The name automatically assigned to the profile. This profile

can not be changed or deleted, but the settings can be modified.

Level The severity level of the event (Alarm, Critical, Warning).

The level of events processed by the profile to produce emails that will be sent to the email addresses listed in the profile.

Format The format used to compile and email a message in

response to an incoming event that is processed by the profile. Formats allowed include:

• ShortText includes the minimum amount of detail

required to describe the event and identify the switch sending the message; it is the intended format for reading on mobile electronic devices.

• FullText includes the same information as ShortText and

provides additional information to identify switch location and contact information for switch administrators; it is the intended format for reading via standard email clients.

• The Tsc1 format is similar to the ShortText format but is

compiled to simplify machine processing of email messages.

Max Size (650—2,000,000)

The maximum number of bytes allowed for an email message compiled for the profile. Most email messages are relatively small, under 2KB. However, emails that are produced by a capture operation can be as large as 1MB due to the inclusion of file attachments.

Email Subject The subject line in the email to be sent. It is the string that is

appended to the string generated by CallHome for the email message subject line.

Enable Capture Enables or disables the capture operations for the profile.

Only the Tech Support Center profile is allowed to define and execute capture operations on the switch.

Time of Day The time of day, in HH:MM format, when the capture

operation will be executed on the switch. Only the Tech Support Center profile is allowed to define and execute capture operations on the switch. The default is 02:30.

Day of Week The day of the week–specified as Sunday, Monday,

Tuesday, Wednesday, Thursday, Friday or Saturday–when the capture operation will be executed on the switch. The default is Monday.

Interval (1—26 weeks) The number of weeks that must pass between executions of

the capture operation. The default is 1.

Address The email address of the recipient added to the Tech

Support Center profile. A maximum of 10 addresses is allowed and displayed in the Addresses window.

HP StorageWorks SN6000 Fibre Channel Switch QuickTools Switch Management User Guide 89

To create a Call Home Tech Support Center profile:

1. Open the Switch menu, select Call Home, and then select Profile Manager.

2. The Call Home Profile Manager dialog box is displayed.

3. Choose one of the following options to open the Call Home Profile Editor—Create Tech Support Center

Profile dialog box:

•Click Support on the tool bar.

•Select Edit > Create Tech Support Center Profile.

• Select an event level threshold option (Alarm, Critical, Warn, None) from the Level drop-down list.

4. Select a format type for the message text being sent (FullText, ShortText, or Tsc1) from the Format

drop-down list.

5. Enter any changes to the maximum size of the message being sent.

6. Enter any changes to the subject of the email.

7. In the Capture area, select the Enable Capture option to enable the capture feature, and specify the

time of day, day of week, and number of weeks between captures.

8. Enter the email addresses of the recipient, and then click Add to add that person to the list of recipients.

9. Click OK to save the changes and close the dialog box.

Applying all profiles on a switch to other switches

You can apply all profiles on a switch to one or more switches in a fabric. The Call Home Profile Multiple Switch Apply dialog box (Figure 44) appears if you select the Apply Changes to Multiple Switches in Fabric option on the Call Home Profile Manager dialog box (Figure 41). The Available Switches list shows all the switches in the fabric. Switch names that are disabled do not have current Call Home firmware and cannot receive any profiles. The Selected Switches list shows the switch names that you selected to receive all profiles from the switch.

To apply a profile to other switches:

1. Select the switches to receive the profile from the Available Switches list.

2. Click the double-arrow button to move your selections to the Selected Switches list.

3. Click OK to start the process.

The Results area indicates success or failure of applying the profile to the switches you selected.

Figure 44 Call Home Profile Multiple Switch Apply dialog box

90 Managing switches

Using the Call Home Message Queue

Use the Call Home Message Queue dialog box (Figure 45) to access the logged call home statistics. Click Update Stats to refresh with the most recent switch Call Home information. Click Clear Queue to clear the current statistics.

Figure 45 Call Home Message Queue dialog box

Testing Call Home Profiles

Use the Call Home Test Profile dialog box (Figure 46) to test the Call Home parameters currently configured. Select one or more profiles in the window, and then click Test. To display the Call Home Test Profile dialog box, open the Switch menu, select Call Home, and then select Test Profile.

Figure 46 Call Home Test Profile dialog box

HP StorageWorks SN6000 Fibre Channel Switch QuickTools Switch Management User Guide 91

Change Over

The Change Over option changes the inactive SMTP server to the active SMTP server.

To make the inactive SMTP become the active SMTP:

1. Select Switch > Call Home > Change Over.

Figure 47 Call Home Change Over dialog box

2. Click OK to confirm the change over.

92 Managing switches

4 Managing ports

The data windows provide port information and port statistics for selected ports. This section describes the following tasks that manage ports and devices:

• ”Port Information data window” on page 93

• ”Port Statistics data window” on page 96

• ”Viewing and configuring ports” on page 99

• ”Resetting a port” on page 105

• ”Testing ports” on page 105

Port Information data window

The Port Information data window (Figure 48) displays detailed port information for the selected ports. To open the Port Information data window, click the Port Info data window tab.

Figure 48 Port Information data window

Information in the Port Information data window is grouped and viewed by the Summary, Advanced, Extended Credits, and Media buttons (Figure 19). Click a button to display the corresponding information

in the data window on the right.

Figure 49 Port Information data window buttons

The Port Information data window fields are described in Table 19.

HP StorageWorks SN6000 Fibre Channel Switch QuickTools Switch Management User Guide 93

Table 19 Port Information data window fields

Field Description

Summary Group

Port Address Port Fibre Channel address.

Administrative Port Type The administrative port type (G, GL, F, FL, TR, or Donor).

This value is persistent; it will be maintained during a switch reset. During port auto-configuration, it will be used to determine which operational port states are allowed.

Operational Port Type The port type that is currently active. This will be set during

port auto-configuration based on the administrative port type.

Administrative Port State The port state (Online, Offline, Diagnostics, or Down) that

has been set by the user. This state may be different from the configured administrative state if the user has not saved it in the switch configuration. This state is used at the time it is set to try to set the port operational state. This value is not persistent and will be lost on a switch reset.

Operational Port State The port state that is currently active. This value may be

different from the administrative port state; for example, due to the presence of an error condition.

Configured Administrative Port State

The port state (Online, Offline, Diagnostics, or Down) which is saved in the switch configuration, either by the user or at the factory. This value is persistent; it will be maintained during a switch reset, and will be used after a reset to set the port operational state.

Logged In Indicates whether the device connected to the port is logged

in or not.

Port Connection Status E_Port connection status. Status can be None, Connecting,

Connected or Isolated.

Reason for Status Reason why E_Port is isolated.

Administrative Port Speed The port speed requested by the user.

Operational Port Speed The speed actually being used by the port.

Port Speed Supported The speeds supported by the port (1Gb/s, 2 Gb/s, 4 Gb/s,

8 Gb/s, 10 Gb/s and 20 Gb/s).

Symbolic Name User-defined name for a port.

Port WWN Port world wide name

POST Status Status from the most recent Power On Self Test

POST Fault Code Fault code from the most recent Power On Self Test

Test Status Status from the most recent port test

Test Fault Code Fault code from the most recent port test

Advanced Group

MFS Mode Multiple Frame Sequence bundling status.

Configured I/O Stream Guard

94 Managing ports

Configured RSCN message suppression status. If supported, status can be enabled, disabled, or automatically determined by the switch.

Table 19 Port Information data window fields

Field Description

Operational I/O Stream Guard

The actual RSCN message suppression status. If supported, status can be enabled, disabled, or automatically determined by the switch.

Device Scan Device scan status. Enabled means the switch queries the

connected device during login for FC-4 descriptor information.

Auto Performance Tuning Enables the switch to dynamically control the MFS_Enable,

VI_Enable and LCF_Enable features based on the operational state of the port.

AL Fairness Controls how frequently the switch can arbitrate for access.

Affects only ports running in loop (FL) mode.

Port Binding Ties a specific device WWN to a physical port number.

Upstream ISL The ISL over which the switch sends requests intended for the

principal switch

Downstream ISL The ISL over which the switch receives requests intended for

the principal switch.

Remote Switch WWN Displays WWN, if known, of the isolated switch attempting

a connection on that port.

Extended Credits Group

Extended Credits Requested Number of credits requested by other ports

Max Credits Available The maximum number of credits granted to a port that can

be used when extending port credits.

Credits to Donate The number of credits available to be donated by the

selected port.

Donor Group The donor group of the selected port.

Valid Donor Groups The number of separate groups within which extended

credits may be donated and assigned.

Media Group

Media Type The transceiver fibre type, such as single mode, multi-mode,

or copper.

Media Speed The maximum transceiver speed

Media The transceiver type.

Media Transmitter The transceiver transmitter type, such as longwave,

shortwave, or electrical.

Media Distance The maximum transceiver transmission distance

Media Vendor The company that manufactured the SFP

Media Vendor ID The IEEE registered company identification number

Media Part Number The part number assigned to the SFP

Media Revision Transceiver hardware version

HP StorageWorks SN6000 Fibre Channel Switch QuickTools Switch Management User Guide 95

Port Statistics data window

The Port Statistics data window (Figure 50) displays statistics for port performance. To open the Port Statistics data window, select one or more ports and click the Port Stats data window tab.

Figure 50 Port Statistics data window

The Statistics drop-down list is available on the Port Statistics data window, and provides different ways to view detailed port information. Click the down arrow to open the drop-down list and select one of the following:

• Select Absolute to view the total count of statistics since the last switch or port reset.

• Select Rate to view the number of statistics counted per second over the polling period.

• Select Baseline to view the total count of statistics since the last time the baseline was set. When

viewing baseline statistics, click Clear Baseline to set the current baseline. The baseline will also be set when the switch status changes from unreachable to reachable.

The Port Statistics data window fields are described in Table 20.

Table 20 Port Statistics data window fields

Field Description

Start Time Beginning of the period over which the statistics apply.

• The start time for the Absolute view is not applicable.

• The start time for the Rate view is the beginning of polling interval.

• The start time for the Baseline view is the last time the baseline was set.

End Time Last time the statistics were updated on the display.

Total Time Total time period from start time to end time.

Al Init Number of times the port entered the initialization state.

AL Init Error Number of times the port entered initialization and the

Bad Frames Number of frames that were truncated due to a loss of sync

96 Managing ports

initialization failed. Increments count when port has a sync loss.

or the frame didn't end with an EOF.

Table 20 Port Statistics data window fields

Field Description

BB_CreditRecoveryFrameFail ure

Number of times more frames were lost during a credit recovery period than the recovery process could resolve. This generates a Link Reset to recover the credits.

BB_CreditRecoveryRRDYFail ure

Number of times more R_RDYs were lost during a credit recovery period than the recovery process could resolve. This generates a Link Reset to recover the credits.

Class 2 Frames In Number of class 2 frames received by this port.

Class 2 Frames Out Number of class 2 frames transmitted by this port.

Class 2 Words In Number of class 2 words received by this port.

Class 2 Words Out Number of class 2 words transmitted by this port.

Class 3 Frames In Number of class 3 frames received by this port.

Class 3 Frames Out Number of class 3 frames transmitted by this port.

Class 3 Toss Number of class 3 frames that were discarded by this port.

A frame may be discarded because a missing frame or an E_D_TOV timeout is detected, a reject frame is received, or a frame is received on an offline port.

Class 3 Words In Number of class 3 words received by this port.

Class 3 Words Out Number of class 3 words transmitted by this port.

Decode Errors Number of invalid words transmitted detected during

decoding. Decoding is from the 10-bit characters and special K characters.

Ep Connects Number of E_Port logins.

FBusy Number of class 2 and class 3 fabric busy (F_BSY) frames

generated by this port in response to incoming frames. This usually indicates a busy condition on the fabric or the N_port that is preventing delivery of this frame.

Flow Errors Number of times a frame is received when all the switch

ports receive buffers are full. The normal Fabric Login exchange of flow control credit should prevent this from occurring. The frame will be discarded.

FReject Number of frames, from devices, that have been rejected.

Frames can be rejected for any of a large number of reasons.

Invalid CRC Number of invalid Cyclic Redundancy Check (CRC) frames

detected.

Invalid Destination Address Number of address identifier (S_ID, D_ID) errors. AL_PA

equals non-zero AL_PA found on F_Port.

Link Failures Number of optical link failures detected by this port. A link

failure is a loss of synchronization or by loss of signal while not in the offline state. A loss of signal causes the switch to attempt to re-establish the link. If the link is not re-established, a link failure is counted. A link reset is performed after a link failure.

HP StorageWorks SN6000 Fibre Channel Switch QuickTools Switch Management User Guide 97

Table 20 Port Statistics data window fields

Field Description

LIP(AL_PD,AL_PS) Number of F7, AL_PS LIPs, or AL_PD (vendor specific) resets

performed.

LIP(F7,AL_PS) Used to reinitialize the loop. An L_port, identified by AL_PS,

may have noticed a performance degradation and is trying to restore the loop.

LIP(F7,F7) A loop initialization primitive frame used to acquire an

AL_PA.

LIP(F8,AL_PS) Denotes a loop failure detected by the L_port identified by

AL_PS.

LIP(F8,F7) A loop initialization primitive frame used to indicate that a

Loop Failure has been detected at its receiver and does not have a valid AL_PA.

Logout Count Number of device logouts that have occurred on the switch.

Long Frame Count Number of incidents in which one or more frames greater

than the maximum size (2,136 bytes) are received.

Loop Timeouts Number of loop timeouts. The Loop timeout value (LP_TOV)

is 22 seconds. LP_TOV is used to keep a Loop from deteriorating due to protocol errors or lost Ordered Sets.

Loss Of Sync Number of synchronization losses (>100 ms) detected by

this port. A loss of synchronization is detected by receipt of an invalid transmission word.

Primitive Sequence Errors Number of invalid transitions made in the Link State

Machine. Primitives are recognized words that are not data words.

Rx Link Resets Number of link resets received from a device.

Rx Offline Sequences Number of offline sequence primitives received by the port.

Short Frame Count Number of incidents in which one or more frames smaller

than the minimum size (24 bytes) are received.

Total Errors Total number of primitive and non-primitive port link errors.

Total Link Resets Number of link-reset primitives transmitted and received by

the port.

Total LIPs Received Number of loop initialization primitive frames received.

Total LIPs Transmitted Number of loop initialization primitive frames transmitted.

Tx Offline Sequences Number of offline primitives transmitted by the port.

Total Rx Frames Total number of frames received by the port.

Total Rx Words Total number of words received by the port.

Total Tx Frames Total number of frames transmitted by the port.

Total Tx Words Total number of words transmitted by the port.

TotalRXErrors Total number of errors received by the port.

TotalTXErrors Total number of errors transmitted by the port.

98 Managing ports

Table 20 Port Statistics data window fields

Field Description

Tx Link Resets Number of link reset primitives sent from this port to an

attached port.

Total Offline Sequences Total number of offline sequences transmitted and received

by the port.

Viewing and configuring ports

Port color and text provide information about the port and its operational state. To display number and status information for a port, position the cursor over a port on the faceplate display. The status information changes depending on the View menu option selected. Green ports indicate active; gray ports indicate inactive. Context-sensitive popup menus are displayed when you right-click a port icon in the faceplate display. Use the drop-down lists in the Port Properties dialog box to change the following parameters:

• Port Symbolic Name

• Port States

• Port Types

• Port Speeds

• Port Transceiver Media Status

• I/O Stream Guard

• Device Scan

The port settings or characteristics are configured using the Port Properties dialog box (Figure 51). To open the Port Properties dialog box, select one or more ports, open the Port menu, and then select Port

Properties.

Figure 51 Port Properties dialog box

Use the Select to Propagate Changes to Entire Column options to propagate the same change to all selected ports. Select these options before making a change to a port.

The Port Properties dialog box fields are described in Table 21.

Table 21 Port Properties dialog box fields

State Description

Port The current port name

Symbolic Name User-defined name for a port.

Operational State The port state that is currently active. This value may be

different from the administrative port state, for example, due to an error condition.

HP StorageWorks SN6000 Fibre Channel Switch QuickTools Switch Management User Guide 99

Table 21 Port Properties dialog box fields

State Description

Configured State The port state (Online, Offline, Diagnostics, or Down) saved

in the switch configuration, either by the user or at the factory. This value is persistent; it will be maintained during a switch reset, and will be used after a reset to set the port operational state.

Operational Speed The port speed that is currently active.

Configured Speed The port speed saved in the switch configuration.

Running Type The port type that is currently active.

Configured Type The port type saved in the switch configuration. To change,

click in the field and select an option from the drop-down list.

I/O Stream Guard The I/O Stream Guard option suppresses the Registered

State Change Notification (RSCN) messages on a port basis. I/O Stream Guard should be enabled only on ports connected to initiator devices. To change, click in the field and select an option from the drop-down list. The options are:

• Enable–Suppresses the reception of RSCN messages

from ports for which I/O Stream Guard is enabled.

• Disable–Enables free transmission and reception of

RSCN messages.

• Auto–Suppresses the reception of RSCN messages when

the port is connected to an initiator device with an HBA. The default is Auto.

Device Scan The Device Scan feature queries the connected device

Port symbolic name

To change the symbolic name of a port:

1. Open the faceplate display and select a port.

2. Select Port > Port Properties to open the Port Properties dialog box.

3. Click inside the Symbolic Name field and enter a new name for the port.

4. Click OK.

Port states

The port operational state refers to the actual port state and not to the administrative state you may have assigned. The port administrative state refers to the user-requested state. For more information, see ”Port

operational states” on page 101. Port administrative states have two forms: the configured administrative

state and the current administrative state. For more information, see ”Port administrative states” on page 101.
