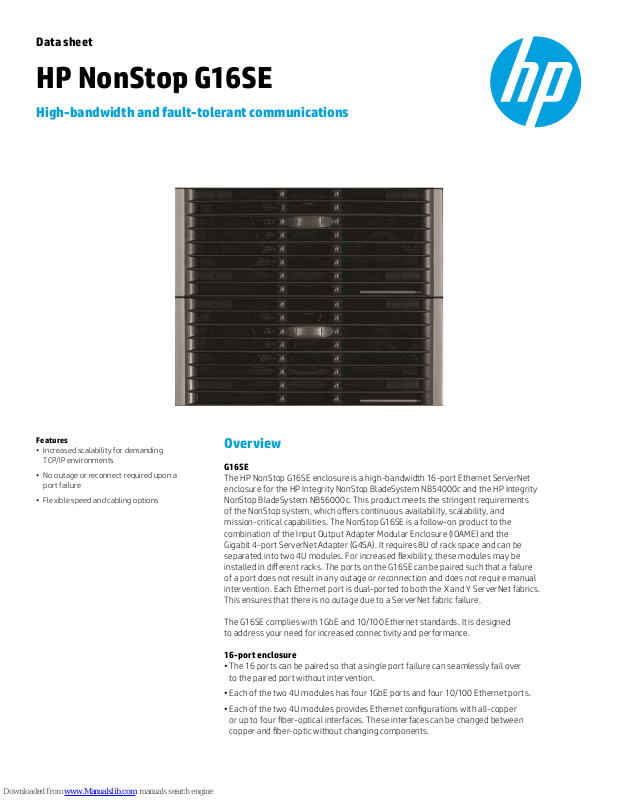

Data sheet
HP NonStop G16SE
High-bandwidth and fault-tolerant communications
Features
• Increased scalability for demanding
TCP/IP environments
• No outage or reconnect required upon a
portfailure
• Flexible speed and cabling options
Overview
G16SE

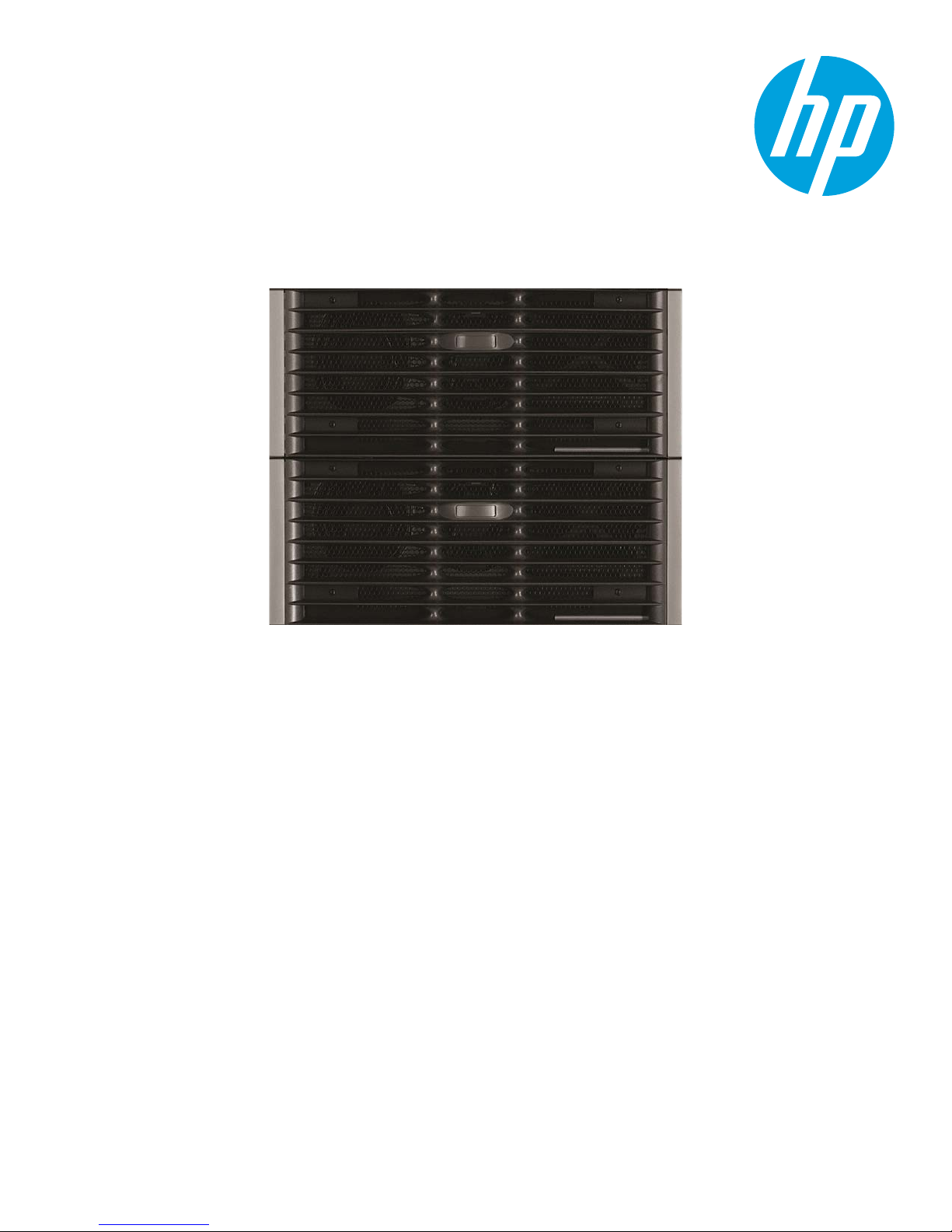

The HP NonStop G16SE enclosure is a high-bandwidth 16-port Ethernet ServerNet
enclosure for the HP Integrity NonStop BladeSystem NB54000c and the HP Integrity
NonStop BladeSystem NB56000c. This product meets the stringent requirements
of the NonStop system, which oers continuous availability, scalability, and
mission-critical capabilities. The NonStop G16SE is a follow-on product to the
combination of the Input Output Adapter Modular Enclosure (IOAME) and the
Gigabit 4-port ServerNet Adapter (G4SA). It requires 8U of rack space and can be
separated into two 4U modules. For increased exibility, these modules may be
installed in dierent racks. The ports on the G16SE can be paired such that a failure
of a port does not result in any outage or reconnection and does not require manual
intervention. Each Ethernet port is dual-ported to both the X and Y ServerNet fabrics.
This ensures that there is no outage due to a ServerNet fabric failure.
The G16SE complies with 1GbE and 10/100 Ethernet standards. It is designed
toaddress your need for increased connectivity and performance.
16-port enclosure
• The 16 ports can be paired so that a single port failure can seamlessly fail over
tothe paired port without intervention.
• Each of the two 4U modules has four 1GbE ports and four 10/100 Ethernet ports.
• Each of the two 4U modules provides Ethernet congurations with all-copper
orupto four ber-optical interfaces. These interfaces can be changed between
copper and ber-optic without changing components.
Page 2
Data sheet | HP NonStop G16SE
Key features and benets
• One model with a variety of conguration and cabling options
• Dynamic adjustment to network trac characteristics
• Enhanced TCP/IP support with up to 80,000 UDP/TCP connections per adapter
• Congurable MAC to override auto-negotiation settings (UTP cabling only)
• Application-compatible with previous Ethernet adapters for a smooth migration
• Support for multiple protocols (TCP/IP, IPX/SPX, Expand/IP, PAM, and SNAX over Ethernet)
A NonStop NB54000c or a NonStop NB56000c system with two c7000 blade enclosures
supports up to six G16SEs per system. For a system with only one c7000 blade enclosure,
youcan install up to four G16SEs per system.
If your NonStop system does not have a pair of IP or Telco CLIMs, two 10/100 Ethernet
ports on the rst G16SE are needed for system maintenance communications. These ports
can be recongured for customer use if a pair of IP or Telco CLIMs is added to the system
later. Subsequent G16SE enclosures in the system have all 16 Ethernet ports available for
application use.
The Cable Management Panel (BL8153) is an important component of the overall G16SE
solution and provides clean and easy access to the Ethernet ports. This provides an elegant
cabling solution and allows for quick recongurations.
Flexibility and scalability
The NonStop G16SE product further increases the leadership role of NonStop systems by
oering unique conguration options. It can coexist with IP and Telco CLIMs for a more exible
environment. The NonStop G16SE installs and operates in conjunction with IP and Telco CLIMs,
thus maintaining your existing investment. 1GbE speeds are available on eight ports, for which
both UTP copper or multimode ber cabling is supported. As le size and transaction volume
increase, the NonStop G16SE provides the kind of scalability that keeps your system at pace
with the increased capacity.
2
Page 3
Data sheet | HP NonStop G16SE
Specications
Form factor 8U (two 4U modules)
Weight 136 lb (61.7 kg)
Dimensions (Inches: H x W x D) 13.8 x 19 x 29.37
Number of power plugs 4
Power supply plug type IEC 320 C14
Maximum watts RMS 652
NonStop system supported HP Integrity NonStop BladeSystem NB54000c and HP Integrity BladeSystem NB56000c
NonStop OS versions Release RVU is J06.15
Minimum RVU is J06.14 with required SPRs
Compliance with IEEE standards 10 megabits per second Ethernet: IEEE 802.3—10BASE-T CSMA/CD (Ethernet)
10/100 megabits per second Fast Ethernet: IEEE 802.3u —100BASE-TX Fast Ethernet with
auto-negotiation of speed
1000 megabits per second Gigabit Ethernet: IEEE 802.3ab—1000BASE-T Gigabit Ethernet and
IEEE802.3z—1000BASE-SX
IEEE 802.3x—Flow control in full-duplex Ethernet LANs
1000 megabits per second Gigabit Ethernet
Ethernet ports cabling requirements The procurement of cables is a customer responsibility. The G16SE uses the following standard cables that
can be purchased from third-party vendors:
• CAT 5, CAT 5e, or CAT 6 UTP (4 pairs)
• 850 nm 50/125 μm multimode ber
Connectors Standard RJ-45 pin-out connector
Standard LC duplex connector
3
Page 4
Data sheet | HP NonStop G16SE
HP Technology Services
HP Technology Services help build an infrastructure that is reliable, highly available and
rootedin best practices. We oer a support experience that is proactive, personalized and
simplied—delivering support when and how you need. HP recommends the following services
for NonStop servers:
HP Critical Service: High performance reactive and proactive support designed to
minimize downtime. It oers an assigned support team which includes an Account Support
Manager(ASM). This service oers access to HP’s Global Mission Critical Solution Center,
24x7 HW and SW support, 6-hour Call-to-Repair commitment, enhanced parts inventory and
accelerated escalation management.
HP Proactive 24: Provides proactive and reactive support delivered under the direction of
an ASM. It oers 24x7 HW support with 4 hour onsite response, 24x7 SW support with 2 hour
response and exible call submittal.
HP Installation and Start-up Services: This service provides ecient and eective
deployment of HP hardware components.
For more information on Support Services for NonStop servers, click here.
Learn more at
hp.com/go/nonstop
Sign up for updates
hp.com/go/getupdated
