HP EliteBook 850 G7 QuickSpecs

Download
QuickSpecs

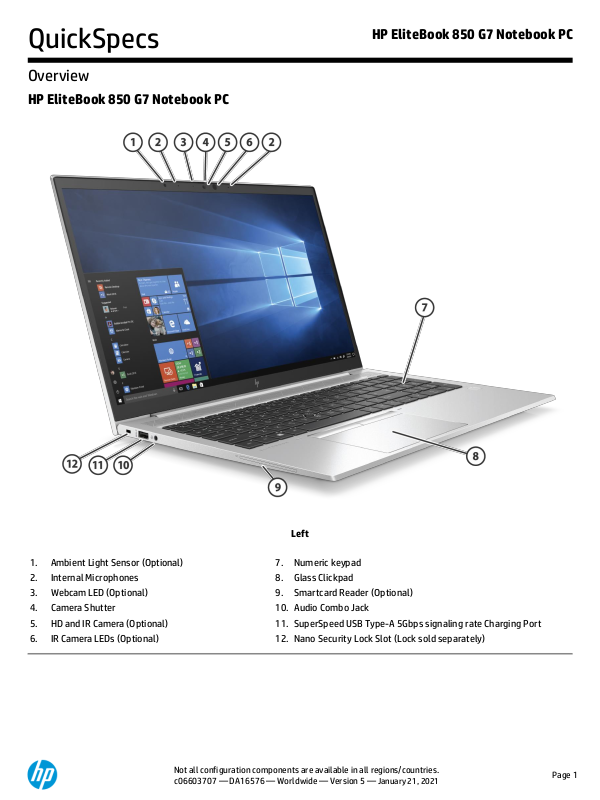

HP EliteBook 850 G7 Notebook PC
Overview
Not all configuration components are available in all regions/countries. c06603707 — DA16576 — Worldwide — Version 5 — January 21, 2021
Page 1
Left
1.
Ambient Light Sensor (Optional)
7.
Numeric keypad
2.
Internal Microphones
8.
Glass Clickpad
3.
Webcam LED (Optional)
9.
Smartcard Reader (Optional)
4.
Camera Shutter
10.
Audio Combo Jack
5.
HD and IR Camera (Optional)
11.
SuperSpeed USB Type-A 5Gbps signaling rate Charging Port
6.
IR Camera LEDs (Optional)
12.
Nano Security Lock Slot (Lock sold separately)
QuickSpecs
HP EliteBook 850 G7 Notebook PC
Overview
Not all configuration components are available in all regions/countries. c06603707 — DA16576 — Worldwide — Version 5 — January 21, 2021
Page 2
Right
1.
Power Button Key
5.
SuperSpeed USB Type-C® 5Gbps signaling rate with Thunderbolt™
2.
Power Connector
6.
SuperSpeed USB Type-C® 5Gbps signaling rate with Thunderbolt™
3.
SuperSpeed USB Type-A 5Gbps signaling 1 Port
7.
SIM Card Slot1
4.
HDMI Port (Cable nhot included)
8.
Touch Fingerprint Sensor (select models)
1. All units have a SIM card stray but units that do not support WWAN are shipped with a non-removable SIM slot plug
QuickSpecs
HP EliteBook 850 G7 Notebook PC
Overview
Not all configuration components are available in all regions/countries. c06603707 — DA16576 — Worldwide — Version 5 — January 21, 2021
Page 3
• Premium ultraslim design with precision-crafted machined aluminum (CNC) chassis for a premium look and feel
• 10th Generation Intel® Core™ i5 up to quad-core, i7 Processors up to six-core
• Preinstalled with Windows 10 versions or FreeDOS
• Designed to support USB-C® and Thunderbolt HP docking options including the HP Universal Dock G5
• Featuring redesigned Bottom-Mount quiet HP Keyboard with the HP Programmable key and backlit options
• Innovative world-facing third mic improves inbound ambient noise cancellation while 360 degree mic pick-up allows
everyone to clearly hear and be heard
• Optional ultrabright displays with ambient light sensor
• Choice of displays:
-39.6 cm (15.6") diagonal FHD IPS Anti-Glare LED-backlit, 250 nits, 45% NTSC
-39.6 cm (15.6") diagonal FHD IPS Anti-Glare LED-backlit non-touch 1W low power, 400 nits, 72% NTSC
-39.6 cm (15.6") diagonal UHD IPS Anti-Glare LED-backlit non-touch, 400 nits, 72% NTSC
-39.6 cm (15.6") diagonal FHD IPS Anti-Glare On-Cell LED-backlit touch, 250 nits, 45% NTSC
• Optional NVIDIA GeForce MX250 discrete graphics with 2GB GDDR5 video memory
• Enterprise grade security with HP Sure Sense
4
, HP SureStart Gen6, HP Privacy Camera, HP Sure Run Gen2, HP Sure Recover Gen2 with Embedded Reimaging1, HP Sure Click, SmartCard Reader1 and Touch Fingerprint reader5 (select models)
• Ultimate connectivity with optional CAT16 4G/LTE WWAN and Wi-Fi 6 WLAN
• Supports fast charging (50% in 30 minutes) with no impact on battery recharge cycles
2
• UMA graphics: Up to 24 hours (Intel® 10th generation CPU and 3-cell 56 WHr battery)
• Discrete graphics: Up to 21 hours and 15 minutes (Intel® 10th generation CPU and 3-cell 56 WHr battery)
• Choice of solid state drives up to 1 TB and DDR4 memory up to 64 GB
• Battery life up to 24 hours (Intel® 10th generation CPU and 3-cell 56 WHr battery)
• Passed 19 MIL-STD 810H tests
4
• Intel® UHD Premium Graphics
1. Sold separately or as an optional feature
2. Recharges your battery up to 50% within 30 minutes when the system is off or in standby mode. Power adapter with a minimum capacity of 65 watts is required. After charging has reached 50% capacity, charging will return to normal. Charging time may vary +/-10% due to System tolerance.
3. MIL-STD 810H is not intended to demonstrate fitness of U.S. Department of Defense contract requirements or for military use. Test results are not a guarantee of future performance under these test conditions. Accidental damage requires an optional HP Accidental Damage Protection Care Pack.
4. HP Sure Sense requires Windows 10. See product specifications for availability.
5. HP Fingerprint Sensor is an optional feature and requires configuration at purchase.
NOTE: See important legal disclosures for all listed specs in their respective features sections.
QuickSpecs
HP EliteBook 850 G7 Notebook PC
Technical Specifications
Not all configuration components are available in all regions/countries. c06603707 — DA16576 — Worldwide — Version 5 — January 21, 2021
Page 4
HP EliteBook 850 G7 Notebook PC
Preinstalled
Windows 10 Pro 64 – HP recommends Windows 10 Pro for business
1
Windows 10 Pro 64 (National Academic only)
2
Windows 10 Home 64
2
Windows 10 Home Single Language 64
1
Windows 10 Pro (Windows 10 Enterprise available with a Volume Licensing Agreement)
1
FreeDOS
1. Not all features are available in all editions or versions of Window. Systems may require upgraded and/or separately purchased hardware, drivers, software or BIOS update to take full advantage of Windows functionality. Windows 10 is automatically updated, which is always enabled. ISP fees may apply and additional requirements may apply over time for updates. See
http://www.windows.com/.
2. Some devices for academic use will automatically be updated to Windows 10 Pro Education with the Windows 10 Anniversary Update. Features vary; see https://aka.ms/ProEducation for Windows 10 Pro Education feature information. Note: Your product does not support Windows 8 or Windows 7. In accordance with Microsoft’s support policy, HP does not support the Windows® 8 or Windows 7 operating system on products configured with Intel® and AMD® 7th generation and forward processors or provide any Windows® 8 or Windows 7 drivers on http://www.support.hp.com. A full list of HP products and the Windows 10 versions tested is available on the HP support website. https://support.hp.com/us-en/document/c05195282
Intel® Core™ i7-10810U with Intel® UHD Graphics Premium (1.1 GHz base frequency, up to 4.9 GHz with Intel® Turbo Boost Technology, 12 MB L3 cache, 6 cores)
3,4,5,6
Intel® Core™ i7-10710U with Intel® UHD Graphics Premium (1.1 GHz base frequency, up to 4.7 GHz with Intel® Turbo Boost Technology, 12 MB L3 cache, 6 cores)
3,4,5,6
Intel® Core™ i7-10610U with Intel® UHD Graphics Premium (1.8 GHz base frequency, up to 4.9 GHz with Intel® Turbo Boost Technology, 8 MB L3 cache, 4 cores)
3,4,5,6
Intel® Core™ i7-10510U with Intel® UHD Graphics Premium (1.8 GHz base frequency, up to 4.9 GHz with Intel® Turbo Boost Technology, 8 MB L3 cache, 4 cores)
3,4,5,6
Intel® Core™ i5-10310U with Intel® UHD Graphics Premium (1.7 GHz base frequency, up to 4.4 GHz with Intel® Turbo Boost Technology, 6 MB L3 cache, 4 cores)
3,4,5,6
Intel® Core™ i5-10210U with Intel® UHD Graphics Premium (1.6 GHz base frequency, up to 4.2 GHz with Intel® Turbo Boost Technology, 6 MB L3 cache, 4 cores)
3,4,5,6
Processor Family
10th Generation Intel® Core™ i7 processors (i7-10810U, i7-10710U, i7-10610U, i7-10510U) 10th Generation Intel® Core™ i5 processors (i5-10310U, i5-10210U)
QuickSpecs
HP EliteBook 850 G7 Notebook PC
Technical Specifications
Not all configuration components are available in all regions/countries. c06603707 — DA16576 — Worldwide — Version 5 — January 21, 2021
Page 5
3. Multicore is designed to improve performance of certain software products. Not all customers or software applications will necessarily benefit from use of this technology. Performance and clock frequency will vary depending on application workload and your hardware and software configurations. Intel’s numbering, branding and/or naming is not a measurement of higher performance.
4. Processor speed denotes maximum performance mode; processors will run at lower speeds in battery optimization mode.
5. Intel® Turbo Boost performance varies depending on hardware, software and overall system configuration. See
http://www.intel.com/technology/turboboost for more information.
6. In accordance with Microsoft’s support policy, HP does not support the Windows 8 or Windows 7 operating system on products configured with Intel and AMD 7th generation and forward processors or provide any Windows 8 or Windows 7 drivers on
http://www.support.hp.com.
Chipset is integrated with processor
Integrated
Intel® UHD Premium Graphics
7
Discrete
NVIDIA® GeForce® MX250 (2 GB DDR5 video memory)9
Supports Support HD decode, DX12, HDMI 1.4b8
7. HD content required to view HD images.
8. HDMI cable sold separately.
9. Integrated graphics depends on processor. NVIDIA® Optimus™ technology requires an Intel processor, plus an NVIDIA® GeForce® discrete graphics configuration and is available on Windows 10 Pro OS. With NVIDIA® Optimus™
technology, full enablement of all discrete graphics video and display features may not be supported on all systems (e.g. OpenGL applications will run on the integrated GPU or the APU as the case may be).
Non-Touch
39.6 cm (15.6") diagonal FHD IPS eDP anti-glare WLED-backlit bent, 250 nits, 45% NTSC (1920 x 1080)
7,10,11
39.6 cm (15.6") diagonal FHD IPS eDP anti-glare WLED-backlit bent for HD camera, 250 nits, 45% NTSC (1920 x 1080)
7,10,11
39.6 cm (15.6") diagonal FHD IPS eDP anti-glare WLED-backlit bent for HD+IR camera, 250 nits, 45% NTSC (1920 x 1080)
7,10,11
39.6 cm (15.6") diagonal FHD IPS eDP anti-glare WLED-backlit bent for WWAN, 250 nits, 45% NTSC (1920 x 1080)
7,10,11
39.6 cm (15.6") diagonal FHD IPS eDP anti-glare WLED-backlit bent for HD camera and WWAN, 250 nits, 45% NTSC (1920 x 1080)
7,10,11
39.6 cm (15.6") diagonal FHD IPS eDP anti-glare WLED-backlit bent for HD+IR camera and WWAN, 250 nits, 45% NTSC (1920 x 1080)
7,10,11
39.6 cm (15.6") diagonal FHD IPS eDP + PSR anti-glare WLED-backlit bent with Ambient Light Sensor for HD+IR camera, 400 nits, low power, 100% NTSC(1920 x 1080)
7,10,11
39.6 cm (15.6") diagonal FHD IPS eDP + PSR anti-glare WLED-backlit bent with Ambient Light Sensor for HD+IR camera and WWAN, 400 nits, low power, 100% NTSC(1920 x 1080)
7,10,11
39.6 cm (15.6") diagonal 4k IPS eDP + PSR anti-glare WLED-backlit bent with Ambient Light Sensor for HD+IR camera, 400 nits, low power, 100% NTSC (3840 x 2160)
7,10,11
QuickSpecs
HP EliteBook 850 G7 Notebook PC
Technical Specifications
Not all configuration components are available in all regions/countries. c06603707 — DA16576 — Worldwide — Version 5 — January 21, 2021
Page 6
39.6 cm (15.6") diagonal FHD IPS eDP + PSR anti-glare WLED-backlit bent with Ambient Light Sensor for HD+IR camera and WWAN, 400 nits, low power, 100% NTSC (3840 x 2160)
7,10,11
Touch
39.6 cm (15.6") diagonal FHD IPS eDP anti-glare WLED-backlit bent touch-on-panel screen for HD+IR camera, 250 nits, 45% NTSC (1920 x 1080)
7,10,11
39.6 cm (15.6") diagonal FHD IPS eDP anti-glare WLED-backlit bent touch-on-panel screen for HD+IR camera and WWAN, 250 nits, 45% NTSC (1920 x 1080)
7,10,11
Display Size
15.6"
39.6 cm
HDMI 1.4b
Supports resolution up to 4k @ 60 Hz via DP and 30Hz via HDMI
7. HD content required to view HD images.
10. Sold separately or as an optional feature.
11. Resolutions are dependent upon monitor capability, and resolution and color depth settings.
Docking station
model
Total number
of supported
displays (incl.
the notebook)
display)
Max. resolutions
supported
Dock
Connectors
Technical limitations
HP Thunderbolt Dock
G2
3
Dual 4K @ 60Hz
2xDP, 1xVGA,
1xTB,
1xUSB-C alt-
mode
Dual 4k (4096 x 2160) only with:
• 1 DP + TB port or
• USB-C alt mode + TB port
Dual 4K (3840 x 2160) with any of the
DP, TB or USB-C alt mode video ports
HP Elite USB-C Dock G5
3
Three 1680x1050
@ 60 Hz
Dual 2K @ 60Hz
Single 4K @ 60Hz
(3840 x 1440)
1xHDMI, 2xDP
HP USB-C Universal
Dock G2
3
Dual 4K @ 60Hz
Single 5K @ 60Hz
1xHDMI, 2xDP
HP USB-C Travel Dock
2
Single 2K @ 60Hz
1xHDMI, 1xVGA
Single external display
Only HDMI or VGA at the time
QuickSpecs
HP EliteBook 850 G7 Notebook PC
Technical Specifications
Not all configuration components are available in all regions/countries. c06603707 — DA16576 — Worldwide — Version 5 — January 21, 2021
Page 7
Primary M.2 Storage
128 GB SATA-3 SS TLC
13
256 GB PCIe NVMe Value SS
13
256 GB PCIe Gen3x4 NVMe SS TLC
13
256 GB PCIe TLC Opal 2
13
256 GB PCIe Gen3x2x2 SS QLC+16 GB Intel Optane™ Memory
13
512 GB PCIe NVMe Value SS
13
512 GB PCIe Gen3x4 NVMe SS TLC
13
512 GB Intel® PCIe® NVMe™ QLC + 32 GB Intel® Optane™ Memory
13
512 GB PCIe Gen3x4 NVMe SS TLC Opal 2
13
1 TB PCIe Gen3x4 NVMe SS TLC13
13. For storage drives, GB = 1 billion bytes. TB = 1 trillion bytes. Actual formatted capacity is less. Up to 30 GB (for Windows 10) is reserved for system recovery software.
Maximum Memory
64 GB DDR4-2666 SDRAM (2 X 32 GB)14
Memory
32 GB DDR4-2666 SDRAM (2 X 16 GB)
14
16 GB DDR4-2666 SDRAM (1 X 16 GB)14 16 GB DDR4-2666 SDRAM (2 X 8 GB)14 8 GB DDR4-2666 SDRAM (1 x 8 GB)14 8 GB DDR4-2666 SDRAM (2 x 4 GB)14 4 GB DDR4-2666 SDRAM (1 x 4 GB)
14
Memory Slots
2 SODIMM Both slots are customer accessible / upgradeable DDR4 SODIMMS, system runs at 2666 Supports Dual Channel Memory
14. Due to the non-industry standard nature of some third-party memory modules, we recommend HP branded memory to ensure compatibility. If you mix memory speeds, the system will perform at the lower memory speed.
QuickSpecs
HP EliteBook 850 G7 Notebook PC
Technical Specifications
Not all configuration components are available in all regions/countries. c06603707 — DA16576 — Worldwide — Version 5 — January 21, 2021
Page 8
WLAN
Intel® Dual Band Wireless-AX201 802.11a/b/g/n/ac (2x2) Wi-Fi 6 and Bluetooth® 5 Combo, vPro®
15
Intel® Dual Band Wireless-AX201 802.11a/b/g/n/ac (2x2) Wi-Fi 6 and Bluetooth® 5 Combo, non-vPro®15
WWAN*
Intel® XMM™ 7360 LTE-Advanced Cat 9 Intel® XMM™ 7560 LTE-Advanced Pro Cat 1616
NFC
NPC300 Near Field Communication module
Miracast
Native Miracast Support17
15. Wireless access point and internet service required and sold separately. Availability of public wireless access points limited. Wi-Fi 6 is backwards compatible with prior 802.11 specs. The specifications for Wi-Fi 6 (802.11ax) are draft and are not final. If the final specifications differ from the draft specifications, it may affect the ability of the notebook to communicate with other
802.11ax devices.
16. Gigabit class Category 16 4G LTE module is optional and must be configured at the factory. Module designed for up to 1 Gbps download speeds as carriers deploy 5 carrier aggregation and 100Mhz channel bandwidth, requires activation and separately purchased service contract. Backwards compatible to HSPA 3G technologies. Check with service provider for coverage and availability in your area. Connection, upload and download speeds will vary due to network, location, environment, network conditions, and other factors. 4G LTE not available on all products, in all regions.
17. Miracast is a wireless technology your PC can use to project your screen to TVs, projectors, and streaming. * WWAN is an optional feature, requires factory configuration and separately purchased service contract. Check with service provider for coverage and availability in your area. 4G LTE not available on all products, in all regions.
Audio
Audio by Bang & Olufsen 2 Integrated stereo speakers Integrated 3 Multi Array Microphone
Camera
720p HD Camera
7,10
720p HD+IR Camera
7,10
Sensors
Ambient light sensor Hall Sensor
7. HD content required to view HD images.
10. Sold separately or as an optional feature.
QuickSpecs
HP EliteBook 850 G7 Notebook PC
Technical Specifications
Not all configuration components are available in all regions/countries. c06603707 — DA16576 — Worldwide — Version 5 — January 21, 2021
Page 9
Keyboard
HP Premium Collaboration Keyboard with Numeric Keypad, spill resistant Optional backlit keyboard and DuraKeys*
Pointing Device
Clickpad with multi-touch gesture support, taps enabled as default Microsoft Precision Touchpad Default Gestures Support
Function Keys
F1 - Display Switching F2 - Blank or Privacy (with LED) F3 - Brightness Down F4 - Brightness Up F5 - Audio Mute F6 - Volume Down F7 - Volume Up F8 - Mic Mute F9 - Blank or Backlit Toggle F10 - Insert F11 - Airplane Mode F12 - HP Programmable Key Print Screen Power Button (with LED)
Hidden Function Keys
Fn+R - Break Fn+S - Sys Rq Fn+C - Scroll Lock
* Keyboards are made from up to 65% post-consumer recycled plastic
Preinstalled Software
BIOS
HP BIOSphere Gen5
19
HP Drive Lock & Automatic Drive Lock BIOS Update via Network Power On Authentication HP Secure Erase20 Absolute Persistence Module21 Pre-boot Authentication
Software
HP Connection Optimizer HP Hotkey Support HP JumpStart HP Support Assistant22 HP Noise Cancellation Software Buy Office (sold separately)
Manageability Features
QuickSpecs
HP EliteBook 850 G7 Notebook PC
Technical Specifications
Not all configuration components are available in all regions/countries. c06603707 — DA16576 — Worldwide — Version 5 — January 21, 2021
Page 10
HP Driver Packs
23
HP System Software Manager (SSM) HP BIOS Config Utility (BCU) HP Client Catalog HP Manageability Integration Kit Gen4
24
HP Image Assistant HP Client Management Script Library Ivanti Management Suite HP Cloud Recovery
Client Security Software
HP Client Security Manager Gen6
25
HP Fingerprint Sensor26 (select models) HP Power On Authentication Windows Defender27
Security Management
Pre-boot Authentication TPM 2.0 Embedded Security Chip shipped with Windows 10 (Common Criteria EAL4+ Certified)
28
USB enable/disable (via BIOS) Power-on password (via BIOS) Setup password (via BIOS) Support for chassis padlocks and cable lock devices HP Sure Click
29
HP Sure Start Gen6
30
HP Sure Run Gen3
31
HP Sure Recover Gen3
32
HP Sure Sense
33
Secured-core PC capable
34
Smartcard Reader Model number: Alcor AU9560 FIPS 201 Compliant: Yes
TPM
Model: Infineon SLB9670 Version: 7.85 Revision: TPM 2.0 FIPS 140-2 Compliant: Yes
IPv6 Certification
Yes
Is the BIOS on this notebook ISO/IEC 19678:2015 (formerly NIST 800-147) compliant?: Yes UEFI version: 2.7 Class: Class 3
19. HP BIOSphere Gen5 is available on select HP Pro and Elite PCs. See product specifications for details. Features may vary depending on the platform and configurations.
20. HP Secure Erase for the methods outlined in the National Institute of Standards and Technology Special Publication 800-88 "Clear" sanitation method. HP Secure Erase does not support platforms with Intel® Optane™.
21. Absolute agent is shipped turned off, and will be activated when customers activate a purchased subscription. Subscriptions can be purchased for terms ranging multiple years. Service is limited, check with Absolute for availability outside the U.S. The
QuickSpecs
HP EliteBook 850 G7 Notebook PC
Technical Specifications
Not all configuration components are available in all regions/countries. c06603707 — DA16576 — Worldwide — Version 5 — January 21, 2021
Page 11
Absolute Recovery Guarantee is a limited warranty. Certain conditions apply. For full details visit: http://www.absolute.com/company/legal/agreements/ computrace-agreement. Data Delete is an optional service provided by Absolute Software. If utilized, the Recovery Guarantee is null and void. In order to use the Data Delete service, customers must first sign a Pre-Authorization Agreement and either obtain a PIN or purchase one or more RSA SecurID tokens from Absolute Software.
22. HP Support Assistant requires Windows and Internet access.
23. HP Driver Packs not preinstalled, however available for download at http://www.hp.com/go/clientmanagement.
24. HP Manageability Integration Kit can be downloaded from http://www8.hp.com/us/en/ads/clientmanagement/overview.html.
25. HP Client Security Manager Gen6 requires Windows and is available on the select HP Pro and Elite PCs.
26. HP Fingerprint Sensor is an optional feature and requires configuration at purchase.
27. Windows Defender Opt in and internet connection required for updates.
28. Firmware TPM is version 2.0. Hardware TPM is v1.2, which is a subset of the TPM 2.0 specification version v0.89 as implemented by Intel Platform Trust Technology (PTT).re TPM is version 2.0. Hardware TPM is v1.2, which is a subset of the TPM
2.0 specification version v0.89 as implemented by Intel Platform Trust Technology (PTT).
29. HP Sure Click is available on select HP platforms and supports Microsoft Internet Explorer, Google Chrome™, and Chromium™. Supported attachments include Microsoft Office (Word, Excel, PowerPoint) and PDF files in read only mode, when Microsoft Office or Adobe Acrobat are installed.
30. HP Sure Start Gen6 is available on select HP PCs with Intel processors.
31. HP Sure Run Gen3 is available on select Windows 10 based HP Pro, Elite and Workstation PCs with select Intel® or AMD processors.
32. HP Sure Recover Gen3 is available on select HP PCs and requires an open network connection. Not available on platforms with multiple internal storage drives. You must back up important files, data, photos, videos, etc. before using HP Sure Recover to avoid loss of data.
33. HP Sure Sense requires Windows 10.
34. Requires an Intel vPro or AMD Ryzen Pro processor. Requires 8 GB or more system memory. Secured-core PC functionality can be enabled from the factory
QuickSpecs
HP EliteBook 850 G7 Notebook PC
Technical Specifications
Not all configuration components are available in all regions/countries. c06603707 — DA16576 — Worldwide — Version 5 — January 21, 2021
Page 12
Smart Card Reader
Smart card standard
PC/SC 2.0 for Windows smart card standard
Dimensions (L x W x H)
0.41x 0.08 x 0.32 in (10.5 x 2 x 8.2 mm)
Smart Card support
ISO 7816 Class A and AB smart cards
Smart Card Interface
Smart Card Interface with T = 0 and T = 1 support Support I2C memory card, SLE4418, SLE4428, SLE4432, SLE4442, SLE4436, SLE5536, SLE6636, AT88SC1608, AT45D041 card and AT45DB041 card via external EEPROM
HP Smart 45 W External AC power adapter
35
HP Smart 45 W External AC power adapter, 2-prong (Japan only)
35
HP Smart 65 W External AC power adapter
35
HP Smart 65 W EM External AC power adapter
35
65 W USB Type-C® adapter35 65 W slim USB Type-C® adapter
35
Primary Battery
HP Long Life 3-cell, 56 Wh Li-ion36 Support HP Fast Charge (Up to 50% in 30 minutes with 65W AC Adapter)
37
Power Cord
2-wire plug - 1.0 m
35
3-wire plug - 1.0 m
35
3-wire plug - 1.0 m (Premium)35
Battery life
UMA graphics: Up to 24 hours (Intel® 10th generation CPU and 3-cell 56 WHr battery)38
MM18 Battery life UMA graphics: Up to 15 hours and 30 minutes (Intel® 10th generation CPU and 3-cell 56 WHr battery)38
Battery Weight
0.215 kg (0.47 lb)
35. Availability may vary by country.
36. Battery is internal and not replaceable by customer. Serviceable by warranty.
37. Recharges the battery up to 50% within 30 minutes when the system is off or in standby mode. Power adapter with a minimum capacity of 65 watts is required. After charging has reached 50% capacity, charging will return to normal. Charging time may vary +/-10% due to System tolerance.
38. Windows 10 MM14 battery life will vary depending on various factors including product model, configuration, loaded applications, features, use, wireless functionality, and power management settings. The maximum capacity of the battery will naturally decrease with time and usage. See https://www.bapco.com for additional details.
QuickSpecs
HP EliteBook 850 G7 Notebook PC
Technical Specifications
Not all configuration components are available in all regions/countries. c06603707 — DA16576 — Worldwide — Version 5 — January 21, 2021
Page 13
Product Weight
Starting weight: 3.74 lb (non-touch); Starting at 3.92 lb (touch)39 Starting weight: 1.70 kg (non-touch); Starting at 1.78 kg (touch)39
Product Dimensions (W x D x H) Non-Touch, WLAN only
14.16 x 9.20 x 0.76 in
35.97 x 23.38 x 1.92 cm
Touch, WLAN only
14.16 x 9.20 x 0.79 in
35.97 x 23.38 x 2.0 cm
WWAN
14.16 x 9.20 x 0.79 in
35.97 x 23.38 x 2.0 cm
39. Weight will vary by configuration.
2 SuperSpeed USB Type-C® 5Gbps signaling rate with Thunderbolt™ support, DisplayPort™ 1.2 2 SuperSpeed USB Type-A 5Gbps signaling (1 charging) 1 HDMI 1.4
8
1 Headphone/microphone combo 1 AC power 1 nano SIM card slot* 1 Smartcard reader (optional) Nano Security Lock Slot (Lock sold separately)
8. HDMI cable sold separately. *All units have a SIM card slot and icon but units that do not support WWAN are shipped with a non-removable SIM slot plug
HP Services offers 1-year limited warranties and 90 day software limited warranty options depending on country. Batteries have a default one year limited warranty except for Long Life batteries which will have same 1-year or 3-year limited warranty as the platform. Refer to http://www.hp.com/support/batterywarranty/ for additional battery information. On­site service and extended coverage is also available. HP Care Pack Services are optional extended service contracts that go beyond the standard limited warranties. To choose the right level of service for your HP product, use the HP Care Pack Services Lookup Tool at: http://www.hp.com/go/cpc.
40
40. HP Care Packs are sold separately. Service levels and response times for HP Care Packs may vary depending on your geographic location. Service starts on date of hardware purchase. Restrictions and limitations apply. For details, visit
http://www.hp.com/go/cpc. HP services are governed by the applicable HP terms and conditions of service provided or indicated
to Customer at the time of purchase. Customer may have additional statutory rights according to applicable local laws, and such rights are not in any way affected by the HP terms and conditions of service or the HP Limited Warranty provided with your HP Product.
QuickSpecs
HP EliteBook 850 G7 Notebook PC
Technical Specifications
Not all configuration components are available in all regions/countries. c06603707 — DA16576 — Worldwide — Version 5 — January 21, 2021
Page 14
Stand-Alone Power Requirements (AC Power)
Nominal Operating Voltage
19 V Average Operating Power
2.42 W
Integrated Graphics
6.78 W
Max Operating Power
Discrete < 65 W UMA < 45 W
Temperature
Operating
32° to 95° F (0° to 35° C) (No writing optical)
Non-operating
41° to 95° F (5° to 35° C) (Writing optical)
Relative Humidity
Operating
10% to 90%, non-condensing
Non-operating
5% to 95%, 101.6° F (38.7° C) maximum wet bulb temperature
Shock
Operating
40 G, 2 ms, half-sine
Non-operating
200 G, 2 ms, half-sine
Random Vibration
Operating
0.75 grms
Non-operating
1.50 grms
Altitude (unpressurized)
Operating
-50 to 10,000 ft (-15.24 to 3,048 m)
Non-operating
-50 to 40,000 ft (-15.24 to 12,192 m)
Planned Industry Standard Certifications
UL
Yes
CSA
Yes
FCC Compliance
Yes
ENERGY STAR® qualified
Select models
41
EPEAT® 2019
Yes, Gold in U.S.
42
ICES
Yes
Australia
Yes
NZ A-Tick Compliance
Yes
CCC
Yes
Japan VCCI Compliance
Yes
KC
Yes
BSMI
Yes
CE Marking Compliance
Yes
BNCI or BELUS
Yes
CIT
Yes
GOST
Yes
Saudi Arabian Compliance (ICCP)
Yes
SABS
Yes
41. Configurations of the HP EliteBook 850 G7 that are ENERGY STAR® certified are identified as HP EliteBook 850 G7 ENERGY STAR on HP websites and on http://www.energystar.gov.
42. Based on US EPEAT® registration according to IEEE 1680.1-2018 EPEAT®. Status varies by country. Visit http://www.epeat.net for more information.
QuickSpecs
HP EliteBook 850 G7 Notebook PC
Technical Specifications
Not all configuration components are available in all regions/countries. c06603707 — DA16576 — Worldwide — Version 5 — January 21, 2021
Page 15
Eco-Label Certifications & declarations
This product has received or is in the process of being certified to the following approvals and may be labeled with one or more of these marks:
• IT ECO declaration
• US ENERGY STAR®
• EPEAT® Silver registered in the United States.Based on US EPEAT registeration according to IEEE
1680.1-2018 EPEAT. Status varies by country. See http://www.epeat.net for more information.
System Configuration
The configuration used for the Energy Consumption and Declared Noise Emissions data for the Notebook model is based on a “Typically Configured Notebook”.
Energy Consumption (in accordance with US ENERGY STAR® test method)
115VAC, 60Hz
230VAC, 50Hz
100VAC, 50Hz
Normal Operation (Short idle)
5.70 W
5.74 W
5.49 W
Normal Operation (Long idle)
2.99 W
2.43 W
2.31 W
Sleep
1.37 W
1.38 W
1.32 W
Off
0.35 W
0.52 W
0.35 W
Note:
Energy efficiency data listed is for an ENERGY STAR® compliant product if offered within the model family. HP computers marked with the ENERGY STAR® Logo are compliant with the applicable U.S. Environmental Protection Agency (EPA) ENERGY STAR® specifications for computers. If a model family does not offer ENERGY STAR® compliant configurations, then energy efficiency data listed is for a typically configured PC featuring a hard disk drive, a high efficiency power supply, and a Microsoft Windows® operating system.
Heat Dissipation*
115VAC, 60Hz
230VAC, 50Hz
100VAC, 60Hz
Normal Operation (Short idle)
12 BTU/hr
12 BTU/hr
12 BTU/hr
Normal Operation (Long idle)
6 BTU/hr
5 BTU/hr
5 BTU/hr
Sleep
3 BTU/hr
3 BTU/hr
3 BTU/hr
Off
1 BTU/hr
1 BTU/hr
1 BTU/hr
NOTE:
Heat dissipation is calculated based on the measured watts, assuming the service level is attained for one hour.
Declared Noise Emissions (in accordance with ISO 7779 and ISO 9296)
Sound Power
(LWAd, bels)
Sound Pressure
(LpAm, decibels)
Typically Configured – Idle
2.5
14
Fixed Disk – Random writes
2.8
20
Longevity and Upgrading
This product can be upgraded, possibly extending its useful life by several years. Upgradeable features and/or components contained in the product may include:
• 3 USB ports
QuickSpecs
HP EliteBook 850 G7 Notebook PC
Technical Specifications
Not all configuration components are available in all regions/countries. c06603707 — DA16576 — Worldwide — Version 5 — January 21, 2021
Page 16
• 1 PC card slot (type I/II)
• 1 ExpressCard/54 slot
• 1 IEEE 1394 Port
• 2 SODIMM memory slots
• Optional expansion base docking station
• 1 multi-bay II storage port
• Interchangeable HDD
Spare parts are available throughout the warranty period and or for up to “5” years after the end of production.
Batteries
This battery(s) in this product comply with EU Directive 2006/66/EC
Batteries used in the product do not contain: Mercury greater the1ppm by weight Cadmium greater than 20ppm by weight
Battery size: CR2032 (coin cell) Battery type: Lithium
Additional Information
• This product is in compliance with the Restrictions of Hazardous Substances (RoHS) directive ­2011/65/EC.
• This HP product is designed to comply with the Waste Electrical and Electronic Equipment (WEEE) Directive – 2002/96/EC.
• This product is in compliance with California Proposition 65 (State of California; Safe Drinking
Water and Toxic Enforcement Act of 1986).
• This product is in compliance with the IEEE 1680.1 (EPEAT) standard at the <Silver> level, see www.epeat.net
• Plastics parts weighing over 25 grams used in the product are marked per ISO11469 and
ISO1043.
• This product contains 2.48% post-consumer recycled plastic (by wt.)
• This product is 96.9% recycle-able when properly disposed of at end of life.
Packaging Materials
External:
PAPER/Corrugated
235 g
Internal:
PLASTIC/Polyethylene Expanded ­EPE
27 g
PLASTIC/Polyethylene low density ­LDPE
13 g
PLASTIC/Polypropylene - PP
3 g
Material Usage
This product does not contain any of the following substances in excess of regulatory limits (refer to the HP General Specification for the Environment at http://www.hp.com/hpinfo/globalcitizenship/environment/pdf/gse.pdf):
• Asbestos
• Certain Azo Colorants
• Certain Brominated Flame Retardants – may not be used as flame retardants in plastics
• Cadmium
• Chlorinated Hydrocarbons
• Chlorinated Paraffins
• Formaldehyde
• Halogenated Diphenyl Methanes
• Lead carbonates and sulfates
• Lead and Lead compounds
• Mercuric Oxide Batteries
• Nickel – finishes must not be used on the external surface designed to be frequently handled or
carried by the user.
• Ozone Depleting Substances
• Polybrominated Biphenyls (PBBs)
• Polybrominated Biphenyl Ethers (PBBEs)
• Polybrominated Biphenyl Oxides (PBBOs)
QuickSpecs
HP EliteBook 850 G7 Notebook PC
Technical Specifications
Not all configuration components are available in all regions/countries. c06603707 — DA16576 — Worldwide — Version 5 — January 21, 2021
Page 17
• Polychlorinated Biphenyl (PCB)
• Polychlorinated Terphenyls (PCT)
• Polyvinyl Chloride (PVC) – except for wires and cables, and certain retail packaging has been
voluntarily removed from most applications.
• Radioactive Substances
• Tributyl Tin (TBT), Triphenyl Tin (TPT), Tributyl Tin Oxide (TBTO)
Packaging Usage
HP follows these guidelines to decrease the environmental impact of product packaging:
• Eliminate the use of heavy metals such as lead, chromium, mercury and cadmium in packaging
materials.
• Eliminate the use of ozone-depleting substances (ODS) in packaging materials.
• Design packaging materials for ease of disassembly.
• Maximize the use of post-consumer recycled content materials in packaging materials.
• Use readily recyclable packaging materials such as paper and corrugated materials.
• Reduce size and weight of packages to improve transportation fuel efficiency.
• Plastic packaging materials are marked according to ISO 11469 and DIN 6120 standards.
End-of-life Management and Recycling
HP Inc. offers end-of-life HP product return and recycling programs in many geographic areas. To recycle your product, please go to: http://www.hp.com/go/reuse-recycle or contact your nearest HP sales office. Products returned to HP will be recycled, recovered or disposed of in a responsible manner.
The EU WEEE directive (2002/95/EC) requires manufacturers to provide treatment information for each product type for use by treatment facilities. This information (product disassembly instructions) is posted on the Hewlett Packard web site at: http://www.hp.com/go/recyclers. These instructions may be used by recyclers and other WEEE treatment facilities as well as HP OEM customers who integrate and re-sell HP equipment.
HP Inc. Corporate Environmental Information
For more information about HP’s commitment to the environment:
Global Citizenship Report http://www.hp.com/hpinfo/globalcitizenship/gcreport/index.html Eco-label certifications http://www8.hp.com/us/en/hp-information/environment/ecolabels.html ISO 14001 certificates: http://www.hp.com/hpinfo/globalcitizenship/environment/pdf/PC_GBU_Product_Design_ISO_14K _Certificate.pdf and http://www.hp.com/hpinfo/globalcitizenship/environment/pdf/cert.pdf
QuickSpecs
HP EliteBook 850 G7 Notebook PC
Technical Specifications
Not all configuration components are available in all regions/countries. c06603707 — DA16576 — Worldwide — Version 5 — January 21, 2021
Page 18
Panel LCD 15.6 inch diagonal FHD (1920 x 1080) Anti-Glare WLED UWVA 45% NTSC 250 nits eDP 1.2 w/o PSR bent NWBZ
Outline Dimensions (W x H x D)
350.96 x 205.54 mm (max)
Active Area
344.16 x 193.59 mm (typ.)
Weight
370 g (max)
Diagonal Size
15.6 inch
Thickness
3.0 mm/ 5.0 mm (w/PCB) (max)
Interface
eDP 1.2 (2 lane)
Surface Treatment
Anti-Glare
Touch Enabled
No
Contrast Ratio
600:1 (typ.)
Refresh Rate
60 Hz
Brightness
250 nits
Pixel Resolution
1920 x 1080 (FHD)
Format of LCD Pixel Arrangement
RGB Stripe
Backlight
LED
Color Gamut Coverage
45% of NTSC
Color Depth
6 bits (Hi FRC supportive w/ condition to enable)
Viewing Angle
UWVA 85/85/85/85
Panel LCD 15.6 inch diagonal FHD (1920 x 1080) Anti-Glare WLED UWVA 45% NTSC 250 nits eDP 1.2 w/o PSR bent Touch on Panel NWBZ
Outline Dimensions (W x H x D)
350.96 x 205.74 mm (max)
Active Area
344.16 x 193.59 mm (typ.)
Weight
380 g (max)
Diagonal Size
15.6 inch
Thickness
3.2mm/ 5.2mm (PCB) (max)
Interface
eDP 1.2
Surface Treatment
Anti-Glare On-cell
Touch Enabled
No
Contrast Ratio
600:1 (typ.)
Refresh Rate
60 Hz
Brightness
250 nits
Pixel Resolution
1920 x 1080 (FHD)
Format of LCD Pixel Arrangement
RGB Stripe
Backlight
LED
Color Gamut Coverage
45% of NTSC
Color Depth
6 bits
Viewing Angle
UWVA 85/85/85/85
QuickSpecs
HP EliteBook 850 G7 Notebook PC
Technical Specifications
Not all configuration components are available in all regions/countries. c06603707 — DA16576 — Worldwide — Version 5 — January 21, 2021
Page 19
Panel LCD 15.6 inch diagonal FHD (1920 x 1080) Anti-Glare WLED UWVA 100% NTSC 400 nits eDP
1.4+PSR2 bent LP NWBZ
Outline Dimensions (W x H x D)
349.46 x 204.79 mm (max)
Active Area
344.16 x 193.59 mm (typ.)
Weight
325 g (max)
Diagonal Size
15.6 inch
Thickness
2.6mm / 4.6mm (PCB) (max)
Interface
eDP 1.4
Surface Treatment
Anti-Glare
Touch Enabled
No
Contrast Ratio
1200:1 (typ.)
Refresh Rate
60 Hz
Brightness
400 nits
Pixel Resolution
1920 x 1080 (FHD)
Format of LCD Pixel Arrangement
RGB Stripe
Backlight
LED
Color Gamut Coverage
100% of NTSC
Color Depth
8 bit
Viewing Angle
UWVA 85/85/85/85
Panel LCD 15.6 inch diagonal UHD (3840 x 2160) Anti-Glare WLED UWVA 100% NTSC 400 nits eDP
1.4+PSR2 bent LP NB2Y
Outline Dimensions (W x H x D)
349.52 x 205.42 mm (max)
Active Area
344.22 x 193.62 mm (typ.)
Weight
320 g (max)
Diagonal Size
15.6 inch
Thickness
2.6mm / 4.6mm (PCB) (max)
Interface
eDP 1.4
Surface Treatment
Anti-Glare
Touch Enabled
No
Contrast Ratio
1200:1 (typ.)
Refresh Rate
60 Hz
Brightness
400 nits
Pixel Resolution
3840 x 2160 (UHD)
Format of LCD Pixel Arrangement
RGB Stripe
Backlight
LED
Color Gamut Coverage
100% of NTSC only for UHD LP
Color Depth
8 bit
Viewing Angle
UWVA 85/85/85/85
QuickSpecs
HP EliteBook 850 G7 Notebook PC
Technical Specifications
Not all configuration components are available in all regions/countries. c06603707 — DA16576 — Worldwide — Version 5 — January 21, 2021
Page 20
SSD 128 GB 2280 M2 SATA­3 TLC
Form Factor
M.2 2280
Capacity
128 GB
NAND Type
TLC
Height
0.09 in (2.3 mm)
Width
0.87 in (22 mm)
Weight
0.02 lb (10 g)
Interface
ATA-8, SATA 3.0
Maximum Sequential Read
550 ~ 560 MB/s
Maximum Sequential Write
380 ~ 530 MB/s
Logical Blocks
250,069,680
Operating Temperature
32° to 158°F (0° to 70°C) [ambient temp]
Features
ATA Security; DIPM; TRIM; DEVSLP
SSD 1 TB 2280 PCIe-3x4 NVMe Three Layer Cell single-sided
Form Factor
M.2 2280
Capacity
1 TB
NAND Type
TLC
Height
0.09 in (2.3 mm)
Width
0.87 in (22 mm)
Weight
0.02 lb (10 g)
Interface
PCIe NVMe Gen3X4
Maximum Sequential Read
3100 ~ 3500 MB/s
Maximum Sequential Write
2770 ~ 3037 MB/s
Logical Blocks
2,000,409,264
Operating Temperature
32° to 158°F (0° to 70°C) [ambient temp]
Features
ATA Security; TRIM; L1.2
SSD 256 GB 2280 M2 PCIe­3x4 SS NVMe TLC
Form Factor
M.2 2280
Capacity
256 GB
NAND Type
TLC
Height
0.09 in (2.3 mm)
Width
0.87 in (22 mm)
Weight
0.02 lb (10 g)
Interface
PCIe NVMe Gen3X4
Maximum Sequential Read
2800 ~ 3500 MB/s
Maximum Sequential Write
1400 ~ 2200 MB/s
Logical Blocks
500,118,192
Operating Temperature
32° to 158°F (0° to 70°C) [ambient temp]
Features
ATA Security; TRIM; L1.2
QuickSpecs
HP EliteBook 850 G7 Notebook PC
Technical Specifications
Not all configuration components are available in all regions/countries. c06603707 — DA16576 — Worldwide — Version 5 — January 21, 2021
Page 21
SSD 256 GB 2280 PCIe NVMe Value
Form Factor
M.2 2280
Capacity
256 GB
NAND Type
Value
Height
0.09 in (2.3 mm)
Width
0.87 in (22 mm)
Weight
0.02 lb (10 g)
Interface
PCIe NVMe Gen3
Maximum Sequential Read
2100 ~ 2200 MB/s
Maximum Sequential Write
900 ~ 1400 MB/s
Logical Blocks
500,118,192
Operating Temperature
32° to 158°F (0° to 70°C) [ambient temp]
Features
ATA Security (optional); TRIM; L1.2
SSD 256 GB 2280 PCIe­3x2x2 NVMe+SSD 16 GB Intel® Optane™
Form Factor
M.2 2280
Capacity
256 GB
NAND Type
QLC+3D XPoint
Height
0.09 in (2.3 mm)
Width
0.87 in (22 mm)
Weight
0.02 lb (10 g)
Interface
PCIe NVMe Gen3X2X2
Maximum Sequential Read
Up to 1450 MB/s
Maximum Sequential Write
Up to 500 MB/s
Logical Blocks
500,118,192
Operating Temperature
32° to 158°F (0° to 70°C) [ambient temp]
Features
ATA Security; TRIM; L1.2
SSD 256 GB 2280 PCIe-3x4 NVMe Self Encrypted OPAL2 Three Layer Cell
Form Factor
M.2 2280
Capacity
256 GB
NAND Type
TLC
Height
0.09 in (2.3 mm)
Width
0.87 in (22 mm)
Weight
0.02 lb (10 g)
Interface
PCIe NVMe Gen3X4
Maximum Sequential Read
2800 ~ 3500 MB/s
Maximum Sequential Write
1663 ~ 2200 MB/s
Logical Blocks
500,118,192
Operating Temperature
32° to 158°F (0° to 70°C) [ambient temp]
Features
ATA Security (Option); TCG Opal 2.0; TRIM; L1.2
QuickSpecs
HP EliteBook 850 G7 Notebook PC
Technical Specifications
Not all configuration components are available in all regions/countries. c06603707 — DA16576 — Worldwide — Version 5 — January 21, 2021
Page 22
SSD 512 GB 2280 M2 PCIe­3x4 SS NVMe TLC
Form Factor
M.2 2280
Capacity
512 GB
NAND Type
TLC
Height
0.09 in (2.3 mm)
Width
0.87 in (22 mm)
Weight
0.02 lb (10 g)
Interface
PCIe NVMe Gen3X4
Maximum Sequential Read
3100 ~ 3500 MB/s
Maximum Sequential Write
2400 ~ 2956 MB/s
Logical Blocks
1,000,215,215
Operating Temperature
32° to 158°F (0° to 70°C) [ambient temp]
Features
ATA Security; TRIM; L1.2
SSD 512 GB 2280 PCIe NVMe Value
Form Factor
M.2 2280
Capacity
512 GB
NAND Type
Value
Height
0.09 in (2.3 mm)
Width
0.87 in (22 mm)
Weight
0.02 lb (10 g)
Interface
PCIe NVMe Gen3
Maximum Sequential Read
2200 ~ 2300 MB/s
Maximum Sequential Write
1000 ~ 1600 MB/s
Logical Blocks
1,000,215,215
Operating Temperature
32° to 158°F (0° to 70°C) [ambient temp]
Features
ATA Security (optional); TRIM; L1.2
SSD 512 GB 2280 PCIe­3x2x2 NVMe+SSD 32 GB Intel® Optane™
Form Factor
M.2 2280
Capacity
512 GB
NAND Type
QLC+3D XPoint
Height
0.09 in (2.3 mm)
Width
0.87 in (22 mm)
Weight
0.02 lb (10 g)
Interface
PCIe NVMe Gen3X2X2
Maximum Sequential Read
Up to 2400 MB/s
Maximum Sequential Write
Up to 1300 MB/s
Logical Blocks
1,000,215,215
Operating Temperature
32° to 158°F (0° to 70°C) [ambient temp]
Features
ATA Security; TRIM; L1.2
QuickSpecs
HP EliteBook 850 G7 Notebook PC
Technical Specifications
Not all configuration components are available in all regions/countries. c06603707 — DA16576 — Worldwide — Version 5 — January 21, 2021
Page 23
SSD 512 GB 2280 PCIe-3x4 NVMe Self Encrypted OPAL2 Three Layer
Form Factor
M.2 2280
Capacity
512 GB
NAND Type
TLC
Height
0.09 in (2.3 mm)
Width
0.87 in (22 mm)
Weight
0.02 lb (10 g)
Interface
PCIe NVMe Gen3X4
Maximum Sequential Read
3100 ~ 3500 MB/s
Maximum Sequential Write
2400 ~ 2956 MB/s
Logical Blocks
1,000,215,215
Operating Temperature
32° to 158°F (0° to 70°C) [ambient temp]
Features
ATA Security (Option); TCG Opal 2.0; TRIM; L1.2
QuickSpecs
HP EliteBook 850 G7 Notebook PC
Technical Specifications
Not all configuration components are available in all regions/countries. c06603707 — DA16576 — Worldwide — Version 5 — January 21, 2021
Page 24
Intel® Wi-Fi 61 AX201 and Bluetooth® 5.0 802.11ax (2x2) supporting gigabit file transfer speeds, vPro®
Wireless LAN Standards
IEEE 802.11a IEEE 802.11b IEEE 802.11g IEEE 802.11n IEEE 802.11ac IEEE 802.11ax IEEE 802.11d IEEE 802.11e IEEE 802.11h IEEE 802.11i IEEE 802.11k IEEE 802.11r IEEE 802.11v
Interoperability
Wi-Fi CERTIFIED™
Frequency Band
•802.11b/g/n/ax
2.402 – 2.482 GHz
•802.11a/n/ac/ax
4.9 – 4.95 GHz (Japan)
5.15 – 5.25 GHz
5.25 – 5.35 GHz
5.47 – 5.725 GHz
5.825 – 5.850 GHz
Data Rates
•802.11b: 1, 2, 5.5, 11 Mbps
•802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
•802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
•802.11n: MCS 0 ~ MCS 15, (20MHz, and 40MHz)
•802.11ac: MCS0 ~ MCS9, (1SS, and 2SS) (20MHz, 40MHz, 80MHz &
160MHz)
•802.11ax: MCS0 ~ MCS11, (1SS and 2SS) (20MHz, 40MHz, 80MHz &
160MHz)
Modulation
Direct Sequence Spread Spectrum OFDM, BPSK, QPSK, CCK, 16-QAM, 64-QAM, 256-QAM, 1024QAM
Security
3
•IEEE and WiFi compliant 64 / 128 bit WEP encryption for a/b/g mode only
•AES-CCMP: 128 bit in hardware
•802.1x authentication
•WPA, WPA2: 802.1x. WPA-PSK, WPA2-PSK, TKIP, and AES.
•WPA2 certification
•WPA3 certification
•IEEE 802.11i
•WAPI
Network Architecture Models
Ad-hoc (Peer to Peer) Infrastructure (Access Point Required)
Roaming
IEEE 802.11 compliant roaming between access points
Output Power2
• 802.11b: +18.5dBm minimum
• 802.11g: +17.5dBm minimum
• 802.11a: +18.5dBm minimum
• 802.11n HT20(2.4GHz): +15.5dBm minimum
• 802.11n HT40(2.4GHz): +14.5dBm minimum
• 802.11n HT20(5GHz): +15.5dBm minimum
• 802.11n HT40(5GHz): +14.5dBm minimum
QuickSpecs
HP EliteBook 850 G7 Notebook PC
Technical Specifications
Not all configuration components are available in all regions/countries. c06603707 — DA16576 — Worldwide — Version 5 — January 21, 2021
Page 25
• 802.11ac VHT80(5GHz): +11.5dBm minimum
• 802.11ac VHT160(5GHz): +11.5dBm minimum
• 802.11ax HT40(2.4GHz): +10dBm minimum
• 802.11ax VHT160(5GHz): +10dBm minimum
Power Consumption
•Transmit mode: 2.0 W
•Receive mode: 1.6 W
•Idle mode (PSP) 180 mW (WLAN Associated)
•Idle mode: 50 mW (WLAN unassociated)
•Connected Standby/Modern Standby: 10mW
•Radio disabled: 8 mW
Power Management
ACPI and PCI Express compliant power management
802.11 compliant power saving mode
Receiver Sensitivity4
•802.11b, 1Mbps: -93.5dBm maximum
•802.11b, 11Mbps: -84dBm maximum
• 802.11a/g, 6Mbps: -86dBm maximum
• 802.11a/g, 54Mbps: -72dBm maximum
• 802.11n, MCS07: -67dBm maximum
• 802.11n, MCS15: -64dBm maximum
• 802.11ac, MCS0: -84dBm maximum
• 802.11ac, MCS9: -59dBm maximum
•802.11ax, MCS11(HT40): -59dBm maximum
•802.11ax, MCS11(VHT160): -58.5dBm maximum
Antenna type
High efficiency antenna with spatial diversity, mounted in the display enclosure Two embedded dual band 2.4/5 GHz antennas are provided to the card to support WLAN MIMO communications and Bluetooth communications
Form Factor
PCI-Express M.2 MiniCard with CNVi Interface
Dimensions
1. Type 2230: 2.3 x 22.0 x 30.0 mm
2. Type 1216: 1.67 x 12.0 x 16.0 mm
Weight
1. Type 2230: 2.8 g
2. Type 126: 1.3 g
Operating Voltage
3.3v +/- 9%
Temperature
Operating Non-operating
14° to 158° F (–10° to 70° C) –40° to 176° F (–40° to 80° C)
Humidity
Operating Non-operating
10% to 90% (non-condensing) 5% to 95% (non-condensing)
Altitude
Operating Non-operating
0 to 10,000 ft (3,048 m) 0 to 50,000 ft (15,240 m)
LED Activity
LED Amber – Radio OFF LED White – Radio ON
HP Integrated Module with Bluetooth 4.0/4.1/4.2/5.0/5.1 Wireless Technology
Bluetooth Specification
4.0/4.1/4.2/5.0/5.1 Compliant
Frequency Band
2402 to 2480 MHz
Number of Available Channels
Legacy: 0~79 (1 MHz/CH) BLE: 0~39 (2 MHz/CH)
Signaling Data Rate
Legacy: 3 Mbps signaling data rate1 2.17 Mbps BLE: 1 Mbps signaling data rate1 0.2 Mbps
1. Actual throughput may vary.
Legacy: Synchronous Connection Oriented links up to 3, 64 kbps, voice
QuickSpecs
HP EliteBook 850 G7 Notebook PC
Technical Specifications
Not all configuration components are available in all regions/countries. c06603707 — DA16576 — Worldwide — Version 5 — January 21, 2021
Page 26
channels
Legacy: Asynchronous Connection Less links 2178.1 kbps/177.1 kbps asymmetric (3-DH5) or 864 kbps symmetric (3-EV5)
Transmit Power
The Bluetooth component shall operate as a Class II Bluetooth device with a maximum transmit power of + 9.5 dBm for BR and EDR.
Power Consumption
Peak (Tx) 330 mW Peak (Rx) 230 mW Selective Suspend 17 mW
Bluetooth Software Supported Link Topology
Microsoft Windows Bluetooth Software
Power Management
Microsoft Windows ACPI, and USB Bus Support
Certifications
FCC (47 CFR) Part 15C, Section 15.247 & 15.249
Power Management Certifications
ETS 300 328, ETS 300 826 Low Voltage Directive IEC950 UL, CSA, and CE Mark
Bluetooth Profiles Supported
BT4.1-ESR 5/6/7 Compliance LE Link Layer Ping LE Dual Mode LE Link Layer LE Low Duty Cycle Directed Advertising LE L2CAP Connection Oriented Channels Train Nudging & Interlaced Scan BT4.2 ESR08 Compliance LE Secure Connection- Basic/Full LE Privacy 1.2 –Link Layer Privacy LE Privacy 1.2 –Extended Scanner Filter Policies LE Data Packet Length Extension FAX Profile (FAX) Basic Imaging Profile (BIP)2 Headset Profile (HSP) Hands Free Profile (HFP) Advanced Audio Distribution Profile (A2DP)
Security & Manageability
Intel® vPro® support with appropriate Intel® chipset components
1. Wireless access point and internet service required and sold separately. Availability of public wireless access points limited. Wi-Fi 6 is backwards compatible with prior 802.11 specs. The specifications for Wi-Fi 6 (802.11ax) are draft and are not final. If the final specifications differ from the draft specifications, it may affect the ability of the notebook to communicate with other 802.11ax devices. Only available in countries where 802.11ax is supported.
2. The FCC has declared as of September 1, 2014 products that utilize passive scanning on channel 12/13 and are capable of transmitting must fully comply with requirements of 15.247 or otherwise disable those channels.
3. Check latest software/driver release for updates on supported security features.
4. Receiver sensitivity is measured at a packet error rate of 8% for 802.11b (CKK modulation) and a packet error rate of 10% for 802.11a/g (OFDM modulation).
Intel® Wi-Fi 61 AX201 and Bluetooth® 5.0 802.11ax (2x2), supporting gigabit file transfer speeds non-vPro®
Wireless LAN Standards
IEEE 802.11a IEEE 802.11b IEEE 802.11g IEEE 802.11n IEEE 802.11ac IEEE 802.11ax
QuickSpecs
HP EliteBook 850 G7 Notebook PC
Technical Specifications
Not all configuration components are available in all regions/countries. c06603707 — DA16576 — Worldwide — Version 5 — January 21, 2021
Page 27
IEEE 802.11d IEEE 802.11e IEEE 802.11h IEEE 802.11i IEEE 802.11k IEEE 802.11r IEEE 802.11v
Interoperability
Wi-Fi CERTIFIED™
Frequency Band
•802.11b/g/n/ax
2.402 – 2.482 GHz
•802.11a/n/ac/ax
4.9 – 4.95 GHz (Japan)
5.15 – 5.25 GHz
5.25 – 5.35 GHz
5.47 – 5.725 GHz
5.825 – 5.850 GHz
Data Rates
•802.11b: 1, 2, 5.5, 11 Mbps
•802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
•802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
•802.11n: MCS 0 ~ MCS 15, (20MHz, and 40MHz)
•802.11ac: MCS0 ~ MCS9, (1SS, and 2SS) (20MHz, 40MHz, 80MHz &
160MHz)
• 802.11ax: MCS0 ~ MCS11, (1SS and 2SS) (20MHz, 40MHz, 80MHz &
160MHz)
Modulation
Direct Sequence Spread Spectrum OFDM, BPSK, QPSK, CCK, 16-QAM, 64-QAM, 256-QAM, 1024QAM
Security
3
•IEEE compliant 64 / 128 bit WEP encryption for a/b/g mode only
•AES-CCMP: 128 bit in hardware
•802.1x authentication
•WPA, WPA2: 802.1x. WPA-PSK, WPA2-PSK, TKIP, and AES.
•WPA2 certification
•WPA3 certification
•IEEE 802.11i
•WAPI
Network Architecture Models
Ad-hoc (Peer to Peer) Infrastructure (Access Point Required)
Roaming
IEEE 802.11 compliant roaming between access points
Output Power2
• 802.11b: +18.5dBm minimum
• 802.11g: +17.5dBm minimum
• 802.11a: +18.5dBm minimum
• 802.11n HT20(2.4GHz): +15.5dBm minimum
• 802.11n HT40(2.4GHz): +14.5dBm minimum
• 802.11n HT20(5GHz): +15.5dBm minimum
• 802.11n HT40(5GHz): +14.5dBm minimum
• 802.11ac VHT80(5GHz): +11.5dBm minimum
• 802.11ac VHT160(5GHz): +11.5dBm minimum
• 802.11ax HT40(2.4GHz): +10dBm minimum
• 802.11ax VHT160(5GHz): +10dBm minimum
Power Consumption
•Transmit mode 2.0 W
•Receive mode 1.6 W
•Idle mode (PSP) 180 mW (WLAN Associated)
QuickSpecs
HP EliteBook 850 G7 Notebook PC
Technical Specifications
Not all configuration components are available in all regions/countries. c06603707 — DA16576 — Worldwide — Version 5 — January 21, 2021
Page 28
•Idle mode 50 mW (WLAN unassociated)
•Connected Standby 10mW
•Radio disabled 8 mW
Power Management
ACPI and PCI Express compliant power management
802.11 compliant power saving mode
Receiver Sensitivity4
•802.11b, 1Mbps: -93.5dBm maximum
•802.11b, 11Mbps: -84dBm maximum
• 802.11a/g, 6Mbps: -86dBm maximum
• 802.11a/g, 54Mbps: -72dBm maximum
• 802.11n, MCS07: -67dBm maximum
• 802.11n, MCS15: -64dBm maximum
• 802.11ac, MCS0: -84dBm maximum
• 802.11ac, MCS9: -59dBm maximum
•802.11ax, MCS11(HT40): -59dBm maximum
•802.11ax, MCS11(VHT160): -58.5dBm maximum
Antenna type
High efficiency antenna with spatial diversity, mounted in the display enclosure Two embedded dual band 2.4/5 GHz antennas are provided to the card to support WLAN MIMO communications and Bluetooth communications
Form Factor
PCI-Express M.2 MiniCard with CNVi Interface
Dimensions
1. Type 2230: 2.3 x 22.0 x 30.0 mm
2. Type 1216: 1.67 x 12.0 x 16.0 mm
Weight
1. Type 2230: 2.8 g
2. Type 126: 1.3 g
Operating Voltage
3.3v +/- 9%
Temperature
Operating Non-operating
14° to 158° F (–10° to 70° C) –40° to 176° F (–40° to 80° C)
Humidity
Operating Non-operating
10% to 90% (non-condensing) 5% to 95% (non-condensing)
Altitude
Operating Non-operating
0 to 10,000 ft (3,048 m) 0 to 50,000 ft (15,240 m)
LED Activity
LED Amber – Radio OFF LED Off – Radio ON
HP Integrated Module with Bluetooth 4.0/4.1/4.2/5.0/5.1 Wireless Technology
Bluetooth Specification
4.0/4.1/4.2/5.0/5.1 Compliant
Frequency Band
2402 to 2480 MHz
Number of Available Channels
Legacy: 0~79 (1 MHz/CH) BLE: 0~39 (2 MHz/CH)
Signaling Data Rate
Legacy: 3 Mbps signaling data rate1 2.17 Mbps BLE: 1 Mbps signaling data rate1 0.2 Mbps
1. Actual throughput may vary.
Legacy: Synchronous Connection Oriented links up to 3, 64 kbps, voice channels
Legacy: Asynchronous Connection Less links 2178.1 kbps/177.1 kbps asymmetric (3-DH5) or 864 kbps symmetric (3-EV5)
Transmit Power
The Bluetooth component shall operate as a Class II Bluetooth device with a maximum transmit power of + 9.5 dBm for BR and EDR.
Power Consumption
Peak (Tx) 330 mW
QuickSpecs
HP EliteBook 850 G7 Notebook PC
Technical Specifications
Not all configuration components are available in all regions/countries. c06603707 — DA16576 — Worldwide — Version 5 — January 21, 2021
Page 29
Peak (Rx) 230 mW Selective Suspend 17 mW
Bluetooth Software Supported Link Topology
Microsoft Windows Bluetooth Software
Power Management
Microsoft Windows ACPI, and USB Bus Support
Certifications
FCC (47 CFR) Part 15C, Section 15.247 & 15.249
Power Management Certifications
ETS 300 328, ETS 300 826 Low Voltage Directive IEC950 UL, CSA, and CE Mark
Bluetooth Software Supported
BT4.1-ESR 5/6/7 Compliance LE Link Layer Ping LE Dual Mode LE Link Layer LE Low Duty Cycle Directed Advertising LE L2CAP Connection Oriented Channels Train Nudging & Interlaced Scan BT4.2 ESR08 Compliance LE Secure Connection- Basic/Full LE Privacy 1.2 –Link Layer Privacy LE Privacy 1.2 –Extended Scanner Filter Policies LE Data Packet Length Extension FAX Profile (FAX) Basic Imaging Profile (BIP)2 Headset Profile (HSP) Hands Free Profile (HFP) Advanced Audio Distribution Profile (A2DP)
1. Wireless access point and internet service required and sold separately. Availability of public wireless access points limited. Wi-Fi 6 is backwards compatible with prior 802.11 specs. The specifications for Wi-Fi 6 (802.11ax) are draft and are not final. If the final specifications differ from the draft specifications, it may affect the ability of the notebook to communicate with other 802.11ax devices. Only available in countries where 802.11ax is supported.
2. The FCC has declared as of September 1, 2014 products that utilize passive scanning on channel 12/13 and are capable of transmitting must fully comply with requirements of 15.247 or otherwise disable those channels.
3. Check latest software/driver release for updates on supported security features.
4. Receiver sensitivity is measured at a packet error rate of 8% for 802.11b (CKK modulation) and a packet error rate of 10% for 802.11a/g (OFDM modulation).
QuickSpecs
HP EliteBook 850 G7 Notebook PC
Technical Specifications
Not all configuration components are available in all regions/countries. c06603707 — DA16576 — Worldwide — Version 5 — January 21, 2021
Page 30
Intel® XMM™ 7560 LTE­Advanced Pro DL CAT161
Technology/Operating bands
FDD LTE: 2100 (Band 1), 1900 (Band 2), 1800 (Band 3), 1700/2100 (Band 4), 850 (Band 5), 2600 (Band 7), 900 (Band 8), 700 (Band 12 lower), 700 (Band 13 upper), 700 (Band 14 upper), 700 (Band 17 lower), 850 (Band 18 lower), 850 (Band 19 upper), 800 (Band 20), 1900 (Band 25), 850 (Band 26), 700 (Band 28), 700 (Band 29 RX only), 2300 (Band 30), 1700/2100 (Band 66). TDD LTE: 2600 (Band 38), 1900 (Band 39), 2400 (Band 40), 2500 (Band
41), 3500 (Band 42), 5200 (Band 46 RX only) HSPA+: 2100 (Band 1), 1900 (Band 2), 1700/2100 (Band 4), 850 (Band 5), 900 (Band 8) MHz
Wireless protocol standards
3GPP Release 12 LTE Specification DL-CAT.16, DL 100MHz BW throughput up to 978Mbps; UL-CAT.7 20MHz throughput up to 75Mbps WCDMA R99, 3GPP Release 5, 6, 7 and 8 UMTS Specification
GPS
Standalone, A-GPS (MS-A, MS-B)
GPS bands
1575.42 MHz ± 1.023 MHz, GLONASS 1596-1607MHz, Beidou 1561.098 MHz
Maximum data rates
LTE: 978 Mbps (Download), 75 Mbps (Upload) DC-HSPA+: 42 Mbps (Download), 5.76 Mbps (Upload) HSPA+: 21Mbps (Download), 5.76 Mbps (Upload)
Maximum output power
LTE: 23 dBm in all band except B41 LTE B41 HPUE = 26 dBm HSPA+: 23.5 dBm
Maximum power consumption
LTE: 1,200 mA (peak); 900 mA (average) HSPA+: 1,100 mA (peak); 800 mA (average)
Form Factor
M.2, 3042-S3 Key B
Weight
6 g
Dimensions (Length x Width x Thickness)
42 x 30 x 2.3 mm
Mobile Broadband is an optional feature. Connection requires wireless data service contract, network support, and is not available in all areas. Contact service provider to determine the coverage area and availability. Connection speeds will vary due to location, environment, network conditions, and other factors. 4G LTE not available on all products or in all countries.
Intel® XMM™ 7360 LTE­Advanced CAT91
Technology/Operating bands
FDD LTE: 2100 (Band 1), 1900 (Band 2), 1800 (Band 3), 1700/2100 (Band 4), 850 (Band 5), 2600 (Band 7), 900 (Band 8), 1400 (Band 11), 700 (Band 12 lower), 700 (Band 13 upper), 700 (Band 17 lower), 850 (Band 18 lower), 850 (Band 19 upper), 800 (Band 20), 1400 (Band 21), 850 (Band 26), 700 (Band 28), 700 (Band 29 RX only), 2300 (Band 30), 1700/2100 (Band 66). TDD LTE: 2600 (Band 38), 1900 (Band 39), 2400 (Band 40), 2500 (Band
41). HSPA+: 2100 (Band 1), 1900 (Band 2), 1700/2100 (Band 4), 850 (Band 5), 900 (Band 8) MHz
Wireless protocol standards
3GPP Release 11 LTE Specification CAT.9, DL 60MHz BW throughput up to 450Mbps; UL 20MHz throughput up to 50Mbps WCDMA R99, 3GPP Release 5, 6, 7 and 8 UMTS Specification
GPS
Standalone, A-GPS (MS-A, MS-B)
GPS bands
1575.42 MHz ± 1.023 MHz, GLONASS 1596-1607MHz, Beidou 1561.098 MHz
QuickSpecs
HP EliteBook 850 G7 Notebook PC
Technical Specifications
Not all configuration components are available in all regions/countries. c06603707 — DA16576 — Worldwide — Version 5 — January 21, 2021
Page 31
Maximum data rates
LTE: 450 Mbps (Download), 50 Mbps (Upload) DC-HSPA+: 42 Mbps (Download), 5.76 Mbps (Upload) HSPA+: 21Mbps (Download), 5.76 Mbps (Upload)
Maximum output power
LTE: 23 dBm HSPA+: 23.5 dBm
Maximum power consumption
LTE: 1,200 mA (peak); 900 mA (average) HSPA+: 1,100 mA (peak); 800 mA (average)
Form Factor
M.2, 3042-S3 Key B
Weight
5.8 g
Dimensions (Length x Width x Thickness)
42 x 30 x 2.3 mm
Mobile Broadband is an optional feature. Connection requires wireless data service contract, network support, and is not available in all areas. Contact service provider to determine the coverage area and availability. Connection speeds will vary due to location, environment, network conditions, and other factors. 4G LTE not available on all products or in all countries.
Near Field Communications Controller (optional)
Dimensions (L x W x H)
Module 25 mm by 10 mm by 2.0 mm
Chipset
NPC100
System interface
I2C
NFC RF standards
ISO/IEC 14443 A ISO/IEC 14443 B ISO/IEC 15693 ISO/IEC 18092 ECMA-340 NFCIP-1 Target and Initiator ECMA-320 NFCIP-2
NFC Forum Support
Tag Type 1, Type 2, Type3 and Type 4, NFCIP-1 and NFCIP-2
Reader (PCD-VCD) Mode (1)
ISO/IEC 14443 A ISO/IEC 14443 B ISO/IEC 15693 MIFARE 1K MIFARE 4K MIFARE DESFire FeliCa Jewel and Topaz cards
Card Emulation (PICC­VICC) Mode (1)
ISO/IEC 14443 A ISO/IEC 14443 B and B’ MIFARE FeliCa
Frequency
13.56 MHz
NFC Modes Supported
Reader/Writer, Peer-to-Peer
Raw RF Data Rates
106, 212, 424, 848 kbps
Operating temperature
0°C to 70°C
Storage temperature
-20°C to 125°C
Humidity
10-90% operating 5-95% non-operating
Supply Operating voltage
4.35 to 5.25 Volts
QuickSpecs
HP EliteBook 850 G7 Notebook PC
Technical Specifications
Not all configuration components are available in all regions/countries. c06603707 — DA16576 — Worldwide — Version 5 — January 21, 2021
Page 32
I/O Voltage
1.8V or 3.3V
Power Consumption (Booster enable, VBAT=
3.3V, VCC_BOOST = 5V)
Mode
Power Consumption, Typical
Polling
7.3 mA
Detected Test Tag Type 1
Total 283.8 mA Net Module 236.8 mA
Detected Test Tag Type 2
Total 288.8 mA Net Module 241.8 mA
Detected Test Tag Type 3
Total 287.7 mA Net Module 240.7 mA
Detected Test Tag Type 4
Total 282.3 mA Net Module 235.3 mA
Antenna
Antenna connector, 0.5mm pitch, 7 connector FPC. Antenna matching is external to module.
QuickSpecs
HP EliteBook 850 G7 Notebook PC
Technical Specifications
Not all configuration components are available in all regions/countries. c06603707 — DA16576 — Worldwide — Version 5 — January 21, 2021
Page 33
AC Adapter 45 Watt Smart nPFC Standard Barrel 4.5 mm Right Angle 1.8 m
Dimensions (H x W x D)
95 x 45 x 26.8 mm
Weight
unit: 200 g +/- 10 g
Not including power cord. Power cord varies by country
Input
Input Efficiency
87.74 % at 115 Vac and 88.4 % at 230Vac
Input frequency range
47 ~ 63Hz
Input AC current
Max. 1.4 A at 90 Vac
Output
Output power
45 W
DC output
19.5 V
Hold-up time
5 ms at 115 Vac input
Output current limit
<8.0 A
Connector
4.5 mm Barrel Type
Environmental Design
Operating temperature
32°F to 95°F (0° to 35°C)
Non-operating (storage) temperature
-4°F to 185°F (-20° to 85°C)
Altitude
0 to 16,400 ft (0 to 5000m)
Humidity
20% to 95%
Storage Humidity
10% to 95%
EMI and Safety Certifications
*CE Mark - full compliance with LVD and EMC directives * Worldwide safety standards - IEC60950, EN60950, UL60950, Class1, SELV; Agency approvals - C-UL-US, NORDICS, DENAN, EN55022 Class B, FCC Class B, CISPR22 Class B, CCC, NOM-1 NYCE. * MTBF - over 200,000 hours at 25°C ambient condition.
AC Adapter 45 Watt Smart nPFC Standard Barrel 4.5 mm Right Angle 1.8 m 2prong
Dimensions (H x W x D)
95 x 45 x 26.8 mm
Weight
unit: 200 g +/- 10 g
Not including power cord. Power cord varies by country
Input
Input Efficiency
87.74 % at 115 Vac and 88.4 % at 230Vac
Input frequency range
47 ~ 63 Hz
Input AC current
Max. 1.4 A at 90 Vac
Output
Output power
45 W
DC output
19.5 V
Hold-up time
5 ms at 115 Vac input
Output current limit
<8.0A
Connector
4.5 mm Barrel Type
Environmental Design
Operating temperature
32° to 95°F (0° to 35°C)
Non-operating (storage) temperature
-4° to 185°F (-20° to 85°C)
Altitude
0 to 16,400 ft (0 to 5000m)
QuickSpecs
HP EliteBook 850 G7 Notebook PC
Technical Specifications
Not all configuration components are available in all regions/countries. c06603707 — DA16576 — Worldwide — Version 5 — January 21, 2021
Page 34
Humidity
20% to 95%
Storage Humidity
10% to 95%
EMI and Safety Certifications
*CE Mark - full compliance with LVD and EMC directives * Worldwide safety standards - IEC60950, EN60950, UL60950, Class1, SELV; Agency approvals - C-UL-US, NORDICS, DENAN, EN55022 Class B, FCC Class B, CISPR22 Class B, CCC, NOM-1 NYCE. * MTBF - over 200,000 hours at 25°C ambient condition.
AC Adapter 65 Watt nPFC Slim USB type C® Straight
1.8 m
Dimensions (H x W x D)
88 x 53.5 x 21 mm
Weight
unit: 220 g +/- 10 g
Not including power cord. Power cord varies by country
Input
Input Efficiency
81.5% min at 115 Vac/ 230Vac @ 5V/3A
86.7% min at 115 Vac/ 230Vac @ 9V/3A 88% min at 115 Vac/ 230Vac @ 12V/5A 89% min at 115 Vac/ 230Vac @ 15V/4.33A 89% min at 115 Vac/ 230Vac @ 20V/3.25A
Input frequency range
47 ~ 63 Hz
Input AC current
1.6 A at 90 VAC and maximum load
Output
Output power
65 W
DC output
5V/9V/12V/15V/20V
Hold-up time
5ms at 115 Vac input
Output current limit
<8.0A
Connector
USB Type C®
Environmental Design
Operating temperature
32° to 95°F (0° to 35°C)
Non-operating (storage) temperature
-4° to 185°F (-20° to 85°C)
Altitude
0 to 16,400 ft (0 to 5000m)
Humidity
5% to 95%
Storage Humidity
5% to 95%
EMI and Safety Certifications
*CE Mark - full compliance with LVD and EMC directives * Worldwide safety standards - IEC60950, EN60950, UL60950, Class1, SELV; Agency approvals - C-UL-US, NORDICS, DENAN, EN55022 Class B, FCC Class B, CISPR22 Class B, CCC, NOM-1 NYCE. * MTBF - over 100,000 hours at 25°C ambient condition.
AC Adapter 65 Watt nPFC Standard USB type C® Straight 1.8 m
Dimensions (H x W x D)
90.0 x 51 x 28.5 mm
Weight
unit: 250 g +/- 10 g
Not including power cord. Power cord varies by country
Input
Input Efficiency
81.5% min at 115 Vac/ 230Vac @ 5V/3A
86.7% min at 115 Vac/ 230Vac @ 9V/3A 88% min at 115 Vac/ 230Vac @ 12V/5A 89% min at 115 Vac/ 230Vac @ 15V/4.33A 89% min at 115 Vac/ 230Vac @ 20V/3.25A
QuickSpecs
HP EliteBook 850 G7 Notebook PC
Technical Specifications
Not all configuration components are available in all regions/countries. c06603707 — DA16576 — Worldwide — Version 5 — January 21, 2021
Page 35
Input frequency range
47 ~ 63 Hz
Input AC current
1.6 A at 90 VAC and maximum load
Output
Output power
65 W
DC output
5V/9V/12V/15V/20V
Hold-up time
5ms at 115 Vac input
Output current limit
<8.0 A Max.
Connector
USB type C®
Environmental Design
Operating temperature
32°F to 95°F (0° to 35°C)
Non-operating (storage) temperature
-4°F to 185°F (-20° to 85°C)
Altitude
0 to 16,400 ft (0 to 5000m)
AC Adapter 65 Watt Smart nPFC EM Barrel 4.5 mm New EM
Dimensions (H x W x D)
102 x 55 x 30 mm
Weight
unit: 250 g +/- 10 g
Not including power cord. Power cord varies by country
Input
Input Efficiency
88.0 % at 115 Vac and 89.0 % at 230Vac
Input frequency range
47 ~ 63 Hz
Input AC current
Max. 1.7 A at 90 Vac
Output
Output power
65 W
DC output
19.5 V
Hold-up time
5ms at 115 Vac input
Output current limit
<11.0A
Connector
4.5 mm Barrel Type
Environmental Design
Operating temperature
32°F to 95°F (0° to 35°C)
Non-operating (storage) temperature
-4°F to 185°F (-20° to 85°C)
Altitude
0 to 16,400 ft (0 to 5000m)
Humidity
20% to 95%
Storage Humidity
10% to 95%
EMI and Safety Certifications
*CE Mark - full compliance with LVD and EMC directives * Worldwide safety standards - IEC60950, EN60950, UL60950, Class1, SELV; Agency approvals - C-UL-US, NORDICS, DENAN, EN55022 Class B, FCC Class B, CISPR22 Class B, CCC, NOM-1 NYCE. * MTBF - over 200,000 hours at 25°C ambient condition.
QuickSpecs
HP EliteBook 850 G7 Notebook PC
Technical Specifications
Not all configuration components are available in all regions/countries. c06603707 — DA16576 — Worldwide — Version 5 — January 21, 2021
Page 36
AC Adapter 65 Watt Smart nPFC Standard Barrel 4.5 mm Right Angle 1.8 m
Dimensions (H x W x D)
90.0 x 51 x 28.5 mm
Weight
unit: 230 g +/- 10 g
Not including power cord. Power cord varies by country
Input
Input Efficiency
88.0 % at 115 Vac and 89.0 % at 230Vac
Input frequency range
47 ~ 63 Hz
Input AC current
Max. 1.7 A at 90 Vac
Output
Output power
65 W
DC output
19.5 V
Hold-up time
5ms at 115 Vac input
Output current limit
<11.0 A
Connector
4.5 mm Barrel Type
Environmental Design
Operating temperature
32°F to 95°F (0° to 35°C)
Non-operating (storage) temperature
-4°F to 185°F (-20° to 85°C)
Altitude
0 to 16,400 ft (0 to 5000m)
Humidity
20% to 95%
Storage Humidity
10% to 95%
EMI and Safety Certifications
*CE Mark - full compliance with LVD and EMC directives * Worldwide safety standards - IEC60950, EN60950, UL60950, Class1, SELV; Agency approvals - C-UL-US, NORDICS, DENAN, EN55022 Class B, FCC Class B, CISPR22 Class B, CCC, NOM-1 NYCE. * MTBF - over 200,000 hours at 25°C ambient condition.
Battery CC 3 Cell WHr 56 Long Life -PL Fast Charge
Dimensions (H x W x D)
7.0 x 66.5 x 276.3 (0.275 x 2.618 x 10.877 inch)
Weight
0.215g (0.47 lb)
Cells/Type
3cell Lithium-Ion Polymer cell / 615383
Energy
Voltage
11.55 V
Amp-hour capacity
4.85 Ah
Watt-hour capacity
56 Wh
Temperature
Operating (Charging)
32° to 113° F (0° to 45° C)
Operating (Discharging)
32° to 122° F (0° to 50° C)
Warranty
Depends on system offering
Optional Travel Battery Available
No
Country of Origin
China
QuickSpecs
HP EliteBook 850 G7 Notebook PC
Options and Accessories (Sold separately and availability may vary by country)
Not all configuration components are available in all regions/countries. c06603707 — DA16576 — Worldwide — Version 5 — January 21, 2021
Page 37
Type
Description
Part Number
Cases
HP Business Backpack (up to 17.3")
2SC67AA
HP Business Case (up to 15.6")
2SC66AA
HP Essential Top Load Case (up to 15.6")
H2W17AA
Docking
HP Thunderbolt Dock 120W G2
2UK37AA
HP Thunderbolt Dock 120W G2 TAA
2UK37AA
HP TB Dock Audio Module
3AQ21AA
HP TB Dock 120W G2 cable
3XB94AA
HP USB-C Mini Dock
1PM64AA
HP USB-C Dock G5
5TW10AA
HP USB-C/A Universal Dock G2
5TW13AA
Input/Output
HP Slim Wireless Keyboard and Mouse
T6L04AA
HP Slim USB Keyboard and Mouse
T6T83AA
HP Wireless (Link-5) Keyboard
T6U20AA
HP USB Essential Keyboard and Mouse
H6L29AA
HP USB Collaboration Keyboard
Z9N38AA
HP Wireless Collaboration Keyboard
Z9N39AA
HP Comfort Grip Wireless Mouse
H2L63AA
HP X4000b Bluetooth Mouse
H3T50AA
HP 3-Button USB Laser Mouse
H4B81AA
HP USB Travel Mouse
G1K28AA
HP Ultra Mobile Wireless Mouse
H6F25AA
HP Wireless Premium Mouse
1JR31AA
HP USB Premium Mouse
1JR32AA
HP Essential USB Mouse
2TX37AA
HP Elite Presenter Mouse
2CE30AA
HP Bluetooth Travel Mouse
6SP30AA
HP Stereo 3.5mm Headset
T1A66AA
HP Stereo USB Headset
T1A67AA
HP UC Wireless Mono Headset
W3K08AA
HP UC Wireless Duo Headset
W3K09AA
HP USB-C to USB-A Hub
Z6A00AA
HP USB-C to DP
N9K78AA
HP USB-C to VGA
N9K76AA
HP HDMI to VGA
H4F02AA
HP USB-C to HDMI 2.0 Adapter
1WC36AA
HP USB-C to RJ45 Adapter
V7W66AA
HP USB-C Travel Hub G2
7PJ38AA
HP Elite USB-C Hub
4WX89AA
Power
HP 65W Slim AC Adapter
H6Y82AA
HP 45W Smart AC Adapter
H6Y88A
QuickSpecs
HP EliteBook 850 G7 Notebook PC
Options and Accessories (Sold separately and availability may vary by country)
Not all configuration components are available in all regions/countries. c06603707 — DA16576 — Worldwide — Version 5 — January 21, 2021
Page 38
HP 65W Smart AC Adapter
H6Y89AA
HP 45W 2-prong 4.5 mm DC jack AC Adapter
L6F60AA
HP 45W USB-C Power Adapter
1HE07AA
HP 65W USB-C Power Adapter
1HE08AA
HP 65W USB-C Slim Power Adapter
3PN48AA
HP Notebook Power Bank
N9F71AA
HP USB-C Notebook Power Bank
1TZ86AA
Storage
HP USB External DVDRW Drive
F2B56AA
HP 1TB TLC PCI-e 3x4 NVMe M.2 SSD (2280)
6SK99AA
HP 2TB TLC PCI-e 3x4 NVMe M.2 SSD (2280)
6SL00AA
Memory
HP 4 GB 2666 Mhz DDR4
4VN05AA
HP 8 GB 2666 Mhz DDR4
4VN06AA
HP 16 GB 2666 Mhz DDR4
4VN07AA
Security
HP Nano Keyed Cable Lock
1AJ39AA
HP Nano Dual-Head Keyed Cable Lock
1AJ41AA
HP Sure Key Cable Lock
6UW42AA
WWAN
HP XMMT 7360 LTE WWAN
3FB01AA
QuickSpecs
HP EliteBook 850 G7 Notebook PC
Change Log
Not all configuration components are available in all regions/countries. c06603707 — DA16576 — Worldwide — Version 5 — January 21, 2021
Page 39
Date of change:
Version History:
Description of change:
October 15, 2020
From V1 to V2
Update
Overview, Processor section
December 11, 2020
From V2 to V3
Update
Environmental Data
January 17, 2021
From V3 to V4
Update
Processors
January 21, 2021
From V4 to V5
Added
WPA3 certification in Security, Networking section
Copyright © 2021 HP Development Company, L.P. The only warranties for HP products are set forth in the express limited warranty statements accompanying such products. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.
Intel®, Core®, Celeron® and Intel® vPro® are trademarks or registered trademarks of Intel Corporation or its subsidiaries in the United States and other countries. AMD and Radeon are trademarks of Advanced Micro Devices, Inc. NVIDIA, the NVIDIA logo, and [insert any other Nvidia marks used by agreement] are trademarks and/or registered trademarks of NVIDIA Corporation in the U.S. and other countries. Bluetooth is a trademark owned by its proprietor and used by HP Inc. under license. DisplayPort™ and the
DisplayPort™ logo are trademarks owned by the Video Electronics Standards Association (VESA®) in the United States and other
countries. USB Type-C® and USB-C® are trademarks of USB Implementers Forum. SDXC is a registered trademark of SD-3C in the United States, other countries or both. ENERGY STAR is a registered trademark of the U.S. Environmental Protection Agency. © 2019 Google LLC All rights reserved. Google and the Google Logo are registered trademarks of Google LLC. Microsoft and Windows are either trademarks or registered trademarks of Microsoft Corporation in the United States and/or other countries.
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
