QuickSpecs

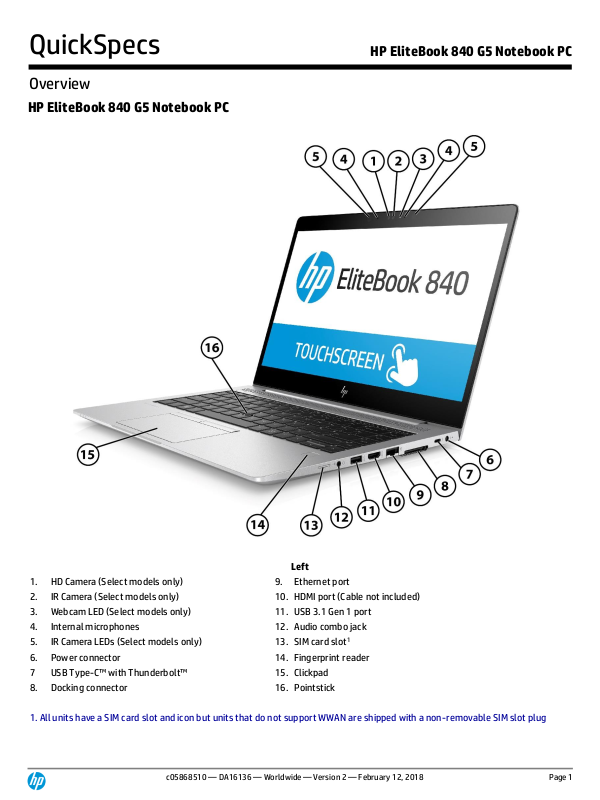

HP EliteBook 840 G5 Notebook PC

Overview

c05868510 — DA16136 — Worldwide — Version 2 — February 12, 2018

Page 1

Left

1.

HD Camera (Select models only)

9.

Ethernet port

2.

IR Camera (Select models only)

10.

HDMI port (Cable not included)

3.

Webcam LED (Select models only)

11.

USB 3.1 Gen 1 port

4.

Internal microphones

12.

Audio combo jack

5.

IR Camera LEDs (Select models only)

13.

SIM card slot1

6.

Power connector

14.

Fingerprint reader

7

USB Type-C™ with Thunderbolt™

15.

Clickpad

8.

Docking connector

16.

Pointstick

1. All units have a SIM card slot and icon but units that do not support WWAN are shipped with a non-removable SIM slot plug

HP EliteBook 840 G5 Notebook PC

QuickSpecs

HP EliteBook 840 G5 Notebook PC

Overview

c05868510 — DA16136 — Worldwide — Version 2 — February 12, 2018

Page 2

Right

1.

Indicator LEDs:
Power ligh
Wireless light
Storage usage light

4.

Security Lock slot (Lock sold separately)

2.

Smartcard Reader (Select models)

5.

Power button

3.

USB 3.1 Gen 1 charging port

QuickSpecs

HP EliteBook 840 G5 Notebook PC

Overview

c05868510 — DA16136 — Worldwide — Version 2 — February 12, 2018

Page 3

 Eye-catching ultraslim design, premium precision-crafted machined aluminum (CNC), seamless formed aluminum chassis for

clean, crisp, premium look and feel

 Choice of 8th Generation Intel® Core™ i5, i7 Processors and 7th generation Intel® Core™ i5 Processors
 Designed to support all HP docking options including HP’s traditional Ultraslim mechanical dock and all-new Thunderbolt™

dock2 (Available in May 2018)

 Featuring HP Collaboration Keyboard with Clickpad to manage most commonly used conferencing functions with a single

keystroke

 Innovative world-facing third mic improves inbound ambient noise cancellation
 Optional ultrabright displays with ambient light sensor
 Enterprise grade security with HP SureStart Gen4, HP Privacy Camera

3

, HP Sure View2, HP Sure Run, HP Sure Recover,

SmartCard Reader2 and Fingerprint reader2

 Choice of displays:

35.6cm (14.0") diagonal FHD IPS anti-glare LED-backlit non-touch, 220 cd/m2, 45% sRGB

35.6cm (14.0") diagonal FHD IPS anti-glare LED-backlit non-touch, 400 cd/m2, 72% sRGB

35.6cm (14.0") diagonal UHD IPS anti-glare LED-backlit non-touch, 400 cd/m2, 72% sRGB

35.6cm (14.0") diagonal FHD IPS anti-glare LED-backlit non-touch, 700 cd/m2, 72% sRGB with HP Sure View

35.6cm (14.0") diagonal FHD IPS LED-backlit Corning® Gorilla® Glass 3 touch, 220 cd/m2, 45% sRGB

35.6cm (14.0") diagonal FHD IPS LED-backlit Corning® Gorilla® Glass 3 touch, 700 cd/m2, 72% sRGB with HP Sure View

 Optional AMD Radeon™ RX540 discrete graphics with 2 GB GDDR5 video memory
 Flexible wireless connectivity options
 Preinstalled with Windows 10 versions or FreeDOS 2.0
 Choice of solid state drives up to 1 TB and DDR4 memory up to 32 GB
 Supports fast charging (50% in 30 minutes) with no impact on battery recharge cycles

4

 Optional HD camera or Infra Red camera with multi-array microphone
 Battery life:

UMA graphics: Up to 14 hours ( Intel® 7th generation CPU and 3-cell 50 WHr battery)
Discrete graphics: Up to 13 hours and 45 mins ( Intel® 7th generation CPU and 3-cell 50 WHr battery)

 Pending MIL-STD testing

5

2. Sold separately or as an optional feature.

3. Only available with non-touch configurations.

4. Recharges your battery up to 50% within 30 minutes when the system is off or in standby mode. Power adapter with a
minimum capacity of 65 watts is required. After charging has reached 50% capacity, charging will return to normal. Charging
time may vary +/-10% due to System tolerance.

5. MIL-STD-810G testing is pending and is conducted on select HP products. Testing is not intended to demonstrate fitness
of U.S. Department of Defense (DoD) contract requirements or for military use. Test results are not a guarantee of future
performance under these test conditions. Accidental damage requires an optional HP Accidental Damage Protection Care
Pack.

NOTE: See important legal disclosures for all listed specs in their respective features sections.

AT A GLANCE

QuickSpecs

HP EliteBook 840 G5 Notebook PC

Features

c05868510 — DA16136 — Worldwide — Version 2 — February 12, 2018

Page 4

HP EliteBook 840 G5 Notebook PC

Preinstalled

Windows 10 Pro 641
Windows 10 Home 641
FreeDOS 2.0

1. Not all features are available in all editions or versions of Windows. Systems may require upgraded and/or separately
purchased hardware, drivers, software or BIOS update to take full advantage of Windows functionality. Windows 10 is
automatically updated, which is always enabled. ISP fees may apply and additional requirements may apply over time for
updates. See http://www.windows.com/

Intel® Core™ i5-7200U with Intel® HD Graphics 620 (2.5 GHz base frequency, up to 3.1 GHz with Intel® Turbo Boost Technology,
3 MB cache, 2 cores)

2,3,4

Intel® Core™ i5-7300U with Intel® HD Graphics 620 (2.6 GHz base frequency, up to 3.5 GHz with Intel® Turbo Boost Technology,
3 MB cache, 2 cores)

2,3,4

Intel® Core™ i5-8250U with Intel® UHD Graphics 620 (1.6 GHz base frequency, up to 3.4 GHz with Intel® Turbo Boost
Technology, 6 MB cache, 4 cores)

2,3,4

Intel® Core™ i5-8350U with Intel® UHD Graphics 620 (1.7 GHz base frequency, up to 3.6 GHz with Intel® Turbo Boost
Technology, 6 MB cache, 4 cores)

2,3,4

Intel® Core™ i7-8550U with Intel® UHD graphics 620 (1.8 GHz base frequency, up to 4 GHz with Intel® Turbo Boost Technology,
8 MB cache, 4 cores)

2,3,4

Intel® Core™ i7-8650U with Intel® UHD graphics 620 (1.9 GHz base frequency, up to 4.2 GHz with Intel® Turbo Boost Technology,
8 MB cache, 4 cores)

2,3,4

Processor Family

7th Generation Intel® Core™ i5 processor (i5-7300U, i5-7200U models)
8th Generation Intel® Core™ i5 processor (i5-8350U, i5-8250U models)

8th Generation Intel® Core™ i7 processor (i7-8650U, i7-8550U models)

2. Multicore is designed to improve performance of certain software products. Not all customers or software applications will
necessarily benefit from use of this technology. Performance and clock frequency will vary depending on application
workload and your hardware and software configurations. Intel’s numbering, branding and/or naming is not a measurement
of higher performance.

3. Processor speed denotes maximum performance mode; processors will run at lower speeds in battery optimization mode.

4. NOTE: In accordance with Microsoft’s support policy, HP does not support the Windows 8 or Windows 7 operating system
on products configured with Intel® and AMD 7th generation and forward processors or provide any Windows 8 or Windows 7
drivers on http://www.support.hp.com.

Integrated with processor

PRODUCT NAME

OPERATING SYSTEM

PROCESSORS

CHIPSET

QuickSpecs

HP EliteBook 840 G5 Notebook PC

Features

c05868510 — DA16136 — Worldwide — Version 2 — February 12, 2018

Page 5

Integrated

Intel® HD Graphics 6205
Intel® UHD Graphics 6205

Discrete

AMD Radeon™ RX 540 (2 GB GDDR5 video memory)

6,7

Support HD decode, DX12, HDMI 1.4b

5,8

5. HD content required to view HD images.

6. Sold separately or as an optional feature.

7. AMD Dynamic Switchable Graphics technology requires an Intel processor, plus an AMD Radeon™ discrete graphics
configuration and is not available on FreeDOS and Linux OS. With AMD Dynamic Switchable Graphics technology, full
enablement of all discrete graphics video and display features may not be supported on all systems (e.g. OpenGL
applications will run on the integrated GPU or the APU as the case may be).

8. HDMI cable sold separately.

Non-Touch

35.6 cm (14") diagonal FHD IPS anti-glare LED-backlit, 220 cd/m², 45% sRGB (1920 x 1080)

9,10,11

35.6 cm (14") diagonal FHD IPS anti-glare LED-backlit, 220 cd/m², 45% sRGB with HD camera (1920 x 1080)

9,10,11

35.6 cm (14") diagonal FHD IPS anti-glare LED-backlit, 220 cd/m², 45% sRGB with HD IR webcam (1920 x 1080)

9,10,11

35.6 cm (14") diagonal FHD IPS anti-glare LED-backlit, 220 cd/m², 45% sRGB for WWAN (1920 x 1080)

9,10,11

35.6 cm (14") diagonal FHD IPS anti-glare LED-backlit, 220 cd/m², 45% sRGB with HD camera for WWAN (1920 x 1080)

9,10,11

35.6 cm (14") diagonal FHD IPS anti-glare LED-backlit, 220 cd/m², 45% sRGB with HD IR webcam for WWAN (1920 x

1080)

9,10,11

35.6 cm (14") diagonal FHD IPS anti-glare LED-backlit, 400 cd/m², 72% sRGB with Ambient Light Sensor and HD IR webcam
(1920 x 1080)

9,10,11

35.6 cm (14") diagonal FHD IPS anti-glare LED-backlit, 400 cd/m², 72% sRGB with Ambient Light Sensor and HD IR webcam
for WWAN (1920 x 1080)

9,10,11

35.6 cm (14") diagonal 4K IPS anti-glare LED-backlit, 400 cd/m², 72% sRGB with Ambient Light Sensor and HD IR webcam for
WWAN (3840 x 2160)

9,10,11

HP Sure View Integrated Privacy Screen 35.6 cm (14") diagonal FHD IPS anti-glare LED-backlit, 700 cd/m², 72% sRGB with HD
IR webcam for WWAN (1920 x 1080)

9,10,11,12

Touch

35.6 cm (14") diagonal FHD IPS LED-backlit touch screen with Corning® Gorilla® Glass 3, 220 cd/m², 45% sRGB with HD IR
webcam (1920 x 1080)

9,10,11

35.6 cm (14") diagonal FHD IPS LED-backlit touch screen with Corning® Gorilla® Glass 3, 220 cd/m², 45% sRGB with HD IR
webcam for WWAN (1920 x 1080)

9,10,11

HP Sure View Integrated Privacy Screen 35.6 cm (14") diagonal FHD IPS LED-backlit touch screen with Corning® Gorilla® Glass
3, 700 cd/m², 72% sRGB with HD IR webcam for WWAN (1920 x 1080)

9,10,11,12

HDMI 1.4b

Supports resolution up to 4k @ 24 Hz

GRAPHICS

DISPLAY

QuickSpecs

HP EliteBook 840 G5 Notebook PC

Features

c05868510 — DA16136 — Worldwide — Version 2 — February 12, 2018

Page 6

Displays support

Supports 2 independent displays when docked on the HP Ultraslim Dock - Max. resolution = 2.5K @ 60Hz (DP1) & 2.5K @
60Hz (DP2)11
Supports 2 independent displays when docked on the HP Thunderbolt™ Dock G2 (Available in May 2018) - Max. resolution = 4K
@ 60Hz (DisplayPort) & 4K @ 60Hz (Thunderbolt)11

9. HD content required to view HD images.

10. Sold separately or as an optional feature.

11. Resolutions are dependent upon monitor capability, and resolution and color depth settings.

12. HP Sure View is optional and must be configured at purchase.

Primary M.2 Storage

128 GB SATA-3 SS TLC13
256 GB PCIe NVMe Value SS TLC13
256 GB PCIe Gen3x4 NVMe SS TLC13
256 GB SATA-3 SS TLC Opal 213
360 GB PCIe Gen3x4 NVMe SS TLC (Intel®)13
512 GB PCIe Gen3x4 NVMe SS TLC13
512 GB PCIe Gen3x4 NVMe SS TLC Opal 213
512 GB SATA-3 SS TLC FIPS-140-213
1 TB PCIe Gen3x4 NVMe SS TLC13

13. For storage drives, GB = 1 billion bytes. TB = 1 trillion bytes. Actual formatted capacity is less. Up to 30 GB (for Windows

10) is reserved for system recovery software.

Maximum Memory

32 GB DDR4-2400 SDRAM14

Memory

32 GB DDR4-2400 SDRAM (2 X 16 GB)14
16 GB DDR4-2400 SDRAM (1 X 16 GB)14
16 GB DDR4-2400 SDRAM (2 X 8 GB)

14

8 GB DDR4-2400 SDRAM (1 x 8 GB)

14

8 GB DDR4-2400 SDRAM (2 x 4 GB)

14

4 GB DDR4-2400 SDRAM (1 x 4 GB)

14

Memory Slots

2 SODIMM
Both slots are upgradeable
System runs at 2133 for Intel® 7th generation processors
System runs at 2400 for Intel® 8th generation processors
Supports Dual Channel Memory.

14. Due to the non-industry standard nature of some third-party memory modules, we recommend HP branded memory to
ensure compatibility. If you mix memory speeds, the system will perform at the lower memory speed.

STORAGE AND DRIVES

MEMORY

QuickSpecs

HP EliteBook 840 G5 Notebook PC

Features

c05868510 — DA16136 — Worldwide — Version 2 — February 12, 2018

Page 7

WLAN15

Intel® Dual Band Wireless-AC 8265 802.11a/b/g/n/ac (2x2) Wi-Fi® and Bluetooth® 4.2 Combo, vPro™16
Intel® Dual Band Wireless-AC 8265 802.11a/b/g/n/ac (2x2) Wi-Fi® and Bluetooth® 4.2 Combo, non-vPro™16
Realtek RTL8822BE 802.11ac (2x2) Wi-Fi® and Bluetooth® 4.2 Combo, non-vPro™16

WWAN

15

HP lt4132 LTE/HSPA+ 4G Mobile Broadband17
Intel® XMM™ 7360 LTE-Advanced17

NFC

15

NXP NPC300 Near Field Communication Module

Miracast

Native Miracast Support18

Ethernet

Intel® I219-LM 10/100/1000 GbE, vPro™19
Intel® I219-V 10/100/1000 GbE, non-vPro™19

15. Sold separately or as an optional feature.

16. Wireless access point and Internet service required and sold separately. Availability of public wireless access points
limited. The specifications for the 802.11ac WLAN are draft specifications and are not final. If the final specifications differ
from the draft specifications, it may affect the ability of the notebook to communicate with other 802.11ac WLAN devices.

17. WWAN module requires separately purchased service contract. Check with service provider for coverage and availability
in your area. Connection speeds will vary due to location, environment, network conditions, and other factors. 4G LTE not
available on all products, in all regions.

18. Miracast is a wireless technology your PC can use to project your screen to TVs, projectors, and streaming

19. The term "10/100/1000" or "Gigabit" Ethernet indicates compatibility with IEEE standard 802.3ab for Gigabit Ethernet,
and does not connote actual operating speed of 1 Gb/s. For high-speed transmission, connection to a Gigabit Ethernet server
and network infrastructure is required.

Audio

Audio by Bang & Olufsen
Integrated 3 Multi Array Microphone
2 Integrated Stereo Speakers (74Db)

Webcam
HD camera

20,21

HD IR camera

20,21

20. HD content required to view HD images.

21. Sold separately or as an optional feature.

NETWORKING/COMMUNICATIONS

AUDIO/MULTIMEDIA

QuickSpecs

HP EliteBook 840 G5 Notebook PC

Features

c05868510 — DA16136 — Worldwide — Version 2 — February 12, 2018

Page 8

Keyboard

HP Premium Collaboration Keyboard, spill resistant with drain
Backlit keyboard available as an option

Pointing Device

Clickpad with multi-touch gestures enabled, taps enabled as default
Microsoft Precision Touchpad Default Gestures Support

Function Keys

F1 - Display Switching
F2 - Blank or Privacy
F3 - Brightness Down
F4 - Brightness Up
F5 - Audio Mute
F6 - Volume Down
F7 - Volume Up
F8 - Mic Mute
F9 - Blank or Backlit Toggle
F10 - numlk
F11 - Wireless
F12 - Calendar
Share/Present
Call Answer
Call End

Hidden Fuctions

Fn+R = Break
Fn+S = Sys Rq
Fn+C = Scroll Lock

KEYBOARDS/POINTING DEVICES/BUTTONS & FUNCTION KEYS

QuickSpecs

HP EliteBook 840 G5 Notebook PC

Features

c05868510 — DA16136 — Worldwide — Version 2 — February 12, 2018

Page 9

Preinstalled Software

BIOS

HP BIOSphere Gen423
HP DriveLock & Automatic DriveLock
BIOS Update via Network
Master Boot Record Security
Power On Authentication
Secure Erase24
Absolute Persistence Module

25

Pre-boot Authentication
HP Wireless Wakeup

Software

HP Native Miracast Support

22

HP LAN-Wireless Protection
HP Connection Optimizer
HP Velocity
HP ePrint + JetAdvantage

26

HP Hotkey Support - CMIT
HP Recovery Manager
HP Jumpstart
HP Support Assistant

27

HP Noise Cancellation Software
HP PhoneWise

30

Buy Office

Manageability Features

HP Driver Packs23
HP System Software Manager (SSM)
HP BIOS Config Utility (BCU)
HP Client Catalog
HP Manageability Integration Kit Gen2

24

Ivanti Management Suite

30

Client Security Software

HP Client Security Suite Gen431 including:
HP Security Manager32 (including Credential Manager, HP Password Manager, HP Spare Key)
Power On Authentication
HP Fingerprint Sensor

36

HP Device Access Manager

SOFTWARE AND SECURITY

QuickSpecs

HP EliteBook 840 G5 Notebook PC

Features

c05868510 — DA16136 — Worldwide — Version 2 — February 12, 2018

Page 10

HP Power On Authentication
Microsoft Defender

33

Security Management

HP BIOSphere Gen4

23

HP DriveLock & Automatic DriveLock
BIOS Update via Network
Secure Erase

24

Pre-boot Authentication
TPM 2.0 Embedded Security Chip shipped with Windows 10 (Common Criteria EAL4+ Certified)

37

SATA 0,1 port disablement (viaBIOS)
RAID configurations

37

Serial, USB enable/disable (viaBIOS)
Power-on password (viaBIOS)
Setup password (viaBIOS)
Support for chassis padlocks and cable lock devices
HP Sure Click

38

HP Sure Start Gen435
HP Sure Run39
HP Sure Recover

40

TPM

Model: Infineon SLB9670
Version: 7.62.3126.0
Revision: TPM 2.0
FIPS 140-2 Compliant: Yes (select models only)

Smartcard Reader

Model number: Alcor AU9560
FIPS 201 Compliant: Yes

IPv6 Certification:

Yes

MD5 Hash: Please follow the instructions below to access MD5 Hash.
Log-on to http://hp.com/support, enter your product name, select software and drivers, select OS, select driver. After selecting

the driver, click on “Associated files” and then click on “Download”. When opening the file, under “Purpose” you should see the
appropriate “SOFTPAQ MD5:” Field

Is the BIOS on this notebook ISO/IEC 19678:2015 (formerly NIST 800-147) compliant?:

Yes
UEFI version: 2.5

QuickSpecs

HP EliteBook 840 G5 Notebook PC

Features

c05868510 — DA16136 — Worldwide — Version 2 — February 12, 2018

Page 11

22. Miracast is a wireless technology your PC can use to project your screen to TVs, projectors, and streaming

23. HP BIOSphere Gen4 features may vary depending on the PC platform and configurations requires 8th Gen Intel®
processors.

24. Secure Erase for the methods outlined in the National Institute of Standards and Technology Special Publication 800-88.
Supported on Elite platforms with BIOS version F.03 or higher.

25. Absolute agent is shipped turned off, and will be activated when customers activate a purchased subscription.
Subscriptions can be purchased for terms ranging multiple years. Service is limited, check with Absolute for availability
outside the U.S. The Absolute Recovery Guarantee is a limited warranty. Certain conditions apply. For full details visit:

http://www.absolute.com/company/legal/agreements/computrace-agreement. Data Delete is an optional service provided

by Absolute Software. If utilized, the Recovery Guarantee is null and void. In order to use the Data Delete service, customers
must first sign a Pre-Authorization Agreement and either obtain a PIN or purchase one or more RSA SecurID tokens from
Absolute Software.

26. HP ePrint Driver requires an Internet connection to HP web-enabled printer and HP ePrint account registration (for a list
of eligible printers, supported documents and image types and other HP ePrint details, see

http://www.hp.com/go/eprintcenter). Print times and connection speeds may vary.

27. HP Support Assistant requires Windows and Internet access.

28. HP Driver Packs not preinstalled, however available for download at http://www.hp.com/go/clientmanagement.

29. HP Manageability Integration Kit can be downloaded from

http://www8.hp.com/us/en/ads/clientmanagement/overview.html

30. Ivanti Management Suite subscription required.

31. HP Client Security Suite Gen4 requires Windows and Intel® or AMD 8th generation processors.

32. HP Password Manager requires Internet Explorer or Chrome or FireFox. Some websites and applications may not be
supported. User may need to enable or allow the add-on / extension in the internet browser.

33. Microsoft Defender Opt in and internet connection required for updates.

34. HP PhoneWise Client is only available on select platforms. For supported platforms and HP PhoneWise system
requirements see http://www.hp.com/go/HPPhoneWise.

35. HP Sure Start Gen4 is available on HP EliteBook products equipped with Intel® 8th generation processors

36. HP Fingerprint Sensor sold separately or as an optional feature.

37. RAID configuration is optional and does require a second hard drive.

38. HP Sure Click is available on select HP platforms and supports Microsoft® Internet Explorer and Chromium™. Check

http://h20195.www2.hp.com/v2/GetDocument.aspx?docname=4AA7-0922ENW for all compatible platforms as they become

available.

39. HP Sure Run is available on HP Elite products equipped with Intel® or AMD® 8th generation processors

40. HP Sure Recover is available on HP Elite PCs with 8th generation Intel® or AMD processors and requires an open, wired
network connection. You must back up important files, data, photos, videos, etc. before using HP Sure Recover to avoid loss
of data

QuickSpecs

HP EliteBook 840 G5 Notebook PC

Features

c05868510 — DA16136 — Worldwide — Version 2 — February 12, 2018

Page 12

Power Supply

HP Smart 45 W External AC power adapter42
HP Smart 45 W External AC power adapter, 2-prong (Japan only)42
HP Smart 65 W External AC power adapter42
HP Smart 65 W EM External AC power adapter42
45 W USB Type-C™ adapter42
65 W USB Type-C™ adapter

42

Primary Battery

HP Long Life 3-cell, 50 Wh Li-ion43

Power Cord

2-wire plug - 1.0m (Japan only)42
3-wire plug - 1.0m42
3-wire plug - 1.8m42
Duckhead power cord - 1.0m42
Duckhead power cord - 1.8m

42

Battery Life

UMA graphics: Up to 14 hours ( Intel® 7th generation CPU and 3-cell 50 WHr battery)
Discrete graphics: Up to 13 hours and 45 mins ( Intel® 7th generation CPU and 3-cell 50 WHr battery)

42. Availability may vary by country.

43. Battery is internal and not replaceable by customer. Serviceable by warranty.

44. Windows 10 MM14 battery life will vary depending on various factors including product model, configuration, loaded
applications, features, use, wireless functionality, and power management settings. The maximum capacity of the battery
will naturally decrease with time and usage. See www.bapco.com for additional details.

Weight

Starting at 3.27 lb (non-touch); Starting at 3.56 lb (touch)45
Starting at 1.48 kg (non-touch); Starting at 1.61 kg (touch)

45

Dimensions (w x d x h)
Non-touch

12.84 x 9.22 x 0.7 in

32.6 x 23.4 x 1.79 cm

Touch

12.22 x 9.03 x 0.71 in
31 x 22.93 x 1.81 cm

45. Weight will vary by configuration.

POWER

WEIGHTS & DIMENSIONS

QuickSpecs

HP EliteBook 840 G5 Notebook PC

Features

c05868510 — DA16136 — Worldwide — Version 2 — February 12, 2018

Page 13

Ports

1 Thunderbolt™ (USB Type-C™ connector)
2 USB 3.1 Gen 1 (1 charging)
1 HDMI 1.4b46
1 RJ-45
1 docking connector
1 headphone/microphone combo
1 AC power
1 SIM card slot47
1 Smartcard reader47

46. HDMI cable sold separately.

47. Sold separately or as an optional feature.

3 year and 1 year limited warranties and 90-day software limited warranty options depending on country. Batteries have a
default one year limited warranty except for Long Life batteries which will have same 1 year or 3 year limited warranty as
the platform. On-site service and extended coverage is also available. HP Care Pack Services are optional extended service
contracts that go beyond the standard limited warranties. To choose the right level of service for your HP product, use the
HP Care Pack Services Lookup Tool at http://www.hp.com/go/cpc.48

48. HP Care Packs are sold separately. Service levels and response times for HP Care Packs may vary depending on your
geographic location. Service starts on date of hardware purchase. Restrictions and limitations apply. For details, visit

http://www.hp.com/go/cpc. HP services are governed by the applicable HP terms and conditions of service provided or

indicated to Customer at the time of purchase. Customer may have additional statutory rights according to applicable local
laws, and such rights are not in any way affected by the HP terms and conditions of service or the HP Limited Warranty
provided with your HP Product.

PORTS/SLOTS

SERVICE AND SUPPORT

QuickSpecs

HP EliteBook 840 G5 Notebook PC

Technical Specifications

c05868510 — DA16136 — Worldwide — Version 2 — February 12, 2018

Page 14

Stand-Alone Power
Requirements (AC Power)

Nominal Operating
Voltage

19V
Average Operating Power

Win 10

Integrated Graphics

6.78W

Discrete Graphics

18W

Max Operating Power

Discrete < 65W
UMA < 45W

Temperature

Operating

32° to 95° F (0° to 35° C) (not writing optical)
41° to 95° F (5° to 35° C) (writing optical)

Non-operating

-4° to 140° F (-20° to 60° C)

Relative Humidity

Operating

10% to 90%, non-condensing

Non-operating

5% to 95%, 101.6° F (38.7° C) maximum wet bulb temperature

Shock

Operating

40 G, 2 ms, half-sine

Non-operating

200 G, 2 ms, half-sine

Random Vibration

Operating

0.75 grms

Non-operating

1.50 grms

Altitude (unpressurized)

Operating

-50 to 10,000 ft (-15.24 to 3,048 m)

Non-operating

-50 to 40,000 ft (-15.24 to 12,192 m)

Planned Industry Standard
Certifications

UL

Yes

CSA

Yes

FCC Compliance

Yes

ENERGY STAR®

Select models1

EPEAT®

Registered Gold in United States2

ICES

Yes

Australia /
NZ A-Tick Compliance

Yes

CCC

Yes

Japan VCCI Compliance

Yes

KC

Yes

BSMI

Yes

CE Marking Compliance

Yes

BNCI or BELUS

Yes

CIT

Yes

GOST

Yes

Saudi Arabian Compliance
(ICCP)

Yes

SABS

Yes

UKRSERTCOMPUTER

1. Configurations of the HP Elitebook 840 G5 that are ENERGY STAR® qualified are identified as HP Elitebook 840 G5 ENERGY
STAR on HP websites and on http://www.energystar.gov.

2. EPEAT® registered where applicable. EPEAT registration varies by country. See http://www.epeat.net for registration

status by country. Search keyword generator on HP’s 3rd party option store for solar generator accessories at

http://www.hp.com/go/options.

SYSTEM UNIT

QuickSpecs

HP EliteBook 840 G5 Notebook PC

Technical Specifications

c05868510 — DA16136 — Worldwide — Version 2 — February 12, 2018

Page 15

Panel LCD 14 inch FHD
(1920x1080) Anti-Glare WLED
UWVA 45% cg 220nits eDP slim
NB Non-Touch

Outline Dimensions (W x H)

316.112 x 197.98 max.

Active Area

309.312 x 173.988

Weight

<280g max.

Diagonal Size

14.0"

Thickness

3.0mm max.

Interface

eDP 1.2

Surface Treatment

IPS

Touch Enabled

No

Contrast Ratio

600:1 (typical)

Refresh Rate

60Hz

Brightness

220 nits typical (Panel Only

Pixel Resolution

1920 x 1080 (FHD)

Format

RGB

Backlight

LED

Color Gamut Coverage

45%

Color Depth

6 bits + Hi FRC

Viewing Angle

UWVA 85/85/85/85

NOTE: All specifications represent the typical specifications provided by HP's component manufacturers; actual
performance may vary either higher or lower.

Panel LCD 14 inch FHD
(1920x1080) WLED UWVA 45%
cg 220nits eDP slim NB Touch

Outline Dimensions (W x H)

316.112 x 197.98 max.

Active Area

309.312 x 173.988

Weight

<413g max.

Diagonal Size

14.0"

Thickness

3.2mm max.

Interface

eDP 1.2

Surface Treatment

IPS

Touch Enabled

Yes

Contrast Ratio

600:1 (typical)

Refresh Rate

60Hz

DISPLAYS

QuickSpecs

HP EliteBook 840 G5 Notebook PC

Technical Specifications

c05868510 — DA16136 — Worldwide — Version 2 — February 12, 2018

Page 16

Brightness

220 nits typical (Panel Only

Pixel Resolution

1920 x 1080 (FHD)

Format

RGB

Backlight

LED

Color Gamut Coverage

45%

Color Depth

6 bits + Hi FRC

Viewing Angle

UWVA 85/85/85/85

NOTE: All specifications represent the typical specifications provided by HP's component manufacturers; actual
performance may vary either higher or lower.

Panel LCD 14 inch FHD
(1920x1080) Anti-Glare WLED
UWVA 72% cg 400nits eDP 1.3 +
PSR slim NB

Outline Dimensions (W x H)

316.11 x 197.98 max.

Active Area

309.31 x 173.99

Weight

<285g max.

Diagonal Size

14.0"

Thickness

3.0mm max.

Interface

eDP 1.3 + PSR (2 lane)

Surface Treatment

IPS

Touch Enabled

No

Contrast Ratio

600:1 (typical)

Refresh Rate

60Hz

Brightness

400 nits typical (Panel Only)

Pixel Resolution

1920 x 1080 (FHD)

Format

RGB

Backlight

LED

Color Gamut Coverage

72%

Color Depth

6 bits + Hi FRC

Viewing Angle

UWVA 85/85/85/85

NOTE: All specifications represent the typical specifications provided by HP's component manufacturers; actual performance
may vary either higher or lower.

QuickSpecs

HP EliteBook 840 G5 Notebook PC

Technical Specifications

c05868510 — DA16136 — Worldwide — Version 2 — February 12, 2018

Page 17

Panel LCD 14 inch UHD
(3840x2160) Anti-Glare WLED
UWVA 72% cg 400nits eDP 1.3 +
PSR ultraslim NB

Outline Dimensions (W x H)

315.31 x 199.54 max.

Active Area

309.31 x 173.99

Weight

<240 max.

Diagonal Size

14.0"

Thickness

2.4mm max

Interface

eDP 1.3 + PSR (4 lane)

Surface Treatment

IPS

Touch Enabled

No

Contrast Ratio

1200:1 (typ) - AG

Refresh Rate

60Hz

Brightness

400 nits typical (Panel Only)

Pixel Resolution

3840 x 2160 (UHD)

Format

RGB

Backlight

LED

Color Gamut Coverage

72%

Color Depth

8 bits

Viewing Angle

UWVA 85/85/85/85

NOTE: All specifications represent the typical specifications provided by HP's component manufacturers; actual
performance may vary either higher or lower.

Panel LCD 14 inch FHD
(1920x1080) WLED UWVA 72%
cg 700nits eDP 1.3+PSR
ultraslim Privacy

Outline Dimensions (W x H)

315.41x 196.14 max.

Active Area

309.312 x 173.988

Weight

<225g max.

Diagonal Size

14.0"

Thickness

3.0mm max.

Interface

eDP 1.4a

Surface Treatment

IPS

Touch Enabled

Yes

Contrast Ratio

"Privacy mode 150:1 (typ.) – Privacy, 110:1(min.)- Privacy

Refresh Rate

120Hz

Brightness

Privacy mode 350nits

QuickSpecs

HP EliteBook 840 G5 Notebook PC

Technical Specifications

c05868510 — DA16136 — Worldwide — Version 2 — February 12, 2018

Page 18

Pixel Resolution

1920 x 1080 (FHD)

Format

RGB

Backlight

LED

Color Gamut Coverage

72%

Color Depth

6 bits + Hi FRC

Viewing Angle

Privacy mode CR>2: UWVA 50/50/85/85

NOTE: All specifications represent the typical specifications provided by HP's component manufacturers; actual performance
may vary either higher or lower.

QuickSpecs

HP EliteBook 840 G5 Notebook PC

Technical Specifications

c05868510 — DA16136 — Worldwide — Version 2 — February 12, 2018

Page 19

SSD 128GB 2280 M2 SATA-3 TLC

Drive Weight

0.02 lb (10 g)

Capacity

128GB

Height

0.09 in (2.3 mm)

Width

0.87 in (22 mm)

Interface

ATA-8, SATA 3.0

Maximum Sequential Read

Up To 520 MB/s

Maximum Sequential Write

Up To 450 MB/s

Logical Blocks

250,069,680

Operating Temperature

32° to 158°F (0° to 70°C) [ambient temp]

Features

DIPM; TRIM; DEVSLP

SSD 1TB 2280 PCIe-3x4 NVMe
TLC DS

Drive Weight

0.02 lb (10 g)

Capacity

1024GB

Height

0.09 in (2.3 mm)

Width

0.87 in (22 mm)

Interface

PCIe NVMe Gen3X4

Maximum Sequential Read

Up To 2800 MB/s

Maximum Sequential Write

Up To 1600 MB/s

Logical Blocks

2,000,409,264

Operating Temperature

32° to 158°F (0° to 70°C) [ambient temp]

Features

TRIM; L1.2

SSD 256GB 2280 M2 PCIe-3x4 SS
NVMe TLC

Drive Weight

0.02 lb (10 g)

Capacity

1024GB

Height

0.09 in (2.3 mm)

Width

0.87 in (22 mm)

Interface

PCIe NVMe Gen3X4

Maximum Sequential Read

Up To 2800 MB/s

Maximum Sequential Write

Up To 1600 MB/s

Logical Blocks

2,000,409,264

Operating Temperature

32° to 158°F (0° to 70°C) [ambient temp]

Features

TRIM; L1.2

STORAGE1

QuickSpecs

HP EliteBook 840 G5 Notebook PC

Technical Specifications

c05868510 — DA16136 — Worldwide — Version 2 — February 12, 2018

Page 20

SSD 256GB 2280 M2 SATA-3 Self
Encrypted OPAL2 TLC

Drive Weight

0.02 lb (10 g)

Capacity

256GB

Height

0.09 in (2.3 mm)

Width

0.87 in (22 mm)

Interface

ATA-8, SATA 3.0

Maximum Sequential Read

Up To 530 MB/s

Maximum Sequential Write

Up To 515 MB/s

Logical Blocks

500,118,192

Operating Temperature

32° to 158°F (0° to 70°C) [ambient temp]

Features

DIPM; TRIM; DEVSLP

256GB 2280 PCIe NVMe Value
Solid State Drive

Drive Weight

M.2 2280

Capacity

256 GB

Height

TLC

Width

0.09 in (2.3 mm)

Interface

0.87 in (22 mm)

Performance

0.02 lb (10 g)

Maximum Sequential Read

PCIe NVMe Gen3X4

Maximum Sequential Write

Up To 1700 MB/s

Logical Blocks

Up To 600 MB/s

Operating Temperature

500,118,192

Features

32° to 158°F (0° to 70°C) [ambient temp]

SSD 360GB 2280 PCIe-3x4 NVMe
TLC

Drive Weight

0.02 lb (10 g)

Capacity

360GB

Height

0.09 in (2.3 mm)

Width

0.87 in (22 mm)

Interface

PCIe NVMe Gen3X4

Performance

Maximum Sequential Read

Up To 1700 MB/s

Maximum Sequential Write

Up To 600 MB/s

Logical Blocks

703,282,608

Operating Temperature

32° to 158°F (0° to 70°C) [ambient temp]

Features

TRIM; L1.2

QuickSpecs

HP EliteBook 840 G5 Notebook PC

Technical Specifications

c05868510 — DA16136 — Worldwide — Version 2 — February 12, 2018

Page 21

SSD 512GB 2280 M2 PCIe-3x4 SS
NVMe TLC

Drive Weight

0.02 lb (10 g)

Capacity

512GB

Height

0.09 in (2.3 mm)

Width

0.87 in (22 mm)

Interface

PCIe NVMe Gen3X4

Performance

Maximum Sequential Read

Up To 2600 MB/s

Maximum Sequential Write

Up To 1400 MB/s

Logical Blocks

1,000,215,216

Operating Temperature

32° to 158°F (0° to 70°C) [ambient temp]

Features

TRIM; L1.2

SSD 512GB 2280 M2 SATA-3 TLC
FIPS

Drive Weight

0.02 lb (10 g)

Capacity

512GB

Height

0.09 in (2.3 mm)

Width

0.87 in (22 mm)

Interface

ACS-3, SATA 3.2

Performance

Maximum Sequential Read

Up To 530 MB/s

Maximum Sequential Write

Up To 400 MB/s

Logical Blocks

1,000,215,216

Operating Temperature

32° to 158°F (0° to 70°C) [ambient temp]

Features

DIPM; TRIM; DEVSLP

QuickSpecs

HP EliteBook 840 G5 Notebook PC

Technical Specifications

c05868510 — DA16136 — Worldwide — Version 2 — February 12, 2018

Page 22

SSD 512GB 2280 PCIe-3x4 NVMe
Self Encrypted OPAL2 TLC

Drive Weight

0.02 lb (10 g)

Capacity

512GB

Height

0.09 in (2.3 mm)

Width

0.87 in (22 mm)

Interface

PCIe NVMe Gen3X4

Performance

Maximum Sequential Read

Up To 2900 MB/s

Maximum Sequential Write

Up To 1400 MB/s

Logical Blocks

1,000,215,215

Operating Temperature

32° to 158°F (0° to 70°C) [ambient temp]

Features

DIPM; TRIM; DEVSLP

1. For storage drives, GB = 1 billion bytes. TB = 1 trillion bytes. Actual formatted capacity is less. Up to 30 GB (for Windows

10) is reserved for system recovery software.

QuickSpecs

HP EliteBook 840 G5 Notebook PC

Technical Specifications

c05868510 — DA16136 — Worldwide — Version 2 — February 12, 2018

Page 23

Intel® 802.11a/b/g/n/ac
(2x2) WiFi and
Bluetooth® 4.2 Combo1

Wireless LAN Standards

IEEE 802.11a
IEEE 802.11b
IEEE 802.11g
IEEE 802.11n
IEEE 802.11ac

Interoperability

Wi-Fi certified

Frequency Band

802.11b/g/n

• 2.402 – 2.482 GHz

802.11a/n

• 4.9 – 4.95 GHz (Japan)

• 5.15 – 5.25 GHz

• 5.25 – 5.35 GHz

• 5.47 – 5.725 GHz

• 5.825 – 5.850 GHz

Data Rates

• 802.11b: 1, 2, 5.5, 11 Mbps

• 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps

• 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps

• 802.11n: MCS 0 ~ MCS 15, (20MHz, and 40MHz)

• 802.11ac : MCS0 ~ MCS9, (1SS, and 2SS) (20MHz, 40MHz, and 80MHz)

Modulation

Direct Sequence Spread Spectrum
BPSK, QPSK, CCK, 16-QAM, 64-QAM, 256-QAM

Security3

• IEEE and WiFi compliant 64 / 128 bit WEP encryption for a/b/g mode only

• AES-CCMP: 128 bit in hardware •802.1x authentication •WPA, WPA2:

802.1x. WPA-PSK, WPA2-PSK, TKIP, and AES. •WPA2 certification •IEEE

802.11i •Cisco Certified Extensions, all versions through CCX4 and CCX Lite

• WAPI

Network Architecture
Models

Ad-hoc (Peer to Peer)
Infrastructure (Access Point Required)

Roaming

IEEE 802.11 compliant roaming between access points

Output Power2

• 802.11b : +14dBm minimum

• 802.11g : +12dBm minimum

• 802.11a : +12dBm minimum

• 802.11n HT20(2.4GHz) : +12dBm minimum

• 802.11n HT40(2.4GHz) : +12dBm minimum

• 802.11n HT20(5GHz) : +10dBm minimum

• 802.11n HT40(5GHz) : +10dBm minimum

• 802.11ac VHT80(5GHz) : +10dBm minimum

Power Consumption

• Transmit mode 2.0 W

• Receive mode 1.6 W

• Idle mode (PSP) 180 mW (WLAN Associated)

• Idle mode 50 mW (WLAN unassociated)

• Connected Standby 10mW

• Radio disabled 8 mW

Power Management

ACPI compliant power management

802.11 compliant power saving mode

NETWORKING/COMMUNICATIONS

QuickSpecs

HP EliteBook 840 G5 Notebook PC

Technical Specifications

c05868510 — DA16136 — Worldwide — Version 2 — February 12, 2018

Page 24

Receiver Sensitivity4

802.11b, 1Mbps : -93.5dBm maximum

802.11b, 11Mbps : -84dBm maximum

802.11a/g, 6Mbps : -86dBm maximum

802.11a/g, 54Mbps : -72dBm maximum

802.11n, MCS07 : -67dBm maximum

802.11n, MCS15 : -64dBm maximum

802.11ac, MCS0 : -84dBm maximum

802.11ac, MCS9 : -59dBm maximum

Antenna type

High efficiency antenna with spatial diversity, mounted in the display
enclosure

Two embedded dual band 2.4/5 GHz antennas are provided to the card to
support WLAN MIMO communications and Bluetooth communications

Form Factor

PCI-Express Half-MiniCard

Dimensions

Type 2230 : 2.3 x 22.0 x 30.0 mm

Weight

Type 2230 : 2.8g

Operating Voltage

3.3v +/- 9%

Temperature

Operating
Non-operating

14° to 158° F (–10° to 70° C)
–40° to 176° F (–40° to 80° C)

Humidity

Operating
Non-operating

10% to 90% (non-condensing)
5% to 95% (non-condensing)

Altitude

Operating
Non-operating

0 to 10,000 ft (3,048 m)
0 to 50,000 ft (15,240 m)

LED Activity

LED Amber – Radio OFF;
LED White – Radio ON

HP Integrated Module with Bluetooth 4.0/4.1/4.2 Wireless Technology
Bluetooth Specification

4.0/4.1/4.2 Compliant

Frequency Band

2402 to 2480 MHz

Number of Available
Channels

Legacy : 0~79 (1 MHz/CH)
BLE : 0~39 (2 MHz/CH)

Data Rates and
Throughput

Legacy : 3 Mbps data rate; throughput up to 2.17 Mbps

BLE : 1 Mbps data rate; throughput up to 0.2 Mbps

Legacy : Synchronous Connection Oriented links up to 3, 64 kbps, voice
channels

Legacy : Asynchronous Connection Less links 2178.1 kbps/177.1 kbps
asymmetric (3-DH5) or 864 kbps symmetric (3-EV5)

Transmit Power

The Bluetooth component shall operate as a Class II Bluetooth device with
a maximum transmit power of + 4 dBm for BR and EDR.

Power Consumption

Peak (Tx) 330 mW
Peak (Rx) 230 mW
Selective Suspend 17 mW

Electrical Interface

USB 2.0 compliant

QuickSpecs

HP EliteBook 840 G5 Notebook PC

Technical Specifications

c05868510 — DA16136 — Worldwide — Version 2 — February 12, 2018

Page 25

Bluetooth Software
Supported

Microsoft Windows Bluetooth Software

Power Management

Microsoft Windows ACPI, and USB Bus Support

Certifications

FCC (47 CFR) Part 15C, Section 15.247 & 15.249

Power Management
Certifications

ETS 300 328, ETS 300 826
Low Voltage Directive IEC950
UL, CSA, and CE Mark

Bluetooth Profiles
Supported

BT4.1-ESR 5/6/7 Compliance
LE Link Layer Ping
LE Dual Mode
LE Link Layer
LE Low Duty Cycle Directed Advertising
LE L2CAP Connection Oriented Channels
Train Nudging & Interlaced Scan
BT4.2 ESR08 Compliance
LE Secure Connection- Basic/Full
LE Privacy 1.2 –Link Layer Privacy
LE Privacy 1.2 –Extended Scanner Filter Policies
LE Data Packet Length Extension
FAX Profile (FAX)
Basic Imaging Profile (BIP)2
Headset Profile (HSP)
Hands Free Profile (HFP)
Advanced Audio Distribution Profile (A2DP)

1. Wireless access point and Internet service is required. Availability of public wireless access point is limited. The
specifications for the 802.11ac WLAN are draft specifications and are not final. If the final specifications differ from the draft
specifications, it may affect the ability of the notebook to communicate with other 802.11ac WLAN devices

2. The FCC has declared as of September 1, 2014 products that utilize passive scanning on channel 12/13 and are capable of
transmitting must fully comply with requirements of 15.247 or otherwise disable those channels.

3. Check latest software/driver release for updates on supported security features.

4. Receiver sensitivity is measured at a packet error rate of 8% for 802.11b (CKK modulation) and a packet error rate of 10%
for 802.11a/g (OFDM modulation).

QuickSpecs

HP EliteBook 840 G5 Notebook PC

Technical Specifications

c05868510 — DA16136 — Worldwide — Version 2 — February 12, 2018

Page 26

HP lt4132 LTE/HSPA+ 4G
Mobile Broadband5

Technology/Operating
bands

LTE: 2100 (Band 1), 1900 (Band 2), 1800 (Band 3) MHz,
850 (Band 5), 2600 (Band 7), 900 (Band 8) MHz,
800 (Band 20), 700 (Band 28) MHz.
HSPA+: 2100 (Band 1), 1900 (Band 2), 850 (Band 5), 900 (Band 8) MHz
E-GPRS: 1900 (Band 2), 1800 (Band 3), 850 (Band 5), 900 (Band 8) MHz

Wireless protocol
standards

3GPP Release 10 LTE Specification CAT.4, 20MHz BW
WCDMA R99, 3GPP Release 5, 6, 7 and 8 UMTS Specification
E-GPRS: Class B, Multi-slot class 12, coding schemes CS1 - CS4
and MSC1 - MSC9

GPS

Standalone, A-GPS (MS-B and LTO)

GPS bands

1575.42 MHz ± 1.023 MHz, GLONASS 1596-1607MHz

Maximum data rates

LTE: 150 Mbps (Download), 50 Mbps (Upload)
DC-HSPA+: 42 Mbps (Download), 5.76 Mbps (Upload)
HSPA+: 21Mbps (Download), 5.76 Mbps (Upload)
EDGE: 236.8 kbps (Download), 236.8 kbps (Upload)
GPRS: 85.6 kbps(Download), 85.6 kbps (Upload)

Maximum output power

LTE: 23 dBm
HSPA+: 23.5 dBm
E-GPRS 1900/1800: 26 dBm
E-GPRS 900/850: 27 dBm
GPRS 1900/1800: 29.5 dBm
GPRS 900/850: 32.5 dBm

Maximum power
consumption

LTE: 1,200 mA (peak); 900 mA (average)
HSPA+: 1,100 mA (peak); 800 mA (average)
E-GPRS: 2,600 mA (peak); 500 mA (average)

Form Factor

M.2, 3042-S3 Key B

Weight

6 g

Dimensions
(Length x Width x
Thickness)

42 30 x 2.3 mm

5. Wireless access point and Internet service is required. Availability of public wireless access point is limited. The
specifications for the 802.11ac WLAN are draft specifications and are not final. If the final specifications differ from the draft
specifications, it may affect the ability of the notebook to communicate with other 802.11ac WLAN devices

QuickSpecs

HP EliteBook 840 G5 Notebook PC

Technical Specifications

c05868510 — DA16136 — Worldwide — Version 2 — February 12, 2018

Page 27

Intel® XMM™ 7360 LTE­Advanced6

Technology/Operating
bands

FDD LTE: 2100 (Band 1), 1900 (Band 2), 1800 (Band 3),
1700/2100 (Band 4), 850 (Band 5), 2600 (Band 7), 900 (Band 8), 1400
(Band 11), 700 (Band 12 lower), 700 (Band 13 upper), 700 (Band 17 lower),
850 (Band 18 lower), 850 (Band 19 upper), 800 (Band 20), 1400 (Band 21),
850 (Band 26), 700 (Band 28), 700 (Band 29 RX only), 2300 (Band 30),
2100 (Band 66).
TDD LTE: 2600 (Band 38), 1900 (Band 39), 2400 (Band 40), 2500 (Band 41).
HSPA+: 2100 (Band 1), 1900 (Band 2), 1700/2100 (Band 4),
850 (Band 5), 900 (Band 8) MHz

Wireless protocol
standards

3GPP Release 11 LTE Specification CAT.9, DL 60MHz BW throughput up to
450Mbps; UL 20MHz throughput up to 50Mbps
WCDMA R99, 3GPP Release 5, 6, 7 and 8 UMTS Specification

GPS

Standalone, A-GPS (MS-A, MS-B and XTRA)

GPS bands

1575.42 MHz ± 1.023 MHz, GLONASS 1596-1607MHz, Beidou 1561.098
MHz

Maximum data rates

LTE: 450 Mbps (Download), 50 Mbps (Upload)
DC-HSPA+: 42 Mbps (Download), 5.76 Mbps (Upload)
HSPA+: 21Mbps (Download), 5.76 Mbps (Upload)

Maximum output power

LTE: 23 dBm
HSPA+: 23.5 dBm

Maximum power
consumption

LTE: 1,200 mA (peak); 900 mA (average)
HSPA+: 1,100 mA (peak); 800 mA (average)

Form Factor

M.2, 3042-S3 Key B

Weight

5.8 g

Dimensions
(Length x Width x
Thickness)

42 x 30 x 2.3 mm

6. Wireless access point and Internet service is required. Availability of public wireless access point is limited. The
specifications for the 802.11ac WLAN are draft specifications and are not final. If the final specifications differ from the
draft specifications, it may affect the ability of the notebook to communicate with other 802.11ac WLAN devices

QuickSpecs

HP EliteBook 840 G5 Notebook PC

Technical Specifications

c05868510 — DA16136 — Worldwide — Version 2 — February 12, 2018

Page 28

Realtek 802.11b/g/n
(2x2) WiFi and
Bluetooth® 4.2 Combo7

Wireless LAN Standards

IEEE 802.11a
IEEE 802.11b
IEEE 802.11g
IEEE 802.11n
IEEE 802.11ac

Interoperability

Wi-Fi certified

Frequency Band

802.11b/g/n [2]

• 2.402 – 2.482 GHz

Data Rates

802.11b: 1, 2, 5.5, 11 Mbps

802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps

802.11n: MCS 0 ~ MCS 07, (20MHz)

Modulation

Direct Sequence Spread Spectrum
BPSK, QPSK, CCK, 16-QAM, 64-QAM,

Security9

• IEEE and WiFi compliant 64 / 128 bit WEP encryption for a/b/g mode only

• AES-CCMP: 128 bit in hardware

• 802.1x authentication

• WPA, WPA2: 802.1x. WPA-PSK, WPA2-PSK, TKIP, and AES.

• WPA2 certification

• IEEE 802.11i

• Cisco Certified Extensions, all versions through CCX4 and CCX Lite

• WAPI

Network Architecture
Models

Ad-hoc (Peer to Peer)
Infrastructure (Access Point Required)

Roaming

IEEE 802.11 compliant roaming between access points

Output Power8

• 802.11b : +14dBm minimum

• 802.11g : +12dBm minimum

• 802.11a : +12dBm minimum

• 802.11n HT20(2.4GHz) : +12dBm minimum

• 802.11n HT40(2.4GHz) : +12dBm minimum

• 802.11n HT20(5GHz) : +10dBm minimum

• 802.11n HT40(5GHz) : +10dBm minimum

• 802.11ac VHT80(5GHz) : +10dBm minimum

Power Consumption

• Transmit mode 2.0 W

• Receive mode 1.6 W

• Idle mode (PSP) 180 mW (WLAN Associated)

• Idle mode 50 mW (WLAN unassociated)

• Connected Standby 10mW

•Radio disabled 8 mW

Power Management

ACPI compliant power management

802.11 compliant power saving mode

Receiver Sensitivity10

802.11b, 1Mbps : -93.5dBm maximum

802.11b, 11Mbps : -84dBm maximum

802.11a/g, 6Mbps : -86dBm maximum

802.11a/g, 54Mbps : -72dBm maximum

802.11n, MCS07 : -67dBm maximum

802.11n, MCS15 : -64dBm maximum

802.11ac, MCS0 : -84dBm maximum

QuickSpecs

HP EliteBook 840 G5 Notebook PC

Technical Specifications

c05868510 — DA16136 — Worldwide — Version 2 — February 12, 2018

Page 29

802.11ac, MCS9 : -59dBm maximum

Antenna type

High efficiency antenna with spatial diversity, mounted in the display
enclosure

Two embedded dual band 2.4/5 GHz antennas are provided to the card to
support WLAN MIMO communications and Bluetooth communications

Form Factor

PCI-Express M.2 MiniCard

Dimensions

Type 2230 : 2.3 x 22.0 x 30.0 mm
Or
Type 1630 : 2.3 x 16.0 x 30.0 mm

Weight

Type 2230 : 2.8g
Or
Type 1630 : 2g

Operating Voltage

3.3v +/- 9%

Temperature

Operating: 14° to 158° F (–10° to 70° C)
Non-operating: –40° to 176° F (–40° to 80° C)

Humidity

Operating: 10% to 90% (non-condensing)
Non-operating: 5% to 95% (non-condensing)

Altitude

Operating: 0 to 10,000 ft (3,048 m)
Non-operating: 0 to 50,000 ft (15,240 m)

LED Activity

LED Amber – Radio OFF
LED White – Radio ON

QuickSpecs

HP EliteBook 840 G5 Notebook PC

Technical Specifications

c05868510 — DA16136 — Worldwide — Version 2 — February 12, 2018

Page 30

HP Integrated Module with Bluetooth 4.0/4.1/4.2 Wireless Technology
Bluetooth Specification

4.0/4.1/4.2 Compliant

Frequency Band

2402 to 2480 MHz

Number of Available
Channels

Legacy : 0~79 (1 MHz/CH)
BLE : 0~39 (2 MHz/CH)

Data Rates and
Throughput

Legacy : 3 Mbps data rate; throughput up to 2.17 Mbps

BLE : 1 Mbps data rate; throughput up to 0.2 Mbps

Legacy : Synchronous Connection Oriented links up to 3, 64 kbps, voice
channels

Legacy : Asynchronous Connection Less links 2178.1 kbps/177.1 kbps
asymmetric (3-DH5) or 864 kbps symmetric (3-EV5)

Transmit Power

The Bluetooth component shall operate as a Class II Bluetooth device with
a maximum transmit power of + 4 dBm for BR and EDR.

7. Wireless access point and Internet service is required. Availability of public wireless access point is limited. The
specifications for the 802.11ac WLAN are draft specifications and are not final. If the final specifications differ from the draft
specifications, it may affect the ability of the notebook to communicate with other 802.11ac WLAN devices

8. The FCC has declared as of September 1, 2014 products that utilize passive scanning on channel 12/13 and are capable of
transmitting must fully comply with requirements of 15.247 or otherwise disable those channels.

9. Check latest software/driver release for updates on supported security features.

10. Receiver sensitivity is measured at a packet error rate of 8% for 802.11b (CKK modulation) and a packet error rate of 10%
for 802.11a/g (OFDM modulation).

QuickSpecs

HP EliteBook 840 G5 Notebook PC

Technical Specifications

c05868510 — DA16136 — Worldwide — Version 2 — February 12, 2018

Page 31

Near Field Communications Controller (optional)
Dimensions (L x W x H)

Module 25 mm by 10 mm by 2.0 mm

Chipset

NPC100

System interface

I2C

NFC RF standards

ISO/IEC 14443 A
ISO/IEC 14443 B
ISO/IEC 15693
ISO/IEC 18092
ECMA-340 NFCIP-1 Target and Initiator
ECMA-320 NFCIP-2

NFC Forum Support

Tag Type 1, Type 2, Type3 and Type 4, NFCIP-1 and NFCIP-2

Reader (PCD-VCD)
Mode(1)

ISO/IEC 14443 A
ISO/IEC 14443 B
ISO/IEC 15693
MIFARE 1K
MIFARE 4K
MIFARE DESFire
FeliCa
Jewel and Topaz cards

Card Emulation (PICC­VICC) Mode(1)

ISO/IEC 14443 A
ISO/IEC 14443 B and B’
MIFARE
FeliCa

Frequency

13.56 MHz

NFC Modes Supported

Reader/Writer, Peer-to-Peer

Raw RF Data Rates

106, 212, 424, 848 kbps

Operating temperature

0°C to 70°C

Storage temperature

-20°C to 125°C

Humidity

10-90% operating
5-95% non-operating

Supply Operating
voltage

2.97 to 5.5 Volts

I/O Voltage

1.8V or 3.3V

Power Consumption
(Booster enable, VBAT= 3.3V, VCC_BOOST = 5V)

Mode

Power Consumption, Typical

Polling

7.3 mA

Detected Test Tag Type 1

Total 283.8 mA
Net Module 236.8 mA

Detected Test Tag Type 2

Total 288.8 mA
Net Module 241.8 mA

Detected Test Tag Type 3

Total 287.7 mA
Net Module 240.7 mA

QuickSpecs

HP EliteBook 840 G5 Notebook PC

Technical Specifications

c05868510 — DA16136 — Worldwide — Version 2 — February 12, 2018

Page 32

Detected Test Tag Type 4

Total 282.3 mA
Net Module 235.3 mA

Antenna

Antenna connector, 0.5mm pitch, 7 connector FPC. Antenna matching is
external to module.

AC Adapter 65 Watt nPFC
USB type C

Dimensions

74x74x28.5mm

Weight

unit: 245g +/- 10g

Input

Input Efficiency

81.5% min at 115 Vac/ 230Vac @ 5V/3A

86.7% min at 115 Vac/ 230Vac @ 9V/3A
88% min at 115 Vac/ 230Vac @ 10V/5A
88% min at 115 Vac/ 230Vac @ 12V/5A
89% min at 115 Vac/ 230Vac @ 15V/4.33A
89% min at 115 Vac/ 230Vac @ 20V/3.25A

Input frequency range

47 ~ 63 Hz

Input AC current

1.7 A at 90 VAC and maximum load

Output

Output power

65W

DC output

5V/9V/10V/12V/15V/20V

Hold-up time

5ms at 115 Vac input

Output current limit

<8.0A

Environmental Design

Operating temperature

32°F to 95°F (0° to 35°C)

Non-operating (storage)
temperature

-4°F to 185°F (-20°to 85°C)

Altitude

0 to 16,400 ft (0 to 5000m)

Humidity

5% to 95%

Storage Humidity

5% to 95%

EMI and Safety
Certifications

CE Mark - full compliance with LVD and EMC directives
Worldwide safety standards - IEC60950, EN60950, UL60950, Class1,
SELV; Agency approvals - C-UL-US, NORDICS, DENAN, EN55022 Class B,
FCC Class B, CISPR22 Class B, CCC, NOM-1 NYCE.
MTBF - over 100,000 hours at 25°C ambient condition.

AC Adapter 45 Watt nPFC
USB type C

Dimensions

62.0x62.0x28.5mm

Weight

unit: 220g +/- 10g

Input

Input Efficiency

Average Efficiency of 25%, 50%, 75%, 100%
load condition with 115Vac/230Vac Spec:5V :

81.5%9V : 86.7%10V : 87.5%12V : 87.8%15V :

87.8%20V : 87.8%

Input frequency range

47 ~ 63Hz

Input AC current

Max. 1.4 A at 90 Vac

Output

Output power

5V/15W
9V/27W
10V/37.5W
12V/45W
15V/45W
20V/45W

POWER

QuickSpecs

HP EliteBook 840 G5 Notebook PC

Technical Specifications

c05868510 — DA16136 — Worldwide — Version 2 — February 12, 2018

Page 33

DC output

5V / 9V / 10V /12V / 15V / 20V

Hold-up time

5ms at 115 Vac input

Output current limit

<5.0A

Connector

USB Type-C

Environmental Design

Operating temperature

32oF to 95oF (0oto 35oC)

Non-operating (storage)
temperature

-4oF to 185oF (-20oto 85oC)

Altitude

0 to 16,400 ft (0 to 5000m)

Humidity

20% to 95%

Storage Humidity

10% to 95%

Safety Certifications

CE Mark - full compliance with LVD and EMC directives
Worldwide safety standards - IEC60950, EN60950, UL60950, Class1,
SELV; Agency approvals - C-UL-US, NORDICS, DENAN, EN55022 Class B,
FCC Class B, CISPR22 Class B, CCC, NOM-1 NYCE.
MTBF - over 200,000 hours at 25°C ambient condition.

HP 45W Smart AC adapter

Dimensions

3.74 x 1.57 x 1.04 in (9.5 x 4.0 x 2.65 cm)

Weight

0.386 lb (175g) max

Input

Input Efficiency

87.74% at 115Vac and 88.4% at 230Vac

Input frequency range

47 ~ 63Hz

Input AC current

Max. 1.4 A at 90 Vac

Output

Output power

45W

DC output

19.5V

Hold-up time

5 msec at 115 VAC input

Output current limit

<8.0A

Connector

4.5mm Barrel Type, 3 pin/grounded, mates with interchangeable cords

Environmental Design

Operating temperature

32° to 95° F (0° to 35° C)

Non-operating (storage)
temperature

-4° to 185° F (-20° to 85° C)

Altitude

0 to 16,400 ft (0 to 5000m)

Humidity

20% to 95%

Storage Humidity

10% to 95%

Safety Certifications

CE Mark - full compliance with LVD and EMC directives
Worldwide safety standards - IEC60950, EN60950, UL60950, Class1,
SELV; Agency approvals - C-UL-US, NORDICS, DENAN, EN55022 Class B,
FCC Class B, CISPR22 Class B, CCC, NOM-1 NYCE.
MTBF - over 200,000 hours at 25°C ambient condition.

HP 65W Smart AC adapter

Dimensions

107.0x47.0x30.0mm

Weight

unit: 250g +/- 10g

Input

Input Efficiency

88.0 % at 115 Vac and 89.0 % at 230Vac

Input frequency range

47 ~ 63 Hz

Input AC current

Max. 1.7 A at 90 Vac

Output

Output power

65W

DC output

19.5V

Hold-up time

5ms at 115 Vac input

Output current limit

<11.0A

QuickSpecs

HP EliteBook 840 G5 Notebook PC

Technical Specifications

c05868510 — DA16136 — Worldwide — Version 2 — February 12, 2018

Page 34

Connector

4.5mm Barrel Type

Environmental Design

Operating temperature

32°F to 95°F (0°to 35°C)

Non-operating (storage)
temperature

-4°F to 185°F (-20° to 85°C)

Altitude

0 to 16,400 ft (0 to 5000m)

Humidity

20% to 95%

Storage Humidity

10% to 95%

Safety Certifications

CE Mark - full compliance with LVD and EMC directives
Worldwide safety standards - IEC60950, EN60950, UL60950, Class1,
SELV; Agency approvals - C-UL-US, NORDICS, DENAN, EN55022 Class B,
FCC Class B, CISPR22 Class B, CCC, NOM-1 NYCE.
MTBF - over 200,000 hours at 25°C ambient condition.

HP 65W EM Smart AC
adapter

Dimensions

102x55x30mm

Weight

270g +/- 10g

Input

Input Efficiency

87% min at 115V/230V

Input frequency range

47 to 63 Hz

Input AC current

1.7 A at 90 VAC and maximum load

Output

DC output

65W(19.5V/3.33A)

Hold-up time

5 msec at 115 VAC input

Output current limit

<11A, Over voltage protection- 29V max
automatic shutdown

Connector

4.5mm Barrel Type, 3 pin/grounded, mates with interchangeable cords

Environmental Design

Operating temperature

0° to 35° C

Non-operating (storage)
temperature

-20° to 85° C

Altitude

0 to 5,000 m

Humidity

0% to 95%

Storage Humidity

0% to 95%

Safety Certifications

CE Mark - full compliance with LVD and EMC directives
Worldwide safety standards - IEC60950, EN60950, UL60950, Class1,
SELV; Agency approvals - C-UL-US, NORDICS, DENAN, EN55022 Class B,
FCC Class B, CISPR22 Class B, CCC, NOM-1 NYCE.
MTBF - over 200,000 hours at 25°C ambient condition.

Battery SS 3 Cell 50 WHr
Long Life -PL

Dimensions (H x W x L)

L 278.7mm x W 76.3mm x H 7.1mm

Weight

193 +/- 10g

Cells/Type

3cell Lithium-Ion Polymer cell / P604883A1

Energy
Voltage

11.55V/

Amp-hour capacity

4.113Ah/ 4.330Ah

Watt-hour capacity

50Wh

Temperature
Operating (Charging)

0˚ to 50˚ C

Operating (Discharging)

-10˚ to 60˚ C

Fuel Gauge LED

N/A

Warranty

3 years

Optional Travel Battery
Available

No

QuickSpecs

HP EliteBook 840 G5 Notebook PC

Technical Specifications

c05868510 — DA16136 — Worldwide — Version 2 — February 12, 2018

Page 35

China

COUNTRY OF ORIGIN

QuickSpecs

HP EliteBook 840 G5 Notebook PC

Options and Accessories (sold separately and availability may vary by country)

c05868510 — DA16136 — Worldwide — Version 2 — February 12, 2018

Page 36

Type

Description

Part #

Cases

HP Exec Midnight 15.6" Backpack

1KM16AA

HP Slim Top Load

F3W15AA

Docking

HP Thunderbolt Dock 120W G2 (Available in May 2018)

2UK37AA

HP USB-C Universal Dock

1MK33AA

HP USB-C Mini Dock

1PM64AA

HP UltraSlim Docking Station

D9Y32AA

HP USB-C Dock G4

TBD

Input/Output

HP Slim Wireless Keyboard and Mouse

T6L04AA

HP Slim USB Keyboard and Mouse

T6T83AA

HP Wireless (Link-5) Keyboard

T6U20AA

HP Wireless Premium Mouse

1JR31AA

HP USB Premium Mouse

1JR32AA

HP Comfort Grip Wireless Mouse

H2L63AA

HP Ultra Mobile Wireless Mouse

H6F25AA

HP Slim Bluetooth Mouse

F3J92AA

HP Elite Presenter Mouse

2CE30AA

HP USB-C to USB-A Hub

Z6A00AA

HP USB-C to DP

N9K78AA

HP USB-C to VGA

N9K76AA

HP HDMI to DVI

F5A28AA

HP HDMI to VGA

H4F02AA

HP USB-C to HDMI 2.0

1WC36AA

Power

HP 45W USB-C Power Adapter

1HE07AA

HP 65W USB-C Power Adapter

1HE08AA

HP Notebook Power Bank

N9F71AA

HP USB-C Notebook Power Bank

1TZ86AA

HP 65W Slim AC Adapter

H6Y82AA

HP 90W Slim AC Adapter

H6Y83AA

HP 90W Slim Combo AC Adapter w/ USB

H6Y84AA

Storage

HP USB External DVDRW Drive

F2B56AA

HP 256GB M2 PCIe NVME SSD TLC (2280)

1FU87AA

HP 512GB M2 PCIe NVME SSD TLC (2280)

1FU88AA

Memory

HP 4GB 2400MHz DDR4 Memory

Z4Y84AA

HP 8GB 2400MHz DDR4 Memory

Z4Y85AA

HP 16GB 2400MHz DDR4 Memory

Z4Y86AA

QuickSpecs

HP EliteBook 840 G5 Notebook PC

Options and Accessories (sold separately and availability may vary by country)

c05868510 — DA16136 — Worldwide — Version 2 — February 12, 2018

Page 37

Security

HP Docking Station Cable Lock

AU656AA

HP Keyed Cable Lock

T0Y14AA

HP Keyed Cable Lock 10mm

T1A62AA

HP Dual Head Keyed Cable Lock

T1A64AA

UCC

HP USB Collaboration Keyboard

Z9N38AA

HP Wireless Collaboration Keyboard

Z9N39AA

HP UC Wireless Mono Headset

W3K08AA

HP UC Wireless Duo Headset

W3K09AA

HP UC Speaker Phone

K7V16AA

Displays

HP EliteDisplay E273m 27-inch Monitor

1FH51AA

HP EliteDisplay E273q 27-inch Monitor

1FH52AA

HP EliteDisplay E243 23.8-inch Monitor

1FH47AA

Docking station model

Total number
of supported
displays (incl.
the notebook
display)

Max.resolutions
supported

Dock
Connectors

Technical limitations

HP UltraSlim Docking Station

3

Dual 2.5K @ 60Hz

2xDP, 1xVGA

Dual 2.5k only with both
displays into
DP

HP Thunderbolt Dock G2
(Available 2Q 2018)

3

Dual 4K @ 60Hz

2xDP, 1xVGA,
1xTB,
1xUSB-C alt­mode

Dual 4k only with one display
in to DP
and + TB port or USB-C alt
mode + TB port

HP Elite USB-C Dock G4
(Available 2Q 2018)

3

Dual 2K @ 60Hz
Single 4K @ 60Hz (3840 x

1440)

1xHDMI, 2xDP
HP USB-C Universal Dock

3

Dual 4K @ 60Hz
Single 5K @ 60Hz

2xDP

HP USB-C Travel Dock

2

Single 2K @ 60Hz

1xHDMI, 1xVGA

Single external display
Only HDMI or VGA at the time

HP USB-C Mini Dock

2

Single 4K @ 30Hz

1xHDMI, 1xVGA

Single external display
Only HDMI or VGA at the time

QuickSpecs

HP EliteBook 840 G5 Notebook PC

Summary of Changes

c05868510 — DA16136 — Worldwide — Version 2 — February 12, 2018

Page 38

Date of change:

Version History:

Description of change:

February 12, 2018

V1 to V2

Update

Processor speed updated

©Copyright 2018 HP Development Company, L.P. The information contained herein is subject to change without notice. The only
warranties are contained in the limited warranty statements accompanying such products and services. Nothing herein should be
construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained
herein. Bluetooth is a trademark of its proprietor used by HP Inc. under license. ENERGY STAR is a registered trademark of the U.S.
Environmental Protection Agency. USB Type-C and USB-C are trademarks of USB Implementers Forum. AMD and Radeon are a
trademark of Advanced Micro Devices, Inc. Microsoft and Windows are either registered trademarks or trademarks of Microsoft
Corporation in the United States and/or other countries.
