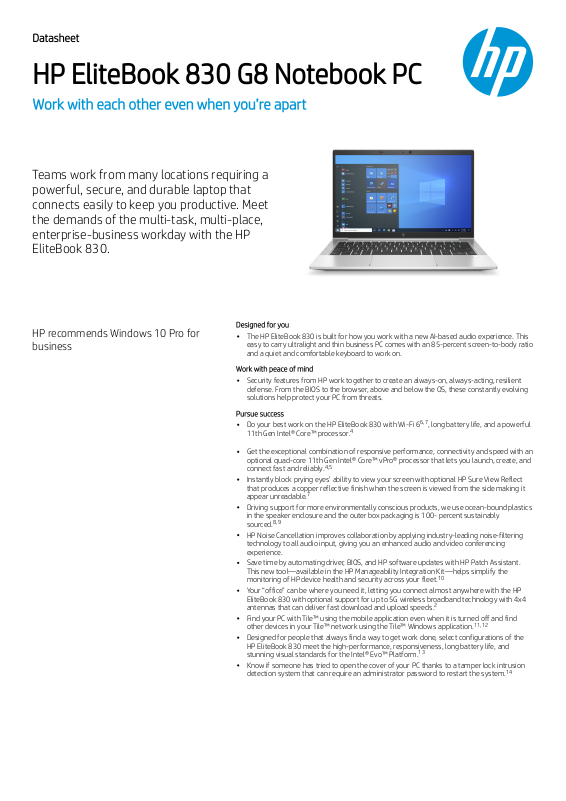

HP EliteBook 830 Datasheet

Datasheet

HP EliteBook 830 G8 Notebook PC

Work with each other even when you’re apart

Teams work from many locations requiring a
powerful, secure, and durable laptop that
connects easily to keep you productive. Meet
the demands of the multi-task, multi-place,
enterprise-business workday with the HP
EliteBook 830.

HP recommends Windows 10 Pro for
business

Designed for you

The HP EliteBook 830 is built for how you work with a new AI-based audio experience. This
easy to carry ultralight and thin business PC comes with an 85-percent screen-to-body ratio
and a quiet and comfortable keyboard to work on.

Work with peace of mind

Security features from HP work together to create an always-on, always-acting, resilient
defense. From the BIOS to the browser, above and below the OS, these constantly evolving
solutions help protect your PC from threats.

Pursue success

Do your best work on the HP EliteBook 830 with Wi-Fi 6 , long battery life, and a powerful
11th Gen Intel® Core™ processor.

Get the exceptional combination of responsive performance, connectivity and speed with an
optional quad-core 11th Gen Intel® Core™ vPro® processor that lets you launch, create, and
connect fast and reliably.

Instantly block prying eyes’ ability to view your screen with optional HP Sure View Reflect
that produces a copper reflective finish when the screen is viewed from the side making it
appear unreadable.

Driving support for more environmentally conscious products, we use ocean-bound plastics
in the speaker enclosure and the outer box packaging is 100- percent sustainably
sourced.

HP Noise Cancellation improves collaboration by applying industry-leading noise-filtering
technology to all audio input, giving you an enhanced audio and video conferencing
experience.

Save time by automating driver, BIOS, and HP software updates with HP Patch Assistant.
This new tool—available in the HP Manageability Integration Kit—helps simplify the
monitoring of HP device health and security across your fleet.

Your “office” can be where you need it, letting you connect almost anywhere with the HP
EliteBook 830 with optional support for up to 5G wireless broadband technology with 4x4
antennas that can deliver fast download and upload speeds.

Find your PC with Tile™ using the mobile application even when it is turned off and find
other devices in your Tile™ network using the Tile™ Windows application.

Designed for people that always find a way to get work done, select configurations of the
HP EliteBook 830 meet the high-performance, responsiveness, long battery life, and
stunning visual standards for the Intel® Evo™ Platform.

Know if someone has tried to open the cover of your PC thanks to a tamper lock intrusion
detection system that can require an administrator password to restart the system.

6,7

4

4,5

7

8,9

10

2

11,12

13

14

Data sheet | HP EliteBook 830 G8 Notebook PC

HP recommends Windows 10 Pro for business

HP EliteBook 830 G8 Notebook PC Specifications Table

Available Operating Systems

Windows 10 Pro 64 – HP recommends Windows 10 Pro for business
Windows 10 Pro 64 (National Academic only)
Windows 10 Home 64
Windows 10 Home Single Language 64
Windows 10 Pro (Windows 10 Enterprise available with a Volume Licensing Agreement)
FreeDOS

Processor family 11th Generation Intel® Core™ i7 processor; 11th Generation Intel® Core™ i5 processor

Available Processors

Intel® Core™ i7-1165G7 (up to 4.7 GHz with Intel® Turbo Boost Technology, 12 MB L3 cache, 4 cores)
Intel® Core™ i7-1185G7 (up to 4.8 GHz with Intel® Turbo Boost Technology, 12 MB L3 cache, 4 cores), supports Intel® vPro® Technology
Intel® Core™ i5-1135G7 (up to 4.2 GHz with Intel® Turbo Boost Technology, 8 MB L3 cache, 4 cores)
Intel® Core™ i5-1145G7 (up to 4.4 GHz with Intel® Turbo Boost Technology, 8 MB L3 cache, 4 cores), supports Intel® vPro® Technology

Display size (diagonal) 13.3"

Maximum memory

64 GB DDR4-3200 SDRAM
Dual channel support.

Memory slots 2 SODIMM

Internal storage

512 GB Intel® PCIe® NVMe™ QLC M.2 SSD with 32 GB Intel® Optane™ memory H10
256 GB up to 2 TB PCIe® Gen3x4 NVMe™ M.2 SSD TLC
256 GB up to 512 GB PCIe® Gen3x4 NVMe™ M.2 SED SSD TLC
512 GB PCIe® NVMe™ Value M.2 SSD
128 GB PCIe® Gen3x2 NVMe™ M.2 SSD TLC
256 GB PCIe® NVMe™ Value M.2 SSD

Display

13.3" diagonal, FHD (1920 x 1080), touch, IPS, 250 nits, 45% NTSC

13.3" diagonal, FHD (1920 x 1080), IPS, 1000 nits, 72% NTSC, HP Sure View Reflect integrated privacy screen

13.3" diagonal, FHD (1920 x 1080), IPS, 250 nits, 45% NTSC

13.3" diagonal, FHD (1920 x 1080), IPS, anti-glare, 400 nits, low power, 72% NTSC

Available Graphics Integrated: Intel® Iris® Xᵉ Graphics

Audio Audio by Bang & Olufsen, dual stereo speakers, 3 multi array microphone

Ports and Connectors

2 Thunderbolt™ 4 with USB4 Type-C® 40Gbps signaling rate (USB Power Delivery, DisplayPort™ 1.4); 2 SuperSpeed USB Type-A 5Gbps signaling rate (1 charging); 1 Stereo
headphone/microphone combo jack; 1 HDMI 2.0b; 1 AC power
(HDMI cable sold separately.)

Optional Ports 1 Smartcard reader (optional)

Available Keyboards HP Premium Keyboard – spill-resistant, backlit keyboard

Available Pointing Devices Touchpad with multi-touch gesture support

Communications

(Compatible with Miracast-certified devices.)
HP Module with NXP NFC Controller NPC300 I2C NCI
Near Field Communication (NFC) module
Intel® AX201 Wi-Fi 6 (2x2) and Bluetooth® 5 combo, non-vPro®
Intel® AX201 Wi-Fi 6 (2x2) and Bluetooth® 5 combo, vPro®
Intel® XMM™ 7360 LTE-Advanced Cat 9; Qualcomm® Snapdragon™ X55 5G LTE Cat 20

Camera 720p HD camera; IR Camera (select models)

Software

HP Connection Optimizer; HP Image Assistant; HP Hotkey Support; HP Noise Cancellation Software; HP PC Hardware Diagnostics UEFI; HP Support Assistant; Buy Office (Sold
separately); HP Power Manager; HP WorkWell; myHP; HP Privacy Settings; HSA Fusion for Commercial; HSA Telemetry for Commercial; Touchpoint Customizer for
Commercial; HP Notifications; HP QuickDrop; Tile App; HP Wireless Button Driver

Security management

Absolute persistence module; HP DriveLock and Automatic DriveLock; HP Secure Erase; Power-on authentication; Preboot authentication; TPM 2.0 embedded security chip
shipped with Windows 10 (Common Criteria EAL4+ Certified); HP Sure Click; HP Sure Sense; Support for chassis padlocks and cable lock devices; HP Sure Start Gen6; HP Sure
Run Gen3; HP Sure Recover Gen3; HP Sure Admin; HP BIOSphere Gen6

Security Software Licenses HP Pro Security Edition (select models)

Fingerprint reader Fingerprint sensor (select models)

Management features HP Driver Packs; HP System Software Manager (SSM); HP BIOS Config Utility (BCU); HP Client Catalog; HP Manageability Integration Kit Gen4

Power HP Smart 65 W External AC power adapter; HP Smart 65 W EM External AC power adapter; HP Smart 45 W External AC power adapter; HP Smart 65 W USB Type-C® adapter

Battery type

HP Long Life 3-cell, 53 Wh Li-ion
Battery is internal and not replaceable by customer. Serviceable by warranty. Fast charging 50% in 30 minutes.

Battery life Up to 14 hours and 15 minutes

Dimensions 12.11 x 8.05 x 0.7 in; 30.76 x 20.45 x 1.79 cm

Weight Starting at 2.74 lb (non-touch); Starting at 2.96 lb (touch); Starting at 1.35 kg (touch); Starting at 1.24 kg (non-touch) (Weight will vary by configuration.)

Energy efficiency compliance ENERGY STAR® certified; EPEAT® registered where applicable. EPEAT registration varies by country. See www.epeat.net for registration status by country.

Sustainable impact specifications Ocean-bound plastic in speaker enclosure; 35% post-consumer recycled plastic; Low Halogen; Bulk packaging available

Warranty

HP Services offers 1-year and 3-year limited warranties and 90 day software limited warranty options depending on country. Batteries have a default one year limited
warranty except for Long Life Batteries which will have same 1-year or 3-year limited warranty as the platform. On-site service and extended coverage is also available. HP
Care Pack Services are optional extended service contracts that go beyond the standard limited warranties. To choose the right level of service for your HP product, use the
HP Care Pack Services Lookup Tool at: http://www.hp.com/go/cpc.


