HP EliteBook 745 G2 Notebook PC
HP EliteBook 755 G2 Notebook PC
Maintenance and Service Guide
© Copyright 2014–2015 HP Development
Company, L.P.
AMD and Radeon are trademarks of Advanced
Micro Devices, Inc. Bluetooth is a trademark
owned by its proprietor and used by HP Inc.
under license. Intel is a trademark of Intel
Corporation in the U.S. and other countries.
Microsoft and Windows are trademarks of the
Microsoft group of companies. SD Logo is a
trademark of its proprietor.
For DTS patents, see http://patents.dts.com.
Manufactured under license from DTS
Licensing Limited. DTS, the Symbol, & DTS and
the Symbol together are registered
trademarks, and DTS Studio Sound is a
trademark of DTS, Inc. © DTS, Inc. All Rights
Reserved .
The information contained herein is subject to
change without notice. The only warranties for
HP products and services are set forth in the
express warranty statements accompanying
such products and services. Nothing herein
should be construed as constituting an
additional warranty. HP shall not be liable for
technical or editorial errors or omissions
contained herein.
Product notice
This guide describes features that are common
to most models. Some features may not be
available on your computer.
Not all features are available in all editions of
Windows. This computer may require upgraded
and/or separately purchased hardware, drivers,
and/or software to take full advantage of
Windows functionality. See for
http://www.microsoft.com details.
This computer may require upgraded and/or
separately purchased hardware and/or a DVD
drive to install the Windows 7 software and
take full advantage of Windows 7 functionality.
See http://windows.microsoft.com/en-us/
windows7/get-know-windows-7 for details.
To access the latest user guide, go to http://
www.hp.com/support, and select your country.
Select Drivers & Downloads, and then follow
the on-screen instructions.
Third Edition: August 2015
First Edition: June 2014
Document Part Number: 764419-003
Important Notice about Customer Self-Repair Parts
CAUTION: Your computer includes Customer Self-Repair parts and parts that should only be accessed by an
authorized service provider. See Removal and replacement procedures for Customer Self-Repair parts
on page 45 for details. Accessing parts described in Removal and replacement procedures for Authorized
Service Provider parts on page 60 can damage the computer or void your warranty.
iii
iv Important Notice about Customer Self-Repair Parts
Safety warning notice
WARNING! To reduce the possibility of heat-related injuries or of overheating the device, do not place the
device directly on your lap or obstruct the device air vents. Use the device only on a hard, at surface. Do not
allow another hard surface, such as an adjoining optional printer, or a soft surface, such as pillows or rugs or
clothing, to block airow. Also, do not allow the AC adapter to contact the skin or a soft surface, such as
pillows or rugs or clothing, during operation. The device and the AC adapter comply with the user-accessible
surface temperature limits dened by the International Standard for Safety of Information Technology
Equipment (IEC 60950-1).
v
vi Safety warning notice
Table of contents
1 Product description ....................................................................................................................................... 1
2 External component identication .................................................................................................................. 7
Display .................................................................................................................................................................... 7
Top .......................................................................................................................................................................... 8
TouchPad ............................................................................................................................................. 8
Lights ................................................................................................................................................... 9
Buttons, speakers, and ngerprint reader (select models only) ...................................................... 10
Keys ................................................................................................................................................... 11
Front ..................................................................................................................................................................... 12
Left ....................................................................................................................................................................... 13
Right ..................................................................................................................................................................... 14
Bottom ................................................................................................................................................................. 15
Labels ................................................................................................................................................................... 17
3 Illustrated parts catalog .............................................................................................................................. 19
Computer major components .............................................................................................................................. 20
Display assembly subcomponents ...................................................................................................................... 25
HP EliteBook 745 models .................................................................................................................. 25
HP EliteBook 755 models .................................................................................................................. 27
Mass storage devices ........................................................................................................................................... 29
Plastics Kit ........................................................................................................................................................... 30
Miscellaneous parts ............................................................................................................................................. 31
Sequential part number listing ........................................................................................................................... 32
4 Removal and replacement procedures preliminary requirements .................................................................... 40
Tools required ...................................................................................................................................................... 40
Service considerations ......................................................................................................................................... 40
Plastic parts ....................................................................................................................................... 40
Cables and connectors ...................................................................................................................... 40
Drive handling ................................................................................................................................... 41
Grounding guidelines ........................................................................................................................................... 41
Electrostatic discharge damage ........................................................................................................ 41
Packaging and transporting guidelines .......................................................................... 43
Workstation guidelines ................................................................................ 43
vii
5 Removal and replacement procedures for Customer Self-Repair parts ............................................................. 45
Component replacement procedures .................................................................................................................. 45
Service door ....................................................................................................................................... 45
Battery ............................................................................................................................................... 47
Hard drive .......................................................................................................................................... 48
Memory module ................................................................................................................................ 50
WWAN module ................................................................................................................................... 52
WLAN module .................................................................................................................................... 54
Keyboard ........................................................................................................................................... 56
6 Removal and replacement procedures for Authorized Service Provider parts ................................................... 60
Component replacement procedures .................................................................................................................. 60
Display panel (non-touch) ................................................................................................................. 60
RTC battery ........................................................................................................................................ 64
Internal base enclosure ..................................................................................................................... 65
Internal base enclosure (HP EliteBook 745 models) ...................................................... 65
Internal base enclosure (HP EliteBook 755 models) ...................................................... 68
Fan ..................................................................................................................................................... 71
Card reader board .............................................................................................................................. 72
VGA/USB board .................................................................................................................................. 74
Heat sink ............................................................................................................................................ 76
Power button board .......................................................................................................................... 78
Fingerprint reader assembly ............................................................................................................. 80
System board .................................................................................................................................... 82
Speaker assembly ............................................................................................................................. 87
Display assembly ............................................................................................................................... 89
7 Computer Setup (BIOS), TPM, and HP Sure Start in Windows 10 ........................................................................ 95
Using Computer Setup ......................................................................................................................................... 95
Starting Computer Setup .................................................................................................................. 95
Navigating and selecting in Computer Setup ................................................................................... 95
Restoring factory settings in Computer Setup ................................................................................. 96
Updating the BIOS ............................................................................................................................. 97
Determining the BIOS version ......................................................................................... 97
8 Computer Setup (BIOS) and MultiBoot in Windows 8.1 ..................................................................................... 98
Using Computer Setup ......................................................................................................................................... 98
Starting Computer Setup .................................................................................................................. 98
Navigating and selecting in Computer Setup ................................................................................... 98
Restoring factory settings in Computer Setup ................................................................................. 99
viii
Updating the BIOS ............................................................................................................................. 99
Determining the BIOS version ......................................................................................... 99
Downloading a BIOS update ......................................................................................... 100
Using MultiBoot ................................................................................................................................................. 101
About the boot device order ........................................................................................................... 101
Choosing MultiBoot preferences ..................................................................................................... 101
Setting a new boot order in Computer Setup ............................................................... 101
Dynamically choosing a boot device using the f9 prompt ........................................... 102
Setting a MultiBoot Express prompt ............................................................................ 102
Entering MultiBoot Express preferences ...................................................................... 102
9 Computer Setup (BIOS) and MultiBoot in Windows 7 ...................................................................................... 103
Using Computer Setup ....................................................................................................................................... 103
Starting Computer Setup ................................................................................................................ 103
Navigating and selecting in Computer Setup ................................................................................. 103
Restoring factory settings in Computer Setup ............................................................................... 104
Updating the BIOS ........................................................................................................................... 104
Determining the BIOS version ...................................................................................... 104
Downloading a BIOS update ......................................................................................... 105
Using MultiBoot ................................................................................................................................................. 105
About the boot device order ........................................................................................................... 105
Choosing MultiBoot preferences ..................................................................................................... 106
Setting a new boot order in Computer Setup ............................................................... 106
Dynamically choosing a boot device using the f9 prompt ........................................... 106
Setting a MultiBoot Express prompt ............................................................................ 107
Entering MultiBoot Express preferences ...................................................................... 107
10 Using Setup Utility (BIOS) in Ubuntu .......................................................................................................... 108
Starting Setup Utility ......................................................................................................................................... 108
Using Setup Utility ............................................................................................................................................. 108
Changing the language of Setup Utility .......................................................................................... 108
Navigating and selecting in Setup Utility ........................................................................................ 108
Displaying system information ....................................................................................................... 109
Restoring factory default settings in Setup Utility ......................................................................... 109
Exiting Setup Utility ........................................................................................................................ 109
11 Using HP PC Hardware Diagnostics (UEFI) ................................................................................................... 110
Downloading HP PC Hardware Diagnostics (UEFI) to a USB device .................................................................. 110
ix
12 Backup and recovery in Windows 10 .......................................................................................................... 112
Creating recovery media and backups .............................................................................................................. 112
Creating HP Recovery media (select products only) ....................................................................... 112
Using Windows tools ......................................................................................................................................... 113
Restore and recovery ......................................................................................................................................... 113
Recovering using HP Recovery Manager ........................................................................................ 114
What you need to know before you get started ........................................................... 114
Using the HP Recovery partition (select products only) .............................................. 115
Using HP Recovery media to recover ............................................................................ 115
Changing the computer boot order .............................................................................. 115
Removing the HP Recovery partition (select products only) ....................................... 116
13 Backup and recovery in Windows 8.1 ......................................................................................................... 117
Backing up your information ............................................................................................................................. 117
Performing a system recovery .......................................................................................................................... 117
Using the Windows recovery tools .................................................................................................. 117
Using f11 recovery tools ................................................................................................................. 118
Using Windows 8.1 operating system media (purchased separately) ........................................... 119
Using Windows Refresh or Windows Reset .................................................................................... 120
Using HP Software Setup ................................................................................................................ 120
14 Backup and recovery in Windows 7 ............................................................................................................ 121
Creating recovery media and backups .............................................................................................................. 121
Guidelines ........................................................................................................................................ 121
Creating recovery media with HP Recovery Disc Creator ............................................................... 121
Creating recovery media ............................................................................................... 122
Backing up your information .......................................................................................................... 122
Performing a system recovery .......................................................................................................................... 123
Using the Windows recovery tools .................................................................................................. 123
Using f11 recovery tools (select models only) ............................................................................... 124
Using Windows 7 operating system media ..................................................................................... 124
15 Backing up, restoring, and recovering in Ubuntu ......................................................................................... 126
Creating a restore image ................................................................................................................................... 126
Creating restore image on DVDs ..................................................................................................... 126
Creating a restore image on a USB device ...................................................................................... 126
Restoring the original factory state ................................................................................................ 127
Backing up your data les ................................................................................................................................. 128
Restoring your data les ................................................................................................................................... 128
x
16 Specications .......................................................................................................................................... 129
Computer specications–HP EliteBook 745 models ........................................................................................ 129
Computer specications–HP EliteBook 755 models ........................................................................................ 130
35.6 cm (14.0 in) HD SVA display specications ............................................................................................... 131
35.6 cm (14.0 in) HD+ SVA display specications ............................................................................................. 131
35.6 cm (14.0 in) FHD, UWVA display specications ......................................................................................... 132
39.6 cm (15.6 in) HD SVA display specications ............................................................................................... 132
39.6 cm (15.6 in) FHD SVA display specications ............................................................................................. 133
Hard drive specications ................................................................................................................................... 134
Solid-state drive specications ......................................................................................................................... 135
17 Statement of Volatility ............................................................................................................................. 136
Non-volatile memory usage .............................................................................................................................. 137
Questions and answers ..................................................................................................................................... 139
Using HP Sure Start (select models only) .......................................................................................................... 140
18 Power cord set requirements .................................................................................................................... 141
Requirements for all countries .......................................................................................................................... 141
Requirements for specic countries and regions ............................................................................................. 142
19 Recycling ................................................................................................................................................ 144
Index ........................................................................................................................................................... 145
xi
xii
1 Product description
Category Description HP EliteBook
745
Product Name HP EliteBook 745 G2 Notebook PC √
HP EliteBook 755 G2 Notebook PC √
Processors Oers the following processors:
●
AMD™ A6 Pro-7050B with Radeon™ R4 Graphics (dual-core; 3.0
GHz/2.2 GHz; 17 W; 1 MB L2 cache)
●
AMD A8 Pro-7150B with Radeon R5 Graphics (quad-core;
3.2 GHz/2.0 GHz; 19 W; 4 MB L2 cache)
●
AMD A10 Pro-7350B with Radeon R6 Graphics (quad-core; 3.3
GHz/2.1 GHz; 19 W; 4 MB L2 cache)
Fusion Controller Hub AMD A76M FCH √ √
Graphics AMD UMA Graphics - with shared video memory
Support dual-display ports through the dock
UMA congurations support 3 independent displays when on the HP
2013 UltraSlim Docking Station
Panel All display assemblies include two wireless local area network (WLAN)
antenna cables and two wireless wide area network (WWAN) antenna
cables
●
14.0 in (35.6 cm) HD AG SVA 45% CG 200 nits (cd/m2) eDP 1.2 at
(1366x768) display with and without webcam
●
14.0 in (35.6 cm) HD+ AG SVA 45% CG 250 nits (cd/m2) eDP 1.2 at
(1600x900) display with and without webcam
●
14.0 in (35.6 cm) FHD AG UWVA 72% CG 300 nits (cd/m2) eDP 1.3 +
PSR slim (1920x1080) display with and without webcam
●
14.0 in (35.6 cm) FHD UWVA 72% CG 300 nits (cd/m2) eDP 1.3 +
PSR slim (1920x1080) display with capacitive touch enabled and
webcam
√ √
√ √
√ √
√
HP EliteBook
755
Memory Two customer-accessible/upgradable memory module slots with the
●
15.6 in (39.6 cm) HD AG SVA 45% CG 200 nits (cd/m2) eDP 1.2 at
(1366x768) display with and without webcam
●
15.6 in (39.6 cm) FHD AG SVA 60% CG 300 nits (cd/m2) eDP 1.2 slim
(1920x1080) display with and without webcam
●
15.6 in (39.6 cm) FHD AG SVA 60% CG 300 nits (cd/m2) eDP 1.2 slim
(1920x1080) display capacitive touch enabled and webcam
following specications:
DDR3L PC3L-12800 (1600 MHz) SODIMMs
Supports dual channel memory
Supports 16384 MB of system RAM in the following congurations:
√
√ √
1
Category Description HP EliteBook
745
●
16384 MB (8192 MB×2)
●
8192 MB (8192 MB×1 or 4096 MB×2)
●
4096 MB (4096 MB×1)
HP EliteBook
755
Primary storage Supports 2.5 in (6.35 cm) hard drives in 9.5 mm (.37 in) and 7.0 mm (.28
in) thicknesses (all hard drives use the same bracket)
Customer-accessible
Supports the following SATA, 7 mm/9.5 mm, 2.5 in hard drives:
●
1 TB, 7200 rpm
●
500 GB, 7200 rpm, self-encrypting drive (SED), supporting Opal 1.0
Storage Specication
●
500 GB, 7200 rpm
●
500 GB, 5400 rpm, self-encrypting drive (SED, FIPS-140-2),
supporting Opal 2.0 Storage Specication
●
320 GB, 7200 rpm
Supports the following 2.5 in Solid-State Drives (SSDs):
●
512 GB, SATA III – TLC
●
256 GB SATA III, SED, supporting Opal 2.0
●
256 GB, SATA III – TLC
●
240 GB, SATA III
●
180 GB, SATA III, SED, supporting Opal 2.0
●
180 GB, SATA III, SED, supporting Opal 1.0
●
180 GB, SATA III
●
128 GB, SATA III – TLC
●
128 GB, SATA III
√ √
√ √
Audio and video Two stereo speakers √ √
HD audio with DTS Sound Studio √ √
Integrated 720p webcam (supports no camera option) √ √
Integrated dual-array microphone √ √
Ethernet Realtek RTL8111EP 10/100/1000 Ethernet NIC with DASH Support
Wireless Integrated wireless local area network (WLAN) options by way of
2 Chapter 1 Product description
S3/S4/S5 wake on LAN
minicard
Two WLAN antennas built into display assembly
Support for the following WLAN formats:
●
Qualcomm Atheros AR9485 802.11b/g/n 1x1 WiFi Adaptor (select
models only)
●
Broadcom BCM4352 802.11ac 2x2 Wi-Fi + Bluetooth® 4.0 combo
(select models only)
√ √
√ √
Category Description HP EliteBook
745
●
Broadcom BCM943228HMB WiDi 802.11 a/b/g/n 2x2 Wi-Fi +
Bluetooth 4.0 combo (select models only)
Supports no WLAN option
Compatible with Miracast-certied devices for Windows® 8.1 and
Windows 10
HP EliteBook
755
Integrated wireless wide area network (WWAN) options by way of
wireless module
Two world-wide/5-band WWAN antennas built into display assembly
Secured by subscriber identity module (SIM, user-accessible behind
battery)
Support for the following WWAN formats:
●
HP lt4211 LTE/EV-DO/HSPA+ 4G Mobile Broadband Module
●
HP lt4112 LTE/HSPA+ 4G Mobile Broadband Module
●
HP hs3110 HSPA+ Mobile Broadband Module
●
HP hs3110 HSPA+ with GPS M.2 Mobile Broadband Module
Supports no WWAN option
Supports WWAN after market option
External media cards Media reader slot supporting the following digital card formats:
●
Secure Digital (SD) Memory Card
●
SDHC
●
SDXC
Ports Oers the following ports:
●
Headphone/microphone combo
●
DisplayPort 1.2
●
Docking connector
●
USB 3.0 ports (3)
●
USB 3.0 charging port
●
HP Smart AC adapter
●
RJ-45 (Ethernet)
●
VGA (Dsub 15 pin) supporting: 1920×1200 external resolution @
75 Hz, hot plug and unplug and auto detection for correct output to
wide-aspect versus standard aspect video
√ √
√ √
√ √
Keyboard/pointing
devices
Backlit (select models only) √ √
Gesture support: MultiTouch gestures enabled, two-nger scrolling, and
Taps enabled by default √ √
●
Secondary battery connector √
Glass with chemical etched surface, dual-point, spill-resistant with drain,
DuraKeys
pinch-zoom as default
√ √
√ √
3
Category Description HP EliteBook
745
Supports two-way scroll √ √
On/o button √ √
Power requirements Supports the following HP Smart AC adapters:
HP EliteBook
755
Supports the following batteries:
Security Supports security cable lock √ √
Supports ngerprint reader and no ngerprint reader option √ √
Supports Trusted Platform Module (TPM) 1.2 (Inneon, soldered down)
Integrated Smart Card reader (active) √ √
Full volume encryption √ √
Preboot authentication (password, Smart Card) √ √
Operating system Windows 8.1 Update
●
65 W HP Smart AC adapter (select models only) √ √
●
45 W HP Smart AC adapter (select models only) √ √
●
45 W 2-prong 7.4 mm DC jack AC adapter (select models only) √ √
√ √
●
3 cell, 50 Wh, 4.45 Ah long-life battery
●
3 cell, 24 Wh, 2.2 Ah long-life battery
●
Secondary 6 cell, 60 Wh, 2.7 Ah battery √
√ √
and TPM Enhanced Drive Lock
√ √
Windows 7 Service Pack 1
Preinstalled:
●
Windows 10 Home 64 High-end (only available for systems with at
least 1080p (FHD) and at least 8 GB RAM)
●
Windows 10 Home 64 High-end single language (only available for
systems with at least 1080p (FHD) and at least 8 GB RAM)
●
Windows 10 Home 64 High-end Chinese market (only available in
the People's Republic of China and for systems with at least 1080p
(FHD) and at least 8 GB RAM)
●
Windows 10 Home 64 (only available for systems with less than
1080p (FHD) and less than 8 GB RAM)
●
Windows 10 Home 64 single language (only available for systems
with at least 1080p (FHD) and at least 8 GB RAM)
●
Windows 10 Home 64 Chinese market (only available in the
People's Republic of China and for systems with at least 1080p
(FHD) and at least 8 GB RAM)
●
Windows 10 Home 64 Chinese market CPPP (only available in the
People's Republic of China and for systems with at least 1080p
(FHD) and at least 8 GB RAM)
●
Windows 10 Pro 64
●
Windows 10 Pro 64 Downgrade with Windows 7 Professional 64
and 32
4 Chapter 1 Product description
Category Description HP EliteBook
745
●
Windows 8.1 Pro 64
●
Windows 8.1 Chinese market 64, (only available in the People's
Republic of China)
●
Windows 8.1 Chinese market 64 (CPPP), (only available in the
People's Republic of China)
●
Windows 8.1 ML 64
●
Windows 8.1 emerging market 64 (only available for systems with
less than 1080p (FHD) and less than 8 GB RAM)
●
Windows 8.1 ML 64 (only available for systems with less than
1080p (FHD) and less than 8 GB RAM)
●
Windows 8.1 High-end emerging market 64 (only available for
systems with at least 1080p (FHD) and at least 8 GB RAM)
●
Windows 8.1 High-end ML 64 (only available for systems with at
least 1080p (FHD) and at least 8 GB RAM)
●
Windows 8.1 emerging market 64
●
Windows 8.1 ML 64
●
Windows 8.1 Pro for Education
●
Windows 8.1 Core for Higher Education ML 64 (select markets)
●
Windows 8.1 Pro 64 downgrade with Windows 7 Professional 64
and 32
●
Windows 8.1 Pro 64 DPK with Windows 7 Professional MSNA 64
and 32
●
Windows 7 Home Premium 64
●
Windows 7 Home Premium 32 (only available if 4096 MB Total
System Memory or less is selected)
●
Windows 7 Professional 64
●
Windows 7 Professional 64, MSNA
●
Windows 7 Professional 32(only available if 4096 MB Total System
Memory or less is selected)
●
Windows 7 Home Basic 32(only available if 4096 MB Total System
Memory or less is selected)
●
Windows 7 Home Basic 32 (CPPP), (only available in the People's
Republic of China)
●
FreeDOS 2.0
●
Ubuntu Linux (not allowed with WWAN and/or Touch or 2.5 inch
HDD/SSD, if M.2 SSD is selected)
HP EliteBook
755
5
Category Description HP EliteBook
745
HP EliteBook
755
Restore media—OS-DVD:
●
Windows 8.1 Pro 64 (only available and required with Windows 8
Pro downgrade operating system, except Asia-Pacic countries and
regions and the People's Republic of China)
●
Windows 8.1 64 (update; available for service only)
●
Windows 8.1 Country-Specic 64 (available for service only)
●
Windows 8.1 Emerging Market 64 (available for service only)
●
Windows 7 Home Premium 64 and 32 (available with any Windows
7 HP operating system except Asia-Pacic countries and regions
and the People's Republic of China)
●
Windows 7 Professional 64 and 32 (available with any Windows 7
Professional, Windows 8.1 Pro, or Windows 10 Pro downgrade
except Asia-Pacic countries and regions and the People's Republic
of China)
●
Windows 7 Home Basic 32 (available with any Windows 7 Home
Basic except Asia-Pacic countries and regions and the People's
Republic of China)
Restore media—SR-DVD:
●
Ubuntu Linux
Certied:
●
Microsoft® WHQL
●
SuSE Linux Enterprise (SLED) SP3 64 bit
√ √
√ √
√ √
Web-only support:
●
Windows 10 Enterprise
●
Windows 8.1 Enterprise 64
●
Windows 7 Enterprise 64 and 32
Serviceability End user replaceable parts:
●
AC adapter
●
Battery
●
HDD/SSD hard drive
●
Keyboard
●
Memory module
●
WLAN module
●
WWAN module
√ √
√ √
6 Chapter 1 Product description
2 External component identication
Display
Component Description
(1) WLAN antennas (2)* (select models only) Send and receive wireless signals to communicate with wireless local
area networks (WLAN).
(2) WWAN antennas (2)* (select models only) Send and receive wireless signals to communicate with wireless wide
area networks (WWAN).
(3) Internal microphones (2) Record sound.
(4) Webcam light (select models only) On: The webcam is in use.
(5) Webcam (select models only) Records video and captures still photographs.
(6) Internal display switch Turns o the display or initiates Sleep if the display is closed while
the power is on.
NOTE: The display switch is not visible on the outside of the
computer.
*The antennas are not visible on the outside of the computer. For optimal transmission, keep the areas immediately around the
antennas free from obstructions. To see wireless regulatory notices, see the section of the Regulatory, Safety, and Environmental
Notices that applies to your country or region.
Display 7
Top
TouchPad
Component Description
(1) Pointing stick Moves the pointer and selects or activates items on the screen.
(2) Left pointing stick button Functions like the left button on an external mouse.
(3) TouchPad on/o button Turns the TouchPad on and o. (Select models only.)
(4) TouchPad zone Moves the pointer and selects or activates items on the screen.
(5) Left TouchPad button Functions like the left button on an external mouse.
(6) Right pointing stick button Functions like the right button on an external mouse.
(7) Right TouchPad button Functions like the right button on an external mouse.
8 Chapter 2 External component identication
Lights
Component Description
(1) Power light
(2) Caps lock light On: Caps lock is on.
(3) TouchPad light
(4) Microphone mute light
(5) Num lock light On: Num lock is on.
(6) Wireless light
(7) Mute light
●
On: The computer is on.
●
Blinking: The computer is in the Sleep state.
●
O: The computer is o.
●
On: The TouchPad is o.
●
O: The TouchPad is on.
(Select models only.)
●
Amber: microphone sound is o.
●
O: microphone sound is on.
●
White: An integrated wireless device, such as a wireless
local area network (WLAN) device and/or a Bluetooth
device, is on.
●
Amber: All wireless devices are o.
●
Amber: Computer sound is o.
●
O: Computer sound is on.
Top 9
Buttons, speakers, and ngerprint reader (select models only)
Component Description
(1) Power button
(2) Speakers (2) Produce sound.
(3) Wireless button Turns the wireless feature on or o but does not establish a
(4) Volume mute button Mutes and restores speaker sound.
(5) Fingerprint reader (select models only) Allows a ngerprint logon to Windows, instead of a password
●
When the computer is o, press the button to turn on the
computer.
●
When the computer is on, press the button briey to initiate
Sleep.
●
When the computer is in the Sleep state, press the button
briey to exit Sleep.
●
When the computer is in Hibernation, press the button
briey to exit Hibernation.
CAUTION: Pressing and holding down the power button will
result in the loss of unsaved information.
If the computer has stopped responding and operating system
shutdown procedures are ineective, press and hold the power
button for at least 5 seconds to turn o the computer.
wireless connection.
logon.
10 Chapter 2 External component identication
Keys
Component Description
(1) esc key (Windows only) Displays system information when pressed in
combination with the fn key.
(2) fn key Executes frequently used system functions when pressed in
combination with a function key, the num lk key, or the esc key.
(3) Windows key Windows 10:
Opens the Start menu.
NOTE: Pressing the Windows key again will close the Start
menu.
Windows 8.1:
Returns you to the Start screen from an open app or the
Windows desktop.
NOTE: Pressing the Windows key again will return you to the
previous screen.
Windows 7:
Displays the Windows Start menu.
Ubuntu:
Displays the operating system menu.
(4) Function keys Execute frequently used system functions when pressed in
combination with the fn key.
(5) Embedded numeric keypad When the keypad is turned on, it can be used like an external
numeric keypad.
Each key on the keypad performs the function indicated by the
icon in the upper-right corner of the key.
(6) Applications key Windows 10 and Windows 8.1:
Displays options for a selected object.
Windows 7 and Ubuntu:
Top 11
Front
Component Description
Displays a shortcut menu for items beneath the cursor.
(7) num lk key Turns the embedded numeric keypad on and o when pressed in
combination with the fn key.
Component Description
(1) Wireless light
(2) Power light
(3) AC adapter/Battery light
(4) Hard drive light
●
White: An integrated wireless device, such as a
wireless local area network (WLAN) device and/or a
Bluetooth device, is on.
●
Amber: All wireless devices are o.
●
On: The computer is on.
●
Blinking: The computer is in the Sleep state.
●
O: The computer is o.
●
White: The computer is connected to external power
and the battery is charged from 90 to 99 percent.
●
Amber: The computer is connected to external power
and the battery is charged from 0 to 90 percent.
●
Blinking amber: A battery that is the only available
power source has reached a low battery level. When
the battery reaches a critical battery level, the
battery light begins blinking rapidly.
●
O: The battery is fully charged.
●
Blinking white: The hard drive is being accessed.
●
Amber: HP 3D DriveGuard has temporarily parked the
hard drive.
12 Chapter 2 External component identication
Left
Component Description
(1) Security cable slot Attaches an optional security cable to the computer.
NOTE: The security cable is designed to act as a deterrent, but
it may not prevent the computer from being mishandled or
stolen.
(2) Vent Enables airow to cool internal components.
NOTE: The computer fan starts up automatically to cool
internal components and prevent overheating. It is normal for
the internal fan to cycle on and o during routine operation.
(3) External monitor port Connects an external VGA monitor or projector.
(4) USB 3.0 charging port Connects optional USB 3.0 devices and provides enhanced USB
power performance. The USB charging port can also charge
select models of cell phones and MP3 players, even when the
computer is o.
(5) USB 3.0 port Connects optional USB 3.0 devices and provide enhanced USB
power performance.
(6) Smart card reader Supports optional smart cards.
Left 13
Right
Component Description
(1) Audio-out (headphone) jack/Audio-in
(microphone) jack
(2) DisplayPort Connects an optional digital display device, such as a high-
(3) Memory card reader Reads data from and writes data to memory cards such as
(4) USB 3.0 ports (2) Connect optional USB 3.0 devices and provide enhanced USB
(5) RJ-45 (network) jack Connects a network cable.
(6) Docking connector Connects an optional docking device.
Produces sound when connected to optional powered stereo
speakers, headphones, earbuds, a headset, or television audio.
Also connects an optional headset microphone.
WARNING! To reduce the risk of personal injury, adjust the
volume before putting on headphones, earbuds, or a headset.
For additional safety information, see the Regulatory, Safety,
and Environmental Notices.
NOTE: When a device is connected to the jack, the computer
speakers are disabled.
NOTE: Be sure that the device cable has a 4-conductor
connector that supports both audio-out (headphone) and
audio-in (microphone).
performance monitor or projector.
Secure Digital (SD).
power performance.
(7) Power connector Connects an AC adapter.
14 Chapter 2 External component identication
Bottom
NOTE: Your computer bottom will resemble one of the examples shown below. Refer to the illustration that
most closely matches your computer.
Component Description
(1) Accessory battery connector Connects an optional accessory battery.
(2) Service door Provides access to the hard drive bay, the wireless LAN
(WLAN) module slot, the WWAN module slot, and the
memory module slots.
CAUTION: To prevent an unresponsive system, replace
the wireless module only with a wireless module
authorized for use in the computer by the governmental
agency that regulates wireless devices in your country or
region.
(3) Service door release latch Releases the service door on the computer.
(4) Service door release lock Locks service door.
(5) Vents (2) Enable airow to cool internal components.
Bottom 15
Component Description
NOTE: The computer fan starts up automatically to cool
internal components and prevent overheating. It is normal
for the internal fan to cycle on and o during routine
operation.
(6) SIM slot (select models only) Supports a wireless subscriber identity module (SIM). The
SIM slot is located inside the battery bay.
Component Description
(1) Service door Provides access to the hard drive bay, the
(2) Service door release latch Releases the service door on the computer.
(3) Service door release lock Locks the service door.
16 Chapter 2 External component identication
wireless LAN (WLAN) module slot, the WWAN
module slot, and the memory module slots.
CAUTION: To prevent an unresponsive
system, replace the wireless module only with
a wireless module authorized for use in the
computer by the governmental agency that
regulates wireless devices in your country or
region.
Labels
Component Description
(4) Vents (2) Enable airow to cool internal components.
NOTE: The computer fan starts up
automatically to cool internal components and
prevent overheating. It is normal for the
internal fan to cycle on and o during routine
operation.
(5) SIM slot (select models only) Supports a wireless subscriber identity module
(SIM). The SIM slot is located inside the battery
bay.
The labels axed to the computer provide information you may need when you troubleshoot system
problems or travel internationally with the computer.
IMPORTANT: Check the following locations for the labels described in this section: the bottom of the
computer, inside the battery bay, under the service door, or on the back of the display.
●
Service label—Provides important information to identify your computer. When contacting support, you
will probably be asked for the serial number, and possibly for the product number or the model number.
Locate these numbers before you contact support.
Your service label will resemble one of the examples shown below. Refer to the illustration that most
closely matches the service label on your computer.
Component
(1) Serial number
(2) Product number
(3) Warranty period
(4) Model number (select products only)
Labels 17
Component
(1) Model name (select products only)
(2) Product number
(3) Serial number
(4) Warranty period
●
Regulatory label(s)—Provide(s) regulatory information about the computer.
●
Wireless certication label(s)—Provide(s) information about optional wireless devices and the approval
markings for the countries or regions in which the devices have been approved for use.
18 Chapter 2 External component identication
3 Illustrated parts catalog
NOTE: HP continually improves and changes product parts. For complete and current information on
supported parts for your computer, go to http://partsurfer.hp.com, select your country or region, and then
follow the on-screen instructions.
19
Computer major components
20 Chapter 3 Illustrated parts catalog
IMPORTANT: For system board (15) replacement on computers with serial numbers xxx501xxxx and below,
use the conversion kit (see product description for “(Gold Conversion Kit)” in the section marked 15a of the
table below). For computers with serial numbers xxx502xxxx and above, use the standard spare kit (see
product description for “(Gold)”).
Item Component Spare part number
(1) Display assembly: Non-touch display assemblies are spared at the subcomponent level only. For more display assembly
spare part information, see Display assembly subcomponents on page 25.
Touch screen display assemblies are only spared as whole units.
15 in, FHD,AG SVA, slim for use in HP EliteBook 755 models 774990-001
14 in, FHD, UWVA, slim, for use in HP EliteBook 745 models 777325-001
(2) Keyboard, with pointing sick, (includes cables)
NOTE: For a detailed list of available keyboards, see Sequential part number listing
on page 32.
Backlit 776475-xx1
No backlight 776474–xx1
(3) Top cover (includes TouchPad):
For use on HP EliteBook 745 models 779683-001
For use on HP EliteBook 755 models 779687-001
For use on HP EliteBook 745 models 797437-001
For use on HP EliteBook 755 models 797431-001
(4) Power button board
For use on HP EliteBook 745 models 730959-001
For use on HP EliteBook 755 models 730822-001
(5) RTC battery 665733-001
(6) Card reader board
For use on HP EliteBook 745 models 768791-001
For use on HP EliteBook 745 models (Gold) 802539-001
For use on HP EliteBook 755 models 773960-001
For use on HP EliteBook 755 models (Gold) 802540-001
(7) Speaker assembly (includes cable) 730798-001
(8) VGA/USB board
For use in HP EliteBook 745 models 768792-001
For use in HP EliteBook 755 models 773961-001
(9) Fingerprint reader board (includes cable, bracket, and insulator)
For use in HP EliteBook 745 models 730956-001
For use in HP EliteBook 755 models 730817-001
(10) Battery (Li ion):
Computer major components 21
Item Component Spare part number
3 cell, 50 Wh, 4.5 Ah 717376-001
3 cell, 24 Wh, 2.4 Ah 717375-001
(11) Fan (includes cable) 730792-001
(12) Hard drive
2.5 in HDD, SATA, 9.5 mm (does not include the hard drive bracket or screws)
1 TB, 7200 rpm 766644-001
2.5 in HDD, SATA, 7 mm (does not include the hard drive bracket or screws)
500 GB, 7200 rpm, SED 703268-001
500 GB, 7200 rpm 703267-001
500 GB, 5400 rpm, FIPS 730946-001
320 GB, 7200 rpm 634862-001
Hard Drive Hardware Kit (not illustrated, includes hard drive bracket and screws) 730793-001
2.5 in SSD (includes hard drive bracket or screws)
512 GB, SATA III, TLC 833662-001
240 GB, SATA III 768805-001
256 GB, SATA III, Self-Encrypting Drive (SED), supporting Opal 2.0 Storage Specication 768807-001
256 GB, SATA III, TLC 816245-001
180 GB, SATA III, SED, supporting Opal 2.0 798538-001
180 GB, SATA III, SED, supporting Opal 1.0 768804-001
180 GB, SATA III 768803-001
128 GB, SATA III, TLC 816244-001
128 GB, SATA III 768802-001
(13) Heat sink (includes replacement thermal material):
For use only on HP EliteBook 745 models 768790-001
For use only on HP EliteBook 755 models 773959-001
(14) Memory modules (PC3L, 12800, 1600 MHz):
8 GB memory module 693374-001
4 GB memory module 691740-001
(15) System board (includes replacement thermal material):
For use on models with AMD A6-7050B G2 processor for use with models without the
Windows 8.1 or Windows 10 operating systems
For use on models with AMD A6-7050B G2 processor for use with models with the
Windows 8.1 Standard or Windows 10 Home operating systems
768794-001
768794-501
For use on models with AMD A6-7050B G2 processor for use with models with the
Windows 8.1 or Windows 10 Professional operating systems
22 Chapter 3 Illustrated parts catalog
768794-601
Item Component Spare part number
For use on models with AMD A6-7050B G2 processor for use with the Windows 8.1 or
Windows 10 Professional operating systems (Gold)
For use on models with AMD A6-7050B G2 processor for use with the Windows 8.1 Standard
or Windows 10 Home operating systems (Gold)
For use on models with AMD A6-7050B G2 processor for use with models without the
Windows 8.1 or Windows 10 operating systems (Gold)
For use on models with AMD A8-7150B G2 processor for use with models without the
Windows 8.1 or Windows 10 operating systems
For use on models with AMD A8-7150B G2 processor for use with models with the
Windows 8.1 Standard or Windows 10 Home operating systems
For use on models with AMD A8-7150B G2 processor for use with models with the
Windows 8.1 or Windows 10 Professional operating systems
For use on models with AMD A8-7150B G2 processor for use with the Windows 8.1 or
Windows 10 Professional operating systems (Gold)
For use on models with AMD A8-7150B G2 processor for use with the Windows 8.1 Standard
or Windows 10 Home operating systems (Gold)
For use on models with AMD A8-7150B G2 processor for use with models without the
Windows 8.1 or Windows 10 operating systems (Gold)
For use on models with AMD A10-7350B G2 processor for use with the Windows 8.1 or
Windows 10 Professional operating systems
For use on models with AMD A10-7350B G2 processor for use with the Windows 8.1
Standard or Windows 10 Home operating systems
802541-601
802541-501
802541-001
768795-001
768795-501
768795-601
802542-601
802542-501
802542-001
768801-601
768801-501
For use on models with AMD A10-7350B G2 processor for use with models without the
Windows 8.1 or Windows 10 operating systems
For use on models with AMD A10-7350B G2 processor for use with the Windows 8.1 or
Windows 10 Professional operating systems (Gold)
For use on models with AMD A10-7350B G2 processor for use with the Windows 8.1
Standard or Windows 10 Home operating systems (Gold)
For use on models with AMD A10-7350B G2 processor for use with models without the
Windows 8.1 or Windows 10 operating systems (Gold)
(15) System board (Gold Conversion Kits) (includes replacement thermal material):
For use on models with AMD A6-7050B G2 processor for use with the Windows 8.1 or
Windows 10 Professional operating system (Gold Conversion Kit)
For use on models with AMD A6-7050B G2 processor for use with the Windows 8.1 Standard
or Windows 10 Home operating system (Gold Conversion Kit)
For use on models with AMD A6-7050B G2 processor for use with models without the
Windows 8.1 or Windows 10 operating system (Gold Conversion Kit)
For use on models with AMD A8-7150B G2 processor for use with the Windows 8.1
Professional or Windows 10 Professional operating system (Gold Conversion Kit)
For use on models with AMD A8-7150B G2 processor for use with the Windows 8.1 Standard
or Windows 10 Home operating system (Gold Conversion Kit)
For use on models with AMD A8-7150B G2 processor for use with models without the
Windows 8.1 or Windows 10 operating system (Gold Conversion Kit)
768801-001
802543-601
802543-501
802543-001
802541-6C1
802541-5C1
802541-0C1
802542-6C1
802542-5C1
802542-0C1
Computer major components 23
Item Component Spare part number
For use on models with AMD A10-7350B G2 processor for use with the Windows 8.1
Professional or Windows 10 Professional operating system (Gold Conversion Kit)
For use on models with AMD A10-7350B G2 processor for use with the Windows 8.1
Standard or Windows 10 Home operating system (Gold Conversion Kit)
For use on models with AMD A10-7350B G2 processor for use with models without the
Windows 8.1 or Windows 10 operating system (Gold Conversion Kit)
(16) WLAN module:
Qualcomm Atheros AR9485 802.11 b/g/n 1x1 WiFi Adaptor (select models only) 675794-001
Broadcom BCM4352 802.11ac 2x2 Wi-Fi + Bluetooth 4.0 combo (select models only) 724935-001
Broadcom BCM943228HMB WiDi 802.11 a/b/g/n 2x2 Wi-Fi + Bluetooth 4.0 combo (select
models only)
(17) WWAN module:
HP lt4211 LTE/EV-DO/HSPA+ 4G Mobile Broadband Module 793116-001
HP lt4112 LTE/HSPA+ 4G Mobile Broadband Module 740011-001
HP hs3110 HSPA+ Mobile Broadband Module 748599-001
HP hs3110 HSPA+ GPS M.2 Mobile Broadband Module 822828-001
(18) Internal base enclosure (includes RJ-45 door with spring)
For use only on HP EliteBook 745 models 779684-001
802543-6C1
802543-5C1
802543-0C1
730668-001
For use only on HP EliteBook 755 models 779688-001
Rubber Kit (not illustrated; includes rubber screw covers): 730796-001
(19) Service door
For use only on HP EliteBook 745 models 768793-001
For use only on HP EliteBook 755 models 773962-001
24 Chapter 3 Illustrated parts catalog
Display assembly subcomponents
HP EliteBook 745 models
Item Component Spare part number
(1) Display bezel: 768808-001
(2) Webcam 777326-001
Microphone module (not illustrated) 730795-001
(3) Antenna kit (includes cables and transceivers for WLAN and WWAN) 780080-001
(4) Display panel cable (includes webcam/microphone module cable) 730954-001
(5) 14.0 in (35.6 cm) , LED, AntiGlare display panel:
HD, SVA (1366×768), 200 nits (cd/m2), at
HD+, SVA (1920×1080), 250 nits (cd/m2), at
768809-001
768810-001
Display assembly subcomponents 25
Item Component Spare part number
Display Hinge Kit (includes left and right hinges and hinge covers) 730957-001
(6) Left and right hinges
(7) Left and right hinge covers
(8) Display enclosure 779682-001
FHD, SVA (1920×1080) 300 nits (cd/m2), slim
768811-001
26 Chapter 3 Illustrated parts catalog
HP EliteBook 755 models
Item Component Spare part number
(1) Display bezel 773963-001
(2) Webcam 777326-001
Microphone module (not illustrated) 730795-001
(3) 15.6 in (39.6 cm), LED, AntiGlare display panel:
(4) Display panel cable (includes webcam/microphone module cable) 730801-001
(5) Antenna kit (includes cables and transceivers for WLAN and WWAN) 780081-001
Display Hinge Kit (includes left and right hinges and hinge covers): 730819-001
(6) Left and right hinges
HD AG SVA 45% CG 200 nits (cd/m2) eDP 1.2 at (1366x768)
FHD AG SVA 60% CG 300 nits (cd/m2) eDP 1.2 slim (1920x1080)
777834-001
777835-001
Display assembly subcomponents 27
Item Component Spare part number
(7) Left and right hinge covers
(8) Display enclosure 779686-001
28 Chapter 3 Illustrated parts catalog
Mass storage devices
Item Description Spare part number
(1) Hard Drive Hardware Kit, includes bracket 730793-001
(2) Hard drive (does not include hard drive bracket or screws):
2.5 in HDD, SATA, 9.5 mm (does not include the hard drive bracket or screws)
1 TB, 7200 rpm 766644-001
2.5 in HDD, SATA, 7 mm (does not include the hard drive bracket or screws)
500 GB, 7200 rpm, SED 703268-001
500 GB, 7200 rpm 703267-001
500 GB, 5400 rpm, FIPS 730946-001
320 GB, 7200 rpm, 634862-001
2.5 in SSD (includes hard drive bracket and screws):
256 GB, SATA III, SED, supporting Opal 2.0 768807-001
240 GB, SATA III 768805-001
180 GB, SATA III, SED, supporting Opal 2.0 798538-001
180 GB, SATA III, SED, supporting Opal 1.0 768804-001
180 GB, SATA III 768803-001
128 GB, SATA III 768802-001
Mass storage devices 29
Plastics Kit
Item Description Spare part number
Plastics Kit for use only on HP EliteBook 745 models 730958-001
Plastics Kit for use only on HP EliteBook 755 models 730802-001
(1) SD card insert, illustrated
(2) Fingerprint reader insert
(3) RJ-45 spring
(4) RJ-45 door
30 Chapter 3 Illustrated parts catalog
Miscellaneous parts
Component Spare part number
AC adapter:
45 W HP Smart AC adapter (non-PFC, 7.4 mm RC NSLIM) 744893-001
45 W HP Smart AC adapter (non-PFC, RC 2 prong), for use in HP EliteBook 755 models 742437-001
65 W HP Smart AC travel adapter (non-PFC) 693716-001
65 W HP Smart AC adapter (RC/V, EM) for use in India and the People’s Republic of China 693710-001
Power cord (3-pin, black, 1.83 m):
For use in Argentina 490371-D01
For use in Australia 490371-011
For use in Brazil 490371-202
For use in Denmark 490371-081
For use in Europe 490371-021
For use in India 490371-D61
For use in Italy 490371-061
For use in Japan 490371-291
For use in North America 490371-001
For use in the People's Republic of China 490371-AA1
For use in South Africa 490371-AR1
For use in South Korea 490371-AD1
For use in Switzerland 490371-111
For use in Taiwan 490371-AB1
For use in Thailand 490371-201
For use in the United Kingdom and Singapore 490371-031
Power cord 3-pin, black, 1.0 m
For use in Argentina 755530-D01
For use in Australia 755530-011
For use in Brazil 755530-202
For use in India 755530-D61
For use in Israel 755530-BB1
For use in Japan 755530-291
For use in North America 755530-001
For use in the People’s Republic of China 755530-AA1
For use in South Africa 755530-AR1
For use in Taiwan 755530-AB1
Miscellaneous parts 31
Component Spare part number
For use in Thailand 755530-201
For use in the United Kingdom and Singapore 755530-031
Power cord 2-pin, black, 1.0 m, for use in Japan 762689-291
Secondary battery, 6 cell, 60 Wh, 2.7 Ah (for use on HP EliteBook 745 models only) 719796-001
SIM card for HP Mobile Connect 714749-001
Sequential part number listing
CSR ag designations:
A = Mandatory
B = Optional
C = Service technician recommended
N = Non-user replaceable
IMPORTANT: For system board replacement on serial numbers xxx501xxxx and below, you must use a
conversion kit (see product description for “(Gold Conversion Kit)”). For serial numbers xxx502xxxx and
above, use the standard spare kit (see product description for “(Gold)”).
Spare part
number
490371-001 A Power cord for use on all computer models in North America (3-pin, black, 1.83-m)
490371-011 A Power cord for use on all computer models in Australia (3-pin, black, 1.83-m)
490371-021 A Power cord for use on all computer models in Europe (3-pin, black, 1.83-m)
490371-031 A Power cord for use on all computer models in the United Kingdom and Singapore (3-pin, black, 1.83-m)
490371-061 A Power cord for use on all computer models in Italy (3-pin, black, 1.83-m)
490371-081 A Power cord for use on all computer models in Denmark (3-pin, black, 1.83-m)
490371-111 A Power cord for use on all computer models in Switzerland (3-pin, black, 1.83-m)
490371-201 A Power cord for use on all computer models in Thailand (3-pin, black, 1.83-m)
490371-202 A Power cord for use on all computer models in Brazil (3-pin, black, 1.83-m)
490371-291 A Power cord for use on all computer models in Japan (3-pin, black, 1.83-m)
490371-AA1 A Power cord for use on all computer models in the People's Republic of China (3-pin, black, 1.83-m)
490371-AB1 A Power cord for use on all computer models in Taiwan (3-pin, black, 1.83-m)
490371-AD1 A Power cord for use on all computer models in South Korea (3-pin, black, 1.83-m)
490371-AR1 A Power cord for use on all computer models in South Africa (3-pin, black, 1.83-m)
490371-D01 A Power cord for use on all computer models in Argentina (3-pin, black, 1.83-m)
CSR
ag
Description
490371-D61 A Power cord for use on all computer models in India (3-pin, black, 1.83-m)
634862-001 A 320 GB, 7200 rpm, 7 mm hard drive (does not include hard drive bracket or screws)
32 Chapter 3 Illustrated parts catalog
Spare part
number
665733-001 N RTC battery
675794-001 A Qualcomm Atheros AR9485 802.11 b/g/n 1x1 WiFi Adaptor (select models only)
691740-001 A 4 GB memory module (PC3L, 12800, 1600 MHz)
693374-001 A 8 GB memory module (PC3L, 12800, 1600 MHz)
693710-001 A 65 W HP Smart AC adapter (RC/V, EM) for use in India and the People’s Republic of China
693716-001 A 65 W HP Smart AC travel adapter (non-PFC)
703267-001 A 500 GB, 7200 rpm, 7 mm hard drive (does not include hard drive bracket or screws)
703268-001 A 500 GB, 7200 rpm, 7 mm, SED hard drive (does not include hard drive bracket or screws)
714749-001 A SIM card for HP Mobile Connect
717375-001 A 3 cell, 24 Wh, 2.40 Ah, Li-ion battery
717376-001 A 3 cell, 50 Wh, 4.50 Ah, Li-ion battery
719796-001 A Secondary 6 cell, 60 Wh, 2.7 Ah (for use on HP EliteBook 745 models only) Li-ion battery
724935-001 A Broadcom BCM4352 802.11ac 2x2 Wi-Fi + Bluetooth 4.0 combo adapter (select models only)
730668-001 A Broadcom BCM943228HMB WiDi 802.11 a/b/g/n 2x2 Wi-Fi + Bluetooth 4.0 combo (select models only)
730792-001 C Fan (includes cable)
CSR
ag
Description
730793-001 A Hard Drive Hardware Kit (includes the hard drive bracket and screws)
730795-001 N Microphone module
730796-001 A Rubber Kit (includes rubber screw covers)
730797-001 N Screw Kit
730798-001 N Speaker assembly (includes cable)
730801-001 N Display panel cable for use only on HP EliteBook 755 models
730802-001 C Plastics Kit for use only on HP EliteBook 755 models (includes SD card insert, RJ-45 door, ngerprint
reader insert, and RJ-45 spring)
730817-001 N Fingerprint reader assembly for use in HP EliteBook 755 models (includes cable, bracket, and insulator)
730819-001 N Display Hinge Kit for use only on HP EliteBook 755 models (includes left and right hinges and hinge
covers)
730822-001 N Power button board for use in HP EliteBook 755 models
730946-001 A 500 GB, 5400 rpm, 7 mm, FIPS hard drive (does not include hard drive bracket or screws)
730954-001 N Display panel cable for use only on HP EliteBook 745 models
730956-001 N Fingerprint reader assembly for use in HP EliteBook 745 models (includes cable, bracket, and insulator)
730957-001 N Display Hinge Kit for use only on HP EliteBook 745 models (includes left and right hinges and hinge
covers)
730958-001 C Plastics Kit for use only on HP EliteBook 745 models (includes SD card insert, RJ-45 door, ngerprint
reader insert, and RJ-45 spring)
730959-001 N Power button board for use in HP EliteBook 745 models
Sequential part number listing 33
Spare part
number
740011-001 B HP lt4112 LTE/HSPA+ 4G Broadband Module
742437-001 A 45 W HP Smart AC adapter (non-PFC, RC 2 prong), for use in HP EliteBook 755 models
744893-001 A 45 W HP Smart AC adapter (non-PFC, 7.4 mm RC NSLIM)
748599-001 B HP hs3110 HSPA+ Mobile Broadband Module
755530-001 A Power cord for use on all computer models in North America (3-pin, black, 1.0 m)
755530-011 A Power cord for use on all computer models in Australia (3-pin, black, 1.0 m)
755530-031 A Power cord for use on all computer models in the United Kingdom and Singapore (3-pin, black, 1.0 m)
755530-201 A Power cord for use on all computer models in Thailand (3-pin, black, 1.0 m)
755530-202 A Power cord for use on all computer models in Brazil (3-pin, black, 1.0 m)
755530-291 A Power cord for use on all computer models in Japan (3-pin, black, 1.0 m)
755530-AA1 A Power cord for use on all computer models in the People’s Republic of China (3-pin, black, 1.0 m)
755530-AB1 A Power cord for use on all computer models in Taiwan (3-pin, black, 1.0 m)
755530-AR1 A Power cord for use on all computer models in South Africa (3-pin, black, 1.0 m)
755530-BB1 A Power cord for use on all computer models in Israel (3-pin, black, 1.0 m)
755530-D01 A Power cord for use on all computer models in Argentina (3-pin, black, 1.0 m)
CSR
ag
Description
755530-D61 A Power cord for use on all computer models in India (3-pin, black, 1.0 m)
755530-291 A Power cord for use on all computer models in Japan (3-pin, black, 1.0 m)
762689-291 A Power cord 2-pin, black, 1.0 m, for use in Japan
766644-001 A 1 TB, 7200 rpm, 9.5 mm hard drive (does not include hard drive bracket or screws)
768790-001 N Heat sink for use only on HP EliteBook 745 models (includes replacement thermal material)
768791-001 C Card reader board for use in HP EliteBook 745 models
768792-001 C VGA/USB board for use in HP EliteBook 745 models
768793-001 A Service door for use only on HP EliteBook 745 models
768794-001 C System board with AMD A6-7050B G2 processor for use in computer models without the Windows 8.1 or
Windows 10 operating system
768794-501 C System board with AMD A6-7050B G2 processor for use in computer models with the Windows 8.1
Standard or Windows 10 Home operating system
768794-601 C System board with AMD A6-7050B G2 processor for use in computer models with the Windows 8.1
Professional or Windows 10 Professional operating system
768795-001 C System board with AMD A8-7150B G2 processor for use in computer models without the Windows 8.1 or
Windows 10 operating system
768795-501 C System board with AMD A8-7150B G2 processor for use in computer models with the Windows 8.1
Standard or Windows 10 Home operating system
768795-601 C System board with AMD A8-7150B G2 processor for use in computer models with the Windows 8.1
Professional or Windows 10 Professional operating system
768801-001 C System board with AMD A10-7350B G2 processor for use in computer models without the Windows 8.1
or Windows 10 operating system
34 Chapter 3 Illustrated parts catalog
Spare part
number
CSR
ag
Description
768801-501 C System board with AMD A10-7350B G2 processor for use in computer models with the Windows 8.1
768801-601 C System board with AMD A10-7350B G2 processor for use in computer models with the Windows 8.1
768802-001 A Solid-state drive, 2.5 in, 128 GB, SATA III (includes hard drive bracket and screws)
768803-001 A Solid-state drive, 2.5 in, 180 GB, SATA III (includes hard drive bracket and screws)
768804-001 A Solid-state drive, 2.5 in, 180 GB, SATA III, SED, supporting Opal 1.0 (includes hard drive bracket and
768805-001 A Solid-state drive, 2.5 in, 240 GB, SATA III (includes hard drive bracket and screws)
768807-001 A Solid-state drive, 2.5 in, 256 GB, SATA III, Self-Encrypting Drive (SED), supporting Opal 2.0 (includes hard
768808-001 N Display bezel for use only on HP EliteBook 745 models
768809-001 C
768810-001 C
768811-001 C
773959-001 N Heat sink for use only on HP EliteBook 755 models (includes replacement thermal material)
Standard or Windows 10 Home operating system
Professional or Windows 10 Professional operating system
screws)
drive bracket and screws)
Raw display panel, 14.0 in (35.6 cm) LED, HD, AG, SVA (1366×768), at, 200 nits (cd/m2) for use in HP
EliteBook 745 models
Raw display panel, 14.0 in (35.6 cm) LED, HD+, AG, SVA (1920×1080), at, 250 nits (cd/m2) for use in HP
EliteBook 745 models
Raw display panel, 14.0 in (35.6 cm) LED, FHD, AG, SVA (1920×1080), slim, 300 nits (cd/m2) for use in HP
EliteBook 745 models
773960-001 C Card reader board for use in HP EliteBook 755 models
773961-001 C VGA/USB board for use in HP EliteBook 755 models
773962-001 A Service door for use only on HP EliteBook 755 models
773963-001 A Display bezel for use only on HP EliteBook 755 models
774990-001 N Display assembly, 15 in, FHD, for use in HP EliteBook 755 models
776474-001 B Keyboard with pointing stick for use in the United States (includes keyboard cable and pointing
stick cable)
776474-031 B Keyboard with pointing stick for use in the United Kingdom and Singapore (includes keyboard cable and
pointing stick cable)
776474-041 B Keyboard with pointing stick for use in Germany (includes keyboard cable and pointing stick cable)
776474-051 B Keyboard with pointing stick for use in France (includes keyboard cable and pointing stick cable)
776474-061 B Keyboard with pointing stick for use in Italy (includes keyboard cable and pointing stick cable)
776474-071 B Keyboard with pointing stick for use in Spain (includes keyboard cable and pointing stick cable)
776474-081 B Keyboard with pointing stick for use in Denmark (includes keyboard cable and pointing stick cable)
776474-091 B Keyboard with pointing stick for use in Norway (includes keyboard cable and pointing stick cable)
776474-131 B Keyboard with pointing stick for use in Portugal (includes keyboard cable and pointing stick cable)
776474-141 B Keyboard with pointing stick for use in Turkey (includes keyboard cable and pointing stick cable)
776474-151 B Keyboard with pointing stick for use in Greece (includes keyboard cable and pointing stick cable)
776474-161 B Keyboard with pointing stick for use in Latin America (includes keyboard cable and pointing stick cable)
Sequential part number listing 35
Spare part
number
776474-171 B Keyboard with pointing stick for use in Saudi Arabia (includes keyboard cable and pointing stick cable)
776474-201 B Keyboard with pointing stick for use in Brazil (includes keyboard cable and pointing stick cable)
776474-211 B Keyboard with pointing stick for use in Hungary (includes keyboard cable and pointing stick cable)
776474-251 B Keyboard with pointing stick for use in Russia (includes keyboard cable and pointing stick cable)
776474-261 B Keyboard with pointing stick for use in Bulgaria (includes keyboard cable and pointing stick cable)
776474-271 B Keyboard with pointing stick for use in Romania (includes keyboard cable and pointing stick cable)
776474-281 B Keyboard with pointing stick for use in Thailand (includes keyboard cable and pointing stick cable)
776474-291 B Keyboard with pointing stick for use in Japan (includes keyboard cable and pointing stick cable)
776474-A41 B Keyboard with pointing stick for use in Belgium (includes keyboard cable and pointing stick cable)
776474-AB1 B Keyboard with pointing stick for use in Taiwan (includes keyboard cable and pointing stick cable)
776474-AD1 B Keyboard with pointing stick for use in South Korea (includes keyboard cable and pointing stick cable)
776474-B31 B Keyboard with pointing stick for use in the Netherlands (includes keyboard cable and pointing
776474-B71 B Keyboard with pointing stick for use in Sweden and Finland (includes keyboard cable and pointing
776474-BA1 B Keyboard with pointing stick for use in Slovenia (includes keyboard cable and pointing stick cable)
CSR
ag
Description
stick cable)
stick cable)
776474-BB1 B Keyboard with pointing stick for use in Israel (includes keyboard cable and pointing stick cable)
776474-BG1 B Keyboard with pointing stick for use in Switzerland (includes keyboard cable and pointing stick cable)
776474-D61 B Keyboard with pointing stick for use in India (includes keyboard cable and pointing stick cable)
776474-DB1 B Keyboard with pointing stick for use in Canada (includes keyboard cable and pointing stick cable)
776474-DD1 B Keyboard with pointing stick for use in Iceland (includes keyboard cable and pointing stick cable)
776474-FL1 B Keyboard with pointing stick for use in the Czech Republic and Slovakia (includes keyboard cable and
pointing stick cable)
776474-FP1 B Keyboard with pointing stick for use in Northwest Africa (includes keyboard cable and pointing
stick cable)
776475-001 B Keyboard, backlit, with pointing stick for use in the United States (includes keyboard cable and pointing
stick cable)
776475-031 B Keyboard, backlit, with pointing stick for use in the United Kingdom and Singapore (includes keyboard
cable and pointing stick cable)
776475-041 B Keyboard, backlit, with pointing stick for use in Germany (includes keyboard cable and pointing
stick cable)
776475-051 B Keyboard, backlit, with pointing stick for use in France (includes keyboard cable and pointing stick cable)
776475-061 B Keyboard, backlit, with pointing stick for use in Italy (includes keyboard cable and pointing stick cable)
776475-071 B Keyboard, backlit, with pointing stick for use in Spain (includes keyboard cable and pointing stick cable)
776475-081 B Keyboard, backlit, with pointing stick for use in Denmark (includes keyboard cable and pointing
stick cable)
776475-091 B Keyboard, backlit, with pointing stick for use in Norway (includes keyboard cable and pointing
stick cable)
36 Chapter 3 Illustrated parts catalog
Spare part
number
CSR
ag
Description
776475-131 B Keyboard, backlit, with pointing stick for use in Portugal (includes keyboard cable and pointing
776475-141 B Keyboard, backlit, with pointing stick for use in Turkey (includes keyboard cable and pointing stick cable)
776475-151 B Keyboard, backlit, with pointing stick for use in Greece (includes keyboard cable and pointing stick cable)
776475-161 B Keyboard, backlit, with pointing stick for use in Latin America (includes keyboard cable and pointing
776475-171 B Keyboard, backlit, with pointing stick for use in Saudi Arabia (includes keyboard cable and pointing
776475-201 B Keyboard, backlit, with pointing stick for use in Brazil (includes keyboard cable and pointing stick cable)
776475-211 B Keyboard, backlit, with pointing stick for use in Hungary (includes keyboard cable and pointing
776475-251 B Keyboard, backlit, with pointing stick for use in Russia (includes keyboard cable and pointing stick cable)
776475-261 B Keyboard, backlit, with pointing stick for use in Bulgaria (includes keyboard cable and pointing
776475-271 B Keyboard, backlit, with pointing stick for use in Romania (includes keyboard cable and pointing
776475-281 B Keyboard, backlit, with pointing stick for use in Thailand (includes keyboard cable and pointing
776475-291 B Keyboard, backlit, with pointing stick for use in Japan (includes keyboard cable and pointing stick cable)
stick cable)
stick cable)
stick cable)
stick cable)
stick cable)
stick cable)
stick cable)
776475-A41 B Keyboard, backlit, with pointing stick for use in Belgium (includes keyboard cable and pointing
stick cable)
776475-AB1 B Keyboard, backlit, with pointing stick for use in Taiwan (includes keyboard cable and pointing stick cable)
776475-AD1 B Keyboard, backlit, with pointing stick for use in South Korea (includes keyboard cable and pointing
stick cable)
776475-B31 B Keyboard, backlit, with pointing stick for use in the Netherlands (includes keyboard cable and pointing
stick cable)
776475-B71 B Keyboard, backlit, with pointing stick for use in Sweden and Finland (includes keyboard cable and
pointing stick cable)
776475-BA1 B Keyboard, backlit, with pointing stick for use in Slovenia (includes keyboard cable and pointing
stick cable)
776475-BB1 B Keyboard, backlit, with pointing stick for use in Israel (includes keyboard cable and pointing stick cable)
776475-BG1 B Keyboard, backlit, with pointing stick for use in Switzerland (includes keyboard cable and pointing
stick cable)
776475-D61 B Keyboard, backlit, with pointing stick for use in India (includes keyboard cable and pointing stick cable)
776475-DB1 B Keyboard, backlit, with pointing stick for use in Canada (includes keyboard cable and pointing stick cable)
776475-DD1 B Keyboard, backlit, with pointing stick for use in Iceland (includes keyboard cable and pointing stick cable)
776475-FL1 B Keyboard, backlit, with pointing stick for use in the Czech Republic and Slovakia (includes keyboard cable
and pointing stick cable)
776475-FP1 B Keyboard, backlit, with pointing stick for use in Northwest Africa (includes keyboard cable and pointing
stick cable)
Sequential part number listing 37
Spare part
number
777325-001 N Display assembly, 14 in, FHD, for use in HP EliteBook 745 models
777326-001 N Webcam module
CSR
ag
Description
777834-001 C
777835-001 C
779682-001 N Display enclosure for use in HP EliteBook 745 models
779683-001 N Top cover for use only on HP EliteBook 745 models (includes TouchPad)
779684-001 N Internal base enclosure for use only on HP EliteBook 745 models (includes RJ-45 door with spring)
779686-001 N Display enclosure for use in HP EliteBook 755 models
779687-001 N Top cover for use only on HP EliteBook 755 models (includes TouchPad)
779688-001 C Internal base enclosure for use only on HP EliteBook 755 models (includes RJ-45 door with spring)
780080-001 N Antennas (WLAN, WWAN) for use only on HP EliteBook 745 models
780081-001 N Antennas (WLAN, WWAN) for use only on HP EliteBook 755 models
793116-001 B HP lt4211 LTE/EV-DO/HSPA+ 4G Mobile Broadband Module
797431-001 N Top cover for use only on HP EliteBook 755 models (includes TouchPad)
797437-001 N Top cover for use only on HP EliteBook 745 models (includes TouchPad)
798538-001 A Solid-state drive, 2.5 in, 180 GB, SATA III, supporting Opal 2.0 (includes hard drive bracket and screws)
802539-001 C Card reader board for use in HP EliteBook 745 models (Gold)
Raw display panel, 15.6 in (39.6 cm) HD AG SVA 45% CG 200 nits (cd/m2) eDP 1.2 at (1366x768) for use
in HP EliteBook 755 models
Raw display panel, 15.6 in (39.6 cm) FHD AG SVA 60% CG 300 nits (cd/m2) eDP 1.2 slim (1920x1080) for
use in HP EliteBook 755 models
802540-001 C Card reader board for use in HP EliteBook 755 models (Gold)
802541-001 N System board with AMD A6-7050B G2 processor for use in computer models without the Windows 8.1 or
Windows 10 operating system (Gold)
802541-0C1 N System board with AMD A6-7050B G2 processor for use in computer models without the Windows 8.1 or
Windows 10 operating system (Gold Conversion Kit)
802541-501 N System board with AMD A6-7050B G2 processor for use with the Windows 8.1 Standard or Windows 10
Home operating system (Gold)
802541-5C1 N System board with AMD A6-7050B G2 processor for use with the Windows 8.1 Standard or Windows 10
Home operating system (Gold Conversion Kit)
802541-601 N System board with AMD A6-7050B G2 processor for use with the Windows 8.1 Professional or Windows
10 Professional operating system (Gold)
802541-6C1 N System board with AMD A6-7050B G2 processor for use with the Windows 8.1 Professional or Windows
10 Professional operating system (Gold Conversion Kit)
802542-001 N System board with AMD A8-7150B G2 processor for use with computer models without the Windows 8.1
or Windows 10 operating system (Gold)
802542-0C1 N System board with AMD A8-7150B G2 processor for use with computer models without the Windows 8.1
or Windows 10 operating system (Gold Conversion Kit)
802542-501 N System board with AMD A8-7150B G2 processor for use with the Windows 8.1 Standard or Windows 10
Home operating system (Gold)
38 Chapter 3 Illustrated parts catalog
Spare part
number
CSR
ag
Description
802542-5C1 N System board with AMD A8-7150B G2 processor for use with the Windows 8.1 Standard or Windows 10
802542-601 N System board with AMD A8-7150B G2 processor for use with the Windows 8.1 Professional or Windows
802542-6C1 N System board with AMD A8-7150B G2 processor for use with the Windows 8.1 Professional or Windows
802543-001 N System board with AMD A10-7350B G2 processor for use in computer models without the Windows 8.1
802543-0C1 N System board with AMD A10-7350B G2 processor for use in computer models without the Windows 8.1
802543-501 N System board with AMD A10-7350B G2 processor for use with the Windows 8.1 Standard or Windows 10
802543-5C1 N System board with AMD A10-7350B G2 processor for use with the Windows 8.1 Standard or Windows 10
802543-601 N System board with AMD A10-7350B G2 processor for use with the Windows 8.1 Professional or Windows
802543-6C1 N System board with AMD A10-7350B G2 processor for use with the Windows 8.1 Professional or Windows
816244-001 A Solid-state drive, 2.5 in, 128 GB, SATA III, (includes hard drive bracket and screws)
816245-001 A Solid-state drive, 2.5 in, 256 GB, SATA III, (includes hard drive bracket and screws)
Home operating system (Gold Conversion Kit)
10 Professional operating system (Gold)
10 Professional operating system (Gold Conversion Kit)
or Windows 10 operating system (Gold)
or Windows 10 operating system (Gold Conversion Kit)
Home operating system (Gold)
Home operating system (Gold Conversion Kit)
10 Professional operating system (Gold)
10 Professional operating system (Gold Conversion Kit)
822828-001 B HP hs3110 HSPA+ with GPS M.2 Mobile Broadband Module
833662-001 A Solid-state drive, 2.5 in, 512 GB, SATA III, (includes hard drive bracket and screws)
Sequential part number listing 39
4 Removal and replacement procedures
preliminary requirements
Tools required
You will need the following tools to complete the removal and replacement procedures:
●
Flat-bladed screwdriver
●
Magnetic screwdriver
●
Phillips P0 and P1 screwdrivers
Service considerations
The following sections include some of the considerations that you must keep in mind during disassembly
and assembly procedures.
NOTE: As you remove each subassembly from the computer, place the subassembly (and all accompanying
screws) away from the work area to prevent damage.
Plastic parts
CAUTION: Using excessive force during disassembly and reassembly can damage plastic parts. Use care
when handling the plastic parts. Apply pressure only at the points designated in
the maintenance instructions.
Cables and connectors
CAUTION: When servicing the computer, be sure that cables are placed in their proper locations during
the reassembly process. Improper cable placement can damage the computer.
Cables must be handled with extreme care to avoid damage. Apply only the tension required to unseat or seat
the cables during removal and insertion. Handle cables by the connector whenever possible. In all cases, avoid
bending, twisting, or tearing cables. Be sure that cables are routed in such a way that they cannot be caught
or snagged by parts being removed or replaced. Handle ex cables with extreme care; these cables
tear easily.
40 Chapter 4 Removal and replacement procedures preliminary requirements
Drive handling
CAUTION: Drives are fragile components that must be handled with care. To prevent damage to
the computer, damage to a drive, or loss of information, observe these precautions:
Before removing or inserting a hard drive, shut down the computer. If you are unsure whether the computer is
o or in Hibernation, turn the computer on, and then shut it down through the operating system.
Before handling a drive, be sure that you are discharged of static electricity. While handling a drive, avoid
touching the connector.
Before removing a diskette drive or optical drive, be sure that a diskette or disc is not in the drive and be sure
that the optical drive tray is closed.
Handle drives on surfaces covered with at least one inch of shock-proof foam.
Avoid dropping drives from any height onto any surface.
After removing a hard drive, an optical drive, or a diskette drive, place it in a static-proof bag.
Avoid exposing an internal hard drive to products that have magnetic elds, such as monitors or speakers.
Avoid exposing a drive to temperature extremes or liquids.
If a drive must be mailed, place the drive in a bubble pack mailer or other suitable form of protective
packaging and label the package “FRAGILE.”
Grounding guidelines
Electrostatic discharge damage
Electronic components are sensitive to electrostatic discharge (ESD). Circuitry design and structure determine
the degree of sensitivity. Networks built into many integrated circuits provide some protection, but in many
cases, ESD contains enough power to alter device parameters or melt silicon junctions.
A discharge of static electricity from a nger or other conductor can destroy static-sensitive devices or
microcircuitry. Even if the spark is neither felt nor heard, damage may have occurred.
An electronic device exposed to ESD may not be aected at all and can work perfectly throughout a normal
cycle. Or the device may function normally for a while, then degrade in the internal layers, reducing its
life expectancy.
CAUTION: To prevent damage to the computer when you are removing or installing internal components,
observe these precautions:
Keep components in their electrostatic-safe containers until you are ready to install them.
Before touching an electronic component, discharge static electricity by using the guidelines described in this
section.
Avoid touching pins, leads, and circuitry. Handle electronic components as little as possible.
If you remove a component, place it in an electrostatic-safe container.
The following table shows how humidity aects the electrostatic voltage levels generated by
dierent activities.
CAUTION: A product can be degraded by as little as 700 V.
Grounding guidelines 41
Typical electrostatic voltage levels
Relative humidity
Event 10% 40% 55%
Walking across carpet 35,000 V 15,000 V 7,500 V
Walking across vinyl oor 12,000 V 5,000 V 3,000 V
Motions of bench worker 6,000 V 800 V 400 V
Removing DIPS from plastic tube 2,000 V 700 V 400 V
Removing DIPS from vinyl tray 11,500 V 4,000 V 2,000 V
Removing DIPS from Styrofoam 14,500 V 5,000 V 3,500 V
Removing bubble pack from PCB 26,500 V 20,000 V 7,000 V
Packing PCBs in foam-lined box 21,000 V 11,000 V 5,000 V
42 Chapter 4 Removal and replacement procedures preliminary requirements
Packaging and transporting guidelines
Follow these grounding guidelines when packaging and transporting equipment:
●
To avoid hand contact, transport products in static-safe tubes, bags, or boxes.
●
Protect ESD-sensitive parts and assemblies with conductive or approved containers or packaging.
●
Keep ESD-sensitive parts in their containers until the parts arrive at static-free workstations.
●
Place items on a grounded surface before removing items from their containers.
●
Always be properly grounded when touching a component or assembly.
●
Store reusable ESD-sensitive parts from assemblies in protective packaging or nonconductive foam.
●
Use transporters and conveyors made of antistatic belts and roller bushings. Be sure that mechanized
equipment used for moving materials is wired to ground and that proper materials are selected to avoid
static charging. When grounding is not possible, use an ionizer to dissipate electric charges.
Workstation guidelines
Follow these grounding workstation guidelines:
●
Cover the workstation with approved static-shielding material.
●
Use a wrist strap connected to a properly grounded work surface and use properly grounded tools and
equipment.
●
Use conductive eld service tools, such as cutters, screwdrivers, and vacuums.
●
When xtures must directly contact dissipative surfaces, use xtures made only of static-safe materials.
●
Keep the work area free of nonconductive materials, such as ordinary plastic assembly aids
and Styrofoam.
●
Handle ESD-sensitive components, parts, and assemblies by the case or PCM laminate. Handle these
items only at static-free workstations.
●
Avoid contact with pins, leads, or circuitry.
●
Turn o power and input signals before inserting or removing connectors or test equipment.
Grounding guidelines 43
Equipment guidelines
Grounding equipment must include either a wrist strap or a foot strap at a grounded workstation.
●
When seated, wear a wrist strap connected to a grounded system. Wrist straps are exible straps with a
minimum of one megohm ±10% resistance in the ground cords. To provide proper ground, wear a strap
snugly against the skin at all times. On grounded mats with banana-plug connectors, use alligator clips
to connect a wrist strap.
●
When standing, use foot straps and a grounded oor mat. Foot straps (heel, toe, or boot straps) can be
used at standing workstations and are compatible with most types of shoes or boots. On conductive
oors or dissipative oor mats, use foot straps on both feet with a minimum of one megohm resistance
between the operator and ground. To be
The following grounding equipment is recommended to prevent electrostatic damage:
●
Antistatic tape
●
Antistatic smocks, aprons, and sleeve protectors
●
Conductive bins and other assembly or soldering aids
●
Nonconductive foam
●
Conductive tabletop workstations with ground cords of one megohm resistance
●
Static-dissipative tables or oor mats with hard ties to the ground
●
Field service kits
eective, the conductive must be worn in contact with the skin.
●
Static awareness labels
●
Material-handling packages
●
Nonconductive plastic bags, tubes, or boxes
●
Metal tote boxes
●
Electrostatic voltage levels and protective materials
The following table lists the shielding protection provided by antistatic bags and oor mats.
Material Use Voltage protection level
Antistatic plastics Bags 1,500 V
Carbon-loaded plastic Floor mats 7,500 V
Metallized laminate Floor mats 5,000 V
44 Chapter 4 Removal and replacement procedures preliminary requirements
5 Removal and replacement procedures for
Customer Self-Repair parts
CAUTION: The Customer Self-Repair program is not available in all locations. Installing a part not supported
by the Customer Self-Repair program may void your warranty. Check your warranty to determine if Customer
Self-Repair is supported in your location.
NOTE: HP continually improves and changes product parts. For complete and current information on
supported parts for your computer, go to http://partsurfer.hp.com, select your country or region, and then
follow the on-screen instructions.
Component replacement procedures
NOTE: Please read and follow the procedures described here to access and replace Customer Self-Repair
parts successfully.
NOTE: Details about your computer, including model, serial number, product key, and length of warranty,
are on the service label at the bottom of your computer. See Labels on page 17 for details.
This chapter provides removal and replacement procedures for Customer Self-Repair parts.
There are as many as 15 screws that must be removed, replaced, and/or loosened when servicing
the Customer Self-Repair parts. Make special note of each screw size and location during removal and
replacement.
Service door
Description Spare part number
Service door for use only on HP EliteBook 745 models 768793-001
Service door for use only on HP EliteBook 755 models 773962-001
Before removing the service door, follow these steps:
1. Turn o the computer. If you are unsure whether the computer is o or in Hibernation, turn
2. Disconnect the power from the computer by unplugging the power cord from the computer.
3. Disconnect all external devices from the computer.
Remove the service door:
1. Slide the service door release latch (1), remove the screw (if the optional screw is being used) (2), and
the computer on, and then shut it down through the operating system.
then slide the release latch again (3) to release the service door.
NOTE: If you do not want to use the optional screw, you can store it inside the service door.
Component replacement procedures 45
2. Slide the service door toward the front of the computer (4) and lift (5) to remove the service door.
Reverse the removal procedures to install the service door.
46 Chapter 5 Removal and replacement procedures for Customer Self-Repair parts
Battery
Description Spare part number
3 cell, 50 Wh, 4.5 Ah 717376-001
3 cell, 24 Wh, 2.4 Ah 717375-001
Before disassembling the computer, follow these steps:
1. Turn o the computer. If you are unsure whether the computer is o or in Hibernation, turn
the computer on, and then shut it down through the operating system.
2. Disconnect the power from the computer by unplugging the power cord from the computer.
3. Disconnect all external devices from the computer.
4. Remove the service door (see Service door on page 45).
Remove the battery:
1. Slide the battery release latches (1), and then lift the battery (2).
2. Remove the battery from the computer (3).
Install the battery by inserting it into the battery bay until you hear a click.
Component replacement procedures 47
Hard drive
Description Spare part number
2.5 in HDD, SATA, 9.5 mm (does not include the hard drive bracket or screws)
1 TB, 7200 rpm, 9.5 mm 766644-001
2.5 in HDD, SATA, 7 mm (does not include the hard drive bracket or screws)
500 GB, 7200 rpm, 7 mm, SED 703268-001
500 GB, 7200 rpm, 7 mm 703267-001
500 GB, 5400 rpm, 7 mm, FIPS 730946-001
320 GB, 7200 rpm, 7 mm 634862-001
Hard Drive Hardware Kit (includes hard drive bracket and screws) 730793-001
2.5 in SSD (includes the hard drive bracket and screws)
512 GB, SATA III, TLC 833662-001
256 GB, SATA III, TLC 816244-001
256 GB, SATA III, Self-Encrypting Drive (SED), supporting Opal 2.0 768807-001
240 GB, SATA III 768805-001
180 GB, SATA III, SED, supporting Opal 2.0 798538-001
180 GB, SATA III, SED, supporting Opal 1.0 768804-001
180 GB, SATA III 768803-001
128 GB, SATA III 768802-001
128 GB, SATA III, TLC 816244-001
Before removing the hard drive, follow these steps:
1. Turn o the computer. If you are unsure whether the computer is o or in Hibernation, turn
the computer on, and then shut it down through the operating system.
2. Disconnect the power from the computer by unplugging the power cord from the computer.
3. Disconnect all external devices from the computer.
4. Remove the service door (see Service door on page 45).
5. Remove the battery (see Battery on page 47).
Remove the hard drive:
1. Turn the computer upside down on a at surface.
48 Chapter 5 Removal and replacement procedures for Customer Self-Repair parts
2. Loosen the 4 hard drive screws (1). Slide the hard drive (2) forward, and then remove it (3).
3. If it is necessary to disassemble the hard drive, perform the following steps:
a. Remove the four Phillips PM3.0×3.0 screws (1) that secure the hard drive bracket to the hard drive.
b. Slide the hard drive bracket (2) o the hard drive.
Reverse this procedure to reassemble and install the hard drive.
Component replacement procedures 49
Memory module
Description Spare part number
8 GB memory module (PC3L, 12800, 1600 MHz) 693374-001
4 GB memory module (PC3L, 12800, 1600 MHz) 691740-001
Update BIOS before adding memory modules
Before adding new memory, make sure you update the computer to the latest BIOS. For Windows 10 models,
see Updating the BIOS on page 97. For Windows 8.1 models, see Updating the BIOS on page 99, and for
Windows 7 models, see Updating the BIOS on page 104. For Ubuntu models, go to http://www.hp.com/
support, and select your country. Select Drivers & Downloads, and then follow the on-screen instructions.
CAUTION: Failure to update the computer to the latest BIOS prior to installing new memory may result in
various system problems.
Before removing a memory module, follow these steps:
1. Turn o the computer. If you are unsure whether the computer is o or in Hibernation, turn
the computer on, and then shut it down through the operating system.
2. Disconnect the power from the computer by unplugging the power cord from the computer.
3. Disconnect all external devices from the computer.
4. Remove the service door (see Service door on page 45).
5. Remove the battery (see Battery on page 47).
Remove the memory module:
1. Spread the retaining tabs (1) on each side of the memory module slot to release the memory module.
(The edge of the module opposite the slot rises away from the computer.)
50 Chapter 5 Removal and replacement procedures for Customer Self-Repair parts
2. Remove the memory module (2) by pulling the module away from the slot at an angle.
NOTE: Memory modules are designed with a notch to prevent incorrect insertion into the memory
module slot.
Reverse this procedure to install a memory module.
Component replacement procedures 51
WWAN module
NOTE: The WWAN module and the WLAN module are not interchangeable.
Description Spare part number
HP lt4211 LTE/EV-DO/HSPA+4G Mobile Broadband Module 793116-001
HP lt4112 LTE/HSPA+ 4G Broadband Module 740011-001
HP hs3110 HSPA+ Mobile Broadband Module 748599-001
HP hs3110 HSPA+ with GPS M.2 Mobile Broadband Module 822828-001
Before removing the WWAN module, follow these steps:
1. Turn o the computer. If you are unsure whether the computer is o or in Hibernation, turn
the computer on, and then shut it down through the operating system.
2. Disconnect the power from the computer by unplugging the power cord from the computer.
3. Disconnect all external devices from the computer.
4. Remove the service door (see Service door on page 45).
5. Remove the battery (see Battery on page 47).
Remove the WWAN module:
1. Disconnect the WWAN antenna cables (1) from the terminals on the WWAN module.
NOTE: The red WWAN antenna cable is connected to the WWAN module “Main” terminal. The blue
WWAN antenna cable is connected to the WWAN module “Aux” terminal.
2. Remove the Phillips PM2.0×3.0 screw (2) that secures the WWAN module to the base enclosure.
52 Chapter 5 Removal and replacement procedures for Customer Self-Repair parts

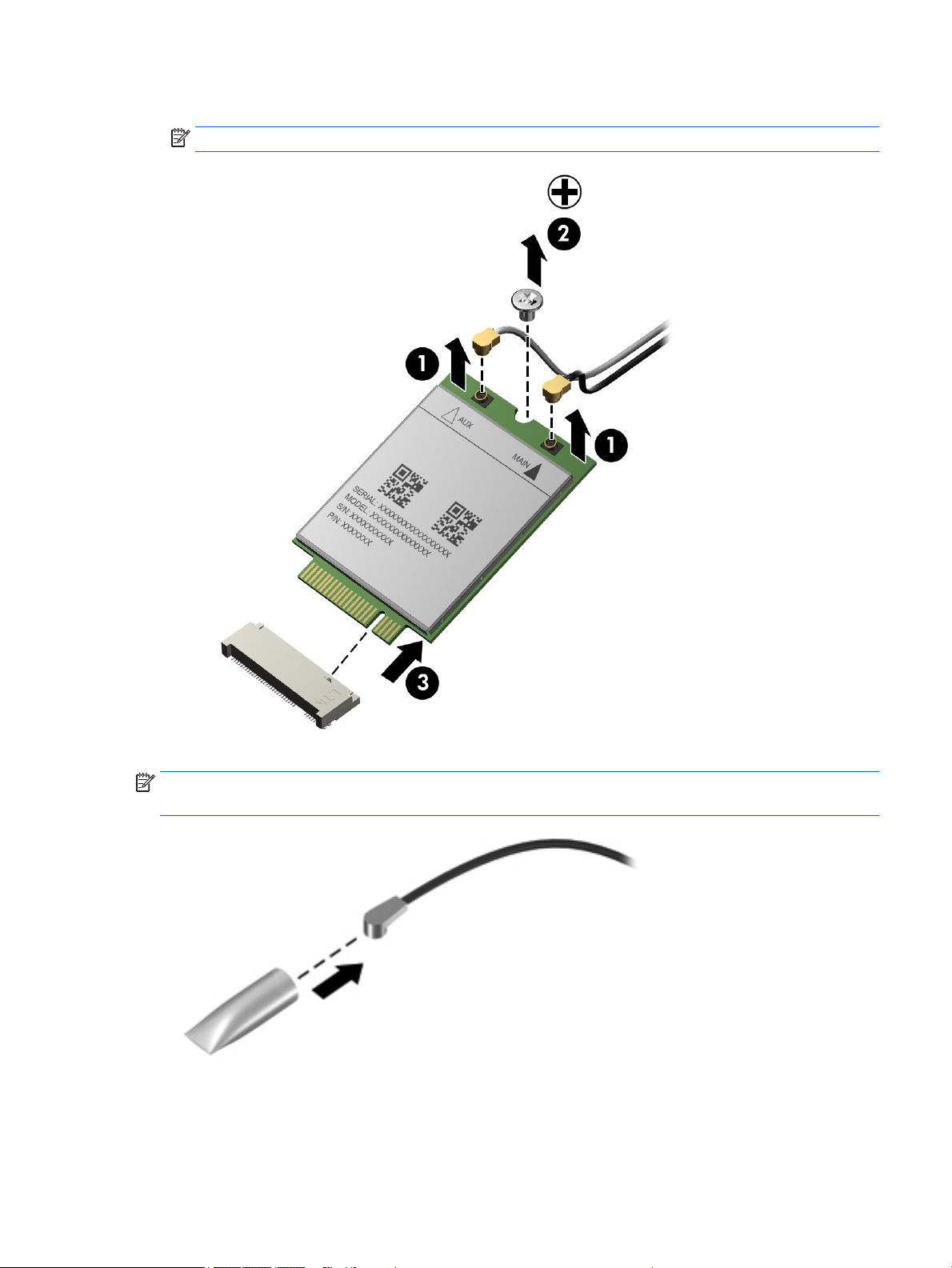

3. Remove the WWAN module (3) by pulling the module away from the slot.
NOTE: WWAN modules are designed with a notch to prevent incorrect insertion.
NOTE: If the WWAN antennas are not connected to the terminals on the WWAN module, the protective
sleeves must be installed on the antenna connectors, as shown in the following illustration.
Reverse this procedure to install the WWAN module.
Component replacement procedures 53
WLAN module
Description Spare part number
Qualcomm Atheros AR9485 802.11 b/g/n 1x1 WiFi Adaptor (select models only) 675794-001
Broadcom BCM4352 802.11ac 2x2 Wi-Fi + Bluetooth 4.0 combo (select models only) 724935-001
Broadcom BCM943228HMB WiDi 802.11 a/b/g/n 2x2 Wi-Fi + Bluetooth 4.0 combo (select models only) 730668-001
CAUTION: To prevent an unresponsive system, replace the wireless module only with a wireless module
authorized for use in the computer by the governmental agency that regulates wireless devices in your
country or region. If you replace the module and then receive a warning message, remove the module to
restore device functionality, and then contact technical support.
Before removing the WLAN module, follow these steps:
1. Turn o the computer. If you are unsure whether the computer is o or in Hibernation, turn
the computer on, and then shut it down through the operating system.
2. Disconnect the power from the computer by unplugging the power cord from the computer.
3. Disconnect all external devices from the computer.
4. Remove the service door (see Service door on page 45).
5. Remove the battery (see Battery on page 47).
Remove the WLAN module:
1. Disconnect the WLAN antenna cables (1) from the terminals on the WLAN module.
NOTE: The WLAN antenna cable labeled “1” connects to the WLAN module “Main” terminal labeled “1”.
The WLAN antenna cable labeled “2” connects to the WLAN module “Aux” terminal labeled “2”. If
the computer is equipped with an 802.11a/b/g/n WLAN module, the yellow WLAN antenna cable
connects to the middle terminal on the WLAN module.
2. Remove the two Phillips PM2.0×3.0 screws (2) that secure the WLAN module to the base enclosure. (The
WLAN module tilts up.)
54 Chapter 5 Removal and replacement procedures for Customer Self-Repair parts
3. Remove the WLAN module (3) by pulling the module away from the slot at an angle.
NOTE: WLAN modules are designed with a notch to prevent incorrect insertion.
NOTE: If the WLAN antennas are not connected to the terminals on the WLAN module, the protective
sleeves must be installed on the antenna connectors, as shown in the following illustration.
Reverse this procedure to install the WLAN module.
Component replacement procedures 55
Keyboard
NOTE: For a detailed list of available keyboards, see Sequential part number listing on page 32.
Before removing the keyboard, follow these steps:
1. Turn o the computer. If you are unsure whether the computer is o or in Hibernation, turn
2. Disconnect the power from the computer by unplugging the power cord from the computer.
3. Disconnect all external devices from the computer.
4. Remove the service door (see Service door on page 45).
5. Remove the battery (see Battery on page 47).
Remove the keyboard:

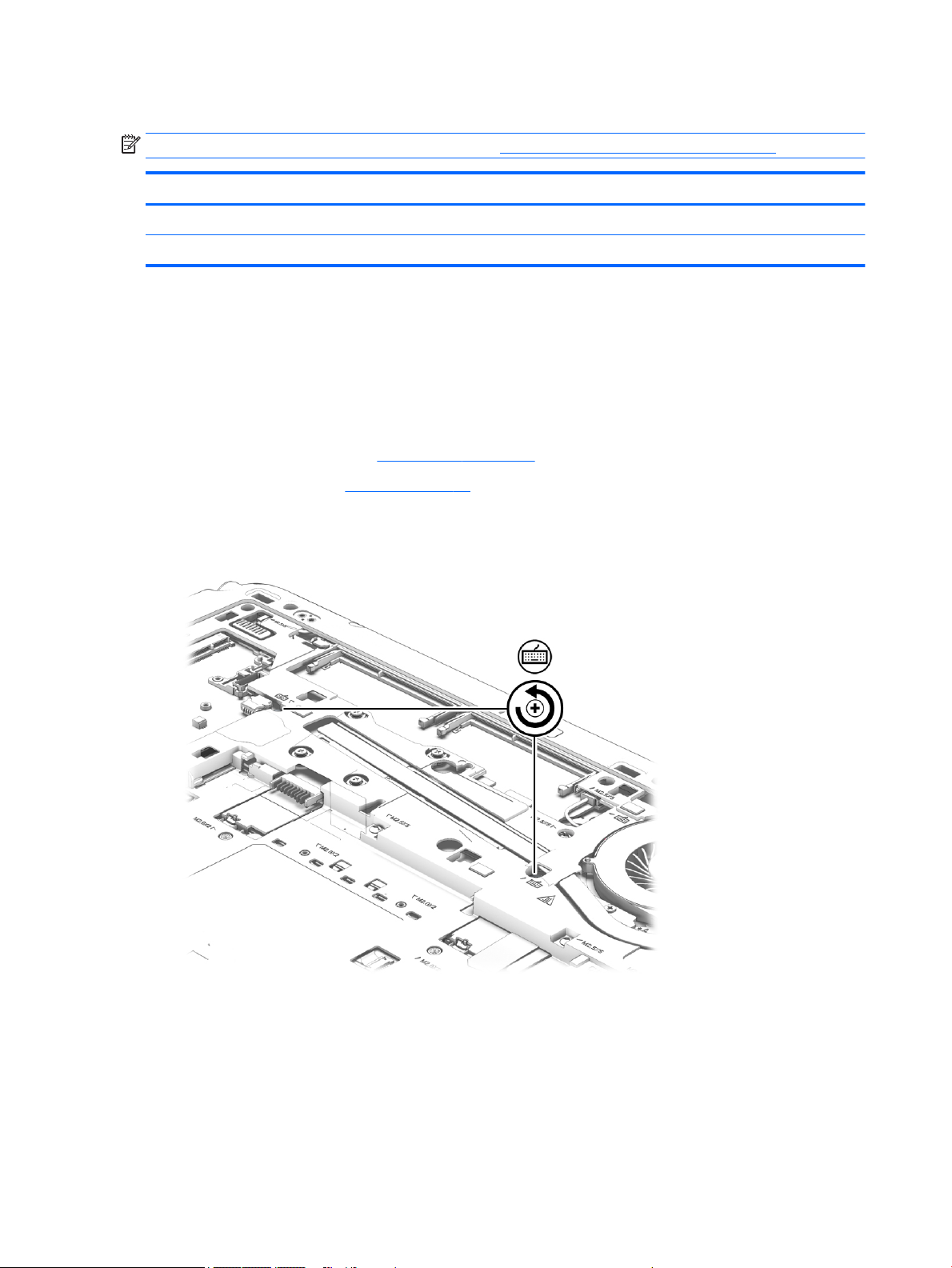

1. Loosen the two Phillips captive screws that secure the keyboard to the computer.
Description Spare part number
Keyboard with pointing stick, no backlight 776474-xx1
Keyboard with pointing stick and backlight 776475-xx1
the computer on, and then shut it down through the operating system.
2. Rest and secure the partially open computer on its side.
56 Chapter 5 Removal and replacement procedures for Customer Self-Repair parts
3. Insert a screw driver or similar thin tool into the keyboard release hole, and then press on the back of
the keyboard until the keyboard disengages from the computer.
4. Position the computer right-side up with the front toward you.
5. Lift the rear edge of the keyboard upward.
NOTE: Continue to step 7 for a keyboard with a backlight.
6. To remove the keyboard from models without a backlight:
a. Swing the keyboard up and forward (1) until it rests upside down on the palm rest.
b. Disconnect the main keyboard cable from the zero insertion force (ZIF) connector (2) on the system
board.
Component replacement procedures 57
c. Disconnect the pointing stick cable from the zero insertion force (ZIF) connector (3) on the system
board.
d. Remove the keyboard (4).
7. To remove the keyboard from models with a backlight:
a. Swing the keyboard up and forward (1) until it rests upside down on the palm rest.
b. Disconnect the main keyboard cable from the zero insertion force (ZIF) connector (2) on the system
board.
c. Disconnect the pointing stick cable from the zero insertion force (ZIF) connector (3) on the system
board.
d. Disconnect the backlight cable from the zero insertion force (ZIF) connector (4) on the system
board.
58 Chapter 5 Removal and replacement procedures for Customer Self-Repair parts
e. Remove the keyboard (5).
Reverse this procedure to install the keyboard.
Component replacement procedures 59
6 Removal and replacement procedures for
Authorized Service Provider parts
CAUTION: Components described in this chapter should only be accessed by an authorized service provider.
Accessing these parts can damage the computer or void the warranty.
NOTE: HP continually improves and changes product parts. For complete and current information on
supported parts for your computer, go to http://partsurfer.hp.com, select your country or region, and then
follow the on-screen instructions.
Component replacement procedures
NOTE: Details about your computer, including model, serial number, product key, and length of warranty,
are on the service label at the bottom of your computer. See Labels on page 17 for details.
This chapter provides removal and replacement procedures for Authorized Service Provider only parts.
There are as many as 61 screws that must be removed, replaced, and/or loosened when servicing
the Authorized Service Provider parts. Make special note of each screw size and location during removal and
replacement.
Display panel (non-touch)
NOTE: Non-touch displays are spared at the subcomponent level only. Touch displays are only spared as a
whole (touch display components are not spared).
In non-touch models, you can remove the raw display panel with the display assembly still connected to the
computer. The following section shows how to remove the raw display panel without removing the display
assembly from the computer.
See Display assembly on page 89 later in this chapter to remove internal components that require that you
remove the display assembly.
Description Spare part number
Display bezel
Display bezel for use in HP EliteBook 745 models 768808-001
Display bezel for use in HP EliteBook 755 models 773963-001
Display panel
14.0 in (35.6 cm) LED, HD, AntiGlare (AG), SVA (1366×768), 200 nits (cd/m2), at for use in HP EliteBook
745 models
14.0 in (35.6 cm) LED, HD+, AG, SVA (1920×1080), 250 nits (cd/m2), at for use in HP EliteBook 745
models
14.0 in (35.6 cm) LED, FHD, AG, SVA (1920×1080), 300 nits (cd/m2), slim for use in HP EliteBook 745
models
768809-001
768810-001
768811-001
15.6 in (39.6 cm) FHD AG SVA 60% CG 300 nits (cd/m2) eDP 1.2 slim (1920x1080) for use in HP EliteBook
755 models
60 Chapter 6 Removal and replacement procedures for Authorized Service Provider parts
777835-001
Description Spare part number
15.6 in (39.6 cm) HD AG SVA 45% CG 200 nits (cd/m2) eDP 1.2 at (1366x768) for use in HP EliteBook
755 models
Webcam module 777326-001
Microphone module 730795-001
777834-001
Before removing the display assembly, follow these steps:
1. Turn o the computer. If you are unsure whether the computer is o or in Hibernation, turn
the computer on, and then shut it down through the operating system.
2. Disconnect the power from the computer by unplugging the power cord from the computer.
3. Disconnect all external devices from the computer.
4. Remove the service door (see Service door on page 45).
5. Remove the battery (see Battery on page 47).
Remove the display panel:
1. Lift to disengage the bezel on the bottom (1), left and right sides (2), and top (3).
2. Remove the bezel from the display assembly (4).
3. Remove the four Phillips PM2.0×3.0 screws (1) that secure the display panel to the display enclosure.
Component replacement procedures 61
4. Lift and rotate the panel onto the computer (2).
5. On the back of the display panel, lift the tape that secures the display cable to the display panel (1), and
the disconnect the display cable from the panel (2).
62 Chapter 6 Removal and replacement procedures for Authorized Service Provider parts
6. Lift the display panel from the display enclosure.
7. If it is necessary to replace the webcam/microphone module:
a. Release the tape that secures the webcam cable to the module (1).
b. Disconnect the cable (2) from the module.
CAUTION: Handle the module with caution. The module has a thin prole and is susceptible to
damage when not handled carefully.
c. Remove the module (3) from the display enclosure. (The module is attached to the display
enclosure with double-sided tape.)
Reverse this procedure to reassemble and install the display panel components.
Component replacement procedures 63
RTC battery
Description Spare part number
RTC battery (includes cable and double-sided tape) 665733-001
Before removing the RTC battery, follow these steps:
1. Turn o the computer. If you are unsure whether the computer is o or in Hibernation, turn
2. Disconnect the power from the computer by unplugging the power cord from the computer.
3. Disconnect all external devices from the computer.
4. Remove the service door (see Service door on page 45).
5. Remove the battery (see Battery on page 47.
Remove the RTC battery:
1. Disconnect the RTC battery cable (1) from the system board.
2. Slide the battery out from the bottom cover (2), and then remove the battery (3). (The RTC battery is
the computer on, and then shut it down through the operating system.
attached to the base enclosure with double-sided tape.)
3. Remove the RTC battery.
Reverse this procedure to install the RTC battery.
64 Chapter 6 Removal and replacement procedures for Authorized Service Provider parts
Internal base enclosure
Internal base enclosure removal procedures for HP EliteBook 745 models and HP EliteBook 755 models are in
separated in the following sections.
Internal base enclosure (HP EliteBook 745 models)
Description Spare part number
Internal base enclosure for use only on HP EliteBook 745 models 779684-001
Before removing the internal base enclosure, follow these steps:
1. Turn o the computer. If you are unsure whether the computer is o or in Hibernation, turn
the computer on, and then shut it down through the operating system.
2. Disconnect the power from the computer by unplugging the power cord from the computer.
3. Disconnect all external devices from the computer.
4. Remove the following components:
a. Service door (see Service door on page 45)
b. Battery (see Battery on page 47)
c. Keyboard (see Keyboard on page 56)
Use the following image as an overview of all internal base enclosure screw locations.
Remove the internal base enclosure:
1. Position the computer upside down.
Component replacement procedures 65
2. Remove the seven rubber screw covers from the screws outside of the service door.
NOTE: The eight screws outside of the service door also have rubber covers.
3. Remove the 16 Torx T8M2.5×5.0 screws that secure the internal base enclosure to the computer.
4. Remove the Phillips PM2.0×8.0 screw (1) near the media card reader and the six Phillips PM2.0×5.0
broadhead screws (2) inside the battery bay that secure the internal base enclosure to the computer.
66 Chapter 6 Removal and replacement procedures for Authorized Service Provider parts
5. Lift the internal base enclosure o the computer.
Reverse this procedure to install the base enclosure.
Component replacement procedures 67
Internal base enclosure (HP EliteBook 755 models)
Description Spare part number
Internal base enclosure for use only on HP EliteBook 755 models (includes RJ-45 door with spring) 779688-001
Before removing the internal base enclosure, follow these steps:
1. Turn o the computer. If you are unsure whether the computer is o or in Hibernation, turn
the computer on, and then shut it down through the operating system.
2. Disconnect the power from the computer by unplugging the power cord from the computer.
3. Disconnect all external devices from the computer.
4. Remove the following components:
a. Service door (see Service door on page 45)
b. Battery (see Battery on page 47)
c. Keyboard (see Keyboard on page 56)
Use the following image as an overview of all base enclosure screw locations.
Remove the internal base enclosure:
1. Position the computer upside down.
68 Chapter 6 Removal and replacement procedures for Authorized Service Provider parts

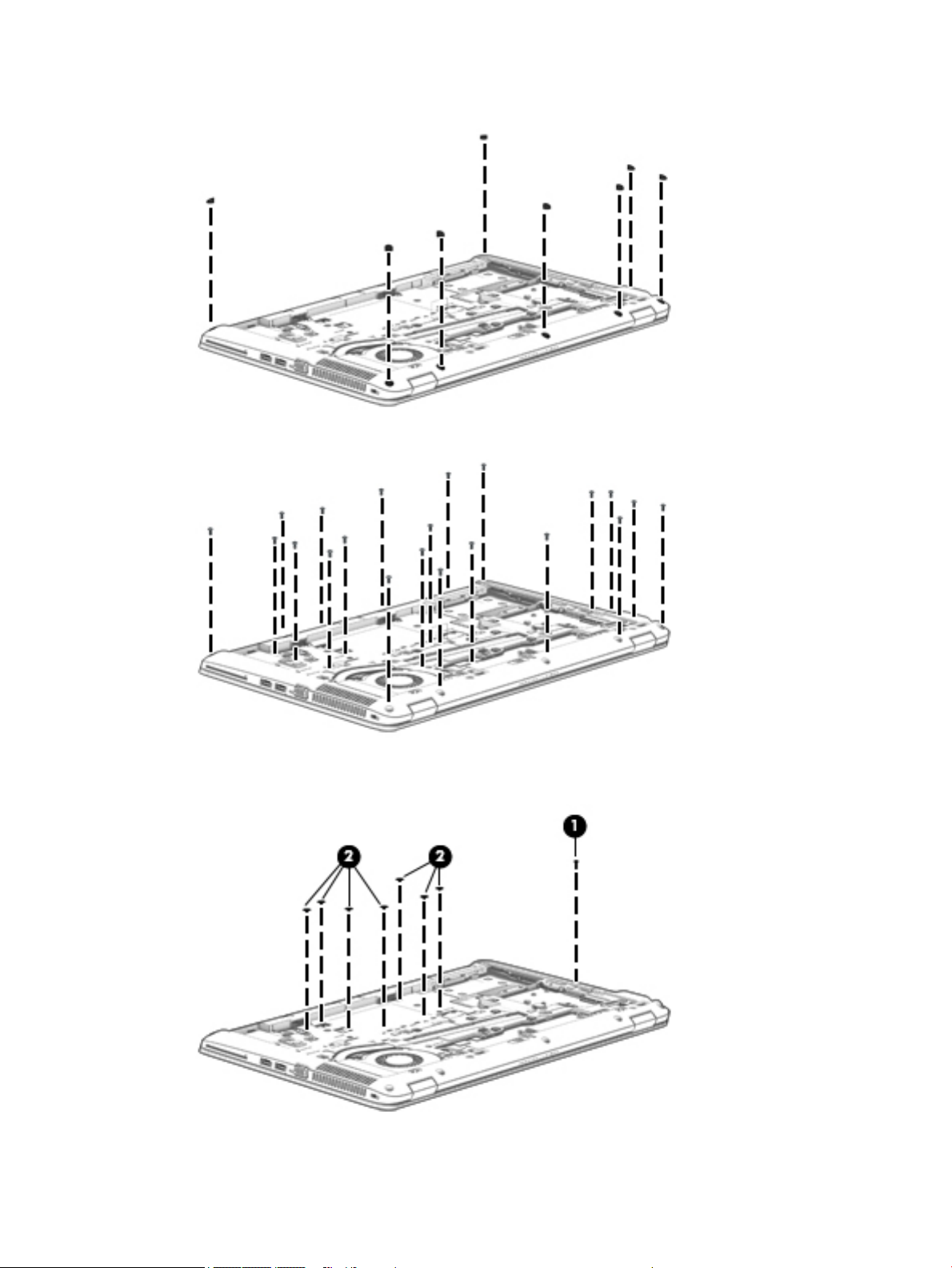

2. Remove the seven rubber screw covers from the screws outside of the service door.
3. Remove the 21 Torx T8M2.5×5.0 screws that secure the internal base enclosure to the computer.
4. Remove the Phillips PM2.0×8.0 screw (1) near the media card reader and the seven Phillips PM2.0×5.0
broadhead screws (2) inside the battery bay that secure the internal base enclosure to the computer.
Component replacement procedures 69
5. Lift the internal base enclosure o the computer.
Reverse this procedure to install the internal base enclosure.
70 Chapter 6 Removal and replacement procedures for Authorized Service Provider parts
Fan
Description Spare part number
Fan (includes cable) 730792-001
Before removing the fan, follow these steps:
1. Turn o the computer. If you are unsure whether the computer is o or in Hibernation, turn
the computer on, and then shut it down through the operating system.
2. Disconnect the power from the computer by unplugging the power cord from the computer.
3. Disconnect all external devices from the computer.
4. Remove the service door (see Service door on page 45).
5. Remove the battery (see Battery on page 47).
6. Remove the keyboard (see Keyboard on page 56).
7. Remove the internal base enclosure (see Internal base enclosure on page 65).
Remove the fan:
1. Loosen the two captive Phillips screws (1) that secure the fan to the base enclosure.
2. Disconnect the fan cable (2) from the system board.
3. Remove the fan (3).
Reverse this procedure to install the fan.
Component replacement procedures 71
Card reader board
Description Spare part number
Card reader board for use in HP EliteBook 745 models 768791-001
Card reader board for use in HP EliteBook 745 models (Gold) 802539-001
Card reader board for use in HP EliteBook 755 models 773960-001
Card reader board for use in HP EliteBook 755 models (Gold) 802540-001
Before removing the card reader board, follow these steps:
1. Turn o the computer. If you are unsure whether the computer is o or in Hibernation, turn
the computer on, and then shut it down through the operating system.
2. Disconnect the power from the computer by unplugging the power cord from the computer.
3. Disconnect all external devices from the computer.
4. Remove the following components:
a. Service door (see Service door on page 45)
b. Battery (see Battery on page 47)
c. Fan (see Fan on page 71)
d. Keyboard (see Keyboard on page 56)
e. Base enclosure (see Internal base enclosure on page 65)
Remove the card reader board:
1. Disconnect the larger card reader cable (1) and the smaller touchpad cable (2) from the card reader
board.
2. Using a thin tool, pry up the left side of the board to disengage it from the top cover (3).
72 Chapter 6 Removal and replacement procedures for Authorized Service Provider parts
3. Remove the card reader board (4).
Reverse this procedure to install the card reader board.
Component replacement procedures 73
VGA/USB board
Description Spare part number
VGA/USB board for use in HP EliteBook 745 models 768792-001
VGA/USB board for use in HP EliteBook 755 models 773961-001
Before removing the VGA/USB board, follow these steps:
1. Turn o the computer. If you are unsure whether the computer is o or in Hibernation, turn
the computer on, and then shut it down through the operating system.
2. Disconnect the power from the computer by unplugging the power cord from the computer.
3. Disconnect all external devices from the computer.
4. Remove the following components:
a. Service door (see Service door on page 45)
b. Battery (see Battery on page 47)
c. Fan (see Fan on page 71)
d. Keyboard (see Keyboard on page 56)
e. Base enclosure (see Internal base enclosure on page 65)
Remove the VGA/USB board:
Removing the VGA/USB board for HP EliteBook 745 models
1. Disconnect the cable from the VGA/USB board (1).
2. Remove the two Phillips PM2.0×5.0 screws (2) that secure the VGA/USB board to the top cover.
74 Chapter 6 Removal and replacement procedures for Authorized Service Provider parts

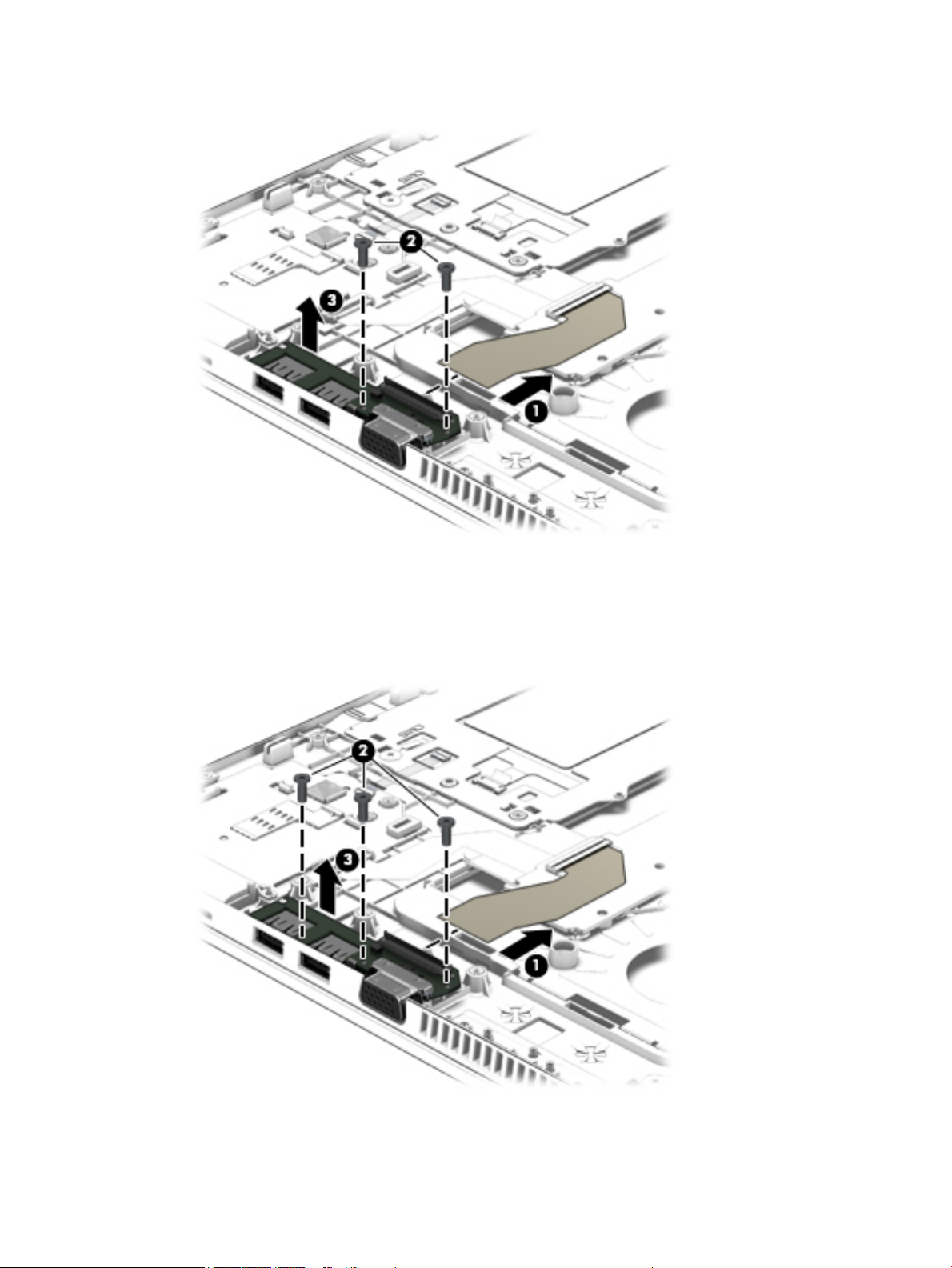

3. Remove the VGA/USB board from the top cover (3).
Removing the VGA/USB board for HP EliteBook 755 models
1. Disconnect the cable from the VGA/USB board (1).
2. Remove the three Phillips PM2.0×5.0 screws (2) that secure the VGA/USB board to the top cover.
3. Remove the VGA/USB board from the top cover (3).
Reverse this procedure to install the VGA/USB board.
Component replacement procedures 75
Heat sink
NOTE: The heat sink spare part kit includes replacement thermal material.
Before removing the heat sink, follow these steps:
1. Turn o the computer. If you are unsure whether the computer is o or in Hibernation, turn
2. Disconnect the power from the computer by unplugging the power cord from the computer.
3. Disconnect all external devices from the computer.
4. Remove the following components:
Description Spare part number
For use only on HP EliteBook 745 models 768790-001
For use only on HP EliteBook 755 models 773959-001
the computer on, and then shut it down through the operating system.
a. Service door (see Service door on page 45)
b. Battery (see Battery on page 47)
c. Fan (see Fan on page 71)
d. Keyboard (see Keyboard on page 56)
e. Base enclosure (see Internal base enclosure on page 65)
Remove the heat sink:
1. Following the 1, 2, 3, 4 sequence stamped into the heat sink, loosen the four captive Phillips screws (1) –
(4) that secure the heat sink to the system board, and then remove the heat sink (5).
NOTE: Due to the adhesive quality of the thermal material located between the heat sink and
the system board components, it may be necessary to move the heat sink from side to side to detach it.
76 Chapter 6 Removal and replacement procedures for Authorized Service Provider parts
2. The following illustration shows the replacement thermal material locations. The thermal material must
be thoroughly cleaned from the surfaces of the heat sink and the system board components each time
the heat sink is removed. Replacement thermal material is included with the heat sink, processor, and
system board spare part kits.
Thermal paste is used on the system board component (1) and on the heat sink area (2) that services it.
Reverse this procedure to install the heat sink.
Component replacement procedures 77
Power button board
Description Spare part number
Power button board for use in HP EliteBook 745 models 730959-001
Power button board for use in HP EliteBook 755 models 730822-001
Before removing the power button board, follow these steps:
1. Turn o the computer. If you are unsure whether the computer is o or in Hibernation, turn
the computer on, and then shut it down through the operating system.
2. Disconnect the power from the computer by unplugging the power cord from the computer.
3. Disconnect all external devices from the computer.
4. Remove the following components:
a. Service door (see Service door on page 45)
b. Battery (see Battery on page 47)
c. Fan (see Fan on page 71)
d. Keyboard (see Keyboard on page 56)
e. Base enclosure (see Internal base enclosure on page 65)
f. Heat sink (see Heat sink on page 76)
Remove the power button board:
1. Disconnect the power button board cable from the power button board (1).
2. Remove the broadhead Phillips PM2.0×3.0 screw that secures the board (2) to the top cover.
78 Chapter 6 Removal and replacement procedures for Authorized Service Provider parts
3. Slide the power button board toward the inside of the top cover, and then lift it o the top cover (3).
Reverse this procedure to install the power button board.
Component replacement procedures 79
Fingerprint reader assembly
Description Spare part number
Fingerprint reader assembly for use in HP EliteBook 745 models (includes cable, bracket, and insulator) 730956-001
Fingerprint reader assembly for use in HP EliteBook 755 models (includes cable, bracket, and insulator) 730817-001
Before removing the ngerprint reader assembly, follow these steps:
1. Turn o the computer. If you are unsure whether the computer is o or in Hibernation, turn
the computer on, and then shut it down through the operating system.
2. Disconnect the power from the computer by unplugging the power cord from the computer.
3. Disconnect all external devices from the computer.
4. Remove the following components:
a. Service door (see Service door on page 45)
b. Battery (see Battery on page 47)
c. Fan (see Fan on page 71)
d. Keyboard (see Keyboard on page 56)
e. Base enclosure (see Internal base enclosure on page 65)
Remove the ngerprint reader assembly:
1. Turn the computer upside down.
2. Remove plastic cover from the ngerprint reader assembly (1).
3. Slide the bracket away from the ngerprint reader board (2), and remove it.
80 Chapter 6 Removal and replacement procedures for Authorized Service Provider parts
4. Remove the ngerprint reader board (3) from the computer.
Reverse this procedure to install the ngerprint reader assembly.
Component replacement procedures 81
System board
NOTE: The system board spare part kit includes replacement thermal material.
IMPORTANT: For system board replacement on computers with serial numbers xxx501xxxx and below, you
must use a conversion kit (see product description for “(Gold Conversion Kit)”). For computers with serial
numbers xxx502xxxx and above, use the standard spare kit (see product description for “(Gold)”).
Description Spare part number
System board (includes replacement thermal material):
For use on models with AMD A6-7050B G2 processor for use with models without the Windows 8.1 or
Windows 10 operating system
For use on models with AMD A6-7050B G2 processor for use with models with the Windows 8.1 Standard
or Windows 10 Home operating system
For use on models with AMD A6-7050B G2 processor for use with models with the Windows 8.1
Professional or Windows 10 Professional operating system
For use on models with AMD A6-7050B G2 processor for use with the Windows 8.1 Professional or
Windows 10 Professional operating system (Gold)
For use on models with AMD A6-7050B G2 processor for use with the Windows 8.1 Standard or Windows
10 Home operating system (Gold)
For use on models with AMD A6-7050B G2 processor for use with models without the Windows 8.1 or
Windows 10 operating system (Gold)
For use on models with AMD A8-7150B G2 processor for use with models without the Windows 8.1 or
Windows 10 operating system
For use on models with AMD A8-7150B G2 processor for use with models with the Windows 8.1 Standard
or Windows 10 Home operating system
For use on models with AMD A8-7150B G2 processor for use with models with the Windows 8.1
Professional or Windows 10 Professional operating system
For use on models with AMD A8-7150B G2 processor for use with the Windows 8.1 Professional or
Windows 10 Professional operating system (Gold)
For use on models with AMD A8-7150B G2 processor for use with the Windows 8.1 Standard or Windows
10 Home operating system (Gold)
768794-001
768794-501
768794-601
802541-601
802541-501
802541-001
768795-001
768795-501
768795-601
802542-601
802542-501
For use on models with AMD A8-7150B G2 processor for use with models without the Windows 8.1 or
Windows 10 operating system (Gold)
For use on models with AMD A10-7350B G2 processor for use with models without the Windows 8.1 or
Windows 10 operating system
For use on models with AMD A10-7350B G2 processor for use with models with the Windows 8.1
Standard or Windows 10 Home operating system
For use on models with AMD A10-7350B G2 processor for use with models with the Windows 8.1
Professional or Windows 10 Professional operating system
For use on models with AMD A10-7350B G2 processor for use with the Windows 8.1 Professional or
Windows 10 Professional operating system (Gold)
For use on models with AMD A10-7350B G2 processor for use with the Windows 8.1 Standard or
Windows 10 Home operating system (Gold)
For use on models with AMD A10-7350B G2 processor for use with models without the Windows 8.1 or
Windows 10 operating system (Gold)
82 Chapter 6 Removal and replacement procedures for Authorized Service Provider parts
802542-001
768801-001
768801-501
768801-601
802543-601
802543-501
802543-001
Description Spare part number
System board (Gold Conversion Kits) (includes replacement thermal material):
For use on models with AMD A6-7050B G2 processor for use with the Windows 8.1 Professional or
Windows 10 Professional operating system (Gold Conversion Kit)
For use on models with AMD A6-7050B G2 processor for use with the Windows 8.1 Standard or Windows
10 Home operating system (Gold Conversion Kit)
For use on models with AMD A6-7050B G2 processor for use with models without the Windows 8.1 or
Windows 10 operating system (Gold Conversion Kit)
For use on models with AMD A8-7150B G2 processor for use with the Windows 8.1 Professional or
Windows 10 Professional operating system (Gold Conversion Kit)
For use on models with AMD A8-7150B G2 processor for use with the Windows 8.1 Standard or Windows
10 Home operating system (Gold Conversion Kit)
For use on models with AMD A8-7150B G2 processor for use with models without the Windows 8.1 or
Windows 10 operating system (Gold Conversion Kit)
For use on models with AMD A10-7350B G2 processor for use with the Windows 8.1 Professional or
Windows 10 Professional operating system (Gold Conversion Kit)
For use on models with AMD A10-7350B G2 processor for use with the Windows 8.1 Standard or
Windows 10 Home operating system (Gold Conversion Kit)
For use on models with AMD A10-7350B G2 processor for use with models without the Windows 8.1 or
Windows 10 operating system (Gold Conversion Kit)
Before removing the system board, follow these steps:
802541-6C1
802541-5C1
802541-0C1
802542-6C1
802542-5C1
802542-0C1
802543-6C1
802543-5C1
802543-0C1
1. Turn o the computer. If you are unsure whether the computer is o or in Hibernation, turn
the computer on, and then shut it down through the operating system.
2. Disconnect the power from the computer by unplugging the power cord from the computer.
3. Disconnect all external devices from the computer.
4. Remove the following components:
a. Service door (see Service door on page 45)
b. Battery (see Battery on page 47)
c. Hard drive (see Hard drive on page 48)
d. Fan (see Fan on page 71)
e. Keyboard (see Keyboard on page 56)
f. Base enclosure (see Internal base enclosure on page 65)
When replacing the system board, be sure that the following components are removed from the defective
system board and installed on the replacement system board:
●
Memory modules (see Memory module on page 50)
●
Heat sink (see Heat sink on page 76)
NOTE: You do not have to remove the heat sink to remove the system board.
Component replacement procedures 83
●
WLAN module (see WLAN module on page 54)
●
WWAN module (see WWAN module on page 52)
Remove the system board:
1. Position the computer upright and open as far as possible.
2. Release the ZIF connector (1) to which the ngerprint reader cable is connected, and then disconnect
the ngerprint reader cable (2) from the system board.
3. Close the computer and position it upside down.
4. Disconnect the smart card reader cable (1) from the smart card reader.
5. Disconnect the VGA/USB board cable (2) from the system board.
6. Disconnect the power button board cable (3) from the system board.
7. Release the display panel cable from the routing channel (4) attached to the system board, and then
disconnect the display panel cable (5) from the system board.
8. Disconnect the speaker cable (6) from the system board.
84 Chapter 6 Removal and replacement procedures for Authorized Service Provider parts
9. Note the routing location of the antenna cables (7) when removing them.
10. Remove the three Phillips PM2.5×5.0 screws that secure the system board to the top cover.
11. Lift the left side of the system board (1).
Component replacement procedures 85
12. Remove the system board (2) by sliding it up and to the left at an angle.
Reverse this procedure to install the system board.
86 Chapter 6 Removal and replacement procedures for Authorized Service Provider parts
Speaker assembly
Description Spare part number
Speaker assembly (includes cable) 730798-001
Before removing the speaker assembly, follow these steps:
1. Turn o the computer. If you are unsure whether the computer is o or in Hibernation, turn
the computer on, and then shut it down through the operating system.
2. Disconnect the power from the computer by unplugging the power cord from the computer.
3. Disconnect all external devices from the computer.
4. Remove the battery (see Battery on page 47), and then remove the following components:
a. Service door (see Service door on page 45)
b. Battery (see Battery on page 47)
c. Hard drive (see Hard drive on page 48)
d. WWAN module (see WWAN module on page 52)
e. WLAN module (see WLAN module on page 54)
f. Fan (see Fan on page 71)
g. Keyboard (see Keyboard on page 56)
h. Base enclosure (see Internal base enclosure on page 65)
i. System board (see System board on page 82)
Remove the speaker assembly:
1. Position the top cover upside down.
2. Remove the two Phillips PM2.0×3.0 screws (1) that secure the speaker assembly to the base enclosure.
Component replacement procedures 87
3. Remove the speaker assembly (2) from the top cover.
Reverse this procedure to install the speaker assembly.
