Hobart DE1 Parts List

Download

CATALOG OF

REPLACEMENT

PARTS

REFRIGERATORS MODELS QE, DE, EQE

FREEZERS MODELS QEF, DEF, EQEF

A product of HOBART CORPORATION 701 S. RIDGE AVENUE TROY, OHIO 45374-0001

FORM 43026 (August 2001)

QE SERIES REPLACEMENT PARTS

F-43026 (August 2001)

- 2 -

Table of Contents

Page Description

5 Interior Cabinet 6 Exterior Cabinet

8 Half Height Door Solid and Glass 10 Full Height Door Solid and Glass 13 Condensing Unit 14 Evaporator Assembly 17 Interior Lights Thermometer and Alarm 18 Compressor/Condensing Unit 20 ML’s Used To Make This Catalog

QE SERIES REPLACEMENT PARTS

- 3 -

F-43026 (August 2001)

QE SERIES REPLACEMENT PARTS

1-2

3-4

8 THRU 15

16 THRU 21

PL-55752

F-43026 (August 2001)

INTERIOR CABINET

- 4 -

QE SERIES REPLACEMENT PARTS

INTERIOR CABINET

ILLUS. PART NO. NAME OF PART AM T. PL-55752

1 00-239750 Duct – Air (1 Section) (EQE, QE) ............................................................................................. AR

*2 00-434116 Duct – Air (1 Section) (DE) ...................................................................................................... AR

3 00-267051 Duct – Air (2 & 3 Section) (EQE,QE) ........................................................................................ AR

*4 00-434117 Duct – Air (2 & 3 Section) (DE) ................................................................................................ AR

5 00-268239 Support – Duct Assy. (2 & 3 Section) (Upper) ........................................................................ AR

6 00-267126 Support – Duct Assy. (2 & 3 Section) (Lower) ....................................................................... AR

7 00-266357-00003 Screw – Knurled Thumb (SST) ............................................................................................... AR

8 00-280060-00001 Pilaster – Mullion (Double Row Adjustable) (Alum.) ................................................................ AR

9 00-280060-00002 Pilaster – Mullion (Double Row) (SST) .................................................................................... AR

10 00-280061-00001 Pilaster – Mullion (Double Row Adjustable) (Alum.) ................................................................ AR

11 00-280061-00002 Pilaster – (Adjustable) (Double Row) (SST) ........................................................................... AR

*12 00-432528-00001 Pilaster – Adjustable (Double Row) (Alum.) (Half Height) ...................................................... AR

*13 00-432528-00002 Pilaster – Adjustable (Double Row) (SST) (Half Height) ......................................................... AR

*14 00-432527-00001 Pilaster – Mullion (Double Row) (Alum.) (Half Height) ............................................................. AR

*15 00-432527-00002 Pilaster – Mullion (Double Row) (SST) (Half Height) ............................................................... AR

16 00-432522 Shelf (Std.) ............................................................................................................................... AR

17 00-432523 Shelf (SST) ............................................................................................................................... AR

18 00-432524 Shelf (Heavy Duty) .................................................................................................................. AR

19 00-432506 Shelf Set (1) (W/Double Row Clips) (SST) (Incls. Items 17 & 20) .......................................... AR

20 00-279686 Clip – Shelf (SST) (Double Row) ............................................................................................. AR

21 00-239470 Clip – Shelf (SST) (Single Row) .............................................................................................. AR

00-432416 Partition (QE2/QE3) .................................................................................................................. AR

*Parts Are No Longer Manufactured. Some Parts May Still Be Available.

- 5 -

F-43026 (August 2001)

QE SERIES REPLACEMENT PARTS

50-51-52

35-36-37

28 THRU 31

DOOR

SEE SEPARATE

DOOR PAGE

HINGE

SEE HINGES

ON DOOR PAGE

32-33

HINGE

SEE HINGES

ON DOOR PAGE

40 THRU 43

15-16

44 THRU 47

19 THRU 27

SEE INTERIOR LIGHTS

AND THERMOMETER PAGE

1-2-3

48-49

53 THRU 64

4 THRU 10

PL-55749

EXTERIOR CABINET

ILLUS. PART NO. NAME OF PART AM T. PL-55749

1 00-280049 Strike – Door (Solid Doors) ......................................................................................................AR

2 SD-036-20 Self-Tapping Screw 10-24 x 1 Hex Washer Hd., Type T (SST) ............................................. AR

3 SC-014-61 Mach. Screw 1/4-20 x 1/2 Slotted Flat Hd. ................................................................................. AR

4 00-269315 Plug Lock Assy. ........................................................................................................................ AR

5 00-295106 Padlock – Post (Single) (Not Shown) ...................................................................................... AR

6 00-295107 Padlock – Post (Double) (Not Shown) ..................................................................................... AR

7 SD-036-19 Self-Tapping Screw 10-32 x 11/4 Phil. Pan Hd., Type TT ......................................................... AR

8 00-261692 O-Ring ....................................................................................................................................... AR

9 00-261688 Bolt – Handle ............................................................................................................................ AR

10 SA-021-36 Mach. Screw Assy. 10-24 x 3/8 Phil. Pan Hd., External Lockwasher ..................................... AR

11 00-206068 Key (XC3) ................................................................................................................................. AR

12 00-281548 Handle – Door (Horizontal) (QE Series) .................................................................................. AR

13 PB-004-26 Plug Button ............................................................................................................................... AR

14 SD-036-27 Self-Tapping Screw 12-24 x 3/4 Phil. Flat Countersunk Hd., Type T ........................................ AR

15 00-431868 Handle – Door (DE Series) ....................................................................................................... AR

F-43026 (August 2001)

- 6 -

QE SERIES REPLACEMENT PARTS

EXTERIOR CABINET (Cont.)

ILLUS. PART NO. NAME OF PART AM T. PL-55749

16 00-432572 Plate – Handle Cover ................................................................................................................ AR

17 SD-036-19 Self-Tapping Screw 10-32 x 11/4 Phil. Pan Hd., Type TT ......................................................... AR

18 00-239309-00004 Plug – Hole ................................................................................................................................ AR

19 00-283091-00001 Gasket – Door (Full Height) (QE/DE) ........................................................................................ AR

20 00-283091-00002 Gasket – Door (Full Height) (EQE) ........................................................................................... AR

*21 00-280984-00015 Gasket – Door (Half Height) (Upper) (QE/DE) ......................................................................... AR

*22 00-283091-00003 Gasket – Door (Half Height) (Lower) (QE/DE) ........................................................................ AR

*23 00-280984-00016 Gasket – Door (Half Height) (Upper) (EQE) ............................................................................. AR

*24 00-283091-00004 Gasket – Door (Half Height) (Lower) (EQE) ............................................................................ AR

25 00-268420-00058 Gasket – Door Glass (Full Height) (QE/DE) ............................................................................. AR

26 00-268420-00059 Gasket – Door Glass (Full Height) (EQE/EDE) ......................................................................... AR

27 SD-033-33 Self-Tapping Screw 8-18 x 5/8 Phil. Truss Hd., Type A ............................................................ AR

28 00-239157 Hinge Mechanism Assy. ........................................................................................................... AR

29 SC-068-12 Mach. Screw 10-32 x

30 WS-019-20 Washer (SST) .......................................................................................................................... AR

31 WL-008-13 Lockwasher #10 Internal Shakeproof ..................................................................................... AR

32 00-239665 Stop – Door (LH) ...................................................................................................................... AR

33 00-239666 Stop – Door (RH) ...................................................................................................................... AR

34 SA-021-37 Mach. Screw Assy. 10-32 x

35 00-239558 Bushing – Door Stop (Std.) ......................................................................................................AR

36 00-267174 Bushing – Door Stop (Short) .................................................................................................... AR

37 00-278772 Bushing – Nylon ....................................................................................................................... AR

38 00-267387 Plate – Door Stop Reinforcement ............................................................................................. AR

39 NS-031-22 Nut – Stop 1/4-28 ........................................................................................................................ AR

40 00-280368-00019 Plate – Gasket Seal (SST) (Horizontal) (2.755 In. x 28.195 In.) .............................................. AR

41 00-280368-00016 Plate – Gasket Seal (SST) (Vertical) (1 In. x 291/2 In.) ............................................................. AR

42 00-280368-00017 Plate – Gasket Seal (SST) (Vertical) (1 In. x 70 In.) ................................................................ AR

43 00-280368-00018 Plate – Gasket Seal (SST) (Vertical) (1 In. x 77 In.) ................................................................ AR

44 00-432540-00001 Wire Heater Assy. (Full Height Door) (QE) .............................................................................. AR

45 00-432540-00002 Wire Heater Assy. (Full Height Door) (EQE) ............................................................................ AR

46 00-432540-00003 Wire Heater Assy. (Half Height Door) (QE) ............................................................................. AR

47 00-432540-00004 Wire Heater Assy. (Half Height Door) (EQE) ........................................................................... AR

48 00-432329-00001 Trim – Housing End (Roll-In) ..................................................................................................... AR

49 00-432376-00001 Trim – Housing End (Pass-Thru) .............................................................................................. AR

50 00-432330-00001 Front Trim – Refrigerator (1 Section) ...................................................................................... AR

51 00-432330-00005 Front Trim – Refrigerator (2 Section) ...................................................................................... AR

52 00-432330-00009 Front Trim – Refrigerator (3 Section) ...................................................................................... AR

53 00-282282 Rail-Trim Without Thermometer – Refrigerator (1-Section) ..................................................... AR

54 00-282284 Rail-Trim Without Thermometer – Refrigerator (2-Section) ..................................................... AR

55 00-282286 Rail-Trim Without Thermometer – Refrigerator (3-Section) ..................................................... AR

56 00-282282 Rail-Trim Without Thermometer – Freezer (1-Section) ............................................................ AR

57 00-282284 Rail-Trim Without Thermometer – Freezer (2-Section) ............................................................ AR

58 00-282286 Rail-Trim Without Thermometer – Freezer (3-Section) ............................................................ AR

59 00-282281 Rail-Trim With Thermometer – Refrigerator (1-Section) .......................................................... AR

60 00-282283 Rail-Trim With Thermometer – Refrigerator (2-Section) .......................................................... AR

61 00-282285 Rail-Trim With Thermometer – Refrigerator (3-Section) .......................................................... AR

62 00-282281 Rail-Trim With Thermometer – Freezer (1-Section) ................................................................. AR

63 00-282283 Rail-Trim With Thermometer – Freezer (2-Section) ................................................................. AR

64 00-282285 Rail-Trim With Thermometer – Freezer (3-Section) ................................................................. AR

00-263164 Harness – Switch (2 Section) (Pass Thru) ............................................................................. AR

00-432541 Harness – Heater Ramp ...........................................................................................................AR

00-432340-00001 Ramp – Door With Heater Assy. (LH) (Inclined Ramp) (Refrigerators & Freezers) ............... AR

00-432340-00002 Ramp – Door With Heater Assy. (RH) (Inclined Ramp) (Refrigerators & Freezers) ............... AR

00-432645-00001 Ramp – Door With Heater Assy. (Flat) (LH) (Refrigerators & Freezers) ................................ AR

00-432645-00002 Ramp – Door With Heater Assy. (Flat) (RH) (Refrigerators & Freezers) ............................... AR

00-263170 Heater – Ramp (25 W.)............................................................................................................. AR

00-432436 Retainer – Ramp (Use with Door Ramps) ............................................................................... AR

00-432507 Bracket – Ramp (Roll-In) .......................................................................................................... AR

00-432342 Gasket – Sweep (Solid Door) .................................................................................................. AR

00-432344 Kit – Sweep (Solid Door) ......................................................................................................... AR

00-263162 Harness – Light (3 Section) (Roll-In) ....................................................................................... AR

00-432340-00003 Ramp – Door With Heater Assy. (220 V.) (LH) ........................................................................ AR

00-432340-00004 Ramp – Door With Heater Assy. (220 V.) (RH) ....................................................................... AR

/16 Hex Hd. ........................................................................................... AR

/16 Phil. Rd. Hd. .......................................................................... AR

*Parts Are No Longer Manufactured. Some Parts May Still Be Available.

- 7 -

F-43026 (August 2001)

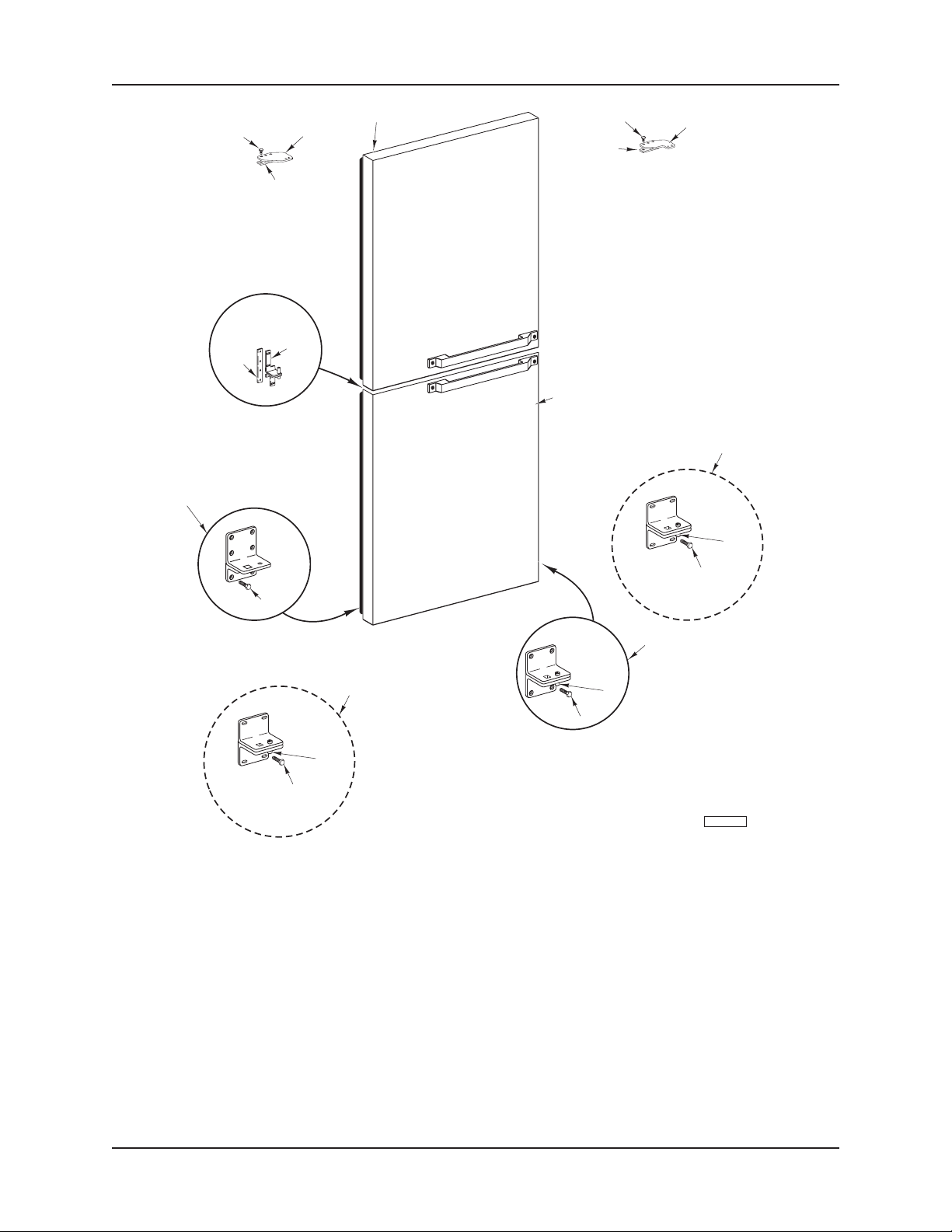

QE SERIES REPLACEMENT PARTS

54-55

SOLID DOOR HINGE

61 60 59

58 57

4 THRU 16

19-20-21

17-18

24 THRU 39

22-23

GLASS DOOR HINGE

40-41

SOLID DOOR HINGE

Construction

49-50

51 52

GLASS DOOR HINGE

46 47

Construction

44-45

PL-55748

HALF HEIGHT DOOR

SOLID AND GLASS

ILLUS. PART NO. NAME OF PART AM T. PL-55748

1 00-283067 Plate – Hinge Mounting Assy. (Solid Doors, Upper Hinge) ...................................................... AR

2 00-265716 Plate – Washer Hinge (Solid Doors, Upper Hinge) .................................................................. AR

3 SD-033-08 Self-Tapping Screw 5/16-18 x 1 Hex Washer Hd.,Type TT (Solid Doors, Upper Hinge) .......... AR

*4 00-432518-00001 Door Assy. (LH) (Upper, Glass) (QE) ...................................................................................... AR

*5 00-432518-00002 Door Assy. (RH) (Upper, Glass) (QE) ...................................................................................... AR

*6 00-432520-00001 Door Assy. (LH) (Upper, Glass) (EQE) .................................................................................... AR

*7 00-432520-00002 Door Assy. (RH) (Upper, Glass) (EQE) .................................................................................... AR

*8 00-432511-00001 Door Assy. (LH) (Upper, Solid) (SST) (QE) ............................................................................. AR

*9 00-432511-00003 Door Assy. (LH) (Upper, Solid) (Silver) (QE) ........................................................................... AR

*10 00-432511-00002 Door Assy. (RH) (Upper, Solid) (SST) (QE) ............................................................................. AR

*11 00-432511-00004 Door Assy. (RH) (Upper, Solid) (Silver) (QE) ........................................................................... AR

F-43026 (August 2001)

- 8 -

QE SERIES REPLACEMENT PARTS

HALF HEIGHT DOOR (Cont.)

SOLID AND GLASS

ILLUS. PART NO. NAME OF PART AM T. PL-55748

*12 00-432515-00001 Door Assy. (LH) (Upper, Solid) (SST) (EQE) ........................................................................... AR

*13 00-432515-00003 Door Assy. (LH) (Upper, Solid) (Silver) (EQE) ......................................................................... AR

*14 00-432515-00002 Door Assy. (RH) (Upper, Solid) (SST) (EQE) ........................................................................... AR

*15 00-432515-00004 Door Assy. (RH) (Upper, Solid) (Silver) (EQE) ........................................................................ AR

*16 00-432517-00001 Door Assy. (LH) (Upper, Solid) (Silver) (EDE) ......................................................................... AR

17 00-265716 Plate – Washer Hinge (Glass Doors) ...................................................................................... AR

18 00-267239 Plate – Lock (Glass Doors) ......................................................................................................AR

19 SD-033-08 Self-Tapping Screw 20 SC-067-05 Mach. Screw 8-32 x

21 WS-028-21 Washer (SST) (Glass Doors) .................................................................................................. AR

22 00-267143-00001 Ardco Hinge Plate Assy. (LH) (Glass Doors) .......................................................................... AR

23 00-267143-00002 Ardco Hinge Plate Assy. (RH) (Glass Doors) ......................................................................... AR

*24 00-432511-00010 Door Assy. (LH) (Lower, Solid) (SST) (QE) ............................................................................ AR

*25 00-432511-00012 Door Assy. (LH) (Lower, Solid) (Silver) (QE) .......................................................................... AR

*26 00-432511-00009 Door Assy. (RH) (Lower, Solid) (SST) (QE) ............................................................................ AR

*27 00-432511-00011 Door Assy. (RH) (Lower, Solid) (Silver) (QE) ......................................................................... AR

*28 00-432515-00010 Door Assy. (LH) (Lower, Solid) (SST) (EQE) .......................................................................... AR

*29 00-432515-00012 Door Assy. (LH) (Lower, Solid) (Silver) (EQE) ........................................................................ AR

*30 00-432515-00009 Door Assy. (RH) (Lower, Solid) (SST) (EQE) .......................................................................... AR

*31 00-432515-00011 Door Assy. (RH) (Lower, Solid) (Silver) (EQE) ....................................................................... AR

*32 00-432521-00001 Door Assy. (LH) (Lower, Glass) (EQE) ................................................................................... AR

*33 00-432521-00002 Door Assy. (RH) (Lower, Glass) (EQE) ................................................................................... AR

*34 00-432517-00003 Door Assy. (LH) (Lower, Solid) (SST) (EDE)........................................................................... AR

*35 00-432517-00004 Door Assy. (RH) (Lower, Solid) (SST) (EDE) .......................................................................... AR

*36 00-432519-00001 Door Assy. (LH) (Lower, Glass) (QE) ..................................................................................... AR

*37 00-432519-00002 Door Assy. (RH) (Lower, Glass) (QE) ..................................................................................... AR

*38 00-432513-00003 Door Assy. (LH) (Lower, Solid) (SST) (DE) ............................................................................. AR

*39 00-432513-00004 Door Assy. (RH) (Lower, Solid) (SST) (DE) ............................................................................ AR

40 00-282363-00001 Bracket Hinge Assy. (LH) (Incls. Item 42) (Lower Glass Doors) ........................................... AR

41 00-282363-00002 Bracket Hinge Assy. (RH) (Incls. Item 42) (Lower Glass Doors) ........................................... AR

42 SC-122-07 Cap Screw

43 SD-036-19 Self-Tapping Screw 10-32 x 11/4 Phil. Pan Hd., Type TT ......................................................... AR

44 00-432363-00001 Bracket – Hinge Assy. (LH) (Incls. Items 46 & 47) (Lower) (Solid Doors) ............................. AR

45 00-432363-00002 Bracket – Hinge Assy. (RH) (Incls. Items 46 & 47) (Lower) (Solid Doors) ............................ AR

46 WL-006-17 Lockwasher (SST) .................................................................................................................. AR

47 SC-018-40 Mach. Screw 1/4-20 x 1/2 Phil. Pan Hd. ...................................................................................... AR

48 SD-036-19 Self-Tapping Screw 10-32 x 11/4 Phil. Pan Hd., Type TT ......................................................... AR

49 00-432336-00001 Bracket – Hinge Assy. (LH) (Incls. Items 51 & 52) (Lower) ................................................... AR

50 00-432336-00002 Bracket – Hinge Assy. (RH) (Incls. Items 51 & 52) (Lower) ................................................... AR

51 WL-006-17 Lockwasher (SST) .................................................................................................................. AR

52 SC-041-50 Cap Screw 1/4-20 x 1/2 Hex Hd. (SST) ...................................................................................... AR

53 SD-036-19 Self-Tapping Screw 10-32 x 11/4 Phil. Pan Hd., Type TT ......................................................... AR

54 00-282259-00001 Bracket – Hinge Assy. (LH) (Lower) ....................................................................................... AR

55 00-282259-00002 Bracket – Hinge Assy. (RH) (Lower) ...................................................................................... AR

56 SD-036-19 Self-Tapping Screw 10-32 x 11/4 Phil. Pan Hd., Type TT ......................................................... AR

57 00-267156 Hinge Assy. (Center) (Ardco Glass) ....................................................................................... AR

58 00-267042 Hinge Assy. (Center) (Standard) (Solid Doors) (Incls. Items 60 & 61) ................................... AR

59 00-267043-00004 Shim .......................................................................................................................................... AR

60 SC-122-78 Mach. Screw 10-32 x 11/2 Phil. Truss Hd. ............................................................................... AR

61 00-283709 Security Screw 10-32 x 11/4 .................................................................................................... AR

/16-18 x 1 Hex Washer Hd., Type TT (Glass Doors) ............................. AR

/2 Hex Hd. (SST) (Glass Doors) ........................................................... AR

/4-20 x 1/2 Slotted Fil. Hd. ...................................................................................... AR

*All Half Height Doors Are Obsolete, Available Only While Quantities Last. Afterwhich, Half Height Doors Are To Be Replaced By Full Height SST Doors.

- 9 -

F-43026 (August 2001)

QE SERIES REPLACEMENT PARTS

58-59

5 THRU 26

29 THRU 33

34 THRU 41

43-44

53-54

Construction

55 56

48-49

50 51

Construction

45 46

PL-55747

FULL HEIGHT DOOR

SOLID AND GLASS

ILLUS. PART NO. NAME OF PART AM T. PL-55747

1 NS-031-22 Stop Nut 1/4-28 Special .............................................................................................................. AR

2 00-265716 Plate – Washer Hinge (Solid Door, Upper Hinge) .................................................................... AR

3 SD-033-08 Self-Tapping Screw 5/16-18 x 1 Hex Washer Hd., Type TT (Solid Door, Upper Hinge) ........... AR

4 00-283067 Plate – Hinge Assy. (Solid Doors, Upper Hinge) ...................................................................... AR

5 00-282277-00001 Door Assy. (LH) (SST) (QE) .................................................................................................... AR

*6 00-432349-00002 Door Assy. (LH) (Silver) (QE) .................................................................................................. AR

*7 00-432349-00003 Door Assy. (LH) (White) (QE) .................................................................................................. AR

*8 00-432349-00004 Door Assy. (LH) (Almond) (QE) ............................................................................................... AR

F-43026 (August 2001)

- 10 -

QE SERIES REPLACEMENT PARTS

FULL HEIGHT DOOR (Cont.)

SOLID AND GLASS

ILLUS. PART NO. NAME OF PART AM T. PL-55747

9 00-282277-00002 Door Assy. (RH) (SST) (QE) .................................................................................................... AR

*10 00-432349-00006 Door Assy. (RH) (Silver) (QE) .................................................................................................. AR

*11 00-432349-00007 Door Assy. (RH) (White) (QE) .................................................................................................. AR

*12 00-432349-00008 Door Assy. (RH) (Almond) (QE) ............................................................................................... AR

*13 00-432403-00001 Door Assy. (LH) (SST) (EDE) ................................................................................................... AR

*14 00-432403-00002 Door Assy. (RH) (SST) (EDE) .................................................................................................. AR

15 00-432369-00001 Door Assy. (LH) (SST) (EQE) (Replaced by 00-282256-00001) ............................................ AR

*16 00-432369-00002 Door Assy. (LH) (Silver) (EQE) (Replaced by 00-282256-00001) ......................................... AR

*17 00-432369-00003 Door Assy. (LH) (White) (EQE) (Replaced by 00-282256-00001) ......................................... AR

*18 00-432369-00004 Door Assy. (LH) (Almond) (EQE) (Replaced by 00-282256-00001) ...................................... AR

19 00-282256-00001 Door Assy. (LH) (EQES) ........................................................................................................... AR

20 00-432369-00005 Door Assy. (RH) (SST) (EQE) (Replaced by 00-282256-00002) ........................................... AR

*21 00-432369-00006 Door Assy. (RH) (Silver) (EQE) (Replaced by 00-282256-00002) ......................................... AR

*22 00-432369-00007 Door Assy. (RH) (White) (EQE) (Replaced by 00-282256-00002) ......................................... AR

*23 00-432369-00008 Door Assy. (RH) (Almond) (EQE) (Replaced by 00-282256-00002) ...................................... AR

24 00-282256-00002 Door Assy. (RH) (EQES) .......................................................................................................... AR

*25 00-432398-00001 Door Assy. (LH) (SST) (Solid Door) (DE) ................................................................................ AR

*26 00-432398-00002 Door Assy. (RH) (SST) (Solid Door) (DE) ................................................................................ AR

27 WS-029-77 Washer (Nylon) ........................................................................................................................ AR

28 00-267239 Plate – Lock (Glass Doors, Upper Hinge) ................................................................................ AR

29 SC-014-61 Mach. Screw 1/4-20 x 1/2 Slotted Flat Hd. (Glass Doors, Upper Hinge) ................................... AR

30 00-267042 Hinge Assy. (Glass Doors, Upper Hinge) ................................................................................ AR

31 00-267043-00004 Shim .......................................................................................................................................... AR

32 SC-122-78 Mach. Screw 10-32 x 11/2 Phil. Truss Hd. ............................................................................... AR

33 00-239309-00004 Plug – Hole ................................................................................................................................ AR

*34 00-432434-00001 Door Assy. (LH) (Glass) (QE) (Incls. Items 27 thru 33 & 42 thru 50) ..................................... AR

*35 00-432434-00002 Door Assy. (RH) (Glass) (QE) (Incls. Items 27 thru 33 & 42 thru 50) ..................................... AR

*36 00-432434-00005 Door Assy. (LH) (Glass) (QEF) ................................................................................................ AR

*37 00-432434-00006 Door Assy. (RH) (Glass) (QEF) ............................................................................................... AR

*38 00-432435-00001 Door Assy. (LH) (Glass) (EQE) ................................................................................................ AR

*39 00-432435-00002 Door Assy. (RH) (Glass) (EQE) ............................................................................................... AR

*40 00-432435-00005 Door Assy. (LH) (Glass) (EQEF) .............................................................................................. AR

*41 00-432435-00006 Door Assy. (RH) (Glass) (EQEF) ............................................................................................. AR

42 00-267262-00001 Strike Assy. ............................................................................................................................... AR

43 00-432509-00001 Bracket Hinge Assy. (LH) (Lower) (Glass Door) .................................................................... AR

44 00-432509-00002 Bracket Hinge Assy. (RH) (Lower) (Glass Door) ................................................................... AR

45 SC-067-05 Mach. Screw 8-32 x 1/2 Hex Hd. (SST) (Glass Doors) ........................................................... AR

46 WS-029-77 Washer (Nylon) ........................................................................................................................ AR

47 SD-036-19 Self-Tapping Screw 10-32 x 11/4 Phil. Pan Hd., Type TT ......................................................... AR

48 00-282363-00001 Bracket Hinge Assy. (LH) (Lower) (Incls. Items 50 and 51) (Glass Door) ............................ AR

49 00-282363-00001 Bracket Hinge Assy. (RH) (Lower) (Incls. Items 50 and 51) (Glass Door) ............................ AR

50 WL-006-17 Lockwasher (SST) .................................................................................................................. AR

51 SC-018-40 Mach. Screw 1/4-20 x 1/2 Phil. Pan Hd. ...................................................................................... AR

52 SD-036-19 Self-Tapping Screw 10-32 x 11/4 Phil. Pan Hd., Type TT ......................................................... AR

53 00-432336-00001 Bracket Hinge Assy. (LH) (Lower) (Incls. Items 55 and 56) (Solid Door) .............................. AR

54 00-432336-00001 Bracket Hinge Assy. (RH) (Lower) (Incls. Items 55 and 56) (Solid Door) .............................. AR

55 WL-006-17 Lockwasher (SST) .................................................................................................................. AR

56 SC-041-50 Cap Screw 1/4-20 x 1/2 Hex Hd. (SST) ...................................................................................... AR

57 SD-036-19 Self-Tapping Screw 10-32 x 11/4 Phil. Pan Hd., Type TT ......................................................... AR

58 00-282259-00001 Bracket Hinge Assy. (LH) (Lower) (Solid Door) ..................................................................... AR

59 00-282259-00002 Bracket Hinge Assy. (RH) (Lower) (Solid Door) ..................................................................... AR

60 SD-036-19 Self-Tapping Screw 10-32 x 11/4 Phil. Pan Hd., Type TT ......................................................... AR

00-434343 Plate – Wiper Mounting ............................................................................................................. AR

00-434341 Bracket – Wiper Mounting ........................................................................................................AR

00-433536-00001 Sweep – Glass Door ............................................................................................................... AR

*Doors No Longer Manufactured. Available While Quantities Last, To Be Replaced By Solid SST Door.

- 11 -

F-43026 (August 2001)

QE SERIES REPLACEMENT PARTS

PL-55750

5-6

1-2

25 26

8 7

11 10

23-24

12 THRU 15

18 17

F-43026 (August 2001)

CONDENSING UNIT

- 12 -

QE SERIES REPLACEMENT PARTS

CONDENSING UNIT

ILLUS. PART NO. NAME OF PART AM T. PL-55750

1 00-266721-00001 Timer – Defrost (QEF/EQEF/DEF) ............................................................................................. AR

2 SD-008-40 Self-Tapping Screw 8-18 x 3/8 Phil. Truss Hd., Type B ............................................................ AR

3 00-263278 Clip – Shroud (QEF1/EQEF1/DEF1) .......................................................................................... AR

4 00-262718-00003 Coil – Condenser (QEF1/EQEF1/DEF1) .................................................................................... AR

5 00-267274 Control Thermostat (QEF1/2/3, EQEF1/2/3, DEF1/2/3) ............................................................ AR

6 00-267275 Control Thermostat (QE1/2/3, EQE1/2/3, DE1/2/3) .................................................................. AR

7 00-265773-00001 Blade – Fan (9 In.) (QEF1/EQEF1/DEF1) .................................................................................. AR

8 00-265182 Washer – Vibration (QEF1/EQEF1/DEF1) ................................................................................ AR

9 00-263339 Nut – Hex 1/4-20 KEPS .............................................................................................................. AR

10 00-237933 Shroud – Condenser (QEF1/EQDF1/DEF1) ............................................................................. AR

11 SD-017-14 Self-Tapping Screw 10-16 x 1/2 Phil. Truss Hd., Type AB (QEF1/EQEF1/DEF1) ..................... AR

12 00-267074-00001 Motor – Evaporator 115 V. (QEF1/EQEF1/DEF1) ..................................................................... AR

13 00-265181 Mach. Screw 8-36 x 3/8 Special (QEF1/EQEF1/DEF1) ............................................................. AR

14 00-266607 Bracket – Condenser Fan (QEF1/EQEF1/DEF1) ...................................................................... AR

15 SD-017-14 Self-Tapping Screw 10-16 x 1/2 Phil. Truss Hd., Type AB (QEF1/EQEF1/DEF1) ..................... AR

16 00-239439 Tubing Bracket Assy. (QEF1/EQEF1/DEF1) ............................................................................. AR

17 00-263079-00002 Clamp – Tube (1/4) (QEF1/EQEF1/DEF1) ................................................................................... AR

18 00-265550 Bracket – Muffler (QEF1/EQEF1/DEF1) ................................................................................... AR

19 00-266357-00003 Thumb Screw – Knurled (SST) (QEF1/EQEF1/DEF1) ............................................................. AR

20 00-283024 Clamp – Wire (QEF1/EQEF1/DEF1) .......................................................................................... AR

21 - Compressor/Condensing Unit (See Chart On Page 18) .......................................................... AR

22 00-432378 Base (QEF1/EQEF1/DEF1) ....................................................................................................... AR

23 00-087713-086-1 Contactor – Single Pole 50/60 Hz. (All Models Except QE1 & EQE1) ..................................... AR

24 00-281166 Cover – Contactor (All Models Except QE1 & EQE1) .............................................................. AR

25 00-432382 Discharge Tube Assy. (All 1 Section Freezers) (R12 Refrigerant)........................................ AR

26 00-432651 Discharge Tube Assy. (All 2 & 3 Section Freezers) (R12 Refrigerant) ................................. AR

27 00-239090 Dish (All Freezer Models Only) ................................................................................................ AR

28 00-279055 Circuit Breaker .......................................................................................................................... AR

00-282916 Plate – Off Indicator (Use with Items 5 & 6) ............................................................................ AR

00-432599 Cover – UL (Top) (QE3) ........................................................................................................... AR

00-432633 Cover – UL (End) (QE3) ........................................................................................................... AR

00-432601 Cover – UL (Rear) (QE3) ......................................................................................................... AR

00-281878 Control – High Pressure ........................................................................................................... AR

- 13 -

F-43026 (August 2001)

QE SERIES REPLACEMENT PARTS

57-58

59 THRU 80

51 THRU 56

32 THRU 37

1 THRU 22

23-24-25

26-27-28

38 THRU 43

29 30 31

49-50

44 THRU 47

PL-55751

EVAPORATOR ASSEMBLY

ILLUS. PART NO. NAME OF PART AM T. PL-55751

*1 00-432567 Heat Exchanger Assy. (QE1) ................................................................................................... AR

2 00-281056 Heat Exchanger Assy. (QE2) ................................................................................................... AR

3 00-432634 Heat Exchanger Assy. (QE3) ................................................................................................... AR

4 00-432632 Heat Exchanger Assy. (QEF1) (R502) .................................................................................... AR

5 00-282079 Heat Exchanger Assy. (QEF1) (R404) .................................................................................... AR

6 00-432636 Heat Exchanger Assy. (QEF2) (R22) ...................................................................................... AR

7 00-432636-00002 Heat Exchanger Assy. (QEF2) (R404) .................................................................................... AR

8 00-432637 Heat Exchanger Assy. (QEF3) (R502) .................................................................................... AR

*9 00-432567 Heat Exchanger Assy. (EQE1) ................................................................................................. AR

**10 00-432638 Heat Exchanger Assy. (EQE2) ................................................................................................. AR

11 00-432635 Heat Exchanger Assy. (EQE3) ................................................................................................. AR

12 00-432632 Heat Exchanger Assy. (EQEF1) (R502) .................................................................................. AR

13 00-282079 Heat Exchanger Assy. (EQEF1) (R404) .................................................................................. AR

14 00-432639 Heat Exchanger Assy. (EQEF2) ............................................................................................... AR

15 00-432636-00002 Heat Exchanger Assy. (EQEF2) (R404) .................................................................................. AR

16 00-432637 Heat Exchanger Assy. (EQEF3) (R404) .................................................................................. AR

*17 00-432567 Heat Exchanger Assy. (DE1) ................................................................................................... AR

18 00-281058 Heat Exchanger Assy. (DE2) ................................................................................................... AR

19 00-281058 Heat Exchanger Assy. (DE3) ................................................................................................... AR

*20 00-432567 Heat Exchanger Assy. (DEF1) (R404) ..................................................................................... AR

21 00-432636-00002 Heat Exchanger Assy. (DEF2) (R404) ..................................................................................... AR

22 00-432637 Heat Exchanger Assy. (DEF3) (R404) (QEF3) ........................................................................ AR

23 00-269122 Thermostat – Safety (QEF1, 2, 3, & EQEF1, 2) ....................................................................... AR

F-43026 (August 2001)

- 14 -

QE SERIES REPLACEMENT PARTS

EVAPORATOR ASSEMBLY (Cont.)

ILLUS. PART NO. NAME OF PART AM T. PL-55751

24 00-239872 Bracket – Safety Thermostat (QEF1, 2, 3, & EQEF1, 2) ......................................................... AR

25 SD-008-40 Self-Tapping Screw 8-18 x 3/8 Phil. Truss Hd., Type B ............................................................ AR

26 00-239079 Heater – Evaporator Defrosting (QEF1/QEF2) ........................................................................ AR

27 00-239083 Heater – Evaporator Defrosting (QEF2, 3, & EQEF2) .............................................................. AR

28 00-432628 Heater – Evaporator Defrosting (QEF3/EQEF3) ...................................................................... AR

29 00-267021-00002 Drain Pan Heater Assy. (1 Section) ......................................................................................... AR

30 00-267021-00003 Drain Pan Heater Assy. (2 Section) ......................................................................................... AR

31 00-266082-00005 Drain Pan Heater Assy. (3 Section) ......................................................................................... AR

32 00-280937 Drain Pan Replacement (1 Section) ......................................................................................... AR

33 00-280941 Drain Pan Replacement (2 Section) ......................................................................................... AR

34 00-280938 Drain Pan Replacement (3 Section) ......................................................................................... AR

35 00-070641-00016 Thumb Screw #8 ..................................................................................................................... AR

36 00-239406 Clip – Pan Support .................................................................................................................... AR

37 SD-033-33 Self-Tapping Screw 8-18 x

38 00-264384 Fan Orifice Assy. (Incls. Items 41, 44, 45, 47, 48, 49, & 50) .................................................. AR

39 00-432626 Orifice – Fan Assy. (QE3) (2 Fan) (Incls. Items 43, 44, 46, 47, 48, 49, & 50) ........................ AR

40 00-263449 Orifice – Fan Assy. (Incls. Items 42, 46, 47, 48, & 50)............................................................ AR

41 00-263737 Orifice – Fan (QE1) .................................................................................................................. AR

42 00-239483 Orifice – Fan (QE2/3) ............................................................................................................... AR

43 00-432625 Panel – Orifice (QE3) (2 Fan) .................................................................................................. AR

44 00-263339 Nut – 1/4-20 Hex KEPS .............................................................................................................. AR

45 00-239480 Bracket – Fan Motor (1-Section) ............................................................................................. AR

46 00-239490 Bracket – Fan Motor (2 & 3-Section) ....................................................................................... AR

47 SC-109-44 Mach. Screw 1/4-20 x 3/4 Hex Washer Hd. ............................................................................... AR

48 00-267074-00003 Evaporator Fan Motor Assy. (115 V.) (Vertical) ...................................................................... AR

49 00-265773-00001 Blade – Fan (9") ....................................................................................................................... AR

50 00-265181 Mach. Screw 8-36 x 3/8 Special ............................................................................................... AR

51 00-262575-00002 Evaporator – Coil (QE1/EQE1/DE) ............................................................................................ AR

52 00-262577-00002 Evaporator – Coil (QE2/DE2) .................................................................................................... AR

53 00-263713 Evaporator – Coil (QE3/EQE3/DE3) .......................................................................................... AR

54 00-262576-00002 Evaporator – Coil (QEF1/EQEF1/DEF1) .................................................................................... AR

55 00-262578-00002 Evaporator – Coil (QEF2/EQEF2/DEF2) .................................................................................... AR

56 00-432627 Evaporator – Coil (QEF3/EQEF3/DEF3) .................................................................................... AR

57 00-262708 Accumulator (QE1/EQE1) ......................................................................................................... AR

58 00-262712 Accumulator (All Other Models Covered in this Catalog) ....................................................... AR

59 00-267222-00011 Capillary Tube (QE1) (R22) ......................................................................................................AR

60 00-267222-00008 Capillary Tube (QE2) (R22) ......................................................................................................AR

61 00-267222-00004 Capillary Tube (QE3) (R22) ......................................................................................................AR

62 00-267222-00006 Capillary Tube (QEF1) (R502) .................................................................................................. AR

63 00-267222-00016 Capillary Tube (QEF1) (R404) .................................................................................................. AR

64 00-267222-00011 Capillary Tube (QEF2) (R22) .................................................................................................... AR

65 00-267222-00018 Capillary Tube (QEF2) (R404) .................................................................................................. AR

66 00-267222-00012 Capillary Tube (QEF3) (R404) .................................................................................................. AR

67 00-267222-00011 Capillary Tube (EQE1) (R22) .................................................................................................... AR

68 00-267222-00002 Capillary Tube (EQE2) (R22) .................................................................................................... AR

69 00-267222-00003 Capillary Tube (EQE3) (R22) .................................................................................................... AR

70 00-267222-00006 Capillary Tube (EQEF1) (502) .................................................................................................. AR

71 00-267222-00016 Capillary Tube (EQEF1) (R404) ................................................................................................ AR

72 00-267222-00007 Capillary Tube (EQEF2) (R22) .................................................................................................. AR

73 00-267222-00018 Capillary Tube (EQEF2) (R404) ................................................................................................ AR

74 00-267222-00012 Capillary Tube (EQEF3) (R404) ................................................................................................ AR

75 00-267222-00011 Capillary Tube (DE1) (R22) ...................................................................................................... AR

76 00-267222-00011 Capillary Tube (DE2) (R22) ...................................................................................................... AR

77 00-267222-00012 Capillary Tube (DE3) (R404) .................................................................................................... AR

78 00-267222-00016 Capillary Tube (DEF1) (R404) .................................................................................................. AR

79 00-267222-00011 Capillary Tube (DEF2) (R22) .................................................................................................... AR

80 00-267222-00012 Capillary Tube (DEF3) (R404) .................................................................................................. AR

00-263755 Housing – Evaporator (1-Section) ........................................................................................... AR

00-239413 Housing – Evaporator (2-Section) ........................................................................................... AR

00-265341 Housing – Evaporator (3-Section) ........................................................................................... AR

/8 Phil Truss Hd., Type A ............................................................. AR

*Superseded by 00-283388 (R134A) (Capillary Tube 00-267222-00026); for service use 00-432567. **Superseded by 00-283389 (R134A) (Capillary Tube 00-267222-00027); for service use 00-432638.

- 15 -

F-43026 (August 2001)

QE SERIES REPLACEMENT PARTS

22-23-24

25-26

1 THRU 7

PL-55753

15-16

17-18

11-12

F-43026 (August 2001)

INTERIOR LIGHTS

THERMOMETER AND ALARM

- 16 -

QE SERIES REPLACEMENT PARTS

INTERIOR LIGHTS

THERMOMETER AND ALARM

ILLUS. PART NO. NAME OF PART AM T. PL-55753

1 00-263035 Holder – Lamp .......................................................................................................................... AR

2 00-267267 Harness – Light (1-Section) (Roll-In) ....................................................................................... AR

3 00-263161 Harness – Light (2-Section) (Roll-In) ....................................................................................... AR

4 00-263162 Harness – Light (3-Section) (Roll-In) ....................................................................................... AR

5 00-267268 Harness – Light (1-Section) (Pass-Thru) ................................................................................ AR

6 00-263164 Harness – Switch (2-Section) (Pass-Thru) ............................................................................ AR

7 00-263165 Harness – Light (3-Section) (Pass-Thru) ................................................................................ AR

8 00-263041 Bulb – Light (40 W.) .................................................................................................................. AR

9 00-239059 Shield – Light ............................................................................................................................ AR

10 00-266357-00003 Thumb Screw – Knurled (SST) ............................................................................................... AR

*11 00-431677 Thermometer (Dial) ................................................................................................................... AR

*12 NS-009-02 Mach. Nut 4-40 Hex ................................................................................................................. AR

13 00-431677 Thermometer – Solar (QE/EQE) ............................................................................................... AR

14 00-431892 Thermometer (Dial) (Type TF Drum) (DE) ................................................................................ AR

15 00-249907-00003 Sensor – Low Temperature ..................................................................................................... AR

16 00-249907-00004 Sensor – Medium Temperature ................................................................................................ AR

17 00-262433 Bracket – Alarm Box Mtg.......................................................................................................... AR

18 SD-032-07 Self-Tapping Screw 10-24 x 1/2 Hex Washer Hd., Type TT .................................................... AR

19 00-249906-00003 Box – Alarm (TAH-100) ............................................................................................................ AR

20 00-239978 Nut – Face ................................................................................................................................ AR

21 00-239984 Light – Switch Decal ................................................................................................................ AR

22 00-268139 Switch (On/Off) ....................................................................................................................... AR

23 00-268140 Wiring Harness (By-Pass Switch) .......................................................................................... AR

24 SD-008-40 Self-Tapping Screw 8-18 x 3/8 Phil. Truss Hd., Type B ............................................................ AR

25 00-087711-00303 Switch – Normally Closed .......................................................................................................... 1

26 00-283064 Shim – Light Switch ................................................................................................................... 1

ML-030000 Alarm System (Med. Temp.) (Inlcs. Items 16 thru 19) ............................................................. AR

ML-030001 Alarm System (Low Temp.) (Incls. Items 15, 17, 18, & 19) .................................................... AR

00-281704 Battery – Solar Thermometer ................................................................................................... AR

00-430037 Thermometer ............................................................................................................................ AR

00-264882 Label – Refrigeration ID ............................................................................................................ AR

00-264883 Label – Freezer ID .................................................................................................................... AR

00-432120-00001 Nameplate – Thermostat (Refrigerators) ................................................................................. AR

00-432120-00002 Nameplate – Thermostat (Freezers) ....................................................................................... AR

*Parts Are No Longer Manufactured. Some Parts May Still Be Available.

- 17 -

F-43026 (August 2001)

QE SERIES REPLACEMENT PARTS

COMPRESSOR/CONDENSING UNIT

(PART NUMBERS R502/R404/R134A/R22)

CONDENSING UNIT COMPRESSOR

MODEL VOLTAGE ERANT P/N MODEL P/N MODEL

QE1, EQE1, DE1 120/60/1 R22 431815 MDPH-M033-IAA-101 N/A ARF4-0033-IAA-200

QEF1, EQEF1, DEF1 120/60/1 R22 N/A N/A N/A RSN5-0075-CAA-202

QEF1 115/60/1 R502 ***431787 280725 RSN5-0075-CAA-202

QEF1 R404A 282081-1 FJCF-A075-CAA N/A R564CIECAB

QE2, DE2 120/60/1 R22 431816 F2EM-0052-IFA-140 N/A JRF4-0005-IFA-202

QE2, DE2 208-230/60/1 R22 431817 F2EM-0052-IAV-140 N/A JRF4-0050-IAV-202

EQE2 120/60/1 R22 *432542-1 F2EH-A075-IAA-141 N/A RSE4-0075-IAA-203

EQE2 208-230/60/1 R22 **432542-2 F2EH-A075-IAV-141 N/A RSE4-0075-IAV-203

QEF2, EQEF2 230/60/1 R404A 282041-1 EJAL-A103-CAV-110

QEF2, DEF2 208-230/60/1 R22 432195 EKAL-A100-CAV-110 N/A KAJB-0100-CAV-100

EQEF2 208-230/60/1 R22 432544 ELAL-A152-CAV-010 N/A KAKB-0200-CAV-100

QE3, DE3 120/60/1 R22 432543-1 F2EM-A077-CAA-141 N/A RRG4-0100-PAA-202

QE3, DE3 208-230/60/1 R22 432543-2 F2EM-A077-CAV-141 N/A RRG4-0100-PAV-226

EQE3 208-230/60/1 R502 431849 F3AM-A102-CAV-001 N/A REY3-0175-PFV-213

QEF3, EQEF3 230/60/1 R404A 282042-1 EJAE-0175-CAV-006

QEF3, EQEF3, DEF3 208-230/60/1 R502 432596 E3AL-0175-CAV-010 N/A KATB-0150-CAV-100

REFRIG- HOBART COPELAND HOBART COPELAND

* Use existing stock; superseded by 00-434293-00004 (R134A). ** Use existing stock; superseded by 00-434293-00005 (R134A). *** Use existing stock; superseded by 00-434294-00010 (R404).

F-43026 (August 2001)

- 18 -

QE SERIES REPLACEMENT PARTS

- 19 -

F-43026 (August 2001)

QE SERIES REPLACEMENT PARTS

ML’s Used To Make This Catalog

ML-030000 HIGH TEMP ALARM, REFRIGERATOR

ML-030001 HIGH TEMP ALARM, FREEZER

ML-049715 QE1 (SUP. BY ML-111507) & EQE1

ML-049717 QE2 (SUP. BY ML-111508)

ML-049719 QE3

ML-049721 QEF1 & EQEF1 (SUP. BY ML-111268 (BJ only))

ML-049724 QEF2 (SUP. BY ML-111269 (BD only))

ML-049727 QEF3 (SUP. BY ML-111270 (BD only))

ML-049730 QES1

ML-049731 QESA1 (SUP. BY ML-111526)

* ML-049732 QEC1

ML-049733 QESD1

ML-049734 QESAD1 (SUP. BY ML-111527)

* ML-049735 QECD1

ML-049736 QESF1

ML-049737 QESAF1 (SUP. BY ML-111529)

* ML-049738 QECF1

ML-049739 QESDF1

ML-049740 QESADF1 (SUP. BY ML-111528)

* ML-049741 QECDF1

ML-049742 QES2

ML-049743 QESA2 (SUP. BY ML-111530)

* ML-049744 QEC2

ML-049745 QESD2

ML-049746 QESAD2 (SUP. BY ML-111531)

* ML-049747 QECD2

ML-049748 QESF2

ML-049749 QESAF2 (SUP. BY ML-111533)

* ML-049750 QECF2

ML-049751 QESDF2

ML-049752 QESADF2 (SUP. BY ML-111532)

* ML-049753 QECDF2

ML-049754 QES3

ML-049755 QESA3 (SUP. BY ML-111534)

* ML-049756 QEC3

ML-049757 QESD3

ML-049758 QESAD3 (SUP. BY ML-111535)

* ML-049759 QECD3

ML-049760 QESF3

ML-049761 QESAF3 (SUP. BY ML-111537)

* ML-049762 QECF3

ML-049763 QESDF3

ML-049764 QESADF3 (SUP. BY ML-111536)

* ML-049765 QECDF3

ML-049766 EQES1

ML-049767 EQESA1

* ML-049768 EQEC1

ML-049769 EQESD1

ML-049770 EQESAD1

ML-049771 EQECD1

* ML-049772 EQESF1

* ML-049773 EQESAF1

* ML-049774 EQECF1

* ML-049775 EQESDF1

* ML-049777 EQECD1

ML-049790 EQES3

ML-049791 EQESA3

ML-049792 EQESD3

ML-049793 EQESD3

ML-049794 EQESAD3

* ML-049795 EQECD3

* ML-049796 EQESF3

* ML-049797 EQESAF3

* ML-049798 EQECF3

* ML-049799 EQESDF3

* ML-049801 EQECDF3

* ML-049802 DE1

* ML-049803 DE2

* ML-049804 DE3

* ML-049805 DEF1

* ML-049806 DEF2

* ML-049807 DEF3

* ML-049808 EQE2

* ML-049809 EQE3

* ML-049810 EQEF2

* ML-049811 EQEF3

*Obsolete ML Number

FORM 43026 AUGUST 2001 PRINTED IN U.S.A.

Hobart DE1 Parts List

Specifications and Main Features

Frequently Asked Questions

User Manual
