Hobart 1612 Installation Manual

PL-41105-1

FOOD CHUTE

MODEL 2612

HANGERS

REAR HEAVY MEAT GRIP

REAR MEAT GRIP SLIDE ROD IN FRONT POSITION

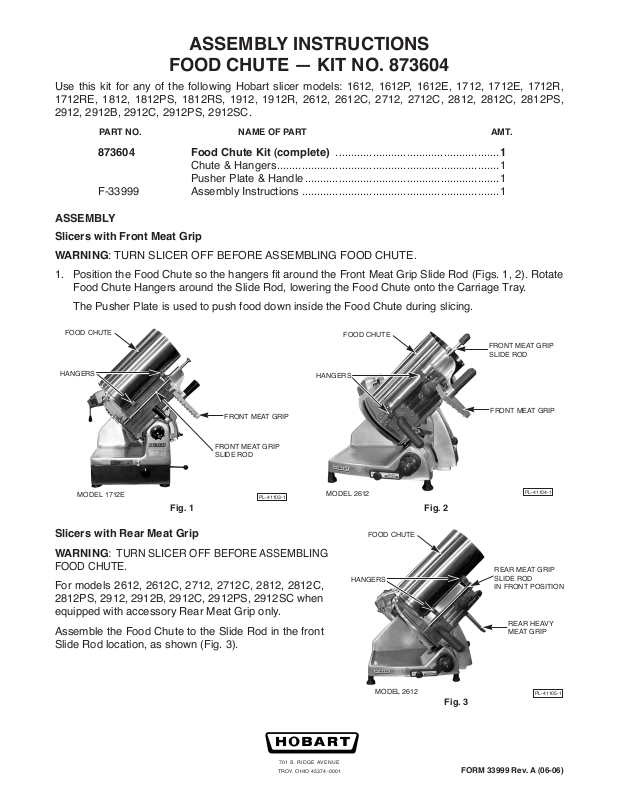

ASSEMBLY INSTRUCTIONS

PL-41103-1

FOOD CHUTE

FRONT MEAT GRIP SLIDE ROD

MODEL 1712E

HANGERS

FRONT MEAT GRIP

PL-41104-1

FOOD CHUTE

MODEL 2612

HANGERS

FRONT MEAT GRIP

FRONT MEAT GRIP SLIDE ROD

FOOD CHUTE — KIT NO. 873604

Use this kit for any of the following Hobart slicer models: 1612, 1612P, 1612E, 1712, 1712E, 1712R, 1712RE, 1812, 1812PS, 1812RS, 1912, 1912R, 2612, 2612C, 2712, 2712C, 2812, 2812C, 2812PS, 2912, 2912B, 2912C, 2912PS, 2912SC.

PART NO. NAME OF PART AMT.

873604 Food Chute Kit (complete) .....................................................1

Chute & Hangers ........................................................................

Pusher Plate & Handle ...............................................................

F-33999 Assembly Instructions ................................................................

ASSEMBLY

Slicers with Front Meat Grip

WARNING: TURN SLICER OFF BEFORE ASSEMBLING FOOD CHUTE.

1. Position the Food Chute so the hangers ﬁt around the Front Meat Grip Slide Rod (Figs. 1, 2). Rotate Food Chute Hangers around the Slide Rod, lowering the Food Chute onto the Carriage Tray.

The Pusher Plate is used to push food down inside the Food Chute during slicing.

1 1 1

Fig. 1 Fig. 2

Slicers with Rear Meat Grip

WARNING

TURN SLICER OFF BEFORE ASSEMBLING

FOOD CHUTE.

For models 2612, 2612C, 2712, 2712C, 2812, 2812C, 2812PS, 2912, 2912B, 2912C, 2912PS, 2912SC when equipped with accessory Rear Meat Grip only.

Assemble the Food Chute to the Slide Rod in the front Slide Rod location, as shown (Fig. 3).

701 S. R IDGE AVE NUE

TRO Y, O HIO 4 5374- 0001

Fig. 3

FORM 33999 Rev. A (06-06)

Slicers with Feed-Screw Mechanism

PL-41132-1

ACTUATING BLOCK

ADJUSTING SCREW

KNURLED KNOB

PL-41133-1

HANGER

FRONT MEAT GRIP

SLIDE ROD

FOOD CHUTE

PL-41134-1

FOOD CHUTE

PLUNGER KNOB

FEED SCREW

PIN IN SLOT

PLUNGER HOUSING

MEA

T GRIP PR

ONGS

For models 1712R, 1712RE, 1912R only.

WARNING: TURN SLICER OFF BEFORE ASSEMBLING FOOD CHUTE.

1. Turn the Knurled Knob on the Adjusting Screw clockwise to move the Actuating Block all the way to the front (Fig. 4).

Fig. 4

2. Assemble the Food Chute so the ﬁrst Hanger ﬁts around the Front Meat Grip Slide Rod (Fig. 5). Slide the Food Chute and first Hanger down the Front Meat Grip Slide Rod and ﬁt the second Hanger around the Rod. With both Food Chute Hangers in place around the Slide Rod, lower the Food Chute to the Carriage Tray.

3. Turn the Prongs of the Meat Grip toward the Food Chute. Position the Pin on the Plunger Knob shaft in the slot on the Plunger Housing with the Meat Grip positioned at the top of the Feed Screw (Fig. 6).

Fig. 5

Fig. 6

FORM 33999 Rev. A (06-06) PRINTED IN U.S.A.

– 2 –
