Hellwig 7646 User Manual
559-734-7451 800-367-5480 FAX 559-734-7460

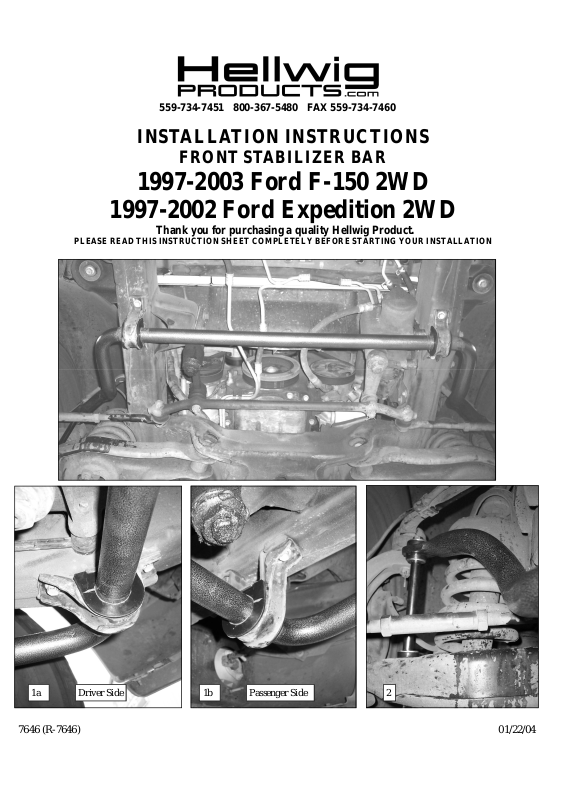

INSTALLATION INSTRUCTIONS
FRONT STABILIZER BAR
1997-2003 Ford F-150 2WD
1997-2002 Ford Expedition 2WD
Thank you for purchasing a quality Hellwig Product.
PLEASE READ THISINSTRUCTION SHEET COMPLETELY BEFORE STARTING YOUR INSTALLATION
1a 2
7646 (R-7646) 01/22/04
Driver Side 1b Passenger Side
559-734-7451 800-367-5480 FAX 559-734-7460
TORQUE TABLE
BOLT SIZE: 3/8” = 20-30 ft. lbs. – 7/16” = 35-45 ft. lbs. – ½” = 50-70 ft. lbs. – 9/16” = 70-90 ft. lbs.
SAFETY: BEFORE STARTINGYOURINSTALLATION,BESURE TOSETPARKINGBRAKE AND CHOCK TIRES.
NOTE: THIS KIT INCLUDES LOCK NUTS WHICH REQUIRE TIGHTENINGWITYHAWRENCHAFTER BEING STARTEDBYHAND.
1. Remove Factory Installed Sway Bar. Save mounting hardware and frame brackets for installtion of Hellwig sway bar.
2. Lubricate and install the D-shaped poly bushings on the sway bar in approximately the same
location so that the bushings line up with the mounting location on the frame.
3. Raise the sway bar up into position and attach the D-shaped poly bushings using the factory
mounting hardware.
4. Install the end links on the lower control arms. TIGHTEN SLIGHTLY JUST UNTIL BUSHING START TO BULGE. See photo two (2). DO NOT OVER TIGHTEN.
5. By moving the sway bar to the right or to the left the end links can be aligned as vertical as possible.
6. Tighten all the bolts on the U-plates to the factory specifications.
7. Bounce the vehicle and check for clearance on all the undercarriage components. Turn the front
wheels full lock left and then to the right making sure that clearance is maintained between the
tie rod and the sway bar. Be sure that all nuts and bolts securely tightened. Check and see that
all wires, fuel and brake lines etc. are clear of this installation and cannot be damaged. Recheck
your installation after one (1) week of driving and every thirty days thereafter.
ATTENTION INSTALLER:BE SURE THAT THE CUSTOMER RECEIVES THIS INSTRUCTION
SHEET, ALL IMORTANT NOTE CARDS AND THE WARRANTY FORM.
7646 (R-7646) 01/22/04
