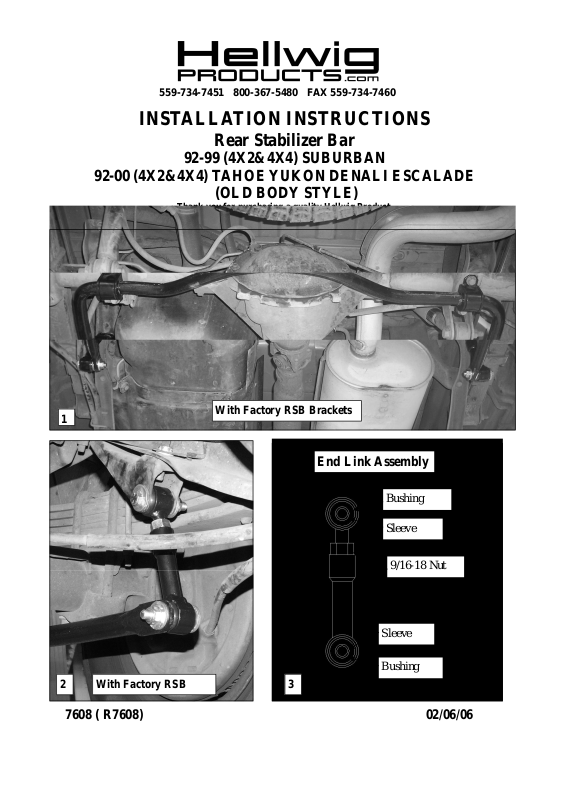

INSTALLATION INSTRUCTIONS
Rear Stabilizer Bar
92-99 (4X2&4X4) SUBURBAN
92-00 (4X2&4X4) TAHOE YUKON DENALI ESCALADE
(OLD BODY STYLE)
Thank you for purchasing a quality Hellwig Product.
PLEASE READ THIS INSTRUCTION SHEET COMPLETELY BEFORESTARTING YOUR INSTALLATION
1
2 With Factory RSB
With Factory RSB Brackets
End Link Assembly
Bushing
Sleeve
9/16-18 Nut
Sleeve
Bushing
3
7608 ( R7608) 02/06/06
559-734-7451 800-367-5480 FAX 559-734-7460
4 5
Without Factory RSB Brackets
Without Factory RSB Brackets
Vehicles w/o factory RSB brackets.
Enlarge this hole using 1/2” Drill bit.
This hole will be used to attach the
clevis to the frame using the supplied
1/2” bolt, locknut, and washer.
Without Factory RSB Brackets
6
TORQUETABLE
BOLT SIZE: 3/8” = 20-30 ft. lbs. – 7/16” = 35-45 ft. lbs. – ½” = 50-70 ft. lbs. – 9/16” = 70-90 ft. lbs.
SAFETY: BEFORESTARTINGYOUR INSTALLATION, BE SURE TO SET PARKINGBRAKE AND CHOCK TIRES.
NOTE: TO EASE INSTALLATION AND TO PROPERLY ADJUST BAR, THE WEIGHT OF THE VEHICLE MUST BE ON
THE SUSPENSION, AS IF DRIVING DOWN THE ROAD. DO NOT RAISE VEHICLE BY FRAME.
NOTE: THIS UNIT IS DESIGNED TO REPLACE THE FACTORY INSTALLED REAR ANTI-SWAY BAR OR AS AN
ADDITIONIF ONE IS NOT FACTOTY INSTALLED. ON VEHICLESWITHOUT A FACTORY REAR BAR IT MAY BE
NECESSARY TO DRILL THE FRAME BRACKETMOUNT HOLES IN THE BOTTOM OF THE FRAME. THIS BAR
MOUNTS TO THE BOTTOMOF THE AXLE TUBESWITH THE ARMS OF THEBAR TOWARDS THE FRONT OF
THE VEHICLE.
NOTE: THIS KIT INCLUDESLOCKNUTS WHICH REQUIRE TIGHTENING WITH A WRENCH AFTER BEING
STARTEDBY HAND.
7608 ( R7608) 02/06/06
