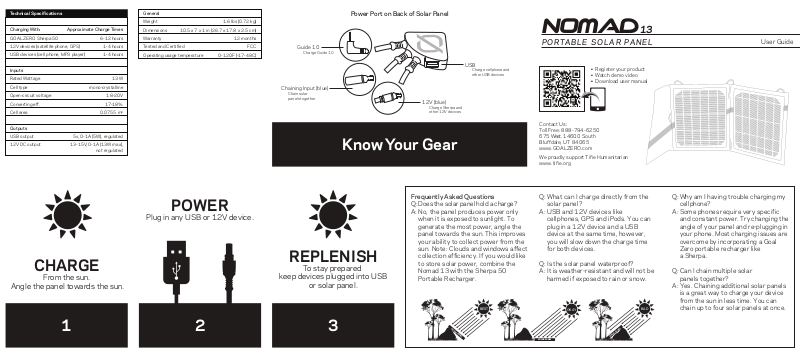

Goal Zero NOMAD13 User Guide

Technical Specifications

Charging With: Approximate Charge Times

GOAL ZERO Sherpa 50 6-12 hours

12V devices (satellite phone, GPS) 1-4 hours

USB devices (cell phone, MP3 player) 1-4 hours

Inputs

Rated Wattage 13 W

Cell type mono-crystalline

Open-circuit voltage 18-20V

Converting eff. 17-18%

Cell area 0.0755 m

General

Weight 1.6 lbs (0.72 kg)

Dimensions 10.5 x 7 x 1 in (26.7 x 17.8 x 2.5 cm)

Warranty 12 months

Tested and Certified FCC

Operating usage temperature 0-120F (-17-48C)

₂

Guide 10

Charge Guide 10

Chaining Input (blue)

Chain solar

panels together

Power Port on Back of Solar Panel

12V (blue)

Charge Sherpa and

other 12V devices

USB

Charge cellphone and
other USB devices

NOMAD13

PORTABLE SOLAR PANEL

• Register your product

• Watch demo video

• Download user manual

User Guide

Outputs

USB output 5v, 0-1A (5W), regulated

12V DC output 13-15V, 0-1A (13W max),

not regulated

CHARGE

From the sun.

Angle the panel towards the sun.

POWER

Plug in any USB or 12V device.

Know Your Gear

REPLENISH

To stay prepared

keep devices plugged into USB

or solar panel.

Frequently Asked Questions

Q: Does the solar panel hold a charge?
A: No, the panel produces power only

when it is exposed to sunlight. To

generate the most power, angle the
panel towards the sun. This improves
your ability to collect power from the
sun. Note: Clouds and windows affect
collection efficiency. If you would like
to store solar power, combine the
Nomad 13 with the Sherpa 50
Portable Recharger.

BEST

Contact Us:
Toll Free: 888-794-6250
675 West. 14600 South
Bluffdale, UT 84065
www.GOALZERO.com

We proudly support Tifie Humanitarian
www.tifie.org

Q: What can I charge directly from the

solar panel?

A: USB and 12V devices like
cellphones, GPS and iPods. You can
plug in a 12V device and a USB
device at the same time, however,
you will slow down the charge time
for both devices.

Q: Is the solar panel waterproof?

A: It is weather-resistant and will not be

harmed if exposed to rain or snow.

OKAY

BAD

Q: Why am I having trouble charging my

cellphone?

A: Some phones require very specific
and constant power. Try changing the
angle of your panel and re-plugging in
your phone. Most charging issues are
overcome by incorporating a Goal
Zero portable recharger like
a Sherpa.

Q: Can I chain multiple solar

panels together?

A: Yes. Chaining additional solar panels
is a great way to charge your device
from the sun in less time. You can
chain up to four solar panels at once.

1

2 3

SOLAR PANEL

SOLAR PANEL

SOLAR PANEL
