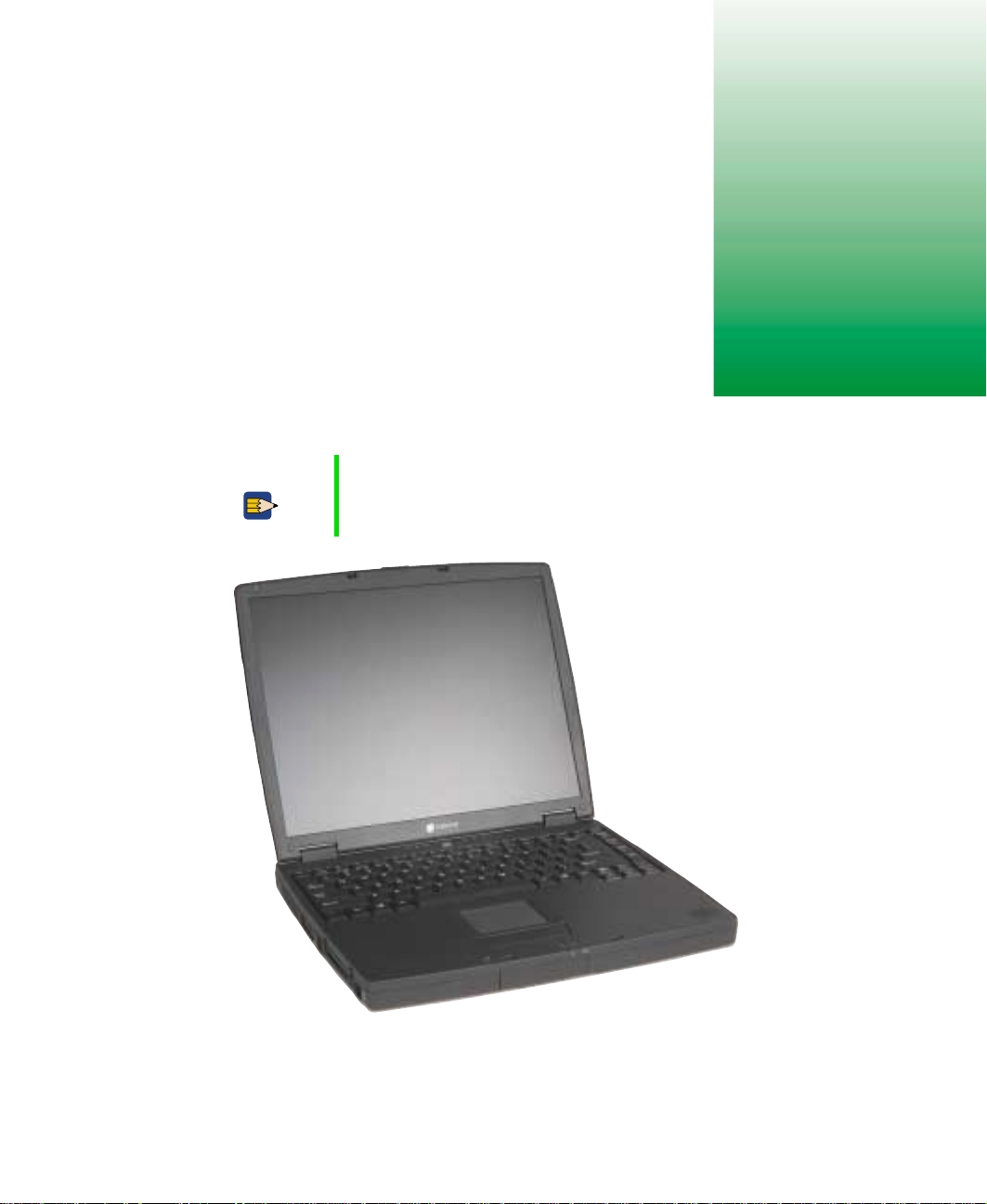

Checking Out

Your Gateway 1

Solo 5300

Tips & Tricks To access the contents of this guide while you are traveling, download an electronic copy from www.gateway.com/support/manlib/.

www.gateway.com

1

Chapter 1: Checking Out Your Gateway Solo 5300

Front

Release

Power

Battery

latch

indicator

charge





indicator

Component

Icon

Description









Release latch





Open the notebook cover by sliding the release latch to the







right.









Power indicator





Lights up when the notebook is turned on and shows











notebook power status:













Steady green light indicates that power is on and the









notebook is in operation.







Flashing green light indicates that the notebook is in









Standby mode.







Flashing green light accompanied by beeping indicates









the battery charge is low.







No light indicates that the notebook is off.

Battery charge indicator

Indicates the battery status:

Green light indicates that the battery is fully charged and AC power is connected.

Orange light indicates that the battery is charging.

Red light indicates that the battery is low.

No light indicates that the system is running on the battery because the AC adapter is either not connected or is not providing power.

2

www.gateway.com

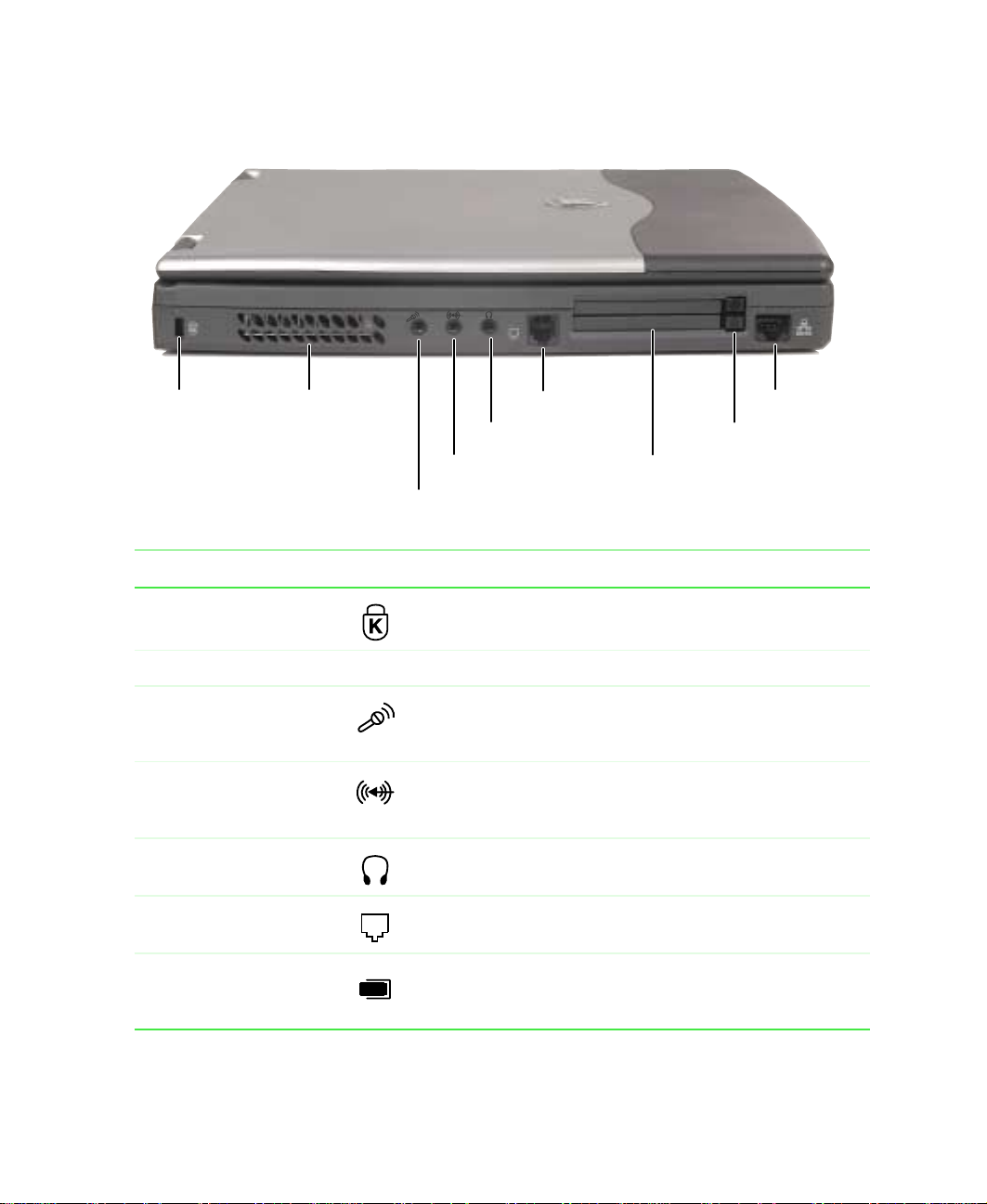

Left Side

Left Side















Modem jack



































Kensington

Ventilation fan













Ethernet jack















lock slot

(do not block)





Speaker jack



















PC Card































Line in jack





eject buttons



























PC Card slots















Microphone jack





















Component

Icon Description







Kensington™ lock slot



Secure your computer to an object by connecting a





Kensington cable lock to this slot.







Ventilation fan



Helps cool system components. Do not block.







Microphone jack



Plug a microphone into this jack. While the external





microphone is connected, the built-in microphone is





disabled.







Line in jack



Plug an external audio input source (such as a stereo) into





this jack so that you can record sound on your notebook or





play sound through the notebook speakers.







Speaker jack



Plug external speakers or headphones into this jack.







Modem jack (optional)



Plug a modem cable into this jack. For more information, see







“Connecting the modem” on page 30.







PC Card slots



Insert Type I, II, or III PC Cards or Zoom Video cards into





these slots. For more information, see “Adding PC Cards” on









page 142.







www.gateway.com

3

Chapter 1: Checking Out Your Gateway Solo 5300

Component

Icon Description

















PC Card eject buttons













Press one of the eject buttons to remove a PC Card from a















PC Card slot. For more information, see “Adding PC Cards”















on page 142.

















Ethernet jack (optional)













Plug an Ethernet 10/100 network cable into this jack. For















more information, see “Connecting to an Ethernet network”

























































on page 31.

















4

www.gateway.com

Right Side

Right Side

Module bay Eject button

Component

Description





Module bay

Use this bay for a second battery, or a CD, CD-RW, DVD, diskette, LS-120, or



second hard drive. For more information, see “Changing bay modules” on



page 144.





Eject button

Press the eject button to open the module tray.





www.gateway.com

5

Chapter 1: Checking Out Your Gateway Solo 5300

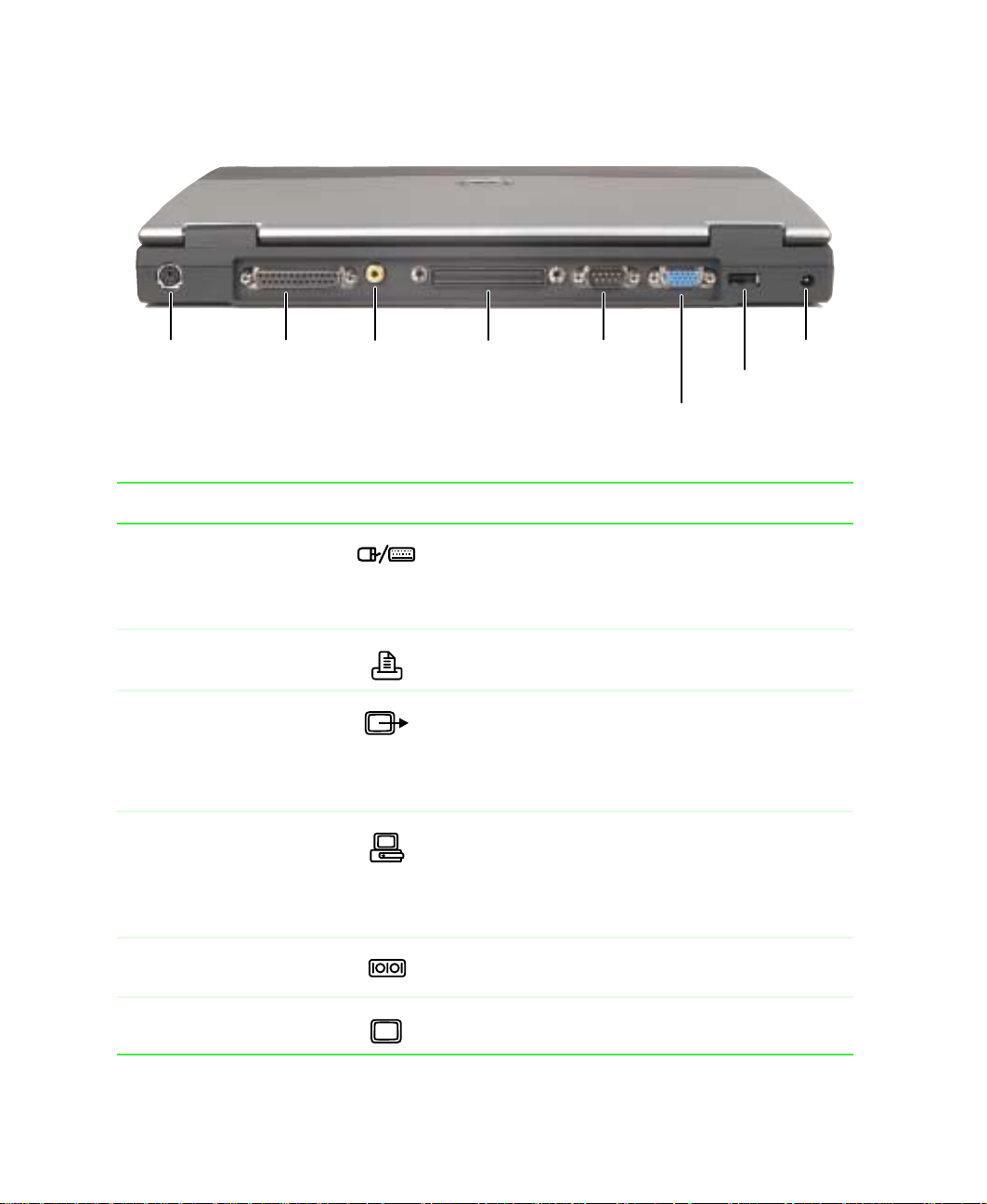

Back





















































PS/2 port

Parallel

TV out jack

Docking

Serial port



Power





port





port







USB port connector















































Monitor





















port

Component

Icon

Description

















PS/2 port













Plug a PS/2® (Personal System/2) device (such as a















keyboard or mouse) into this port.





























Important! You will not be able to use your touchpad















while a mouse is plugged into this port.

















Parallel port













Plug a parallel device (such as a printer) into this port.

































































TV out jack













Plug one end of a standard RCA cable into this jack and















the other end of the cable into the jack on a TV or VCR















so that you can view your computer screen on a TV.















For more information, see “Viewing the display on a















television” on page 96.

















Docking port













Connect an optional port replicator or docking station















to this port.















Warning! Power is passed through this connection.















This docking connection is UL certified for use only with















Solo 5300 docking station devices.

















Serial port













Plug a serial device (such as a digital camera) into this















port.

















Monitor port













Plug an external (VGA) monitor into this port.

















6

www.gateway.com

Back

Component

Icon



Description



















USB port















Plug a USB (Universal Serial Bus) device (such as a

















USB Iomega™ Zip™ drive, scanner, or camera) into













































this port.



















Power connector















Plug the AC power adapter cable into this connector.































www.gateway.com

7

Chapter 1: Checking Out Your Gateway Solo 5300

Bottom

Microsoft

label Ventilation fan

Module

bay System label

Module bay latch

Battery latch

Main battery













Hard drive Memory bay















Component

Icon Description















Microsoft label











Microsoft Certificate of Authenticity label includes the













product key code for your operating system.















Module bay











Use this bay for a second battery, or a CD, CD-RW, DVD,













diskette, LS-120, or second hard drive. For more information,























see “Changing bay modules” on page 144.















Module bay latch











Slide to release the module.











































Battery latch











Slide to release the battery.















Main battery bay











Insert the main battery into this bay. For more information,













see “Changing batteries” on page 109.















Hard drive











The hard drive is stored here. For more information, see













“Replacing the main hard drive” on page 152.















8

www.gateway.com

Bottom

Component

Icon Description





Memory bay

Install as many as two SO-DIMM memory modules into the



slots in this bay. For more information, see “Installing



memory” on page 148.





System label

Includes the product model number and serial number. For



more information, see “Identifying your model” on page 11.





Ventilation fan

Helps cool system components. Do not block.





www.gateway.com

9

Chapter 1: Checking Out Your Gateway Solo 5300

Keyboard area

Power button

Status indicators

Keyboard

Touchpad

Speaker



Microphone





Component

Description





Power button

Press to turn the power on or off. For more information on configuring



the power button mode, see “Changing power settings” on page 114.





Status indicators

See “Status indicators” on page 23 for more information.





Keyboard

See “Using the keyboard” on page 24 for more information.





Touchpad

See “Using the EZ Pad touchpad” on page 28 for more information.





Speakers

Provide audio output. Speakers are disabled while headphones are



connected.





Microphone

Record audio through this microphone. The built-in microphone is



disabled while an external microphone is connected.





10

www.gateway.com

Identifying your model

Identifying your model

The label on the bottom of your computer contains information that identifies your notebook model. Gateway Technical Support will need this information if you call for assistance.

Important The label shown below is for informational purposes only.

Label information varies by model.

Revision code and display

type/ processor size





00.0X/000XXX

X 0.0/XX



















Gateway model

















number















Gateway serial

















Gateway part

number













number

www.gateway.com

11

Chapter 1: Checking Out Your Gateway Solo 5300

Accessories

Gateway offers accessories that can help you make the most of using your notebook.

Batteries and automobile/airplane power adapters

If you run your notebook on battery power for extended periods, you may want to buy an additional battery so that you can swap batteries when necessary.

With an automobile/airplane power adapter, you can save battery power by plugging your notebook into an automobile cigarette lighter or an airplane in-flight power receptacle.

Carrying cases

Gateway has large-capacity carrying cases if you need additional space for accessories or supplies.

Docking stations and port replicators

Although you can attach external devices directly to your notebook, a docking station or port replicator lets you make all of those connections at once. When you travel with your notebook, you merely disconnect from the docking station or port replicator instead of unplugging all the external devices.

A docking station or port replicator also provides additional ports and other expansion features not included with your notebook.

External devices

You can attach external devices such as a keyboard, mouse, printer, or monitor to your notebook, docking station, or port replicator.

Memory

Large programs, such as multimedia games or graphics programs, use a lot of memory. If your programs are running more slowly than you think they should, try adding more memory.

12

www.gateway.com

Accessories

Printers

You can attach many types of printers to your computer. The most common types are inkjet and laser printers, which print in color or black and white.

Inkjet printers and cartridges are relatively inexpensive, but usually they are slower than laser printers. Using an inkjet color printer, you can print pictures, banners, and greeting cards, as well as documents.

Laser printers and cartridges are more expensive, but usually they print much faster than inkjet printers. Laser printers are better than inkjet printers when you are printing large documents.

www.gateway.com

13

Chapter 1: Checking Out Your Gateway Solo 5300

14

www.gateway.com

Getting Started

2

This chapter provides basic information about your Gateway notebook. Read this chapter to find out:

How to connect the AC power adapter

How to start and turn off your notebook

How to use the keyboard

How to use the EZ Pad™ touchpad

How to connect the modem

How to connect to an Ethernet network

How to install peripheral devices

www.gateway.com

15

Chapter 2: Getting Started

Connecting the AC adapter

You can run your notebook using an AC adapter or the notebook battery. The battery was shipped to you partially charged. You should use the AC adapter right away to fully charge the battery. Allow 24 hours for the battery to fully charge.

Important If the battery is not fully charged before you use your notebook on battery power for the first time, the battery life may be much shorter than you expect. If the battery life seems short even after being charged for 24 hours, the battery may need to be recalibrated. For more information, see “Recalibrating the battery” on page 108.

To connect the AC adapter:

1 Connect the power cord to the AC adapter.

Warning Replace the power cord if it becomes damaged. The replacement cord must be of the same type and voltage rating as the original cord or the notebook may be damaged.

16

www.gateway.com

Connecting the AC adapter

2

3

Connect the AC adapter to your notebook’s power connector.

Plug the power cord into a wall outlet.

The battery charge indicator turns on. If the battery charge indicator does not turn on, disconnect the adapter from your notebook and repeat Step 2.

4 When you finish using your notebook for the first time, turn the notebook off and leave the notebook connected to AC power for at least 24 hours.

5 If the battery meters do not show a full charge after 24 hours, contact Gateway Technical Support at www.gateway.com/support/contact.

Warning

Do not attempt to disassemble the AC adapter. The



AC adapter has no user-replaceable or user-serviceable



parts inside. The AC adapter has dangerous voltages that



can cause serious injury or death. Contact Gateway about



returning defective AC adapters.





www.gateway.com

17

Chapter 2: Getting Started

Protecting from power source problems

During a power surge, the voltage level of electricity coming into your computer can increase to far above normal levels and cause data loss or system damage. Protect your computer and peripheral devices by connecting them to a surge protector, which absorbs voltage surges and prevents them from reaching your computer.

Warning High voltages can enter your computer through both the power cord and the modem connection. Protect your computer by using a surge protector. If you have a telephone modem, use a surge protector that has a modem jack. If you have a cable modem, use a surge protector that has an antenna/cable TV jack. During an electrical storm, unplug both the surge protector and the modem.

18

www.gateway.com

Starting your notebook

Starting your notebook

To start the notebook:

1 Open your notebook by sliding the latch on the front of your notebook to the right and lifting the LCD panel.

2 Press the power button located above the keyboard.

A 1

The power button is preset to On/Off mode. However, you can also set it to function in Standby/Resume mode. For instructions on changing the power button mode, see “Changing power settings” on page 114.

3 If you are starting your computer for the first time, follow the on-screen instructions to set up your computer.

Waking up your notebook

When you have not used your notebook for several minutes, it enters a power-saving mode called Standby. While in Standby, the power indicator flashes.

If your notebook is in Standby mode, “wake” it up by pressing the power button. For more information on changing power-saving settings, see “Managing Power” on page 105.

www.gateway.com

19

Chapter 2: Getting Started

Turning off your notebook

To turn off your notebook:

In Windows XP, click Start, then click Turn Off Computer, then click Turn Off.

- OR -

In Windows Me, Windows 2000, or Windows 98, click Start, then select Shut Down. In the Shut Down Windows dialog box, select Shut Down, then click OK.

If for some reason you cannot use the Turn Off Computer or Shut Down option in Windows to shut down your notebook, press and hold the power button for about five seconds.

20

www.gateway.com

Switching user accounts in Windows XP

Switching user accounts in

Windows XP

When you first turn on your notebook, you have the option to add different user accounts. These user accounts can be customized for each person that uses the notebook. You can add, delete, or modify existing user accounts. You can also switch (change) user accounts without turning off your notebook.

Help and

For more information about adding, deleting, and

Support

modifying your user accounts, click Start, then select Help



and Support.





To add, delete, or modify user accounts in Windows XP:

1

2

Click Start, select Control Panel, then double-click User Accounts. The User Accounts window opens.

Follow the on-screen prompts to add, delete, or modify a user account.

www.gateway.com

21

Chapter 2: Getting Started

To switch user accounts in Windows XP:

1 Click Start, then select Log Off. The Log Off Windows dialog box opens.

2 Click Switch User to switch between your user accounts. The Windows logon screen opens.

3 Select the user account that you want to activate. When you switch between users, any programs that were running for the previous user continue to run.

22

www.gateway.com

Status indicators

Status indicators

A 1



















Scroll lock



















Hard drive















Optical disc













Pad lock











drive





























Diskette drive

Caps lock

Indicator

Icon

Description



















Hard drive















Turns on when the hard drive is in use.



















Optical disc drive















Turns on when the CD/DVD drive or LS-120 drive is in use.



















Diskette drive















Turns on when the standard 1.44 MB diskette drive is in































use.



































Caps Lock















Turns on when Caps Lock is activated.



















Pad Lock















Turns on when the embedded numeric keypad is



1





activated.



























Scroll Lock















Turns on when Scroll Lock is activated.









































































www.gateway.com

23

Chapter 2: Getting Started

Using the keyboard

Your notebook features a keyboard that has the same functionality as a desktop computer keyboard. Many of the keys have been assigned alternate functions. The alternate function is printed on the key in green text.









Function keys/System keys

Volume keys/Navigation keys

















































































































































































































































































































































































































































































































































































































































































































































































































FN key

Windows

Numeric

Application

Arrow keys/



key

keypad

key

Brightness









controls

24

www.gateway.com

Using the keyboard

Keys

Keys

Icon



Description











Function keys







Press these keys labeled F1 to F12 to perform









actions in programs. For example, pressing F1 may









open help.









Each program uses different function keys for









different purposes. Refer to the program









documentation to find out more about the function









key actions.











System keys







Press these green-colored keys in combination with









the FN key to perform specific actions.











Volume keys







Press these keys to increase or decrease the









volume or mute the sound.











Navigation keys







Press these keys to move the cursor to the









beginning of a line, to the end of a line, up the page,









down the page, to the beginning of a document, or









to the end of a document.











FN key







Press the FN key in combination with a









green-colored system key (such as STANDBY, PAUSE,









or STATUS) to perform a specific action.











Windows key







Press to open the Windows Start menu. This key









can also be used in combination with other keys to









open utilities like F (Search utility), R (Run utility),









and E (Explorer utility).











Numeric keypad







Use these keys to type numbers when the numeric









keypad is turned on. Press FN+PAD LOCK to turn on









the numeric keypad.











Application key







Press for quick access to shortcut menus and help















assistants in Windows.





















































Arrow keys/







Press these keys to move the cursor up, down, right,

Brightness controls







or left. When used with the FN key, these also









control the screen brightness.











www.gateway.com

25

Chapter 2: Getting Started

System key combinations

When you press an FN key and a system key at the same time, the notebook performs the action identified by the green text or icon on the key.

L

Press FN and this To...

function key...

Display the power status box in the upper left corner of your screen. The box shows the battery charge level, the BIOS version, and whether the AC adapter is being used. Press the key combination again to close this box.

Toggle the notebook screen between the LCD, an external monitor, or both displays at the same time. A monitor must be plugged into the monitor port on the notebook, port replicator, or docking station.

Enter Standby mode. Press the power button to leave Standby mode.

Turn on Pad Lock so you can use the numeric keypad. Press this key combination again to turn off Pad Lock. The Pad Lock status indicator appears while this function is turned on.

Pause the text scrolling in a DOS screen. The Scroll Lock status indicator appears when this function is turned on. Press the key combination again to continue scrolling. (This function is only available in some programs.)

Pause execution of a DOS program. (This function is only available in some programs.)

Stop the currently running DOS program. (This function is only available in some programs.)

Increase the brightness of the display.

Decrease the brightness of the display.

26

www.gateway.com

Using the keyboard

Press FN and this To...

function key...

Mute the sound. Press the key combination again to restore the sound.

Increase volume.

Decrease volume.





















www.gateway.com

27

Chapter 2: Getting Started

Using the EZ Pad touchpad

The EZ Pad™ consists of a touchpad and two buttons.































Touchpad

Pad buttons

When you move your finger on the touchpad, the pointer (arrow) on the screen moves in the same direction.

You can use the EZ-Pad left and right buttons below the touchpad to select objects.

28

www.gateway.com

Using the EZ Pad touchpad

Using the touchpad

To...

Do this...

Move the pointer

Move your finger around on the

on the screen.

touchpad. If you run out of space



and need to move the pointer



farther, lift your finger, move it to



the middle of the touchpad, then



continue moving your finger.

Select an object

Position the pointer over the

on the screen.

object. Press the left button



below the touchpad once. This



action is called clicking.

Start a program or open a file or folder.

Position the pointer over the object. Press the left button below the touchpad twice in rapid succession. This action is called double-clicking.

Access a

Position the pointer over the

shortcut menu or

object. Quickly press and

find more

release the right button once.

information

This action is called

about an object

right-clicking.

on the screen.



Move an object

Position the pointer over the

on the screen.

object. Press the left button and



hold it down, then use the



touchpad to move (drag) the



object to the appropriate part of



the screen. Release the button



to drop the object where you



want it.

www.gateway.com

29

Chapter 2: Getting Started

Connecting the modem

If your notebook has a modem jack, the notebook has a built-in V.90 56K modem.

To connect the modem:

1 Insert one end of the modem cable into the modem jack











on the left



side of the notebook.









































































2 Insert the other end of the modem cable into a telephone wall jack. The modem will not work with digital or PBX telephone lines.

3 Start your notebook, then start your communications software.

30

www.gateway.com

Connecting to an Ethernet network

Connecting to an Ethernet network

If your notebook has a network jack, the notebook can connect to an Ethernet 10/100 network.

To connect to a network:

1 Insert one end of the network cable into the network jack







on the





















left side of the notebook.









































2 Insert the other end of the network cable into a network wall jack. Ask your network administrator to help you select the correct network jack.

Your notebook is now physically connected to the network. Your network administrator can help you log on to your network.

Broadband Internet connections

You can use your computer’s Ethernet jack for more than just networking. Many broadband Internet connections, such as cable modems and DSL modems, connect to your computer’s Ethernet jack. For more information, see “Using the Internet” on page 63 and “Networking Your Notebook” on page 179.

www.gateway.com

31

Chapter 2: Getting Started

Installing a printer, scanner, or other peripheral device

Your computer has one or more of the following ports: Universal Serial Bus (USB), serial, and parallel. These ports are used for connecting peripheral devices such as printers, scanners, and digital cameras to your computer. For more information about port locations, see “Checking Out Your Gateway Solo 5300” on page 1.

USB ports support plug-and-play and hot swapping, which means that your computer will usually recognize such a device whenever you plug it into the appropriate port. When you use a USB device for the first time, your computer will prompt you to install any software the device needs. After doing this, you can disconnect and reconnect the device at any time.

Parallel and serial port devices are not plug-and-play. Refer to the device documentation for detailed information and installation instructions.

32

www.gateway.com

Getting Help

3

This chapter tells you about additional information resources available to help you use your computer, including:

HelpSpot

Online help

Gateway Web site

Tips & Tricks To access the contents of this guide while you are traveling, download an electronic copy from www.gateway.com/support/manlib/.

www.gateway.com

33

Chapter 3: Getting Help

HelpSpot

Your computer may include HelpSpot, an easily accessible collection of Help information, troubleshooters, instructional videos, and automated support. Use HelpSpot to answer questions about Windows and to help you quickly discover and use the many features of your Gateway computer.

To start HelpSpot:

Click Start, then select Help and Support. HelpSpot opens.

If this is the first time you have started HelpSpot on your computer, you may experience a brief wait while HelpSpot builds the help database, then HelpSpot will display an introductory video.

34

www.gateway.com

HelpSpot

You can find help information by clicking a link, performing a search, or browsing the index. To learn about using your Gateway computer, your mouse, and other topics, click the Getting Started link on the HelpSpot main page.

www.gateway.com

35

Chapter 3: Getting Help

HelpSpot Videos

HelpSpot contains several short videos to help introduce you to new concepts or show you how to perform various tasks.

To play a HelpSpot video:

To watch a video in HelpSpot, click Video Tutorials on the HelpSpot home page, then click a video title. The video plays.

36

www.gateway.com

Online help

Online help

Many programs provide information online so you can research a topic or learn how to perform a task while you are using the program. Most online help information can be accessed by selecting a topic from a Help menu or by clicking a Help button.

You can search for information by viewing the help contents, checking the index, searching for a topic or keyword, or browsing through the online help.

www.gateway.com

37

Gateway 5300, SOLO 5300 schematic

Chapter 3: Getting Help

Gateway Web site

Gateway provides a variety of information on its Web site to help you use your computer.

Visit the Gateway Web site at www.gateway.com for:

Technical documentation and product manuals

Technical tips and support, including online chat services

Hardware drivers

Order status

Frequently asked questions (FAQs)

For more information about connecting to the Internet, see “Using the Internet” on page 63.

38

www.gateway.com

Windows

4

Basics

Read this chapter to get basic information on how to:

Work on the Windows desktop

Manage files and folders

Work with documents

Use shortcuts

Help and

For more information on Windows, click Start, then select

Support

Help and Support or Help.





www.gateway.com

39

Chapter 4: Windows Basics

About the Windows environment

After your computer starts, the first screen you see is the Windows desktop. The desktop is like the top of a real desk. Think of the desktop as your personalized work space where you open programs and perform other tasks.

Your desktop may be different from the example shown below, depending on how your computer is set up.

40

www.gateway.com

Using the desktop

Using the desktop

The desktop contains the taskbar, the Start button, and the Recycle Bin icon.

Desktop elements

Description





The taskbar is the bar at the bottom of the screen containing the Start button on the left and a clock on the right. Other buttons on the taskbar represent programs that are running.

Click a program’s button on the taskbar to open the program’s window.

The Start button provides access to programs, files, help for Windows and other programs, and computer tools and utilities.

Click the Start button, then open a file or program by clicking (selecting) an item on the menu that opens.

The Recycle Bin is where files, folders, and programs that you discarded are stored. You must empty the Recycle Bin to permanently delete them from your computer. For instructions on how to use the Recycle Bin, see “Deleting files and folders” on page 49.

www.gateway.com

41

Chapter 4: Windows Basics

Using the Start menu

You can start programs, open files, customize your system, get help, search for files and folders, and more using the Start menu.

To use the Start menu:

1 Click the Start button on the lower left of the Windows desktop. The Start menu opens showing you the first level of menu items.

2 To see all programs and files in the Start menu, click All Programs.

When you move the mouse pointer over any menu item that has an arrow next to it, another menu, or submenu, opens and reveals related files, programs, or commands.

3 Click a file or program to open it.

42

www.gateway.com

Identifying Window items

Identifying Window items

When you double-click the icon for a drive, folder, file, or program, a window opens on the desktop. This example shows the Local Disk (C:) window, which opens after double-clicking the Local Disk (C:) icon in the My Computer window.

Title bar

















Close

















Menu bar

















Maximize























































Minimize



















www.gateway.com

43

+ 255 hidden pages
