Garmin 01653 User Manual

A01653

Installation Instructions.............................................................................. 2

Instructions d'installation............................................................................ 5

Istruzioni di installazione............................................................................ 8

Installationsanweisungen.........................................................................11

Instrucciones de instalación.....................................................................15

Garmin® and the Garmin logo are trademarks of Garmin Ltd. or its subsidiaries, registered in the USA and other countries. These trademarks may not be used without the express permission of Garmin. NMEA® and NMEA 2000® are registered trademarks of the National Marine Electronics Association. Other trademarks and trade names are those of their respective owners. El número de registro COFETEL/IFETEL puede ser revisado en el manual a través de la siguiente página de internet.

September 2016 190-02061-93_0APrinted in China

A01653 Series Installation

Instructions

Important Safety Information

WARNING

See the Important Safety and Product Information guide in the product box for product warnings and other important information.

CAUTION

Always wear safety goggles, ear protection, and a dust mask when drilling, cutting, or sanding.

NOTICE

When drilling or cutting, always check what is on the opposite side of the surface.

Registering Your Device

Help us better support you by completing our online registration today.

• Go to http://my.garmin.com.

• Keep the original sales receipt, or a photocopy, in a safe place.

Contacting Garmin® Product Support

• Go to www.garmin.com/support for in-country support information.

• In the USA, call 913-397-8200 or 1-800-800-1020.

• In the UK, call 0808 238 0000.

• In Europe, call +44 (0) 870 850 1241.

Mounting Considerations

NOTICE

This device should be mounted in a location that is not exposed to extreme temperatures or conditions. The temperature range for this device is listed in the product specifications. Extended exposure to temperatures exceeding the specified temperature range, in storage or operating conditions, may cause device failure. Extreme-temperature-induced damage and related consequences are not covered by the warranty.

When selecting a mounting location, you should observe these considerations.

• The location should provide optimal viewing as you operate your boat.

• The location should allow for easy access to all device interfaces, such as the keypad, touchscreen, and card reader, if applicable.

• The location must be strong enough to support the weight of the device and protect it from excessive vibration or shock.

• To avoid interference with a magnetic compass, the device should not be installed closer to a compass than the compass-safe distance value listed in the product specifications.

• The location must allow room for the routing and connection of all cables.

Antenna Mounting and EME Exposure

WARNING

Radio operators with cardiac pacemakers, life-support machines, or electrical medical equipment should not be exposed to excessive radio-frequency (RF) fields, because the RF field may interfere with the function of their medical equipment.

CAUTION

This device generates and radiates radio frequency (RF) electromagnetic energy (EME). Failure to observe these guidelines may expose people to RF radiation absorption exceeding the maximum permissible exposure (MPE).

Garmin declares a MPE radius of m (9797 in.) for this system, which was determined using 25 W output to an omni-directional, 6 dBi gain antenna. The antenna should be installed to maintain a distance of m ( in.) between the antenna and all people.

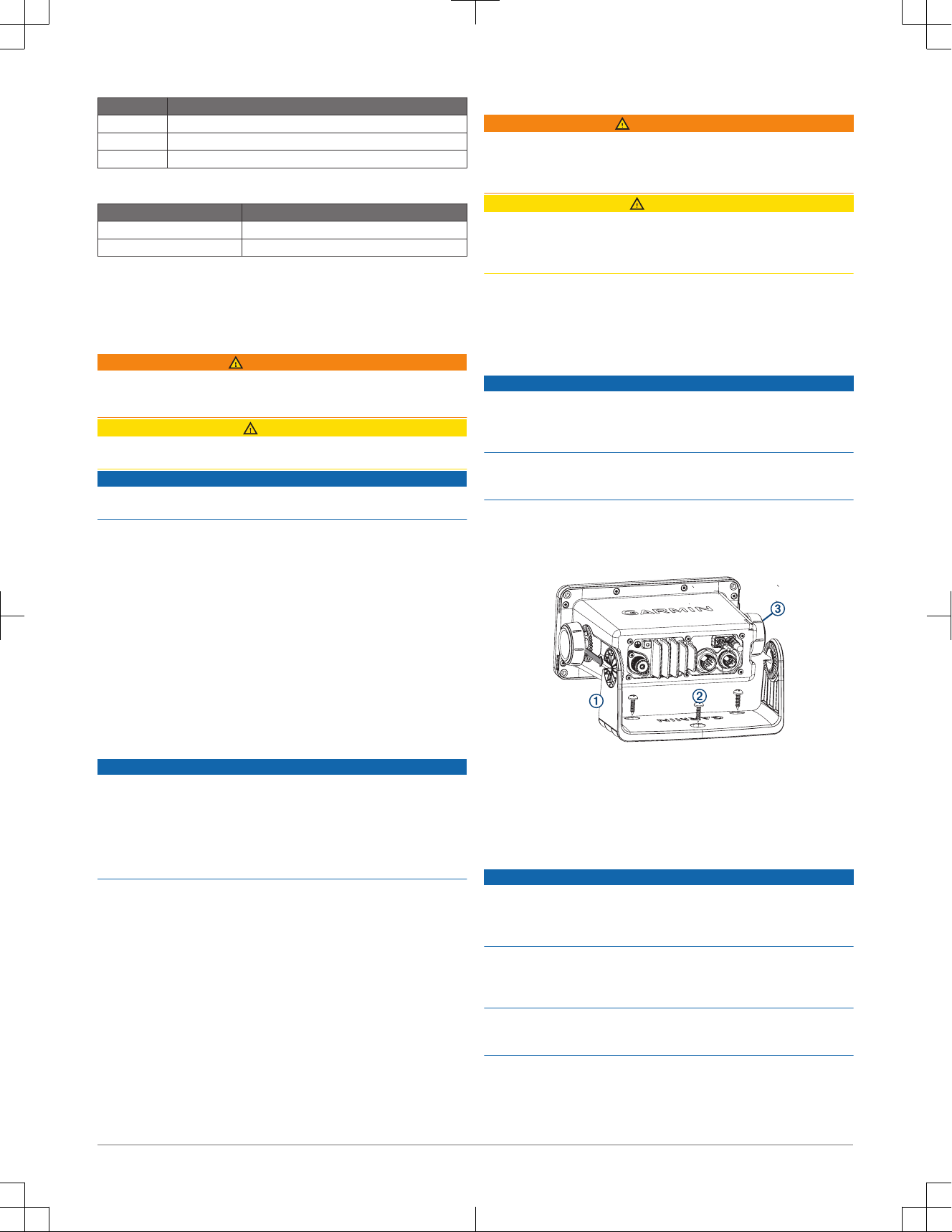

Bail Mounting the Device

If you are mounting the bracket on fiberglass with screws, it is recommended to use a countersink bit to drill a clearance counterbore through only the top

2.48

NOTICE

2.48

gel-coat layer. This will help to avoid cracking in the gel-coat layer when the screws are tightened.

Stainless-steel screws may bind when screwed into fiberglass and overtightened. It is recommended to apply an anti-seize lubricant on the screws before installing them.

You can use the included bracket to bail mount the device on a flat surface.

Using the bail-mount bracket À as a template, mark the pilot holes.

Using a 3.5 mm (9/64 in.) drill bit, drill the pilot holes.

Using the included screws Á, secure the bail-mount bracket to the

mounting surface. Install the bail-mount knobs Â on the sides of the device.

Place the device in the bail-mount bracket and tighten the bail-mount

knobs.

Flush Mounting the Device

NOTICE

Be careful when cutting the hole to flush mount the device. There is only a small amount of clearance between the case and the mounting holes, and cutting the hole too large could compromise the stability of the device after it is mounted.

If you are mounting the bracket on fiberglass with screws, it is recommended to use a countersink bit to drill a clearance counterbore through only the top gel-coat layer. This will help to avoid cracking in the gel-coat layer when the screws are tightened.

Stainless-steel screws may bind when screwed into fiberglass and overtightened. It is recommended to apply an anti-seize lubricant on the screws before installing them.

The included template and hardware can be used to mount the device in your dashboard.

Trim the template and make sure it fits in the location where you want to

mount the device. Using a 9.5 mm (3/8 in.) drill bit, drill one or more of the holes inside the

corners of the solid line on the template to prepare the mounting surface for cutting.

Using a jigsaw or rotary tool, cut the mounting surface along the inside of

the solid line indicated on the template. Place the device in the cutout to test the fit.

If necessary, use a file and sandpaper to refine the size of the cutout.

After the device fits correctly in the cutout, ensure the mounting holes on

the device line up with the pilot holes on the template. If the mounting holes on the device do not line up, mark the new pilot-hole

locations. Using a 3.5 mm (9/64 in.) drill bit, drill the pilot holes.

Remove the template from the mounting surface.

If you will not have access to the back of the device after you mount it,

connect all necessary cables to the device before placing it into the cutout. If necessary, cover unused connectors with the attached weather caps to

prevent corrosion of the metal contacts. Install the foam gasket À on the back of the device.

The pieces of the rubber gasket have adhesive on the back. Make sure you remove the protective liner before installing them on the device.

2 Installation Instructions

Item Description Notes

VHF antenna connection

You must connect the device to a VHF antenna (sold separately) (Connecting a VHF Antenna, page 3).

Place the device in the cutout.

Secure the device to the mounting surface using the included screws Á.

Install the decorative bezel by snapping it in place around the edges of the

device.

Mounting the Microphone Hanger

NOTICE

Stainless-steel screws may bind when screwed into fiberglass and overtightened. It is recommended to apply an anti-seize lubricant on the screws before installing them.

You can mount the microphone hanger in a convenient location near the radio.

Select a mounting location for the microphone within reach of the

microphone cable. Using the microphone hanger À as a template, mark the pilot holes.

Drill the mounting holes using a 3 mm (1/8 in.) drill bit.

Secure the microphone hanger to the mounting surface using the included

screws Á.

Connection Considerations

NMEA 2000 connector

You can connect this device to a NMEA 2000 network on your boat to share DSC and GPS information (optional) (NMEA 2000 Device Connections, page 3).

Connecting the Wiring Harness to Power

Route the wiring harness to the power source and to the device.

Connect the red wire to the positive (+) battery terminal, and connect the

black wire to the negative (-) battery terminal.

Additional Grounding Considerations

This device should not need any additional chassis grounding in most installation situations. If interference is experienced, the grounding screw on the housing can be used to connect the device to the water ground of the boat to help avoid the interference.

Connecting a VHF Antenna

Mount the VHF antenna (sold separately) according to the installation

instructions provided with the antenna. Connect the VHF antenna to the antenna port on the back of the radio.

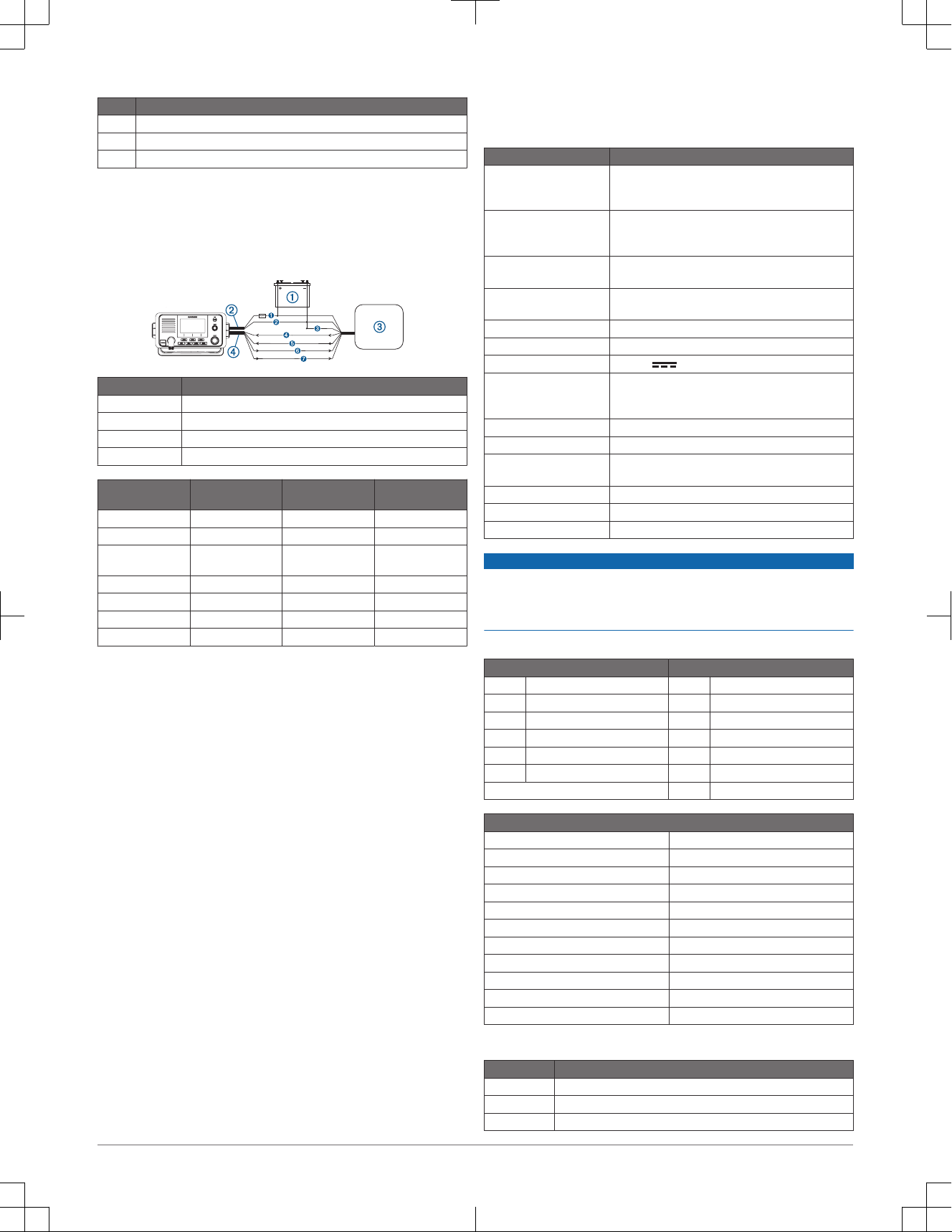

NMEA 2000 Device Connections

NOTICE

If you are connecting this device to an existing NMEA 2000 network, the NMEA 2000 network should already be connected to power. Do not connect the NMEA 2000 power cable to an existing NMEA 2000 network, because only one power source should be connected to a NMEA 2000 network.

If you are connecting this device to an existing NMEA 2000 network or engine network by another manufacturer, you should install a NMEA 2000 Power Isolator (010-11580-00) between the existing network and the Garmin devices.

If you are installing a NMEA 2000 power cable, you must connect it to the boat ignition switch or through another in-line switch. NMEA 2000 devices will drain your battery if the NMEA 2000 power cable is connected to the battery directly.

To connect this device to your existing NMEA 2000 network, you must purchase a NMEA 2000 cable and connector.

If you are unfamiliar with NMEA 2000, you should read the “NMEA 2000 Network Fundamentals” chapter of the Technical Reference for NMEA 2000

Item Description Notes

Ground

connection

Power, NMEA

0183, and speaker wiring harnesses

Installation Instructions 3

You can use the included grounding screw to connect the device chassis to water ground, if needed (Additional Grounding Considerations, page 3).

You must connect the device to a 12 Vdc power source (Connecting the Wiring Harness to Power, page 3).

You can connect this device to a NMEA 0183 device using this wiring harness to share DSC and GPS information (optional) (NMEA 0183 Device Connections, page 4).

You can connect this device to a hailer horn using this wiring harness (optional) (Connecting to a Hailer Horn or PA Speaker, page 4).

You can connect this device to an external speaker using this wiring harness (optional) (Connecting to an External Speaker, page 4).

Item Description

Compatible NMEA 2000 chartplotter or other device

A01653 device

Ignition or in-line switch

NMEA 2000 power cable

NMEA 2000 drop cable

12 Vdc power source
