SERVICE MANUAL

This Service Manual is for the
LED19-T800M (A0CN6EP) / LED19-H800M (A0CN7EP) model.
For the LED19-T800M (A0CN6EP) / LED19-H800M (A0CN7EP) model, the
letter (A0CN6EP) / (A0CN7EP) is printed on the Serial Number Label on
the back of the unit. Refer to the Serial Number Label below.

Serial No. Label Serial No. Label

"A0CN6EP" "A0CN7EP"

19″ COLOR LCD TELEVISION

LED19-T800M

LED19-H800M

19″ COLOR LCD TELEVISION

LED19-T800M / LED19-H800M

TABLE OF CONTENTS

Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1

Important Safety Precautions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-1

Standard Notes for Servicing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-1

Cabinet Disassembly Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-1

Electrical Adjustment Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-1

How to Initialize the LCD Television. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-1

Firmware Renewal Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-1

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-1

Block Diagrams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-1

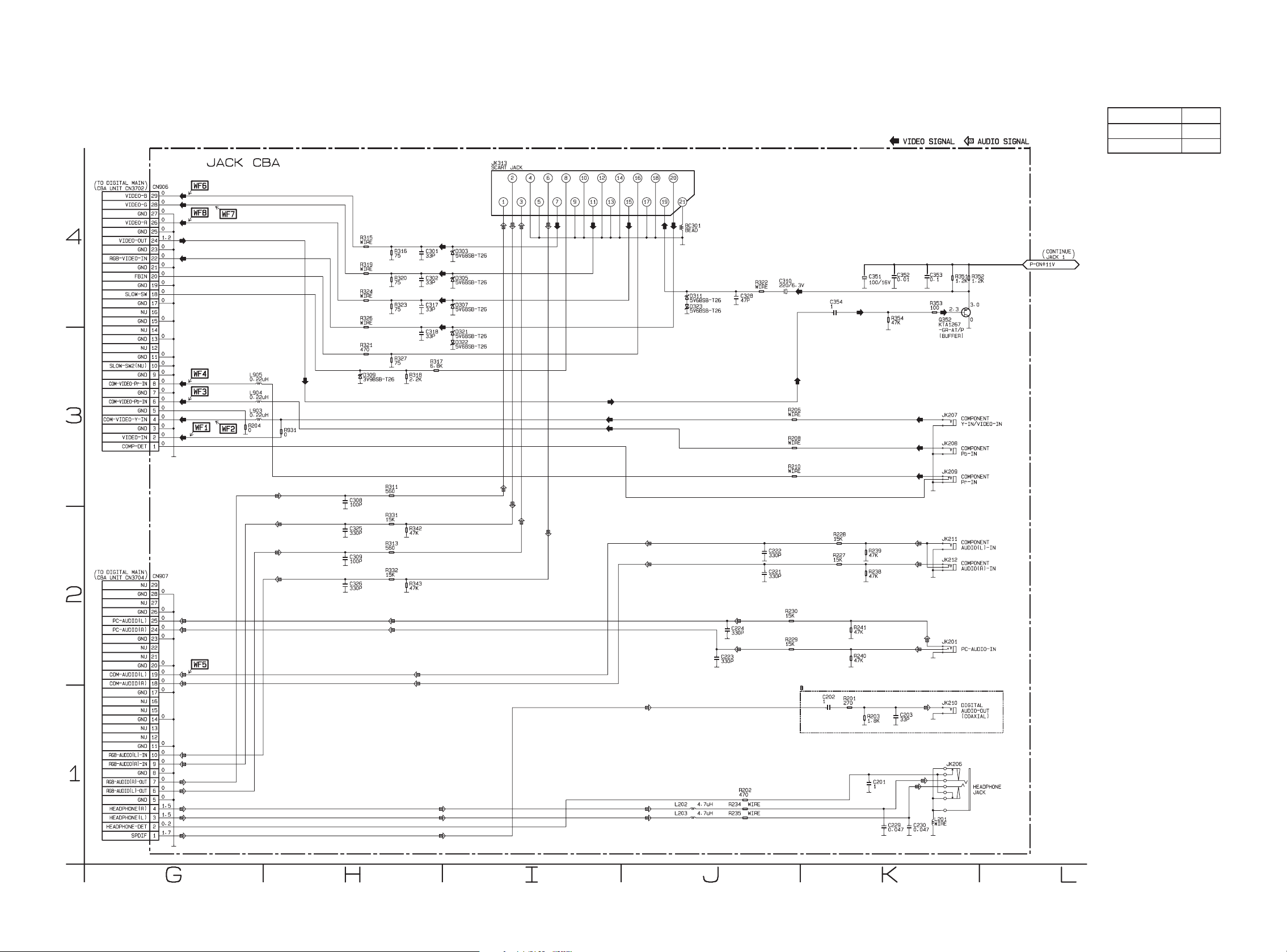

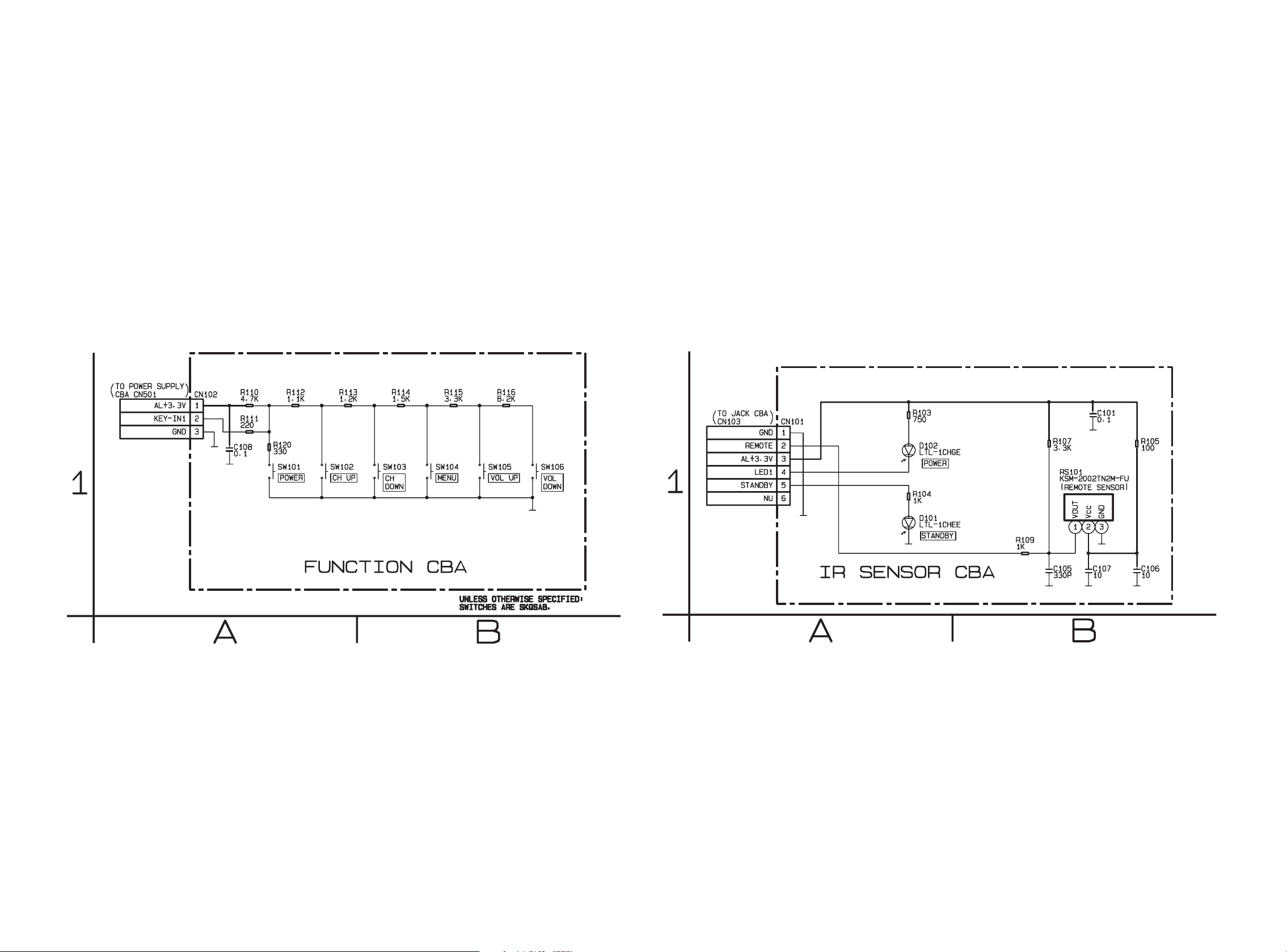

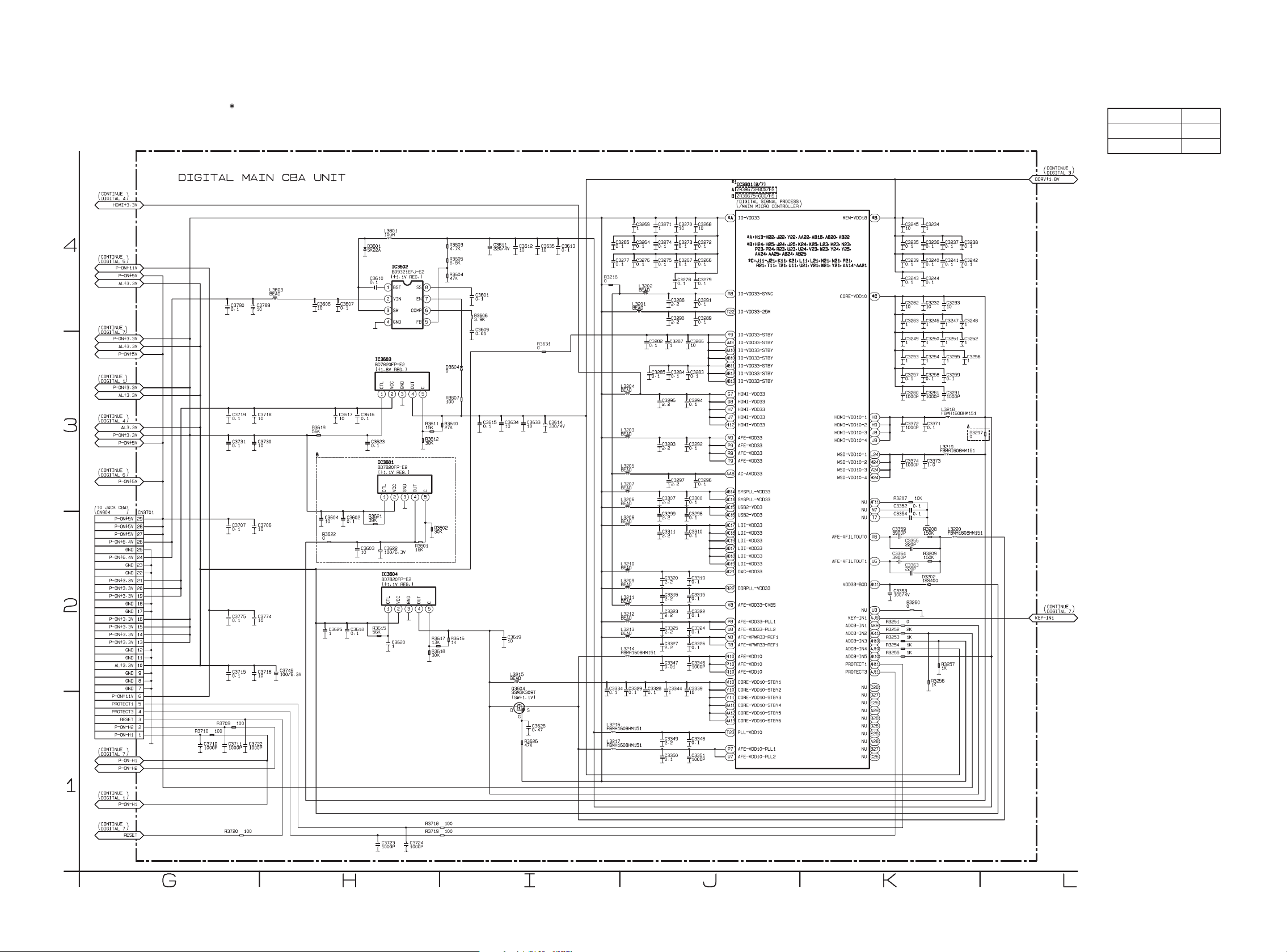

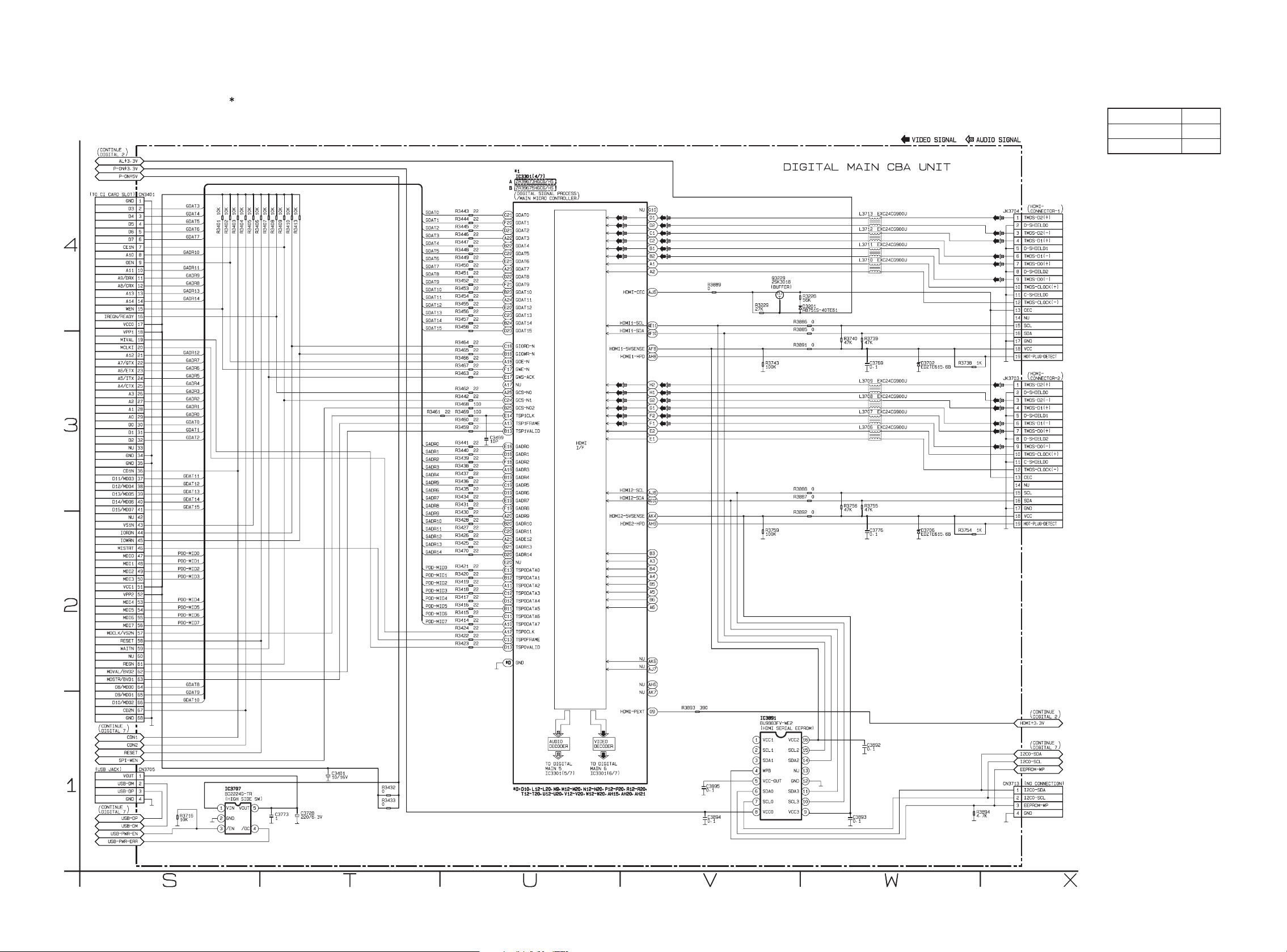

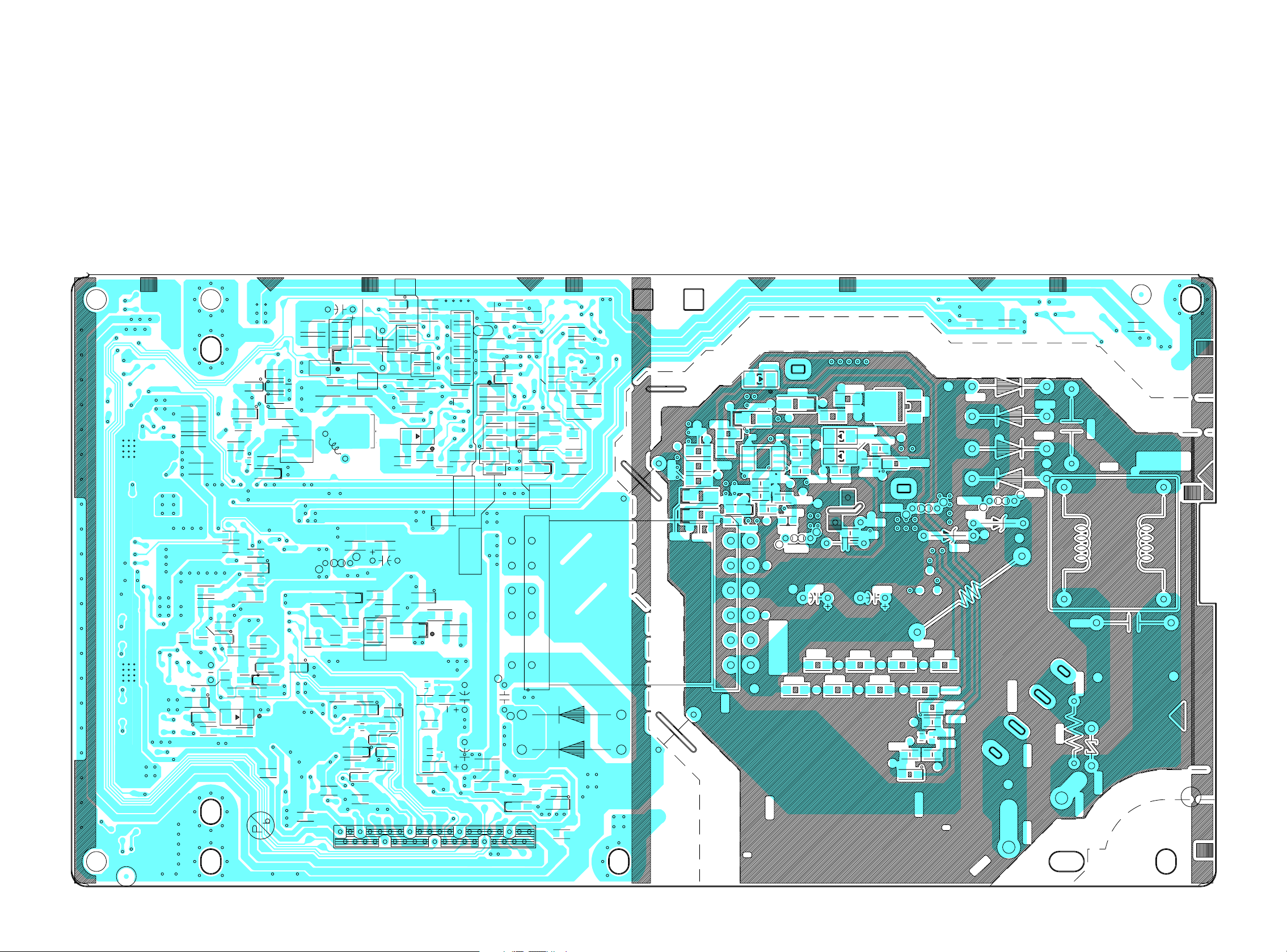

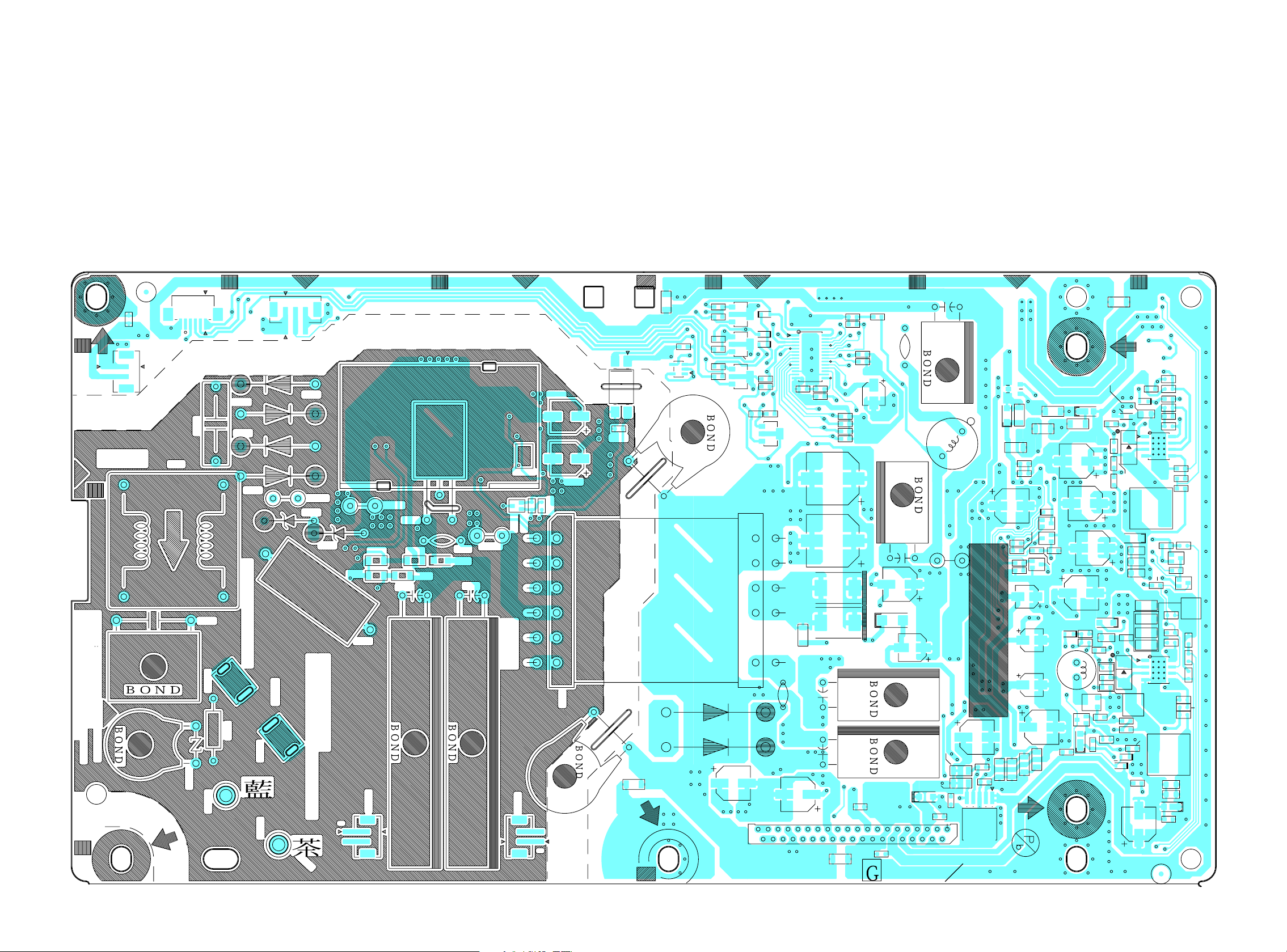

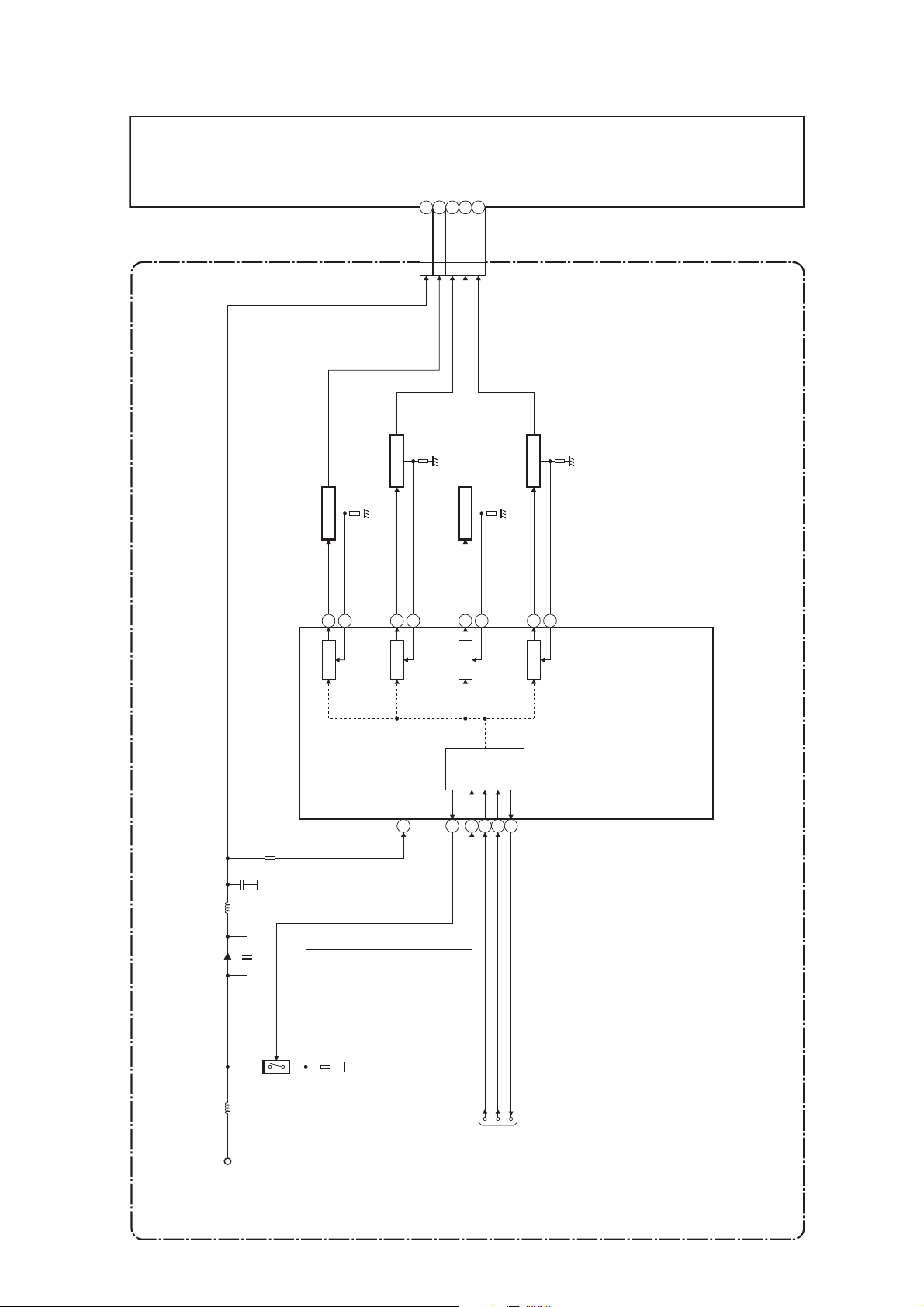

Schematic Diagrams / CBA and Test Points . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10-1

Waveforms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-1

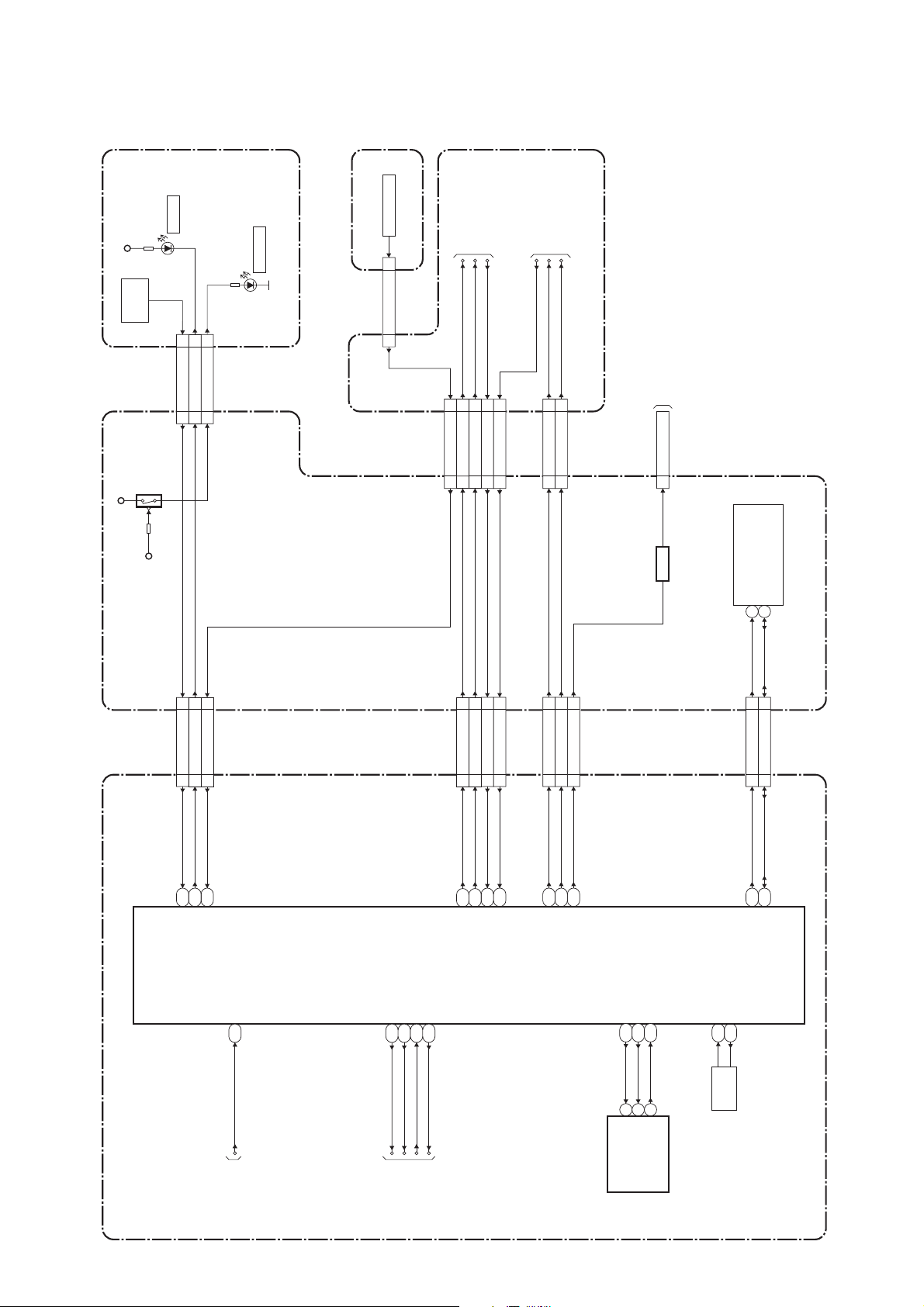

Wiring Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12-1

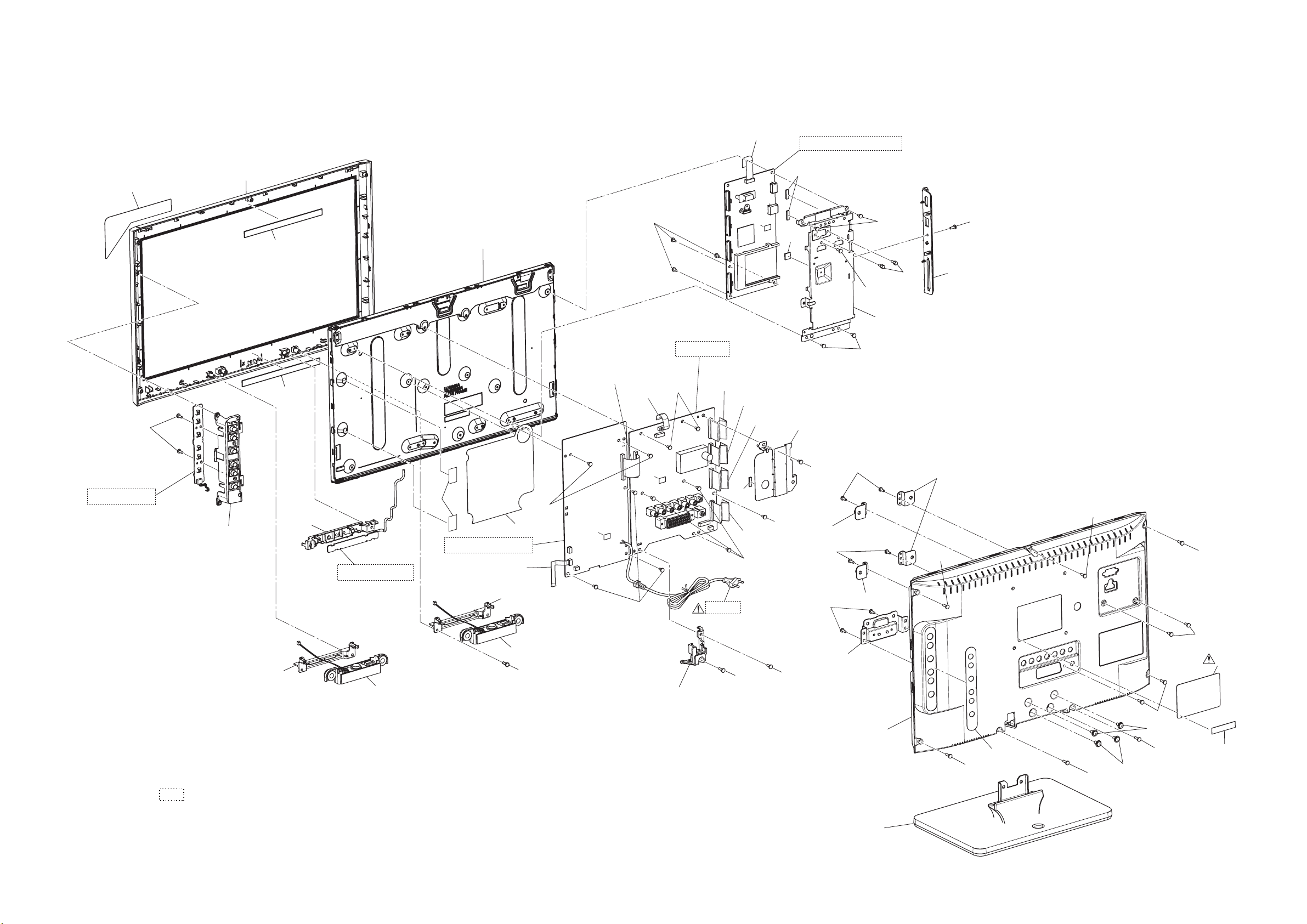

Exploded View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13-1

Mechanical Parts List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14-1

Electrical Parts List. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15-1

The LCD panel is manufactured to provide many years of useful life.
Occasionally a few non active pixels may appear as a tiny spec of color.
This is not to be considered a defect in the LCD screen.

SPECIFICATIONS

< TUNER >

VHS/UHF Input ----------- 75Ω unbal., IEC Connector
Center IF ------------------- SECAM-L 38.9MHz, SECAM-L’ 33.9MHz

Description Condition Unit Nominal Limit

1. Video S/N 80 dB --- 40

2. Audio S/N --- dB --- 40/40

< LCD PANEL >

Description Condition Unit Nominal Limit

1. Number of Pixels

2. Viewing Angle

<DVB-T>

Description Condition Unit Nominal Limit

1.

RECEIVED FREQ.RANGE
(-60dBm, 45ch.) *1, *2

2. INPUT DYNAMIC
RANGE (mix./max)

3. C/N PERFORMANCE

(-50dBm)

4. MULTIPATH (-50dBm)

a. Performance with

short delay echoes

b. Performance with

long delay echoes

Horizontal

Ver ti ca l

Horizontal

Ver ti ca l

+

-

c:*1 VHF HIGH 8ch.

UHF 45ch.

d:*2 VHF HIGH 8ch.

UHF 45ch.

c:*1 VHF HIGH 8ch.

UHF 45ch.

d:*2 VHF HIGH 8ch.

UHF 45ch.

UHF 45ch.

c:*3
d:*4
c:*3
d:*4

pixels
pixels

kHz
kHz

dBuV
dBuV

dBuV
dBuV

dB
dB

dB
dB

dB
dB
dB
dB

1366

768

°
°

---

---

1000

900

25/101
25/101

18/101
18/101

15
15

11
11

18.7

14.0

19.1

13.0

---

---

-85 to 85

-80 to 80

500
167

28/98
29/98

21/98
21/98

≦18
≦18

≦14
≦14

≦23
≦20
≦23
≦18

*1: modulation parameters = [8k 64QAM CR=2/3 GI=1/32]
*2: modulation parameters = [8k 16QAM CR=3/4 GI=1/8]
*3: modulation parameters = [2k 64QAM CR=2/3 GI=1/32]
*4: modulation parameters = [2k 16QAM CR=3/4 GI=1/32]

< VIDEO >

Description Condition Unit Nominal Limit

1. Over Scan

2. Color Temperature

3. Resolution

4. Brightness AT 100% WHITE FIELD cd/m

Horizontal

Vert i c a l

AT 70% WHITE FIELD

x
y

Horizontal

Vert i c a l

1-1 A0CN6SP

line
line

%
%

°K 12000

2

5
5

0.272

0.278

400
350

--- ---

---

---

--­±0.005
±0.005

---

---

< AUDIO >

All items are measured across 16 Ω load at speaker output terminal.

Description Condition Unit Nominal Limit

1. Audio Output Power 10% THD: Lch/Rch W 3.0/3.0 2.0/2.0

2. Audio Distortion 500mW: Lch/Rch % 1.5/1.5 3.0/3.0

-

3. Audio Freq. Response

6dB: Lch

-

6dB: Rch

Hz
Hz

70 to 8 k
70 to 8 k

---

---

4. Audio S/N Lch/Rch dB ---

Note: Nominal specifications represent the design specifications. All units should be able to approximate these.

Some will exceed and some may drop slightly below these specifications. Limit specifications represent
the absolute worst condition that still might be considered acceptable. In no case should a unit fail to meet
limit specifications.

≧45/45

1-2 A0CN6SP

IMPORTANT SAFETY PRECAUTIONS

Prior to shipment from the factory, our products are strictly inspected for recognized product safety and electrical
codes of the countries in which they are to be sold. However, in order to maintain such compliance, it is equally
important to implement the following precautions when a set is being serviced.

Safety Precautions for LCD TV
Circuit

1. Before returning an instrument to the
customer, always make a safety check of the

entire instrument, including, but not limited to, the
following items:

a. Be sure that no built-in protective devices are

defective and have been defeated during
servicing. (1) Protective shields are provided
on this chassis to protect both the technician
and the customer. Correctly replace all missing
protective shields, including any removed for
servicing convenience. (2) When reinstalling
the chassis and/or other assembly in the
cabinet, be sure to put back in place all
protective devices, including but not limited to,
nonmetallic control knobs, insulating
fishpapers, adjustment and compartment
covers/shields, and isolation resistor/capacitor
networks. Do not operate this instrument or

permit it to be operated without all
protective devices correctly installed and
functioning. Servicers who defeat safety
features or fail to perform safety checks
may be liable for any resulting damage.

b. Be sure that there are no cabinet openings

through which an adult or child might be able to
insert their fingers and contact a hazardous
voltage. Such openings include, but are not
limited to, (1) spacing between the LCD module
and the cabinet mask, (2) excessively wide
cabinet ventilation slots, and (3) an improperly
fitted and/or incorrectly secured cabinet back
cover.

c. Antenna Cold Check - With the instrument AC

plug removed from any AC source, connect an
electrical jumper across the two AC plug
prongs. Place the instrument AC switch in the
on position. Connect one lead of an ohmmeter
to the AC plug prongs tied together and touch
the other ohmmeter lead in turn to each tuner
antenna input exposed terminal screw and, if
applicable, to the coaxial connector. If the
measured resistance is less than 1.0 megohm
or greater than 5.2 megohm, an abnormality
exists that must be corrected before the
instrument is returned to the customer. Repeat
this test with the instrument AC switch in the off
position.

d. Leakage Current Hot Check - With the

instrument completely reassembled, plug the
AC line cord directly into a 230 V AC outlet. (Do
not use an isolation transformer during this
test.) Use a leakage current tester or a
metering system that complies with American

National Standards Institute (ANSI) C101.1
Leakage Current for Appliances and
Underwriters Laboratories (UL) 1410, (50.7).
With the instrument AC switch first in the on
position and then in the off position, measure
from a known earth ground (metal water pipe,
conduit, etc.) to all exposed metal parts of the
instrument (antennas, handle brackets, metal
cabinet, screw heads, metallic overlays, control
shafts, etc.), especially any exposed metal
parts that offer an electrical return path to the
chassis. Any current measured must not
exceed 0.5 milli-ampere. Reverse the
instrument power cord plug in the outlet and
repeat the test.

READING SHOULD
NOT BE ABOVE 0.5 mA

LEAKAGE

DEVICE

BEING

TESTED

TEST ALL EXPOSED
METAL SURFACES

ALSO TEST WITH
PLUG REVERSED
USING AC
ADAPTER PLUG
AS REQUIRED

ANY MEASUREMENTS NOT WITHIN THE
LIMITS SPECIFIED HEREIN INDICATE A
POTENTIAL SHOCK HAZARD THAT MUST
BE ELIMINATED BEFORE RETURNING THE
INSTRUMENT TO THE CUSTOMER OR
BEFORE CONNECTING THE ANTENNA OR
ACCESSORIES.

2. Read and comply with all caution and safety-

related notes on or inside the receiver cabinet, on
the receiver chassis, or on the LCD module.

3. Design Alteration Warning - Do not alter or add
to the mechanical or electrical design of this LCD
TV receiver. Design alterations and additions,
including, but not limited to circuit modifications
and the addition of items such as auxiliary audio
and/or video output connections, might alter the
safety characteristics of this receiver and create a
hazard to the user. Any design alterations or
additions will void the manufacturer's warranty and
may make you, the servicer, responsible for
personal injury or property damage resulting
therefrom.

CURRENT

TESTER

+

EARTH
GROUND

_

2-1 LTVP_ISP

4. Hot Chassis Warning -

a. Some TV receiver chassis are electrically

connected directly to one conductor of the AC
power cord and maybe safety-serviced without
an isolation transformer only if the AC power
plug is inserted so that the chassis is
connected to the ground side of the AC power
source. To confirm that the AC power plug is
inserted correctly, with an AC voltmeter,
measure between the chassis and a known
earth ground. If a voltage reading in excess of

1.0 V is obtained, remove and reinsert the AC
power plug in the opposite polarity and again
measure the voltage potential between the
chassis and a known earth ground.

b. Some TV receiver chassis normally have 85V

AC(RMS) between chassis and earth ground
regardless of the AC plug polarity. This chassis
can be safety-serviced only with an isolation
transformer inserted in the power line between
the receiver and the AC power source, for both
personnel and test equipment protection.

c. Some TV receiver chassis have a secondary

ground system in addition to the main chassis
ground. This secondary ground system is not
isolated from the AC power line. The two
ground systems are electrically separated by
insulation material that must not be defeated or
altered.

5. Observe original lead dress. Take extra care to
assure correct lead dress in the following areas: a.
near sharp edges, b. near thermally hot parts-be
sure that leads and components do not touch
thermally hot parts, c. the AC supply, d. high
voltage, and, e. antenna wiring. Always inspect in
all areas for pinched, out of place, or frayed wiring.
Check AC power cord for damage.

6. Components, parts, and/or wiring that appear to
have overheated or are otherwise damaged
should be replaced with components, parts, or
wiring that meet original specifications.
Additionally, determine the cause of overheating
and/or damage and, if necessary, take corrective
action to remove any potential safety hazard.

7. Product Safety Notice - Some electrical and
mechanical parts have special safety-related
characteristics which are often not evident from
visual inspection, nor can the protection they give
necessarily be obtained by replacing them with
components rated for higher voltage, wattage, etc..
Parts that have special safety characteristics are
identified by a ! on schematics and in parts lists.
Use of a substitute replacement that does not
have the same safety characteristics as the
recommended replacement part might create
shock, fire, and/or other hazards. The product's
safety is under review continuously and new
instructions are issued whenever appropriate.
Prior to shipment from the factory, our products
are strictly inspected to confirm they comply with
the recognized product safety and electrical codes
of the countries in which they are to be sold.
However, in order to maintain such compliance, it
is equally important to implement the following
precautions when a set is being serviced.

2-2 LTVP_ISP

Precautions during Servicing

A. Parts identified by the ! symbol are critical for

safety.
Replace only with part number specified.

B. In addition to safety, other parts and assemblies

are specified for conformance with regulations
applying to spurious radiation. These must also be
replaced only with specified replacements.
Examples: RF converters, RF cables, noise
blocking capacitors, and noise blocking filters, etc.

C. Use specified internal wiring. Note especially:

1) Wires covered with PVC tubing

2) Double insulated wires

3) High voltage leads

D. Use specified insulating materials for hazardous

live parts. Note especially:

1) Insulation Tape

2) PVC tubing

3) Spacers

4) Insulators for transistors.

E. When replacing AC primary side components

(transformers, power cord, etc.), wrap ends of
wires securely about the terminals before
soldering.

F. Observe that the wires do not contact heat

producing parts (heat sinks, oxide metal film
resistors, fusible resistors, etc.)

G. Check that replaced wires do not contact sharp

edged or pointed parts.

H. When a power cord has been replaced, check that

5~6 kg of force in any direction will not loosen it.

I. Also check areas surrounding repaired locations.

J. Use care that foreign objects (screws, solder

droplets, etc.) do not remain inside the set.

K. When connecting or disconnecting the internal

connectors, first, disconnect the AC plug from the
AC supply outlet.

L. When installing parts or assembling the cabinet

parts, be sure to use the proper screws and
tighten certainly.

2-3 LTVP_ISP

Safety Check after Servicing

Examine the area surrounding the repaired location
for damage or deterioration. Observe that screws,
parts and wires have been returned to original posi­tions. Afterwards, perform the following tests and con­firm the specified values in order to verify compliance
with safety standards.

1. Clearance Distance

When replacing primary circuit components, confirm
specified clearance distance (d) and (d') between sol­dered terminals, and between terminals and surround­ing metallic parts. (See Fig. 1)

Table 1 : Ratings for selected area

AC Line Voltage Clearance Distance (d), (d’)

220 to 240 V

Note: This table is unofficial and for reference only.
Be sure to confirm the precise values.

≥ 3mm(d)

≥ 8mm(d’)

2. Leakage Current Test

Confirm the specified (or lower) leakage current be­tween B (earth ground, power cord plug prongs) and
externally exposed accessible parts (RF terminals, an­tenna terminals, video and audio input and output ter­minals, microphone jacks, earphone jacks, etc.).

Chassis or Secondary Conductor

Primary Circuit

d' d

Exposed Accessible Part

Z

AC Voltmeter
(High Impedance)

Fig. 1

Measuring Method : (Power ON)

Insert load Z between B (earth ground, power cord
plug prongs) and exposed accessible parts. Use an
AC voltmeter to measure across both terminals of load
Z. See Fig. 2 and following table.

Table 2: Leakage current ratings for selected areas

AC Line Voltage Load Z Leakage Current (i)

2kΩ RES.

Connected in

parallel

220 to 240 V

50kΩ RES.

Connected in

parallel

Note: This table is unofficial and for reference only. Be sure to confirm the precise values.

i≤0.7mA AC Peak

i≤2mA DC

i≤0.7mA AC Peak

i≤2mA DC

One side of

B

Power Cord Plug Prongs

One side of power cord plug

prongs (B) to:

Antenna terminals

A/V Input, Output

Fig. 2

RF or

2-4 LTVP_ISP

STANDARD NOTES FOR SERVICING

Circuit Board Indications

1. The output pin of the 3 pin Regulator ICs is
indicated as shown.

To p Vi ew

Out

2. For other ICs, pin 1 and every fifth pin are
indicated as shown.

Pin 1

3. The 1st pin of every male connector is indicated as
shown.

Pin 1

Input

In

Bottom View

5

10

Pb (Lead) Free Solder

Pb free mark will be found on PCBs which use Pb
free solder. (Refer to figure.) For PCBs with Pb free
mark, be sure to use Pb free solder. For PCBs
without Pb free mark, use standard solder.

Pb free mark

How to Remove / Install Flat Pack-IC

1. Removal

With Hot-Air Flat Pack-IC Desoldering Machine:

1. Prepare the hot-air flat pack-IC desoldering
machine, then apply hot air to the Flat Pack-IC
(about 5 to 6 seconds). (Fig. S-1-1)

Fig. S-1-1

2. Remove the flat pack-IC with tweezers while
applying the hot air.

3. Bottom of the flat pack-IC is fixed with glue to the
CBA; when removing entire flat pack-IC, first apply
soldering iron to center of the flat pack-IC and heat
up. Then remove (glue will be melted). (Fig. S-1-6)

4. Release the flat pack-IC from the CBA using
tweezers. (Fig. S-1-6)

CAUTION:

1. The Flat Pack-IC shape may differ by models. Use
an appropriate hot-air flat pack-IC desoldering
machine, whose shape matches that of the Flat
Pack-IC.

2. Do not supply hot air to the chip parts around the
flat pack-IC for over 6 seconds because damage
to the chip parts may occur. Put masking tape
around the flat pack-IC to protect other parts from
damage. (Fig. S-1-2)

3. The flat pack-IC on the CBA is affixed with glue, so
be careful not to break or damage the foil of each
pin or the solder lands under the IC when
removing it.

Hot-air
Flat Pack-IC
Desoldering

CBA

Masking
Ta pe

Tweezers

3-1 TVP_SN

Machine

Flat Pack-IC

Fig. S-1-2

With Soldering Iron:

1. Using desoldering braid, remove the solder from
all pins of the flat pack-IC. When you use solder
flux which is applied to all pins of the flat pack-IC,
you can remove it easily. (Fig. S-1-3)

Flat Pack-IC

Desoldering Braid

Soldering Iron

Fig. S-1-3

2. Lift each lead of the flat pack-IC upward one by
one, using a sharp pin or wire to which solder will
not adhere (iron wire). When heating the pins, use
a fine tip soldering iron or a hot air desoldering
machine. (Fig. S-1-4)

With Iron Wire:

1. Using desoldering braid, remove the solder from
all pins of the flat pack-IC. When you use solder
flux which is applied to all pins of the flat pack-IC,
you can remove it easily. (Fig. S-1-3)

2. Affix the wire to a workbench or solid mounting
point, as shown in Fig. S-1-5.

3. While heating the pins using a fine tip soldering
iron or hot air blower, pull up the wire as the solder
melts so as to lift the IC leads from the CBA
contact pads as shown in Fig. S-1-5.

4. Bottom of the flat pack-IC is fixed with glue to the
CBA; when removing entire flat pack-IC, first apply
soldering iron to center of the flat pack-IC and heat
up. Then remove (glue will be melted). (Fig. S-1-6)

5. Release the flat pack-IC from the CBA using
tweezers. (Fig. S-1-6)

Note: When using a soldering iron, care must be

taken to ensure that the flat pack-IC is not
being held by glue. When the flat pack-IC is
removed from the CBA, handle it gently
because it may be damaged if force is applied.

Sharp
Pin

Fine Tip
Soldering Iron

3. Bottom of the flat pack-IC is fixed with glue to the
CBA; when removing entire flat pack-IC, first apply
soldering iron to center of the flat pack-IC and heat
up. Then remove (glue will be melted). (Fig. S-1-6)

4. Release the flat pack-IC from the CBA using
tweezers. (Fig. S-1-6)

Fig. S-1-4

To Solid
Mounting Point

CBA

Hot Air Blower

or

Iron Wire

Soldering Iron

Fig. S-1-5

Fine Tip
Soldering Iron

Flat Pack-IC

Tweezers

Fig. S-1-6

3-2 TVP_SN

2. Installation

1. Using desoldering braid, remove the solder from
the foil of each pin of the flat pack-IC on the CBA
so you can install a replacement flat pack-IC more
easily.

2. The “ I ” mark on the flat pack-IC indicates pin 1.
(See Fig. S-1-7.) Be sure this mark matches the
pin 1 on the PCB when positioning for installation.
Then presolder the four corners of the flat pack-IC.
(See Fig. S-1-8.)

3. Solder all pins of the flat pack-IC. Be sure that
none of the pins have solder bridges.

Example :

Pin 1 of the Flat Pack-IC
is indicated by a " " mark.

Fig. S-1-7

Instructions for Handling Semi­conductors

Electrostatic breakdown of the semi-conductors may
occur due to a potential difference caused by
electrostatic charge during unpacking or repair work.

1. Ground for Human Body

Be sure to wear a grounding band (1 MΩ) that is
properly grounded to remove any static electricity that
may be charged on the body.

2. Ground for Workbench

Be sure to place a conductive sheet or copper plate
with proper grounding (1 MΩ) on the workbench or
other surface, where the semi-conductors are to be
placed. Because the static electricity charge on
clothing will not escape through the body grounding
band, be careful to avoid contacting semi-conductors
with your clothing.

<Incorrect>

CBA

Presolder

Flat Pack-IC

Fig. S-1-8

<Correct>

1MΩ

CBA

Grounding Band

1MΩ

CBA

Conductive Sheet or
Copper Plate

3-3 TVP_SN

CABINET DISASSEMBLY INSTRUCTIONS

1. Disassembly Flowchart

This flowchart indicates the disassembly steps for the
cabinet parts and the CBA in order to gain access to
items to be serviced. When reassembling, follow the
steps in reverse order. Bend, route and dress the
cables as they were.

[3] AC Holder

[10] IR Sensor
CBA

[1] Stand

Assembly

[2] Rear Cabinet

[4] Power Supply
CBA

[5] Tuner Shield

[6] Jack CBA

[7] Digital Main
CBA Unit

[11] LCD Module
Assembly

[12] Front
Cabinet

[8] Speaker

[9] Function
CBA

2. Disassembly Method

Step/

Loc.

No.

[10]

Part

IR Sensor
CBA

Fig.

No.

D2
D3

Removal Note

Sensor LED Lens ---

LCD

[11]

Module

D2 Separation Sheet ---

Assembly

Front

[12]

↓

(1)

Cabinet

↓

(2)

D2 --------------- ---

↓

(3)

↓

(4)

↓

(5)

Note:

(1) Order of steps in procedure. When reassembling,

follow the steps in reverse order. These numbers
are also used as the Identification (location) No. of
parts in figures.

(2) Parts to be removed or installed.

(3) Fig. No. showing procedure of part location

(4) Identification of parts to be removed, unhooked,

unlocked, released, unplugged, unclamped, or
desoldered.
N = Nut, L = Locking Tab, S = Screw,
H = Hex Screw, CN = Connector
e.g. 2(S-2) = two Screws of (S-2),
2(L-2) = two Locking Tabs of (L-2)

(5) Refer to the following "Reference Notes in the

Ta b le . "

Step/

Loc.

No.

[1]

[2]

Part

Stand
Assembly

Rear
Cabinet

Fig.

No.

Removal Note

D1 2(S-1) ---

8(S-2), 2(S-3), 2(S-4),

D1

10(L-1)

[3] AC Holder D2 (S-5), (S-6) ---

5(S-7), CN501,

D2

CN502, CN503,

D3

CN701

D2 (S-8) ---

[4]

[5]

Power
Supply
CBA

Tuner
Shield

6(S-9), CN103,

D2

[6] Jack CBA

CN801, CN902,

D3

CN3701, CN3702,
CN3703, CN3704

2(S-10), 7(S-11),

Digital Main

[7]

CBA UnitD2D3

2(H-1), CN3901,
Jack Holder,
Shield Box

[8] Speaker D2

Function

[9]

CBA

(S-12), Speaker
Holder

D2D32(S-13),

Function Knob

---

---

---

---

---

---

4-1 A0CN6_N7DC

(S-2)

(L-1)

(S-2)

(L-1)

(S-4)

(L-1)

[2] Rear Cabinet

[1] Stand Assembly

(S-2)

(S-2)

(S-3)

(S-2)

(S-1)

(S-2)

Fig. D1

4-2 A0CN6_N7DC

[7] Digital Main CBA Unit

(S-13)

[12] Front Cabinet

[11] LCD Module
Assembly

(S-11)

Shield Box

Jack Holder

(S-11)

(H-1)

(S-10)

(S-10)

(S-11)

Separation Sheet

Function Knob

[9] Function CBA

[10] IR Sensor CBA

Speaker Holder

Sensor LED
Lens

[8] Speaker

[4] Power Supply CBA

(S-12)

Speaker Holder

(S-7)

[6] Jack CBA

(S-9)

(S-7)

[3] AC Holder

(S-9)

(S-6)

[5] Tuner
Shield

(S-8)

(S-9)

(S-5)

Fig. D2

4-3 A0CN6_N7DC

TV Cable Wiring Diagram

Function
CBA

CN102

CN502

Power Supply CBA

CN501

AC Cord

CN701

CN503

To LCD Module
Assembly

CN902

CN901

Jack CBA

CN103

CN904

CN905

CN906

CN907

To LCD Module
Assembly

CN3901

CN3701

CN3703

CN3702

Digital Main
CBA Unit

CN3704

To Speaker

To LCD Module
Assembly

CN801

To Speaker

IR Sensor CBA

CN101

Fig. D3

4-4 A0CN6_N7DC

ELECTRICAL ADJUSTMENT INSTRUCTIONS

General Note: “CBA” is abbreviation for
“Circuit Board Assembly.”

Note: Electrical adjustments are required after

replacing circuit components and certain
mechanical parts. It is important to perform
these adjustments only after all repairs and
replacements have been completed.
Also, do not attempt these adjustments unless
the proper equipment is available.

Test Equipment Required

1. NTSC Pattern Generator (Color Bar W/White
Window, Red Color, Dot Pattern, Gray Scale,
Monoscope, Multi-Burst)

2. Remote control unit

3. Color Analyzer

How to set up the service mode:

Service mode:

1. Turn the power on.

2. Press [MENU] button to display Setup menu.

3. Select “Software” in “OTHERS” and press [OK]
button.

4. Press [0], [4], [2], [5], [7], [4] and [ ] buttons on
the remote control unit in this order. The following
screen appears.

"*" differs depending on the models.

Code :

************-***-**

Pic code :

**-*******-***-*-**

Inch :

*** *******

MIPS :

****

Safety : Safety_Non

5-1 LC8.5P(LED)EA

1. Purity Check Mode

2. VCOM Adjustment

This mode cycles through full-screen displays of red,
green, blue, and white to check for non-active pixels.

1. Enter the Service mode.

2. Each time the [7] button on the remote control unit
is pressed, the display changes as follows.

Purity Check Mode

White mode

[7] button

[7] button

Black mode

[7] button

Red mode

[7] button

Green mode

[7] button

Blue mode

Test Point Adj. Point

Screen

[P / ]

buttons

M. EQ. Spec.

Color analyzer See below

Figure

To avoid interference from ambient
light, this adjustment should be
performed in a dark room.

Perpendicularity

L = 1.18 inches

Color Analyzer

1. Operate the unit for more than 20 minutes.

2. Set the color analyzer at the zero point calibration
and bring the optical receptor pointing at the
center of the LCD-Panel at a distance of 3cm away
from the LCD-Panel surface.
Note: The optical receptor must be set
perpendicularly to the LCD Panel surface.

3. Enter the Service mode.

4. To enter the “VCOM-2 adjustment mode”, press [3]
button on the remote control unit.
To enter the “VCOM-1 adjustment mode”, press [2]
button on the remote control unit.

5. Press [P / ] buttons on the remote control
unit so that the color analyzer value becomes
minimum.

6. To cancel or to exit from the VCOM Adjustment,
press [BACK] button.

[7] button

White 20% mode

Note:

When entering this mode, the default setting is White mode.

3. To cancel or to exit from the Purity Check Mode,
press [BACK] button.

5-2 LC8.5P(LED)EA

The White Balance Adjustment should be
performed when replacing the LCD Panel
or Digital Main CBA.

3. White Balance Adjustment

Purpose: To mix red and blue beams correctly for

pure white.

Symptom of Misadjustment: White becomes bluish
or reddish.

Tes t Po int

Screen

Adj. Point Mode Input

[P / ]

buttons

[VIDEO1]

C/D

M. EQ. Spec.

White Raster

(APL 70%)

or

(APL 40%)

5. [CUTOFF]
Press [1] button to select “COR” for Red Cutoff
adjustment. Press [3] button to select “COB” for
Blue Cutoff adjustment.

[DRIVE]

Press [4] button to select “DR” for Red Drive
adjustment. Press [6] button to select “DB” for Blue
Drive adjustment.

6. In each color mode, press [P / ] buttons to
adjust the values of color.

7. Adjust Cutoff and Drive so that the color
temperature becomes 12000°K (x

=

0.272 / y

=

0.278 ±0.005).

8. To cancel or to exit from the White Balance
Adjustment, press [BACK] button.

Pattern Generator,

Color analyzer

x= 0.272 ± 0.005
y= 0.278 ± 0.005

Figure

To avoid interference from ambient
light, this adjustment should be
performed in a dark room.

Perpendicularity

L = 1.18 inches

INPUT: WHITE 70%, 40%

Color Analyzer

1. Operate the unit for more than 20 minutes.

2. Input the White Raster(70%=70IRE, 40%=40IRE).

INPUT SIGNAL

0IRE 0IRE

Low

High

Light

Light

100IRE

40%=40IRE

70%=70IRE

100IRE

3. Set the color analyzer at the CHROMA mode and
zero point calibration. Bring the optical receptor
pointing at the center of the LCD-Panel at a
distance of 3cm away from the LCD-Panel surface.
Note: The optical receptor must be set
perpendicularly to the LCD Panel surface.

4. Enter the Service mode. Press [ -] button on the
remote control unit and select “C/D” mode.

5-3 LC8.5P(LED)EA

HOW TO INITIALIZE THE LCD TELEVISION

How to initialize the LCD television:

1. Turn the power on.

2. Enter the service mode. (Refer to page 5-1.)

- To cancel the service mode, press [ ] button on

the remote control unit.

3. Press [ ] button on the remote control unit to
initialize the LCD television.

4. "INITIALIZED" will appear in the upper right of the
screen. "INITIALIZED" color will change to green
from red when initializing is complete.

6-1 A0CN0INT

FIRMWARE RENEWAL MODE

Equipment Required

a. USB storage device
b. Remote Control Unit

Firmware Update Procedure

[Check the current version]

1. Press [MENU] button on the remote control unit to
display the menu mode.

2. Press [ÅK] or [ÅL] to select “OTHERS”, then press
[OK] button.

3. Press [ÅK] or [ÅL] to select “Software”, then press
[OK] button.

The current FW version will be displayed.

[Preparation]

1. Prepare USB storage device.

2. Copy F/W-file (ecc file) to USB storage device.
Note: Make sure to use the blank USB Storage.

3. Rename the F/W-file’s name.

Step1. Add the “_F” at the end of the name.

(If the file name in USB says
“ZF6731915NOS-030-05.ecc”,
the new file name should be
“ZF6731915NOS-030-05_F.ecc”.)

Step2. The 6th and 7th digit of the file name

indicate the size of TV. If the size of your
TV and the file name were not the same,
you must change the file name.

[Update procedure]

1. Plug in the AC power cord.

2. Press [ ] button on the remote control unit to turn
off (standby).

3. Check “STAND BY” indicator (Red LED) lighting.

4. Insert USB storage device with F/W to TV set.

5. Press [ ] button to turn on.

6. After approximately 70 seconds, the following will
appear on the screen and the update begins
automatically.

(Example)

Note: Do not turn off the TV set and do not

remove the USB storage device while this
procedure.

The update will be completed in about 2 minutes.
And the following screen appears.

(Example)

The software upgrade is completed.

Remove USB storage device, turn TV off and then on again.

7. Press [ ] button to turn off (standby).

8. Check “STAND BY” indicator (Red LED) lighting.

9. Remove USB storage device from TV set.

10. Press [ ] button to turn on.

7-1 LC8.5FW

FLOW CHART NO.1

The power cannot be turned on.

TROUBLESHOOTING

Is the fuse (F601) normal?

Ye s

Is normal state restored when once unplugged power
cord is plugged again after several seconds?

Ye s

Is the AMP+24V line voltage normal?

Ye s

Check each rectifying circuit of the secondar
and service it if defective.

FLOW CHART NO.2

The fuse blows out.

Check the prese
leaking or shorted and service it if defective.

After servicing, replace the fus

FLOW CHART NO.3

When the output voltage fluctuates.

nce that the primary component is

e (F601).

y circuit

No

No

No

See FLOW CHART No.2 <The fuse blows out.>

Check if there is any leak or short-circuiting on the
primary circuit component, and service it if defective.
(IC601, IC602, Q602, D614, D615, D616, D617,
T601, R618)

Check the prese
is shorted in each r
and service it if de

nce that the rectifying diode or circuit

ectifying circuit of secondary side,

fective.

Does the photocoupler circuit on
operate normally?

Check IC601, D601, D602, D
periphery, and service it if def

FLOW CHART NO.4

When buzz sound can be heard in the vicinity of power circuit.

Check if there is any short-circuit on the rectifying diode and the circuit
service it if defective. (D503, D504, D531, D5

the secondary side

Ye s

607, D619 and their

ective.

48, D555, Q503, Q505, Q506, IC501, IC502, IC503, IC504)

No

Check IC601, Q504, Q513, D550 and their periphery,
and service it if defective.

in each rectifying circuit of the secondar

y side, and

8-1 A0CN6TR

FLOW CHART NO.5

AMP+24V is not outputted.

Is approximately 24V voltage supplied to the cathode
of D531(D548)?

Ye s

Check for short-circuiting or leak on the load circuit,
and service it if defective.

FLOW CHART NO.6

P-ON+6.4V is not outputted.

Is approximately 6.4V voltage supp
of D503(D555)?

Check for short-circuiting or leak on the load circuit,
and service it if defective.

FLOW CHART NO.7

AL+3.3V is not output.

Is approximately 5V voltage supplied to Pin(2) of
IC504?

lied to the cathode

Ye s

Ye s

No

No

No

Check D531, D548, C511, C512 and their periphery
circuit, and service it if defective.

Check D503, D555, C556, C570 and their periphery
circuit, and service it if defective.

Check D503, D517, D518, D519, D555, C556, C570
and their periphery circuit, and service it if defective.

Replace IC504.

FLOW CHART NO.8

P-ON+3.3V is not output.

Is approximately 2
IC503?

Is approximately 5
IC503?

Replace IC503.

FLOW CHART NO.9

P-ON+5V is not output.

Is approximately 6V voltage supplied to Pin(2) of
IC501?

Is approximately 3.3V voltage supplied to Pin(1) of
IC501?

4V voltage supplied to Pin(2) of

Ye s

V voltage supplied to Pin(7) of

Ye s

Ye s

Ye s

No

No

No

No

See FLOW CHART NO.5 <AMP+24V is not

Check Q509, Q510, P-ON-H1 line an
circuit, and service it if defective.

See FLOW CHART NO.6 <P-ON+6.4V is not output.>

See FLOW CHART NO.8 <P-ON+3.3V is not output.>

output.>

d their periphery

Replace IC501.

8-2 A0CN6TR

FLOW CHART NO.10

PANEL+24V is not output.

Is approximately 22V voltage supplied to the emitter
of Q508?

Ye s

Is approximately 24V voltage outputted to the collector
of Q505?

Ye s

Replace Q505.

FLOW CHART NO.11

PANEL+13V is not output.

Is approximately
IC502?

Is approximately 2.2V voltage supplied to Pin(7) of
IC502?

Replace IC502.

24V voltage supplied to Pin(2) of

Ye s

Ye s

No

No

No

No

See FLOW CHART NO.5 <AMP+24V is not output.>

Check Q512, D510, D523, D536 and their periphery
circuit, and service it if defective.

See FLOW CHART NO.5 <AMP+24V is not output.>

Check Q516, Q517, D501, P-ON-H1
periphery circuit, and ser

vice it if defective.

line and their

FLOW CHART NO.12

LCD-6.8V is not output.

Is approximately -11V voltage supplied to the anode of
D504?

Ye s

Is approximately -10V voltage supplied to the base of
Q507?

Ye s

Replace Q507.

No

No

Check D504, D506, C555 and their per
and service it if defective.

Check Q516, Q517, D541, P-ON-H1
peripher

y circuit, and service it if defective.

iphery circuit,

line and their

8-3 A0CN6TR

FLOW CHART NO.13

P-ON+11V is not output.

Is approximately 13V voltage supplied to the
collector of Q506?

Ye s

Is approximately 12V voltage supplied to the
base of Q506?

Ye s

Replace Q506.

FLOW CHART NO.14

The key operation is not functioning.

Are the contact point an
switches (SW101-SW106) normal?

When pressing each switches (SW101-SW106) do
the voltage of Pin(31) on CN502 increase?

Replace Digital Main CBA Unit.

d installation state of the key

Ye s

Ye s

No

No

No

No

See FLOW CHART NO.5 <AMP+24V is not output.>

Check Q501, Q502, P-ON-H2 line and their periphery
circuit, and service it if defective.

Re-install the switches (SW101-SW106) correctly or
replace the poor switch.

Check the switches (SW101-SW106) and their
periphery, and service it if defective.

FLOW CHART NO.15

No operation is possible from the remote control unit.

Operation is possible from the unit.

Is 3.3V voltage supplied to Pin(2) of RS10
control receiver)?

Ye s

Is the "L" pulse sent out Pin(1) of RS101 (remote control
receiver) when the infrared remote control is activated?

Ye s

Is the "L" pulse supplied to Pin(13) of CN905?

Ye s

Replace Digital Main CBA Unit.

1 (remote

No

No

No

Check AL+3.3V line and service it if defective.

Replace the RS101 (remote control receiver) or
remote control unit.

Check the line between Pin(1) of RS101 (remote
control receiver) and Pin(13) of CN905, and service
it if defective.

8-4 A0CN6TR

FLOW CHART NO.16

Picture does not appear normally. (Video input/Y/Pb/Pr input/RGB input)

Are the video signals outputted to the specific
terminal?

Are the component video(Y/Pb/Pr) signals outputted
to Pin(4, 6, 8) of CN906?

Are the RGB video signals outputted to Pin(26, 28, 29)
of CN906?

Are the composite video signals outputted to
Pin(2,22) of CN906?

Ye s

Replace Digital Main CBA Unit or LCD Module
Assembly.

FLOW CHART NO.17

Picture does not appear normally.

Are the DIF signals outputted to Pin(16, 18) of CN905?

Ye s

Replace Digital Main CBA Unit or LCD Module
Assembly.

FLOW CHART NO.18

Audio is not outputted normally. (Tuner input (Digital))

No

No

No

No

Check the line between each pin of CN906 and input
terminal and service it if defective.

Check the component video(Y/Pb/Pr) signal line,
and service it if defective.

Check the RGB video signal line, and service it if
defective.

Check the composite video signal line, and service it
if defective.

Check the line between Pin(16, 18) of CN905 and
Pin(9, 10) of TU10, and TU10(Tuner Unit), and service
it if defective.

Are the DIF signals outputted to Pin(16,18) of CN905?

Yes (Output to headphone)

Are the audio(L/R) signals outputted to Pin(8,10) of
CN905?

Ye s

Are the audio(L/R) signals inputted to the Pin(19, 32)
of IC801?

Ye s

Are the audio(L/R) signals outputted to CN503 and
CN801?

Ye s

Check CL503, CL801 and their periphery circuit, and
service it if defective.

Are the audio(L/R) signals outputted to Pin(3, 4) of
CN907?

Ye s

Check JK206 and their periphery circuit, and service it
if defective.

Yes (Output to speakers)

No

No

No

No

No

Check the line between Pin(16, 18) of CN905 and
Pin(9, 10) of TU10, and TU10(Tuner Unit), and service
it if defective.

Replace Digital Main CBA Unit.

Check the line between Pin(8,10) of CN905 and
Pin(19, 32) of IC801, and service it if defective.

Check IC801 and the periphery circuit, and service it
if defective.

Replace Digital Main CBA Unit.

8-5 A0CN6TR

FLOW CHART NO.19

Audio is not outputted normally. (Audio input terminals)

Are the audio(L/R) signals outputted to the specific
terminal?

Are the audio(L/R) signals outputted to Pin(9, 10) of
CN907?

Are the component audio(L/R) signals outputted to
Pin(18,19) of CN907?

Are the PC audio(L/R) signals outputted to Pin(24,25)
of CN907?

Yes (Output to speakers)Yes (Output to headphone)

Are the audio(L/R) signals outputted to Pin(8,10) of
CN905?

Ye s

Are the audio(L/R) signals inputted to the Pin(19, 32)
of IC801?

Ye s

Are the audio(L/R) signals outputted to CN503 and
CN801?

Ye s

Check CL503, CL801 and their periphery circuit, and
service it if defective.

No

No

No

No

No

No

Check the line between each pin of CN907 and input
terminal and service it if defective.

Check the audio(L/R) signal line, and service it if
defective.

Check the component audio(L/R) signal line, and
service it if defective.

Check the PC audio(L/R) signal line, and service it if
defective.

Replace Digital Main CBA Unit.

Check the line between Pin(8,10) of CN905 and
Pin(19, 32) of IC801, and service it if defective.

Check IC801 and the periphery circuit, and service it
if defective.

Are the audio(L/R) signals outputted to Pin(3, 4) of
CN907?

Ye s

Check JK206 and their periphery circuit, and service it
if defective.

No

Replace Digital Main CBA Unit.

8-6 A0CN6TR

BLOCK DIAGRAMS

System Control Block Diagram

POWER

AL+3.3V

RS101

SENSOR

REMOTE

D102

D101

STANDBY

CN101

LED144

STANBY55

REMOTE22

CN103

IR SENSOR CBA

KEY SWITCH

CN102

KEY-IN122

CN501

TO LED

BACKLIGHT DRIVE

PROTECT3

BACKLIGHT-SW

CN502

BLOCK DIAGRAM

BACKLIGHT-ADJ

POWER SUPPLY CBA

TO LCD MODULE

ASSEMBLY

TO POWER SUPPLY

CN502

BLOCK DIAGRAM

P-ON-H2

P-ON-H1

PROTECT1

19PROTECT1

20

FUNCTION CBA

AL+3.3V

Q101

PANEL+24V

CN905CN3703

REMOTE13 13

AK1

REMOTE

LED114 14

AJ1

LED1

KEY-IN111 11

AJ9

KEY-IN1

PROTECT3

P-ON-H117 23

P-ON-H218 22

KEY-IN1931

21

20

CN901

5PROTECT1

CN904CN3701

4

P-ON-H111

P-ON-H222

PROTECT3

5

4

AJ11

AK8

AH11

AH2

P-ON-H2

P-ON-H1

PROTECT3

PROTECT1

BACKLIGHT-SW
14 26

CN901

2

CN905CN3703

BACKLIGHT-SW

2

BACKLIGHT-SW AF9

BACKLIGHT-ADJ
10 30

4

1

VCOM-PWM

BACKLIGHT-ADJ

4

1

AH27

VCOM-PWM AH3

BACKLIGHT-ADJ

VCOM
2

CN902

DRIVE

IC401,Q401,

Q402,Q403

TU10 (TUNER UNIT)

SCL

SDA

2

1

23

22

SCL

SDA

23

22

CN3703 CN905

E23

C25

TUNER-CLK

TUNER-DATA

JACK CBA

IC3301

(MAIN MICRO CONTROLLER)

COMP-DET

AK2

COMP-DET

TO VIDEO

BLOCK

DIAGRAM

SCART-MUTE

HEADPHONE-DET

AUDIO-MUTE

D17

C17

AG9

SCART-MUTE

HEADPHONE-DET

HEADPHONE-MUTE

AUDIO-MUTE

TO AUDIO

BLOCK

DIAGRAM

HEADPHONE-MUTE

AK3

9-1

CLKOUT-Y1-25M

SPI-CLK

SPI-WR

B10

D11

6

5

CLOCK

DATA-IN

DATA-OUT E122 SPI-RD

IC3102

(SERIAL FLASH MEMORY)

CLKIN-Y1-25M

AH1

AG1

25MHz

OSC

X3101

DIGITAL MAIN CBA UNIT

A0CN6BLS

Video Block Diagram

AUDIO SIGNAL

VIDEO SIGNAL

TO DIGITAL SIGNAL

DIF-OUT2

DIF-OUT1

DIF-OUT216 16

CN905 CN3703

PROCESS

BLOCK DIAGRAM

IF-AGC

IF-AGC20 20

DIF-OUT118 18

TO DIGITAL SIGNAL

PROCESS

TU-CVBS

VIDEO-IN

VIDEO-OUT

BLOCK DIAGRAM

VIDEO-B

VIDEO-R

VIDEO-G

RGB-VIDEO-IN

COM-VIDEO-Y-IN

COM-VIDEO-Pb-IN

TO SYSTEM CONTROL

BLOCK DIAGRAM

COMP-DET

COM-VIDEO-Pr-IN

DIGITAL MAIN CBA UNIT

TU-CVBS29 29

VIDEO-OUT24 24

VIDEO-IN22

VIDEO-R26 26

VIDEO-G28 28

VIDEO-B29 29

RGB-VIDEO-IN22 22

CN906 CN3702

WF1

COM-VIDEO-Y-IN

COM-VIDEO-Pb-IN

44

66

COM-VIDEO-Pr-IN

COMP-DET11

88

WF4

WF8WF6

WF7

WF3

WF2

Q352

BUFFER

JACK CBA

7

15

9

8

11

10

JK313

20

19

11

TU10

(TUNER UNIT)

IF-AGC

DIF-OUT1

DIF-OUT2

VIDEO-OUT

9-2

RGB-

VIDEO-IN

VIDEO-R

VIDEO-G

VIDEO-B

VIDEO-OUT

COMPONENT

-Y-IN/VIDEO-IN

JK207

JK208

COMPONENT

-Pb-IN

COMPONENT

-Pr-IN

JK209

A0CN6BLV

Audio Block Diagram

B

Model Mark

LED19-T800M A

Comparison Chart of

Models and Marks

AUDIO SIGNAL

LED19-H800M

SPDIF

COM-AUDIO(L)

PC-AUDIO(L)

RGB-AUDIO(L)-IN

PC-AUDIO(R)

COM-AUDIO(R)

RGB-AUDIO(R)-IN

IC3802

(OP AMP)

TO DIGITAL SIGNAL PROCESS

BLOCK DIAGRAM

RGB-AUDIO(L)-OUT

RGB-AUDIO(R)-OUT

6

2

7

1

Q3801

Q3804, Q3805

MUTE

Q3802

HEADPHONE(L)

DRIVE

MUTE

IC3805

(HP AMP)

SIF(+)

HEADPHONE(R)

5

3

7

1

TO SYSTEM CONTROL

BLOCK DIAGRAM

SCART-MUTE

HEADPHONE-DET

HEADPHONE-MUTE

2

MUTE

AUDIO-MUTE

CN3703CN905

AMP(L)-OUT10 10

AMP(R)-OUT88

AUDIO-MUTE12 12

32

19

DIGITAL MAIN CBA UNITPOWER SUPPLY CBA

MUTE

Q802, Q803

PWM

GENE.

PWM

GENE.

CN3704CN907

COM-AUDIO(L)19 19

PC-AUDIO(L)25 25

SPDIF11

WF5

PC-AUDIO(R)24 24

RGB-AUDIO(L)-IN

RGB-AUDIO(R)-IN

COM-AUDIO(R)

99

10 10

18 18

JACK CBA

6

JK313

CN3704

HEADPHONE(L)

HEADPHONE(R)

RGB-AUDIO(L)-OUT
66

CN907

1

3RGB-AUDIO(L)-OUT

HEADPHONE-DET

RGB-AUDIO(R)-OUT

33

44

22

77

CN3703

SIF(+)26 26

CN905

4

SIF-OUT

TU10

(TUNER UNIT)

IC801 (AUDIO AMP)

39,40

CN801

SP(L) 1

11,12

SP-GND 2

34

CONTROL LOGIC

1,3

CN901CN502

SP-R(+)
37,39

CN503

SP(R) 1

SP-GND 2

DIGITAL

AUDIO-OUT

(COAXIAL)

JK210

B

JK211

COMPONENT

AUDIO(L)-IN

JK201

JK212

COMPONENT

AUDIO(R)-IN

PC-AUDIO-IN

RGB-AUDIO(L)-IN2RGB-AUDIO(R)-IN

RGB-AUDIO(R)-OUT

9-3

JK206

HEADPHONE

JACK

CL801

SPEAKER

L-CH

CL503

SPEAKER

R-CH

A0CN6BLA

Digital Signal Process Block Diagram

E

LCD MODUL

ASSEMBLY

LLV1(-)21

LLV1(+)20

LLV0(-)23

LLV0(+)22

LLV2(-)19

LLV2(+)18

LLV3(-)13

LLV3(+)12

LLV4(-)11

LLV4(+)10

LLV5(-)9

LLV5(+)8

LLVCLK(+)16

LLVCLK(-)15

TP6

POL5

CPV4

OE13

STV1

CN3901

TO VIDEO

BLOCK

AUDIO SIGNAL

DIAGRAM

VIDEO SIGNAL

AK23

IC3301 (DIGITAL SIGNAL PROCESS)

P3

AJ23

AA1

AK22

T2

AJ22

J3

AK21

L3

N3

AJ21

AK20

M2

AJ20

SW

R1

AK19

K1

AJ19

LVD S

TIMING

CONTROL

A/D

CONVERTER

N2

AH18

AH19

OUTPUT

T1

AJ24

L2

AK24

P2

AG23

J2

AH23

AH25

H-SYNC

V-SYNC

U1

U2

AK26

VGA-SDA

AG8

AH26

VGA-SCL

AK5

VIDEO-OUT

AA2

DAC

DIGITAL

DEMODULATOR

/MPEG DECODER

IF-AGC

V1

V2

AE1

(DDR2 SDRAM)

IC3201, IC3202

SIGNAL

PROCESS

AC3

RDQ(0-31)

MRA(0-12)

DATA(0-31)

ADDESS(0-12)

ADC

AB4

AD1

AD4

AC4

AUDIO I/F

AB2

AD2

CN3401

GDAT(0-15)

DAC

AB1

AC1

CI CARD SLOT

GADR(0-14)

AA3

JK3704

HDMI-IN1

79461

TMDS-D0(-)

TMDS-D0(+)

B1

B2

AUDIO

DEMODU.

F2

F1

E7

W1

TMDS-D1(-)

TMDS-D2(-)

TMDS-D1(+)

TMDS-D2(+)

C1C2D1

DECODER

VIDEO

H2

G2

G1

3

101216

SCL

SDA

TMDS-CLOCK(-)

TMDS-CLOCK(+)

A1

A2

D2

AF10

DECODER

E2

E1

H1

AG10

15

AE11

HDMI I/F

AJ8

DIGITAL MAIN CBA UNIT

COM-VIDEO-Y-IN

COM-VIDEO-Pb-IN

COM-VIDEO-Pr-IN

TU-CVBS

VIDEO-R

VIDEO-IN

TO VIDEO

BLOCK

DIAGRAM

VIDEO-G

VIDEO-B

RGB-VIDEO-IN

JK3701

1

RED

3

2

BLUE

GREEN

14

13

VSYNC

HSYNC

D-SUB

12

DAT A

15

CLOCK

DIF-OUT1

IF-AGC

DIF-OUT2

TO VIDEO

BLOCK

DIAGRAM

9-4

COM-AUDIO(L)

PC-AUDIO(L)

RGB-AUDIO(L)-IN

RGB-AUDIO(R)-IN

COM-AUDIO(R)

PC-AUDIO(R)

RGB-AUDIO(L)-OUT

RGB-AUDIO(R)-OUT

TO AUDIO

BLOCK

DIAGRAM

SIF(+)

HEADPHONE(L)

HEADPHONE(R)

SPDIF

TMDS-D0(+)

TMDS-D0(-)

TMDS-D1(+)

TMDS-D1(-)

79461

TMDS-D2(+)

TMDS-D2(-)

TMDS-CLOCK(+)

TMDS-CLOCK(-)

3

101216

HDMI-IN2

JK3703

SDA

SCL

15

A0CN6BLD

LED Backlight Drive Block Diagram

ILED44

VLED6

CN701

LCD MODULE

ASSEMBLY

ILED33

ILED22

ILED11

Q702

LED DRIVE

Q703

1

28

DRIVE1

IC701(LED BACKLIGHT DRIVER)

LED DRIVE

2

DRIVE2 3

OVP

26

LED DRIVE

Q704

DRIVE3 5

13

17

4

CONTROL

19

LOGIC

23

Q705

24

LED DRIVE

6

DRIVE4 7

+24V

Q701

9-5

BACKLIGHT-SW

BACKLIGHT-ADJ

PROTECT3

TO SYSTEM CONTROL

BLOCK DIAGRAM

POWER SUPPLY CBA

A0CN6BLBD

Power Supply Block Diagram

CAUTION !

For continued protection against fire hazard,

replace only with the same type fuse.

TO DIGITAL MAIN

LCD MODULE

ASSEMBLY

AMP+24V

P-ON+5V

PANEL+13V2,3

PANEL-6.8V8

PANEL+24V4

P-ON+3.3V6,7

NOTE:

The voltage for parts in hot circuit is measured using

hot GND as a common terminal.

AL+3.3V

CBA CN3701

CN904

P-ON+11V

P-ON+5V27-29

P-ON+6.4V24,26

P-ON+3.3V19-21

P-ON+3.3V13-16

AL+3.3V10

P-ON+11V6

+24V

TO SYSTEM CONTROL

BLOCK DIAGRAM

JACK CBA

P-ON-H1

P-ON-H2

PROTECT1

Q507

CN901

CN502 CN903

SW-10V

38

37

PANEL+13V239PANEL+24V1

PANEL-6.8V3

+13V REG.

IC502

F502

7

28-31

P-ON+3.3V9-12

Q517

5,6AMP+24V34,35

Q505

Q508

34,35

11-13P-ON+6.4V27-29

P-ON+5V5,6

SW+24V

23

P-ON+11V17

Q511

Q516

25AL+3.3V15

Q518

Q512

Q510

9

IC503

IC501

Q509

+3.3V REG.

10

+5V REG.

Q502

+11V REG.

Q501, Q506

11

+3.3V REG.

IC504

Q503

+5V REG.

Q504

FEED

BACK

12

14

Q513

4

3

2

D550

HOT CIRCUIT. BE CAREFUL.

CAUTION !

Fixed voltage (or Auto voltage selectable) power supply circuit is used in this unit.

If Main Fuse (F601) is blown , check to see that all components in the power supply

circuit are not defective before you connect the AC plug to the AC power supply.

Otherwise it may cause some components in the power supply circuit to fail.

T601

D614- D617

L601

F601

T4A H 250V

AC601

AC CORD

6

BRIDGE

RECTIFIER

LINE

FILTER

5

4

3

2

1

IC601

ERROR

VOLTAGE DET

3 2

HOT COLD

SWITCHING

9-6

Q601, Q603

SWITCHING

Q602

SWITCHING

CONTROL

IC602

8

1

5OUT

VH

ZCD

Q604

2FB3IS6VCC

POWER SUPPLY CBA

A0CN6BLP

SCHEMATIC DIAGRAMS / CBA AND TEST POINTS

Standard Notes

WARNING

Many electrical and mechanical parts in this chassis
have special characteristics. These characteristics
often pass unnoticed and the protection afforded by
them cannot necessarily be obtained by using
replacement components rated for higher voltage,
wattage, etc. Replacement parts that have these
special safety characteristics are identified in this
manual and its supplements; electrical components
having such features are identified by the mark “!” in
the schematic diagram and the parts list. Before
replacing any of these components, read the parts list
in this manual carefully. The use of substitute
replacement parts that do not have the same safety
characteristics as specified in the parts list may create
shock, fire, or other hazards.

Notes:

1. Do not use the part number shown on these
drawings for ordering. The correct part number is
shown in the parts list, and may be slightly
different or amended since these drawings were
prepared.

2. All resistance values are indicated in ohms
(K = 10

3. Resistor wattages are 1/4W or 1/6W unless
otherwise specified.

4. All capacitance values are indicated in µF
(P = 10

5. All voltages are DC voltages unless otherwise
specified.

6. Electrical parts such as capacitors, connectors,
diodes, IC’s, transistors, resistors, switches, and
fuses are identified by four digits. The first two
digits are not shown for each component. In each
block of the diagram, there is a note such as
shown below to indicate these abbreviated two
digits.

3

, M = 106).

-6

µF).

10-1 LCDP_SC

LIST OF CAUTION, NOTES, AND SYMBOLS USED IN THE SCHEMATIC DIAGRAMS ON

r

THE FOLLOWING PAGES:

1. CAUTION:

FOR CONTINUED PROTECTION AGAINST FIRE HAZARD, REPLACE ONLY WITH THE SAME TYPE
FUSE.

2. CAUTION:

Fixed Voltage (or Auto voltage selectable) power supply circuit is used in this unit.

If Main Fuse (F601) is blown, first check to see that all components in the power supply circuit are not
defective before you connect the AC plug to the AC power supply. Otherwise it may cause some components
in the power supply circuit to fail.

3. Note:

1. Do not use the part number shown on the drawings for ordering. The correct part number is shown in the
parts list, and may be slightly different or amended since the drawings were prepared.

2. To maintain original function and reliability of repaired units, use only original replacement parts which are
listed with their part numbers in the parts list section of the service manual.

4. Voltage indications on the schematics are as shown below:

Plug the TV power cord into a standard AC outlet.:

2

(Unit: Volt)

1

5.0 5.0

3

Power on mode

5. How to read converged lines

1-D3

Distinction Area

Line Number
(1 to 3 digits)

Examples:

1. "1-D3" means that line number "1" goes to the line numbe
"1" of the area "D3".

2. "1-B1" means that line number "1" goes to the line number
"1" of the area "B1".

6. Test Point Information

: Indicates a test point with a jumper wire across a hole in the PCB.

: Used to indicate a test point with a component lead on foil side.

: Used to indicate a test point with no test pin.

: Used to indicate a test point with a test pin.

Voltage

Indicates that the voltage
is not consistent here.

3

2

1

AREA D3

1-B1

AREA B1

1-D3

ABCD

10-2 LCDP_SC

Power Supply 1 Schematic Diagram

10-3

A0CN6SCP1

Power Supply 2 Schematic Diagram

CAUTION !

Fixed voltage (or Auto voltage selectable) power supply circuit is used in this unit.
If Main Fuse (F601) is blown , check to see that all components in the power supply
circuit are not defective before you connect the AC plug to the AC power supply.
Otherwise it may cause some components in the power supply circuit to fail.

CAUTION !

For continued protection against fire hazard,
replace only with the same type fuse.

NOTE:

The voltage for parts in hot circuit is measured using
hot GND as a common terminal.

10-4

A0CN6SCP2

Jack 1 Schematic Diagram

10-5

A0CN6SCJ1

Jack 2 Schematic Diagram

Comparison Chart of
Models and Marks

Model Mark

LED19-T800M A
LED19-H800M

B

10-6

A0CN6SCJ2

Function Schematic Diagram

IR Sensor Schematic Diagram

A0CN6SCF A0CN6SCIR

10-7

Digital Main 1 Schematic Diagram

1 NOTE:

The order of pins shown in this diagram is different from that of actual IC3301.
IC3301 is divided into six and shown as IC3301 (1/7) ~ IC3301 (7/7) in this Digital Main Schematic Diagram Section.

Comparison Chart of
Models and Marks

Model Mark

LED19-T800M A
LED19-H800M

B

10-8

A0CN6SCD1

Digital Main 2 Schematic Diagram

1 NOTE:

The order of pins shown in this diagram is different from that of actual IC3301.
IC3301 is divided into six and shown as IC3301 (1/7) ~ IC3301 (7/7) in this Digital Main Schematic Diagram Section.

Comparison Chart of
Models and Marks

Model Mark

LED19-T800M A
LED19-H800M

B

10-9

A0CN6SCD2

Digital Main 3 Schematic Diagram

1 NOTE:

The order of pins shown in this diagram is different from that of actual IC3301.
IC3301 is divided into six and shown as IC3301 (1/7) ~ IC3301 (7/7) in this Digital Main Schematic Diagram Section.

Comparison Chart of
Models and Marks

Model Mark

LED19-T800M A
LED19-H800M

B

10-10

A0CN6SCD3

Digital Main 4 Schematic Diagram

1 NOTE:

The order of pins shown in this diagram is different from that of actual IC3301.
IC3301 is divided into six and shown as IC3301 (1/7) ~ IC3301 (7/7) in this Digital Main Schematic Diagram Section.

Comparison Chart of
Models and Marks

Model Mark

LED19-T800M A
LED19-H800M

B

10-11

A0CN6SCD4

Digital Main 5 Schematic Diagram

1 NOTE:

The order of pins shown in this diagram is different from that of actual IC3301.
IC3301 is divided into six and shown as IC3301 (1/7) ~ IC3301 (7/7) in this Digital Main Schematic Diagram Section.

Comparison Chart of
Models and Marks

Model Mark

LED19-T800M A
LED19-H800M

B

10-12

A0CN6SCD5

Digital Main 6 Schematic Diagram

1 NOTE:

The order of pins shown in this diagram is different from that of actual IC3301.
IC3301 is divided into six and shown as IC3301 (1/7) ~ IC3301 (7/7) in this Digital Main Schematic Diagram Section.

Comparison Chart of
Models and Marks

Model Mark

LED19-T800M A
LED19-H800M

B

10-13

A0CN6SCD6

Digital Main 7 Schematic Diagram

1 NOTE:

The order of pins shown in this diagram is different from that of actual IC3301.
IC3301 is divided into six and shown as IC3301 (1/7) ~ IC3301 (7/7) in this Digital Main Schematic Diagram Section.

Comparison Chart of
Models and Marks

Model Mark

LED19-T800M A
LED19-H800M

B

10-14

A0CN6SCD7

Power Supply CBA Top View

CAUTION !

For continued protection against fire hazard,
replace only with the same type fuse.

Because a hot chassis ground is present in the power supply
circuit, an isolation transformer must be used when repairing.
Also, in order to have the ability to increase the input slowly,
when troubleshooting this type of power supply circuit,
a variable isolation transformer is required.

1

CN501

C580

A

1

2

HOT

B

CN503

6

L601

C604

CN701

1

D616

D614

1

D617

D615

D609

T 4A H/250V

AND FIRE HAZARD.DISCONNECT

WARNING TO PREVENT ELECTRIC SHOCK

AND REPLACE ONLY WITH MARKED.

MAINS PLUG BEFORE FUSE REPLACEMENT

C609

FH602

F601

R625

FH601

SA601

TM602

TM601

C

AC60

1

CAUTION !

Fixed voltage (or Auto voltage selectable) power supply circuit is used in this unit.
If Main Fuse (F601) is blown , check to see that all components in the power supply
circuit are not defective before you connect the AC plug to the AC power supply.
Otherwise it may cause some components in the power supply circuit to fail.

2

COLD

3

IC602

BC602

D610

R622

BC601

Q602

R614 R619

R621

C602

C611

D607

C601

BC603

R634

Q604

HOT

R618

RISK OF FIRE-

REPLACE FUSE AS MARKED

CN602

1

CN601

NOTE:

The voltage for parts in hot circuit is measured using
hot GND as a common terminal.

3

Q703

R738

C612

R635

C605

T601

C608

IC601

C615

JW504

C722

R575

D550

C616

D548

D531

R740

R725

R739

R726

R727

19W-ONLY

COLD

1

C560

Q704

R728

39

D706

Q702

38

D707

D705

R735
R736

1

14

R741

Q705

C570

C559

C715

D503

D555

R513

C553

R720

C511

C512

R723

28

IC701

15

C716

C556

CN502

JW501

C704

R745

R730

R729

R744
R743
R742

C514

R722

C542

4

C703

C725

C709

L703

C702

D530

C539

D505

C566

L702

C555

C502

R653

R654

C513

1

2

C7A3 A3

5

C503

IC501

D508

C558

C501

1

Q503

R517

R556

R541

R540

R589

R528

R520

R555

C509

C508

R527

R518

C561

C557

D541

Q511

C537

R526

C522

R554

L501

C507

R529

C525

Q517

Q516

R553

C544

D553

R598

R567

R519

Q518

D523

D539

R599

D554

R502

R544

R652

R564

D544

JW502

C527

F502

R512

C529

R587

C506

C545

Q512

D501

F503

D546

R551

D538

C565

C524

C546
C564

R586

R516

5

1

4

C554

1

D534

4

R543
R542

R565

C549

D542

C526
C523

R570

C530

R563

R593

C543

R503

C531
R548

C571
R504

C528
IC502

58

R549

L506

R562

C515

8
IC503

5
R572

R571

L505

R550

R552

BA0CN6G0201 1

Q510

R566

Q509
C551

C550
C552

R531

C504 C505

R547

C548

C547

D532

10-15

BA0CN6G02011

Power Supply CBA Bottom View

CAUTION !

For continued protection against fire hazard,
replace only with the same type fuse.

Because a hot chassis ground is present in the power supply
circuit, an isolation transformer must be used when repairing.
Also, in order to have the ability to increase the input slowly,
when troubleshooting this type of power supply circuit,
a variable isolation transformer is required.

CAUTION !

Fixed voltage (or Auto voltage selectable) power supply circuit is used in this unit.
If Main Fuse (F601) is blown , check to see that all components in the power supply
circuit are not defective before you connect the AC plug to the AC power supply.
Otherwise it may cause some components in the power supply circuit to fail.

NOTE:

The voltage for parts in hot circuit is measured using
hot GND as a common terminal.

5

C535

C534

C533

C532

R533
R532

D540

Q508

Q505

BA0CN6G0201 1

D510

D536

R534 R535

L503

L504

L501

R536

D507

R568

R569

D516

Q514

R546

R545

D518

R539

C562

C563

F501

L502

R597

R537

D535

C541

D509

D549

R538
D511

C720
C721

D517

R530

D512

D519

IC504

C540

L701
R705

R712

R522

R557

D514

R714

D527

R511

C538

C703

L702

Q507

R561

Q515

D520

1

2

D703

C706

D525

R559

C567

R716

R719
C710

L703

R560

D701

R717

R715

Q701

R574

C536
R558

D543

4

R713

R701

R711

C719

R510

C725

C712

R732

R521

D504

D545

C713
C708

R508

D552

C516

D547

R506

R721

C702

R585

C701
R724

C707

C711
D702

D506

Q502

C718

C726

D502

R509

R507

Q501

CN502

R710

R515

R718
C717
C705
R731
C714
R737

R703
R702
R501
R580
R578
R704
R577

R709

D708

R514

C511

C512

R505

R651

R707

C553

R733

D704

D551

D521

R573
R579
D515

Q506

38

R708

R734

R706

R576

R524

39

R581

C517

C519

C518

R584

R583

R525

C569

D513

3

R594

Q504

Q513

R582

R523

C616

D548

D531

C615

D612

R611

R613

D604

D613

COLD

C606

R612

D619

R633

T601

D606

L603

1

D603

5

IC602

8

D605

R603

4

C614

1

C613

R632

R636

L602

BC603

HOT

R606

CN601

R602

R626

R630

C601

R610

R607 R608

2

R601

COLD

D608

D611

C607

R627

BC601

Q602

R628

C602

R617

R605

D601

D618

R618

CN602

Q603

R615R616

Q601

R604

D610

R609

D602

C603

1

C521

D617

BC602

D609

AC601

C520

D615

F601

FH601

TM601

D616

D614

1

R625

C609

FH602

TM602

C604

L601

SA601

C568

A

HOT

B

C

10-16

BA0CN6G02011

Jack CBA, Function CBA & IR Sensor CBA Top View

Jack CBA

Function CBA

GND

J25

JS901

GND

29

28

CN904

1

2

J903
P-ON+3.3V

GND

29

J28

28

L15

P-ON+3.3V

SIF

J35

J23

C22

C11

P-ON+5V

J908

GND

J101

VCOM-PWM

P-ON+5V

TU10

D12

D11

1

11

C910

ALL+3.3V

P-ON+11V

J906

C922

C904

J909

J811
GNDD

J819

GNDA

J905

BL-SW

J29
GND

J810

GNDD

C907

C827

C824

J821

AMP-R

J822

1

J922

J919

GND

J26

GND

CN912

C419

Q403

J27

R408R409

L14

L11

C14

J21

TU CVBS

Q402

1

CN102

3

1 2 3 4 5 6 7 8 9 10

TOOL NO.

R110

1

POWER

SW101

R111

R112

CH.DOWN

SW103

6

CN101

D101

J920

1

R113

SW102

CH.UP

D102

2

J407

VCOM

J406

PANEL-6.8V

11

10

J412

J411

PANEL+13V

J410

J916

J917

J918

10

PANEL+24V

R114

SW104

MENU

11

RS101

J404

CN902

J405

P-ON+3.3V

2

CN903

J409

1

J408

PANEL+13V

C409

Q401

PANEL+24V

J403

R115

R116

SW106

VOL.DOWN

P-ON+3.3V

J402

P-ON+3.3V

C407

BA0CN6F0101 1B

GND

C404

J401

39

CN901

J904

J802

C902

C906

L901

AMP-L

J816

ALL+3.3V

J818

AMP+24V

BC801

1

2

J921

CN905

J803
GNDD

J32

J31

J30

L801

C831

J924

GND

28 29

J907

C351

P-ON+11V

J319

GND

GND

C923

C825

J817

AMP+24V

D802

D803

J913

FBIN

GND

J33

J813

JS805

J318

GNDD

308L20

8
L

GND

GND

Q352

C310

J34
GND

CN911

J814
GNDD

BC804

J212

J213

CN913

J910

J317

J316

L905

COMP-Pr

GND

GND

SLOW SW-IN

SCART CVBS

L904

J206

R322

J310

GND

J912

J202

COMP-DET

J203

J204

COMP-Pb

J815

GNDD

C830

J205

BC803

GND

J914

1

CN906

2

D212

D213

L903

JK201

GND

COM Y

R228

JK212

J311

SCART R

SCART CVBS OUT

JK211

JK208 JK209

R206

JK207

R201

JK210

GND

J209

GND

J915

R208

GND

J210

R210

GND

J211

R229

J201

R230

D311

CN907

29

28

SPDIF

J314

SCART CVBS

SCART ROUT

SCART LOUT

R227

D323

BC301

D307

R324

D305

R319

D303

R315

R313

R311

J105

SW-IN

J315

SLOW

J312

JK206

JK313

PANEL+24V

J313

D301

L202

D214

D302

J923

D106

J207

R234

D318

J102

SPDIF

L203

L201

R326

D322

GND

J302

J304

D309

R317

D320

J309

Q101

J106

R235

D216

R321

D321

D310

J306

GND

R332

D319

R331

D317

GND

D215

GND

GND

FBIN

J103

GND

R202

J305

1

2

6

CN103

1

J303

GND

J307

GND

J308

GND

J104
RCV_IN

GND

J208

J301

GND

GND

22W-ONLY

CN801

2

SW105

BA0CN6F0101 1 C

VOL.UP

CN910

C402

J413

GND

38

J911

PANEL+24V

BC802

GND

JS804

BA0CN6F0101 1

A

C7A3 A3

IR Sensor CBA

10-17

BA0CN6F01011

Jack CBA, Function CBA & IR Sensor CBA Bottom View

Jack CBA

C804

CN801

J301

J208

C120

C123

J303

J307

J308

J104

WF5

PIN 19 OF
CN907

R237

C230

D321

C326

L201

D309

R317

J309

C122

Q101

J106

R236

L203

C229

R326

D322

D318

C124

R325

C318

R327

C303

R318

C315

C313

R343

R123

J207

L202

D214

C201

R234

C312

C311

J102

R122

D302

J923

R102

1

2

R202

6

C232

C231

CN103

C220

D215

1

R235

D216

R321

J302

D310

J304

J305

J306

C325

R332

D319

D320

R331

D317

R121

J103

J313

R342

D301

C121

D106

WF1

PIN 2 OF
CN906

CN907

29

28

J315

J314

J312

JK206

C221

R227

JK313

D323

BC301

C328

D307

C317

R324

R323

C302

R320

D305

C301

J105

R319

D303

R315

R314

C308

R312

R207

R316

R313

R311

PIN 4 OF
CN906

J201

C224

C207

R229

R230

R241

C222

D311

R238

R210

R208

R205

C309

C203

WF2

C223

R228

R239

C206

R209

C205

R206

C202

J210

J211

D212

R201

R931

R240

J311

R203

J209

CN906

D213

R928

L903

JK201

1

2

JK212

JK211

JK209

J203

J204

JK208

JK207

JK210

J915

WF3

PIN 6 OF
CN906

R926

J910

J317

J316

Q901

R927

C938

R925

L905

L904

J206

R322

J310

J912

J202

R816

R801

R822

J815

C830

C204

J205

R204

BC803

J914

R351

R352

R815

R817

J814

Q803

R820

J212

J213

CN911

R810

WF4

PIN 8 OF
CN906

Q352

C352

C353

C310

J34

Q804

R828

R818

Q802

R821

Q801

C808

C822

BC804

CN913

R350

C319

J318

L803

L802

J913

R354

J33

J813

R827

C817

C802

JS805

J907

C354

R353

C351

J319

Q805

D803

R802

C826

WF8

PIN 26 OF
CN906

J924

29

28

C918

J803

C936

J921

J32

J31

J30

C923

R826

R829

C825

R806

C812

C810

J817

R825

D802

L801

C807

C831

JS804

BA0CN6F0101 1A

1

CN905

2

L901

J816

IC801

J818

C823

BC801

C935

BC802

WF7

PIN 28 OF
CN906

JS901

C937

C28

C27

J821

J822

C818

C821

R804

C809

R803

C801

C919

R808

C908

J922

C920

WF6

PIN 29 OF
CN906

J25

R33

R25

C12

L13

R29

L12

C19

R28

J29

J810

J811

R805

C806

C816

R824

C814 C815

C813

C803

R807

C827

C811

C824

C829

C907

1

2

J35

R24

R26

J909

J819

R814
C820

R23

C16

C15

R27
R22
C24

C10

J905

R813

C805

J906

C25

R811

C909

29

28

L15

TU10

D12

R812
C819

J101

C921

R34
J23

D11

1

11

C910

C922

C904

J28

C903

C930

C22

C23

J908

J911

L11

R13

J920

J916

J917

J802

1

2

C11

R10

R21

J918

J904

C901

J903

J21

C17

C21

C29

Q11

C902

C906

C913

C929

C411

R403

Q401

L14

C13

R12

R11

C409

CN901

C14

C905

C925

C412

R406

J410

R404

J401

39

38

J402

IC401

R402

R405

C402

J413

Q402

J411

C410

R412

R401

C408

C407

C926

J919

J412

J408

C405

C927

J26

J27

R408

R409

C418

C415

C404

C403

J406

1

J403

R421

C928

11

J409

CN904

CN912

C419

Q403

R410

CN903

CN910

29

28

R420

10

J405

2

J407

C416

R417

10

J404

C417

C413

2

C414

1

CN902

BA0CN6F0101 1

CN102

3

R110

D105

CN101

RS101

D103

R120

POWER

SW101

CH.DOWN

SW103

CH.UP

SW102

MENU

SW104

SW106

VOL.DOWN

VOL.UP

SW105

R116

1

C101

6

D101

R104

R103

D102

D104

C105

11

R109

R107

C106

C107

BA0CN6F0101 1B

R105

Function CBA

1

C108

R111

R112

R114R113

R115

C

BA0CN6F0101 1

10-18

IR Sensor CBA

BA0CN6F01011

WAVEFORMS

VIDEO-Y

0.2V

20

20

VIDEO-Pr

0.2V

20

VIDEO-Pb

0.2V

20

VIDEO

0.2V

20

AUDIO(L)

0.5V

0.5m

VIDEO-B

0.5V

20

VIDEO-G

0.5V

20

VIDEO-R

0.5V

20

WF1 ~ WF8 = Waveforms to be observed at
Waveform check points.
(Shown in Schematic Diagram.)

Input: PAL Color Bar Signal (with 1kHz Audio Signal)

WF1

Pin 2 of CN906

VIDEO

0.2V

(COMPOSITE VIDEO INPUT)

WF2

Pin 4 of CN906

VIDEO-Y

0.2V

(COMPONENT VIDEO INPUT)

WF3

Pin 6 of CN906

WF5

20

µ

s

WF6

20

µ

s

20

µ

s

WF7

Pin 19 of CN907

AUDIO(L)

Pin 29 of CN906

VIDEO-B

Pin 28 of CN906

0.5V

0.5V

0.5m

20

s

µ

s

VIDEO-Pb

WF4

VIDEO-Pr

0.2V

Pin 8 of CN906

0.2V

20

20

µ

s

µ

s

VIDEO-G

WF8

VIDEO-R

0.5V

Pin 26 of CN906

0.5V

20

µ

s

20

µ

s

11-1

LC8.5P2WF

HDMI-

CONNECTOR-1

214

CN3901CL3901

XA0

STV

OE1

HDMI-

CPV

CONNECTOR-2

8

735

6

TP

POL

GND

LLV5(+)

D-SUB

9

101513

LLV5(-)

LLV4(+)

CONNECTOR

12

14

11

GND

LLV4(-)

LLV3(-)

LLV3(+)

WIRING DIAGRAM

CI

CARD SLOT

16

LLVCLK(-)

LLVCLK(+)

LCD MODULE

ASSEMBLY

17

GND

192422

18

LLV2(-)

LLV2(+)

USB JACK

21

20

LLV1(-)

LLV1(+)

LLV0(+)

23

LLV0(-)

GND

SCART

JACK

COMPONENT

-Y-IN/VIDEO-IN

COMPONENT

-Pb-IN

COMPONENT

-Pr-IN

COMPONENT-

AUDIO(L)-IN

COMPONENT-

AUDIO(R)-IN

CL503

1

SP(R)

CN503

PC-

AUDIO-IN

SPEAKER

R-CH

2

SP-GND

DIGITAL

AUDIO OUT

HEADPHONE

JACK

B

(COAXIAL)

AC CORD

AC601

B

Model Mark

LED19-T800M A

Comparison Chart of

Models and Marks

CN102

CN501

LED19-H800M

FUNCTION CBA

312

GND

KEY-IN1

AL+3.3V

132

DIGITAL MAIN CBA UNIT

CL902

VCOM

GND

2

1

CN902

TUNER UNIT

2

1

CN907

CL907CL905

HEADPHONE-DET

SPDIF

CN3704

PANEL-6.8V

GND

GND

P-ON+3.3V

P-ON+3.3V

3

6

5

7

4

JACK CBA

7

3

5

6

4

HEADPHONE(L)

RGB-AUDIO(L)-OUT

HEADPHONE(R)

GND

RGB-AUDIO(R)-OUT

7

321

5

6

4

PANEL+13V

PANEL+24V

9

8

CL801

SPEAKER

1

SP(L)

CN801

8

9

GND

RGB-AUDIO(R)-IN

8

9

2

SP-GND

GND

PANEL+13V

10

11

L-CH

CN101

CN103

101513

11

RGB-AUDIO(L)-INNUGNDNUGND

101513

11

132

GND

132

REMOTE

161214

161214

IR SENSOR CBA

465

AL+3.3V

LED1

465

17

18

GNDNUNU

COM-AUDIO(R)NUCOM-AUDIO(L)

17

18

STANDBY

NU

21

192422

20

GNDNUGND

21

192422

20

CL701

ILED1

132

CN701

CN502

39

CL901

SP-R(+)

132

CN901

23

PC-AUDIO(R)

23

ILED2

ILED3

SP-R(-)

SP-R(+)

262728

25

GNDNUGND

PC-AUDIO(L)

262728

25

ILED4NUVLED

465

363738

34

353133

SP-R(-)

AMP+24V

AMP+24V

465

29

NU

29

32

GND

GND

8

7

CN906

1

COMP-DET

CN3702

30

KEY-IN1

BACKLIGHT-ADJ

9

101513

3

2

GND

VIDEO-IN

321

P-ON+6.4V

P-ON+6.4V

P-ON+6.4V

12

11

5

6

4

COM-VIDEO-Pb-IN

COM-VIDEO-Y-IN

GND

5

6

4

26272829252123

24

GND

GND

P-ON+H1

BACKLIGHT-SW

17

16

14

8

9

7

101513

GND

COM-VIDEO-Pr-IN

GND

SLOW-SW2(NU)

8

9

7

101513

22

20

P-ON+H2

RESET

PROTECT3

192422

20

18

12

11

GND

GNDNUNU

12

11

17

18

19

GND

PROTECT1

P-ON+11V

21

23

14

GNDNUSLOW-SW

14

POWER SUPPLY CBA

32465

GND

P-ON+5V

363738

35

29

VIDEO-G

VIDEO-B

29

1

PANEL-6.8V

PANEL+13V

PANEL+24V

39

13

12

GND

P-ON+3.3V

21

20

GND

FBIN

21

20

9

11

10

GND

P-ON+3.3V

P-ON+3.3V

P-ON+3.3V

29

313334

32

30

25

23

RGB-VIDEO-IN

GND

GND

VIDEO-OUT

25

23

GND

P-ON+5V

262728

VIDEO-R

GND

262728

14

16

15

GND

GND

AL+3.3V

262728

25

17

192422

18

16

GND

GND

17

192422

18

16

7

8

CN3703

BACKLIGHT-ADJ

CN905

BACKLIGHT-SW

2 2

4

VCOM-PWMNUSCART-OUT-SEL

GND

4

513

513

6

7

GND

6

7

8

9

10

11

AMP(R)-OUT

KEY-IN1

GND

AMP(L)-OUT

8

9

10

11

14

12

13

AUDIO-MUTE

REMOTE

LED1

14

12

13

15

16

GND

DIF-OUT2

15

16

19

172220

18

GND

GND

DIF-OUT1

19

172220

18

3

2

RESET

P-ON-H2

2

5

4

PROTECT3

PROTECT1

4

6

7

8

P-ON+11V

GND

GND

8

735

6

9

101412

GND

AL+3.3V

9

101513

11

GND

11

13

P-ON+3.3V

GND

12

16

15

P-ON+3.3V

P-ON+3.3V

P-ON+3.3V

16

14

17

GND

17

18

19

GND

P-ON+3.3V

192422

18

21

20

22

P-ON+3.3V

P-ON+3.3V

GND

21

20

23

24

25

GND

GND26P-ON+6.4V27P-ON+5V28P-ON+5V

P-ON+6.4V

25

23

262728

29

P-ON+5V

29

A0CN6WI

1

GND

GND

CN3701CN904

29

CL904 CL906

TU-CVBS

29

P-ON-H1

1

23

21

2524262728

IF-AGC

GND

SCL

GND

SIF(-)

SIF(+)

SDA

23

21

2524262728

12-1

Cabinet

EXPLODED VIEWS

A13

L12

A1

B36

B36

LCD1

CL901

L14

CL902

Jack CBA

L14

CL904

CL3901

CL905

CL906

Digital Main CBA Unit

B18

X3301

B23

L5

L14

L14

B1

L13

L5

A8

Function CBA

A4

B11

A11

IR Sensor CBA

CL503

B25

Power Supply CBA

CL701

B11

CL801

B13

L1

L14

L14

A31

AC601

B18

L1

CL907

L14

L14

L5

L14

B22

L12

L12

B5

L12

B22

A2

B22

L1

L1

A10

L1

L1

X5

L1

L15

L1

L1

L5

A12

S6

See Electrical Parts List
for parts with this mark.

A22

13-1 A0CN6_N7CEX

Packing

Some Ref. Numbers are
not in sequence.

Stand
Assembly

X3

S3

S5

Packing Tape

X2-1
X2-2

Ta pe

X4

X5

Ta pe

X1

S6

S4

FRONT

To Carton

Packing Tape

S4

S15

S13

FRONT

Packing Tape

S1

13-2 A0CN6_N7EX

MECHANICAL PARTS LIST

see Note below

Note : new Item added, 30.11.2011

S1 Carton (Brown, no printing) 1EM329597S

see Note below

PRODUCT SAFETY NOTE: Products marked with a

! have special characteristics important to safety.
Before replacing any of these components, read
carefully the product safety notice in this service
manual. Don't degrade the safety of the product
through improper servicing.

NOTE: Parts that are not assigned part numbers
(---------) are not available.

Comparison Chart of Models and Marks

Model Mark

LED19-T800M A

LED19-H800M B

Ref. No. Mark Description Part No.

A1 FRONT CABINET A0CN5EP 1EM026565A

A2 A REAR CABINET A0CN6EP 1EM027765

A2 B REAR CABINET A0CN7EP 1EM027766

A4 FUNCTION KNOB A0CN5EP 1EM224963

A8 JACK HOLDER A0CN6EP 1EM225163

A10 CONTROL PLATE A0CN5EP 1EM329117

A11 SENSOR LED LENS A0CN5EP 1EM224883

A13 A POP LABEL A0CN6EP ----------

A13 B POP LABEL A0CN7EP ----------

A31 AC HOLDER A0CN6EP 1EM225166

B1 SHIELD BOX A0CN6EP 1EM125493

B5 STAND BRACKET A0CN6EP 1EM225165

B11 SPEAKER HOLDER A0CN6EP 1EM225164

B13 SEPARATION SHEET A0CN6EP 1EM329643

B18 GASKET A8AF0UH 1EM425861

B22 WALL MOUNT BRACKET A84N0UH 1EM323797

B23 TUNER SHIELD A0CN6EP 1EM329517

CL503 SPEAKER MAGNETIC S0208N08-A DS16110XQ001

CL701 WIRE ASSEMBLY 6PIN 6PIN/71MM WX1A0CN6-104

CL801 SPEAKER MAGNETIC S0208N08-A DS16110XQ001

CL901 WIRE ASSEMBLY 39 WIRE 39/ LENGTH

CL902 WIRE ASSEMBLY 11PIN 11PIN/60MM WX1A0CN6-401

CL904 WIRE ASSEMBLY 29PIN WIRE 29/

CL905 WIRE ASSEMBLY 29PIN WIRE 29/

CL906 WIRE ASSEMBLY 29PIN WIRE 29/

CL907 WIRE ASSEMBLY 29PIN WIRE 29/

CL3901 WIRE ASSEMBLY 24 WIRE 24/ LENGTH

L5 SCREW S-TIGHT M3X8 BIND HEAD+ GBHS3080

L12 SCREW P-TIGHT M3X8 BIND HEAD+ GBJP3080

L13 HEX SCREW #4-40 7MM 1EM430139

L14 SCREW S-TIGHT M3X6 BIND HEAD+ GBJS3060

LCD1 LCD MODULE 18.5INCH WIDE CMO

X3301 THERMOSTAR TMS-L-2(12*12HC) XK10000X4003

40/

LENGTH 40/C

LENGTH 40/C

LENGTH 40/C

LENGTH 40/C

50/

18.5INCH WXGA

PACKING

S5 SET BAG A81N0UH 1EM323958A

ACCESSORY

X3 REMOTE CONTROL NH205RD NH205RD

WX1A0CN6-202

WX1A0CN6-102

WX1A0CN6-102

WX1A0CN6-102

WX1A0CN6-102

WX1A0CN6-402

UJ19MEA

Ref. No. Mark Description Part No.

A12! A RATING LABEL A0CN6EP ----------

A12! B RATING LABEL A0CN7EP ----------

A22 STAND ASSEMBLY A0CN6EP 1EM125593

B25 CLOTH(B) L5201U0 15X10X1.0T 0EM400076

B36 CLOTH 10X150XT1.0 1EM421092

L1 SCREW P-TIGHT 3X10 BIND HEAD+ GBHP3100

L5 SCREW S-TIGHT M3X8 BIND HEAD+ GBHS3080

L14 SCREW S-TIGHT M3X6 BIND HEAD+ GBJS3060

L15 DOUBLE SEMS SCREW M4X10 + BLK FPH34100

PACKING

S1 A CARTON A0CN6EP 1EM329597

S1 B CARTON A0CN7EP 1EM329697

S3 STYROFOAM TOP A0CN6EP 1EM027040

S4 STYROFOAM BOTTOM A0CN6EP 1EM027041

S6 SERIAL NO. LABEL L9750UA ----------

S13 HANDLE A0CN6EP 1EM330037

S15 HANDLE BASE A0CN6EP 1EM433957

ACCESSORIES

X1 BAG POLYETHYLENE 235X365XT0.03 0EM408420A

X2-1! A OWNERS MANUAL(WE-10) A0CN6EP 1EMN26859

X2-1! B OWNERS MANUAL(WE-10) A0CN7EP 1EMN26866

X2-2! A OWNERS MANUAL(PL-14) A0CN6EP 1EMN26860

X2-2! B OWNERS MANUAL(PL-14) A0CN7EP 1EMN26867

X4 BATTERY DRY R03REL/2PA XB00M00MS001

X5 STAND SCREW KIT A0CN6EP 1ESA25706

20110913 14-1 A0CN6/N7 revisedCA

ELECTRICAL PARTS LIST

PRODUCT SAFETY NOTE: Products marked with a

! have special characteristics important to safety.
Before replacing any of these components, read
carefully the product safety notice in this service
manual. Don't degrade the safety of the product
through improper servicing.

NOTES:

1. Parts that are not assigned part numbers (---------)
are not available.

2. Tolerance of Capacitors and Resistors are noted
with the following symbols.

C.....±0.25% D.....±0.5% F.....±1%

G.....±2% J......±5% K.....±10%

M.....±20% N.....±30% Z.....+80/-20%

Comparison Chart of Models and Marks

Model Mark

LED19-T800M A

LED19-H800M B

DIGITAL MAIN CBA UNIT

Ref. No. Mark Description Part No.

ABDIGITAL MAIN CBA UNIT

DIGITAL MAIN CBA UNIT

A0CN6MMA-001
A0CN7MMA-001

POWER SUPPLY CBA

Ref. No. Description Part No.

POWER SUPPLY CBA
Consists of the following:

CAPACITORS

C501 CHIP CERAMIC CAP.(1608) B K 2.2µF/10V CHD1AK30B225

C502 CHIP ELECTROLYTIC CAP. 100µF/16V M(WX) orCA1C101NC181

CHIP ELECTROLYTIC CAP. 100µF/16V M(MS) orCA1C101FEN02

CHIP ELECTROLYTIC CAP. 100µF/16V M or CA1C101SP062

ELECTROLYTIC CAP. 100µF/16V(RV3) CEC101ELN007

C503 CHIP CERAMIC CAP.(1608) B K 0.01µF/50V or CHD1JK30B103

CAP CHIP 1608 K/X7R/0.01µF/50V CHD103EYA032

C504 CHIP CERAMIC CAP.(1608) B K 4700pF/50V CHD1JK30B472

C505 CHIP CERAMIC CAP.(1608) B K 3300pF/50V CHD1JK30B332

C506 CHIP ELECTROLYTIC CHIP 100µF/35V CA1G101SP062

C507 CHIP ELECTROLYTIC CAP. 47µF/50V M or CA1J470SP062

CHIP ELECTROLYTIC CAP. 47µF/50V M(MS) or CA1J470FEN02

ELECTROLYTIC CAP. 47µF/50V(RV3) CEF470ELN007

C509 CHIP ELECTROLYTIC CAP. 1µF/50V M or CA1J010SP062

CHIP ELECTROLYTIC CAP. 1µF/50V M(WX) or CA1J1R0NC181

CHIP ELECTROLYTIC CAP. 1µF/50V M(MS) or CA1J1R0FEN02

ELECTROLYTIC CAP. 1µF/50V(RV2) CEG010ELN021

C511 CAP ELE 085 470µF/35V/M/SL CEF4710S6012

C512 CAP ELE 085 470µF/35V/M/SL CEF4710S6012

C513 CHIP CERAMIC CAP.(1608) B K 2.2µF/10V CHD1AK30B225

C514 CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V or CHD1JZ30F104

CAP CHIP 1608 Z/Y5V/0.1µF/50V CHD104EYA036

C515 CHIP CERAMIC CAP.(1608) B K 0.01µF/50V or CHD1JK30B103

CAP CHIP 1608 K/X7R/0.01µF/50V CHD103EYA032

C516 CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V or CHD1JZ30F104

CAP CHIP 1608 Z/Y5V/0.1µF/50V CHD104EYA036

C517 CHIP CERAMIC CAP. B K 2200pF/50V CHD1JK30B222

C518 CHIP CERAMIC CAP. B K 2200pF/50V CHD1JK30B222

A0CN7MPW-001

Ref. No. Description Part No.

C519 CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V or CHD1JZ30F104

CAP CHIP 1608 Z/Y5V/0.1µF/50V CHD104EYA036

C520 CHIP CERAMIC CAP.(1608) B K 1000pF/50V or CHD1JK30B102

CAP CHIP 1608 K/X7R/0.001µF/50V CHD102EYA032

C521 CHIP CERAMIC CAP.(1608) B K 1000pF/50V or CHD1JK30B102

CAP CHIP 1608 K/X7R/0.001µF/50V CHD102EYA032

C522 CHIP ELECTROLYTIC CAP. 100µF/16V M(WX) orCA1C101NC181

CHIP ELECTROLYTIC CAP. 100µF/16V M(MS) orCA1C101FEN02

CHIP ELECTROLYTIC CAP. 100µF/16V M or CA1C101SP062

ELECTROLYTIC CAP. 100µF/16V(RV3) CEC101ELN007

C523 CHIP CERAMIC CAP.(2125) B K 4.7µF/25V or CA1E475MR084

CHIP CERAMIC CAP.(2125) X5R K 4.7µF/25V CHA4750TU008

C524 CHIP CERAMIC CAP.(2125) B K 4.7µF/25V or CA1E475MR084

CHIP CERAMIC CAP.(2125) X5R K 4.7µF/25V CHA4750TU008

C525 CHIP ELECTROLYTIC CHIP 100µF/35V CA1G101SP062

C526 CHIP CERAMIC CAP.(2125) B K 4.7µF/25V or CA1E475MR084

CHIP CERAMIC CAP.(2125) X5R K 4.7µF/25V CHA4750TU008

C527 CHIP CERAMIC CAP.(2125) F Z 1µF/50V CHE1JZ30F105

C528 CHIP CERAMIC CAP.(1608) B K 0.1µF/50V or CHD1JK30B104

CAP CHIP 1608 K/X7R/0.1µF/50V CHD104EYA032

C529 CHIP CERAMIC CAP.(1608) B K 0.01µF/50V or CHD1JK30B103

CAP CHIP 1608 K/X7R/0.01µF/50V CHD103EYA032

C530 CHIP CERAMIC CAP.(1608) B K 0.01µF/50V or CHD1JK30B103

CAP CHIP 1608 K/X7R/0.01µF/50V CHD103EYA032

C531 CHIP CERAMIC CAP.(1608) B K 1000pF/50V or CHD1JK30B102

CAP CHIP 1608 K/X7R/0.001µF/50V CHD102EYA032

C532 CAP CHIP 3216 4.7µF/50V 3216 CA1J475MR104

C533 CAP CHIP 3216 4.7µF/50V 3216 CA1J475MR104

C534 CAP CHIP 3216 4.7µF/50V 3216 CA1J475MR104

C535 CAP CHIP 3216 4.7µF/50V 3216 CA1J475MR104

C536 CHIP CERAMIC CAP.(1608) B K 0.01µF/50V or CHD1JK30B103

CAP CHIP 1608 K/X7R/0.01µF/50V CHD103EYA032

C537 CHIP ELECTROLYTIC CAP. 1µF/50V M or CA1J010SP062

CHIP ELECTROLYTIC CAP. 1µF/50V M(WX) or CA1J1R0NC181

CHIP ELECTROLYTIC CAP. 1µF/50V M(MS) or CA1J1R0FEN02

ELECTROLYTIC CAP. 1µF/50V(RV2) CEG010ELN021

C538 CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V or CHD1JZ30F104

CAP CHIP 1608 Z/Y5V/0.1µF/50V CHD104EYA036

C539 CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V or CHD1JZ30F104

CAP CHIP 1608 Z/Y5V/0.1µF/50V CHD104EYA036

C540 CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V or CHD1JZ30F104

CAP CHIP 1608 Z/Y5V/0.1µF/50V CHD104EYA036

C541 CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V or CHD1JZ30F104

CAP CHIP 1608 Z/Y5V/0.1µF/50V CHD104EYA036

C542 CHIP ELECTROLYTIC CAP. 1µF/50V M or CA1J010SP062

CHIP ELECTROLYTIC CAP. 1µF/50V M(WX) or CA1J1R0NC181

CHIP ELECTROLYTIC CAP. 1µF/50V M(MS) or CA1J1R0FEN02

ELECTROLYTIC CAP. 1µF/50V(RV2) CEG010ELN021

C543 CHIP CERAMIC CAP.(1608) B K 0.1µF/50V or CHD1JK30B104

CAP CHIP 1608 K/X7R/0.1µF/50V CHD104EYA032

C544 CHIP ELECTROLYTIC CHIP 100µF/35V CA1G101SP062

C545 CHIP CERAMIC CAP.(2125) F Z 1µF/50V CHE1JZ30F105

C546 CHIP CERAMIC CAP.(1608) B K 0.01µF/50V or CHD1JK30B103

CAP CHIP 1608 K/X7R/0.01µF/50V CHD103EYA032

C547 CHIP CERAMIC CAP.(2125) F Z 10µF/10V CHE1AZ30F106

C548 CHIP CERAMIC CAP.(2125) F Z 10µF/10V CHE1AZ30F106

C549 CHIP ELECTROLYTIC CAP. 100µF/16V M(WX) orCA1C101NC181

CHIP ELECTROLYTIC CAP. 100µF/16V M(MS) orCA1C101FEN02

CHIP ELECTROLYTIC CAP. 100µF/16V M or CA1C101SP062

ELECTROLYTIC CAP. 100µF/16V(RV3) CEC101ELN007

C550 CAP CHIP 3216 4.7µF/50V 3216 CA1J475MR104

C551 CAP CHIP 3216 4.7µF/50V 3216 CA1J475MR104

20101216 15-1 A0CN6/N7EL

Ref. No. Description Part No.

C552 CAP CHIP 3216 4.7µF/50V 3216 CA1J475MR104

C554 CAP CHIP 3216 4.7µF/50V 3216 CA1J475MR104

C555 CHIP ELECTROLYTIC CAP. 47µF/50V M or CA1J470SP062

CHIP ELECTROLYTIC CAP. 47µF/50V M(MS) or CA1J470FEN02

ELECTROLYTIC CAP. 47µF/50V(RV3) CEF470ELN007

C556 CHIP ELECTROLYTIC CAP. 1000µF/10V M or CA1A102SP062

CHIP ELECTROLYTIC CAP. 1000µF/10V M or CA1A102NC183

ELECTROLYTIC CAP. 1000µF/10V(RV) CEB102ELN005

C557 CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V or CHD1JZ30F104

CAP CHIP 1608 Z/Y5V/0.1µF/50V CHD104EYA036

C558 CHIP ELECTROLYTIC CAP. 100µF/16V M(WX) orCA1C101NC181

CHIP ELECTROLYTIC CAP. 100µF/16V M(MS) orCA1C101FEN02

CHIP ELECTROLYTIC CAP. 100µF/16V M or CA1C101SP062

ELECTROLYTIC CAP. 100µF/16V(RV3) CEC101ELN007

C559 CHIP ELECTROLYTIC CAP. 22µF/50V M or CA1J220NC183

CHIP ELECTROLYTIC CAP. 22µF/50V or CA1J220SP062

CHIP ELECTROLYTIC CAP. 22µF/50V M(MS) or CA1J220FEN02

ELECTROLYTIC CAP. 22µF/50V(RV3) CEF220ELN007

C560 CHIP ELECTROLYTIC CAP. 100µF/16V M(WX) orCA1C101NC181

CHIP ELECTROLYTIC CAP. 100µF/16V M(MS) orCA1C101FEN02

CHIP ELECTROLYTIC CAP. 100µF/16V M or CA1C101SP062

ELECTROLYTIC CAP. 100µF/16V(RV3) CEC101ELN007

C561 CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V or CHD1JZ30F104

CAP CHIP 1608 Z/Y5V/0.1µF/50V CHD104EYA036

C562 CHIP CERAMIC CAP.(1608) B K 1µF/25V CHD1EK30B105

C563 CHIP CERAMIC CAP.(1608) B K 0.1µF/50V or CHD1JK30B104

CAP CHIP 1608 K/X7R/0.1µF/50V CHD104EYA032

C564 CHIP CERAMIC CAP.(1608) CH J 1000pF/50V orCHD1JJ3CH102

CAP CHIP 1608 J/C0G/0.001µF/50V CHD102EYA030

C565 CHIP CERAMIC CAP.(1608) CH J 1000pF/50V orCHD1JJ3CH102

CAP CHIP 1608 J/C0G/0.001µF/50V CHD102EYA030

C566 CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V or CHD1JZ30F104

CAP CHIP 1608 Z/Y5V/0.1µF/50V CHD104EYA036

C567 CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V or CHD1JZ30F104

CAP CHIP 1608 Z/Y5V/0.1µF/50V CHD104EYA036

C568 CHIP CERAMIC CAP.(1608) CH J 1000pF/50V orCHD1JJ3CH102

CAP CHIP 1608 J/C0G/0.001µF/50V CHD102EYA030

C569 CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V or CHD1JZ30F104

CAP CHIP 1608 Z/Y5V/0.1µF/50V CHD104EYA036

C570 CHIP ELECTROLYTIC CAP. 1000µF/10V M or CA1A102SP062

CHIP ELECTROLYTIC CAP. 1000µF/10V M or CA1A102NC183

ELECTROLYTIC CAP. 1000µF/10V(RV) CEB102ELN005

C571 CHIP CERAMIC CAP.(1608) B K 0.01µF/50V or CHD1JK30B103

CAP CHIP 1608 K/X7R/0.01µF/50V CHD103EYA032

C580 CHIP CERAMIC CAP.(1608) B K 1000pF/50V or CHD1JK30B102

CAP CHIP 1608 K/X7R/0.001µF/50V CHD102EYA032

C601 CAP ELE 085 47µF/400V/M/SE CEH4700S6011

C602 CAP ELE 085 47µF/400V/M/SE CEH4700S6011

C603 CHIP CERAMIC CAP.(1608) B K 1000pF/50V or CHD1JK30B102

CAP CHIP 1608 K/X7R/0.001µF/50V CHD102EYA032

C605 CHIP ELECTROLYTIC CAP. 47µF/50V M or CA1J470SP062

CHIP ELECTROLYTIC CAP. 47µF/50V M(MS) or CA1J470FEN02

ELECTROLYTIC CAP. 47µF/50V(RV3) CEF470ELN007

C606 CHIP CERAMIC CAP.(1608) B K 0.1µF/50V or CHD1JK30B104

CAP CHIP 1608 K/X7R/0.1µF/50V CHD104EYA032

C607 CHIP CERAMIC CAP. B K 2200pF/50V CHD1JK30B222

C608 CHIP CERAMIC CAP.(1608) B K 1000pF/50V or CHD1JK30B102

CAP CHIP 1608 K/X7R/0.001µF/50V CHD102EYA032

C609! CAP METALIZED FILM 0.22µF/275V/K/PCX2 CTA224PKR009

C611 CERAMIC CAP. 220pF/2KV or CA3D221PAN04

CERAMIC CAP. RB 220pF/2KV or CA3D221TE006

CERAMIC CAP. BL 220pF/2KV CA3D221XF003

C612 CHIP ELECTROLYTIC CAP. 47µF/50V M or CA1J470SP062

Ref. No. Description Part No.

CHIP ELECTROLYTIC CAP. 47µF/50V M(MS) or CA1J470FEN02

ELECTROLYTIC CAP. 47µF/50V(RV3) CEF470ELN007

C613 CHIP CERAMIC CAP.(1608) CH J 100pF/50V or CHD1JJ3CH101

CAP CHIP 1608 J/C0G/100pF/50V CHD101EYA030

C614 CHIP CERAMIC CAP.(1608) B K 0.01µF/50V or CHD1JK30B103

CAP CHIP 1608 K/X7R/0.01µF/50V CHD103EYA032

C615! SAFTY CAP. 3300pF/250V or CCN2EMA0E332

! SAFTY CAP. 3300pF/250V KX or CA2E332MR101

! SAFETY CAP. 3300pF/250V M CCN2HMN0E332

C701 CHIP CERAMIC CAP.(1608) B K 1µF/25V CHD1EK30B105

C702 CAP ELE 085 330µF/35V/M/SL CEF3310S6012

C703 CAP ELE 085 47µF/100V/M/SL CEK4700S6012

C704 CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V or CHD1JZ30F104

CAP CHIP 1608 Z/Y5V/0.1µF/50V CHD104EYA036

C706 CHIP CERAMIC CAP.(2125) F Z 1µF/50V CHE1JZ30F105

C707 CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V or CHD1JZ30F104

CAP CHIP 1608 Z/Y5V/0.1µF/50V CHD104EYA036

C708 CHIP CERAMIC CAP.(1608) CH J 1000pF/50V orCHD1JJ3CH102

CAP CHIP 1608 J/C0G/0.001µF/50V CHD102EYA030

C709 CHIP ELECTROLYTIC CAP. 1µF/50V M or CA1J010SP062

CHIP ELECTROLYTIC CAP. 1µF/50V M(WX) or CA1J1R0NC181

CHIP ELECTROLYTIC CAP. 1µF/50V M(MS) or CA1J1R0FEN02

ELECTROLYTIC CAP. 1µF/50V(RV2) CEG010ELN021

C710 CHIP CERAMIC CAP.(1608) B K 1000pF/50V or CHD1JK30B102

CAP CHIP 1608 K/X7R/0.001µF/50V CHD102EYA032

C712 CHIP CAP C2012JB1E474KT or CHE1EK30B474

CAP CHIP 2125 K/X7R/0.47µF/25V CHE474EYA063

C713 CHIP CERAMIC CAP.(1608) B K 1000pF/50V or CHD1JK30B102

CAP CHIP 1608 K/X7R/0.001µF/50V CHD102EYA032

C714 CHIP CERAMIC CAP.(1608) B K 1000pF/50V or CHD1JK30B102

CAP CHIP 1608 K/X7R/0.001µF/50V CHD102EYA032

C715 CHIP CERAMIC CAP.(1608) B K 2.2µF/10V CHD1AK30B225

C716 CHIP CERAMIC CAP. CH J 220pF/50V or CHD1JJ3CH221

CAP CHIP 1608 J/C0G/220pF/50V CHD221EYA030

C717 CHIP CERAMIC CAP.(1608) B K 1000pF/50V or CHD1JK30B102

CAP CHIP 1608 K/X7R/0.001µF/50V CHD102EYA032

C718 CHIP CERAMIC CAP.(1608) B K 0.1µF/50V or CHD1JK30B104

CAP CHIP 1608 K/X7R/0.1µF/50V CHD104EYA032

C719 CHIP CERAMIC CAP.(2125) F Z 1µF/50V CHE1JZ30F105

C720 CHIP CERAMIC CAP.(3216) X7R K 1.0µF/100V CA2A105MR080

C725 CERAMIC CAP. 220pF/2KV or CA3D221PAN04

CERAMIC CAP. RB 220pF/2KV or CA3D221TE006

CERAMIC CAP. BL 220pF/2KV CA3D221XF003

C726 CHIP CERAMIC CAP.(1608) CH J 100pF/50V or CHD1JJ3CH101

CAP CHIP 1608 J/C0G/100pF/50V CHD101EYA030

CONNECTORS

CN501 CONNECTOR B3B-PH-SM4-TBT(LF)( J3PHD03JG028

CN502 FFC CONNECTOR IMSA-9615S-39A-PP-A JC96J39ER007

CN503 CONNECTOR BASE SIDE 2P B2B-PH-SM4-

CN601 CONNECTOR BASE SIDE 2P B2B-PH-SM4-

CN602 CONNECTOR BASE SIDE 2P B2B-PH-SM4-

CN701 CONNECTOR FFC 6P IMSA-9611S-06Y914 JC96D06ER013

TBT(LF)(S

TBT(LF)(S

TBT(LF)(S

J3PHD02JG028

J3PHD02JG028

J3PHD02JG028

DIODES

D501 SWITCHING DIODE 1SS400 TE61 or QD1Z001SS400

SWITCHING DIODE KDS160E-RTK/P or ND1ZKDS160EP

DIODE SWITCHING HSC119 TRF -E or QD1Z00HSC119

DIODE SWITCHING SMD 1SS400ST(SOD-523) ND1Z1SS400ST

D503 SCHOTTKY BARRIER DIODE SMD SK37 ND1Z0000SK37

D504 SCHOTTKY BARRIER DIODE SMD SK110TC orND1Z0SK110TC

DIODE SHOTTKY SMD SK1B ND1Z00SK1BTR

D505 SCHOTTKY BARRIER DIODE SMD SK110TC orND1Z0SK110TC

DIODE SHOTTKY SMD SK1B ND1Z00SK1BTR

D506 CHIP ZENER DIODE CRZ36(TE85L Q QD1Z00CRZ36Q

20101216 15-2 A0CN6/N7EL

Ref. No. Description Part No.

D507 CHIP ZENER DIODE CRZ10(TE85L Q QD1Z00CRZ10Q

D508 CHIP ZENER DIODE CRZ10(TE85L Q QD1Z00CRZ10Q

D509 ZENER DIODE SMD TFZGTR4.7B QD1B00TFZ4R7

D510 CHIP ZENER DIODE CRZ16(TE85L Q QD1Z00CRZ16Q

D511 SWITCHING DIODE 1SS400 TE61 or QD1Z001SS400

SWITCHING DIODE KDS160E-RTK/P or ND1ZKDS160EP

DIODE SWITCHING HSC119 TRF -E or QD1Z00HSC119

DIODE SWITCHING SMD 1SS400ST(SOD-523) ND1Z1SS400ST

D512 ZENER DIODE SMD TFZGTR24B QD1B000TFZ24

D513 CHIP ZENER DIODE CRZ16(TE85L Q QD1Z00CRZ16Q

D514 SWITCHING DIODE 1SS400 TE61 or QD1Z001SS400

SWITCHING DIODE KDS160E-RTK/P or ND1ZKDS160EP

DIODE SWITCHING HSC119 TRF -E or QD1Z00HSC119

DIODE SWITCHING SMD 1SS400ST(SOD-523) ND1Z1SS400ST

D515 SWITCHING DIODE 1SS400 TE61 or QD1Z001SS400

SWITCHING DIODE KDS160E-RTK/P or ND1ZKDS160EP

DIODE SWITCHING HSC119 TRF -E or QD1Z00HSC119

DIODE SWITCHING SMD 1SS400ST(SOD-523) ND1Z1SS400ST

D516 SWITCHING DIODE 1SS400 TE61 or QD1Z001SS400

SWITCHING DIODE KDS160E-RTK/P or ND1ZKDS160EP

DIODE SWITCHING HSC119 TRF -E or QD1Z00HSC119

DIODE SWITCHING SMD 1SS400ST(SOD-523) ND1Z1SS400ST

D517 SWITCHING DIODE 1SS400 TE61 or QD1Z001SS400

SWITCHING DIODE KDS160E-RTK/P or ND1ZKDS160EP

DIODE SWITCHING HSC119 TRF -E or QD1Z00HSC119

DIODE SWITCHING SMD 1SS400ST(SOD-523) ND1Z1SS400ST

D518 SWITCHING DIODE 1SS400 TE61 or QD1Z001SS400

SWITCHING DIODE KDS160E-RTK/P or ND1ZKDS160EP

DIODE SWITCHING HSC119 TRF -E or QD1Z00HSC119

DIODE SWITCHING SMD 1SS400ST(SOD-523) ND1Z1SS400ST

D519 SWITCHING DIODE 1SS400 TE61 or QD1Z001SS400

SWITCHING DIODE KDS160E-RTK/P or ND1ZKDS160EP

DIODE SWITCHING HSC119 TRF -E or QD1Z00HSC119

DIODE SWITCHING SMD 1SS400ST(SOD-523) ND1Z1SS400ST

D520 SWITCHING DIODE 1SS400 TE61 or QD1Z001SS400

SWITCHING DIODE KDS160E-RTK/P or ND1ZKDS160EP

DIODE SWITCHING HSC119 TRF -E or QD1Z00HSC119

DIODE SWITCHING SMD 1SS400ST(SOD-523) ND1Z1SS400ST

D521 ZENER DIODE SMD TFZGTR5.6B QD1B00TFZ5R6

D523 ZENER DIODE SMD TFZGTR5.6B QD1B00TFZ5R6

D525 ZENER DIODE SMD TFZGTR7.5B QD1B00TFZ7R5

D527 ZENER DIODE SMD TFZGTR6.2B QD1B00TFZ6R2

D530 DIODE ZENER SMD CRY68(TE85L Q QD1Z00CRY68Q

D531 DIODE SHOTTKY SB3200BR NDWZ3200D027

D532 ZENER DIODE SMD TFZGTR4.7B QD1B00TFZ4R7

D534 SCHOTTKY BARRIER DIODE GDSK16-TR ND1Z00GDSK16

D535 SCHOTTKY BARRIER DIODE GDSK16-TR ND1Z00GDSK16

D536 CHIP ZENER DIODE CRZ16(TE85L Q QD1Z00CRZ16Q

D538 SCHOTTKY BARRIER DIODE GDSK16-TR ND1Z00GDSK16

D539 CHIP ZENER DIODE CRZ18(TE85L Q QD1Z00CRZ18Q

D540 SWITCHING DIODE 1SS400 TE61 or QD1Z001SS400

SWITCHING DIODE KDS160E-RTK/P or ND1ZKDS160EP

DIODE SWITCHING HSC119 TRF -E or QD1Z00HSC119

DIODE SWITCHING SMD 1SS400ST(SOD-523) ND1Z1SS400ST

D541 SWITCHING DIODE 1SS400 TE61 or QD1Z001SS400

SWITCHING DIODE KDS160E-RTK/P or ND1ZKDS160EP

DIODE SWITCHING HSC119 TRF -E or QD1Z00HSC119

DIODE SWITCHING SMD 1SS400ST(SOD-523) ND1Z1SS400ST

D542 CHIP ZENER DIODE CRZ16(TE85L Q QD1Z00CRZ16Q

D543 CHIP ZENER DIODE CRZ12(TE85L Q QD1Z00CRZ12Q

D544 SWITCHING DIODE 1SS400 TE61 or QD1Z001SS400

SWITCHING DIODE KDS160E-RTK/P or ND1ZKDS160EP

DIODE SWITCHING HSC119 TRF -E or QD1Z00HSC119

DIODE SWITCHING SMD 1SS400ST(SOD-523) ND1Z1SS400ST

D545 SWITCHING DIODE 1SS400 TE61 or QD1Z001SS400

SWITCHING DIODE KDS160E-RTK/P or ND1ZKDS160EP

DIODE SWITCHING HSC119 TRF -E or QD1Z00HSC119

Ref. No. Description Part No.

DIODE SWITCHING SMD 1SS400ST(SOD-523) ND1Z1SS400ST

D546 SWITCHING DIODE 1SS400 TE61 or QD1Z001SS400

SWITCHING DIODE KDS160E-RTK/P or ND1ZKDS160EP

DIODE SWITCHING HSC119 TRF -E or QD1Z00HSC119

DIODE SWITCHING SMD 1SS400ST(SOD-523) ND1Z1SS400ST

D547 CHIP RES.(1608) 1/10W 0 Ω or RRXAZR5Z0000

RES CHIP 1608 1/10W J 0 Ω or RRXA000YF002

RES CHIP 1608 1/10W 0 Ω RRJ000WAL002

D548 DIODE SHOTTKY SB3200BR NDWZ3200D027

D550 IC SHUNT REGULATOR AS431BKTR-E1 or NSCA0TBCD032

IC SHUNT REGULATOR MM1431CNRE QSCA0T0MM614

D551 ZENER DIODE SMD TFZGTR12B QD1B000TFZ12

D552 SWITCHING DIODE 1SS400 TE61 or QD1Z001SS400

SWITCHING DIODE KDS160E-RTK/P or ND1ZKDS160EP

DIODE SWITCHING HSC119 TRF -E or QD1Z00HSC119

DIODE SWITCHING SMD 1SS400ST(SOD-523) ND1Z1SS400ST

D553 SWITCHING DIODE 1SS400 TE61 or QD1Z001SS400

SWITCHING DIODE KDS160E-RTK/P or ND1ZKDS160EP

DIODE SWITCHING HSC119 TRF -E or QD1Z00HSC119

DIODE SWITCHING SMD 1SS400ST(SOD-523) ND1Z1SS400ST

D554 ZENER DIODE SMD TFZGTR15A QD1A000TFZ15

D555 SCHOTTKY BARRIER DIODE SMD SK37 ND1Z0000SK37

D601 CHIP ZENER DIODE CRZ11(TE85L Q QD1Z00CRZ11Q

D602 CHIP ZENER DIODE CRZ27(TE85L Q QD1Z00CRZ27Q

D603 SCHOTTKY BARRIER DIODE GDSK16-TR ND1Z00GDSK16

D604 DIODE FAST RECOVERY RS1GJTB or ND1Z0RS1GJTB

DIODE FAST RECOVERY SMD GR1G ND1Z00GR1GTR

D605 DIODE FAST RECOVERY RS1GJTB or ND1Z0RS1GJTB

DIODE FAST RECOVERY SMD GR1G ND1Z00GR1GTR

D606 DIODE FAST RECOVERY RS1GJTB or ND1Z0RS1GJTB

DIODE FAST RECOVERY SMD GR1G ND1Z00GR1GTR

D607 CHIP ZENER DIODE CRZ18(TE85L Q QD1Z00CRZ18Q

D609 DIODE ZENER 1ZB240-YBB NDWZ01ZB240Y

D610 DIODE ZENER 1ZB220-YBB NDWZ01ZB220Y

D611 SCHOTTKY BARRIER DIODE GDSK16-TR ND1Z00GDSK16

D613 DIODE FAST RECOVERY RS1GJTB or ND1Z0RS1GJTB

DIODE FAST RECOVERY SMD GR1G ND1Z00GR1GTR

D614 DIODE 1N5399BE or NDL1001N5399

DIODE 1N5399-B/P NDLZ001N5399

D615 DIODE 1N5399BE or NDL1001N5399

DIODE 1N5399-B/P NDLZ001N5399

D616 DIODE 1N5399BE or NDL1001N5399

DIODE 1N5399-B/P NDLZ001N5399

D617 DIODE 1N5399BE or NDL1001N5399

DIODE 1N5399-B/P NDLZ001N5399

D618 CHIP ZENER DIODE CRZ27(TE85L Q QD1Z00CRZ27Q

D619 ZENER DIODE SMD TFZGTR24B QD1B000TFZ24

D701 SWITCHING DIODE 1SS400 TE61 or QD1Z001SS400

SWITCHING DIODE KDS160E-RTK/P or ND1ZKDS160EP

DIODE SWITCHING HSC119 TRF -E or QD1Z00HSC119

DIODE SWITCHING SMD 1SS400ST(SOD-523) ND1Z1SS400ST

D702 DIODE SK16-T/R or ND1Z0000SK16

SCHOTTKY DIODE RB160L-60 TE-25 QQ1ZRB160L60

D703 SCHOTTKY BARRIER DIODE SMD SK110TC orND1Z0SK110TC

DIODE SHOTTKY SMD SK1B ND1Z00SK1BTR

D704 SWITCHING DIODE 1SS400 TE61 or QD1Z001SS400

SWITCHING DIODE KDS160E-RTK/P or ND1ZKDS160EP

DIODE SWITCHING HSC119 TRF -E or QD1Z00HSC119

DIODE SWITCHING SMD 1SS400ST(SOD-523) ND1Z1SS400ST

D705 SWITCHING DIODE 1SS400 TE61 or QD1Z001SS400

SWITCHING DIODE KDS160E-RTK/P or ND1ZKDS160EP

DIODE SWITCHING HSC119 TRF -E or QD1Z00HSC119

DIODE SWITCHING SMD 1SS400ST(SOD-523) ND1Z1SS400ST

D706 SWITCHING DIODE 1SS400 TE61 or QD1Z001SS400

SWITCHING DIODE KDS160E-RTK/P or ND1ZKDS160EP

DIODE SWITCHING HSC119 TRF -E or QD1Z00HSC119

20101216 15-3 A0CN6/N7EL

Ref. No. Description Part No.

DIODE SWITCHING SMD 1SS400ST(SOD-523) ND1Z1SS400ST

D707 SWITCHING DIODE 1SS400 TE61 or QD1Z001SS400

SWITCHING DIODE KDS160E-RTK/P or ND1ZKDS160EP

DIODE SWITCHING HSC119 TRF -E or QD1Z00HSC119

DIODE SWITCHING SMD 1SS400ST(SOD-523) ND1Z1SS400ST

D708 CHIP ZENER DIODE CRZ36(TE85L Q QD1Z00CRZ36Q

ICS

IC501 IC REGULATOR MM1855ATRE QSCA0T0MM658

IC502 IC DCDC CONVERTER MP2303ADNLFZ/

IC503 IC DCDC CONVERTER MP2303ADNLFZ/

IC504 IC REGULATOR MM3123DPRE QSCA0T0MM108

IC601! PHOTOCOUPLER PS2561L2-1-V-E3-A(L) or QP2LPS2561L2

! PHOTOCOUPLER LTV-817S-TP-V-C NP2CLTV817SV

IC602 IC SWITING FA5571N-D1-TE1/SOP-8 QSCA0T0FD003

IC701 IC INVERTER CONTROLLER OZ9967RN-B-0-

SOIC8N/

SOIC8N/

TR/TSSO

NSCA0T09M004

NSCA0T09M004

NSCA0TTMC003

COILS

L501 COIL DRUM CW68904080 1200µH or LLED0P0KV007

COIL DRUM PWC0608B-122KB 1200U LLED0ASSN001

L502 CHIP INDUCTOR FBMH1608HM600-T LLC600NTU037

L503 CHIP INDUCTOR FBMH1608HM600-T LLC600NTU037

L504 CHIP INDUCTOR FBMH1608HM600-T LLC600NTU037

L505 COIL NR8040T220M or LLF2200TU002

COIL SMD SWPA8040S220MTF/22µH or LLF220SSN020

COIL POWER LZ.9A220.A0P LLF220DAR001

L506 COIL SMD SWPA8040S101MT/100µH or LLF101SSN020

COIL NR8040T101M 100µH or LLF1010TU002

COIL POWER LZ.9A101.A0P LLF101DAR001

L601! LINE FILTER JLB1860/18.0MH LLEG0Z0XB016

L602 CHIP INDUCTOR FBMH1608HM600-T LLC600NTU037

L603 CHIP INDUCTOR FBMH1608HM600-T LLC600NTU037

L701 CHIP INDUCTOR FBMH1608HM600-T LLC600NTU037

L702 BEADS INDUCTOR FBR07HA121SB-00 or LLBF00STU030

BEAD INDUCTOR B29 RID 2.3X7.5X7.5T LLEF0S0XM002

L703 COIL POWER INDUCTORS DIP RCR1010NP-

470M/47µH or

COIL DRUM CP1010902909/47µH LLED0P0KV005

LLF4700SF012

TRANSISTORS

Q501 PNP TRANSISTOR SMD 2SA1576UBTLQ or QQ1Q2SA1576U

PNP TRANSISTOR SMD 2SA1576UBTLR QQ1R2SA1576U

Q502 NPN TRANSISTOR SMD 2SC4081UBTLQ or QQ1Q2SC4081U

NPN TRANSISTOR SMD 2SC4081UBTLR or QQ1R2SC4081U

TRANSISTOR KTC4075-GR-RTK/P or NQ14KTC4075P

NPN TRANSISTORS 2SC4154-T111-1E or QQ1E02SC4154

NPN TRANSISTORS 2SC4154-T111-1F or QQ1F02SC4154

NPN TRANSISTORS 2SC4154-T111-1G or QQ1G02SC4154

NPN TRANSISTOR SMD 2SC5343UFO or NQ102SC5343U

NPN TRANSISTOR SMD 2SC5343UFY or NQ1Y2SC5343U

NPN TRANSISTOR SMD 2SC5343UFG or NQ1G2SC5343U

NPN TRANSISTOR SMD 2SC5343UFL NQ1L2SC5343U

Q503 CHIP TRANSISTOR 2SC2412K(R) T146 or QQ8R2SC2412K

CHIP TRANSISTOR 2SC2412K T146R QQ1R2SC2412K

Q504 CHIP TRANSISTOR 2SC2412K(R) T146 or QQ8R2SC2412K

CHIP TRANSISTOR 2SC2412K T146R QQ1R2SC2412K

Q505 CHIP TRANSISTOR 2SC2412K(R) T146 or QQ8R2SC2412K

CHIP TRANSISTOR 2SC2412K T146R QQ1R2SC2412K

Q506 CHIP TRANSISTOR 2SC2412K(R) T146 or QQ8R2SC2412K

CHIP TRANSISTOR 2SC2412K T146R QQ1R2SC2412K

Q507 CHIP TRANSISTOR 2SC2412K(R) T146 or QQ8R2SC2412K

CHIP TRANSISTOR 2SC2412K T146R QQ1R2SC2412K

Q508 CHIP TRANSISTOR 2SA1037AK T146R or QQ1R2SA1037A

CHIP TRANSISTOR 2SA1037AK T146S QQ1S2SA1037A

Q509 NPN TRANSISTOR SMD 2SC4081UBTLQ or QQ1Q2SC4081U

NPN TRANSISTOR SMD 2SC4081UBTLR or QQ1R2SC4081U

TRANSISTOR KTC4075-GR-RTK/P or NQ14KTC4075P

NPN TRANSISTORS 2SC4154-T111-1E or QQ1E02SC4154

Ref. No. Description Part No.

NPN TRANSISTORS 2SC4154-T111-1F or QQ1F02SC4154

NPN TRANSISTORS 2SC4154-T111-1G or QQ1G02SC4154

NPN TRANSISTOR SMD 2SC5343UFO or NQ102SC5343U

NPN TRANSISTOR SMD 2SC5343UFY or NQ1Y2SC5343U

NPN TRANSISTOR SMD 2SC5343UFG or NQ1G2SC5343U

NPN TRANSISTOR SMD 2SC5343UFL NQ1L2SC5343U

Q510 NPN TRANSISTOR SMD 2SC4081UBTLQ or QQ1Q2SC4081U

NPN TRANSISTOR SMD 2SC4081UBTLR or QQ1R2SC4081U

TRANSISTOR KTC4075-GR-RTK/P or NQ14KTC4075P

NPN TRANSISTORS 2SC4154-T111-1E or QQ1E02SC4154

NPN TRANSISTORS 2SC4154-T111-1F or QQ1F02SC4154

NPN TRANSISTORS 2SC4154-T111-1G or QQ1G02SC4154

NPN TRANSISTOR SMD 2SC5343UFO or NQ102SC5343U

NPN TRANSISTOR SMD 2SC5343UFY or NQ1Y2SC5343U

NPN TRANSISTOR SMD 2SC5343UFG or NQ1G2SC5343U

NPN TRANSISTOR SMD 2SC5343UFL NQ1L2SC5343U

Q511 NPN TRANSISTOR SMD 2SC4081UBTLQ or QQ1Q2SC4081U

NPN TRANSISTOR SMD 2SC4081UBTLR or QQ1R2SC4081U

TRANSISTOR KTC4075-GR-RTK/P or NQ14KTC4075P

NPN TRANSISTORS 2SC4154-T111-1E or QQ1E02SC4154

NPN TRANSISTORS 2SC4154-T111-1F or QQ1F02SC4154

NPN TRANSISTORS 2SC4154-T111-1G or QQ1G02SC4154

NPN TRANSISTOR SMD 2SC5343UFO or NQ102SC5343U

NPN TRANSISTOR SMD 2SC5343UFY or NQ1Y2SC5343U

NPN TRANSISTOR SMD 2SC5343UFG or NQ1G2SC5343U

NPN TRANSISTOR SMD 2SC5343UFL NQ1L2SC5343U

Q512 FET SSM3K7002F(T5L F T QF1Z3K7002FF

Q513 NPN TRANSISTOR SMD 2SC4081UBTLQ or QQ1Q2SC4081U

NPN TRANSISTOR SMD 2SC4081UBTLR or QQ1R2SC4081U

TRANSISTOR KTC4075-GR-RTK/P or NQ14KTC4075P

NPN TRANSISTORS 2SC4154-T111-1E or QQ1E02SC4154

NPN TRANSISTORS 2SC4154-T111-1F or QQ1F02SC4154

NPN TRANSISTORS 2SC4154-T111-1G or QQ1G02SC4154

NPN TRANSISTOR SMD 2SC5343UFO or NQ102SC5343U

NPN TRANSISTOR SMD 2SC5343UFY or NQ1Y2SC5343U

NPN TRANSISTOR SMD 2SC5343UFG or NQ1G2SC5343U

NPN TRANSISTOR SMD 2SC5343UFL NQ1L2SC5343U

Q514 NPN TRANSISTOR SMD 2SC4081UBTLQ or QQ1Q2SC4081U

NPN TRANSISTOR SMD 2SC4081UBTLR or QQ1R2SC4081U

TRANSISTOR KTC4075-GR-RTK/P or NQ14KTC4075P

NPN TRANSISTORS 2SC4154-T111-1E or QQ1E02SC4154

NPN TRANSISTORS 2SC4154-T111-1F or QQ1F02SC4154

NPN TRANSISTORS 2SC4154-T111-1G or QQ1G02SC4154

NPN TRANSISTOR SMD 2SC5343UFO or NQ102SC5343U

NPN TRANSISTOR SMD 2SC5343UFY or NQ1Y2SC5343U

NPN TRANSISTOR SMD 2SC5343UFG or NQ1G2SC5343U

NPN TRANSISTOR SMD 2SC5343UFL NQ1L2SC5343U

Q515 NPN TRANSISTOR SMD 2SC4081UBTLQ or QQ1Q2SC4081U

NPN TRANSISTOR SMD 2SC4081UBTLR or QQ1R2SC4081U

TRANSISTOR KTC4075-GR-RTK/P or NQ14KTC4075P

NPN TRANSISTORS 2SC4154-T111-1E or QQ1E02SC4154

NPN TRANSISTORS 2SC4154-T111-1F or QQ1F02SC4154

NPN TRANSISTORS 2SC4154-T111-1G or QQ1G02SC4154

NPN TRANSISTOR SMD 2SC5343UFO or NQ102SC5343U

NPN TRANSISTOR SMD 2SC5343UFY or NQ1Y2SC5343U

NPN TRANSISTOR SMD 2SC5343UFG or NQ1G2SC5343U

NPN TRANSISTOR SMD 2SC5343UFL NQ1L2SC5343U

Q516 NPN TRANSISTOR SMD 2SC4081UBTLQ or QQ1Q2SC4081U

NPN TRANSISTOR SMD 2SC4081UBTLR or QQ1R2SC4081U

TRANSISTOR KTC4075-GR-RTK/P or NQ14KTC4075P

NPN TRANSISTORS 2SC4154-T111-1E or QQ1E02SC4154

NPN TRANSISTORS 2SC4154-T111-1F or QQ1F02SC4154

NPN TRANSISTORS 2SC4154-T111-1G or QQ1G02SC4154

NPN TRANSISTOR SMD 2SC5343UFO or NQ102SC5343U

NPN TRANSISTOR SMD 2SC5343UFY or NQ1Y2SC5343U

NPN TRANSISTOR SMD 2SC5343UFG or NQ1G2SC5343U

NPN TRANSISTOR SMD 2SC5343UFL NQ1L2SC5343U

20101216 15-4 A0CN6/N7EL

Ref. No. Description Part No.

Q517 PNP TRANSISTOR SMD 2SA1576UBTLQ or QQ1Q2SA1576U

PNP TRANSISTOR SMD 2SA1576UBTLR or QQ1R2SA1576U

TRANSISTOR KTA2014-GR-RTK/P or NQ14KTA2014P

PNP TRANSISTOR ISA1602AM1-T111U-1E or QQ1E1SA1602A

PNP TRANSISTOR ISA1602AM1-T111U-1F or QQ1F1SA1602A

PNP TRANSISTOR SMD 2SA1980UFO or NQ102SA1980U

PNP TRANSISTOR SMD 2SA1980UFY or NQ1Y2SA1980U

PNP TRANSISTOR SMD 2SA1980UFG or NQ1G2SA1980U

PNP TRANSISTOR SMD 2SA1980UFL NQ1L2SA1980U

Q518 NPN TRANSISTOR SMD 2SC4081UBTLQ or QQ1Q2SC4081U

NPN TRANSISTOR SMD 2SC4081UBTLR or QQ1R2SC4081U

TRANSISTOR KTC4075-GR-RTK/P or NQ14KTC4075P

NPN TRANSISTORS 2SC4154-T111-1E or QQ1E02SC4154

NPN TRANSISTORS 2SC4154-T111-1F or QQ1F02SC4154

NPN TRANSISTORS 2SC4154-T111-1G or QQ1G02SC4154

NPN TRANSISTOR SMD 2SC5343UFO or NQ102SC5343U

NPN TRANSISTOR SMD 2SC5343UFY or NQ1Y2SC5343U

NPN TRANSISTOR SMD 2SC5343UFG or NQ1G2SC5343U

NPN TRANSISTOR SMD 2SC5343UFL NQ1L2SC5343U

Q601 NPN TRANSISTOR SMD 2SC4081UBTLQ or QQ1Q2SC4081U

NPN TRANSISTOR SMD 2SC4081UBTLR or QQ1R2SC4081U

TRANSISTOR KTC4075-GR-RTK/P or NQ14KTC4075P

NPN TRANSISTORS 2SC4154-T111-1E or QQ1E02SC4154

NPN TRANSISTORS 2SC4154-T111-1F or QQ1F02SC4154

NPN TRANSISTORS 2SC4154-T111-1G or QQ1G02SC4154

NPN TRANSISTOR SMD 2SC5343UFO or NQ102SC5343U

NPN TRANSISTOR SMD 2SC5343UFY or NQ1Y2SC5343U

NPN TRANSISTOR SMD 2SC5343UFG or NQ1G2SC5343U

NPN TRANSISTOR SMD 2SC5343UFL NQ1L2SC5343U

Q602 FET MOS TK6A65D(LS1FND Q) QFWZTK6A65DL

Q603 FET 2SK3498(T6L1FUNANQ) or QF1Z02SK3498

FET POWER MOS SMD KHB1D0N60D-RTF/
PMC

Q604 PNP TRANSISTOR SMD 2SA1576UBTLQ or QQ1Q2SA1576U

PNP TRANSISTOR SMD 2SA1576UBTLR or QQ1R2SA1576U

TRANSISTOR KTA2014-GR-RTK/P or NQ14KTA2014P

PNP TRANSISTOR ISA1602AM1-T111U-1E or QQ1E1SA1602A

PNP TRANSISTOR ISA1602AM1-T111U-1F or QQ1F1SA1602A

PNP TRANSISTOR SMD 2SA1980UFO or NQ102SA1980U

PNP TRANSISTOR SMD 2SA1980UFY or NQ1Y2SA1980U

PNP TRANSISTOR SMD 2SA1980UFG or NQ1G2SA1980U

PNP TRANSISTOR SMD 2SA1980UFL NQ1L2SA1980U

Q701 FUELD EFFECT TRANSISTOR 2SK3482-Z QF1ZK3482ZAZ

Q702 TRANSISTOR KTA1661-Y-RTF/P or NQ1YKTA1661P

TRANSISTOR 2SA1201-Y QQ1Y2SA1201C

Q703 TRANSISTOR KTA1661-Y-RTF/P or NQ1YKTA1661P

TRANSISTOR 2SA1201-Y QQ1Y2SA1201C

Q704 TRANSISTOR KTA1661-Y-RTF/P or NQ1YKTA1661P

TRANSISTOR 2SA1201-Y QQ1Y2SA1201C

Q705 TRANSISTOR KTA1661-Y-RTF/P or NQ1YKTA1661P

TRANSISTOR 2SA1201-Y QQ1Y2SA1201C

NF1ZKHB1D0N6

RESISTORS

R502 CHIP RES. 1/10W J 68 Ω or RRXAJR5Z0680

RES CHIP 1608 1/10W J 68 Ω or RRXA680YF002

RES CHIP 1608 1/10W J 68 Ω RRJ680WAL002

R504 CHIP RES. 1/10W J 10k Ω or RRXAJR5Z0103

RES CHIP 1608 1/10W J 10k Ω or RRXA103YF002

RES CHIP 1608 1/10W J 10k Ω RRJ103WAL002

R505 RES CHIP 3216 1/4W J 220 Ω or RRX4JR7Z0221

RES CHIP 3216 1/4W J 220 Ω RRX4221YF004

R506 CHIP RES. 1/4W J 1.5k Ω or RRX4JR7Z0152

RES CHIP 3216 1/4W J 1.5k Ω or RRX4152YF004

RES CHIP 3216 1/4W J 1.5k Ω RRX4152HH034

R507 CHIP RES. 1/10W J 22k Ω or RRXAJR5Z0223

RES CHIP 1608 1/10W J 22k Ω or RRXA223YF002

RES CHIP 1608 1/10W J 22k Ω RRJ223WAL002

R508 CHIP RES. 1/10W J 4.7k Ω or RRXAJR5Z0472

Ref. No. Description Part No.

RES CHIP 1608 1/10W J 4.7k Ω or RRXA472YF002

RES CHIP 1608 1/10W J 4.7k Ω RRJ472WAL002

R509 CHIP RES. 1/10W J 47k Ω or RRXAJR5Z0473

RES CHIP 1608 1/10W J 47k Ω or RRXA473YF002

RES CHIP 1608 1/10W J 47k Ω RRJ473WAL002

R510 CHIP RES. 1/10W J 6.8k Ω or RRXAJR5Z0682

RES CHIP 1608 1/10W J 6.8k Ω or RRXA682YF002

RES CHIP 1608 1/10W J 6.8k Ω RRJ682WAL002

R511 CHIP RES. 1/10W J 3.3k Ω or RRXAJR5Z0332

RES CHIP 1608 1/10W J 3.3k Ω or RRXA332YF002

RES CHIP 1608 1/10W J 3.3k Ω RRJ332WAL002

R512 CHIP RES. 1/10W J 68 Ω or RRXAJR5Z0680

RES CHIP 1608 1/10W J 68 Ω or RRXA680YF002

RES CHIP 1608 1/10W J 68 Ω RRJ680WAL002

R513 CHIP RES. 1/4W J 22 Ω or RRX4JR7Z0220

RES CHIP 3216 1/4W J 22 Ω or RRX4220YF004

RES CHIP 3216 1/4W J 22 Ω RRX4220HH034

R514 CHIP RES. 1/4W J 22 Ω or RRX4JR7Z0220

RES CHIP 3216 1/4W J 22 Ω or RRX4220YF004

RES CHIP 3216 1/4W J 22 Ω RRX4220HH034

R515 CHIP RES. 1/4W J 22 Ω or RRX4JR7Z0220

RES CHIP 3216 1/4W J 22 Ω or RRX4220YF004

RES CHIP 3216 1/4W J 22 Ω RRX4220HH034

R516 CHIP RES. 1/10W J 10k Ω or RRXAJR5Z0103

RES CHIP 1608 1/10W J 10k Ω or RRXA103YF002

RES CHIP 1608 1/10W J 10k Ω RRJ103WAL002

R517 CHIP RES RMC1/8-331JTP or RRX4JR7Z0331

RES CHIP 3216 1/4W J 330 Ω or RRX4331YF004

RES CHIP 3216 1/4W J 330 Ω RRX4331HH034

R518 CHIP RES RMC1/8-331JTP or RRX4JR7Z0331

RES CHIP 3216 1/4W J 330 Ω or RRX4331YF004

RES CHIP 3216 1/4W J 330 Ω RRX4331HH034

R519 CHIP RES RMC1/8-331JTP or RRX4JR7Z0331

RES CHIP 3216 1/4W J 330 Ω or RRX4331YF004

RES CHIP 3216 1/4W J 330 Ω RRX4331HH034

R520 CHIP RES. 1/4W J 33 Ω or RRX4JR7Z0330

RES CHIP 3216 1/4W J 33 Ω or RRX4330YF004

RES CHIP 3216 1/4W J 33 Ω RRX4330HH034

R521 CHIP RES. 1/4W J470 Ω or RRX4JR7Z0471

RES CHIP 3216 1/4W J 470 Ω or RRX4471YF004

RES CHIP 3216 1/4W J 470 Ω RRX4471HH034

R522 CHIP RES. 1/4W J470 Ω or RRX4JR7Z0471

RES CHIP 3216 1/4W J 470 Ω or RRX4471YF004

RES CHIP 3216 1/4W J 470 Ω RRX4471HH034

R523 RES CHIP 3216 1/4W J 220 Ω or RRX4JR7Z0221

RES CHIP 3216 1/4W J 220 Ω RRX4221YF004

R524 CHIP RES. 1/4W J 3.9k Ω or RRX4JR7Z0392

RES CHIP 3216 1/4W J 3.9k Ω or RRX4392YF004

RES CHIP 3216 1/4W J 3.9k Ω RRX4392HH034

R525 CHIP RES.(3216) 1/4W J 0 Ω or RRX4JR7Z0000

RES CHIP 3216 1/4W J 0 Ω RRX4000YF004

R526 CHIP RES.(3216) 1/4W J 0 Ω or RRX4JR7Z0000

RES CHIP 3216 1/4W J 0 Ω RRX4000YF004

R527 CHIP RES. 1/4W J 3.9 Ω or RRX4JR7Z03R9

RES CHIP 3216 1/4W J 3.9 Ω or RRX43R9YF004

RES CHIP 3216 1/4W J 3.9 Ω RRX43R9HH034

R528 CHIP RES. 1/4W J 3.9 Ω or RRX4JR7Z03R9

RES CHIP 3216 1/4W J 3.9 Ω or RRX43R9YF004

RES CHIP 3216 1/4W J 3.9 Ω RRX43R9HH034

R529 CHIP RES. 1/4W J 3.9 Ω or RRX4JR7Z03R9

RES CHIP 3216 1/4W J 3.9 Ω or RRX43R9YF004

RES CHIP 3216 1/4W J 3.9 Ω RRX43R9HH034

R530 CHIP RES. 1/4W J 10 Ω or RRX4JR7Z0100

RES CHIP 3216 1/4W J 10 Ω or RRX4100YF004

RES CHIP 3216 1/4W J 10 Ω RRX4100HH034

R531 CHIP RES. 1/10W F 4.3k Ω or RRXAFR5H4301

CHIP RES.(1608) 1/10W F 4.3k Ω or RRXAFR5Z4301

20101216 15-5 A0CN6/N7EL

Ref. No. Description Part No.

RES CHIP 1608 1/10W F 4.30k Ω RTW4301YF002

R532 CHIP RES. 1/10W J 22k Ω or RRXAJR5Z0223

RES CHIP 1608 1/10W J 22k Ω or RRXA223YF002

RES CHIP 1608 1/10W J 22k Ω RRJ223WAL002

R533 CHIP RES. 1/10W J 10k Ω or RRXAJR5Z0103

RES CHIP 1608 1/10W J 10k Ω or RRXA103YF002

RES CHIP 1608 1/10W J 10k Ω RRJ103WAL002

R534 CHIP RES. 1/10W J 1.5k Ω or RRXAJR5Z0152

RES CHIP 1608 1/10W J 1.5k Ω or RRXA152YF002

RES CHIP 1608 1/10W J 1.5k Ω RRJ152WAL002

R535 CHIP RES. 1/10W J 1.5k Ω or RRXAJR5Z0152

RES CHIP 1608 1/10W J 1.5k Ω or RRXA152YF002

RES CHIP 1608 1/10W J 1.5k Ω RRJ152WAL002

R536 CHIP RES. 1/10W J 330 Ω or RRXAJR5Z0331

RES CHIP 1608 1/10W J 330 Ω or RRXA331YF002

RES CHIP 1608 1/10W J 330 Ω RRJ331WAL002

R537 CHIP RES. 1/10W J 1k Ω or RRXAJR5Z0102

RES CHIP 1608 1/10W J 1.0k Ω or RRXA102YF002

RES CHIP 1608 1/10W J 1.0k Ω RRJ102WAL002

R538 CHIP RES. 1/10W J 2.2k Ω or RRXAJR5Z0222

RES CHIP 1608 1/10W J 2.2k Ω or RRXA222YF002

RES CHIP 1608 1/10W J 2.2k Ω RRJ222WAL002

R539 CHIP RES. 1/10W J 2.2k Ω or RRXAJR5Z0222

RES CHIP 1608 1/10W J 2.2k Ω or RRXA222YF002

RES CHIP 1608 1/10W J 2.2k Ω RRJ222WAL002

R540 CHIP RES. 1/10W J 47k Ω or RRXAJR5Z0473

RES CHIP 1608 1/10W J 47k Ω or RRXA473YF002

RES CHIP 1608 1/10W J 47k Ω RRJ473WAL002

R541 CHIP RES. 1/10W J 10k Ω or RRXAJR5Z0103

RES CHIP 1608 1/10W J 10k Ω or RRXA103YF002

RES CHIP 1608 1/10W J 10k Ω RRJ103WAL002

R542 CHIP RES. 1/10W J 1.5k Ω or RRXAJR5Z0152

RES CHIP 1608 1/10W J 1.5k Ω or RRXA152YF002

RES CHIP 1608 1/10W J 1.5k Ω RRJ152WAL002

R543 CHIP RES. 1/10W J 1.5k Ω or RRXAJR5Z0152

RES CHIP 1608 1/10W J 1.5k Ω or RRXA152YF002

RES CHIP 1608 1/10W J 1.5k Ω RRJ152WAL002

R544 CHIP RES. 1/10W J 2.7k Ω or RRXAJR5Z0272

RES CHIP 1608 1/10W J 2.7k Ω or RRXA272YF002

RES CHIP 1608 1/10W J 2.7k Ω RRJ272WAL002

R545 CHIP RES. 1/10W J 18k Ω or RRXAJR5Z0183

RES CHIP 1608 1/10W J 18k Ω or RRXA183YF002

RES CHIP 1608 1/10W J 18k Ω RRJ183WAL002

R546 CHIP RES. 1/10W J 3.3k Ω or RRXAJR5Z0332

RES CHIP 1608 1/10W J 3.3k Ω or RRXA332YF002

RES CHIP 1608 1/10W J 3.3k Ω RRJ332WAL002

R547 CHIP RES.(1608) 1/10W 0 Ω or RRXAZR5Z0000

RES CHIP 1608 1/10W J 0 Ω or RRXA000YF002

RES CHIP 1608 1/10W 0 Ω RRJ000WAL002

R548 CHIP RES. 1/10W J 100k Ω or RRXAJR5Z0104

RES CHIP 1608 1/10W J 100k Ω or RRXA104YF002

RES CHIP 1608 1/10W J 100k Ω RRJ104WAL002

R549 CHIP RES. 1/10W F 150 k Ω or RRXAFR5H1503

CHIP RES. 1/10W F 150 k Ω or RRXAFR5Z0154

RES CHIP 1608 1/10W F 150k Ω RTW1503YF002

R550 CHIP RES. 1/10W F 10k Ω or RRXAFR5H1002

CHIP RES. 1/10W F 10k Ω or RRXAFR5Z1002

RES CHIP 1608 1/10W F 10.0k Ω RTW1002YF002

R551 CHIP RES. 1/10W F 15k Ω or RRXAFR5H1502

CHIP RES. 1/10W F 15k Ω or RRXAFR5Z0153

RES CHIP 1608 1/10W F 15.0k Ω RTW1502YF002

R552 CHIP RES. 1/10W F 5.6k Ω or RRXAFR5H5601

CHIP RES. 1/10W F 5.6k Ω or RRXAFR5Z0562

RES CHIP 1608 1/10W F 5.60k Ω RTW5601YF002

R553 CHIP RES. 1/10W J 47k Ω or RRXAJR5Z0473

RES CHIP 1608 1/10W J 47k Ω or RRXA473YF002

RES CHIP 1608 1/10W J 47k Ω RRJ473WAL002

Ref. No. Description Part No.

R554 CHIP RES. 1/10W J 10k Ω or RRXAJR5Z0103

RES CHIP 1608 1/10W J 10k Ω or RRXA103YF002

RES CHIP 1608 1/10W J 10k Ω RRJ103WAL002

R555 CHIP RES. 1/10W J 18k Ω or RRXAJR5Z0183

RES CHIP 1608 1/10W J 18k Ω or RRXA183YF002

RES CHIP 1608 1/10W J 18k Ω RRJ183WAL002

R556 CHIP RES. 1/10W J 22k Ω or RRXAJR5Z0223

RES CHIP 1608 1/10W J 22k Ω or RRXA223YF002

RES CHIP 1608 1/10W J 22k Ω RRJ223WAL002

R557 CHIP RES. 1/10W J 47k Ω or RRXAJR5Z0473

RES CHIP 1608 1/10W J 47k Ω or RRXA473YF002

RES CHIP 1608 1/10W J 47k Ω RRJ473WAL002

R558 CHIP RES. 1/10W J 22k Ω or RRXAJR5Z0223

RES CHIP 1608 1/10W J 22k Ω or RRXA223YF002

RES CHIP 1608 1/10W J 22k Ω RRJ223WAL002

R559 CHIP RES. 1/10W J 6.8k Ω or RRXAJR5Z0682

RES CHIP 1608 1/10W J 6.8k Ω or RRXA682YF002

RES CHIP 1608 1/10W J 6.8k Ω RRJ682WAL002

R560 CHIP RES. 1/10W F 3.3k Ω or RRXAFR5H3301

CHIP RES.(1608) 1/10W F 3.3k Ω or RRXAFR5Z3301

RES CHIP 1608 1/10W F 3.30k Ω RTW3301 YF002

R561 CHIP RES. 1/10W F 43.0 k Ω or RRXAFR5H4302

RES CHIP 1608 1/10W F 43k Ω or RRXAFR5Z4302

RES CHIP 1608 1/10W F 43.0k Ω RTW4302 YF002

R562 CHIP RES. 1/10W J 22k Ω or RRXAJR5Z0223

RES CHIP 1608 1/10W J 22k Ω or RRXA223YF002

RES CHIP 1608 1/10W J 22k Ω RRJ223WAL002

R563 CHIP RES. 1/10W J 10k Ω or RRXAJR5Z0103

RES CHIP 1608 1/10W J 10k Ω or RRXA103YF002

RES CHIP 1608 1/10W J 10k Ω RRJ103WAL002

R564 CHIP RES. 1/10W J 10k Ω or RRXAJR5Z0103

RES CHIP 1608 1/10W J 10k Ω or RRXA103YF002

RES CHIP 1608 1/10W J 10k Ω RRJ103WAL002

R565 CHIP RES. 1/10W J 3.3k Ω or RRXAJR5Z0332

RES CHIP 1608 1/10W J 3.3k Ω or RRXA332YF002

RES CHIP 1608 1/10W J 3.3k Ω RRJ332WAL002

R566 CHIP RES. 1/10W J 22k Ω or RRXAJR5Z0223

RES CHIP 1608 1/10W J 22k Ω or RRXA223YF002

RES CHIP 1608 1/10W J 22k Ω RRJ223WAL002

R567 CHIP RES. 1/10W J 10k Ω or RRXAJR5Z0103

RES CHIP 1608 1/10W J 10k Ω or RRXA103YF002

RES CHIP 1608 1/10W J 10k Ω RRJ103WAL002

R568 CHIP RES. 1/10W J 22k Ω or RRXAJR5Z0223

RES CHIP 1608 1/10W J 22k Ω or RRXA223YF002

RES CHIP 1608 1/10W J 22k Ω RRJ223WAL002

R569 CHIP RES. 1/10W J 22k Ω or RRXAJR5Z0223

RES CHIP 1608 1/10W J 22k Ω or RRXA223YF002

RES CHIP 1608 1/10W J 22k Ω RRJ223WAL002

R570 CHIP RES. 1/10W J 100k Ω or RRXAJR5Z0104

RES CHIP 1608 1/10W J 100k Ω or RRXA104YF002

RES CHIP 1608 1/10W J 100k Ω RRJ104WAL002

R571 CHIP RES. 1/10W F 36k Ω or RRXAFR5H3602

CHIP RES. 1/10W F 36k Ω or RRXAFR5Z0363

RES CHIP 1608 1/10W F 36.0k Ω RTW3602 YF002

R572 CHIP RES. 1/10W F 11k Ω or RRXAFR5H1102

CHIP RES. 1/10W F 11k Ω or RRXAFR5Z1102

RES CHIP 1608 1/10W F 11.0k Ω RTW1102 YF002

R575 CHIP RES. 1/10W J 10k Ω or RRXAJR5Z0103

RES CHIP 1608 1/10W J 10k Ω or RRXA103YF002

RES CHIP 1608 1/10W J 10k Ω RRJ103WAL002

R576 CHIP RES. 1/10W F 5.6k Ω or RRXAFR5H5601

CHIP RES. 1/10W F 5.6k Ω or RRXAFR5Z0562

RES CHIP 1608 1/10W F 5.60k Ω RTW5601 YF002

R577 CHIP RES. 1/10W F 18k Ω or RRXAFR5H1802

CHIP RES. 1/10W F 18k Ω or RRXAFR5Z0183

RES CHIP 1608 1/10W F 18.0k Ω RTW1802 YF002

R578 CHIP RES. 1/10W F 820 Ω or RRXAFR5H8200

20101216 15-6 A0CN6/N7EL

Ref. No. Description Part No.

CHIP RES.(1608) 1/10W F 820 Ω or RRXAFR5Z8200

RES CHIP 1608 1/10W F 820 Ω RTW8200YF002

R579 CHIP RES. 1/10W F 27k Ω or RRXAFR5H2702

CHIP RES.(1608) 1/10W F 27k Ω or RRXAFR5Z2702

RES CHIP 1608 1/10W F 27.0k Ω RTW2702YF002

R580 CHIP RES. 1/10W F 27k Ω or RRXAFR5H2702

CHIP RES.(1608) 1/10W F 27k Ω or RRXAFR5Z2702

RES CHIP 1608 1/10W F 27.0k Ω RTW2702YF002

R581 CHIP RES. 1/10W F 39k Ω or RRXAFR5H3902

CHIP RES. 1/10W F 39k Ω or RRXAFR5Z0393

RES CHIP 1608 1/10W F 39.0k Ω RTW3902YF002

R582 CHIP RES. 1/10W J 47k Ω or RRXAJR5Z0473

RES CHIP 1608 1/10W J 47k Ω or RRXA473YF002

RES CHIP 1608 1/10W J 47k Ω RRJ473WAL002

R583 CHIP RES. 1/10W J 4.7k Ω or RRXAJR5Z0472

RES CHIP 1608 1/10W J 4.7k Ω or RRXA472YF002

RES CHIP 1608 1/10W J 4.7k Ω RRJ472WAL002

R584 CHIP RES. 1/10W F 27k Ω or RRXAFR5H2702

CHIP RES.(1608) 1/10W F 27k Ω or RRXAFR5Z2702

RES CHIP 1608 1/10W F 27.0k Ω RTW2702YF002

R585 CHIP RES. 1/10W J 1k Ω or RRXAJR5Z0102

RES CHIP 1608 1/10W J 1.0k Ω or RRXA102YF002

RES CHIP 1608 1/10W J 1.0k Ω RRJ102WAL002

R586 CHIP RES. 1/10W J 10 Ω or RRXAJR5Z0100

RES CHIP 1608 1/10W J 10 Ω or RRXA100YF002

RES CHIP 1608 1/10W J 10 Ω RRJ100WAL002

R587 CHIP RES. 1/10W J 10 Ω or RRXAJR5Z0100

RES CHIP 1608 1/10W J 10 Ω or RRXA100YF002

RES CHIP 1608 1/10W J 10 Ω RRJ100WAL002

R589 CHIP RES. 1/4W J 3.9 Ω or RRX4JR7Z03R9

RES CHIP 3216 1/4W J 3.9 Ω or RRX43R9YF004

RES CHIP 3216 1/4W J 3.9 Ω RRX43R9HH034

R593 CHIP RES. 1/10W J 1M Ω or RRXAJR5Z0105

RES CHIP 1608 1/10W J 1.0M Ω or RRXA105YF002

RES CHIP 1608 1/10W J 1.0M Ω RRJ105WAL002

R594 CHIP RES.(3216) 1/4W J 0 Ω or RRX4JR7Z0000

RES CHIP 3216 1/4W J 0 Ω RRX4000YF004

R597 CHIP RES. 1/4W J 100 Ω or RRX4JR7Z0101

RES CHIP 3216 1/4W J 100 Ω or RRX4101YF004

RES CHIP 3216 1/4W J 100 Ω RRX4101HH034

R598 CHIP RES. 1/10W J 18k Ω or RRXAJR5Z0183

RES CHIP 1608 1/10W J 18k Ω or RRXA183YF002

RES CHIP 1608 1/10W J 18k Ω RRJ183WAL002

R599 CHIP RES. 1/10W J 3.3k Ω or RRXAJR5Z0332

RES CHIP 1608 1/10W J 3.3k Ω or RRXA332YF002

RES CHIP 1608 1/10W J 3.3k Ω RRJ332WAL002

R601 CHIP RES.(3216) 1/4W J 0 Ω or RRX4JR7Z0000

RES CHIP 3216 1/4W J 0 Ω RRX4000YF004

R602 CHIP RES.(3216) 1/4W J 0 Ω or RRX4JR7Z0000

RES CHIP 3216 1/4W J 0 Ω RRX4000YF004

R604 CHIP RES. 1/10W J 10k Ω or RRXAJR5Z0103

RES CHIP 1608 1/10W J 10k Ω or RRXA103YF002

RES CHIP 1608 1/10W J 10k Ω RRJ103WAL002

R605 CHIP RES. 1/10W J 10k Ω or RRXAJR5Z0103

RES CHIP 1608 1/10W J 10k Ω or RRXA103YF002

RES CHIP 1608 1/10W J 10k Ω RRJ103WAL002

R606 RES CHIP 3216 1/4W J 2.7M Ω or RRX4275HH034

CHIP RES. 1/4W J 2.7M Ω or RRX4JR7Z0275

RES CHIP 3216 1/4W J 2.7M Ω RRX4275YF004

R607 RES CHIP 3216 1/4W J 2.7M Ω or RRX4275HH034

CHIP RES. 1/4W J 2.7M Ω or RRX4JR7Z0275

RES CHIP 3216 1/4W J 2.7M Ω RRX4275YF004

R608 RES CHIP 3216 1/4W J 2.7M Ω or RRX4275HH034

CHIP RES. 1/4W J 2.7M Ω or RRX4JR7Z0275

RES CHIP 3216 1/4W J 2.7M Ω RRX4275YF004

R609 RES CHIP 3216 1/4W J 2.7M Ω or RRX4275HH034

CHIP RES. 1/4W J 2.7M Ω or RRX4JR7Z0275

Ref. No. Description Part No.

RES CHIP 3216 1/4W J 2.7M Ω RRX4275YF004

R610 CHIP RES. 1/4W J 22KOHM or RRX4JR7Z0223

RES CHIP 3216 1/4W J 22k Ω or RRX4223YF004

RES CHIP 3216 1/4W J 22k Ω RRX4223HH034

R611 CHIP RES. 1/4W J 33 Ω or RRX4JR7Z0330

RES CHIP 3216 1/4W J 33 Ω or RRX4330YF004

RES CHIP 3216 1/4W J 33 Ω RRX4330HH034

R612 CHIP RES. 1/4W J 27 Ω or RRX4JR7Z0270

RES CHIP 3216 1/4W J 27 Ω or RRX4270YF004

RES CHIP 3216 1/4W J 27 Ω RRX4270HH034

R613 CHIP RES. 1/4W J 33 Ω or RRX4JR7Z0330

RES CHIP 3216 1/4W J 33 Ω or RRX4330YF004

RES CHIP 3216 1/4W J 33 Ω RRX4330HH034

R614 CHIP RES. 1/3W F 0.13 Ω or RTR1300KA008

CHIP RES 3216 1/2W F 0.13 Ω or RTR1300KE001

RES CHIP 3216 1/4W F 0.13 Ω RTR1300YF003

R615 CHIP RES. 1/4W J 22KOHM or RRX4JR7Z0223

RES CHIP 3216 1/4W J 22k Ω or RRX4223YF004

RES CHIP 3216 1/4W J 22k Ω RRX4223HH034

R616 CHIP RES. 1/4W J 22KOHM or RRX4JR7Z0223

RES CHIP 3216 1/4W J 22k Ω or RRX4223YF004

RES CHIP 3216 1/4W J 22k Ω RRX4223HH034

R617 CHIP RES. 1/4W J 22KOHM or RRX4JR7Z0223

RES CHIP 3216 1/4W J 22k Ω or RRX4223YF004

RES CHIP 3216 1/4W J 22k Ω RRX4223HH034

R618 RES CEMENT 5W J 2.7 Ω RWJ2R7PAK007

R619 CHIP RES. 1/3W F 0.13 Ω or RTR1300KA008

CHIP RES 3216 1/2W F 0.13 Ω or RTR1300KE001

RES CHIP 3216 1/4W F 0.13 Ω RTR1300YF003

R621 CHIP RES. 1/3W F 0.15 Ω or RTR1500KA008

CHIP RES 3216 1/2W F 0.15 Ω or RTR1500KE001

RES CHIP 3216 1/4W F 0.15 Ω RTR1500YF003

R622 CHIP RES. 1/3W F 0.15 Ω or RTR1500KA008

CHIP RES 3216 1/2W F 0.15 Ω or RTR1500KE001

RES CHIP 3216 1/4W F 0.15 Ω RTR1500YF003

R625! GLASS GLAZE RES. 1/2W J 3.3M Ω or RXX2JZLZ0335

! RES. CARBON FILM J 1/2W J 3.3M Ω RCX2335T1003

R626 CHIP RES. 1/10W J 180 Ω or RRXAJR5Z0181

RES CHIP 1608 1/10W J 180 Ω or RRXA181YF002

RES CHIP 1608 1/10W J 180 Ω RRJ181WAL002

R627 CHIP RES. 1/10W J 10 Ω or RRXAJR5Z0100

RES CHIP 1608 1/10W J 10 Ω or RRJ100WAL002

RES CHIP 1608 1/10W J 10 Ω RRXA100YF002

R628 CHIP RES. 1/10W J 4.7k Ω or RRXAJR5Z0472

RES CHIP 1608 1/10W J 4.7k Ω or RRXA472YF002

RES CHIP 1608 1/10W J 4.7k Ω RRJ472WAL002

R630 CHIP RES. 1/10W J 33 Ω or RRXAJR5Z0330

RES CHIP 1608 1/10W J 33 Ω or RRXA330YF002

RES CHIP 1608 1/10W J 33 Ω RRJ330WAL002

R632 CHIP RES. 1/10W J 33k Ω or RRXAJR5Z0333

RES CHIP 1608 1/10W J 33k Ω or RRXA333YF002

RES CHIP 1608 1/10W J 33k Ω RRJ333WAL002

R633 CHIP RES. 1/10W J 12k Ω or RRXAJR5Z0123

RES CHIP 1608 1/10W J 12k Ω or RRXA123YF002

RES CHIP 1608 1/10W J 12k Ω RRJ123WAL002

R634 CHIP RES. 1/10W J 2.2k Ω or RRXAJR5Z0222

RES CHIP 1608 1/10W J 2.2k Ω or RRXA222YF002

RES CHIP 1608 1/10W J 2.2k Ω RRJ222WAL002

R635 CHIP RES. 1/10W J 2.2k Ω or RRXAJR5Z0222

RES CHIP 1608 1/10W J 2.2k Ω or RRXA222YF002

RES CHIP 1608 1/10W J 2.2k Ω RRJ222WAL002

R636 CHIP RES. 1/10W J 8.2k Ω or RRXAJR5Z0822

RES CHIP 1608 1/10W J 8.2k Ω or RRXA822YF002

RES CHIP 1608 1/10W J 8.2k Ω RRJ822WAL002

R651 RES CHIP 3216 1/4W J 220 Ω or RRX4JR7Z0221

RES CHIP 3216 1/4W J 220 Ω RRX4221YF004

R652 CHIP RES. 1/10W J 1k Ω or RRXAJR5Z0102

20101216 15-7 A0CN6/N7EL

Ref. No. Description Part No.

RES CHIP 1608 1/10W J 1.0k Ω or RRXA102YF002

RES CHIP 1608 1/10W J 1.0k Ω RRJ102WAL002

R654 CHIP RES.(3216) 1/4W J 0 Ω or RRX4JR7Z0000

RES CHIP 3216 1/4W J 0 Ω RRX4000YF004

R701 CHIP RES. 1/4W J470 Ω or RRX4JR7Z0471

RES CHIP 3216 1/4W J 470 Ω or RRX4471YF004

RES CHIP 3216 1/4W J 470 Ω RRX4471HH034

R702 CHIP RES. 1/4W F 3.9 Ω or RRX4FR7Z3R90

RES CHIP 3216 1/4W F 3.9 Ω RTC 3R90YF004

R703 CHIP RES. 1/4W F 2.2 Ω or RRX4FR7Z2R20

RES CHIP 3216 1/4W F 2.2 Ω RTC 2R20YF004

R704 CHIP RES. 1/4W F 3.9 Ω or RRX4FR7Z3R90

RES CHIP 3216 1/4W F 3.9 Ω RTC 3R90YF004

R705 CHIP RES. 1/10W J 22 Ω or RRXAJR5Z0220

RES CHIP 1608 1/10W J 22 Ω or RRXA220YF002

RES CHIP 1608 1/10W J 22 Ω RRJ220WAL002

R706 CHIP RES. 1/4W F 3.9 Ω or RRX4FR7Z3R90

RES CHIP 3216 1/4W F 3.9 Ω RTC 3R90YF004

R707 CHIP RES. 1/4W F 2.2 Ω or RRX4FR7Z2R20

RES CHIP 3216 1/4W F 2.2 Ω RTC 2R20YF004

R708 CHIP RES. 1/4W F 3.9 Ω or RRX4FR7Z3R90

RES CHIP 3216 1/4W F 3.9 Ω RTC 3R90YF004

R709 CHIP RES. 1/4W F 2.2 Ω or RRX4FR7Z2R20

RES CHIP 3216 1/4W F 2.2 Ω RTC 2R20YF004

R710 CHIP RES. 1/4W F 2.2 Ω or RRX4FR7Z2R20

RES CHIP 3216 1/4W F 2.2 Ω RTC 2R20YF004

R711 CHIP RES. 1/3W F 0.12 Ω or RTR1200KA008

CHIP RES 3216 1/2W F 0.12 Ω or RTR1200KE001

RES CHIP 3216 1/4W F 0.12 Ω RTR1200YF003

R712 CHIP RES. 1/3W F 0.12 Ω or RTR1200KA008

CHIP RES 3216 1/2W F 0.12 Ω or RTR1200KE001

RES CHIP 3216 1/4W F 0.12 Ω RTR1200YF003

R713 CHIP RES. 1/10W J 100k Ω or RRXAJR5Z0104

RES CHIP 1608 1/10W J 100k Ω or RRXA104YF002

RES CHIP 1608 1/10W J 100k Ω RRJ104WAL002

R714 CHIP RES. 1/10W J 10k Ω or RRXAJR5Z0103

RES CHIP 1608 1/10W J 10k Ω or RRXA103YF002

RES CHIP 1608 1/10W J 10k Ω RRJ103WAL002

R715 CHIP RES. 1/10W J 100k Ω or RRXAJR5Z0104

RES CHIP 1608 1/10W J 100k Ω or RRXA104YF002

RES CHIP 1608 1/10W J 100k Ω RRJ104WAL002

R716 CHIP RES. 1/10W J 10k Ω or RRXAJR5Z0103

RES CHIP 1608 1/10W J 10k Ω or RRXA103YF002

RES CHIP 1608 1/10W J 10k Ω RRJ103WAL002

R717 CHIP RES.(1608) 1/10W F 560k Ω or RRXAFR5Z5603

RES CHIP 1608 1/10W F 560k Ω or RTW5603YF002

CHIP RES. 1/10W F 560 k Ω RRXAFR5H5603

R718 CHIP RES. 1/10W F 27k Ω or RRXAFR5H2702

CHIP RES.(1608) 1/10W F 27k Ω or RRXAFR5Z2702

RES CHIP 1608 1/10W F 27.0k Ω RTW2702YF002

R719 CHIP RES.(1608) 1/10W F 1k Ω or RRXAFR5H0102

CHIP RES. 1/10W F 1k Ω or RRXAFR5Z0102

RES CHIP 1608 1/10W F 1.00k Ω RTW1001YF002

R720 CHIP RES. 1/10W F 20k Ω or RRXAFR5H2002

CHIP RES. 1/10W F 20k Ω or RRXAFR5Z2002

RES CHIP 1608 1/10W F 20.0k Ω RTW2002YF002

R721 CHIP RES. 1/10W J 22 Ω or RRXAJR5Z0220

RES CHIP 1608 1/10W J 22 Ω or RRXA220YF002

RES CHIP 1608 1/10W J 22 Ω RRJ220WAL002

R722 CHIP RES. 1/10W F 100k Ω or RRXAFR5H1003

CHIP RES. 1/10W F 100k Ω or RRXAFR5Z1003

RES CHIP 1608 1/10W F 100k Ω RTW1003YF002

R723 CHIP RES. 1/10W F 8.2k Ω or RRXAFR5H8201

CHIP RES.(1608) 1/10W F 8.2k Ω or RRXAFR5Z8201

RES CHIP 1608 1/10W F 8.20k Ω RTW8201YF002

R724 CHIP RES. 1/10W F 200k Ω or RRXAFR5Z2003

RES CHIP 1608 1/10W F 200k Ω RTW2003YF002

Ref. No. Description Part No.

R725 CHIP RES. 1/10W J 10k Ω or RRXAJR5Z0103

RES CHIP 1608 1/10W J 10k Ω or RRXA103YF002

RES CHIP 1608 1/10W J 10k Ω RRJ103WAL002

R726 CHIP RES. 1/10W J 10k Ω or RRXAJR5Z0103

RES CHIP 1608 1/10W J 10k Ω or RRXA103YF002

RES CHIP 1608 1/10W J 10k Ω RRJ103WAL002

R727 CHIP RES. 1/10W J 10k Ω or RRXAJR5Z0103

RES CHIP 1608 1/10W J 10k Ω or RRXA103YF002

RES CHIP 1608 1/10W J 10k Ω RRJ103WAL002

R728 CHIP RES. 1/10W J 10k Ω or RRXAJR5Z0103

RES CHIP 1608 1/10W J 10k Ω or RRXA103YF002

RES CHIP 1608 1/10W J 10k Ω RRJ103WAL002

R729 CHIP RES. 1/10W J 1M Ω or RRXAJR5Z0105

RES CHIP 1608 1/10W J 1.0M Ω or RRXA105YF002

RES CHIP 1608 1/10W J 1.0M Ω RRJ105WAL002

R730 CHIP RES. 1/10W J 56k Ω or RRXAJR5Z0563

RES CHIP 1608 1/10W J 56k Ω or RRXA563YF002

RES CHIP 1608 1/10W J 56k Ω RRJ563WAL002

R731 CHIP RES. 1/10W J 100k Ω or RRXAJR5Z0104

RES CHIP 1608 1/10W J 100k Ω or RRXA104YF002

RES CHIP 1608 1/10W J 100k Ω RRJ104WAL002

R732 CHIP RES.(1608) 1/10W 0 Ω or RRXAZR5Z0000

RES CHIP 1608 1/10W J 0 Ω or RRXA000YF002

RES CHIP 1608 1/10W 0 Ω RRJ000WAL002

R733 CHIP RES.(1608) 1/10W 0 Ω or RRXAZR5Z0000

RES CHIP 1608 1/10W J 0 Ω or RRXA000YF002

RES CHIP 1608 1/10W 0 Ω RRJ000WAL002

R734 CHIP RES.(1608) 1/10W 0 Ω or RRXAZR5Z0000

RES CHIP 1608 1/10W J 0 Ω or RRXA000YF002

RES CHIP 1608 1/10W 0 Ω RRJ000WAL002

R735 CHIP RES.(1608) 1/10W 0 Ω or RRXAZR5Z0000

RES CHIP 1608 1/10W J 0 Ω or RRXA000YF002

RES CHIP 1608 1/10W 0 Ω RRJ000WAL002

R736 CHIP RES.(1608) 1/10W 0 Ω or RRXAZR5Z0000

RES CHIP 1608 1/10W J 0 Ω or RRXA000YF002

RES CHIP 1608 1/10W 0 Ω RRJ000WAL002

R737 CHIP RES. 1/10W J 330k Ω or RRXAJR5Z0334

RES CHIP 1608 1/10W J 330k Ω or RRXA334YF002

RES CHIP 1608 1/10W J 330k Ω RRJ334WAL002

R738 CHIP RES.(1608) 1/10W 0 Ω or RRXAZR5Z0000

RES CHIP 1608 1/10W J 0 Ω or RRXA000YF002

RES CHIP 1608 1/10W 0 Ω RRJ000WAL002

R739 CHIP RES.(1608) 1/10W 0 Ω or RRXAZR5Z0000

RES CHIP 1608 1/10W J 0 Ω or RRXA000YF002

RES CHIP 1608 1/10W 0 Ω RRJ000WAL002

R740 CHIP RES.(1608) 1/10W 0 Ω or RRXAZR5Z0000

RES CHIP 1608 1/10W J 0 Ω or RRXA000YF002

RES CHIP 1608 1/10W 0 Ω RRJ000WAL002

R741 CHIP RES.(1608) 1/10W 0 Ω or RRXAZR5Z0000

RES CHIP 1608 1/10W J 0 Ω or RRXA000YF002

RES CHIP 1608 1/10W 0 Ω RRJ000WAL002

R742 CHIP RES.(1608) 1/10W 0 Ω or RRXAZR5Z0000

RES CHIP 1608 1/10W J 0 Ω or RRXA000YF002

RES CHIP 1608 1/10W 0 Ω RRJ000WAL002

R743 CHIP RES.(1608) 1/10W 0 Ω or RRXAZR5Z0000

RES CHIP 1608 1/10W J 0 Ω or RRXA000YF002

RES CHIP 1608 1/10W 0 Ω RRJ000WAL002

R744 CHIP RES.(1608) 1/10W 0 Ω or RRXAZR5Z0000

RES CHIP 1608 1/10W J 0 Ω or RRXA000YF002

RES CHIP 1608 1/10W 0 Ω RRJ000WAL002

R745 CHIP RES.(1608) 1/10W 0 Ω or RRXAZR5Z0000

RES CHIP 1608 1/10W J 0 Ω or RRXA000YF002

RES CHIP 1608 1/10W 0 Ω RRJ000WAL002

MISCELLANEOUS

AC601! CORD W/O A GND WIRE CEE/1760/NON-

! CORD W/O A GND WIRE CEE/1650/NON-

ANTITRA or

ANTITRA or

WAE172LTE003

WAE162ZHN001

20101216 15-8 A0CN6/N7EL

Ref. No. Description Part No.

! CORD W/O A GND WIRE CEE/1690/NON-

B26 HEAT SINK PNH A0CN6EP 1EM329979

BC601 BEADS INDUCTOR FBR07HA121SB-00 or LLBF00STU030

BC602 BEADS INDUCTOR FBR07HA121SB-00 or LLBF00STU030

BC603 BEADS INDUCTOR FBR07HA121SB-00 or LLBF00STU030

F501 CHIP RES.(1608) 1/10W 0 Ω or RRXAZR5Z0000

F502 FUSE CHIP FMC16102AHTP PDDFMC0KE102

F503 CHIP RES.(1608) 1/10W 0 Ω or RRXAZR5Z0000

F601! FUSE 4A/250V(PB FREE) 0215004.MXP PBGZ20BAG021

FH601 FUSE HOLDER MSF-015 LF (B110) XH01Z00LY002

FH602 FUSE HOLDER MSF-015 LF (B110) XH01Z00LY002

L17 SCREW B-TIGHT D3X8 BIND HEAD+ GBJB3080

JW501 CHIP RES.(3216) 1/4W J 0 Ω or RRX4JR7Z0000

JW502 CHIP RES.(3216) 1/4W J 0 Ω or RRX4JR7Z0000

JW504 CHIP RES.(3216) 1/4W J 0 Ω or RRX4JR7Z0000

SA601! SURGE ABSORBER 470V+-10PER or NVQZ10D471KB

! VARISTOR 10D 471K SVR or NVQZVR10D471

! VARISTOR/Q TVR10471KS42Y NVQKTVR10471

T601! TRANS POWER BCK-35-0854 LTT3PE0XB065

TM601 EYELET TYPE D-1 0VM406868

TM602 EYELET TYPE D-1 0VM406868

ANTITRA

BEAD INDUCTOR B29 RID 2.3X7.5X7.5T LLEF0S0XM002

BEAD INDUCTOR B29 RID 2.3X7.5X7.5T LLEF0S0XM002

BEAD INDUCTOR B29 RID 2.3X7.5X7.5T LLEF0S0XM002

RES CHIP 1608 1/10W J 0 Ω or RRXA000YF002

RES CHIP 1608 1/10W 0 Ω RRJ000WAL002

RES CHIP 1608 1/10W J 0 Ω or RRXA000YF002

RES CHIP 1608 1/10W 0 Ω RRJ000WAL002

RES CHIP 3216 1/4W J 0 Ω RRX4000YF004

RES CHIP 3216 1/4W J 0 Ω RRX4000YF004

RES CHIP 3216 1/4W J 0 Ω RRX4000YF004

WAE1620LW001

JACK ASSEMBLY

Ref. No. Mark Description Part No.

ABJACK ASSEMBLY

JACK ASSEMBLY
Consists of the following:

JACK CBA
FUNCTION CBA
IR SENSOR CBA

JACK CBA

Ref. No. Mark Description Part No.

JACK CBA
Consists of the following:

CAPACITORS

C10 CHIP RES.(1608) 1/10W 0 Ω or RRXAZR5Z0000

RES CHIP 1608 1/10W J 0 Ω or RRXA000YF002

RES CHIP 1608 1/10W 0 Ω RRJ000WAL002

C12 CHIP RES.(1608) 1/10W 0 Ω or RRXAZR5Z0000

RES CHIP 1608 1/10W J 0 Ω or RRXA000YF002

RES CHIP 1608 1/10W 0 Ω RRJ000WAL002

C17 CHIP CERAMIC CAP.(1608) CH J 100pF/

C19 CHIP RES.(1608) 1/10W 0 Ω or RRXAZR5Z0000

C22 ELECTROLYTIC CAP. 100µF/10V M H7 or CE1AMAVSL101

C23 CHIP CERAMIC CAP. F Z 1µF/10V or CHD1AZ30F105

C24 CHIP CERAMIC CAP.(1608) CH J 100pF/

C25 CHIP CERAMIC CAP. CH J 39pF/50V CHD1JJ3CH390

C27 CHIP RES.(1608) 1/10W 0 Ω or RRXAZR5Z0000

50V or

CAP CHIP 1608 J/C0G/100pF/50V CHD101EYA030

RES CHIP 1608 1/10W J 0 Ω or RRXA000YF002

RES CHIP 1608 1/10W 0 Ω RRJ000WAL002

CAP ELE 100µF/10V/M/85 H7 CEB101KSN003

CAP CHIP 1608 Z/Y5V/1µF/10V CHD105EYA052

50V or

CAP CHIP 1608 J/C0G/100pF/50V CHD101EYA030

A0CN6MJC-001
A0CN7MJC-001

----------

----------

----------

----------

CHD1JJ3CH101

CHD1JJ3CH101

Ref. No. Mark Description Part No.

RES CHIP 1608 1/10W J 0 Ω or RRXA000YF002

RES CHIP 1608 1/10W 0 Ω RRJ000WAL002

C28 CHIP RES.(1608) 1/10W 0 Ω or RRXAZR5Z0000

RES CHIP 1608 1/10W J 0 Ω or RRXA000YF002

RES CHIP 1608 1/10W 0 Ω RRJ000WAL002

C121 CHIP CERAMIC CAP.(1608) CH J

C122 CHIP CERAMIC CAP.(1608) CH J

C123 CHIP CERAMIC CAP.(1608) F Z 0.1µF/

C201 CHIP CERAMIC CAP.(1608) B K 1µF/10V orCHD1AK30B105

C202 B CHIP CERAMIC CAP.(1608) B K 1µF/10V orCHD1AK30B105

C203 B CHIP CERAMIC CAP.(1608) CH J 33pF/

C221 CHIP CERAMIC CAP. CH J 330pF/50V or CHD1JJ3CH331

C222 CHIP CERAMIC CAP. CH J 330pF/50V or CHD1JJ3CH331

C223 CHIP CERAMIC CAP. CH J 330pF/50V or CHD1JJ3CH331

C224 CHIP CERAMIC CAP. CH J 330pF/50V or CHD1JJ3CH331

C229 CHIP CERAMIC CAP.(1608) B K 0.047µF/

C230 CHIP CERAMIC CAP.(1608) B K 0.047µF/

C301 CHIP CERAMIC CAP.(1608) CH J 33pF/

C302 CHIP CERAMIC CAP.(1608) CH J 33pF/

C308 CHIP CERAMIC CAP.(1608) CH J 100pF/

C309 CHIP CERAMIC CAP.(1608) CH J 100pF/

C310 ELECTROLYTIC CAP. 220µF/6.3V M H7 orCE0KMAVSL221

C317 CHIP CERAMIC CAP.(1608) CH J 33pF/

C318 CHIP CERAMIC CAP.(1608) CH J 33pF/

C325 CHIP CERAMIC CAP. CH J 330pF/50V or CHD1JJ3CH331

C326 CHIP CERAMIC CAP. CH J 330pF/50V or CHD1JJ3CH331

C328 CHIP CERAMIC CAP.(1608) CH J 47pF/

C351 ELECTROLYTIC CAP. 100µF/16V M H7 or CE1CMAVSL101

C352 CHIP CERAMIC CAP.(1608) B K 0.01µF/

C353 CHIP CERAMIC CAP.(1608) F Z 0.1µF/

C354 CHIP CERAMIC CAP. (1608) B K 1µF/16V CHD1CK30B105

1000pF/50V or

CAP CHIP 1608 J/C0G/0.001µF/50V CHD102EYA030

1000pF/50V or

CAP CHIP 1608 J/C0G/0.001µF/50V CHD102EYA030

50V or

CAP CHIP 1608 Z/Y5V/0.1µF/50V CHD104EYA036

CAP CHIP 1608 K/X5R/1µF/10V CHD105EYA048

B CAP CHIP 1608 K/X5R/1µF/10V CHD105EYA048

50V or

B CAP CHIP 1608 J/C0G/33pF/50V CHD330EYA030

CAP CHIP 1608 J/C0G/330pF/50V CHD331EYA030

CAP CHIP 1608 J/C0G/330pF/50V CHD331EYA030

CAP CHIP 1608 J/C0G/330pF/50V CHD331EYA030

CAP CHIP 1608 J/C0G/330pF/50V CHD331EYA030

50V or

CAP CHIP 1608 K/X7R/0.047µF/50V CHD473EYA032

50V or

CAP CHIP 1608 K/X7R/0.047µF/50V CHD473EYA032

50V or

CAP CHIP 1608 J/C0G/33pF/50V CHD330EYA030

50V or

CAP CHIP 1608 J/C0G/33pF/50V CHD330EYA030

50V or

CAP CHIP 1608 J/C0G/100pF/50V CHD101EYA030

50V or

CAP CHIP 1608 J/C0G/100pF/50V CHD101EYA030

CAP ELE 220µF/6.3V/M/85 H7 CEA221KSN003

50V or

CAP CHIP 1608 J/C0G/33pF/50V CHD330EYA030

50V or

CAP CHIP 1608 J/C0G/33pF/50V CHD330EYA030

CAP CHIP 1608 J/C0G/330pF/50V CHD331EYA030

CAP CHIP 1608 J/C0G/330pF/50V CHD331EYA030

50V or

CAP CHIP 1608 J/C0G/47pF/50V CHD470EYA030

CAP ELE 100µF/16V/M/85 H7 CEC101KSN003

50V or

CAP CHIP 1608 K/X7R/0.01µF/50V CHD103EYA032

50V or

CAP CHIP 1608 Z/Y5V/0.1µF/50V CHD104EYA036

CHD1JJ3CH102

CHD1JJ3CH102

CHD1JZ30F104

CHD1JJ3CH330

CHD1JK30B473

CHD1JK30B473

CHD1JJ3CH330

CHD1JJ3CH330

CHD1JJ3CH101

CHD1JJ3CH101

CHD1JJ3CH330

CHD1JJ3CH330

CHD1JJ3CH470

CHD1JK30B103

CHD1JZ30F104

20101216 15-9 A0CN6/N7EL

Ref. No. Mark Description Part No.

C402 ELECTROLYTIC CAP. 47µF/25V M H7 or CE1EMAVSL470

CAP ELE 47µF/25V/M/85 H7 CED470KSN003

C403 CHIP CERAMIC CAP.(1608) F Z 0.1µF/

C405 CHIP CERAMIC CAP.(1608) F Z 0.1µF/

C408 CHIP CERAMIC CAP.(1608) F Z 0.1µF/

C409 ELECTROLYTIC CAP. 47µF/25V M H7 or CE1EMAVSL470

C410 CHIP CERAMIC CAP.(1608) B K 0.1µF/

C411 CHIP CERAMIC CAP. (1608) B K 1µF/16V CHD1CK30B105

C412 CHIP CERAMIC CAP.(1608) CH J

C419 ELECTROLYTIC CAP. 47µF/25V M H7 or CE1EMAVSL470

C801 CHIP CERAMIC CAP.(1608) B K 1000pF/

C802 CHIP CERAMIC CAP.(1608) B K 1000pF/

C803 CHIP CERAMIC CAP.(1608) B K 0.1µF/

C804 CHIP CERAMIC CAP.(1608) CH J

C805 CHIP CERAMIC CAP. (1608) B K 1µF/16V CHD1CK30B105

C806 CHIP CERAMIC CAP. (1608) B K 1µF/16V CHD1CK30B105

C807 CHIP CERAMIC CAP.(1608) B K 0.1µF/

C808 CHIP CERAMIC CAP.(1608) B K 0.1µF/

C809 CHIP CERAMIC CAP.(1608) B K 0.1µF/

C810 CHIP CERAMIC CAP.(1608) B K 0.1µF/

C811 CHIP CERAMIC CAP.(1608) B K 0.1µF/

C812 CHIP CERAMIC CAP.(1608) B K 0.1µF/

C813 CHIP CERAMIC CAP. (1608) B K 1µF/16V CHD1CK30B105

C814 CAP CHIP 3216 B M 10µF/16V or CA1C106TE143

C815 CAP CHIP 3216 B M 10µF/16V or CA1C106TE143

C816 CAP CHIP 3216 B M 10µF/16V or CA1C106TE143

C817 CHIP CERAMIC CAP.(1608) B K 0.1µF/

C818 CHIP RES.(1608) 1/10W 0 Ω or RRXAZR5Z0000

C821 CHIP RES.(1608) 1/10W 0 Ω or RRXAZR5Z0000

C822 CHIP CERAMIC CAP.(1608) B K 0.1µF/

C823 CHIP CERAMIC CAP.(1608) B K 0.1µF/

50V or

CAP CHIP 1608 Z/Y5V/0.1µF/50V CHD104EYA036

50V or

CAP CHIP 1608 Z/Y5V/0.1µF/50V CHD104EYA036

50V or

CAP CHIP 1608 Z/Y5V/0.1µF/50V CHD104EYA036

CAP ELE 47µF/25V/M/85 H7 CED470KSN003

16V

1000pF/50V or

CAP CHIP 1608 J/C0G/0.001µF/50V CHD102EYA030

CAP ELE 47µF/25V/M/85 H7 CED470KSN003

50V or

CAP CHIP 1608 K/X7R/0.001µF/50V CHD102EYA032

50V or

CAP CHIP 1608 K/X7R/0.001µF/50V CHD102EYA032

50V or

CAP CHIP 1608 K/X7R/0.1µF/50V CHD104EYA032

1000pF/50V or

CAP CHIP 1608 J/C0G/0.001µF/50V CHD102EYA030

50V or

CAP CHIP 1608 K/X7R/0.1µF/50V CHD104EYA032

50V or

CAP CHIP 1608 K/X7R/0.1µF/50V CHD104EYA032

50V or

CAP CHIP 1608 K/X7R/0.1µF/50V CHD104EYA032

50V or

CAP CHIP 1608 K/X7R/0.1µF/50V CHD104EYA032

50V or

CAP CHIP 1608 K/X7R/0.1µF/50V CHD104EYA032

50V or

CAP CHIP 1608 K/X7R/0.1µF/50V CHD104EYA032

CHIP CERAMIC CAP. B K 10µF/16V CHF1CK30B106

CHIP CERAMIC CAP. B K 10µF/16V CHF1CK30B106

CHIP CERAMIC CAP. B K 10µF/16V CHF1CK30B106

16V

RES CHIP 1608 1/10W J 0 Ω or RRXA000YF002

RES CHIP 1608 1/10W 0 Ω RRJ000WAL002

RES CHIP 1608 1/10W J 0 Ω or RRXA000YF002

RES CHIP 1608 1/10W 0 Ω RRJ000WAL002

50V or

CAP CHIP 1608 K/X7R/0.1µF/50V CHD104EYA032

50V or

CAP CHIP 1608 K/X7R/0.1µF/50V CHD104EYA032

CHD1JZ30F104

CHD1JZ30F104

CHD1JZ30F104

CHD1CK30B104

CHD1JJ3CH102

CHD1JK30B102

CHD1JK30B102

CHD1JK30B104

CHD1JJ3CH102

CHD1JK30B104

CHD1JK30B104

CHD1JK30B104

CHD1JK30B104

CHD1JK30B104

CHD1JK30B104

CHD1CK30B104

CHD1JK30B104

CHD1JK30B104

Ref. No. Mark Description Part No.

C824 CAP ELE KR1 220µF/35V/M/85 H9.0 CEM221KSN014

C825 CAP ELE KR1 220µF/35V/M/85 H9.0 CEM221KSN014

C826 CAP CHIP 3216 B M 10µF/16V or CA1C106TE143

CHIP CERAMIC CAP. B K 10µF/16V CHF1CK30B106

C827 CAP ELE KR1 220µF/35V/M/85 H9.0 CEM221KSN014

C829 CHIP CERAMIC CAP.(1608) B K 0.01µF/

C830 CAP ELE KR1 220µF/35V/M/85 H9.0 CEM221KSN014

C831 CAP ELE KR1 220µF/35V/M/85 H9.0 CEM221KSN014

C901 CHIP CERAMIC CAP.(1608) F Z 0.1µF/

C902 ELECTROLYTIC CAP. 220µF/6.3V M H7 orCE0KMAVSL221

C903 CHIP CERAMIC CAP.(1608) F Z 0.1µF/

C904 ELECTROLYTIC CAP. 220µF/6.3V M H7 orCE0KMAVSL221

C905 CHIP CERAMIC CAP.(1608) F Z 0.1µF/

C906 ELECTROLYTIC CAP. 220µF/6.3V M H7 orCE0KMAVSL221

C907 CAP ELE KR1 220µF/35V/M/85 H9.0 CEM221KSN014

C909 CHIP CERAMIC CAP.(1608) F Z 0.1µF/

C910 ELECTROLYTIC CAP. 10µF/50V M H7 or CE1JMAVSL100

C913 CHIP CERAMIC CAP.(1608) B K 0.01µF/

C918 CHIP CERAMIC CAP.(1608) B K 0.01µF/

C919 CHIP CERAMIC CAP.(1608) B K 0.01µF/

C920 CHIP CERAMIC CAP.(1608) B K 0.01µF/

C921 CHIP CERAMIC CAP.(1608) F Z 0.1µF/

C922 ELECTROLYTIC CAP. 220µF/10V M H7 or CE1AMAVSL221

C925 CHIP CERAMIC CAP.(1608) F Z 0.1µF/

C926 CHIP CERAMIC CAP.(1608) F Z 0.1µF/

C927 CHIP CERAMIC CAP.(1608) F Z 0.1µF/

C928 CHIP CERAMIC CAP.(1608) F Z 0.1µF/

C929 CHIP CERAMIC CAP.(1608) F Z 0.1µF/

50V or

CAP CHIP 1608 K/X7R/0.01µF/50V CHD103EYA032

50V or

CAP CHIP 1608 Z/Y5V/0.1µF/50V CHD104EYA036

CAP ELE 220µF/6.3V/M/85 H7 CEA221KSN003

50V or

CAP CHIP 1608 Z/Y5V/0.1µF/50V CHD104EYA036

CAP ELE 220µF/6.3V/M/85 H7 CEA221KSN003

50V or

CAP CHIP 1608 Z/Y5V/0.1µF/50V CHD104EYA036

CAP ELE 220µF/6.3V/M/85 H7 CEA221KSN003

50V or

CAP CHIP 1608 Z/Y5V/0.1µF/50V CHD104EYA036

CAP ELE 10µF/50V/M/85 H7 CEF100KSN003

50V or

CAP CHIP 1608 K/X7R/0.01µF/50V CHD103EYA032

50V or

CAP CHIP 1608 K/X7R/0.01µF/50V CHD103EYA032

50V or

CAP CHIP 1608 K/X7R/0.01µF/50V CHD103EYA032

50V or

CAP CHIP 1608 K/X7R/0.01µF/50V CHD103EYA032

50V or

CAP CHIP 1608 Z/Y5V/0.1µF/50V CHD104EYA036

CAP ELE 220µF/10V/M/85 H7 CEB221KSN003

50V or

CAP CHIP 1608 Z/Y5V/0.1µF/50V CHD104EYA036

50V or

CAP CHIP 1608 Z/Y5V/0.1µF/50V CHD104EYA036

50V or

CAP CHIP 1608 Z/Y5V/0.1µF/50V CHD104EYA036

50V or

CAP CHIP 1608 Z/Y5V/0.1µF/50V CHD104EYA036

50V or

CAP CHIP 1608 Z/Y5V/0.1µF/50V CHD104EYA036

CHD1JK30B103

CHD1JZ30F104

CHD1JZ30F104

CHD1JZ30F104

CHD1JZ30F104

CHD1JK30B103

CHD1JK30B103

CHD1JK30B103

CHD1JK30B103

CHD1JZ30F104

CHD1JZ30F104

CHD1JZ30F104

CHD1JZ30F104

CHD1JZ30F104

CHD1JZ30F104

CONNECTORS

CN103 PH CONNECTOR TOP 6P B6B-PH-K-S

CN801 CONNECTOR PRINT OSU TOP 2P

(LF)(SN) or

CONNECTOR PRINT OSU JS-1125­06(K)

440054-2 or

CONNECTOR PRINT OSU JS-1125­02KK or

J3PHC06JG029

J3JT06CHY001

J344C02AP001

J3JT02CHY002

20101216 15-10 A0CN6/N7EL

Ref. No. Mark Description Part No.

PH CONNECTOR TOP 2P B2B-PH-K-S
(LF)(SN)

CN901 FFC CONNECTOR IMSA-9615S-39A-PP-AJC96J39ER007

CN902 FFC CONNECTOR IMSA-9615S-11A-PP-

CN904 FFC CONNECTOR IMSA-9615S-29A-PP-

CN905 FFC CONNECTOR IMSA-9615S-29A-PP-

CN906 FFC CONNECTOR IMSA-9615S-29A-PP-

CN907 FFC CONNECTOR IMSA-9615S-29A-PP-

A or

CONNECTOR PRINT MES 00 6232 011
006 800+ or

CONNECTOR PRINT MES 11 S 1.0-11­11P

A or

CONNECTOR PRINT MES 00 6232 029
006 800+ or

CONNECTOR PRINT MES 29 S 1.0-11­29P

A or

CONNECTOR PRINT MES 00 6232 029
006 800+ or

CONNECTOR PRINT MES 29 S 1.0-11­29P

A or

CONNECTOR PRINT MES 00 6232 029
006 800+ or

CONNECTOR PRINT MES 29 S 1.0-11­29P

A or

CONNECTOR PRINT MES 00 6232 029
006 800+ or

CONNECTOR PRINT MES 29 S 1.0-11­29P

J3PHC02JG029

JC96J11ER007

JC62G11UG026

JC1111JSH001

JC96J29ER007

JC62G29UG026

JC1129JSH001

JC96J29ER007

JC62G29UG026

JC1129JSH001

JC96J29ER007

JC62G29UG026

JC1129JSH001

JC96J29ER007

JC62G29UG026

JC1129JSH001

DIODES

D106 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

DIODE SWITCHING HSS4148TE-E or QDTZ0HSS4148

DIODE SWITCHING 1N4148-F0021 NDTZ01N4148F

D303 DIODE ZENER 5V6BSB-T26 or NDTB5R6BST26

DIODE ZENER HZS5.6NB2TE-EQ QDTB0HZS5R6N

D305 DIODE ZENER 5V6BSB-T26 or NDTB5R6BST26

DIODE ZENER HZS5.6NB2TE-EQ QDTB0HZS5R6N

D307 DIODE ZENER 5V6BSB-T26 or NDTB5R6BST26

DIODE ZENER HZS5.6NB2TE-EQ QDTB0HZS5R6N

D309 DIODE ZENER 3V9BSB-T26 or NDTB3R9BST26

DIODE ZENER HZS3.9NB2TE-EQ QDTB0HZS3R9N

D311 DIODE ZENER 5V6BSB-T26 or NDTB5R6BST26

DIODE ZENER HZS5.6NB2TE-EQ QDTB0HZS5R6N

D321 DIODE ZENER 5V6BSB-T26 or NDTB5R6BST26

DIODE ZENER HZS5.6NB2TE-EQ QDTB0HZS5R6N

D322 DIODE ZENER 5V6BSB-T26 or NDTB5R6BST26

DIODE ZENER HZS5.6NB2TE-EQ QDTB0HZS5R6N

D323 DIODE ZENER 5V6BSB-T26 or NDTB5R6BST26

DIODE ZENER HZS5.6NB2TE-EQ QDTB0HZS5R6N

D802 DIODE ZENER 33BSB-T26 or NDTB033BST26

DIODE ZENER HZS33NB2TE-EQ QDTBHZS33NB2

D803 DIODE ZENER 33BSB-T26 or NDTB033BST26

DIODE ZENER HZS33NB2TE-EQ QDTBHZS33NB2

ICS

IC401 IC TL3472CDR or NSZBA0TTY115

IC MC34072L-S08-R QSZBA0TUTC01

IC801 IC D-CLASS POWER AMPLIFER

R2A15122FP-W00R/HQFP

QSCA0T0HT005

COILS

L11 INDUCTOR 10µH-K-5FT LLARKBSTU100

L12 CHIP RES.(1608) 1/10W 0 Ω or RRXAZR5Z0000

RES CHIP 1608 1/10W J 0 Ω or RRXA000YF002

RES CHIP 1608 1/10W 0 Ω RRJ000WAL002

L13 CHIP RES.(1608) 1/10W 0 Ω or RRXAZR5Z0000

RES CHIP 1608 1/10W J 0 Ω or RRXA000YF002

RES CHIP 1608 1/10W 0 Ω RRJ000WAL002

L15 INDUCTOR 1.0µH-J-26T LLAXJATTU010

L201 WIRE CP STP-S-0.50 or XZ40F0REN001

Ref. No. Mark Description Part No.

WIRE CP STP-S-0.60 or XZ40F0REN002

WIRE CP 6113-05603-0220 or XZ40F0SHG001

WIRE CP CP0.56 XZ40F0XRC001

L202 INDUCTOR 4.7µH-J-26T LLAXJATTU4R7

L203 INDUCTOR 4.7µH-J-26T LLAXJATTU4R7

L801 COIL RADIAL LHLP10NB680M 68µH LLF6800TU003

L802 COIL RADIAL LHLP10NB680M 68µH LLF6800TU003

L803 INDUCTOR 22µH-J-26T LLAXJATTU220

L903 INDUCTOR 0.22µH-J-26T LLAXJATTUR22

L904 INDUCTOR 0.22µH-J-26T LLAXJATTUR22

L905 INDUCTOR 0.22µH-J-26T LLAXJATTUR22

TRANSISTORS

Q101 TRANSISTOR KTA1267-GR-AT/P or NQS1KTA1267P

TRANSISTOR KTA-1266-GR-AT/P or NQS4KTA1266P

TRANSISTOR 2SA1015-Y(TE2 F T) or QQSY2SA1015F

TRANSISTOR 2SA1015-GR(TE2 F T) or QQS12SA1015F

PNP TRANSISTOR 2SA1980Y-AT or NQSY02SA1980

PNP TRANSISTOR 2SA1980 G or NQSG02SA1980

PNP TRANSISTOR 2SA1980M Y or NQSY2SA1980M

PNP TRANSISTOR 2SA1980MG-AT NQSG2SA1980M

Q352 TRANSISTOR KTA1267-GR-AT/P or NQS1KTA1267P

TRANSISTOR KTA-1266-GR-AT/P or NQS4KTA1266P

TRANSISTOR 2SA1015-Y(TE2 F T) or QQSY2SA1015F

TRANSISTOR 2SA1015-GR(TE2 F T) or QQS12SA1015F

PNP TRANSISTOR 2SA1980Y-AT or NQSY02SA1980

PNP TRANSISTOR 2SA1980 G or NQSG02SA1980

PNP TRANSISTOR 2SA1980M Y or NQSY2SA1980M

PNP TRANSISTOR 2SA1980MG-AT NQSG2SA1980M

Q401 TRANSISTOR KTC3198-Y-AT/P or NQSYKTC3198P

TRANSISTOR KTC3199-GR-AT/P or NQS4KTC3199P

TRANSISTOR KTC3198-GR-AT/P or NQS4KTC3198P

TRANSISTOR 2SC1815-Y(TE2 F T) or QQSY2SC1815F

TRANSISTOR 2SC1815-GR(TE2 F T) or QQS12SC1815F

NPN TRANSISTOR 2SC5343Y-AT or NQSY02SC5343

NPN TRANSISTOR 2SC5343G-AT or NQSG02SC5343

NPN TRANSISTOR 2SC5343MG-AT or NQSG2SC5343M

NPN TRANSISTOR 2SC5343M Y NQSY2SC5343M

Q402 TRANSISTOR 2SC2655-Y(TE6 F M) QQSY2SC2655F

Q403 TRANSISTOR 2SA1020-Y(TE6 F M) or QQSY2SA1020F

TRANSISTOR KTA1281-Y-AT/P NQVYKTA1281P

Q802 NPN TRANSISTOR SMD

Q803 CHIP TRANSISTOR KTA1504S-Y-RTK/P orNQ1YKTA1504S

Q804 NPN TRANSISTOR SMD

2SC4081UBTLQ or

NPN TRANSISTOR SMD
2SC4081UBTLR or

TRANSISTOR KTC4075-GR-RTK/P or NQ14KTC4075P

NPN TRANSISTORS 2SC4154-T111-1E orQQ1E02SC4154

NPN TRANSISTORS 2SC4154-T111-1F orQQ1F02SC4154

NPN TRANSISTORS 2SC4154-T111-1G orQQ1G02SC4154

NPN TRANSISTOR SMD 2SC5343UFO orNQ102SC5343U

NPN TRANSISTOR SMD 2SC5343UFY orNQ1Y2SC5343U

NPN TRANSISTOR SMD 2SC5343UFG orNQ1G2SC5343U

NPN TRANSISTOR SMD 2SC5343UFL NQ1L2SC5343U

CHIP TRANSISTOR KTA1504S-GR-RTK/
P or

PNP TRANSISTOR SMD 2SA1980SFY or NQ1Y2SA1980S

PNP TRANSISTOR SMD 2SA1980SFG orNQ1G2SA1980S

PNP TRANSISTOR EPITAXIAL SMD
ISA1530AC1-T112U-1Q

2SC4081UBTLQ or

NPN TRANSISTOR SMD
2SC4081UBTLR or

TRANSISTOR KTC4075-GR-RTK/P or NQ14KTC4075P

QQ1Q2SC4081U

QQ1R2SC4081U

NQ14KTA1504S

QQ1Q1SA1530A

QQ1Q2SC4081U

QQ1R2SC4081U

20101216 15-11 A0CN6/N7EL

Ref. No. Mark Description Part No.

NPN TRANSISTORS 2SC4154-T111-1E orQQ1E02SC4154

NPN TRANSISTORS 2SC4154-T111-1F orQQ1F02SC4154

NPN TRANSISTORS 2SC4154-T111-1G orQQ1G02SC4154

NPN TRANSISTOR SMD 2SC5343UFO orNQ102SC5343U

NPN TRANSISTOR SMD 2SC5343UFY orNQ1Y2SC5343U

NPN TRANSISTOR SMD 2SC5343UFG orNQ1G2SC5343U

NPN TRANSISTOR SMD 2SC5343UFL NQ1L2SC5343U

Q805 CHIP TRANSISTOR KTA1504S-Y-RTK/P orNQ1YKTA1504S

CHIP TRANSISTOR KTA1504S-GR-RTK/
P or

PNP TRANSISTOR SMD 2SA1980SFY or NQ1Y2SA1980S

PNP TRANSISTOR SMD 2SA1980SFG orNQ1G2SA1980S

PNP TRANSISTOR EPITAXIAL SMD
ISA1530AC1-T112U-1Q

NQ14KTA1504S

QQ1Q1SA1530A

RESISTORS

R10 CHIP RES. 1/10W J 56 Ω or RRXAJR5Z0560

RES CHIP 1608 1/10W J 56 Ω or RRXA560YF002

RES CHIP 1608 1/10W J 56 Ω RRJ560WAL002

R11 CHIP RES.(1608) 1/10W 0 Ω or RRXAZR5Z0000

RES CHIP 1608 1/10W J 0 Ω or RRXA000YF002

RES CHIP 1608 1/10W 0 Ω RRJ000WAL002

R13 CHIP RES. 1/10W J 75 Ω or RRXAJR5Z0750

RES CHIP 1608 1/10W J 75 Ω or RRXA750YF002

RES CHIP 1608 1/10W J 75 Ω RRJ750WAL002

R21 CHIP RES.(1608) 1/10W 0 Ω or RRXAZR5Z0000

RES CHIP 1608 1/10W J 0 Ω or RRXA000YF002

RES CHIP 1608 1/10W 0 Ω RRJ000WAL002

R22 CHIP RES. 1/10W J 12k Ω or RRXAJR5Z0123

RES CHIP 1608 1/10W J 12k Ω or RRXA123YF002

RES CHIP 1608 1/10W J 12k Ω RRJ123WAL002

R25 CHIP RES. 1/10W J 100 Ω or RRXAJR5Z0101

RES CHIP 1608 1/10W J 100 Ω or RRXA101YF002

RES CHIP 1608 1/10W J 100 Ω RRJ101WAL002

R26 CHIP RES. 1/10W J 100 Ω or RRXAJR5Z0101

RES CHIP 1608 1/10W J 100 Ω or RRXA101YF002

RES CHIP 1608 1/10W J 100 Ω RRJ101WAL002

R27 CHIP RES.(1608) 1/10W 0 Ω or RRXAZR5Z0000

RES CHIP 1608 1/10W J 0 Ω or RRXA000YF002

RES CHIP 1608 1/10W 0 Ω RRJ000WAL002

R28 CHIP RES.(1608) 1/10W 0 Ω or RRXAZR5Z0000

RES CHIP 1608 1/10W J 0 Ω or RRXA000YF002

RES CHIP 1608 1/10W 0 Ω RRJ000WAL002

R29 CHIP RES.(1608) 1/10W 0 Ω or RRXAZR5Z0000

RES CHIP 1608 1/10W J 0 Ω or RRXA000YF002

RES CHIP 1608 1/10W 0 Ω RRJ000WAL002

R33 CHIP RES. 1/10W J 270 Ω or RRXAJR5Z0271

RES CHIP 1608 1/10W J 270 Ω or RRXA271YF002

RES CHIP 1608 1/10W J 270 Ω RRJ271WAL002

R102 CHIP RES. 1/10W J 22k Ω or RRXAJR5Z0223

RES CHIP 1608 1/10W J 22k Ω or RRXA223YF002

RES CHIP 1608 1/10W J 22k Ω RRJ223WAL002

R121 CHIP RES. 1/10W J 10 Ω or RRXAJR5Z0100

RES CHIP 1608 1/10W J 10 Ω or RRXA100YF002

RES CHIP 1608 1/10W J 10 Ω RRJ100WAL002

R122 CHIP RES. 1/10W J 10k Ω or RRXAJR5Z0103

RES CHIP 1608 1/10W J 10k Ω or RRXA103YF002

RES CHIP 1608 1/10W J 10k Ω RRJ103WAL002

R123 CHIP RES. 1/10W J 1k Ω or RRXAJR5Z0102

RES CHIP 1608 1/10W J 1.0k Ω or RRXA102YF002

RES CHIP 1608 1/10W J 1.0k Ω RRJ102WAL002

R201 B RES CARBON FILM T 1/4W J 270 Ω or RCX4271T1001

B RES CARBON FILM 1/4W J 270 Ω or RCX4271FS002

B RES CARBON FILM 1/4W J 270 Ω RCJ271PAK001

Ref. No. Mark Description Part No.

R202 RES CARBON FILM T 1/4W J 470 Ω or RCX4471T1001

RES CARBON FILM 1/4W J 470 Ω or RCX4471FS002

RES CARBON FILM 1/4W J 470 Ω RCJ471PAK001

R203 B CHIP RES. 1/10W J 1.8k Ω or RRXAJR5Z0182

B RES CHIP 1608 1/10W J 1.8k Ω or RRXA182YF002

B RES CHIP 1608 1/10W J 1.8k Ω RRJ182WAL002

R204 CHIP RES.(1608) 1/10W 0 Ω or RRXAZR5Z0000

RES CHIP 1608 1/10W J 0 Ω or RRXA000YF002

RES CHIP 1608 1/10W 0 Ω RRJ000WAL002

R206 WIRE CP STP-S-0.50 or XZ40F0REN001

WIRE CP STP-S-0.60 or XZ40F0REN002

WIRE CP 6113-05603-0220 or XZ40F0SHG001

WIRE CP CP0.56 XZ40F0XRC001

R208 WIRE CP STP-S-0.50 or XZ40F0REN001

WIRE CP STP-S-0.60 or XZ40F0REN002

WIRE CP 6113-05603-0220 or XZ40F0SHG001

WIRE CP CP0.56 XZ40F0XRC001

R210 WIRE CP STP-S-0.50 or XZ40F0REN001

WIRE CP STP-S-0.60 or XZ40F0REN002

WIRE CP 6113-05603-0220 or XZ40F0SHG001

WIRE CP CP0.56 XZ40F0XRC001

R227 RES CARBON FILM T 1/4W J 15k Ω or RCX4153T1001

RES CARBON FILM 1/4W J 15k Ω or RCX4153FS002

RES CARBON FILM 1/4W J 15k Ω RCJ153PAK001

R228 RES CARBON FILM T 1/4W J 15k Ω or RCX4153T1001

RES CARBON FILM 1/4W J 15k Ω or RCX4153FS002

RES CARBON FILM 1/4W J 15k Ω RCJ153PAK001

R229 RES CARBON FILM T 1/4W J 15k Ω or RCX4153T1001

RES CARBON FILM 1/4W J 15k Ω or RCX4153FS002

RES CARBON FILM 1/4W J 15k Ω RCJ153PAK001

R230 RES CARBON FILM T 1/4W J 15k Ω or RCX4153T1001

RES CARBON FILM 1/4W J 15k Ω or RCX4153FS002

RES CARBON FILM 1/4W J 15k Ω RCJ153PAK001

R234 WIRE CP STP-S-0.50 or XZ40F0REN001

WIRE CP STP-S-0.60 or XZ40F0REN002

WIRE CP 6113-05603-0220 or XZ40F0SHG001

WIRE CP CP0.56 XZ40F0XRC001

R235 WIRE CP STP-S-0.50 or XZ40F0REN001

WIRE CP STP-S-0.60 or XZ40F0REN002

WIRE CP 6113-05603-0220 or XZ40F0SHG001

WIRE CP CP0.56 XZ40F0XRC001

R238 CHIP RES. 1/10W J 47k Ω or RRXAJR5Z0473

RES CHIP 1608 1/10W J 47k Ω or RRXA473YF002

RES CHIP 1608 1/10W J 47k Ω RRJ473WAL002

R239 CHIP RES. 1/10W J 47k Ω or RRXAJR5Z0473

RES CHIP 1608 1/10W J 47k Ω or RRXA473YF002

RES CHIP 1608 1/10W J 47k Ω RRJ473WAL002

R240 CHIP RES. 1/10W J 47k Ω or RRXAJR5Z0473

RES CHIP 1608 1/10W J 47k Ω or RRXA473YF002

RES CHIP 1608 1/10W J 47k Ω RRJ473WAL002

R241 CHIP RES. 1/10W J 47k Ω or RRXAJR5Z0473

RES CHIP 1608 1/10W J 47k Ω or RRXA473YF002

RES CHIP 1608 1/10W J 47k Ω RRJ473WAL002

R311 RES CARBON FILM T 1/4W J 560 Ω or RCX4561T1001

RES CARBON FILM 1/4W J 560 Ω or RCX4561FS002

RES CARBON FILM 1/4W J 560 Ω RCJ561PAK001

R313 RES CARBON FILM T 1/4W J 560 Ω or RCX4561T1001

RES CARBON FILM 1/4W J 560 Ω or RCX4561FS002

RES CARBON FILM 1/4W J 560 Ω RCJ561PAK001

R315 WIRE CP STP-S-0.50 or XZ40F0REN001

WIRE CP STP-S-0.60 or XZ40F0REN002

WIRE CP 6113-05603-0220 or XZ40F0SHG001

WIRE CP CP0.56 XZ40F0XRC001

R316 CHIP RES. 1/10W J 75 Ω or RRXAJR5Z0750

RES CHIP 1608 1/10W J 75 Ω or RRXA750YF002

RES CHIP 1608 1/10W J 75 Ω RRJ750WAL002

R317 RES CARBON FILM T 1/4W J 6.8k Ω or RCX4682T1001

20101216 15-12 A0CN6/N7EL

Ref. No. Mark Description Part No.

RES CARBON FILM 1/4W J 6.8k Ω or RCX4682FS002

RES CARBON FILM 1/4W J 6.8k Ω RCJ682PAK001

R318 CHIP RES. 1/10W J 2.2k Ω or RRXAJR5Z0222

RES CHIP 1608 1/10W J 2.2k Ω or RRXA222YF002

RES CHIP 1608 1/10W J 2.2k Ω RRJ222WAL002

R319 WIRE CP STP-S-0.50 or XZ40F0REN001

WIRE CP STP-S-0.60 or XZ40F0REN002

WIRE CP 6113-05603-0220 or XZ40F0SHG001

WIRE CP CP0.56 XZ40F0XRC001

R320 CHIP RES. 1/10W J 75 Ω or RRXAJR5Z0750

RES CHIP 1608 1/10W J 75 Ω or RRXA750YF002

RES CHIP 1608 1/10W J 75 Ω RRJ750WAL002

R321 RES CARBON FILM T 1/4W J 470 Ω or RCX4471T1001

RES CARBON FILM 1/4W J 470 Ω or RCX4471FS002

RES CARBON FILM 1/4W J 470 Ω RCJ471PAK001

R322 WIRE CP STP-S-0.50 or XZ40F0REN001

WIRE CP STP-S-0.60 or XZ40F0REN002

WIRE CP 6113-05603-0220 or XZ40F0SHG001

WIRE CP CP0.56 XZ40F0XRC001

R323 CHIP RES. 1/10W J 75 Ω or RRXAJR5Z0750

RES CHIP 1608 1/10W J 75 Ω or RRXA750YF002

RES CHIP 1608 1/10W J 75 Ω RRJ750WAL002

R324 WIRE CP STP-S-0.50 or XZ40F0REN001

WIRE CP STP-S-0.60 or XZ40F0REN002

WIRE CP 6113-05603-0220 or XZ40F0SHG001

WIRE CP CP0.56 XZ40F0XRC001

R326 WIRE CP STP-S-0.50 or XZ40F0REN001

WIRE CP STP-S-0.60 or XZ40F0REN002

WIRE CP 6113-05603-0220 or XZ40F0SHG001

WIRE CP CP0.56 XZ40F0XRC001

R327 CHIP RES. 1/10W J 75 Ω or RRXAJR5Z0750

RES CHIP 1608 1/10W J 75 Ω or RRXA750YF002

RES CHIP 1608 1/10W J 75 Ω RRJ750WAL002

R331 RES CARBON FILM T 1/4W J 15k Ω or RCX4153T1001

RES CARBON FILM 1/4W J 15k Ω or RCX4153FS002

RES CARBON FILM 1/4W J 15k Ω RCJ153PAK001

R332 RES CARBON FILM T 1/4W J 15k Ω or RCX4153T1001

RES CARBON FILM 1/4W J 15k Ω or RCX4153FS002

RES CARBON FILM 1/4W J 15k Ω RCJ153PAK001

R342 CHIP RES. 1/10W J 47k Ω or RRXAJR5Z0473

RES CHIP 1608 1/10W J 47k Ω or RRXA473YF002

RES CHIP 1608 1/10W J 47k Ω RRJ473WAL002

R343 CHIP RES. 1/10W J 47k Ω or RRXAJR5Z0473

RES CHIP 1608 1/10W J 47k Ω or RRXA473YF002

RES CHIP 1608 1/10W J 47k Ω RRJ473WAL002

R351 CHIP RES. 1/10W J 1.2k Ω or RRXAJR5Z0122

RES CHIP 1608 1/10W J 1.2k Ω or RRXA122YF002

RES CHIP 1608 1/10W J 1.2k Ω RRJ122WAL002

R352 CHIP RES. 1/10W J 1.2k Ω or RRXAJR5Z0122

RES CHIP 1608 1/10W J 1.2k Ω or RRXA122YF002

RES CHIP 1608 1/10W J 1.2k Ω RRJ122WAL002

R353 CHIP RES. 1/10W J 100 Ω or RRXAJR5Z0101

RES CHIP 1608 1/10W J 100 Ω or RRXA101YF002

RES CHIP 1608 1/10W J 100 Ω RRJ101WAL002

R354 CHIP RES. 1/10W J 47k Ω or RRXAJR5Z0473

RES CHIP 1608 1/10W J 47k Ω or RRXA473YF002

RES CHIP 1608 1/10W J 47k Ω RRJ473WAL002

R401 CHIP RES. 1/10W J 10k Ω or RRXAJR5Z0103

RES CHIP 1608 1/10W J 10k Ω or RRXA103YF002

RES CHIP 1608 1/10W J 10k Ω RRJ103WAL002

R402 CHIP RES. 1/10W J 15k Ω or RRXAJR5Z0153

RES CHIP 1608 1/10W J 15k Ω or RRXA153YF002

RES CHIP 1608 1/10W J 15k Ω RRJ153WAL002

R403 CHIP RES. 1/10W J 10k Ω or RRXAJR5Z0103

RES CHIP 1608 1/10W J 10k Ω or RRXA103YF002

RES CHIP 1608 1/10W J 10k Ω RRJ103WAL002

R404 CHIP RES. 1/10W J 1.5k Ω or RRXAJR5Z0152

Ref. No. Mark Description Part No.

RES CHIP 1608 1/10W J 1.5k Ω or RRXA152YF002

RES CHIP 1608 1/10W J 1.5k Ω RRJ152WAL002

R405 CHIP RES. 1/10W J 1k Ω or RRXAJR5Z0102

RES CHIP 1608 1/10W J 1.0k Ω or RRXA102YF002

RES CHIP 1608 1/10W J 1.0k Ω RRJ102WAL002

R406 CHIP RES. 1/10W J 100k Ω or RRXAJR5Z0104

RES CHIP 1608 1/10W J 100k Ω or RRXA104YF002

RES CHIP 1608 1/10W J 100k Ω RRJ104WAL002

R408 RES CARBON FILM T 1/4W J 10 Ω or RCX4100T1001

RES CARBON FILM 1/4W J 10 Ω or RCX4100FS002

RES CARBON FILM 1/4W J 10 Ω RCJ100PAK001

R409 RES CARBON FILM T 1/4W J 10 Ω or RCX4100T1001

RES CARBON FILM 1/4W J 10 Ω or RCX4100FS002

RES CARBON FILM 1/4W J 10 Ω RCJ100PAK001

R410 CHIP RES.(1608) 1/10W 0 Ω or RRXAZR5Z0000

RES CHIP 1608 1/10W J 0 Ω or RRXA000YF002

RES CHIP 1608 1/10W 0 Ω RRJ000WAL002

R417 CHIP RES. 1/10W J 1 Ω or RRXAJR5Z01R0

RES CHIP 1608 1/10W J 1 Ω or RRXA1R0YF002

RES CHIP 1608 1/10W J 1.0 Ω RRJ1R0WAL002

R420 CHIP RES.(1608) 1/10W 0 Ω or RRXAZR5Z0000

RES CHIP 1608 1/10W J 0 Ω or RRXA000YF002

RES CHIP 1608 1/10W 0 Ω RRJ000WAL002

R421 CHIP RES. 1/10W J 8.2 Ω or RRXAJR5Z08R2

RES CHIP 1608 1/10W J 8.2 Ω or RRXA8R2YF002

RES CHIP 1608 1/10W J 8.2 Ω RRJ8R2WAL002

R802 CHIP RES. 1/10W J 10 Ω or RRXAJR5Z0100

RES CHIP 1608 1/10W J 10 Ω or RRXA100YF002

RES CHIP 1608 1/10W J 10 Ω RRJ100WAL002

R803 CHIP RES. 1/10W J 10 Ω or RRXAJR5Z0100

RES CHIP 1608 1/10W J 10 Ω or RRXA100YF002

RES CHIP 1608 1/10W J 10 Ω RRJ100WAL002

R804 CHIP RES. 1/10W J 10 Ω or RRXAJR5Z0100

RES CHIP 1608 1/10W J 10 Ω or RRXA100YF002

RES CHIP 1608 1/10W J 10 Ω RRJ100WAL002

R806 CHIP RES.(1608) 1/10W 0 Ω or RRXAZR5Z0000

RES CHIP 1608 1/10W J 0 Ω or RRXA000YF002

RES CHIP 1608 1/10W 0 Ω RRJ000WAL002

R807 CHIP RES. 1/10W J 10k Ω or RRXAJR5Z0103

RES CHIP 1608 1/10W J 10k Ω or RRXA103YF002

RES CHIP 1608 1/10W J 10k Ω RRJ103WAL002

R808 CHIP RES. 1/10W J 27k Ω or RRXAJR5Z0273

RES CHIP 1608 1/10W J 27k Ω or RRXA273YF002

RES CHIP 1608 1/10W J 27k Ω RRJ273WAL002

R810 CHIP RES. 1/10W J 10k Ω or RRXAJR5Z0103

RES CHIP 1608 1/10W J 10k Ω or RRXA103YF002

RES CHIP 1608 1/10W J 10k Ω RRJ103WAL002

R811 RES CHIP 1608 1/10W J 560 Ω or RRXA561YF002

CHIP RES. 1/10W J 560 Ω or RRXAJR5Z0561

RES CHIP 1608 1/10W J 560 Ω RRJ561WAL002

R812 CHIP RES. 1/10W J 10k Ω or RRXAJR5Z0103

RES CHIP 1608 1/10W J 10k Ω or RRXA103YF002

RES CHIP 1608 1/10W J 10k Ω RRJ103WAL002

R813 RES CHIP 1608 1/10W J 560 Ω or RRXA561YF002

CHIP RES. 1/10W J 560 Ω or RRXAJR5Z0561

RES CHIP 1608 1/10W J 560 Ω RRJ561WAL002

R814 CHIP RES. 1/10W J 10k Ω or RRXAJR5Z0103

RES CHIP 1608 1/10W J 10k Ω or RRXA103YF002

RES CHIP 1608 1/10W J 10k Ω RRJ103WAL002

R815 CHIP RES. 1/10W J 10k Ω or RRXAJR5Z0103

RES CHIP 1608 1/10W J 10k Ω or RRXA103YF002

RES CHIP 1608 1/10W J 10k Ω RRJ103WAL002

R816 CHIP RES. 1/10W J 10k Ω or RRXAJR5Z0103

RES CHIP 1608 1/10W J 10k Ω or RRXA103YF002

RES CHIP 1608 1/10W J 10k Ω RRJ103WAL002

R817 CHIP RES. 1/10W J 10k Ω or RRXAJR5Z0103

RES CHIP 1608 1/10W J 10k Ω or RRXA103YF002

20101216 15-13 A0CN6/N7EL

Ref. No. Mark Description Part No.

RES CHIP 1608 1/10W J 10k Ω RRJ103WAL002

R820 CHIP RES. 1/10W J 39k Ω or RRXAJR5Z0393

RES CHIP 1608 1/10W J 39k Ω or RRXA393YF002

RES CHIP 1608 1/10W J 39k Ω RRJ393WAL002

R821 CHIP RES. 1/10W J 47k Ω or RRXAJR5Z0473

RES CHIP 1608 1/10W J 47k Ω or RRXA473YF002

RES CHIP 1608 1/10W J 47k Ω RRJ473WAL002

R824 CHIP RES.(1608) 1/10W 0 Ω or RRXAZR5Z0000

RES CHIP 1608 1/10W J 0 Ω or RRXA000YF002

RES CHIP 1608 1/10W 0 Ω RRJ000WAL002

R825 CHIP RES.(1608) 1/10W 0 Ω or RRXAZR5Z0000

RES CHIP 1608 1/10W J 0 Ω or RRXA000YF002

RES CHIP 1608 1/10W 0 Ω RRJ000WAL002

R826 CHIP RES. 1/10W J 10k Ω or RRXAJR5Z0103

RES CHIP 1608 1/10W J 10k Ω or RRXA103YF002

RES CHIP 1608 1/10W J 10k Ω RRJ103WAL002

R827 CHIP RES. 1/10W J 100k Ω or RRXAJR5Z0104

RES CHIP 1608 1/10W J 100k Ω or RRXA104YF002

RES CHIP 1608 1/10W J 100k Ω RRJ104WAL002

R828 CHIP RES. 1/10W J 10k Ω or RRXAJR5Z0103

RES CHIP 1608 1/10W J 10k Ω or RRXA103YF002

RES CHIP 1608 1/10W J 10k Ω RRJ103WAL002

R829 CHIP RES. 1/10W J 10k Ω or RRXAJR5Z0103

RES CHIP 1608 1/10W J 10k Ω or RRXA103YF002

RES CHIP 1608 1/10W J 10k Ω RRJ103WAL002

R931 CHIP RES.(1608) 1/10W 0 Ω or RRXAZR5Z0000

RES CHIP 1608 1/10W J 0 Ω or RRXA000YF002

RES CHIP 1608 1/10W 0 Ω RRJ000WAL002

MISCELLANEOUS

BC301 BEADS INDUCTOR FBR07HA121SB-00 LLBF00STU030

BC801 WIRE CP STP-S-0.50 or XZ40F0REN001

WIRE CP STP-S-0.60 or XZ40F0REN002

WIRE CP 6113-05603-0220 or XZ40F0SHG001

WIRE CP CP0.56 XZ40F0XRC001

BC802 WIRE CP STP-S-0.50 or XZ40F0REN001

WIRE CP STP-S-0.60 or XZ40F0REN002

WIRE CP 6113-05603-0220 or XZ40F0SHG001

WIRE CP CP0.56 XZ40F0XRC001

BC803 WIRE CP STP-S-0.50 or XZ40F0REN001

WIRE CP STP-S-0.60 or XZ40F0REN002

WIRE CP 6113-05603-0220 or XZ40F0SHG001

WIRE CP CP0.56 XZ40F0XRC001

BC804 WIRE CP STP-S-0.50 or XZ40F0REN001

WIRE CP STP-S-0.60 or XZ40F0REN002

WIRE CP 6113-05603-0220 or XZ40F0SHG001

WIRE CP CP0.56 XZ40F0XRC001

JK201 JACK HPEP SML PCB S PJ-358H or JXSJ020YUQ01

JACK HPEP SML PCB S 02 MSJ-035­29D (ABS)

JK206 JACK SE HPEP SML PCM S MSJ-035-

JK207 JACK RCA PCB S GREEN 01/RCA-

JK208 JACK RCA PCB S BLUE 01/RCA-

JK209 JACK SW RCA PCB S RED RCA-

JK210 B JACK RCA PCB S ORANGE 01/RCA-

04A LF or

JACK SW HPEP SML PCB S PJ-362H-7 JYSJ020YUQ02

101H(GN) or

JACK RCA PCB S(GREEN) 01 MTJ-032­04B-73 FE or

JACK RCA PCB S GREEN 01 / RCA­101HF(GN)

101H(BL) or

JACK RCA PCB S(BLUE) 01 MTJ-032­04B-74 FE or

JACK RCA PCB S BLUE 01 / RCA­101HF(BL)

102H(RD) or

JACK SW RCA PCB S(RED) 01 MTJ-032­04A-75 FE

101H(OR) or

JXSJ020LY001

JYSJ020LY002

JXRJ010YUQ03

JXRJ010LY030

JXRJ01YUQ009

JXRJ010YUQ04

JXRJ010LY033

JXRJ01YUQ010

JYRJ010YUQ03

JYRJ010LY031

JXRJ010YUQ06

Ref. No. Mark Description Part No.

B JACK RCA PCB S(ORANGE) 01 MTJ-

032-04B-76 FE

JK211 JACK RCA PCB S WHITE 01/RCA-

JK212 JACK SW RCA PCB S RED RCA-

JK313 JACK RGB PCB S 01/RGB-11HS JXGJ21YUQ001

JS804 WIRE CP STP-S-0.50 or XZ40F0REN001

JS805 WIRE CP STP-S-0.50 or XZ40F0REN001

101H(WH) or

JACK RCA PCB S (WHITE) 01 MTJ-032­04B-41 FE or

JACK RCA PCB S WHITE 01 / RCA­101HF(WH)

102H(RD) or

JACK SW RCA PCB S(RED) 01 MTJ-032­04A-75 FE

WIRE CP STP-S-0.60 or XZ40F0REN002

WIRE CP 6113-05603-0220 or XZ40F0SHG001

WIRE CP CP0.56 XZ40F0XRC001

WIRE CP STP-S-0.60 or XZ40F0REN002

WIRE CP 6113-05603-0220 or XZ40F0SHG001

WIRE CP CP0.56 XZ40F0XRC001

JXRJ010LY029

JXRJ010YUQ02

JXRJ010LY031

JXRJ01YUQ008

JYRJ010YUQ03

JYRJ010LY031

FUNCTION CBA

Ref. No. Mark Description Part No.

FUNCTION CBA
Consists of the following:

CAPACITORS

C108 CHIP CERAMIC CAP.(1608) F Z 0.1µF/

50V or

CAP CHIP 1608 Z/Y5V/0.1µF/50V CHD104EYA036

CONNECTOR

CN102 WIRE ASSEMBLY 3PIN 3PIN/30MM/

AWG 28

RESISTORS

R110 RES CARBON FILM T 1/4W G 4.7k Ω or RCX4472T1002

RES CARBON FILM 1/4W G 4.7k Ω RCG472PAK001

R111 RES CARBON FILM T 1/4W G 220 Ω or RCX4221T1002

RES CARBON FILM 1/4W G 220 Ω RCG221PAK001

R112 RES CARBON FILM T 1/4W G 1.1k Ω or RCX4112T1002

RES CARBON FILM 1/4W G 1.1k Ω RCG112PAK001

R113 RES CARBON FILM T 1/4W G 1.2k Ω or RCX4122T1002

RES CARBON FILM 1/4W G 1.2k Ω RCG122PAK001

R114 RES CARBON FILM T 1/4W G 1.5k Ω or RCX4152T1002

RES CARBON FILM 1/4W G 1.5k Ω RCG152PAK001

R115 RES CARBON FILM T 1/4W G 3.3k Ω or RCX4332T1002

RES CARBON FILM 1/4W G 3.3k Ω RCG332PAK001

R116 RES CARBON FILM T 1/4W G 8.2k Ω or RCX4822T1002

RES CARBON FILM 1/4W G 8.2k Ω RCG822PAK001

R120 CHIP RES. 1/10W J 330 Ω or RRXAJR5Z0331

RES CHIP 1608 1/10W J 330 Ω or RRXA331YF002

RES CHIP 1608 1/10W J 330 Ω RRJ331WAL002

SWITCHES

SW101 TACT SWITCH SKQSAB or SST0101AL038

TACT SWITCH TC-1104(H=5.0) or SST0101DNG02

TACT SWITCH KSM0612B SST0101HH003

SW102 TACT SWITCH SKQSAB or SST0101AL038

TACT SWITCH TC-1104(H=5.0) or SST0101DNG02

TACT SWITCH KSM0612B SST0101HH003

SW103 TACT SWITCH SKQSAB or SST0101AL038

TACT SWITCH TC-1104(H=5.0) or SST0101DNG02

TACT SWITCH KSM0612B SST0101HH003

SW104 TACT SWITCH SKQSAB or SST0101AL038

TACT SWITCH TC-1104(H=5.0) or SST0101DNG02

TACT SWITCH KSM0612B SST0101HH003

SW105 TACT SWITCH SKQSAB or SST0101AL038

TACT SWITCH TC-1104(H=5.0) or SST0101DNG02

TACT SWITCH KSM0612B SST0101HH003

SW106 TACT SWITCH SKQSAB or SST0101AL038

TACT SWITCH TC-1104(H=5.0) or SST0101DNG02

----------

CHD1JZ30F104

WX1A0CN6-302

20101216 15-14 A0CN6/N7EL

Ref. No. Mark Description Part No.

TACT SWITCH KSM0612B SST0101HH003

IR SENSOR CBA

Ref. No. Mark Description Part No.

IR SENSOR CBA
Consists of the following:

CAPACITORS

C101 CHIP CERAMIC CAP.(1608) B K 0.1µF/

C105 CHIP CERAMIC CAP. CH J 330pF/50V or CHD1JJ3CH331

C106 CHIP CERAMIC CAP.(2125) F Z 10µF/

C107 CHIP CERAMIC CAP.(2125) F Z 10µF/

16V

CAP CHIP 1608 J/C0G/330pF/50V CHD331EYA030

10V

10V

CONNECTOR

CN101 WIRE ASSEMBLY 6PIN 6PIN/85MM/

AWG2 8

DIODES

D101 LED(RED) LTL-1CHEE or NPQZLTL1CHEE

LED(RED) 1254IT NPQZ0012541T

D102 LED(GREEN) LTL-1CHGE or NPQZLTL1CHGE

LED(GREEN) SLI-343M8CT32S QPVZSL343M8S

RESISTORS

R103 CHIP RES. 1/10W J 750 Ω or RRXAJR5Z0751

RES CHIP 1608 1/10W J 750 Ω or RRXA751YF002

RES CHIP 1608 1/10W J 750 Ω RRJ751WAL002

R104 CHIP RES. 1/10W J 1k Ω or RRXAJR5Z0102

RES CHIP 1608 1/10W J 1.0k Ω or RRXA102YF002

RES CHIP 1608 1/10W J 1.0k Ω RRJ102WAL002

R105 CHIP RES. 1/10W J 100 Ω or RRXAJR5Z0101

RES CHIP 1608 1/10W J 100 Ω or RRXA101YF002

RES CHIP 1608 1/10W J 100 Ω RRJ101WAL002

R107 CHIP RES. 1/10W J 3.3k Ω or RRXAJR5Z0332

RES CHIP 1608 1/10W J 3.3k Ω or RRXA332YF002

RES CHIP 1608 1/10W J 3.3k Ω RRJ332WAL002

R109 CHIP RES. 1/10W J 1k Ω or RRXAJR5Z0102

RES CHIP 1608 1/10W J 1.0k Ω or RRXA102YF002

RES CHIP 1608 1/10W J 1.0k Ω RRJ102WAL002

MISCELLANEOUS

RS101 SENSOR REMOTE RECEIVER KSM-

2002TN2M-FU

----------

CHD1CK30B104

CHE1AZ30F106

CHE1AZ30F106

WX1A0CN6-301

USEJRS0KK009

Ref. No. Description Part No.

TU10 TUNER UNIT DTOA40FPL111A UTNPSG0SM003

20101216 15-15 A0CN6/N7EL

LED19-T800M/LED19-H800M

A0CN6EP/A0CN7EP

2011-09-15

Ver. 2
