TM

EMERSON AND THE G-CLEFLOGO ARE REGISTERED TRADEMARKS OF EMERSON RADIO CORP., PARSIPPANY, NEW JERSEY, U.S.A.

TO RECEIVE DIGITAL/ANALOG SIGNAL, YOU MUST CONNECT ANTENNA.

20”Digital / Analog

LCD TV

Owner’s Manual

LC200EM8G

LC200EM8

INFORMATION TROUBLESHOOTING SETTING OPTIONAL TV WATCHING SETTING INITIAL CONNECTION INTRODUCTION

IF YOU NEED ADDITIONAL ASSISTANCE WITH SETUP OR OPERATING AFTER READING OWNER’S MANUAL, PLEASE CALL TOLL FREE 1-800-256-2487,OR VISIT OUR WEB SITE AThttp://www.EmersonAudioVideo.com

© 2007 Funai Electric Co., Ltd.

INTRODUCTION

WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

The important note is located on the rear of the cabinet.

THIS SYMBOL INDICATES THAT DANGEROUS VOLTAGE CONSTITUTING A RISK OF ELECTRIC SHOCK IS PRESENT WITHIN THIS UNIT.

THIS SYMBOL INDICATES THAT THERE ARE IMPORTANT OPERATING AND MAINTENANCE INSTRUCTIONS IN THE LITERATURE ACCOMPANYING THE APPLIANCE.

Important Safeguards

1.READ INSTRUCTIONS - All the safety and operating instructions should be read before the appliance is operated.

2.RETAIN INSTRUCTIONS - The safety and operating instructions should be retained for future reference.

3.HEED WARNINGS - All warnings on the appliance and in the operating instructions should be adhered to.

4.FOLLOW INSTRUCTIONS - All operating and use instructions should be followed.

5.CLEANING - Unplug TV from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning.

EXCEPTION: A product that is meant for uninterrupted service and, that for some specific reason, such as the possibility of the loss

of an authorization code for a CATV converter, is not intended to be unplugged by the user for cleaning or any other purpose, may exclude the reference to unplugging the appliance in the cleaning description otherwise required in item 5.

6.ATTACHMENTS - Do not use attachments not recommended by the TV manufacturer as they may cause hazards.

7.WATER AND MOISTURE - Do not use this TV near water, for example, near a bath tub, wash bowl, kitchen sink, or laundry tub, in a wet basement, or near a swimming pool, and the like.

8.ACCESSORIES - Do not place this TV on an unstable cart, stand, tripod, bracket, or table. The TV may fall, causing serious injury to someone, and serious damage to the appliance. Use only with a cart, stand,

tripod, bracket, or table recommended by the

manufacturer, or sold with the TV.

Any mounting of the appliance should follow the manufacturer’s instructions and should

use a mounting accessory recommended by the manufacturer. An appliance and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the appliance and cart combination to overturn.

AMEUBLES - Cet appareil ne doit être placé que sur un meuble (avec ou sans roulettes) recommandé par le fabricant. Si vous l’

installez sur un meuble à roulettes, déplacez les deux ensembles avec précaution. Un arrêt brusque, l’utilisation d’une force excessive

et des surfaces irrégulières risquent de déstabiliser l’ensemble et de le renverser.

9.VENTILATION - Slots and openings in the cabinet and the back or bottom are provided for ventilation and to ensure reliable operation of the TV and to protect it from overheating, these openings must not be blocked or covered. The openings should never be blocked by placing the TV on a bed, sofa, rug, or other similar surface. This TV should never be placed near or over a radiator or heat register. This TV should not be placed in abuilt-ininstallation such as a bookcase or rack unless proper ventilation is

provided or the manufacturer’s instructions have been adhered to.

10.POWER SOURCES - This TV should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supply to your home, consult your appliance dealer or local power company. For TVs intended to operate from battery power, or other sources, refer to the operating instructions.

11.GROUNDING OR POLARIZATION - This TV is equipped with a polarizedalternating-currentline plug (a plug having one blade wider than the other). This plug will fit into the power outlet only one way. This is a safety feature. If you are unable to insert the plug fully into the outlet, try reversing the plug. If the plug should still fail to fit, contact your electrician to replace your obsolete outlet. Do not defeat the safety purpose of the polarized plug.

12.POWER-CORD PROTECTION -Power-supplycords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them, paying particular attention to cords at plugs, convenience receptacles, and the point where they exit from the appliance.

13.OUTDOOR ANTENNA GROUNDING - If an outside antenna or cable system is connected to the TV, be sure the antenna or cable system is grounded so as to provide some protection against voltage surges andbuilt-upstatic charges. Article 810 of the National Electrical Code, ANSI/NFPA No. 70, provides information with respect to proper grounding of the mast and supporting structure, grounding of thelead-inwire to an antenna discharge unit, size of grounding conductors, location ofantenna-dischargeunit, connection to grounding electrodes, and requirements for the grounding electrode. (Fig. A)

FIGURE A

EXAMPLE OF ANTENNA GROUNDING AS PER

NATIONAL ELECTRICAL CODE

ANTENNA LEAD IN WIRE

GROUND

CLAMP

ANTENNA DISCHARGE UNIT

(NEC SECTION 810-20)

ELECTRIC

SERVICE

EQUIPMENT

GROUNDING CONDUCTORS (NEC SECTION 810-21)



GROUND CLAMPS

NEC - NATIONAL ELECTRICAL CODE

POWER SERVICE GROUNDING

S 2 8 9 8 A

ELECTRODE SYSTEM

(NEC ART 250, PART H)

14.LIGHTNING - For added protection for this TV receiver during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the antenna or cable system. This will prevent damage to the TV due to lightning andpower-linesurges.

15.POWER LINES - An outside antenna system should not be located in the vicinity of overhead power lines or other electric light of power circuits, or where it can fall into such power lines or circuits. When installing an outside antenna system, extreme care should be taken to keep from touching such power lines or circuits as contact with them might be fatal.

16.OVERLOADING - Do not overload wall outlets and extension cords as this can result in a risk of fire or electric shock.

2

EN

17.OBJECT AND LIQUID ENTRY - Never push objects of any kind into this TV through openings as they may touch dangerous voltage points or short out parts that could result in a fire or electric shock. Never spill liquid of any kind on the TV.

18.SERVICING - Do not attempt to service this TV yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.

19.DAMAGE REQUIRING SERVICE - Unplug this TV from the wall outlet and refer servicing to qualified service personnel under the following conditions:

a.When the power supply cord or plug is damaged or frayed.

b.If liquid has been spilled, or objects have fallen into the TV.

c.If the TV has been exposed to rain or water.

d.If the TV does not operate normally by following the operating instructions. Adjust only those controls that are covered by the operating instructions, as improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the TV to its normal operation.

e.If the TV has been dropped or damaged in any way.

f.When the TV exhibits a distinct change in performance, this indicates a need for service.

20.REPLACEMENT PARTS - When replacement parts are required, be sure the service technician uses replacement parts specified by the manufacturer that have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock, injury to persons or other hazards.

21.SAFETY CHECK - Upon completion of any service or repairs to this TV, ask the service technician to perform routine safety checks to determine that the TV is in proper operating condition.

22.HEAT - This TV product should be situated away from heat sources such as radiators, heat registers, stoves, or other products (including amplifiers) that produce heat.

SETTING INITIAL CONNECTION INTRODUCTION

5Precautions

LAMP IN LCD CONTAINS MERCURY, DISPOSE ACCORDING TO LOCAL, STATE OR FEDERAL LAW.

CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.

ATTENTION: POUR ÉVITER LES CHOCS ÉLECTRIQUES, INTRODUIRE LA LAME LA PLUS LARGE DE LA FICHE DANS LA BORNE CORRESPONDANTE DE LA PRISE ET POUSSER JUSQU’AU FOND.

TV WATCHING

FCC WARNING This equipment may generate or use radio frequency energy. Changes or modifications to this equipment may cause harmful interference unless the modifications are expressly approved in the manual. The user could lose the authority to operate this equipment if an unauthorized change or modification is made.

RADIO-TVINTERFERENCE

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the

instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

1)Reorient or relocate the receiving antenna.

2)Increase the separation between the equipment and receiver.

3)Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

4)Consult the dealer or an experienced radio/TV technician for help.

This Class B digital apparatus complies with Canadian ICES-003.

Cet appareil numérique de la classe B est conforme à la norme NMB-003du Canada.

Note to CATV system installer:

This reminder is provided to call the CATV system installer's attention to Article 820-40of the NEC that provides guidelines for proper grounding and, in particular, specifies that the cable ground should be connected to the grounding system of the building as close to the point of cable entry as practical.

Manufactured under license from Dolby Laboratories. “Dolby” and the double-Dsymbol are trademarks of Dolby Laboratories.

INFORMATION TROUBLESHOOTING SETTING OPTIONAL

3

EN

INTRODUCTION

LOCATION

For safe operation and satisfactory performance of the unit, keep the following in mind when selecting a place for its installation:

Shield it from direct sunlight and keep it away from sources of intense heat.

Avoid dusty or humid places.

Avoid places with insufficient ventilation for proper heat dissipation. Do not block the ventilation holes at the top and bottom of the unit. Do not place the unit on a carpet because this will block the ventilation holes.

Install the unit in a horizontal position.

Avoid locations subject to strong vibration.

Do not place the unit near strong magnetic fields.

Avoid moving the unit to locations where temperature differences are extreme.

Be sure to unplug the AC power cord from the outlet before carrying the unit.

TO AVOID THE HAZARDS OF ELECTRICAL SHOCK AND FIRE

Do not handle the power cord with wet hands.

Do not pull on the power cord when disconnecting it from an AC outlet. Grasp it by the plug.

If, by accident, water is spilled on the unit, unplug the power cord immediately and take the unit to our authorized service center for servicing.

Do not place anything directly on top of the unit.

The serial number of this product may be found on the back of the unit. No others have the same serial number as yours. You should record the number and other vital information here and retain this book as a permanent record of your purchase to aid identification in case of theft.

date of purchase



dealer phone No.



serial No.



dealer purchase from



model No.



dealer address















Note about recycling:

This product’s packaging materials are recyclable and can be reused. Please dispose of any materials in accordance with your local recycling regulations.

Batteries should never be thrown away or incinerated but disposed of in accordance with your local regulations concerning chemical wastes.

5Supplied Accessories

owner’s manual







remote control

batteries

(1EMN22283)







(NF601UD)

(AA x 2)





























































If you need to replace these accessories, please refer to the part No. with the illustrations and call our toll free customer support line found on the cover of this manual.

Depending on your antenna system, you may need different types of combiners (mixers) or separators (splitters). Contact your local electronics store for these items.

5Symbols Used in this Manual

The following is the description for the symbols used in this manual.

Description refers to:

DTV : Digital TV operation

TV : Analog TV operation

If neither symbol appears under the function heading, operation is applicable to both.

5Tilt Stand

You can adjust the stand to change the angle of the TV (-2.5°to 10°).

°

10°

-2.5

4

EN

5Features

DTV/TV/CATV

-You can use your remote control to select channels which are broadcast in digital format and conventional analog format. Also, cable subscribers can access their cable TV channels.

Program Information Display (DTV only)

-You can display the title, contents and other information of the current DTV program on the TV screen.

Auto Channel Scan

-This unit automatically scans and memorizes channels available in your area, eliminating difficult setup procedures.

V-chip

-This feature allows you to block children’s access to inappropriate programs.

Closed Caption Decoder

-Built-inclosed caption decoder displays text for closed caption supported programming.

MTS/SAP Tuner

-Audio can be selected from the remote control.

Auto Shut Off Function

-If there is no signal input from the antenna terminal and no operation for 15 minutes, the unit will turn itself off automatically.

Sleep Timer

-This feature will automatically turned off the power of the unit at a specific time.

Choices for On-screenLanguage

-Select your on-screenlanguage: English, Spanish or French.

Stereo Sound Function

PLL Frequency Synthesized Tuning

-Provides free and easy channel selection and lets you tune directly to any channel using the channel number buttons on the remote control.

Component Video Input

S-videoInput

AV Input

Digital Audio Coaxial Output

© 2007 Funai Electric Co., Ltd.

5Contents

INTRODUCTION

Important Safeguards. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 Supplied Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 Symbols Used in this Manual. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 Tilt Stand . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 Features. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 Remote Control Function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 Installing the Batteries. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 Control Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 Rear Panel. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

CONNECTION

Basic Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

External Device Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

INITIAL SETTING

Initial Setup. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Main Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Auto Channel Scan. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Language Selection. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

WATCHING TV

Channel Selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Volume Adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

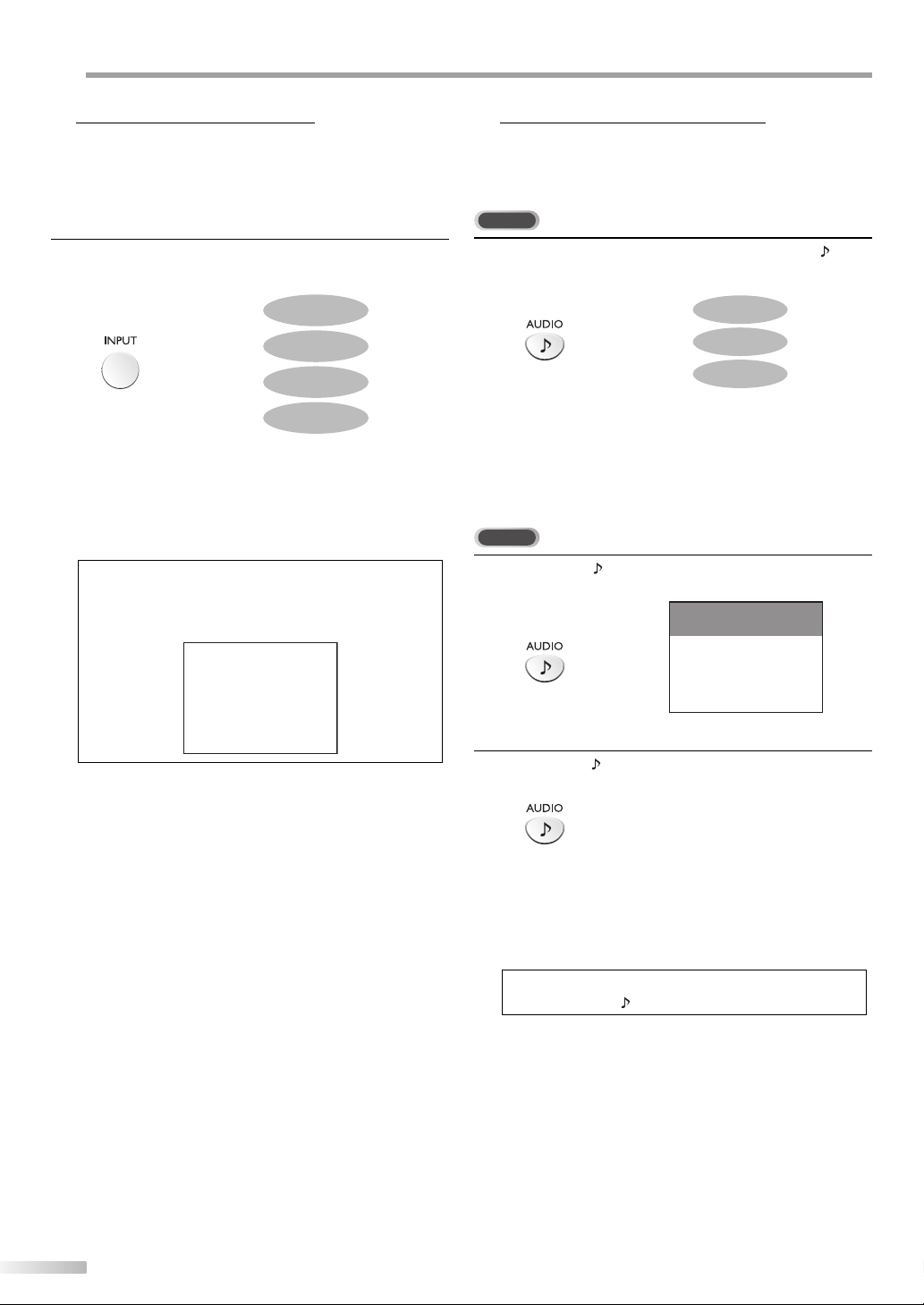

Switching Each Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Switching Audio Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Screen Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

TV Screen Display Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Sleep Timer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

OPTIONAL SETTING

Channel Add/Delete . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Picture Adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Closed Caption . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

DTV Closed Caption . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

DTVCC Style . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Back Light Setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Color Temperature. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

V-chip . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22

TROUBLESHOOTING

Troubleshooting Guide. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Maintenance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

INFORMATION

Glossary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Cable Channel Designations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

General Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Electrical Specification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Other Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Limited Warranty. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Back cover

INFORMATION TROUBLESHOOTING SETTING OPTIONAL TV WATCHING SETTING INITIAL CONNECTIONINTRODUCTION

All rights reserved. No part of this manual may be reproduced, copied, transmitted, disseminated, transcribed, downloaded or stored in any storage medium, in any form or for any purpose without the express prior written consent of Funai. Furthermore, any unauthorized commercial distribution of this manual or any revision hereto is strictly prohibited.

Information in this document is subject to change without notice. Funai reserves the right to change the content herein without the obligation to notify any person or organization of such changes.

with thedesign is a registered trademark of Funai Electric Co., Ltd and may not be used in any way without the express written consent of Funai. All other trademarks used herein remain the exclusive property of their respective owners. Nothing contained in this manual should be construed as granting, by implication or otherwise, any license or right to use any of the trademarks displayed herein. Misuse of any trademarks or any other content in this manual is strictly prohibited. Funai shall aggressively enforce its intellectual property rights to the fullest extent of the law.

5

EN

INTRODUCTION

5Remote Control Function

1

2

3

4

5

6

7

8

9

10

1.

112.

123.

4.

14

15

5.

6.

7.

8.

9.

POWER button (p11)

10. RETURN

button

Press to turn the unit on and off.



Press to return to previous menu

MUTE

button (p13)



operation.







Press to turn the sound on and off.

11.

INPUT button (p14)

SLEEP

button (p16)



• Press to access connected an

Press to activate the sleep timer.



external device like a DVD player

Number buttons (p13)



or VCR.









• Press to select channels.



• Press to switch between the

-/ENT.button



digital mode (DTV) and analog

• Press to shift the minor channel



mode.

button (p15)

from the major channel.

12.

DISPLAY

+100 button



Digital Mode (DTV)

• Press to select 100 or higher



• Press to display the channel

channels. (CATV)



information, signal type and TV

• Press to search if there are minor



setting.









channels on the currently selected



Analog Mode (TV)

major channel. (DTV)



• Press to display the channel

CH. K/L buttons(p13)



number, signal type and TV

Press to select channels and the



setting.









external input mode.



External Input Mode

VOL. X/Y buttons(p13)



• Press to display the external

Press to adjust the volume.



input mode, signal type and TV

ENTER button (p11)



setting.









Press to decide the command of

13. AUDIO

button (p14)

setting when the main menu is



Digital Mode (DTV)

displayed.



• Press to select the audio

SETUP button (p11)



language.







Press to display the main menu.



Analog Mode (TV)

s /B /K /L buttons(p11)



• Press to select the audio mode.

Press to move left/ right/ up/

14. SCREEN MODE





button (p16)









down through the items.



Press to select aspect ratio







available for the TV screen.





15. CH. RETURN

button (p13)







Press to return to previous channel.

5Installing the Batteries

Install the batteries (AA x 2) matching the polarity indicated inside battery compartment of the remote control.

1

2

3

Battery Precautions:

Be sure to follow the correct polarity as indicated in the battery compartment. Reversed batteries may cause damage to the device.

Do not mix different types of batteries together (e.g., Alkaline and Carbon-Zinc)or old batteries with fresh ones.

If the device is not to be used for a long period of time, remove the batteries to prevent damage or injury from possible battery leakage.

Do not try to recharge batteries; they can overheat and rupture.

6

EN

5Control Panel

1

2

3

4

5

SETUP

VOLUME

CHANNEL

INPUT POWER

top of the unit

6

1.SETUP button (p12)

Press to display the main menu.

2.VOLUME X/Y buttons(p13)

Press to adjust the volume or move right(X)/left(Y) through the main menu items.

3.CHANNEL K/L buttons(p13)

Press to select channels or move up/down through the main menu items.

4.INPUT button (p15)

Press to access connected an external device like a DVD player or VCR.

Press to switch between the digital mode (DTV) and analog mode.

5.POWER button (p11)

Press to turn the unit on and off.

6.Infrared Sensor Window

Receives infrared rays transmitted from the remote control.

TV WATCHING SETTING INITIAL CONNECTION INTRODUCTION

5Rear Panel













1.

ANT jack (p8)















RF coaxial cable connection for your antenna or















cable /satellite box.













2.

HEADPHONE jack















Headphone connection for personal listening.













3. COMPONENT and AUDIO input jacks (p9)















Component video cable connection for an external















device.















Use component video and audio output jacks of an















external device.













4. AUDIO input jacks (p9)















RCA audio cable connection for an external device.













5. VIDEO input jack (p10)















RCA video cable connection for an external device.













6. S-VIDEOinput jack(p9)













1

S-videocable connection for an external device.













7. COAXIAL (digital audio) output jack (p10)

rear of this unit











Digital audio coaxial cable connection for a decoder or



VIDEO 2



AUDIO





an audio receiver.



COMPONENT

VIDEO 1

L

R



Use digital audio input jack of an external device.

Y

Pb

Pr



2











AUDIO





COAXIAL

S-VIDEO

VIDEO

L

R

8.

AC power cord



























side of the unit

Connect to a standard AC outlet to supply power to













3

this unit.













4















5















6















7















8



INFORMATION TROUBLESHOOTING SETTING OPTIONAL

7

EN

CONNECTION

Cables not included.

Please purchase the necessary cables at your local store.

5Basic Connection

This section describes how to connect the unit to an antenna, cable/satellite box, etc.

Note:

• Be sure your antenna or other device is connected properly before plugging in the power cord.

[Antenna Cable Connection]

When connecting the unit to an antenna or cable TV company (without cable/satellite box)

Connect the RF coaxial cable on your home outlet to the antenna input jack of this unit.

e.g.)

VHF / UHF

antenna rear of this unit

RF coaxial cable

or

cable TV company

*Once connections are completed, turn on the unit and begin initial setup.

Channel scanning is necessary for the unit to memorize all available channels in your area. (Refer to “Initial Setup” on page 11.)

Note:

For your safety and to avoid damage to device, please unplug the RF coaxial cable from the antenna input jack before moving the unit.

If you use an antenna to receive analog TV, it should also work for DTV reception. Outdoor or attic antennas will be more effective than settop versions.

To easily switch your reception source between antenna and cable, install an antenna selector.

If you connect to the cable system directly, contact the CATV installer.

[Connection to Cable Box or Satellite Box]

Connect the RF coaxial cable on your home outlet to the input jack of the cable/satellite box.

Use another RF coaxial cable to connect the antenna input jack of the unit to the output jack of the cable/satellite box.

e.g.)













rear of this unit































satellite



































































dish

cable/satellite box

















































































































































































































































or





ANT. IN

RF OUT

















































































































cable TV

RF coaxial cable

RF coaxial cable

company











*Required cables and connecting methods differ depending on the cable/satellite box. For more information, please contact your cable/satellite provider.

8

EN

Cables not included.

Please purchase the necessary cables at your local store.

5External Device Connection

[Component Video Cable Connection]

Component video connection offers better picture quality for video devices connected to the unit.

Use a component video cable to connect the unit to external video devices equipped with component video output jacks.

If you connect to the unit’s component video input jack, connect RCA audio cables to the audio L/R jacks of VIDEO2.

e.g.)

DVD player with the component video output jacks

component video cable





















rear of this unit



























(green)









(blue)







(red)





















































COMPONENT

VIDEO 2





AUDIO























































Y

Pb

Pr

L

R



















































VIDEO 1



AUDIO























































COAXIAL

S-VIDEO

VIDEO

L

R

Y Pb Pr

COMPONENT VIDEO OUT

AUDIO OUT

L R

(green) (blue) (red)

RCA audio cable

Note:

This unit accepts 480i / 480p / simplified 1080i video signals.

Simplified 1080i video signal differs to the original 1080i video signal because it is displayed after converted into 480p signal.

[S-videoCable Connection]

S-videoconnection offers good picture quality for video devices connected to the unit.

Use an S-videocable to connect the unit to external video devices equipped withS-videooutput jack.

If you connect to the unit’s S-videoinput jack, connect RCA audio cables to the audio L/R jacks of VIDEO1.

rear of this unit



























COMPONENT

VIDEO 2





AUDIO

























Y







L

e.g.)

















Pb

Pr

R























VIDEO 1



AUDIO







AUDIO OUT

S-VIDEO

COAXIAL

S-VIDEO

VIDEO

L

R







L



R

OUT























































































































































DVD player with the S-videooutput jack

S-videocable

RCA audio cable

Note:

• If you connect to the S-videojack and the video jack at the same time, theS-videoconnection will have priority.

INFORMATION TROUBLESHOOTING SETTING OPTIONAL TV WATCHING SETTING INITIAL CONNECTION INTRODUCTION

9

EN

CONNECTION

Cables not included.

Please purchase the necessary cables at your local store.

[Video Connection]

Video connection offers standard picture quality for video devices connected to the unit.

If you connect to the unit’s video input jack, connect RCA audio cables to the audio L/R jacks of VIDEO1. When the audio jack of the video device is monaural, connect the RCA audio cable to the audio L input jack.

rear of this unit



























COMPONENT

VIDEO 2









AUDIO

e.g.)























Y





Pr

L























Pb





R

































VIDEO 1



AUDIO

























COAXIAL

S-VIDEO

VIDEO

L





R







AUDIO OUT













































VIDEO







































L





R

OUT

































camcorder

video game



















































































































































































































RCA video cable













































































































VCR







RCA audio cable





























Note:

If you connect to the S-videojack and the video jack at the same time, theS-videoconnection will have priority.

[Digital Audio Output Connection (for digital broadcasting only)]

If you connect this unit to an external digital audio device, you can enjoy multi-channelaudio like 5.1ch digital broadcasting sound.

rear of this unit











COMPONENT

VIDEO 2





AUDIO









Y







L

e.g.)



Pb

Pr

R









VIDEO 1



AUDIO







COAXIAL

S-VIDEO

VIDEO

L

R



















































DIGITAL AUDIO

COAXIAL IN

Dolby Digital decoder

digital audio coaxial cable

10

EN

INITIAL SETTING

These operations are accessible by remote control. Some may also be accessible by controls on the main unit.

5Initial Setup

This section will guide you through the unit’s initial setting which includes selecting a language for your on-screenmenu and “AUTO PRESET CH”, which automatically scans and memorizes viewable channels.

Before you begin:

Make sure if the unit is connected to antenna or cable.

1After making all the necessary connections, press [POWER] to turn on the unit.

• This operation may take a few moments.

2Use [Cursor K/L] to select theon-screenlanguage from the choices on the right side of the TV screen. (ENGLISH / ESPAÑOL / FRANÇAIS)

or

SELECT LANGUAGE



ENGLISH

SELECCIONE EL IDIOMA

ESPAÑOL



CHOISIR LA LANGUE



FRANÇAIS



SELECT : K,, L



SET : ENTER



SELECCIONE : K,, L

AJUSTE : ENTER



CHOIX : K,, L

VALIDER : ENTER

“INITIAL SETUP“ menu on step 3 will be displayed in the selected language after you press [ENTER].

3Use [Cursor K/L] to select “AUTO PRESET CH(TV/DTV)” for TV channels or “AUTO PRESET CH(CATV)“ for CATV channels, then press[ENTER].

- INITIAL SETUP -

or

PLEASE CONNECT ANTENNA OR CABLE

OR SATELLITE TO THIS UNIT.

AUTO PRESET CH (TV/DTV)

AUTO PRESET CH (CATV)

Scanning and memorizing the channels automatically start.

25

AUTO PRESET CH(TV/DTV)

When the scanning and memorizing are completed, the lowest memorized channel in the broadcasting will be displayed.

Note:

If you connect the cable system directly, contact the CATV installer.

If you press [POWER] or[SETUP] during “AUTO PRESET CH”, this setting will be canceled.

The initial auto channel scan function can be executed for either TV/DTV or CATV only once. If you want to scan both TV/DTV and CATV, you need to select “CHANNEL SETUP” in the main menu to scan and memorize other channels after initial presetting is completed. (Refer to page 12.)

You can cancel or exit the initial “AUTO PRESET CH” menu by pressing [SETUP].

When no channel can be received by “AUTO PRESET CH”, “NO TV SIGNALS” is displayed on the TV screen.

If there is no signal input from the antenna terminal and no operation for several seconds after you turn on the unit, “HELPFUL HINTS” appears. Follow the instructions listed on the TV screen.

-HELPFUL HINTS -

1.PLEASE CHECK TO SEE IF THE ANTENNA / CABLE / SATELLITE IS PROPERLY CONNECTED.

2.DID YOU PERFORM “AUTO PRESET CH”?

3.PLEASE REFER TO FRONT PAGE OF THE OWNER’S MANUAL OR REAR PANEL FOR SUPPORT LINE INFORMATION.

5Main Menu

This section describes the overview of the main menu displayed when you press [SETUP]. For more details, see the reference page for each item. The main menu consists of the function setting items below.

Press [SETUP].

e.g.) digital TV mode

- TV SETUP

-




CHANNEL SETUP

V-CHIPSETUP

LANGUAGE

[ENGLISH]

CAPTION

[OFF]

BACK LIGHT

[BRIGHT]

COLOR TEMP.

[NORMAL]

DTVCC







• PICTURE

You can adjust the picture quality.

(Refer to “Picture Adjustment” on page 18.)

• CHANNEL SETUP

You can automatically scan the viewable channels and remove those that are undesired.

(Refer to “Auto Channel Scan” on page 12.)

V-CHIPSETUP

You can set the viewing limitations. (Refer to “V-chip”on page 22.)

• LANGUAGE

You can change the language (English, Spanish, French) displayed on the main menu.

(Refer to “Language Selection” on page 12.)

• CAPTION

You can change the display format for closed caption, which displays the dialogue of a TV program or other information across the TV screen.

(Refer to “Closed Caption” on page 18.)

11

INFORMATION TROUBLESHOOTING SETTING OPTIONAL TV WATCHINGSETTING INITIAL CONNECTION INTRODUCTION

EN

e.g.) digital TV mode

INITIAL SETTING

• BACK LIGHT

You can set the desired brightness mode. (Refer to “Back Light Setting” on page 21.)

• COLOR TEMP.

You can adjust color temperature (“NORMAL”, “WARM”, “COOL”).

(Refer to “Color Temperature” on page 21.)

DTVCC

In addition to the basic closed caption described on page 18, DTV has its own closed caption called DTVCC.

(Refer to “DTV Closed Caption” on page 19.)

5Auto Channel Scan

If you switch wires (e.g., between antenna and CATV) or if you move the unit to a different area after the initial setting, or if you restore the DTV channel you deleted, you will need to perform auto channel scan.

Before you begin:

Make sure if the unit is connected to antenna or cable.

1 Press[SETUP] to display the main menu.

When the scanning and memorizing are completed, the lowest memorized channel will be displayed.

When you selected “AUTO PRESET CH(TV/DTV)”, the lowest memorized analog channel will be displayed when the scanning and memorizing are completed. If there is no analog channel, the lowest memorized digital channel will be displayed.

Note:

If you connect the cable system directly, contact the CATV installer.

If you press [POWER] or[SETUP] during auto channel scan, the setting will be canceled.

When no channel can be received by auto channel scan, “NO TV SIGNALS” will be displayed on the TV screen.

Channel settings will be saved even if the power fails.

If you have Spanish or French menus and need English, press [SETUP]. Use[Cursor K/L] to select “IDIOMA” or “LANGAGE”. Press[ENTER] to select “ENGLISH”. Press[SETUP] to remove the main menu.

With regard only to the digital channel, even after the scanning is complete if you unplug the AC power cord before turning off the unit by pressing [POWER], the channel setting may be lost.

5Language Selection

2Use [Cursor K/L] to select “CHANNEL SETUP”, then press[ENTER].

e.g.) digital TV mode



- TV SETUP

-

or




CHANNEL SETUP



V-CHIPSETUP



LANGUAGE

[ENGLISH]



CAPTION

[OFF]



BACK LIGHT

[BRIGHT]



COLOR TEMP.

[NORMAL]



DTVCC









3Use [Cursor K/L] to select your desired preset type, then press[ENTER].



e.g.) digital TV mode







- CHANNEL SETUP -

or

ADD/DELETE(DTV)



AUTO PRESET CH(DTV)



AUTO PRESET CH(TV/DTV)



AUTO PRESET CH(CATV)



! CATV takes approx. 50min.





When aerial antenna is connected, select

“AUTO PRESET CH(TV)”, “AUTO PRESET CH(DTV)” or “AUTO PRESET CH(TV/DTV)”.

When connected to CATV, select “AUTO PRESET CH (CATV)”.

Scanning and memorizing the channels automatically start.

You can choose English, Spanish, or French as your on-screenlanguage.

1 Press[SETUP] to display the main menu.

2Use [Cursor K/L] to select “LANGUAGE”, then press[ENTER] repeatedly to change the setting.

e.g.) digital TV mode



- TV SETUP

-








CHANNEL SETUP



V-CHIPSETUP



LANGUAGE

[ENGLISH]



CAPTION

[OFF]

or

BACK LIGHT

[BRIGHT]

COLOR TEMP.

[NORMAL]



DTVCC









ENGLISH

ESPAÑOL

FRANÇAIS

3 Press[SETUP] to exit.

D25

12

AUTO PRESET CH(DTV)



EN

WATCHING TV

5Channel Selection

Select channels by pressing [CH. K/L] or [the Number buttons].

To select the memorized channels,

use [CH.K/L]or [the Number buttons].

To select the non-memorizedchannels, use[the Number buttons].

To Use [the Number buttons]

TV

- When selecting analog channel 12

DTV

-When selecting digital channel 12-1

Be sure to press [–/ENT.] before entering the minor channel number.

Press [CH. RETURN ] to return to the previously viewed channel.

When you select a channel larger than 100, press

[+100] first. Then use [the Number buttons]to press the lower 2-digit numbers.

About digital TV broadcasting:

With its high definition broadcast, digital broadcasting far surpasses analog broadcasting in both its picture and sound quality.

What is the minor channel?

By using high compression technology, digital broadcasting offers a service that enables multiple signals to send simultaneously.

Therefore, you can select more than one program per major channel since digital broadcasting technology distinguishes between multiple channels broadcast by a single network.

NTSC (analog mode)

[Air Time]





ATSC (digital mode)



18:00

































CH4

No signal

No signal



18:30

















CH4

































CH4

19:00







(high definition TV)

































CH4

CH4-1

No signal



19:30



























20:00





CH4

No signal

CH4-2





























20:30





CH4

CH4-1

CH4-2

























































major channel





minor channel

: change automatically

: change manually by using[CH. K/L]

Although, you cannot watch the high definition TV (HDTV) program, the unit converts the HDTV signal down to the standard definition TV signal.

Note:

“NO SIGNAL” will appear on the TV screen after the minor channel broadcast is over.

5Volume Adjustment

INTRODUCTION



This section describes how to adjust the volume. The mute function, which turns the sound off and on, is also described.

























Use [VOL. / ] to adjust the audio volume.



X Y







CONNECTION

or

































































VOLUME

20





































INITIAL























• The volume bar will be displayed at the bottom of the



TV screen when adjusting the volume.







SETTING

a few seconds.







• The volume bar display will automatically disappear in



Press [MUTE] to turn off and on the sound.



MUTE

20



TV WATCHING















• “MUTE” is displayed on the TV screen for a few



OPTIONAL

seconds.











Press [MUTE ] again or[VOL. /

] to recover the





X Y





SETTING

original volume.







































TROUBLESHOOTING





























INFORMATION











13

EN

WATCHING TV

5Switching Each Mode

You can easily switch with the remote control to the DTV (ATSC) and TV (NTSC) or to access an external device when they are connected to the unit.

5Switching Audio Mode

This section describes how to switch the audio in the analog mode and how to switch the audio language in the digital mode.

TV

Press [INPUT] repeatedly to cycle through the input mode.

ANALOG MODE

DIGITAL MODE

VIDEO1

VIDEO2

To use the video or S-videoinput jack on the unit, select “VIDEO1”.

To use the component video input jack on the unit, select “VIDEO2”.

While receiving an MTS broadcast, press [AUDIO] repeatedly to cycle through the available audio channel.





MAIN





SAP





MONO

MAIN



: Outputs main-audio

SAP



: Outputs second audio program

MONO



: Outputs mono-audio

The information display will automatically disappear in a few seconds.

DTV

Note:

When you switch the analog mode to the digital mode, it may take a while until the digital channel selection is completed. The following TV screen is displayed while switching the mode.

NOW SCANNING

1Press [AUDIO ] to display the currently selected language and the number of available languages.

KABC

CH 95-03

A Day of Memories

ENGLISH

1/3

2Press [AUDIO ] repeatedly to cycle through the available audio languages.

Available languages differ depending on the broadcast. “OTHER” is displayed when the audio language cannot be acquired, or the acquired languages are other than English, Spanish or French.

The information display will automatically disappear in a few seconds.

Note:

• Pressing [AUDIO ] does not control external audio device.

14

EN

5Screen Information

You can display the currently selected channel or other information such as the audio mode on the TV screen.

TV

In the analog mode, the current channel number is displayed.

Press [DISPLAY ].

CH 25

The current channel number is displayed at the topright corner of the TV screen.

To clear the display, press [DISPLAY ] again.

DTV

In the digital mode, the detailed broadcasting information for the current channel such as program title, program guides are displayed.

Press [DISPLAY ] repeatedly to cycle through the available display modes.

OFF

BROADCASTING INFORMATION

PROGRAM GUIDE

[Broadcasting Information]

The following information is displayed. 1 channel number

2 broadcast station

3 program title

4 audio language

(Refer to “Switching Audio Mode” on page 14.)

2







KABC

CH 95-03



1







3







A Day of Memories











ENGLISH

1/3





4













































[Program Guide]

The program guide added to broadcasting information is displayed.



KABC

CH 95-03



A Day of Memories







ENGLISH 1/3







A quarter-centuryago, which may now



program

qualify as the good old days of newsp-



apering, run-of-papersales accounted



guide



for 80 percent of the industry’s adverti-





sing revenues.



K Key



Next - Push L Key

Back - Push









Note:

When the program guide consists of more than 6 lines, use

[Cursor K/L]to scroll.

“No description provided” is displayed when the program guide is not provided.

While the program guide is displayed, the closed caption function is interrupted.

In external input mode, the following screen is displayed; e.g.) When an external device is connected to VIDEO1 input

jack.

VIDEO 1

The information display will automatically disappear in a few seconds when the closed caption is on.

INFORMATION TROUBLESHOOTING SETTING OPTIONAL TV WATCHING SETTING INITIAL CONNECTION INTRODUCTION

15

EN

WATCHING TV

5TV Screen Display Mode

DTV

2 types of display modes can be selected in the digital mode when the broadcasting station is sending 16:9 video signal.

Press [SCREEN MODE ] repeatedly to switch the TV aspect ratio.

5Sleep Timer

The sleep timer can be set to automatically turn off the unit after an incremental period of time.

1 Press[SLEEP ] to set the sleep timer.

SLEEP OFF









































LETTERBOX

ZOOM

[LETTERBOX]

Display the digital-supportedprogram infull-screen.Black borders will spread in the upper and lower screen.

[ZOOM]

Enlarge and display the center area of the digitalsupported program.

The right and left side of image will be cut off.

Note:

You may not switch the display mode depending on the program.

• Sleep timer display appears on the TV screen.

2Press [SLEEP ] repeatedly to change the amount of time until shut off.

SLEEP 120MIN.

You can set your unit to turn off after a set period of time (from 30 to 120 minutes).

Each press of [SLEEP ] will increase the time by 30 minutes.

After set up, the sleep timer display can be called up for checking by pressing [SLEEP ].

To Cancel the Sleep Timer

Press [SLEEP ] repeatedly until “SLEEP OFF“ is displayed on the TV screen.

Note:

The sleep timer setting display will automatically disappear in a few seconds.

When you disconnect the unit from the AC outlet or when a power failure occurs, the sleep timer setting will be canceled.

16

EN

OPTIONAL SETTING

5Channel Add/Delete

The channel add/delete function lets you add the channel that was not added by the auto channel scan due to the reception status at the initial setting. You can also delete the unnecessary channels.

1 Press[SETUP] to display the main menu.

2Use [Cursor K/L] to select “CHANNEL SETUP”, then press[ENTER].

e.g.) digital TV mode



- TV SETUP

-

or




CHANNEL SETUP



V-CHIPSETUP



LANGUAGE

[ENGLISH]



CAPTION

[OFF]



BACK LIGHT

[BRIGHT]



COLOR TEMP.

[NORMAL]



DTVCC









3Use [Cursor K/L] to select “ADD/DELETE(DTV)” or “ADD/DELETE”, then press[ENTER].



e.g.) digital TV mode











- CHANNEL SETUP -

or



ADD/DELETE(DTV)





AUTO PRESET CH(DTV)





AUTO PRESET CH(TV/DTV)





AUTO PRESET CH(CATV)





! CATV takes approx. 50min.







6 Press[SETUP] to exit.

Note:

”ADD/DELETE(DTV)” or “ADD/DELETE” menu will disappear automatically in a few seconds.

In the digital mode (DTV), you can add or delete channels only for major channel.

Once you delete a DTV channel, you cannot recover the channel without performing auto channel scan again. (Refer to “Auto Channel Scan” on page 12.)

4Select the channel you want to add or delete. (Refer to “Channel Selection“ on page 13.)

e.g.) digital TV mode

D25

ADD/DELETE : DTV

5 Use[Cursor s/ B] to select “ADD” or “DELETE”.

or

To add or delete another channels, repeat steps 4-5.

Color of channel number displayed at the right top of the TV screen indicates;

-Blue: The selected channel will be added.

-Red: The selected channel will be deleted.

INFORMATION TROUBLESHOOTING SETTING OPTIONAL TV WATCHING SETTING INITIAL CONNECTION INTRODUCTION

17

EN

OPTIONAL SETTING

5Picture Adjustment

You can adjust brightness, contrast, color, tint and sharpness.

1 Press[SETUP] to display the main menu.

2Use [Cursor K/L] to select “PICTURE”, then press

[ENTER].

e.g.) digital TV mode



- TV SETUP

-

or




CHANNEL SETUP



V-CHIPSETUP



LANGUAGE

[ENGLISH]



CAPTION

[OFF]



BACK LIGHT

[BRIGHT]



COLOR TEMP.

[NORMAL]



DTVCC









5Closed Caption

TV

You can view closed captioning (cc) for TV programs, movies and news. Closed caption refer to text of dialogue or descriptions displayed on-screenfor the hearing impaired.

1 Press[SETUP] to display the main menu.

2Use [Cursor K/L] to select “CAPTION”, then press[ENTER] repeatedly to change the setting.

e.g.) digital TV mode



- TV SETUP

-








CHANNEL SETUP



V-CHIPSETUP



LANGUAGE

[ENGLISH]



CAPTION

[OFF]



BACK LIGHT

[BRIGHT]

or

COLOR TEMP.

[NORMAL]

DTVCC









3Use [Cursor K/L] to select the picture quality type you want to adjust.









BRIGHTNESS









CONTRAST







or

COLOR













TINT









SHARPNESS













4 Use[Cursor s/ B] to adjust the quality.







or































Cursor s



Cursor B







BRIGHTNESS



to decrease brightness



to increase brightness







CONTRAST



to decrease contrast



to increase contrast







COLOR



to decrease color



to brighten color







TINT



to add purple



to add green







SHARPNESS



to make soft



to make clear



5 Press[SETUP] to exit.

Note:

The picture adjustment setting display will automatically disappear in a few seconds.

OFF

CAPTION1

CAPTION2

TEXT1

TEXT2

[Caption Mode] CAPTION1 and TEXT1;

are the primary caption and text services.

The captioning or text is displayed in the same language as the program’s dialogue

(up to 4 lines of script on the TV screen, where it does not obstruct relevant parts of the picture).

CAPTION2 and TEXT2;

are rarely available and broadcasters use them

only in special conditions, such as when “CAPTION1” or “TEXT1” is not available.

• There are 3 display modes according to programs:

Paint-on mode: Displays input characters on the TV screen immediately.

Pop-on mode: Once characters are stored in memory, they are displayed all at once.

Roll-up mode: Displays the characters continuously by scrolling (max. 4 lines).

18

EN

3 Press[SETUP] to exit.

Note:

To show the closed caption on your TV screen, broadcast signal must contain the closed caption data.

Not all TV programs and commercials have the closed caption or all types of the closed caption.

Captions and texts may not match the TV voice exactly.

Changing channels may delay the closed caption for a few seconds.

Adjusting or muting the volume may delay the closed caption for a few seconds.

Abbreviations, symbols and other grammatical shortcuts may be used in order to keep pace with the on-screenaction. This is not a problem with the unit.

The caption or text characters will not be displayed while the main menu or functions display is shown.

If a black box appears on the TV screen, this means that the closed caption is set to the text mode. To clear the box, select “CAPTION 1”, “CAPTION 2” or “OFF”.

If the unit receives poor quality television signals, the captions may contain errors, or there might be no captions at all. Some possible causes of poor quality signals are:

-Automobile ignition noise

-Electric motor noise

-Weak signal reception

-Multiplex signal reception (ghosts or screen flutter)

The unit retains the closed caption setting if the power fails.

When the unit receives a special effects playback signal (I.e.,Search, Slow and Still) from a VCR’s video output channel (CH3 or CH4), the unit may not display the correct caption or text.

5DTV Closed Caption

INTRODUCTION



DTV



In addition to the basic closed caption described on page 18, DTV has its own closed caption called DTVCC. Use this menu to change the settings for DTVCC.

1 Press[SETUP] to display the main menu.

CONNECTION



2 Use [Cursor

K

/L] to select “DTVCC“, then press

INITIAL











[ENTER].









SETTING







e.g.) digital TV mode







- TV SETUP -





or














CHANNEL SETUP











V-CHIPSETUP



WATCHING







DTVCC

[ENGLISH]







LANGUAGE









CAPTION

[OFF]









BACK LIGHT

[BRIGHT]









COLOR TEMP.

[NORMAL]













TV

3 Use [Cursor

K

/L] to select “CAPTION SERVICE“, then

OPTIONAL









press [ENTER] repeatedly to change the setting.



or





- DTVCC -



SETTING





CAPTION SERVICE

[OFF]

















USER SETTING

[OFF]









CAPTION SIZE

[MIDDLE]









FONT STYLE

[STYLE1/8]









CHARACTER EDGE [NONE]









FORE OPACITY

[SOLID]









FORE COLOR

[WHITE]

TROUBLESHOOTING







DTVCC. This is the default.







BACK OPACITY

[SOLID]









BACK COLOR

[BLACK]







OFF

Select if you do not want













CAPTION SERVICE



Select one of these before





changing any other item in







SERVICE1~6 “CAPTION” menu. Choose

INFORMATION







“SERVICE1/6” under normal















circumstances.



4 Press[SETUP] to exit.







Note:

“CAPTION SERVICE” that you can switch differs depending on the broadcast description.

19

EN

OPTIONAL SETTING

5DTVCC Style

DTV

You can change the style of DTV CC such as font, color or size, etc.

1 Press[SETUP] to display the main menu.

2Use [Cursor K/L] to select “DTVCC“, then press

[ENTER].

e.g.) digital TV mode



- TV SETUP

-

or




CHANNEL SETUP



V-CHIPSETUP



LANGUAGE

[ENGLISH]



CAPTION

[OFF]



BACK LIGHT

[BRIGHT]



COLOR TEMP.

[NORMAL]



DTVCC









3Use [Cursor K/L] to select “USER SETTING“, then press[ENTER] repeatedly to set to “ON”.

Items in the dotted box are available only when “USER SETTING“ is “ON“.

or

- DTVCC -



CAPTION SERVICE

[SERVICE1/6]



USER SETTING

[ON]



CAPTION SIZE

[MIDDLE]



FONT STYLE

[STYLE1/8]



CHARACTER EDGE

[NONE]



FORE OPACITY

[SOLID]



FORE COLOR

[WHITE]



BACK OPACITY

[SOLID]



BACK COLOR

[BLACK]

4Use [Cursor K/L] to select an item, then press[ENTER] repeatedly to change the setting for the item.



- DTVCC -



or

CAPTION SERVICE

[SERVICE1/6]

USER SETTING

[ON]



CAPTION SIZE

[MIDDLE]



FONT STYLE

[STYLE1/8]



CHARACTER EDGE

[NONE]



FORE OPACITY

[SOLID]



FORE COLOR

[WHITE]



BACK OPACITY

[SOLID]



BACK COLOR

[BLACK]

CAPTION SIZE

Closed captioning font size can be changed as below.

FONT STYLE

Font style of the displayed caption can be switched as below.

CHARACTER EDGE

Edge type of the displayed caption can be switched as below.

FORE COLOR, BACK COLOR

Font and background color of the displayed caption can be switched as below.

FORE OPACITY, BACK OPACITY

Text and background opacity of the displayed caption can be switched as below.

CAPTION SIZE

MIDDLE, LARGE, SMALL









STYLE1/8

Proportional font used in the



menu screen













STYLE2/8

Monospaced with serifs









STYLE3/8

Proportionally spaced with



serifs











FONT STYLE

STYLE4/8

Monospaced with serifs



STYLE5/8

Proportionally spaced



without serifs







STYLE6/8

Casual font type



STYLE7/8

Cursive font type



STYLE8/8

Small capitals

CHARACTER EDGE

NONE, RAISED, DEPRESSED, UNIFORM,



SHADOW LEFT, SHADOW RIGHT

FORE OPACITY

SOLID, TRANSLUCENT, FLASH







FORE COLOR

WHITE, BLACK, RED, GREEN, YELLOW,

BLUE, MAGENTA, CYAN, TRANSPARENT









BACK OPACITY

SOLID, TRANSLUCENT, FLASH







BACK COLOR

BLACK, RED, GREEN, BLUE, YELLOW,

MAGENTA, CYAN, TRANSPARENT, WHITE









5 Press[SETUP] to exit.

20

EN

5Back Light Setting

You can set the desired brightness mode.

1 Press[SETUP] to display the main menu.

2Use [Cursor K/L] to select “BACK LIGHT”, then press[ENTER] repeatedly to change the setting.

e.g.) digital TV mode



- TV SETUP

-








CHANNEL SETUP



V-CHIPSETUP



LANGUAGE

[ENGLISH]

or

CAPTION

[OFF]

BACK LIGHT

[BRIGHT]





COLOR TEMP.

[NORMAL]



DTVCC









BRIGHT

NORMAL

DARK

3 Press[SETUP] to exit.

5Color Temperature

You can adjust color temperature of the TV screen.

1 Press[SETUP] to display the main menu.

2Use [Cursor K/L] to select “COLOR TEMP.”, then press[ENTER] repeatedly to change the setting.

e.g.) digital TV mode



- TV SETUP

-








CHANNEL SETUP



V-CHIPSETUP



LANGUAGE

[ENGLISH]

or

CAPTION

[OFF]

BACK LIGHT

[BRIGHT]



COLOR TEMP.

[NORMAL]



DTVCC









NORMAL

WARM

COOL

3 Press[SETUP] to exit.

INFORMATION TROUBLESHOOTING SETTING OPTIONAL TV WATCHING SETTING INITIAL CONNECTION INTRODUCTION

21

EN

OPTIONAL SETTING

5V-chip

A. TV Rating

V-chipreads the ratings for programs, then denies access to the programs



which exceed the rating level you set. With this function, you can block



certain programming inappropriate for children.



1 Press[SETUP] to display the main menu.

4 Use[Cursor K/L] to select “TV RATING”, then press



[ENTER].



e.g.) digital TV mode

2Use [Cursor K/L] to select“V-CHIPSETUP“, then press

[ENTER].

e.g.) digital TV mode



- TV SETUP

-

or




CHANNEL SETUP



V-CHIPSETUP



LANGUAGE

[ENGLISH]



CAPTION

[OFF]



BACK LIGHT

[BRIGHT]



COLOR TEMP.

[NORMAL]



DTV CC









3Use [the Number buttons]to enter the 4-digit numbers for your password.

PASSWORD

- - - -

When you have not set up your password, enter 0000.

When the password is correct, the following

“V-CHIPSETUP” menu is displayed.

See the following description for setting each item.

e.g.) digital TV mode

A...“A.TV Rating”Dpage 22













- V - CHIP SETUP -





B...“B. MPAA Rating”Dpage 23

TV RATING









A









C...“C. Change Password”

MPAA RATING







B







DOWNLOADABLE RATING



C

CHANGE PASSWORD





Dpage 24

































- V - CHIP SETUP -

or

TV RATING



MPAA RATING



DOWNLOADABLE RATING



CHANGE PASSWORD





5Use [Cursor K/L] to select the desired rating, then press[ENTER] repeatedly to switch between “VIEW” and “BLOCK”.

or



TV-Y

[VIEW]











TV-Y7(

) [VIEW]











TV-G

[VIEW]











TV-PG(

) [VIEW]











TV-14(

) [VIEW]











TV-MA(

) [VIEW]





























Rating





Category













TV-Y



Appropriate for all children

lower











TV-Y7



Appropriate for all children 7 and







older

















TV-G



General audience

















TV-PG



Parental guidance suggested















TV-14



Unsuitable for children under 14















TV-MA



Mature audience only



higher















Note:

“DOWNLOADABLE RATING“ will be available when the unit receives a digital broadcast using the new rating system.

When you select a rating and set it to “BLOCK”, the higher ratings will be blocked automatically. The lower ratings will be available for viewing.

When you set the highest rating to “VIEW”, all ratings turn to “VIEW” automatically.

If the “PROTECTED PROGRAM” message appears during your TV viewing, change to a channel that is not blocked. Then, you can access “V-CHIPSETUP” menu and change the setting to allow all TV viewing.

To block any inappropriate programming, set your limits in both “TV RATING” and “MPAA RATING”.

The V-chipsetting will be retained after a power failure (except the access code reverts to 0000).

22

EN

[To Set the Sub Ratings]

As for TV-Y7,TV-PG,TV-14orTV-MA,you can further set the sub ratings to block specific elements of programming. To set the sub ratings, follow the steps below.

1Use [Cursor K/L] to select the desired main rating, then press[ENTER] twice to show its sub ratings.

or

TV-Y

[VIEW]





TV-Y7(DLSV) [VIEW]





TV-G

[VIEW]





TV-PG(DLSV)

[BLOCK]





TV-14(DLSV) [BLOCK]





TV-MA(DLSV)

[BLOCK]



















2 Use[Cursor K/L], then press[ENTER] repeatedly to change the setting.

e.g.) TV-PG



TV-PG

[BLOCK]

or

D

[BLOCK]

L

[BLOCK]



S

[BLOCK]



V

[BLOCK]







Sub Rating

Category

Rating







FV

Fantasy Violence

TV-Y7







V

Violence

TV-PG





S

Sexual Situation

TV-14





TV-MA

L

Coarse Language









D

Suggestive Dialogue

TV-PG,TV-14







6 Press[SETUP] to exit.

Note:

Blocked sub ratings will appear beside the main rating category in “TV RATING” menu.

You cannot block a sub rating (D, L, S or V) if the main rating is set to “VIEW”.

Changing the category to “BLOCK” or “VIEW” automatically changes all its sub ratings to the same (“BLOCK” or “VIEW”).





B. MPAA Rating

INTRODUCTION







MPAA Rating is the rating system created by MPAA (Motion Picture



Association of America).



































CONNECTION

4 Use [Cursor

e.g.) digital TV mode

K/L] to select “MPAA RATING”, then press





[ENTER].



































- V - CHIP SETUP -











or



TV RATING





























MPAA RATING









SETTINGINITIAL







DOWNLOADABLE RATING













CHANGE PASSWORD







































































5 Use[Cursor K/L], then press[ENTER] repeatedly to

TVWATCHING



change the setting.







































or



G

[VIEW]













PG

[VIEW]













PG-13

[VIEW]













R

[BLOCK]













NC-17

[BLOCK]













X

[BLOCK]





SETTING OPTIONAL



































Rating



Category

























GGeneral audience

PG

Parental guidance suggested

TROUBLESHOOTING

PG-13

Unsuitable for children under 13









R

Restricted; under 17 requires accompanying



parent or adult guardian













NC-17

No one under 17 admitted



XMature audience only

6 Press[SETUP] to exit.

INFORMATION



23

EN

OPTIONAL SETTING

C. Change Password

Although the default code “0000” is supplied with the unit, you can set your own password.

4Use [Cursor K/L] to select “CHANGE PASSWORD”, then press[ENTER].

e.g.) digital TV mode

or

- V - CHIP SETUP -

TV RATING MPAA RATING

DOWNLOADABLE RATING CHANGE PASSWORD

5Press [the Number buttons]on the remote control to enter the new 4-digit password.

Enter password again in “CONFIRM PASSWORD” space.

NEW PASSWORD

_ _ _ _

CONFIRM PASSWORD

_ _ _ _

6Press [SETUP] to exit.

Note:

Make sure new password and confirm password must be exactly the same. If they are different, the space is cleared for reentering.

Your password will be erased and return to the default (0000) when a power failure occurs. If you forget the password, unplug the power cord for 10 seconds to restore the password to 0000.

24

EN

TROUBLESHOOTING

5Troubleshooting Guide

If the unit does not perform properly when operated as instructed in this owner's manual, check the following chart once before calling for service.

Symptom

Remedy

No power

• Be sure the power cord is plugged in.



• If a power failure occurs, unplug the power cord for 30 minutes to allow the unit to



reset itself.

No picture or sound

• Check if the power is on.



• Check the outlet connection.



• Check the antenna or cable connection to the main unit.



• When the outside antenna is used, check the wire condition and connection.



• View other TV channels. The problem might be limited to the broadcasting station.



• Turn off the power and wait for about 1 minute, then turn it on again.

No color

• Check the antenna or cable connection to the main unit.



• When the outside antenna is used, check the wire condition and connection.



• View other TV channels. The problem might be limited to the broadcasting station.



• Adjust the “COLOR” in the main menu.

Sound OK, picture poor

• Check the antenna or cable connection to the main unit.



• When the outside antenna is used, check the wire condition and connection.



• Electrical interference from nearby appliances may affect picture quality.



• Adjust “CONTRAST” and “BRIGHTNESS” in the main menu.



• View other TV channels. The problem might be limited to the broadcasting station.

Picture distorted

• When the outside antenna is used, check the wire condition and connection.



• View other TV channels. The problem might be limited to the broadcasting station.

Weak picture

• Check the antenna or cable connection to the main unit.



• When the outside antenna is used, check the wire condition and connection.



• Adjust “CONTRAST” and “BRIGHTNESS” in the main menu.



• View other TV channels. The problem might be limited to the broadcasting station.

Lines or streaks in picture

• When the outside antenna is used, check the wire condition and connection.



• Electrical interference from nearby appliances may affect picture quality.



• View other TV channels. The problem might be limited to the broadcasting station.

Picture blurred

• When the outside antenna is used, check the wire condition and connection.



• View other TV channels. The problem might be limited to the broadcasting station.

Ghosts in picture

• Check the antenna or cable connection to the main unit.



• When the outside antenna is used, check the wire condition and connection.



• Electrical interference from nearby appliances may affect picture quality.



• View other TV channels. The problem might be limited to the broadcasting station.

Bars on TV screen

• When the outside antenna is used, check the wire condition and connection.



• Electrical interference from nearby appliances may affect picture quality.

Picture rolls vertically

• When the outside antenna is used, check the wire condition and connection.



• Electrical interference from nearby appliances may affect picture quality.



• View other TV channels. The problem might be limited to the broadcasting station.

Different color marks on TV

• Move the unit away from nearby electric appliances. Turn off the power and wait

screen

30 minutes before turning it back on.



• View other TV channels. The problem might be limited to the broadcasting station.

Poor reception on some

• Check the antenna or cable connection to the main unit.

channels

• When the outside antenna is used, check the wire condition and connection.



• Electrical interference from nearby appliances may affect picture quality.



• View other TV channels. The problem might be limited to the broadcasting station.

Picture OK, sound poor

• View other TV channels. The problem might be limited to the broadcasting station.





No reception of digital signals

• Make sure auto channel scan has been completed. (Refer to “Auto Channel Scan”



on page 12.)



Auto channel scan must be completed when you set up the unit for the first time



or move it to a location where previously unavailable channels are broadcast.



• The selected channel may not be broadcasting.



• When auto channel scan is interrupted and not completed, some channels will not



be received. Make sure to complete. (Refer to “Auto Channel Scan” on page 12.)

INFORMATION TROUBLESHOOTING SETTING OPTIONAL TV WATCHING SETTING INITIAL CONNECTION INTRODUCTION

25

EN

TROUBLESHOOTING

Symptom

Remedy

The entered channel number

• Many digital channels have alternate channel numbers. The unit changes the

changes automatically

numbers automatically to the ones signifying the broadcasting stations. These are



the numbers used for analog broadcasts.

Remote control does not work

• Check the antenna or cable connection to the main unit.



• Check the batteries of the remote control.



• Check if there is an obstacle between the infrared sensor window and the remote control.



• Test the signal output. If OK, then possible infrared sensor trouble.



(Refer to “IR Signal Check” on page 26.)



• Aim the remote control directly at the infrared sensor window on the front of the unit.



• Reduce the distance to the unit.



Re-insertthe batteries with their polarities (+/– signs) as indicated.



Problems with Closed Caption Feature





Misspelled captions are

• Closed captioning production companies may broadcast programs without

displayed.

correcting the misspelling in a live broadcast.

Captions are not entirely

• Captions that are delayed a few seconds behind the actual dialogue are common for

displayed, or captions are

live broadcasts. Most captioning production companies can display a dialogue to a

delayed behind the dialogue.

maximum of 220 words per minute. If a dialogue exceeds that rate, selective editing is



used to insure that the captions remain up-to-datewith the current TV screen dialogue.

Captions are displayed as a

• Interference from buildings or weather conditions may cause captioning to be

white box.

incomplete.

No caption is displayed in the

• Broadcasting station may shorten the program to insert advertisement. The closed

closed caption-supported

caption decoder cannot read the information of the shortened program.

program.



No caption is displayed

• The videotape may be illegally copied, or the caption signal might not have been

when playing the videotape

read during copying.

containing captions.



Black box is displayed in the

• The text mode is selected for caption. Select “CAPTION1”, “CAPTION2” or “OFF”.

TV screen.



Note:

The LCD panel is manufactured to provide many years of useful life. Occasionally a few non active pixels may appear as a fixed point of blue, green or red. This is not to be considered a defect in the LCD screen.

Some functions are not available in specific modes, but this is not a malfunction. Read the description in this owner's manual for more details on correct operations.

5Maintenance

Cabinet Cleaning

Wipe the front panel and other exterior surfaces of the unit with a soft cloth immersed in lukewarm water and wrung dry.

Never use a solvent or alcohol. Do not spray insecticide liquid near the unit. Such chemicals may cause damage and discoloration to the exposed surfaces.

Panel Cleaning

Wipe the panel of the unit with a soft cloth. Before cleaning the panel, disconnect the power cord.

IR Signal Check

If the remote control is not working properly, you can use an AM radio or digital camera (including a cellular phone with built-incamera) to see if it is sending out an infrared signal.

• With an AM radio:

Tune the AM radio station to a non-broadcastingfrequency. Point the remote control towards it, push any button and listen. If the sound from the radio flutters, it is receiving the remote

control’s infrared signal.

Servicing

Should your unit become inoperative, do not try to correct the problem yourself. There are no user serviceable parts inside. Turn off the unit, unplug the power cord and call our toll free customer support line found on the cover of this manual to locate an authorized service center.

• With a digital camera

(including built-incell phone cameras):

Point a digital camera towards the remote control. Push any button on the remote control and look through the digital camera. If the infrared light appears through the camera, the remote control is working.

26

EN

INFORMATION

5Glossary

ATSC

Acronym that stands for Advanced Television Systems Committee and the name of the digital broadcasting standards.

Aspect Ratio

The width of a TV screen relative to its height. Conventional TVs are 4:3 (in other words, the TV screen is almost square); widescreen models are 16:9 (the TV screen is almost twice as wide as its height).

Component Video

This is a video signal format that conveys each of 3 principal colors of light (red, blue and green) through different signal lines. This allows the viewers to experience picture colors as original as it is. There are several signal formats, including Y / Pb / Pr and Y / Cb / Cr.

Dolby Digital

The system developed by Dolby Laboratories to compress digital sound. It offers stereo sound (2ch) or multi-channelaudio.

EDTV (enhanced definition TV)

Enhanced digital format that takes 480-lineprogressive signal.

HDTV (high definition TV)

Ultimate digital format that produces high resolution and high picture quality.

NTSC

Acronym that stands for National Television Systems Committee and the name of the current analog broadcasting standards.

Password

A stored 4-digitnumber that allows access to parental control features.

SAP (secondary audio program)

Second-audiochannel delivered separately frommain-audiochannel. This audio channel is used as an alternate in bilingual broadcasting.

SDTV (standard definition TV)

Standard digital format that is similar to the NTSC picture quality.

S-video

Offers higher quality images by delivering each signal, color (c) and luminance (y) independently of each other through separate cables.

5Cable Channel Designations

If you subscribe to cable TV, the channels are displayed as 1-135.Cable companies often designate channels with letters orletter-numbercombinations. Please check with your local cable company. The following is a chart of common cable channel designations.

CATV channel

5A

2

3

4

5

6

7

8

9

10

11

12

13

A

B

C

D

E

F

G

H

TV Display

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

CATV channel

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

W+1

W+2

W+3

W+4

W+5

W+6

TV Display

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

CATV channel

W+7

W+8

W+9

W+10

W+11

W+12

W+13

W+14

W+15

W+16

W+17

W+18

W+19

W+20

W+21

W+22

W+23

W+24

W+25

W+26

W+27

TV Display

43

44

45

46

47

48

49

50

51

52

53

54

55

56

57

58

59

60

61

62

63

CATV channel

W+28

W+29

W+30

W+31

W+32

W+33

W+34

W+35

W+36

W+37

W+38

W+39

W+40

W+41

W+42

W+43

W+44

W+45

W+46

W+47

W+48

TV Display

64

65

66

67

68

69

70

71

72

73

74

75

76

77

78

79

80

81

82

83

84

CATV channel

W+49

W+50

W+51

W+52

W+53

W+54

W+55

W+56

W+57

W+58

A-5

A-4

A-3

A-2

A-1

W+59

W+60

W+61

W+62

W+63

W+64

TV Display

85

86

87

88

89

90

91

92

93

94

95

96

97

98

99

100

101

102

103

104

105

CATV channel

W+65

W+66

W+67

W+68

W+69

W+70

W+71

W+72

W+73

W+74

W+75

W+76

W+77

W+78

W+79

W+80

W+81

W+82

W+83

W+84

W+85

TV Display

106

107

108

109

110

111

112

113

114

115

116

117

118

119

120

121

122

123

124

125

126

CATV channel

W+86

W+87

W+88

W+89

W+90

W+91

W+92

W+93

W+94

























TV Display

127

128

129

130

131

132

133

134

135

























5General Specifications

TV format:

ATSC / NTSC-MTV standard

Closed caption system:



§15.122/FCC (digital CC) §15.119/FCC (analog CC)

Channel coverage (ATSC/NTSC):

Terrestrial

VHF: 2~13 UHF: 14~69

CATV

2~13, A~W, W+1~W+94 (analog W+1~W+84),

A-5~A-1,5A

Tuning system: Channel frequency synthesized tuning system Channel access: Direct access keyboard,

Programmable scan, and up/down

5Electrical Specification

Sound output: 1W, 8Ω x 2

Designs and specifications are subject to change without notice and without our legal obligation.

If there is a discrepancy between languages, the default language will be English.

5Other Specifications

Terminals:







Antenna input: VHF/UHF/CATV

75Ω unbalanced (F-type)



S-videoinput:

Mini DIN 4-pinjack x 1

Y: 1Vp-p(75Ω)



Video input:



C: 286mVp-p(75Ω)



RCA jack x 1

1Vp-p(75Ω)



Audio input:

RCA jack x 4

2V rms



Component video input:

Y: 1Vp-p(75Ω)





RCA jack x 3







Pb: 700mVp-p(75Ω)



Coaxial digital audio output:

Pr: 700mVp-p(75Ω)







Headphone:

RCA jack x1

500mVp-p(75Ω)



1/8 inches

(3.5mm)



Remote control: Digital encoded infrared light system



Operating temperature:







41°F (5°C) to 104°F (40°C)



Power requirements:







120V AC +/- 10%, 60Hz +/- 0.5%



Power consumption (maximum):





LCD:

60W





20 inches VGA panel





Dimensions:

W: 23.4 inches

(594mm)





H: 17.9 inches

(454mm)



Weight:

D: 8.1 inches

(204mm)

27

11.7 lbs.

(5.3kg)

INFORMATION TROUBLESHOOTING SETTING OPTIONAL TV WATCHING SETTING INITIAL CONNECTION INTRODUCTION

EN

TM

LIMITED WARRANTY

FUNAI CORP. will repair this product, free of charge in the USA in the event of defect in materials or workmanship as follows:

DURATION:

PARTS: FUNAI CORP. will provide parts to replace defective parts without charge for one (1) year from the date of original retail purchase. Certain parts and LCD imageburn-inare excluded from this warranty.

LABOR: FUNAI CORP. will provide the labor without charge for a period of ninety (90) days from the date of original retail purchase.

LIMITS AND EXCLUSIONS:

THIS WARRANTY IS EXTENDED ONLY TO THE ORIGINAL RETAIL PURCHASER. A PURCHASE RECEIPT OR OTHER PROOF OF ORIGINAL RETAIL PURCHASE WILL BE REQUIRED TOGETHER WITH THE PRODUCT TO OBTAIN SERVICE UNDER THIS WARRANTY.

This warranty shall not be extended to any other person or transferee.

This warranty is void and of no effect if any serial numbers on the product are altered, replaced, defaced, missing or if service was attempted by an unauthorized service center. This limited warranty does not apply to any product not purchased and used in the United States.

This warranty only covers failures due to defects in material or workmanship which occur during normal use. It does not cover damage which occurs in shipment, or failures which are caused by repairs, alterations or products not supplied by FUNAI CORP., or damage, which results from accident, misuse,

abuse, mishandling, misapplication, alteration, faulty installation, improper maintenance, commercial use such as hotel, rental or office use of this product, or damage which results from fire, flood, lightning or other acts of God.

THIS WARRANTY DOES NOT COVER PACKING MATERIALS, ANY ACCESSORIES (EXCEPT REMOTE CONTROL), ANY COSMETIC PARTS, COMPLETE ASSEMBLY PARTS, DEMO OR FLOOR MODELS.

FUNAI CORP. AND ITS REPRESENTATIVES OR AGENTS SHALL IN NO EVENT BE LIABLE FOR ANY GENERAL, INDIRECT OR CONSEQUENTIAL DAMAGES ARISING OUT OF OR OCCASIONED BY THE USE OF OR THE INABILITY TO USE THIS PRODUCT. THIS WARRANTY IS MADE IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, AND OF ALL OTHER LIABILITIES ON THE PART OF FUNAI, ALL OTHER WARRANTIES INCLUDING THE WARRANTY OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE HEREBY DISCLAIMED BY FUNAI AND ITS REPRESENTATIVES IN THE UNITED STATES.

ALL WARRANTY INSPECTIONS AND REPAIRS MUST BE PERFORMED BY AN AUTHORIZED SERVICE CENTER. THIS WARRANTY IS ONLY VALID WHEN THE UNIT IS CARRIED-INTO AN AUTHORIZED SERVICE CENTER.

THE PRODUCT MUST BE ACCOMPANIED BY A COPY OF THE ORIGINAL RETAIL PURCHASE RECEIPT. IF NO PROOF OF PURCHASE IS ATTACHED, THE WARRANTY WILL NOT BE HONORED AND REPAIR COSTS WILL BE CHARGED.

IMPORTANT:

THIS LIMITED WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS. YOU MAY HAVE OTHER RIGHTS THAT VARY FROM STATE TO STATE. IF, AT ANY TIME DURING THE WARRANTY PERIOD, YOU ARE UNABLE TO OBTAIN SATISFACTION WITH THE REPAIR OF THIS PRODUCT, PLEASE CONTACT FUNAI CORP.

ATTENTION:

FUNAI CORP. RESERVES THE RIGHT TO MODIFY ANY DESIGN OF THIS PRODUCT WITHOUT PRIOR NOTICE.

WARRANTY STATEMENT REGARDING NON AUTHORIZED REPAIRS:

To obtain warranty service, you must take the product, or deliver the product freight prepaid, in either its original packaging or packaging affording an equal degree of protection, to any AUTHORIZED SERVICE CENTER. FUNAI CORP. will not reimburse you for any service done by unauthorized service providers without prior written approval.

To locate your nearest AUTHORIZED SERVICE CENTER or for general service inquiries, please contact us at:

FUNAI CORPORATION

Customer Service

Tel : 1-800-256-2487http://www.EmersonAudioVideo.com

19900 Van Ness Avenue, Torrance, CA 90501

Printed in China

A714AUH / A7149UH



1EMN22283 *****
