fi-6130 / fi-6230 Image Scanner Operator's Guide

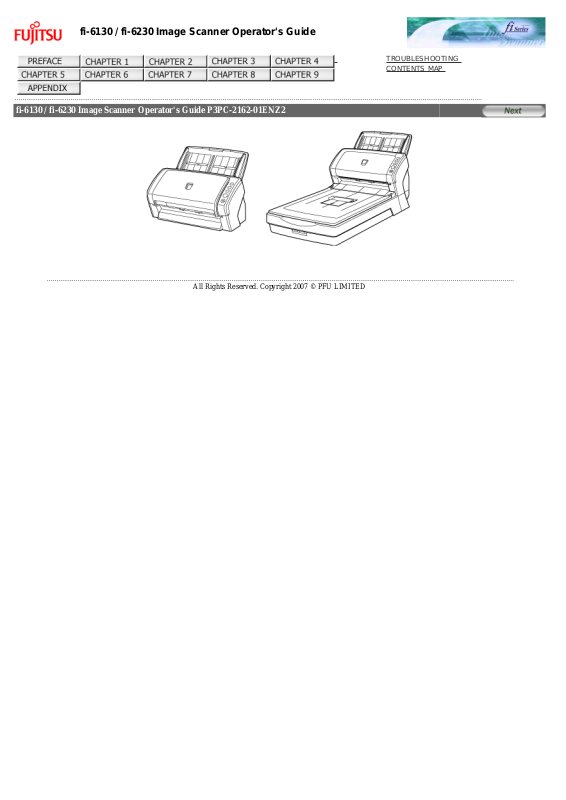

fi-6130 / fi-6230 Image Scanner Operator's Guide P3PC-2162-01ENZ2

TROUBLESHOOTING CONTENTS MAP

fi-6130 / fi-6230 Image Scanner Operator's Guide

TROUBLESHOOTING CONTENTS MAP

INTRODUCTION

Thank you for purchasing the fi-6130 / fi-6230 Duplex Color Image Scanner. This document describes how to handle the fi-6130 / fi-6230 Duplex Color Image Scanner and basic operation methods. Before you start using the fi-6130 / fi-6230 Duplex Color Image Scanner be sure to thoroughly read this manual to ensure correct use.

CONTENTS

TOP

● Copying of the contents of this manual in whole or in part and copying of the scanner application is

prohibited under the copyright law.

● The contents of this manual are subject to change without notice.

● PFU LIMITED is not liable whatsoever for any damages resulting from use of this scanner and procedures

described in this manual, profit due to defects, and any claims by a third party.

fi-6130 / fi-6230 Image Scanner Operator's Guide

TROUBLESHOOTING CONTENTS MAP TOP

Regulatory Information (1)

FCC Declaration

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

● Reorient or relocate the receiving antenna.

● Increase the separation between the equipment and receiver.

● Connect the equipment into an outlet on a circuit different from that to which the receiver is located.

● Consult your dealer or an experienced radio/TV technician.

FCC warning:

Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

ATTENTION

The use of a shielded interface cable is required to comply with the Class B limits of Part 15 of FCC rules. The length of the AC cable must be 2 meters (6.6 feet) or less.

Canadian DOC Regulations

This digital apparatus does not exceed the Class B limit for radio noise emissions from digital apparatus set out in the Radio interference Regulations of the Canadian Department of Communications. This Class B digital apparatus complies with Canadian ICES-003. Le présent appareil numérique n'émet pas de parasites radioélectriques dépassant les limites applicables aux appareils numériques de la classe B et prescrites dans le Règlement sur le brouillage radioélectrique dictées par le Ministère des Communications du Canada. Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.

Bescheinigung des Herstellers / Importeurs

Für den fi-6130/fi-6230 wird folgendes bescheinigt:

● In Übereinsstimmung mit den Bestimmungen der EN45014(CE) funkentstört

● Maschinenlärminformationsverordnung 3. GPSGV: Der höchste Schalldruckpegel beträgt

70 dB (A) oder weniger, gemäß EN ISO 7779.

Dieses Gerät wurde nicht für die Benutzung in unmittelbarer Umgebung starker Lichtquellen (z. B. Projektoren) konzipiert.

fi-6130 / fi-6230 Image Scanner Operator's Guide

TROUBLESHOOTING CONTENTS MAP TOP

Regulatory Information (2)

International ENERGY STAR® Program

As an ENERGY STAR® Partner, PFU LIMITED has determined that this product meets the ENERGY STAR® guidelines for energy efficiency.

The International ENERGY STAR® Office Equipment Program is an international program that promotes energy saving through the penetration of energy efficient computers and other office equipment. The program backs the development and dissemination of products with functions that effectively reduce energy consumption. It is an open system in which business proprietors can participate voluntarily. The targeted products are office equipment such as computers, monitors, printers, facsimiles, copiers, scanners, and multifunction devices.Their standards and logos are uniform among participating nations.

Use in High-Safety Applications

This product has been designed and manufactured on the assumption that it will be used in office, personal, domestic, regular industrial, and general-purpose applications. It has not been designed and manufactured for use in applications (simply called "high-safety applications" from here on) that directly involve danger to life and health when a high degree of safety is required, for example, in the control of nuclear reactions at nuclear power facilities, automatic flight control of aircraft, air traffic control, operation control in mass-transport systems, medical equipment for sustaining life, and missile firing control in weapons systems, and when provisionally the safety in question is not ensured. The user should use this product with adopting measures for ensuring safety in such high-safety applications. PFU LIMITED assumes no liability whatsoever for damages arising from use of this product by the user in high-safety applications, and for any claims or compensation for damages by the user or a third party.

About the Use of Mercury

Lamp(s) inside this product contain mercury and must be recycled or disposed of according to local, state, or federal laws.

To avoid unexpected injury, read the following carefully. Doing the following actions may result in serious personal injuries:

● Do not put the substance contained in the lamp in your mouth as it has mercury.

● Do not incinerate, crush, or shred the lamps or scanner parts.

● Do not breathe the chemical liquid contained in the scanner lamps.

fi-6130 / fi-6230 Image Scanner Operator's Guide

TROUBLESHOOTING CONTENTS MAP TOP

Trademarks

Microsoft, Windows, Windows Server and Windows Vista are registered trademarks of Microsoft Corporation in the United States and/or other countries. ISIS and QuickScan are trademarks or registered trademarks of EMC Corporation in the United States. Adobe, the Adobe logo, and Acrobat are either registered trademarks of Adobe Systems Incorporated in the United States and/or other countries. Other product names are the trademarks or registered trademarks of the respective companies.

How Trademarks Are Indicated In This Manual

References to operating systems (OS) and applications are indicated as follows:

Windows 2000 Windows XP

Windows Server 2003

Microsoft Microsoft

Windows® 2000 Professional operating system

Windows® XP Professional operating system (32-bit/64-bit)

Windows® XP Home Edition operating system

Windows Server® 2003 Standard Edition operating system (32-

bit/64-bit)

Windows Vista

Microsoft Microsoft Microsoft Microsoft Microsoft

Where there is no distinction between the different versions of the above operating system, the general term "Windows" is used.

Adobe Acrobat

Where there is no distinction between the different versions of the above application, the general term "Adobe Acrobat" is used.

The version of Adobe Acrobat provided with this product may change without notice. If the instructions described in this manual differ from the actual displayed screen, refer to Acrobat's Help.

Adobe

Acrobat

Windows Vista® Home Basic operating system (32-bit/64-bit)

Windows Vista® Home Premium operating system (32-bit/64-bit)

Windows Vista® Business operating system (32-bit/64-bit)

Windows Vista® Enterprise operating system (32-bit/64-bit)

Windows Vista® Ultimate operating system (32-bit/64-bit)

Manufacturer

PFU LIMITED International Sales Dept., Imaging Bussines Division, Products Group Solid Square East Tower, 580 Horikawa-cho, Saiwai-ku, Kawasaki-shi Kanagawa 212-8563, Japan Phone: (81-44) 540-4538

fi-6130 / fi-6230 Image Scanner Operator's Guide

TROUBLESHOOTING CONTENTS MAP

Liability

BEFORE USING THIS PRODUCT, PLEASE READ THIS MANUAL CAREFULLY. IF THIS PRODUCT IS NOT USED CORRECTLY, UNEXPECTED INJURY CAN OCCUR TO USERS OR BYSTANDERS.

Keep this manual in a safe place so that it can be easily referred to during use of this product. While all efforts have been made to ensure the accuracy of all information in this manual, PFU assumes no liability to any

party for any damage caused by errors or omissions or by statements of any kind in this manual, its updates or supplements, whether such errors are omissions or statements resulting from negligence, accidents, or any other cause. PFU further assumes no liability arising from the application or use of any product or system described herein; nor any liability for incidental or consequential damages arising from the use of this manual. PFU disclaims all warranties regarding the information contained herein, whether expressed, implied, or statutory.

TOP

fi-6130 / fi-6230 Image Scanner Operator's Guide

TROUBLESHOOTING CONTENTS MAP TOP

Conventions (1)

Safety Precautions

This manual describes important details for ensuring the safe and correct use of this product. Thoroughly read this manual before you start to use this product. In particular, be sure to read and fully understand the Safety Precautions described in this manual before you use this product. Also, store this manual in a safe place so that it can be easily referred to during use of this product.

Warning Indications Used In This Manual

WARNING

This indication alerts operators to an operation that, if not strictly observed, may result in severe injury or death.

CAUTION

This indication alerts operators to an operation that, if not strictly observed, may result in safety hazards to personnel or damage to equipment.

Symbols Used In This Manual

This manual uses the following symbols in the explanations in addition to the warning indications.

This symbol alerts operators to particularly important information. Be sure to read this information.

This symbol alerts operators to helpful advice regarding operation.

A TRIANGLE symbol indicates that special care and attention is required. The drawing inside the triangle shows the specific caution.

A CIRCLE with a diagonal line inside shows action which users may not perform. The drawing inside or under the circle shows the specific action that is not allowed.

Outline characters on a colored background show instructions users should follow. It may also include the drawing that shows the specific instruction.

Clicking this icon plays movies.

ATTENTION

NOTE for using Windows XP Service Pack 2

The Internet's security function may restrict displaying movies. In order to display the movies, allow to run the blocked active content.

fi-6130 / fi-6230 Image Scanner Operator's Guide

TROUBLESHOOTING CONTENTS MAP TOP

Conventions (2)

Screen Examples In This Manual

The screen examples in this manual are subject to change without notice in the interest of product improvement. If the actual displayed screen differs from the screen examples in this manual, operate by following the actual displayed screen while referring to the User's Manual of the scanner application you are using. The screenshots in this manual were captured from the FUJITSU TWAIN32 scanner driver, ScandAll PRO Image Capturing Utility Software, FUJITSU ISIS scanner driver, QuickScan™ image capturing software and Adobe® Acrobat®.

Warning Label

The following picture shows the warning label used in this scanner.

High Temperature

The part around this label (includes the glass surface inside the ADF) becomes hot during the operation. Be careful not to touch the glass surface inside the ADF.

ATTENTION

Do NOT remove from the scanner, stain or scratch the warning labels.

About Maintenance

The user must not perform repairs on this scanner. Contact the store where you purchased the scanner or an authorized FUJITSU Image Scanner service provider to have repairs done on this product.

fi-6130 / fi-6230 Image Scanner Operator's Guide

Safety Precautions (1)

WARNING

Do not damage the AC cable.

A damaged AC cable may cause fire or electric shock. Do not place heavy objects on AC cables, or pull, bend, twist, heat, damage or modify AC cables. Do not use damaged AC cables or power plugs, or install any cables or power plugs to loose wall sockets.

2 3 4

TROUBLESHOOTING CONTENTS MAP TOP

Use only specified AC cables and interface cables.

Use only specified AC cables and interface cables. Failure to use the correct cables might cause electric shock and/or equipment failure. Please do not use the AC cable provided with this scanner for other devices, since this might cause equipment failure and other troubles or an electric shock.

Make sure to ground the scanner.

Make sure to ground to avoid electric shock. Be sure to ground before plugging into a power outlet. Unplug from the outlet before removing the ground connection.

Use this scanner only at the indicated power voltage. Do not connect to multiple-power strips.

Use this scanner only at the indicated power voltage and current. Improper power voltage and current might cause fire or electric shock. Do not connect to multiple-power strips.

Do not touch the AC cable with wet hands.

Do not touch the power plug with wet hands. Doing so can cause electric shock.

Wipe any dust from the power plug.

Wipe off any dust from metal parts on the power plug or metal fittings with a soft, dry cloth. Accumulated dust can cause fire or electric shock.

Do not install the device in locations that has oil smoke, steam, humidity, and dust.

Do not install the scanner in locations subject to oil smoke, steam, humidity, and dust. Doing so might cause a fire or electric shock.

2 3 4

fi-6130 / fi-6230 Image Scanner Operator's Guide

Safety Precautions (2)

WARNING

Do not use the scanner if there is a strange odor.

If you detect heat coming from the device or detect other problems such as smoke, strange smells or noises, immediately turn off the scanner and disconnect its power plug. Make sure that any smoke coming from it has stopped, before contacting the store where you bought the scanner or an authorized FUJITSU scanner service provider.

3 4

TROUBLESHOOTING CONTENTS MAP TOP

Turn the scanner OFF if it is damaged.

If the scanner is damaged for any reason, turn the scanner off and unplug the power cable. Contact the store where you purchased the scanner or an authorized scanner service provider.

Do not put liquids inside the scanner.

Do not insert or drop metal objects in to the scanner. Do not scan wet documents or documents with paper clips or staples. Do not splash or allow the scanner to get wet.

If foreign objects (water, small metal objects, liquids, etc.) get inside the scanner, immediately turn off the scanner and disconnect the power plug from the power outlet. Then, contact the store where you bought the scanner or an authorized FUJITSU scanner service provider. Pay particular attention to this warning in households where there are small children.

Unplug the scanner when a trouble occurs.

Immediately unplug the scanner when a trouble occurs. Never cut the ground connection until the scanner is unplugged from the power outlet.

Do not touch the inside of the scanner unless necessary.

Do not take apart or modify the scanner. The inside of the scanner contains high-voltage components. Touching these components might cause electric shock or fire.

Do not use aerosol sprays near the scanner.

Do not use any aerosol sprays or alcohol based sprays to clean the scanner. Dust blown up by strong air from the spray may enter the inside of the scanner. This may cause the scanner to fail or malfunction. Sparks, caused by static electricity, generated when blowing off dust and dirt from the outside of the scanner may cause a fire.

3 4

fi-6130 / fi-6230 Image Scanner Operator's Guide

Safety Precautions (3)

CAUTION

Do not install the scanner on unstable surfaces.

Make sure that the scanner is installed on a flat, level surface and that none of its parts extend beyond the surface top, such as a desk or table. Do not install the scanner on unstable surfaces. Install the scanner on a level surface that is free of vibration to prevent it from falling. Install the scanner on a strong surface that will support the weight of the scanner and other devices.

1 2

TROUBLESHOOTING CONTENTS MAP TOP

Firmly insert the power plug.

Firmly insert the power plug as far it can go into the power outlet.

Do not block the ventilation ports.

Do not block the ventilation ports. Blocking the ventilation ports generates heat inside of scanner, which may result in fire or scanner failure.

Do not place heavy objects or stand on top of the scanner.

Do not place heavy objects on the scanner or use the scanner's surface top to perform other work. Improper installation might cause injuries and equipment failure.

Do not use the scanner immediately after moving it from a cold place into a warm room.

Do not use the device immediately after moving it from a cold place into a warm room. Condensation may occur, which might lead to scanning errors. Let the device dry about one or two hours before you use it.

Before moving the scanner, disconnect the power plug from the power outlet.

Do not move the scanner with the power and interface cables connected as this can damage the cables, which can later cause fire, electric shock as well as injury. Before moving the scanner, be sure to disconnect the power plug from the power outlet, and all other interface cables. Make sure that the floor is free of any obstructions.

1 2

fi-6130 / fi-6230 Image Scanner Operator's Guide

Safety Precautions (4)

CAUTION

Protect the scanner from static electricity.

1 2 3

TROUBLESHOOTING CONTENTS MAP TOP

Install the scanner away from strong magnetic fields and other sources of electronic noise. Also, protect the scanner against any static electricity, which can cause the scanner to malfunction.

Avoid any contact when scanner is in use.

Avoid getting a sleeve, necktie, or hair caught up in any scanner mechanism during scanning since this may cause injuries.

Disconnect the power plug from the power outlet when the scanner is not used for a long period of time.

When the scanner is not going to be used for a long period of time, be sure to disconnect the power plug from the power outlet.

Do not install the scanner in direct sunlight.

Do not install the scanner under direct sunlight or near heating apparatus. Doing so might cause excessive heat to build up inside the scanner, which can cause scanner trouble or even fire. Install the scanner in a well-ventilated location.

Before moving the scanner, make sure the transport lock is locked. (fi6230 only)

When moving the scanner, be sure to lock the transport lock in order to prevent damage to the scanner.

1 2 3

fi-6130 / fi-6230 Image Scanner Operator's Guide

Chapter 1 NAMES AND FUNCTIONS OF PARTS

This chapter describes the scanner parts and their functions.

TROUBLESHOOTING CONTENTS MAP TOP

fi-6130 / fi-6230 Image Scanner Operator's Guide

TROUBLESHOOTING CONTENTS MAP

1.1 Checking the Contents of the Scanner Package

When you open the scanner package, please handle the main unit and its attachments carefully. Make sure it contains all the parts listed in the package contents list that is included in the package box. If any parts are missing or defective, contact the dealer where you purchased the scanner or an authorized FUJITSU scanner service provider.

TOP

fi-6130 / fi-6230 Image Scanner Operator's Guide

1.2 Names and Functions of Parts

This section describes the scanner parts and their functions.

Front

TROUBLESHOOTING CONTENTS MAP TOP

No. Name Function

ADF (Automatic Document Feeder)

ADF paper chute Holds in place the document pages / sheets that are fed

Paper chute extension 1

Paper chute extension 2

Side Guide Adjusted to the width of the paper in order not to scan

ADF open lever Pull this lever toward you to open the ADF.

Operator panel This panel consists of a Function No. Display, four

Stacker Scanned documents are ejected from the ADF onto this

Stacker extension 1 [fi-6130 only]

Stacker extension 2 [fi-6130 only]

Stacker extension [fi-6230 only]

Flatbed (FB) [fi-6230 only]

Transport lock switch [fi-6230 only]

Transports the document to the reading position automatically.

into the ADF.

skewed pages.

operating push buttons, and a LED.

stacker.

Place documents on the glass sheet by sheet for singlesheet scanning.

Used to lock the carrier unit inside the flatbed during transportation.

Inside

Rear

No. Name Function

Document bed Place documents on the glass when scanning through the flatbed.

Document holding

Holds documents down on the document bed.

pad

Document cover Holds the documents loaded at the reading position when closed.

HINT

The document cover with a black document holding pad is optionally available. This type is convenient for scanning documents in black background when loading them from the flat bed.

● Name: Black Document Pad (fi-624BK)

● Parts No.: PA03540-D801

Removable Parts

No. Name

Security Slot

EXT connector (for imprinter connection) [fi-6130 only]

USB connector

DC inlet

Parts that can be removed from the scanner are displayed below.

No. Name

ADF paper chute

Pick roller

Brake roller

Document cover [fi-6230 only]

fi-6130 / fi-6230 Image Scanner Operator's Guide

TROUBLESHOOTING CONTENTS MAP

1.3 Functions of the Operator Panel

The operator panel is located on the right side of the scanner. This panel is comprised of a Function Number display, four buttons, and a LED.

TOP

No. Name Function

Check LED Lights when an error occurs.

Function Number Display Indicates the function number and error status.

Function Button Changes the Function activated by the Send to button (*).

Send to Button

Scan/Stop Button

Power Button/LED Turns the scanner ON and OFF.

*) About the settings on the launcher, refer to FUJITSU TWAIN32 scanner driver help, which is included in the

"Setup CD-ROM," and Appendix 1 "

Launches the linked application software (*).

Resets an error.

Launches the linked application software (*).

Resets an error. Cancels ongoing scanning.

Lights when the scanner is turned ON.

Before Using the [Scan] or [Send to] Button."

Indications on the Function Number Display

Indication Function

8 Blinks only one time upon turning on the scanner. P Indicates that the scanner has been turned ON and is being initialized. 0 Indicates that initialization will soon end. 1 Indicates that initialization has ended successfully. This status is called "Ready

Status."

F C H A

Indicates that a recoverable error occurred during scanning with the image scanner.

"J" or "U" and an "error number" is displayed alternately.

When an error is indicated, press the [Scan] button or [Send to] button to return to the Ready Status ("1").

Indicates that an abnormality (alarm) occurred in the image scanner during its initialization or during scanning documents.

"E", "F", "C", "H", "A", or "L" and an "alarm number" are displayed alternately. When

the alarm number is displayed, press the [Scan] button or [Send to] button to return to the Ready Status ("1"). If this alarm occurs, turn the power off and on again. If the alarm continues after turning the power on again, contact the dealer where you bought the scanner or an authorized FUJITSU scanner service provider.

fi-6130 / fi-6230 Image Scanner Operator's Guide

TROUBLESHOOTING CONTENTS MAP

Chapter 2 BASIC SCANNER OPERATIONS

This chapter describes basic scanner operations.

In this chapter Windows XP screenshots are illustrated. The screens and operations may differ slightly if the OS that you are using is other than Windows XP. Also, when the FUJITSU TWAIN32 or FUJITSU ISIS scanner driver is updated the screens and operations noted in this chapter will differ slightly. In such case, refer to the relevant manuals or materials, which are to be supplied when updating the driver.

TOP

fi-6130 / fi-6230 Image Scanner Operator's Guide

2.1 Turning the Scanner ON

This section describes how to turn the scanner ON. The following shows the procedure for turning the scanner ON.

1. Press the Power button on the Operator Panel.

The scanner is turned ON, and the Power LED on the Operator Panel lights in green. Also, while the scanner is being initialized, the indication of the Function Number Display changes as follows: "8" -> "P" -> "0" -> "1" The indication "1" means that the Operator Panel is in the Ready Status.

TROUBLESHOOTING CONTENTS MAP TOP

Power button

HINT

To turn the scanner OFF, hold the Power button down for at least two seconds.

About Power ON/OFF Control

You can select to power the scanner on/off either by pressing the Power button, or by connecting / disconnecting the AC cable. The procedure is as follows.

1. Confirm if the scanner is connected correctly to the PC, then power on the scanner.

For details on how to connect the scanner to a personal computer, refer to section "2.2 Connecting the Scanner to Your PC" of "fi-6130/fi-6230 Getting Started."

2. From the [start] menu, select [Control Panel].

The [Control Panel] window appears.

3. Double-click the [Printer and Other Hardware] icon.

The [Printer and Other Hardware] window appears.

4. Double-click the [Scanners and Cameras] icon.

The [Scanners and Cameras] window appears.

5. Select [fi-6130dj] or [fi-6230dj], and then select [Properties] from the menu.

For Windows XP or Windows Server 2003; right-click [fi-6130dj] or [fi-6230dj], and then select [Properties]. For Windows 2000 or Windows Vista; double-click the [fi-6130dj] or [fi-6230dj] icon.

The properties dialogbox of fi-6130dj or fi-6230dj appears.

6. Click the [Device Set] tab.

7. Click the [Power Control] button.

The [Power Control] window appears.

8. Enable [Power Control].

Select [Enable power switch] to power on/off the scanner by pressing the Power button. Select [Disable power switch] to power on/off the scanner by connecting/disconnecting the AC cable.

9. Click the [OK] button.

Power Save Mode

The Power Save mode keeps the scanner in a low-powered state after it has been turned ON. If no operation is performed on the scanner for 15 minutes, the scanner automatically switches to the Power Save mode. In the Power Save mode, the indication of the Function Number Display on the operator panel goes out, but the Power LED stays lit in green.

To return from the Power Save mode, perform one of the following:

● Load the document on the ADF paper chute.

● Press any button on the operator panel.

The scanner will be turned OFF when pressing down the Power button for at least two seconds.

● Execute a command from the scanner driver.

fi-6130 / fi-6230 Image Scanner Operator's Guide

2.2 Loading Documents on the ADF for Scanning

HINT

TROUBLESHOOTING CONTENTS MAP TOP

Refer to Chapter "7 ADF AND PAPER SPECIFICATION" for information about the required document sizes and paper quality for ensuring correct operation when

scanning documents from the ADF.

1. Align the edges of the documents.

1) Confirm that all the documents have the same width.

2) Check the number of sheets in the document stack. (For details, see Section "

- A4/letter-size paper or smaller that makes a document stack of 5 mm or less

- Maximum 50 sheets at A4/letter, 20 lb, or 80 g/m

7.3 Maximum Document Loading Capacity.")

2. Fan the documents as follows:

Select a stack of documents 5 mm or less high. Hold the document with both hands and fan it out several times. Turn the document by 90 degrees, and then fan it in the different orientation again.

3. Load the document on the ADF paper chute.

Set the documents face-down in the ADF paper chute (so that the side to be scanned faces towards the ADF paper chute).

HINT

● Pull out the paper chute extensions to support the document when necessary.

● ID cards can be loaded either in vertical or holizontal orientation.

Paper chute extensions

ATTENTION

This scanner can scan ID cards through the Automatic Document Feeder with the following precautions.

● You can place up to three cards at a time into the Automatic Document Feeder.

If the card is embossed (i.e., a card with raised lettering), place one card at a time.

● It is recommended that the front side of the card be placed face down in the

Automatic Document Feeder.

● The card to be scanned should be within the ISO7810 compliance, type ID-1.

Dimensions: 3.4 inch (height) x 2.1 inch (width)/ 86 mm x 54 mm Thickness: 0.056 inches / 1.4 mm or less Material: PVC (Poly vinyl chloride) or PVCA (Polyvinyl chloride acetate)

Note: Before scanning your card, test with a dummy card of the same material to see if it can be fed into the ADF properly.

● Cards that are excessively rigid or less flexible may not feed smoothly and excessive

noise may occur. Note: If the cards do not feed smoothly, try:

- Scanning one card at a time.

- Enabling [Automatic Paper Size Detection]. For how to configure this setting, see Section "

- Raising the resolution.

● Cards should be clean from oil and without labels.

● Cards cannot be scanned when the imprinter is installed.

3.10 Correcting Skewed Documents."

4. Adjust the side guides to the width of the documents.

Move the side guides so that they touch both sides of the documents. If there is any space between the side guides and the edges of documents, the scanned image may be skewed.

Side guides

HINT

Use of the stacker or stacker extension prevents document sheets from dropping after they are scanned. Use the stacker and stacker extension as shown in the figure below.

When the document size to scan is A5 or longer in length

A. Stacker B. Stacker extension

When the document size to scan is A6 or longer in length and A5 or narrower in width (Do not force to open the stacker extension wider than the right angle. Otherwise, it may be damaged.)

5. Start up the scanner application, and scan the document.

For details on how to scan documents using the ScandAll PRO application, see Section "

2.6 How to Use ScandAll PRO."

fi-6130 / fi-6230 Image Scanner Operator's Guide

TROUBLESHOOTING CONTENTS MAP

2.3 Loading Documents on the Flatbed for Scanning [fi-6230 only]

1. Lift up the document cover.

2. Load the document on the document bed with the scanning face down and the top left corner aligned with the reference point (

TOP

3. Gently close the document cover.

4. Start up the scanner application, and scan the document.

For details on how to scan documents using the ScandAll PRO application, see Section "2.6 How to Use ScanAll PRO."

Reference point

fi-6130 / fi-6230 Image Scanner Operator's Guide

2.4 Scanning Documents

This section describes how to scan documents using this scanner. The basic steps for scanning documents are as follows:

1. Load the document on the scanner's ADF paper chute or Flatbed.

For details on how to load documents, see Sections "2.2 Loading Documents on the ADF for Scanning" and "2.3 Loading

Documents on the Flatbed for Scanning."

TROUBLESHOOTING CONTENTS MAP TOP

2. Launch an application you want to use for scanning. (The following shows an example screen when ScandAll PRO is selected.)

3. Select a scanner to use.

4. In the application, invoke a scanner driver.

+ 181 hidden pages
