Fujitsu fi-6110 User Manual

Download

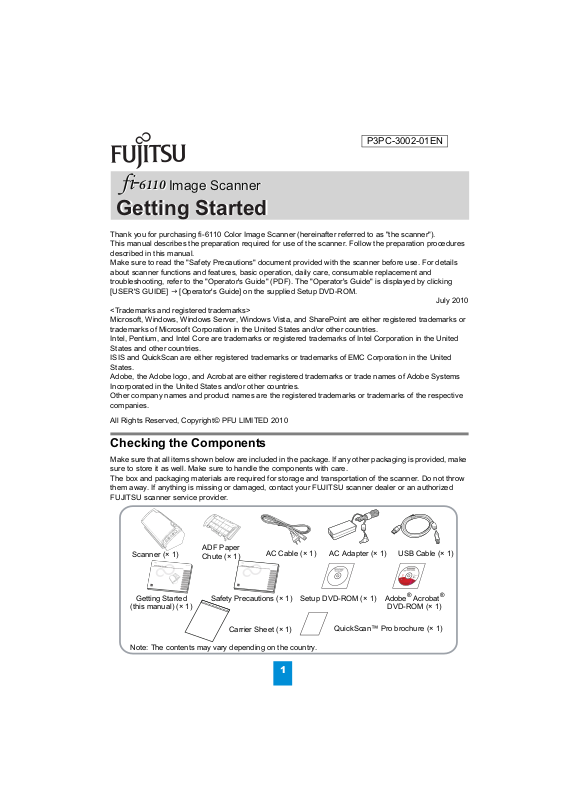

Page 1
Getting Started
Getting Started
fi
-
6110 Image Scanner
fi
-
6110
Image Scanner
Scanner (× 1)
USB Cable (× 1)AC Cable (× 1)
ADF Paper Chute (× 1)
Setup DVD-ROM (× 1)
AC Adapter (× 1)
Carrier Sheet (× 1)
Getting Started
(this manual) (× 1)
Safety Precautions (× 1) Adobe® Acrobat
®
DVD-ROM (× 1)
QuickScan™ Pro brochure (× 1)
Note: The contents may vary depending on the country.
P3PC-3002-01EN
<Trademarks and registered trademarks> Microsoft, Windows, Windows Server, Windows Vista, and SharePoint are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries. Intel, Pentium, and Intel Core are trademarks or registered trademarks of Intel Corporation in the United States and other countries. ISIS and QuickScan are either registered trademarks or trademarks of EMC Corporation in the United States. Adobe, the Adobe logo, and Acrobat are either registered trademarks or trade names of Adobe Systems Incorporated in the United States and/or other countries. Other company names and product names are the registered trademarks or trademarks of the respective companies.
All Rights Reserved, Copyright© PFU LIMITED 2010
July 2010

Checking the Components

Make sure that all items shown below are included in the package. If any other packaging is provided, make sure to store it as well. Make sure to handle the components with care. The box and packaging materials are required for storage and transportation of the scanner. Do not throw them away. If anything is missing or damaged, contact your FUJITSU scanner dealer or an authorized FUJITSU scanner service provider.
1
Page 2

Safety Precautions

WARNING
CAUTION
Protective Foam Sheet and Tape
ADF
Stacker
ADF Release Tab
ADF
Protective Card and Tape
The provided "Safety Precautions" document contains important information about the safe use of the scanner. Before using the scanner, make sure to read and understand the information provided in the "Safety Precautions" document.

Symbols Used in This Manual

The following symbols are used in this manual.
Symbol Description
This symbol alerts operators to an operation that, if not strictly observed, may result in severe injury or death.
This symbol alerts operators to an operation that, if not strictly observed, may result in safety hazards to personnel or damage to equipment.
This symbol alerts particularly important information. Be sure to read this information.
This symbol alerts operators to helpful advice regarding operation.

Removing the Protective Packaging

The scanner comes in a variety of protective packaging. Follow the procedure described below to remove the packaging before using the scanner.
1. Open the stacker, and peel off the tape to
remove the protective foam sheet from the ADF.
2. Pull the ADF release tab to open the ADF,
and pull the tape to remove the protective card.

Installing the Scanner Software

Bundled Software

The following software is bundled with the scanner.
z TWAIN Driver
Conforms to the TWAIN standard. Used when you operate the scanner using TWAIN­compliant applications.
z ISIS Driver
Conforms to the ISIS standard. Used when you operate the scanner using ISIS-compliant applications.
z Software Operation Panel
Configures settings for scanning behavior and consumables management. Installed together with the scanner drivers (TWAIN/ISIS drivers).
z Error Recovery Guide
Shows the error status and the action to take when an error occurs. Installed together with the scanner drivers (TWAIN/ISIS drivers).
z Image Processing Software Option (trial)
A software option featuring advanced binarization of scanned images.
z ScandAll PRO
A TWAIN/ISIS-compliant image scanning application (recommended). You can define scanning settings as batch profiles to suit your various operation requirements. By defining scanning settings as batch profiles, you can easily perform scans in accordance with various operation requirements.
2
Page 3
z Scan to Microsoft SharePoint
An application that allows you to upload your files easily from ScandAll PRO to a SharePoint site. Can be installed together with ScandAll PRO.
z QuickScan Pro (trial)
An application for image scanning that conforms to the ISIS standard. By using an ISIS driver, you can scan documents as images. This is a trial version, and can be executed 30 times before it is disabled. You will need to purchase the full product version if you wish to continue using it.
z Manuals
Includes the Getting Started, Operator's Guide, How to Use ScandAll PRO, FUJITSU TWAIN User's Guide, and Image Processing Software Option User's Guide.
z Adobe® Acrobat® Standard
The de-facto standard application used for creating, editing, managing, and making use of digitalized documents in PDF format.
Adobe® Acrobat®, bundled with the scanner, may be upgraded without notice. Refer to Adobe Acrobat Help if the actual screens differ from those described in this manual.

System Requirements

System requirements are as follows.
®
zWindows zWindows zWindows
Edition (*1)
zWindows Server
Edition (*2)
zWindows Server
x64 Edition (*1) (*2)
zWindows Server
Standard Edition
zWindows Server
Standard x64 Edition (*1)
zWindows Vista
bit/64-bit) (*1)
zWindows Vista
(32-bit/64-bit) (*1)
Operating
system
zWindows Vista
64-bit) (*1)
zWindows Vista
64-bit) (*1)
zWindows Vista
64-bit) (*1)
zWindows Server
(32-bit/64-bit) (*1)
zWindows Server
Standard (64-bit) (*1)
zWindows
bit/64-bit) (*1)
zWindows
64-bit) (*1)
zWindows
bit) (*1)
zWindows
(*1)
Intel
CPU
higher recommended (Minimum of Intel GHz)
Memory 1 GB or more recommended
Display
resolution
Hard disk
space
1024 x 768 or higher, 65536 colors or more
1.2 GB or more of free hard disk space is required (*3)
DVD drive Essential for installing the software
Interface USB2.0 (High-Speed)
*1: QuickScan Pro does not support the
Windows
®
64-bit version.
*2: Not supported by ScandAll PRO.
XP Home Edition
®
XP Professional
®
XP Professional x64
®
2003, Standard
®
2003, Standard
®
2003 R2,
®
2003 R2,
®
Home Basic (32-
®
Home Premium
®
Business (32-bit/
®
Enterprise (32-bit/
®
Ultimate (32-bit/
®
2008 Standard
®
2008 R2,
®
7 Home Premium (32-
®
7 Professional (32-bit/
®
7 Enterprise (32-bit/64-
®
7 Ultimate (32-bit/64-bit)
®
Core™ 2 Duo 2.2 GHz or
®
Pentium® 4 1.8
3
Page 4
*3: Disk space corresponding to the resulting
scanned file size is required when scanning documents.
Windows Vista® screen examples are used to explain the operations. The screens and operations may differ slightly depending on the operating system you are using. Where there is no distinction between the different versions of the operating system shown in the table of system requirements, the general term Windows is used.
®

Installing the Bundled Software

The following describes how to install the bundled software from the "Setup DVD-ROM" contained in the scanner package. There are two ways to install the bundled software: [INSTALL (Recommended)] which installs all software needed to operate the scanner, or [INSTALL (Custom)] which installs selected software one at a time. For how to install Adobe "Installing Adobe
zIf an old version of the software is
installed already, uninstall it first. For how to uninstall software, refer to "A.4 Uninstalling the Software" in the Operator's Guide.
zLog on as a user with "Administrator"
privileges (Administrators).
®
®
Acrobat®, refer to
Acrobat®" (page 5).
If the [fi series Image Scanner Setup] screen does not appear, find "Install.exe" in the Setup DVD-ROM using "Windows Explorer" or "Computer" and execute it directly.
3. Click the [INSTALL (Recommended)]
button.
4. Install the software, following the on-
screen instructions.

■ INSTALL (Custom)

1. Perform Steps 1. to 2. in "INSTALL
(Recommended)" (page 4).
2. Click the [INSTALL (Custom)] button.

■ INSTALL (Recommended)

For [INSTALL (Recommended)], the following software can be installed.
z TWAIN driver z Software Operation Panel z Error Recovery Guide z ScandAll PRO z Scan to Microsoft SharePoint z Manuals
1. Turn on your computer and log on to
Windows
®
.
2. Insert the Setup DVD-ROM into the DVD
drive.
D The [fi series Image Scanner Setup]
screen appears.
D The [INSTALL PRODUCTS] screen
appears.
3. Click the button of the software to be
installed.
4. Install the software, following the on-
screen instructions.
Repeat Steps 3. to 4. to install other software here.
4
Page 5
Installing Adobe® Acrobat
143
(5.63)
292
130
380
850
493.5
(14.96)
(33.46)
(19.43)
(11.50)
(5.12)
Scanner's Dimensions
Unit: mm (in.)
Installation Space
Tab
ADF Paper Chute
Side Guide
Install Adobe® Acrobat® using the following procedure from the "Adobe supplied with the scanner.
You do not have to install Adobe®
®
Acrobat computer.
if it is already installed on your
®
®
Acrobat® DVD-ROM"

Installing the Scanner

The following describes how to install the scanner.
1. Place the scanner at its installation site.
1. Insert the supplied "Adobe
DVD-ROM
D The DVD-ROM is recognized
" into the DVD drive.
automatically, and the following dialog box appears.
This dialog box is not displayed automatically when the [Auto play] setting of your computer is deactivated. In this case, run "AutoPlay.exe" of this DVD-ROM directly using the "Windows Explorer" or "Computer".
®
Acrobat®
2. Select [US English] in [Select The
Language], and then click the [OK] button.
D The following dialog box appears.
Carry the scanner by supporting it from the bottom.
2. Attach the ADF paper chute.
Insert the tabs on the ADF paper chute into the slots on the back of the scanner, and push in to lock it firmly.
3. Follow the on-screen instructions to install
the software.
Refer to Adobe Acrobat Help about how to use Adobe
This Acrobat version does not support Windows
®
Server
2008.
®
Acrobat®.
5
Page 6

Connecting the Cables

CAUTION
1
3
2
2
4
4
USB Connector
AC Cable
USB Cable
Power Connector
AC Adapter
USB mark should face up
WARNING
The following describes how to connect the cables between the scanner and your computer.
Do not use AC adapters other than the one supplied with this scanner. Doing so may cause damage to the scanner. Manufacturer: Sanken Electric Co., Ltd. Model number: SED80N2-24.0
1. Make sure that the computer is turned off.
2. Connect the USB cable with the USB
connector of the scanner and the USB port of the computer.
zBe sure to use the USB cable which
comes as an accessory with this scanner.
zWhen connecting to an USB hub,
use the first stage USB hub that is closest to the computer. If you use the second or later hub stages, the scanner may not operate correctly.
zIf you connect the scanner with USB
2.0, it is required that the USB port and the hub be compliant with USB
2.0. The scanning speed slows down when you connect the scanner with USB 1.1.
zConnect the USB cable with the side
showing the USB mark facing up.
3. Connect the AC cable with the AC adapter
(hereinafter referred to as "the power cable").
Be sure to use the supplied power cable. The following cases may cause electrical shock or malfunction. zUsing a power cable other than that
supplied
zUsing the supplied power cable for other
devices
4. Connect the power cable to the power
connector of your scanner and to the AC outlet.
When you plug the AC cable into an outlet, the [Power] button of the operator panel on the scanner will flash once. Note that this is an initial diagnosis and not a malfunction.
6
Page 7

Test-Scanning Documents

Check
Function
Send to
Scan /Stop
Power
Function Number Display
[Power] Button
Check LED
Stacker
Chute Extension 1
Chute Extension 2
Stacker Extension
Side Guides
Using ScandAll PRO, you can test-scan documents to check if they are scanned correctly. The following describes how to test-scan a document:
1. Press the [Power] button on the operator
panel of the scanner.
D The power is turned on, and the [Power]
button lights in green. During initialization, the Function Number Display of the operator panel changes as follows: "8" J "P" J "0" J "1". The scanner is ready when "1" is displayed.
If "1" is not shown in the Function Number Display, refer to "Chapter 8 Troubleshooting" in the Operator's Guide.
When you press the [Power] button, the Check LED will flash once. Note that this is an initial diagnosis and not a malfunction.
2. Turn on your computer.
D The scanner is automatically detected.
When the [Found New Hardware] dialog box appears, select [Locate and install driver software (recommended)], and install the driver by following the on-screen instructions.
4. Lift up the stacker and stacker extension according to the length of the sheet.
4. Launch ScandAll PRO.
Select the [Start] menu J [All Programs] J [Fujitsu ScandAll PRO]
J [ScandAll PRO].
5. Select the [Tool] menu J [Preferences].
D The [Setup] dialog box appears.
6. On the [Scan] tab, select a driver to use,
and then click the [OK] button.
To use a TWAIN driver, click [TWAIN]. To use an ISIS driver, click [ISIS/VRS].
7. Select the [Scan] menu J [Select
Scanner].
D The [Select Scanner] dialog box appears.
8. Select the scanner you want to use, and
then click the [Select] button.
Select the scanner model which is connected to your computer. The list of scanner models varies depending on the scanner driver installed.
TWAIN Driver ISIS Driver
FUJITSU fi-6110dj Fujitsu fi-6110
9. Click the [Scan] menu J [Scan Settings].
D The [Scan Settings] dialog box appears.
10.
Clear the [Save to file] check box.
3. Load a sheet into the scanner.
1. Pull out the chute extension 1 and chute extension 2 according to the length of the sheet.
2. Load the document in the ADF paper chute.
Set the sheet with its front side (scanning side) facing the ADF paper chute.
3. Adjust the side guides to the width of the sheet.
You only check the operation now, so you do not have to save to file.
11.
Click the [Scanner Setting] button.
D The scanner driver's setup dialog box
appears.
7
Page 8
12.
Configure scanner settings such as the resolution and paper size.
zTWAIN/ISIS drivers
Configure scan settings, and then click the [OK] button.
The scanner driver setup dialog box may be displayed again after the [OK] button is clicked. If this occurs, click the [Scan] button in the dialog box.
13.
In the [Scan Settings] dialog box, click the [Scan] button.
D The scanned document images are
displayed in the ScandAll PRO window.
When an error occurs in the scanner, the Function Number Display alternates between either "J" or "U" and an "error number" for temporary errors, and either "E", "H" or "L" and an "alarm number" for device errors. If an error occurs, refer to "Chapter 8 Troubleshooting" in the Operator's Guide.

Contact for Inquiries

Refer to the contact list on the last page of the "Safety Precautions" document.
For information about other scanning features, refer to "Chapter 5 Various Ways to Scan" in the Operator's Guide.
8
