Fisher Paykel WH7060J1 Installation Manual

WashSmart™ and QuickSmart™

安装说明书和用户指南

Front loading clothes washer

WashSmart™和QuickSmart™

滚筒洗衣机

Installation instructions

and User guide

English Page 1 – 36

中文

第37–72页

Contents

Introduction 2

Installation instructions 3

Machine information 8

Before you do your first wash 9

Getting started quickly 10

WashSmart™ and QuickSmart™ controls 14

Safety features 15

Sorting and loading 16

Detergent and fabric softener 18

Wash cycles 20

Wash cycle options 22

Customising wash cycles 25

Caring for your washer 26

Before you call for service

User warnings 29 Fault codes 31 Solving operating problems 32 Solving wash problems 35

Warranty and service 36

Important!

SAVE THESE INSTRUCTIONS

The models shown in this User Guide may not be available in all markets and are subject to change at any time. For current details about model and specification availability in your country, please visit our local website listed on the back cover or contact your local Fisher & Paykel dealer.

Introduction

Welcome to WashSmart™ and QuickSmart™

Thank you for buying a Fisher & Paykel clothes washer from our Front Loading range. We are proud of this washer and trust it will serve you well for many years.

At Fisher & Paykel we aim to provide innovative products that are simple to use, ergonomic and kind to the environment. Your front loading washer has numerous wash cycles and options so you can perform every wash task with ease and the knowledge your clothes are receiving the best possible care.

Please take the time to read these instructions carefully before you begin using your machine.

Following the advice in this user guide will ensure you get the performance you expect from your machine and that you get the best possible wash results. Keep these instructions for future reference.

We hope you enjoy your new washer. We have certainly enjoyed designing it for you.

WashSmart™ QuickSmart™

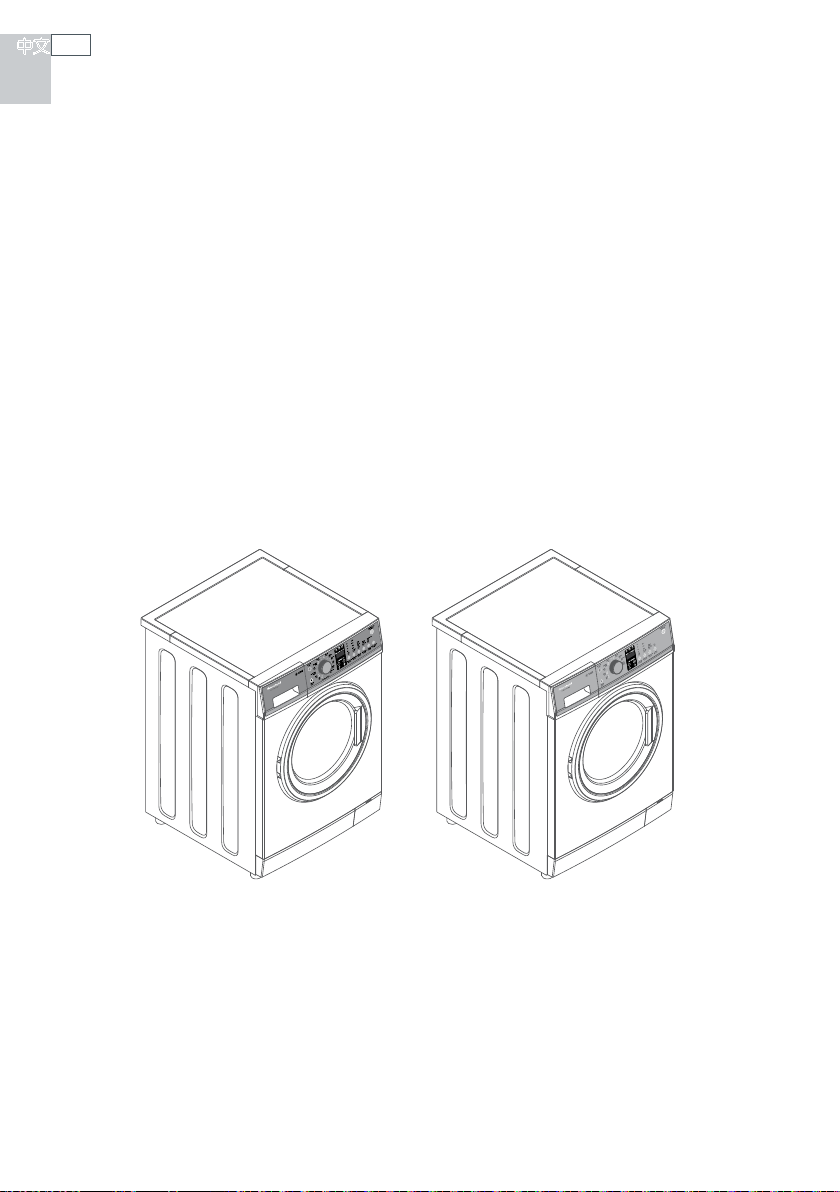

Fig.1 Front loading washer models

Installation instructions

Accessories

Please check you received the following accessories with your Fisher & Paykel washer. You will find them inside the drum:



2 x Inlet hoses



1 x Drain hose guide



1 x Installation instructions and User guide



1 x Spanner



1 x Installation leaflet (attached to the top of the washer)



1 x Inlet valve cap

Unpacking

To ensure the best performance from your new washer please follow the instructions below.

Removing the packaging

Remove the outer packaging (including the polystyrene packer and plastic wrapping). All

packaging must be removed prior to use. Ensure these materials are kept out of reach of children. Note: a small amount of water may be seen inside the packaging and inside the washer. This is the result of factory testing and is normal.

Tilt the machine backwards and ‘walk’ it off the base one foot at a time. Not doing so may cause

damage to your floor and washer.

Remove all packaging and accessories from inside the drum.

Removing the transit bolts

The clothes washer is fitted with 4 transit bolts at the rear to avoid damage during transportation.

Important!

The 4 transit bolts MUST be removed prior to operation of the machine. Failure to remove these will result in damage to the machine.

To remove the bolts:

Use a spanner or socket to unscrew and remove all four transit bolts at the back of the washer

(Figure 2, “C”).

Pull the black rubber grommets to remove the bolt, grommet and white plastic spacers from the

machine. Keep the transit bolts in case they are required for future transit of the machine. Never

transport the machine without the transit bolts properly fixed in place.

Cover the bolt holes with the white plastic plugs which are attached to the machine and located

near each hole (Figure 2, “P”). Push to clip into place.

Fig.2 Removing the transit safety bolts

Installation instructions

Location

Install the machine on a solid and level floor surface ensuring it has at least 20 mm clearance on each side. The washer must not be installed on any textured floor coverings (eg carpet, rugs).

Levelling the machine

It is IMPORTANT to level the machine to ensure good spin performance, and to minimise noise, vibrations and wear and tear on the washer.

Before positioning the machine in its final position, check

that the machine is level, front to back and side to side.

Manoeuvre the product into its final position (we suggest a

minimum clearance of 20 mm each side).

Use a spirit level to check that the machine is correctly level.

If needed, pull the machine out and wind the feet up or down to correctly level the machine.

Using the spanner provided, tighten the lock nuts against

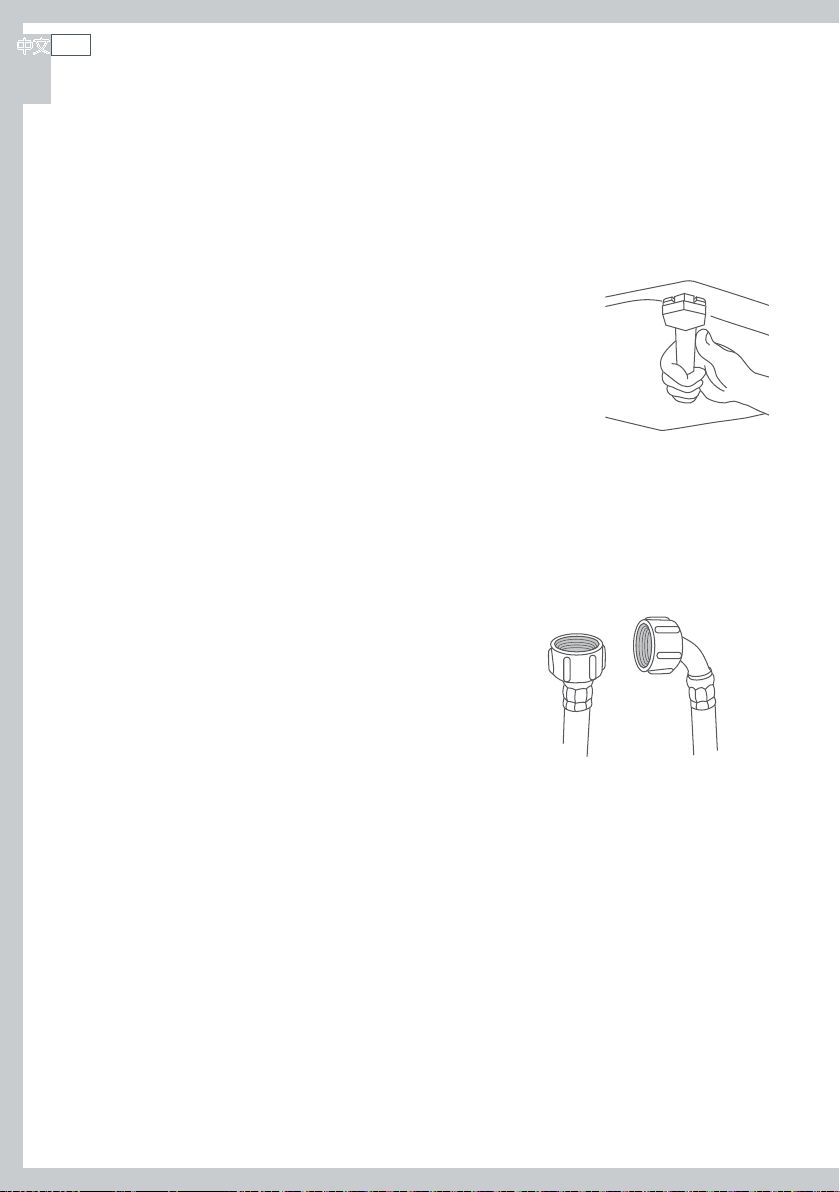

Fig.3 Locking the feet

the base of the machine to lock the feet in position.

Connecting to the water supply

Inlet hoses

Important!



New hose sets provided with the washer should be used to connect the washer to the water mains.



Old hose sets should not be re-used.



We recommend the inlet hoses are changed every 5 years. WARNING: Failure to do so may result in a flood and damage to property.

Connect the straight ends of the inlet hoses to the taps

and the elbow ends to the corresponding machine inlet valves. The hot valve is colour coded orange to make this easier. Make sure there are no kinks in the hoses.

Turn the taps on and check for leaks. Check for leaks again

Straight

(tap) end

Fig.4 Inlet hose ends

Elbow

(machine) end

after 24 hours.

Important!

The hot water temperature should not exceed 65°C and the cold water temperature not exceed35°C.

Temperatures above these may cause the machine to fault or cause damage to the machine.

Installation instructions

If you have an uncontrolled water heating source (eg a wet back or solar heating system) you should fit a Hot ‘N’ Safe Valve. This will ensure the hot water temperature remains within safe limits.

Hot ‘N’ Safe Valves available are:

RMC TVA 50HF

RMC TVA 75HFS

Adjustable between 35°C – 55°C

RMC TVA 50HP

For instantaneous gas hot water supply

Water supply requirements:



Inlet water pressure: Maximum 1 MPa (150 psi), Minimum 30 kPa (4.5 psi)



Inlet water flow rate: Minimum 6 litres / minute

Cold supply only:

If you only have a cold water supply, the inlet valve cap (blanking cap) which came with your washer must be connected to the hot inlet valve. The cap prevents water leaking out of the hot valve. This appliance incorporates backflow protection complying with AS3500.1. No further backflow protection is required for connection to the water supply.

Note: your washer has an internal heater to heat water. If you do not connect a hot water inlet hose, your washer will automatically recognise there is no hot water supply and its internal heater will heat the cold water to the required cycle temperature.

Draining

Drain hose placement

To guide the drain hose over the tub or standpipe

the hose guide must be fitted to the drain hose. The height of the standpipe or tub should be between 800 – 1200mm.

Secure the hose guide so it cannot become

dislodged from the standpipe or tub.

Pull hose through guide

Important!

If the drain hose is placed on the ground or if the standpipe or tub is less than 800 mm high, the washing machine will continuously drain while being filled (siphon).



Regularly check that your standpipe or tub is free from lint or other obstructions, which may

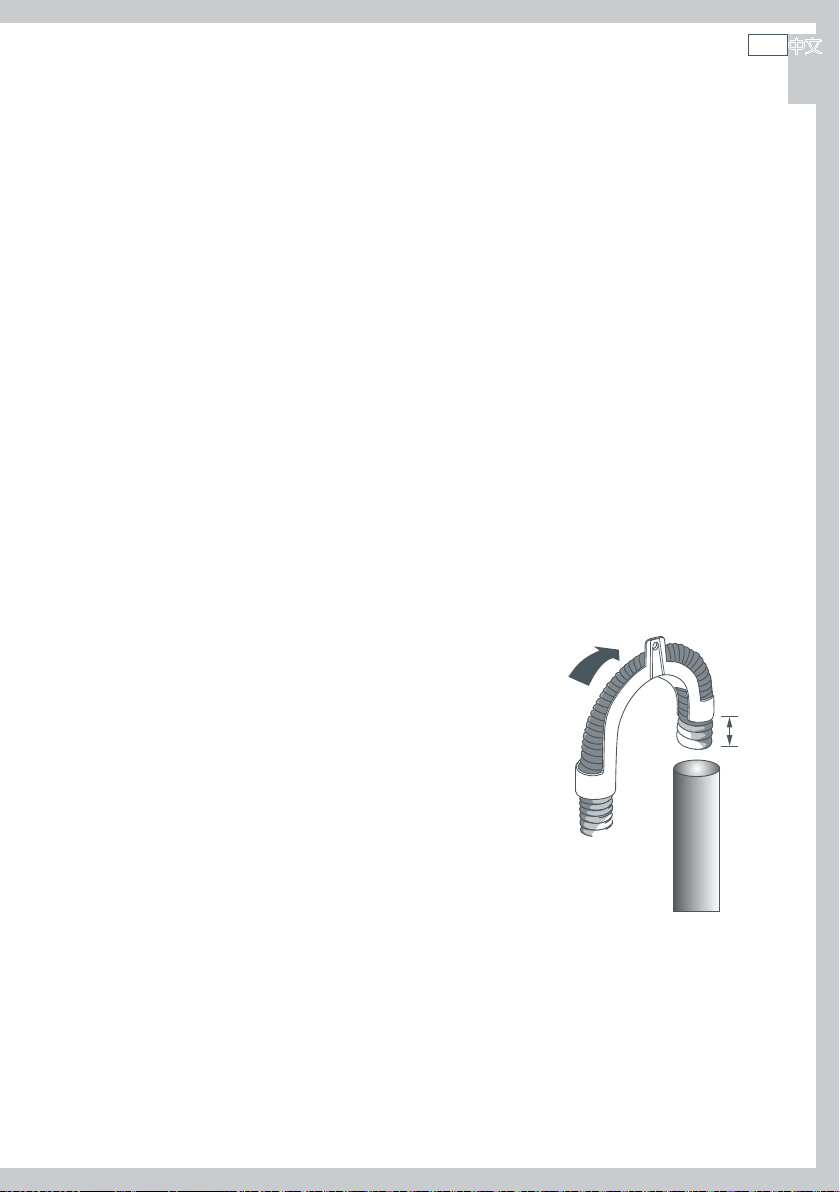

Fig.5 Fitting the drain hose guide

affect how your machine works or may cause flooding.



The drain hoses should be checked from time to time and replaced if any damage (eg wear, cuts, bulges, kinks, leaks, etc) is found. Do not bend the drain hose sharply, as this may cause it to split.



In multi-storey apartments or any upper floor, the machine should be installed on a floor equipped with a drain.



Draining must comply with local by-laws.

Standpipe 800 – 1200 mm

(20 mm) maximum

Installation instructions

Electrical connection

This appliance must be connected to a 220 V – 240 V, 50 Hz, sinusoidal, 10 A electrical supply.

Uncoil the power cord, remove and discard the plastic pin cover and plug into a wall socket.

Connect the appliance to an earthed outlet protected by a fuse of suitable capacity.



Check the power cord for damage and make sure it is not squashed or twisted when installing the washer.



Always remove the power cord from a socket by the plug, not by the cord.

Important!



If you are using an extension cord or a portable electrical outlet device (eg multi-socket outlet box), ensure that it is positioned so that it does not come into contact with water or moisture. FAILURE TO DO SO MAY RESULT IN DEATH OR ELECTRICAL SHOCK.



Do not touch or operate the machine with wet hands or with bare-feet.



A damaged power cord must be replaced by a Fisher & Paykel Authorised Repairer, its service agent or similarly qualified persons in order to avoid a hazard. The appliance must not be operated until it is repaired, as there is risk of electric shock.



Do not operate this machine if it has been damaged during transport. Contact your Fisher & Paykel Dealer or Fisher & Paykel Authorised Repairer.

Spare parts

Available from your Fisher & Paykel Dealer or a Fisher & Paykel Authorised Repairer.

Hose Inlet Long (2 m) Part No. 422680P

Hose Inlet Large Bore Part No. 426123P

Drain Hose Extension Part No. 425627P

Installation instructions

Completing the installation

Installation test cycle

Important!

Do this before you wash any items in your washer. This is to check that your washer is installed correctly and that it is functioning correctly prior to use.

Turn your washer on by pressing the POWER button.

Select the QUICK cycle. Ensure the drum is empty and the door closed.

Touch the START / PAUSE button. The machine will start to fill.



Observe the machine for any problems (eg leaking from the hoses, excess noise or vibrations).



The washer will beep and display any faults on the screen if there are any problems. Refer to pages 29 to 31.

Wait until you see water in the bottom of the drum.

Touch START / PAUSE to stop the cycle, then press POWER to turn the machine off.

Press POWER again, select the SPIN cycle and touch START / PAUSE.



Check the drain hose is firmly secured to the standpipe or tub.



Observe that the machine pumps out the water, and spins.

Important!

If there are any problems, you must address these before proceeding with normal use. The washer will automatically turn off at the end of the cycle if there are no problems.

Clothes washer safety



This clothes washer is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they are supervised or given instructions on how to use the washer by someone responsible for their safety.



The washer should only be used for washing and rinsing of textiles where this is indicated on the care label.



The door will be locked from the start of the cycle until the cycle is complete for safety reasons. It is possible to open the door during the cycle under certain conditions (refer to page 15).



Never force the door open.



Keep children away from the washer while it is in operation.



Supervise children to ensure they do not play with the washer or climb inside the drum.



Do not touch the glass part of the door during a cycle as the door can become hot.



Do not open the detergent dispenser during the cycle as hot water may come out of it.



The only user-removable parts of the washer are the inlet hoses, detergent dispenser and the pump filter. No other parts are designed to be removed by anyone other than a Fisher & Paykel Authorised Repairer.



When disposing of the washer, it is recommended that the door is removed to avoid children getting trapped inside, and that the electrical cable is cut off close to the washer.

Machine information

Specifications

Name Model

number

Maximum

capacity

(kg)

Width

(mm)

Depth

(mm)

Depth with

door open

(mm)

Height

(mm)

WashSmart™ WH7060P1 7.0 600 590 1010 850

WashSmart™ WH8060P1 8.0 600 645 1065 850

QuickSmart™ WH7060J1 7.0 600 590 1010 850

QuickSmart™ WH8060J1 8.0 600 645 1065 850

Note: the exact height of your washer is dependent on how far the feet are extended from the base of the machine. The space where you install your washer needs to be at least 40 mm wider and 20 mm deeper than its dimensions.



Electrical supply: 220 – 240 V, 50 Hz Sinusoidal, 10 A



Inlet water static pressure: Max. 1 MPa (150 psi), Min. 30 kPa (4.5 psi)



Inlet water flow rate at tap: Min. 6 litres / min



Standpipe / tub height: 800 – 1200 min

Before you do your first wash

Before you start, it is a good idea to go through the following checklist:

Have the packaging and transit bolts been removed?

Is the drain hose threaded through the ‘U bend‘ (with no more than 20 mm extended) and

hooked into your standpipe or tub?

Is the hot hose connected to the hot valve (colour-coded orange)? Is the cold hose connected to

the cold valve (colour-coded white)? Have the taps been turned on?

Is the machine correctly levelled, feet are locked and cabinet corners clear of the floor and walls?

Has the power cord been connected to an appropriate power supply and the power turned on?

Have you performed the installation test cycle?

We recommend you complete your first cycle with a half-load amount of detergent and without a

load in order to remove any residues remaining in the machine from the manufacturing process.

Important!

You must ensure all 4 transit bolts have been removed from your washer before you start using it. If the transit bolts are not removed, they will damage your washer and YOUR WARRANTY WILL BE COMPROMISED.

PUSH

Getting started quickly

WashSmart™ – WH7060P1, WH8060P1



Sort your washing carefully. Separate white / light colours from dark colours. Wash new, highly coloured and dark coloured items separately to prevent dye transfer. Refer to page 16.



Load your clothes individually into the wash drum. Close the door.



Place detergent in the correct compartment in the detergent dispenser drawer (marked “2”). Use Low Sudsing or ‘Front Loader’ liquid or powder detergents. Alternatively use detergent pods. Place the pod at the back of the drum before you load any clothing. For more information on detergent refer to pages 18 and 19.



If you wish to use fabric softener, place it in the compartment marked with a

. For more information on fabric softener

refer to page 19.

Important!

Fabric softener should not be used if you have selected the QUICK or SUPER QUICK cycles.

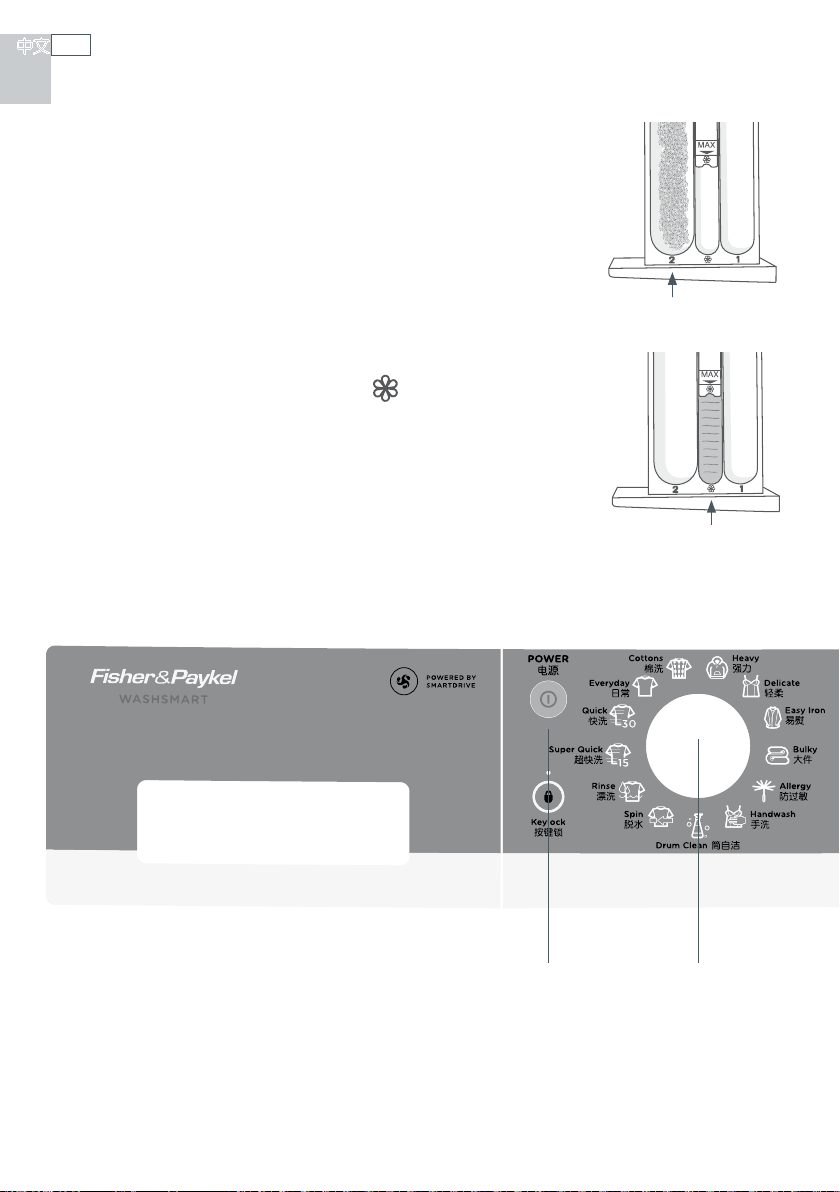

Fig.6 Detergent in compartment marked 2

Fig.7 Fabric softener in compartment

Fig.8 WashSmart™ control panel

1 2

Getting started quickly

Press POWER to activate your washer.

Select your wash cycle by turning the SmartTouch™ Control Dial.

Choose your wash options, if you wish to select options different from the default options for

the cycle.

Touch START / PAUSE to start the cycle.



If you make an invalid selection the washer will beep to alert you.



When the cycle finishes, your washer will perform end of cycle beeps and then turn offautomatically.

If you wish to stop your washer at any point during a cycle simply touch START / PAUSE to pause the cycle. There may be a slight delay while the drum comes to a stop, then the door will unlock. In certain conditions however the door will remain locked for safety reasons (refer to page 15).

If you wish to cancel or change the wash cycle once a cycle has started, touch the START / PAUSE button then select the new cycle. Touch START / PAUSE to restart the washer.

Important!



For the best fabric and colour care, remove your clothes as soon as the cycle has finished.



Failure to follow the advice in this guide may result in damage to your garments and your expectations of wash performance may not be met.

PUSH

Getting started quickly

QuickSmart™ – WH7060J1, WH8060J1



Sort your washing carefully. Separate white / light colours from dark colours. Wash new, highly coloured and dark coloured items separately to prevent dye transfer. Refer to page 16.



Load your clothes individually into the wash drum. Close the door.



Place detergent in the correct compartment in the detergent dispenser drawer (marked “2”). Use Low Sudsing or ‘Front Loader’ liquid or powder detergents. Alternatively use detergent pods. Place the pod at the back of the drum before you load in any clothing. For more information on detergent refer to pages 18 and 19.



Place fabric softener in the compartment marked with a . For more information on fabric softener refer to page 19.

Important!

Fabric softener must not be used if you have selected the QUICK cycle.

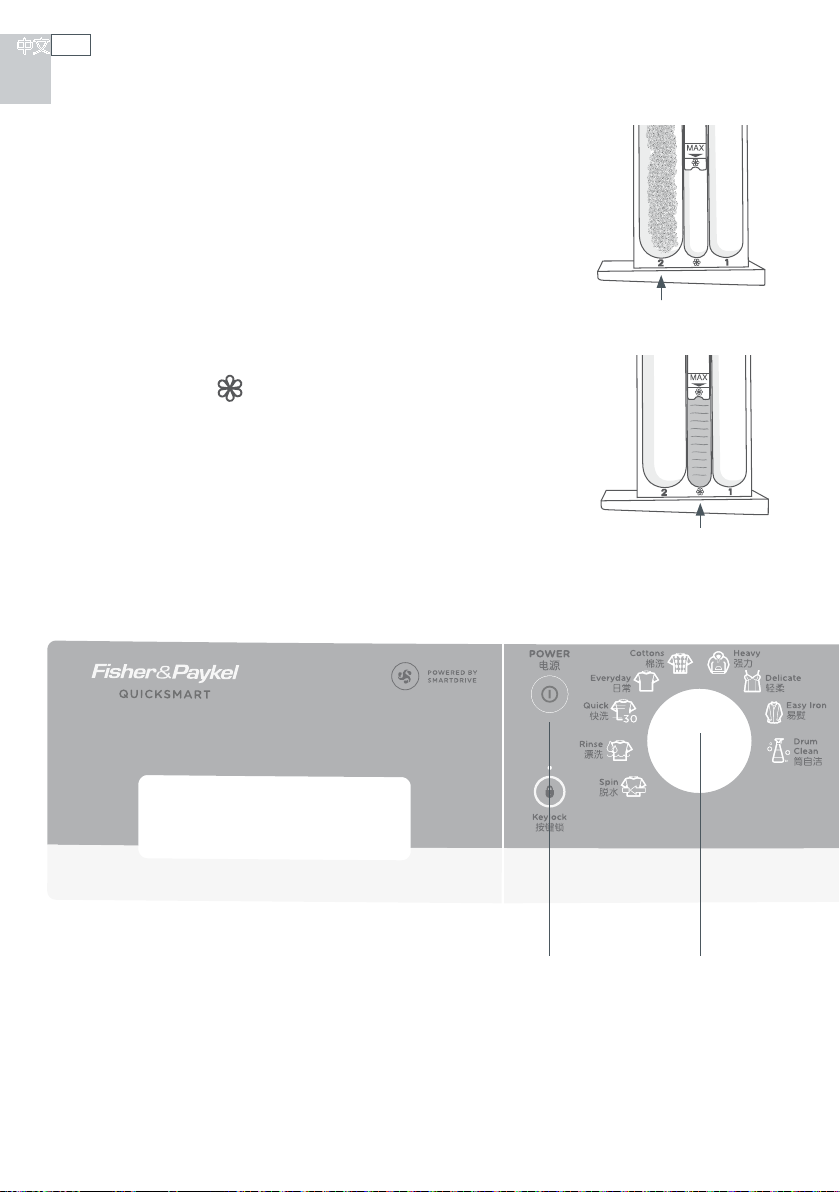

Fig.9 Detergent in compartment marked 2

Fig.10 Fabric softener in compartment

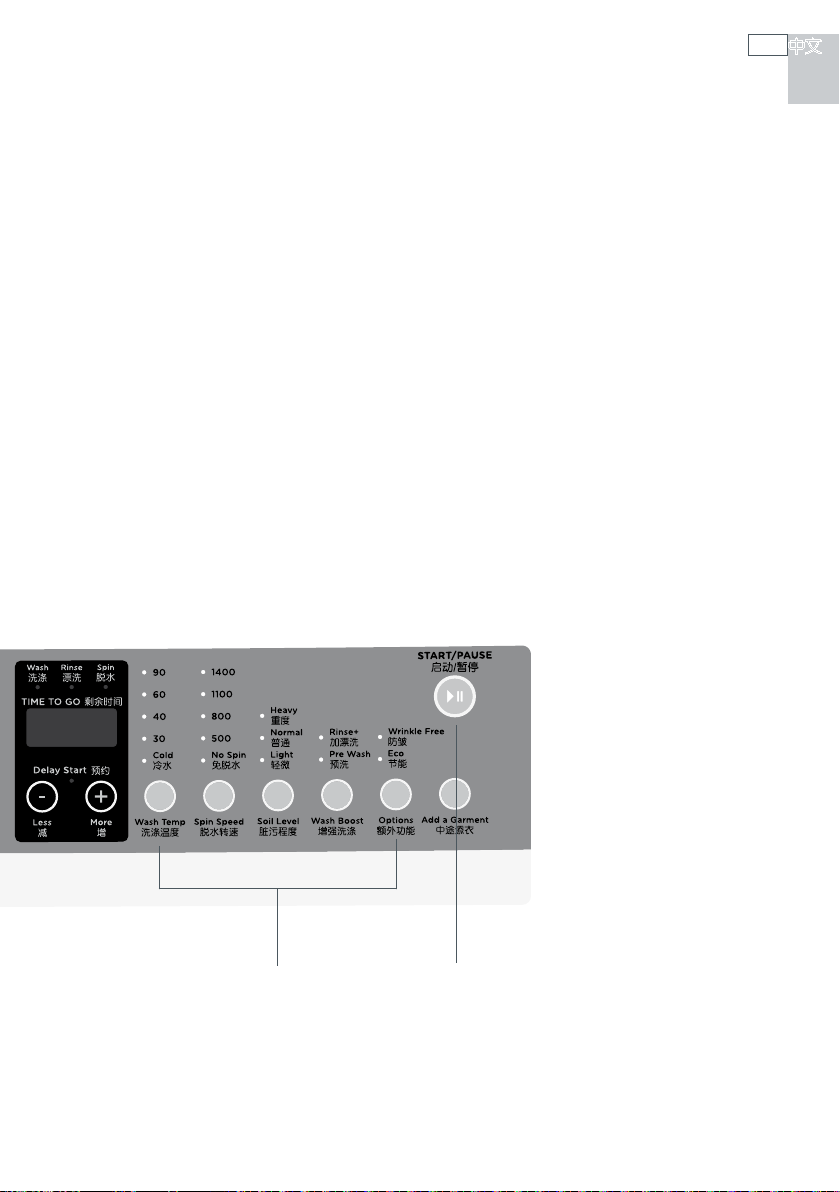

Fig.11 QuickSmart™ control panel

1 2

Getting started quickly

Press POWER to activate your washer.

Select your wash cycle by turning the SmartTouch™ Control Dial.

Choose your wash options, if you wish to select options different from the default options for

thecycle.

Touch START / PAUSE to start the cycle.



If you make an invalid selection the washer will beep at you.



When the cycle finishes, your washer will perform end of cycle beeps to alert you and then turn off automatically.

If you wish to stop your washer at any point during a cycle, simply touch START / PAUSE to pause the cycle. There may be a slight delay while the drum comes to a stop, then the door will unlock. In certain conditions however the door will remain locked for safety reasons (refer to page 15).

If you wish to cancel or change the wash cycle once a cycle has started, touch the START / PAUSE button then select the new cycle. Touch START / PAUSE to restart the washer.

Important!



For the best fabric and colour care, remove your clothes as soon as the cycle has finished.



Failure to follow the advice in this guide may result in damage to your garments and your expectations of wash performance may not be met.

WashSmart™ and QuickSmart™ controls

SmartTouch™ Control Dial

The SmartTouch™ Control Dial provides easy and efficient wash cycle selection. As you rotate the dial, the icon of the wash cycle selected will be illuminated, along with the default settings for that cycle on the right side of the control panel.

SmartTouch™ buttons

The smooth, easy clean buttons enable easy selection of options with lights clearly showing the selections you are making.

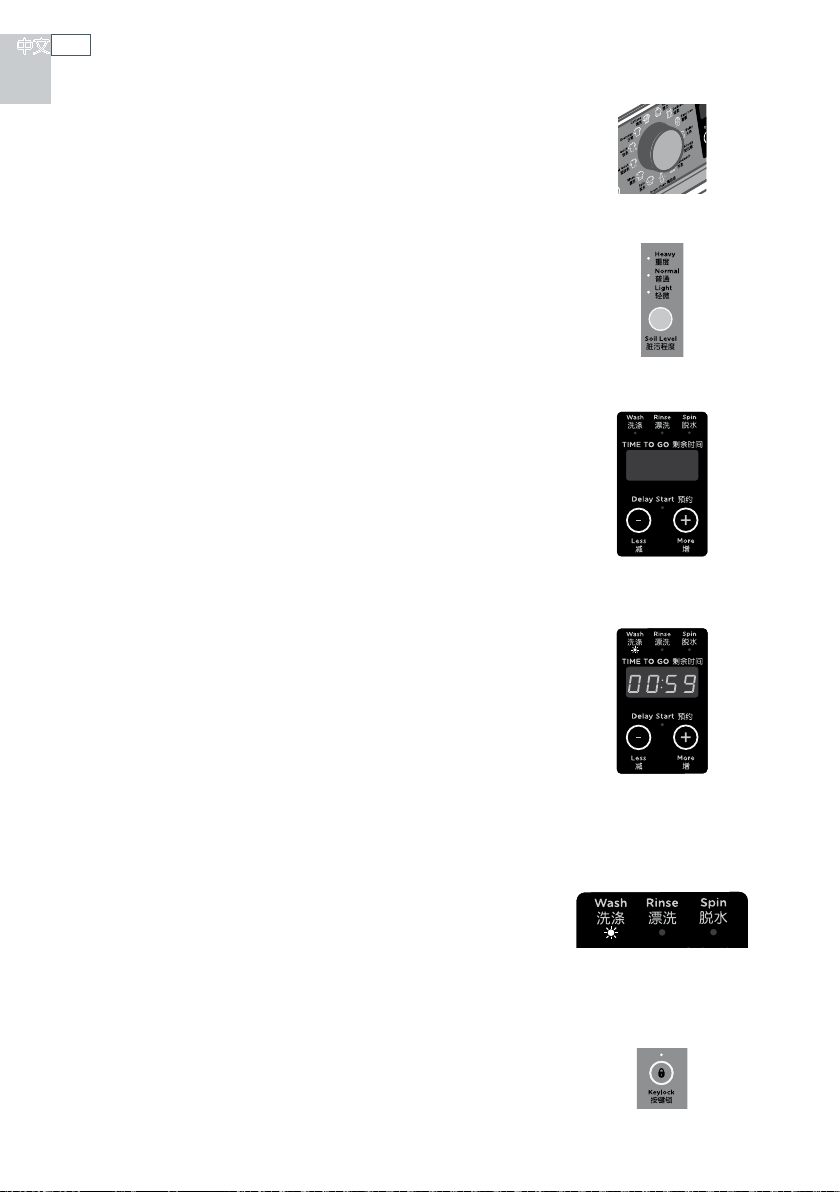

Fig.12 SmartTouch™ Control Dial

Digital display screen

The digital display screen provides feedback on how long the wash cycle has to go. If you have programmed a DELAY START, the time remaining till the cycle will start will be displayed here, along with any messages to help you with the overall running of your washer (eg user warnings).

Time to go

Your washer displays approximately how many minutes the cycle you are running has remaining, so that you can tell at a glance when your washing will be finished.

Please be aware that a number of factors can influence the overall cycle time, eg the water flow rate, water pressure, whether hot water is being used from the tap or the water is heated by the internal heater, load size, cycle and option selections. Therefore cycle times will vary. Unexpected factors in a wash cycle (eg out of balance, oversudsing) can lengthen the cycle time. The time remaining is constantly updated taking these factors into account, which may mean the time displayed for the cycle becomes longer than was initially estimated.

Progress lights

The progress lights indicate what part of the cycle the washer is currently on (wash, rinse or spin). All three lights are on at the beginning of the cycle. The light for the current part of the cycle flashes, and each one goes out when that part of the cycle is complete.

Fig.13 SmartTouch™ buttons

Fig.14 Digital display screen

Fig.15 Time to go

Fig.16 Progress lights

Keylock mode

Keylock can be used to lock the buttons on your washer. This will avoid accidental button pushes. For more detail please refer to page 24.

Fig.17 Keylock mode

Safety features

Door lock

The door of your washer is locked once you touch START / PAUSE until the machine beeps at the end of the cycle, ensuring safety for you and your family while your machine is operating.

To unlock the door during the cycle



You can open the door to add or remove items during the wash simply by touching the START / PAUSE button. Note: the door will remain locked if the temperature inside the washer is above 60°C and / or the water level is above the bottom of the door seal (a warning will be displayed in these circumstances, refer to page 30).



Simply touch START / PAUSE and the door will automatically unlock if the conditions inside the washer are safe (the START / PAUSE button and TIME REMAINING on the screen will flash). Open the door and remove or add garments. Close the door and touch START / PAUSE to resume the cycle.

Add a Garment (WashSmart™ only)

The ADD A GARMENT function can be used to interrupt the cycle to add or remove a garment at anytime during the wash (as long as the wash temperature selected for the cycle is lower than 60°C) by draining water from the machine to a level where the door can be opened, if necessary. Refer to page 23 for more information.

Opening the door during a power failure

If there is a power failure during a wash cycle your washer will stop and the door will remain locked. You can unlock the washer door to remove your clothes by opening the pump filter cover at the bottom right of your washer. Simply place a coin or key in the slot and tilt it upwards to lever the cover open, then pull the door release tab.

Note: Do not attempt to do this if the water level in the washer is above the level of the door. When

power is restored you will need to restart your machine by simply pressing the POWER button. The washer will

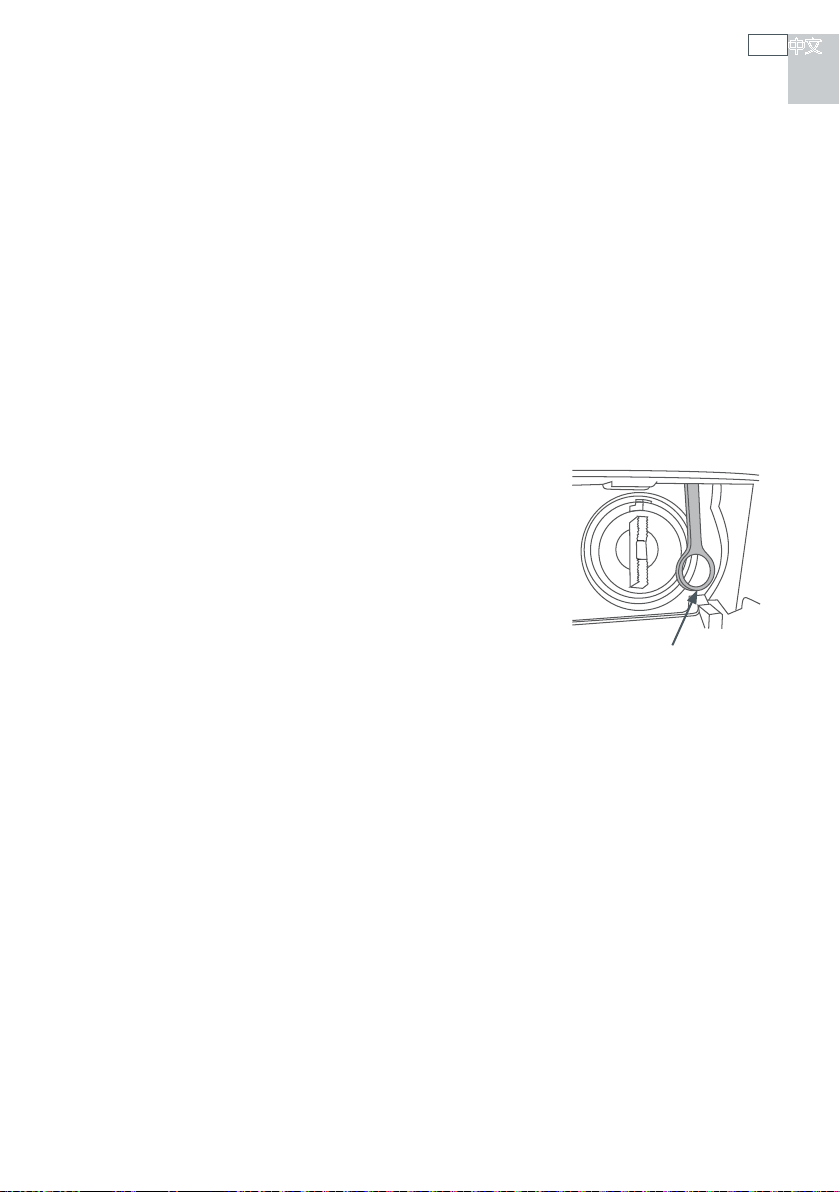

Door release tab

Fig.18 Manual door opening mechanism

remember where in the cycle it was up to.

Your washer also has the following protective measures:



Flood protection – turns off valves and turns pump on if a flood condition is detected.



Out-of-balance protection – stops and redistributes the load if an unbalanced load condition is sensed, and / or slows the spin speed to compensate.



Excess suds protection – pauses for 10 minutes to allow suds to break down before continuing the cycle.

Sorting and loading

When preparing your wash load there are some important things to consider:

Sorting

Sort items according to colour, fabric type, and soil type. Wash fine, delicate fabrics separately from thick, heavy fabrics. Always separate coloured items from whites, especially when they are new. Colour run could be an issue if you wash items at higher temperatures. Some soils, like mud and blood are best washed in cold water. Oily soils (eg some foods and marks on shirt collars) are best washed in warm water. The following are recommendations for what cycles and settings you may wish to wash different items on, and suggestions for special wash requirements.

Items / Wash requirements Suggested cycle & options Suggested temperature

Towels Everyday 30°C or 40°C

Sheets, pillowcases Everyday, 1100 rpm spin 30°C or 40°C

Bulky items – doonas, duvets, sleeping bags

Shirts, pants, other creasables Easy Iron, 800 rpm 30°C or 40°C

Woollens, silks Handwash*, 500 rpm 30°C

Delicates, fine fabrics Delicate, or Handwash* 30°C

Jeans Everyday or Heavy 30°C or 40°C

Highly coloured items Everyday Cold or 30°C

Whites, cotton items Cottons 40°C or 60°C

Have sensitive skin or require extra rinsing?

Asthma / allergies Allergy*, Rinse+ 60°C

Lightly soiled items Quick 30°C

Muddy, sandy or linty items Everyday, Pre Wash and

Smelly washer Drum Clean 90°C

Bulky* 30°C or 40°C

Allergy*, Rinse+, 1100 rpm 40°C

Cold

Rinse+

* Wash cycle available on WashSmart™ models only.

Sorting and loading

Before you load



Check pockets for items that could damage your clothes or get caught in the washer.



Close zippers, hooks and eyes, and other fastenings (ie fasten the opening of duvet / doona covers), and remove loose bra wires. All these can damage both your washer and your clothes.



Place delicate items, such as lingerie, in a mesh laundry bag before placing in the machine.



Pre-treat any stains, taking care not to spray pre-treaters on your washer as they can cause damage to the plastic surfaces.

Your washer will be more efficient when washing larger loads, so try to collect enough items to loosely fill the drum when the items are dry.

Important!



Do not overload your washing machine beyond its rated capacity.



Please do not under any circumstances wash an electric blanket in your washer.



Do not wash curtains in this washer, as sunlight makes them brittle and they may disintegrate during washing.

PUSH

Detergent and fabric softener

Detergent type

Your WashSmart™ or QuickSmart™ washer requires low sudsing detergent to prevent oversudsing problems. Low sudsing detergent comes in powder, liquid or pod form and is labelled “Front Loading”, “Low Suds”, High Efficiency” or “HE”.

Using top loading detergent in your front loader washer may lead to excessive suds formation, which will lengthen the cycle time as the machine waits for the suds to dissolve.

Where do I put my detergent?

Powdered or liquid detergent is added to the main wash detergent compartment on the left

side of the dispensing drawer marked with a “2”. As the machine fills, some water is flushed through this compartment to deliver a detergent solution into the drum.

Pods – Detergent pods are a “no mess” alternative to powdered or liquid detergent. They must be placed at the back of the drum prior to loading your clothes. This will ensure they are activated quickly in the wash. Do not place pods in the detergent dispenser drawer.

If you wish to use the PRE WASH option, liquid or powdered detergent must be placed in the prewash detergent compartment on the right side of the drawer, marked with a “1”. When you select PRE WASH, the pre wash compartment is flushed at the start of the cycle.

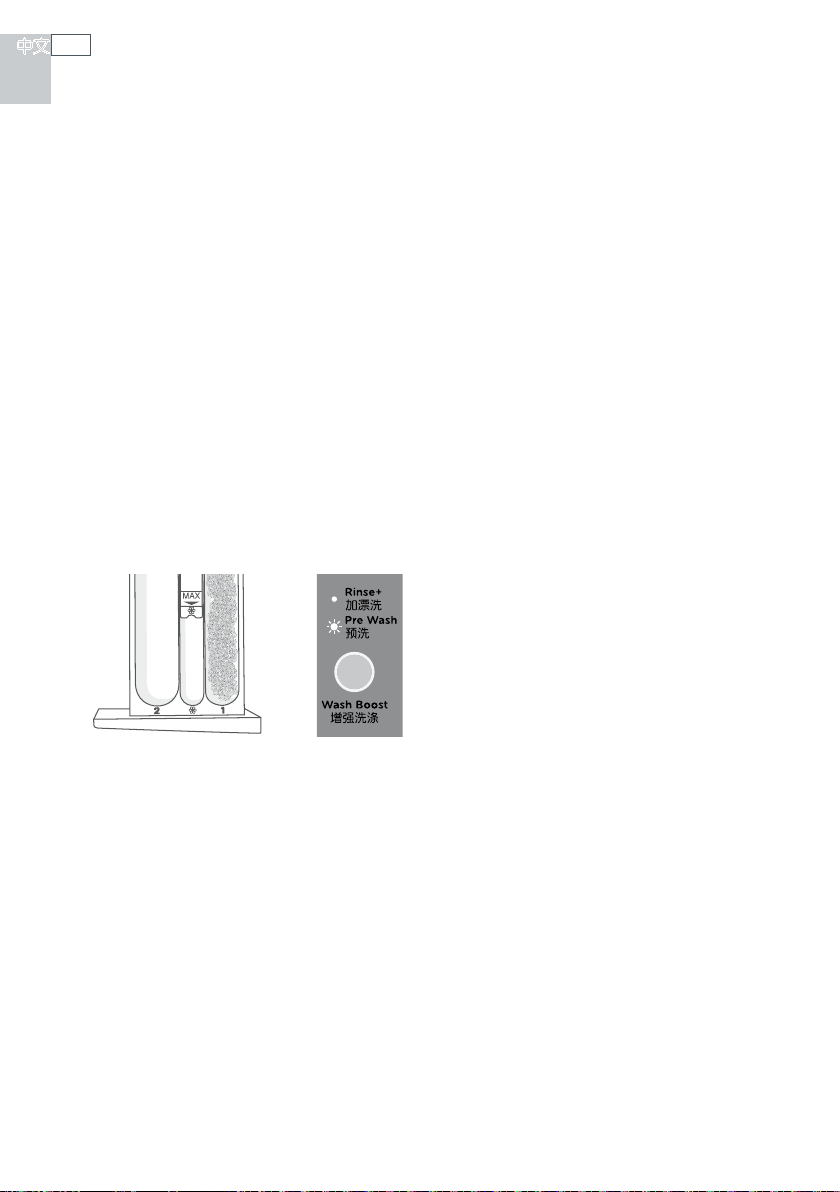

Fig.20 Pre wash optionFig.19 Detergent in the

prewash compartment

Important!



If you select the PRE WASH you cannot use liquid detergent in the main wash detergent compartment. You must use powdered detergent for the main wash.



Make sure the detergent dispenser draw is completely closed before starting the cycle.

Detergent and fabric softener

How much detergent?

The correct detergent dosage varies depending on the amount of soil in your load, the size of the load and the water quality, so getting the correct dose takes some trial and error. Use the instructions stated on the detergent label as a guide, then alter the dosage according to the results.

If you overdose, you will get over foaming issues, but if you under-dose you will get poor performance and over time your washer will start to smell as scum builds up inside it.

Detergent advice

If your washer smells you are probably not using enough detergent for the soil level in your

loads. Run a DRUM CLEAN cycle and either buy a better quality detergent or use a higher dose. If you are using an ‘Eco’ detergent, alternate the use of this with a mainstream detergent.

Add the detergent BEFORE starting the cycle, close the dispenser and do not open it while the

cycle is running.

If you find foam leaking from your washer, check you are using a low sudsing or front loader

type detergent and check the quantity you are using against the detergent manufacturers recommendation. You may need to reduce the amount you are using.

Fabric softener

Fabric softener is added to the middle compartment of the dispenser marked with a . The washer will automatically flush the softener during the rinse.

If you wish to use fabric softener we recommend to:

Use it sparingly. Measure it carefully and do not use more than 25 mls (½ cap) (some thicker

varieties may need diluting).

Clean your dispenser regularly.

Clean your machine regularly using the DRUM CLEAN cycle.

Complete wash cycles at a wash temperature of 40°C or above at regular intervals (eg every 5th

wash) as washing in cold water increases the chance of scrud occurring (see below).

Note: if you fill beyond the MAX mark, the fabric softener will be dispensed into the bowl prematurely and contribute to scrud.

Scrud

Scrud is the name of the waxy build-up that can occur within any washer when fabric softener comes in contact with detergent. This build-up is not brought about by a fault in the machine. If scrud is allowed to build up in the machine it can result in stains on clothes and an unpleasant smell in your washer.

Wash cycles

WashSmart™

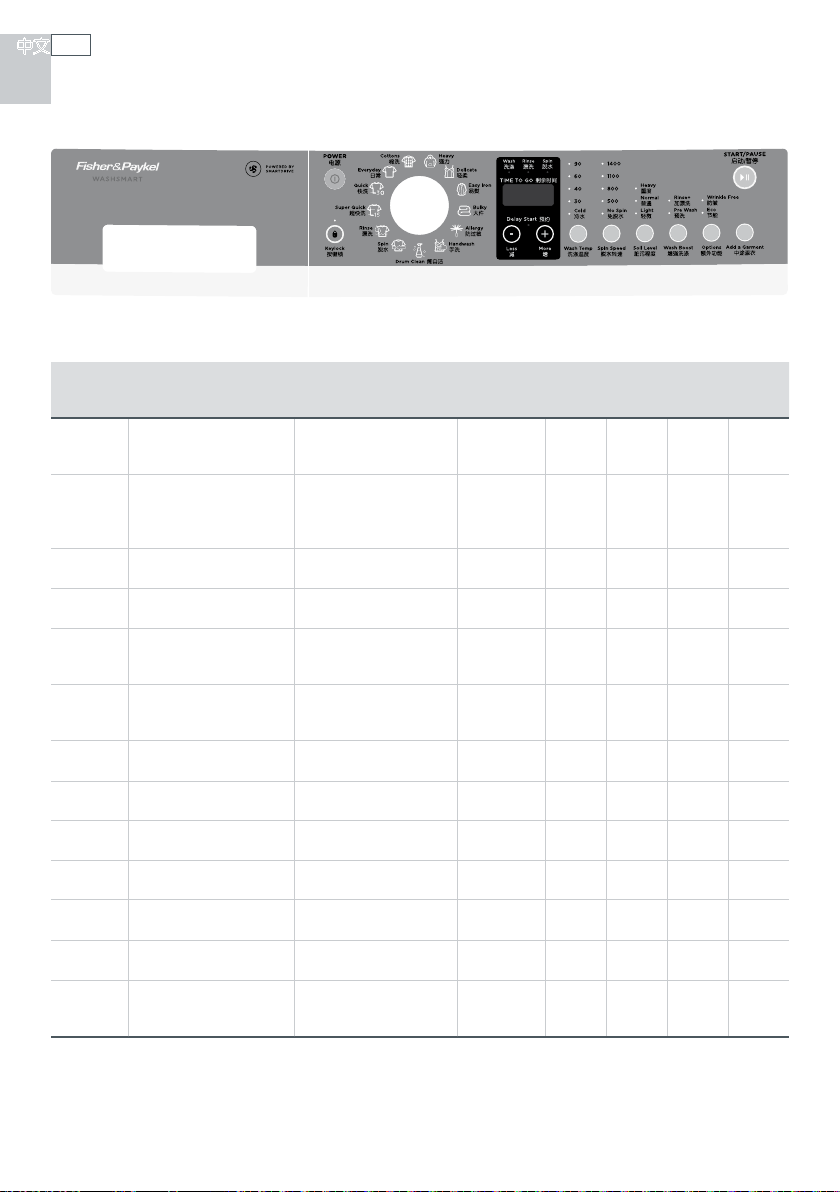

Your WashSmart™ washer has a number of wash cycles to suit your laundering needs. Selecting the most appropriate cycle for each particular wash load will help ensure you get the best wash result.

Default

Max.

wash

Cycle Designed for Description

Cottons** Normally soiled everyday

Everyday Normally or lightly soiled

Heavy Heavy soiled durable

Delicate Delicate lightly soiled

Easy Iron Minimising creasing eg

Bulky Washing bulky items. A warm, gentle wash and

Allergy Asthma sufferers

Handwash Very delicate lightly soiled

Quick Lightly soiled garments. A quick cycle for lightly

Super Quick

Rinse Items that require rinsing

Spin Spinning wet items. Spin only. 7.0 or

Drum Clean

* Depends on your model of washer (7.0 kg or 8.0 kg capacity).

** Cottons, 40°C, 1400 rpm, Normal soil level and the Eco option selected is the recommended water and energy saving cycle for normally soiled, everyday washing.

cotton loads, eg whites.

everyday items eg towels, sheets, sweatshirts, t-shirts.

garments eg tea towels, rugby shorts.

items, eg tops.

shirts, trousers.

and people with skin sensitivities.

garments, eg woollens.

Freshening up small musty or lightly soiled items.

only.

Maintaining the cleanliness of your washer.

A comprehensive cycle specifically designed for cottons.

A faster cycle designed for mixed loads with normal soiling.

A stronger, hotter wash for more durable items.

Gentler wash with more water to look after delicate items.

Less spinning with WRINKLE FREE option to help minimise the need for ironing.

slow spin for special care of bulky items.

Hot wash to kill dust mites and extra rinses to remove all traces of detergent.

Very gentle wash action for extra special items.

soiled loads.

A quick cycle for small lightly soiled loads.

Two rinses followed by a spin.

A hot cycle to remove any residues inside the washer.

load

temp.

size

(kg)*

7.0 or

8.0

7.0 or

8.0

7.0 or

8.0

4 40 60 500 800

4 40 60 800 800

4 60 90 800 800

7.0 or

8.0

2 30 40 500 500

4 40 40 800 1100

2 40 60 800 1400

7.0 or

8.0

– 90 90 1400 1400

Max. wash

temp.

(°C)

40 90 1400 1400

60 90 1400 1400

Cold Cold 1400 1400

N/A N/A 1400 –

(°C)

spin

speed

(rpm)

Max.

spin

speed

(rpm)

Wash cycles

QuickSmart™

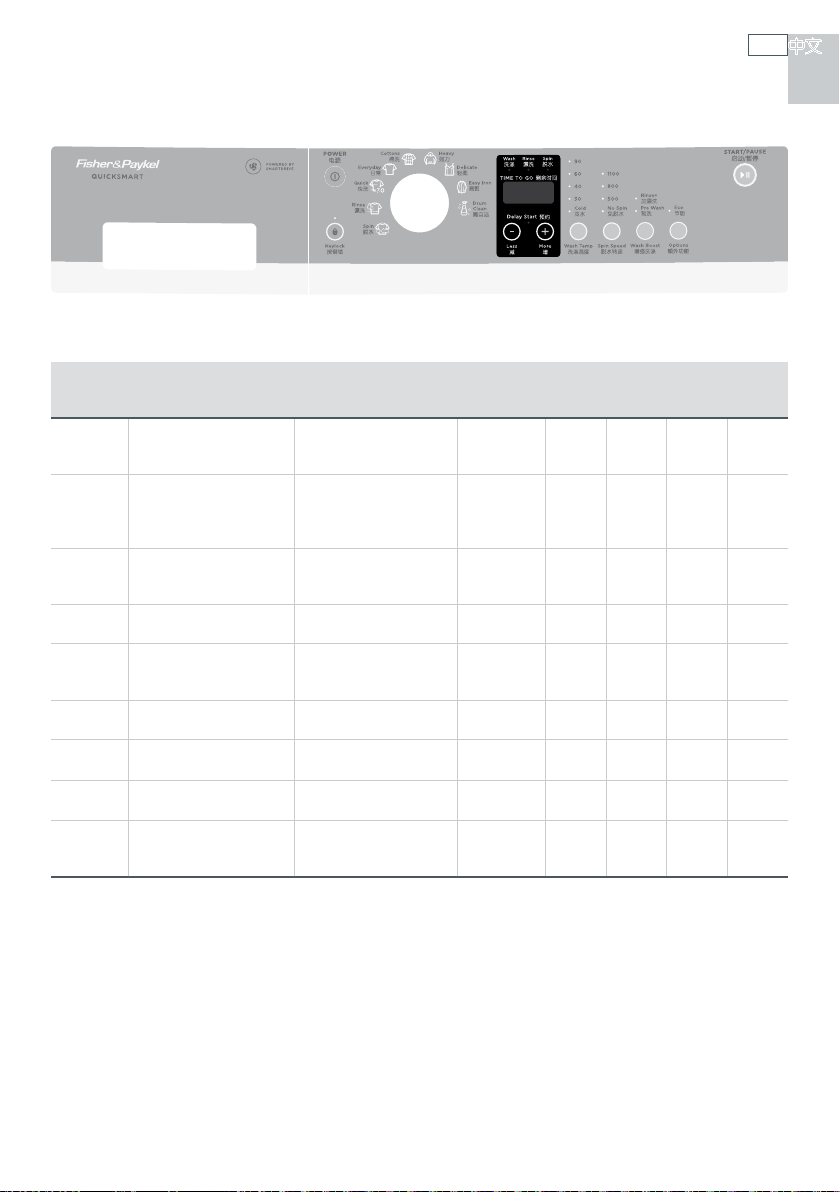

Your QuickSmart™ washer has a number of wash cycles to suit your laundering needs. Selecting the most appropriate cycle for each particular wash load will help ensure you get the best wash result.

spin

Max.

spin

speed

(rpm)

Default

Max.

wash

Cycle Designed for Description

Cottons** Normally soiled everyday

Everyday Normally or lightly soiled

Heavy Heavy soiled durable

Delicate Delicate lightly soiled

Easy Iron Minimising creasing eg

Quick Lightly soiled garments. A quick cycle for lightly

Rinse Items that require rinsing

Spin Spinning out wet items. Spin only. 7.0 or

Drum Clean

* Depends on your model of washer (7.0 kg or 8.0 kg capacity).

** Cottons, 40°C, 1100 rpm and the Eco option selected is the recommended water and energy saving cycle for normally soiled, everyday washing.

If you wash a particularly dirty load, we recommend putting the washer through a RINSE cycle once the cycle has finished and the load has been removed, to clean out any remnants from that cycle and to prevent contamination of the next loads that are washed.

cotton loads, eg whites.

everyday items eg towels, sheets, sweatshirts, t-shirts.

garments eg tea towels, rugby shorts.

items, eg tops.

shirts, trousers.

only.

Maintaining the cleanliness of your washer.

A comprehensive cycle specifically designed for cottons.

A faster cycle designed for mixed loads with normal soiling.

A stronger, hotter wash for difficult stains on durables.

Gentler wash with more water to look after delicate items.

Less spinning with WRINKLE FREE option to help minimise the need for ironing.

soiled loads.

Two rinses followed by a spin.

A hot cycle to remove any residues inside the washer.

load

temp.

size

(kg)*

7.0 or

8.0

7.0 or

8.0

7.0 or

8.0

4 40 60 500 800

4 40 60 800 800

4 40 40 800 1100

7.0 or

8.0

– 90 90 1100 1100

Max.

wash

(°C)

speed (rpm)

temp.

(°C)

40 90 1100 1100

60 90 1100 1100

Cold Cold 1100 1100

N/A N/A 1100 1100

+ 53 hidden pages
