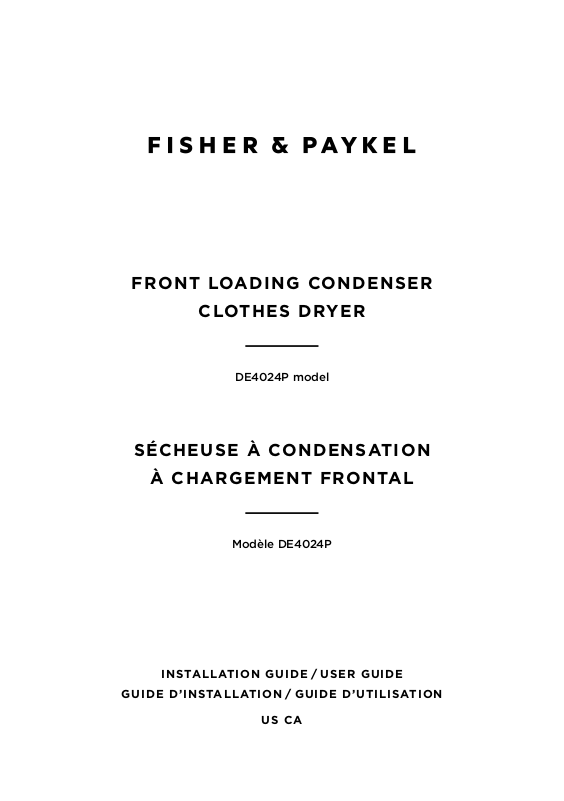

Fisher Paykel DE4024P1 Installation

FRONT LOADING CONDENSER

CLOTHES DRYER

DE4024P model

SÉCHEUSE À CONDENSATION

À CHARGEMENT FRONTAL

Modèle DE4024P

INSTALLATION GUIDE/USER GUIDE

GUIDE D’INSTALLATION/GUIDE D’UTILISATION

US CA

English Page 1 – 38
Français

Page 41 – 78

CONTENTS

Introduction 3
Safety and warnings 4
Installation instructions 6
Getting started 18
Drying cycles 20
Drying cycle options 21
Sorting and loading 24
Caring for your dryer 26
Before you call for service 28
Fault codes 29
Troubleshooting 30
Limited warranty 35

EN

IMPORTANT!

SAVE THESE INSTRUCTIONS

The models shown in this User guide may
not be available in all markets and are
subject to change at any time. For current
details about model and specification
availability in your country, please go to
our website www.fisherpaykel.com or
contact your local Fisher & Paykel dealer.

Registration

Register your product with us so we can
provide you with the best service possible.

To register your product visit our website:
www.fisherpaykel.com

1

INSTALLATION INSTRUCTIONS

A

Product dimensions

B C

D

DE4024P

PRODUCT DIMENSIONS inches (mm)

Overall height of product* 331/4” (845)

A

Overall width of product 237/16” (595)

B

Overall depth of product

C

(including dial and door whenclosed)

Depth to door open 42” (1067)

D

MAXIMUM CAPACITY† kg

251/4” (640)

8.0

EN

* Note:

With leveling legs retracted: 331/4” (84.5cm).
With leveling legs fully extended: 335/8” (85.4cm).
Stacked: 661/2” (168.9cm).

† Capacity refers to the maximum dry weight of items the machine can dry at any one time.

Note: some cycles have a lower maximum capacity (see the ‘Drying cycles’ section).

Electrical connection dimensions

Power cords

Fisher & Paykel Appliances strongly
recommends the use of factory
specified parts. Select the power cord
to fit your installation requirements.

30”

(76.2cm)

201/2” (52.1cm)

Back view

7

SORTING AND LOADING

Always follow fabric manufacturer’s care label when laundering.
