FP3GV12S2-ER2010
Falmec FP3GV12S2-ER2010, FP3GV12S2-EW2010, FP3ML60S2-EW765, FP3ML60S2-ER1140, FP3ML60S2-ER765 Installation Guide
...
INSTALLATION MANUAL
M
ilano
Genova 120
falmecau.com
CONGRATULATIONS
Congratulations and thank you for choosing
a Falmec rangehood.
To avoid the risks that are always present
when you use an electrical appliance it is
important that the rangehood is installed
correctly and that you read the safety instructions carefully to avoid misuse and hazards.
We recommend that you keep this instruction
booklet for future reference and pass it on to
any future owners.
IMPORTANT INFORMATION
AFTER UNPACKING THE RANGEHOOD PLEASE REVIEW YOUR NEW ITEM TO ENSURE
THAT IT HASN’T BEEN DAMAGED IN TRANSIT OR IS MISSING ANY COMPONENTS.
FAILURE TO REPORT ANY ISSUE WITHIN 72 HOURS OF RECEIPT OF YOUR ITEM MAY
RESULT IN ADDITIONAL CHARGES.
ENVIRONMENTAL TIP
Information on disposal for users Most of the packing materials are recyclable.
Please dispose of those materials through your local recycling depot or by placing
them in a appropriate collection bin.
If you wish to discard this product, please contact your local authorities and ask for
the correct method of disposal.
TO AVOID THE RISK OF INJURY OR DAMAGE TO THE PRODUCT IT IS ESSENTIAL TO
READ THESE INSTRUCTIONS PRIOR TO INSTALLATION AND USE.
2
PRODUCT DESCRIPTION & CARTON CONTENTS
CARTON 1 - HOOD UNIT
INTEGRATED HOOD - REMOTE MOTOR
Models include:
MILANO FP3ML60S2, FP3ML90S2,
MILANO FP3MLD90S2, FP3MLD12S2
GENOVA FP3GV12S2
Included in the carton:
1. Main hood housing including control module and lighting
2. Baffl e lters
3. Grease trap
4. Fixing screws
5. Operating & installation guide
CARTON 2 - FAN MOTOR UNIT
You will be supplied with one of the three fan motor
options detailed.
Fig. A

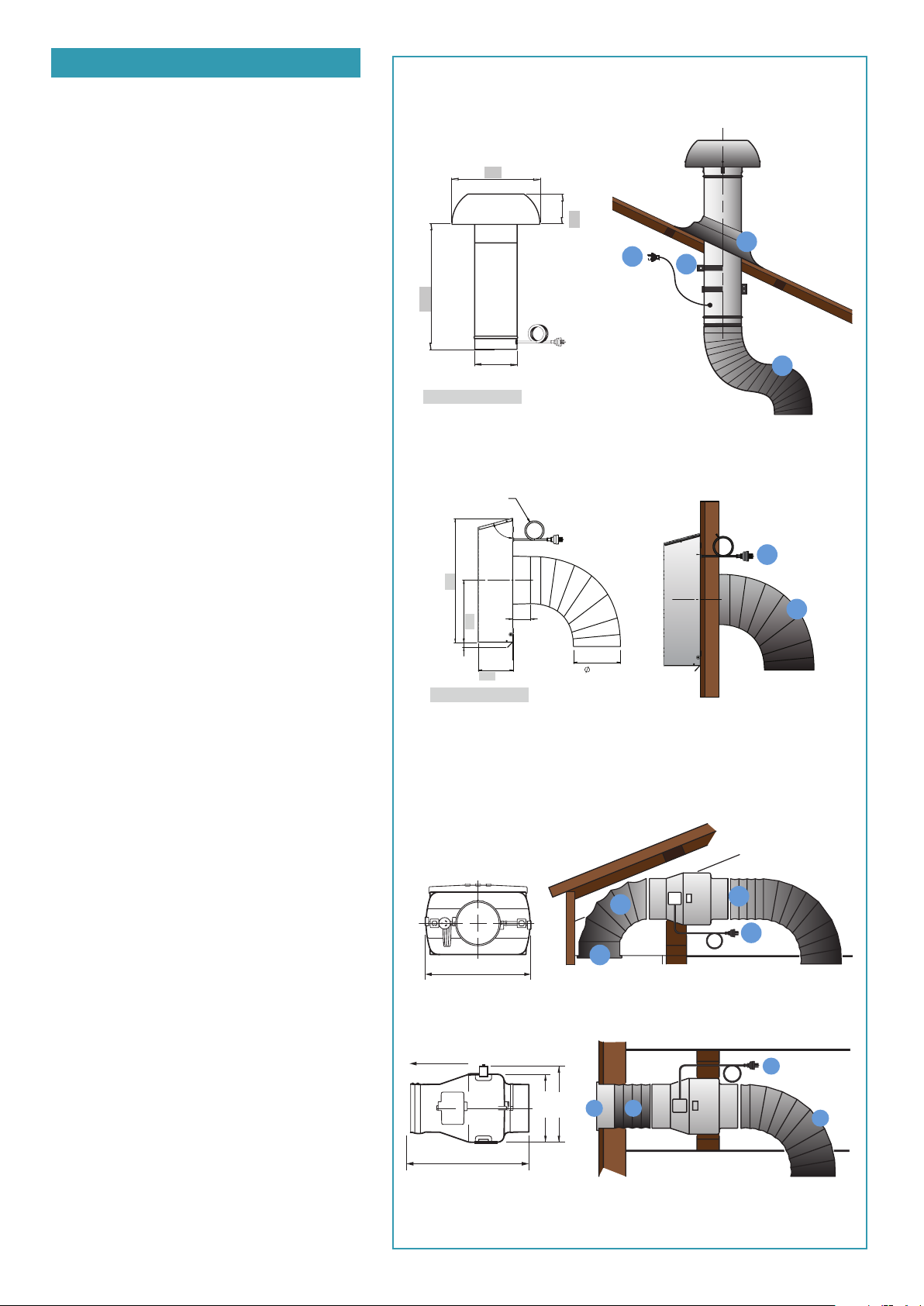

OPTION 1 - IN ROOF SOLUTION (Fig. A)
Models include: IR-765 and IR-1140
Unit designed to be located in a roof space and then
ducted to an external vent.
Included in the carton:
1. In Roof Motor Unit
2. Mounting Bracket
3. Fixing Screws
4. Duct Clamps x4
5. 200 mm Flexi Duct (5 Meters Length)
6. White Stainless Steel Wall/Eave Vent
OPTION 2 - EXTERNAL HOOD SOLUTION (Fig. B)
Models include: ER-765, ER-1140 and ER-2010
Unit designed to be mounted externally penetrating
through the roof.
Included in the carton:
1. External Roof Motor Unit.
2. Duct Clamps (x2).
3. 200mm Flexi Duct (5 Meters Length).
OPTIONAL ACCESSORIES WHEN ROOF MOUNTING
1. 200 mm Tile Roof Install Kit (HBX200TILE).
Includes roof ashing for tile roof and mounting brackets x2.
2. 200 mm Metal Roof Install Kit (HBX200MET).
Includes roof ashing for metal roof and mounting brackets x2.
Fig. B
OPTION 3 - EXTERNAL WALL SOLUTION (Fig. C)
Models include: EW-765, EW-1140 and EW-2010
Unit designed to be mounted directly on an external wall.
Included in the carton:
1. External Wall Motor Unit.
2. Duct Clamps x 2.
3. 200 mm Flexi Duct (5 Meters Length).
Fig. C
3
MILANO + 56 / 87
FP3ML60S2
FP3ML90S2
358
118
379 / 665
505 / 815
541 / 851
541 / 851
12
200
184
280
247
332
204
280
512 / 822
250

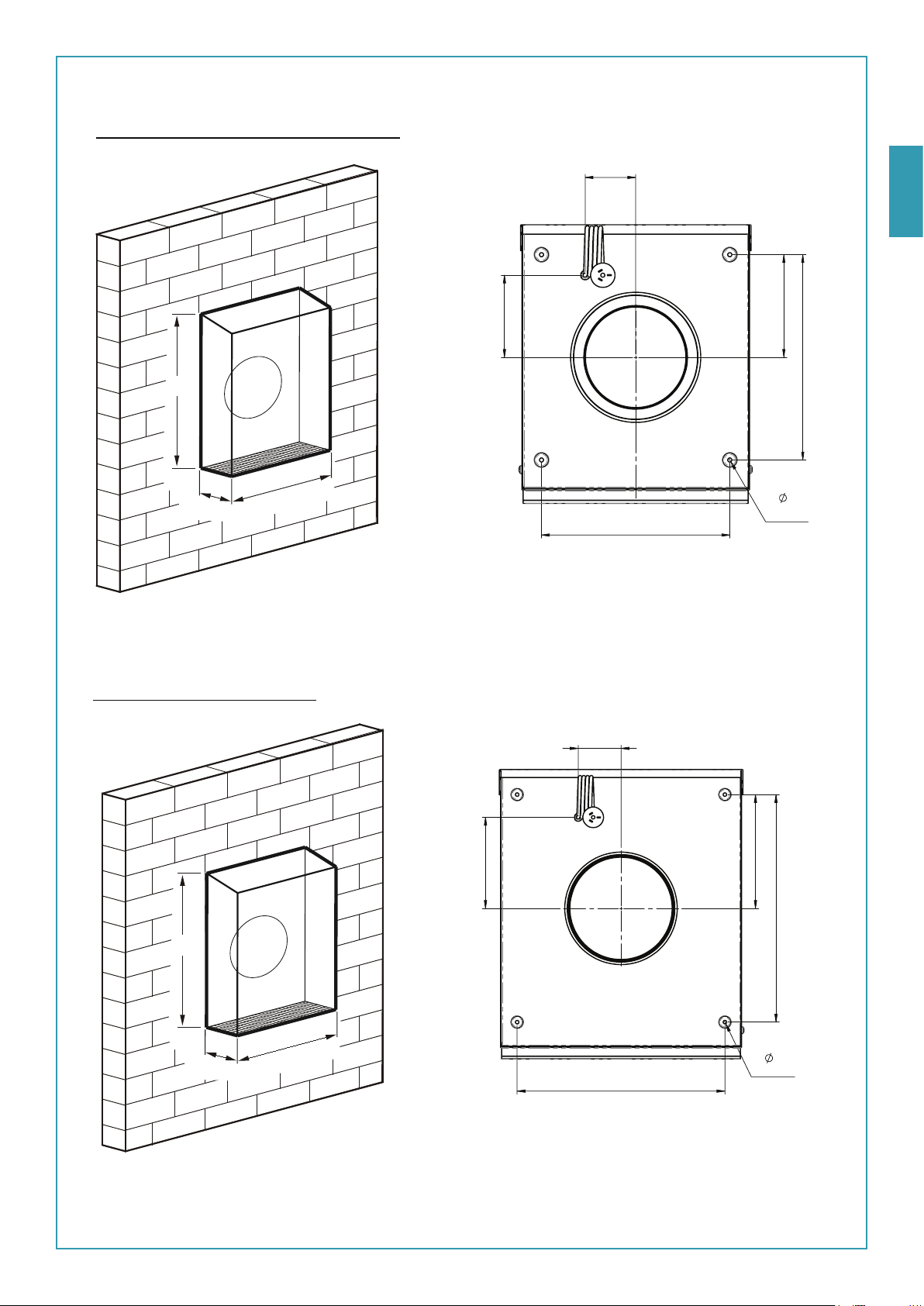

EN - HOLE MEASUREMENTS FOR INSTALLATION
IT - MISURE FORO PER INCASSO
4
MILANO + 87 / 116 DEEP
FP3MLD90S2
FP3MLD12S2
584 / 870
326
248
351
815 / 1101
851 / 1137
118
851 / 1137
824 / 1110
12
002
326
204
98
360
360
EN - HOLE MEASUREMENTS FOR INSTALLATION
IT - MISURE FORO PER INCASSO
330
5
GENOVA + 116
FP3GV12S2
870
416
281
351
118
1101
1137
1137
12
002
98
450
326
204
450
1110
EN - HOLE MEASUREMENTS FOR INSTALLATION
IT - MISURE FORO PER INCASSO
420
6
STEP 1:
Minimum distance by cooktop.
STEP 2:
Wall unit hole.
STEP 3:
You push the hood in wall unit hole.
1
2
600 - 650 mm
3
7

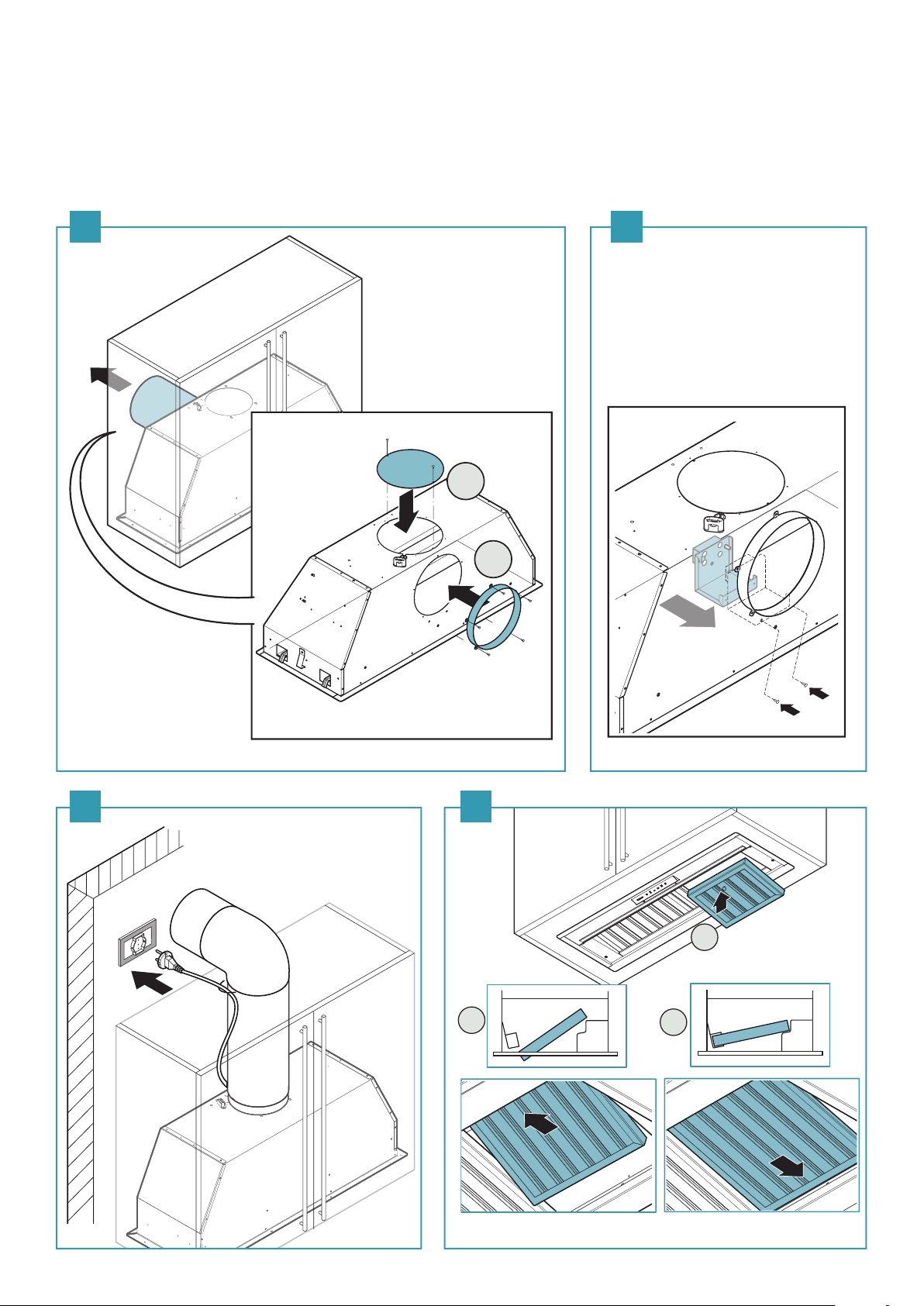

STEP 4:
You screw the blocking devices.
STEP 5:
Connect the hood outlet (in the top or back ducted position)
to 150mm ducting leading to an external output.
4
CAUTION
x4
5 5a
TOP
DUCTED
POSITION
CAUTION
ATTENTION!
ONLY ON
MILANO + DEEP
10 ÷ 28 mm
3
FOR BACK DUCTED
POSITION
1
3
2
8
