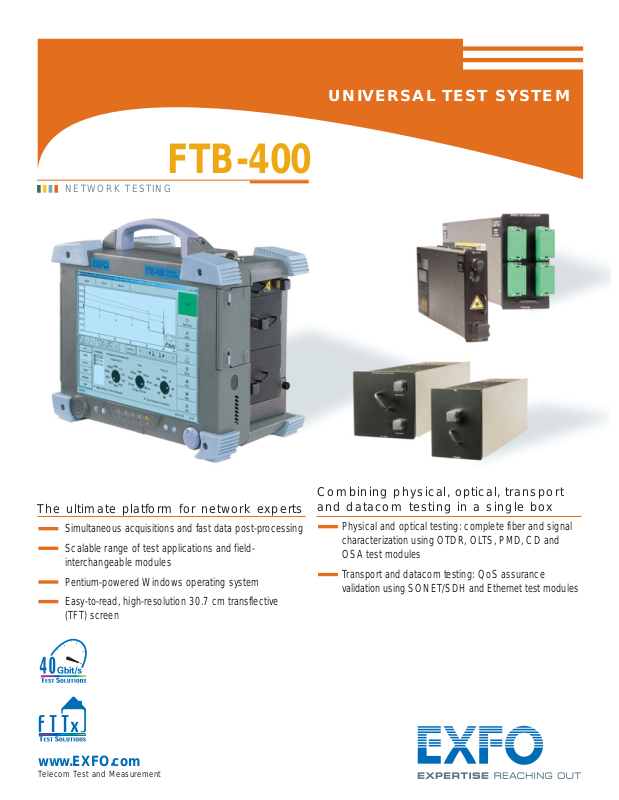

EXFO FTB-400 Data Sheet

FTB-400

NETWO RK TE STING

U NI VER SA L T E ST SYSTE M

Telecom Test and Measurement

www.EXFO.com

The ultimate platform for network experts

Simultaneous acquisitions and fast data post-processing
Scalable range of test applications and field-

interchangeable modules
Pentium-powered Windows operating system
Easy-to-read, high-resolution 30.7 cm transflective

(TFT) screen

Combining physical, optical, transport
and datacom testing in a single box

Physical and optical testing: complete fiber and signal
characterization using OTDR, OLTS, PMD, C D and
OSA test modules

Transport and dat acom testing: QoS assurance
validation using SONET/SDH and Ethernet test modules

The Ultimate Platform for Network Experts

Technologically speaking, today's networks are more complex than ever. Thousands of components have to work in harmony,
and deployment specialists are responsible for tuning entire systems for optimal network performance and ensuring that records are up
to date. At the same time, fiber counts are skyrocketing, and dense wavelength-division multiplexing (DWDM) is entrenched in long-haul
applications, moving into metro.

New architectures. New deliverables. New documentation needs. A brand-new paradigm. Now, how do you rise to the challenge?
With the tough and proven FTB-400 Universal Test System from E X FO. This revolutionary test platform streamlines field-based test

and measurement operations onto a single powerful platform. Welcome to multitasking in the field.

FTB-400

Universal Test System

MU LTIPLE CONFIGURATIONS, DOZENS OF OPTIONS

The FTB-400 Universal Test System comes in five configurations
to expand your testing possibilities.

Bus-Protector Configuration

Ultra-slim bus protector for using the FTB-400 as a dedicated portable computer

Two-Slot Configuration

OTDR module (wide selection of models) combined with an automated optical loss
test (OLTS) module, perfect for fiber characterization

Over 500 OTDR and loss testing combinations

Four-Slot Configuration

This compact, high-power, multipurpose back receptacle houses up to four single-slot
FTB test modules and offers a high-speed bus, ideal for various applications:

Extensive datacom testing, using the complete Packet Blazer line of modules—
Fibre Channel, Gigabit Ethernet and 10 Gigabit Ethernet

Multiservice transport testing using Transport Blazer modules in conjunction with
the Packet Blazer modules

Dedicated OTDR, loss and Ethernet (up to 10 Gigabit) testing, combining
an OTDR, the MultiTest module (O LTS) and a Packet Blazer module

Seven-Slot Configuration

Extensible basic and advanced fiber-optic test applications, including DWDM
and dispersion analysis

Over 1000 testing combinations— chromatic dipersion (CD), polarization mode
dispersion (PMD) and optical spectrum analyzer (O SA) modules, ribbon test kits,
switches for high-fiber-count testing, OTDR and loss testing

Eight-Slot Configuration

This multipurpose, high-power, eight-slot back receptacle houses any of EX FO’s FTB
test modules and delivers first-class features:

Complete dispersion characterization—CD, PMD and OTDR—in a single platform
Full compatibility with the Ethernet, Fibre Channel, next-generation SON ET/SDH

and DSn/P DH test modules
High-speed bus
Integrated power supply (no external converter)

www.EXFO.com

Test with Speed and Efficiency

FTB-400

Universal Test System

The FTB-400 with print function and external printer.

Choice on the Move

Choose from a wide variety of high-performance test modules. Modules are swapped easily, which means you get to customize your
test set and configure your field equipment to meet evolving needs. Perform the right tests. Get the right data. And end up with
integrated test reports for a global overview of your network's performance.

Module Choices

Over 25 OTDR models covering all network testing applications, from core to access
Over 11 OLTS models for testing optical return loss (ORL) and insertion loss (I L)
CD analyzer
PMD analyzer
OSAs
SON ET/SDH analyzers (up to 10 Gbit/s)
Next-generation SON ET/SDH analyzers
DSn/P DH analyzers
Ethernet analyzers (up to 10 Gbit/s)
Fibre Channel analyzers
Switch module: faster automated acquisitions by switching between

one common port and multiple input/output ports
Modular printer for field use
Modular pulse-suppressor boxes (singlemode and multimode)

www.EXFO.com

The All-in-One Solution

If you're looking for high efficiency, the FTB-400 Universal Test System is the answer. Benefit from advanced test operations in outside­plant installation, maintenance and troubleshooting.

Multitasking

Evolve with the latest technologies. From power readings and OTDR testing to optical switching, CD and PMD analysis, DWDM testing,
protocol, datacom and data post-processing—the FTB-400 Universal Test System does it all. More importantly, the FTB line
of swappable test modules continues to expand with new test applications and accelerated test routines.

The powerful FTB-400 can perform simultaneous acquisitions and data post-processing.

FTB-400

Universal Test System

The main interface of ToolBox, the FTB-400’s
standard software.

Data acquisition through OSA application.

Post-processing OTDR files with optional
FastReporter software.

The FTB-400’s rugged components include a tough,
efficient touchscreen interface.

Rugged

The FTB-400 Universal Test System complies with GR-19 6-CORE drop-test
standards (76 cm drops on all six sides and eight corners). Plus, the tough shell
and rubber bumpers mean that the FTB-400 and its precision modules survive
splashes, knocks and temperature extremes.

User-Friendly

30.7 cm transflective (TFT) color touchscreen
Easy to view, even in direct sunlight
Largest LCD screen on the market
800 x 600 pixel resolution

www.EXFO.com

FTB-400

Universal Test System

Powerful

Power management is a snap, thanks to the ToolBox software. EXFO’s
FTB-400 is based on the Windows® 2000 operating system,
run by a Pentium-series processor with up 512 MB of SDRAM.

Fast, intuitive Sleep mode for power conservation
Far-ranging operating time
Automated power management

Scalable

Choose between basic and advanced testing.
The two-slot configuration enables compact, dedicated
loss, ORL, OTDR and Gigabit Ethernet testing.
The fully equipped eight-slot configuration provides
space for optical switching in high-fiber-count
applications, dispersion analysis, DWDM testing,
as well as transport and da tacom testing. Configurations
are interchangeable.

Rapid

Get moving faster, get results faster. New-generation processing power means
acquisitions and data analysis are quicker than ever. And enjoy the advantage
of EXFO's exclusive online data post-processing.

Quick, easy data transfer
Extremely fast acquisitions
Efficient data post-processing
Two USB ports
Infrared (IrDA) port
PCMCIA type III
Writable CD-ROM

Modular

Choose your range of test applications. The FTB-400 Universal Test System
combines a series of high-performance test modules in a powerful platform. The test
set simultaneously runs up to eight single-slot field-interchangeable modules.

Two-slot FTB-400.

Four-slot FTB-400.

Eight-slot FTB-400.

Seven-slot FTB-400.

Real-time battery information window.

Quick, easy and effective data transfer.

Plug in your choice of test modules.

www.EXFO.com

FTB-400

Universal Test System

Housing a Complete Range* of Test Solutions

* Note: The FTB-400 is compatible with currently available FTB test modules. Please call to verify compatibility with legacy products no longer being manufactured.

FTB-5240B, FTB-5240
and FTB-5230 Optical
Spectrum Analyzers

EXFO’s OSAs deliver lab-quality specs in
rugged, field-testing modules designed for
today’s advanced networks—DWDM,
CWDM, etc. They enable you to
accurately monitor optical wavelength
channels within a fiber, offering a high
optical rejection ratio (ORR), top-of-the­line wavelength accuracy and wide
spectral range.

FTB-55 00B Polarization
Mode Dispersion
Analyzer

For testing PMD in crucial high-speed
fiber links, the FTB-5500B PM D Analyzer
is the solution. Dynamic range reaches
50 dB. Plus, get second-order PMD
calculations and benefit from the wide
analysis range (0.05 to 200 ps).

FTB-58 00 Chromatic
Dispersion Analyzer

Using the proven phase-shift method,
this patent-pending design allows
measurement of CD with high speed and
high accuracy. Up to 475 test points can
be acquired for improved and unmatched
accuracy. In addition, test through devices
such as erbium-doped fiber amplifiers
(EDFAs), for testing of entire links, not
mere sections. Our unique design requires
only one fiber for testing: no need for a
second fiber dedicated to communication.

FTB-7000 OTD R Series

EXFO’s OTDR modules offer numerous
singlemode and multimode configurations
available at several wavelengths. The FTB- 7000
family includes four lines of OTDRs:
the FTB-7200 LAN/WAN OTDR, the
FTB-7200/7300 FTTx Access/Metro OTDR,
the FTB-7400 Metro/Long-Haul OTDR and
the FTB-7500 Long-Haul OTDR. With first-
class resolution—event dead zone down to 0.8
m, and attenuation dead zone down to 4 m—as
well as FTTx (PON, point-to-point) and 40
Gbit/s (metro and long-haul) testing capabilities,
the FTB-7000 series modules t ackle all OTDR
testing needs, from core to access.

FTB-9100
Optical Switch

Multiply your measurement power with the
FTB-9100 Optical Switch. Obtain fast,
repeatable measurements between one
common port and multiple input/output
ports. Automate data acquisition sessions
with specialized programmable functions.
Choose between singlemode and
multimode 1x12 switches; several
connector types are available. Designed
for use with the FTB-7000 series OTDRs.

FTB-3930
MultiTest Module

MultiTest modules are customizable loss
testers—perfect for estimating loss
budgets. Integrate your choice of power
meter and light source, exclusive FasTesT
automated loss test set, ORL tester, visual
fault locator (VFL), and digital talk set.
New features include: FTTx-mode display
(1490/1550 nm downstream, 1310 nm
upstream), remote referencing and saving,
as well as new measurement distance
units (feet and kilofeet).

www.EXFO.com

FTB-400

Universal Test System

FTB-85 10B Packet Blazer
Ethernet Test Module

The FTB-8510B brings performance
assurance to Ethernet-based services. Its wide
range of test functionalities provides all the
necessary measurement tools for validating
service-level agreements (SLAs). It tests
connectivity in its native format:
10/100/1000Base-T, 100Base-FX, 100Base-LX,
1000Base-SX, 1000Base-LX and 1000Base-ZX
for LAN-to-LAN services delivered via ATM,
frame relay, next-generation SONET/SDH,
SONET/SDH hybrid multiplexers, switched
Ethernet, VLANs, dark fiber, WDM, FTTx
systems or other means.

FTB-85 10G Packet Blazer
10 Gigabit Ethernet Test
Module

The FTB-8510G offers performance
assurance for Ethernet-based frame
services. Its suite of test applications
provides all the measurements required for
validating SLAs. Supported test interfaces
include 10GBASE-xR or 10GBASE-xW
used for transport of Ethernet-based
LAN-to-LAN services. It can also be used to
test next-generation SONET/SDH, hybrid
multiplexers, dark fiber or xWDM networks
running 10 Gigabit Ethernet interfaces.

FTB-8520 Packet Blazer
SAN Fibre Channel
Test Module

The FTB-8520 brings FC-0, FC-1 and
FC-2 logical layer Fibre Channel testing to
services delivered via transport protocols,
such as DWDM, SONET/SDH and dark
fiber. It provides valuable timing information
and buffer credit estimation for Fibre Channel
network deployment. This module is
designed for testing both telecom and Fibre
Channel services, enabling end-to-end
latency testing. What’s more, the FTB-8520
helps ensure long-term integrity and error-free
data delivery across Fibre Channel links.

FTB-8120/8130
Transport Blazer Next­Generation SON ET/SDH
Test Modules

The FTB-8120 (2.5 Gbit/s) and FTB-8130
(10/10.7 Gbit/s) test modules combine
advanced DSn/PDH, SONET/SDH,
next-generation SON ET/SDH and optical
transport network (OTN) test functions in a
single unit, eliminating the need for
multiple purpose-built test platforms when
commissioning or troubleshooting
multiservice SON ET/SDH networks.

FTB-8115 Transport Blazer
SON ET/SD H Test Module

Available in 155 Mbit/s (OC-3/STM-1),
622 Mbit/s (OC-12/STM-4) and

2.5 Gbit/s (OC-48/STM-16) configurations,
the FTB-8115 test module combines
advanced DSn/PDH and SONET/SDH
interfaces and functions in a single unit,
ideal for access and metro SON ET/SDH
network commissioning and troubleshooting.

FTB-8105 Transport
Blazer DSn/ PDH and
SON ET/SDH Electrical
Test Module

The FTB-8105 is ideally suited for TDM
field service deployment and maintenance
activities. This test module offers
capabilities to test traditional TDM DSn
and PDH electrical rates, as well as the
SON ET and S DH electrical rates of up to
155 Mbit/s.

www.EXFO.com

Wide-Open Test Applications

Processing power, speed and flexibility—all great features. What’s even better? Amazing benefits. While acquiring OTDR data on one
set of fibers, you can perform DWDM testing with an OSA on other fibers in the cable. Then, print out concise reports on both tests.
Today, this is simply the best way to streamline test and measurement operations. You'll work more effectively, speed up your test
procedures in the field and save hours in the process.

You’re responsible for installing non-zero dispersion-shifted fiber (N ZDS F), qualifying DWDM SON ET/SDH transmission equipment,
maintaining fiber networks and qualifying each and every splice in long-haul data networks. What you need is the FTB-400. Insert any
combination of OSA, PMD analyzer, OTDR, power meter, ribbon fiber test kit or high-density optical switch in the two-slot or seven-slot
FTB-400 UTS and perform all your tests simultaneously.

Apply the same concepts to new access networks as well as passive optical networks (PONs). Though transmission rates are
considerably lower compared to long-haul systems (OC-3/12 vs. OC-192/768; STM 1/4 vs. STM 64/256), the density and architecture
of the networks (point-to-multipoint instead of point-to-point) vary enormously. The FTB-400 offers solutions adapted to all possible
applications.

FTB-400

Universal Test System

MU LTITASKING

What does multitasking mean? It’s the revolutionary ability to simultaneously
combine several applications to meet specific test and measurement needs. Thanks
to four module receptacle choices (2, 4, 7 or 8 slots) and multiple configurations,
the FTB-400 brings multitasking to new heights. Below are a few examples.

Link characterization (eight slots):
First-class dispersion testing.

FTB-5240B Optical Spectrum Analyzer
FTB-5500B PM D Analyzer
FTB-5800 Chromatic Dispersion Analyzer
FTB-7000B/ FTB-7000D OTDR

Provisioning and turning up DWDM services (four slots):
Simultaneous bit-error-rate (BE R) testing on multiple interfaces.

FTB-8105 Transport Blazer DSn/ PD H and S O N ET/SDH Electrical Test Module
FTB-8115/8120/8130 Transport Blazer SONET/SDH Test Modules
FTB-8510B Packet Blazer Ethernet Test Module
FTB-8510G Packet Blazer 10 Gigabit Ethernet Test Module
FTB-8520 Packet Blazer SAN Fibre Channel Test Module

Installation and maintenance (two slots):
OTDR and ORL testing on PON fiber links.

FTB-7200D-236B OTDR
FTB-3930 MultiTest Module

Installation and maintenance for high-fiber-count applications (seven slots):
OTDR and ORL testing on long-haul and metro fiber links in a high-fiber­count environment.

FTB-3930 MultiTest Module
FTB-7300D-234B OTDR
FTB-9100 Optical Switch
GP-273 Printer Module

www.EXFO.com

Data Post-Processing: Field and Desktop Efficiency

ToolBox: Standard Software for the Field and Desktop

The FTB-400 Universal Test System comes with ToolBox software, which supports a wide range of EXFO field-testing modules: OTDR,
MultiTest (O LTS), optical switch, OSA, PM D analyzer and chromatic dispersion (CD) analyzer, as well as SON ET/SDH, Ethernet and
Fibre Channel test modules. ToolBox also comes with Power Meter Result Viewer, Batch Processor Light and data transfer
functionalities.

FTB-400

Universal Test System

www.EXFO.com

Fast-Track Data Post-Processing with FastReporter Software

The optional FastReporter software package provides you with the post-processing tools and functionalities you need to achieve flexible,
fully integrated data analysis, whatever the application. Designed for off-line analysis of field-acquired data, FastReporter offers a truly
intuitive graphical user interface, which contributes to boosting productivity.

POWERFUL BATCH PROCESSING

Automate repetitive operations on large numbers of OTDR test files, and
optimize your productivity. Document an entire cable in a matter of seconds.
Adjust your cable parameters and detection thresholds and perform batch
analysis. Open OTDR files from various vendors’ equipment and convert them
to the universal Telcordia format.

BI D I R E CTIONAL BATCH ANALYS IS

Analyze an entire cable in just two steps. View data for all events on all fibers,
and at each wavelength, on a single screen.

LIVE TE M P L ATI N G FO R OTDR TESTING

Benefit from one-step file management at any wavelength. Keep full control by
adding or removing events manually, or add/remove events automatically using
a reference. Get uniform, detailed cable reports.

FLEXIBLE RE PORTING

Choose from various report templates, including loss and ORL, OTDR, PMD,
CD and fiber characterization. Generate comprehensive cable reports in PDF,
Excel or HTML format.

Bidirectionnal batch analysis.

Multimedia Advantages

FTB-400

Universal Test System

Pentium-series processor. Essential for speed
and multitasking operations.

PCMC IA type I II device (two-slot) supports.
Flash memory cards (256 MB to 1024 M B) (optional).
Ethernet/Fast Ethernet (10/100 Mbit/s) network card for

remote control from a PC or another FTB-400 (optional).
Fax modem (56.6 kbit/s) (optional).
Up to 1024 MB SD RAM. Quick access to internal memory.
IrDA port and two USB 1.1 ports. Speed up data transfer.
Internal 3.5-inch 1.44 MB floppy drive.

Serial and parallel port. Printer and other peripherals.

30.7 cm color touchscreen resists spills and splashes.
High-resolution, especially under bright light conditions.

Dial. Quick-select software functions.
External monitor port.
Microphone port. Built-in or external.
Sound card and speaker. Audible alarms.
Lightweight casing. Splashproof protection of optical

and electronic components.
EXFO headset interface.

30.7 cm color screen

Speaker Activity LEDs Dial

Built-in microphone

Protective
bumpers

Lightweight
casing

Two-slot module
receptacle

Mic-In and
Speaker-Out ports

Serial port DE-9

Parallel port DB-25
Video port DE-15
Two USB ports

AC/DC power port

3.5-inch
floppy

PCMCIA type III

IR port

Two-slot module
receptacle

www.EXFO.com

FTB-400

Universal Test System

SPECIFICATIONS

a

Display Touchscreen, color, 800 x 600 TFT 307 mm (12 1/16 in)
Interfaces Serial RS-232

Parallel port
External monitor
Two USB 1.1 ports
Infrared (IrDA) port
Audio microphone In 3.5 mm
Audio speaker Out 3.5 mm
Two PCMC IA type I I or one P CAMC IA type III

Storage Internal 40 GB hard drive minimum (over 750 000 OTDR test files)

Internal 3.5 in 1.44 MB floppy drive
External USB read/write CD-RO M (optional)
Flash memory cards (256, 512, 1024 MB) (optional)
NTFS file system

Batteries

b

Rechargeable NiMH battery pack (two batteries for two-slot receptacle, two for four-slot receptacle, four for seven-slot receptacle,
two for eight-slot receptacle) > 8 h of continuous operation as per Bellcore TR-NWT-001138

Power supply 100–240 VAC, 50/60 Hz and 12–24 VDC for the two-slot (GP-402) and the seven-slot (GP-407) module receptacles; 100–240 VAC,

50/60 Hz and 24 VDC for the four-slot (G P-4 04) module recept acle; and 100-24 0 VAC, 50/60 Hz for the eight-slot
(GP-408) module recept acle

GENERAL SPECIFICATIONS

ACCESSORIES

GP-273 Internal printer module
GP-285 Spare NiMH smart battery for FTB-400
GP-287 External battery charger for smart battery

for FTB-100B and FTB-400

(A-E-I-S-U) (requires AC external adapter/charger). Specify :

A-North America, E-Europe, I-India, S-Australia and

New-Zealand, U-United-Kingdom
GP-297 (A-E-I-S-U) Canon BJC-85 (external printer—standard on the FTB-3 00 also)
GP-298 PCMCIA Fast Ethernet LAN (10/100 MB auto-detect)
GP-299 PCMCIA PSTN 56.6 kb/s
GP-302 USB mouse
GP-303 PCMCIA GPIB interface
GP-304 (A-E-I-S-U) Writable CD- RO M
GP-305 (A-E-I-S-U) Spare power adapter
GP-307 EXFO headset + adapter (allows connection

of EXFO headset to microphone and speaker port)
GP-308 Car lighter booster
GP-309 DC adapter for lighter plug
GP-310 Headset adapter
GP-320 256 MB ATA flash card for FTB-100B or FTB-400

(8000 traces typ.)
GP-321 512 MB ATA flash card for FTB-100B or FTB-4 00

(16 000 traces typ.)

GP-322 1024 MB ATA flash card for FTB-100B or FTB-4 00

(32 000 traces typ.)
GP-402 Additional two-slot receptacle
GP-404 Additional four-slot receptacle
GP-407 Additional seven-slot receptacle
GP-408 Additional eight-slot receptacle
GP-1003 Battery compartment door for FTB-4 00
GP-2000 PC bus protector
GP-2001 US B keyboard
GP-2002 US B memory stick 256 MB
GP-2003 US B memory stick 512 MB
GP-2005 Twin battery pack conditioning charger
(A-E-I-S-U) for FTB-100 and FTB-400
GP-2026 Spare power adapter for G P-404 module receptacle

Carrying cases:

GP-10-047 Soft case for mainframe + two-slot
GP-10-047B Semi-rigid case for two/four-slot FTB-400

(without FTB-8000 series)
GP-10-056B Soft case for mainframe + seven-slot with wheels

and carrying handle
GP-10-057 Universal hard case FTB-400
GP-10-068 Rigid case for two/four-slot FTB-400 (without FTB-8000 series)

Notes

a. All specifications valid at 23 °C (73 °F).
b. Standard recharge time is 5 hrs. Recharge

temperature: 0 °C to 35 °C (32 °F to 95 °F).
Not applicable for the GP 408 eight-slot
module receptacle.

c. Not including internal batteries. Battery

maximum storage temperature 40 °C (104 °F).
d. Platform with batteries, no modules included.
e. Two-slot receptacle.

T emperature

c

operating 0 ºC to 50 ºC (32 ºF to 122 ºF)

storage –40 ºC to 60 ºC (–40 ºF to 140ºF)
Relative humidity 0 % to 95 % (non-condensing)
Size (H x W x D) Mainframe + two-slot module receptacle: 318 mm x 343 mm x 114 mm

(12

1

/2 in x 13 1/2 in x 4 1/2 in)
Mainframe + four-slot module receptacle: 318 mm x 343 mm x 139 mm
(12

1

/2 in x 13 1/2 in x 5 1/2 in)
Mainframe + seven-slot module receptacle: 318 mm x 343 mm x 197 mm
(12

1

/2 in x 13 1/2 in x 7 3/4 in)
Mainframe + eight-slot module receptacle: 318 mm x 343 mm x 246 mm
(12 1/2 in x 13 1/2 in x 9 11/16 in)

Weight

d

Mainframe + two-slot module receptacle, including two NiMH batteries: 7.5 kg (16.6 lb)
Mainframe + four-slot module receptacle, including two NiMH batteries: 8.3 kg (18.2 lb)
Mainframe + seven-slot module receptacle, including four NiMH batteries: 9.8 kg (21.6 lb)
Mainframe + eight-slot module receptacle, including two NiMH batteries: 11.1 kg (24.5 lb)

Vibration < 1.5 g. at 10 Hz to 500 Hz (on three main axes)
Mechanical shock e< 760 mm on six sides and eight main edges (according to GR-196-CORE)
Isolation Spillproof and splashproof
CE compliance Class A certification

www.EXFO.com

FTB-400

Universal Test System

SPFTB400.11AN © 2007 EXFO Electro-Optical Engineering Inc. All rights reserved. Printed in Canada 07/07

NOTES

1. Similar specifications apply to the IQS-8510 Packet Blazer module,
designed for the IQS-500 platform.

2. Upgrade kit also available for FTB-8510 Packet Blazer, providing one
or two Gigabit Ethernet ports.

Size (H x W x D)

2.5 cm x 9.6 cm x 26
cm
(1 in x 3 in x 10 in)
Weight (without

SAFETY

21 CFR 104 0.10 CLASS 1 LASER P RO D U CT
and IEC 6 0825-1

FTB-85XX-XX

MODULE

TK-400-8500-XX-XXX-FTB-85XX-XX-XX-XX

TEST KIT

Model

FTB-

400 = Modular main frame unit

FTB-

400-HC= Modular main frame unit high capacity hard disk

Display

D

4 = TFT active color touchscreen

Memory

N

8 = Standard 128 MB

N10 = Additional 128 MB (total of 256 MB)
N12 = Additional 384 MB (total of 512 MB)

Operating system language

a

A = English
C = Chinese (simplified)
E = Spanish
F = French
G = German
I = Italian
R = Russian

b

X = Czech

b

K = Korean

b

J = Japanese

b

V = Chinese (traditional)

Receptacle

00 = Two-slot receptacle (GP-402)
AV = Four-slot receptacle (GP-404)
H = Seven-slot receptacle (GP-407)
MP = Eight-slot receptacle (GP-408)
BP = Bus protector (GP-2000)

NOTES

a. Software test applications might not support all languages listed above.

Call factory for information on supported software languages.

b. Call EXFO for details.

Example: FTB-400-N10-D4-H-A

ORDERING INFORMATION

FTB-400-DX-NX-XX-X

EXFO Corporate Headquarters > 400 Godin Avenue, Quebec City (Quebec) G1M 2K2 CANADA Tel.: [phone] Fax: [phone] [e-mail]

Toll-free: 1 800 663-393 6 (U SA and Canada) www.EXFO.com

EXFO is certified ISO 9001 and attests to the quality of these products.
This device complies with Part 15 of the FCC Rules. Operation is
subject to the following two conditions: (1) this device may not cause
harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
EXFO has made every effort to ensure that the information contained
in this specification sheet is accurate. All of EXFO’s manufactured
products are compliant with the European Union’s WEEE directive . For
more information, please visit www.EXFO.com/recycle. However, we
accept n o responsibility for any errors or omissions, and we reserve the
right to modify design, characteristics and products at any time w ithout
obligation. Units of measurement in this document conform to SI
standards and practices. Contact EXFO for prices and availability or to

obtain the phone number of your local EXFO distributor.

For the most recent version of this spec sheet, please go to the EXFO
website at http://www.EXFO.com/specs

In case of discrepancy, the Web version takes pr ecedence over any printed
literature.

EXFO America 3701 Plano Parkway, Suite 160 Plano, TX 75075 USA T el.: 1 800 663-3936 Fax: [phone]
EXFO Europe Omega Enterprise Park, Electron Way Chandlers Ford, Hampshire S053 4SE ENGLAND Tel.: [phone] Fax: [phone]
EXFO Asia 151 Chin Swee Road, #03-29 Manhattan House SINGAPORE 169876 T el.: [phone] Fax: [phone]
EXFO China No.88 Fuhua, First Road Shenzhen 518048, CHINA T el.: [phone] Fax: [phone]

Central T ower, Room 801, Futian District
Beijing New Century Hotel Office T ower, Room 1754-1755 Beijing 100044 P. R. CHINA T el.: [phone] Fax: [phone]

No. 6 Southern Capital Gym Road

Find out more about EXFO's extensive line of high-performance portable instruments by visiting our website at www.EXFO.com.
