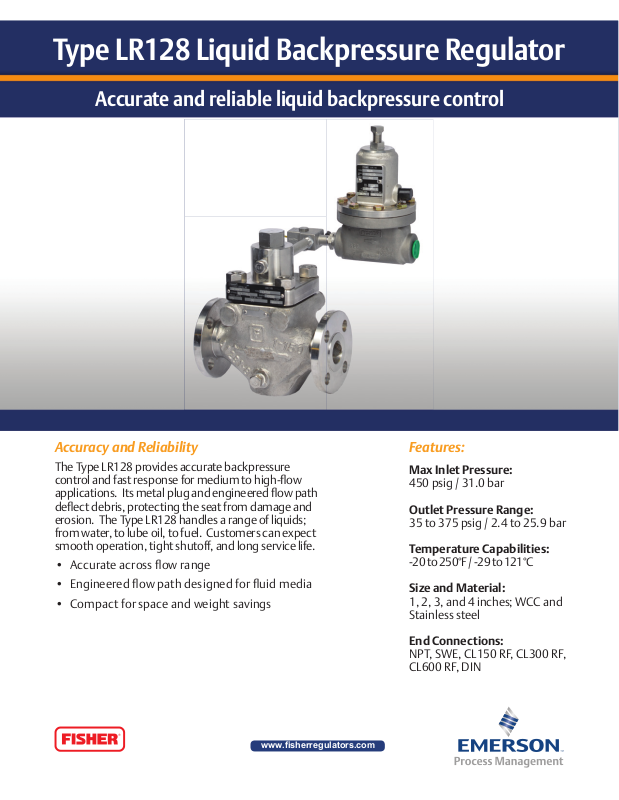

Type LR128 Liquid Backpressure Regulator

Accurate and reliable liquid backpressure control

Accuracy and Reliability

The Type LR128 provides accurate backpressure

control and fast response for medium to high-fl ow
applications. Its metal plug and engineered fl ow path
defl ect debris, protecting the seat from damage and

erosion. The Type LR128 handles a range of liquids;

from water, to lube oil, to fuel. Customers can expect
smooth operation, tight shutoff, and long service life.

• Accurate across fl ow range

• Engineered fl ow path designed for fl uid media

• Compact for space and weight savings

Features:

Max Inlet Pressure:

450 psig / 31.0 bar

Outlet Pressure Range:

35 to 375 psig / 2.4 to 25.9 bar

Temperature Capabilities:

-20 to 250°F / -29 to 121°C

Size and Material:

1, 2, 3, and 4 inches; WCC and

Stainless steel

End Connections:

NPT, SWE, CL150 RF, CL300 RF,
CL600 RF, DIN

www.fisherregulators.com

The One Stop For Your Complete

Industrial Regulating Solutions.

Fisher® pressure reducing and backpressure regulators area available in a wide range of sizes and constructions to satisfy
your application requirements.

Backpressure

Model........................................Type LR128

Body Size..............................NPS 1, 2, 3, and 4

Control Pressure Range....................................

........................35 to 375 psig / 2.4 to 25.9 bar

Maximum Inlet Pressure.....450 psig / 31.0 bar

Operation Method.....................Pilot-Operated

Body Material...................Steel, Stainless Steel

Bulletin No. ..................................71.4:LR128

Model......................................Type MR108

Body Size..............................NPS 1, 2, 3, and 4

Control Pressure Range....................................

.....................5 to 300 psig / 0.34 to 20.7 bar

Maximum Inlet Pressure..................................

........................................400 psig / 27.6 bar

Operation Method.................Direct-Operated

Body Material...Cast Iron, Steel, Stainless Steel

Bulletin No. .................................71.4:MR108

Model............................................98 Series

Body Size........NPS 1/4, 1/2, 3/4, 1, 1-1/2, and 2

Relief Pressure Range..........................................

.......................... 2 to 375 psig / 0.14 to 25.9 bar

Maximum Inlet Pressure.......... 400 psig / 28 bar

Operation Method....................Direct-Operated

Body Material.............................Cast Iron, Steel,

..................Stainless Steel, Hastelloy

Bulletin No. ...........................................71.4:98

®

C, Monel

Pressure Reducing

(2)

(1)

®

Model........................................Type LR125

Body Size..............................NPS 1, 2, 3, and 4

Outlet Pressure Range.....................................

........................15 to 150 psig / 1.0 to 10.3 bar

Maximum Inlet Pressure.....300 psig / 20.7 bar

Operation Method....................Pilot-Operated

Body Material...................Steel, Stainless Steel

Bulletin No. ..................................71.2:LR125

Model......................................Type MR105

Body Size..............................NPS 1, 2, 3, and 4

Outlet Pressure Range.....................................

..................... 5 to 300 psig / 0.34 to 20.7 bar

Maximum Inlet Pressure.....400 psig / 27.6 bar

Operation Method.................Direct-Operated

Body Material... Cast Iron, Steel, Stainless Steel

Bulletin No. .................................71.1:MR105

Model...........................................95 Series

Body Size......NPS 1/4, 1/2, 3/4, 1, 1-1/2, and 2

Outlet Pressure Range.....................................

........................2 to 400 psig / 0.14 to 27.6 bar

Maximum Inlet Pressure..... 600 psig / 41.4 bar

Operation Method.................Direct-Operated

Body Material..........................Cast Iron, Steel,

...............Stainless Steel, Hastelloy C

Bulletin No. ....................................... 71.1:95

®

, Monel

(2)

®

Model................................Type 63EG-98HM

Body Size.......................NPS 2, 3, 4, 6, and 8 x 6

Relief Pressure Range........................................

.........................15 to 375 psig / 1.0 to 25.9 bar

Maximum Inlet Pressure......450 psig / 31.0 bar

Operation Method.....................Pilot-Operated

Body Material................... Steel, Stainless Steel,

....................Hastelloy® C, Monel®, and Alloy 20

Bulletin No. ...........................71.4:63EG-98HM

1. For high-pressure actuator constructions with Fluorocarbon (FKM) diaphragm, maximum outlet and emergency casing pressures are limited to
230 psig / 15.8 bar or the body rating limit, whichever is lower.

2. For high-pressure actuator constructions with Fluorocarbon (FKM) diaphragm, maximum set pressure is limited to 150 psig / 10.3 bar.
