Emerson Fisher easy-e ED, Fisher easy-e ES, Fisher easy-e ET, Fisher easy-e EZ User Guide

Product Flier

PF51.1:E D102414X012 July 2008

easy-e Valves

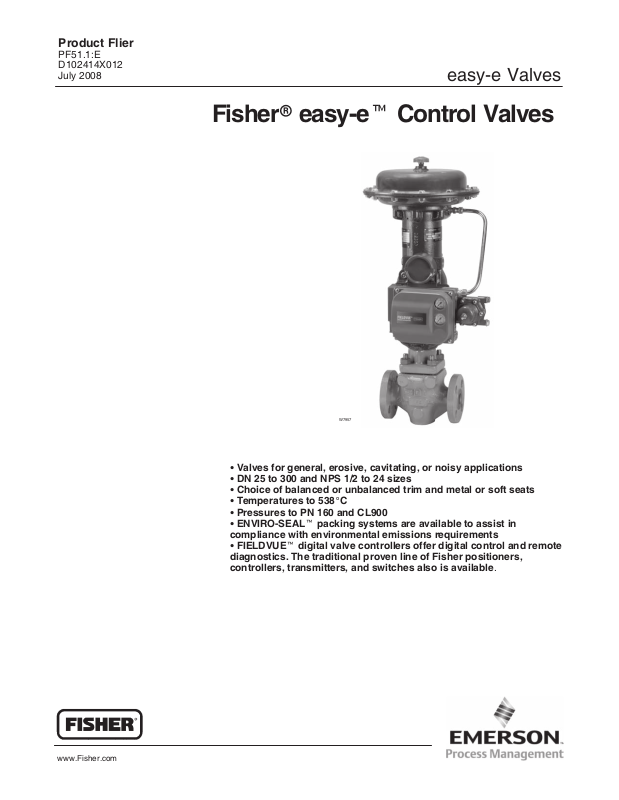

Fisherr easy-et Control Valves

W7957

S Valves for general, erosive, cavitating, or noisy applications S DN 25 to 300 and NPS 1/2 to 24 sizes S Choice of balanced or unbalanced trim and metal or soft seats S Temperatures to 538_C S Pressures to PN 160 and CL900 S ENVIRO-SEALt packing systems are available to assist in

compliance with environmental emissions requirements S FIELDVUEt digital valve controllers offer digital control and remote diagnostics. The traditional proven line of Fisher positioners, controllers, transmitters, and switches also is available.

www.Fisher.com

easy-e Valves

The easy-e Valve Family

easy-e valves are rugged, single-port globe, angle, and reverse-acting (push-down-to-open) valves designed for many varied applications. Although there are many variations available, internal trim parts are interchangeable for many different trims, and maintenance procedures are similar. These features reduce spare parts inventory and simplify maintenance training.

Interchangeable Trim Sizes . . . Many easy-e valves feature interchangeable, restricted-capacity and full-size trims to meet variable flow demands.

Product Flier

PF51.1:E

July 2008

Select from Several Flow Characteristics . . . In most types,

J quick-opening, J linear, and J equal percentage flow characteristics are

available.

W0958

Quick Opening Cage

W0957

Equal Percentage Cage

Figure 2. Typical Cages

W0451-3

Figure 1. Typical easy-e Globe Valve

Noise-Attenuating Trim . . . To help reduce aerodynamic noise in gaseous service, Whisper Trimt cages are available. To minimize liquid cavitation damage, Cavitrolt III cages are available.

W0959 W0961

Linear Cage

Whisper Trim Cage

for Noise Attenuation

2

Product Flier

PF51.1:E July 2008

The easy-e Valve Family (Continued)

easy-e Valves

Materials for Sour Service . . . Materials and manufacturing procedures for compatibility with

W6962

Cavitrol III Trim for Control of Liquid Cavitation

(Typical FL Coefficients for Two- or Three-Stage

Trim is 0.98)

Figure 3. Typical Trims

Protection Against Process Fluid Emissions . . .

Optional ENVIRO-SEAL packing systems provide an improved stem seal to help prevent the loss of

NACE MR0103, and MR0175/ISO 15156 are available.

W2629/IL

Whisper Trim III Cage for

Reduction of Noise in

Gas, Steam, and Vapor Applications

valuable or hazardous process fluids. These live-loaded systems provide long packing life and reliability.

W5803-1*

PTFE ENVIRO-SEAL Packing System

Figure 4. ENVIRO-SEAL Packing

3

easy-e Valves

Actuators

Product Flier

PF51.1:E

July 2008

657 and 667 Pneumatic Diaphragm Actuators . . .

Rugged, heavy-duty spring-return actuators. These actuators are available with a variety of instrument accessories, handwheels, and adjustable travel stops. They can be used for on-off or throttling operation with or without a valve positioner.

3025 Diaphragm Actuators . . . Spring-opposed diaphragm actuators. Suitable for travels up to 200 mm (8 inches). Specified as either direct or reverse acting, actuator action can be easily changed on site without need of additional parts. They can be used for on-off or throttling operation of automatic control valves.

Piston Actuators . . . actuators for high thrust requirements.

J 585C size 25 through 130

J 585CLS

(long stroke) piston actuators feature high thrust and long travels for very large valves.

Accessories

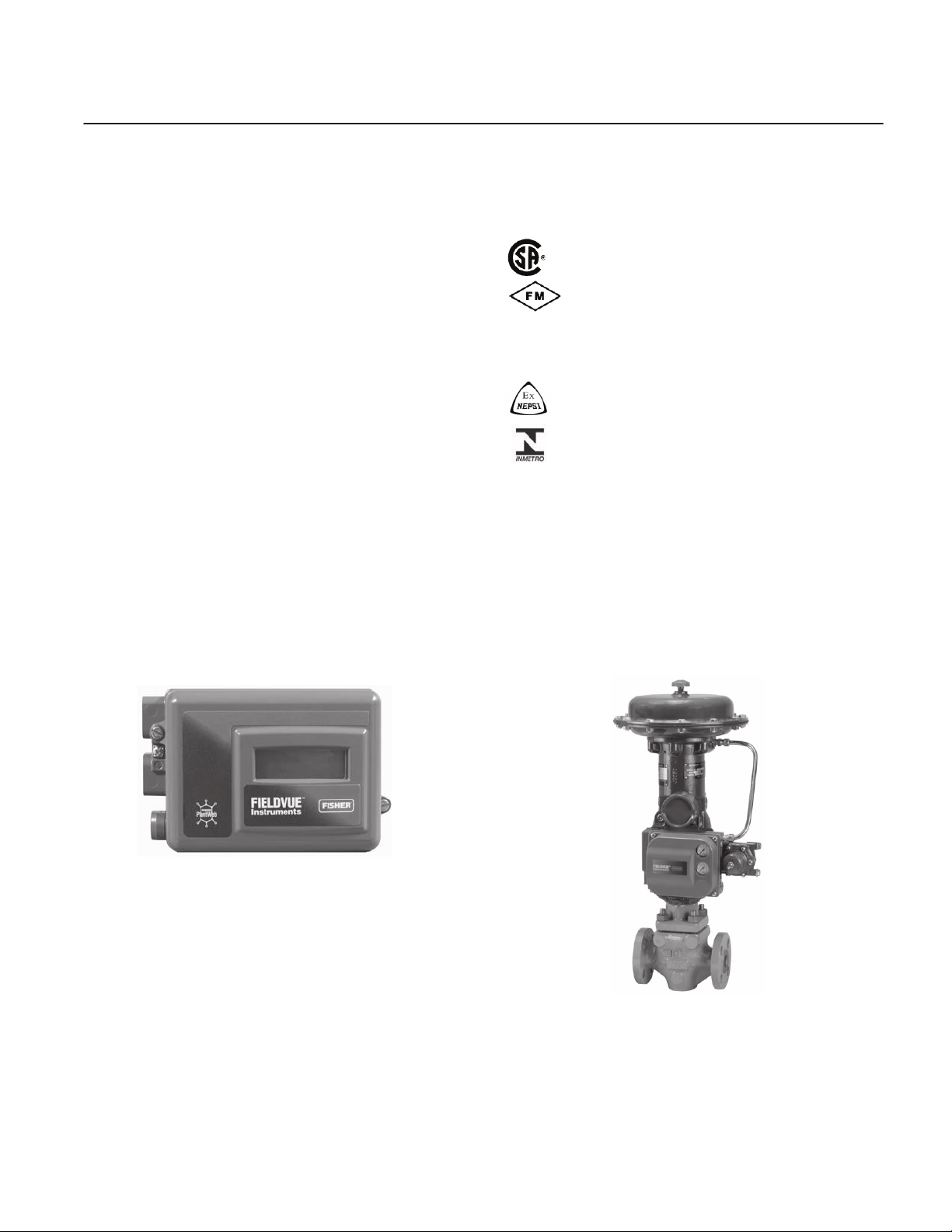

FIELDVUE Digital Valve Controller . . . The

controller is available mounted on actuators.

Positioners and Transducers . . . Pneumatic positioners and electro-pneumatic positioners and transducers can be provided with these valves.

Position Transducers, Solenoid Valves, Limit Switches, and Controllers . . . Also available.

W1916-2

657 or 667 Actuator

4

W9088

3025 Actuator

Figure 5. Typical Actuators

W9131-1

585C Actuator

Product Flier

PF51.1:E July 2008

Selecting easy-e Products

Only a few of the more commonly selected product materials, sizes, options, and accessories are covered in this flier.

Contact your nearest sales office (refer to the back cover) for assistance in selecting and sizing these products. More detailed specifications are available on request.

Selecting Valve Components

Valve Trim and Body Style 6.................................

End Connections and Valve Body Materials 8..................

Valve Plug, Seat, Ring, and Cage (Trim) Materials 9.............

Bonnets 9.................................................

Other Valve Parts 10........................................

easy-e Valves

Selecting an Actuator

657 and 667 Pneumatic Diaphragm Actuators 11...............

3025 Diaphragm Actuators 12................................

Selecting Accessories

FIELDVUE Digital Valve Controller 13.........................

Valve Positioners 15........................................

Other Accessories 16.......................................

Reference Information

Trim Material Pressure/Temperature Capabilities 17.............

Flow Coefficients 19........................................

Conversion of Sizing Coefficients 20..........................

Actuator Size Selection 22...................................

Typical Valve and Actuator Weight 24.........................

Typical Dimensions 24......................................

Ordering Information 26.....................................

Sales Offices NO TAG.......................................

5

easy-e Valves

Valve Trim and Body Style

Product Flier

PF51.1:E

July 2008

Letter Designations

Used in this Table %

Application Trim Type

Stringent

shutoff with

process

temperatures

to 204_C

General

applications for

process

temperatures

to 427_C

General

applications for

process

temperatures

to 538_C

Viscous,

non-lubricating,

or other

hard-to-handle

fluids with

process

temperatures

to 427_C

1. End connection size x nominal trim size.

Balanced,

cage-guided with elastomer cage-plug seal

and soft or

metal seats

Balanced,

cage-guided

with graphite

cage-plug seal

and metal

seats

Unbalanced,

cage-guided

without cage-plug seal and with metal

or soft seats

Unbalanced

cageless,

post-guided

with metal or

soft seals

E: Valve design series T, D, S, and Z: Trim type

Fisher Trim

Designation

T

D

S

Z Globe EZ

Body Style

Globe ET

Reverse acting

(push-down-to-open)

Angle EAT

Globe with expanded

end connections

Globe with expanded end connections and

long travel for

noise-attenuating trim

Large globe with long

travel

Globe ED

Reverse acting

(push-down-to-open)

Angle EAD

Globe with expanded

end connections

Globe with expanded end connections and

long travel for

noise-attenuating trim

Large globe with long

travel

Globe ES

Angle EAS

Globe with expanded

end connections

U: Large size W. Expanded ends N: Long travel

Fisher Valve

Body

ETR

EWT

EWNT (metal

seats only)

EUT NPS 12, 16, 20 CL150 - 600

EDR

EWD

EWND

EUD NPS 12, 16, 20 CL150 - 600 III

EWS

Valve Size Ratings

DN 25 - 200

NPS 1 - 8

DN 25 - 100

NPS 1 - 4

DN 25 - 150

NPS 1 - 6

DN 100 x 50

(NPS 4 x 2)

NPS 24 x 20

DN 200 x 150 and

DN 300 x 200

NPS 8 x 6 and 12 x

DN 25 - 200

NPS 1 - 8

DN 25 - 100

NPS 1 - 4

DN 25 - 150

NPS 1 - 6

DN 100 x 50

(NPS 4 x 2)

through NPS 24 x

DN 200 x 150

through DN 300 x

200 NPS 8 x 6

NPS 12 x 8

DN 25 - 200

NPS 1/2 - 8

DN 25 - 150

NPS 1 - 6

DN 100 x 50

through DN 300 x

NPS 4 x 2 through

NPS 12 x 8

DN 25 - 100

NPS 1/2 - 4

(1)

through

8

20

through

200

A: Angle valve style R: Reverse acting (push down to open)

PN 10 - 100 CL125 - 600

PN 10 - 100 CL150 - 600

PN 25 - 160 CL300 - 900

PN 10 - 100 CL125 - 600

PN 10 - 100 CL150 - 600

PN 25 - 160 CL300 - 900

PN 10 - 100 CL125 - 600

PN 10 - 100 CL150 - 600

PN 25 - 160 CL300 - 900

PN 10 - 100 CL125 - 600

Standard

Shutoff Class

Soft seat: V

Metal seat: IV

(standard) or V

(optional)

IV

Soft seat: V

Metal seat: IV

II

Through

12 x 8: II

Larger sizes: III

III

Metal Seat: IV

Soft Seat: VI

Metal Seat: IV

Soft Seat: VI

6

Product Flier

PF51.1:E July 2008

Valve Trim and Body Style (Continued)

easy-e Valves

W0972-3

Typical Angle Valve

W0451-1

ED Trim

W9509-1

Typical Reverse-Acting Valve

W3318

Valve with Long Travel and

Expanded End Connections

W3421-1

ES Trim

W2966B-1

EZ Trim

W3162-1

ET Trim

7

easy-e Valves

End Connections and Valve Body Materials

Product Flier

PF51.1:E

July 2008

END CONNECTIONS VALVE SIZE

EN ASME DN NPS

- - -

PN 10, 16, and 25

raised-face flanged

PN 16, 25, 40, 63, and

100 raised-face

flanged

PN 16, 25, 40, 63,

100, and 160

raised-face flanged

- - -

- - - Buttwelding ends

1. End connection size x nominal trim size.

NPT internal CL600

CL125 flat-face and

250 raised-face

CL150, 300, and 600

raised-face or

ring-type joint flanged

CL300, 600, or 900

raised-face or

ring-type joint flanged

CL150, 300, and 600

raised-face or

ring-type joint flanged

Socket weld ends

(CL600 body rating)

body rating

flanged

MATERIALS NOTES

- - - 1/2 - 2

25 - 200 1 - 8 Cast iron

25 - 200 1 - 8

100 x 50

through

300 x 200

- - -

- - - 1/2 - 2

- - - 1 - 8

- - -

(1)

4 x 2 through

12 x 8

12 - 24 and

16 x 12 through 24 x 20

4 x 2

through

12 x 8

12 through 24

and 16 x 12 through 24 x 20

WCC steel, CF8M (316 stainless steel), and other steel alloys

Not available in angle

valves

Not available in

NPS 1-1/4

Not available in

NPS 1-1/4

- - -

Not available in angle

valves

Not available in NPS 1-1/4

Available in CL600

CL300, 600, or 900

CL600

W6733

Plain Bonnet with Single

PTFE V-Ring Packing

8

W0668-2 W0667-2

W5800-2

Style 1 Extension Bonnet Style 2 Extension Bonnet ENVIRO-SEAL

Bellows Seal Bonnet

Product Flier

PF51.1:E July 2008

Valve Plug, Seat Ring, and Cage (Trim) Materials

easy-e Valves

VALVE TYPE BODY MATERIAL SEAT TYPE

Standard for all body

ED, ES, EWD,

EWS through

DN 300 x 200

(NPS 12 x 8

sizes)

ET, EWT

through DN

300 x 200

(NPS 12 x 8)

EZ

1. End connection size x nominal trim size.

2. Refer to the following pages for pressure and temperature limits of the trim.

materials except

CF8M (316 stainless

(1)

steel)

CF8M Metal

Standard for all body

materials except

CF8M (316 stainless

steel)

CF8M Soft S31600 S31600

Cast iron and steel Metal

CF8M Metal S31600

Metal

Soft

MATERIALS

Valve Plug Seat Ring Cage

S41600 (416

stainless

steel)

hardened to

38 HRC

S31600 (316

stainless

steel)

S41600 (416

stainless

steel)

hardened to

38 HRC

S41600

hardened

Depending on size,

S41600 or CA15 (410

stainless steel) both

hardened to 38 HRC

S31600

S41600 hardened

seat ring with

CB7Cu-1 (17-4PH

stainless steel) seat

ring retainer

S31600 with CF8M

seat ring retainer

S17400

(17-4PH

stainless

steel)

hardened to

40 HRC

S31600 with

electroless

nickel coating

(ENC)

S17400

(17-4PH

stainless

steel)

hardened to

40 HRC

S31600 or CF8M with electroless

nickel coating

(ENC)

- - - 101

- - - 129 - - -

FISHER TRIM

NUMBER

(2)

1

29

57

29

NOTES

Trims with

alloy 6

hardfacing

also are

available. For

optional ES,

EWS soft

seat, use trim

29 or 57

Trims with

alloy 6

hardfacing

also are

available. For

optional metal

seats, use

trim1 or 29

Trims with

alloy 6

hardfacing

also are

available.

Bonnets

Bonnet Style Valve Type or Size Packing Material

Plain All types and sizes

Graphite ribbon/filament

Globe and angle only; not

Style 1 extension

Style 2 extension

ENVIRO-SEAL bellows seal

bonnet

available for EUD, EUT or

16 x 12 or larger

EW

Globe and angle only; not

available for EUD, EUT,

EWN, or 16 x 12 or larger

EW

Available only on globe and

angle valves through DN

100 and DN 200 x 100

(NPS 4 and 8 x 4)

Graphite ribbon/filament

For exceptional stem

sealing capabilities with

PTFE or graphite standard

ENVIRO-SEAL packing

In-Body Process

Temperature Range, _C

PTFE V-Ring -18 to 232

PTFE/composition -18 to 232

18 to maximum limit shown in other tables

PTFE V-ring

PTFE/Composition

PTFE V-ring

PTFE/Composition

packing or with

system

46 to 18 and above 232

101 to 18 and above 232

Contact your nearest sales

office

Notes

These in-body process

temperatures assume an

ambient temperature of

21_C. When using any packing at low process

temperatures, an extension

bonnet might be needed to

prevent valve stem frost.

Frost can damage the

packing.

9

easy-e Valves

Other Valve Parts

Product Flier

PF51.1:E

July 2008

PART

Body-to-bonnet

bolting

Packing (also refer

to the bonnet

selection table)

Flat gaskets

Spiral-wound gasket All

Soft seat disc ES, ET, EUT, EWS, EWT, EZ PTFE 73 to 204 - - -

Piston ring for ED

type trim

Seal ring for ET type

trim

VALVE TYPE

OR SIZE

Use for Body

Material:

Cast iron Steel SAE GR 5 cap screws 29 to 232

WCC, C5, and WC9

All sizes and types

except as listed

below

All types (see notes for exceptions)

EZ

All sizes and types except EZ

ED and EWD

ET, EWT (up to

DN 300 x 200 or NPS 12 x 8 sizes)

steel

CF8M

MATERIALS

Cap Screws, Stud, or

Nut Material

SA-193-B7 steel studs

SA-194-2H steel nuts

SA-193-B7 steel studs

SA-194-2H steel nuts

SA-193-B8M stainless steel studs

(strain hardened)

SA-194-8M stainless steel nuts

SA-193B8M stainless steel studs

(annealed)

SA-194-8M stainless steel nuts

PTFE V-ring 40 to 232

PTFE/composition 73 to 232

Graphite ribbon/filament in

oxidizing service

Graphite ribbon/filament in

non-oxidizing service

ENVIRO-SEAL and HIGH-SEAL

packing systems with PTFE,

duplex, Kalrez, or graphite

packing

S31600 stainless steel / graphite 198 to 593

PTFE-coated N04400 73 to 149 - - -

S31600/graphite in oxidizing

service

PTFE-coated N04400 73 to 149 - - -

N06600 nickel alloy 600 /

graphite (flexible graphite)

standard

N04400 nickel alloy 73 to 232

Graphite in oxidizing service 46 to 427 - - -

Graphite in non-oxidizing service 46 to 482 - - -

Carbon-filled PTFE seal ring with

fluorocarbon backup ring

Carbon-filled PTFE seal ring with

ethylene-propylene backup ring

Spring-loaded PTFE seal ring

with N07750 spring and stainless

steel backup ring and retaining

ring

TEMPERATURE

RANGE, _C

- - -

29 to 427

48 to 427

198 to 427

The lower limit is

198; other valve

parts determine the

upper limit

198 to 371

198 to 538

Temperature limits vary with pressure and fugitive emissions standards; contact your

nearest sales office for information

198 to 593

18 to 204

40 to 232

73 to 232 - - -

Specify lubricated

greater than 232_C

Limit to 427_C in oxidizing service

fluorocarbon with

ammonia, steam, or

ethylene-propylene

petroleum-based

NOTES

- - -

nuts for

temperatures

- - -

Do not use

hot water

Do not use

with

fluids or other hydrocarbons

10

Product Flier

PF51.1:E July 2008

657 and 667 Pneumatic Diaphragm Actuators

These heavy-duty actuators feature spring-return action and a variety of operation options and actuator-mounted accessories.

The actuator can be used for on-off or throttling service, with or without a positioner.

With a push-down-to-close valve, the 657 is air to close, and the 667 is air to open.

easy-e Valves

Options . . .

J Adjustable travel stop, J

top-mounted handwheel, and J side-mounted manual actuator.

Specifications . . . Refer to the following table and the actuator-valve selection tables.

Accessories . . . Refer to the following pages for J pneumatic and electro-pneumatic valve positioners,

J FIELDVUE digital valve controllers, and other

accessories

657 and 667 Actuator Specifications

NOMINAL

ACTUATOR

SIZE

30

34 5.2 6.2 22 22

40 5.2 6.2 12 010 23 23

45 4.1 5.2 25 132 37 41

46 3.4 4.5 33 584 49 55

50 4.1 5.2 25 131 42 43

60 3.4 4.5 30 246 53 55

70 4.5 4.1 39 142 107 11 5

80 4.1 4.1 63 392 234 284

100 7.9 7.9 200 160 346 544

OPERATING

PRESSURE RANGES

Bar Psig 657 667 657 667

0.2 to 1.0 or

0.4 to 2.0

3 to 15

or

6 to 30

MAXIMUM CASING

PRESSURE, BAR

9.6 7.6

MAXIMUM

ALLOWABLE

THRUST, N

10 231

W0363-1

AMBIENT TEMPERATURES, _C

Nitrile:

40 to 82

Silicone:

50 to 149

Figure 6. 657 and 667 Actuator

APPROXIMATE

MATERIALS

Diaphragm:

Nitrile (standard)

or

Silicone

(Optional)

Yoke: Cast iron

Diaphragm

Plate: Aluminum,

cast iron, or steel

(depending on

size)

Other Major

Metal Parts: steel

or cast iron with

brass seal

bushing

16 15

WEIGHT, kg

11

easy-e Valves

3025 Diaphragm Actuators

These heavy-duty spring-opposed actuators can be specified as either direct (air-to-close) or reverse (air-to-open). Actuator action can be easily changed on site without need of additional parts.

The actuator can be used for on-off or throttling operation of automatic control valves.

Options . . .

Oversize signal connections.

Specifications . . . Refer to the following table.

Accessories . . . Refer to the following table.

3025 Actuator Specifications

Long travel, up to 200 mm (8 inches)

Spring-opposed pneumatic diaphragm

Typical Maximum Thrust, Newtons (Varies with Operating

FIELDVUE digital valve controllers, handwheels, transducers, position transmitters, air relays, volume boosters, switching valves, lockable valves, limit switches, and solenoid valves are available for actuator mounting.

J Side-mounted gear handwheel, J

Features

Style

Pressure, Spring, and Construction)

Air to Close, Size P900: 76 310

Air to Open, Size P900: 61 150

Accessories

Product Flier

PF51.1:E

July 2008

AIR TO CLOSE AIR TO OPEN

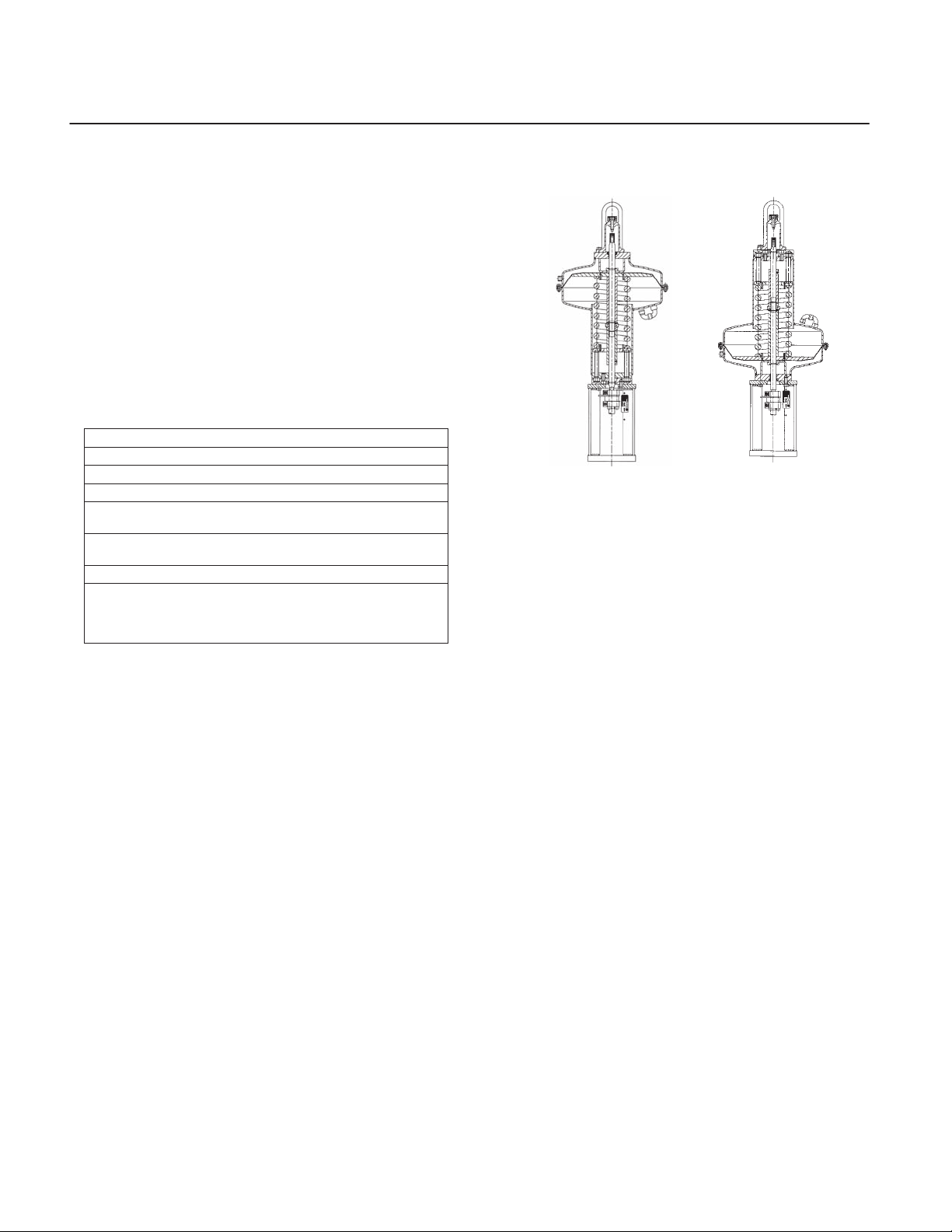

Figure 7. 3025 Actuator

12

Product Flier

PF51.1:E July 2008

easy-e Valves

FIELDVUE Digital Valve Controller

FIELDVUE digital valve controllers are communicating, microprocessor-based controllers that convert a current signal to a pressure signal to operate the actuator. Through digital communications, the controller gives easy access to actuator-valve information that is critical to operation.

Refer to following tables for FIELDVUE controller specifications.

AMS ValveLinkt Software . . . AMS ValveLink Software allows easy access to the information available from FIELDVUE digital valve controllers. The software provides diagnostic information such as dynamic error band and step response on easy-to-interpret screens. Tests can be run while the valve is operating, without disrupting the process. Access to diagnostics is through the 375 Field Communicator or a personal computer using AMS ValveLink Software.

Approvals Available

Not all approvals are available on all FIELDVUE products. Contact your sales office for specific approvals.

Explosion proof, Division 2, Dust-Ignition proof, Intrinsic Safety, Non-incentive

Explosion proof, Non-incendive, Dust-Ignition proof, Intrinsic Safety

APPROVED

ATEX

Flameproof, Type n, Intrinsic Safety

IECEx Flameproof, Type n, Intrinsic Safety

Flameproof, Intrinsic Safety

DVC2000 Electrical Housing: Designed to meet IP66 (FM--approval pending for other agencies) NEMA 4X (approval pending). Contact your sales office for information on pending approvals.

DVC6000 and DVC6000f Electrical Housing:

Meets NEMA 4X, CSA Type 4X, IEC 60529 IP66

Natural Gas Approved: DVC6000 and DVC6000f are single-seal approved for use with natural gas. Contact your sales office for specific agency approval information.

W8755

Figure 8. FIELDVUE DVC2000 Digital Valve Controller

Options (contact your sales office for details on product specific options) . . . J HARTr,

J FOUNDATIONt fieldbus, J remote mounting, J stainless steel housing, J Safety Instrumented

System (SIS) applications, J Natural gas applications,

J extreme temperatures, and J low bleed relay.

J Performance Diagnostics,

W7957

Figure 9. FIELDVUE DVC6000 Digital Valve Controller on a

657 or 667 Actuator

13

easy-e Valves

FIELDVUE Digital Valve Controller (Continued)

Digital Valve Controller Electrical Specifications (HART instruments only)

ELECTRICAL INPUT

Point-to-Point Connection

Analog Input

Signal

4 to 20 mA DC

nominal

Minimum

Control Current

4.0 mA 3.5 mA 30 VDC

Digital Valve Controller Electrical Specifications (FOUNDATION fieldbus Communication only)

COMMUNICATION PROTOCOL

FOUNDATION fieldbus registered device

121—Low-power signaling, bus-powered, Entity Model I.S.

511—Low-power signaling, bus-powered, FISCO I.S.

Physical Layer Type(s):

Minimum Current

without

Microprocessor

Restart

Maximum

Voltage

Voltage Level

9 to 32 volts 18 mA

Overcurrent

Protection

Input circuit limits current to prevent

internal damage

Maximum

Current

POWER REQUIREMENTS

Multi-Drop

Connection

(DVC6000 Only)

Instrument

11 to 30 VDC at

approximately 8 mA

Reverse Polarity

Protection

Device is not

polarity sensitive

Product Flier

PF51.1:E

July 2008

REVERSE

POLARITY

PROTECTION

Power

No damage occurs

from reversal of

loop current

Termination

Bus must be properly

terminated per

ISA SP50 guidelines

14

Product Flier

PF51.1:E July 2008

Valve Positioners

3582 and 3582i Valve Positioners (for 657 and 667 Actuators)

The 3582 pneumatic and 3582i electro-pneumatic valve positioners are accurate, efficient positioners for use with 657 and 667 actuators.

The field-proven design is fast to respond to input signal changes and is able to withstand the vibrations of most plants.

easy-e Valves

Options . . .

J Gauges and J bypass valve for

direct-acting positioners using full input signal range.

Approvals Available

Electrical Classification (Applies to the 3582i)

Intrinsic Safety, Explosion proof, Type n Dust-Ignition proof, DIV 2,

Intrinsic Safety, Explosion proof, Type n,

APPROVED

ATEX

SAA

3582 and 3582i Positioner Specifications

0.2 to 1.0 or

0.4 to 2.0 bar

4 to 20 mA constant current with

30 VDC maximum compliance

voltage; equivalent circuit is 120

ohms shunted by three 5.6 V

Non-incendive, Dust-Ignition proof,

Intrinsic Safety, Type n, Explosion proof (Gas Atmospheres Only)

Intrinsic Safety, Flameproof, Type n

Input Signal Supply Pressure

0.3 bar above the

3 to 15 or

6 to 30 psig

zener diodes

actuator requirement

up to 3.4 bar

maximum (do not

exceed actuator

pressure rating)

0.3 bar above the

actuator requirement

up to 3.4 bar

maximum (do not

exceed actuator

pressure rating)

Input Bellows

Rating

2.4 bar

- - -

W5500

Figure 10. 3582 and 3582i Valve Positioners

Hazardous Area Classifications (Applies to the

3582)

3582 Series valve positioners comply with the requirements of ATEX Group II Category 2 Gas and Dust

Operative

Temperature

3582

40 to 71_C

3582i

40 to 71_C

Weight Connections

Pressure and Vent

2.5 kg

3.6 kg

Connections: 1/4 NPT

Pressure and Vent

Connections: 1/4 NPT

internal Conduit: 1/2 NPT

internal

3582 and 3582i Capacities and Housing

SUPPLY PRESSURE, BAR

1.4 4.7 0.38 0.42

2.0 7.0 0.48 0.53

2.4 8.1 0.54 0.59

SUPPLY AIR DEMAND,

Nm3/h

AIR CONSUMPTION, Nm3/h

3582 3582i

HOUSING

CSA Type 3 Encl., NEMA 3, IP54 per IEC 60529; Mount instrument with vent on the side or the bottom if weatherproofing is a concern.

15

easy-e Valves

Other Accessories

Product Flier

PF51.1:E

July 2008

67CFR Filter-Regulator . . . The 67CFR provides constantly controlled supply pressure to actuator accessories system. This regulator features an internal filter and limited-capacity internal relief,

67CFR Filter-Regulator Specifications

OUTLET PRESSURE

SETTINGS

Bar Psig

0 to 1.4 0 to 2.4 0 to 4.1 0 to 8.6

0 to 20 0 to 35 0 to 60

0 to 125

MAXIMUM INLET

PRESSURE

(BODY RATING)

BAR

17.2

MAXIMUM

DIAPHRAGM

PRESSURE, BAR

3.4 over outlet setting

546, 646, 846, or i2P-100 ElectroPneumatic Transducers . . . These transducers

convert a standard 4 to 20 mA DC signal to a proportional pneumatic signal. The 846 and i2P-100 transducers incorporate an explosive fluid process seal to meet safety regulations for use with natural gas as the pneumatic supply.

Approvals Available

Not all approvals are available on all accessories. Contact your sales office for specific approvals.

allowing partial reduction of downstream pressure. Also featured is an integral check valve option that allows the actuated valve to fail to a desired safe position when inlet pressure is lost.

TEMPERATURE

CAPABILITIES

Nitrile diaphragm

and plug: 29 to 82_C

fluorocarbon diaphragm, plug and PVDF, SST, or Glass

Filter: 18 to 149_C

2625 Volume Booster . . . The volume booster can

be used in conjunction with a positioner to increase actuator stroking speed.

C1 Pneumatic Controller . . . The controller can sense pressure, differential pressure or vacuum and send pneumatic control signal to an adjacent valve or other control element.

CONNECTIONS

Inlet and Outlet: 1/4

NPT internal

Vent: Drilled hole or

1/4 NPT internal

MAXIMUM FLOW

COEFFICIENT,

C

V

0.36 0.5

WEIGHT,

kg

Explosion proof, Division 2, Dust-Ignition proof, Intrinsic Safety

Explosion proof, Intrinsic Safety, Non-incendive, Dust-Ignition proof

APPROVED

ATEX

Intrinsic Safety, Flameproof, and Type n

IECEx Intrinsic Safety, Flameproof, and Type n

GOST Intrinsic Safety, Flameproof, and Type n

Others . . .

J High-pressure supply pressure

regulators, J proximity switches, J microswitches,

J solenoid valves, J signal volume boosters and J

pneumatic pressure transmitters.

Contact your nearest sales office for more information.

16

Product Flier

PF51.1:E July 2008

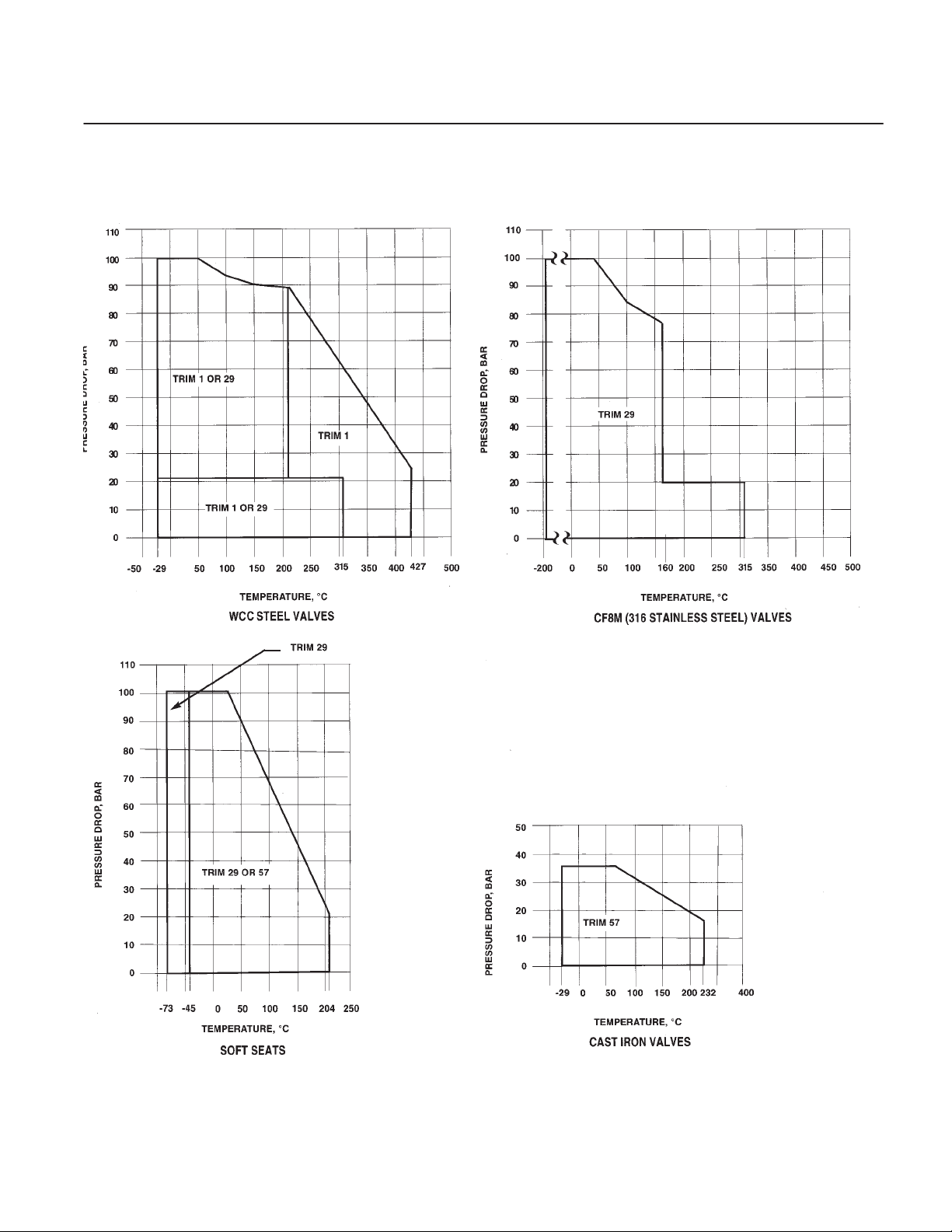

Trim Material Pressure/Temperature Capabilities for Valve Sizes through DN 300 x 200 (NPS 12 x 8) for ED, ES, and ET Trim

easy-e Valves

17

easy-e Valves

Trim Material Pressure/Temperature Capabilities for EZ Trim

EZ Trim Temperature Capabilities

BODY

MATERIAL

Cast iron

WCC Steel

CF8M (316 stainless

steel)

FISHER TRIM

NUMBER

101 All All 29 to 232 - - -

129 All All 73 to 232

101 All All 29 to 427 - - -

129

101

129

VALVE SIZE

DN NPS

to 50

80

100

to 40

50 80

100

to 40

80

100

to 2

to 1-1/2

to 2

TEMPERATURE,

3 4

2 3 4

3 4

_C

29 to 260 29 to 371 29 to 338

29 to 354 29 to 288 29 to 216 12 to 177

198 to 260 198 to 377 198 to 371

Product Flier

PF51.1:E

July 2008

NOTES

With non-lubricating fluids, limit to 149_C

- - -

With non-lubricating fluids, limit to 149_C

18

Product Flier

PF51.1:E July 2008

ED, ES, and ET Flow Coefficients

easy-e Valves

FLOW CHARACTERISTIC

Quick

Opening

Linear

Equal

Percentage

VALVE SIZE

MAXI-

MUM

TRAVEL

PORT

DIA.

10 30 70 100 100 10 30 70 100 100

(FLOW DOWN)

DN NPS mm mm C

- - -

- - 25 40 50

65 80

100 150 200

- - -

- - 25 40 50

65 80

100 150 200

25 40 50 65

80

100 150 200

25 40 50 65

80

100 150 200

25 40 50 65

80

100 150 200

25 40 50 65

80

100 150 200

1/2 3/4

1, 1-1/4

1-1/2

2

2-1/2

3 4 6 8

1/2 3/4

1, 1-1/4

1-1/2

2

2-1/2

3 4 6 8

1, 1-1/4

1-1/2

2

2-1/2

3 4 6 8

1, 1-1/4

1-1/2

2

2-1/2

3 4 6 8

1, 1-1/4

1-1/2

2

2-1/2

3 4 6 8

1, 1-1/4

1-1/2

2

2-1/2

3 4 6 8

19

33.3

19

33.3

19

33.3

19

47.6

29

58.7

38

73.0

38

87.3

51

111.1

51

177.8

76

203.2

19

33.3

19

33.3

19

33.3

19

47.6

29

58.7

38

73.0

38

87.3

51

111.1

51

177.8

76

203.2

19

33.3

19

47.6

29

58.7

38

70.3

38

87.3

51

111.1

51

177.8

76

203.2

19

33.3

19

47.6

29

58.7

38

70.3

38

87.3

51

111.1

51

177.8

76

203.2

19

33.3

19

47.6

29

58.7

38

73.0

38

87.3

51

111.1

51

177.8

76

203.2

19

33.3

19

47.6

29

58.7

38

73.0

38

87.3

51

111.1

51

177.8

76

203.2

- - -

4.86

7.79

13.4

20.9

27.2

37.7

73.6 135

- - -

.556 .494 .605

.601 .626 .623 .664 .643

3.21

4.23

7.87

9.34

14.5

23.3

46.3

91.4

.340 .656 .641 .680

.671 .691 .656 .651

.783

1.52

1.66

3.43

4.32

5.85

12.9

27.0

.766 .780 .827 .778

.774 .731 .688 .644

- - -

13.4

20.5

39.9

58.8

77.9 125 232 434

- - -

.724 .682 .737

.738 .745 .733 .667 .757

8.18

11.8

24.9

35.5

52.1

78.1 171 325

.494 .758 .728 .644

.697 .720 .744 .677

2.20

3.87

4.66

10.8

10.9

18.3

43.3 105

.587 .716 .774 .678

.682 .643 .682 .636

ED AND ET

Valve Opening, Percent of Total Travel

V

- - -

21.1

39.4

73.7

103 149 238 416 759

X

T - - -

- - -

- - .566 .649 .641

.669 .619 .689 .728 .857

C

V

16.9

30.3

62.0

83.6

118 181 367 711

X

T - - -

.610 .708 .683 .716

.707 .748 .784 .823

C

V

7.83

17.4

25.4

49.2

66.0

125 239 605

X

T - - -

.743 .690 .702 .661

.663 .672 .736 .725

- - -

22.1

44.0

77.6

109 161 251 460 863

- - -

- - .556 .597 .623

.652 .577 .694 .710 .827

20.6

39.2

72.9

108

148 236 433 846

.636 .656 .638 .641

.620 .688 .740 .807

17.2

35.8

59.7

99.4

136 224 394 818

.667 .679 .687 .660

.675 .716 .778 .807

F

- - -

- - .81 .79 .77

.81 .77 .79 .82 .85

- - -

F

.84 .82 .77 .81

- - -

F

.88 .84 .85 .84

.82 .82 .85 .86

- - -

ES (FLOW UP)

L

4.00

4.94

5.24

7.60

14.3

21.8

23.3

39.0

89.9 156

.681 .576 .540 .577 .633

.659 .585 .642 .572 .520

L

2.27

3.56

8.49

10.4

15.3

23.7

55.0 100

.691 .628 .618 .672

.607 .553 .597 .616

L

.783

1.54

1.74

4.05

6.56

13.2

25.9

.754 .674 .863 .747

.768 .722 .723 .825

C

V

6.22

11.8

15.0

22.3

48.6

66.6

78.3 132 255 490

.653 .605 .656 .639 .619

.720 .602 .714 .601 .654

6.23

11.1

25.9

34.9

52.8

72.9 180 330

.690 .604 .689 .739

.663 .644 .701 .669

1.86

3.57

4.72

10.6

10.0

17.3

41.1

97.8

.763 .694 .849 .745

.761 .739 .767 .681

6.52

14.2

21.1

38.0

67.2

93.1 136 225 418 796

X

T - - -

.624 .534 .663 .743 .797

.848 .737 .769 .681 .818

C

V

15.8

26.7

59.2

73.7

112 165 341 719

X

T - - -

.709 .715 .742 .858

.762 .743 .787 .762

C

V

9.54

17.2

25.0

45.5

59.0 103 223 618

X

T - - -

.630 .698 .792 .783

.754 .718 .808 .735

6.53

14.2

21.4

38.0

67.2

93.1 150 235 469 875

.622 .534 .650 .789 .810

.868 .720 .780 .700 .774

20.1

34.9

65.3

86.5

135 212 417 836

.690 .764 .762 .866

.751 .791 .745 .799

17.4

33.4

56.2

82.7

121 203 357 808

.721 .793 .848 .878

.757 .822 .816 .827

F

.88 .83 .89 .94 .93

.91 .87 .89 .82 .85

- - -

F

.89 .92 .91 .93

.89 .89 .81 .85

- - -

F

.95 .94 .92 .93

.89 .91 .86 .85

- - -

L

19

easy-e Valves

EZ Flow Coefficients (Flow Up)

Product Flier

PF51.1:E

July 2008

1/2 3/4

1-2 3/4

1

2 3 4

1

2 3 4

1

2 3 4

1

2 3 4

MAXIMUM

TRAVEL

19 19 19 19

29 38 51

19 19 19 19

29 38 51

19 19 29 38 51

VALVE SIZE

DN NPS mm mm C

- - -

- - 25 40

50 80

100

- - -

- - 25 40

50 80

100

DN 25 DN 40 DN 50 DN 80

DN 100

DN 25 DN 40 DN 50 DN 80

DN 100

1. Micro-Form valve plug.

2. Micro-Flute valve plug—1 flute.

3. Micro-Flute valve plug—3 flutes.

1-1/2

PORT

DIA.

33.3

47.6

58.7

87.3

111.1

33.3

47.6

58.7

87.3

111.1

33.3

47.6

58.7

87.3

111.1

33.3

47.6

58.7

84.3

111.1

10 30 70 100 100 - - - 10 30 70 100 100

1.76

3.85

4.39

5.64

13.0

30.8

50.8

.364 .314 .400 .623

.548 .672 .733

.79 .80

1.65

3.11

4.90

.641 .726 .655 .619 .594

4.29

9.40

14.0

20.6

44.3

92.4 159

.764 .654 .523 .726

.765 .713 .724

EQUAL PERCENTAGE

1.80

1.91

4.30

9.12

13.5

.598 .733 .520 .598 .560

QUICK OPENING - - - LINEAR

Valve Opening, Percent of Total Travel

V

4.44

9.72

16.8

33.4

58.4 126 219

X

T - - - - - -

.894 .769 .500 .861

.831 .783 .809

C

V

7.59

9.84

32.8

60.4

96.7

X

T - - -

.646 .597 .653 .586 .532

4.44

9.72

16.9

34.2

58.6 129 223

.894 .769 .494 .848

.834 .774 .835

13.2

28.1

53.8 114 190

.886 .840 .899 .781 .834

F

L - - -

.83 .88 .94 .96

.94 .91 .88

- - -

F

L

.96 .97 .95 .92 .90

- - -

DN 25 (NPS 1) VALVE WITH MICRO-FORM AND

PORT

DIA.

6.4

9.5

12.7

19.1

6.4

9.5

12.7

19.1

6.4

- - -

2.21

3.99

6.08

15.4

21.3

- - -

- - .638 .633

.560 .622 .554

MICRO-FLUTE VALVE PLUG 19 mm TRAVEL

EQUAL PERCENTAGE CHARACTERISTIC

(1)

.075

(1)

.099

(1)

.133

(1)

.276

(2)

.0385

(3)

.0562

(1)

.804

(1)

.795

(1)

.787

(1)

.723

(2)

.778

(3)

.692

C

V

- - -

5.29

11.1

18.0

43.4

57.5

- - -

- - .638 .657

.655 .692 .684

.175 .308 .492 .965

.0560

.101

.658 .641 .628 .588 .690 .639

- - -

11.1

25.8

42.8

93.8 157

X

T - - -

- - -

.636 .696

.779 .758 .677

C

V

.641

1.29

2.12

4.57

.162 .433

X

T - - -

.596 .560 .600 .603 .637 .597

- - -

13.6

31.9

52.4 110

209

- - -

.834 .818

.924 .888 .866

1.52

3.07

4.91

8.84

.354

1.07

.647 .662 .803 .919 .656 .624

F

- - -

- - .96 .96

.95 .92 .89

- - -

F

.88 .89 .93 .97 .87 .90

- - -

L

Conversion of Sizing Coefficients

Following are conversions for use with other common sizing equations.

K

= (0.865)C

v

C1= 39.76(pXT) Cg = CvC Km = F

L

Cs = 1/20(Cg). Cs is only applicable for inlet pressures up to 70 bar(a)

20

v

1

2

Product Flier

PF51.1:E July 2008

EWD, EWS, and EWT Flow Coefficients

easy-e Valves

FLOW CHARACTERISTIC

Quick

Opening

Linear

Equal

Percentage

VALVE SIZE

MAXI-

MUM

TRAVEL

PORT

DIA.

10 30 70 100 100 10 30 70 100 100

DN NPS mm mm C
