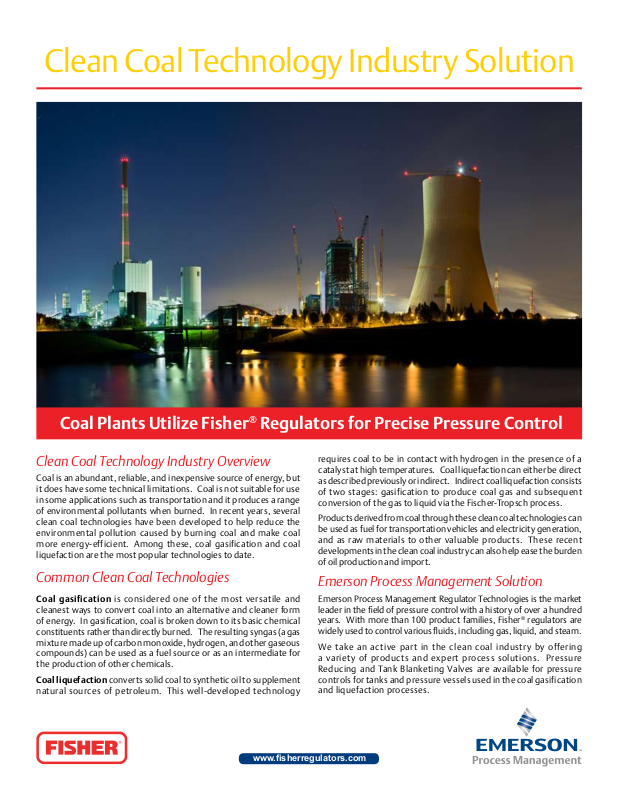

Clean Coal Technology Industry Solution

Coal Plants Utilize Fisher® Regulators for Precise Pressure Control

Clean Coal Technology Industry Overview

Coal is an abundant, reliable, and inexpensive source of energy, but
it does have some technical limitations. Coal is not suitable for use
in some applications such as transportation and it produces a range
of environmental pollutants when burned. In recent years, several
clean coal technologies have been developed to help reduce the
environmental pollution caused by burning coal and make coal
more energy-efficient. Among these, coal gasification and coal
liquefaction are the most popular technologies to date.

Common Clean Coal Technologies

Coal gasification is considered one of the most versatile and
cleanest ways to convert coal into an alternative and cleaner form

of energy. In gasication, coal is broken down to its basic chemical

constituents rather than directly burned. The resulting syngas (a gas
mixture made up of carbon monoxide, hydrogen, and other gaseous
compounds) can be used as a fuel source or as an intermediate for
the production of other chemicals.

Coal liquefaction converts solid coal to synthetic oil to supplement
natural sources of petroleum. This well-developed technology

requires coal to be in contact with hydrogen in the presence of a
catalyst at high temperatures. Coal liquefaction can either be direct
as described previously or indirect. Indirect coal liquefaction consists
of two stages: gasification to produce coal gas and subsequent
conversion of the gas to liquid via the Fischer-Tropsch process.

Products derived from coal through these clean coal technologies can
be used as fuel for transportation vehicles and electricity generation,
and as raw materials to other valuable products. These recent
developments in the clean coal industry can also help ease the burden
of oil production and import.

Emerson Process Management Solution

Emerson Process Management Regulator Technologies is the market

leader in the eld of pressure control with a history of over a hundred

years. With more than 100 product families, Fisher

widely used to control various uids, including gas, liquid, and steam.

We take an active par t in the clean coal industry by offering
a variet y of products and expert process solutions. Pressure
Reducing and Tank Blanketing Valves are available for pressure
controls for tanks and pressure vessels used in the coal gasification
and liquefaction processes.

®

regulators are

www.sherregulators.com

Recomended Fisher® Regulators Applicable for Clean Coal Technologies

Pressure Reducing

• Direct-Operated

• Multi-Purpose - Can be Used for All Process Media

• Rugged Construction

• Multiple End Connections Available

• Available in Differential Pressure

Control, High Temperature, and

High Pressure Optional Constructions

• Easy Maintenance

95 Series

Pressure Reducing

• Pilot-Operated

• NPS 1 through 12 x 6 (DN 25 through 300 x 150)

Body Sizes Available

• Quick Change Trim Package

• Optional Noise Abatement Trim

• No Atmospheric Bleed

• In-Service Travel Inspection

• Easy Top Entry In-line Maintenance

Relief / Backpressure

• Direct-Operated

• Multi-Purpose - Can be Used for All Process Media

• Excellent Fluid Compatibility

• Close, Stable Regulation

• Available in Differential Pressure

Control, High Temperature, and

High Pressure Optional Constructions

• Easy Maintenance

98 Series

Tank Blanketing

• Direct-Operated for Economic Pressure Control

• Compact Construction for Small Tanks and Vessels

• Easy Conversion Between Constructions

• Sour Gas Service Capability and Corrosion Resistant

• NPS 1-1/2 and 2 (DN 40 and 50) Body Sizes

Available with Type Y696

Type 1098-EGR

Industrial Regulators
