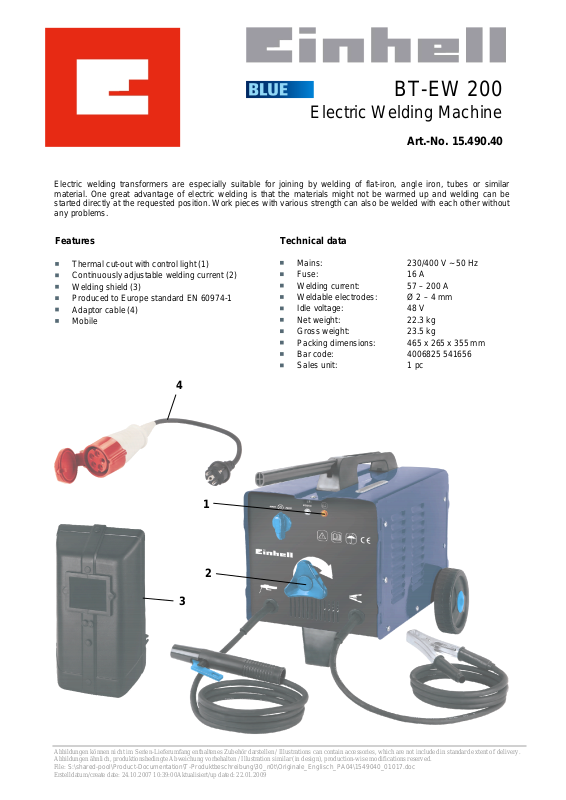

Einhell BT-EW 200 DATASHEET

Technical data

Features

BT-EW 200

Electric welding transformers are especially suitable for joining by welding of flat-iron, angle iron, tubes or similar
material. One great advantage of electric welding is that the materials might not be warmed up and welding can be
started directly at the requested position. Work pieces with various strength can also be welded with each other without
any problems.

Thermal cut-out with control light (1)
Continuously adjustable welding current (2)
Welding shield (3)
Produced to Europe standard EN 60974-1
Adaptor cable (4)
Mobile

4

1

2

3

Electric Welding Machine

Art.-No. 15.490.40

Mains: 230/400 V ~ 50 Hz
Fuse: 16 A
Welding current: 57 – 200 A
Weldable electrodes: Ø 2 – 4 mm
Idle voltage: 48 V
Net weight: 22.3 kg
Gross weight: 23.5 kg
Packing dimensions: 465 x 265 x 355 mm
Bar code: 4006825 541656
Sales unit: 1 pc
