D-Link DWR-921 User Manual

Download

Version 1.02 | 05/21/2013

User Manual

4G LTE Router

DWR-921

Preface

D-Link reserves the right to revise this publication and to make changes in the content hereof without obligation to notify any person or organization of such revisions or changes.

Trademarks

D-Link and the D-Link logo are trademarks or registered trademarks of D-Link Corporation or its subsidiaries in the United States or other countries. All other company or product names mentioned herein are trademarks or registered trademarks of their respective companies.

iD-Link DWR-921 User Manual

FCC Regulations

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

This device has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment o and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

Changes or modications not expressly approved by the party responsible for compliance could void the user‘s authority to operate the equipment.

The antenna(s) used for this transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.

This device complies with FCC radiation exposure limits set forth for an uncontrolled environment. In order to avoid the possibility of exceeding the FCC radio frequency exposure limits, human proximity to the antenna shall not be less than 20cm (8 inches) during normal operation.

iiD-Link DWR-921 User Manual

Table of Contents

Preface ................................................................................. i

Trademarks ...................................................................................... i

FCC Regulations ............................................................................ ii

Product Overview ..............................................................1

Package Contents .........................................................................1

System Requirements .................................................................1

Introduction ...................................................................................2

Hardware Overview .....................................................................3

Rear Panel ................................................................................ 3

Front Panel ..............................................................................4

LEDs ........................................................................................... 5

Installation ......................................................................... 6

Connect to Your Network ..........................................................6

Wireless Installation Considerations ......................................7

Conguration ..................................................................... 8

Web-based Conguration Utility ............................................ 8

Setup .................................................................................................9

Internet ..................................................................................... 9

Internet Connection Setup Wizard ............................ 9

Manual Internet Connection Setup ........................12

Internet Connection .....................................................12

Static IP ..............................................................................13

Dynamic IP (DHCP) ........................................................14

PPPoE .................................................................................15

PPTP ....................................................................................17

L2TP ....................................................................................19

3G/4G .................................................................................20

Wireless Settings .................................................................22

Wireless Connection Setup Wizard..........................22

Manual Wireless Connection Setup ........................24

Wireless Settings ............................................................25

Wireless Security Mode ...............................................26

Wi-Fi Protected Setup (WPS) ..........................................29

Network Settings ................................................................32

Router Settings ...............................................................32

DHCP Server Settings ...................................................33

Message Service ..................................................................34

SMS Inbox .........................................................................34

Create Message ..............................................................35

Advanced ......................................................................................36

Virtual Server ........................................................................36

Application Rules ................................................................38

QoS Engine............................................................................39

MAC Address Filter .............................................................40

URL Filter ................................................................................41

Outbound Filter ...................................................................42

Inbound Filter ......................................................................43

SNMP .......................................................................................44

Routing ...................................................................................45

Advanced Wireless .............................................................46

iiiD-Link DWR-921 User Manual

Table of Contents

Advanced Network ............................................................48

Network Scan .......................................................................49

Tools ................................................................................................50

Admin .....................................................................................50

Time .........................................................................................51

Syslog ......................................................................................52

Email Settings ......................................................................53

System ....................................................................................54

Firmware ................................................................................55

Dynamic DNS .......................................................................56

System Check .......................................................................57

Schedules ..............................................................................58

Status ..............................................................................................59

Device Info ............................................................................59

Log ...........................................................................................60

Statistics .................................................................................61

Wireless ..................................................................................62

Troubleshooting ..............................................................77

Tips ...................................................................................................79

Networking Basics ...........................................................80

Check your IP address ...............................................................80

Statically Assign an IP address ...............................................81

Technical Specications .................................................. 82

Support ..........................................................................................63

Connecting to a Wireless Network .................................64

Using Windows 7 .......................................................................64

Conguring Wireless Security ........................................66

Using Windows Vista™ ..............................................................69

Conguring Wireless Security ........................................70

Using Windows

XP ....................................................................72

Congure WEP .....................................................................73

Congure WPA-PSK ............................................................75

ivD-Link DWR-921 User Manual

Section 1 - Product Overview

Product Overview

Package Contents

• D-Link DWR-921 4G LTE Router

• Power Adapter

• Manual and Warranty on CD

• 2 3G/4G Antennas

Note: Using a power supply with a dierent voltage rating than the one included with the DWR-921 will cause damage and void the warranty for

this product.

System Requirements

• A compatible (U)SIM card with service.*

• Computer with Windows, Mac OS, or Linux-based operating system with an installed Ethernet adapter

• Java-enabled browser such as Internet Explorer 6, Safari 4.0, Chrome 20.0, or Firefox 7 or above (for conguration)

*Subject to services and service terms available from your carrier.

1D-Link DWR-921 User Manual

Section 1 - Product Overview

Introduction

The D-Link 4G LTE Router allows users to access worldwide mobile broadband networks, and share them with a number of wired and wireless devices. Once connected, users can transfer data, stream media, and send SMS messages. Simply insert your UMTS/HSUPA SIM card, and share your 3G/4G Internet connection through a secure 802.11n wireless network or using any of the four 10/100 Ethernet ports.

The DWR-921 keeps your wireless network safe with WPA/WPA2 wireless encryption, preventing unauthorized users from accessing your network. The DWR-921 utilizes dual-active rewalls (SPI and NAT) to prevent potential attacks across the Internet, and includes MAC address ltering to control which clients can access your network, and what content they can access.

The DWR-921 4G LTE Router can be installed quickly and easily almost anywhere. This router is great for situations where an impromptu wireless network is required, or wherever conventional network access is unavailable. The DWR-921 can even be installed in buses, trains, or boats, allowing passengers to access the Internet while commuting.

2D-Link DWR-921 User Manual

Section 1 - Product Overview

Hardware Overview

Rear Panel

WAN Port

LAN Ports

Port Function LAN Ethernet Ports For connection to a network device such as a desktop or notebook computer. WAN Ethernet Port For connection to a DSL/Cable modem or router SIM Accepts a standard (U)SIM card for 3G/4G connectivity. Power Connects to the included power adapter. Power Switch Turns the device on or o.

SIM Card Slot Power Switch

Power Connector

3D-Link DWR-921 User Manual

Section 1 - Product Overview

Hardware Overview

Front Panel

Signal Strength Reset Button WPS Button

Button Name Function

Reset Press this button with an unfolded paperclip to reset the device.

WPS Press this button to initiate a new WPS connection. Refer to “Wi-Fi

Protected Setup” on page 29 for more details.

4D-Link DWR-921 User Manual

Section 1 - Product Overview

LED Name Function

Signal Strength Blinking Red: No SIM card/signal, or unveried PIN code

Hardware Overview

LEDs

WAN LAN1 LAN2 LAN3 LAN4

Status 3G 4G SMS WLAN

Solid Red: Signal strength is at level one (weak) Solid Amber: Signal strength is at level two or three (medium) Solid Green: Signal strength is at level four or ve (strong)

Status Blinking Green: Device is powered on and working

WAN Solid Green: Ethernet connection has been established

Blinking Green: Data is being transferred

LAN 1-4 Solid Green: Ethernet connection has been established

Blinking Green: Data is being transferred

3G Solid Green: UMTS/HSDPA/HSUPA connection has been established

Blinking Green: Data is being transferred via 3G

4G Solid Green: LTE connection has been established

Blinking Green: Data is being transferred via 4G

SMS Solid Green: SMS storage is full

Blinking Green: There is an unread SMS message

WLAN Solid Green: WLAN is active and available

Blinking Green: Data is being transferred over the WLAN

5D-Link DWR-921 User Manual

Section 2 - Installation

Installation

This section will guide you through the installation process. Placement of the router is very important. Do not place the router in an enclosed area such as a closet, cabinet, or in an attic or garage.

Connect to Your Network

1. Ensure that your DWR-921 4G LTE Router is disconnected and powered o.

2. Insert a standard (U)SIM card into the SIM card slot on the back of the router as indicated by the SIM card logo next to the slot. The gold contacts should face downwards.

Caution: Always unplug/power down the router before installing or removing the SIM card. Never insert or remove the SIM card while the router

is in use.

3. Insert your Internet/WAN network cable into the WAN port on the back of the router.

Note: The 3G/4G connection can also be used as a backup WAN. Once a backup is congured, the router will automatically use 3G for the Internet

connection if the Ethernet WAN is not available.

4. Insert the Ethernet cable into the LAN Port 1 on the back panel of the DWR-921 4G LTE Router and an available Ethernet port on the network adapter in the computer you will use to congure the router.

Note: The DWR-921 4G LTE Router LAN Ports are Auto-MDI/MDIX, so both patch and crossover Ethernet cables can be used.

5. Connect the power adapter to the power connecter on the back panel of your DWR-921 4G LTE Router. Plug the other end of the power adapter into a wall outlet or power strip and turn the device on.

a. The Status LED will light up to indicate that power has been supplied to the router.

b. The LEDs on the front panel will ash on and o as the router performs initialization and Internet connection processes.

c. After a few moments, if a connection has been established, the following LEDs will turn solid green: Power, Status, WAN, WLAN, and any LAN

Port LEDs that are connected to computers or other devices.

6D-Link DWR-921 User Manual

Section 2 - Installation

Wireless Installation Considerations

The DWR-921 can be accessed using a wireless connection from anywhere within the operating range of your wireless network. Keep in mind that the quantity, thickness, and location of walls, ceilings, or other objects that the wireless signals must pass through may limit the range of the wireless signal. Ranges vary depending on the types of materials and background RF (radio frequency) noise in your home or oce. The key to maximizing the wireless range is to follow these basic guidelines:

1. Minimize the number of walls and ceilings between the router and other network devices. Each wall or ceiling can reduce your adapter’s range from 3 to 90 feet (1 to 30 meters).

2. Be aware of the direct line between network devices. A wall that is 1.5 feet thick (0.5 meters), at a 45-degree angle appears to be almost 3 feet (1 meter) thick. At a 2-degree angle it can appear over 42 feet (14 meters) thick. Position devices so that the signal will travel straight through a wall or ceiling (instead of at an angle) for better reception.

3. Try to position access points, wireless routers, and computers so that the signal passes through open doorways or drywall. Materials such as glass, metal, brick, insulation, concrete, and water can aect wireless performance. Large objects such as sh tanks, mirrors, ling cabinets, metal doors, and aluminum studs may also have a negative eect on range.

4. If you are using 2.4 GHz cordless phones, make sure that the phone base is as far away from your wireless device as possible. The base transmits a signal even if the phone is not in use. In some cases, cordless phones, X-10 wireless devices, and electronic equipment such as ceiling fans, uorescent lights, and home security systems may dramatically degrade wireless connectivity.

7D-Link DWR-921 User Manual

Section 3 - Conguration

Conguration

This section will show you how to congure your new D-Link mobile router using the web-based conguration utility.

Web-based Conguration Utility

To access the conguration utility, open a web browser such as Internet Explorer and enter the IP address of the router (192.168.0.1 by default).

To log in to the conguration utility, enter admin as the username, and then enter the password. By default, the password is blank.

If you get a Page Cannot be Displayed error, please refer to “Troubleshooting” on page 77 for assistance.

The conguration utility will open to the STATUS > DEVICE INFO page. You can view dierent conguration pages by clicking on the categories at the top of the screen (SETUP/ADVANCED/ TOOLS/STATUS/SUPPORT), and then selecting a conguration page from the bar on the left side.

The following pages will describe each section in detail, starting with the SETUP pages.

8D-Link DWR-921 User Manual

Section 3 - Conguration

Setup

The SETUP pages allow you to congure your Internet and wireless settings, as well as manage your SMS inbox. To view the Setup conguration pages, click on SETUP at the top of the screen.

Internet

The Internet page allows you to congure how your router connects to the Internet. There are two ways to set up your Internet connection.

You can click on the Internet Connection Setup Wizard button to start a wizard that will guide you through setting up your Internet settings.

If you want to manually congure your settings, click Manual Internet Connection Setup and skip to “Manual Internet Connection Setup” on page 12.

Internet Connection Setup Wizard

This wizard will guide you through a step-by-step process to congure your router to connect to the Internet.

Click Next to continue.

Note: While using the wizard, you can click Prev to go back to the previous step, or you can

click Cancel to close the wizard.

9D-Link DWR-921 User Manual

Section 3 - Conguration

Create a new password and then click Next to continue.

Select your time zone from the drop-down box and then click Next to continue.

Select the Internet connection type you use. The connection types are explained on the following page. If you are unsure which connection type you should use, contact your Internet Service Provider (ISP).

Click Prev to go back to the previous page or click Cancel to close the wizard.

Note: The DWR-921 has a WAN failover feature that allows the router to switch to a 3G/4G

connection if the WAN connection is down or unavailable. To congure this feature, please refer to “Internet Connection” on page 12.

10D-Link DWR-921 User Manual

Section 3 - Conguration

The subsequent conguration pages will dier depending on the selection you make on this page.

DHCP Connection

(Dynamic IP Address):

Username / Password

Connection (PPPoE):

Username / Password

Connection (PPTP):

Username / Password

Connection (L2TP):

3G/4G Connection:

Static IP Address

Connection:

Choose this if your Internet connection automatically provides you with an IP address. Most cable modems use this type of connection. See “Dynamic IP (DHCP)” on page 14 for information about how to congure this type of connection.

Choose this option if your Internet connection requires a username and password to connect. Most DSL modems use this style of connection. See “PPPoE” on page 15 for information about how to congure this type of connection.

Choose this option if your Internet connection requires Point-to-Point Tunneling Protocol (PPTP). See “PPTP” on page 17 for information about how to congure this type of connection.

Choose this option if your Internet connection requires Layer 2 Tunneling Protocol (L2TP). See “L2TP” on page 19 for information about how to congure this type of connection.

Choose this connection if you have installed a SIM card into the DWR-921. See “3G/4G” on page 20 for information about how to congure this type of connection.

Choose this option if your Internet Service Provider provided you with IP address information that has to be manually congured. See “Static IP” on page 13 for information about how to congure this type of connection.

After entering the requested information,click Next to continue.

Note: If you are not sure what connection type to use or what settings to enter, check with your Internet Service Provider.

This completes the Internet Connection Setup Wizard. Click Connect to save your changes and reboot the router.

11D-Link DWR-921 User Manual

Section 3 - Conguration

Manual Internet Connection Setup

To set up your Internet connection manually, click Manual Internet Connection Setup.

Internet Connection

Several dierent Internet connection types can be selected depending upon the specications of your Internet Service Provider (ISP). You can also set up the auto-backup feature, which allows you to use a 3G/4G connection for your Internet connection if your main connection fails.

My Internet

Connection is:

Host Name:

Auto-Backup:

Internet Host:

Select the Internet connection type specied by your ISP. The corresponding settings will be displayed below. Please see the following pages for details on how to congure these dierent connection types.

If the Internet host you are using requires you to enter a host name, enter it here. In most cases, you may leave this blank.

If this feature is enabled, the router will switch over to a 3G/4G connection if the Internet host (specied below) is unreachable.

Enter an IP address for the router to use to check if it is connected to the Internet. If auto-backup is enabled and the IP address cannot be reached, the router will switch over to a 3G/4G connection.

12D-Link DWR-921 User Manual

Section 3 - Conguration

Static IP

Choose this Internet connection if your ISP assigns you a static IP address. After modifying any settings, click Save Settings to save your changes.

IP Address:

Subnet Mask:

Default Gateway:

Primary DNS Server:

Secondary DNS Server:

MTU:

MAC Address:

Enter the IP address assigned to your network connection.

Enter the subnet mask.

Enter the default gateway.

Enter the primary DNS server.

Enter the secondary DNS server.

You may need to change the Maximum Transmission Unit (MTU) for optimal performance. The default value is 1500.

The default MAC address is set to the Internet port’s physical interface MAC address on the broadband router. It is not recommended that you change the default MAC address unless required by your ISP. You can use the Clone button to replace the Internet port’s MAC address with the MAC address of your Ethernet card.

13D-Link DWR-921 User Manual

Section 3 - Conguration

Dynamic IP (DHCP)

This section will help you to obtain IP address information automatically from your ISP. Use this option if your ISP didn’t provide you with IP address information and/or a username and password. After modifying any settings, click Save Settings to save your changes.

Primary DNS Server:

Secondary DNS Server:

MTU (Maximum

Transmission Unit):

MAC Address:

Auto-reconnect:

(Optional) Fill in with IP address of primary DNS server.

(Optional) Fill in with IP address of secondary DNS server.

You may need to change the Maximum Transmission Unit (MTU) for optimal performance. The default value is 1500.

The default MAC Address is set to the Internet port’s physical interface MAC address on the Broadband Router. It is not recommended that you change the default MAC address unless required by your ISP. You can use the Clone button to replace the Internet port’s MAC address with the MAC address of your PC.

This feature enables this product to renew the WAN IP address automatically when the lease time has expired.

14D-Link DWR-921 User Manual

Section 3 - Conguration

PPPoE

Choose this Internet connection if your ISP provides you with a PPPoE account. After modifying any settings, click Save Settings to save your changes.

Username:

Password:

Verify Password:

Service Name:

IP Address:

Primary DNS Server:

Secondary DNS Server:

MAC Address:

Maximum Idle Time:

The username/account name that your ISP provides to you for PPPoE dial-up.

Password that your ISP provides to you for PPPoE dial-up.

Re-type your password in this eld.

Fill in if provided by your ISP. (Optional)

Fill in if provided by your ISP. If not, keep the default value.

Fill in if provided by your ISP. If not, keep the default value (optional).

MAC address of WAN interface. You can also copy MAC address of your PC to its WAN interface by clicking the Clone button.

The amount of time of inactivity before disconnecting an established PPPoE session. Set it to zero or enable autoreconnect to disable this feature.

15D-Link DWR-921 User Manual

Section 3 - Conguration

Maximum Transmission

Unit (MTU):

Auto-reconnect:

The default setting of PPPoE is 1492.

The device will automatically reconnect to your PPPoE connection automatically.

16D-Link DWR-921 User Manual

Section 3 - Conguration

PPTP

Choose this Internet connection if your ISP provides you with a PPTP account. After modifying any settings, click Save Settings to save your changes.

Address Mode:

PPTP IP Address:

PPTP Subnet Mask:

PPTP Gateway IP Address:

PPTP Server IP Address:

Username:

Password:

Verify Password:

Choose Static IP only if your ISP assigns you an IP address. Otherwise, please choose Dynamic IP.

Enter the information provided by your ISP (Only applicable for Static IP PPTP).

IP address of PPTP server.

User/account name that your ISP provides to you for PPTP dialup.

Password that your ISP provides to you for PPTP dial-up.

Re-enter your password for verication.

Reconnect Mode:

Choose Always-on when you want to establish PPTP connection all the time. If you choose Connect-on-demand, the device will establish a PPTP connection when local users want to connect to the Internet, and disconnect if there is no trac after the time period dened by the Maximum Idle Time setting.

17D-Link DWR-921 User Manual

Section 3 - Conguration

Maximum Idle Time:

The time of no activity to disconnect your PPTP session. Set it to zero or choose Always-on to disable this feature.

18D-Link DWR-921 User Manual

Section 3 - Conguration

L2TP

Choose this Internet connection if your ISP provides you with an L2TP account. After modifying any settings, click Save Settings to save your changes.

Address Mode:

L2TP IP Address:

L2TP Subnet Mask:

L2TP Gateway IP Address:

L2TP Server IP Address:

Username:

Password:

Verify Password:

Choose Static IP only if your ISP assigns you an IP address. Otherwise, please choose Dynamic IP.

Enter the information provided by your ISP (Only applicable for Static IP L2TP).

IP address of L2TP server.

User/account name that your ISP provides to you for L2TP dialup.

Password that your ISP provides to you for L2TP dial-up.

Re-type your password in this eld.

Reconnect Mode:

Maximum Idle Time:

Choose Always-on when you want to establish L2TP connection all the time. If you choose Connect-on-demand the device will establish L2TP connection when local users want to use Internet, and disconnect if no trac after time period of Maximum Idle Time.

The time of no activity to disconnect your L2TP session. Set it to 0 or choose Always-on to disable this feature.

19D-Link DWR-921 User Manual

Section 3 - Conguration

3G/4G

Choose this Internet connection if you already use a SIM card for 3G/4G Internet service from your mobile Internet service provider. The elds here may not be necessary for your connection. The information on this page should only be used if required by your service provider. After modifying any settings, click Save Settings to save your changes.

Prefer Service Type:

Dial Up Prole:

Account/Prole Name:

Country/Telecom:

Username:

Password:

Dialed Number:

Authentication:

APN:

Choose whether the DWR-921 should only use 4G networks, 3G networks, or use Auto Mode to automatically select a network.

Select Auto-Detection to have the router automatically detect the settings for your connection. Select Manual to enter the details of your connection manually.

Fill in a name to identify the following 3G/4G conguration.

Select your country and service provider to automatically ll in some of the required settings.

Fill in only if requested by ISP (optional).

Enter the number to be dialed.

Select PAP, CHAP, or Auto detection. The default authentication method is Auto.

Enter the APN information (optional).

Pin Code:

Reconnect Mode:

Enter the PIN associated with your SIM card.

Select Auto or Manual to determine whether the router should reconnect to your 3G/4G network automatically or manually.

20D-Link DWR-921 User Manual

Section 3 - Conguration

Maximum Idle Time:

Primary DNS Server:

Secondary DNS Server:

Keep Alive:

Bridge Ethernet Ports:

Roaming:

Set the maximum time your connection can be idle before disconnecting. Set it to 0 or choose Auto in Reconnect Mode to disable this feature.

Fill in if provided by your ISP. If not, keep the default value (optional).

Select Disable or Use Ping depending on the settings required by your ISP. If you select Use Ping, set the ping interval and the IP address to ping.

Activate this feature to use the Ethernet WAN port as an additional LAN port.

Enabling this option will allow you to connect when roaming.

Note: Roaming connections may incur additional fees from your service provider.

DNS Check:

NAT Disable:

Enabling this will send periodic DNS checks to make sure your connection is alive, and if the check fails, it will restart your 3G connection to resume connectivity.

Enabling this option will disable the NAT function of the DWR921, allowing it to act as a link for your devices to your Internet connection, but without routing functions.

21D-Link DWR-921 User Manual

Section 3 - Conguration

Wireless Settings

This section will help you to manually congure the wireless settings of your router. Please note that changes made in this section may also need to be duplicated on your wireless devices and clients. The Wireless Settings page allows you to congure how your router connects to the Internet. There are several ways to set up your wireless connection. You can click on the Wireless Connection Setup Wizard button to start a wizard that will guide you through setting up your wireless settings. If you want to manually congure your settings, click the Manual Wireless Connection Setup button and skip to “Manual Wireless Connection Setup” on page 24. You can also set up a wireless connection to a device automatically, or congure your router automatically through Windows by clicking the Wi-Fi Protected Setup button. This is described in “Wi-Fi Protected Setup (WPS)” on page 29.

Wireless Connection Setup Wizard

This wizard will guide you through a step-by-step process to congure your router’s wireless .

Click Next to continue.

Note: While using the wizard, you can click Prev to go back to the previous page or you can

click Cancel to close the wizard.

22D-Link DWR-921 User Manual

Section 3 - Conguration

Enter a name (SSID) for your wireless network, then click Next to continue.

Select a level of wireless security to use, then click Next to continue.

If you chose BEST or BETTER, select whether to use TKIP or AES encryption, then enter a password to use for your wireless network. It is recommended that you use AES if your wireless computers and devices support it, as it is more secure. Click Next to continue.

If you chose GOOD, select whether to use a HEX or ASCII password, then enter a password to use for your wireless network. If you choose HEX, you will need to enter a 10 or 26 digit password using only hex characters (0-9, A-F). If you choose ASCII, the password must be 5 or 13 alphanumeric characters. Click Next to continue.

This completes the Wireless Connection Setup Wizard. Click Save to save your changes and reboot the router.

23D-Link DWR-921 User Manual

Section 3 - Conguration

Manual Wireless Connection Setup

To set up your wireless connection manually, click Manual Wireless Connection Setup.

24D-Link DWR-921 User Manual

Section 3 - Conguration

Wireless Settings

This page lets you set up your wireless network and choose a wireless security mode. After modifying any settings, click Save Settings to save your changes.

Enable Wireless:

Wireless Network Name:

802.11 Mode:

Auto Channel Scan:

Wireless Channel:

Check this box to enable wireless access. When you enable this option, the following parameters take eect.

Also known as the SSID (Service Set Identier), this is the name of your Wireless Local Area Network (WLAN). Enter a name using up to 32 alphanumeric characters. The SSID is casesensitive.

B/G mixed: Enable this mode if your network contains a mix of

802.11b and 802.11g devices. N only: Enable this mode if your network only has 802.11n devices. B/G/N mixed: Enable this mode if you have a mix of 802.11n,

802.11g, and 802.11b clients.

Enabling this feature will allow the router to automatically scan for the best wireless channel to use.

A wireless network uses specic channels in the wireless spectrum to handle communication between clients. Some channels in your area may experience interference from other electronic devices. Choose the clearest channel to help optimize the performance and coverage of your wireless network, or enable Auto Channel Scan for the router to automatically select the best channel.

Visibility Status:

This setting determines whether the SSID will be Visible or Invisible to wireless clients looking for wireless networks.

Setting this to Invisible can increase the security of your network by making it undetectable, but clients will need to manually enter the SSID of your network to connect.

25D-Link DWR-921 User Manual

Section 3 - Conguration

Wireless Security Mode

You can choose from several dierent wireless security modes. After selecting a mode, the settings for that mode will appear. After modifying any settings, click Save Settings to save your changes.

Security Mode:

You can choose from 4 dierent security modes.

• None: No security will be used. This setting is not

recommended.

• WEP: WEP encryption will be used. This setting is

only recommended if your wireless devices do not support WPA or WPA2.

• WPA-Personal: WPA-PSK encryption will be used.

This setting is recommended for most users.

• WPA-Enterprise: WPA-EAP encryption will be

used. This setting is only recommended if you have a RADIUS authentication server. Otherwise, WPA-Personal should be used.

26D-Link DWR-921 User Manual

Section 3 - Conguration

If you choose WEP, the following options will appear:

Authentication:

WEP Encryption:

Default WEP Key:

WEP Key:

If you choose WPA-Personal, the following options will appear:

WPA Mode:

Select whether to use Open or Shared authentication.

Select whether to use 64-bit or 128-bit encryption.

Select which WEP key (1-4) to use as the default key. This will also change the WEP Key text box to that WEP key for your to congure(1-4).

Set the WEP key/password for your wireless network. Based on whether you are using 64 or 128-bit encryption, and whether you are using a HEX or ASCII key, you will need to enter dierent numbers of characters for your key, as indicated below the WEP Key text box. ASCII keys may use letters and numbers only, and HEX keys may use numbers 0-9 and letters A-F only.

Select whether to use WPA2 only or WPA only. WPA2 only is the most secure, provided that all of your clients can support it.

Cipher Type:

Network Key:

Select whether to use the TKIP or AES cipher. The AES cipher is the most secure, provided that all of your clients can support it.

Enter the key/password you want to use for your wireless network. The key must be between 8 and 63 characters long, and may only contain letters and numbers.

27D-Link DWR-921 User Manual

Section 3 - Conguration

If you choose WPA-Enterprise, the following options will appear:

WPA Mode:

Cipher Type:

RADIUS Server IP

Address:

RADIUS Server Port:

RADIUS Server Shared

Secret:

Select whether to use WPA2 only or WPA only. WPA2 only is the most secure, provided that all of your clients can support this security method.

Select whether to use the TKIP or AES cipher. The AES cipher is the most secure, provided that all of your clients can support it.

Enter the IP address of your RADIUS server.

Enter the port used for your RADIUS server.

Enter the shared secret/password for your RADIUS server.

28D-Link DWR-921 User Manual

Section 3 - Conguration

Wi-Fi Protected Setup (WPS)

To open the Wi-Fi Protected Setup page, click Wi-Fi Protected Setup.

The Wi-Fi Protected Setup page allows you to create a wireless connection between your router and a device automatically by simply pushing a button or entering a PIN code.

You can also use Windows 7 to do initial conguration of your router by using the Connect to a network wizard in Windows, and entering the WPS PIN/AP PIN of the router when prompted. After modifying any settings, click Save Settings to save your changes.

29D-Link DWR-921 User Manual

Section 3 - Conguration

WPS:

AP PIN (also known as

WPS PIN):

Cong Mode:

Cong Status:

Select whether you would like to Enable or Disable WPS features.

If you use Windows 7’s Connect to a network wizard to do initial conguration of the router, you will need to enter the WPS PIN/AP PIN into the wizard when prompted. The factory default WPS PIN/AP PIN is printed on a label located on the bottom of the router. You can click the Generate New PIN button to change it to a randomly generated PIN.

Select whether the WPS cong mode should be set to

Registrar or Enrollee. In most cases, this should be set to Registrar so that you can use WPS to connect new wireless

clients.

If this is set to CONFIGURED, the router will be marked as “already congured” to computers that try to use WPS conguration, such as Windows 7’s Connect to a network wizard. You can click the Release button to change the status to UNCONFIGURED to allow for WPS conguration of the router.

Disable WPS Pin Method:

Cong Method:

If this is set to UNCONFIGURED, you can click the Set button to change the status to CONFIGURED to block WPS conguration of the router.

Enable this option to prevent clients from connecting to the router using the PIN method. If this option is enabled, clients must use the push-button method to connect.

This lets you choose whether to use the Push Button connection method (PBC) or PIN method to connect to a wireless client when the Trigger button is clicked. If you choose the PIN method, you will need to enter an 8-digit PIN number that the wireless client needs to use to connect to your router.

30D-Link DWR-921 User Manual

Section 3 - Conguration

WPS Status: This will show the current WPS connection process status. Click

the Trigger button to initiate a WPS connection.

31D-Link DWR-921 User Manual

Section 3 - Conguration

Network Settings

This section will help you to change the internal network settings of your router and to congure the DHCP Server settings. After modifying any settings, click Save Settings to save your changes.

Router Settings

Router IP Address:

Default Subnet Mask:

Local Domain Name:

Enter the IP address you want to use for the router. The default IP address is 192.168.0.1. If you change the IP address, you will need to enter the new IP address in your browser to get into the conguration utility.

Enter the Subnet Mask of the router. The default subnet mask is 255.255.255.0.

Enter the local domain name for your network.

32D-Link DWR-921 User Manual

Section 3 - Conguration

DHCP Server Settings

The DWR-921 has a built-in DHCP (Dynamic Host Control Protocol) server. The DHCP server assigns IP addresses to devices on the network that request them. By default, the DHCP Server is enabled on the device. The DHCP address pool contains a range of IP addresses, which are automatically assigned to the clients on the network. After modifying any settings, click Save Settings to save your changes.

Enable DHCP Server:

DHCP IP Address Range:

DHCP Lease Time:

Primary DNS IP Address:

Secondary DNS IP

Address:

Primary WINS IP Address:

Secondary WINS IP

Address:

Select this box to enable the DHCP server on your router.

Enter the range of IPs for the DHCP server to use to assign IP addresses to devices on your network. These values will represent the last octet of the IP addresses in the pool.

Enter the lease time for IP address assignments.

Enter the primary DNS IP address that will be assigned to DHCP clients.

Enter the secondary DNS IP address that will be assigned to DHCP clients.

Enter the primary WINS IP address that will be assigned to DHCP clients.

Enter the secondary WINS IP address that will be assigned to DHCP clients.

33D-Link DWR-921 User Manual

Section 3 - Conguration

Message Service

If your ISP provides SMS service, you can check and send messages from this page.

SMS Inbox:

Create Message:

Click this button to view SMS messages that you have received.

Click this button to create a new message to send.

SMS Inbox

This page shows all messages that are stored on the SIM card. Select a message to display its contents in the SMS window. After you have read a message, you can delete it, or reply to the sender. Click the Refresh button to update the list.

Delete:

Reply:

Deletes the selected SMS message.

Opens a Create Message window to reply to the selected SMS message.

Forward:

Refresh:

Opens a Create Message windows to forward the selected SMS message to another recipient.

Click this button to check for new messages.

34D-Link DWR-921 User Manual

Section 3 - Conguration

Create Message

This page allows you to send an SMS to your contacts. Just ll in the phone number of the recipient, and type the content of the message. Then click the “Send Message” button to send out the message. If you would like to add more than one recipient, you must put a semicolon (;) between each of the phone numbers.

Receiver:

Text Message:

Send Message:

Cancel:

Type the phone number of the recipient.

Type the message that you would like to send.

Click this button to send the message.

Click this button to clear the message.

35D-Link DWR-921 User Manual

Section 3 - Conguration

Advanced

The ADVANCED pages allow you to congure the more advanced settings of the router, such as Virtual Server , MAC and URL ltering, and advanced wireless and network settings. To view the advanced conguration pages, click on ADVANCED at the top of the screen.

Virtual Server

The device can be congured as a virtual server so that users can access services such as Web or FTP via the public (WAN) IP address of the router. You can also allow the settings to run on a specied schedule. After modifying any settings, click Save Settings to save your changes.

Well-known Services:

ID:

Use schedule rule:

This contains a list of pre-dened services. You can select a service, select a rule ID, then click the Copy to button to copy the default settings for that service to the specied rule ID.

Species which rule to copy the selected Well known service settings to when you click the Copy to button.

Select a schedule to use and copy to the specied rule ID when you click the Copy to button. You may select Always On or use a specic schedule that you have dened. To create and edit schedules, please refer to “Schedules” on page 58.

36D-Link DWR-921 User Manual

Section 3 - Conguration

VIRTUAL SERVERS LIST

This identies the rule.

ID:

Service Ports

Server IP: Port:

Enable:

Schedule Rule #:

Enter the public port(s) you want to open.

Enter the IP address and port of the computer on your local network that you want to forward the Service Ports to.

Check the box to enable the specied rule.

Specify the schedule rule number. To create schedules, click on the Add New Rule button. For further information on schedules, please refer to “Schedules” on page 58.

37D-Link DWR-921 User Manual

Section 3 - Conguration

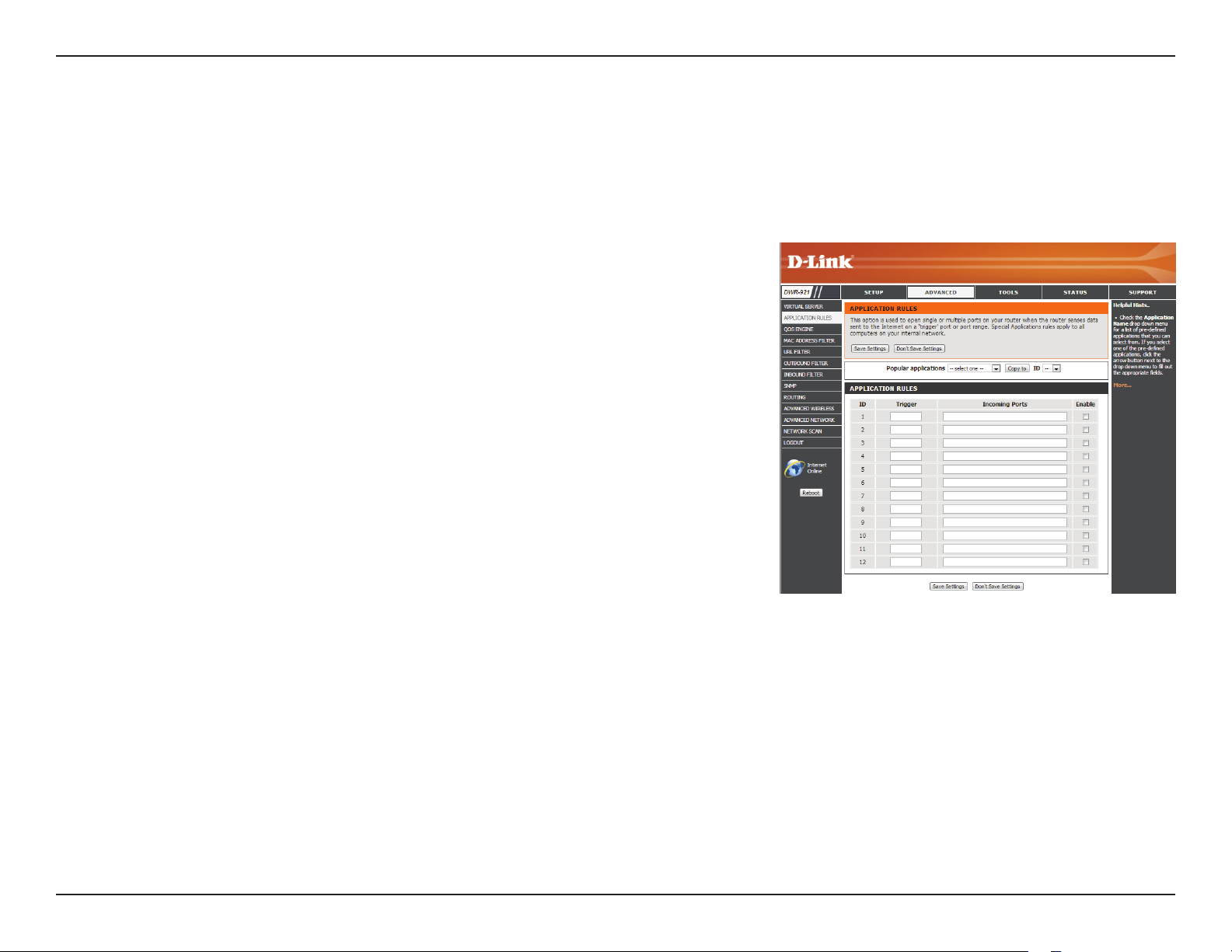

Application Rules

Some applications require multiple connections, such as Internet gaming, video conferencing, and Internet telephony. These applications may have diculty working through NAT (Network Address Translation). Application Rules allow some of these applications to work with the DWR-921 by opening ports after detecting trac being sent through a trigger port. After modifying any settings, click Save Settings to save your changes.

Popular Applications:

ID:

Trigger:

Incoming Ports:

Enable:

Select from a list of popular applications. You can select a service, select a rule ID, then click the Copy to button to copy the default settings for that service to the specied rule ID.

Species which rule to copy the selected Popular application settings to when you click the Copy to button.

APPLICATION RULES

This identies the rule.

Enter the port to listen to in order to trigger the rule.

Specify the incoming port(s) to open when trac comes over the Trigger port.

Check the box to enable the specied rule.

38D-Link DWR-921 User Manual

Section 3 - Conguration

QoS Engine

The QoS Engine improves your online gaming or streaming media experience by ensuring that your game or media trac is prioritized over other network trac, such as FTP or web. For best performance, use the Automatic Classication option to automatically set the priority for your applications. After modifying any settings, click Save Settings to save your changes.

QOS ENGINE SETUP

Enable QOS Packet Filter:

Upstream Bandwidth:

Use Schedule Rule:

ID:

Local IP : Ports:

Remote IP : Ports:

QoS Priority:

Select this box to enable the QoS feature.

Specify the maximum upstream bandwidth here (e.g. 400 Kbps).

QOS RULES

This identies the rule.

Specify the local IP address(es) and port(s) for the rule to aect.

Specify the remote IP address(es) and port(s) for the rule to aect.

Select what priority level to use for trac aected by the rule:

Low, Normal, or High.

Enable:

Use Rule #:

Check the box to enable the specied rule.

Specify the schedule rule number. To create a new schedule, click on the Add New Rule button. For more information about schedules, please refer to “Schedules” on page 58.

39D-Link DWR-921 User Manual

Section 3 - Conguration

MAC Address Filter

The MAC (Media Access Controller) Address Filter option is used to control network access based on the MAC address of the network adapter. A MAC address is a unique ID assigned by the manufacturer of the network adapter. This feature can be congured to ALLOW or DENY network/ Internet access. After modifying any settings, click Save Settings to save your changes.

MAC FILTERING SETTINGS

MAC Address Control:

Connection Control:

Association Control:

ID:

MAC Address:

IP Address:

Tick this box to enable MAC Filtering.

Check the box to allow wireless and wired clients with C selected to connect to this device. You can also select to allow or deny connections from unspecied MAC addresses.

Check the box to allow wireless clients with A selected can associate to the wireless LAN. You can also select to allow or

deny connections from unspecied MAC addresses.

MAC FILTERING RULES

This identies the rule.

Specify the MAC address of the computer to be ltered.

Specify the last section of the IP address.

If this box is ticked, the rule will follow the connection control setting specied in MAC ltering settings specied above.

If this box is ticked, the rule will follow the association control

setting specied in MAC ltering settings specied above.

40D-Link DWR-921 User Manual

Section 3 - Conguration

URL Filter

URL Filter allows you to set up a list of websites that will be blocked from users on your network. After modifying any settings, click Save Settings

to save your changes.

URL Filtering:

ID:

URL:

Enable:

Check the box to enable URL Filtering.

URL FILTERING RULES

This identies the rule.

Enter URL that you would like to block. All URLs that begin with this URL will be blocked.

Check the box to enable the specied rule.

41D-Link DWR-921 User Manual

Section 3 - Conguration

Outbound Filter

Outbound Filter enables you to control what packets are allowed to be sent out to the Internet. The outbound lter applies to all outbound packets. After modifying any settings, click Save Settings to save your changes.

OUTBOUND FILTER SETTING

Outbound Filter:

Use Schedule Rule:

ID:

Source IP : Ports:

Destination IP : Ports:

Enable:

Select this box to Enable outbound ltering.

OUTBOUND FILTER RULES LIST

Here, you can select whether to Allow or Deny all outgoing trac except for trac that matches the listed rules.

This identies the rule.

Specify the local IP address and then specify the port after the colon.

Specify the remote IP address and then the port after the colon.

Check the box to enable the specied rule.

Schedule Rule #:

Specify the schedule rule number. Click on the Add New Rule button to create a new schedule rule.

Go back to the previous lter page.

Advance to the next lter page.

42D-Link DWR-921 User Manual

Section 3 - Conguration

Inbound Filter

Inbound Filter enables you to control what packets are allowed to come in to your network from the Internet. The inbound lter only applies to packets that are destined for Virtual Servers or DMZ hosts. After modifying any settings, click Save Settings to save your changes.

INBOUND FILTER SETTING

Inbound Filter:

Use Schedule Rule:

ID:

Source IP : Ports:

Destination IP : Ports:

Enable:

Select this box to Enable the lter.

INBOUND FILTER RULES LIST

Here, you can select whether to Allow or Deny all incoming trac except for trac that matches the listed rules.

This identies the rule.

Specify the local IP address and then specify the port after the colon.

Specify the remote IP address and then the port after the colon.

Check the box to enable the specied rule.

Schedule Rule #:

Specify the schedule rule number. Click on the Add New Rule button to create a new schedule rule.

Go back to the previous lter page.

Advance to the next lter page.

43D-Link DWR-921 User Manual

Section 3 - Conguration

SNMP

SNMP (Simple Network Management Protocol) is a widely used network monitoring and control protocol that reports activity on each network

device to the administrator of the network. SNMP can be used to monitor trac and statistics of the DWR-921. The DWR-921 supports SNMP v1 and v2c. After modifying any settings, click Save Settings to save your changes.

SNMP

SNMP Local:

SNMP Remote:

Get Community:

Set Community:

IP 1/IP 2/IP 3/IP 4:

SNMP Version:

WAN Access IP Address

Select whether to Enable or Disable local SNMP administration.

Select whether to Enable or Disable remote SNMP administration.

Enter the password public in this eld to allow read-only access to network administration using SNMP. You can view the network, but no conguration is possible with this setting.

Enter the password private in this eld to enable read/write access to the network using SNMP.

Enter up to 4 IP addresses to use as trap targets for your network.

Select the SNMP version of your system.

If you want to limit remote access SNMP access, enter the IP address of the remote computer you will use to access this device; all other IP addresses will be denied remote SNMP access.

44D-Link DWR-921 User Manual

Section 3 - Conguration

Routing

The Routing page allows you to specify custom routes that determine how data is moved around your network. After modifying any settings, click Save Settings to save your changes.

RIP SETTING

RIP:

Check the box to enable routing, then select which routing protocol to use:

• RIPv1: Protocol in which the IP address is routed

through the internet.

• RIPv2: Enhanced version of RIPv1 with added

features such as authentication, routing domain, next hop forwarding, and subnet-mask exchange.

ROUTING RULES

This identies the rule.

ID:

Destination:

Subnet Mask:

Gateway:

Hop:

Enable:

Enter in the IP of the specied network that you want to access using the static route.

Enter in the subnet mask to be used for the specied network.

Enter in the gateway IP address for the specied network.

Enter in the amount of hops it will take to reach the specied network.

Note: In a transmission path, each link is terminated at a network device such as a router or gateway. The number of hops equals the number of routers or gateways that data must pass through before reaching the destination.

Select this box to enable the rule.

45D-Link DWR-921 User Manual

Section 3 - Conguration

Advanced Wireless

Advanced Wireless contains settings which can negatively aect the performance of your router if congured improperly. Do not change these

settings unless you are already familiar with them or have been instructed to make the change by one of our support personnel. After modifying any settings, click Save Settings to save your changes.

Beacon Interval:

Transmit Power:

RTS Threshold:

Fragmentation:

DTIM Interval:

WMM Capable:

TX Rates:

Specify a value for the beacon interval. Beacons are packets sent by an access point to synchronize a wireless network. 100 is the default setting and is recommended.

Set the transmit power of the antennas.

This value should remain at its default setting of 2347. If inconsistent data ow is a problem, only a minor modication should be made.

The fragmentation threshold, which is specied in bytes, determines whether packets will be fragmented. Packets exceeding the 2346 byte setting will be fragmented before transmission. 2346 is the default setting.

Set the interval for DTIM. A Delivery Trac Indication Message (DTIM) is a countdown informing clients of the next window for listening to broadcast and multicast messages. The default interval is 3.

WMM (Wi-Fi Multimedia) is a QoS (Quality of Service) system for your wireless network. Enable this option to improve the quality of video and voice applications for your wireless clients.

Select the basic transfer rates based on the speed of wireless adapters on your wireless network. It is strongly recommended to keep this setting to Auto.

46D-Link DWR-921 User Manual

Section 3 - Conguration

Short GI:

HT 20/40 Coexistence:

Check this box to reduce the guard interval to 400 ns. This can increase the throughput rate provided that the delay spread of the connection is also low. However, it can also increase error rate in some installations, due to increased sensitivity to radio-frequency reections. Select the option that works best for your installation.

Enable this option to reduce interference from other wireless networks in your area. If the channel width is operating at 40 MHz and there is another wireless network’s channel over-lapping and causing interference, the router will automatically change to 20 MHz.

47D-Link DWR-921 User Manual

Section 3 - Conguration

Advanced Network

Advanced Network contains settings which can change the way the router handles certain types of trac. We recommend that you do not change

any of these settings unless you are already familiar with them or have been instructed to make the change by one of our support personnel. After modifying any settings, click Save Settings to save your changes.

Enable UPnP:

Enable WAN Ping

Respond:

Check the box to enable the Universal Plug and Play (UPnP™) feature. UPNP provides compatibility with various networking equipment, software, and peripherals.

Select the box to allow the WAN port to be “pinged.” Blocking WAN pings may provide some extra security from hackers.

48D-Link DWR-921 User Manual

Section 3 - Conguration

Network Scan

This page lets you set whether to allow the DWR-921 to automatically select a 3G/4G network based on the inserted SIM card, and allows you to manually scan for networks and select one to connect to.

3G/4G Network Selection

Method:

Leave this setting on Auto to allow the DWR-921 to automatically select a cellular network to connect to. If you need to select a network manually, select Manual, click the Scan button, then select an available network to connect to.

Note: You will only be able to scan for networks if the DWR-921 is not currently connected to a 3G/4G network.

49D-Link DWR-921 User Manual

Section 3 - Conguration

Tools

The TOOLS pages allow you to adjust various system settings for your router, such as the system time, rmware, and custom schedules. To view the Tools pages, click on TOOLS at the top of the screen.

Admin

The Admin page allows you to change the Administrator password and enable Remote Management. The admin has read/write access while users only have read-only access. Only the admin has the ability to change both admin and user account passwords. After modifying any settings, click

Save Settings to save your changes.

ADMINISTRATOR

Admin Password:

Remote Management:

IP Allowed to Access:

Port:

Enter and conrm the password that the admin account will use to access the router’s management interface.

REMOTE MANAGEMENT

Tick this check box to enable remote management. Remote management allows the DWR-921 to be congured over the Internet through a web browser. A username and password will still be required to access the web-management interface.

Enter the Internet IP address of the PC that has access to the broadband router. If you enter an asterisk (*) in this eld, then anyone will be able to access the router. Adding an asterisk (*) into this eld could present a security risk and is not recommended.

This is the port number used to access the router. 8080 is the port usually used for the web-management interface.

50D-Link DWR-921 User Manual

Section 3 - Conguration

Time

This section will help you set the time zone that you are in and an NTP (Network Time Protocol) server to use. Daylight Saving can also be congured to adjust the time when needed. After modifying any settings, click Save Settings to save your changes.

TIME AND DATE CONFIGURATION

Time Zone:

Enable Daylight Saving:

NTP Server Used:

Select the appropriate Time Zone from the drop-down box.

Check the box to allow for daylight saving adjustments. Use the drop-down boxes to specify a start date and end date for daylight saving time adjustments.

AUTOMATIC TIME AND DATE CONFIGURATION

Check the Automatically synchronize with Internet time server box to allow the router to use an NTP server to update

the router’s internal clock.

Enter an NTP server to use for time synchronization, or use the drop-down box to select one. Click the Update Now button to synchronize the time with the NTP server.

51D-Link DWR-921 User Manual

Section 3 - Conguration

Syslog

The DWR-921 keeps a running log of events and activities occurring on the router. You may send these logs to a Syslog server on your network. After modifying any settings, click Save Settings to save your changes.

Enable Logging to Syslog

Server:

Syslog Server IP Address:

Check the box to send the router logs to a Syslog server.

Enter the IP address of the Syslog server that the router will send the logs to.

52D-Link DWR-921 User Manual

Section 3 - Conguration

Email Settings

Email Settings allow you to send the system log les, router alert messages, and rmware update notications to an email address. After modifying any settings, click Save Settings to save your changes.

Enable Email Notication:

SMTP Sever IP and Port:

SMTP Username:

SMTP Password:

Send Email Alert to:

Email Subject:

Email Log Now:

When this option is enabled, router activity logs will be emailed to the specied email address.

Enter the SMTP server IP address the router will use to send emails. Enter the complete IP address followed by a colon(:) and the port number. (e.g. 123.123.123.1:25).

Enter the username for the SMTP account.

Enter the password for the SMTP account.

Enter the email address where you would like the router to send emails to.

Enter a subject for the email.

Click this button to send the current logs to the specied email address.

53D-Link DWR-921 User Manual

Section 3 - Conguration

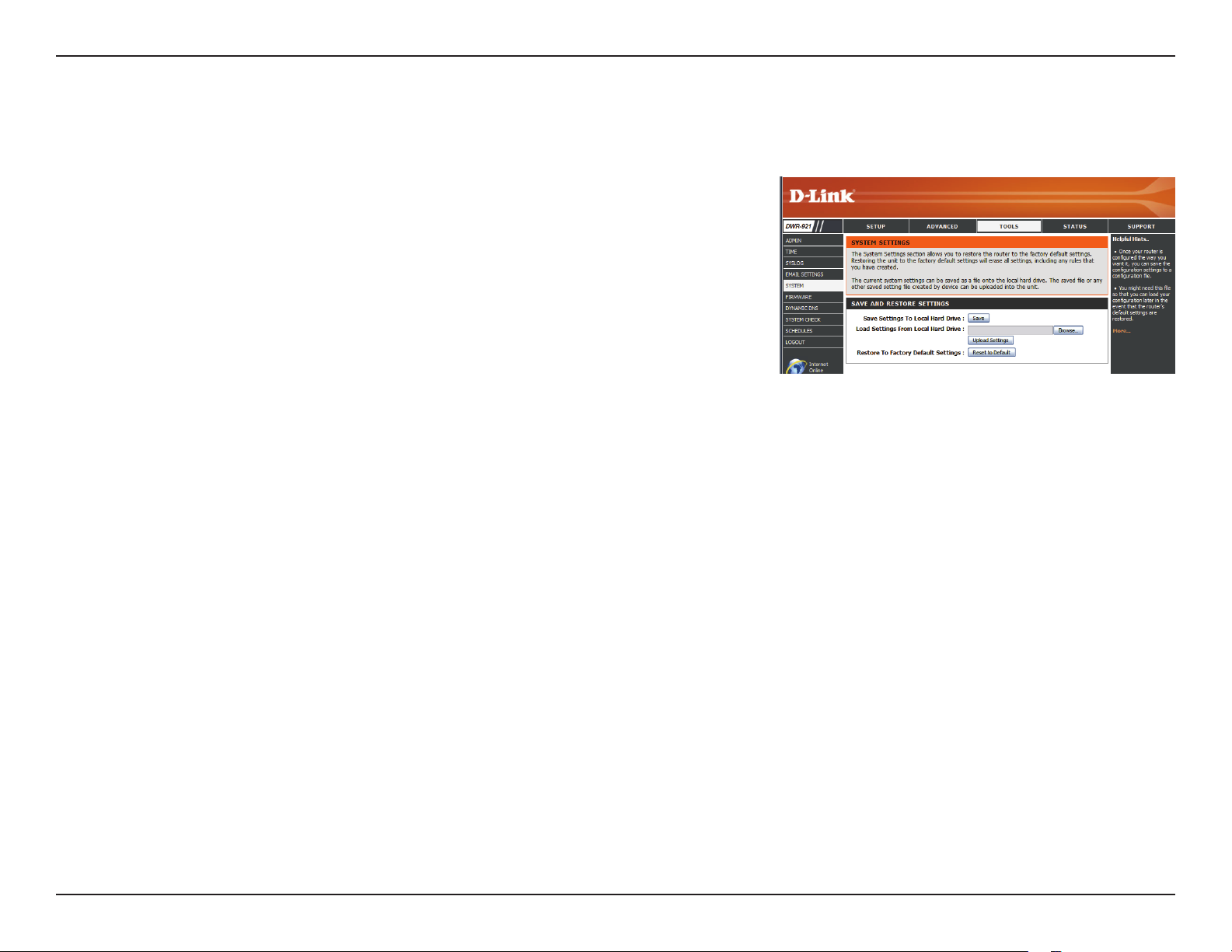

System

Here, you can save the current system settings to a local hard drive. After modifying any settings, click Save Settings to save your changes.

Save Settings To Local

Hard Drive

Load Settings From Local

Hard Drive:

Restore To Factory

Default Settings:

Use this option to save your current router conguration settings to a le. Click Save to open a le dialog, and then select a location and le name for the settings.

Use this option to load previously saved router conguration settings. Click Browse... and select the saved le and then click the Upload Settings button to upload the settings to the router.

This option will restore all settings back to their defaults. Any settings that have not been backed up will be lost, including any rules that you have created.

54D-Link DWR-921 User Manual

Section 3 - Conguration

Firmware

Here, you can upgrade the firmware of your router. Make sure the firmware you want to use is on the local hard drive of the computer and then click Browse to upload the file. You can check for and download firmware updates at the D-Link support site at

http://support.dlink.com. After modifying any settings, click Save Settings to save your changes.

Current Firmware Version:

Current Firmware Date:

Upload:

Accept Unocial

Firmware:

Displays your current rmware’s version.

Displays your current rmware’s release date.

After you have downloaded a new rmware, click Browse to locate the rmware on your computer, then click Upload to start the rmware upgrade.

Warning: You must use a wired connection to upload the

firmware file; do not use a wireless connection. During the upgrade process, do not power o your computer or router, and do not refresh the browser window until the upgrade is complete.

If the rmware you want to install is not an ocial D-Link release, you will need to check this box.

Warning: Unocial rmware is not supported, and may cause

damage to your device. Use of unocial rmware is at your own risk.

55D-Link DWR-921 User Manual

Section 3 - Conguration

Dynamic DNS

The DDNS feature allows you to host a server (Web, FTP, or Game Server) using a domain name that you have purchased (such as www.exampledomain.com) with your dynamically assigned IP address. You can use one of the listed DDNS service, or you can sign up for D-Link’s free DDNS service at www.dlinkddns.com. After modifying any settings, click Save Settings to save your changes.

DDNS:

Provider:

Host Name:

Username / E-mail:

Password / Key:

Tick this checkbox to enable the DDNS feature.

Select a DDNS service provider to use.

Enter the Host Name that you registered with your DDNS service provider.

Enter the Username for your DDNS account.

Enter the Password for your DDNS account.

56D-Link DWR-921 User Manual

Section 3 - Conguration

System Check

This useful diagnostic utility can be used to check if a computer is connected to the network. It sends ping packets and listens for responses from the specic host. After modifying any settings, click Save Settings to save your changes.

Host Name or IP Address:

Enter a host name or the IP address that you want to ping and click the Ping button. The results of the ping attempt will be displayed in the PING RESULT section below.

57D-Link DWR-921 User Manual

Section 3 - Conguration

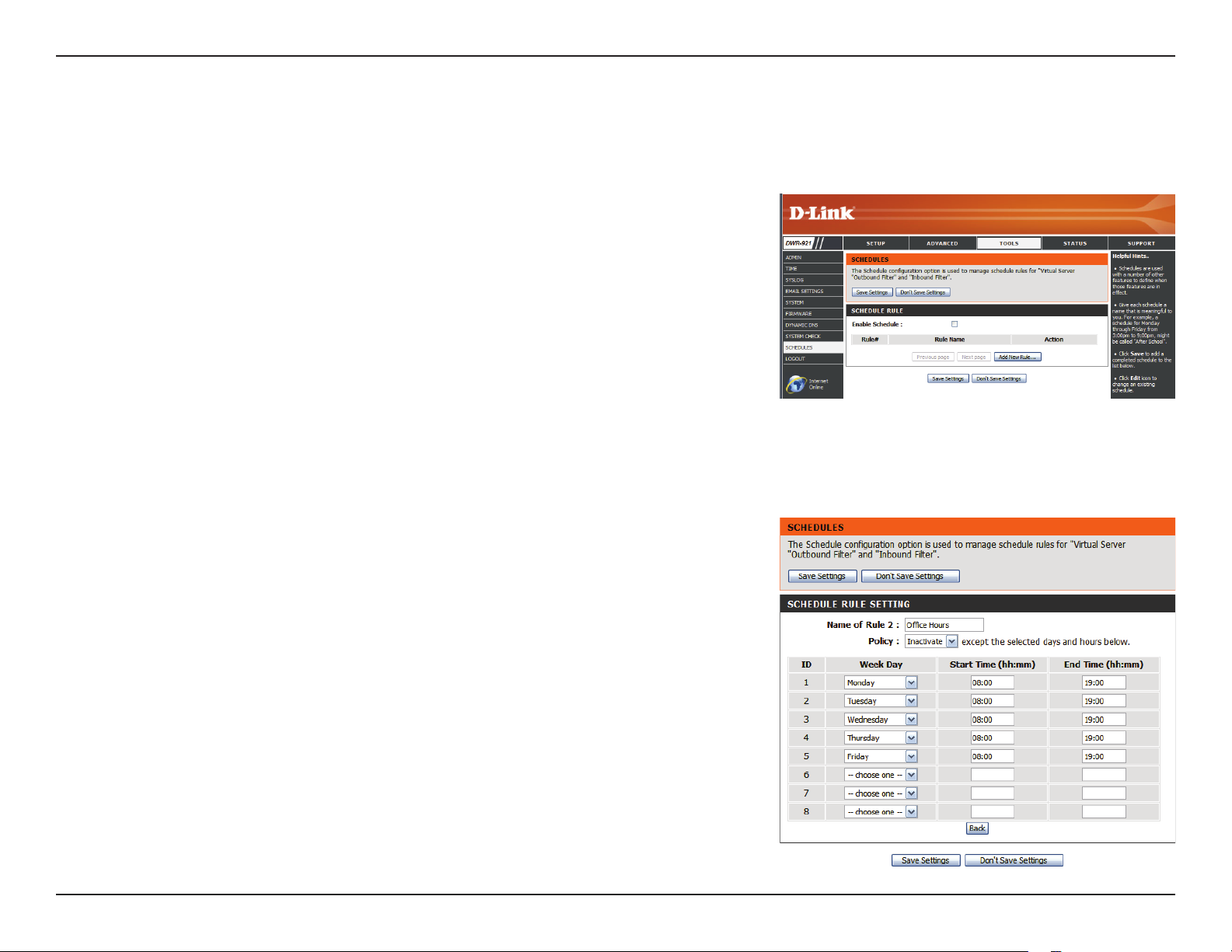

Schedules

This section allows you to manage schedule rules for various rewall and parental control features. After modifying any settings, click Save Settings to save your changes.

Enable Schedule:

Edit:

Delete:

Add New Rule..:

Name of Rule #:

Policy:

Check this box to enable schedules.

Click this icon to edit the selected rule. (see below)

Click this icon to delete the selected rule.

Click this button to go to the previous page of rules.

Click this button to go to the next page of rules. Click this button to specify the start time, end time, and name of the rule.

Click this button to create a new rule. (see below)

Enter a name for your new schedule.

Select Activate or Inactivate to decide whether features that use the schedule should be active or inactive except during the times specied.

Week Day:

Start Time (hh:mm):

End Time (hh:mm):

Select a day of the week for the start time and end time.

Enter the time at which you would like the schedule to become active.

Select the time at which you would like the schedule to become inactive.

After making your changes, click Save Settings to save the schedule.

58D-Link DWR-921 User Manual

Section 3 - Conguration

Status

The STATUS pages allow you to see the current status of the router for various categories, including WAN, 3G, network, and wireless. To view the Status pages, click on STATUS at the top of the screen.

Device Info

All of your Internet and network connection details are displayed on this page. The rmware version is also displayed here.

General:

WAN:

3G Card:

LAN:

Wireless LAN:

LAN Computers:

Displays the current time and rmware version.

Displays the WAN connection details of the router.

Displays the 3G connection details of the router.

Displays the LAN connection details of the router.

Displays the wireless LAN connection details of the router

Displays the list of clients connected to the router.

59D-Link DWR-921 User Manual

Section 3 - Conguration

Here, you can view and download the system log.

Log

First Page:

Last Page:

Refresh:

Download:

Clear Logs:

Link To Log Settings:

Click this button to go to the previous page of the log.

Click this button to go to the next page of the log.

Click this button to skip to the rst page of the log.

Click this button to skip to the last page of the log.

Click this button to refresh the system log.

Click this button to download the current system log to your computer.

Click this button to clear the system log.

Click this button for a link that goes to the Log Settings page.

60D-Link DWR-921 User Manual

Section 3 - Conguration

Statistics

Here you can view the packets transmitted and received by your router for both the WAN and LAN ports. The trac counter will reset if the device is rebooted. Click the Refresh button to refresh the WAN statistics.

61D-Link DWR-921 User Manual

Section 3 - Conguration

Wireless

This table displays a list of wireless clients that are connected to your wireless router. Click Refresh to refresh the list.

62D-Link DWR-921 User Manual

Section 3 - Conguration

Support

The SUPPORT pages provide help information for each section of the device’s interface. To view the Support pages, click on SUPPORT at the top of the screen.

63D-Link DWR-921 User Manual

Section 4 - Connecting to a Wireless Network

Connecting to a Wireless Network

Using Windows 7

Windows 7 users may use the built-in wireless utility to connect to a wireless network. If you are using another company’s utility or Windows 2000, please refer to the user manual of your wireless adapter for help with connecting to a wireless network. Most utilities will have a “site survey” option similar to the Windows 7 utility as seen below.

If you receive the Wireless Networks Detected bubble, click on the center of the bubble to access the utility. You can also click on the wireless icon in your system tray (lower-right corner).

The utility will display any available wireless networks in your area.

Wireless

64D-Link DWR-921 User Manual

Section 4 - Connecting to a Wireless Network

Highlight the wireless network (SSID) you would like to connect to and click the Connect button.

If you get a good signal but cannot access the Internet, check your TCP/IP settings for your wireless adapter. Refer to “Networking Basics” on page 80 for more information.

65D-Link DWR-921 User Manual

Section 4 - Connecting to a Wireless Network

Conguring Wireless Security

It is recommended to enable wireless security (WPA/WPA2) on your wireless router or access point before conguring your wireless adapter. If you are joining an existing network, you will need to know the security key or passphrase being used.

1. Click on the wireless icon in your system tray (lower-right corner).

2. The utility will display any available wireless networks in your area.

Wireless

66D-Link DWR-921 User Manual

Section 4 - Connecting to a Wireless Network

3. Highlight the wireless network (SSID) you would like to connect to and

click the Connect button.

4. The following window appears while your computer tries to connect to the router.

67D-Link DWR-921 User Manual

Section 4 - Connecting to a Wireless Network

5. Enter the same security key or passphrase that is on your router and click

Connect.

It may take 20-30 seconds to connect to the wireless network. If the connection fails, please verify that the security settings are correct. The key or passphrase must be exactly the same as on the wireless router.

68D-Link DWR-921 User Manual

Section 4 - Connecting to a Wireless Network

Using Windows Vista™

Windows manual of your wireless adapter for help with connecting to a wireless network. Most utilities will have a “site survey” option similar to the Windows Vista™ utility as seen below.

If you receive the Wireless Networks Detected bubble, click on the center of the bubble to access the utility.

Right-click on the wireless computer icon in your system tray (lower-right corner next to the time). Select Connect to a network.

The utility will display any available wireless networks in your area. Click on a network (displayed using the SSID) and click the Connect button.

Vista™ users may use the built-in wireless utility. If you are using another company’s utility or Windows® 2000, please refer to the user

If you get a good signal but cannot access the Internet, check the TCP/IP settings for your wireless adapter. Refer to “Networking Basics” on page 80 for more information.

69D-Link DWR-921 User Manual

Section 4 - Connecting to a Wireless Network

Conguring Wireless Security

It is recommended to enable wireless security (WEP/WPA/WPA2) on your wireless router or access point before conguring your wireless adapter. If you are joining an existing network, you will need to know the security key or passphrase being used.

1. Open the Windows® Vista™ Wireless Utility by right-clicking on the wireless

computer icon in your system tray (lower right corner of screen). Select

Connect to a network.

2. Highlight the wireless network (SSID) you would like to connect to and click Connect.

70D-Link DWR-921 User Manual

Section 4 - Connecting to a Wireless Network

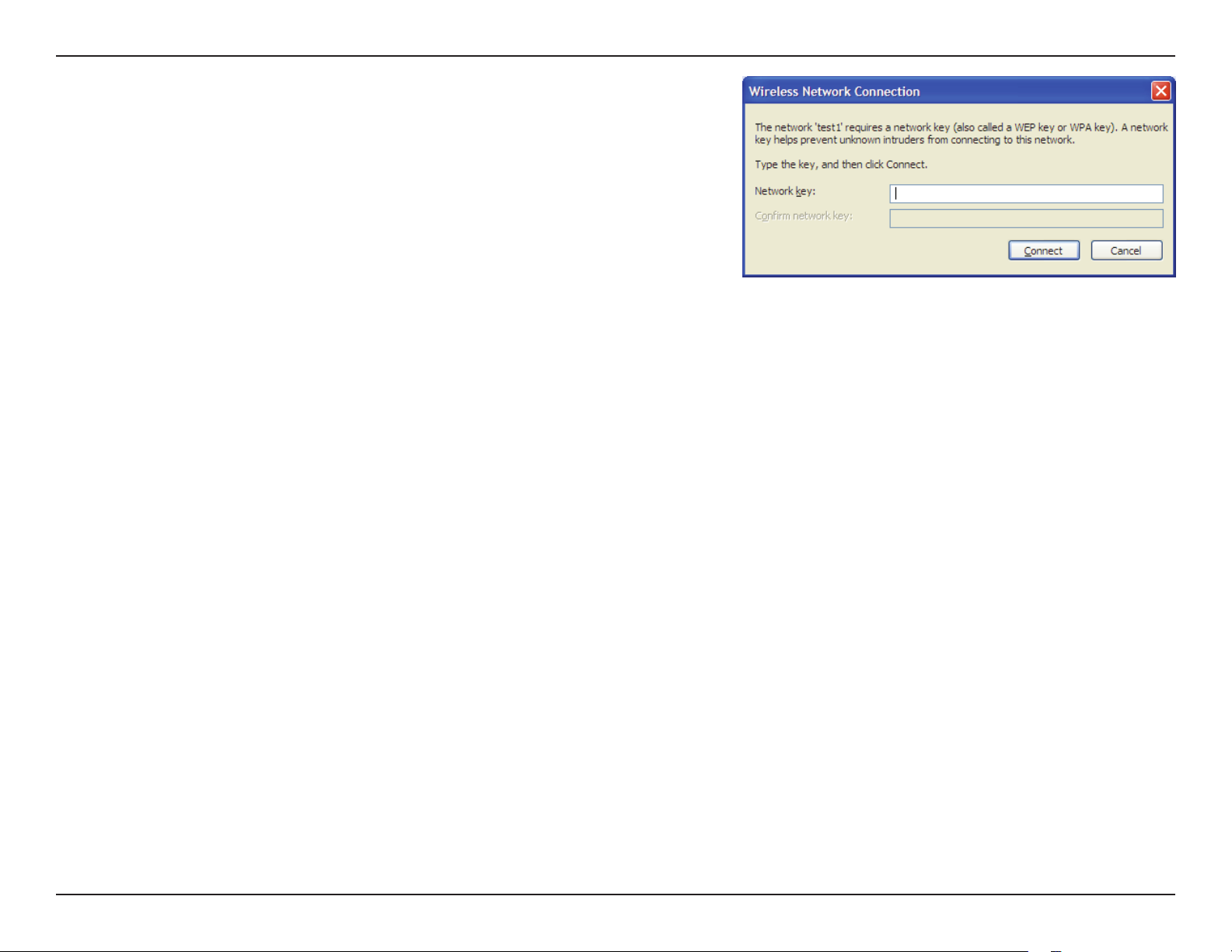

3. Enter the same security key or passphrase that is on your router and click Connect.

71D-Link DWR-921 User Manual

Section 4 - Connecting to a Wireless Network

Connect to a Wireless Network

Using Windows® XP

Windows® XP users may use the built-in wireless utility (Zero Conguration Utility). The following instructions are for Service Pack 2 users. If you are using another company’s utility or Windows® 2000, please refer to the user manual of your wireless adapter for help with connecting to a wireless network. Most utilities will have a “site survey” option similar to the Windows® XP utility as seen below.

If you receive the Wireless Networks Detected bubble, click on the center of the bubble to access the utility.

Right-click on the wireless computer icon in your system tray (lower-right corner next to the time). Select View Available Wireless Networks.

The utility will display any available wireless networks in your area. Click on a network (displayed using the SSID) and click the Connect button.

If you get a good signal but cannot access the Internet, check the TCP/IP settings for your wireless adapter. Refer to “Networking Basics” on page 80 for more information.

72D-Link DWR-921 User Manual

Section 4 - Connecting to a Wireless Network

Congure WEP

It is recommended to enable WEP on your wireless router or access point before conguring your wireless adapter. If you are joining an existing network, you will need to know the WEP key being used.

1. Open the Windows® XP Wireless Utility by right-clicking on

the wireless computer icon in your system tray (lower-right corner of screen). Select View Available Wireless Networks.

2. Highlight the wireless network (SSID) you would

like to connect to and click Connect.

73D-Link DWR-921 User Manual

Section 4 - Connecting to a Wireless Network

3. The Wireless Network Connection box will appear. Enter the same WEP key that is

on your router and click Connect.

It may take 20-30 seconds to connect to the wireless network. If the connection fails, please verify that the WEP settings are correct. The WEP key must be exactly the same as on the wireless router.

74D-Link DWR-921 User Manual

Section 4 - Connecting to a Wireless Network

Congure WPA-PSK

It is recommended to enable WPA on your wireless router or access point before conguring your wireless adapter. If you are joining an existing network, you will need to know the WPA key being used.

1. Open the Windows® XP Wireless Utility by right-clicking on the wireless computer icon in your system tray (lower-right corner of screen). Select View Available Wireless Networks.

2. Highlight the wireless network (SSID) you would like to connect to and click Connect.

75D-Link DWR-921 User Manual

Section 4 - Connecting to a Wireless Network

3. The Wireless Network Connection box will appear. Enter the WPA-PSK passphrase and click Connect.

It may take 20-30 seconds to connect to the wireless network. If the connection fails, please verify that the WPA-PSK settings are correct. The WPA-PSK passphrase must be exactly the same as on the wireless router.

76D-Link DWR-921 User Manual

Section 5 - Troubleshooting

Troubleshooting

This chapter provides solutions to problems that can occur during the installation and operation of the DWR-921. Read the following descriptions if you are having problems.

1. Why can’t I access the web-based conguration utility?

When entering the IP address of the D-Link router (192.168.0.1 for example), you are not connecting to a website on the Internet or have to be connected to the Internet. The device has the utility built-in to a ROM chip in the device itself. Your computer must be on the same IP subnet to connect to the web-based utility.

• Make sure you have an updated Java-enabled web browser. We recommend the following:

• Internet Explorer 6 or higher

• Mozilla 1.7.12 (5.0) or higher

• Opera 8.5 or higher

• Safari 1.2 or higher (with Java 1.3.1 or higher)

• Camino 0.8.4 or higher

• Firefox 1.5 or higher

• Verify physical connectivity by checking for solid link lights on the device. If you do not get a solid link light, try using a dierent cable or connect

to a dierent port on the device if possible. If the computer is turned o, the link light may not be on.

• Disable any Internet security software running on the computer. Software rewalls such as Zone Alarm, Black Ice, Sygate, Norton Personal Firewall,

and Windows on disabling or conguring it.

XP rewall may block access to the conguration pages. Check the help les included with your rewall software for more information

77D-Link DWR-921 User Manual

Section 5 - Troubleshooting

• Congure your Internet settings:

• Go to Start > Settings > Control Panel. Double-click the Internet Options Icon. From the Security tab, click the Reset All Zones to Default Level button to restore the settings to their defaults.

• Click the Connection tab and set the dial-up option to Never Dial a Connection. Click the LAN Settings button. Make sure nothing is checked. Click OK.

• Go to the Advanced tab and click the button to restore these settings to their defaults. Click OK three times.

• Close your web browser (if open) and open it.

• Access the web management. Open your web browser and enter the IP address of your D-Link router in the address bar. This should open the login page for your the web management.

• If you still cannot access the conguration, unplug the power to the router for 10 seconds and plug back in. Wait about 30 seconds and try accessing the conguration. If you have multiple computers, try connecting using a dierent computer.

2. What can I do if I forgot my password?

If you forgot your password, you must reset your router. Please note that this process will change all your settings back to the factory defaults.

To reset the router, locate the reset button (hole) on the rear panel of the unit. With the router powered on, use a paperclip to hold the button down for 10 seconds. Release the button and the router will go through its reboot process. Wait about 30 seconds to access the router. The default IP address is 192.168.0.1, and the default username is admin and the password should be left blank.

78D-Link DWR-921 User Manual

Appendix A - Wireless Basics

Tips

Here are a few things to keep in mind when installing a wireless network.

Centralize your Router or Access Point

Make sure you place the router/access point in a centralized location within your network for the best performance. Try to place the router/access point as high as possible in the room, so the signal gets dispersed throughout your home. If you have a two-story home, you may need a repeater to boost the signal and extend the range.

Eliminate Interference

Place home appliances such as cordless telephones, microwaves, and televisions as far away as possible from the router/access point. This would signicantly reduce any interference that the appliances might cause since they operate on same frequency.

Security

Don’t let you unauthorized users connect to your wireless network. Secure your wireless network by turning on the WPA or WEP security feature on the router. Refer to “Wireless Settings” on page 22 for detailed information on how to set up wireless security.

79D-Link DWR-921 User Manual

Appendix B - Networking Basics

Networking Basics

Check your IP address

After you install your new D-Link adapter, by default, the TCP/IP settings should be set to obtain an IP address from a DHCP server (i.e. wireless router) automatically. To verify your IP address, please follow the steps below.

Click on Start > Run. In the run box type cmd and click OK. (Windows

At the prompt, type ipcong and press Enter.

Vista™ users type cmd in the Start Search box.)

This will display the IP address, subnet mask, and the default gateway of your adapter.

If the address is 0.0.0.0, check your adapter installation, security settings, and the settings on your router. Some rewall software programs may block a DHCP request on newly installed adapters.

80D-Link DWR-921 User Manual

Appendix B - Networking Basics

Statically Assign an IP address

If you are not using a DHCP capable gateway/router, or you need to assign a static IP address, please follow the steps below:

Step 1

Windows

Vista™ - Click on Start > Control Panel > Network and Internet > Network and Sharing Center > Manage Network Connections.

XP - Click on Start > Control Panel > Network Connections.

2000 - From the desktop, right-click My Network Places > Properties.

Step 2

Right-click on the Local Area Connection which represents your network adapter and select Properties.

Step 3

Highlight Internet Protocol (TCP/IP) and click Properties.

Step 4

Click Use the following IP address and enter an IP address that is on the same subnet as your network or the LAN IP address on your router.

Example: If the router´s LAN IP address is 192.168.0.1, make your IP address 192.168.0.X where X is a number between 2 and 99. Make sure that the number you choose is not in use on the network. Set Default Gateway the same as the LAN IP address of your router (192.168.0.1).

Set Primary DNS the same as the LAN IP address of your router (192.168.0.1). The Secondary DNS is not needed or you may enter a DNS server from your ISP.

Step 5

Click OK twice to save your settings.

81D-Link DWR-921 User Manual

Appendix C - Technical Specications

LTE Band

 800 / 900 / 1800 / 2600 MHz

UMTS/HSDPA/HSUPA Band

 900 / 2100 MHz  Power Class 3

Technical Specications

VPN

 L2TP/PPTP/IPSEC/VPN Pass-through

Antenna

 Two detachable 3G/4G antennas

Data Rates

 Up to 150 Mbps with 802.11n clients  6/9/11/12/18/24/36/48/54 Mbps in 802.11g mode  1/2/5.5/11 Mbps in 802.11b mode  LTE Uplink: Up to 50 Mbps  LTE Downlink: Up to 100 Mbps

Standards

 802.11b/g, compatible with 802.11n devices  802.3  802.3u

Wireless Security

 64/128-bit WEP (Wired Equivalent Privacy)  WPA & WPA2 (Wi-Fi Protected Access)

Firewall

 Network Address Translation (NAT)  Stateful Packet Inspection (SPI)

Ports

 Four LAN ports (RJ-45)  WAN port (RJ-45)

USIM Slot

 Standard 6-pin SIM card interface

LED Status Indicators

 WAN  LAN  WLAN  3G  4G  SMS  Status  Signal Strength

Dimensions (L x W x H)

 190 x 111.5 x 23.5 mm (7.48 x 4.39 x 0.93 inches)

82D-Link DWR-921 User Manual

Appendix C - Technical Specications

Operating Temperature

 0 to 40 ˚C (32 to 104 ˚F)

Operating Humidity

 10% to 90% (Non-condensing)

Supported frequency band is dependent upon regional hardware version.

Maximum wireless signal rate derived from IEEE Standard 802.11g specications. Actual data throughput will vary. Network conditions and environmental

factors, including volume of network trac, building materials and construction, and network overhead, lower actual data throughput rate. Environmental factors will adversely aect wireless signal range.

Certications

 CE  Wi-Fi Certied

83D-Link DWR-921 User Manual

D-Link DWR-921 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Preface

Trademarks

FCC Regulations

Product Overview

Package Contents

System Requirements

Introduction

Hardware Overview

Rear Panel

Front Panel

LEDs

Installation

Connect to Your Network

Wireless Installation Considerations

Setup

Internet

Internet Connection Setup Wizard

Manual Internet Connection Setup

Internet Connection

Static IP

Dynamic IP (DHCP)

PPPoE

PPTP

L2TP

3G/4G

Wireless Settings

Wireless Connection Setup Wizard

Manual Wireless Connection Setup

Wireless Settings

Wireless Security Mode

Wi-Fi Protected Setup (WPS)

Network Settings

Router Settings

DHCP Server Settings

Message Service

SMS Inbox

Create Message

Advanced

Virtual Server

Application Rules

QoS Engine

MAC Address Filter

URL Filter

Outbound Filter

Inbound Filter

SNMP

Routing

Advanced Wireless

Advanced Network

Network Scan

Tools

Admin

Time

Syslog

Email Settings

System

Firmware

Dynamic DNS

System Check

Schedules

Status

Device Info

Statistics

Wireless

Support

Connecting to a Wireless Network

Using Windows 7

Using Windows Vista™

Using Windows® XP

Troubleshooting

Tips

Networking Basics

Check your IP address

Statically Assign an IP address
