Preface
D-Link reserves the right to revise this publication and to make changes in the content hereof without obligation to notify
any person or organization of such revisions or changes.
Trademarks
D-Link and the D-Link logo are trademarks or registered trademarks of D-Link Corporation or its subsidiaries in the United
States or other countries. All other company or product names mentioned herein are trademarks or registered trademarks
of their respective companies.
Copyright © 2012 by D-Link Systems, Inc.
All rights reserved. This publication may not be reproduced, in whole or in part, without prior expressed written permission
from D-Link Systems, Inc.
iD-Link DWR-730 User Manual
Table of Contents
Table of Contents
Preface ................................................................................. i
Trademarks ...................................................................................... i
Product Overview .............................................................. 1
Package Contents ......................................................................... 1
System Requirements ................................................................. 1
Introduction ...................................................................................2
Hardware Overview ..................................................................... 3
Front .......................................................................................... 3
Back............................................................................................ 4
Wireless Installation Considerations ......................................5
Product Setup ................................................................................ 6
WiFi/WPS Conguration ............................................................. 7
Web-Based Conguration Utility ..................................... 8
Internet Connection Setup Wizard ......................................... 9
Internet Setup ..............................................................................12
Factory Reset ................................................................................25
Firmware Upgrade .....................................................................26
Device Information ....................................................................27

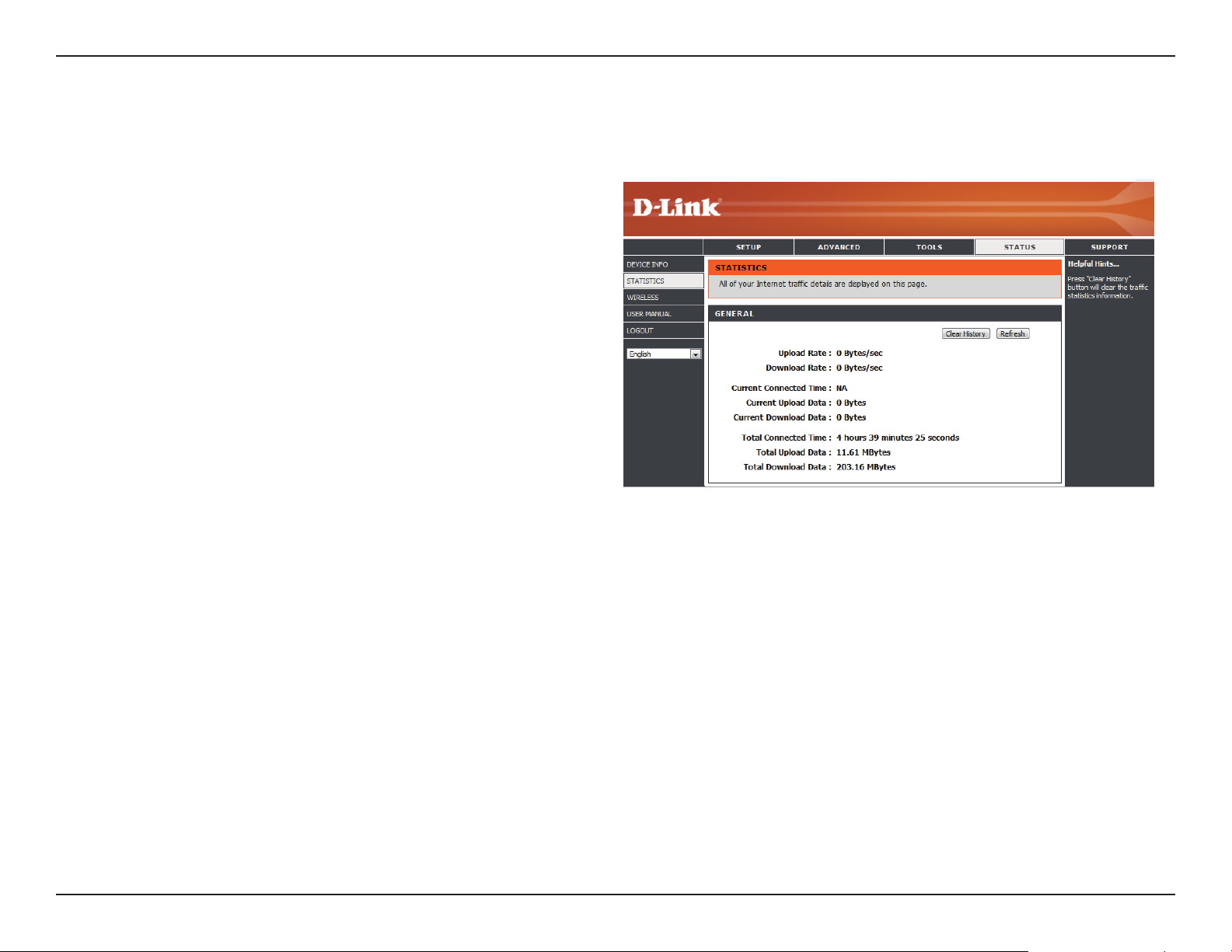

Statistics .........................................................................................28
Wireless Information .................................................................29
Support ..........................................................................................30
Wireless Security .............................................................31
What is WEP? ................................................................................31
Congure WEP .............................................................................32
What is WPA? ................................................................................33

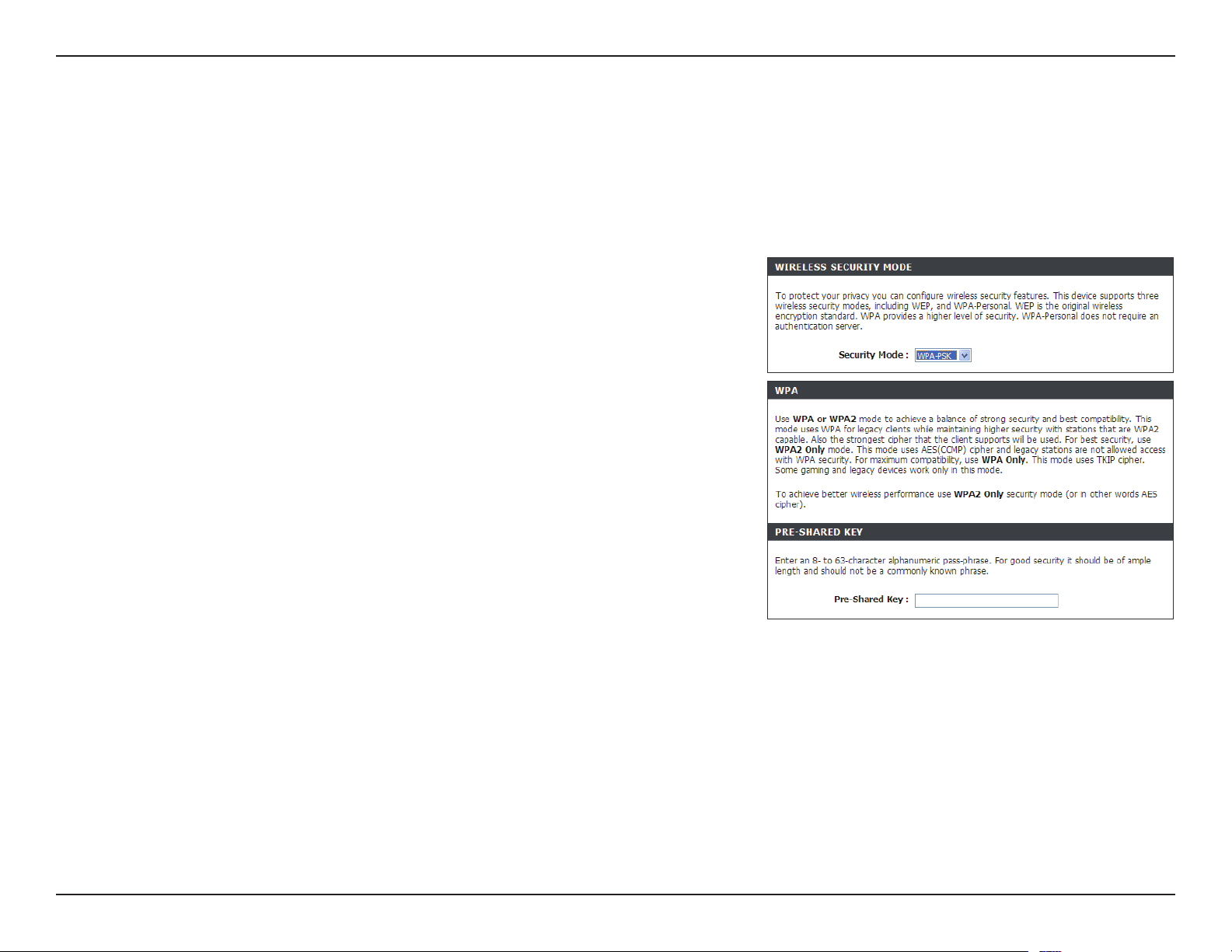

Congure WPA-PSK/WPA2-PSK .............................................34
Connect to a Wireless Network .......................................35
Using Windows Vista™ ..............................................................35
Congure Wireless Security ............................................36
®
Using Windows
XP ....................................................................38
Wireless Settings .........................................................................13
Manual Wireless Setup .............................................................16
Network Setup .............................................................................17
SIM Settings ..................................................................................18
MAC Filter ......................................................................................19
Advanced Internet Settings ....................................................20
Advanced Wireless Settings ....................................................21
Administrator Settings .............................................................22
MicroSD Card Reader ................................................................23
SMS Messages..............................................................................24
Congure WEP .....................................................................39
Congure WPA-PSK ............................................................41
Troubleshooting .............................................................. 43
Wireless Basics .................................................................45
What is Wireless? .........................................................................46
Tips ...................................................................................................48
Wireless Modes ............................................................................49
iiD-Link DWR-730 User Manual
Table of Contents
Networking Basics ...........................................................50
Check your IP address ...............................................................50
Statically Assign an IP address ...............................................51
Warnings and Declarations .............................................52
Technical Specications ..................................................56
iiiD-Link DWR-730 User Manual
Section 1 - Product Overview
• D-Link DWR-730 HSPA+ Mobile Router
• Battery
• USB cable
• Power adapter
Note: Using a power supply with a dierent voltage rating than the one included with the DWR-730 will cause damage and void the
warranty for this product.
Product Overview
Package Contents
System Requirements
• A compatible (U)SIM card with service
• Computers with Windows®, Macintosh® , or Linux-based operating systems
• Internet Explorer 6 or higher, Firefox 2.0 or higher, or another Java-enabled browser (for conguration)
1
Subject to services and service terms available from your carrier.
1
1D-Link DWR-730 User Manual
Section 1 - Product Overview
Introduction
The D-Link DWR-730 HSPA+ Mobile Router is a palm sized 3G router, slim and small enough to carry in your pocket. It allows
you to access and share your 3G mobile Internet connection anywhere and anytime.
The DWR-730 functions as a Wi-Fi router allowing Wi-Fi capable devices like smart phones, portable gaming devices,
notebooks, or digital cameras access to 3G networks via a wireless connection. The DWR-730 can share its 3G connection
with up to six Wi-Fi clients. The built-in battery allows you to simply turn it on to provide devices with an instant connection
to the Internet.
2D-Link DWR-730 User Manual
Section 1 - Product Overview
Hardware Overview
Front
Status LEDs
Power Button
Reset Button
WiFi/WPS Button
Indicator Color Solid Blinking (Rapid) Blinking (Slow)
SMS LED Green New incoming message Inbox full
Signal LED Purple HSPA+ Network Transmitting
Blue WCDMA/HSDPA/HSUPA network Transmitting
Green GSM/GPRS network Transmitting
Red Sim error or no service
Amber Roaming operator found, but service not
active
Battery LED Blue Battery fully charged 100% to 50% capacity
Green Charging, 99% to 50% capacity 50% to 10% capacity
Red Charging, 50% to 0% capacity Less than 3% capacity Less than 10% capacity
WiFi LED Green WiFi active Transmitting WPS active
Transmitting
3D-Link DWR-730 User Manual
Section 1 - Product Overview
Hardware Overview
Back
Micro USB Port MicroSD Slot
Port/LED Function
Micro USB Port Connects to a PC or power adapter through the included USB cable.
MicroSD Slot Accepts a MicroSD card.
4D-Link DWR-730 User Manual
Section 2 - Installation
Wireless Installation Considerations
The DWR-730 can be accessed using a wireless connection from virtually anywhere within the operating range of your wireless network. Keep in
mind, however, that the quantity, thickness and location of walls, ceilings, or other objects that the wireless signals must pass through, may limit the
range. Ranges vary depending on the types of materials and background RF (radio frequency) noise in your home or oce. The key to maximizing
the wireless range is to follow these basic guidelines:
1. Minimize the number of walls and ceilings between the D-Link router and other network devices. Each wall or ceiling can reduce
your adapter’s range from 3 to 90 feet (1 to 30 meters).
2. Be aware of the direct line between network devices. A wall that is 1.5 feet thick (0.5 meters), at a 45-degree angle appears to be
almost 3 feet (1 meter) thick. At a 2-degree angle it appears over 42 feet (14 meters) thick. Position devices so that the signal can
travel straight through a wall or ceiling (instead of at an angle) for better reception.
3. Try to position access points, wireless routers, and computers so that the signal passes through open doorways and drywall.
Materials such as glass, metal, brick, insulation, concrete, and water can aect wireless performance. Large objects such as sh
tanks, mirrors, le cabinets, metal doors, and aluminum studs may also have a negative eect on range.
4. If you are using 2.4 GHz cordless phones, make sure that the 2.4 GHz phone base is as far away from your wireless device as
possible. The base transmits a signal even if the phone in not in use. In some cases, cordless phones, X-10 wireless devices, and
electronic equipment such as ceiling fans, uorescent lights, and home security systems may dramatically degrade wireless
connectivity.
5D-Link DWR-730 User Manual
Section 2 - Installation
Product Setup
1. Remove the back cover of the DWR-730, and remove the battery.
2. Insert the SIM card with the gold contacts facing down. Make sure that
you insert the SIM card in the right direction.
3. Replace the battery and the back cover.
6D-Link DWR-730 User Manual
Section 2 - Installation
WiFi/WPS Conguration
Short press (1 second) the WiFi/WPS button to enable WPS. The WiFi/WPS LED
will ash for 2 minutes, allowing devices to connect. WPS will be disabled after
2 mintues.
Long press (5 seconds) the WiFi/WPS button to enable/disable WiFi. The WiFi/
WPS LED will change accordingly.
Note: When MicroSD card reader is enabled, WiFi will be disabled. You can only reenable this function through the WebGUI.
WiFi/WPS button
7D-Link DWR-730 User Manual
Section 3 - Conguration
Web-Based Conguration Utility
You can use the web-based conguration utility to manage your wireless network. It allows you to set wireless encryption, control access to the
wireless network.
Note: The web-based conguration utility and its associated features are for both Modem and Router modes.
To access the conguration utility, open a web-browser
such as Internet Explorer and enter the IP address of the
router (192.168.0.1 by default).
Type admin in the User Name eld and then enter your
password. Leave the password blank by default.
Click the Log in button to log in to the router.
If you get a Page Cannot be Displayed error, please refer
to the Troubleshooting section for assistance.
8D-Link DWR-730 User Manual
Section 3 - Conguration
Internet Connection Setup Wizard
Once logged into the web interface of the router, the Setup > Internet page will appear. Click the Internet Connection Setup
Wizard button to quickly congure your router using the setup wizard.
If you want to enter your settings without running the wizard, click Manual Internet Connection Setup and skip to Internet
Setup.
9D-Link DWR-730 User Manual
Section 3 - Conguration
Click Next to continue.
Create a new password and then click Next to continue.
Congure your 3G Internet Connection settings and
then click Next to continue.
10D-Link DWR-730 User Manual
Section 3 - Conguration
Click Connect to save your settings. Once the router
has nished rebooting, click Continue. Please allow 1-2
minutes to connect.
11D-Link DWR-730 User Manual
Section 3 - Conguration
Internet Setup
This section lets you manually enter the Internet connection information provided by your Internet Service Provider (ISP).
Auto APN:
ISP:
Username:
Password:
APN:
Reconnect Mode:
Maximum Idle Time:
If you want to enable Auto APN, tick the check box.
Enter the name of your ISP.
Enter a username.
Enter a password.
Enter the APN description.
Set to Always On, On Demand, or Manual.
Ent e r a m a ximu m i dle t ime i n m inut e s.
Enter 0 to allow the connection to idle indenitely.
12D-Link DWR-730 User Manual
Section 3 - Conguration
Wireless Settings
If you want to congure the wireless settings on your
router using the wizard, click Wireless Connection
Setup Wizard.
If you want to manually congure the wireless settings
on your router click Manual Wireless Connection Setup
and refer to Manual Wireless Setup.
Click the Wireless Connection Setup Wizard button
to view the Wireless Security Setup Wizard menu. The
Welcome menu lists the steps used for setup. Click on
the Next button to continue.
13D-Link DWR-730 User Manual
Section 3 - Conguration
Enter the SSID (Service Set Identier). The SSID is the
name of your wireless network. Create a name using up
to 20 characters. The SSID is case-sensitive.
It is recommended that you tick the checkbox to use WPA
wireless encryption to secure your wireless network.
Click Next to continue.
Type a password that you would like to use for your
wireless network in the Network Key: entry eld.
Click Next to continue.
14D-Link DWR-730 User Manual
Section 3 - Conguration
The final menu appears to indicate that setup is
complete.
You should write down the Wireless Network Name
(SSID) and Network Key for future reference when
connecting other wireless devices to your wireless
network.
Click Save to nish the Security Wizard.
15D-Link DWR-730 User Manual
Section 3 - Conguration
Manual Wireless Setup
Use this section to congure the wireless settings for your D-Link router.
Enable Wireless :
Wireless Network Name:
Wireless Channel:
Security Mode:
Check box to enable wireless and enter Router
mode, uncheck to disable wireless and enter
Modem mode. In Modem mode, you will need to
use the Micro USB cable to connect the router to
your PC.
Enter a wireless network name.
Choose the wireless channel.
Choose the wireless security mode.
16D-Link DWR-730 User Manual
Section 3 - Conguration
Network Setup
Use this section to congure the internal network settings of your router.
Router IP Address:
Subnet Mask:
Enable DHCP Server:
DHCP IP Address Range:
Enter the router IP address.
Enter the subnet mask.
If you want to enable DHCP Server, check Enabled.
Otherwise, check Disabled.
Enter values for the DHCP IP address range.
17D-Link DWR-730 User Manual
Section 3 - Conguration
SIM Settings
Enable/ Disable PIN
Function:
Modify PIN Code:
If you would like to enable or disable the PIN
authentication fuction, click Enable/Disable PIN
Function.
If you want to modify the current or default PIN
value, click Modify PIN Code to change it.
18D-Link DWR-730 User Manual
Section 3 - Conguration
MAC Filter
Use MAC (Media Access Control) Filters to allow only specic computers or devices to access your wireless network. Select Enabled to enable MAC
ltering, and enter the MAC addresses of the computers and devices you want to have access; all other computers and devices will be denied
access to your wireless network.
19D-Link DWR-730 User Manual
Section 3 - Conguration
Advanced Internet Settings
Network Search Method:
Data Roaming:
Network Type:
Determine whether the router will search for
available carriers automatically, or to only connect
to the carrier you specify.
Enabling Data Roaming will allow the router to use
your data connection when on an outside carrier’s
network. Disabling it will prevent the router from
doing this, but will still allow you to send and
recieve SMS messages.
Allows you to determine whether the router
will connect via 2G only, 3G only, or 2G and
3G(whichever is available)
20D-Link DWR-730 User Manual
Section 3 - Conguration
Advanced Wireless
Broadcast SSID:
TxPower:
Power Save:
Maximum Idle Time:
Max. Associated Number:
Enable to allow any wireless client to nd your
wireless network. Disable to require all wireless
clients to manually enter your wireless network’s
SSID and settings to connect.
Set the transmit power and strength of your wireless
network. Higher setting will boost coverage area,
but uses more battery power.
This setting takes eect when the router is running
on battery power. When enabled, wireless network
will be turned o when no wireless clients are
connected to the router for more than the specied
Maximum Idle Time.
You can turn wireless back on by pressing the
power button for 1 second.
Set the Maximum Idle Time for your wireless
network before entering Power Save mode(if it is
enabled).
Determines the maximum number of wireless PCs,
devices, and other clients that can connect to your
wireless network.
21D-Link DWR-730 User Manual
Section 3 - Conguration
Administrator Settings
Use this section to change the password for the Administrator account.
Password:
Verify Password:
Enter a password.
Verify the password.
22D-Link DWR-730 User Manual
Section 3 - Conguration
MicroSD Card Reader
The DWR-730 allows you to share les stored on an inserted MicroSD card. Once you enable the MicroSD card reader, you will see a new USB device
appear as a storage/memory device on your computer allowing you to modify les directly. You must insert a MicroSD card to use this feature.
Note: When the MicroSD card Reader is enabled, Wi-Fi will be disabled. To re-enable Wi-Fi, go to Setup -> Wireless Settings and check the Enable Wireless checkbox.
23D-Link DWR-730 User Manual
Section 3 - Conguration
SMS Messages
The DWR-730 allows you to read, write, and send SMS messages directly from the user interface.
Note: You must insert an active SIM card to use this feature.
24D-Link DWR-730 User Manual
Section 3 - Conguration
Factory Reset
Use this section to restore the router to the factory default settings.
Restore To Factory
Default:
Click this button to restore all settings to the factory
defaults.
25D-Link DWR-730 User Manual
Section 3 - Conguration
Firmware Upgrade
After downloading a rmware le to your computer, click Choose File to select the rmware le, then click Upgrade to start the upgrade process.
Note: Do not turn o or disconnect the power during the upgrade process, or you may cause damage to your device.
26D-Link DWR-730 User Manual
Section 3 - Conguration
Device Information
All of your Internet and network connection details are displayed on this page. The rmware version is also displayed here.
General:
WAN:
LAN:
Displays the rmware version.
Displays information about the WAN.
Displays information about the LAN.
27D-Link DWR-730 User Manual
Section 3 - Conguration
All of your Internet trac details are displayed on this page.
Statistics
Clear History:
Clears the trac statistics information.
28D-Link DWR-730 User Manual
Section 3 - Conguration
Wireless Information
All of your wireless connection details are displayed on this page.
Number of wireless
clients:
Displays the wireless clients and their
MAC addresses.
29D-Link DWR-730 User Manual
Section 3 - Conguration
Support
The Support section contains additional information about the router and its various settings for reference.
30D-Link DWR-730 User Manual
Section 4 - Security
Wireless Security
This section will show you the dierent levels of security you can use to protect your data from intruders. The
DWR-730 oers the following types of security:
• WPA2 (Wi-Fi Protected Access 2) • WPA2-PSK (Pre-Shared Key)
• WPA (Wi-Fi Protected Access) • WPA-PSK (Pre-Shared Key)
• WEP (Wired Equivalent Privacy)
What is WEP?
WEP stands for Wired Equivalent Privacy. It is based on the IEEE 802.11 standard and uses the RC4 encryption algorithm. WEP provides security by
encrypting data over your wireless network so that it is protected as it is transmitted from one wireless device to another.
To gain access to a WEP network, you must know the key. The key is a string of characters that you create. When using WEP, you must determine
the level of encryption. The type of encryption determines the key length. 128-bit encryption requires a longer key than 64-bit encryption. Keys
are dened by entering in a string in HEX (hexadecimal - using characters 0-9, A-F) or ASCII (American Standard Code for Information Interchange
– alphanumeric characters) format. ASCII format is provided so you can enter a string that is easier to remember. The ASCII string is converted to
HEX for use over the network. Four keys can be dened so that you can change keys easily.
31D-Link DWR-730 User Manual
Section 4 - Security
Congure WEP
It is recommended to enable encryption on your wireless router before your wireless network adapters. Please establish wireless connectivity before
enabling encryption. Your wireless signal may degrade when enabling encryption due to the added overhead.
1. Log into the web-based conguration by opening a web browser and entering the IP address of
the router (192.168.0.1). Click on Wireless Settings on the left side.
2. Next to Security Mode, select WEP.
3. Next to WEP Key 1, enter a WEP key that you create. Make sure you enter this key exactly on all your
wireless devices. You may enter up to 4 dierent keys.
4. Click Save Settings to save your settings. If you are conguring the router with a wireless adapter,
you will lose connectivity until you enable WEP on your adapter and enter the same WEP key as
you did on the router.
32D-Link DWR-730 User Manual
Section 4 - Security
What is WPA?
WPA, or Wi-Fi Protected Access, is a Wi-Fi standard that was designed to improve the security features of WEP (Wired Equivalent Privacy).
The 2 major improvements over WEP:
• Improved data encryption through the Temporal Key Integrity Protocol (TKIP). TKIP scrambles the keys using a hashing algorithm
and, by adding an integrity-checking feature, ensures that the keys haven’t been tampered with. WPA2 is based on 802.11i and
uses Advanced Encryption Standard (AES) instead of TKIP.
• User authentication, which is generally missing in WEP, through the extensible authentication protocol (EAP). WEP regulates access
to a wireless network based on a computer’s hardware-specic MAC address, which is relatively simple to be snied out and stolen.
EAP is built on a more secure public-key encryption system to ensure that only authorized network users can access the network.
WPA-PSK/WPA2-PSK uses a passphrase or key to authenticate your wireless connection. The key is an alpha-numeric password between 8 and 63
characters long. The password can include symbols (!?*&_) and spaces. This key must be the exact same key entered on your wireless router or
access point.
WPA/WPA2 incorporates user authentication through the Extensible Authentication Protocol (EAP). EAP is built on a more secure public key encryption
system to ensure that only authorized network users can access the network.
33D-Link DWR-730 User Manual
Section 4 - Security
Congure WPA-PSK/WPA2-PSK
It is recommended to enable encryption on your wireless router before your wireless network adapters. Please establish wireless connectivity before
enabling encryption. Your wireless signal may degrade when enabling encryption due to the added overhead.
1. Log into the web-based conguration by opening a web browser and entering the IP
address of the router (192.168.0.1). Click on Wireless Settings on the left side.
2. Next to Security Mode, select WPA-PSK or WPA2-PSK.
3. Next to Pre-Shared Key, enter a key (passphrase). The key is an alpha-numeric password
between 8 and 63 characters long. The password can include symbols (!?*&_) and spaces.
Make sure you enter this key exactly the same on all other wireless clients.
4. Click Save Settings to save your settings. If you are conguring the router with a wireless
adapter, you will lose connectivity until you enable WPA-PSK (or WPA2-PSK) on your
adapter and enter the same passphrase as you did on the router.
34D-Link DWR-730 User Manual
Section 5 - Connecting to a Wireless Network
Connect to a Wireless Network
Using Windows Vista™
Windows® Vista™ users may use the built-in wireless utility. If you are using another company’s utility or Windows® 2000, please refer to the user
manual of your wireless adapter for help with connecting to a wireless network. Most utilities will have a “site survey” option similar to the Windows®
Vista™ utility as seen below.
If you receive the Wireless Networks Detected bubble, click on the center of
the bubble to access the utility.
or
Right-click on the wireless computer icon in your system tray (lower-right corner
next to the time). Select Connect to a network.
The utility will display any available wireless networks in your area. Click on a
network (displayed using the SSID) and click the Connect button.
If you get a good signal but cannot access the Internet, check the TCP/IP settings
for your wireless adapter. Refer to the Networking Basics section in this manual
for more information.
35D-Link DWR-730 User Manual
Section 5 - Connecting to a Wireless Network
Congure Wireless Security
It is recommended to enable wireless security (WEP/WPA/WPA2) on your wireless router or access point before conguring your wireless adapter.
If you are joining an existing network, you will need to know the security key or passphrase being used.
1. Open the Windows® Vista™ Wireless Utility by right-clicking on the wireless
computer icon in your system tray (lower right corner of screen). Select
Connect to a network.
2. Highlight the wireless network (SSID) you would like to connect to and click
Connect.
36D-Link DWR-730 User Manual
Section 5 - Connecting to a Wireless Network
3. Enter the same security key or passphrase that is on your router and click Connect.
It may take 20-30 seconds to connect to the wireless network. If the connection fails,
please verify that the security settings are correct. The key or passphrase must be
exactly the same as on the wireless router.
37D-Link DWR-730 User Manual
Section 5 - Connecting to a Wireless Network
Connect to a Wireless Network
Using Windows® XP
Windows® XP users may use the built-in wireless utility (Zero Conguration Utility). The following instructions are for Service Pack 2 users. If you are
using another company’s utility or Windows® 2000, please refer to the user manual of your wireless adapter for help with connecting to a wireless
network. Most utilities will have a “site survey” option similar to the Windows® XP utility as seen below.
If you receive the Wireless Networks Detected bubble, click on the center of the
bubble to access the utility.
or
Right-click on the wireless computer icon in your system tray (lower-right corner
next to the time). Select View Available Wireless Networks.
The utility will display any available wireless networks in your area. Click on a
network (displayed using the SSID) and click the Connect button.
If you get a good signal but cannot access the Internet, check the TCP/IP settings
for your wireless adapter. Refer to the Networking Basics section in this manual
for more information.
38D-Link DWR-730 User Manual
Section 5 - Connecting to a Wireless Network
Congure WEP
It is recommended to enable WEP on your wireless router or access point before conguring your wireless adapter. If you are joining an existing
network, you will need to know the WEP key being used.
1. Open the Windows® XP Wireless Utility by right-clicking on
the wireless computer icon in your system tray (lower-right
corner of screen). Select View Available Wireless Networks.
2. Highlight the wireless network (SSID) you would like to connect to
and click Connect.
39D-Link DWR-730 User Manual
Section 5 - Connecting to a Wireless Network
3. The Wireless Network Connection box will appear. Enter the same WEP key that is
on your router and click Connect.
It may take 20-30 seconds to connect to the wireless network. If the connection fails,
please verify that the WEP settings are correct. The WEP key must be exactly the same
as on the wireless router.
40D-Link DWR-730 User Manual
Section 5 - Connecting to a Wireless Network
Congure WPA-PSK
It is recommended that you enable WPA on your wireless router or access point before conguring your wireless adapter. If you are joining an
existing network, you will need to know the WPA key being used.
1. Open the Windows® XP Wireless Utility by right-clicking on the
wireless computer icon in your system tray (lower-right corner of
screen). Select View Available Wireless Networks.
2. Highlight the wireless network (SSID) you would like to connect to and
click Connect.
41D-Link DWR-730 User Manual
Section 5 - Connecting to a Wireless Network
3. The Wireless Network Connection box will appear. Enter the WPA-PSK passphrase
and click Connect.
It may take 20-30 seconds to connect to the wireless network. If the connection fails,
please verify that the WPA-PSK settings are correct. The WPA-PSK passphrase must be
exactly the same as on the wireless router.
42D-Link DWR-730 User Manual
Section 6 - Troubleshooting
Troubleshooting
This chapter provides solutions to problems that can occur during the installation and operation of the DWR-730. Read the following descriptions
if you are having problems. (The examples below are illustrated in Windows® XP. If you have a dierent operating system, the screenshots on your
computer will look similar to the following examples.)
1. Why can’t I access the web-based conguration utility?
When entering the IP address of the D-Link router (192.168.0.1 for example), you are not connecting to a website on the Internet or have to be
connected to the Internet. The device has the utility built-in to a ROM chip in the device itself. Your computer must be on the same IP subnet to
connect to the web-based utility.
• Make sure you have an updated Java-enabled web browser. We recommend the following:
• Internet Explorer 6.0 or higher
• Netscape 8 or higher
• Mozilla 1.7.12 (5.0) or higher
• Opera 8.5 or higher
• Safari 1.2 or higher (with Java 1.3.1 or higher)
• Camino 0.8.4 or higher
• Firefox 1.5 or higher
• Verify physical connectivity by checking for solid link lights on the device. If you do not get a solid link light, try using a dierent cable or connect
to a dierent port on the device if possible. If the computer is turned o, the link light may not be on.
• Disable any internet security software running on the computer. Software rewalls such as Zone Alarm, Black Ice, Sygate, Norton Personal Firewall,
®
and Windows
on disabling or conguring it.
XP rewall may block access to the conguration pages. Check the help les included with your rewall software for more information
43D-Link DWR-730 User Manual
Section 6 - Troubleshooting
• Congure your Internet settings:
• Go to Start > Settings > Control Panel. Double-click the Internet Options Icon. From the Security tab, click the button to restore
the settings to their defaults.
• Click the Connection tab and set the dial-up option to Never Dial a Connection. Click the LAN Settings button. Make sure nothing
is checked. Click OK.
• Go to the Advanced tab and click the button to restore these settings to their defaults. Click OK three times.
• Close your web browser (if open) and open it.
• Access the web management. Open your web browser and enter the IP address of your D-Link router in the address bar. This should open the
login page for your the web management.
• If you still cannot access the conguration, unplug the power to the router for 10 seconds and plug back in. Wait about 30 seconds and try accessing
the conguration. If you have multiple computers, try connecting using a dierent computer.
2. How can I upgrade the rmware on the device?
To update the rmware on the DWR-730, connect the device into an available USB port on your PC. Next, log into the WebGUI and navigate to the
Tools tab near the top. Then click on the Firmware Upgrade tab on the left. Browse for the rmware image le and click Upgrade. Please do not
disconnect the DWR-730 while the upgrade is in progress.
Note: For update information, please follow the revision notice on the ocial web site.
3. I’m having problems installing the D-Link Connection Manager.
Your antivirus program may be preventing installation of the software. Try disabling your antivirus software temporarily while you install the D-Link
Connection Manager.
44D-Link DWR-730 User Manual
Appendix A - Wireless Basics
Wireless Basics
D-Link wireless products are based on industry standards to provide easy-to-use and compatible high-speed wireless connectivity within your
home, business or public access wireless networks. Strictly adhering to the IEEE standard, the D-Link wireless family of products will allow you to
securely access the data you want, when and where you want it. You will be able to enjoy the freedom that wireless networking delivers.
A wireless local area network (WLAN) is a cellular computer network that transmits and receives data with radio signals instead of wires. Wireless
LANs are used increasingly in both home and oce environments, and public areas such as airports, coee shops and universities. Innovative ways
to utilize WLAN technology are helping people to work and communicate more eciently. Increased mobility and the absence of cabling and other
xed infrastructure have proven to be benecial for many users.
Wireless users can use the same applications they use on a wired network. Wireless adapter cards used on laptop and desktop systems support
the same protocols as Ethernet adapter cards.
Under many circumstances, it may be desirable for mobile network devices to link to a conventional Ethernet LAN in order to use servers, printers
or an Internet connection supplied through the wired LAN. A Wireless Router is a device used to provide this link.
45D-Link DWR-730 User Manual
Appendix A - Wireless Basics
What is Wireless?
Wireless or Wi-Fi technology is another way of connecting your computer to the network without using wires. Wi-Fi uses radio frequency to connect
wirelessly, so you have the freedom to connect computers anywhere in your home or oce network.
Why D-Link Wireless?
D- L ink is t h e w orld w ide le a der a n d a ward wi nning d esign er, d e velop er, a n d man u fact u rer of n etwo r kin g p r oduc t s.
D-Link delivers the performance you need at a price you can aord. D-Link has all the products you need to build your network.
How does wireless work?
Wireless works similar to how cordless phone work, through radio signals to transmit data from one point A to point B. But wireless technology has
restrictions as to how you can access the network. You must be within the wireless network range area to be able to connect your computer. There
are two dierent types of wireless networks Wireless Local Area Network (WLAN), and Wireless Personal Area Network (WPAN).
Wireless Local Area Network (WLAN)
In a wireless local area network, a device called an Access Point (AP) connects computers to the network. The access point has a small antenna
attached to it, which allows it to transmit data back and forth over radio signals. With an indoor access point as seen in the picture, the signal can
travel up to 300 feet. With an outdoor access point the signal can reach out up to 30 miles to serve places like manufacturing plants, industrial
locations, college and high school campuses, airports, golf courses, and many other outdoor venues.
Wireless Personal Area Network (WPAN)
Bluetooth is the industry standard wireless technology used for WPAN. Bluetooth devices in WPAN operate in a range up to 30 feet away.
Compared to WLAN the speed and wireless operation range are both less than WLAN, but in return it doesn’t use nearly as much power which
makes it ideal for personal devices, such as mobile phones, PDAs, headphones, laptops, speakers, and other devices that operate on batteries.
46D-Link DWR-730 User Manual
Appendix A - Wireless Basics
Who uses wireless?
Wireless technology as become so popular in recent years that almost everyone is using it, whether it’s for home, oce, business, D-Link has a
wireless solution for it.
Home
• Gives everyone at home broadband access
• Surf the web, check e-mail, instant message, and etc
• Gets rid of the cables around the house
• Simple and easy to use
Small Oce and Home Oce
• Stay on top of everything at home as you would at oce
• Remotely access your oce network from home
• Share Internet connection and printer with multiple computers
• No need to dedicate oce space
47D-Link DWR-730 User Manual
Appendix A - Wireless Basics
Where is wireless used?
Wireless technology is expanding everywhere not just at home or oce. People like the freedom of mobility and it’s becoming so popular that
more and more public facilities now provide wireless access to attract people. The wireless connection in public places is usually called “hotspots”.
Using a D-Link Cardbus Adapter with your laptop, you can access the hotspot to connect to Internet from remote locations like Airports, Hotels,
Coee Shops, Libraries, Restaurants, and Convention Centers.
Wireless network is easy to setup, but if you’re installing it for the rst time it could be quite a task not knowing where to start. That’s why we’ve put
together a few setup steps and tips to help you through the process of setting up a wireless network.
Tips
Here are a few things to keep in mind, when you install a wireless network.
Centralize your Router or Access Point
Make sure you place the router/access point in a centralized location within your network for the best performance. Try to place the router/access
point as high as possible in the room, so the signal gets dispersed throughout your home. If you have a two-story home, you may need a repeater
to boost the signal to extend the range.
Eliminate Interference
Place home appliances such as cordless telephones, microwaves, and televisions as far away as possible from the router/access point. This would
signicantly reduce any interference that the appliances might cause since they operate on same frequency.
Security
Don’t let you next-door neighbors or intruders connect to your wireless network. Secure your wireless network by turning on the WPA or WEP
security feature on the router. Refer to product manual for detail information on how to set it up.
48D-Link DWR-730 User Manual
Appendix A - Wireless Basics
Wireless Modes
There are basically two modes of networking:
• Infrastructure – All wireless clients will connect to an access point or wireless router.
• Ad-Hoc – Directly connecting to another computer, for peer-to-peer communication, using wireless network adapters on each
computer, such as two or more WNA-2330 wireless network Cardbus adapters.
An Infrastructure network contains an Access Point or wireless router. All the wireless devices, or clients, will connect to the wireless router or access
point.
An Ad-Hoc network contains only clients, such as laptops with wireless cardbus adapters. All the adapters must be in Ad-Hoc mode to communicate.
49D-Link DWR-730 User Manual
Appendix B - Networking Basics
Networking Basics
Check your IP address
After you install your new D-Link adapter, by default, the TCP/IP settings should be set to obtain an IP address from a DHCP server (i.e. wireless
router) automatically. To verify your IP address, please follow the steps below.
Click on Start > Run. In the run box type cmd and click OK.
(Windows
At the prompt, type ipcong and press Enter.
®
Vista™ users type cmd in the Start Search box.)
This will display the IP address, subnet mask, and the default
gateway of your adapter.
If the address is 0.0.0.0, check your adapter installation, security settings, and the settings on your router. Some rewall software programs may
block a DHCP request on newly installed adapters.
50D-Link DWR-730 User Manual
Appendix B - Networking Basics
Statically Assign an IP address
If you are not using a DHCP capable gateway/router, or you need to assign a static IP address, please follow the steps below:
Step 1
Windows
Windows
Windows
®
Vista™ - Click on Start > Control Panel > Network and Internet > Network and Sharing Center > Manage Network Connections.
®
XP - Click on Start > Control Panel > Network Connections.
®
2000 - From the desktop, right-click My Network Places > Properties.
Step 2
Right-click on the Local Area Connection which represents your network adapter and select Properties.
Step 3
Highlight Internet Protocol (TCP/IP) and click Properties.
Step 4
Click Use the following IP address and enter an IP address that is on the same subnet as your network
or the LAN IP address on your router.
Example: If the router´s LAN IP address is 192.168.0.1, make your IP address 192.168.0.X where X is a
number between 2 and 99. Make sure that the number you choose is not in use on the network. Set
Default Gateway the same as the LAN IP address of your router (192.168.0.1).
Set Primary DNS the same as the LAN IP address of your router (192.168.0.1). The Secondary DNS is not
needed or you may enter a DNS server from your ISP.
Step 5
Click OK twice to save your settings.
51D-Link DWR-730 User Manual
Appendix C - Warnings and Declarations
Warnings and Declarations
FCC Regulations:
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not
cause harmful interference, and (2) this device must accept any interference received, including interference that may cause
undesired operation.
This device has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC
Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiated radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not
occur in a particular installation If this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment o and on, the user is encouraged to try to correct the interference by one or more of the
following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help.
Changes or modications not expressly approved by the party responsible for compliance could void the user‘s authority to
operate the equipment.
The antenna(s) used for this transmitter must not be co-located or operating in conjunction with any other antenna or
transmitter.
52D-Link DWR-730 User Manual
Appendix C - Warnings and Declarations
RF Exposure Information (SAR)
This device meets the government’s requirements for exposure to radio waves.
This device is designed and manufactured not to exceed the emission limits for exposure to radio frequency (RF) energy set by
the Federal Communications Commission of the U.S. Government.
The exposure standard for wireless devices employs a unit of measurement known as the Specic Absorption Rate, or SAR. The
SAR limit set by the FCC is 1.6W/kg. *Tests for SAR are conducted using standard operating positions accepted by the FCC with
the device transmitting at its highest certied power level in all tested frequency bands. Although the SAR is determined at the
highest certied power level, the actual SAR level of the device while operating can be well below the maximum value. This is
because the device is designed to operate at multiple power levels so as to use only the poser required to reach the network. In
general, the closer you are to a wireless base station antenna, the lower the power output.
The highest SAR value for the device as reported to the FCC when tested for worn on the body, as described in this user guide, is
1.3 W/kg. (Body-worn measurements dier among device models, depending upon available accessories and FCC requirements.)
While there may be dierences between the SAR levels of various devices and at various positions, they all meet the government
requirement.
The FCC has granted an Equipment Authorization for this device with all reported SAR levels evaluated as in compliance with
the FCC RF exposure guidelines. SAR information on this device is on le with the FCC and can be found under the Display Grant
section of www.fcc.gov/oet/ea/fccid after searching on FCC ID: KA2WR730A1
This device is compliance with SAR for general population /uncontrolled exposure limits in ANSI/IEEE C95.1-1999 and had been
tested in accordance with the measurement methods and procedures specied in OET Bulletin 65
Supplement C.
For body worn operation, this device has been tested and meets the FCC RF exposure guidelines for use with an accessory that
contains no metal and the positions the handset a minimum of 1.0 cm from the body. Use of other accessories may not ensure
compliance with FCC RF exposure guidelines.
53D-Link DWR-730 User Manual
Appendix C - Warnings and Declarations
This product belongs to Class II devices
This equipment can be operated in the following countries:
AT BE BG CH Y CZ DE DK
EE ES FI FR GB GR HU IE
IT IS LI LT LU LV MT NL
NO PL PT RO SE SI SK TR
Products with 2.4–GHz Wireless LAN Devices France
L’utilisation de cet equipement (2.4GHz wireless LAN) est soumise à certaines restrictions: cet equipement peut être utilisé
à l’interieur d’un batiment en utilisant toutes les frequences de 2400 a 2483.5MHz (Chaine 1–13). Pour une utilisation en
environement exterieur, les frequences comprises entre 2400-2454 MHz (Chaîne 1-9) peuvent être utilisé. Pour les dernières
restrictions, voir http://www.art-telecom.fr.
For 2.4–GHz wireless LAN operation of this product, certain restrictions apply. This equipment may use the entire–2400–
MHz to 2483.5–MHz frequency band (channels 1 through 13) for indoor applications. For outdoor use, only 2400-2454 MHz
frequency band (channels 1-9) may be used. For the latest requirements, see http://www.art-telecom.fr.
Wireless LAN Module’s Maximum EIRP
Frequency Ranges (MHz) Indoors Outdoors
2400 MHz ~ 2446.5 MHz 10mW Not Permitted
2446.5 MHz ~ 2483.5 MHz 100mW 100mW on private property with Ministry of Defense approval.
54D-Link DWR-730 User Manual
Appendix C - Warnings and Declarations
Declaration of Conformity
1. Health (Article 3.1(a) of the R&TTE Directive)
Applied Standard(s):
EN62311: 2008/ IEC 62209-2:2010
2. Safety (Article 3.1(a) of the R&TTE Directive)
Applied Standard(s):
EN 60950-1:2006+A11:2009
3. Electromagnetic compatibility (Article 3.1 (b) of the R&TTE Directive)
Applied Standard(s):
EN 301 489-1 V1.8.1/-7 V1.3.1/-17 V2.1.1/-24 V1.4.1
4. Radio frequency spectrum usage (Article 3.2 of the R&TTE Directive)
Applied Standard(s):
EN 301 511 V9.0.2
EN 301 908-1 V4.2.1
EN 301 908-2 V5.2.1
EN 300 328 V1.7.1
5. EMC Directive (2004/108 /EC)
pplied Standard(s):
EN 55022:2006/A1:2007 Class B
EN55024: 1998/A1:2001/A2:2003
Caution
-Users have to use the connection to USB interfaces with USB 2.0 version or higher.
-Risk of explosion if battery is replaced by an incorrect type.
-Dispose of used batteries according to the instructions.
-Please make sure the temperature for adapter will not be higher than 55 ˚C
55D-Link DWR-730 User Manual
Appendix D - Technical Specications
Technical Specications
Interfaces
802.11g/b wireless, compatible with 802.11n devices
Micro USB port
MicroSD slot
GSM Band (GSM/GPRS/EDGE)
850/900/1800/1900 MHz
Power Class 4 (850/900 MHz)
Power Class 1 (1800/1900 MHz)
UMTS/HSDPA Band
1
850/1900/2100 MHz
900/1900/2100 MHz
Power Class 3 (+24 dBm)
HSUPA Data Rates
2
Downlink: Up to 21.6 Mbps
Uplink: Up to 5.76 Mbps
Wireless Data Rates
2
Up to 150 Mbps in 802.11n mode
6/9/11/12/18/24/36/48/54 Mbps in 802.11g mode
1/2/5.5/11 Mbps in 802.11b mode
Firewall
Built-in NAT
Built-in rewall
Antenna
Internal 3G and Wi-Fi antenna
Battery
1500 mAh rechargeable
LED Status Indicators
SMS
Signal
Battery
Wi-Fi
Dimensions (L x W x H)
90 x 50 x 12 mm
Operating Temperature
-10 to 55 ˚C (14 to 131 ˚F)
Operating Humidity
10% to 90% (Non-condensing)
Wireless Security
64/128-bit WEP (Wired Equivalent Privacy)
WPA & WPA2 (Wi-Fi Protected Access)
1
Supported frequency band is dependent upon regional hardware version.
2
Maximum wireless signal rate derived from IEEE Standard 802.11g specications. Actual data throughput will vary. Network conditions and environmental
factors, including volume of network trac, building materials and construction, and network overhead, lower actual data throughput rate. Environmental
factors will adversely aect wireless signal range.
Certications
CE
FCC
56D-Link DWR-730 User Manual
Loading...
