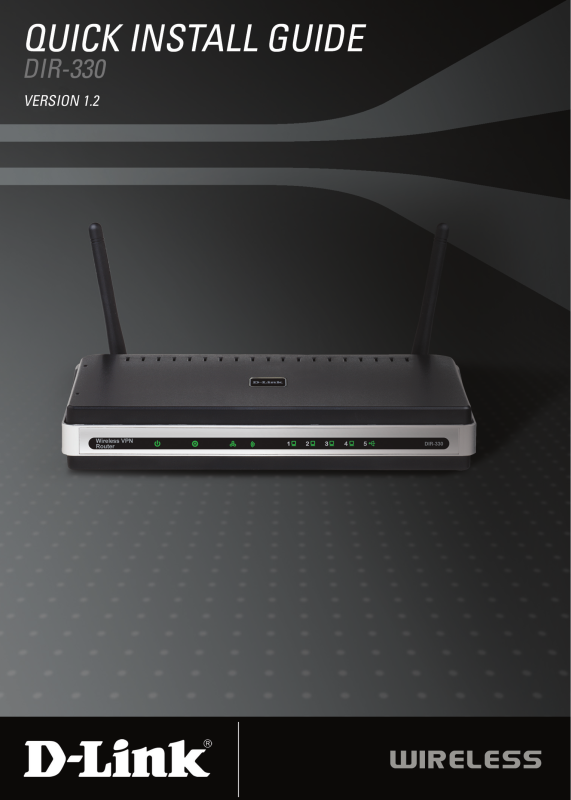

D-link DIR-330 Quick Installation Guide

Package Contents

• D-Link DIR-330 Wireless VPN Router

• Power Adapter

• Ethernet Cable

• Manual and Warranty on CD

Note: Using a power supply with a different voltage rating than the one
included with the DIR-330 will cause damage and void the warranty for this
product.

If any of the above items are missing, please contact your reseller.

System Requirements

Network Requirements

• An Ethernet-based Cable or DSL modem

• 10/100 Ethernet devices

• 802.11g/b wireless clients

Web-based Configuration Utility Requirements

Computer with the following:

• Windows®, Mac OS, or Linux-based operating system

• An installed Ethernet adapter

Browser Requirements:

• Internet Explorer 7.0 or higher

• Firefox 3.0.5 or higher

• Chrome 1.0.154.43 or higher

Make sure that you have the latest version of Java installed. Visit www.java.

com to download the latest version.

2D-Link DIR-330 Quick Install Guide

Wireless Considerations

The D-Link wireless router lets you access your network using a wireless
connection from virtually anywhere within the operating range of your wireless
network. Keep in mind, however, that the number, thickness and location of
walls, ceilings, or other objects that the wireless signals must pass through,
may limit the range. Typical ranges vary depending on the types of materials
and background RF (radio frequency) noise in your home or business. The
key to maximizing wireless range is to follow these basic guidelines:

1. Keep the number of walls and ceilings between the D-Link router and
other network devices to a minimum. Each wall or ceiling can reduce your
adapter’s range from 3-90 feet (1-30 meters.) Position your devices so
that the number of walls or ceilings is minimized.

2. Be aware of the direct line between network devices. A wall that is 1.5
feet thick (.5 meters), at a 45-degree angle appears to be almost 3 feet (1
meter) thick. At a 2-degree angle it looks over 42 feet (14 meters) thick.
Position devices so that the signal will travel straight through a wall or
ceiling (instead of at an angle) for better reception.

3. Building Materials make a difference. A solid metal door or aluminum
studs may have a negative effect on range. Try to position access points,
wireless routers, and computers so that the signal passes through drywall
or open doorways. Materials and objects such as glass, steel, metal, walls
with insulation, water (fish tanks), mirrors, file cabinets, brick, and concrete
will degrade your wireless signal.

4. Keep your product away (at least 3-6 feet or 1-2 meters) from electrical
devices or appliances that generate RF noise.

5. If you are using 2.4GHz cordless phones or X-10 (wireless products
such as ceiling fans, lights, and home security systems), your wireless
connection may degrade dramatically or drop completely. Make sure your

2.4GHz phone base is as far away from your wireless devices as possible.
The base transmits a signal even if the phone is not in use.

3 D-Link DIR-330 Quick Install Guide

Hardware Overview

Status LED

A blinking light indicates
that the DIR-330 is ready.

LEDs

WLAN LED
A solid light indicates that the wireless
segment is ready. This LED blinks
during wireless data transmission.

Power LED
A solid light indicates a
proper connection to the
power supply.

Internet LED
A solid light indicates connection on
the Internet port. This LED blinks
during data transmission.

Local Network LEDs

A solid light indicates a connection
to an Ethernet-enabled computer
on ports 1-4. This LED blinks
during data transmission.

4D-Link DIR-330 Quick Install Guide
