Introduction
With the rapid growth and variety of technology in today’s market, most business
activities rely heavily on network communication. In this highly competitive
environment, businesses have to not only weather and withstand business challenges,
but also threats to their internal infrastructure from hacker attacks and the spread of
viruses.
To respond to the threats from hackers and viruses, traditional network security
technologies rely on a single appliance, which identifies abnormal packets or denies
connections which violate certain access rules, all according to the network
administrator’s pre-defined configurations. However, traditional security devices
cannot effectively block massive network connections from the infected victim
computers.
D-Link Network Security Solution
This white paper will begin by briefly outlining the functionality of the traditional network
security technology. D-Link’s ‘New Proactive Network Security Architecture’,
ZoneDefense, will be subsequently discussed, to give an insight into how this new
network security for enterprises can enhance and improve upon the foundations
provided by traditional network security technologies. Finally, a concise test case has
been included to illustrate how ZoneDefense enables enterprises to pro-actively
defend against hackers or virus attacks.
Traditional Network Security Technologies
Traditionally, network security technologies mainly focus on the following
control mechanisms: application layer controls, ACLs (Access Control Lists)
and packet filters. Nearly all network security appliances, including switches,
routers and firewalls, are equipped with the above functionality. Enterprises
benefit from these protection mechanisms, preventing internal users or external
visitors from being able to access confidential or private documents, as well as
securing the internal network against intruders. These technologies however do
not provide pre-emptive measures.
In a traditional network security environment, when businesses suffer from
2
D-Link Corporation
D-Link Network Security Solution
virus or hacker attacks activated from internal victim computers, network
administrators must firstly monitor and analyse traffic between network
elements, to identify the source of the threat. They also need to configure ACL
rules on network security appliances, such as switches, routers or firewalls, in
order to prevent hacker invasions or viruses from spreading. In the event that
there are many victim computers on the network, network administrators have
to logon to different network security devices and set-up a number of rules to
guard their network against the outbreak.
There is evidently, as seen above, a lack of interaction between the network
security appliances, thus these devices cannot communicate with each other in
a timely fashion to effectively prevent hostile attacks, such as Denial of Service.
This succinctly pinpoints the inadequacies of traditional network security
technologies.
Businesses however, can be furnished with the tools to defend their internal
network with D-Link’s ZoneDefense, which will be introduced in the next
section.
ZoneDefense
ZoneDefense, D-Link’s proactive network security, enables D-Link’s next
generation of firewalls to integrate with D-Link’s managed switches, to construct
a network security architecture that effectively blocks any malicious host when
detected. Therefore, if a host computer displays any abnormal network
behaviour, the computer can be timely disconnected from the network without
disrupting general network services. Consequently, this countermeasure can
further avoid the spread of viruses to the same subnet or other subnets, as well
as preventing a start of hacker attacks that will paralyze critical servers within
enterprises.
ZoneDefense is triggered when abnormal network traffic conditions meet
pre-configured thresholds on the firewall. When this happens, the firewall
immediately and automatically contacts the D-Link switches and issues
commands to them, that result in blocking any traffic to and from the suspicious
3
D-Link Corporation
host.
A concise test case has been set-out below to demonstrate how Zone Defense
prevents a virus-infected computer from paralyzing the internal network of an
enterprise.
Test Case
To put the following test into practice, you may need a port scan tool, such as
ipscan or superscan, to simulate the virus attack. In this case, superscan will be
utilized to simulate the attack behavior from the virus WORM_SASSER.A.
Before setting out the test scenario, it is necessary to detail how the WORM
D-Link Network Security Solution
virus behaves when attempting to infect other computers on the network. The
virus, WORM_SASSER.A, is a good example. When a computer is infected by
WORM_SASSER.A at stage 1, it will scan all other hosts on the same subnet
via the Address Resolution Protocol (ARP). At stage 2, the infected computer
will send out massive amounts of packets within the same network segment, to
try and spread its virus through the Windows LSASS vulnerability.
Finally at stage 3, all other hosts on different subnets will become targets, that
the infected computer attempts to spread its virus to. At this stage, the infected
computer starts to send out large amounts of TCP SYN (DST port: 445) p acket s,
scan all other computers on different subnets and try to infect other hosts with
the Windows LSASS vulnerability.
During the first two stages, network administrators can set the Zone
Defense threshold to 15 ARP/ secTPF
1
FPT to trigger ZoneDefense. Once the 3P
rd
and most critical stage has been reached, in which the virus/ worm tries to
look for victims on the network, the bulk TCP SYN packets can still
P
overwhelm the L3 network appliances including L3 switches, routers or
firewalls; thus network administrators can set the ZoneDefense threshold
to 15 TCP (port 445) SYN /sec to trigger ZoneDefense.
1
TP
PT The proactive defense toward ARP layer will be expected soon in the next firmware version.
4
D-Link Corporation
D-Link Network Security Solution
The above explanation on how infected computers might typically spread the
virus WORM_SASSER.A, will assist in clarifying the below test scenario.
The test scenario is based on a network topology comprising of a D-Link
DFL-800 firewall and D-Link managed switchesTPF
2
FPT 30, 31, 40 and 41 which
make up the different network segments A, B, C which in turn are
connected to the DFL-800. The two user computers 10 and 11 are then
connected to the network switch 31 and 41 respectively.
Figure 1: Network Topology in the Test Scenario
1. User computer 10 (IP: 192.168.1.2) is infected by the virus,
WORM_SASSER.A, and starts sending out a large quantity of TCP SYN
(DST port: 445) packets to scan all computers on the same and different
2
TP
PT For further information about D-Link managed switches, please refer to the appendix.
5
D-Link Corporation
D-Link Network Security Solution
subnets, spreading the virus in the network through the Windows LSASS
vulnerability . Windows LSASS vulnerability is a buffer overrun that allows
remote code execution and enables an attacker to gain full control of the
affected system. User computer 11 (IP: 192.168.2.2), residing in a
different subnet, is the host, that user computer 10 tries to infect.
To simulate the attack behavior of WORM_SASSER.A, port scan tools
can be utilized on user computer 10 and configured to scan port 445
(See Fig. 2). While configuring the tools, please make sure the scan
speed of these tools have been configured to maximum. Also, if possible,
please launch any sniffer tools on hand, such as Ethereal or Sniffer Pro,
to confirm the port scan tools are working as would be expected.

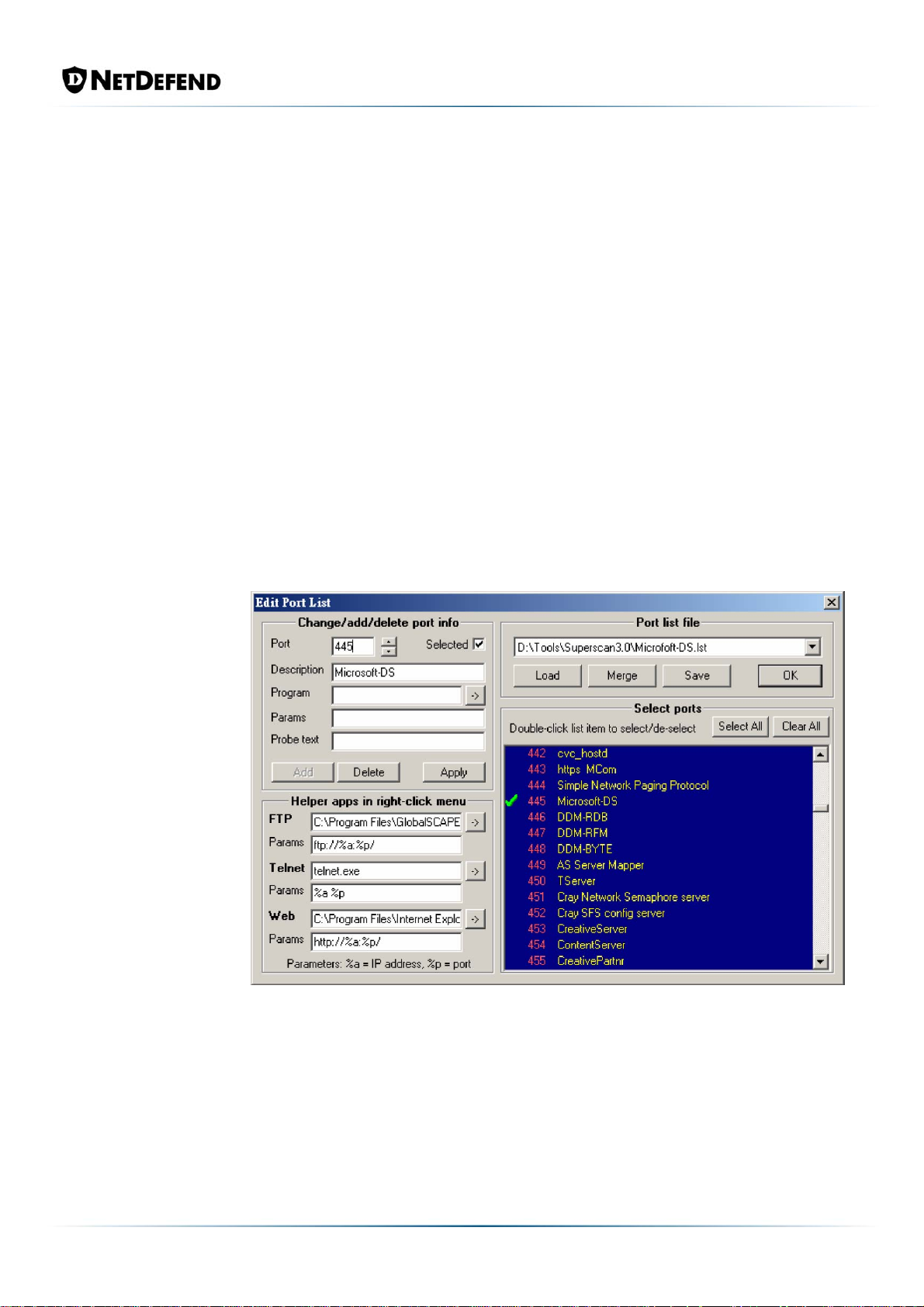

Figure 2: Configure the port scan tool to simulate the behaviour of the
virus WORM_SASSER.A.
2. In order to trigger ZoneDefense on network security appliances,
configure as the trigger a condition against Microsoft SMB service (Port
445, please refer to Fig.3) In this test, the trigger threshold is configured
as 9 connections/sec (See Fig. 4), as an example.
6
D-Link Corporation
D-Link Network Security Solution
Note: the value of 9 connections/sec refers to the working behaviour of
the port scan tool, as the tool utilized here can only send a maximum of
10 TCP SYN.
Figure 3: Configure the trigger condition towards Microsoft SMB Service
(Port 445).
Figure 4: Configure the trigger threshold towards Microsoft SMB Service
3. To implement the simulation of the WORM_SASSER.A attack,
launch the sniffer and port scan tools on user computer 10 (IP:
192.168.1.2). On user computer 11 (IP: 192.168.2.2), issue the
7
D-Link Corporation
D-Link Network Security Solution
command ‘ping 192.168.1.2 –t’ in command line for determining the
activation of ZoneDefense. If ZoneDefense is activated, the message
will turn ‘Reply from 192.168.1.2: bytes=32 time=2ms TTL=127’ into
‘Request time out’ (see Fig. 5).
Figure 5: ZoneDefense is activated and the attack host is blocked.
Figure 6 below displays information regarding the ZoneDefense status. This
screen confirms that the infected host has been blocked and so in turn
demonstrates that ZoneDefense successfully provides the proactive
mechanism to enable businesses to guard their critical internal network.
8
D-Link Corporation
D-Link Network Security Solution
Figure 6: ZoneDefense status for blocking the infected host
Conclusion
ZoneDefense provides businesses with “Proactive Network Security”,
integrating network security appliances to automatically detect suspect network
traffic. If the packet flow of a host computer triggers the conditions for
ZoneDefense, a ZoneDefense command will immediately and automatically be
sent to the specified network switch to efficiently block the network connection
of the host computer. Thus, for businesses, ZoneDefense greatly reduces the
damage and loss caused by viruses and hackers, as well as effectively
enhances network performance. Network administrators benefit as it becomes
easier and less timely to locate the infected computers. Once the infected
computer has been detected it is no longer necessary to manually issue system
commands on network devices. D-Link’s ZoneDefense effectively guards
businesses against internal network risks.
9
D-Link Corporation
D-Link Network Security Solution
Appendix
D-Link Managed Switches Supported by ZoneDefense
DFL-800/1600/2500 firmware v2.11.02 currently supports the following
switches:
¾ D-Link DES-3226S (firmware: R4.02-B26 or later)
¾ D-Link DES-3250TG (firmware: R3.00-B09 or later)
¾ D-Link DES-3326S (firmware: R4.01-B39 or later)
¾ D-Link DES-3350SR (firmware: R3.02-B12 or later)
¾ D-Link DES-3526 Rev 3.x (firmware: R3.06-B20 only)
¾ D-Link DES-3526 Rev 4.x (firmware: R4.01-B19 or later)
¾ D-Link DES-3550 Rev 3.x (firmware: R3.05-B38 only)
¾ D-Link DES-3550 Rev 4.x (firmware: R4.01-B19 or later)
¾ D-Link DES-3800 series (firmware: R2.00-B13 or later)
¾ D-Link DGS-3324SR/SRi (firmware: R4.30-B11 or later)
¾
D-Link DXS-3326GSR/3350SR (firmware: R4.30-B11 or later)
¾
D-Link DGS-3400 series (firmware: R1.00-B35 or later)
