D-Link DES-1316K User Manual
D-Link DES-1316
Web-Smart 8-Port 10/100Mbps Ethernet Switch with 8
10/100Mbps 802.3af Power Over Ethernet Ports
Manual
First edition
Building Networks for People
2
FCC Warning
This equipment has been tested and found to comply with the limits
for a Class A digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against
harmful interference when the equipment is operated in a commercial
environment. This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in accordance with this
manual, may cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause
harmful interference in which case the user will be required to correct
the interference at his own expense.
CE Mark Warning
This is a Class A product. In a domestic environment, this product
may cause radio interference in which case the user may be required
to take adequate measures.
Warnung!
Dies ist ein Produkt der Klasse A. Im Wohnbereich kann dieses
Produkt Funkstoerungen verursachen. In diesem Fall kann vom
Benutzer verlangt werden, angemessene Massnahmen zu ergreifen.
Precaución!
Este es un producto de Clase A. En un entorno doméstico, puede
causar interferencias de radio, en cuyo case, puede requerirse al
usuario para que adopte las medidas adecuadas.
Attention!
Ceci est un produit de classe A. Dans un environnement domestique,
ce produit pourrait causer des interférences radio, auquel cas
l`utilisateur devrait prendre les mesures adéquates.
Attenzione!
3
Il presente prodotto appartiene alla classe A. Se utilizzato in ambiente
domestico il prodotto può causare interferenze radio, nel cui caso è
possibile che l`utente debba assumere provvedimenti adeguati.
VCCI Warning
BSMI Warning
4
TABLE OF CONTENTS
About This Guide...........................................................................................6
Purpose........................................................................................................6
Terms/Usage...............................................................................................6
Introduction.....................................................................................................7
Fast Ethernet Technology.........................................................................7
Switching Technology..............................................................................7
VLAN (Virtual Local Area Network)....................................................8
Power over Ethernet (PoE).......................................................................9
Features........................................................................................................9
Unpacking and Installation.........................................................................11
Unpacking.................................................................................................11
Installation.................................................................................................11
Rack Mounting.........................................................................................12
Connecting Network Cable ....................................................................13
AC Power..................................................................................................13
Identifying External Components.............................................................14
Front Panel................................................................................................14
Rear Panel.................................................................................................15
Understanding LED Indicators..................................................................16
Power and CPU LEDs.............................................................................16
Ports 1~8 PoE port status LEDs............................................................16
Ports 9~16 Ethernet port status LEDs ..................................................17
5
Configuration................................................................................................18

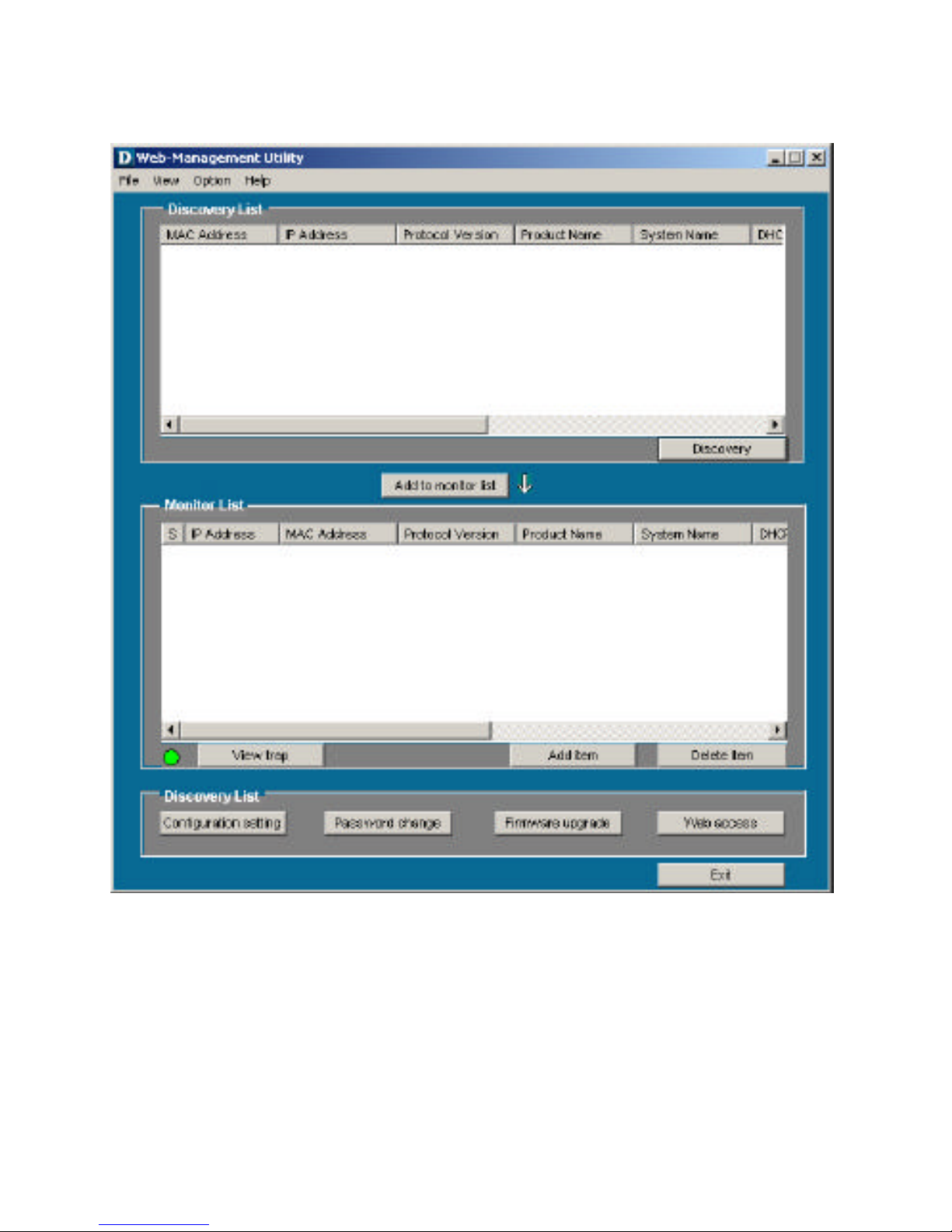

Installing the Web Management Utility...............................................18
Discovery List..........................................................................................20
Monitor List..............................................................................................20
Device Setting..........................................................................................22
Toolbar.......................................................................................................25
Configuring the Switch...........................................................................26

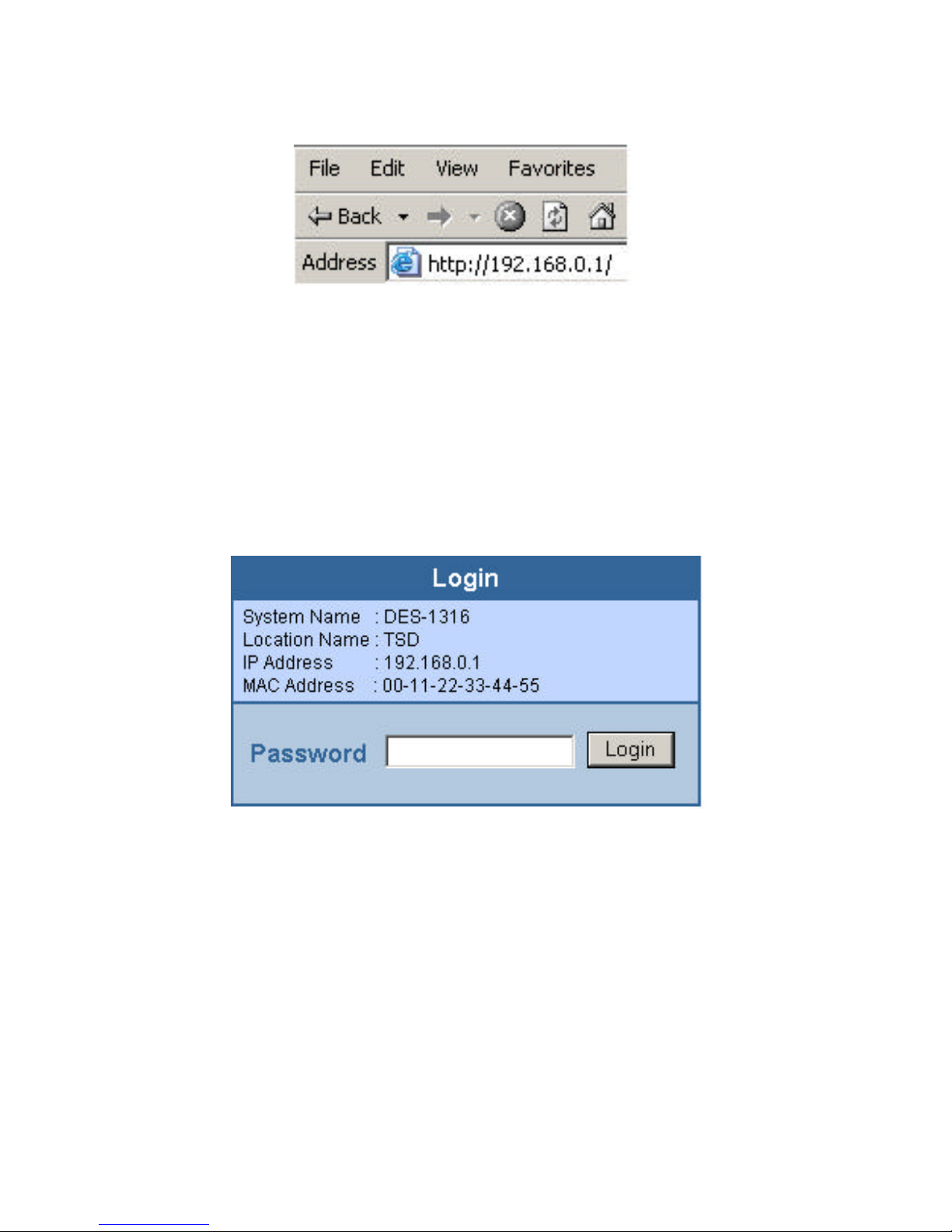

Login ..........................................................................................................26

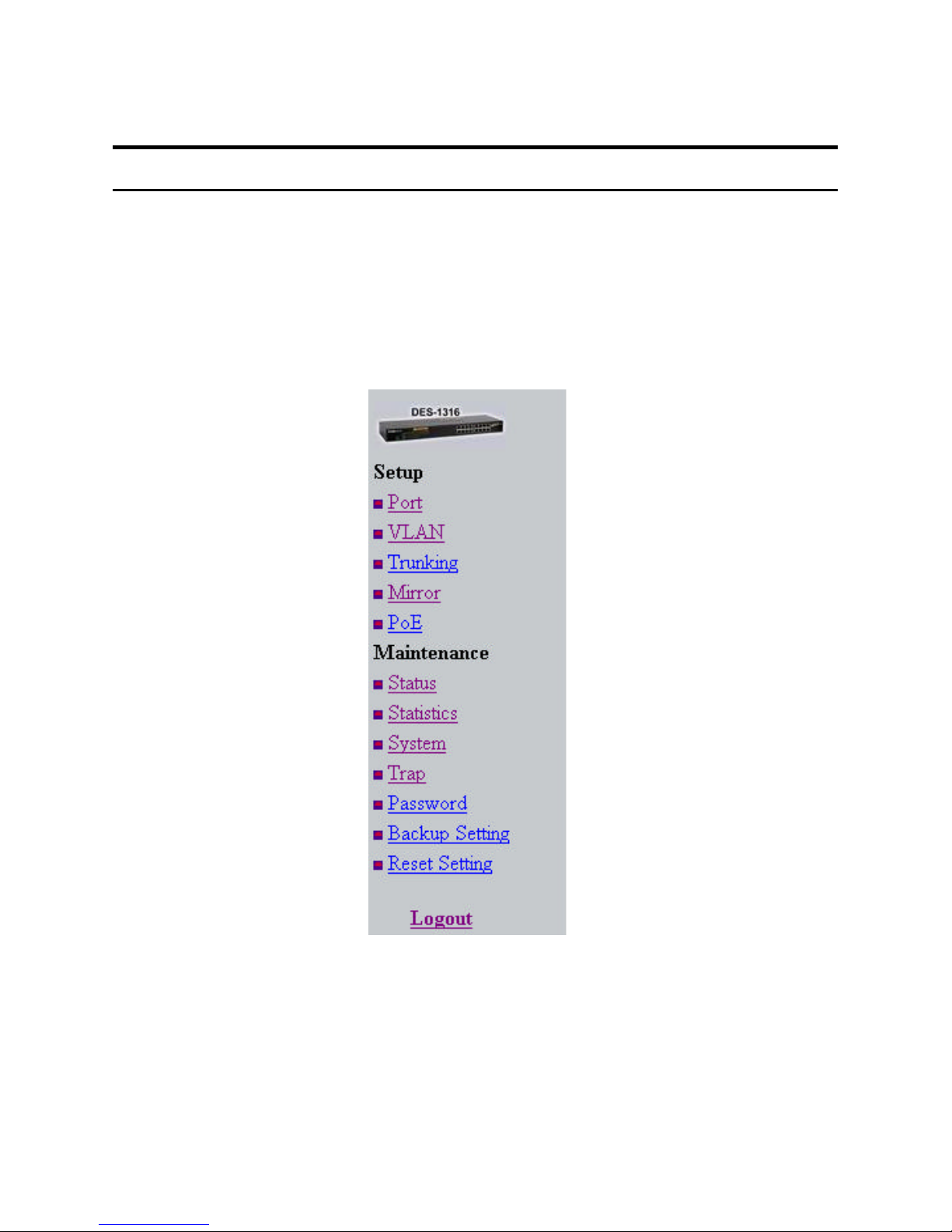

Setup Menu...............................................................................................29
Configuring Setup Setting......................................................................30

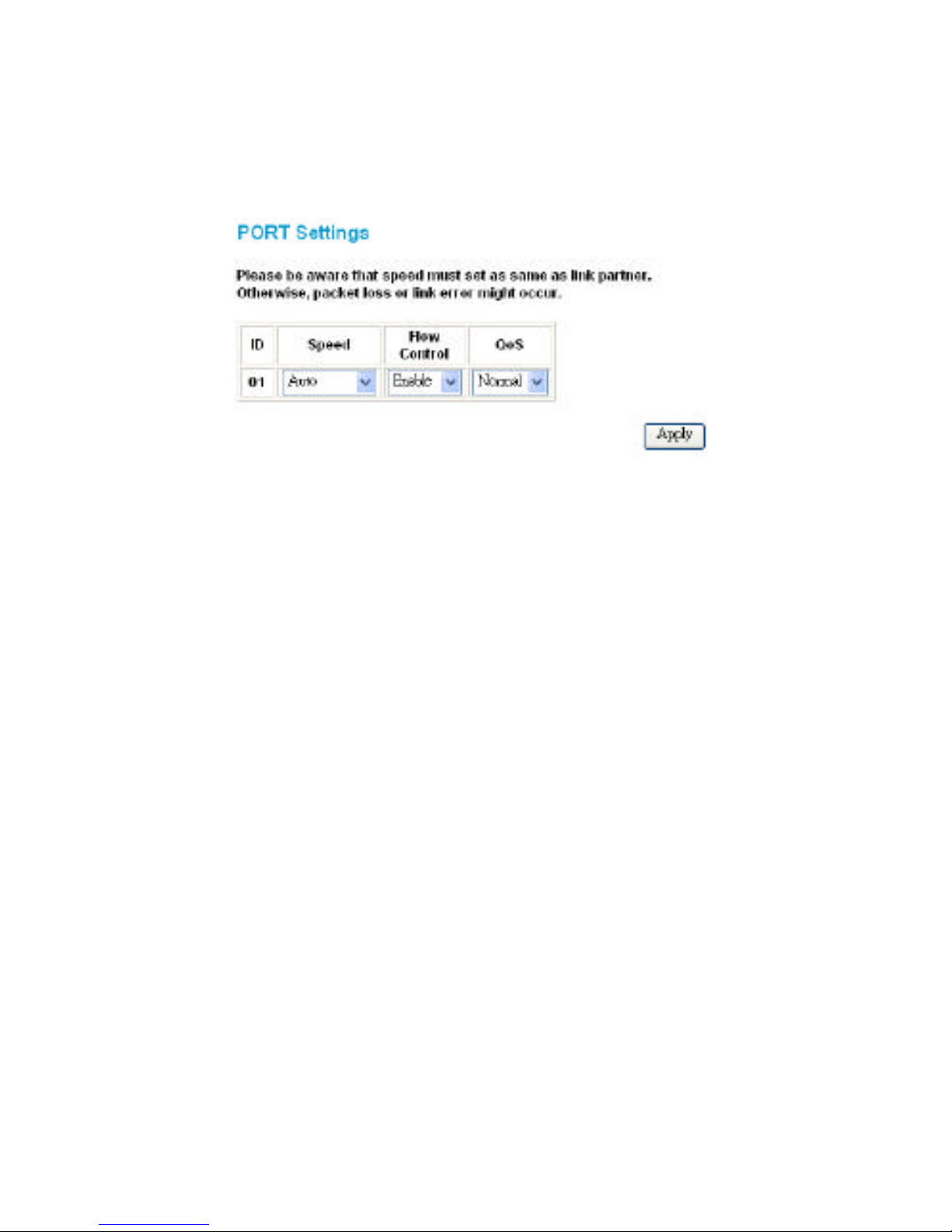

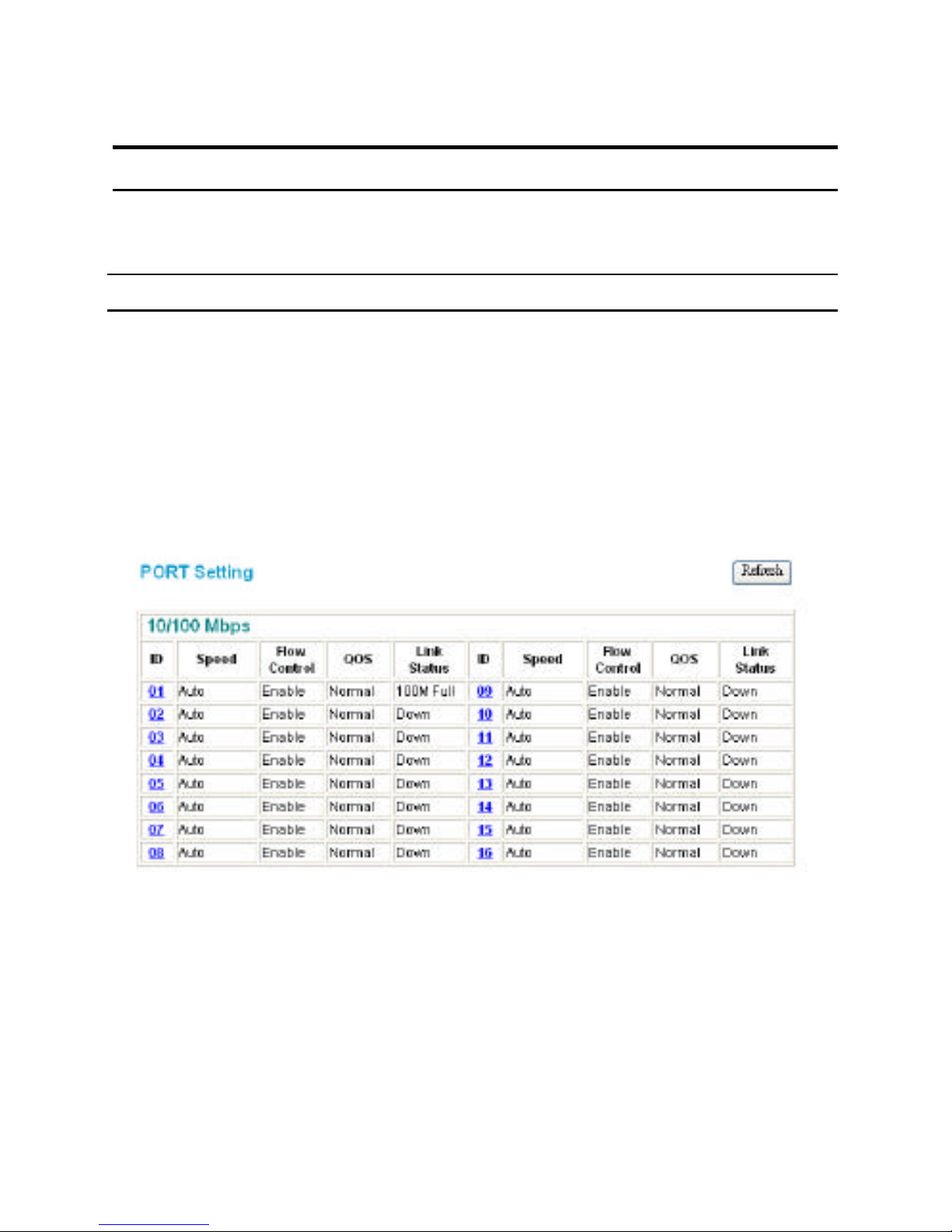

Port Settings.........................................................................................30

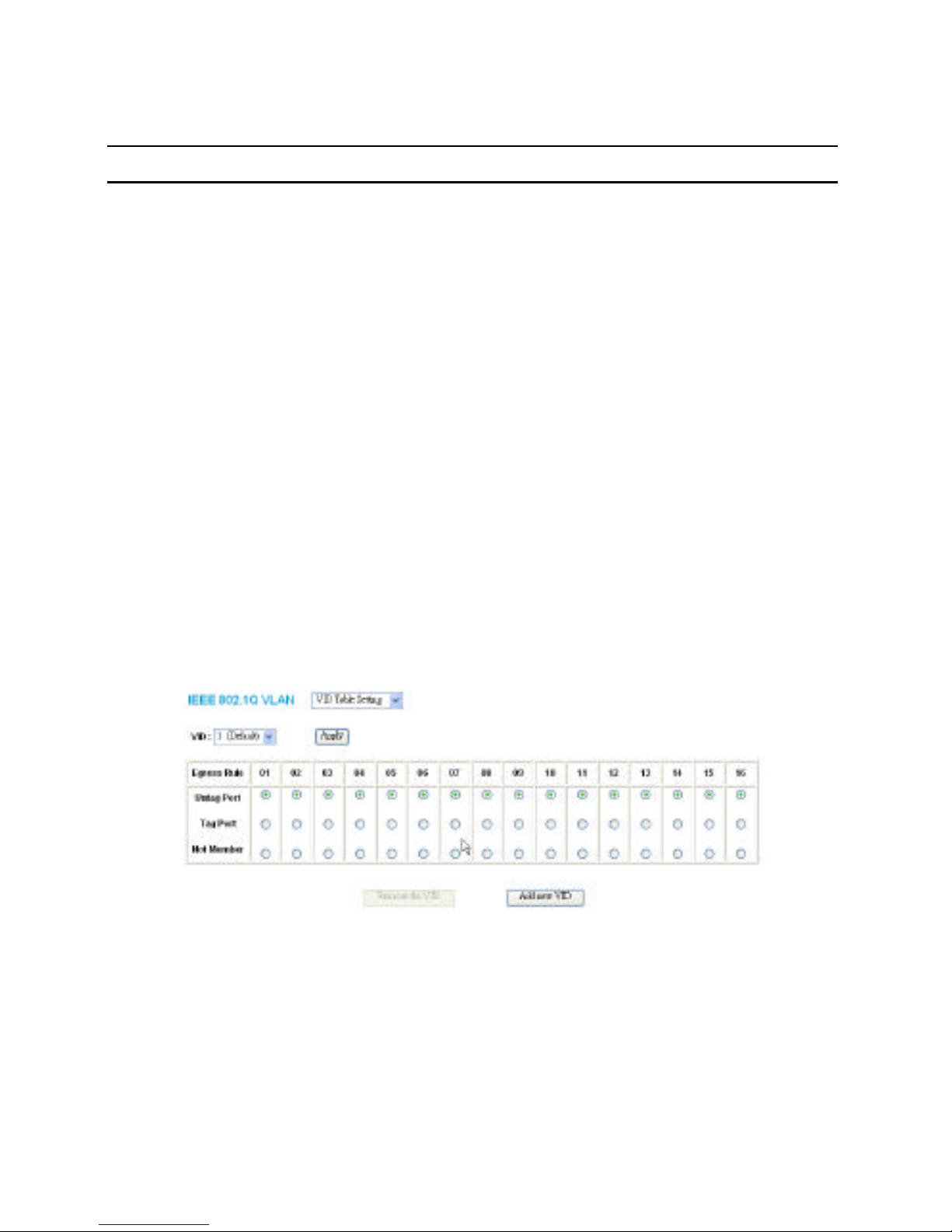

VLAN Settings (Virtual Local Area Network)..............................32
Trunk Setting .......................................................................................33

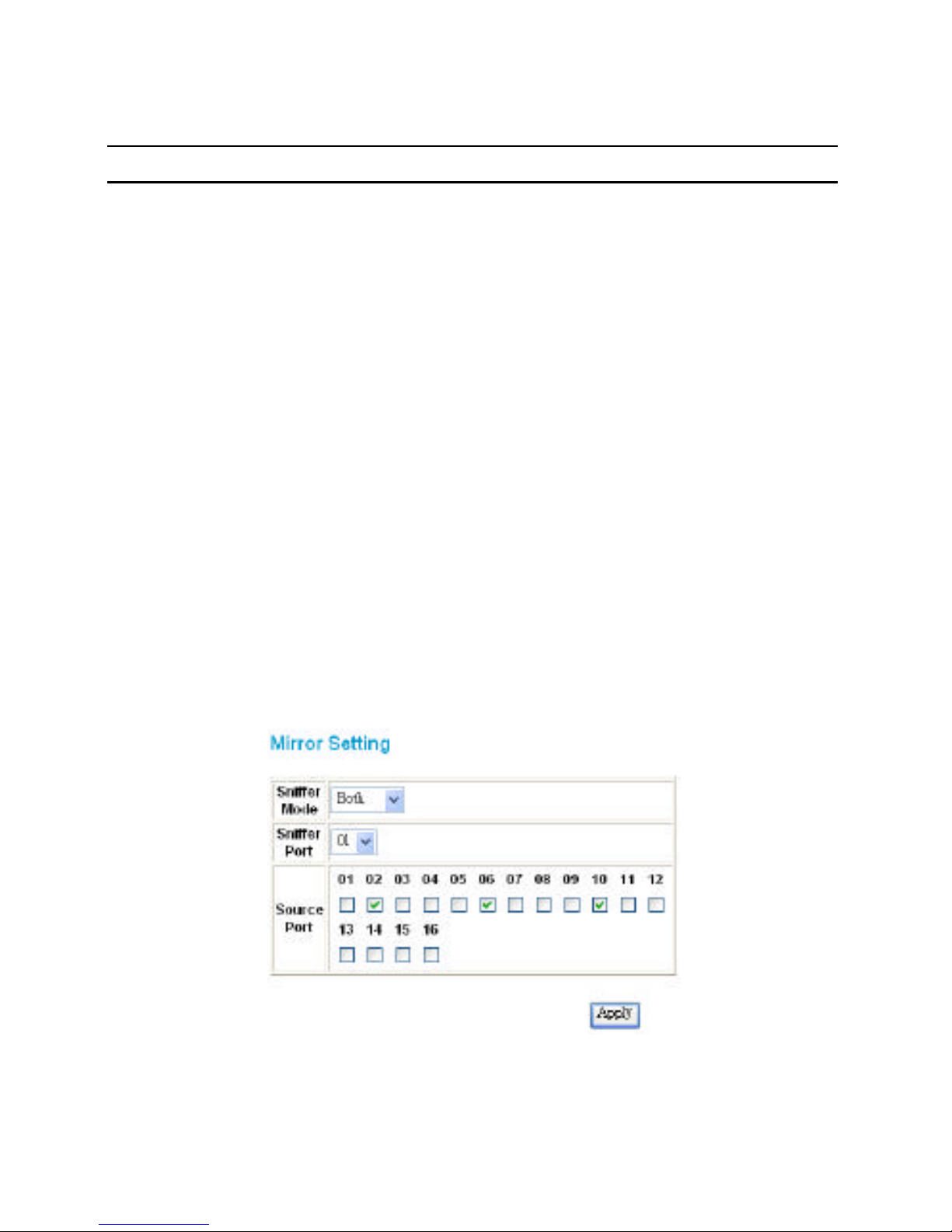

Mirror Setting ......................................................................................34
PoE Setting...........................................................................................35

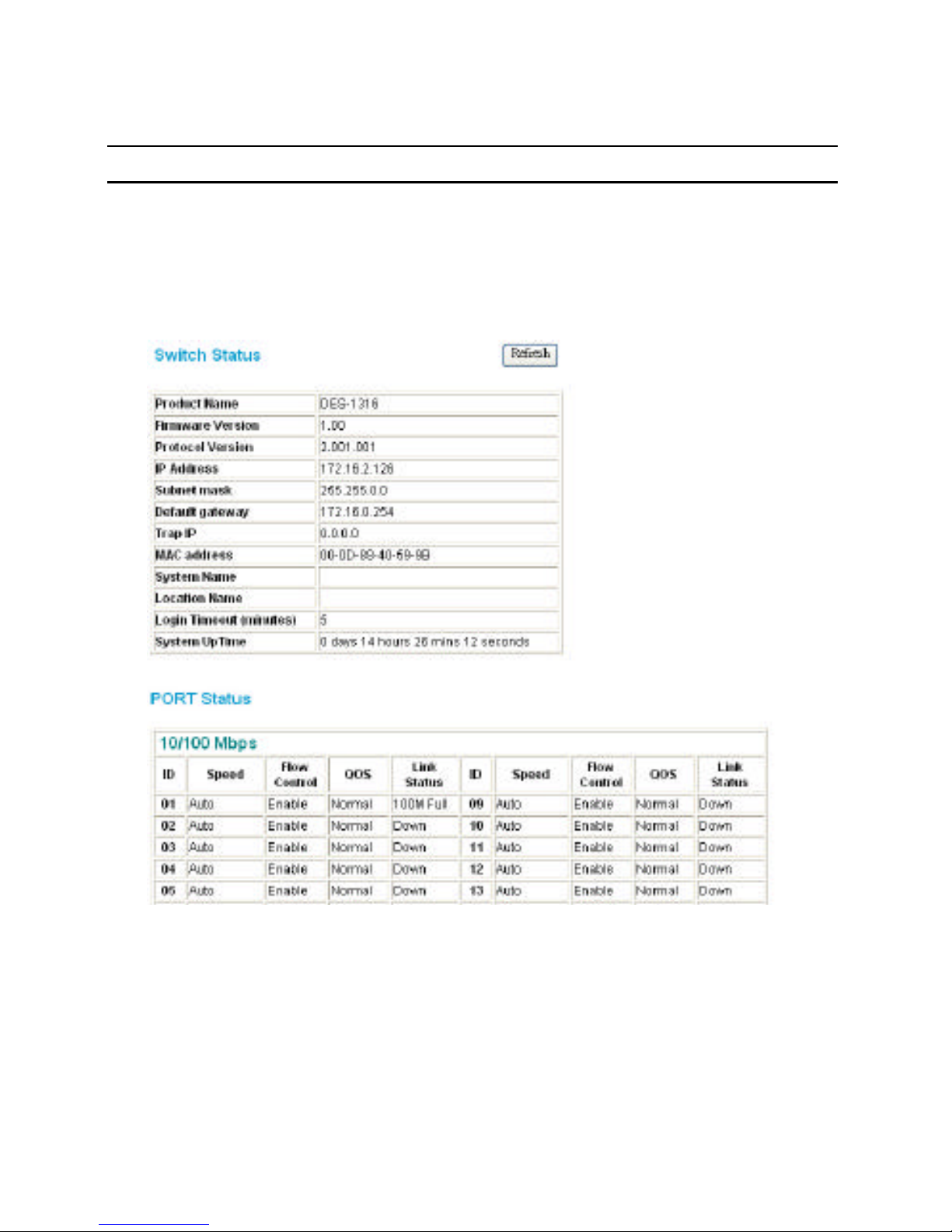

Device Status .......................................................................................36

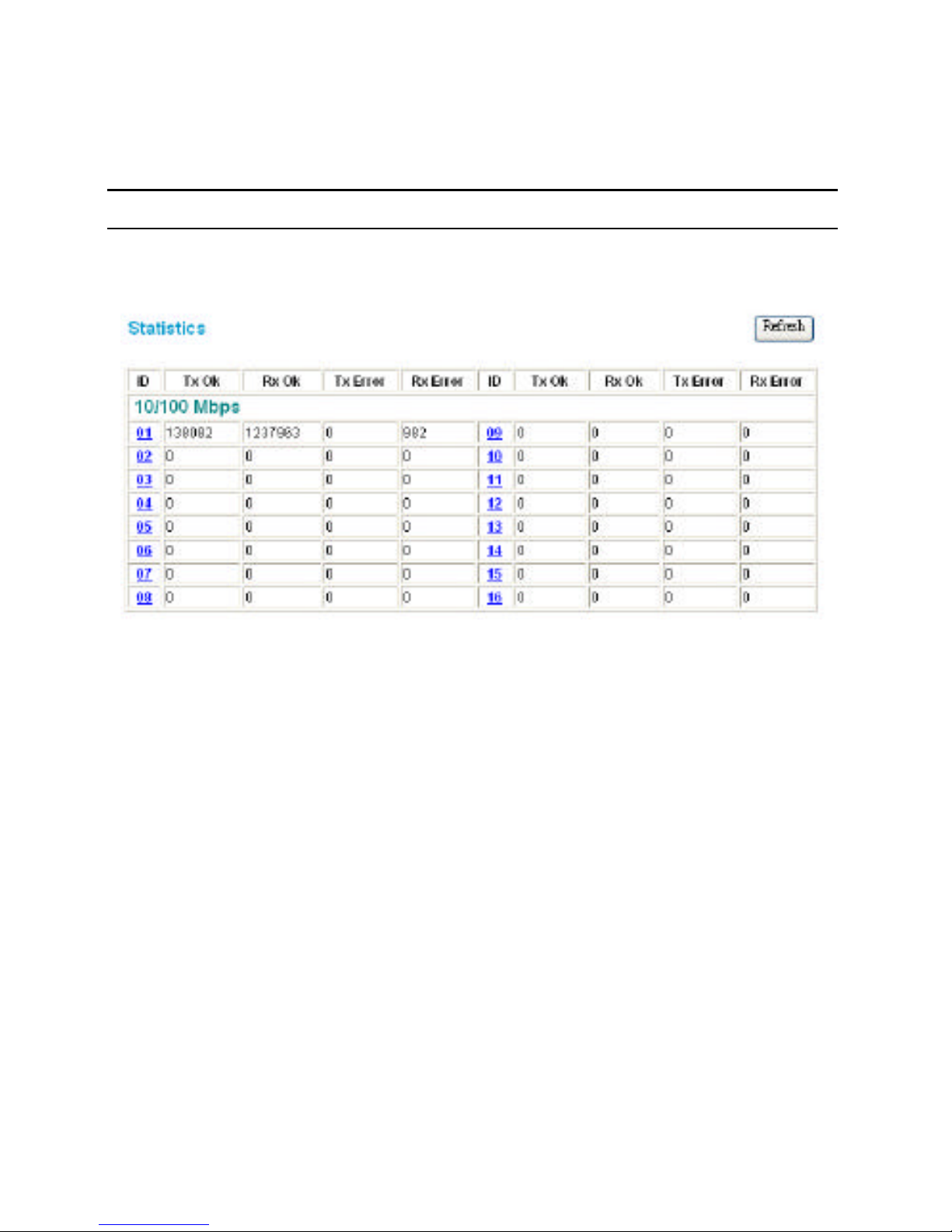

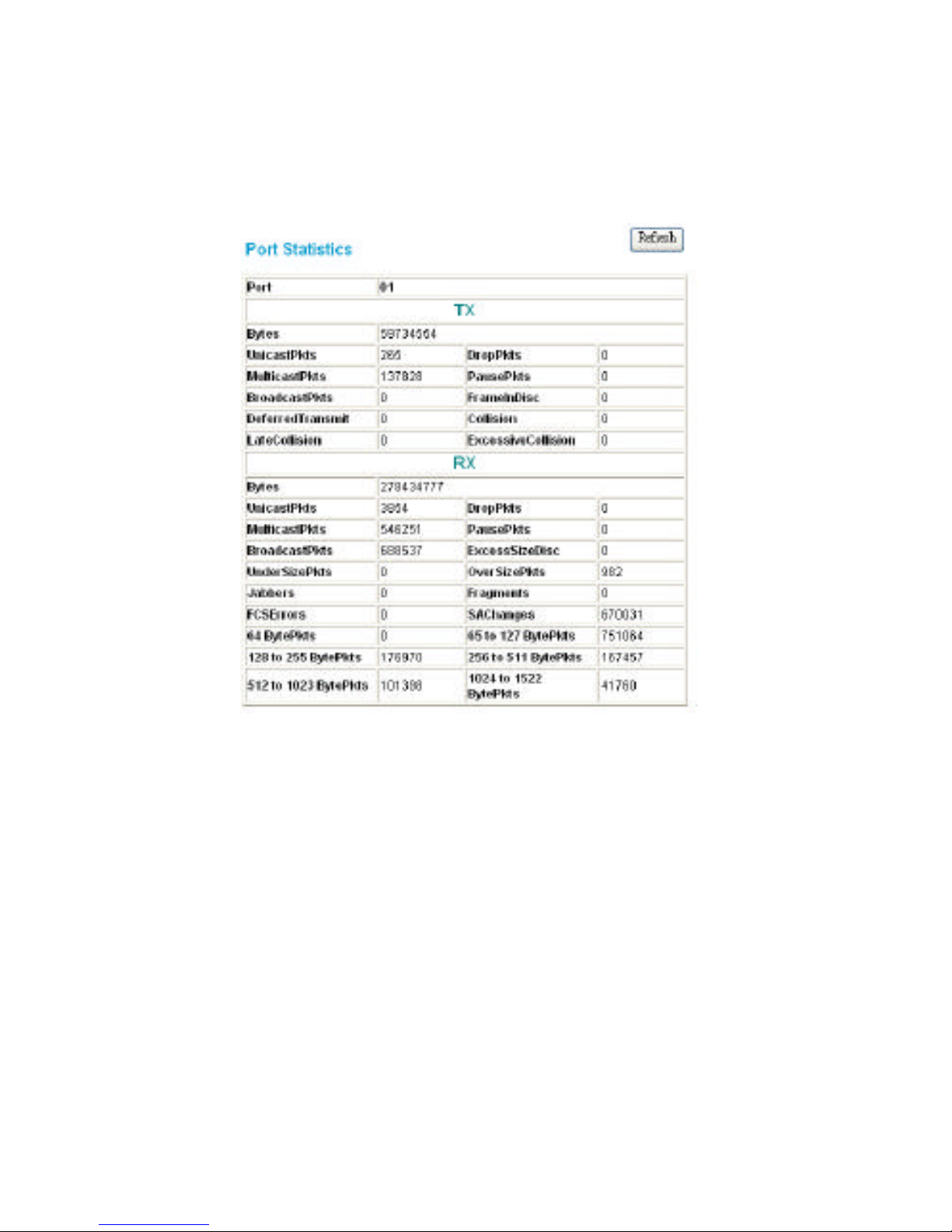

Statistic..................................................................................................37

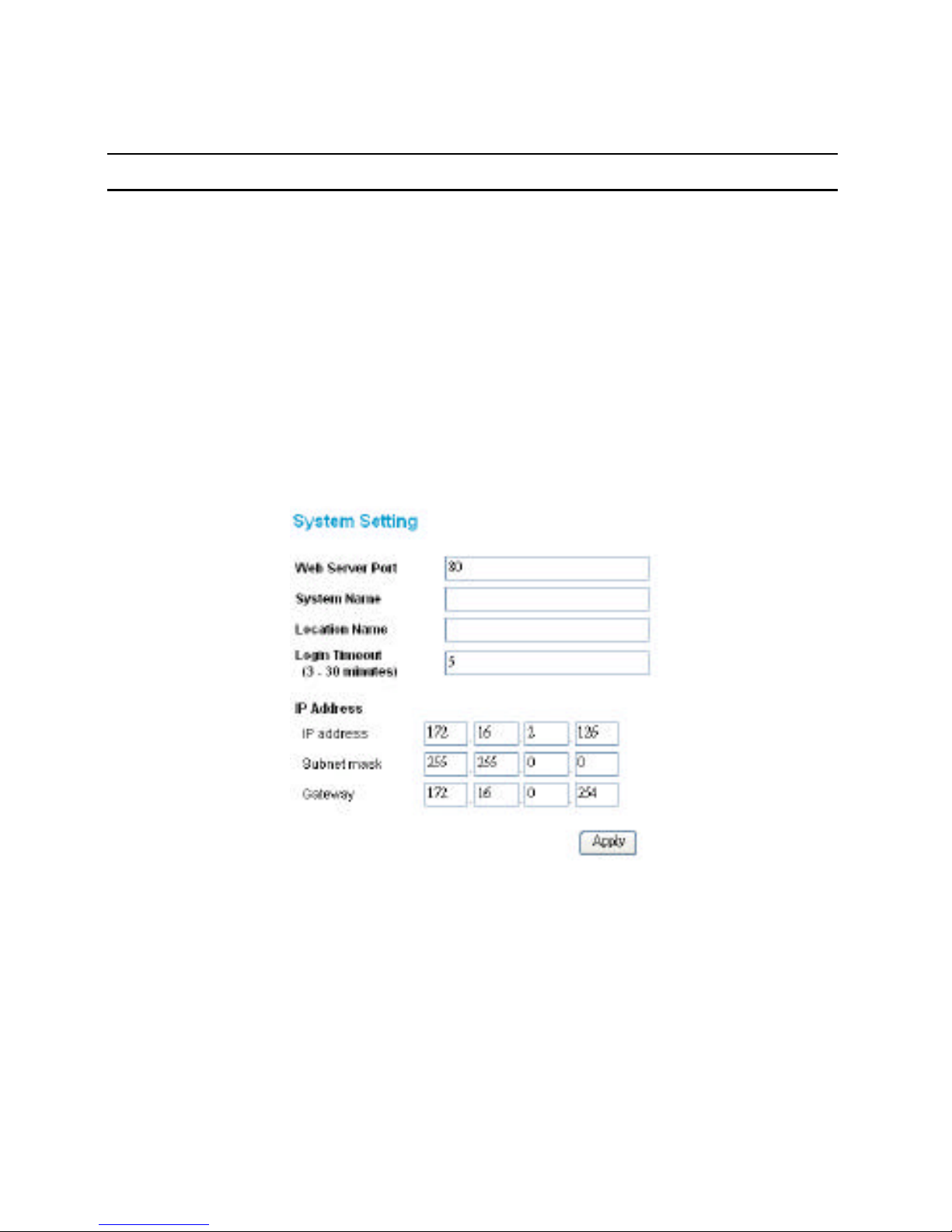

System Setting.....................................................................................39

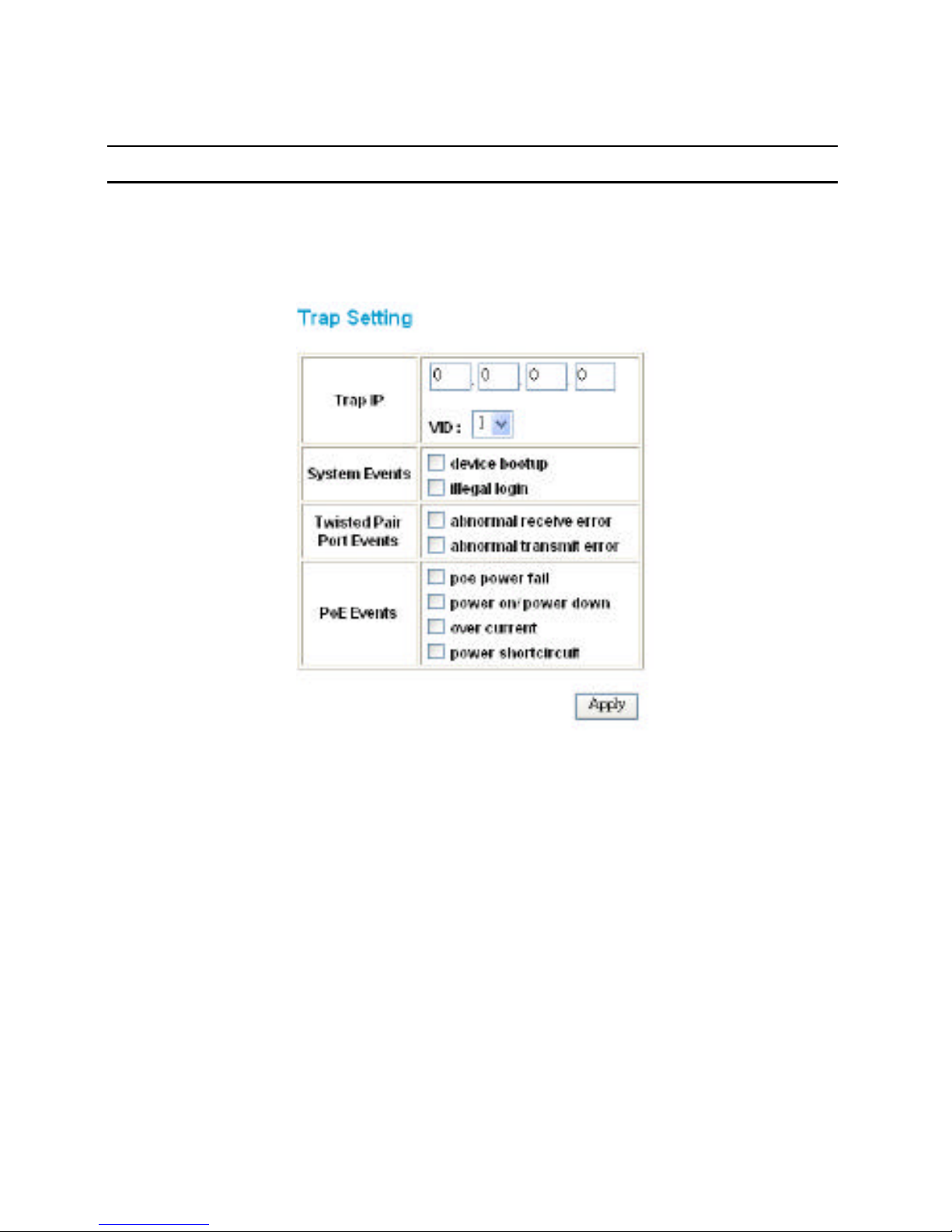

Trap Setting..........................................................................................40

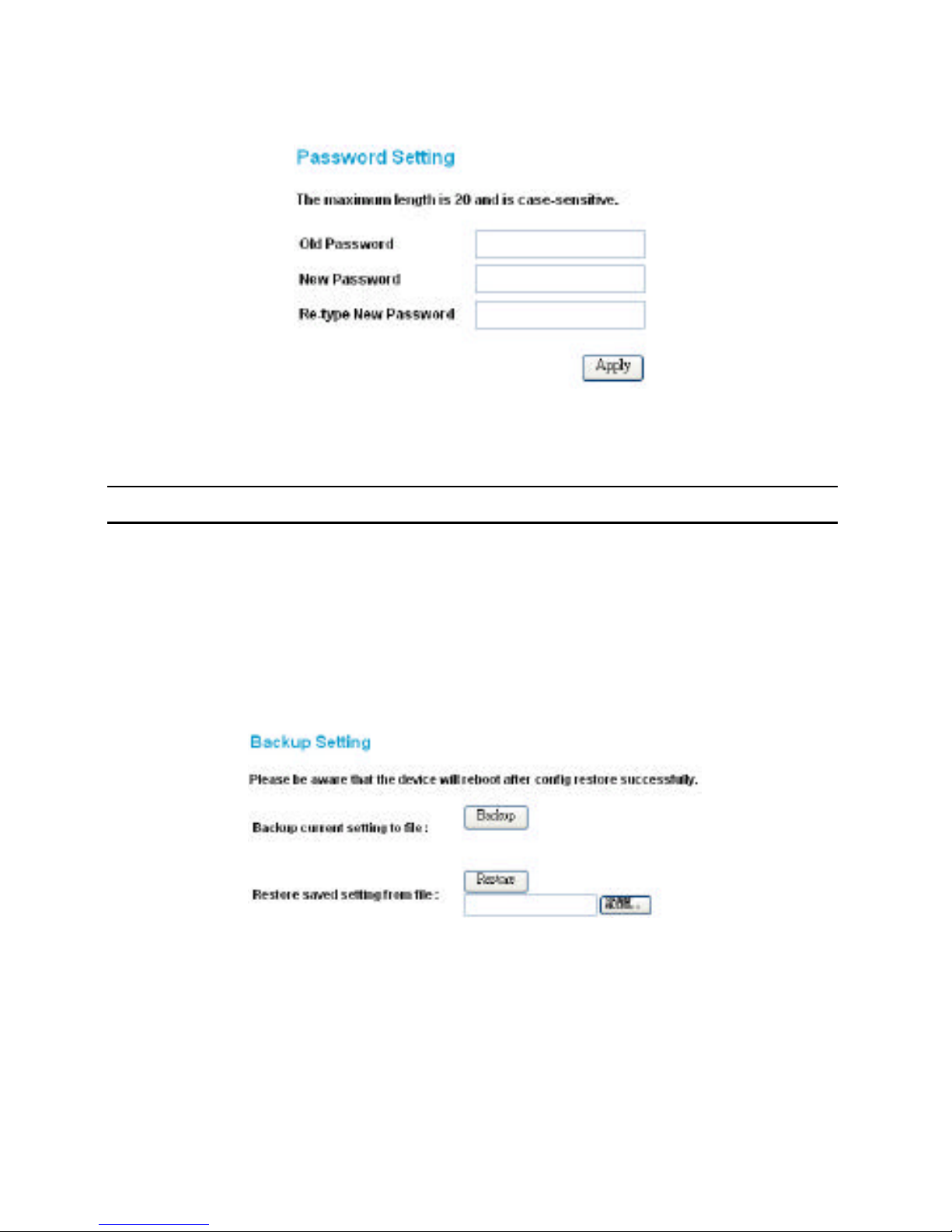

Set Password........................................................................................41
Backup Setting.....................................................................................42

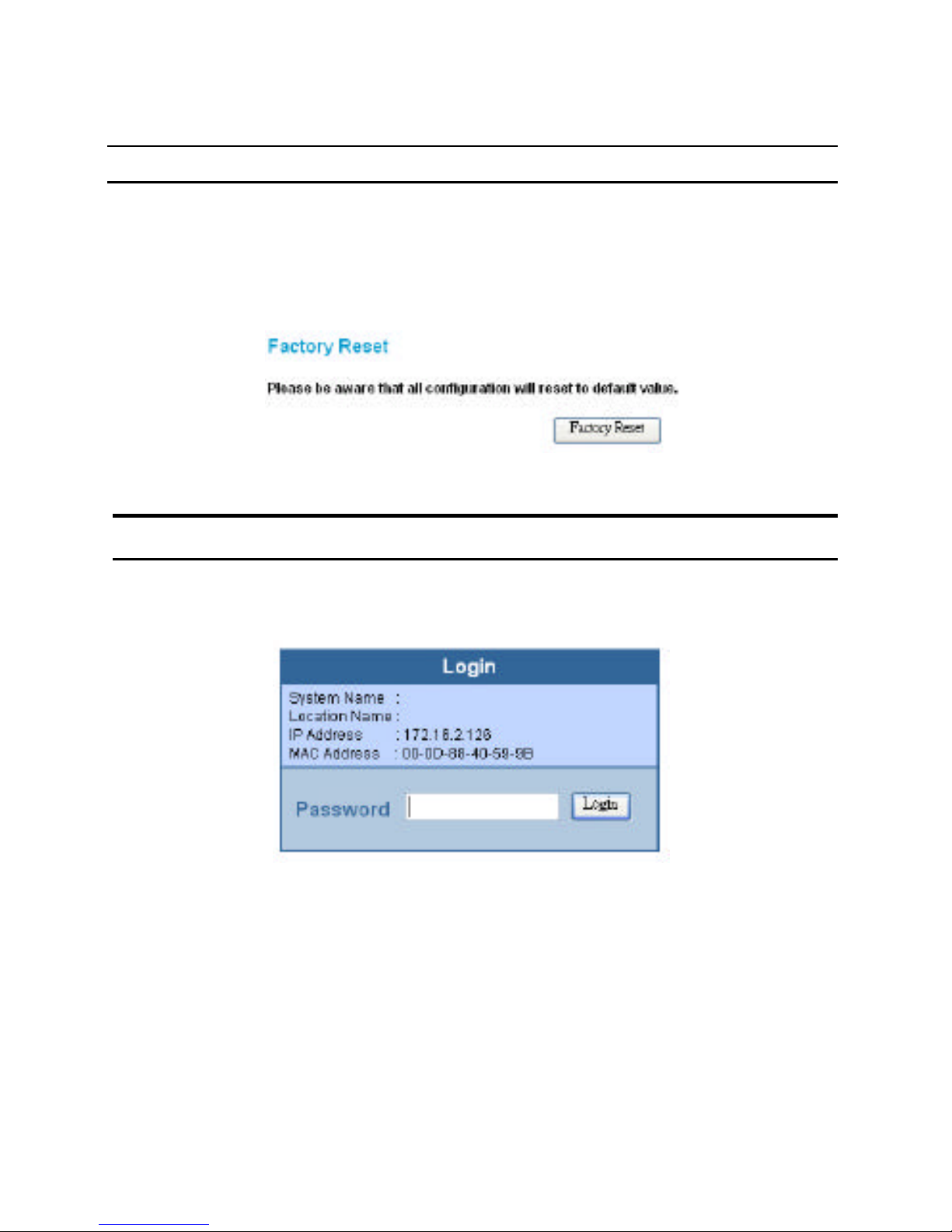

Reset Setting........................................................................................43
Logout........................................................................................................43
Technical Specifications.............................................................................44
6
ABOUT THIS GUIDE
Congratulations on your purchase of the 8-Port 10/100Mbps Ethernet
Web Smart Switch with 8-Port PoE. This Switch integrates 100Mbps
Fast Ethernet and 10Mbps Ethernet network capabilities in a highly
flexible package. Since this Switch’s Port -1 to Port -8 are Power over
Ethernet (PoE) ports, it will automatically detect the presence of IEEE
802.3af-compliant devices and will provide power through Port-1 to
Port-8. The Switch provides 15.4Watts per port and can be connected
to WLAN access point, IP phone, video camera, and other PD devices.
The Switch will automatically detect the network appliance’s
requirements, and the Switch will supply the required power current to
each appliance.
Purpose
This guide discusses how to install your Web-Smart16-Port
10/100Mbps Ethernet Switch.
Terms/Usage
In this guide, the term “Switch” (first letter upper case) refers to your
Web-Smart 8-Port 10/100Mbps Ethernet Web-Smart Switch with 8
10/100Mbps PoE port s and “switch” (first letter lower case) refers to
other Ethernet switches.
7
INTRODUCTION
This chapter describes the features of the Web Smart Switch and some
background information about Ethernet/Fast Ethernet switching
technology.
Fast Ethernet Technology
The growing importance of LANs and the increasing complexity of
desktop computing applications are fueling the need for high
performance networks. A number of high-speed LAN technologies
have been proposed to provide greater bandwidth and improve
client/server response times. Among them, 100BASE-T (Fast Ethernet)
provides a non-disruptive, smooth evolution from the current
10BASE-T technology. The non-disruptive and smooth evolution
nature, and the dominating potential market base, virtually guarantees
cost-effective and high performance Fast Ethernet solutions.
100Mbps Fast Ethernet is a standard specified by the IEEE 802.3
LAN committee. It is an extension of the 10Mbps Ethernet standard
with the ability to transmit and receive data at 100Mbps, while
maintaining the CSMA/CD Ethernet protocol. Since the 100Mbps
Fast Ethernet is compatible with all other 10Mbps Ethernet
environments, it provides a straightforward upgrade and takes
advantage of the existing investment in hardware, software, and
personnel training.
Switching Technology
Another approach to pushing beyond the limits of Ethernet technology
is the development of switching technology. A switch bridges
Ethernet packets at the MAC address level of the Ethernet protocol
8
transmitting among connected Ethernet or Fast Ethernet LAN
segments.
Switching is a cost-effective way of increasing the total network
capacity available to users on a local area network. A switch increases
capacity and decreases network loading by dividing a local area
network into different segments, which do not compete with each
other for network transmission capacity.
The switch acts as a high-speed selective bridge between the
individual segments. The switch, without interfering with any other
segments, automatically forwards traffic that needs to go from one
segment to another. By doing this the total network capacity is
multiplied, while still maintaining the same network cabling and
adapter cards.
Switching LAN technology is a marked improvement over the
previous generation of network bridges, which were characterized by
higher latencies. Routers have also been used to segment local area
networks, but the cost of a router, the setup and maintenance required
make routers relatively impractical. Today switches are an ideal
solution to most kinds of local area network congestion problems.
VLAN (Virtual Local Area Network)
A VLAN is a group of end-stations that are not constrained by their
physical location and can communicate as if a common broadcast
domain, a LAN. The primary utility of using VLAN is to reduce
latency and the need for routers, using faster switching instead. Other
VLAN utilities include:
Security: Security is increased with the reduction of opportunity in
eavesdropping on a broadcast network because data will be switched
to only those confidential users within the VLAN.
9
Cost Reduction: A VLAN can be used to create multiple broadcast
domains, thus eliminating the need of expensive routers.
802.1Q VLAN: The VLAN tagging option is a standard set by the
IEEE to facilitate the spanning of VLANs across multiple switches.
(Reference: IEEE Std 802.1Q-1998 Virtual Bridged Local Area
Networks.)
Power over Ethernet (PoE)
Power over Ethernet (PoE) integrates power and data onto one single
cabling infrastructure, eliminating the need to have AC power
available at all locations.
Power and Data are integrated onto the same cable. Supporting
category 5/5e up to 100 Meters, PoE will provide power to PoE
compatible device, such as IP telephones, wireless LAN access points,
and IP security cameras.
PoE is already widely adopted in the market, saving up to 50% of
overall installation costs by eliminating the need to install separate
electrical wiring and power outlets.
Features
u 8×10/100Mbps Auto-negotiation Fast Ethernet RJ45 ports with 8-
port PoE function (port-1 ~ port-8)
u Compliant with 802.3af specification
u Supports PoE power maximum 15.4W for each PoE port
u Supports PoE Powered Device (PD) classification identify
u Each port supports auto MDI/MDIX, so there is no need to use
cross-over cables or an up-link port
u Full-/half- duplex transfer mode for each port
10
u Wire speed reception and transmission
u Store-and-Forward switching scheme capability to support rate
adaptation and ensure data integrity
u Up to 4K unicast addresses entities per device, self-learning, and
table aging
u 512KBytes packet buffer
u Supports IEEE 802.3x flow control for full-duplex mode ports
u Supports Back-pressure flow control for half-duplex mode ports
u Supports 802.1Q VLAN
u Supports Port based Trunking
u Supports Port-mirroring
u Supports Port-settings for Speed/Duplex, Flow control and Port
based QoS (Quality of Service)
u Easy configuration via Web Browser
u Easy setting via Web Management Utility
u Standard 19” Rack-mount size
11
UNPACKING AND INSTALLATION
This chapter provides unpacking and installation information for the
Switch.
Unpacking
Open the shipping cartons of the Switch and carefully unpacks its
contents. The carton should contain the following items:
One 8-Port 10/100Mbps Ethernet Web Smart Switch with 8-Port PoE
One AC power cord, suitable for your area’s electrical power
connections
Four rubber feet to be used for shock cushioning
Screws and two mounting brackets
CD-ROM with Web Management Utility and Manual
If any item is found missing or damaged, please contact your local
reseller for replacement.
Installation
The site where you install the Switch may greatly affect its
performance. When installing, consider the following pointers:
Install the Switch in a fairly cool and dry place. See Technical
Specifications for the acceptable temperature and humidity opera ting
ranges.
Install the Switch in a site free from strong electromagnetic field
generators (such as motors), vibration, dust, and direct exposure to
sunlight.
12
Leave at least 10cm of space at the front and rear of the Switch for
ventilation.
Install the Switch on a sturdy, level surface that can support its weight,
or in an EIA standard-size equipment rack. For information on rack
installation, see the next section, titled Rack Mounting.
When installing the Switch on a level surface, attach the rubber feet to
the bottom of each device. The rubber feet cushion the Switch and
protect the case from scratching.
Rack Mounting
The Switch can be mounted in an EIA standard-size, 19-inch rack,
which can be placed in a wiring closet with other equipment. Attach
the mounting brackets at the Switch’s front panel (one on each side),
and secure them with the provided screws.
Figure 1. Combine the Switch with the provided screws.
Then, use screws provided with the equipment rack to mount each
switch in the rack.
Figure 2. Mount the Switch in the rack.
13
Connecting Network Cables
The Switch supports 16 10/100Mbps Ethernet ports and Ports 1 ~ 8
are PoE Enabled ports. These PoE ports will be automatically
activated when a compatible terminal is identified. The Switch will
supply power through the Ethernet port to the connected PoE device.
For Legacy devices that are not yet compatible , the PoE port will not
offer the power to these devices. This feature allows users to freely
and safely mix legacy and Power over LAN compatible devices on
their network.
The Switch supports 10Mbps Ethernet or 100Mbps Fast Ethernet and
it runs both in half- and full- duplex mode using two pairs of Category
5 cables.
These RJ45 ports are Auto-MDI type port. The Switch can auto
transform to MDI-II or MDI-X type, so you can just make an easy
connection without worrying if you are using a standard or crossover
RJ45 cable.
AC Power
The Swit ch uses the AC power supply 100 -240V AC, 50 -60 Hz. The
power switch is located at the rear of the unit adjacent to the AC
power connector and the system fan. The Switch’s power supply will
adjust to the local power source automatically and may be turned on
without having any or all LAN segment cables connected.
14
IDENTIFYING EXTERNAL COMPONENTS
This chapter describes the front panel, rear panel, and LED indicators
of the Switch.
Front Panel
The figure below shows the front panels of the Switch.
Figure 3. Front panel of 8-port 10/100 Ethernet Switch with 8-port PoE.
LED Indicator:
Comprehensive LED indicators display the status of the Switch and
the network (see the LED Indicators chapter below).
PoE Ports (Port 1~8):
These ports are PoE Enabled ports. The PoE port will be automatically
activated when a compatible terminal is identified, and the Switch will
supply power through the Ethernet port to the connected PoE device.
For Legacy devices that are not yet compatible , the PoE port will not
offer the power to these devices. This feature allows users to freely
and safely mix legacy and Power over LAN compatible devices on
their network.
These ports support network speeds of either 10Mbps or 100Mbps,
and can operate in half - and full - duplex transfer modes. These ports
also support the automatic MDI/MDIX crossover detection function,
providing true “plug and play” capability. Just plug-in the network
cable to the Switch directly regardless if the end node is a NIC
(Network Interface Card) or switch and hub.
15
Ethernet Ports (Port 9~16):
These ports support network speeds of either 10Mbps or 100Mbps,
and can operate in half - and full - duplex transfer modes. These ports
also support the automatic MDI/MDIX crossover detection function,
providing true “plug and play” capability. Just plug-in the network
cable to the Switch directly regardless if the end node is a NIC
(Network Interface Card) or switch and hub.
Note: When the port is set to “Forced Mode”, Auto MDI/MDIX will
be disabled.
Rear Panel
AC Power Connector
Reset Button
Figure 4. Rear panel of the Switch
AC Power Connector:
This is a three-pronged connector that supports the power cord. Plug
in the female connector of the provided power cord into this connector,
and the male into a power outlet. Supported input voltages range from
100-240V AC at 50-60Hz.
Reset:
The Reset button is to reset all settings back to the factory defaults.
Note: Be sure that you recorded the settings of your device, as all
settings will be erased when pressing the “Reset” button.
16
UNDERSTANDING LED INDICATORS
The front panel LEDs provide instant status feedback, and helps
monitor and troubleshoot when needed.
Figure 5. LED indicators of the Switch
Power and CPU LEDs
POWER: Power Indicator
On : When the Power LED lights on, the Switch is receiving power.
Off : When the Power turns off or the power cord has improper connection.
CPU: Management Indicator
Blinking : When the CPU is working, the CPU LED is blinking.
On/Off : The CPU is not working.
Ports 1~8 PoE port status LEDs
Link/ACT: Link/Activity
On :
When the Link/ACT LED lights on, the respective port is
successfully
connected to an Ethernet network.
Blinking :
When the Link/ACT LED
is blinking, the port is transmitting or
receiving data on the Ethernet network.
Off : There is no link.
Loading...
